Two Filters for Acquiring the Profiles from Images Obtained from Weak-Light Background, Fluorescence Microscope, Transmission Electron Microscope, and Near-Infrared Camera

Abstract

Extracting the profiles of images is critical because it can bring simplified description and draw special attention to particular areas in the images. In our work, we designed two filters via the exponential and hypotenuse functions for profile extraction. Their ability to extract the profiles from the images obtained from weak-light conditions, fluorescence microscopes, transmission electron microscopes, and near-infrared cameras is proven. Moreover, they can be used to extract the nesting structures in the images. Furthermore, their performance in extracting images degraded by Gaussian noise is evaluated. We used Gaussian white noise with a mean value of 0.9 to create very noisy images. These filters are effective for extracting the edge morphology in the noisy images. For the purpose of a comparative study, we used several well-known filters to process these noisy images, including the filter based on Gabor wavelet, the filter based on the watershed algorithm, and the matched filter, the performances of which in profile extraction are either comparable or not effective when dealing with extensively noisy images. Our filters have shown the potential for use in the field of pattern recognition and object tracking.

1. Introduction

Extracting the profiles of images is important in the field of image enhancement. It is critical in image division and target identification. It can provide information on key areas and the shape of targets. At the same time, it can be used to eliminate insignificant information. This is significant in this age of the metaverse, where professionals face challenges of processing the huge amounts of images stemming from industrial and personal applications.

Extracting profiles from images is a tough task, especially when the images contain rough noise and subjects in low contrast. Traditional ways of profiles extraction include using the operators of Roberts, Prewitt, Sobel, Canny, Laplacian, and LoG. When we look back to these operators, we found that they show several disadvantages. For example, they can present wrong regions of the edge or lead to rough edges and corrupted profiles [1]. Several efficient methods have been developed to overcome these issues. One group used quantum computation to extract image profiles, where flexible representation of quantum is used to construct robust algorithms [2]. Another group created fuzzy methods for extracting image profiles [3], which are demonstrated to consume little electric power and are extremely accurate. Additionally, researchers have used the concept of neural networks to develop new ways of obtaining the edge of the image [4,5,6,7,8,9]. For instance, a spiking neuron has been used to developed methods of detecting infrared images [4]. The technique of convolutional neural networks is applied to find the target in the images [5].

Furthermore, mathematical functions are widely studied for image extraction. One group used the Hausdorff derivative for image edge extraction, which shows better performance than the Sobel/Canny operator [10]. Another group developed an effective method via cooperative game formulation [11]. Other groups used wavelets to highlight the areas of interest in the images [12,13,14]. It is interesting to find out that the wavelets can be combined with spatial filtering in order to analyze the subjects possessing interrupted features [15,16,17,18]. It should be noted that these modified functions can lead to clear and continuous morphologies. This inspires us to believe that creating special functions may be a good way of obtaining the boundary of the image.

We hypothesized that reliable functions can be created to extract the boundaries of figures even if they contain a lot of noise. This prompted us to consider modifying and combining several popular functions, with the goal of creating a unique framework for filtering the frequency domain brought by wavelets transform. Multiple parameters related to the phase or the magnitude of the special functions would be widely employed to perform an efficient extraction of the profiles.

In addition, this method will be tested in practical applications, where acquiring clear profiles from the images with high degradation or weak light is challenging. We also chose to process the images acquired from a fluorescence microscope and a transmission electron microscope. This can be useful for the daily operation of acquiring the images obtained from fluorescence microscopes and transmission electron microscopes, where extensive noise can exist due to the contamination of the samples or inappropriate defocusing of the light or electron beam.

To accomplish this, we herein report two types of special functions to extract the profiles in the images. It should be mentioned that our way of obtaining the extracted profiles is not created with the intention to challenge the foundation of the current methods of profile extraction. Indeed, they are only supplements to current approaches. They contain mathematical functions that can be adjustable, which make them very useful for dealing with noisy images.

In our search for effective functions, two special functions were obtained which can be used to eliminate noise and extract the image boundary simultaneously. The next section is about the methods of building two kinds of special-function-based filters. In Section 3, images are processed by these two filters. The boundaries of the images can be extracted successfully. Their performance is then compared with several popular filters. Their application in processing images obtained from weak-light environments, a fluorescence microscope and a transmission electron microscope are shown. Finally, we discuss the advantages of using these filters for processing the images. They are envisioned to play an important role in medical imaging and target identification.

2. Methods

A fluorescence microscope (manufacturer: OLYMPUS, Tokyo, Japan, model: CKX41) was used to acquire the fluorescence image. Raw TEM images were obtained using a JEOL 1400 TEM (120 kV) (Tokyo, Japan). A solid-state laser (manufacturer: Gainlaser, Shenzhen, China, model: TR-A-IR10) whose emitting wavelength is 1046 nm was used for irradiating samples. A near-infrared CMOS camera (manufacturer: Zhongweiaoke, Shenzhen, China, model: 1080p) was used for obtaining near-infrared images.

With the objective of extracting the profiles of the images, we begin to test several functions. It is tough to obtain correct profiles in noisy images. We wish to develop a framework that can be used for processing the image when Gaussian white noise of a very high mean value is applied. Furthermore, we seek those frameworks which can be useful for extracting profiles from images in different circumstances.

2.1. Building a Filter Based on Exponential Function

In the following, we build a filter based on the exponential function, which is called the Exp filter, to exact the profiles from the image. This filtering processing was started from wavelets decomposition. We applied the wavelets decomposition to the pixel values of the input image. This generated a set of coefficient values, which is called u(m,n). Then, we used the following form of the exponential function to obtain the value of x(m,n):

$$x\left(m,n\right)={[a\times e^{\frac{d\left(u\left(m,n\right)-b\right)}{g}}]}^{\mathit{nn}}$$

(1)

Here, m, n, nn, a, d, b, and g are constants. We used the values of x(m,n) for wavelets recreation and constructed a new image.

The detailed algorithm is shown in Algorithm 1.

Algorithm 1. The algorithm of the Exp filter

1: An image in JPG format is used.

2: The image is converted into a gray image.

3: The gray image is resized to be 1440 × 2560.

4: We perform the wavelet transform using the pixels value of the gray image and get the coefficient value of u(m,n).

5: We calculate the new coefficient value x(m,n) using the equation of $x\left(m,n\right)={[a\times e^{\frac{d\left(u\left(m,n\right)-b\right)}{g}}]}^{\mathit{nn}}$. d, b, g, and nn are all constants.

6: We calculate the inverse of wavelets transform using the value of x(m,n) and get new pixels values of xx(m,n).

7: We show the processed image using the values of xx(m,n).

2.2. Building a Filter Based on Hypotenuse Function

We designed a filter based on the hypotenuse function, which is called the Hypot filter, to extract the profiles of the image. Similarly, the wavelets decomposition was applied to process the pixel values of the image. After this, we obtained the coefficient value of u(m,n). Then, we used the combination of the cotangent function, hyperbolic sine function, inverse hyperbolic secant function, sine function, inverse hyperbolic cosine function, hyperbolic tangent function, and hypotenuse functions in order to obtain the new coefficient value of u₆(m,n), whose calculation is shown as follows:

$${u_1(m,n)=a}_1\times \cot \left(a_2\times u\left(m,n\right)+a_3\right)+a_4\times \sinh (a_5\times u\left(m,n\right)+a_6)$$

(2)

$$u_2\left(m,n\right)=a_7\times \mathrm{asech}(a_8\times u\left(m,n\right)+a_9)$$

(3)

$$u_3\left(m,n\right)=a_{10}\times \sin \left(u\left(m,n\right)+a_{12}\right)+{a_{13}\times \mathrm{acosh}(a}_{14}\times u\left(m,n\right)+a_{15})+a_{16}\times \tanh (u\left(m,n\right)+a_{17})$$

(4)

$${u_4(m,n)=a}_{18}\times \tanh \left(a_{19}\times u\left(m,n\right)+a_{20}\right)$$

(5)

$$u_5\left(m,n\right)={(a}_{21}\times \mathrm{hypot}[u_1\left(m,n\right),u_2\left(m,n\right)])\times (1+u_4(m,n))$$

(6)

$${u_6\left(m,n\right)=[\frac{u_5\left(m,n\right)}{u_3\left(m,n\right)}]}^{a_{22}}$$

(7)

Here, a₁, a₂, a₃, a₄, a₅, a₆, a₇, a₈, a₉, a₁₀, a₁₁, a₁₂, a₁₃, a₁₄, a₁₅, a₁₆, a₁₇, a₁₈, a₁₉, a₂₀, a₂₁, and a₂₂ are constants. cot means cotangent function. sinh stands for the hyperbolic sine function. asech represents the inverse hyperbolic secant function. sin means the sine function. acosh means the inverse hyperbolic cosine function. tanh stands for the hyperbolic tangent function. hypot means the hypotenuse function.

The value of u₆(m,n) was used for the inverse of wavelet transform in order to make a new image. The algorithm is shown in Algorithm 2.

Algorithm 2. The algorithm of the Hypot filter

1: An image in JPG format is used.

2: We convert the image into a gray image.

3: We perform wavelet transform using the pixels value of the gray image and get the coefficient value of u(m,n).

4: We calculate the new coefficient value u5(m,n) using the following equations:

${u_1(m,n)=a}_1\times \cot \left(a_2\times u\left(m,n\right)+a_3\right)+a_4\times \sinh (a_5\times u\left(m,n\right)+a_6)$

$$\begin{gathered} u_2\left(m,n\right)=a_7\times \mathrm{asech}(a_8\times u\left(m,n\right)+a_9) \\ {u}_3\left(m,n\right)=a_{10}\times \sin \left(u\left(m,n\right)+a_{12}\right)+ \end{gathered}$$

${a_{13}\times \mathrm{acosh}(a}_{14}\times u\left(m,n\right)+a_{15})+a_{16}\times \tanh (u\left(m,n\right)+a_{17})$

${u_4(m,n)=a}_{18}\times \tanh \left(a_{19}\times u\left(m,n\right)+a_{20}\right)$

$$\begin{gathered} u_5\left(m,n\right)={(a}_{21}\times \mathrm{hypot}[u_1\left(m,n\right),u_2\left(m,n\right)])\times (1+u_4(m,n)) \\ {u_6\left(m,n\right)=[\frac{u_5\left(m,n\right)}{u_3\left(m,n\right)}]}^{a_{22}}. \end{gathered}$$

5: We calculate the inverse of wavelet transform using the value of u6(m,n) and get the new pixels values of yy(m,n).

6: We show the processed image using the values of yy(m,n).

3. Results

We will use our filters to process the degraded image and the image acquired from weak-light sources, a fluorescence microscope, and a near-infrared camera.

3.1. Processing the Images with High Degradation by Gaussian Noise

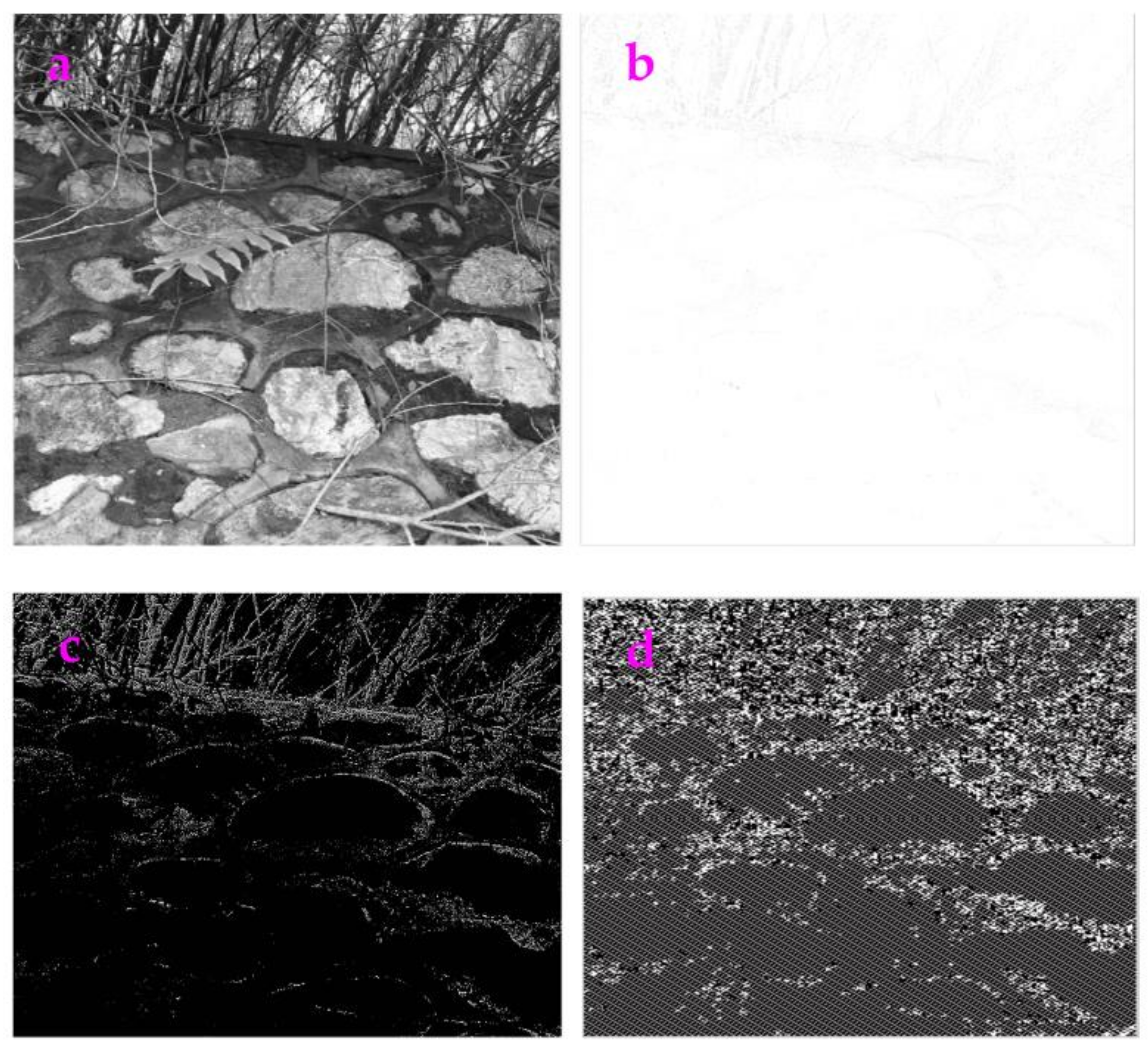

As shown in Figure 1a,b, we added Gaussian noise to the image of Rock and made a degraded figure. The Exp and Hypot filters can be used to extract a clear profile from this degraded figure. The circle-like profiles representing rocks can be seen.

In order to evaluate the effect of the enhancement for the image, we used the values of “measurement by entropy (ME)” and “Michelson contrast” [19]. ME can be obtained using the minimum (m₁) and maximum (m₂) values of the intensity in every block of the image:

$$U_i=20\times \log \left(\frac{m_2}{m_1}\right)$$

(8)

$$\mathit{ME}=(\sum _{i=1}^N{U}_i)/n$$

(9)

The Michelson contrast (MC) can be calculated as follows:

$$\mathit{MC}=(m_3-m_4)/(m_3+m_4)$$

(10)

Here, m₃ is the highest intensity value of the image. m₄ is the lowest intensity value of the image.

The value of ME and MC for the image Rock is shown in

Table 1. Evaluation of the filters for the image Rock.

Filters	ME	Michelson Contrast
Exp	0.0217	1
Hypot	34.3448	1

. We can see that the ME value of the Exp filter is smaller than that of the Hypot filter. This indicates that the filtering impact of the Hypot filter is higher than that of the Exp filter. The MC value for these two filters is equal.

3.2. Processing the Weak-Light Images

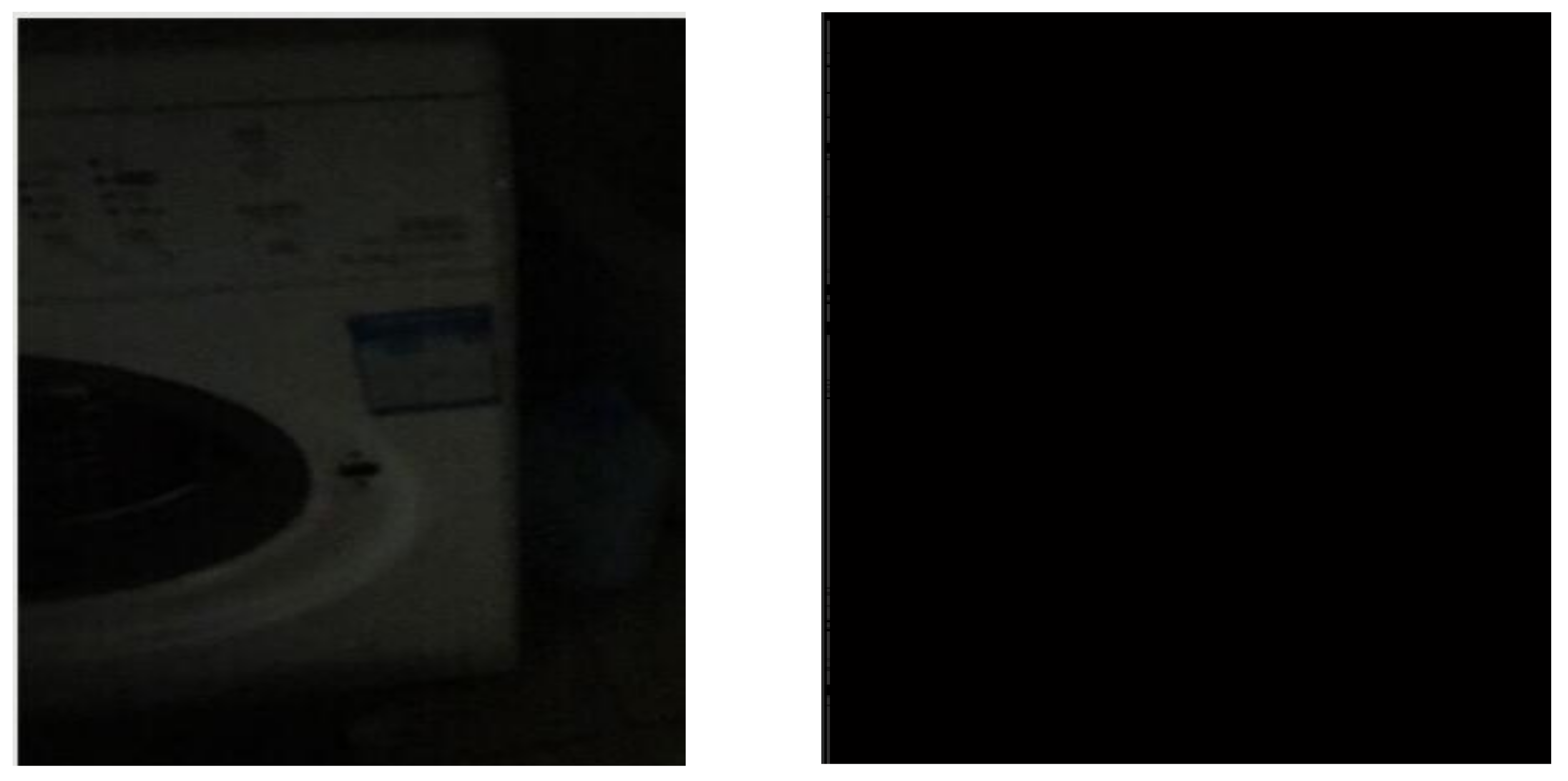

As shown in Figure 2, after we used the Sobel operator to process the weak-light image, it was difficult to find any detailed profile in the image. Here, the Sobel operator is a well-known differential operator that is generally used to obtain the edge profiles of any ordinal image [20]. It can hold the following form:

$$\frac{\partial f(x,y)}{\partial x}\approx \frac{f\left(x+1,y+1\right)-f(x-1,y+1)}{2}$$

(11)

$$\frac{\partial f(x,y)}{\partial y}\approx \frac{f\left(x+1,y+1\right)-f(x+1,y-1)}{2}$$

(12)

where f(x,y) is the grayscale value of the image.

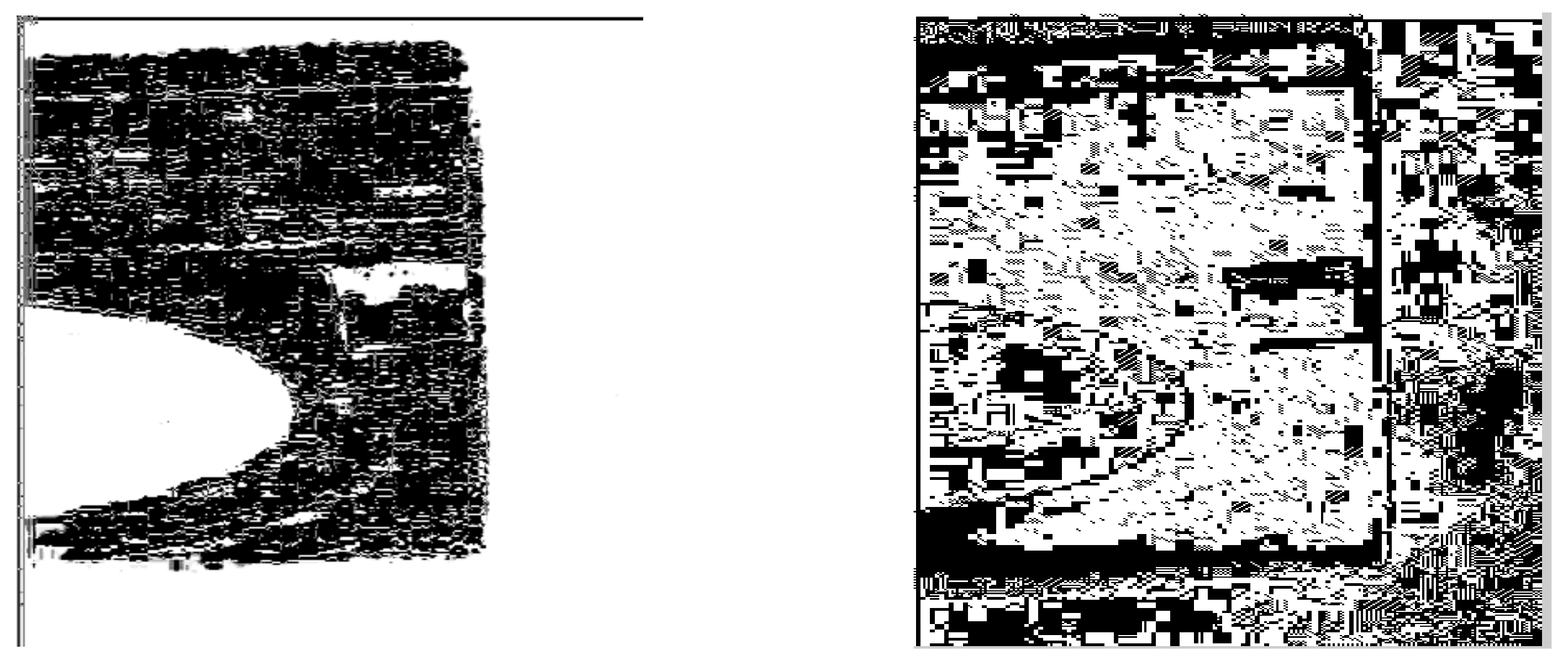

When we used the Exp and Hypot filters, we are able to obtain the shape of the washing machine (Figure 3). We calculated the value of the ME and MC of the filters for the image Washing Machine (

Table 2. Evaluation of the filters for the image Washing Machine.

Filters/Operator	ME	Michelson Contrast
Exp	1.1673	1
Hypot	19.4937	1
Sobel	0	1.3173

). The ME value of the Hypot filter is higher than that of the Exp filter, which illustrates that the filtering impact of the Hypot filter is higher than that of the Exp filter. For the Sobel operator, the values of ME and MC are calculated as 0 and 1.3173. An ME value of zero may indicate the poor performance of the Sobel operator.

3.3. Processing the Fluorescence Images

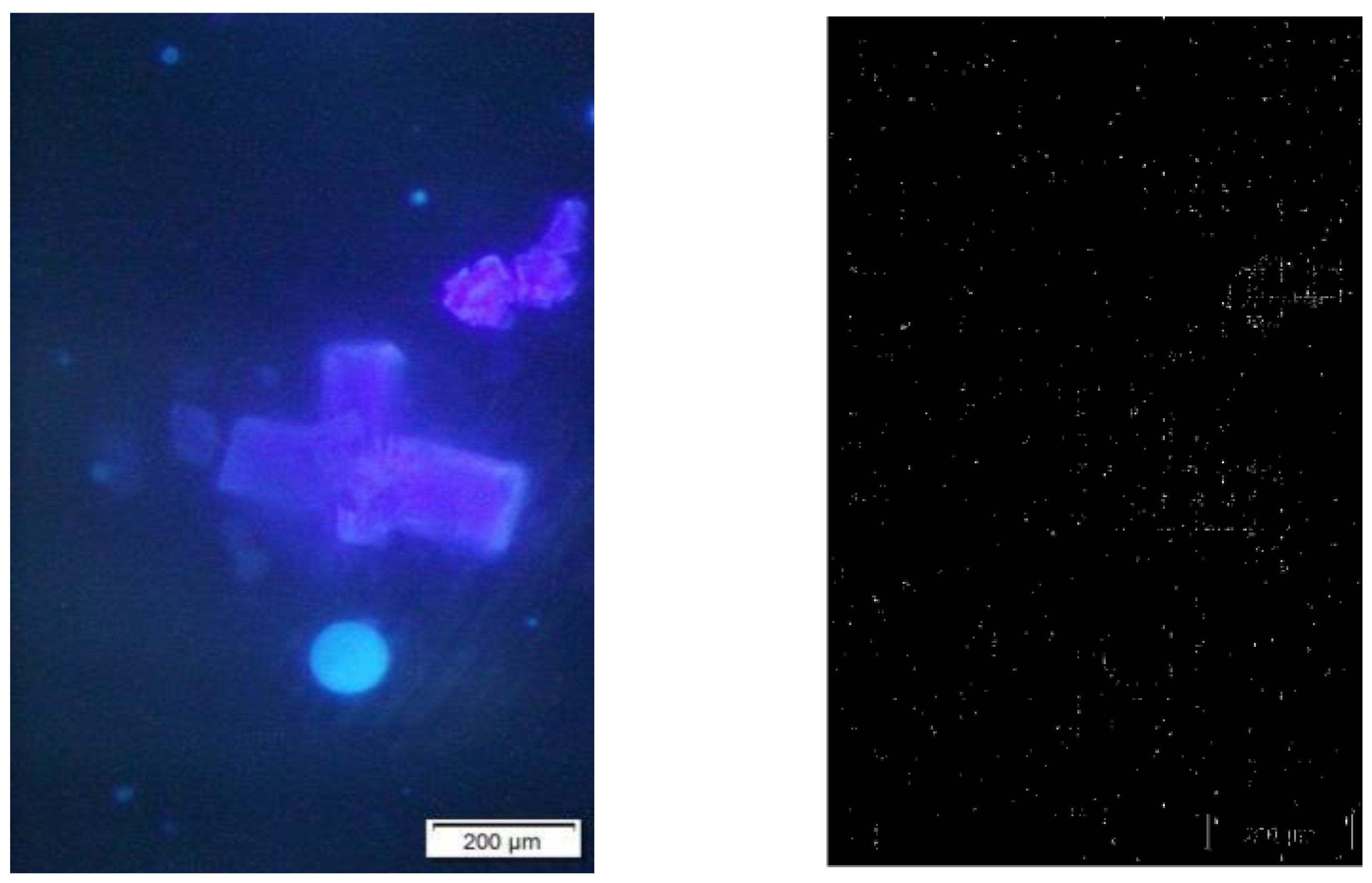

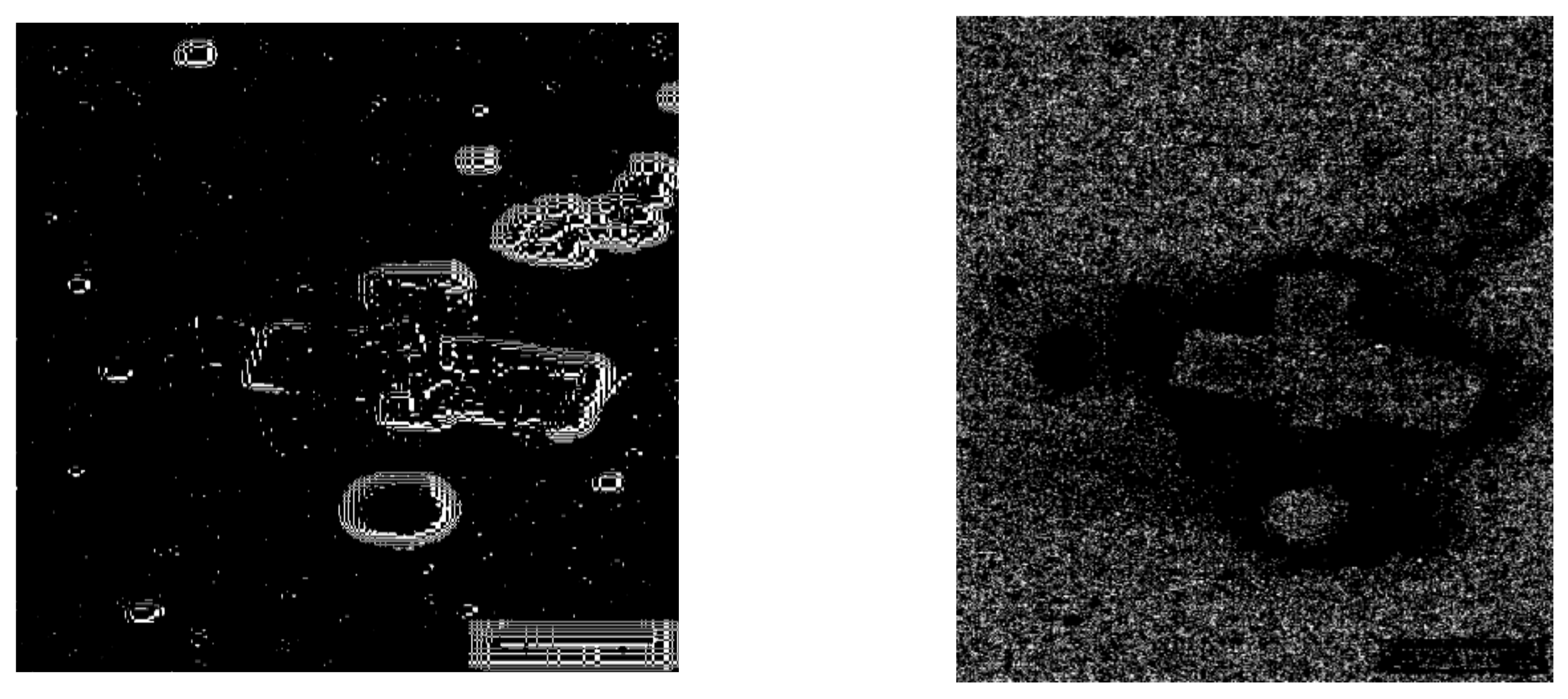

As shown in Figure 4, the profile in an image acquired from a fluorescence microscope was difficult to obtain via the Sobel operator. However, if the Exp filter and the Hypot filter were used, they were able to extract the profile (Figure 5).

When we use the ME and MC values to evaluate the performance of the Exp filter, the Hypot filter and the Sobel operator for the image p90 (

Table 3. Evaluation of the filters for the image p90.

Filters	ME	Michelson Contrast
Exp	0.0082	1.3315
Hypot	37.2042	1
Sobel	0	1.3125

), we can see that the Hypot filter obtains the highest value of ME and the lowest value of MC.

3.4. Noise Helps to Extract the Profile from the Images Acquired from the Transmission Electron Microscope

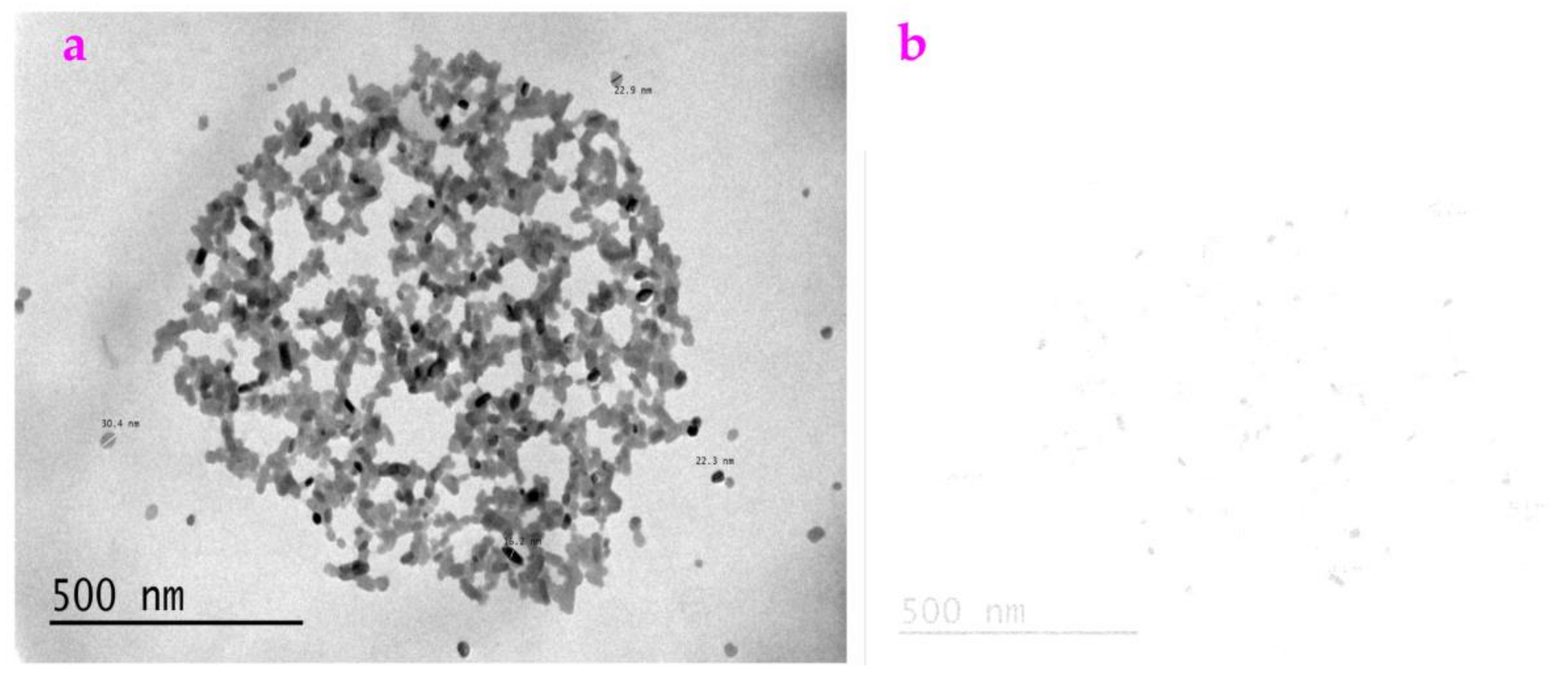

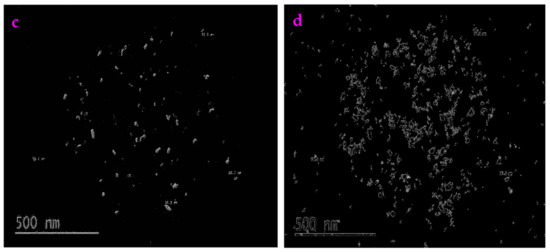

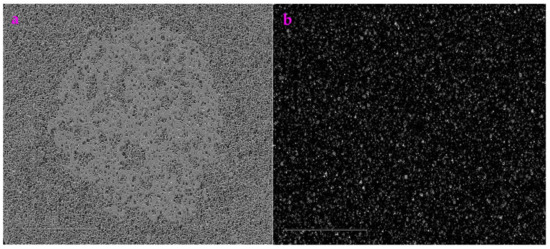

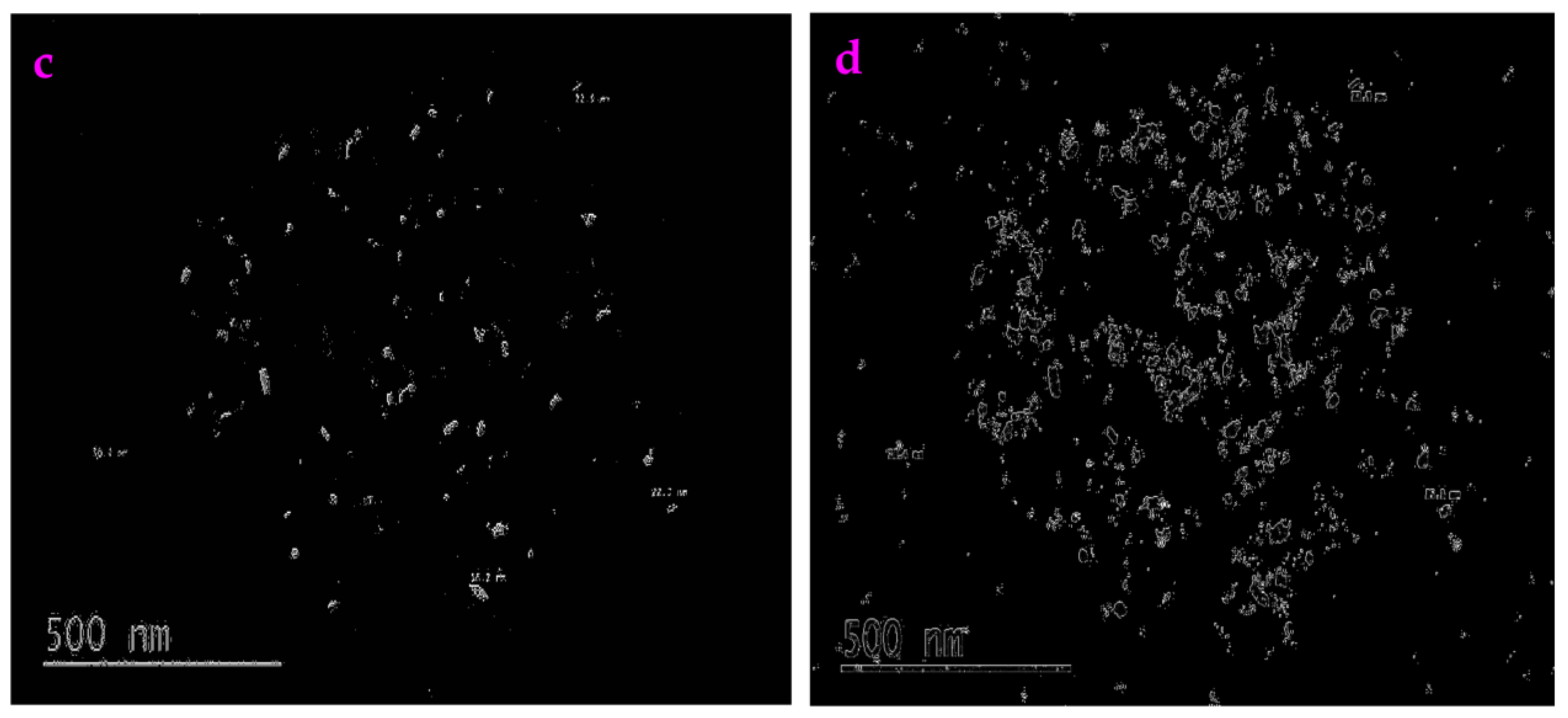

In order to show that these filters we created are useful, we applied these filters to the images obtained from the transmission electron microscope (TEM). Figure 6a is a TEM image of nano-particles, which is called AgTi. These nanoparticles are synthesized by the reaction between a metal complex and an organic acid. The synthesized nanoparticles have the size of around 20–30 nm. As shown in Figure 6b, we added Gaussian noise with a mean value of 0.9 to the image of AgTi. When we used the Exp filter and the Hypot filter respectively to process Figure 6b, which contained Gaussian noise, we obtained a clear profile. However, when we used these filters to process Figure 6a, the profile was barely acquired. This indicates that adding Gaussian noise maybe helpful when trying to extract the TEM images using the Exp filter and the Hypot filter (Figure 7).

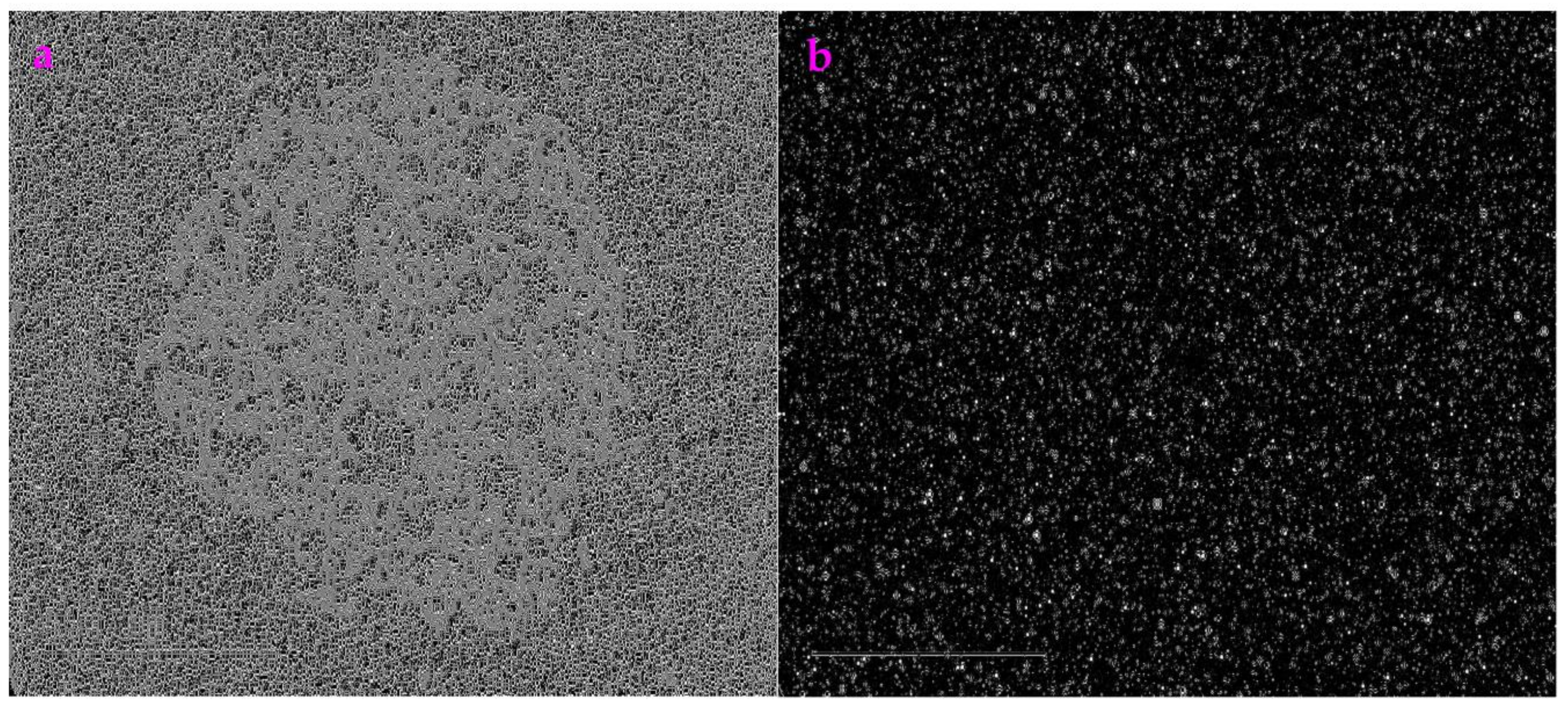

Using the results in Figure 6, we calculated the ME value and the MC value for the image AgTi (

Table 4. Evaluation of the filters for the image AgTi.

Filters	ME	Michelson Contrast
Exp	0.059	1.3064
Hypot	0.1123	1

), which showed that the ME value of the Exp filter is smaller than that of the Hypot filter and that the MC value of the Exp filter is greater than that of the Hypot filter.

3.5. Comparisons to Several Well-Known Filters

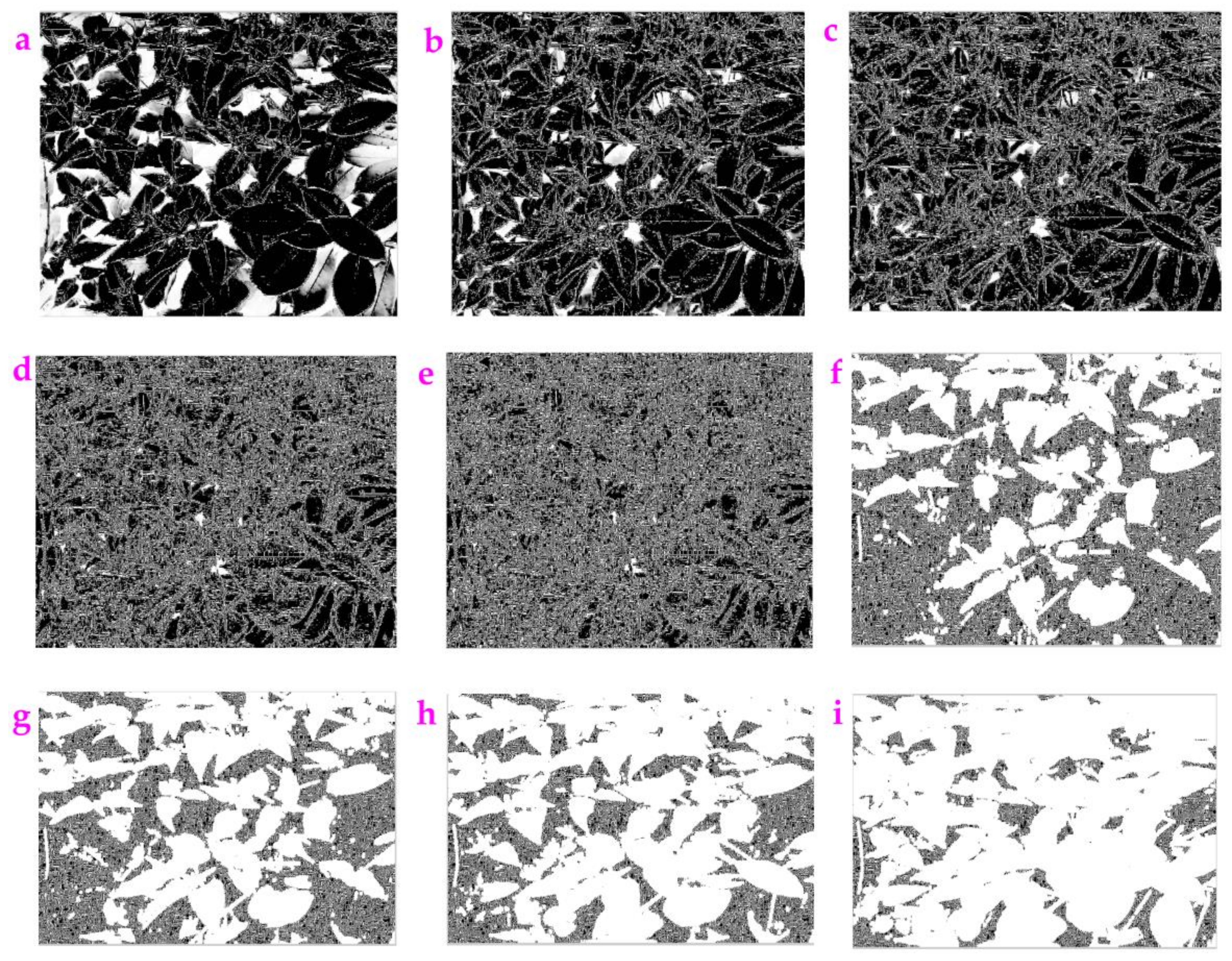

For the purpose of a comparative study, we used several well-known filters to process the noisy images, including the filter based on Gabor wavelet [21], the filter based on the watershed algorithm [22] and the matched filter [23]. The image of Rock was tested. Gaussian noise with a mean value of 0.9 was added in order to create an image with very high noise. With such high noise, profiles extracted via the filter based on Gabor wavelets and the filter based on the watershed algorithm are visible (Figure 8a,b). The profiles extracted from the matched filter were hard to be seen (Figure 8c). This may be due to the existence of extensive noise. Actually, if we reduced the mean value of the Gaussian noise to a value of 0.5, clear profiles could be extracted via the matched filter (Figure 9).

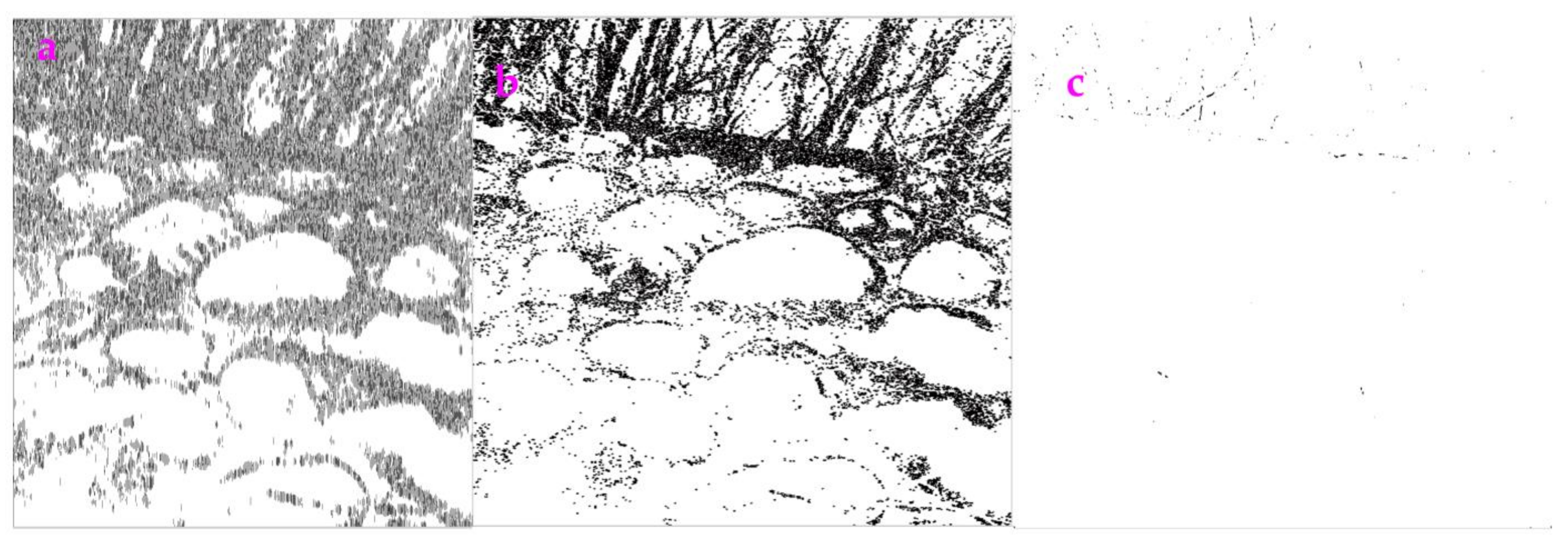

Using Figure 8a–c, we can calculate the ME values and the MC values of these three filters, which are listed in

Table 5. Evaluation of other filters for the image p90.

Filters	ME	Michelson Contrast
The filter based on the Gabor wavelet	15.5230	1.2699
The filter based on watershed algorithm	1.5496	1.3535
The match filter	0.0305	1.4255

. When we compare the value for these filters, we can find that the filter based on the Gabor wavelet obtains the highest value of ME and the lowest value of MC.

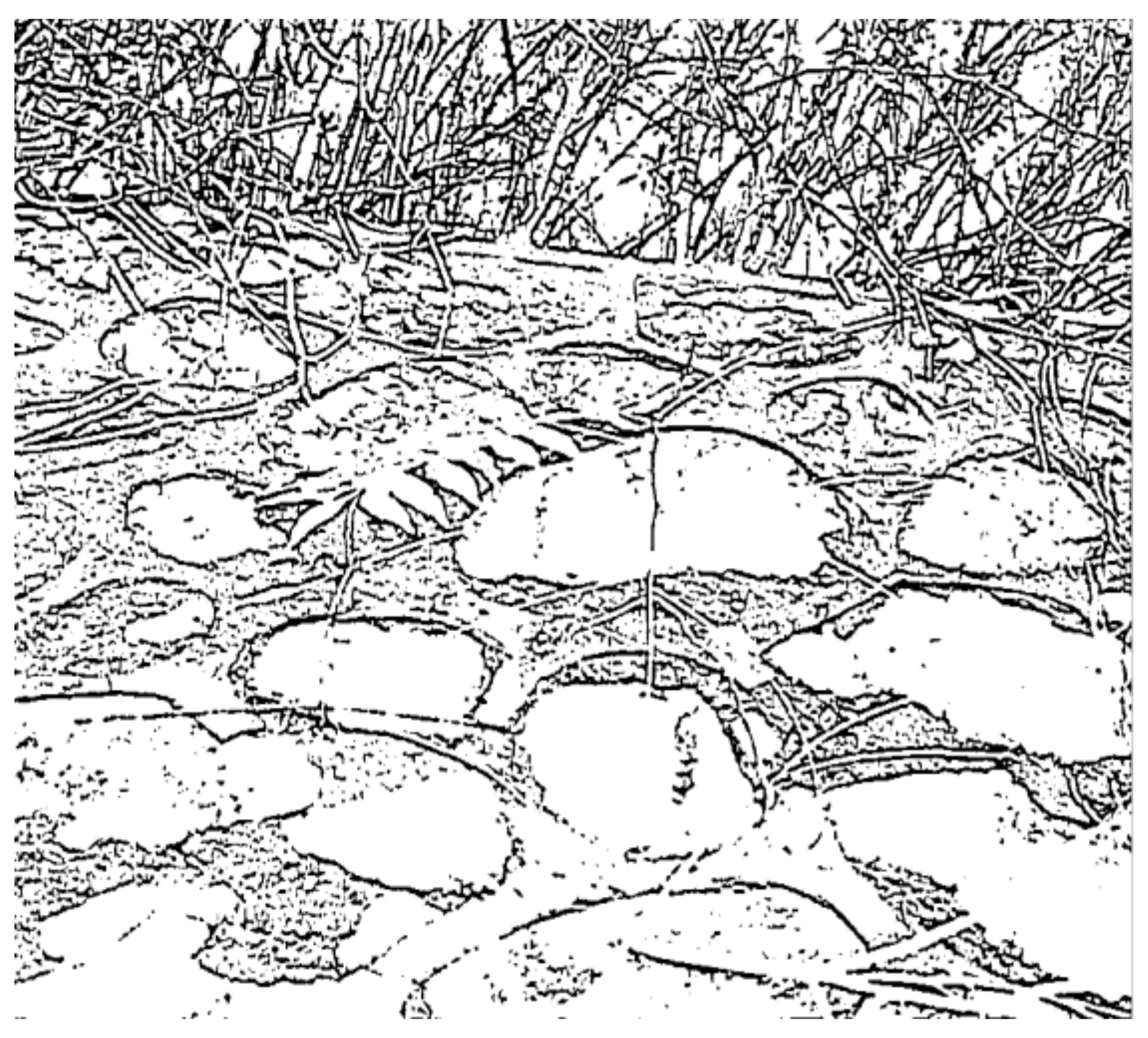

Using Figure 9 with the match filter, we find that the calculated ME value and MC value are 2.3469 and 1.4506, respectively. Compared to the values in Table 5, it indicates that the increase in the Gaussian noise turns down the ME value and the MC value.

3.6. Processing the Images Acquired from the Near-Infrared Camera

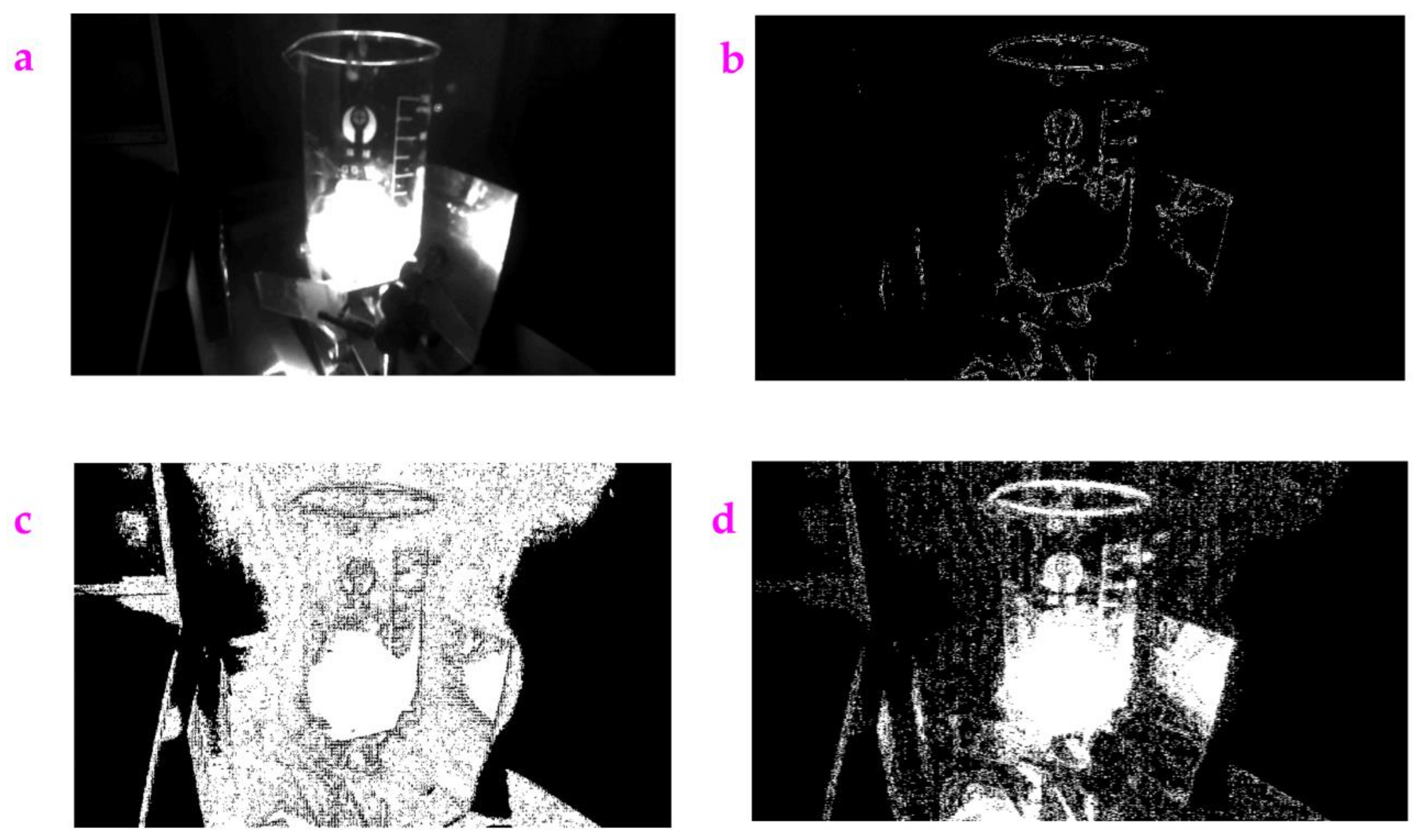

The images obtained from the near-infrared imaging generally contain a lot of noise due to the emission of autofluorescence, low contrast, and little imaging depth [24]. This brings difficulty when processing these images. Figure 10a is an image acquired from the near-infrared camera. A glass beaker put above a bracket was surrounded by a Dell laptop and an iron sheet. Extracting its profile using the Sobel operator can result in a loss of details (Figure 10b). However, using the Exp filter or the Hypot filter, the detailed profile of the laptop hiding behind the bottle can be shown (Figure 10c,d). As we compared the ME value and the MC value with the Exp filter, the Hypot filter, and the Sobel operator for the NIR image (

Table 6. Evaluation of the filter for the NIR image.

Filters	ME	Michelson Contrast
Exp	31.6915	1.4324
Hypot	7.8975	1
Sobel	0	1.3411

), it could be seen that the Exp filter holds the highest ME value and the highest MC value.

3.7. Tuning of the Filters

Figure 11 is an image called Mirabilis jalapa, which will be processed by the Exp filter and the Hypot filter with different key parameters. This experiment will clearly show how the performance of the filters can be impacted. It should be noted that the tuning of the filters can be shown in some parameters, which we will show, and we discard those trivial effects.

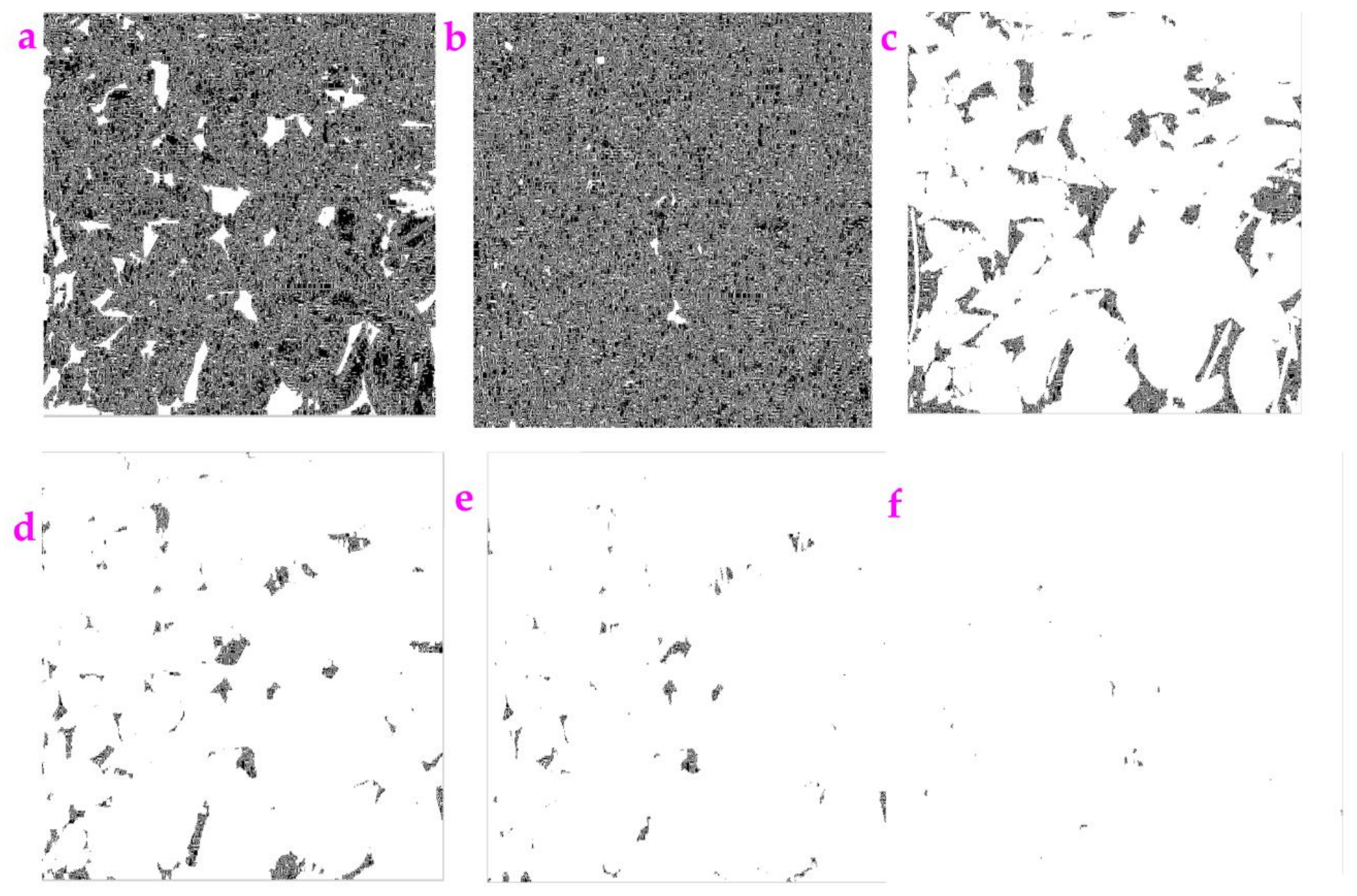

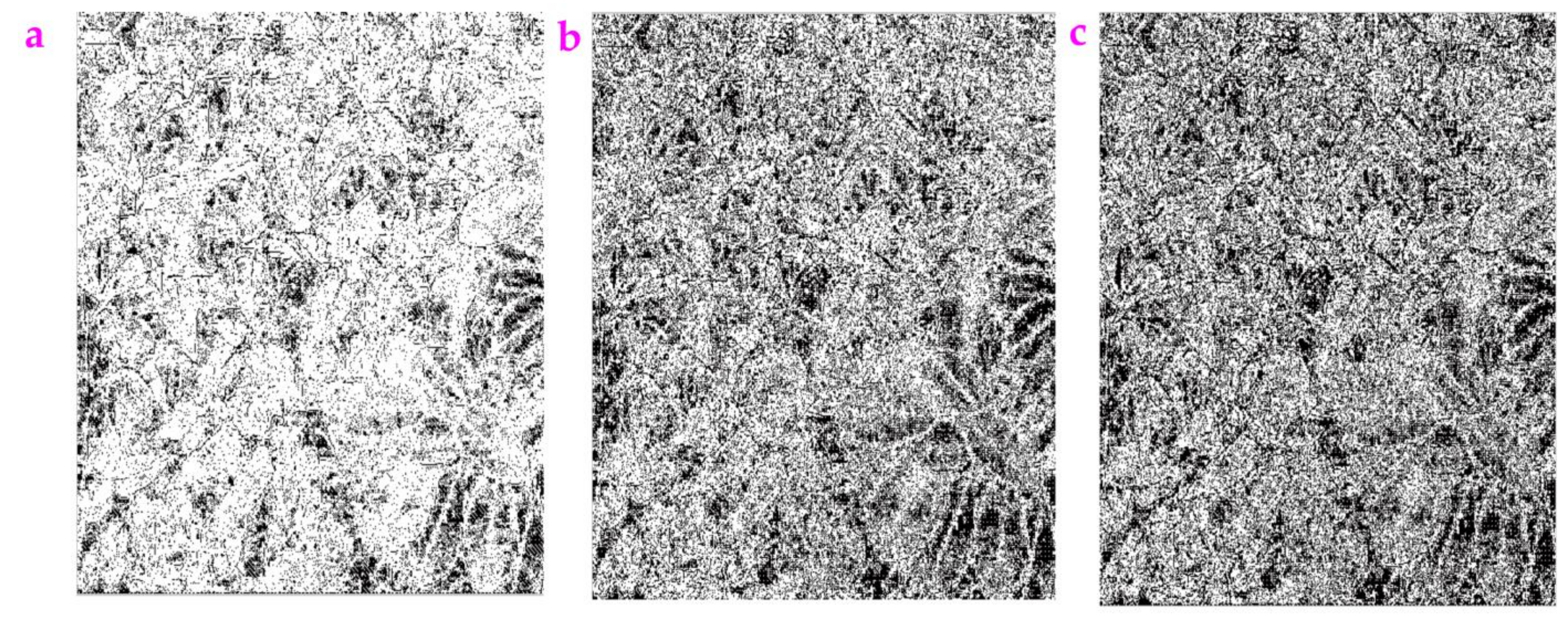

As shown in Figure 12, the increase in the nn value will make the features become dark, then white. As shown in

Table 7. Evaluation of the Exp filter with different values of nn.

nn	ME	Michelson Contrast
1	2.1461	1
2	0.7534	1
3	0.4282	1
6	0.3502	1
44	5.1027	1
50	5.0971	1
60	4.8368	1
90	3.5409	1

, the calculated ME value shows the nonlinear trend, and the MC value stays at 1 with the increasing nn value.

We changed the value of d and drew the images processed by the Exp filter (Figure 13). Clearly, the enhancement of the d value will blur the image and result in missing features. The calculated ME value and MC value are shown in

Table 8. Evaluation of the Exp filter with different values of d.

d	ME	Michelson Contrast
0.0078	2.1504	1
0.0178	2.0325	1
0.0578	3.0276	1
0.0878	1.5115	1
0.1178	0.8224	1
0.2178	0.0778	1

. The ME value showed a nonlinear trend and the MC value keeps constant as the d value is increasing.

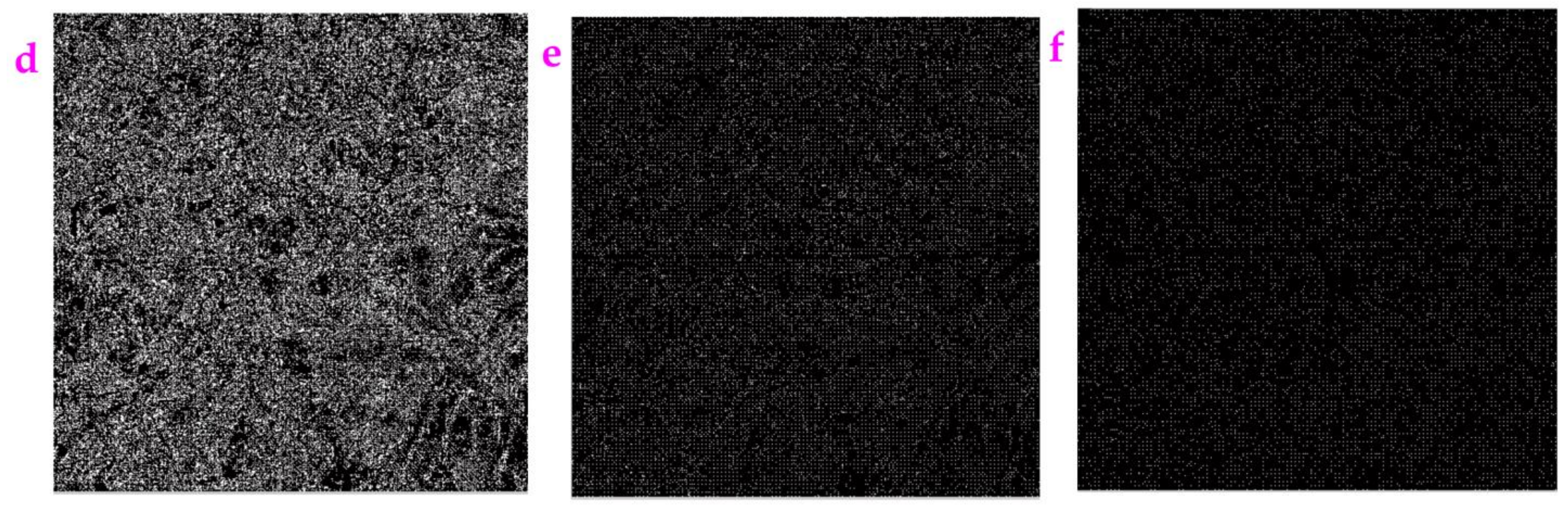

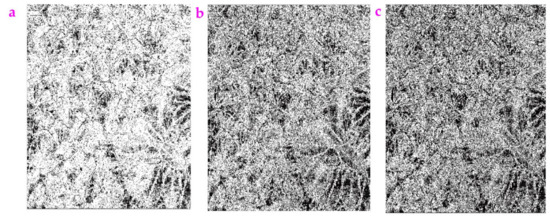

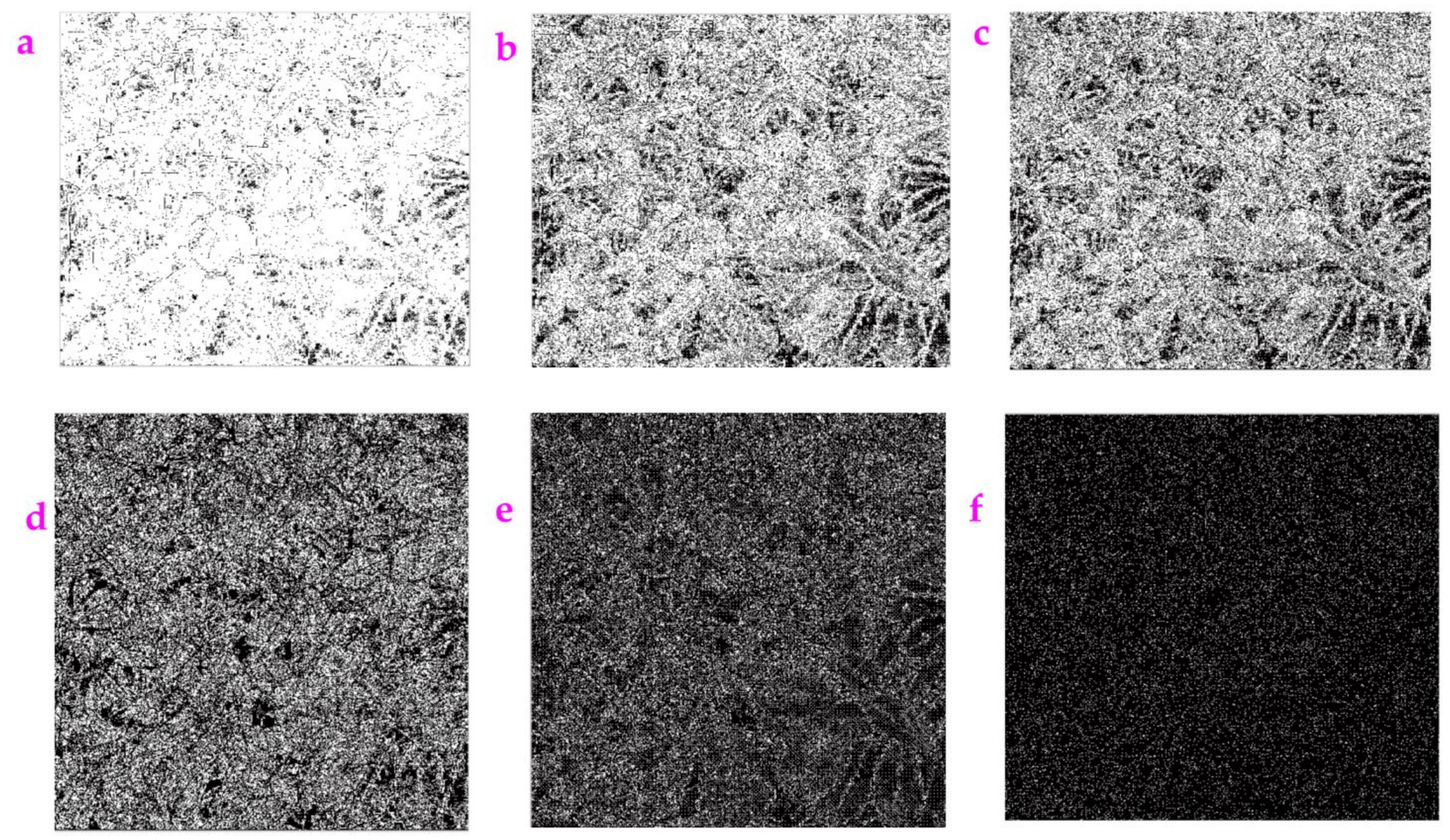

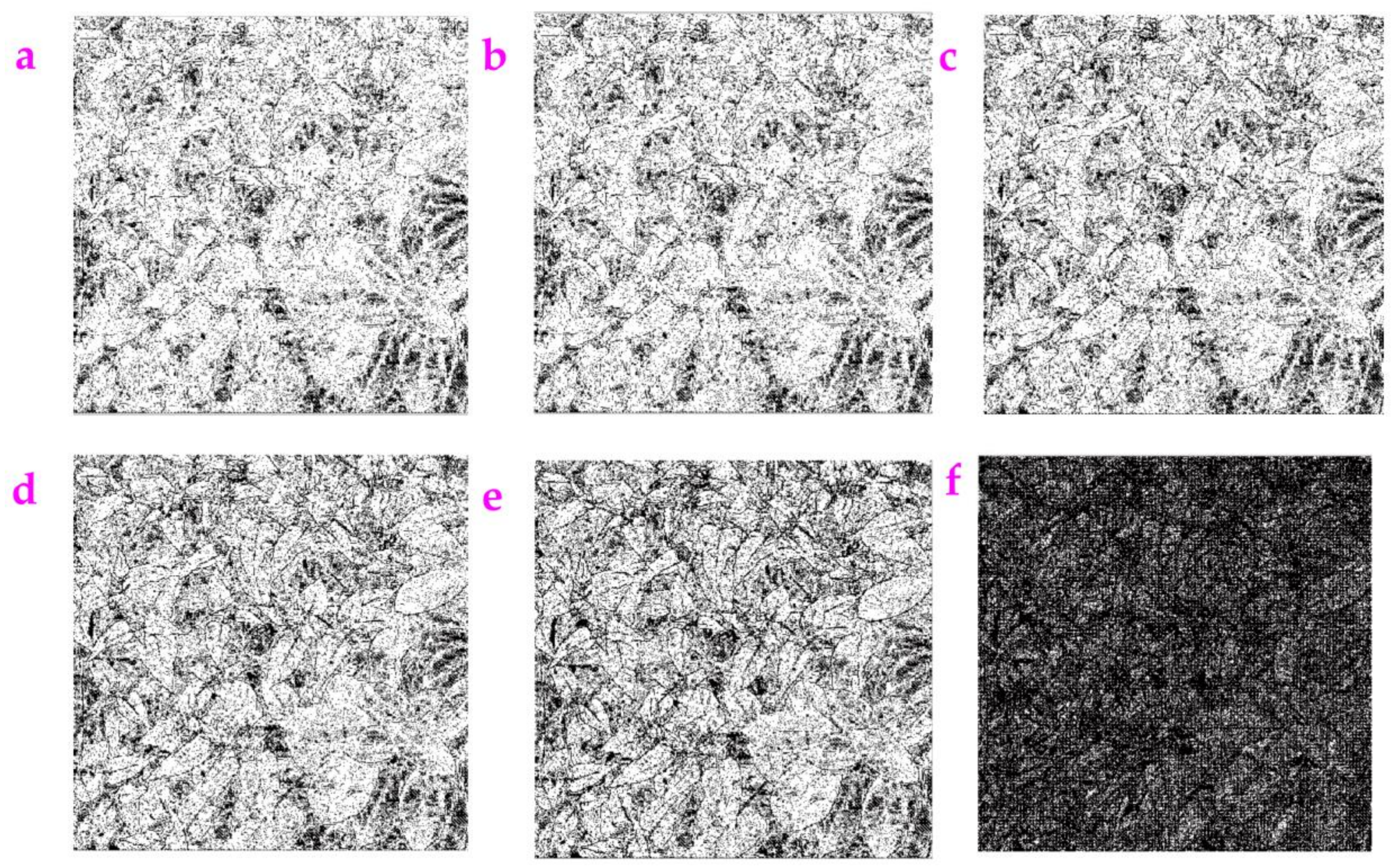

Figure 14, Figure 15 and Figure 16 show the resulting images associated with the enhancement of the a₁₈ value, the a₂₁ value, and the a₂₂ value, which leads to the appearance of dark sections in the images. The ME value and the MC value are listed in

Table 9. Evaluation of the Hypot filter with different values of a₁₈.

a18	ME	Michelson Contrast
7	26.3231	1
700	26.7869	1
700,000	27.5250	1
700,000,000	28.5303	1
700,000,000,000	29.2491	1
70,000,000,000,000,000	38.131	1

,

Table 10. Evaluation of the Hypot filter with different values of a₂₁.

a21	ME	Michelson Contrast
1	19.9629	1
40,000	37.1081	1
4,000,000,000	37.4871	1
400,000,000,000,000	35.1057	1
4,000,000,000,000,000	27.8838	1
40,000,000,000,000,000	0.6647	1

and

Table 11. Evaluation of the Hypot filter with different values of a₂₂.

a22	ME	Michelson Contrast
10	19.9629	1
20	30.6965	1
30	35.7034	1
180	37.6083	1
220	48.9824	1
400	20.9649	1

. The ME value shows a nonlinear trend while the MC value stays at 1.

4. Limitations and Perspectives of Our Designed Filters

Our designed filters have shown their potential in extracting the profiles from images obtained in weak-light conditions and from fluorescence microscopes, transmission electron microscopes, and the near-infrared cameras. However, limitations can be seen in our designed filters, and improvement needs to be made in future research.

The parameters used in the filters have to be tailored in order to fit different images. One of our future projects may be focused on developing adaptive frameworks that can be applied to different images.

Moreover, the exact mechanism allowing these filters to effectively extract the image profiles needs to be explored in our future study.

In addition, the generated images from our frameworks are gray, which lack vivid and direct information. Our future work may be focused on developing a method that can be processed to generate colored images.

In classical image processing, many operators have been developed or modified in order to adapt to the current vast demand of information in industry and research. These classical operators hold great merit, and their performance is incredible. Our work shows two additional solutions to these existing methods. One merit of our work is that our solution is based on the frameworks associated with functions. The scales of the functions can be adjusted in order to meet a particular requirement. Furthermore, the technique of the profile extraction brings a much greater chance to meet a wider set of requirements for quality control in industry, where the checking for product defects plays a key role in obtaining a profit. In addition, our filters can be used to extract profiles from images degraded by Gaussian noise. This may have applications in cryptography, where people may cover the clandestine image profiles in the transfer of information and use our method to restore the profiles when receiving the information.

Another valuable merit of our methodology would be the use of wavelets in our framework. This makes our frameworks more dynamic since many wavelets can be flexibly adjusted, including Haar, Daubechies, Biorthogonal, Coiflet, SymletsA, Morlet, MexicanHat, and Meyer. These wavelets can be modified using the technique of wavelets uplifting, which brings a huge set of special functionalities, including image enhancement, image compression, object tracking, pattern identification, image smoothing, image sharpening, image denoising, image blunting, and image fusion.

5. Conclusions

Extracting a profile from an image has always been a key subject in image identification. Although many algorithms have been created, special-function-based filters are still a subject that is in its infancy stage. Our work presents a useful framework for profile extraction via two kinds of filters. We built two filters based on the exponential function and the hypotenuse function. They have shown a good ability to extract profiles from a noisy image. The edge profile can be extracted even when Gaussian white noise with mean value of 0.9 is added to the original images. They can be also useful for highlighting the images acquired using weak light sources, fluorescence microscopes, transmission electron microscopes, and the near-infrared cameras. Our methods may have potential application in medical imaging and subject identification, where profile extraction is an important task.
