1. Introduction
In our daily life, the geomagnetic field is always around us. The Earth’s magnetic field has its sources inside the Earth (internal contributions) and outside it (external contributions). The predominant internal source is the core field (also called “main field”), originating in the external fluid core, and the lithospheric field (also called “crustal field”), caused by magnetic minerals in the crust and, to a lesser extent, the upper mantle. The external sources originate in the ionosphere, the magnetosphere, and also from electrical currents coupling the ionosphere and magnetosphere (named “field-aligned currents”, or FAC). These external sources induce secondary fields in the Earth [
1].
Maxwell established Maxwell’s equations, which essentially revealed the essential relationship between electricity and magnetism. Khan et al. [
2] investigated the Hall current effect, entropy generation, Arrhenius activation energy, and binary chemical reactions in Maxwell nanofluid heat and mass transfer biological convection. Khan et al. exposed the deeper meaning of Maxwell’s equations. When a metal target (mostly iron, cobalt, nickel, etc.) infiltrates the geomagnetic field, the target is magnetized by the geomagnetic field, and a secondary field is formed in the space of the original magnetic field, distorting the surrounding magnetic field [
3]. Detecting the magnetic field in space to identify subsurface [
4,
5] or underwater metal targets [
6] has several applications in the mine detection field [
7].
There are many technical techniques for detecting metal targets, with magnetic detection being one of the most prevalent. Detecting the total magnetic field, the vector magnetic field, the gradient magnetic field, and the gradient tensor magnetic field are all popular methods for measuring magnetic fields in space [
7]. Different techniques for detecting the space magnetic field result in varying numbers of sensors, and sensors with a sensible arrangement collect more information about the space magnetic field [
8]. In recent years, several researchers [
9,
10] have embraced the technical methods of multisensor collaboration for metal target identification and localization studies.
Metal targets can have a variety of exterior forms. When the target is distant from the observing location, it can be compared to a magnetic dipole model [
11]. Jin et al. [
12] advocated using the equivalent approach of the simplest dipole model to replace the target, which significantly simplifies the identification and inversion of metal targets. Nara et al. [
13] presented a simple algorithm and a compact sensor for the localization of a magnetic dipole. They developed a sensor unit consisting of three orthogonal loop coils, three orthogonal planar gradiometers, and three orthogonal coaxial gradiometers, for measuring the magnetic field, nondiagonal, and diagonal components of the gradient tensor, respectively. Localization experiments were conducted, where the maximum error is about 7 mm when the source-sensor distance is from 80 to 140 mm. Kasatkin et al. [
14] studied the solution uniqueness analysis of the magnetic dipole location problem based on the two-point known magnetic field intensity vector value. It was shown that the usage of two triples (pairs) of sensors is sufficient to solve a 3D (2D) problem of arbitrary magnetic dipole localization with a satisfactory number of crude errors. Birsan [
15] proposed a recursive method, which is expected to use the data collected by the gradiometer to estimate the trajectory of the target and the magnetic moment component of the magnetic dipole source model. In his study, the determination of target position, magnetic moment, and velocity are formulated as a Bayesian estimation problem for dynamic systems, which could be solved using a sequential Monte Carlo-based approach known as the “particle filter”. Fan et al. [
16] presented a fast linear algorithm for locating the target based on the total magnetic field gradient. Compared with the optimization algorithms, the proposed method provides good performance within a short time and can be used to locate the target in real time. Based on the cube tensor measurement array from the STAR method, Liu et al. [
17] proposed a novel way to calculate the distance between the dipole and the sensor array. Results of simulation experiments indicate that this method increases the successful localization area by 43% compared with the traditional method, and the baseline length of the sensor array dominates the performance of this method. Yin et al. [
18] presented a simple formula for the localization of a magnetic dipole. Numerical simulations show that the proposed localization formula is correct and it can also localize the magnetic dipole precisely for applications with measurement noise.
Billings et al. [
19] considered the metal target a magnetic dipole and determined the detection target by studying the dipole’s amplitude and direction. Oruç [
20] saw the metal target as a dipole and utilized tensor invariants to perform tensor analysis to find metal targets. In metal target location and identification research, these scholars identified the position of metal targets using different algorithms. Nevertheless, it is difficult to identify the metal target types due to algorithm limits.
Metal object recognition is a nonlinear problem that is challenging to solve. Model outputs from one location at a site were used to train a PNN model, which could correctly discriminate UXO from scrap at a different location of the same site [
21]. Through careful selection of the probability threshold cutoff, the UXO detection rate obtained was 95% with a false alarm rate of only 37%. The ability to distinguish individual UXO types has been demonstrated with correct classifications between 71% and 95%. The GEM-3 sensor is a frequency-domain sensor with up to ten frequencies available for simultaneous measurement of the in-phase and quadrature response of the target. Working around a modified GEM-3 sensor, Nelson et al. [
22] designed a three-sensor array and demonstrated it at the Standardized UXO Demonstration sites at Aberdeen Proving Ground and Yuma Proving Ground. Shamatava et al. [
23] presented the inversion and classification performance of the advanced electromagnetic induction inversion, processing, and discrimination schemes developed by the group when applied to the Environmental Security Technology Certification Program Live-Site UXO Discrimination Study carried out at the former Camp Butner in North Carolina. Bijamov et al. [
24] demonstrated in detail a semisupervised scheme to classify UXO by using as an example the data collected with a time-domain electromagnetic towed array detection system during a live-site blind test conducted at the former Camp Butner in North Carolina, USA.
Billings et al. [
25] claimed that the kind of metal target might be determined by measuring the angle between the target’s remanent magnetization and geomagnetism. This approach is highly efficient, but its resolution is subpar. The metal target was derived by Beran et al. [
26] by solving the goal function. Due to the nonlinear nature of the forward model, the outcome of calculating the loss function is a local minimum. Wigh et al. [
27] proposed a probabilistic approach for inferring metal objects from magnetic data. Various iterative methods are utilized, as well as the multichain Markov chain Monte Carlo (MCMC) method. The method is unaffected by the starting point of the inversion process, allowing it to avoid several local minima in the highly nonlinear model space and iteration. This technique does not, however, prevent the requirement to select a beginning value. When there is no previous condition, it will be far more difficult to repeat.
Zhou et al. [
28] proposed a region convolutional neural network-based (RCNN-based) method for shallow magnetic target detection and classification in metal target recognition. Zhou et al. tenderized the magnetic field to obtain the magnetic gradient tensor G in space. The G
zz represents the gradient of the z-direction magnetic field along the z-direction. Zhou et al. stated in the article that the z-axis points to the ground. The G
zz component of the magnetic gradient tensor was selected as the data source during the study procedure. To identify the target, a mask region convolutional neural network (Mask-RCNN) algorithm was developed. The study approach employs L-shaped, concave, spherical, and cuboid detection targets. However, ambient magnetic field fluctuations are not factored into the classification procedure. Therefore, the research conclusions are still theoretical. In addition, the magnetic properties of the target are insufficient since Zhou et al. only used the G
zz component to extract characteristics in their research.
Based on those mentioned above, this study proposed a technique for classifying metal products based on the residual neural network 18 (ResNet-18) deep learning model. Using the magnetic field data of a survey line, we accurately identify the kind of subsurface metal targets by extracting the eight fluxgate magnetometer data on the north side of the target.
2. Methods
2.1. Space Magnetic Flux Density Acquisition
When the metal target is far from the observation point, the magnetization field model of the metal target is nearly comparable to the magnetic dipole model [
29]. The distribution of the magnetic field of a magnetic dipole in space may be described by the following formula [
30]:
where
m is the magnetic moment of the dipole [L
2I],
r denotes the distance between the magnetic dipole’s center and the observation point,
denotes the unit vector between the magnetic dipole’s center and the observation point, and
μ0 denotes the vacuum permeability.

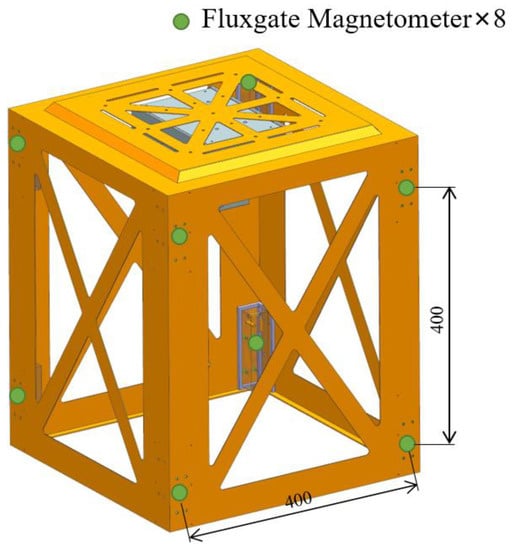

To obtain more data on spatial magnetic anomalies and ensure that the distance between each fluxgate sensitive unit is 400 mm, we adopted an array structure arrangement of 8 three-axis fluxgate magnetometers (model HSF923-2H5-AA Xi’an Huashun). The performance parameters of the fluxgate magnetometer are shown in
Table 1. The fluxgate magnetometer has three sensitive units corresponding to three vertical magnetic fields, and the measurement range of each sensitive unit is −100,000 nT to 100,000 nT. We carried out experiments in Nanjing, where the local geomagnetic field is 50,000 nT ± 1000 nT. After placing the metal target, the maximum magnetic anomaly in the area does not exceed 60,000 nT. This type of fluxgate magnetic magnetometer can correctly estimate the magnetic field of the experimental area during the experiment. We call this structure the fluxgate magnetometer cube arrangement structure (FMCAS), as shown in
Figure 1. Each fluxgate magnetometer obtains
xyz three-axis magnetic flux data, so FMCAS obtains 8
xyz three-axis magnetic flux data, for a total of 24 groups of data.

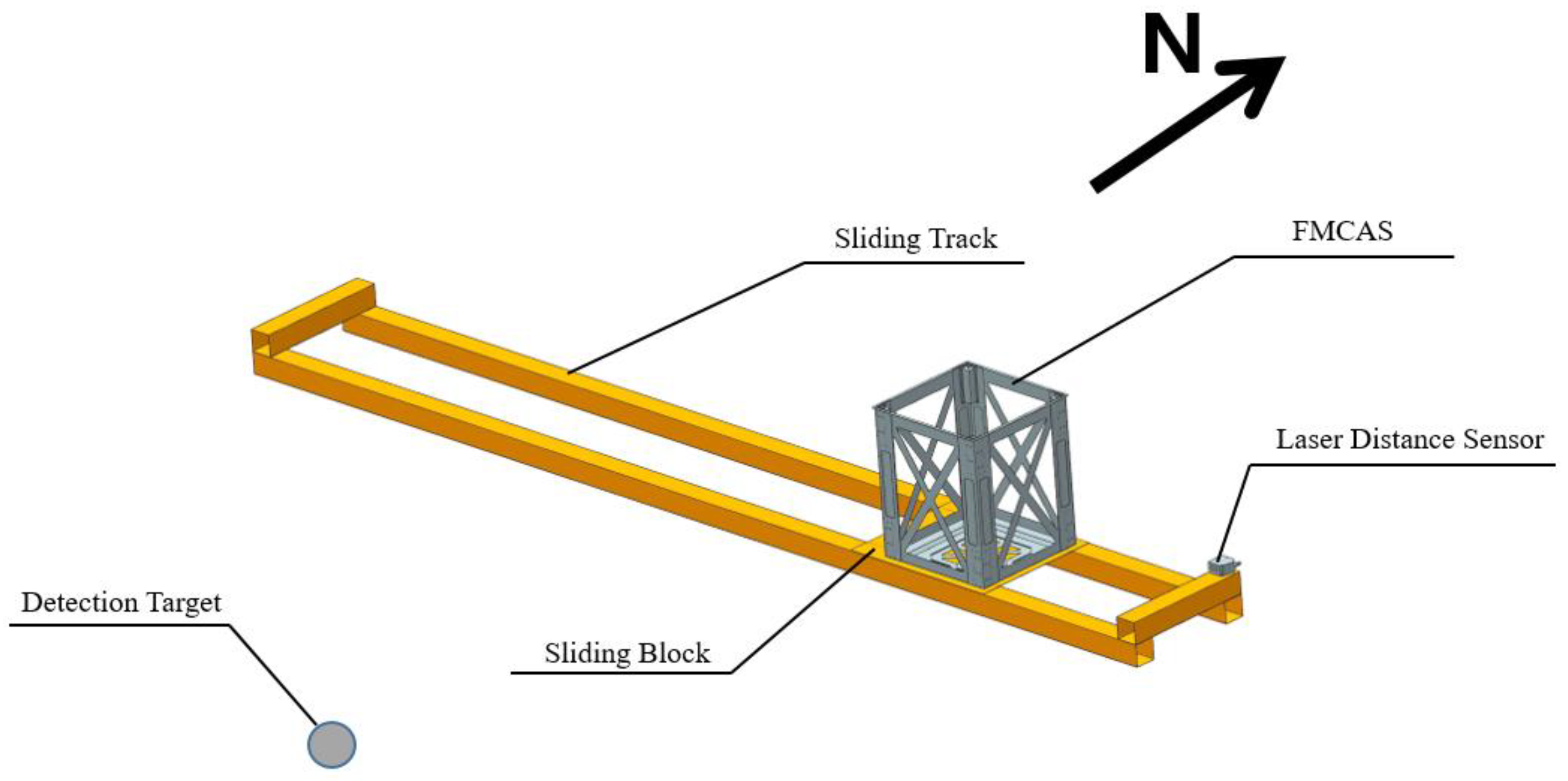

We gather an east–west magnetic field data measurement line north of the detection target. As illustrated in

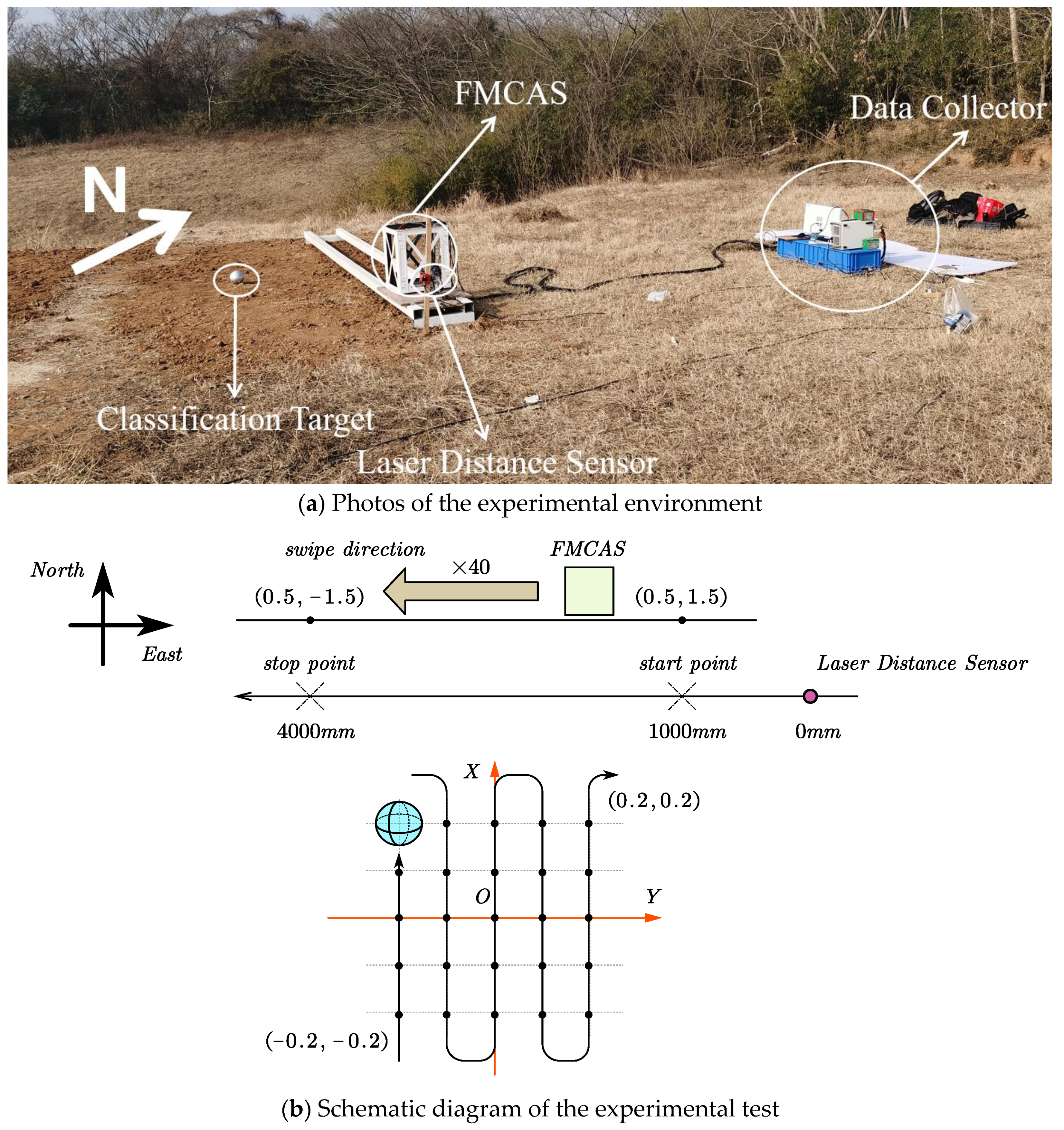

Figure 2, we attach the FMCAS to the sliding block with copper bolts and position it on an aluminum-alloy sliding track. The laser distance sensor (type L-GAGE) captures information on the distance between the FMCAS and the sensor. The material of the sliding block is wood; we put oil on the sliding track to promote sliding. We obtain experimental data on a measuring line every time the assistant pulls the sliding track with the rope.

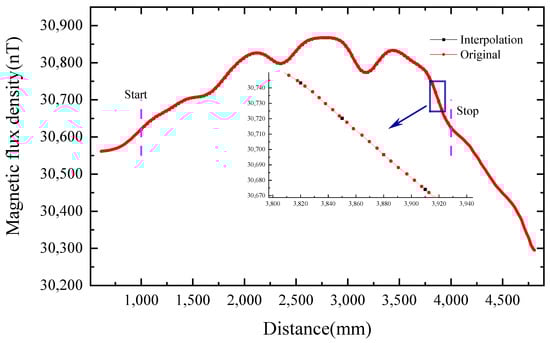

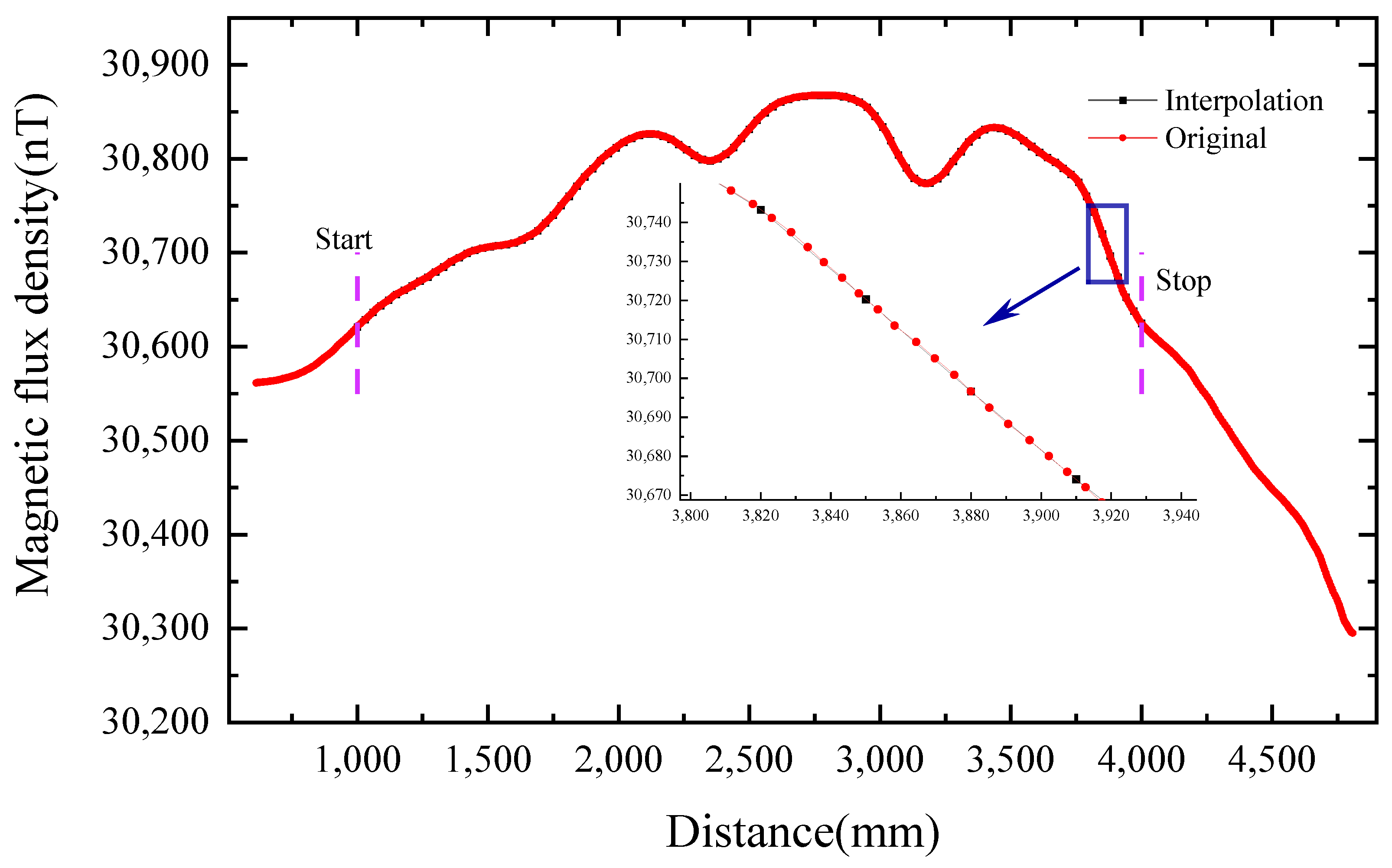

Through the above experimental method, we can obtain the magnetic field data of a survey line every time we slide the sliding block, which contains the target magnetic anomaly. We intercept the middle part of the survey line (the data at both ends fluctuate greatly when sliding starts and ends), divide the intercepted part of the survey line into 100 equal parts, and obtain 101 position coordinates. Corresponding FMCAS magnetic flux density data for each position obtain a set of 101 × 24 size magnetic flux data about the position information.

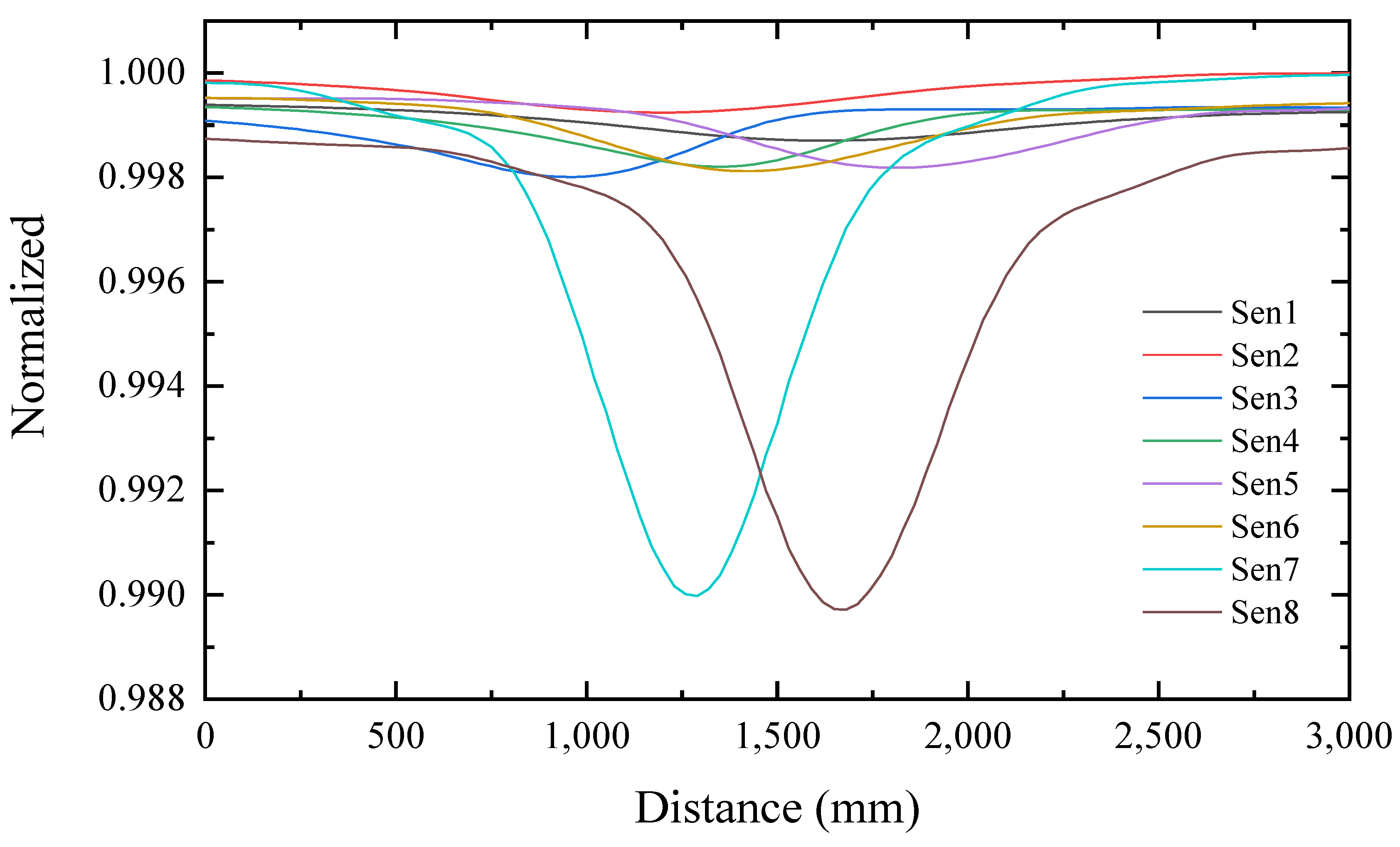

We might also define the pseudo total field
xyzi of the fluxgate magnetometer (because the fluxgate magnetometer has not been calibrated) as follows:
The pseudo total field of the ith fluxgate magnetometer is represented by xyzi in the formula. The ith fluxgate magnetometer’s x-axis magnetic field output is xi, the ith fluxgate magnetometer’s y-axis magnetic field output is yi, and the ith fluxgate magnetometer’s z-axis magnetic field output is zi.

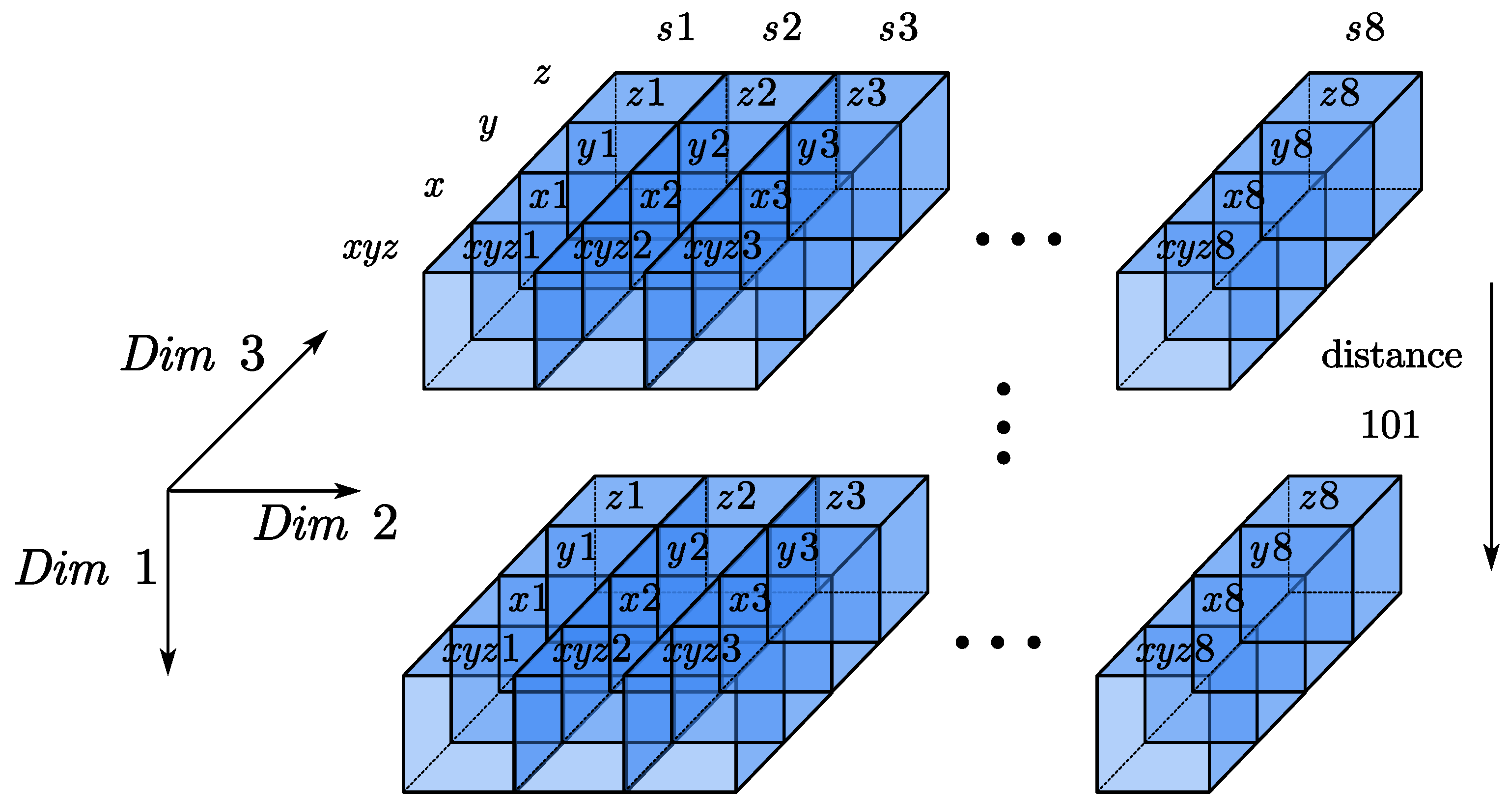

We construct the magnetic flux tensor matrix as shown in
Figure 3; the matrix size is [101, 8, 4]. The first dimension includes the 101 position information, the second dimension includes the label information of 8 fluxgate magnetometers, the third dimension includes the
xyz pseudo total field, the x-axis magnetic field, the y-axis magnetic field, and the component information of the z-axis magnetic field.
Later, we train the recognition algorithm using the magnetic flux tensor matrix.
2.2. ResNet-18
Four Chinese researchers, including Microsoft Research Institute’s Kaiming He, proposed the residual neural network (ResNet). With an error rate of 3.57% on the top 5, a 152-layer neural network was successfully trained and won the championship in the ILSVRC2015 competition utilizing the ResNet unit. ResNet’s topology allows for rapid neural network training while considerably improving model accuracy.
As the neural network is expanded, the gradient explosion and disappearance problem arises. In addition, we employ normalized initialization [
31,
32,
33] and intermediate normalization layers [
34] to address this issue. Each input-to-output process is almost irreversible (information loss) due to the existence of the nonlinear ReLU activation function [
35]. It is difficult to reverse the whole input from the output, which makes it highly unlikely that the features will be fully retained throughout layer-by-layer forward propagation. The residual learning module is incorporated into the deep neural network, the output before the previous layer (or layers) is added to the output calculated by this layer by jumping, and the summation result is input into the activation function as a function of the output of this layer [
36]. Thus, the network’s depth can be significantly expanded.
Table 2 depicts the principal ResNet structure.
We research object classification and recognition, utilizing the main network architecture of ResNet-18. In practice, we make the following modifications to the original ResNet-18:
Step 1. Remove the first layer of the 7 × 7 convolution in the original network.
Step 2. Modify the original second 3 × 3 maximum pooling layer to a 3 × 3 convolution and set 64 convolution kernels.
Step 3. Finally, the 1000 neurons in the final fully connected layer are modified to 3 neurons.
Through the above processing, we obtain an improved ResNet-18 network. The magnetic feature data are in the data format of 101 × 8 × 4, and the convolution operation is performed through a 3 × 3 convolution kernel. Then, they are input into 8 ResNet blocks, and the corresponding convolution operation is performed. The data are then globally pooled before being fed into the fully connected layer.

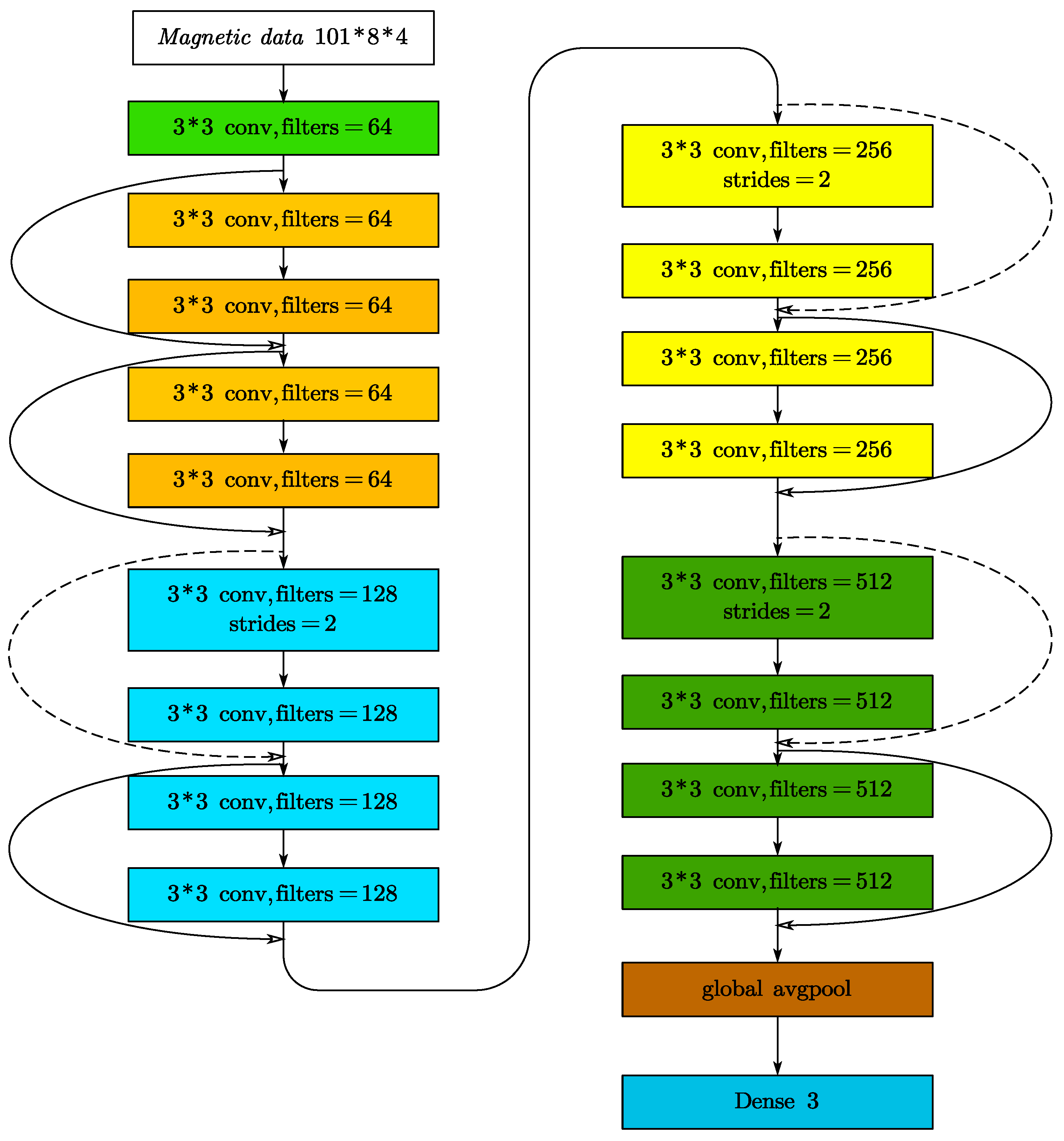

Figure 4 depicts the network structure.
4. Experimental Results and Analysis
According to Equation (1), it can be found that the magnetic field generated by the dipole target decays with the third power of distance. Therefore, when the target is far away, the magnetization field of the detection target cannot be obtained by the fluxgate sensor. We used the model HSF923-2H5-AA fluxgate sensor with the sensor index shown in
Table 1, but it did not achieve the expected accuracy during the experiment. To obtain a better signal-to-noise ratio, either the magnitude of the target magnetic moment should be increased or the measurement point should be placed close to the detection target. To ensure the availability of Equation (1) (detection distance is much larger than the target diameter), the distance from the detection location to the target cannot be too close either.
The fluctuation of the ambient magnetic field has a great influence on the experiment. By observing

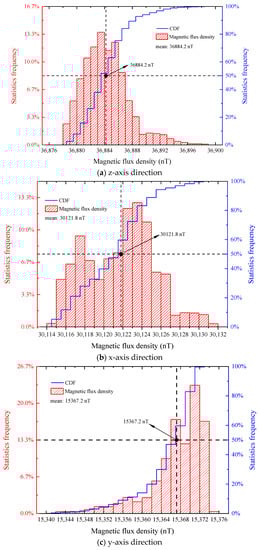

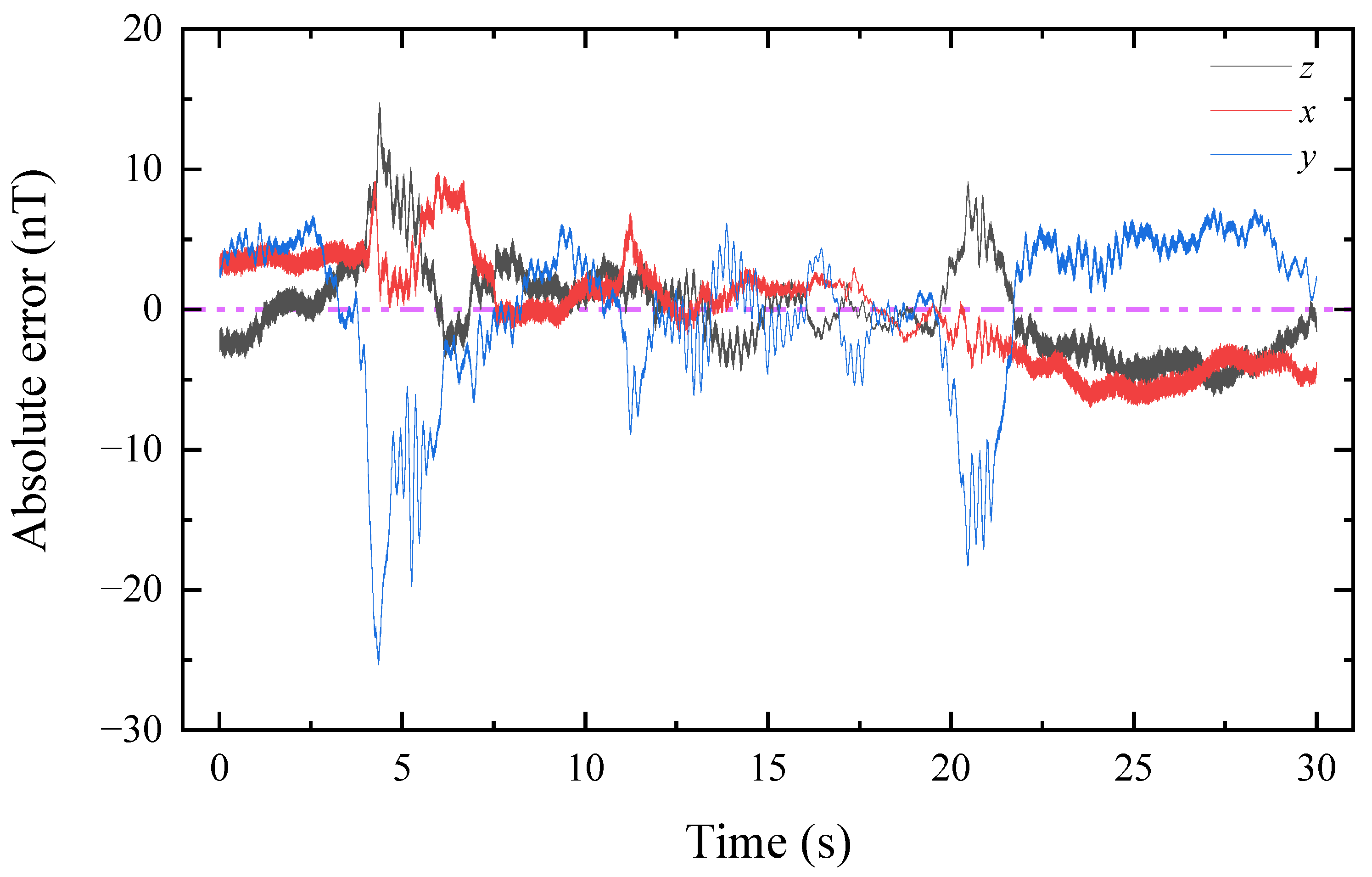

Figure 10 and

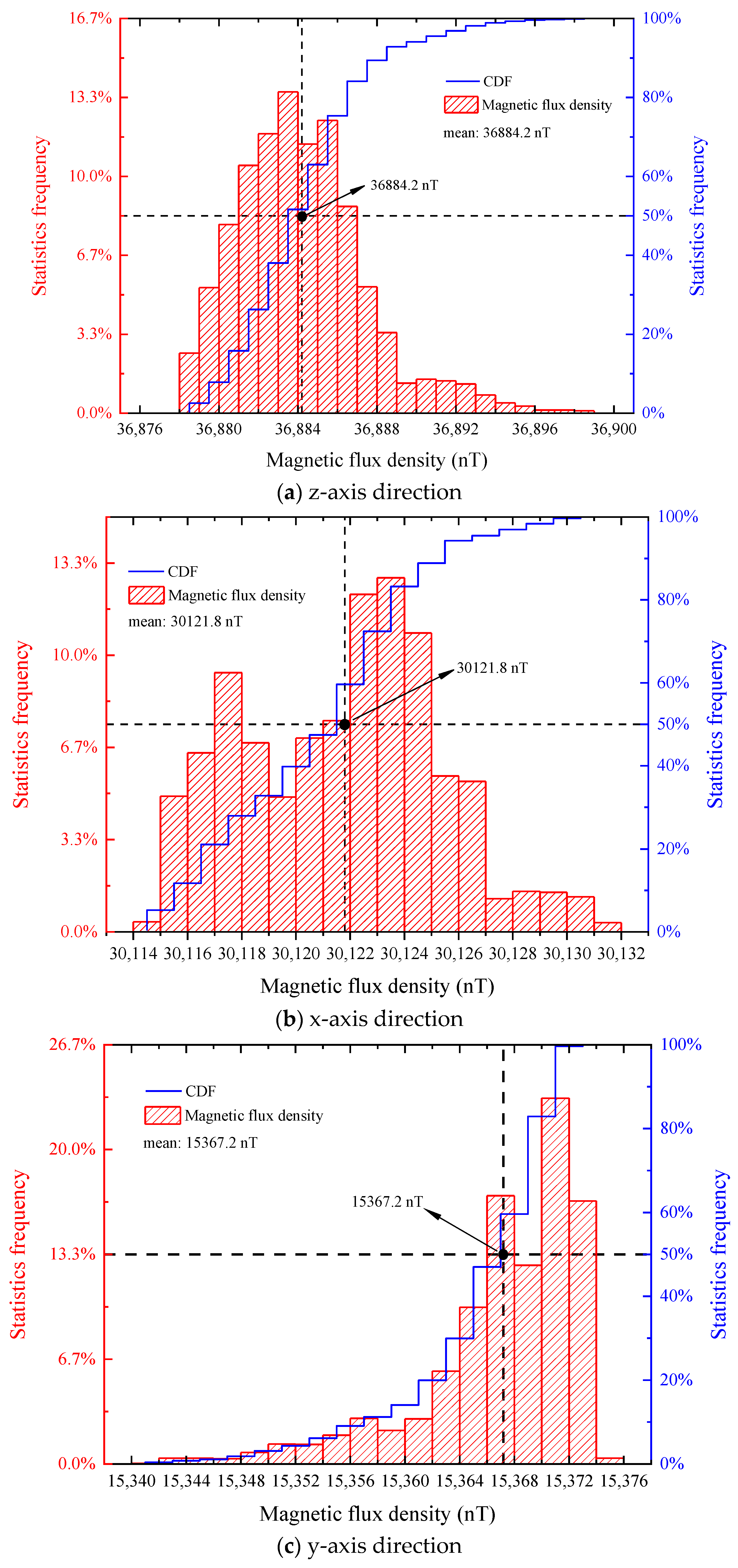

Table 4, it can be found that the uncertainty of the magnetic field fluctuation in the experimental environment is great, especially the fluctuation in the y-axis direction, and the root mean square of the magnetic field is as high as 5.7 nT within the 30 s of the test, which is much higher than the root mean square of the magnetic field in the x-axis and z-axis directions. Observing

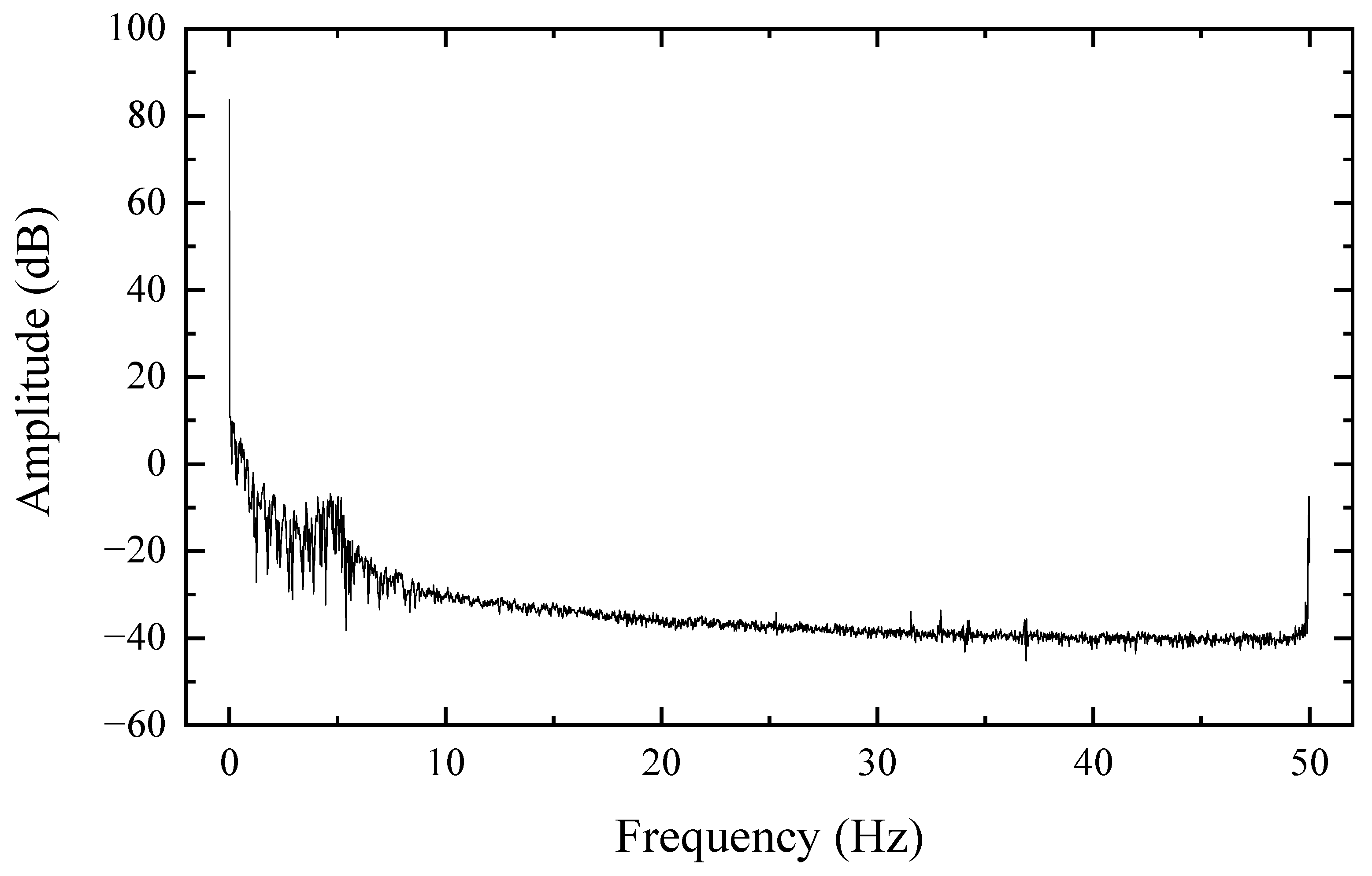

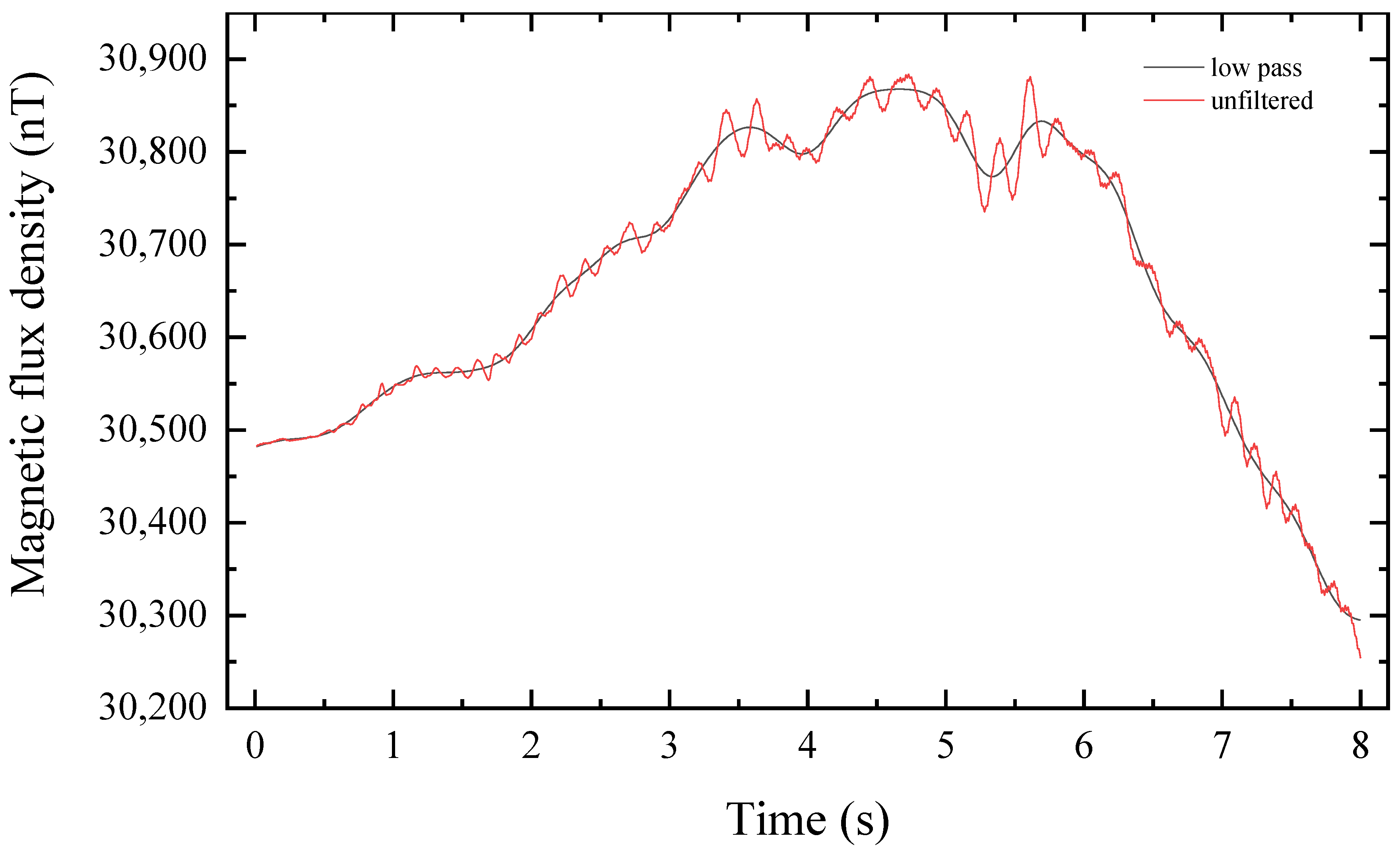

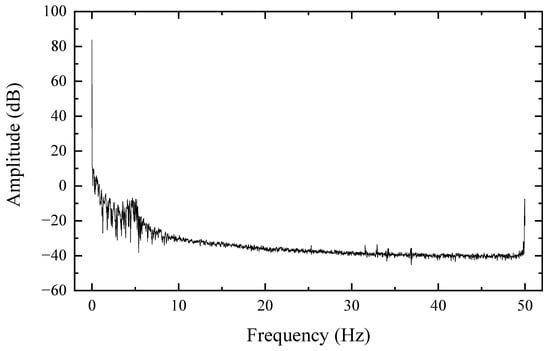

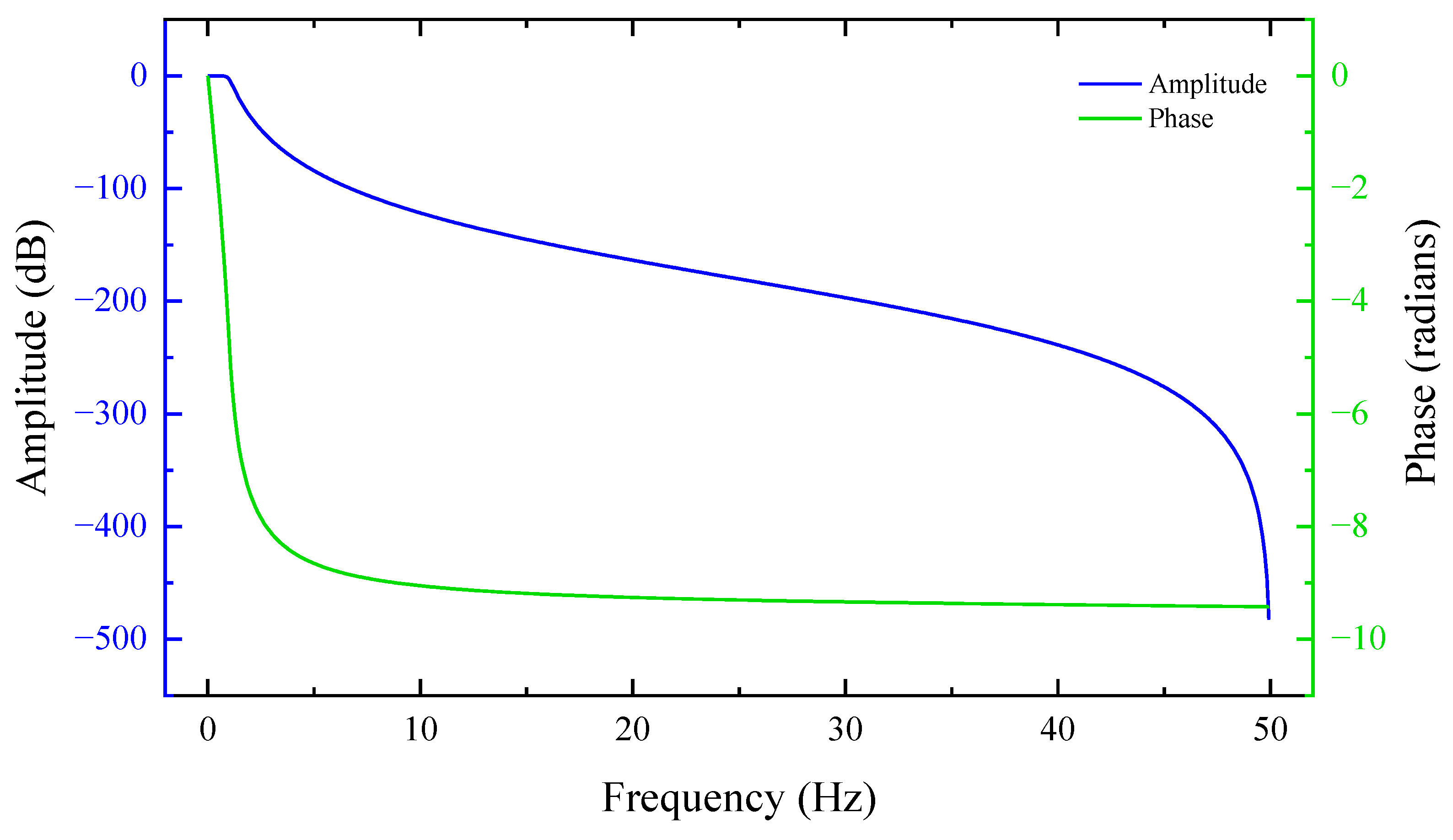

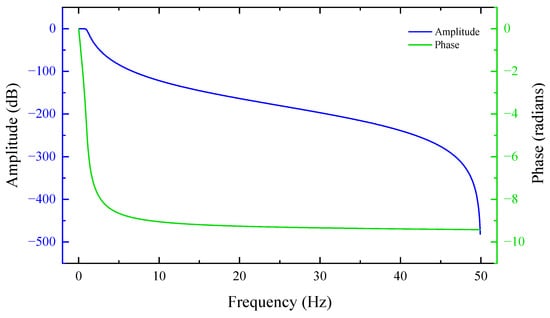

Figure 12, it can be found that the noise of the ambient magnetic field is mainly concentrated in the low-frequency and 50 Hz parts, and a better waveform can be obtained by low-pass filtering, as shown in

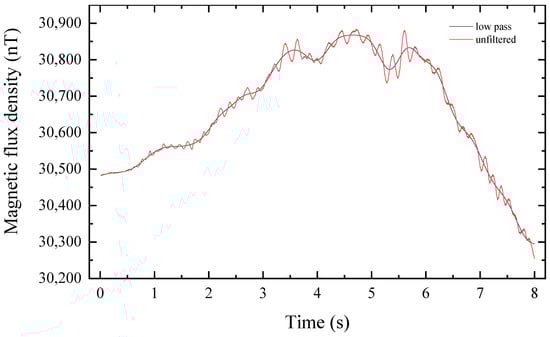

Figure 7. It is recommended to perform a time-frequency analysis of the ambient magnetic field before the experiment to obtain the noise distribution and select a suitable filter to restore the real waveform.
In the experiment, when the No. 1 iron ball target is 0.7 m away from the fluxgate sensor, the magnetic field is only 3 nT. When the ambient magnetic field fluctuates widely, the signal of the target is completely mixed into the ambient magnetic field. When the No. 1 iron ball target is 0.3 m away from the fluxgate sensor, a better signal-to-noise ratio is obtained, and the magnetic field is 120 nT.

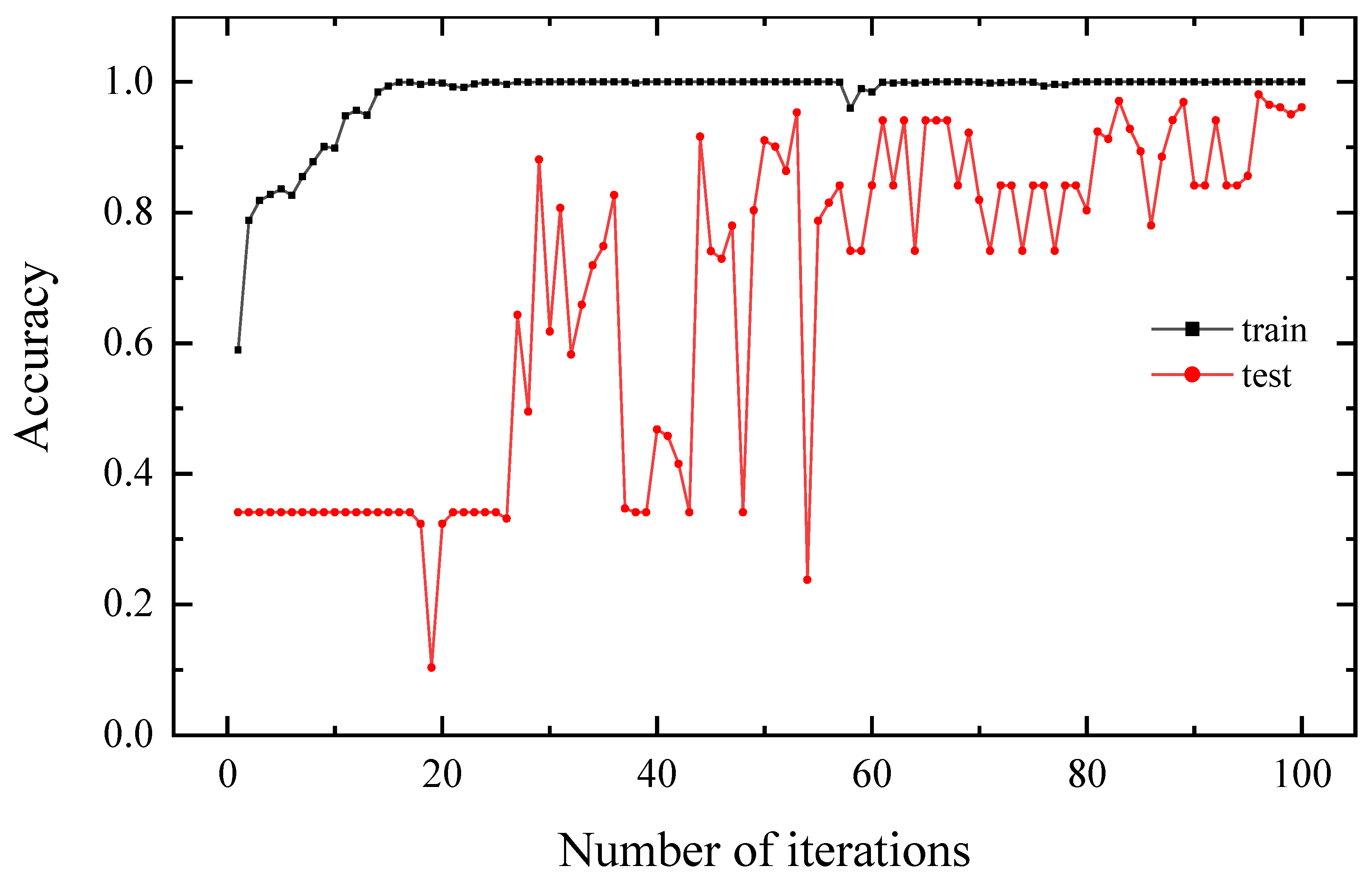

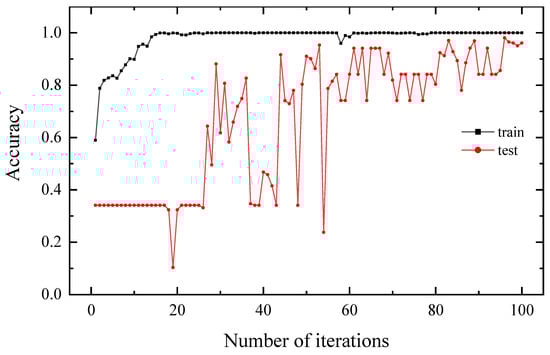

Figure 13 reveals that the accuracy of the validation set begins to converge after 60 iterations, and the accuracy of the validation set tends to fluctuate smoothly after 80 iterations and then converges at approximately 0.9.

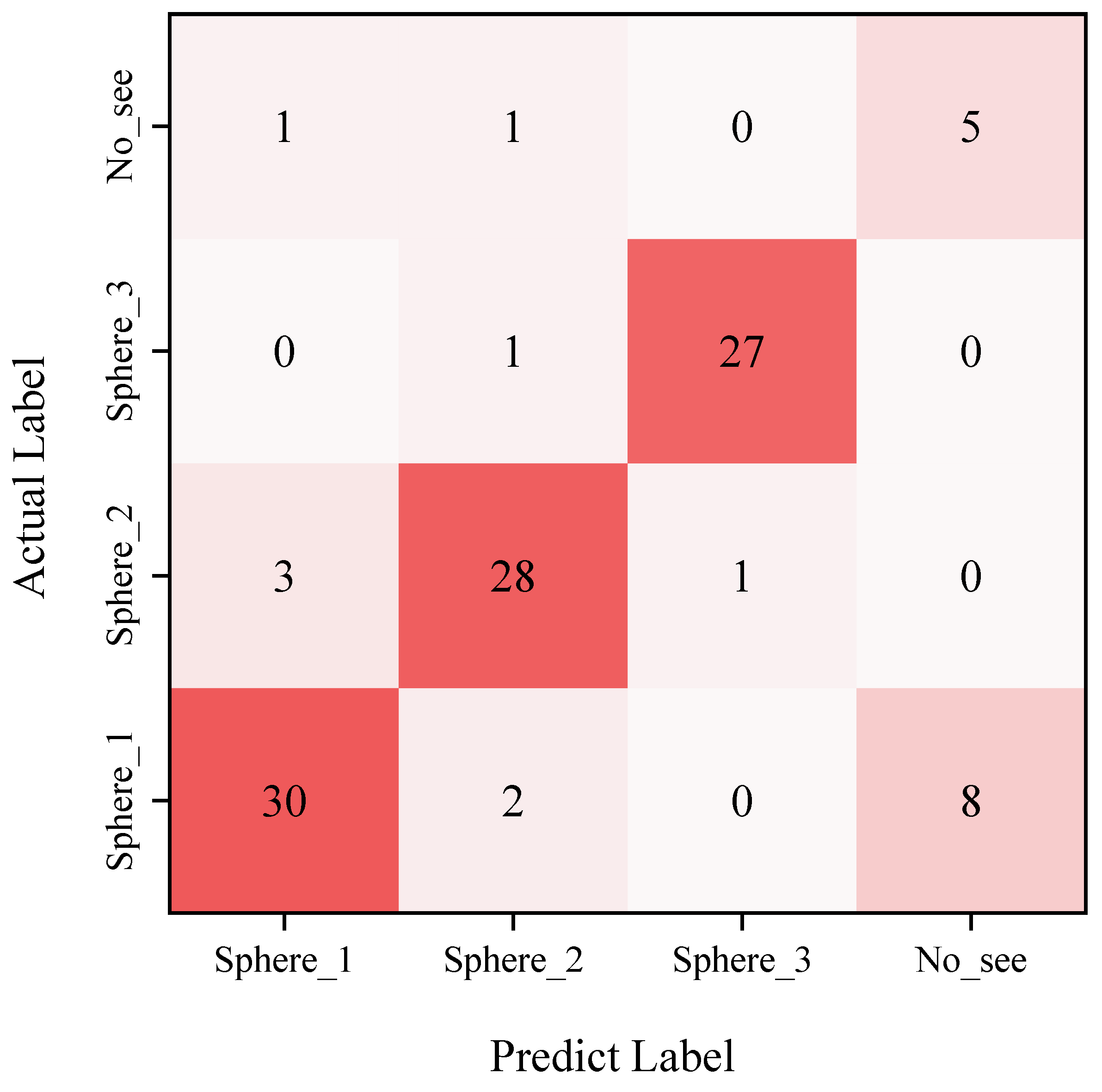

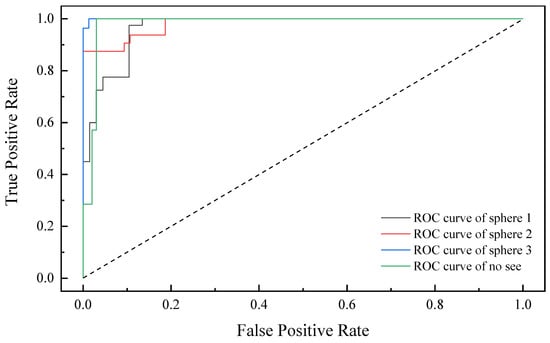

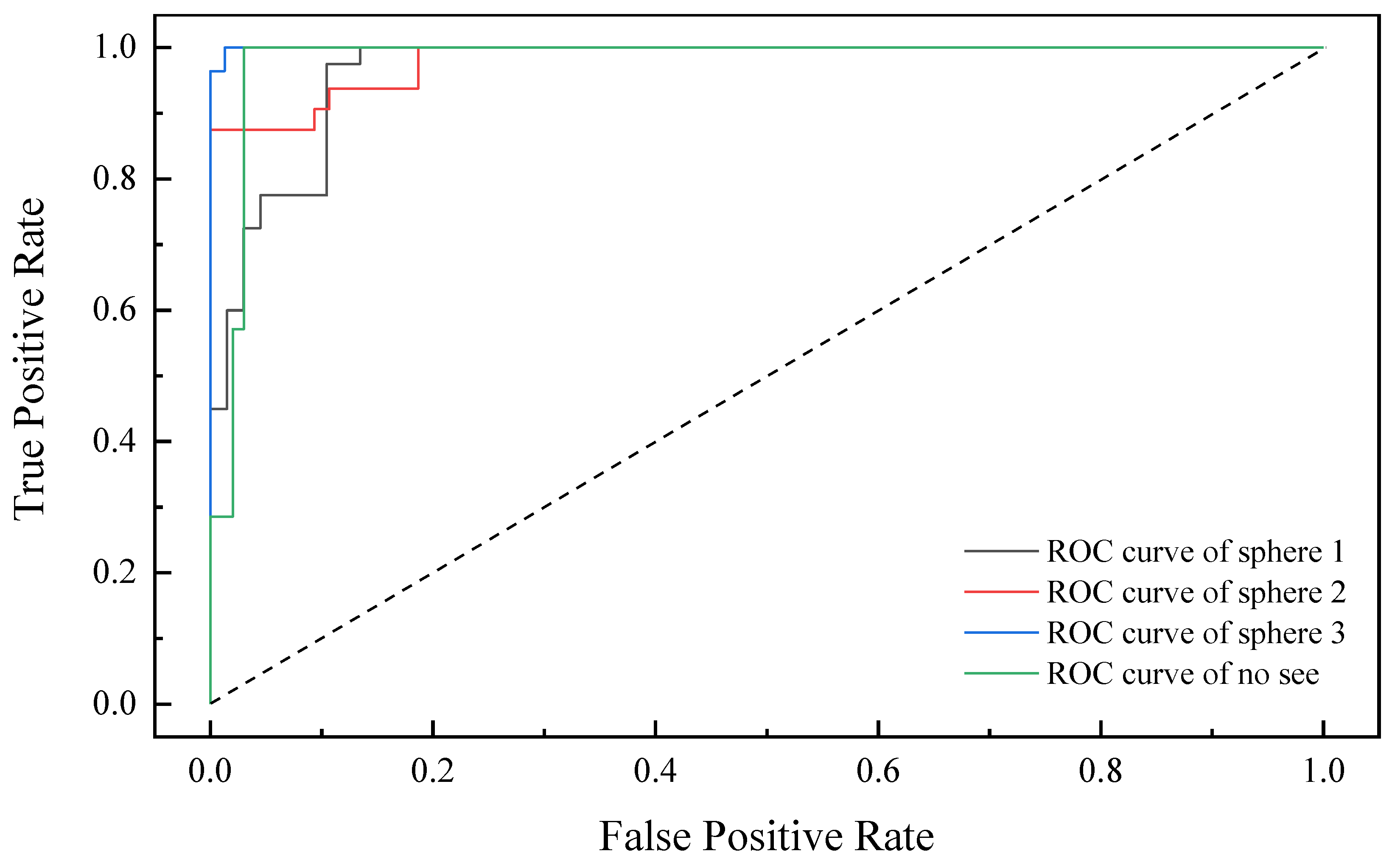

Through the analysis of the recall rate, accuracy rate, and F1 value calculated by the model, it can be seen that in the process of target classification and recognition, the single recognition accuracy of the No. 3 iron ball is the highest, and the F1 index is closest to 1. The identification between the No. 1 iron ball and no see is relatively difficult because the local geomagnetic environment has magnetic anomalies, and the diameter of the No. 3 iron ball is relatively small, which is not conducive to distinguishing the difference between the target and the environment. In other words, the magnetic anomaly caused by the No. 1 iron ball is sometimes overwhelmed by the local environment, so the recognition algorithm cannot accurately distinguish between the two. Similarly, the recognition algorithm also confuses some No. 2 iron balls with No. 1 iron balls because the magnetic anomalies between the two are not very different. In contrast, the algorithm is more accurate in distinguishing No. 1 iron balls and No. 3 iron balls.
The experimental results show that the system can still identify targets with significant discrepancies in the magnetic anomalies.
5. Conclusions
When distinguishing metal targets through this recognition algorithm, the overall accuracy rate is 84.1%. The No. 3 iron ball performed the best in recognition, with a single recognition accuracy rate of 96.3%, a recall rate of 96.4%, and a precision rate of 96.4%. The excellent performance is attributed to the fact that the target is larger than other targets, and the magnetic anomaly is more obvious. The fluctuation of the ambient magnetic field leads to increased uncertainty in the whole identification system. In the experimental environment, the main noise is low-frequency and 50 Hz noise. Therefore, a better real waveform can be restored by the low-pass filter. Using the noise-reduced waveform for training recognition will make the neural network converge better. When the algorithm recognizes the target with a relatively close volume, it is accompanied by the generation of errors. In the experiment, the No. 1 iron ball and the No. 2 iron ball were misclassified because the volumes of the two are relatively close, and the magnetic anomalies displayed on the fluxgate magnetic field sensor are relatively close.
Based on the observation of experimental effects, we found that improving the signal-to-noise ratio of the target can classify the target more accurately. For example, during the experiment, the slide rail can be made closer to the target. The rules to be followed throughout the experiment are that the slide is located directly north of the target and the slide is set along the east–west direction. The slide cannot be set to any other position. If the slide is located due south of the target (the slide is still set in the east–west direction), the peaks and valleys of the magnetic anomaly signal are not consistent with the trained model. Such data cannot be identified. Our experimental site is in the northern hemisphere, and if the experiment is conducted in the southern hemisphere, it is better to set the slide rail to the south side of the target (the slide rail is still set in the east–west direction).
In general, our enhanced RestNet-18 network can accurately classify metallic items.
