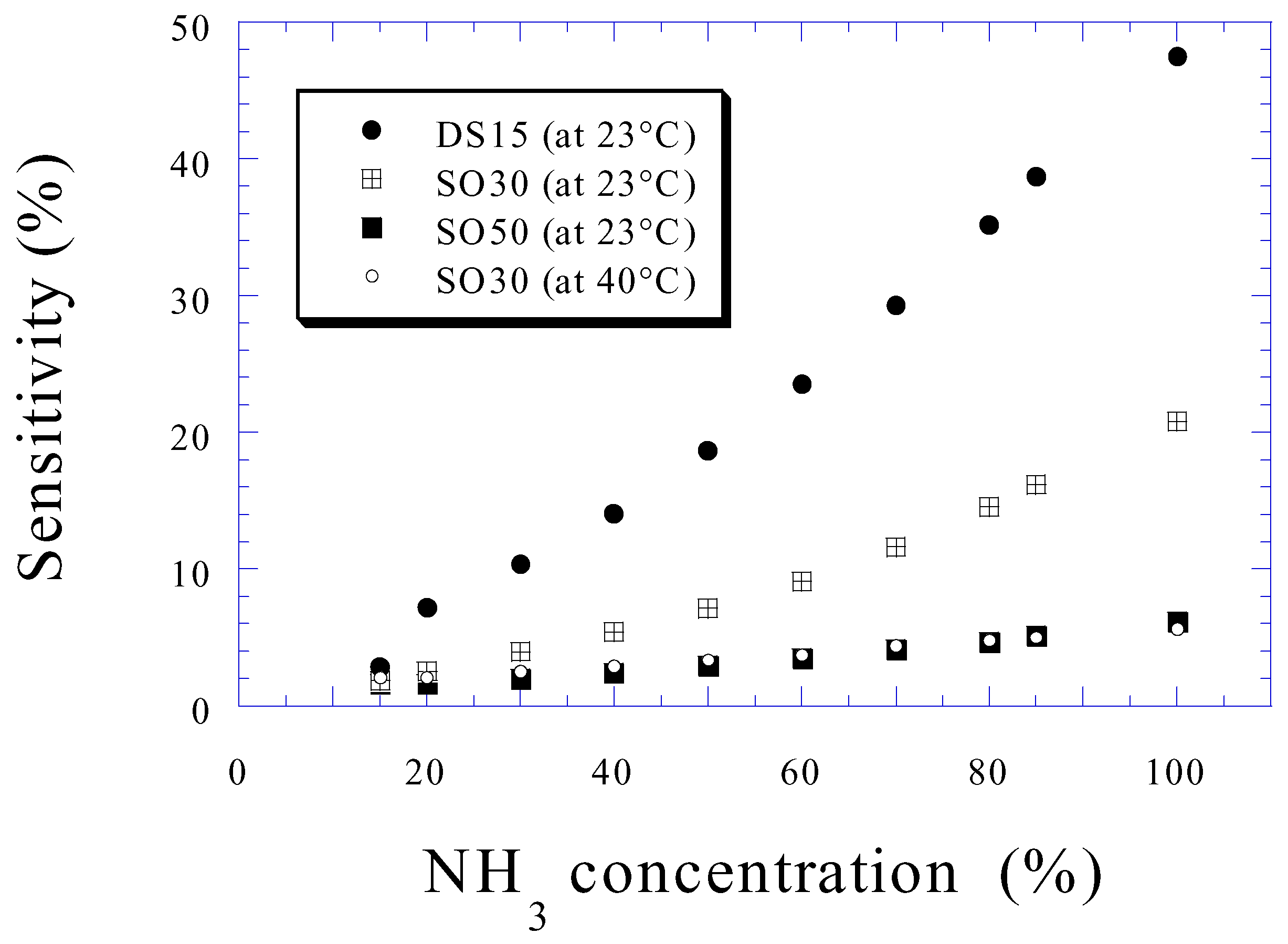

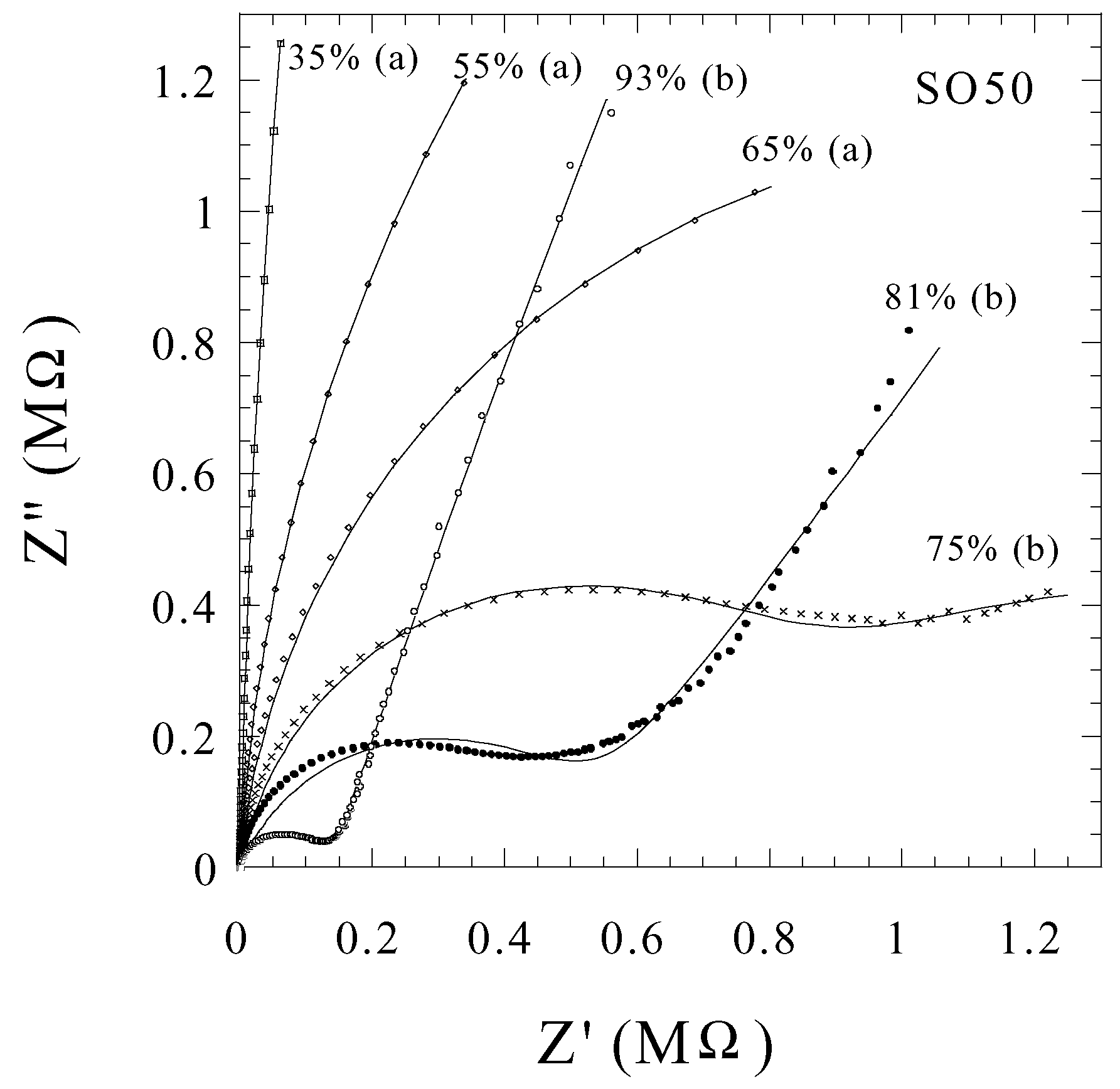

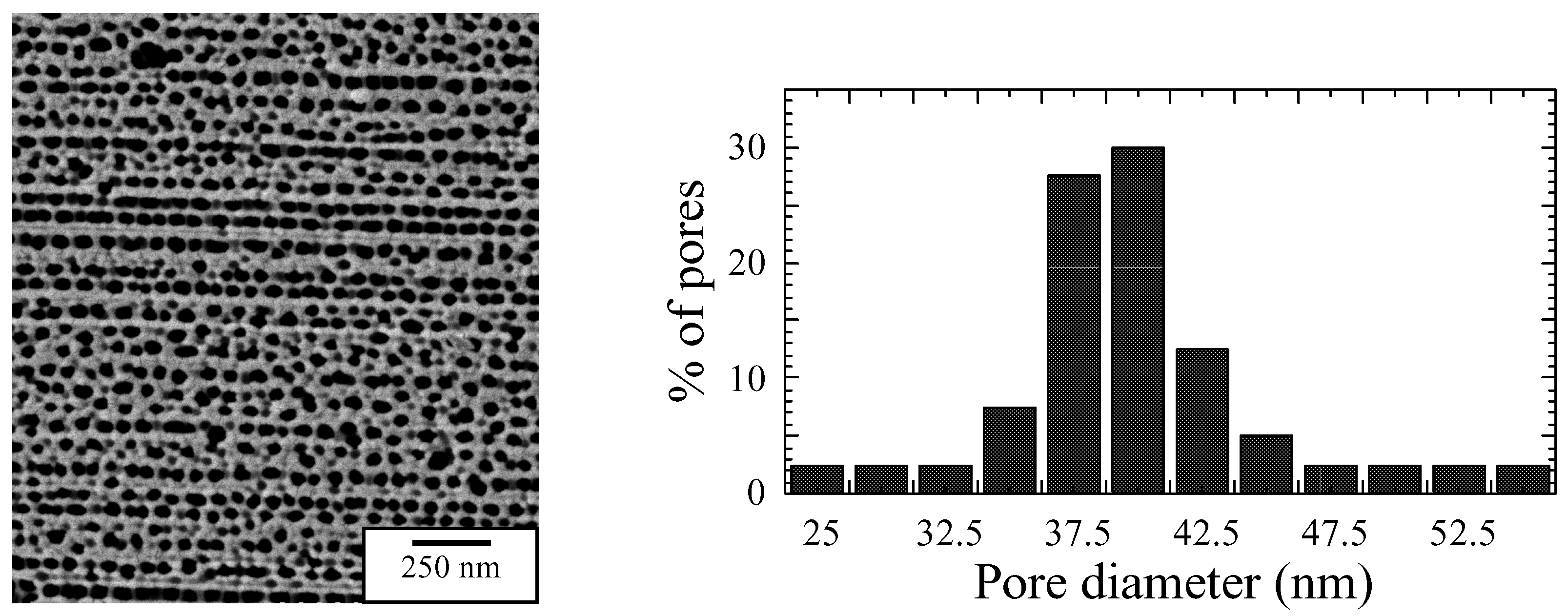

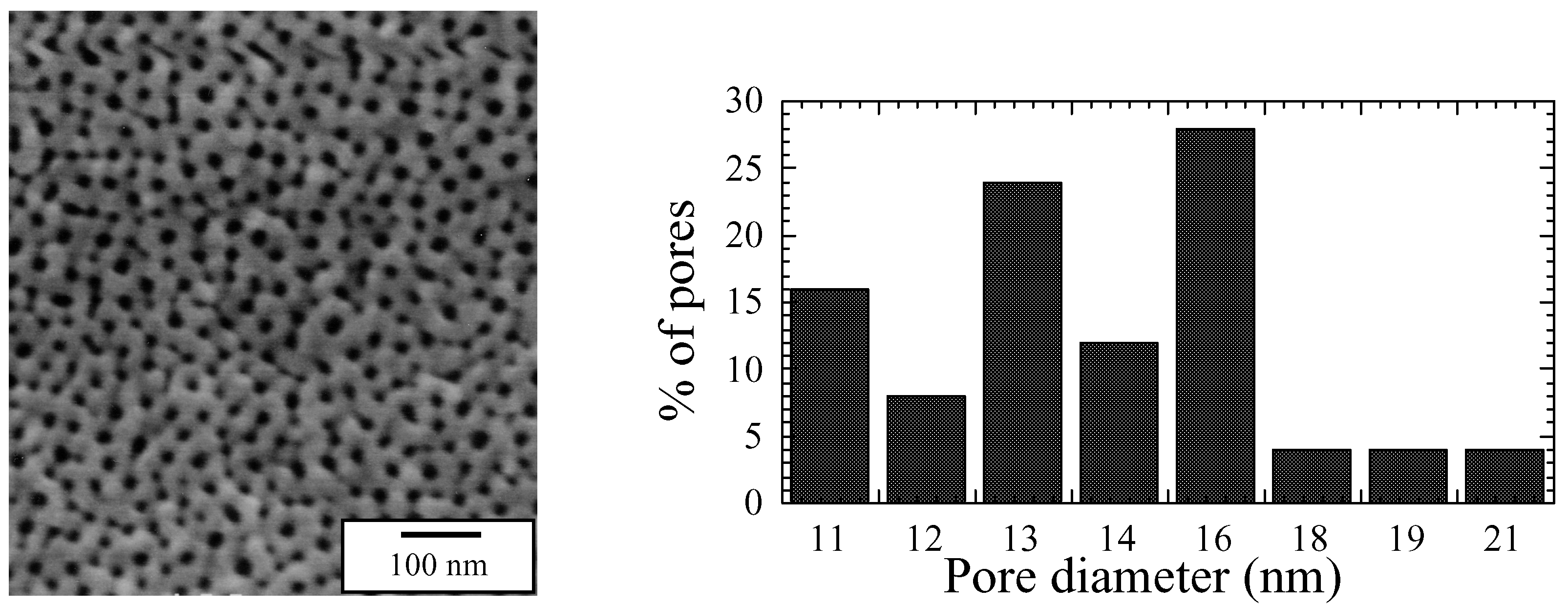

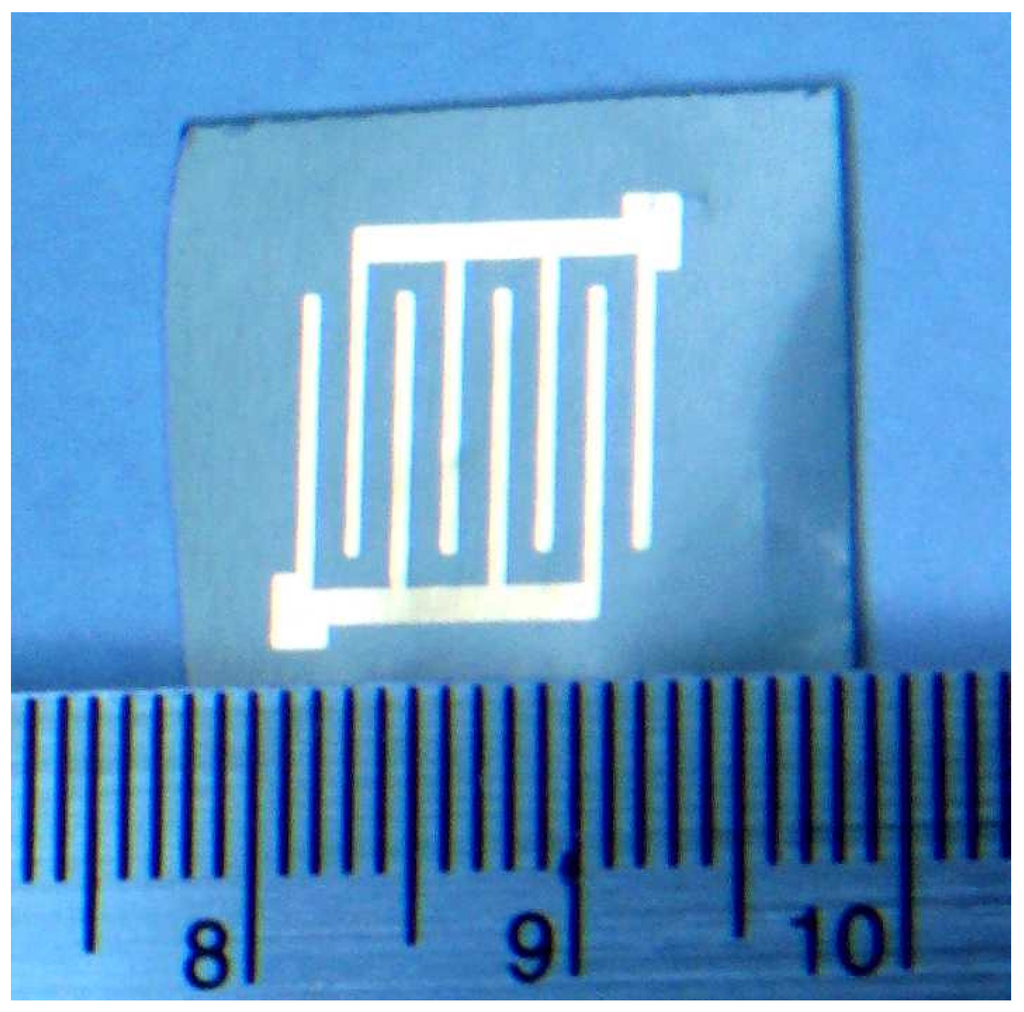

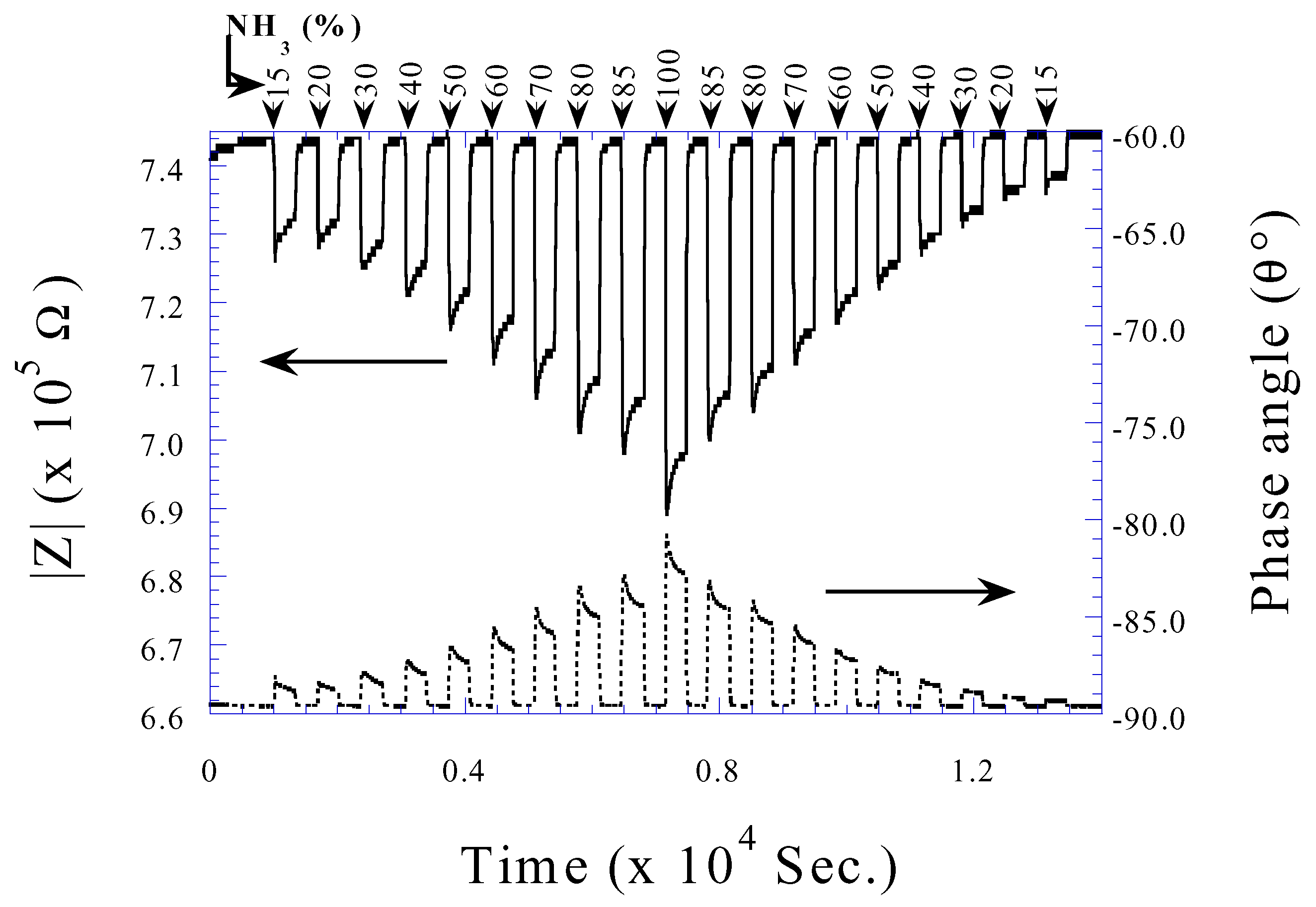

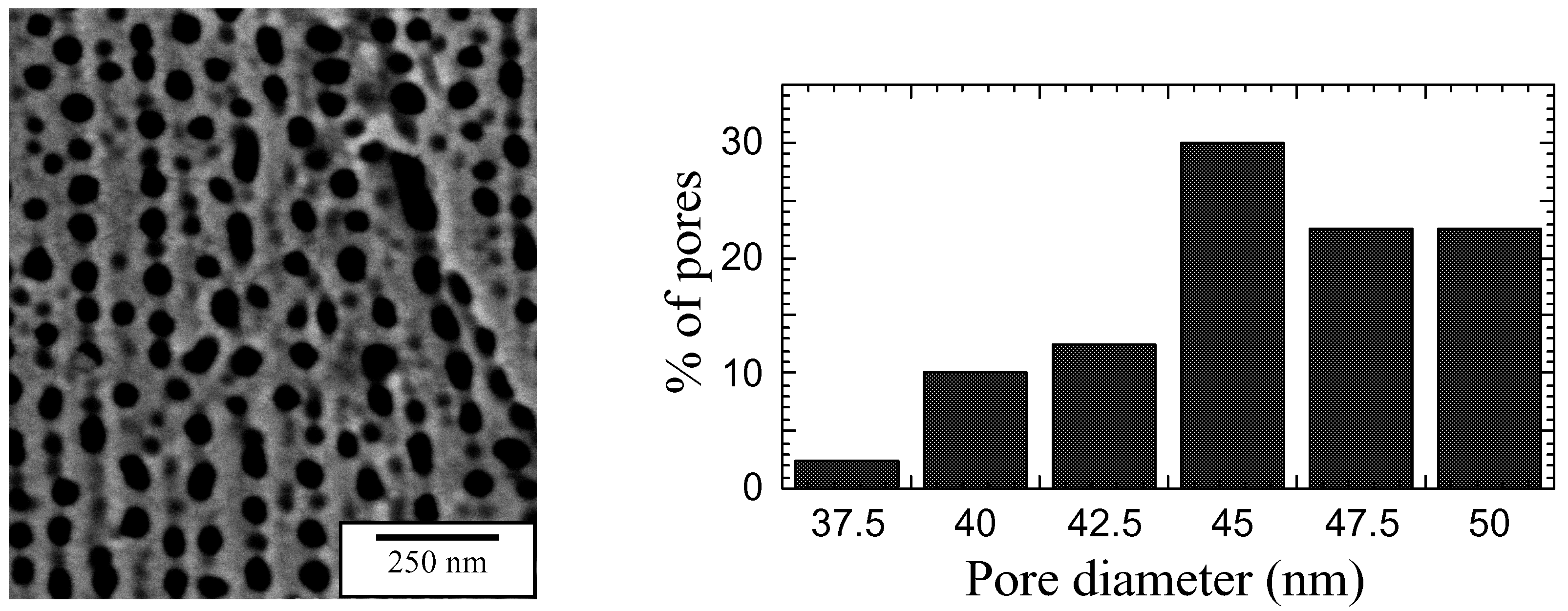

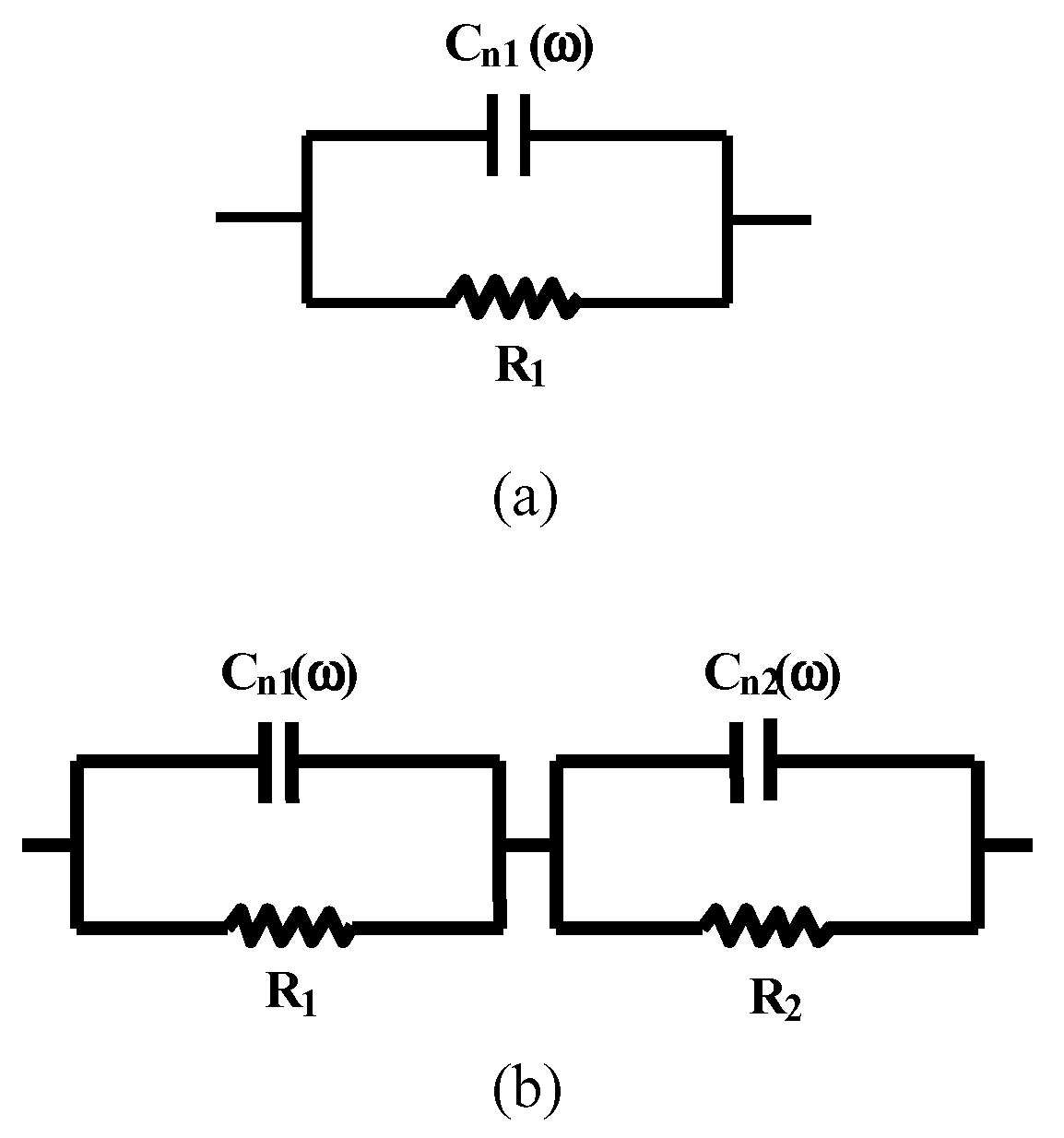

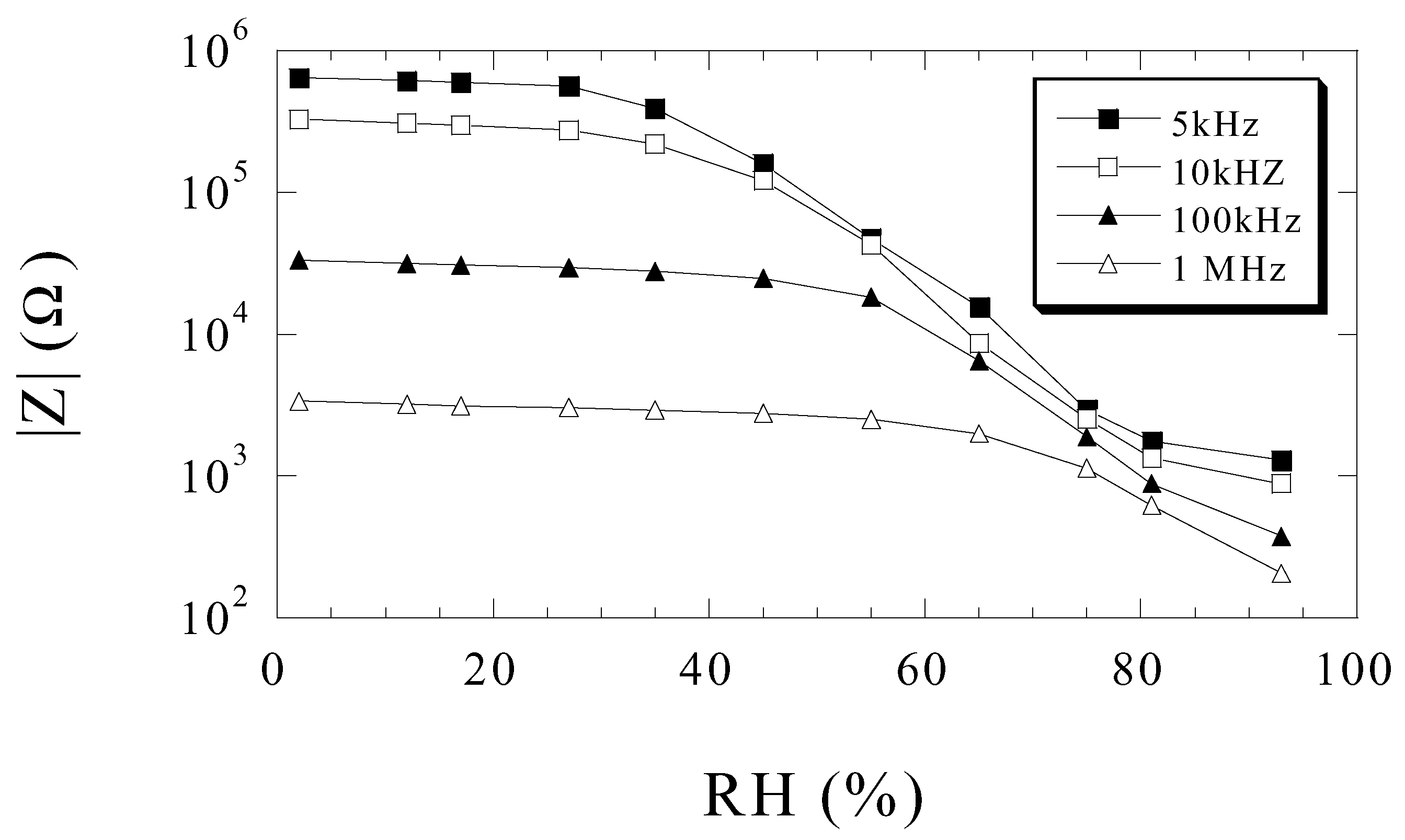

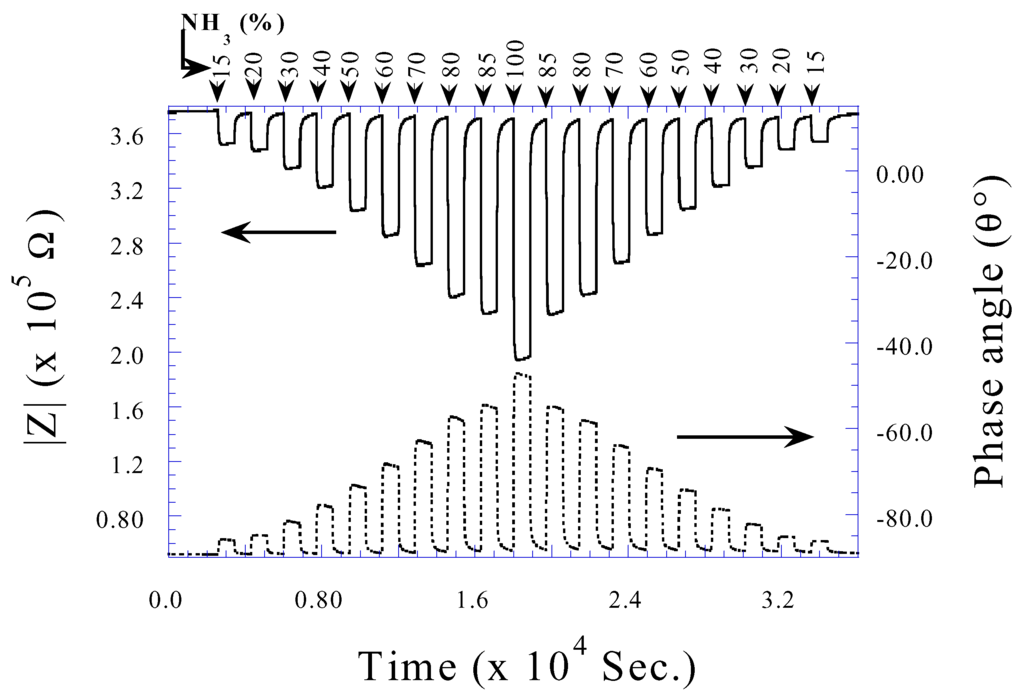

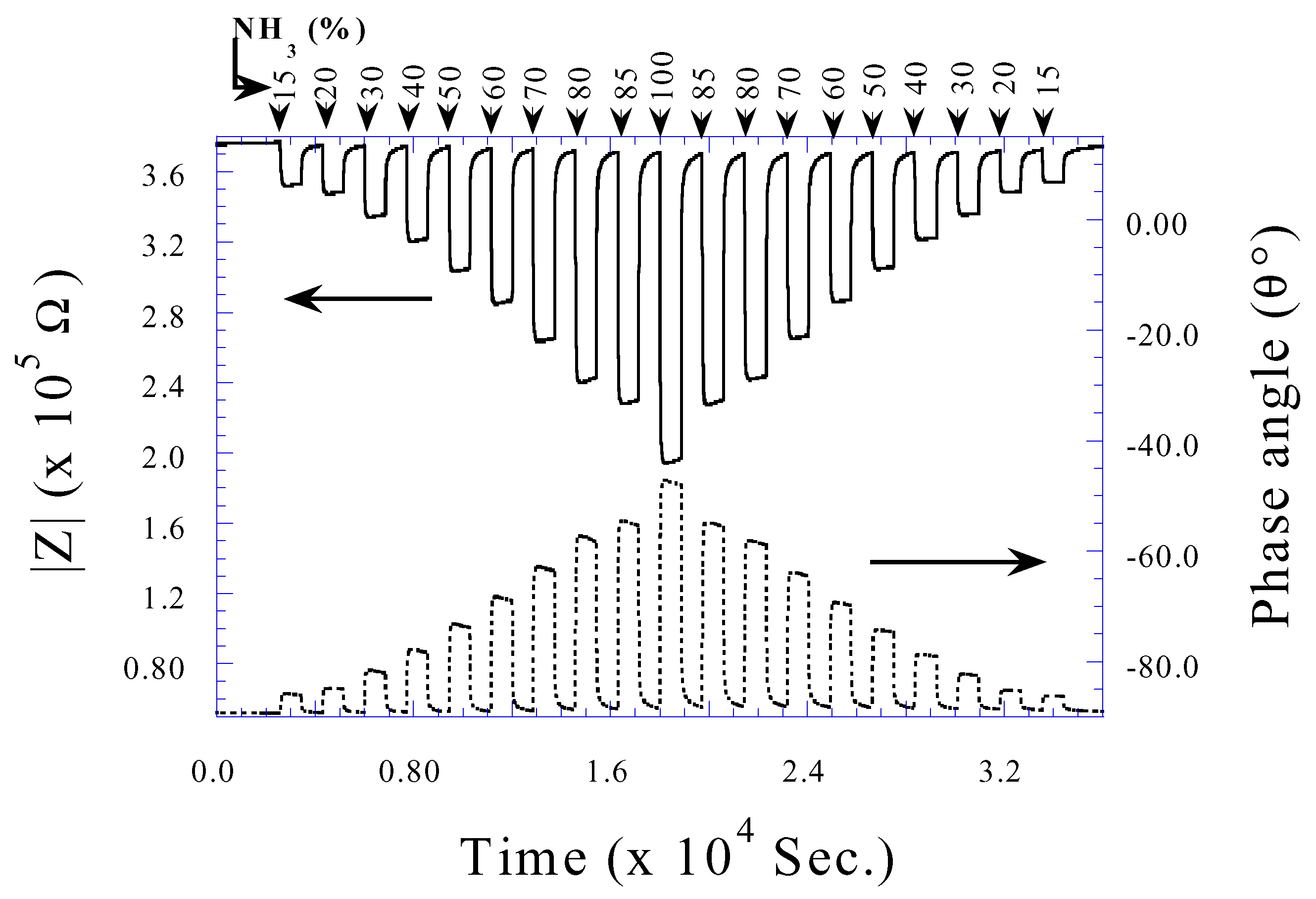

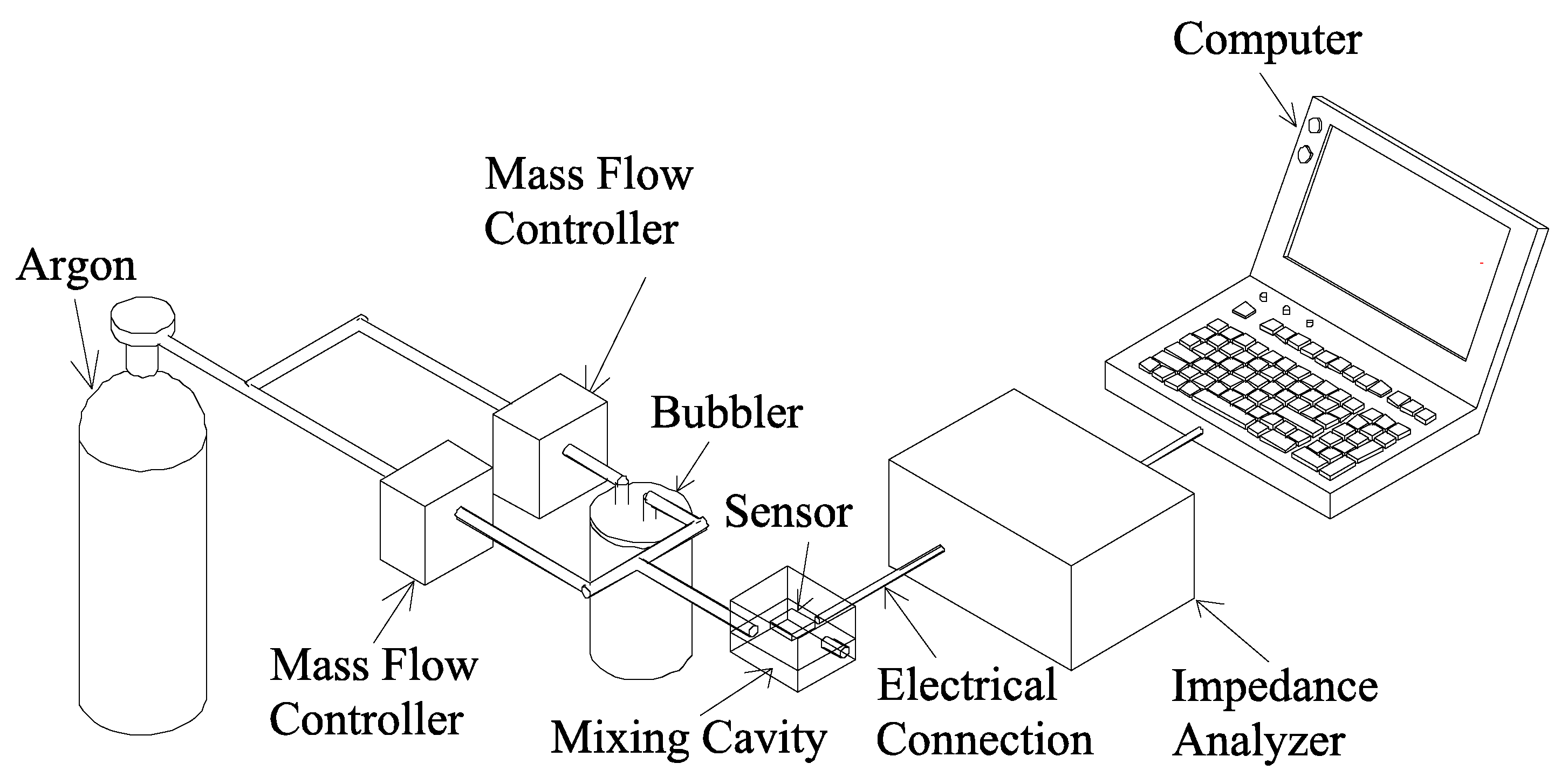

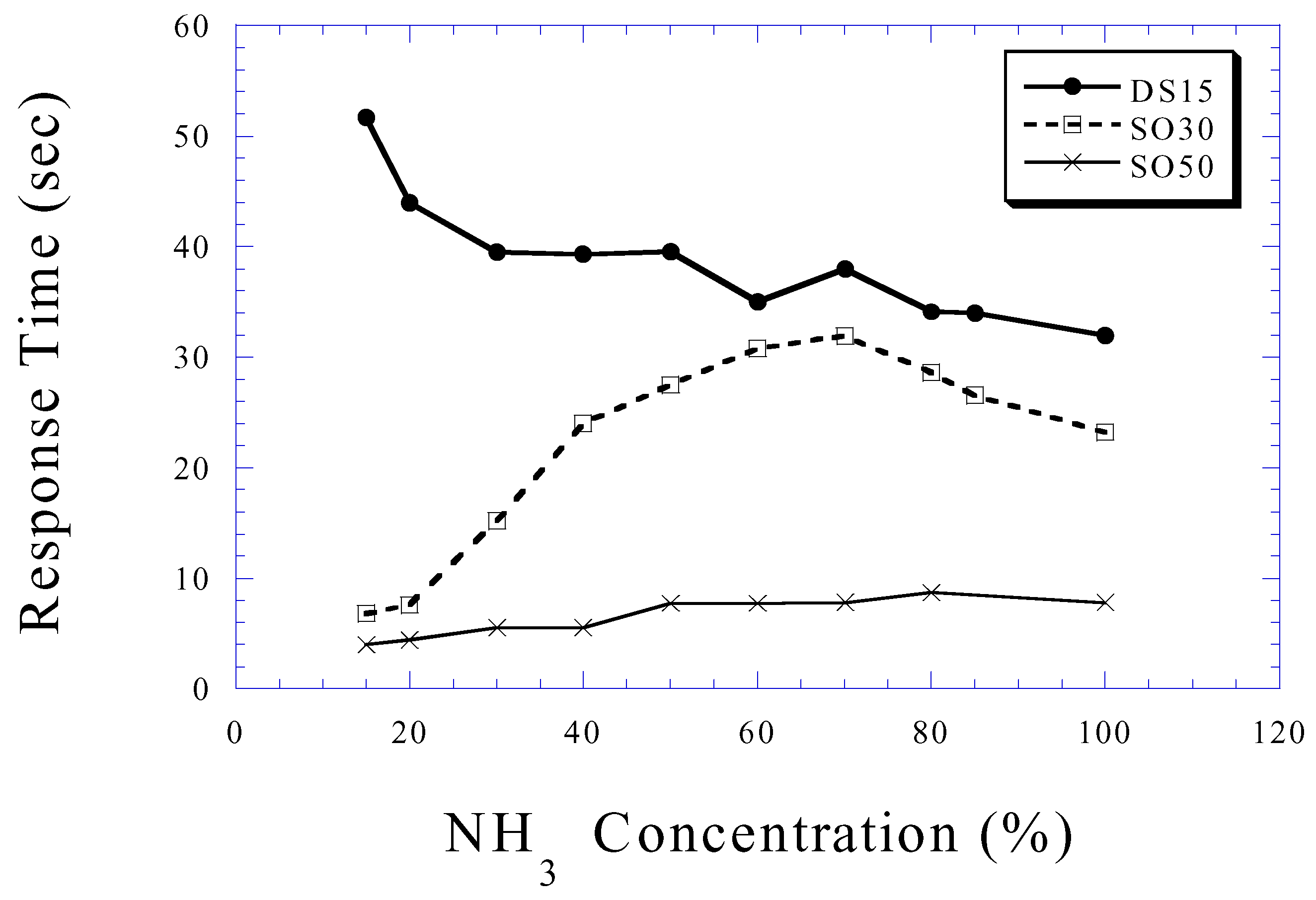

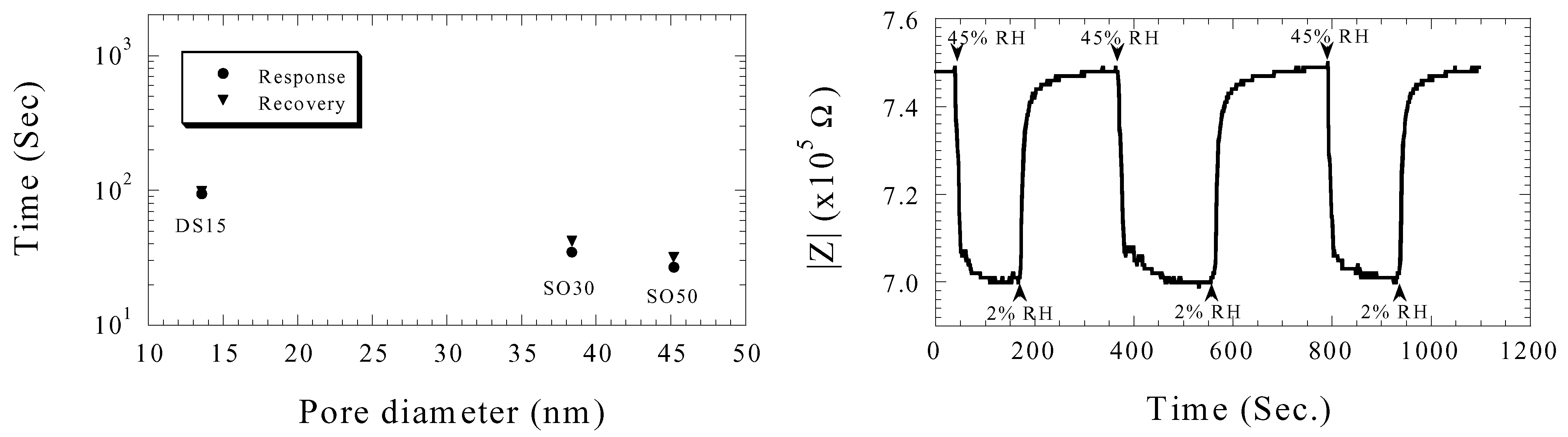

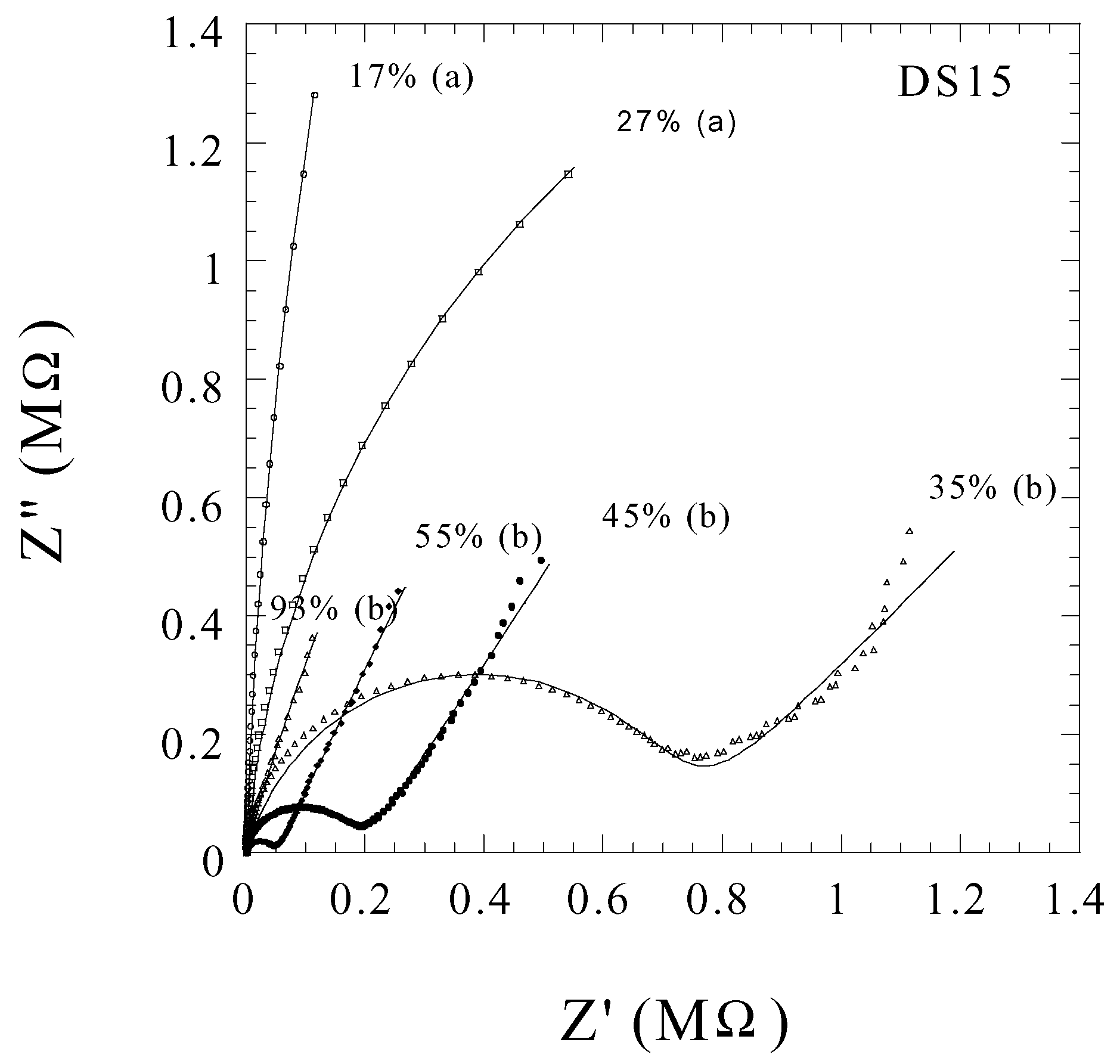

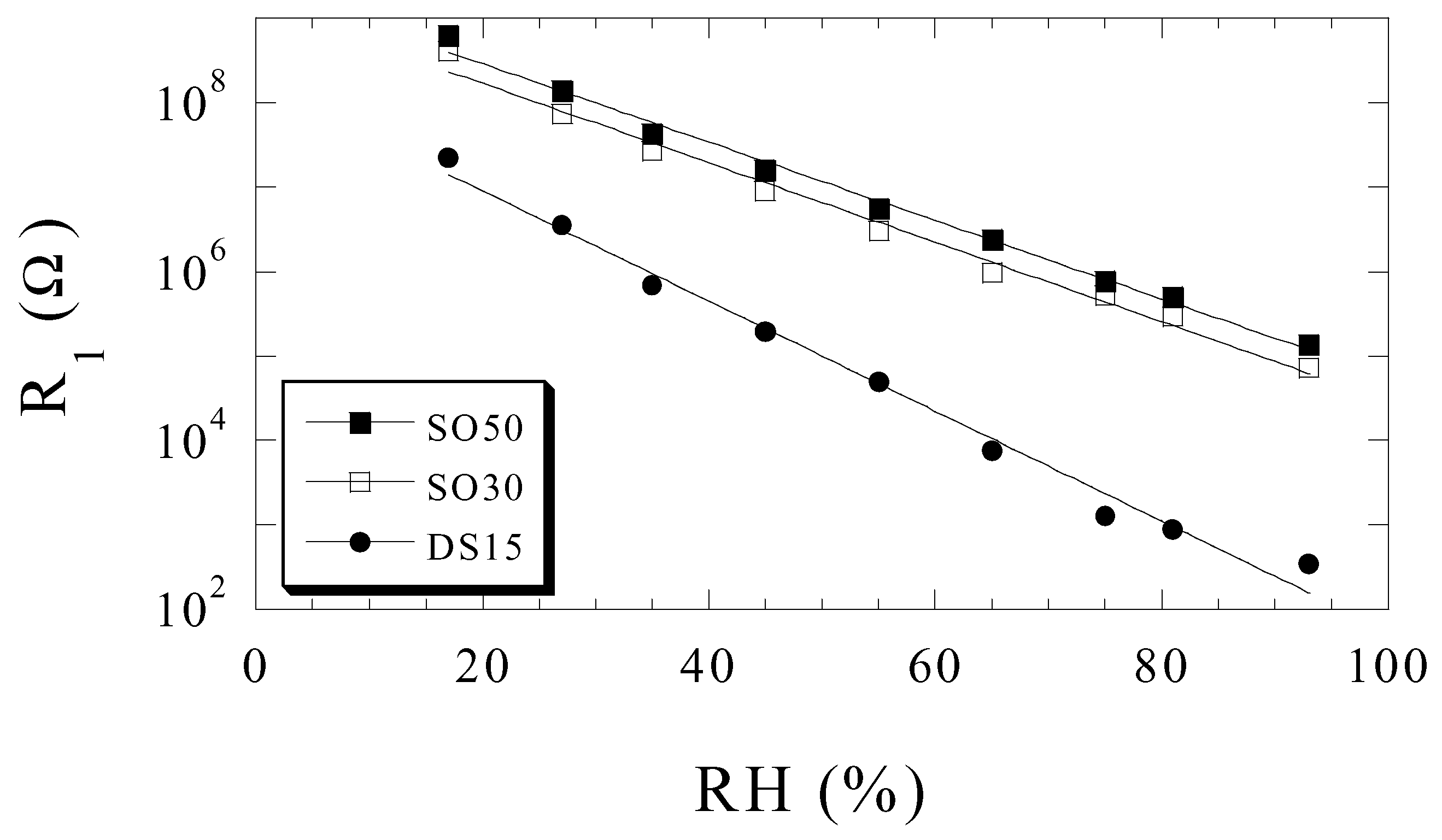

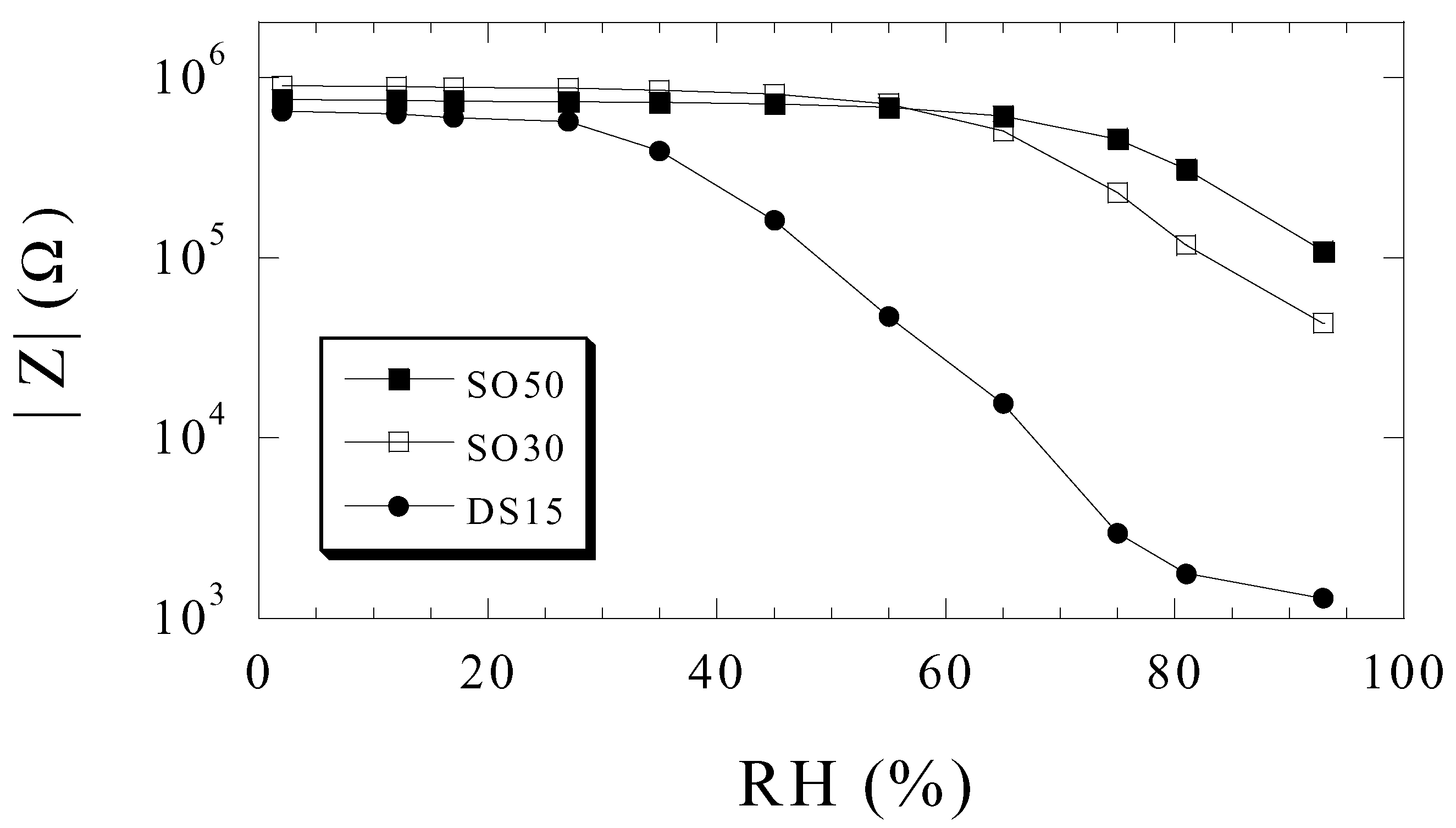

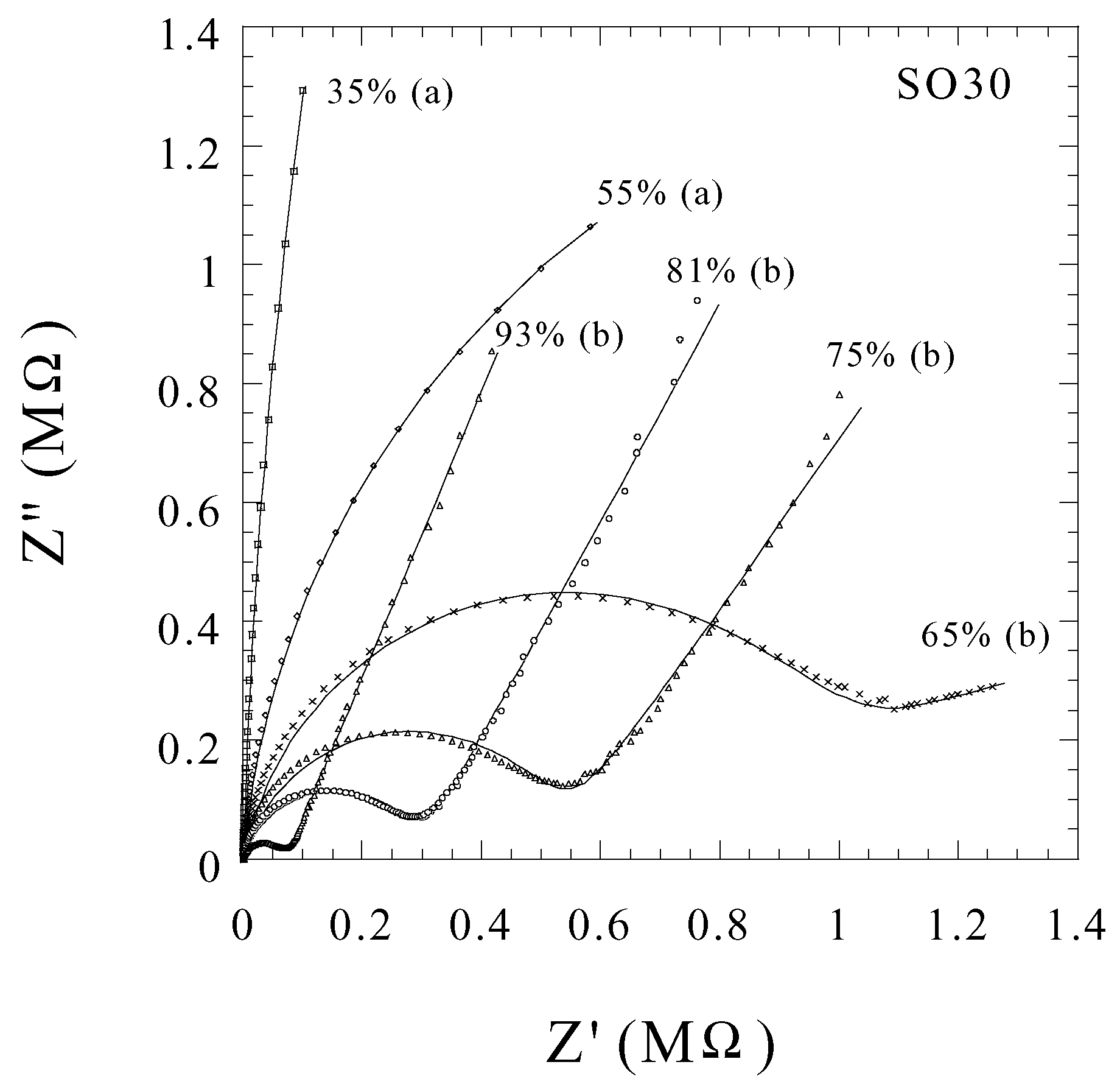

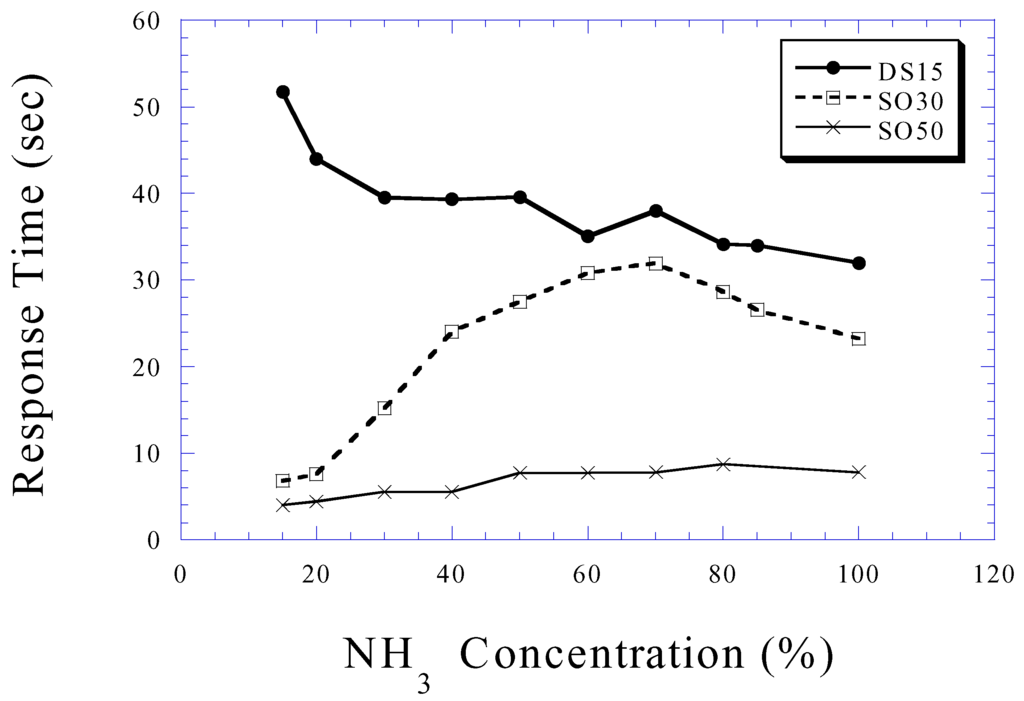

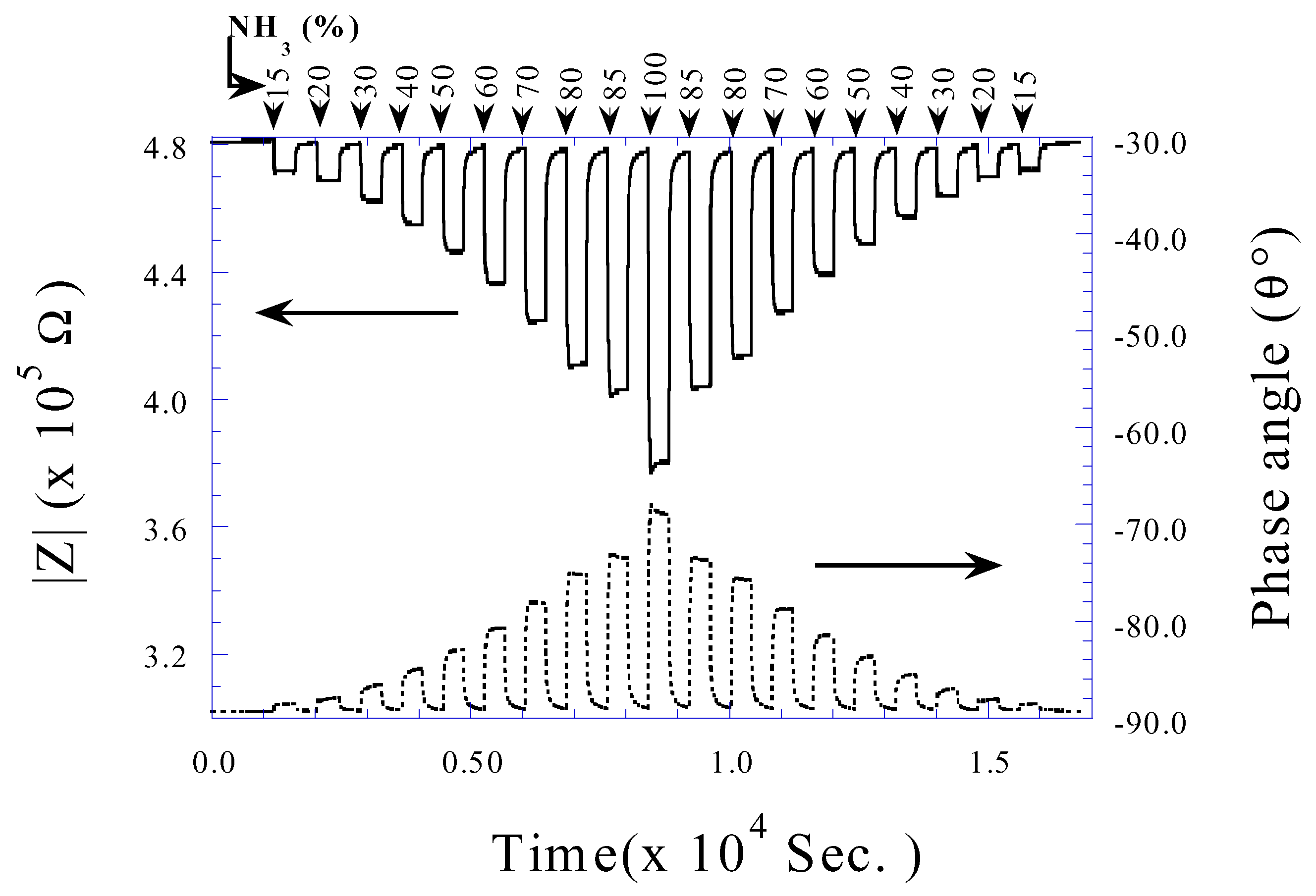

Abstract: The effect of pore size and uniformity on the response of nanoporous alumina, formed on aluminum thick films through an anodization process, to ammonia and humidity at room temperature is reported. Pore sizes examined range from 13 nm to 48 nm, with pore size standard deviations ranging from 2.6 nm to 7.8 nm. The response of the material to ammonia and humidity is a strong function of pore size and operating frequency. At 5 kHz an alumina sensor with an average pore size of 13.6 nm, standard deviation 2.6 nm, exhibits a factor of two change in impedance magnitude as it is cycled between an ammonia and argon environment. At 5 kHz the same sensor exhibits a well-behaved change in impedance magnitude of 103 over 20% to 90% relative humidity. Cole-Cole plots of the 5 Hz to 13 MHz measured impedance spectra, modeled using equivalent circuits, are used to resolve the effects of adsorption and ion migration.
Keywords: Ammonia; Nanoporous; Impedance spectroscopy; Alumina; Humidity; Mesoporous
Export to BibTeX
MDPI and ACS Style
Dickey, E.C.; Varghese, O.K.; Ong, K.G.; Gong, D.; Paulose, M.; Grimes, C.A. Room Temperature Ammonia and Humidity Sensing Using Highly Ordered Nanoporous Alumina Films. Sensors 2002, 2, 91-110.
Dickey EC, Varghese OK, Ong KG, Gong D, Paulose M, Grimes CA. Room Temperature Ammonia and Humidity Sensing Using Highly Ordered Nanoporous Alumina Films. Sensors. 2002; 2(3):91-110.
Dickey, Elizabeth C.; Varghese, Oomman K.; Ong, Keat G.; Gong, Dawei; Paulose, Maggie; Grimes, Craig A. 2002. "Room Temperature Ammonia and Humidity Sensing Using Highly Ordered Nanoporous Alumina Films." Sensors 2, no. 3: 91-110.
