Open AccessArticle
Sensors 2018, 18(8), 2557; https://doi.org/10.3390/s18082557

Multiparametric Monitoring in Equatorian Tomato Greenhouses (III): Environmental Measurement Dynamics

1
Departamento de Eléctrica y Electrónica, Universidad de las Fuerzas Armadas ESPE, Av. General Rumiñahui s/n, Sangolquí 171-5-231B, Ecuador
2
Departamento de Teoría de la Señal y Comunicaciones, Sistemas Telemáticos y Computación, Universidad Rey Juan Carlos, 28943 Fuenlabrada, Spain
3
Departamento de Ciencias Exactas, Universidad de las Fuerzas Armadas ESPE, Av. General Rumiñahui s/n, Sangolquí 171-5-231B, Ecuador
4
Center for Computational Simulation, Universidad Politécnica de Madrid, Boadilla del Monte, 28660 Madrid, Spain
5
Carrera de Telecomunicaciones, Universidad Politécnica Salesiana, Cuenca 010105, Ecuador
*
Author to whom correspondence should be addressed.
Received: 31 May 2018 / Revised: 31 July 2018 / Accepted: 2 August 2018 / Published: 4 August 2018
(This article belongs to the Special Issue Intelligent Sensor Systems for Environmental Monitoring)

Abstract

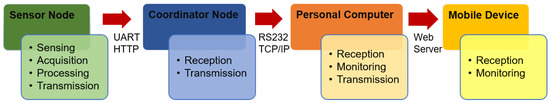

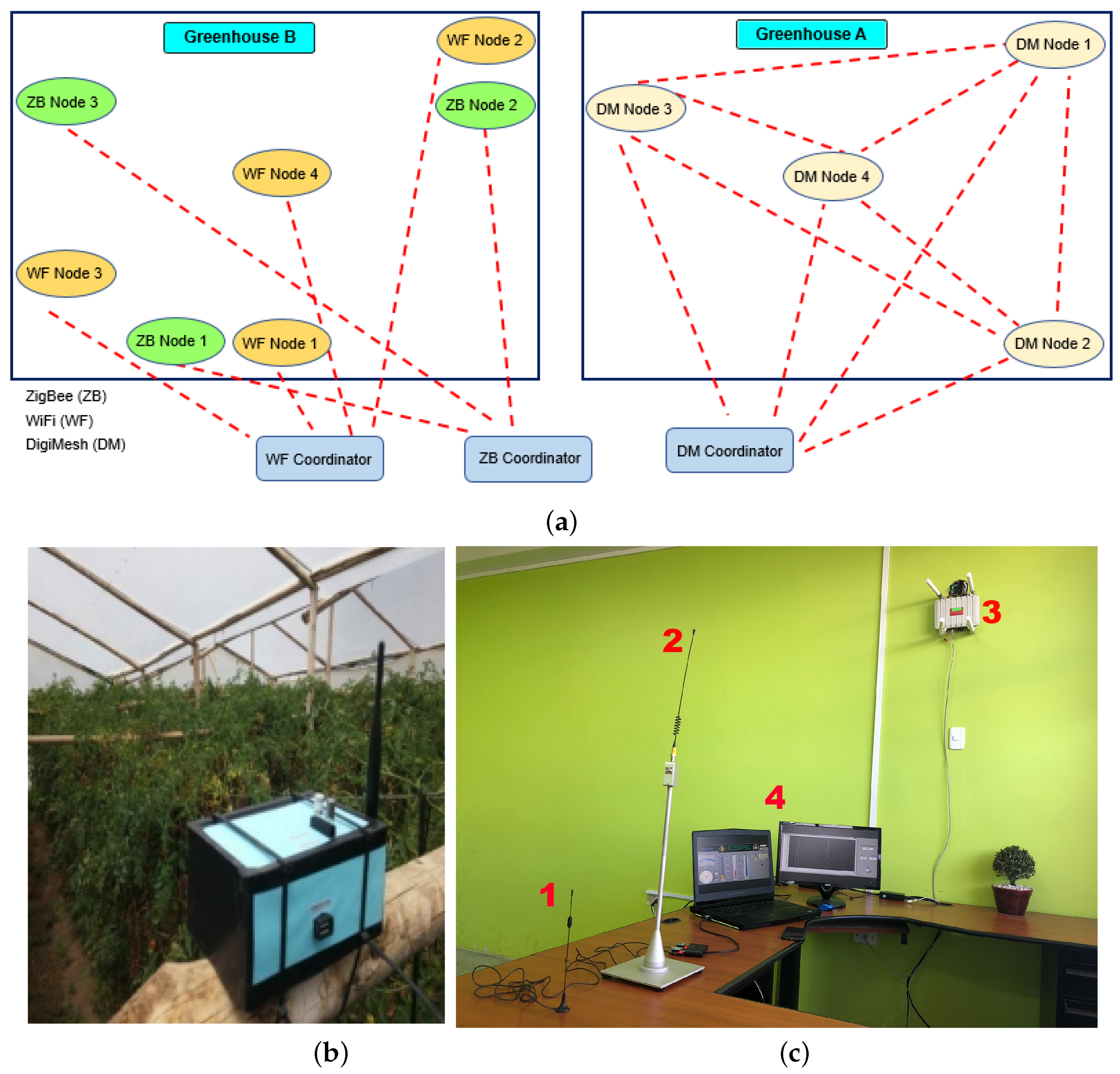

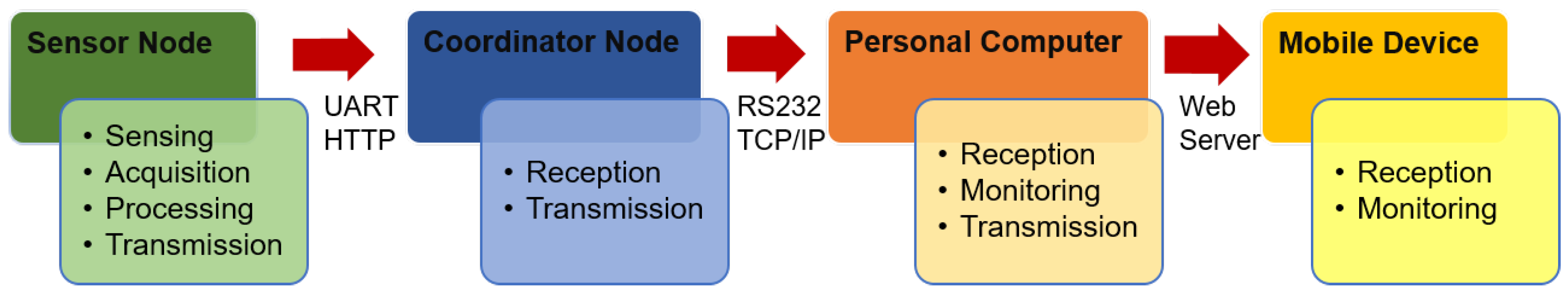

World population growth currently brings unequal access to food, whereas crop yields are not increasing at a similar rate, so that future food demand could be unmet. Many recent research works address the use of optimization techniques and technological resources on precision agriculture, especially in large demand crops, including climatic variables monitoring using wireless sensor networks (WSNs). However, few studies have focused on analyzing the dynamics of the environmental measurement properties in greenhouses. In the two companion papers, we describe the design and implementation of three WSNs with different technologies and topologies further scrutinizing their comparative performance, and a detailed analysis of their energy consumption dynamics is also presented, both considering tomato greenhouses in the Andean region of Ecuador. The three WSNs use ZigBee with star topology, ZigBee with mesh topology (referred to here as DigiMesh), and WiFi with access point topology. The present study provides a systematic and detailed analysis of the environmental measurement dynamics from multiparametric monitoring in Ecuadorian tomato greenhouses. A set of monitored variables (including CO2, air temperature, and wind direction, among others) are first analyzed in terms of their intrinsic variability and their short-term (circadian) rhythmometric behavior. Then, their cross-information is scrutinized in terms of scatter representations and mutual information analysis. Based on Bland–Altman diagrams, good quality rhythmometric models were obtained at high-rate sampling signals during four days when using moderate regularization and preprocessing filtering with 100-coefficient order. Accordingly, and especially for the adjustment of fast transition variables, it is appropriate to use high sampling rates and then to filter the signal to discriminate against false peaks and noise. In addition, for variables with similar behavior, a longer period of data acquisition is required for the adequate processing, which makes more precise the long-term modeling of the environmental signals. View Full-Text
Keywords: greenhouses; rhythmometric; parametric modeling; residuals; mutual information greenhouses; rhythmometric; parametric modeling; residuals; mutual information
