Open AccessArticle
Sensors 2018, 18(5), 1607; https://doi.org/10.3390/s18051607

Sensitivity Enhancement of FBG-Based Strain Sensor

1
School of Mechanical and Electronic Engineering, Wuhan University of Technology, Wuhan 430070, China
2
School of Engineering, University of Birmingham, Birmingham B15 2TT, UK
3
Department of Biomedical Engineering, National University of Singapore, Singapore 117576, Singapore
*
Author to whom correspondence should be addressed.
Received: 16 April 2018 / Revised: 12 May 2018 / Accepted: 14 May 2018 / Published: 17 May 2018
(This article belongs to the Special Issue Recent Advances in Fiber Bragg Grating Based Sensors)
View Full-Text   |   Download PDF [2998 KB, uploaded 19 May 2018]   |

Abstract

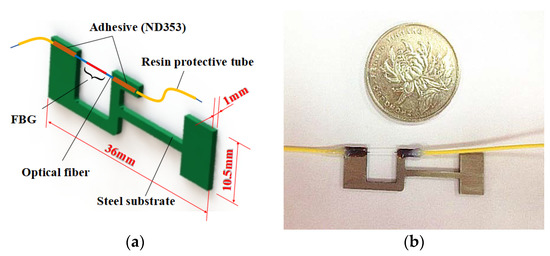

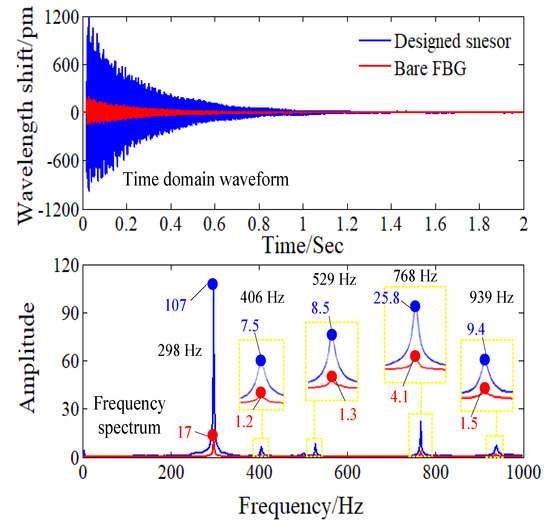

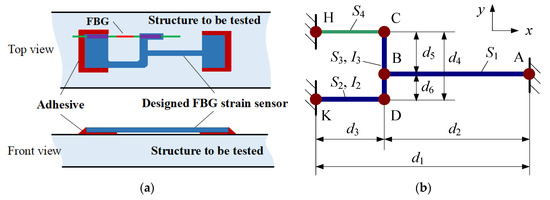

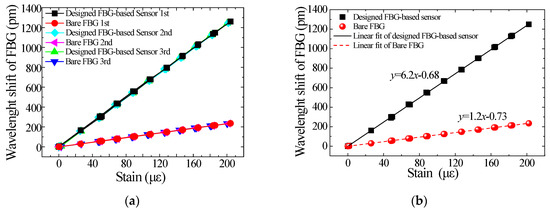

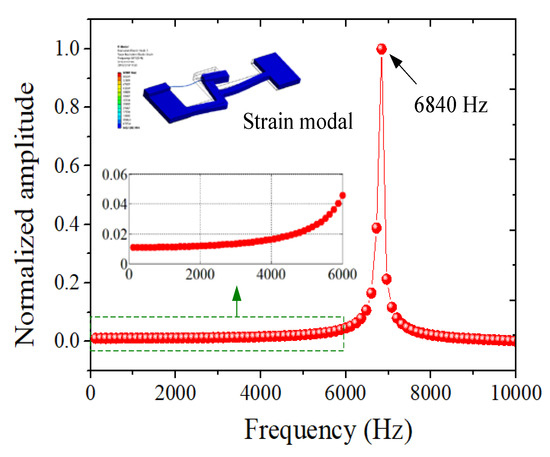

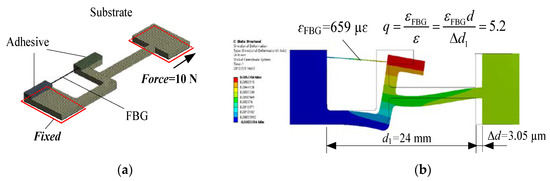

A novel fiber Bragg grating (FBG)-based strain sensor with a high-sensitivity is presented in this paper. The proposed FBG-based strain sensor enhances sensitivity by pasting the FBG on a substrate with a lever structure. This typical mechanical configuration mechanically amplifies the strain of the FBG to enhance overall sensitivity. As this mechanical configuration has a high stiffness, the proposed sensor can achieve a high resonant frequency and a wide dynamic working range. The sensing principle is presented, and the corresponding theoretical model is derived and validated. Experimental results demonstrate that the developed FBG-based strain sensor achieves an enhanced strain sensitivity of 6.2 pm/με, which is consistent with the theoretical analysis result. The strain sensitivity of the developed sensor is 5.2 times of the strain sensitivity of a bare fiber Bragg grating strain sensor. The dynamic characteristics of this sensor are investigated through the finite element method (FEM) and experimental tests. The developed sensor exhibits an excellent strain-sensitivity-enhancing property in a wide frequency range. The proposed high-sensitivity FBG-based strain sensor can be used for small-amplitude micro-strain measurement in harsh industrial environments. View Full-Text
Keywords: fiber Bragg grating; strain; sensitivity enhancement; lever structure fiber Bragg grating; strain; sensitivity enhancement; lever structure
Figures

Figure 1
