Open AccessArticle
Sensors 2018, 18(4), 1193; https://doi.org/10.3390/s18041193

Fabrication of Composite Microneedle Array Electrode for Temperature and Bio-Signal Monitoring

1,†
,
1,†
,
1
,
2
and
1,*
1
School of Engineering, Guangdong Provincial Key Laboratory of Sensor Technology and Biomedical Instrument, Sun Yat-Sen University, Guangzhou 510006, China
2
Guangdong Provincial Key Laboratory of Precision Equipment and Manufacturing Technology, South China University of Technology, Guangzhou 510640, China
These authors contributed equally to this work.
*
Author to whom correspondence should be addressed.
Received: 8 February 2018 / Revised: 10 April 2018 / Accepted: 12 April 2018 / Published: 13 April 2018
(This article belongs to the Special Issue Sensors for Health Monitoring and Disease Diagnosis)
View Full-Text   |   Download PDF [11277 KB, uploaded 3 May 2018]   |

Abstract

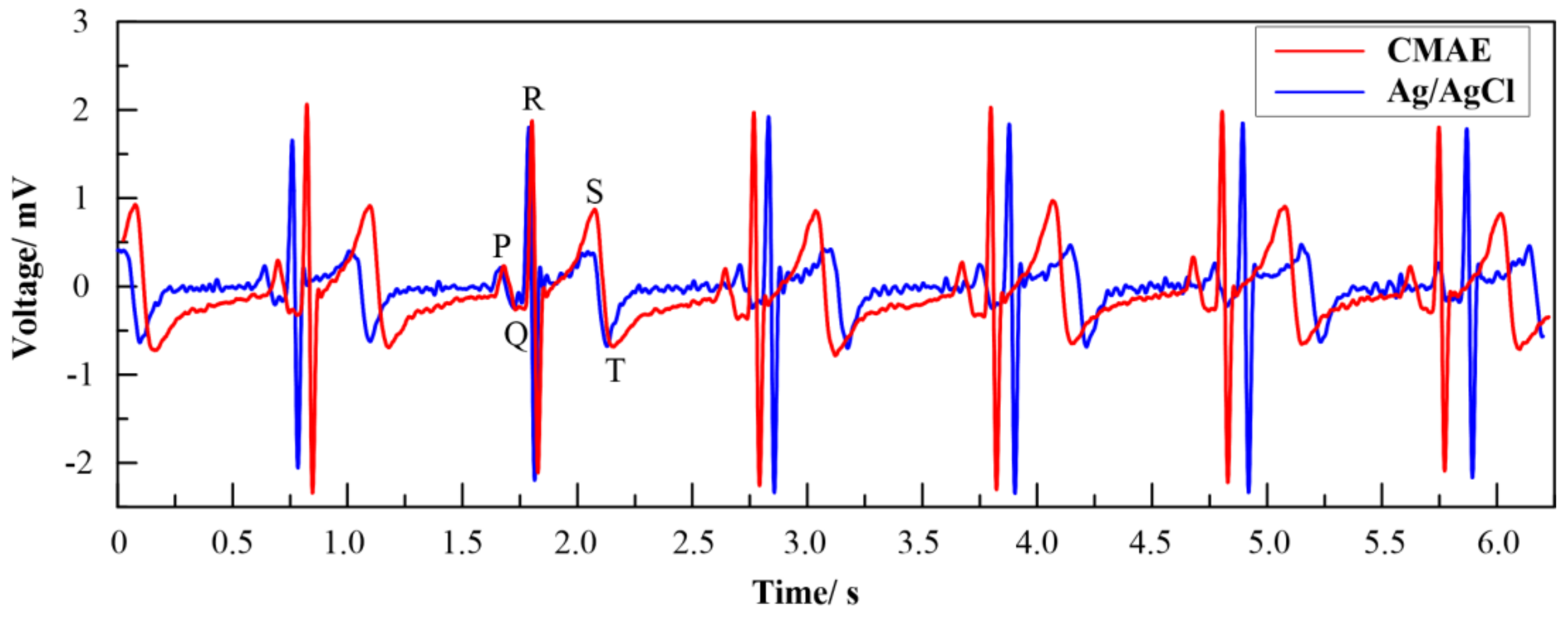

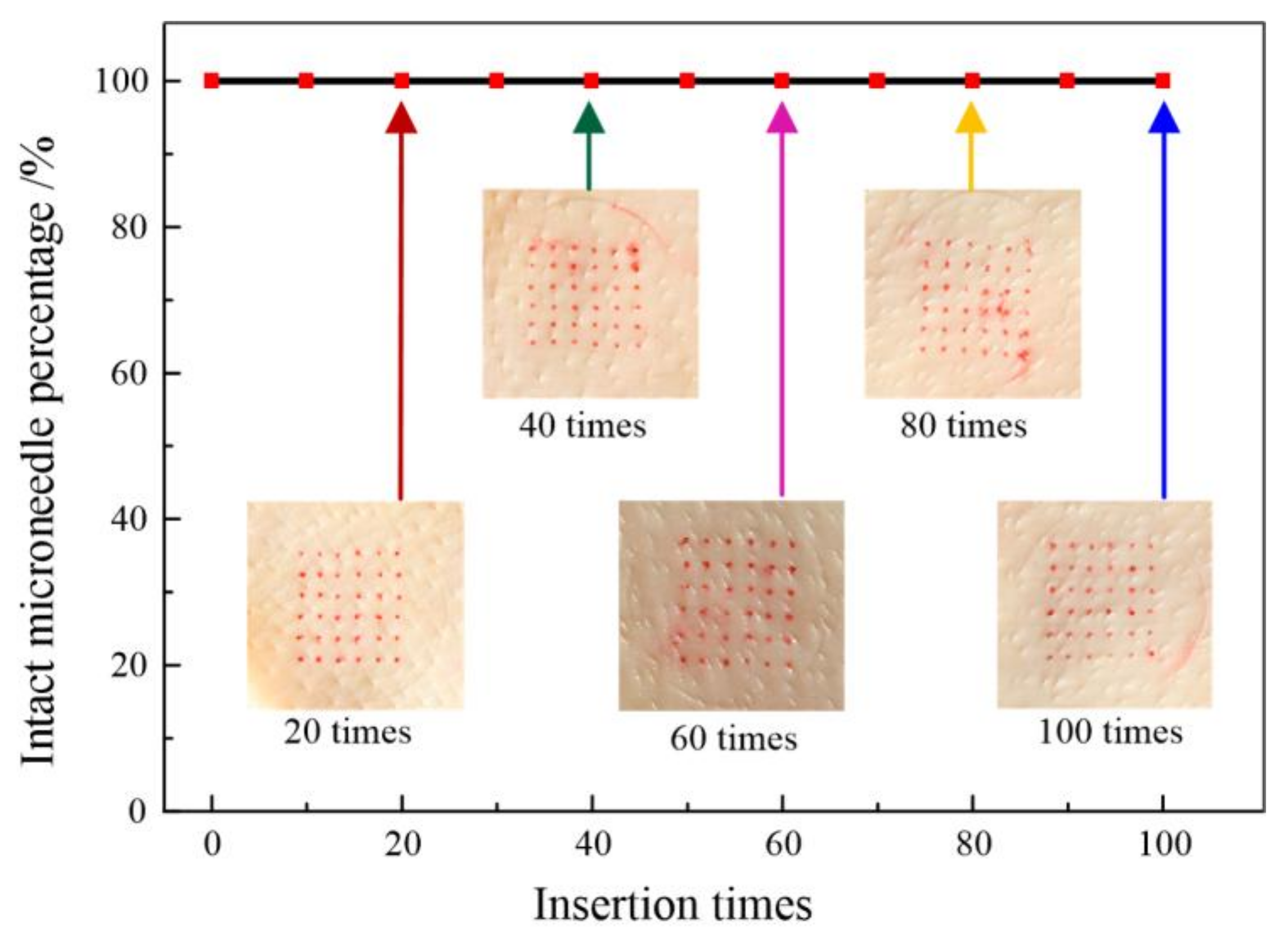

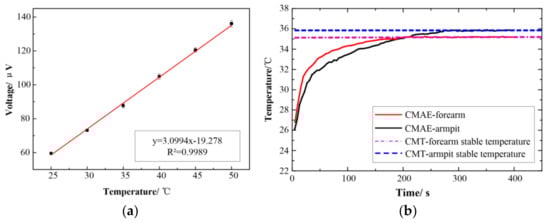

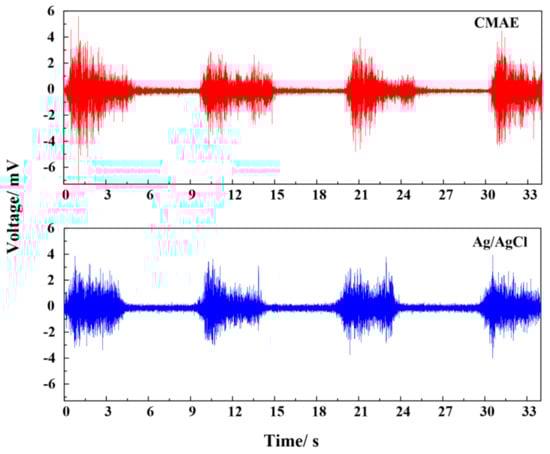

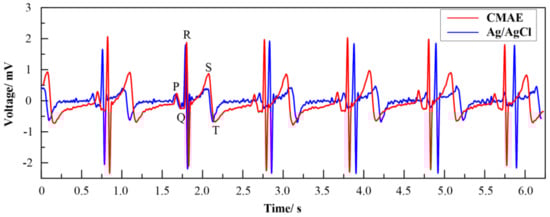

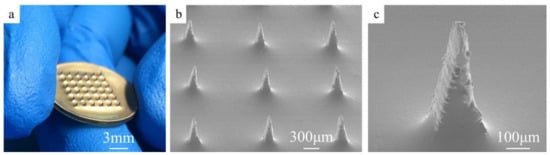

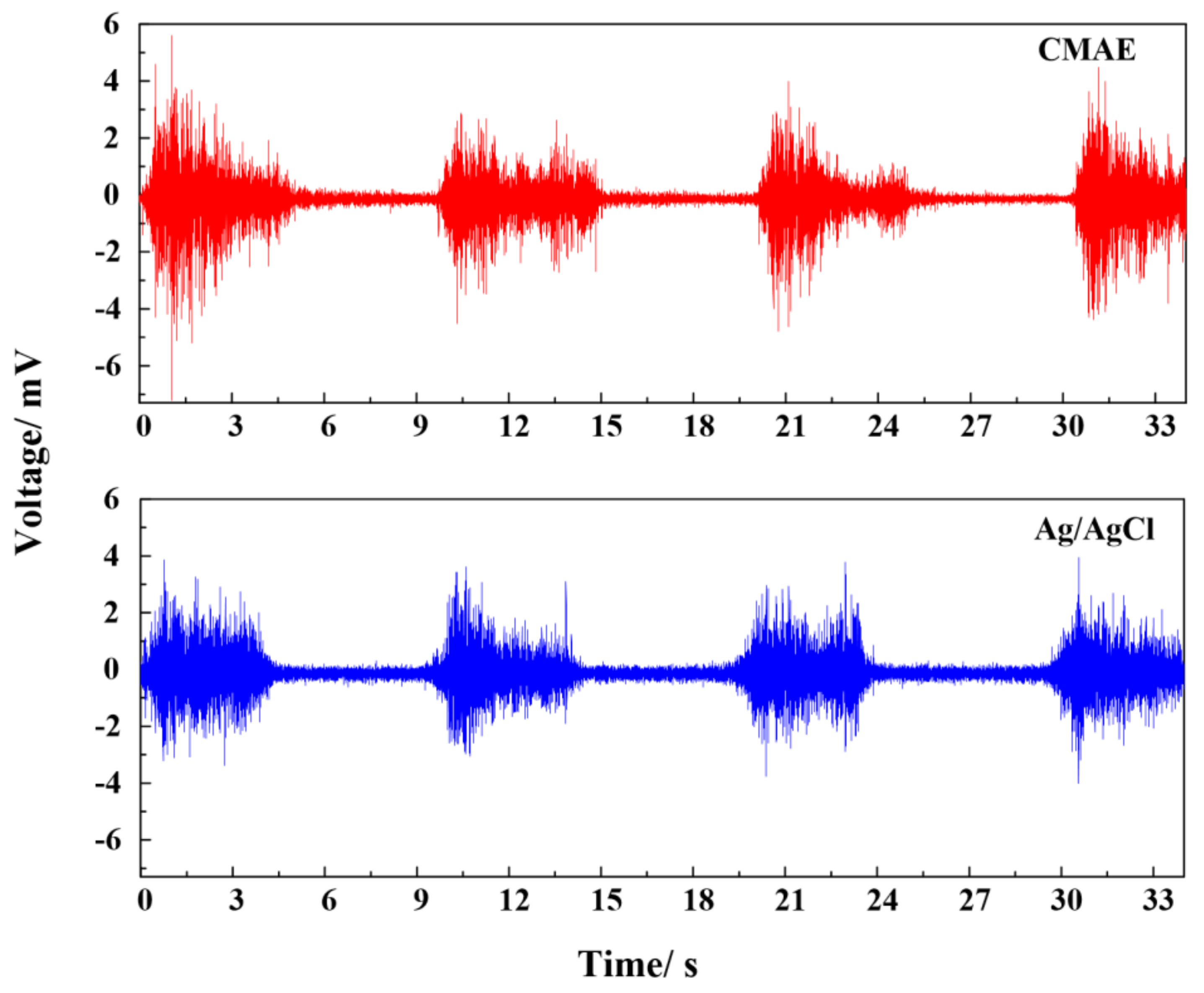

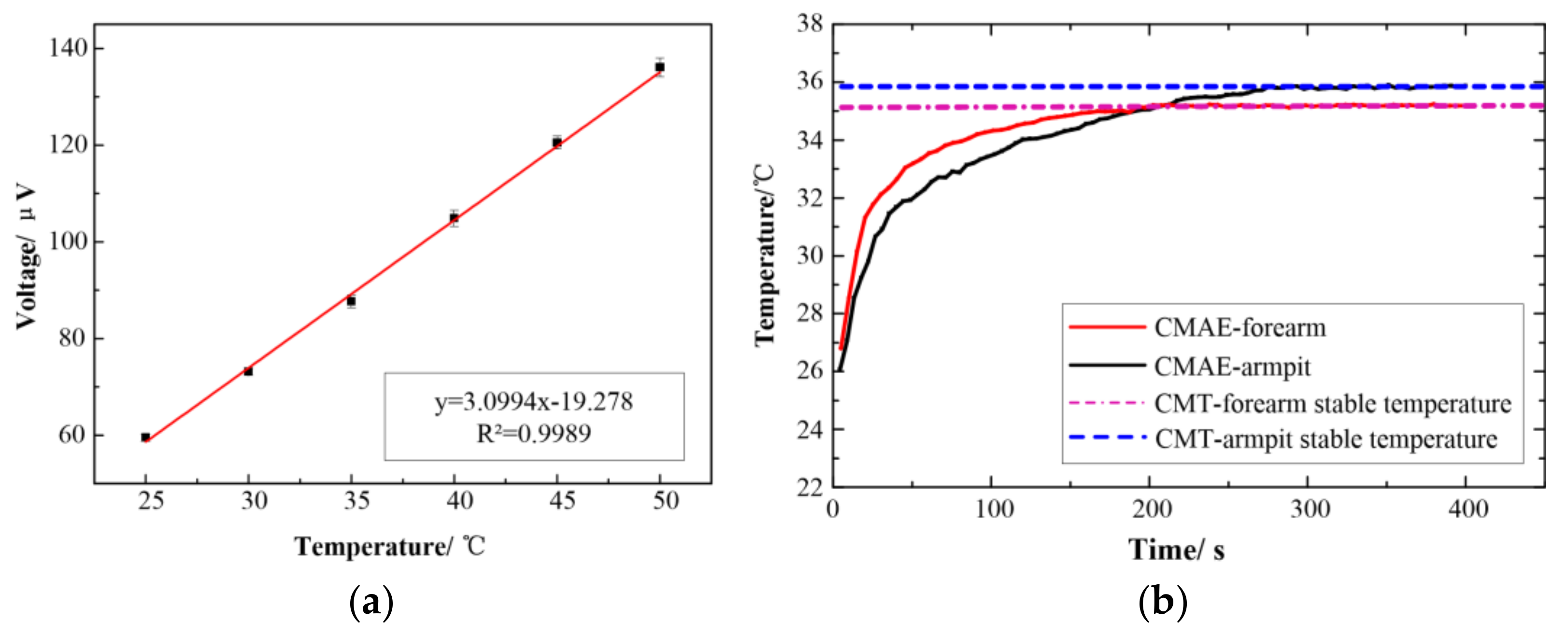

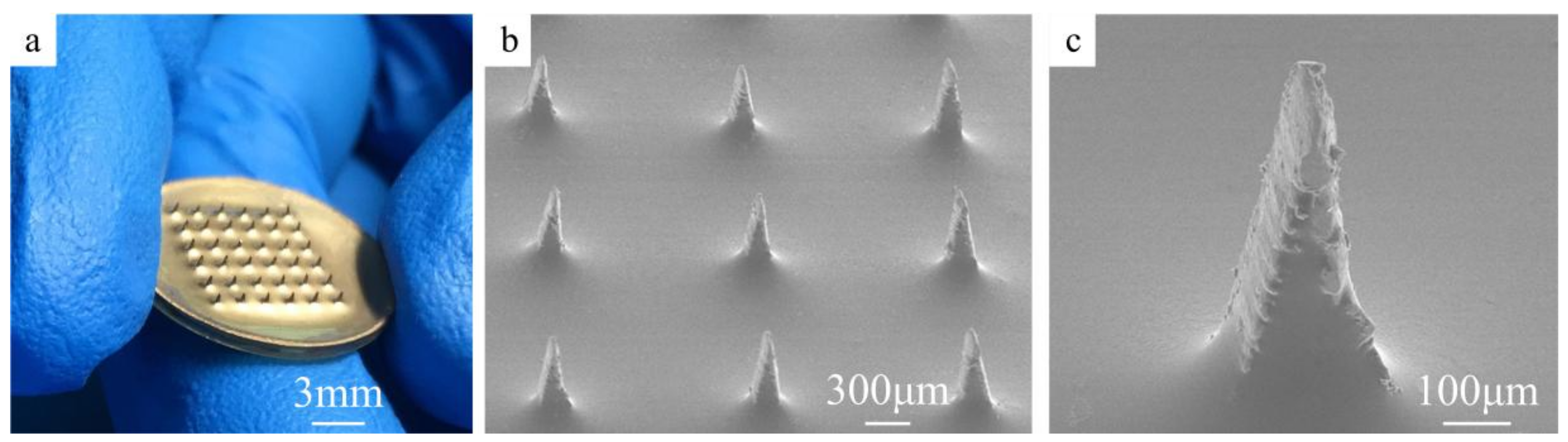

Body temperature and bio-signals are important health indicators that reflect the human health condition. However, monitoring these indexes is inconvenient and time-consuming, requires various instruments, and needs professional skill. In this study, a composite microneedle array electrode (CMAE) was designed and fabricated. It simultaneously detects body temperature and bio-signals. The CMAE consists of a 6 × 6 microneedles array with a height of 500 μm and a base diameter of 200 μm. Multiple insertion experiments indicate that the CMAE possesses excellent mechanical properties. The CMAE can pierce porcine skin 100 times without breaking or bending. A linear calibration relationship between temperature and voltage are experimentally obtained. Armpit temperature (35.8 °C) and forearm temperature (35.3 °C) are detected with the CMAE, and the measurements agree well with the data acquired with a clinical thermometer. Bio-signals including EII, ECG, and EMG are recorded and compared with those obtained by a commercial Ag/AgCl electrode. The CMAE continuously monitors bio-signals and is more convenient to apply because it does not require skin preparation and gel usage. The CMAE exhibits good potential for continuous and repetitive monitoring of body temperature and bio-signals. View Full-Text
Keywords: microneedle array; composite electrode; body temperature; bio-signal microneedle array; composite electrode; body temperature; bio-signal
Figures

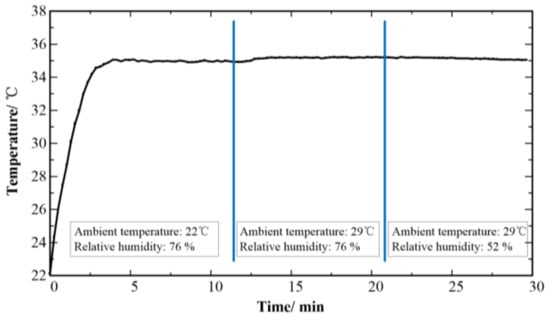

Graphical abstract
