Open AccessArticle
Sensors 2018, 18(2), 466; https://doi.org/10.3390/s18020466

Calibration of Elasto-Magnetic Sensors on In-Service Cable-Stayed Bridges for Stress Monitoring

1
Department of Civil, Environmental and Mechanical Engineering, University of Trento, 38122 Trento, Italy
2
Department of Civil and Environmental Engineering, University of Strathclyde, Glasgow G1 1XQ, UK
3
Faculty of Sciences, Ibn Zohr University, 80000 Agadir, Morocco
4
Department of Civil and Environmental Engineering, Princeton University, Princeton, NJ 08544, USA
5
Department of Civil and Environmental Engineering, Northeastern University, Boston, MA 02115, USA
*
Author to whom correspondence should be addressed.
Received: 9 January 2018 / Revised: 29 January 2018 / Accepted: 30 January 2018 / Published: 5 February 2018
(This article belongs to the Special Issue Sensors and Sensor Networks for Structural Health Monitoring)
View Full-Text   |   Download PDF [4196 KB, uploaded 7 February 2018]   |

Abstract

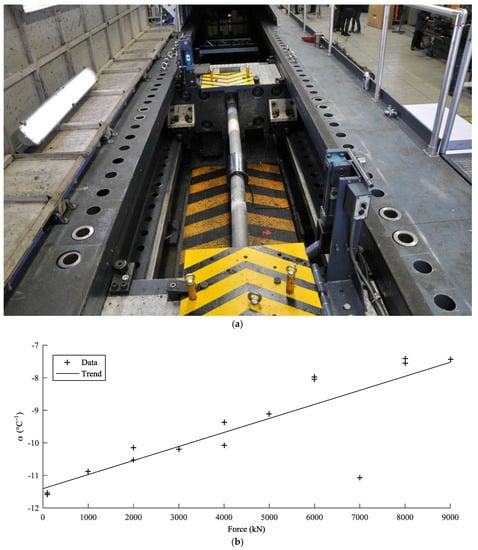

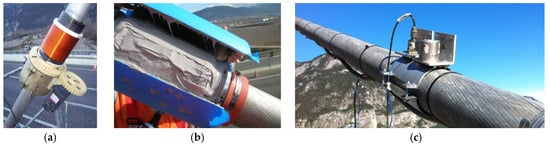

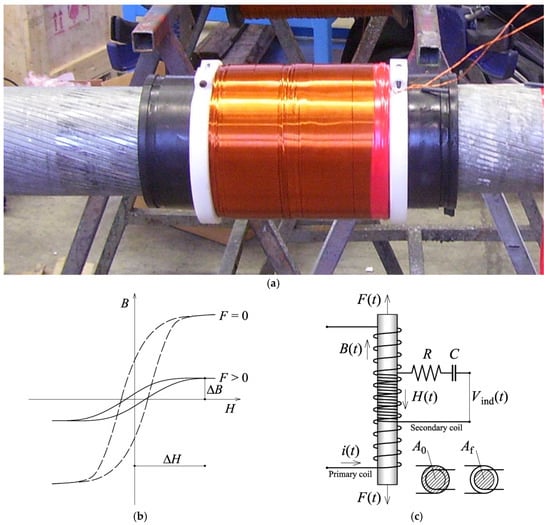

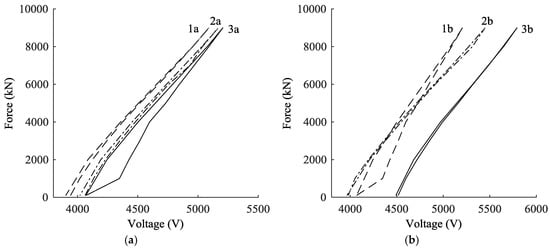

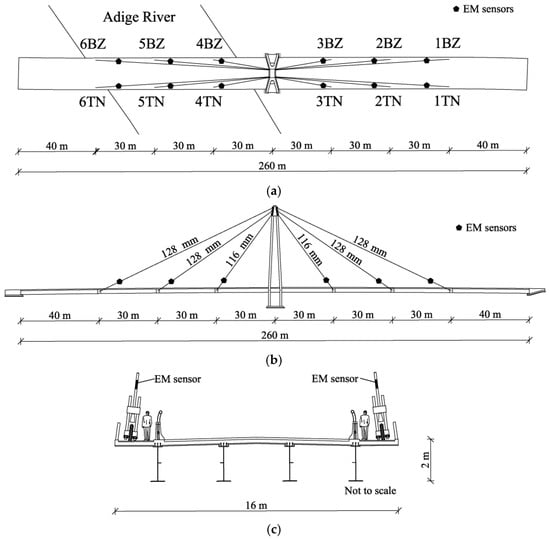

The recent developments in measurement technology have led to the installation of efficient monitoring systems on many bridges and other structures all over the world. Nowadays, more and more structures have been built and instrumented with sensors. However, calibration and installation of sensors remain challenging tasks. In this paper, we use a case study, Adige Bridge, in order to present a low-cost method for the calibration and installation of elasto-magnetic sensors on cable-stayed bridges. Elasto-magnetic sensors enable monitoring of cable stress. The sensor installation took place two years after the bridge construction. The calibration was conducted in two phases: one in the laboratory and the other one on site. In the laboratory, a sensor was built around a segment of cable that was identical to those of the cable-stayed bridge. Then, the sample was subjected to a defined tension force. The sensor response was compared with the applied load. Experimental results showed that the relationship between load and magnetic permeability does not depend on the sensor fabrication process except for an offset. The determination of this offset required in situ calibration after installation. In order to perform the in situ calibration without removing the cables from the bridge, vibration tests were carried out for the estimation of the cables’ tensions. At the end of the paper, we show and discuss one year of data from the elasto-magnetic sensors. Calibration results demonstrate the simplicity of the installation of these sensors on existing bridges and new structures. View Full-Text
Keywords: calibration; elasto-magnetic sensors; cable-stayed bridge; structural health monitoring; vibration test calibration; elasto-magnetic sensors; cable-stayed bridge; structural health monitoring; vibration test
Figures

Figure 1

This is an open access article distributed under the Creative Commons Attribution License which permits unrestricted use, distribution, and reproduction in any medium, provided the original work is properly cited. (CC BY 4.0).

Share & Cite This Article

MDPI and ACS Style

Cappello, C.; Zonta, D.; Ait Laasri, H.; Glisic, B.; Wang, M. Calibration of Elasto-Magnetic Sensors on In-Service Cable-Stayed Bridges for Stress Monitoring. Sensors 2018, 18, 466.
