Sensors 2018, 18(2), 326; https://doi.org/10.3390/s18020326

Grasping Force Control for a Robotic Hand by Slip Detection Using Developed Micro Laser Doppler Velocimeter

1
Advanced Manufacturing Research Institute, National Institute of Advanced Industrial Science and Technology (AIST), 807-1 Shuku-machi, Tosu, Saga 841-0052, Japan
2
Department of Mechanical Engineering, Faculty of Engineering, Kyushu University, 744 Motooka, Nishi-ku, Fukuoka 819-0395, Japan
3
Department of Precision Engineering, School of Engineering, The University of Tokyo, 7-3-1 Hongo, Bunkyo-ku, Tokyo 113-8656, Japan
4
Research Center for Ubiquitous MEMS and Micro Engineering (UMEMSME), National Institute of Advanced Industrial Science and Technology (AIST), 1-2-1 Namiki, Tsukuba, Ibaraki 305-8564, Japan
*
Author to whom correspondence should be addressed.
Received: 30 September 2017 / Revised: 16 January 2018 / Accepted: 18 January 2018 / Published: 23 January 2018
(This article belongs to the Special Issue Tactile Sensors and Sensing)
View Full-Text   |   Download PDF [5519 KB, uploaded 23 January 2018]   |

Abstract

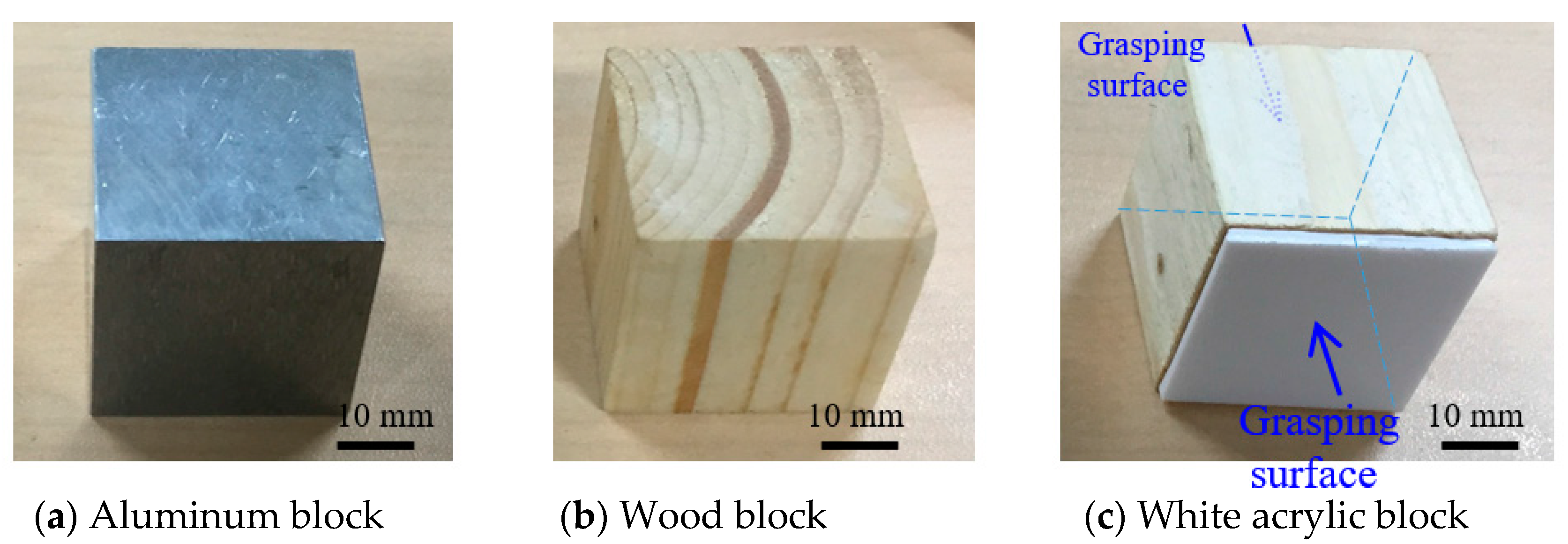

The purpose of this paper is to show the feasibility of grasping force control by feeding back signals of the developed micro-laser Doppler velocimeter (μ-LDV) and by discriminating whether a grasped object is slipping or not. LDV is well known as a high response surface velocity sensor which can measure various surfaces—such as metal, paper, film, and so on—thus suggesting the potential application of LDV as a slip sensor for grasping various objects. However, the use of LDV as a slip sensor has not yet been reported because the size of LDVs is too large to be installed on a robotic fingertip. We have solved the size problem and enabled the performance of a feasibility test with a few-millimeter-scale LDV referred to as micro-LDV (μ-LDV) by modifying the design which was adopted from MEMS (microelectromechanical systems) fabrication process. In this paper, by applying our developed μ-LDV as a slip sensor, we have successfully demonstrated grasping force control with three target objects—aluminum block, wood block, and white acrylic block—considering that various objects made of these materials can be found in homes and factories, without grasping force feedback. We provide proofs that LDV is a new promising candidate slip sensor for grasping force control to execute target grasping. View Full-Text
Keywords: laser Doppler velocimetry; micro laser Doppler velocimeter; laser surface velocimeter; optical MEMS; force control of grasp; dexterous robotic manipulation; slip detection; tactile sensor laser Doppler velocimetry; micro laser Doppler velocimeter; laser surface velocimeter; optical MEMS; force control of grasp; dexterous robotic manipulation; slip detection; tactile sensor
Figures

Figure 1
