Open AccessArticle
Sensors 2017, 17(8), 1908; doi:10.3390/s17081908

The Potentiodynamic Bottom-up Growth of the Tin Oxide Nanostructured Layer for Gas-Analytical Multisensor Array Chips

1
Laboratory of Nanomaterials, Skolkovo Institute of Science and Technology, Skolkovo Innovation Center, 3 Nobel Str., 143026 Moscow, Russia
2
Laboratory of Sensors and Microsystems, Yuri Gagarin State Technical University of Saratov, 77 Polytechnicheskaya str., 410054 Saratov, Russia
3
National University of Science and Technology MISiS, 4 Leninskiy pr., 119991 Moscow, Russia
4
Institute of Microstructure Technology, Karlsruhe Institute of Technology, 1 Hermann-von-Helmholtz Platz, 76344 Eggenstein-Leopoldshafen, Germany
*
Authors to whom correspondence should be addressed.
Received: 25 July 2017 / Revised: 7 August 2017 / Accepted: 10 August 2017 / Published: 18 August 2017
(This article belongs to the Special Issue Gas Sensors based on Semiconducting Metal Oxides)
View Full-Text   |   Download PDF [2512 KB, uploaded 18 August 2017]   |

Abstract

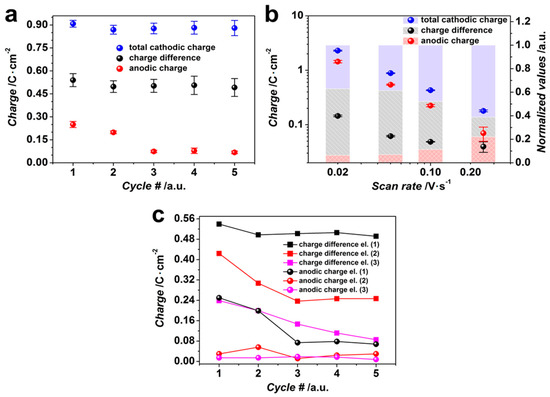

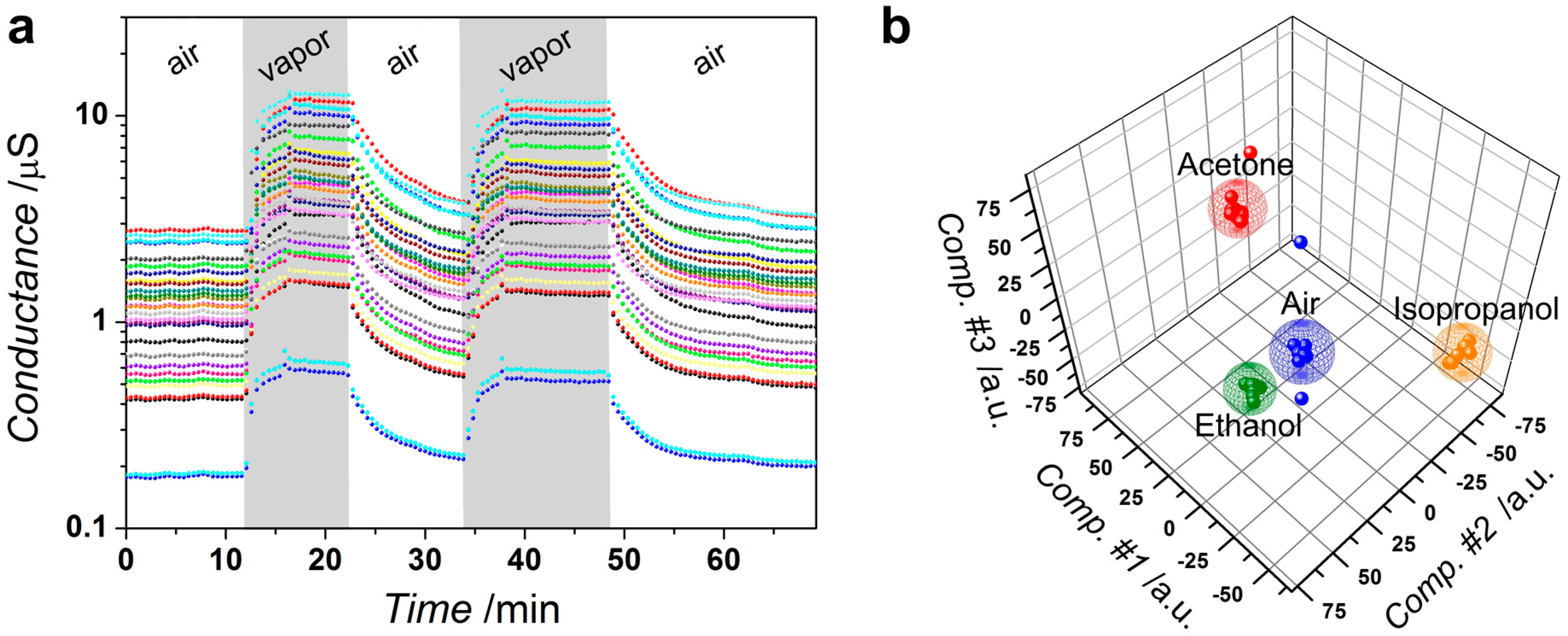

We report a deposition of the tin oxide/hydroxide nanostructured layer by the potentiodynamic method from acidic nitrate solutions directly over the substrate, equipped with multiple strip electrodes which is employed as a gas-analytical multisensor array chip. The electrochemical synthesis is set to favor the growth of the tin oxide/hydroxide phase, while the appearance of metallic Sn is suppressed by cycling. The as-synthesized tin oxide/hydroxide layer is characterized by mesoporous morphology with grains, 250–300 nm diameter, which are further crystallized into fine SnO2 poly-nanocrystals following heating to 300 °C for 24 h just on the chip. The fabricated layer exhibits chemiresistive properties under exposure to organic vapors, which allows the generation of a multisensor vector signal capable of selectively distinguishing various vapors. View Full-Text
Keywords: electrochemical deposition; gas sensor; multisensor array; tin oxide; cyclic voltammetry electrochemical deposition; gas sensor; multisensor array; tin oxide; cyclic voltammetry
Figures

This is an open access article distributed under the Creative Commons Attribution License which permits unrestricted use, distribution, and reproduction in any medium, provided the original work is properly cited. (CC BY 4.0).

Scifeed alert for new publications

Never miss any articles matching your research from any publisher
  • Get alerts for new papers matching your research
  • Find out the new papers from selected authors
  • Updated daily for 49'000+ journals and 6000+ publishers
  • Define your Scifeed now

SciFeed Share & Cite This Article

MDPI and ACS Style

Fedorov, F.S.; Podgainov, D.; Varezhnikov, A.; Lashkov, A.; Gorshenkov, M.; Burmistrov, I.; Sommer, M.; Sysoev, V. The Potentiodynamic Bottom-up Growth of the Tin Oxide Nanostructured Layer for Gas-Analytical Multisensor Array Chips. Sensors 2017, 17, 1908.
