Open AccessArticle
Sensors 2017, 17(8), 1759; https://doi.org/10.3390/s17081759

An Adaptive Impedance Matching Network with Closed Loop Control Algorithm for Inductive Wireless Power Transfer

Institute of Application Specific Instruction-Set Processor, Beijing Institute of Technology, 5 South Zhongguancun Street, Haidian District, Beijing 100081, China
*
Author to whom correspondence should be addressed.
Received: 15 June 2017 / Revised: 13 July 2017 / Accepted: 28 July 2017 / Published: 1 August 2017
(This article belongs to the Special Issue Wireless Rechargeable Sensor Networks)
View Full-Text   |   Download PDF [8381 KB, uploaded 1 August 2017]   |

Abstract

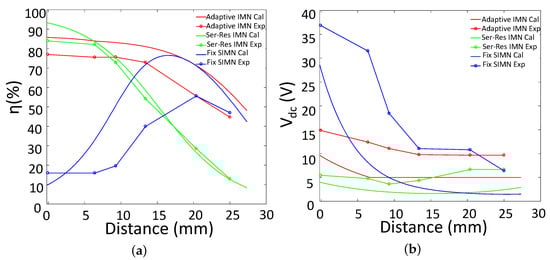

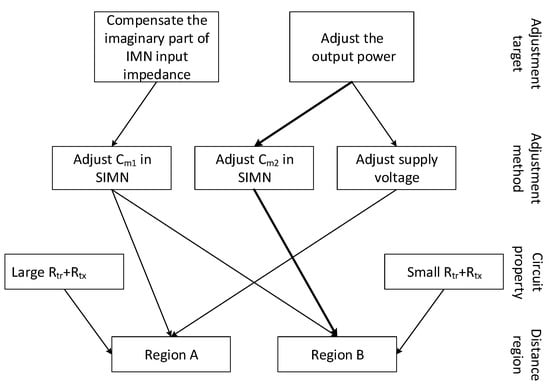

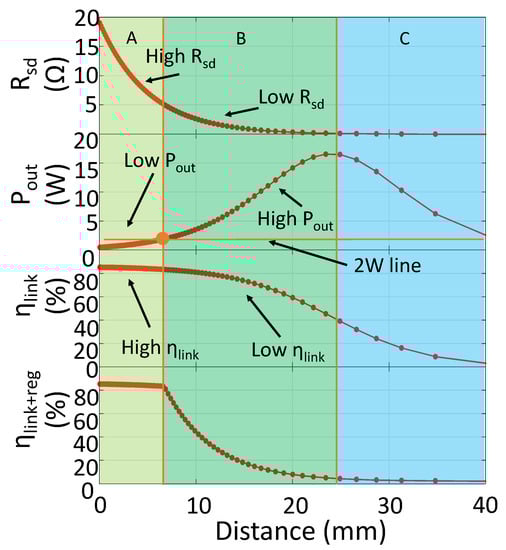

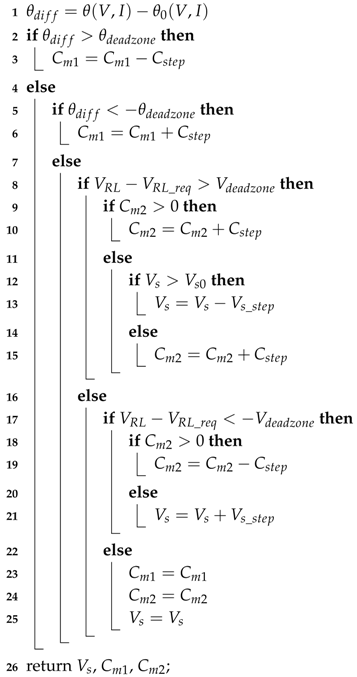

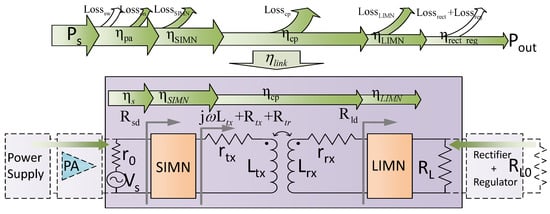

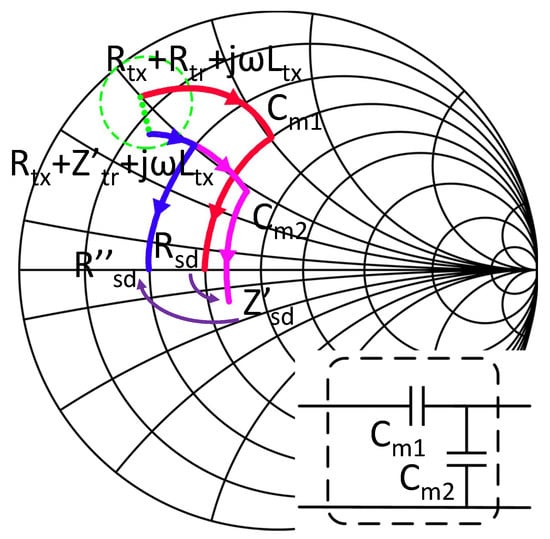

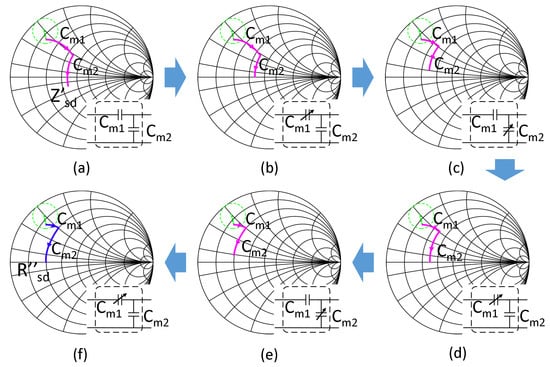

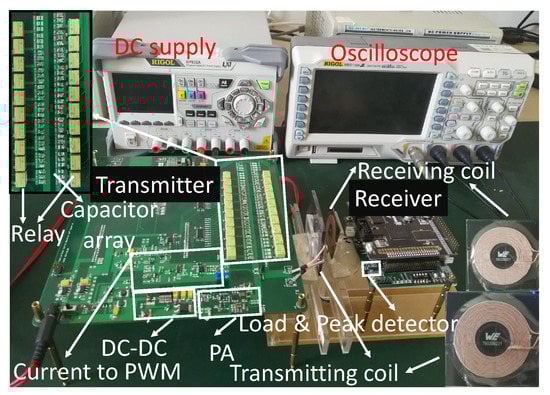

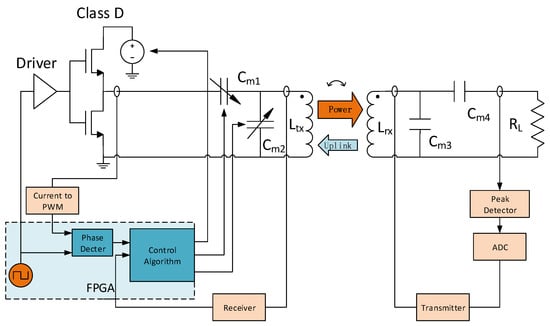

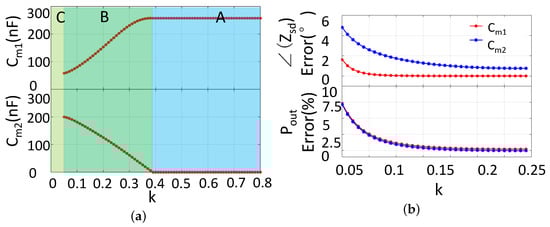

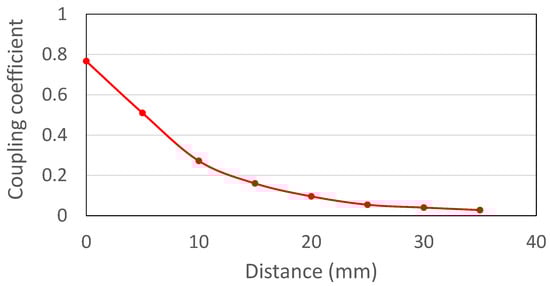

For an inductive wireless power transfer (IWPT) system, maintaining a reasonable power transfer efficiency and a stable output power are two most challenging design issues, especially when coil distance varies. To solve these issues, this paper presents a novel adaptive impedance matching network (IMN) for IWPT system. In our adaptive IMN IWPT system, the IMN is automatically reconfigured to keep matching with the coils and to adjust the output power adapting to coil distance variation. A closed loop control algorithm is used to change the capacitors continually, which can compensate mismatches and adjust output power simultaneously. The proposed adaptive IMN IWPT system is working at 125 kHz for 2 W power delivered to load. Comparing with the series resonant IWPT system and fixed IMN IWPT system, the power transfer efficiency of our system increases up to 31.79% and 60% when the coupling coefficient varies in a large range from 0.05 to 0.8 for 2 W output power. View Full-Text
Keywords: inductive wireless power transfer (IWPT); efficiency; output power; impedance matching network (IMN); adaptive IMN control inductive wireless power transfer (IWPT); efficiency; output power; impedance matching network (IMN); adaptive IMN control
Figures

Figure 1
