Open AccessArticle
Sensors 2017, 17(5), 1023; doi:10.3390/s17051023

A New Electromagnetic Acoustic Transducer Design for Generating and Receiving S0 Lamb Waves in Ferromagnetic Steel Plate

1
National Engineering Research Center of Advanced Rolling Technology, University of Science and Technology Beijing, Beijing 100083, China
2
Department of Physics, University of Warwick, Coventry CV4 7AL, UK
3
Collaborative Innovation Center of Steel Technology, University of Science and Technology Beijing, Beijing 100083, China
*
Author to whom correspondence should be addressed.
Academic Editor: Vittorio M. N. Passaro
Received: 24 March 2017 / Revised: 19 April 2017 / Accepted: 26 April 2017 / Published: 4 May 2017
(This article belongs to the Special Issue Intelligent Sensing Technologies for Nondestructive Evaluation)
View Full-Text   |   Download PDF [4928 KB, uploaded 4 May 2017]   |

Abstract

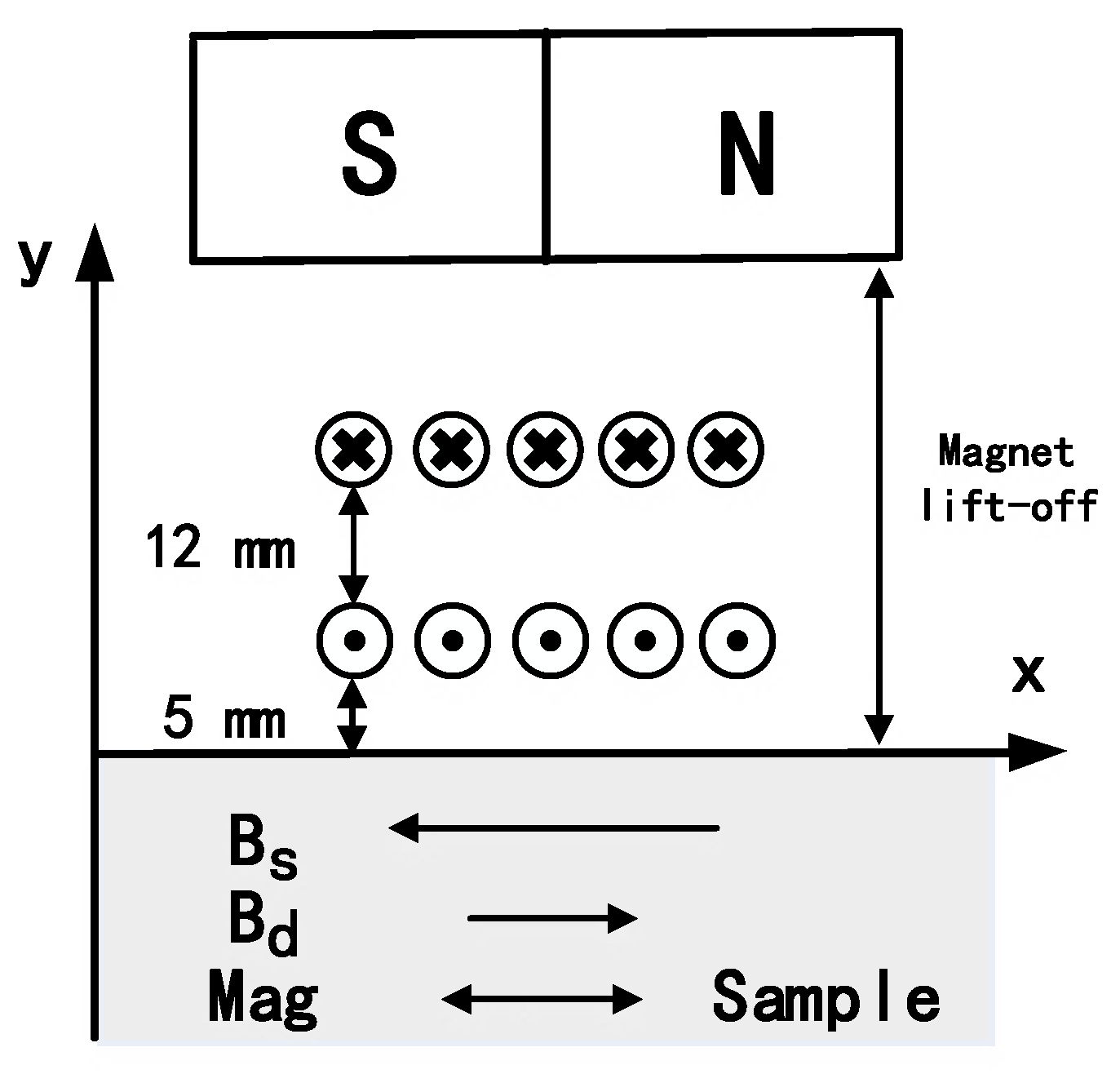

Electromagnetic acoustic transducers (EMATs) are non-contact, ultrasonic transducers that are usually kept within 5 mm from the sample surface to obtain a sufficient signal-to-noise ratio (SNR). One important issue associated with operation on a ferromagnetic plate is that the strong attraction force from the magnet can affect measurements and make scanning difficult. This paper investigates a method to generate fundamental, symmetric Lamb waves on a ferromagnetic plate. A coil-only, low-weight, generation EMAT is designed and investigated, operating at lift-offs of over 5 mm. Another design of an EMAT is investigated using a rectangular magnet with a much higher lift-off than the coil, of up to 19 mm. This results in a much lower force between the EMAT and sample, making scanning the EMAT much easier. View Full-Text
Keywords: electromagnetic acoustic transducer; EMAT; NDT; Lamb wave; magnetostriction electromagnetic acoustic transducer; EMAT; NDT; Lamb wave; magnetostriction
Figures

Figure 1
