A Cost-Effective Geodetic Strainmeter Based on Dual Coaxial Cable Bragg Gratings
Jihua Fu 1,*, Xu Wang 1, Tao Wei 2, Meng Wei 3 and Yang Shen 3
1
Key Laboratory of Crustal Dynamics, Institute of Crustal Dynamics, China Earthquake Administration; Beijing 100085, China
2
Engineering Department, University of Rhode Island, Kingston, RI 02881, USA
3
Graduate School of Oceanography, University of Rhode Island, Narragansett, RI 02882, USA
*
Correspondence: Tel.: +86-10-6284-6717
Academic Editors: Christophe Caucheteur and Tuan Guo
Received: 29 December 2016 / Accepted: 6 April 2017 / Published: 12 April 2017

Abstract

:
Observations of surface deformation are essential for understanding a wide range of geophysical problems, including earthquakes, volcanoes, landslides, and glaciers. Current geodetic technologies, such as global positioning system (GPS), interferometric synthetic aperture radar (InSAR), borehole and laser strainmeters, are costly and limited in their temporal or spatial resolutions. Here we present a new type of strainmeters based on the coaxial cable Bragg grating (CCBG) sensing technology that provides cost-effective strain measurements. Two CCBGs are introduced into the geodetic strainmeter: one serves as a sensor to measure the strain applied on it, and the other acts as a reference to detect environmental noises. By integrating the sensor and reference signals in a mixer, the environmental noises are minimized and a lower mixed frequency is obtained. The lower mixed frequency allows for measurements to be taken with a portable spectrum analyzer, rather than an expensive spectrum analyzer or a vector network analyzer (VNA). Analysis of laboratory experiments shows that the strain can be measured by the CCBG sensor, and the portable spectrum analyzer can make measurements with the accuracy similar to the expensive spectrum analyzer, whose relative error to the spectrum analyzer R3272 is less than ±0.4%. The outputs of the geodetic strainmeter show a linear relationship with the strains that the CCBG sensor experienced. The measured sensitivity of the geodetic strainmeter is about −0.082 kHz/με; it can cover a large dynamic measuring range up to 2%, and its nonlinear errors can be less than 5.3%.
Keywords:
surface deformation; geodetic strainmeter; Bragg grating; coaxial cable

1. Introduction

Observations of surface deformation are essential for understanding a wide range of geophysical problems, including earthquakes, volcanoes, landslides, and glaciers. More than 1200 Global Positioning System (GPS) stations onshore and five seafloor geodetic stations offshore were installed in Japan [1,2]. Additionally, in America, the Plate Boundary Observatory (PBO) plan was founded by the National Science Foundation (NSF) as the geodetic component of the EarthScope project. The PBO consists of a network of 1100 permanent, continuously operating GPS stations, 74 borehole strainmeters, 26 shallow borehole tiltmeters, and six long baseline laser strainmeters [3]. Since 2012, the Crustal Movement Observation Network of China (CMONoC) was built. Included in the CMONoC are 260 continuous observation stations and 2000 irregular observation stations [4]. The geodetic technologies used in these three networks, such as GPS, InSAR, borehole and laser strainmeters, provide critical observations of surface deformation and reveal the detailed processes of seismogenic faults. However, the current geodetic technologies are costly and limited in their temporal or spatial resolutions [5,6,7]. Cost-effective and distributed strainmeters are desired for geodic applications. Fiber optic sensors, such as fiber Bragg grating (FBG), represent an opportunity for distributed strain sensing [8]. However, limited by its silica glass nature, the fiber optic sensor will easily break when it is subjected to large strains (about 10 mε or 1%) and/or a shear force [9]. Inspired by the FBG sensor, a new coaxial cable Bragg grating (CCBG) sensor was put forward, which is sufficiently robust to survive and operate on large strains, while it holds comparable performances with the FBG sensor, such as distributed sensing, cost-effectiveness, and accuracy [10,11]. A cost-effective geodetic strainmeter was designed with dual CCBGs to obtain a lower mixed frequency and minimize environmental noises.

2. Working Principle of CCBG

Following the similar fundamental electromagnetic (EM) theory with the FBG, the CCBG is an elastic coaxial cable with some periodic impedance discontinuities in the dielectric insulator and outer conductor along the length of the cable, an illustration of which is shown in Figure 1. When Radio Frequency (RF) signals are loaded into the CCBG, some of the RF signals will be reflected on each of these discontinuities and some of the RF signals will be transmitted. The reflected signal, or resonance signal, is enhanced by the numbers of these discontinuities. Similar to the well-studied case of fiber Bragg gratings, the forward propagating mode is coupled to the backward propagating mode in the waveguide at discrete resonant frequencies, satisfying the following Bragg condition [8].
β + β = 2 β = 2 m π Λ   or   f r e s m = m 2 Λ LC ,
where β+ and β are the propagation constants of the forward and backward traveling waves, respectively. They have the same magnitude, but opposite signs. Λ is the distance of the periodic discontinuities. L and C represent the inductance and capacitance of the cable, respectively. The resonant frequency is represented as fres, and m is an integer representing the diffraction order of the grating.
When a force is applied to the CCBG, a resonant frequency shift is introduced because of the change of the cable dimension and dielectric constant of the inner dielectric material. The strain-induced resonant frequency shift can be expressed by the following [12]:
Δ f r e s = L s L t [ Δ L L s Δ ε r ε r ] f r e s = L s L t ( 1 P e f f ) ε f r e s ,
where Ls is the sensing length of CCBG, Lt is the total length of the cable under test, ΔL is the change in length of CCBG, Δ ε r is the change in square root of relative permittivity of the dielectric material, ε r is the square root of relative permittivity of the dielectric material, Peff is the effective coefficient, and ɛ is the strain applied. Through simplifying and calculating (Ls = Lt, and Peff = 0.2216), the sensitivity of CCBG can be obtained by the equation below:
Δ f μ ε = 0.7784 × 10 6 f r e s ( Hz / μ ε ) ,
Using Equation (2) to obtain the strain applied, the resonant frequency shift should be obtained first. Also, the resonant frequency shift can be measured by a vector network analyzer (VNA). Although CCBGs can be joined together to build a distributed network, the VNA is considered too expensive for many applications. To solve this problem, a positive feedback system is introduced to enhance the sensitivity of the CCBG sensor [13]. The sensor’s Q factor is improved, making it possible to measure the strain applied on the CCBG sensor with a cheap spectrum analyzer (SA), rather than an expensive VNA.
As shown in Figure 2, the positive feedback system is composed of a CCBG sensor, an amplifier, a group of filters and two directional couplers, which is developed based on the idea of an oscillator. The reflection (resonant frequency signal) of the CCBG is directed to an amplifier by one of the directional couplers. Then, the reflection will be amplified by the amplifier and be selected by a given filter. Through the other directional coupler, the enhanced reflection will be fed back to the CCBG. The reflection or resonant frequency signal is constantly strengthened in this positive feedback loop. On the second directional coupler there is a test point, which is used to test the reflection’s frequency. If the test point is connected to a spectrum analyzer, then the resonant frequency can be measured. Furthermore, the resonant frequency shift represents the strain applied on the CCBG. The positive feedback system enhances the CCBG sensor sensitivity, in addition to reducing the cost of sensing.

3. Geodetic Strainmeter Design

3.1. Hardware Design

A spectrum analyzer is cheaper than a VNA, but as a lab instrument it is also big and expensive. Consequently, for a cost-effective geodetic application, cheap and portable equipment is expected. Although the spectrum analyzer cannot be used directly, its working principles can work well. Based on the Heterodyne principle, a geodetic strainmeter is designed.
As shown in Figure 3, the spectrum analyzer consists of a sweep generator, local oscillator, mixer, narrow bandpass filter, logarithm amplifier and peak detector. The signal (radio-frequency, RF) from the test point of the CCBG sensor is mixed with the output of a local oscillator (LO) in the mixer. The mixer’s output is an intermediate-frequency (IF) signal, and its frequency can be described by the following:
f I F = ± m f L O ± n f R F ,
where fIF is the frequency of the IF signal, fLO is the frequency of the LO signal, fRF is the frequency of the RF signal, and m and n are the integral orders of the LO and RF signals. Usually, the first orders of the LO and RF signals are used in the real application system. Moreover, Equation (4) is often simplified by:
f I F = f L O f R F ,
Then the RF signal is sent to the narrow bandpass filter for frequency selecting. After that, the filtered signal is sent to the logarithm amplifier. Through the logarithm amplifier the IF signal’s intensity in the narrow passband is converted into power. When the local oscillator is tuned by the sweep generator, by Equation (4) or Equation (5), the IF signal is also changed in the same way as the LO signal. The filter’s passband is narrow and fixed. In the frequency domain, the tuned IF signal passes through the passband of the narrow bandpass filter sequentially, which is illustrated by the sketch below.
Shown by Figure 4, the full spectrum of the IF and RF signals can be figured out step by step by the sweeping process. Then, with the help of the peak detector, the maximum of the spectrum can be obtained. The frequency corresponding to the maximum spectrum represents the resonant frequency of the CCBG sensor.
Since the resonant frequency is high (usually higher than 900 MHz), the subsequently required high frequency, high precision and tunable local oscillator is complex and expensive. To cut down the cost of the geodetic strainmeter, the frequency on the test point should be decreased first. Taking this idea, another mixer and a reference CCBG are both introduced into the strainmeter design. Its working principle is shown in Figure 5.
Shown by Figure 5, two CCBGs are used in the geodetic strainmeter: one is used to measure the strain applied on it, and the other acts as a reference only to detect environmental noises. For example, the CCBG sensor’s resonant frequency is set to about 900 MHz, and the CCBG reference’s resonant frequency is set to about 920 MHz. Through Mixer 1, the signal’s frequency can be cut down to about 20 MHz. Thus, the output of Mixer 1 becomes low enough to be measured by a cheap and portable spectrum analyzer. The portable spectrum analyzer is a microcontroller unit (MCU) based system. There, a Direct Digital Synthesizer (DDS) and a low pass filter serve as the local oscillator in Figure 3. In addition, the MCU acts as the sweep generator. Its sweeping range is from 10 MHz to 30 MHz, and its sweeping step is set to 10 KHz. The narrow bandpass filter’s central frequency is 50 KHz and its band width is 5 KHz. The output of the narrow bandpass filter is sent to a logarithm amplifier to calculate its power. Then the logarithm amplifier’s output is sampled by an Analog-to-Digital (A/D) convertor. Under the control of the MCU, the signal’s power in the passband is converted into digital signal and stored in the MCU. Also, the MCU also works as a peak detector to figure out the resonant frequency.

3.2. Software Design

The software of the geodetic strainmeter is realized by the programs in the MCU. The programs tune the DDS to generate the sweeping LO signal, control the A/D convertor to sample the filtered IF signal, and build an inside peak detector to catch the maximum spectrum and its corresponding resonant frequency of the CCBG sensor. The flow chart of the MCU is shown in Figure 6.
When the geodetic strainmeter is opened, the device will first be initialized. On this condition, the MCU will do nothing until the start measurement command is received. Then, the MCU will start the frequency sweeping. The MCU sweeps the LO to a next frequency point, and samples the spectrum power of the filtered IF signal. If the spectrum power is bigger than the maximum spectrum stored in MCU, then the spectrum power and its frequency will be saved to the maximum spectrum and its corresponding frequency. If the end of the sweeping arrives, the resonant frequency will be displayed on the liquid crystal display (LCD) and the MCU will restart a new frequency sweeping. Otherwise, the MCU will sweep the LO to the next frequency point and do the loop above, until the sweeping comes to an end.

4. Demo System

A demo system was built according to the block diagram shown by Figure 5. As shown in Figure 7, the CCBG sensor and the CCBG reference were both built of coaxial cable (50 Ω, Jamco Electronics, RG-58, Belmont, CA, USA) by a precision milling machine.
The coaxial cable was wound around a rod first, and then the dielectric insulator and outer conductor were cut out by the milling machine at the same time. By this method, the amount of cutting was well maintained. The distance of the periodic discontinuities Λ of the CCBG sensor is about 11.2 cm. According to the cable parameters from datasheet, its distributed capacitance C is 100 pF/m and its distributed inductance L is 250 nH/m. By Equation (1), the first order of the resonant frequencies is about 892.9 MHz. Before and after cutting, the reflection parameter S11 of the coaxial cable was tested by a VNA (Agilent, Santa Clara, CA, USA, N3383A), and the data collected are shown in Figure 8. The first order of the resonant frequencies is 907.4 MHz in reality, which is close to the theory value and supports the Bragg condition.
To enhance the CCBG’s sensitivity, the positive feedback system was built, which is shown in Figure 9. There, the gain of the amplifier is up to 30 dB, and the passband of the filters is from 800 MHz to 1.2 GHz.
The portable spectrum analyzer was designed with TI’s MCU MSP430F169. The spectrum analyzer’s parameters were selected according to the real application needs, which are shown below in Table 1.
The demo system’s measuring range D and R resolution are respected as ±20,000 με (2%) and 20 με, respectively. The resonant frequency of the CCBG sensor fres is selected to be 900 MHz. According to Equation (3), the sensitivity of the CCBG sensor is −0.7 kHz/με. Consequently, the CCBG sensor’s resolution in frequency Rf is 14.00 kHz, and the CCBG sensor’s output range is 900 ± 14 MHz. The resonant frequency of the CCBG reference fref is selected to be 920 MHz. The narrow bandpass filter’s central frequency f0 is set to 50 kHz and its band width fw is set to 5 kHz. The band width fw should be less than half of the resolution in frequency. The sweeping frequency range of the DDS is from 0 to 40 MHz, which should be greater than 20 ± 14 MHz. Also, the sweeping step of the DDS is set to 10 kHz, which should be less than the resolution in frequency Rf. The low pass filter’s passband is from 0 to 40 MHz, which is the same as the DDS’s sweeping frequency.

5. Results

To evaluate the performance of the demo system, the MCU-based portable spectrum analyzer’s measurement results were compared with those of a spectrum analyzer (ADVANTEST R3272, Baldwin, CA, USA). Stresses were applied onto the CCBG sensor, while the CCBG reference was left unrestrained (free of stress). The output of Mixer 1 in Figure 5 was tested by our portable spectrum analyzer and the spectrum analyzer R3272 at the same time. The test results are shown in Figure 10.
Shown in Figure 10, the peak frequency of 18.44 MHz obtained by the portable spectrum analyzer is close to the 18.48 MHz obtained by the spectrum analyzer R3272. Similar results were also achieved when some other stresses were applied, which are shown in Table 2. According to the test results, the portable spectrum analyzer could measure the IF signal’s peek frequency with high accuracy, with relative errors to the spectrum analyzer R3272 less than ±0.4%.
For axially tensile strain test, the CCBG sensor was mounted onto a universal material testing machine (WAP-1000, Zhongluchang Co., Jinan, China), as shown in Figure 11.
One end of the CCBG sensor was mounted on the fixed frame (the upper one) of the WAP-100, and the other end was attached to the moveable frame (the lower one) of the WAP-100. The movement of the lower frame was accurately controlled to move certain displacements. And the deformation along the CCBG sensor is equal to the displacement of the lower frame. The displacements of the lower frame were set to change from 0 to 12 mm, with steps of 2 mm. Because the length of the CCBG sensor under strain is 51 cm, the strain variation per step is 0.39% (3900 με). At all steps the shifts of the resonant frequency were obtained, which are shown in Table 3 and Figure 12.
The shifts of the resonant frequency show a linear relationship with the strains that the CCBG sensorexperienced. A least squares fitting line was added in Figure 12, with which the nonlinear errors were calculated and shown in the Table 3. The axially tensile strain test shows that the CCBG sensor can measure the strain greater than 2% (>2.35%), and its nonlinear errors can be less than 5.3%. The measured sensitivity of the geodetic strainmeter is about −0.082 kHz/με and it is less than the designed sensitivity (−0.7 kHz/με). This could possibly be caused by the conversion of the resonant frequency from a high radio frequency to a lower intermediate-frequency, described by Equation (4).

6. Conclusions

Two CCBGs are introduced into the geodetic strainmeter: one serves as a sensor to measure the strain applied on it, and the other acts as a reference to detect environmental noises. Their output signals are mixed together in a mixer. By this method, the environmental noises can be minimized and, more importantly, the signal’s frequency to be processed can be reduced to a lower level. The lower frequency is preferable because it can be easily processed by a portable spectrum analyzer rather than an expensive spectrum analyzer or VNA. Therefore, the strain sensing cost can be cut down significantly. Based on this idea, a demo system of the cost-effective geodetic strainmeter was built. Analysis of laboratory experiments shows that the strain can be measured accurately by a CCBG sensor. Additionally, the portable spectrum analyzer’s relative errors are shown to be less than ±0.4%, compared to the spectrum analyzer R3272. This indicates that the portable spectrum analyzer measures to a similar accuracy as the spectrum analyzer. Through axially tensile strain test, it is shown that the outputs of the geodetic strainmeter show a linear relationship with the strains that the CCBG sensor experiened. Although the measured sensitivity of the geodetic strainmeter is about −0.082 kHz/με, less than the designed sensitivity, it can cover a large dynamic range up to 2%, and its nonlinear errors can be less than 5.3%. Further research on how the sensitivity of the strainmeter can be improved will be the main work of the next study. Moreover, some field tests and distributed tests will be performed in the near future.

Acknowledgments

This paper is supported by the research grant from Institute of Crustal Dynamics, China Earthquake Administration (No. ZDJ2015-08) and the National Nature Science Foundation of China (No. 50908215). This research was also sponsored by the National Science Foundation of the United States (No. 1442623). Thanks for the helps on laboratory experiments provided by Zhen Chen and Guocun Zhao.

Author Contributions

Tao Wei, Meng Wei and Yang Shen conceived the geodetic strainmeter; Jihua Fu and Tao Wei designed the experiment system; Jihua Fu performed the experiments; Jihua Fu and Xu Wang analyzed the data; Tao Wei contributed materials and analysis tools; Jihua Fu wrote the paper.

Conflicts of Interest

The authors declare no conflict of interest.

References

  1. Simons, M.; Minson, S.E.; Sladen, A.; Sladen, A.; Ortega, F.; Jiang, J.; Owen, S.E.; Meng, L.; Wei, S.; Chu, R.; et al. The 2011 magnitude 9.0 Tohoku-Oki earthquake: Mosaicking the megathrust from seconds to centuries. Science 2011, 332, 1421–1425. [Google Scholar] [CrossRef] [PubMed]
  2. Sato, M.T.; Ishikawa, T.; Ujihara, N.; Yoshida1, S.; Fujita, M.; Mochizuki, M.; Asada, A. Displacement above the hypocenter of the 2011 Tohoku-Oki earthquake. Science 2011, 332, 1395. [Google Scholar] [CrossRef] [PubMed]
  3. EarthScope. Available online: http://www.earthscope.org/ (accessed on 20 June 2014).
  4. Crustal Movement Observation Network of China. Available online: http://www.neiscn.org/ (accessed on 2 July 2014). (In Chinese)
  5. Yin, H.; Zhang, P.; Gan, W.; Wang, M.; Liao, H.; Li, X.; Li, X.; Xiao, G. Near-field surface movement during the Wenchuan Ms8.0 earthquake measured by high-rate GPS. Chin. Sci. Bull. 2010, 55, 2621–2626. [Google Scholar] [CrossRef]
  6. Araya, A. Iodine-stabilized 633 nm He-Ne laser for long-baseline interferometers. Jpn. J. Appl. Phys. 1997, 36, 3515–3516. [Google Scholar] [CrossRef]
  7. Nissen, E.; Maruyama, T.; Arrowsmith, J.R.; Elliott, J.R.; Krishnan, A.K.; Oskin, M.E.; Saripalli, S. Coseismic fault zone deformation revealed with differential lidar: Examples from Japanese Mw~7 intraplate earthquakes. Earth Planet. Sci. Lett. 2014, 405, 244–256. [Google Scholar] [CrossRef]
  8. Kersey, A.D.; Davis, M.A.; Patrick, H.J.; LeBlanc, M.; Koo, C.P.; Askins, C.G.; Putnam, M.A.; Friebele, E.J. Fiber grating sensors. J. Lightw. Technol. 1997, 15, 1442–1463. [Google Scholar] [CrossRef]
  9. Kuang, K.S.C.; Quek, S.T.; Tan, C.Y.; Chew, S.H. Plastic optical fiber sensors for measurement of large strain in geotextile materials. Adv. Mater. Res. 2008, 47–50, 1233–1236. [Google Scholar] [CrossRef]
  10. Wei, T.; Wu, S.P.; Huang, J.; Fan, J. Coaxial cable Bragg grating. Appl. Phys. Lett. 2011, 99, 113517. [Google Scholar] [CrossRef]
  11. Wu, S.P.; Wei, T.; Huang, J.; Xiao, H.; Fan, J. Modeling of coaxial cable bragg grating by coupled mode theory. IEEE Sens. J. 2014, 62, 2251–2259. [Google Scholar] [CrossRef]
  12. Huang, J.; Wei, T.; Lan, X.W.; Fan, J.; Xiao, H. Coaxial cable bragg grating sensors for large strain measurement with high accuracy. Proc. SPIE 2012, 8345. [Google Scholar] [CrossRef]
  13. Wu, S.P. Modeling of Novel Coaxial Cable Bragg Grating Sensor by Coupled Mode Theory. Ph.D. Thesis, Missouri University of Science and Technology, Rolla, MO, USA, 2011; p. 2214. [Google Scholar]
Figure 1. The structure of the coaxial cable Bragg grating (CCBG) sensor: (a) Depiction of the CCBG sensor’s working principle; (b) Depiction of the CCBG sensor’s real appearance.
Figure 1. The structure of the coaxial cable Bragg grating (CCBG) sensor: (a) Depiction of the CCBG sensor’s working principle; (b) Depiction of the CCBG sensor’s real appearance.
Sensors 17 00842 g001
Figure 2. The system diagram of the positive feedback system.
Figure 2. The system diagram of the positive feedback system.
Sensors 17 00842 g002
Figure 3. The block diagram of a spectrum analyzer based on the Heterodyne principle.
Figure 3. The block diagram of a spectrum analyzer based on the Heterodyne principle.
Sensors 17 00842 g003
Figure 4. The diagrammatic sketch for spectrum analyzing based on the Heterodyne principle.
Figure 4. The diagrammatic sketch for spectrum analyzing based on the Heterodyne principle.
Sensors 17 00842 g004

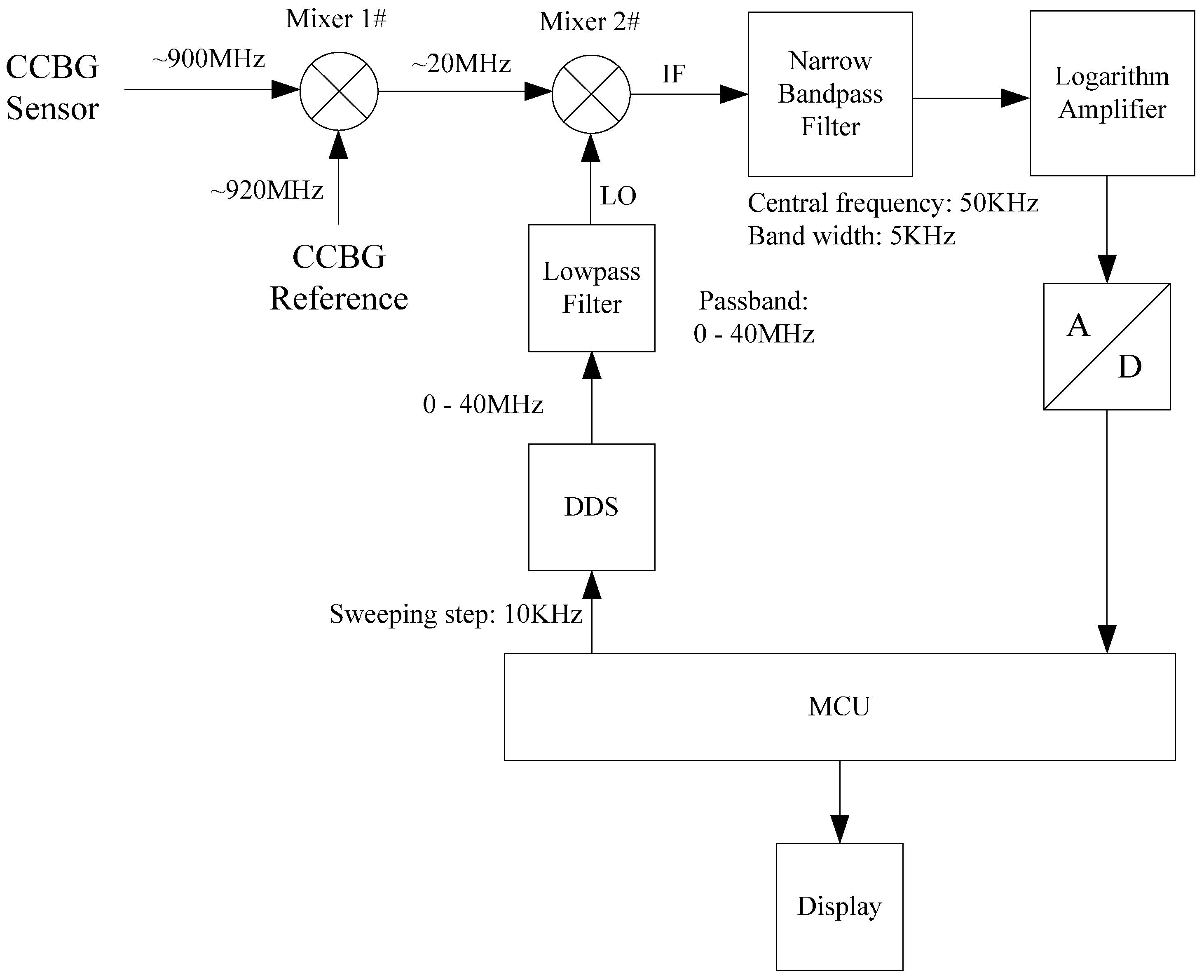

Figure 5. The block diagram of the geodetic strainmeter with dual CCBGs.
Figure 5. The block diagram of the geodetic strainmeter with dual CCBGs.
Sensors 17 00842 g005
Figure 6. The flow chart of the geodetic strainmeter.
Figure 6. The flow chart of the geodetic strainmeter.
Sensors 17 00842 g006

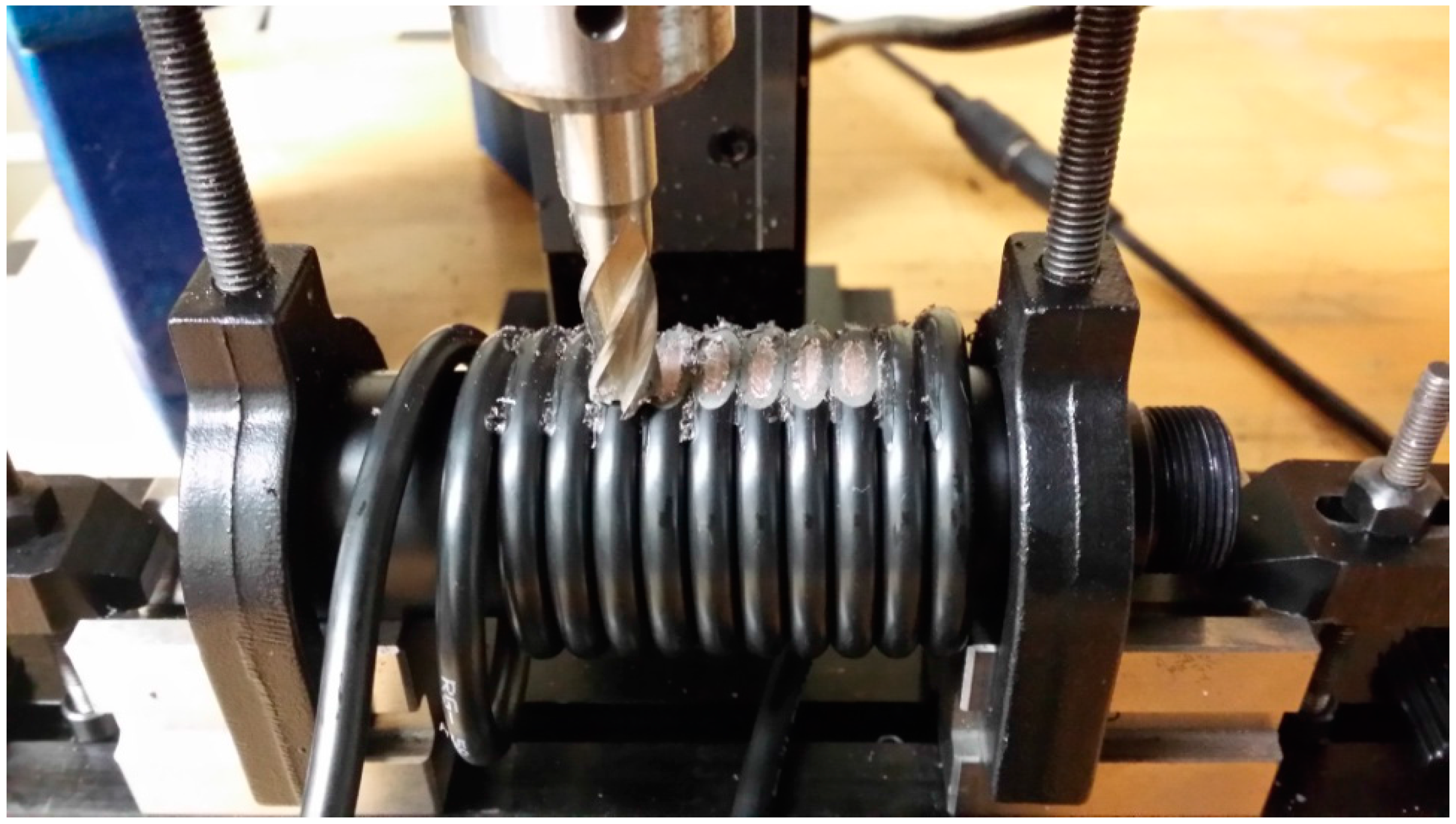

Figure 7. The CCBG produced on a milling machine.
Figure 7. The CCBG produced on a milling machine.
Sensors 17 00842 g007

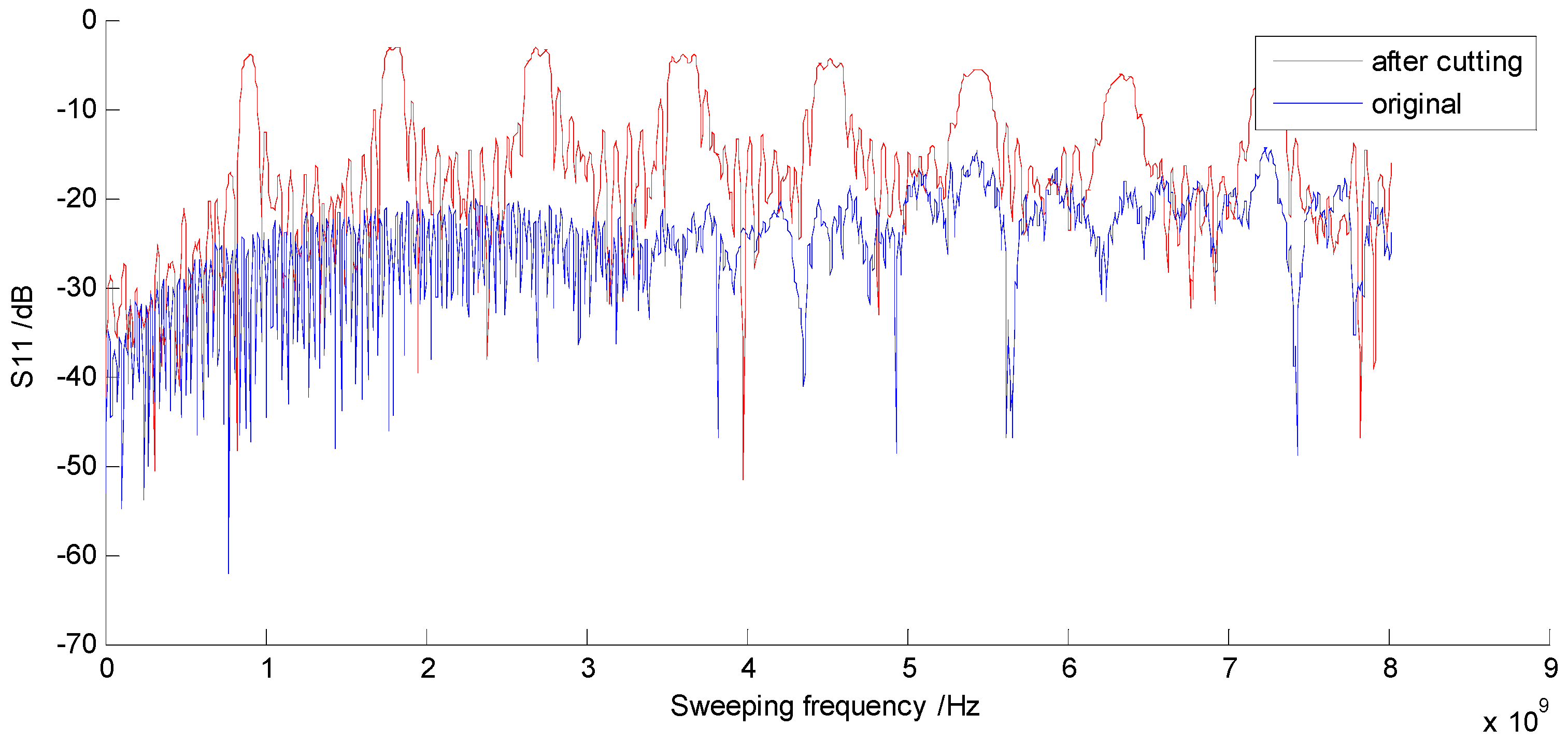

Figure 8. These are S11 data collected before and after cutting: the blue line is the original data before cutting; the red line is the new data after cutting.
Figure 8. These are S11 data collected before and after cutting: the blue line is the original data before cutting; the red line is the new data after cutting.
Sensors 17 00842 g008
Figure 9. The demo system of CCBG’s positive feedback system.
Figure 9. The demo system of CCBG’s positive feedback system.
Sensors 17 00842 g009

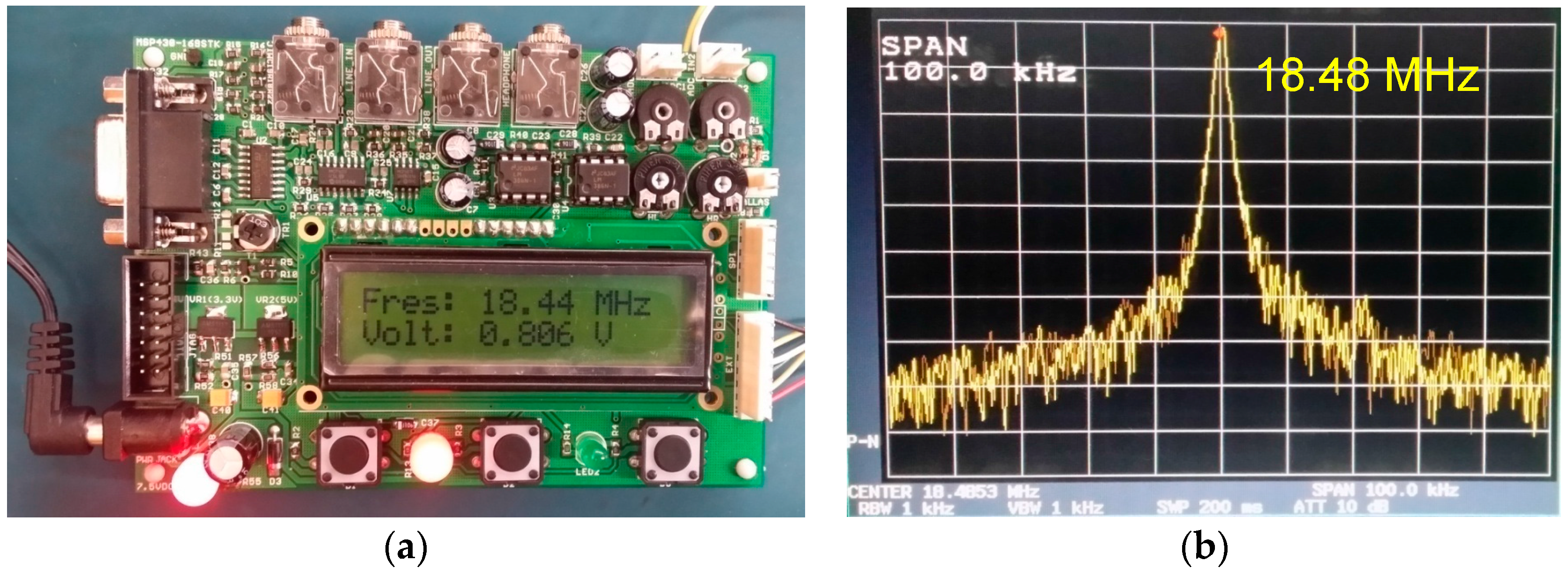

Figure 10. The test results of the portable spectrum analyzer and the spectrum analyzer R3272: (a) The result obtained by the portable spectrum analyzer; (b) The result obtained by the spectrum analyzer R3272.
Figure 10. The test results of the portable spectrum analyzer and the spectrum analyzer R3272: (a) The result obtained by the portable spectrum analyzer; (b) The result obtained by the spectrum analyzer R3272.
Sensors 17 00842 g010
Figure 11. The experimental setup for the axially tensile strain test.
Figure 11. The experimental setup for the axially tensile strain test.
Sensors 17 00842 g011

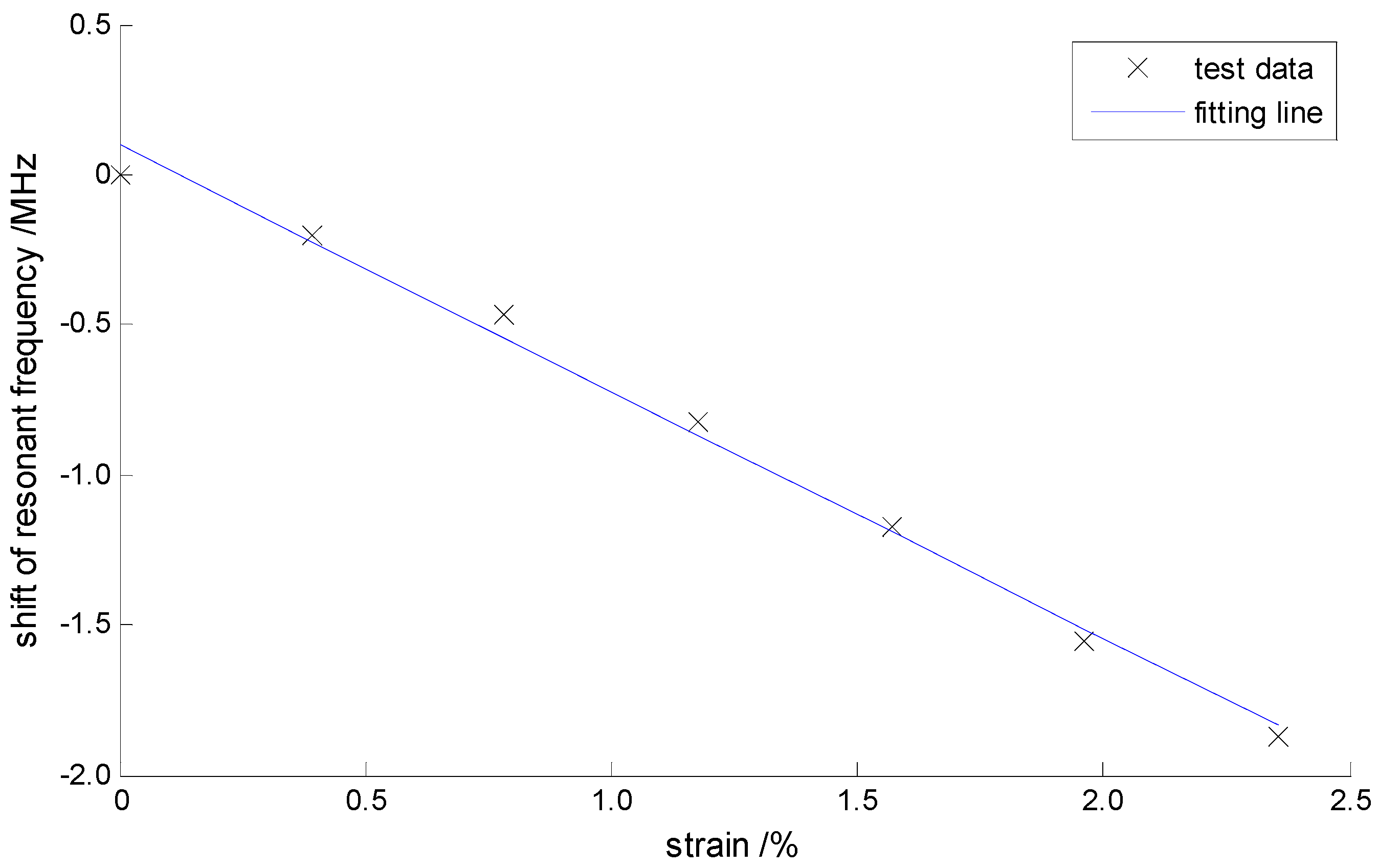

Figure 12. The test results of the axially tensile strain.
Figure 12. The test results of the axially tensile strain.
Sensors 17 00842 g012
Table 1. The demo system’s parameters selected.
Table 1. The demo system’s parameters selected.
PartItemSymbolValueComments
Demo systemMeasuring rangeD±20,000 με (2%)respected
ResolutionR20 μεrespected
CCBG sensorResonant frequencyfres900 MHzdesigned
Theory sensitivityA−0.7 kHz/μεby Equation (3)
Resolution in frequencyRf14.00 kHz|AR|
Output Range 900 ± 14 MHzfres ± |AD|
CCBG referenceResonant frequencyfref920 MHzdesigned
Narrow bandpass filterCentral frequencyf050 kHzdesigned
Band widthfbw5 kHz<Rf/2
DDSSweeping frequencyfwp0 to 40 MHz>(freffres) ± |AD|
Sweeping stepfstp10 kHz<Rf
Low pass filter Passband 0 to 40 MHzsame as fwp
Table 2. The results comparison between the portable spectrum analyzer and the R3272.
Table 2. The results comparison between the portable spectrum analyzer and the R3272.
No.Portable Spectrum Analyzer’s/MHzR3272’s/MHzRelative Error/%
118.4418.48−0.22
217.3217.38−0.34
316.5616.59−0.18
415.8715.92−0.31
Table 3. The test results of the axially tensile strain.
Table 3. The test results of the axially tensile strain.
No.Strains/%Frequency Shifts/MHzNonlinear Errors/%
1005.28
20.392%−0.20−1.36
30.784%−0.47−4.19
41.176%−0.82−2.65
51.569%−1.17−1.11
61.961%−1.552.07
72.353%−1.871.97
