Sensors 2017, 17(3), 589; doi:10.3390/s17030589

Article
Deciphering Egyptian Hieroglyphs: Towards a New Strategy for Navigation in Museums
Jaime Duque-Domingo 1,*, Pedro Javier Herrera 1, Enrique Valero 2 and Carlos Cerrada 1,*
1
Depto.de Ingeniería de Software y Sistemas Informáticos, ETSI Informática, UNED. C/Juan del Rosal, 16, 28040 Madrid, Spain
2
School of Energy, Geoscience, Infrastructure and Society, Heriott-Watt University, Edinburgh EH14 4AS, UK
*
Correspondence: Tel.: +34-913-986-477 (C.C.)
Academic Editor: Gonzalo Pajares Martinsanz
Received: 16 January 2017 / Accepted: 10 March 2017 / Published: 14 March 2017

Abstract

:
This work presents a novel strategy to decipher fragments of Egyptian cartouches identifying the hieroglyphs of which they are composed. A cartouche is a drawing, usually inside an oval, that encloses a group of hieroglyphs representing the name of a monarch. Aiming to identify these drawings, the proposed method is based on several techniques frequently used in computer vision and consists of three main stages: first, a picture of the cartouche is taken as input and its contour is localized. In the second stage, each hieroglyph is individually extracted and identified. Finally, the cartouche is interpreted: the sequence of the hieroglyphs is established according to a previously generated benchmark. This sequence corresponds to the name of the king. Although this method was initially conceived to deal with both high and low relief writing in stone, it can be also applied to painted hieroglyphs. This approach is not affected by variable lighting conditions, or the intensity and the completeness of the objects. This proposal has been tested on images obtained from the Abydos King List and other Egyptian monuments and archaeological excavations. The promising results give new possibilities to recognize hieroglyphs, opening a new way to decipher longer texts and inscriptions, being particularly useful in museums and Egyptian environments. Additionally, devices used for acquiring visual information from cartouches (i.e., smartphones), can be part of a navigation system for museums where users are located in indoor environments by means of the combination of WiFi Positioning Systems (WPS) and depth cameras, as unveiled at the end of the document.
Keywords:
Egyptian hieroglyphs; edge detection; region identification; object recognition

1. Introduction

Egyptian writing is complex and is based on more than 800 characters, named hieroglyphs. They were initially considered pictograms representing words, but Champollion deciphered the writing system and discovered that in fact, they are characters. Although most of hieroglyphs are sounds composed of one, two or three phonemes, some of them are pictograms [1]. The name of the monarchs, named pharaohs, was composed of a box with usually rounded corners, called cartouche, and a word inside. This word usually can be translated as a phrase, e.g., Tutankhamen would be “Living image of god Amen”.
During the last decades, the advancements in the field of computer vision have facilitated the study of ancient writing systems, especially regarding the automatic recognition of characters. For instance, several methods have been developed to detect edges and recognize objects [2,3,4]. With respect to the Egyptian writing system, several authors have studied the hieroglyph detection problem. The difference between the intensity values of the hieroglyphs and the rest of the surface is used in [5] to extract hieroglyphs. Shape descriptors are used for hieroglyph retrieval purposes in [6,7]. The shape context descriptor proposed by [8] takes as input a finite set of n points, which represent the contours of a given shape, and describes it as a set of n histograms. With these histograms, the difference between a pixel in one contour and the rest of the pixels in the other contour is evaluated. Locating the minor difference between the pixels of the first contour and the second, the global difference between the two contours is evaluated. This descriptor is used to obtain Mayan hieroglyphs in [6]. The main limitation of this method is to consider that hieroglyphs are complete. It would be more effective if edges could be entirely extracted. However, in some cases, ancient texts are not well preserved and these defects are reflected as noise in the images. An evaluation of the performance of three shape-based contextual descriptors (Shape Context—SC, Generalized Shape Context—GSC, and Histogram of Orientation Shape-Context—HOOSC) using two datasets of syllabic Maya hieroglyphs is presented in [7]. SC and GSC proved to generate reliable descriptions of Maya hieroglyphs whereas HOOSC proved to be more robust. According to these studies, hieroglyphs may be extracted and a shape descriptor applied to obtain each character. Other recent works are focused on the identification of handwritten hieroglyphic transcriptions drawn in plain (i.e., black or white) backgrounds and are based on text mining and natural language processing techniques [9,10]. Nevertheless, hieroglyphic texts encoding has been reported to be time-consuming.
In order to solve the above-mentioned problems, other strategies have been proposed. It was initially considered extracting the hieroglyphs using a conversion to grey scale and applying a threshold and the Hu moments [11,12,13]. It could be a right method if the color of the hieroglyphs was different. However, the hieroglyphs have the same color than other parts of the cartouche and the extraction process becomes difficult. Secondly, it was tried to use a strategy of regions by frontier based on the gradient, the Laplacian and the Hu moments [2]. To use this proposal the edges were detected using Sobel, Canny and Susan methods [2,14,15]. The problem with this another method is that sometimes there is noise or edges that are not well defined. Figure 1 shows examples of application of the methods evaluated on the images used in this work. The Generic Hough Transform (GHT) is a well-known method that can be used to obtain a concrete object using its edge [16]. However, the main drawback is that it only considers the points that exactly match with the model. If there is a big difference between the points of the edge and the edge of the image, it returns non-valid results as one can see in Figure 1f. The hieroglyph represented in Figure 1a was not properly detected because there are no perfect circles in the image. The curvature and structural salience method tries to extract the regions with special interest [17]. This method was tested on edges of cartouches for extracting the hieroglyphs, but the results were similar to apply a threshold to the edges as can be seen in Figure 1g.
Other methods as Statistical Shape Models (SSM), Active Shape Models (ASM), and Active Appearance Models (AAM) are used to find objects with a similar shape using key points or landmarks and the textures between these landmarks [18,19]. These methods work better when there is a clear difference between the object and the rest of the image. In this work, the hieroglyphs have the same color than the rest of the cartouche, and the edges are very soft. Figure 2a,b shows an example of AAM method. Other approach implements a skeleton search using a Skeletal Shape Model for object segmentation and recognition that works directly on real images [20]. A fragment-based generative model for shape that is capable of generating a wide variation of shapes as instances of a given object category is proposed. It develops a progressive selection mechanism to search among the generated shapes for the category instances that are present in the image. This method seems to be robust against spurious edges, missing edges, and accidental alignment between the image edges and the shape boundary contour. The segmentation of the object using global holistic properties of object shape is proposed in [21]. Concretely, it proposes a figure/ground segmentation method for extraction of image regions that resemble the global properties of a model boundary structure and are perceptually salient. Its shape representation, called the chordiogram, is based on geometric relationships of object boundary edges, but this work takes into account the perceptual saliency in favor of coherent regions distinct from the background. A new weighting function, which helps constructing words representations for detection of Maya hieroglyphs is introduced in [22]. This weighting function depends on the ratio of intersection of the local descriptors, and their respective distances to the center of the bounding box that is under evaluation. The Active Contours Algorithm was also tested in order to detect the edges of the Egyptian cartouches used in this work [23,24]. Figure 2c–e shows an example. Its performance was not suitable in terms of time.
Aiming to deal with the above-mentioned limitations, this work presents a new method to recognize Egyptian cartouches based on several computer vision techniques. This paper is organized as follows: Section 2 describes the approach developed for hieroglyphs interpretation: firstly, the localization of the cartouche in the initial picture is carried out; next, the hieroglyphs are extracted and identified; and lastly, the symbols are interpreted. Section 3 analyses the performance of the proposed method. Finally, Section 4 presents the conclusions and future work.

2. Overview of the Proposed Method to Interpret Hieroglyphs

This section illustrates the strategy developed to localize and recognize the objects of interest in the image (i.e., hieroglyphs). As previously mentioned, this approach is based on different techniques used in computer vision and consists in the following three stages: (1) localization of the object (i.e., the cartouche) in the image and deletion of object’s contour; (2) extraction of regions of interest (ROIs), which are the hieroglyphs; (3) recognition of cartouches considering the identification of each hieroglyph. Figure 3 shows the described process. First of all, it is worth mentioning some factors that should be considered for an automatic visual analysis and interpretation of the Egyptian writing:
  • Texts were written to be read from the left to the right or from the right to the left.
  • Egyptian scribes were able to write in different materials: stone, wood, faience, papyrus, gold, bronze, etc. Hieroglyphs were even painted.
  • Differences between hieroglyphs in different texts or materials are not remarkable, as a similar model was used.
  • Texts were written in both low-relief and high-relief art. In low-relief, hieroglyphs were incised in the stone. In high-relief, the rest of the cartouche was incised.
  • Most texts preserved until the present day have suffered the effects of time, exposure and even vandalism.
Although the presented approach has been designed to be applied to cartouches written in stone, it can be also employed for painted hieroglyphs. Besides, it can be used for low-relief or high-relief writing. The state of preservation of the material (usually stone) as well as missing parts have an important effect in the final result. Thus, images can be noisy or intermediate results, like extracted contours, can correspond to incomplete hieroglyphs, making the recognition process more complicated. Figure 4 shows a set of images used in this work.

2.1. Localization of Cartouches in Images

The localization process consists of seven steps where various image processing techniques are used. The main challenge of this stage is to localize the contour of each cartouche in the image. Once the cartouche is localized, the process deletes the contour. In the following, the mentioned localization steps are detailed:
Step 1. The input image, shown in Figure 5a, is transformed from RGB to grayscale (Figure 5b), using the luma, in-phase, quadrature (YIQ) color space as illustrated in Equation (1). Note that this system is usually employed in color image processing transformations [2].
Y = 0.299 R + 0.587 G + 0.114 B
Step 2. A median filter and a morphological erosion are applied. These filters are used to remove the noise without reducing the edges. Figure 5c presents the result of these operations.
Step 3. A Canny edge detector is applied to obtain the edges of the image [25] (see Figure 5d), being this one of the most powerful edge-detection methods.
Step 4. The Iterative Self-Organizing Data Analysis Technique (ISODATA) threshold is used to detect the most important edges, as illustrated in Figure 5e [26]. The objective is to split non-homogeneous regions into two sub-regions (objects and background) as follows:
(a)
A threshold T is set to a random value
(b)
The image is binarized using T
(c)
The mean values μ 1 , μ 2 of the two sub-regions (objects and background) generated with T are obtained. μ 1 is the mean value of all values under or equal to T. μ 2 is the mean value of all values above T
(d)
A new threshold is calculated as T = ( μ 1 + μ 2 ) / 2
(e)
Repeat steps (b) to (d) until T stops changing its value.
Step 5. If an image contains a rotated cartouche, as exemplified in Figure 6a, an alignment process is optionally performed to place their main directions parallel to the vertical and horizontal axes (Figure 6b). Following the procedure to detect lines in picture presented by [27], the longest line of the cartouche’s edge is obtained, as well as its orientation.
Step 6. In order to extract the hieroglyphs of the image, a search of the four corners of the cartouche is accomplished. A further explanation of this technique can be found in Step 8, as this is also applied to identify hieroglyphs. The image is reduced to a maximum width, keeping the aspect rate.
Step 7. Once the limits of the cartouche are calculated, each Region of Interest (ROI) will be extracted. In this work, each ROI corresponds to a hieroglyph and is always located within a cartouche in the image. Figure 6d,e shows the recognition of the cartouche borders and the ROI extraction process, respectively. Differences between hieroglyphs and cartouches are not remarkable because a similar model was used by Egyptian scribes. The ROI extraction process is described in Section 2.2. As a summary, Figure 7 shows a scheme of the object localization process described in this section.

2.2. Extraction and Identification of Hieroglyphs

At this point, the cartouche has been localized and the hieroglyphs will be individually extracted and identified. During the identification process, Chamfer [28] and Hausdorff [29] distances have been calculated between pairs of objects (one extracted by our algorithm from an image and the other coming from a database).
On one hand, Chamfer distance is calculated by means of the sum of the minimum distance for each point of the edge of an object A and a point of the another edge of object B. Chamfer distance considers all the points of the first object for obtaining the total sum:
d C ( A , B ) = a A min b B a b
On the other hand, Hausdorff distance is different because it only considers the greatest of all the distances from each point in the contour of object A to the closest point in the contour of object B. It is obtained as in Equation (3); firstly, calculating the minimal distance for each point of one edge to another edge and finally, selecting the maximum of them:
d H ( A , B ) = max a A [ min b B a b ]
Table 1 shows the results of Chamfer and Hausdorff distances once compared the hieroglyph in Figure 8a to the three hieroglyphs in Figure 8b–d. One can observe that lower distances, and therefore a better matching, are achieved for the hieroglyph in Figure 8d. Following the technique previously mentioned, an approximation to the Euclidean distance using Chamfer method is used. The extraction and identification of each hieroglyph is carried out by means of the following steps.
Step 8. First, the width of the hieroglyph is considered to be 8/10 of the width of the image, keeping the aspect rate. A hieroglyph is extracted when at least T% of the points of the hieroglyph’s contour satisfy that:
(a)
The Chamfer distance between each point of the hieroglyph’s contour (ph) and each point of the cartouche’s contour (pc) is lower than d. d is set to 3 pixels for a cartouche of 100 pixels width. Figure 9, if the hieroglyph’s contour is marked in orange and the cartouche’s contour one is colored in blue, the distance between ph(2,3) and the image is 2 because pc(3,1) and pc(4,2) are the closest points of the cartouche, and the distance to them is 2. The minimum distance from ph(2,6) to the cartouche is higher than 3 because the closest points are pc(5,3), pc(5,4) and pc(5,5). To calculate the distance it can be used a convolution mask over the central point, and it will be increased each iteration
(b)
The angle of the contour line in pc minus the angle of the contour line in ph is less than Max_Angle. The contours have been obtained by using the Canny algorithm, which produces non-maximum suppression (the width of the contour is 1 pixel), so the contours that include pc and ph have 1 pixel width. Max_Angle is calculated as in (4):
M a x _ A n g l e = ( 100 T ) π 2 100
The angle ϕ of a point respect to their neighboring points is obtained as in (5) where A is the number of pixels in the region, xi are the x positions with pixels, and yi are the y positions with pixels. The gradient of a point is not used in this proposal because the gradient gives the angle change of a point in a segment:
S x = x i S y   ;   S y = y i S x x = x i 2 S y y   ;   S y y = y i 2   ;   S x y = x i y i M x x = S x x S x 2 A   ;   M y y = S y y S y 2 A   ;   M x y = S x y S x S y A ϕ = tan 1 [ M x x M y y + ( M x x M y y ) 2 + 4 M x y 2 2 M x y ]
If a point pc satisfied (a) and (b), Pc is assigned to ph, and ph is assigned to pc. If a cartouche’s point (pck) has been assigned to a hieroglyph’s point (phk) then pck is not used again in the process.
The processed region is identified as a hieroglyph if it is satisfied the T percentage of the points assigned to the image and the number of continue lines that compose the contour assigned to the image (i.e., pc points that have been linked to ph) is lower than L (L = 20 in this work). This restriction prevents from some detected cases where noise provoke errors in detection.
Step 9. The size of the region is reduced in R pixels (R = 2 pixels in this work) and the step 8 is repeated in order to find the same region in the image. See the two bread bun shape hieroglyphs at the bottom of Figure 6e. The region’s size is reduced until its size is less than a percentage Q of the cartouche’s width (concretely Q = 33).
Step 10. If there are candidates to be labeled as hieroglyphs, the object with more coincidences is the accepted, i.e., the object with highest number of assigned points.
Step 11. Once all the candidates have been identified, a new searching process is launched to detect possible small hieroglyphs contained by bigger ones. To do this, it is checked if there are two objects sharing an area of at least 33%. In this case, the smaller object is rejected. This overlapping is calculated by considering each object as a box that contains the object itself, being this limited by the detected edges. As a summary, Figure 10 shows a scheme of the hieroglyphs extraction process described in this section.

2.3. Interpretation of Cartouches

After analyzing the contents of the evaluated cartouche, a list of hieroglyphs with their positions is delivered. According to the procedures about Egyptian writing interpretation presented at the beginning of this section (i.e., studying the image from top to bottom and from left to right), the sequence of the hieroglyphs is read (see Figure 11).
Note that ancient Egyptian texts can be also written from right to left, so this option is also considered. The list of labeled hieroglyphs obtained in the previous steps are analyzed to figure out the name of the represented monarch. As these symbols can be read from left to right or vice versa, several combinations should be considered. Aiming to arrange the symbols in a proper manner and obtain a coherent result (i.e., name and dynasty), Levenshtein distance is calculated for each group of symbols. Levenshtein distance is a string metric used to measure the difference between two text sequences s = s 1 s 2 s 3 s n and t = t 1 t 2 t 3 t m , e.g., the distance between two words is the minimum number of single-character edits (i.e., additions, subtractions or substitutions) required to change one word into the other [30]. In this work, each hieroglyph corresponds to a character in the string, e.g., the distance between RA-MN-PHTY-T-T (Ramesses I), and RA-MN-HPR (Thutmose III) is 3 (one substitution and two additions). The Levenshtein distance for each name is calculated as in Equation (6), and the name with minor value is returned:
d s , t ( i , j ) = { max ( i , j ) if   min ( i , j ) = 0 min { d s , t ( i 1 , j ) + 1 d s , t ( i , j 1 ) + 1 d s , t ( i 1 , j 1 ) + I s , t ( i j ) otherwise
where d s , t ( i , j ) is the distance between the first hieroglyph i of the text sequence s and the first hieroglyph j of the string t; and I ( i j ) is the indicator function (equal to 0 when i = j and equal to 1 otherwise). The first expression in the bracket after min corresponds to subtraction, the second one to addition and the third one to matching (if the respective hieroglyphs are similar).
Figure 12 shows a set of hieroglyphs and their equivalent phonetic transliteration, as generated by [1]. Bearing this table in mind and considering the symbols obtained by our algorithm, from Figure 11 the following sequence is obtained: RA (Circle), MN (Senet board), PHTY (Leopard head), T (Bread bun), T (Bread bun). The name of the king is RA-MN-PHTY-T-T (Ramesses I).

3. Results

This section presents the results obtained by the method presented in the previous section. Aiming to test our system, 261 images of cartouches were used: 76 images obtained from the Abydos King List, 109 images selected from the dataset in [5], and 76 images from other Egyptian monuments and archaeological excavations. The Abydos King List, also known as the Abydos Table, is a list of the names of seventy-six kings of Ancient Egypt.
Although it was found on a wall in the Temple of Seti I at Abydos (Egypt), the table is currently exhibited at the British Museum in London (UK). The dataset of [5] was built from ten pictures of the hieroglyphs found in texts covering the walls of the burial chambers of the Pyramid of Unas at Saqqara (Egypt).The proposed approach has been tested using 1785 hieroglyphs corresponding to the processed cartouches. For the validation of the hieroglyph recognition process, 743 hieroglyphs from the Gardiner’s sign list [1] were used. Table 2 shows information related to some of the evaluated cartouches, containing: inventory number, cartouche drawing, phonetic transliteration, and royal name and dynasty of the king. Intermediate and final visual results, corresponding to these cartouches, are shown in Table 3.
Table 4 displays the averaged percentage of errors and standard deviations for the processed images. Because of the differences during the acquisition process and for comparative purposes, results obtained with images from the Abydos King List and the Egyptian Hieroglyph Dataset in [5] are presented separately. Also for comparative purposes, results obtained after each of the three stages of the process are displayed. Images from the Abydos King List and Egyptian Hieroglyph Dataset [5] presented the cartouche conveniently orientated. This makes easier the localization process as one can see from the obtained results. The rest of images used in this experiment do not present the cartouche individually. For this reason, the localization process of the cartouche in the image becomes more difficult than the previous one. Nevertheless, the average rate of success is 89.5. For the whole set of images used in this work, the average rate of success of the localization process is 95.4. Furthermore, the proposed localization process is also valid to recognize some other elements, such as stonemason’s marks as can be seen in Figure 13.
The average rate of success obtained with the second stage (extraction and identification process) is 87.1. It outperforms the hieroglyphs recognition approach described in [5].
Bad preservation of hieroglyphs is the most probably cause of error increase. In fact, the majority of the hieroglyphics that have survived until the present day have suffered the effects of time, weather exposure and even vandalism (Figure 14 shows a set of cartouches).
The last stage of the method and the most important one is the recognition process. In this case, the average rate of success reached with the proposed method is 92.3. Although some hieroglyphs were not properly identified at second stage, it did not affect the recognition process because it took into account the whole hieroglyphs of the cartouche (see the results of Sekhemkhet and Amenhotep III cartouches in Table 3). Thus, properly identified hieroglyphs favor the recognition of the cartouche to the detriment of not acceptably identified hieroglyphs.
The proposed method is able to increase the quantity of hieroglyphs without having the necessity of a training process. Low quality images produce errors in the recognition because of noise. In that case, the same hieroglyph with different changes may be introduced to reduce the error. Common methods to recognize Latin texts were revised but do not work well when there is noise in the image. Therefore, it is difficult to extract the regions, calculate descriptors or moments and use decision-making methods as proposed in previous works [12,13].
One advantage of the proposed method is that the color of hieroglyphs and background can be homogeneous. Besides this proposal avoids the problem of hieroglyphs that cannot be detected with threshold. Previous works revised at Section 1 have considered threshold as the base to extract regions of interest.
An initial drawback of this method was processing time. Nevertheless, to solve this issue some modifications could be considered. To calculate the orientation, a table containing all of them was created. This increases the speed of processing. Several threads can be used to look for each hieroglyph.

4. Conclusions

This work presents an automatic method for hieroglyph deciphering that has been conceived to segment and identify the Egyptian characters contained in a cartouche. The proposed three-stage method takes into account several parameters, like the distance between points, and the orientation and the continuity of the edges. Although other techniques have been examined and applied to similar problems, this method has proven to be insensitive to the intensity and the completeness of the objects as well as variable lighting conditions. Promising results have been obtained from this study, delivering good results in terms of image analysis and Egyptian characters’ identification.
Aiming to deliver a new strategy for enriching the experience of users visiting a museum, this method can be combined with a positioning system. According to the approach presented in [31], a combination of sensors of different nature, such as RGD-B cameras and WiFi positioning systems (as shown in Figure 15), are employed to accurately locate users in an interior environment. Every access points (i.e., routers) spread in the facilities sends wireless signals that are received by the portable devices—usually smartphones—carried out by users. The Received Signal Strength Indication (RSSI) in each point is used to estimate the position of people in the museum. The identification of 3D skeletons by means of RGB-D cameras is combined with WPS data, making more precise this positioning.
RGB-D sensor used is based on a time-of-flight technology (ToF), Kinect v2. This device delivers up to 2 MPx images (1920 × 1080) at 30 Hz and 0.2 MPx depth maps with a resolution of 512 × 424 pixels. This Kinect camera is connected to a web server where data is saved and processed. The horizontal field of view of the RGB-D sensor is 70 degrees so it is only able to detect people in a section of the room. This section has a size of 3.71 × 3.71 m.
On the other hand, the cellphones employed for localization are also used to take pictures of the objects where the hieroglyphs are written. The processing of these pictures is detailed in this paper.
Although some trials have been already carried out in a controlled environment, the test of the whole infrastructure under more complex and variable circumstances will be performed in the near future, mounting the positioning system in a real gallery with several people visiting the room.

Acknowledgments

This work has been developed with the help of the research projects DPI2013-44776-R and DPI2016-77677-P of the MICINN. It also belongs to the activities carried out within the framework of the research network CAM RoboCity2030 S2013/MIT-2748 of the Comunidad de Madrid. The authors would like to thank the anonymous reviewers for their valuable comments and suggestions to improve the quality of the paper.

Author Contributions

J.D., P.J.H., E.V. and C.C. conceived and designed the experiments; J.D. and P.J.H. performed the experiments; P.J.H., E.V. and C.C. analyzed the data; J.D., P.J.H., E.V. and C.C. wrote the paper.

Conflicts of Interest

The authors declare no conflict of interest.

References

  1. Gardiner, A. Egyptian Grammar. Being an Introduction to the Study of Hieroglyphs, 3rd ed.; Oxford University Press: London, UK, 1957. [Google Scholar]
  2. Gonzalez, R.C.; Woods, R.E. Digital Image Processing, 3rd ed.; Prentice Hall: Upper Saddle River, NJ, USA, 2008. [Google Scholar]
  3. Papari, G.; Petkov, N. Edge and line oriented contour detection: State of the art. Image Vis. Comput. 2011, 29, 79–103. [Google Scholar] [CrossRef]
  4. Sánchez-González, M.; Cabrera, M.; Herrera, P.J.; Vallejo, R.; Cañellas, I.; Montes, F. Basal Area and Diameter Distribution Estimation Using Stereoscopic Hemispherical Images. Photogramm. Eng. Remote Sens. 2016, 82, 605–616. [Google Scholar] [CrossRef]
  5. Franken, M.; van Gemert, J.C. Automatic Egyptian Hieroglyph Recognition by Retrieving Images as Texts. In Proceedings of the 21st ACM International Conference on Multimedia, Barcelona, Spain, 21–25 October 2013.
  6. Roman-Rangel, E.; Pallan, C.; Odobez, J.M.; Gatica-Perez, D. Retrieving Ancient Maya Glyphs with Shape Context. In Proceedings of the IEEE 12th International Conference on Computer Vision Workshops, Kyoto, Japan, 27 September–4 October 2009.
  7. Roman-Rangel, E.; Pallan, C.; Odobez, J.M.; Gatica-Perez, D. Analyzing Ancient Maya Glyph Collections with Contextual Shape Descriptors. Int. J. Comput. Vis. 2011, 94, 101–117. [Google Scholar] [CrossRef]
  8. Belongie, S.; Malik, J.; Puzicha, J. Shape Context: A New Descriptor for Shape Matching and Object Recognition. In Advances in Neural Information Processing Systems 13: Proc. 2000 Conf.; Leen, T.K., Dietterich, T.G., Tresp, V., Eds.; MIT Press: Cambridge, MA, USA, 2001; pp. 831–837. [Google Scholar]
  9. Nederhof, M.J. OCR of handwritten transcriptions of Ancient Egyptian hieroglyphic text. In Proceedings of the Altertumswissenschaften in a Digital Age: Egyptology, Papyrology and Beyond (DHEgypt15), Leipzig, Germany, 4–6 November 2015.
  10. Iglesias-Franjo, E.; Vilares, J. Searching Four-Millenia-Old Digitized Documents: A Text Retrieval System for Egyptologists. In Proceedings of the 10th SIGHUM Workshop on Language Technology for Cultural Heritage, Social Sciences, and Humanities (LaTeCH), Berlin, Germany, 7–12 August 2016.
  11. Hu, M.K. Visual Pattern Recognition by Moment Invariants. IRE Trans. Inf. Theory 1962, 8, 179–187. [Google Scholar]
  12. Herrera, P.J.; Pajares, G.; Guijarro, M.; Ruz, J.J.; Cruz, J.M.; Montes, F. A Featured-Based Strategy for Stereovision Matching in Sensors with Fish-Eye Lenses for Forest Environments. Sensors 2009, 9, 9468–9492. [Google Scholar] [CrossRef] [PubMed]
  13. Herrera, P.J.; Dorado, J.; Ribeiro, A. A Novel Approach for Weed Type Classification Based on Shape Descriptors and a Fuzzy Decision-Making Method. Sensors 2014, 14, 15304–15324. [Google Scholar] [CrossRef] [PubMed]
  14. Canny, J. A computational approach to edge detection. IEEE Trans. Pattern Anal. Mach. Intell. 1986, 8, 679–698. [Google Scholar] [CrossRef] [PubMed]
  15. Smith, S.M.; Brady, J.M. SUSAN—A new approach to low level image processing. Int. J. Comput. Vis. 1997, 23, 45–78. [Google Scholar] [CrossRef]
  16. Ballard, D.H. Generalizing the Hough Transform to Detect Arbitrary Shapes. Pattern Recognit. 1981, 13, 111–122. [Google Scholar] [CrossRef]
  17. Sha’ashua, A.; Ullman, S. Structural saliency: The detection of globally salient structures using a locally connected network. In Proceedings of the Second International Conference on Computer Vision, Tampa, FL, USA, 5–8 December 1988.
  18. Cootes, T.F.; Edwards, G.J.; Taylor, C.J. Active Appearance Models. In Proceedings of the 5th European Conference on Computer Vision, Freiburg, Germany, 2–6 June 1998.
  19. Castro-Mateos, I.; Pozo, J.M.; Cootes, T.F.; Wilkinson, J.M.; Eastell, R.; Frangi, A.F. Statistical Shape and Appearance Models in Osteoporosis. Curr. Osteoporos. Rep. 2014, 12, 163–173. [Google Scholar] [CrossRef] [PubMed]
  20. Trinh, N.H.; Kimia, B.B. Skeleton Search: Category-Specific Object Recognition and Segmentation Using a Skeletal Shape Model. Int. J. Comput. Vis. 2011, 94, 215–240. [Google Scholar] [CrossRef]
  21. Toshev, A.; Taskar, B.; Daniilidis, K. Shape-Based Object Detection via Boundary Structure Segmentation. Int. J. Comput. Vis. 2012, 99, 123–146. [Google Scholar] [CrossRef]
  22. Roman-Rangel, E.; Marchand-Maillet, S. Shape-based detection of Maya hieroglyphs using weighted bag representations. Pattern Recognit. 2015, 48, 1161–1173. [Google Scholar] [CrossRef]
  23. Li, C.; Xu, C.; Gui, C.; Fox, M.D. Distance Regularized Level Set Evolution and its Application to Image Segmentation. IEEE Trans. Image Process. 2010, 19, 3243–3254. [Google Scholar] [PubMed]
  24. Zhang, K.; Zhang, L.; Song, H.; Zhou, W. Active contours with selective local or global segmentation: A new formulation and level set method. Image Vis. Comput. 2010, 28, 668–676. [Google Scholar] [CrossRef]
  25. McIlhagga, W. The Canny edge detector revisited. Int. J. Comput. Vis. 2011, 91, 251–261. [Google Scholar] [CrossRef]
  26. El-Zaart, A. Images thresholding using ISODATA technique with gamma distribution. Pattern Recognit. Image Anal. 2010, 20, 29–41. [Google Scholar] [CrossRef]
  27. Duda, R.O.; Hart, P.E. Use of the Hough transformation to detect lines and curves in pictures. Commun. ACM 1972, 15, 11–15. [Google Scholar] [CrossRef]
  28. Liu, M.Y.; Tuzel, O.; Veeraraghavan, A.; Chellappa, R. Fast Directional Chamfer Matching. In Proceedings of the IEEE Conference on Computer Vision and Pattern Recognition, San Francisco, CA, USA, 13–18 June 2010.
  29. Rucklidge, W.J. Efficiently Locating Objects Using the Hausdorff Distance. Int. J. Comput. Vis. 1997, 24, 251–270. [Google Scholar] [CrossRef]
  30. Wagner, R.A.; Fischer, M.J. The String-to-String Correction Problem. J. ACM 1974, 21, 168–173. [Google Scholar] [CrossRef]
  31. Duque, J.; Cerrada, C.; Valero, E.; Cerrada, J.A. Indoor Positioning System Using Depth Maps and Wireless Networks. J. Sens. 2016, 2016, 1–8. [Google Scholar] [CrossRef]

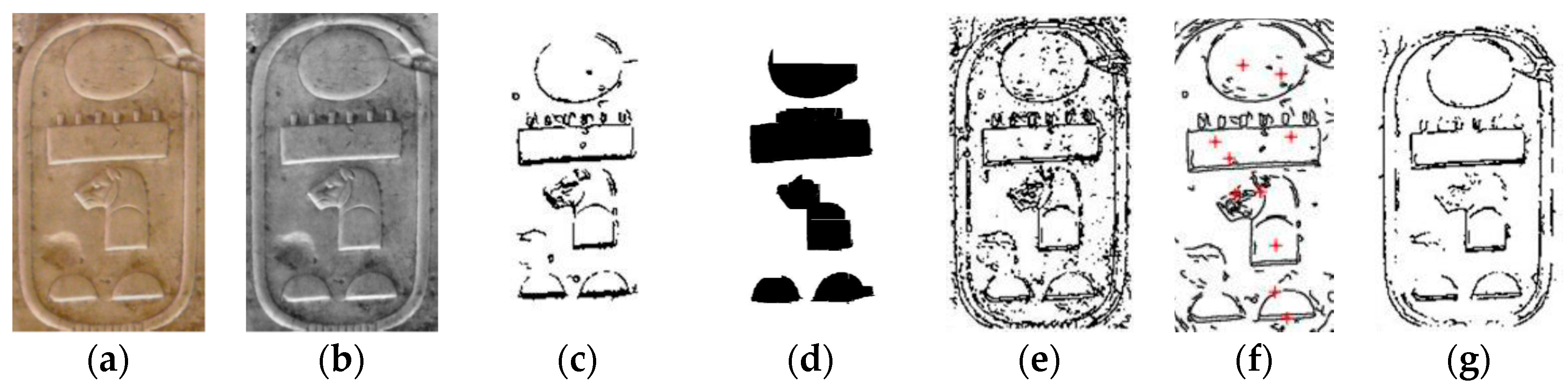

Figure 1. (a) Original image; (b) Monochrome image; (c) Sobel edge detection; (d) regions by frontier; (e) SUSAN algorithm; (f) Circle Hough Transform to obtain most-probable circles; (g) curvature salience after 20 iterations.
Figure 1. (a) Original image; (b) Monochrome image; (c) Sobel edge detection; (d) regions by frontier; (e) SUSAN algorithm; (f) Circle Hough Transform to obtain most-probable circles; (g) curvature salience after 20 iterations.
Sensors 17 00589 g001

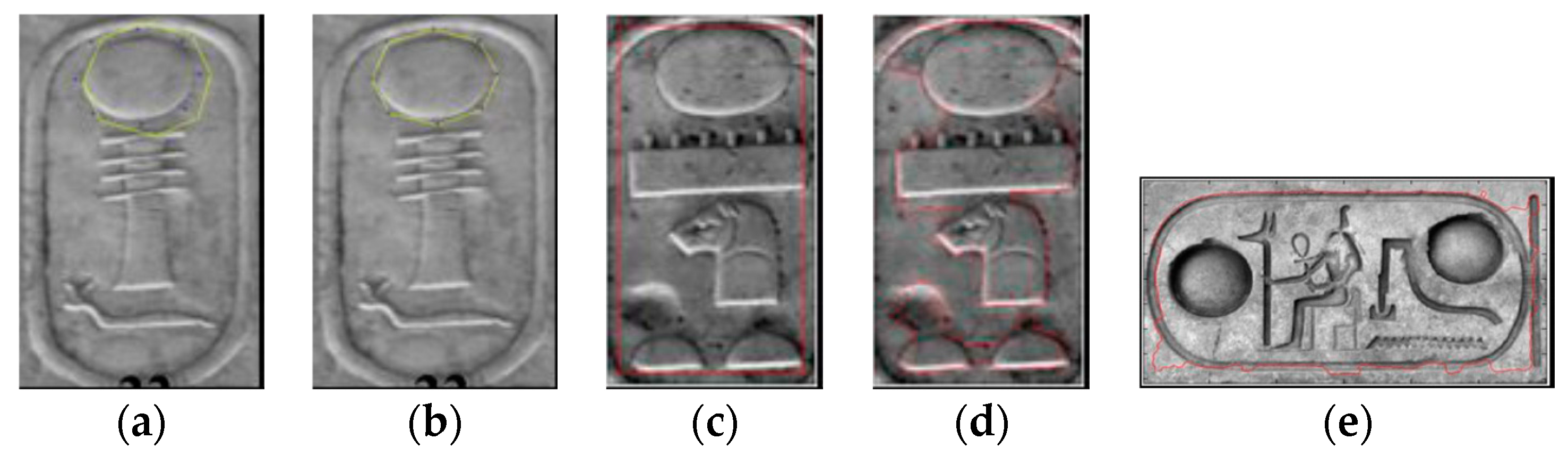

Figure 2. (a,b) AAM method applied to hieroglyph images; Active Contour Algorithm applied to obtain the edge of the Egyptian hieroglyphs (c) initially; (d) after 1000 iterations; (e) Active Contour Algorithm applied to obtain the edge of the Egyptian cartouche after 300 iterations.
Figure 2. (a,b) AAM method applied to hieroglyph images; Active Contour Algorithm applied to obtain the edge of the Egyptian hieroglyphs (c) initially; (d) after 1000 iterations; (e) Active Contour Algorithm applied to obtain the edge of the Egyptian cartouche after 300 iterations.
Sensors 17 00589 g002
Figure 3. The proposed approach consists of three stages.
Figure 3. The proposed approach consists of three stages.
Sensors 17 00589 g003
Figure 4. A set of cartouches from the Abydos King List: (a) Djedefre; (b) Menes; (c) Shepseskaf; (d) Neferkara I; (e) Mentuhotep II; (f) Raneb; (g) Sneferu; (h) Khafra; (i) Semerkhet; (j) Userkare; (k) Djoser; (l) Sekhemkhet.
Figure 4. A set of cartouches from the Abydos King List: (a) Djedefre; (b) Menes; (c) Shepseskaf; (d) Neferkara I; (e) Mentuhotep II; (f) Raneb; (g) Sneferu; (h) Khafra; (i) Semerkhet; (j) Userkare; (k) Djoser; (l) Sekhemkhet.
Sensors 17 00589 g004

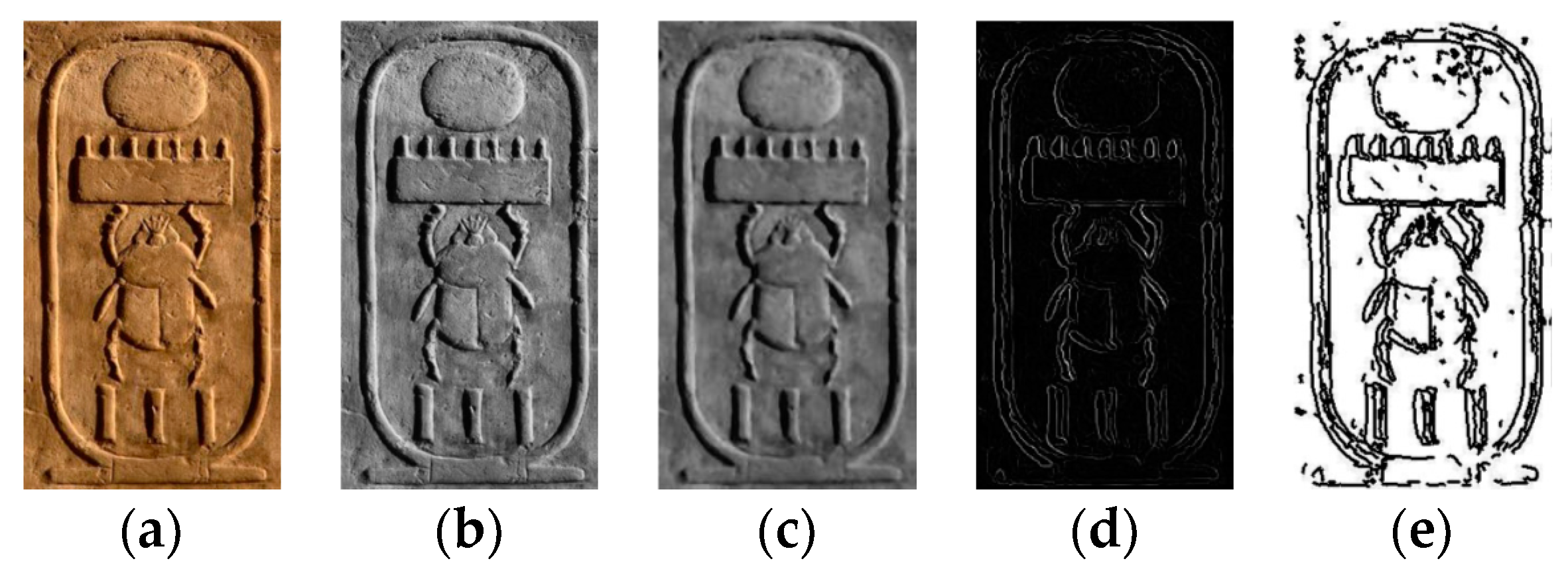

Figure 5. (a) Original image; (b) grayscale image; (c) median filter; (d) Canny edges; (e) threshold ISODATA inverted.
Figure 5. (a) Original image; (b) grayscale image; (c) median filter; (d) Canny edges; (e) threshold ISODATA inverted.
Sensors 17 00589 g005
Figure 6. (a) Original image; (b) Longest border of the cartouche; (c) Cartouche after orientation correction; (d) Recognition of the cartouche borders; (e) Extraction of the regions of interest.
Figure 6. (a) Original image; (b) Longest border of the cartouche; (c) Cartouche after orientation correction; (d) Recognition of the cartouche borders; (e) Extraction of the regions of interest.
Sensors 17 00589 g006

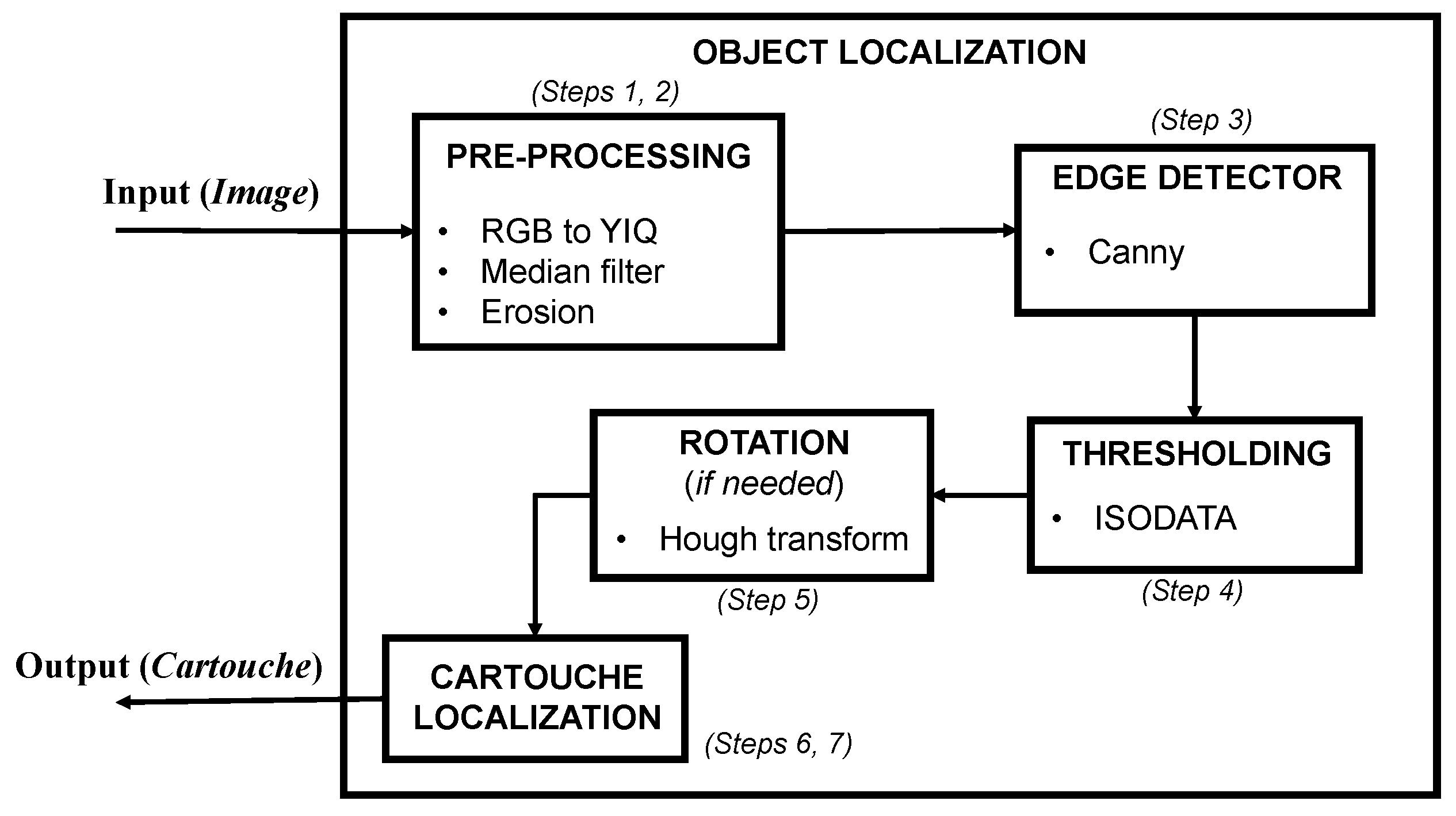

Figure 7. Scheme of the object localization process.
Figure 7. Scheme of the object localization process.
Sensors 17 00589 g007
Figure 8. (a) Hieroglyph from a database to be used as a reference; (bd) Hieroglyphs extracted from several cartouches; (eg) Overlapped images.
Figure 8. (a) Hieroglyph from a database to be used as a reference; (bd) Hieroglyphs extracted from several cartouches; (eg) Overlapped images.
Sensors 17 00589 g008

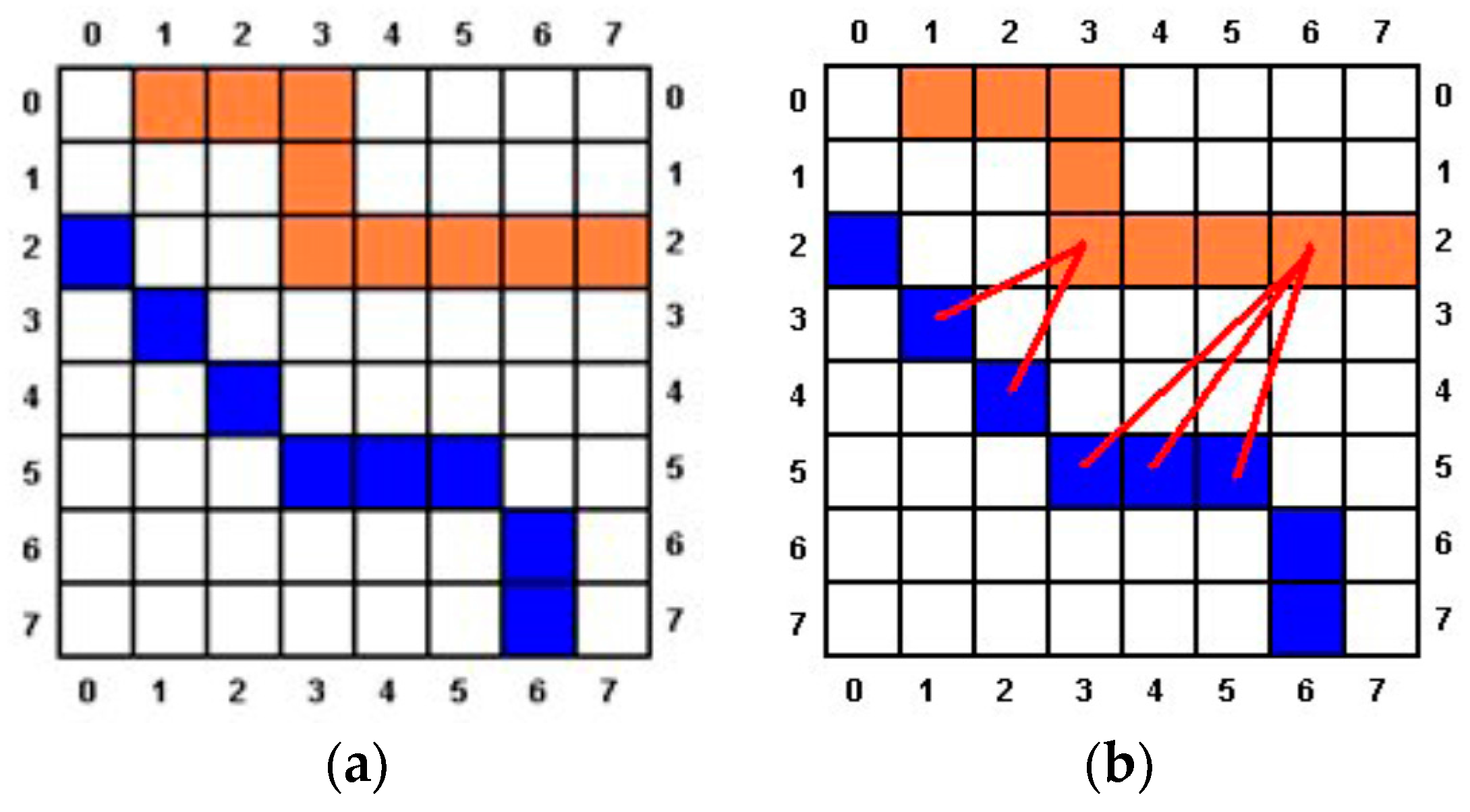

Figure 9. Distance between points Ph (a) and points Pc (b).
Figure 9. Distance between points Ph (a) and points Pc (b).
Sensors 17 00589 g009

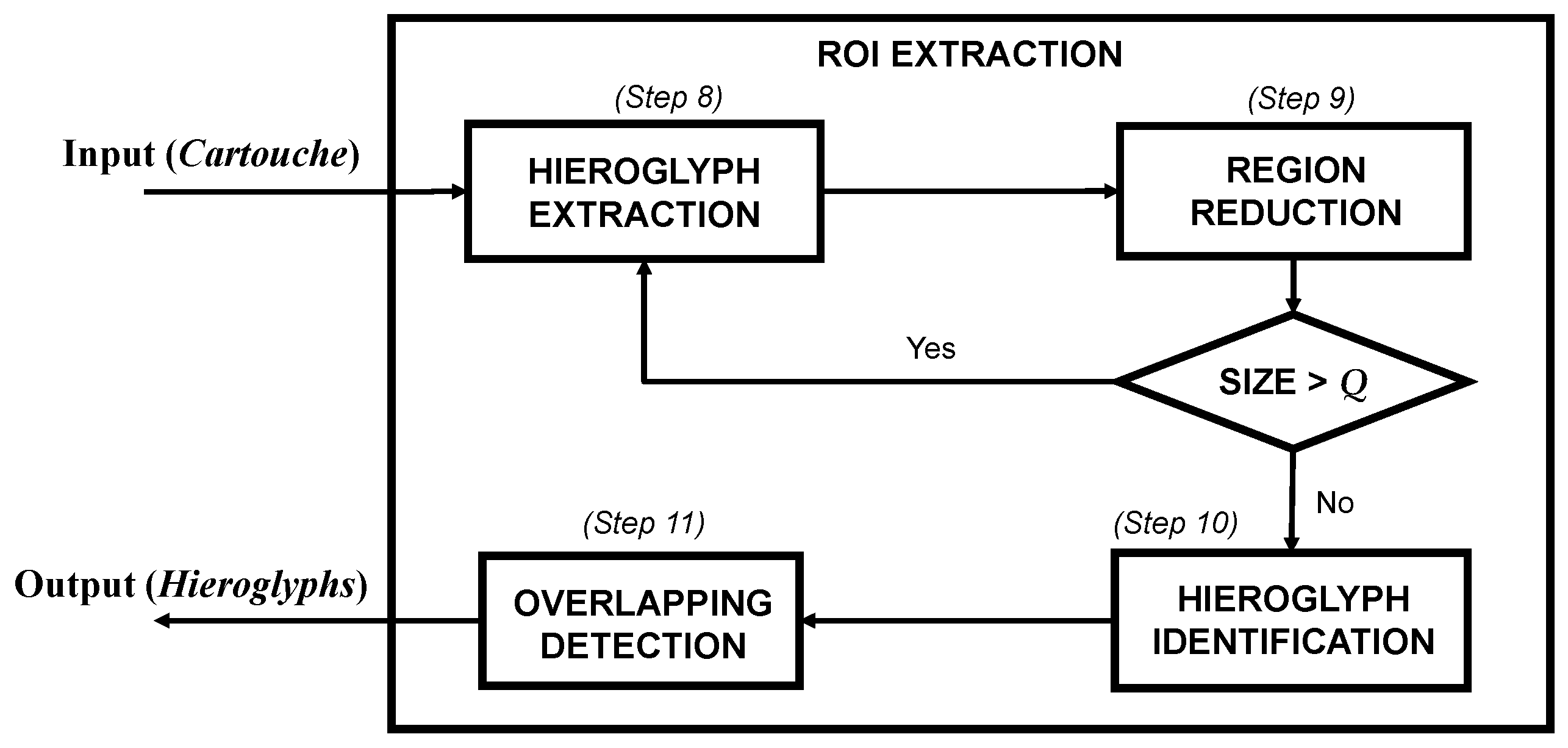

Figure 10. Scheme of the ROI extraction process.
Figure 10. Scheme of the ROI extraction process.
Sensors 17 00589 g010
Figure 11. (a) Hieroglyphs extraction; (b) Hieroglyphs identification; (c) Reading sequence.
Figure 11. (a) Hieroglyphs extraction; (b) Hieroglyphs identification; (c) Reading sequence.
Sensors 17 00589 g011
Figure 12. Database of hieroglyphs obtained from the Abydos King List.
Figure 12. Database of hieroglyphs obtained from the Abydos King List.
Sensors 17 00589 g012

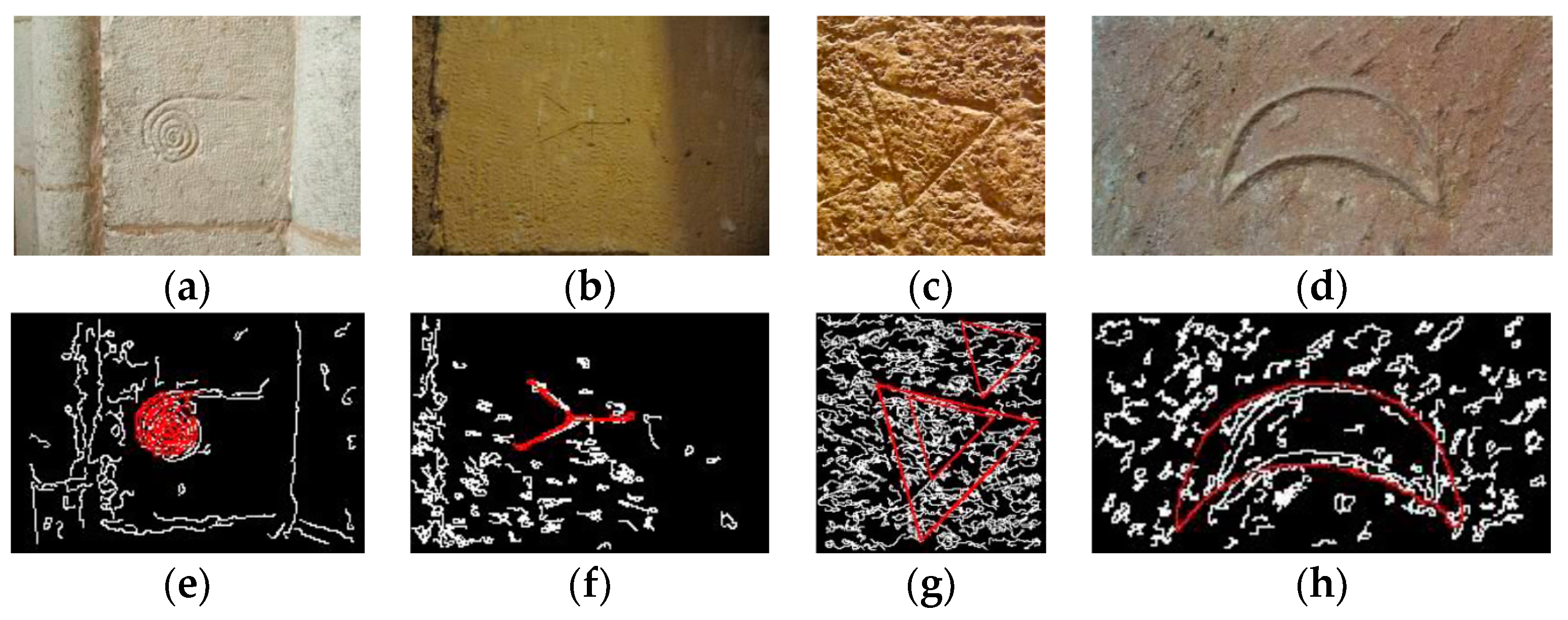

Figure 13. The location process applied to search for stonemason’s marks: (ad) original images; (eh) localization process results.
Figure 13. The location process applied to search for stonemason’s marks: (ad) original images; (eh) localization process results.
Sensors 17 00589 g013
Figure 14. The effects of time, exposure and even vandalism make the recognition process difficult: (a) Khufu’s cartouche; (b) Neferkahor’s cartouche; (c) Qakare Ibi’s cartouche.
Figure 14. The effects of time, exposure and even vandalism make the recognition process difficult: (a) Khufu’s cartouche; (b) Neferkahor’s cartouche; (c) Qakare Ibi’s cartouche.
Sensors 17 00589 g014

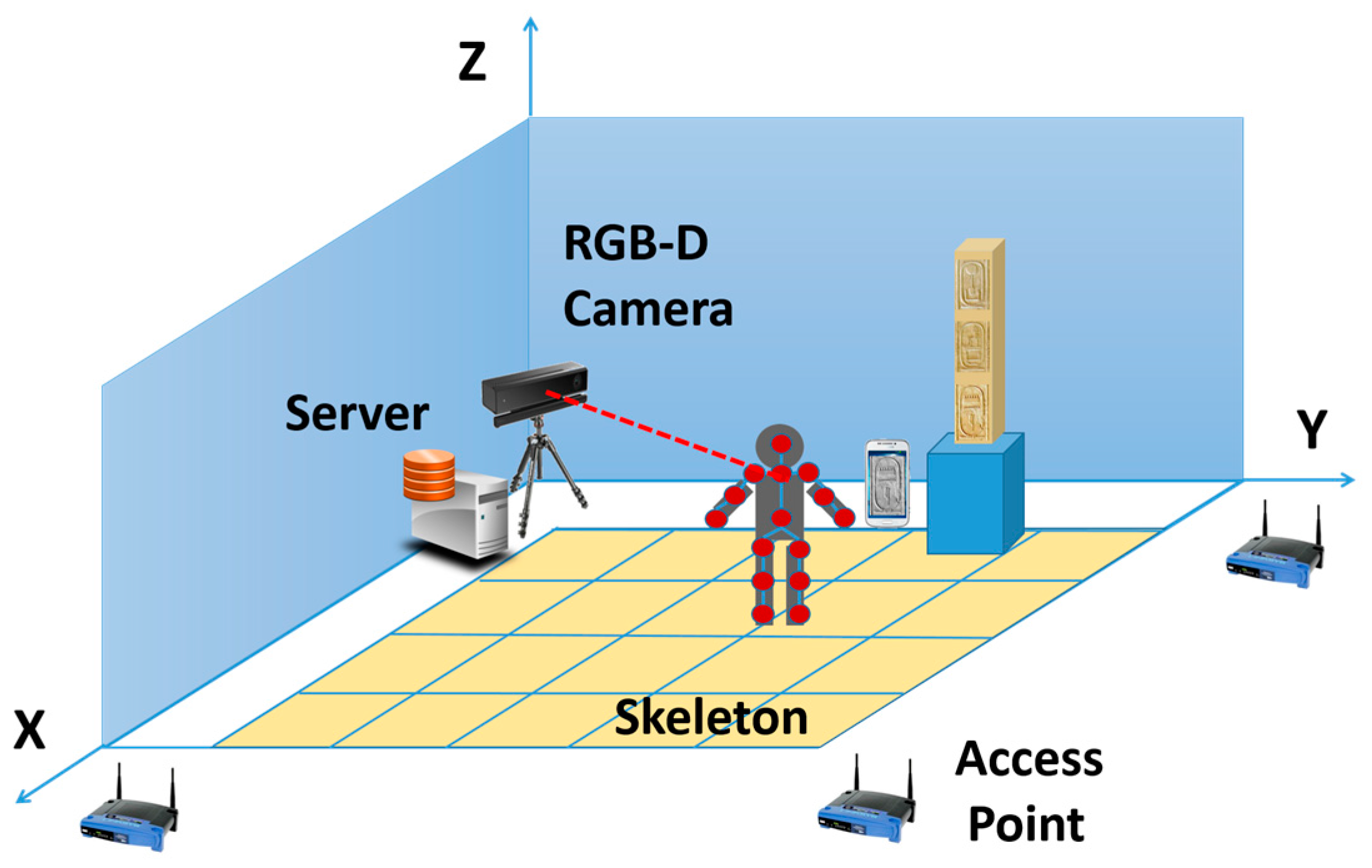

Figure 15. Components of the system.
Figure 15. Components of the system.
Sensors 17 00589 g015
Table 1. Results of comparing Chamfer and Hausdorff distances.
Table 1. Results of comparing Chamfer and Hausdorff distances.
Hierogyphs ComparedChamfer DistanceHausdorff Distance
A-B36888 (1)75 (0.52)
A-C21485 (0.58)144 (1)
A-D16069 (0.43)35 (0.24)
Table 2. List of selected cartouches for visualization purposes.
Table 2. List of selected cartouches for visualization purposes.
Abydos NumberCartouchePhonetic TransliterationRoyal Name (Dynasty)
17 Sensors 17 00589 i031T-t-iSekhemkhet (III Dynasty)
22 Sensors 17 00589 i032Djed-f-raDjedefre (IV Dynasty)
70 Sensors 17 00589 i033Mn-kheper-raThutmose III (XVIII Dynasty)
72 Sensors 17 00589 i034Mn-kheper-u-raThutmose IV (XVIII Dynasty)
73 Sensors 17 00589 i035Nb-maat-raAmenhotep III (XVIII Dynasty)
75 Sensors 17 00589 i036Mn-peht-y-raRamesses I (XIX Dynasty)
Table 3. Intermediate and final visual results of six images.
Table 3. Intermediate and final visual results of six images.
SekhemkhetDjedefreThutmose IIIThutmose IVAmenhotep IIIRamesses I
Original picture Sensors 17 00589 i001 Sensors 17 00589 i002 Sensors 17 00589 i003 Sensors 17 00589 i004 Sensors 17 00589 i005 Sensors 17 00589 i006
Edge detection Sensors 17 00589 i007 Sensors 17 00589 i008 Sensors 17 00589 i009 Sensors 17 00589 i010 Sensors 17 00589 i011 Sensors 17 00589 i012
Cartouche localization Sensors 17 00589 i013 Sensors 17 00589 i014 Sensors 17 00589 i015 Sensors 17 00589 i016 Sensors 17 00589 i017 Sensors 17 00589 i018
Hieroglyphs extraction Sensors 17 00589 i019 Sensors 17 00589 i020 Sensors 17 00589 i021 Sensors 17 00589 i022 Sensors 17 00589 i023 Sensors 17 00589 i024
Hieroglyphs identification Sensors 17 00589 i025 Sensors 17 00589 i026 Sensors 17 00589 i027 Sensors 17 00589 i028 Sensors 17 00589 i029 Sensors 17 00589 i030
Corresponding cartouche Sensors 17 00589 i031 Sensors 17 00589 i032 Sensors 17 00589 i033 Sensors 17 00589 i034 Sensors 17 00589 i035 Sensors 17 00589 i036
Table 4. Average rate of success and standard deviations obtained through the proposed three-stage method.
Table 4. Average rate of success and standard deviations obtained through the proposed three-stage method.
%σ
Stage 1. Localization process95.40.4
  Abydos King List dataset100-
  Egyptian Hieroglyph Dataset [5]96.30.3
  Rest of images89.50.9
Stage 2. Extraction and identification process87.11.4
  Abydos King List dataset92.81.1
  Egyptian Hieroglyph Dataset [5]84.21.6
  Rest of images83.41.5
Stage 3. Recognition process92.30.9
  Abydos King List dataset100-
  Egyptian Hieroglyph Dataset [5]92.71.2
  Rest of images84.11.5
Sensors EISSN 1424-8220 Published by MDPI AG, Basel, Switzerland RSS E-Mail Table of Contents Alert
Back to Top
