Study on the Deformation Measurement of the Cast-In-Place Large-Diameter Pile Using Fiber Bragg Grating Sensors

1,2,* , 1,2
,
1,2
and
1,2
1
Key Laboratory of Ministry of Education for Geomechanics and Embankment Engineering, Hohai University, Nanjing 210098, China
2
Research Institute of Geotechnical Engineering, Hohai University, Nanjing 210098, China
*
Author to whom correspondence should be addressed.
Academic Editors: Christophe Caucheteur and Tuan Guo
Received: 14 December 2016 / Revised: 12 February 2017 / Accepted: 15 February 2017 / Published: 3 March 2017
(This article belongs to the Special Issue Recent Advances in Fiber Bragg Grating Sensing)
View Full-Text   |   Download PDF [2219 KB, uploaded 3 March 2017]   |

Abstract

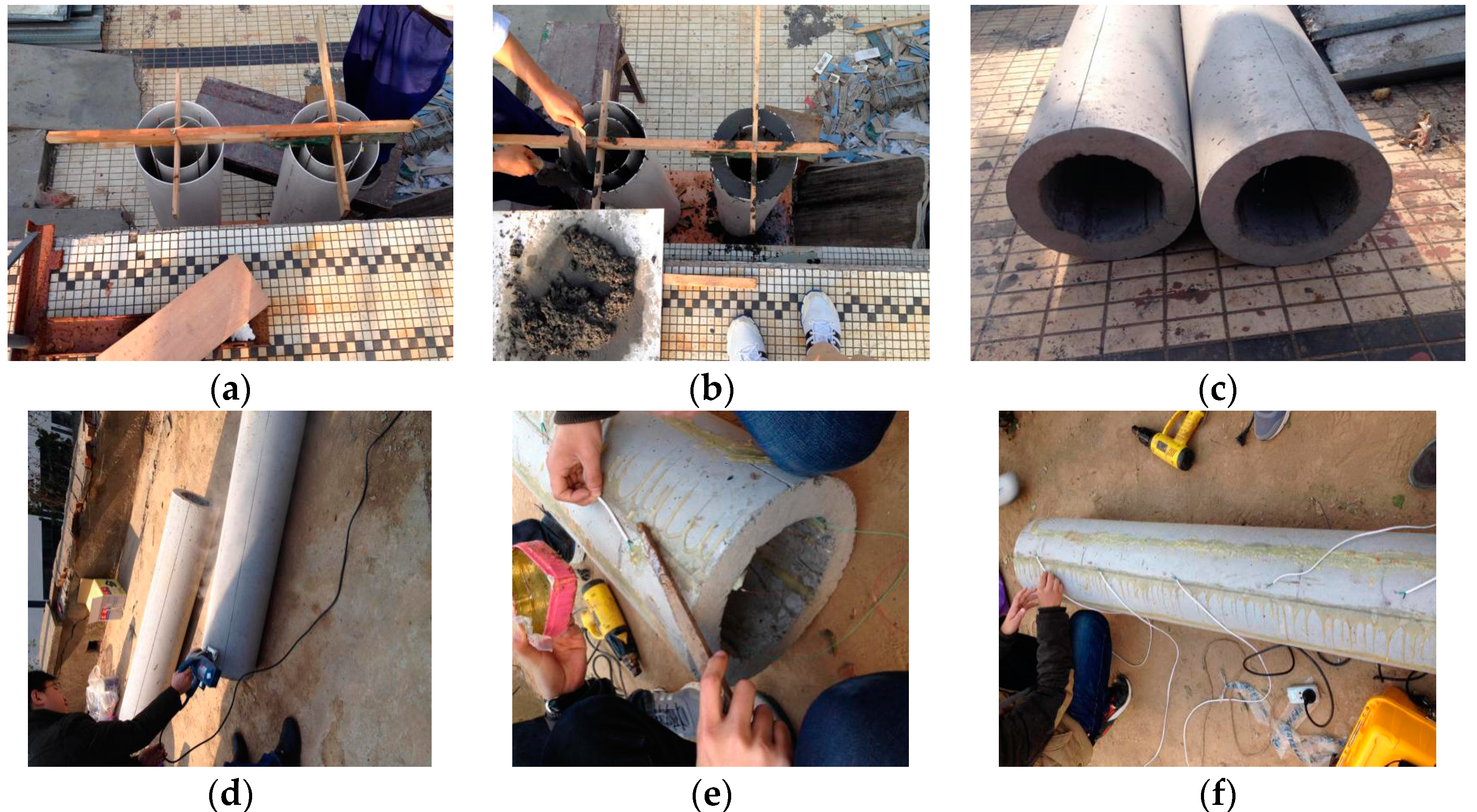

Compared with conventional piles such as the circle pile, the cast-in-place large-diameter pile (PCC pile) has many advantages: the lateral area of PCC pile is larger and the bearing capacity of PCC pile is higher. It is more cost-effective than other piles such as square pile under the same condition. The deformation of the PCC pile is very important for its application. In order to obtain the deformation of the PCC pile, a new type of quasi-distributed optical fiber sensing technology named a fiber Bragg grating (FBG) is used to monitor the deformation of the PCC pile. The PCC model pile is made, the packaging process of the PCC model pile and the layout of fiber sensors are designed, and the strains of the PCC model pile based on FBG sensors are monitored. The strain of the PCC pile is analyzed by the static load test. The results show that FBG technology is successfully applied for monitoring the deformation of the PCC pile, the monitoring data is more useful for the PCC pile. It will provide a reference for the engineering applications. View Full-Text
Keywords: PCC pile; strain; deformation; fiber Bragg grating (FBG); sensor PCC pile; strain; deformation; fiber Bragg grating (FBG); sensor
Figures

Figure 1

This is an open access article distributed under the Creative Commons Attribution License which permits unrestricted use, distribution, and reproduction in any medium, provided the original work is properly cited. (CC BY 4.0).

Scifeed alert for new publications

Never miss any articles matching your research from any publisher
  • Get alerts for new papers matching your research
  • Find out the new papers from selected authors
  • Updated daily for 49'000+ journals and 6000+ publishers
  • Define your Scifeed now

SciFeed Share & Cite This Article

MDPI and ACS Style

Gao, L.; Yang, K.; Chen, X.; Yu, X. Study on the Deformation Measurement of the Cast-In-Place Large-Diameter Pile Using Fiber Bragg Grating Sensors. Sensors 2017, 17, 505.
