Open AccessArticle
Sensors 2017, 17(11), 2693; doi:10.3390/s17112693

Comparison of Benchtop Fourier-Transform (FT) and Portable Grating Scanning Spectrometers for Determination of Total Soluble Solid Contents in Single Grape Berry (Vitis vinifera L.) and Calibration Transfer

College of Food Science and Technology, Nanjing Agriculture University, Nanjing 21009, China
*
Author to whom correspondence should be addressed.
Received: 5 November 2017 / Revised: 16 November 2017 / Accepted: 17 November 2017 / Published: 22 November 2017
(This article belongs to the Special Issue Signal and Information Processing in Chemical Sensing)
View Full-Text   |   Download PDF [1782 KB, uploaded 22 November 2017]   |

Abstract

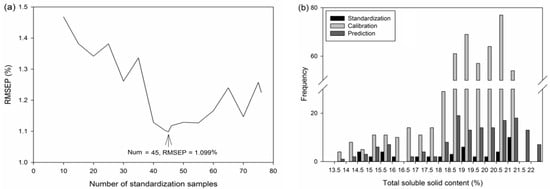

Near-infrared (NIR) spectroscopy was applied for the determination of total soluble solid contents (SSC) of single Ruby Seedless grape berries using both benchtop Fourier transform (VECTOR 22/N) and portable grating scanning (SupNIR-1500) spectrometers in this study. The results showed that the best SSC prediction was obtained by VECTOR 22/N in the range of 12,000 to 4000 cm−1 (833–2500 nm) for Ruby Seedless with determination coefficient of prediction (Rp2) of 0.918, root mean squares error of prediction (RMSEP) of 0.758% based on least squares support vector machine (LS-SVM). Calibration transfer was conducted on the same spectral range of two instruments (1000–1800 nm) based on the LS-SVM model. By conducting Kennard-Stone (KS) to divide sample sets, selecting the optimal number of standardization samples and applying Passing-Bablok regression to choose the optimal instrument as the master instrument, a modified calibration transfer method between two spectrometers was developed. When 45 samples were selected for the standardization set, the linear interpolation-piecewise direct standardization (linear interpolation-PDS) performed well for calibration transfer with Rp2 of 0.857 and RMSEP of 1.099% in the spectral region of 1000–1800 nm. And it was proved that re-calculating the standardization samples into master model could improve the performance of calibration transfer in this study. This work indicated that NIR could be used as a rapid and non-destructive method for SSC prediction, and provided a feasibility to solve the transfer difficulty between totally different NIR spectrometers. View Full-Text
Keywords: near-infrared spectroscopy; total soluble solid contents; calibration transfer; standardization samples selection; linear interpolation-piecewise direct standardization near-infrared spectroscopy; total soluble solid contents; calibration transfer; standardization samples selection; linear interpolation-piecewise direct standardization
Figures

Figure 1

This is an open access article distributed under the Creative Commons Attribution License which permits unrestricted use, distribution, and reproduction in any medium, provided the original work is properly cited. (CC BY 4.0).
