Sensors 2017, 17(11), 2558; https://doi.org/10.3390/s17112558

Single-Shot Dense Depth Sensing with Color Sequence Coded Fringe Pattern

School of Electronic Engineering, Xidian University, Xi’an 710071, China
*
Author to whom correspondence should be addressed.
Academic Editor: Andreas Kolb
Received: 19 August 2017 / Revised: 28 October 2017 / Accepted: 31 October 2017 / Published: 6 November 2017
(This article belongs to the Special Issue Imaging Depth Sensors—Sensors, Algorithms and Applications)
View Full-Text   |   Download PDF [3935 KB, uploaded 7 November 2017]   |

Abstract

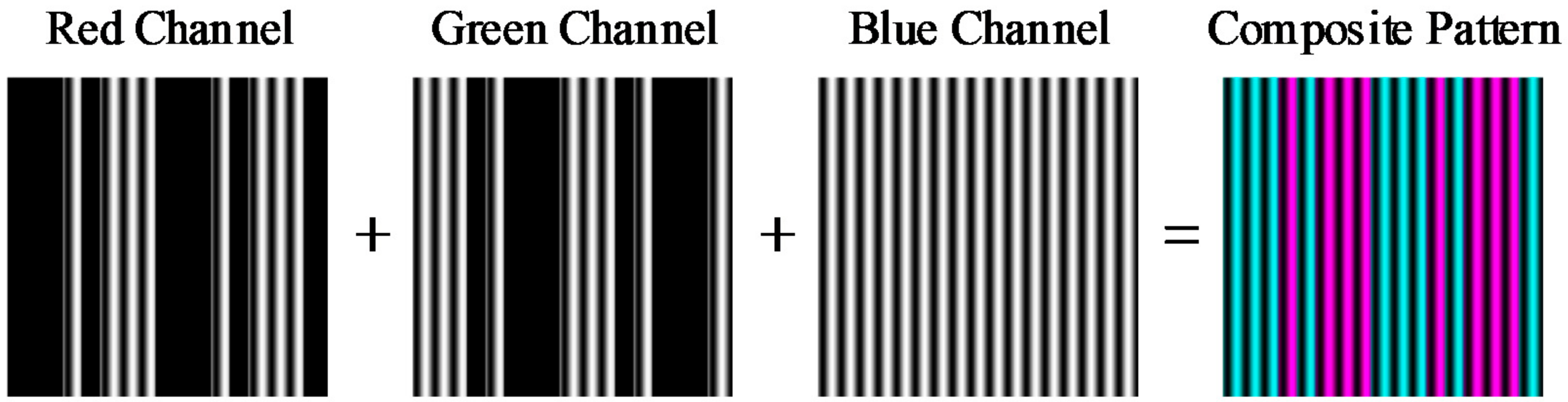

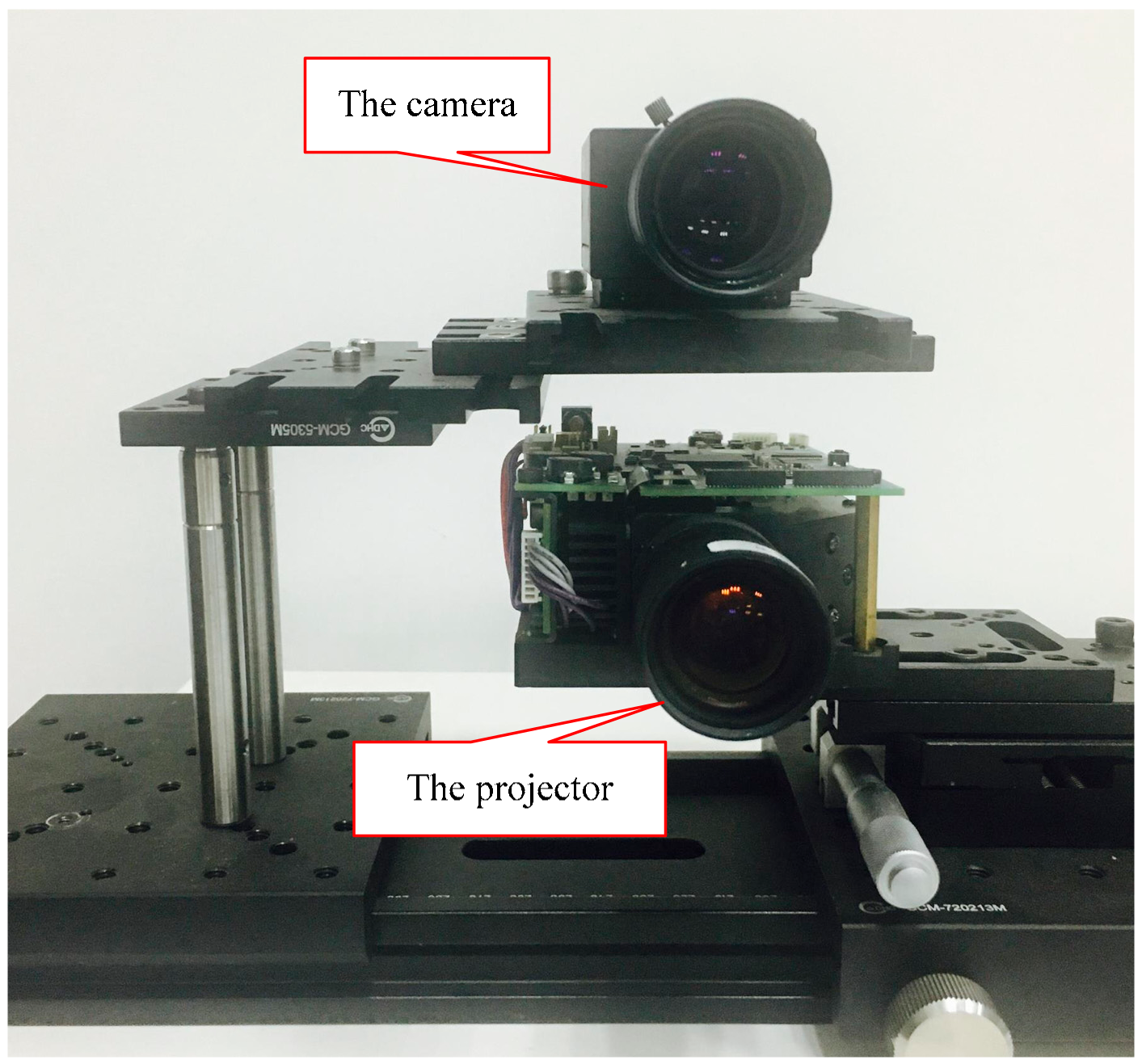

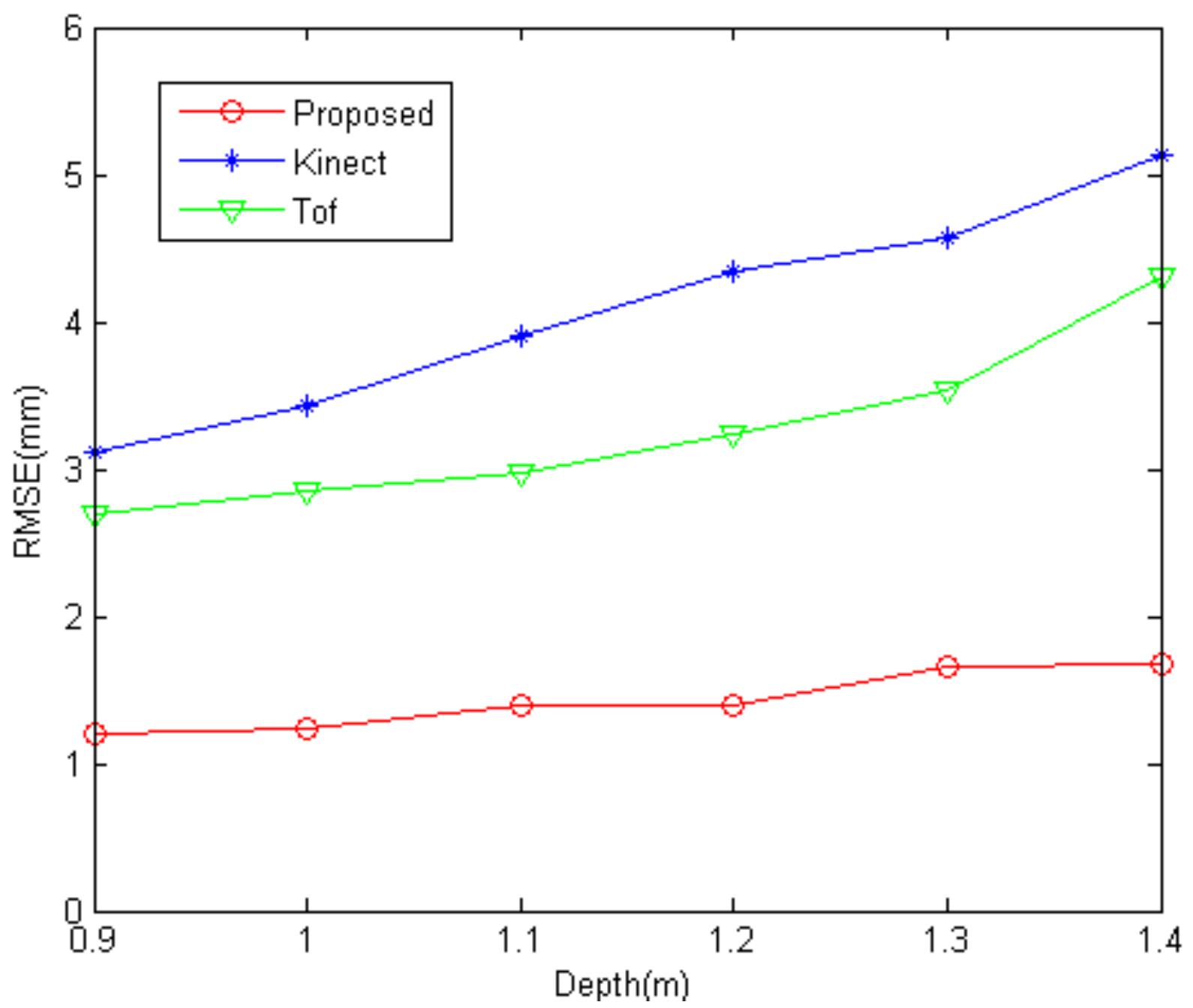

A single-shot structured light method is widely used to acquire dense and accurate depth maps for dynamic scenes. In this paper, we propose a color sequence coded fringe depth sensing method. To overcome the phase unwrapping problem encountered in phase-based methods, the color-coded sequence information is embedded into the phase information. We adopt the color-encoded De Bruijn sequence to denote the period of the phase information and assign the sequence into two channels of the pattern, while the third channel is used to code the phase information. Benefiting from this coding strategy, the phase information distributed in multiple channels can improve the quality of the phase intensity by channel overlay, which results in precise phase estimation. Meanwhile, the wrapped phase period assists the sequence decoding to obtain a precise period order. To evaluate the performance of the proposed method, an experimental platform is established. Quantitative and qualitative experiments demonstrate that the proposed method generates a higher precision depth, as compared to a Kinect and larger resolution ToF (Time of Flight) camera. View Full-Text
Keywords: depth sensing; structured light illumination; phase unwrapping depth sensing; structured light illumination; phase unwrapping
Figures

Figure 1

This is an open access article distributed under the Creative Commons Attribution License which permits unrestricted use, distribution, and reproduction in any medium, provided the original work is properly cited. (CC BY 4.0).

Share & Cite This Article

MDPI and ACS Style

Li, F.; Zhang, B.; Shi, G.; Niu, Y.; Li, R.; Yang, L.; Xie, X. Single-Shot Dense Depth Sensing with Color Sequence Coded Fringe Pattern. Sensors 2017, 17, 2558.
