Open AccessArticle
Sensors 2017, 17(10), 2425; doi:10.3390/s17102425

Bias-Voltage Stabilizer for HVHF Amplifiers in VHF Pulse-Echo Measurement Systems

1
Department of Medical IT Convergence Engineering, Kumho National Institute of Technology, Gumi 39253, Korea
2
Department of Biomedical Engineering, Gachon University, In-cheon 21936, Korea
3
National Institute of Health Transducer Resource Center and Department of Biomedical Engineering, University of Southern California, Los Angeles, CA 90089, USA
*
Authors to whom correspondence should be addressed.
Received: 23 August 2017 / Revised: 6 October 2017 / Accepted: 16 October 2017 / Published: 23 October 2017
(This article belongs to the Special Issue Biomedical Sensors and Systems 2017)
View Full-Text   |   Download PDF [1795 KB, uploaded 24 October 2017]   |

Abstract

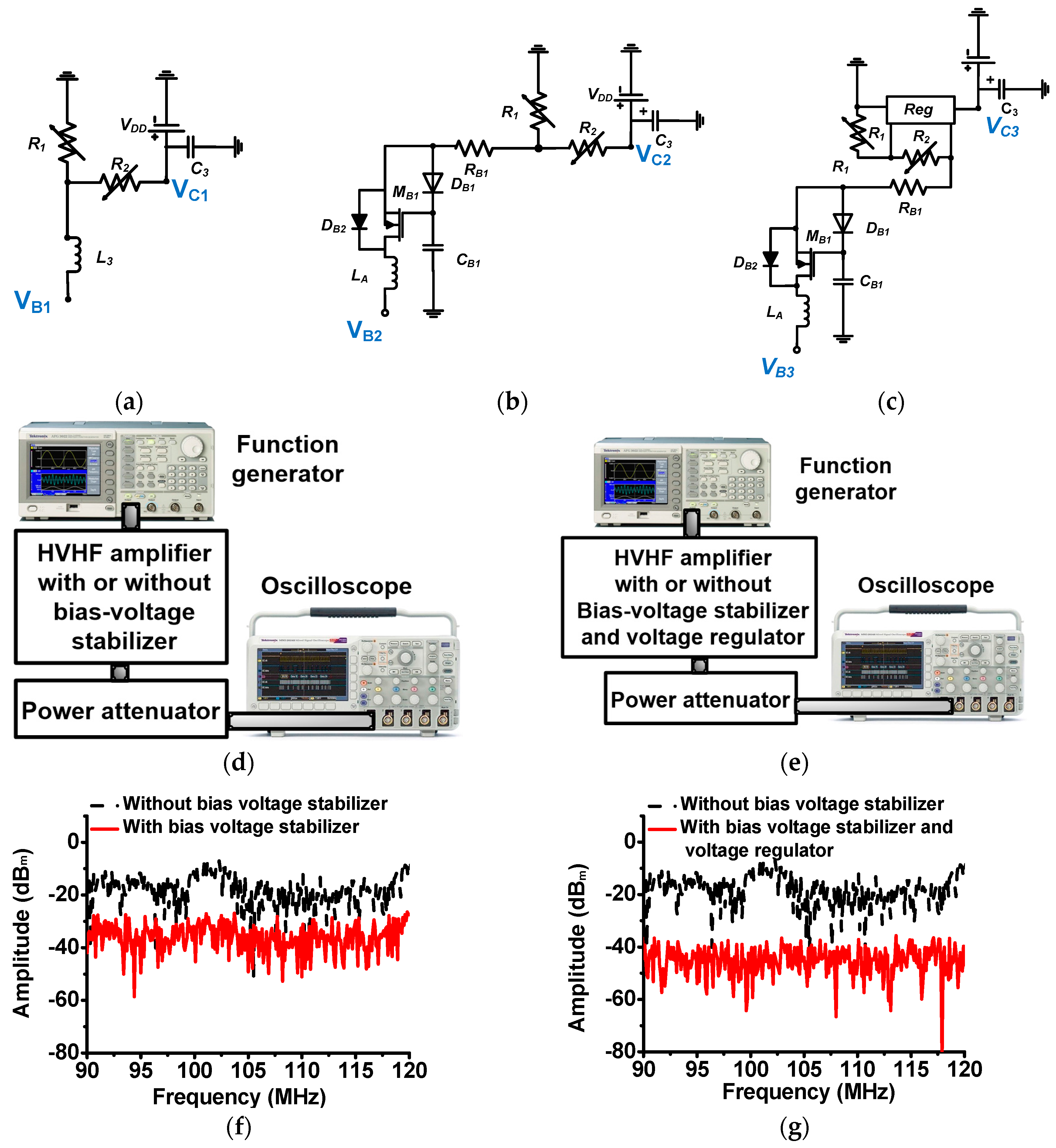

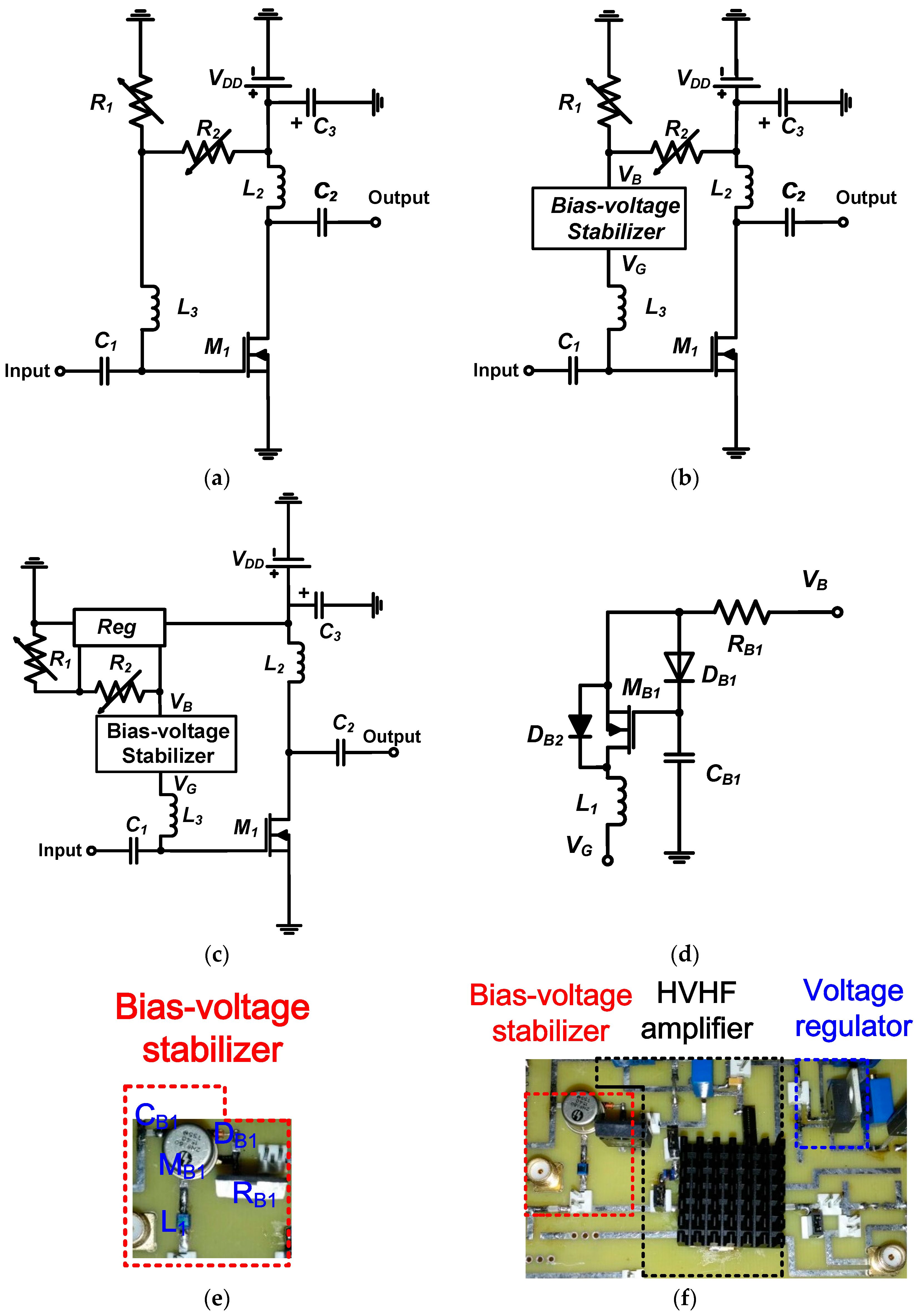

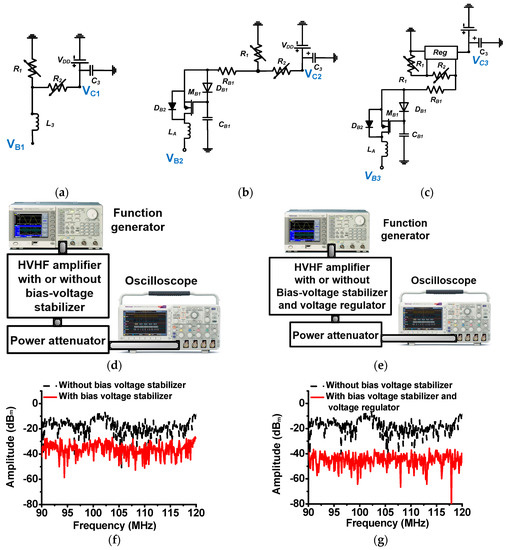

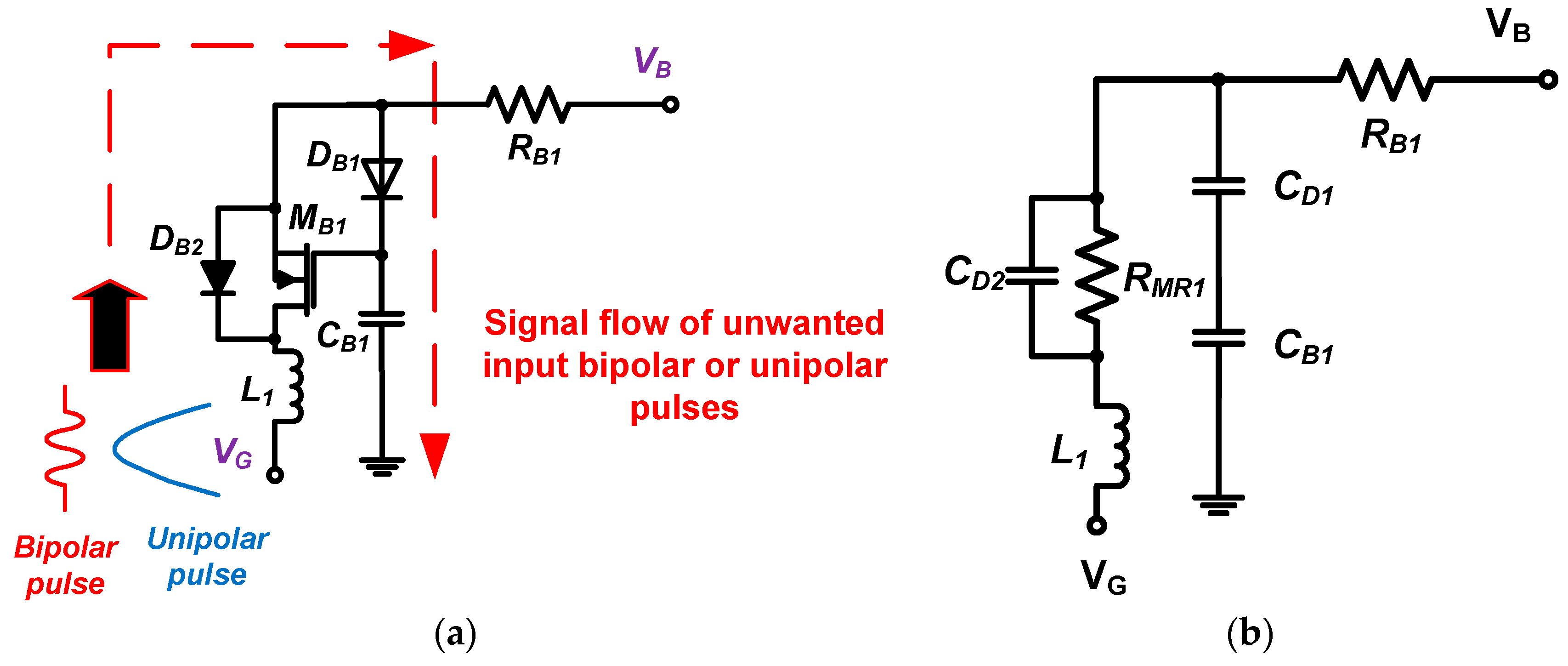

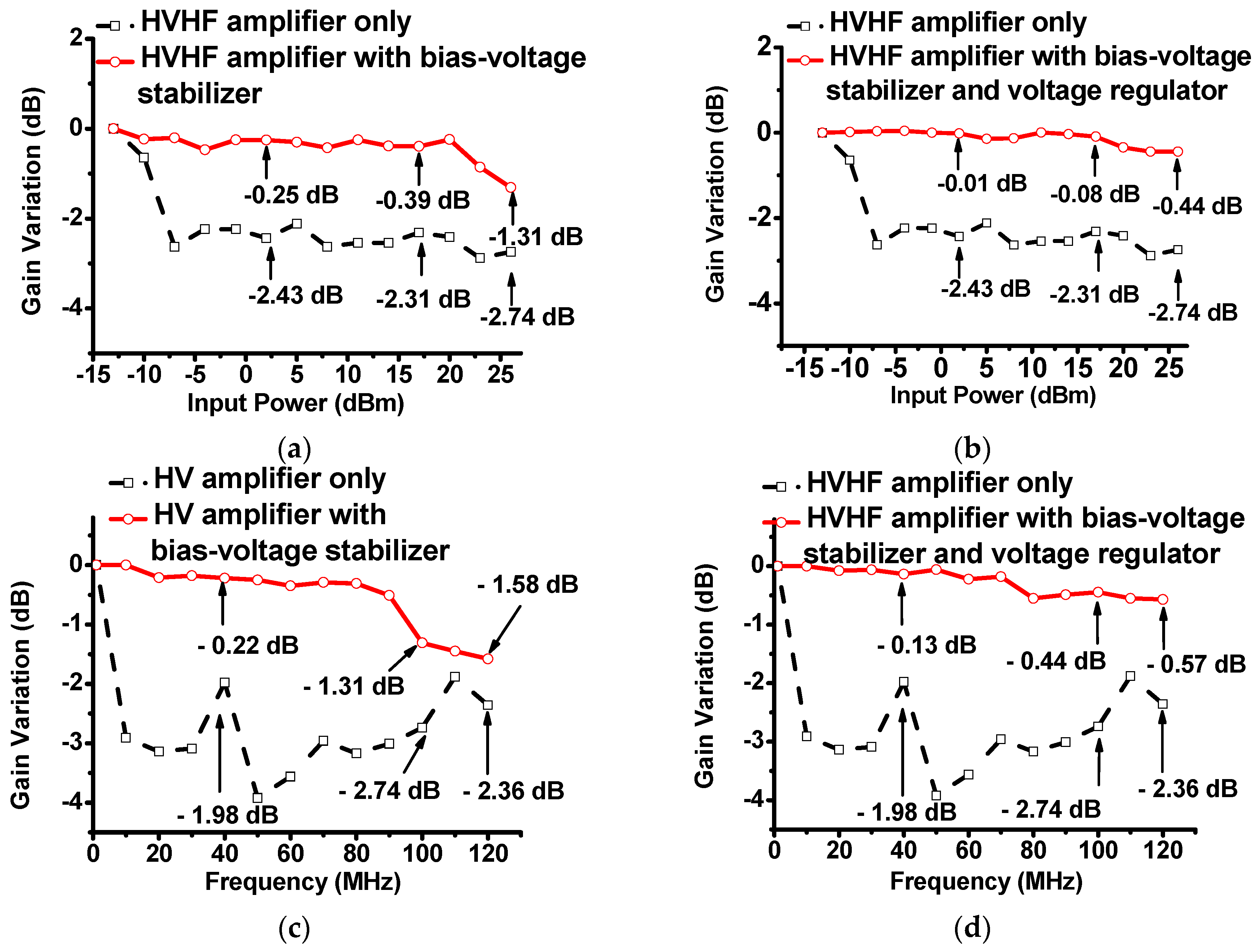

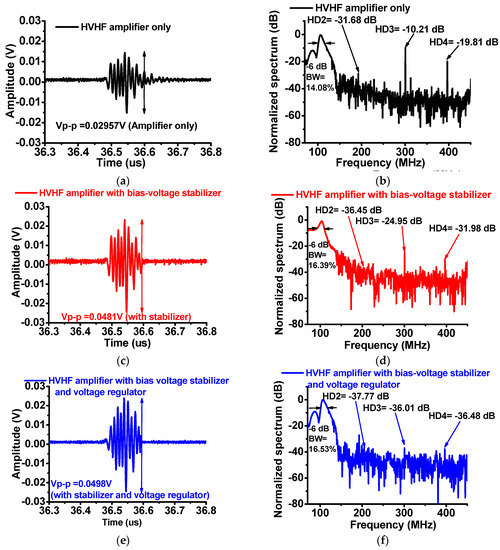

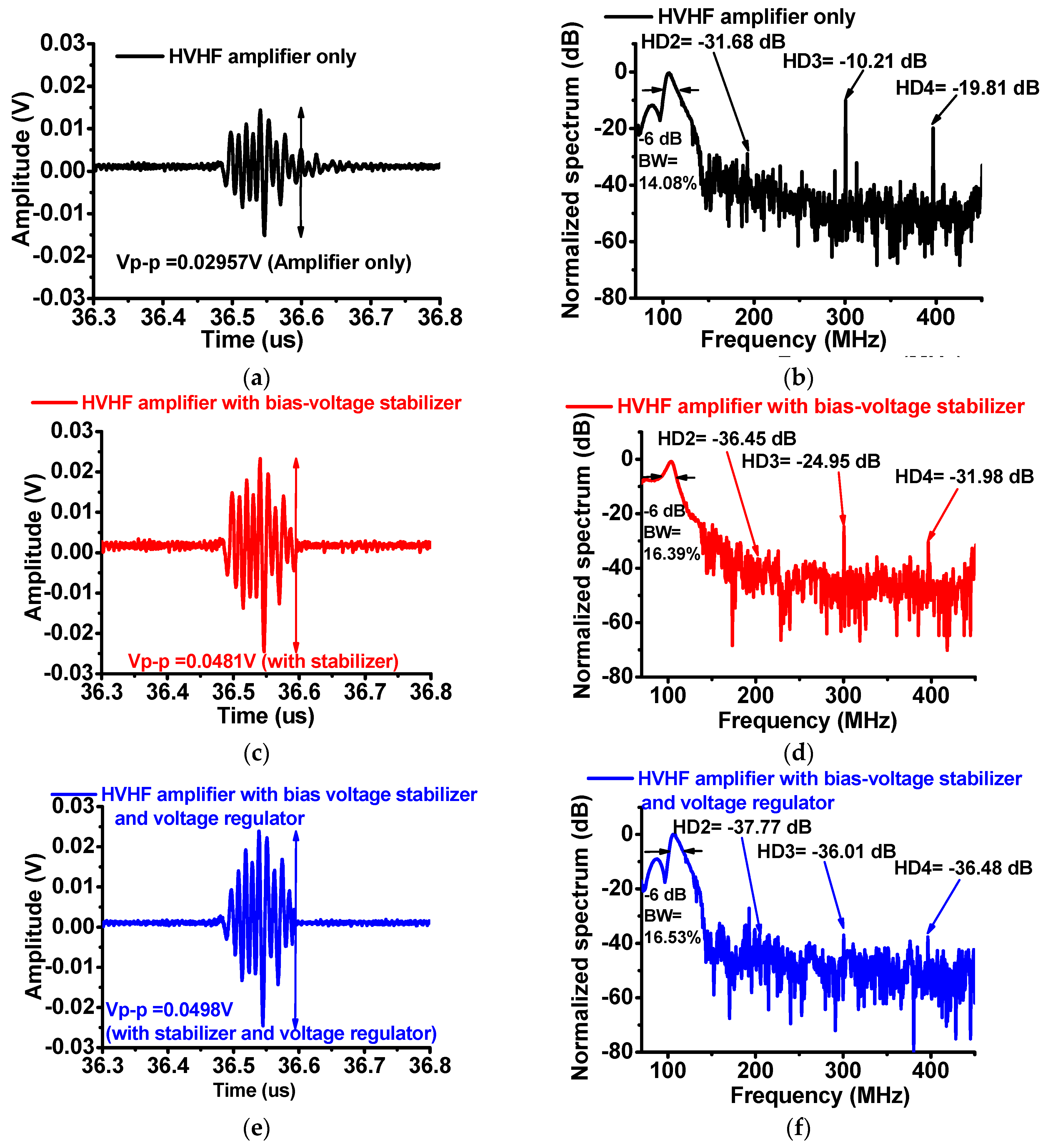

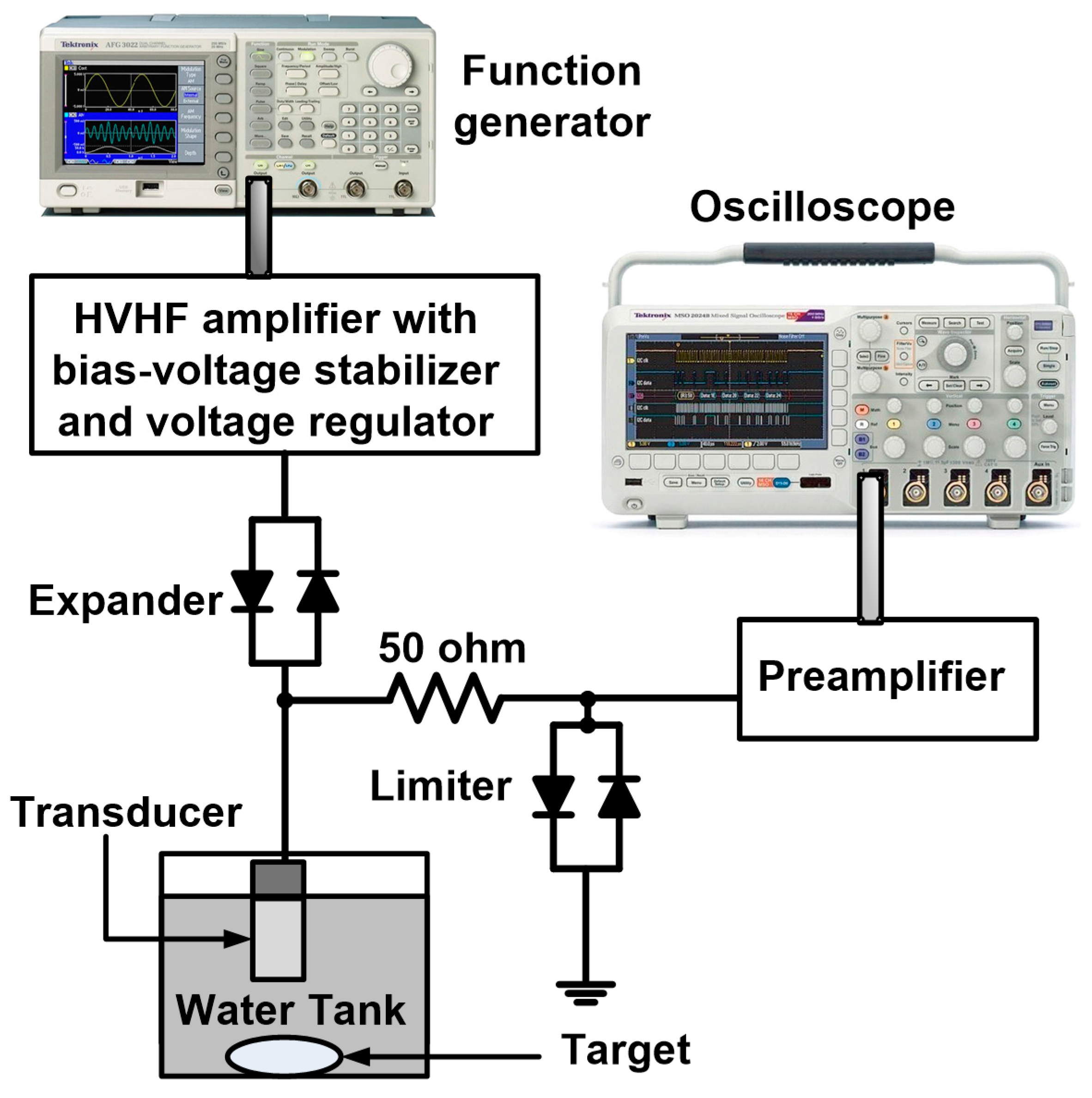

The impact of high-voltage–high-frequency (HVHF) amplifiers on echo-signal quality is greater with very-high-frequency (VHF, ≥100 MHz) ultrasound transducers than with low-frequency (LF, ≤15 MHz) ultrasound transducers. Hence, the bias voltage of an HVHF amplifier must be stabilized to ensure stable echo-signal amplitudes. We propose a bias-voltage stabilizer circuit to maintain stable DC voltages over a wide input range, thus reducing the harmonic-distortion components of the echo signals in VHF pulse-echo measurement systems. To confirm the feasibility of the bias-voltage stabilizer, we measured and compared the deviations in the gain of the HVHF amplifier with and without a bias-voltage stabilizer. Between −13 and 26 dBm, the measured gain deviations of a HVHF amplifier with a bias-voltage stabilizer are less than that of an amplifier without a bias-voltage stabilizer. In order to confirm the feasibility of the bias-voltage stabilizer, we compared the pulse-echo responses of the amplifiers, which are typically used for the evaluation of transducers or electronic components used in pulse-echo measurement systems. From the responses, we observed that the amplitudes of the echo signals of a VHF transducer triggered by the HVHF amplifier with a bias-voltage stabilizer were higher than those of the transducer triggered by the HVHF amplifier alone. The second, third, and fourth harmonic-distortion components of the HVHF amplifier with the bias-voltage stabilizer were also lower than those of the HVHF amplifier alone. Hence, the proposed scheme is a promising method for stabilizing the bias voltage of an HVHF amplifier, and improving the echo-signal quality of VHF transducers. View Full-Text
Keywords: bias-voltage stabilizer; high-voltage–high-frequency amplifier; VHF ultrasound transducers; pulse-echo measurement systems bias-voltage stabilizer; high-voltage–high-frequency amplifier; VHF ultrasound transducers; pulse-echo measurement systems
Figures

Figure 1
