Sensors 2016, 16(8), 1283;

CO Gas Sensing Properties of Pure and Cu-Incorporated SnO2 Nanoparticles: A Study of Cu-Induced Modifications

Departamento de Ingeniería Eléctrica-SEES, Centro de Investigación y de Estudios Avanzados del Instituto Politécnico Nacional, CINVESTAV-IPN, 14740 Apartado, Mexico
Área académica de Computación y Electrónica, ICBI, Universidad Autónoma del Estado de Hidalgo, Mineral de la Reforma, 56092 Hidalgo, Mexico
Author to whom correspondence should be addressed.
Academic Editors: Sang Sub Kim and Hyoun Woo Kim
Received: 3 May 2016 / Revised: 4 July 2016 / Accepted: 28 July 2016 / Published: 15 August 2016
(This article belongs to the Special Issue Chemiresistive Sensors)
Full-Text   |   PDF [8554 KB, uploaded 15 August 2016]   |

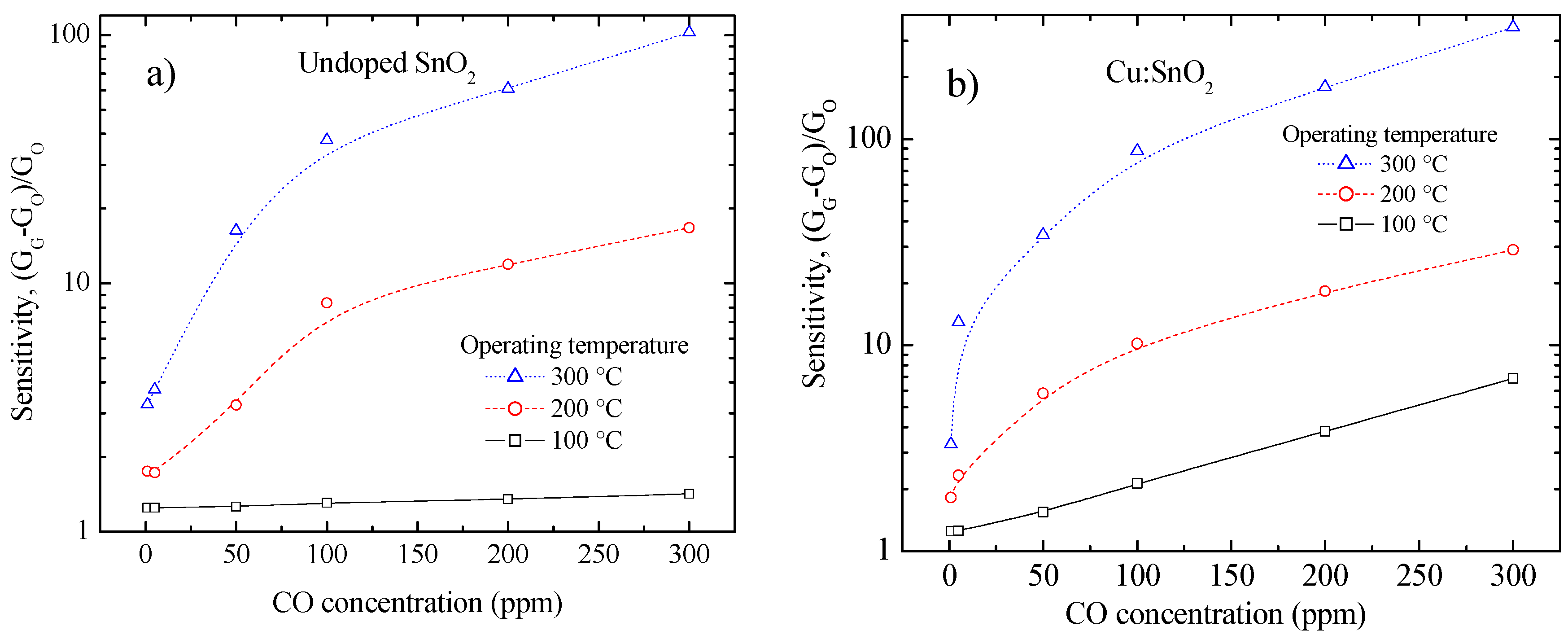

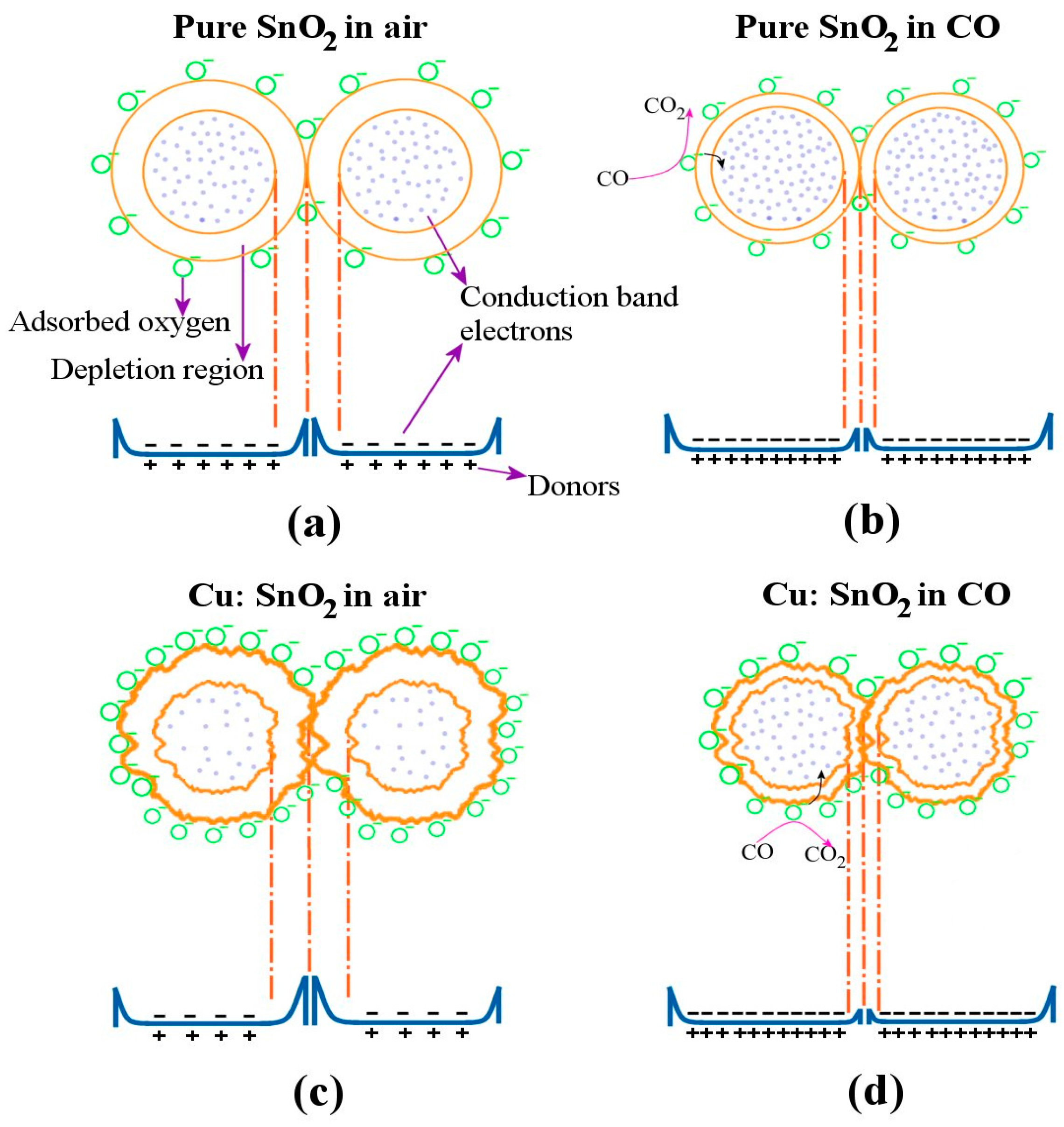

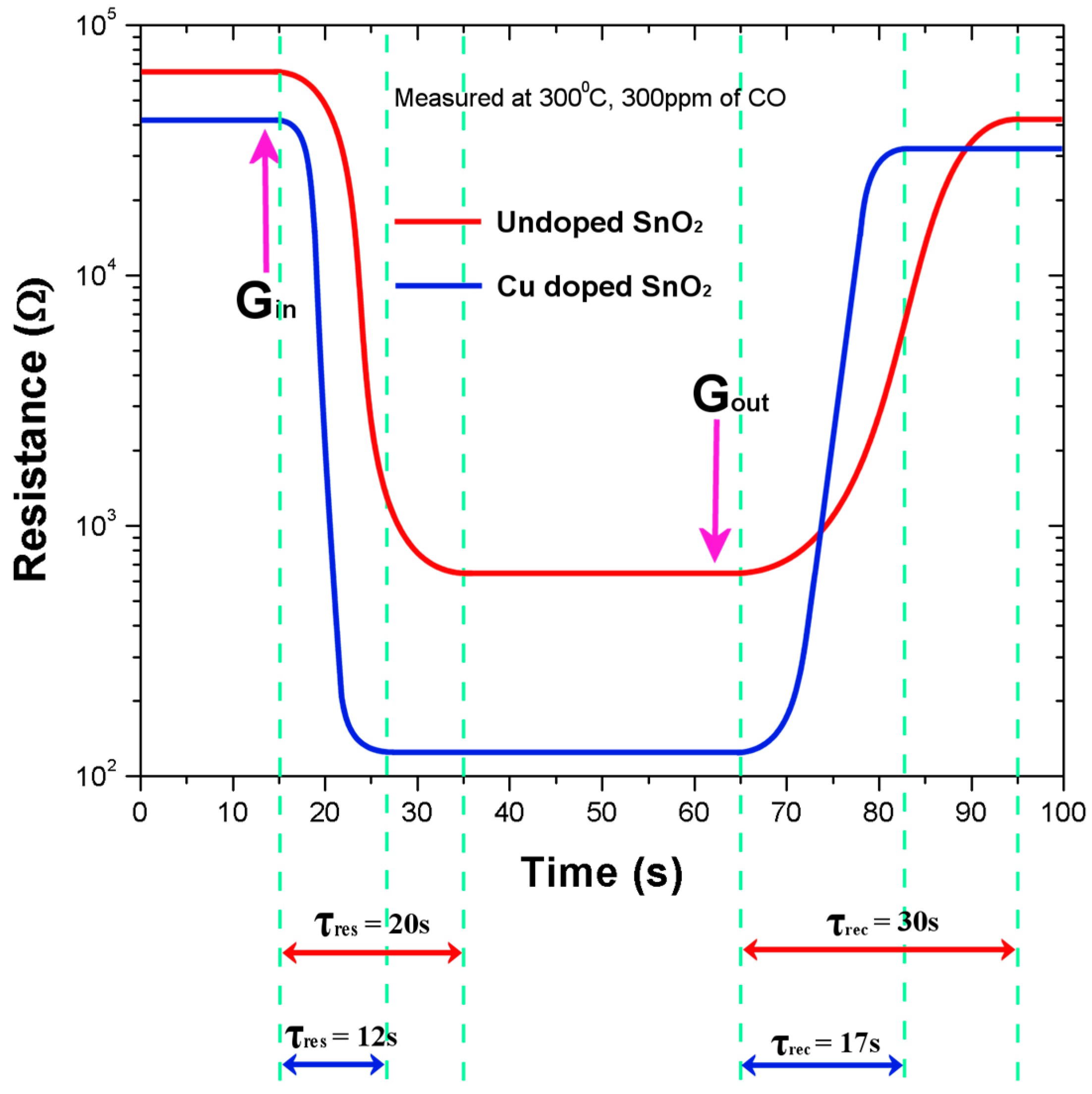

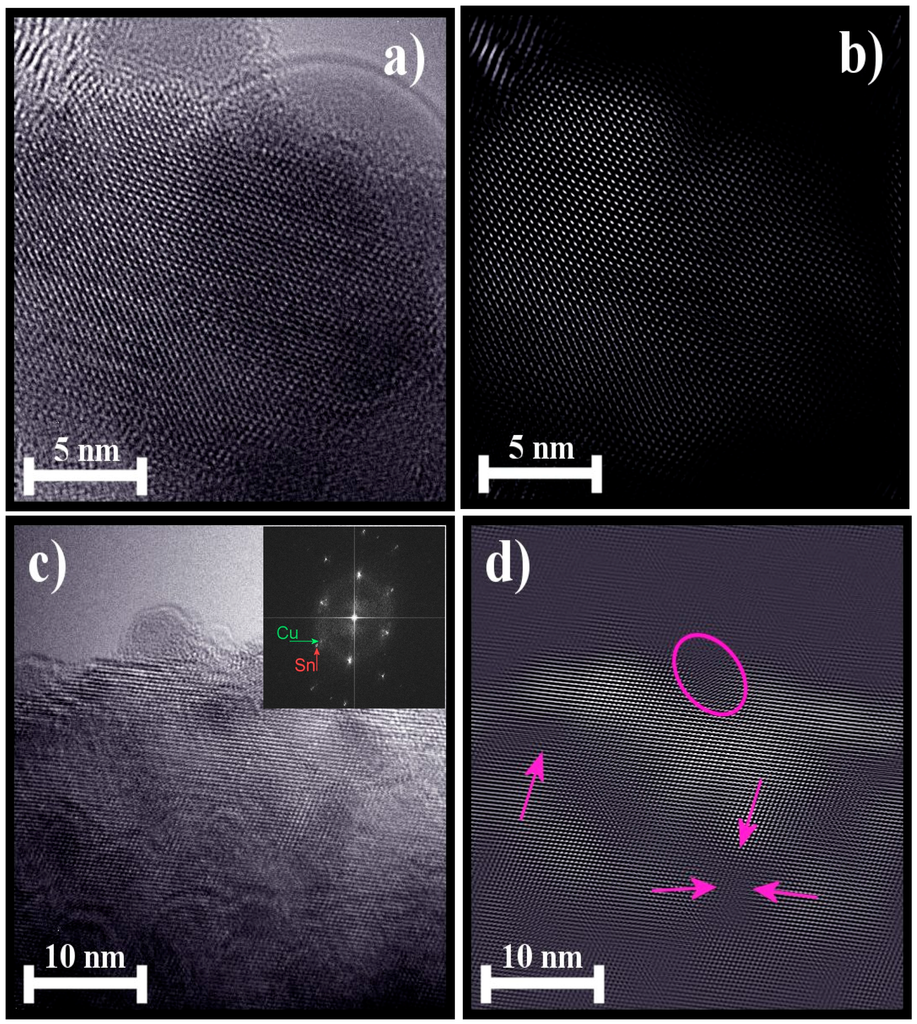

Pure and copper (Cu)-incorporated tin oxide (SnO2) pellet gas sensors with characteristics provoking gas sensitivity were fabricated and used for measuring carbon monoxide (CO) atmospheres. Non-spherical pure SnO2 nano-structures were prepared by using urea as the precipitation agent. The resultant SnO2 powders were ball milled and incorporated with a transition metal, Cu, via chemical synthesis method. The incorporation is confirmed by high-resolution transmission electron microscope (HRTEM) analysis. By utilizing Cu-incorporated SnO2 pellets an increase in the CO sensitivity by an order of three, and a decrease in the response and recovery times by an order of two, were obtained. This improvement in the sensitivity is due to two factors that arise due to Cu incorporation: necks between the microparticles and stacking faults in the grains. These two factors increased the conductivity and oxygen adsorption, respectively, at the pellets’ surface of SnO2 which, in turn, raised the CO sensitivity. View Full-Text
Keywords: gas sensing; tin oxide; CO; copper; doping gas sensing; tin oxide; CO; copper; doping

Graphical abstract

This is an open access article distributed under the Creative Commons Attribution License which permits unrestricted use, distribution, and reproduction in any medium, provided the original work is properly cited (CC BY 4.0).
