Sensors 2016, 16(5), 645; doi:10.3390/s16050645

An Integrated Simulation Module for Cyber-Physical Automation Systems

1
Dipartimento di Ingegneria dell’Informazione, Università Politecnica delle Marche, Via Brecce Bianche, 60131 Ancona, Italy
2
SMART Engineering Solutions & Technologies (SMARTEST) Research Centre, Università degli Studi eCampus, Via Isimbardi 10, 22060 Novedrate (CO), Italy
This paper is an extended version of our paper published in An integrated simulation module for wireless cyber-physical system. In Proceedings of the 2015 IEEE 15th International Conference on Environment and Electrical Engineering (EEEIC), Rome, Italy, 10–13 June 2015.
*
Author to whom correspondence should be addressed.
Academic Editors: Dongkyun Kim, Houbing Song, Juan-Carlos Cano, Wei Wang and Waleed Ejaz
Received: 24 March 2016 / Revised: 29 April 2016 / Accepted: 30 April 2016 / Published: 5 May 2016
View Full-Text   |   Download PDF [3094 KB, uploaded 5 May 2016]   |

Abstract

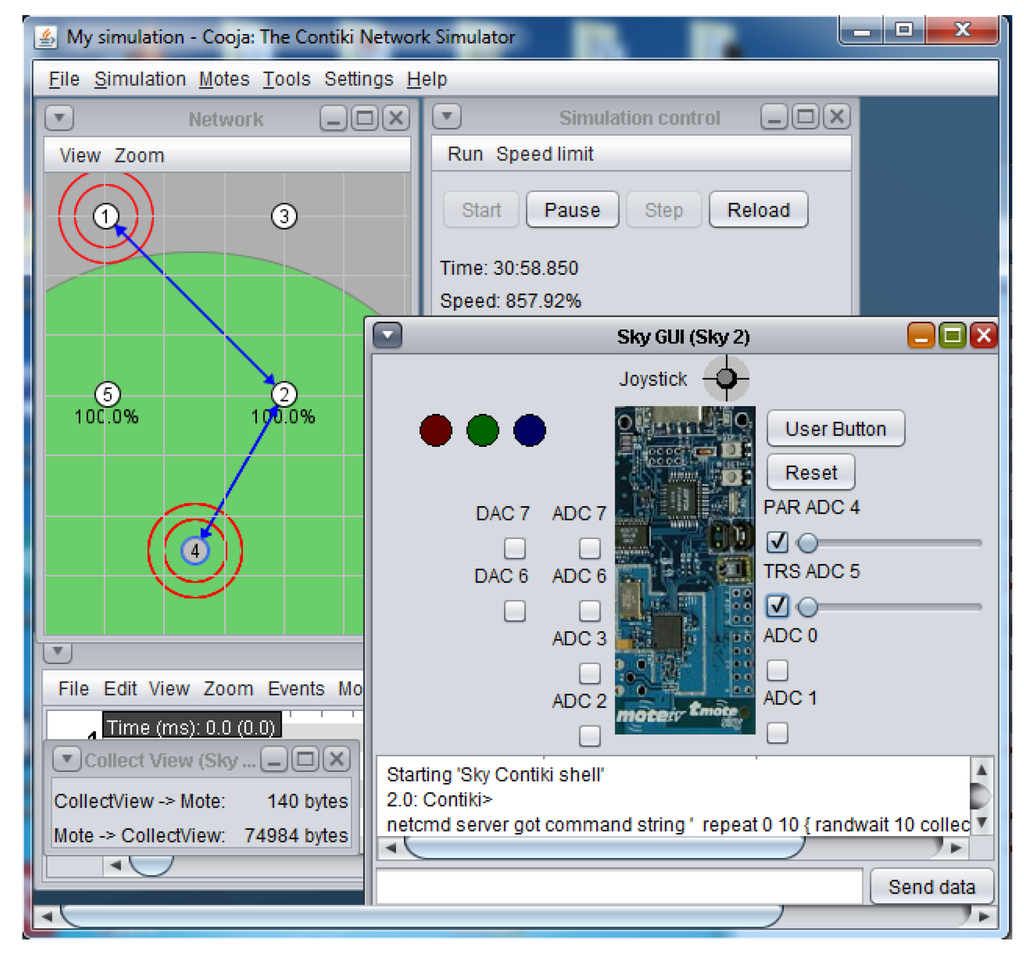

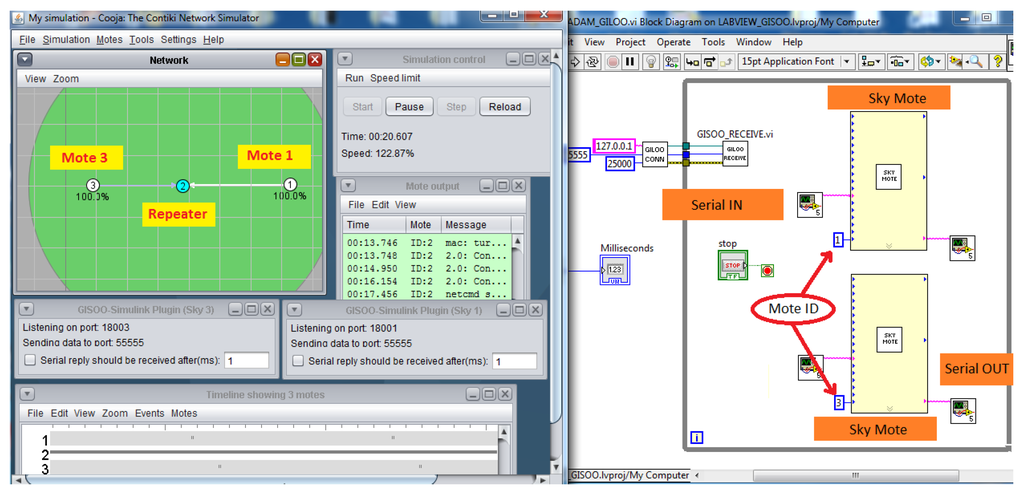

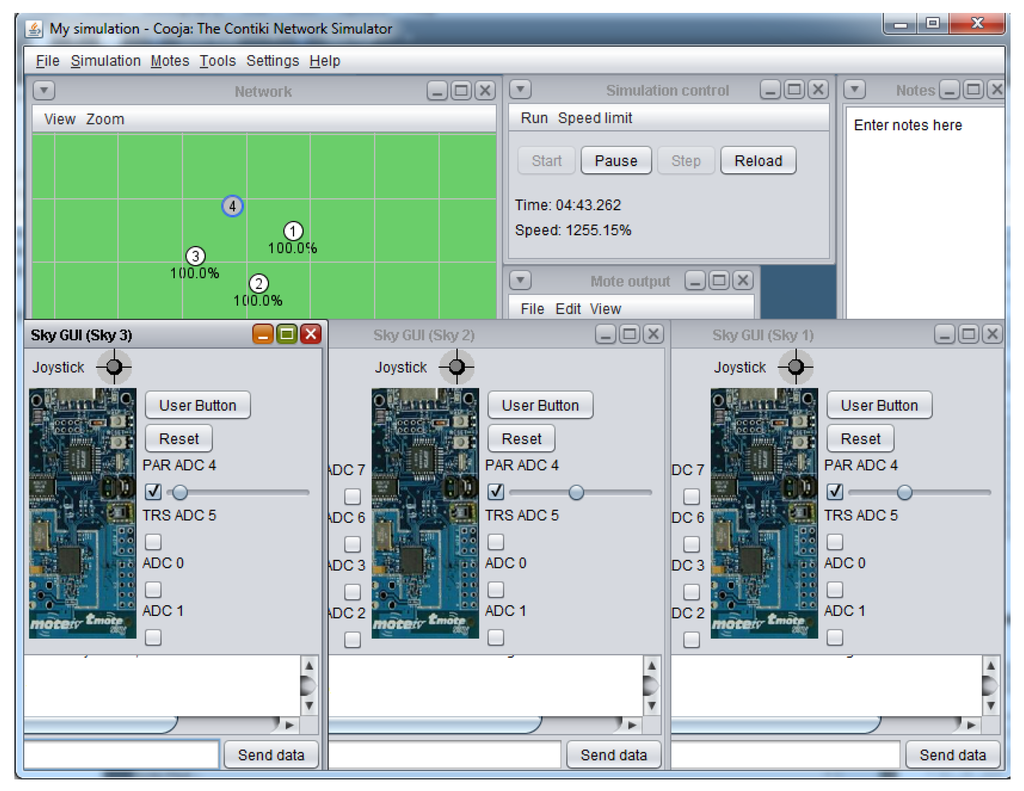

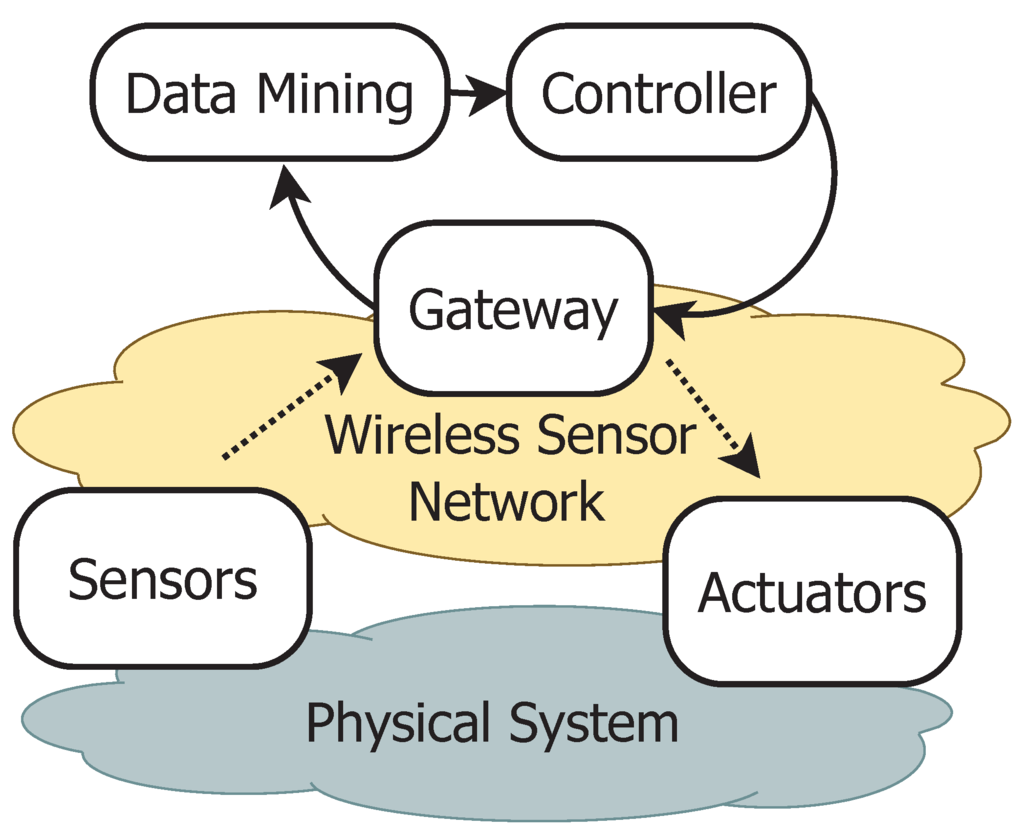

The integration of Wireless Sensors Networks (WSNs) into Cyber Physical Systems (CPSs) is an important research problem to solve in order to increase the performances, safety, reliability and usability of wireless automation systems. Due to the complexity of real CPSs, emulators and simulators are often used to replace the real control devices and physical connections during the development stage. The most widespread simulators are free, open source, expandable, flexible and fully integrated into mathematical modeling tools; however, the connection at a physical level and the direct interaction with the real process via the WSN are only marginally tackled; moreover, the simulated wireless sensor motes are not able to generate the analogue output typically required for control purposes. A new simulation module for the control of a wireless cyber-physical system is proposed in this paper. The module integrates the COntiki OS JAva Simulator (COOJA), a cross-level wireless sensor network simulator, and the LabVIEW system design software from National Instruments. The proposed software module has been called “GILOO” (Graphical Integration of Labview and cOOja). It allows one to develop and to debug control strategies over the WSN both using virtual or real hardware modules, such as the National Instruments Real-Time Module platform, the CompactRio, the Supervisory Control And Data Acquisition (SCADA), etc. To test the proposed solution, we decided to integrate it with one of the most popular simulators, i.e., the Contiki OS, and wireless motes, i.e., the Sky mote. As a further contribution, the Contiki Sky DAC driver and a new “Advanced Sky GUI” have been proposed and tested in the COOJA Simulator in order to provide the possibility to develop control over the WSN. To test the performances of the proposed GILOO software module, several experimental tests have been made, and interesting preliminary results are reported. The GILOO module has been applied to a smart home mock-up where a networked control has been developed for the LED lighting system. View Full-Text
Keywords: Contiki Os; COOJA simulator; cyber physical systems; hardware in-the-loop; Internet of Things; software in-the-loop; wireless sensor networks; WSN simulators Contiki Os; COOJA simulator; cyber physical systems; hardware in-the-loop; Internet of Things; software in-the-loop; wireless sensor networks; WSN simulators
