Flat-Cladding Fiber Bragg Grating Sensors for Large Strain Amplitude Fatigue Tests

Aihen Feng 1 email, Daolun Chen 1 email, Cheng Li 2 email and Xijia Gu 2,* email
1 Department of Mechanical and Industrial Engineering, Ryerson University, Toronto, Ontario, M5B 2K3, Canada 2 Department of Electrical and Computer Engineering, Ryerson University, Toronto, Ontario, M5B 2K3, Canada
* Author to whom correspondence should be addressed.
Received: 16 July 2010; in revised form: 9 August 2010 / Accepted: 10 August 2010 / Published: 16 August 2010
(This article belongs to the Section Physical Sensors)
PDF Full-text Download PDF Full-Text [482 KB, uploaded 16 August 2010 08:56 CEST]

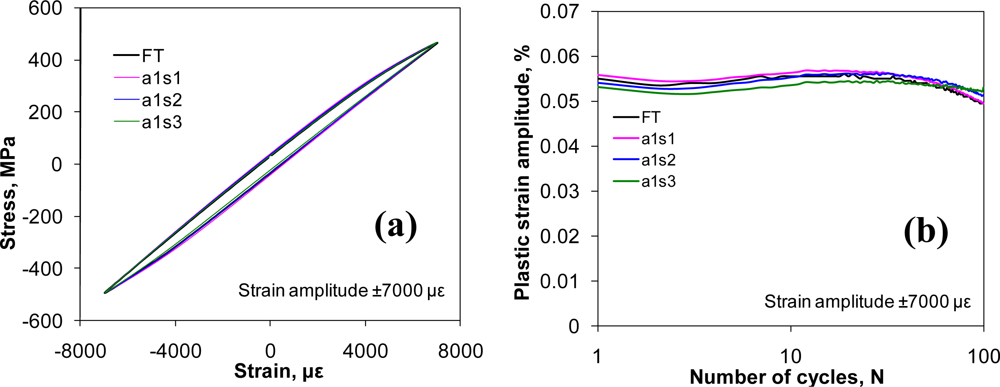

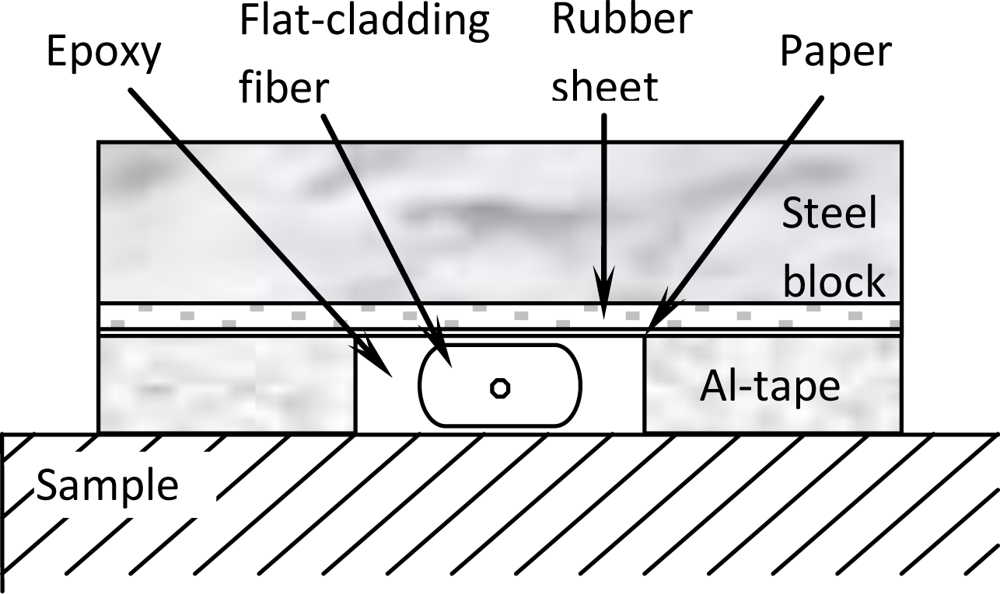

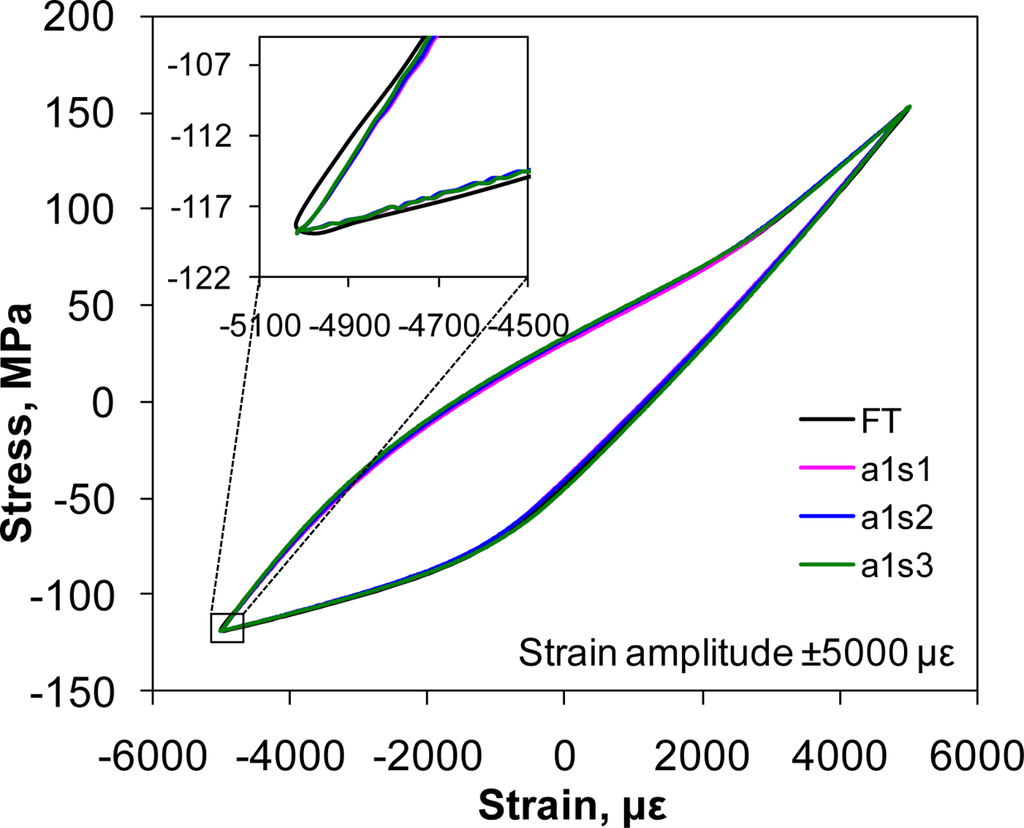

Abstract: We have successfully developed a flat-cladding fiber Bragg grating sensor for large cyclic strain amplitude tests of up to ±8,000 με. The increased contact area between the flat-cladding fiber and substrate, together with the application of a new bonding process, has significantly increased the bonding strength. In the push-pull fatigue tests of an aluminum alloy, the plastic strain amplitudes measured by three optical fiber sensors differ only by 0.43% at a cyclic strain amplitude of ±7,000 με and 1.9% at a cyclic strain amplitude of ±8,000 με. We also applied the sensor on an extruded magnesium alloy for evaluating the peculiar asymmetric hysteresis loops. The results obtained were in good agreement with those measured from the extensometer, a further validation of the sensor.
Keywords: fiber optic sensor; fiber Bragg grating; fatigue tests
