1. Introduction
The demand of wireless sensor networks (WSNs) is growing exponentially. It has turned out that the sensor networks can be widely applied in the areas of healthcare, environment monitoring, and the military. One of the surveys on WSNs points out that, in the near future, wireless sensor networks will be an integral part of our lives, more so than the present-day personal computer [
1].
A sensor node has low capability in terms of power, computation, storage and communication. A wireless sensor network is composed of a large number of wireless sensor nodes and multi-hop communication is desired in WSNs. As a result, security in wireless sensor networks has six challenges to overcome: (i) the wireless nature of communication, (ii) resource limitations of sensor nodes, (iii) very large and dense WSNs, (iv) lack of fixed infrastructure, (v) unknown network topology prior to deployment, (vi) high risk of physical attacks on unattended sensors [
2].
Baek
et al. [
3] conducted a survey of several authentication schemes used in wireless sensor networks. The Radio Resource Testing scheme [
4] uses non-cryptographic means to share a key. The Random Key Pre-distribution scheme [
5] is a popular key management scheme in WSNs, which requires small computation and communication overheads, but is not suitable for environments where node compromise is common and scalability is in high demand. Time Synchronized (μTESLA) [
6], One Time Signature [
7], and Public Key Authentication [

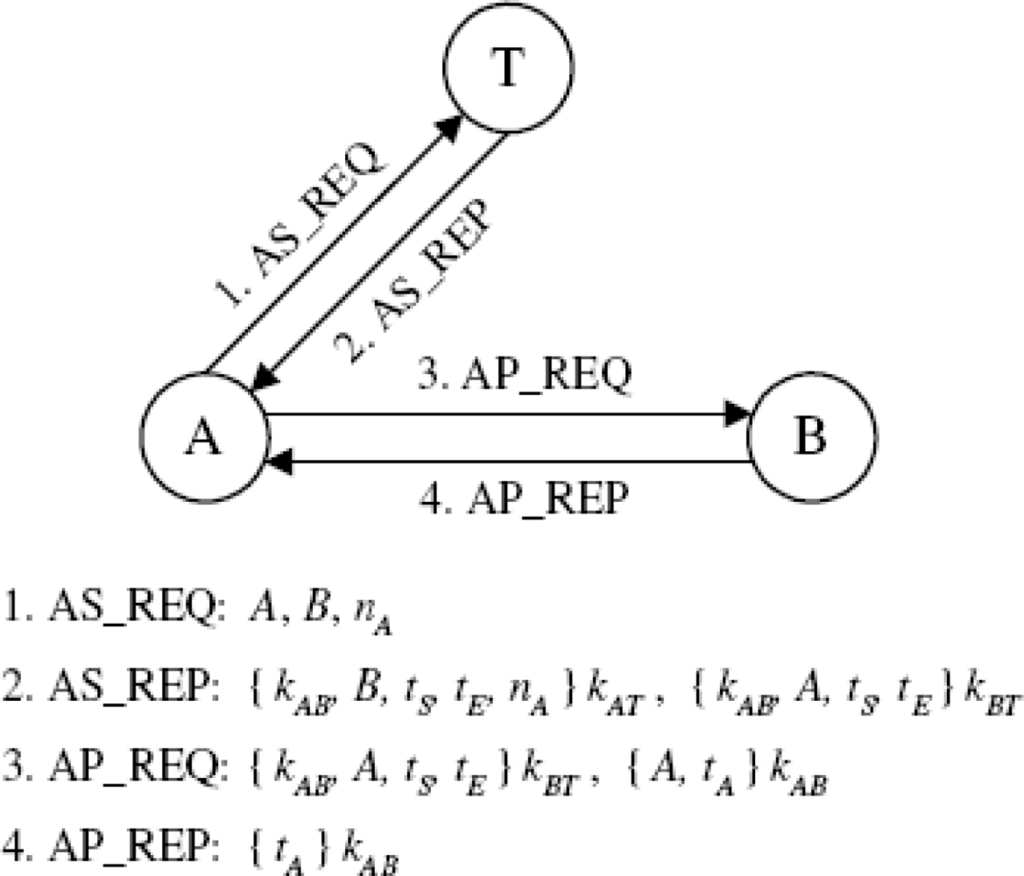

8] are used for broadcast authentication. Kerberos is a network authentication system that uses a trusted third party (or trusted authority) to authenticate two entities (
i.e., to prove their identity to one another) by issuing a shared session key between them [
9].
However, the μTESLA scheme has the problem of time synchronization and delayed authentication. One time signature schemes and public key authentication schemes in general have thus far been costly to implement over sensor nodes in terms of computational, communication and storage overheads except for some specific cryptographic applications based on elliptic curve primitives [
10,
11]. The messages exchanged in Kerberos can have a payload of several kilobytes, which makes the standard Kerberos protocol rather unpractical for use in WSNs where the communication is very costly due to the energy consumption during data transmission.
Zhang
et al. [
12] proposed a scheme called the pre-distribution and local collaboration-based group rekeying (PCGR). The design's ideas are: (1) Future keys can be preloaded to individual nodes before deployment to avoid the high overhead in securely disseminating new keys at the key updating time. (2) Neighbors can collaborate with each other to effectively protect and appropriately use the preloaded keys; the local collaboration also avoids the high cost of the centralized management. However, this scheme requires some strong assumptions: (1) Most of sensor nodes have the capability to detect their compromised neighbor nodes. (2) A sensor node could be assigned to multiple groups, but the nodes in the same group shared a unique key.
In recent years, the use of pairing-based cryptographic schemes in WSN environments has been proposed for stronger protection. There are some works in the literature that aim to make the paring-based schemes faster and smaller [
13–
16]. However, such schemes still have to address the issues of key revoking since the sensor nodes can easily be compromised. Also, from the perspective of the security layers, many wireless protocols use outdated encryption algorithms, which have proven unsuitable for hardware usage, particularly with handheld devices [
17].
With the aforementioned limitations of the existing solutions in mind, we now propose a secure protocol in dynamic WSN, addressing all of the following issues:
A moving sensor node needs to change its attached routers (or cluster heads) frequently.
A router (or cluster head) needs to ensure a joining node is not a malicious sensor.
A moving node needs to establish a secure tunnel with the new router (or cluster head).
The energy consumption for establishing the secure tunnel must be minimal.
One of the important novel features of our solution is that we use cluster heads as sub-base-stations to execute key establishment. This way, the total dependency on the base station for key establishment can be avoided. Also, this approach reduces the hops between two communicating ends and hence results in reduction of the communication cost.
The remaining part of this paper is organized as follows: Section 2 describes the network assumptions. Section 3 briefs the usage of a general Random Pair-Wise Key scheme. Section 4 introduces our protocol. Section 5 is the security analysis of this scheme. The comparison and performance analysis is in Section 6. Finally, the conclusions are presented in Section 7.
2. Network Assumptions
In this paper, we consider a scenario in which a sensor node roams within a very large and distributed WSN, consisting of a large number of sensor nodes. It is a typical scenario that is widely adopted in hospital environments as the patients or doctors equipped with sensors roam across each department in the hospital.
CodeBlue [
18–
20] is one of the popular sensor network architectures deployed in medical sensor network environments.

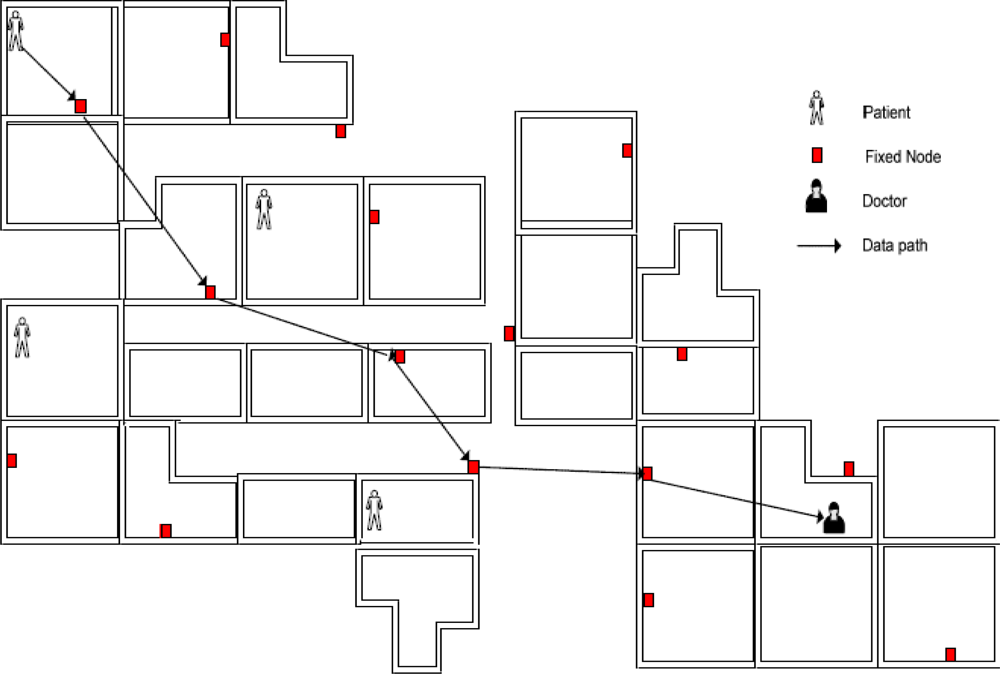

Figure 1 depicts the typical CodeBlue architecture. A patient who carries the sensor nodes can move freely within the range of a hospital. When a wireless sensor node is moving, its routing path and neighborhood keep changing. The moving node needs to be authenticated to the new neighbors and to establish a key for secure communication.
The above network architecture reflects the problems described in Section 1: (a) composition by a large number of sensor nodes; (b) communication based on wireless multi-hop mechanism; (c) no fixed infrastructure; (d) the possible location change of sensor node (patient). Therefore, the challenges of this network assumption are how to establish a secure channel with these routers. It is also assumed in the solution that the base-station is always online and provides the full utilities.
3. Shared-Key Discovery
In the WSN environment, as data transmission consumes much more energy than computation, the probabilistic solution is widely accepted in order to reduce the storage and communication overhead during key establishment.

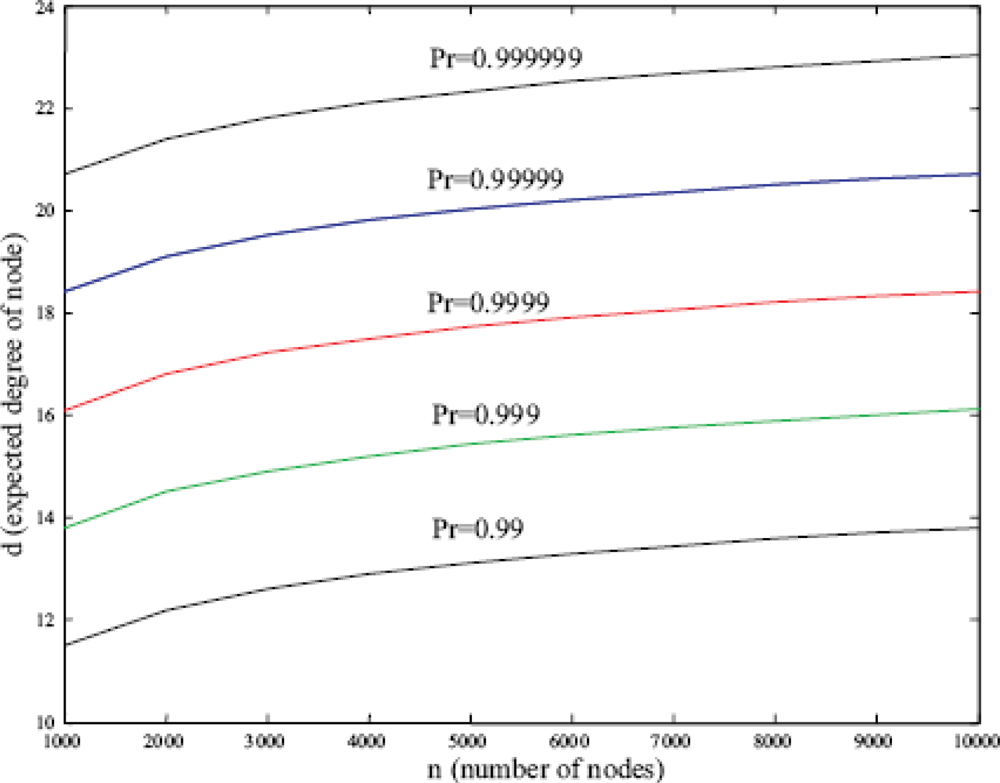

So far in the literature, numerous random key pre-distribution schemes have been proposed. For example, in Chan
et al.’s scheme [
21], each sensor node stores a random set of

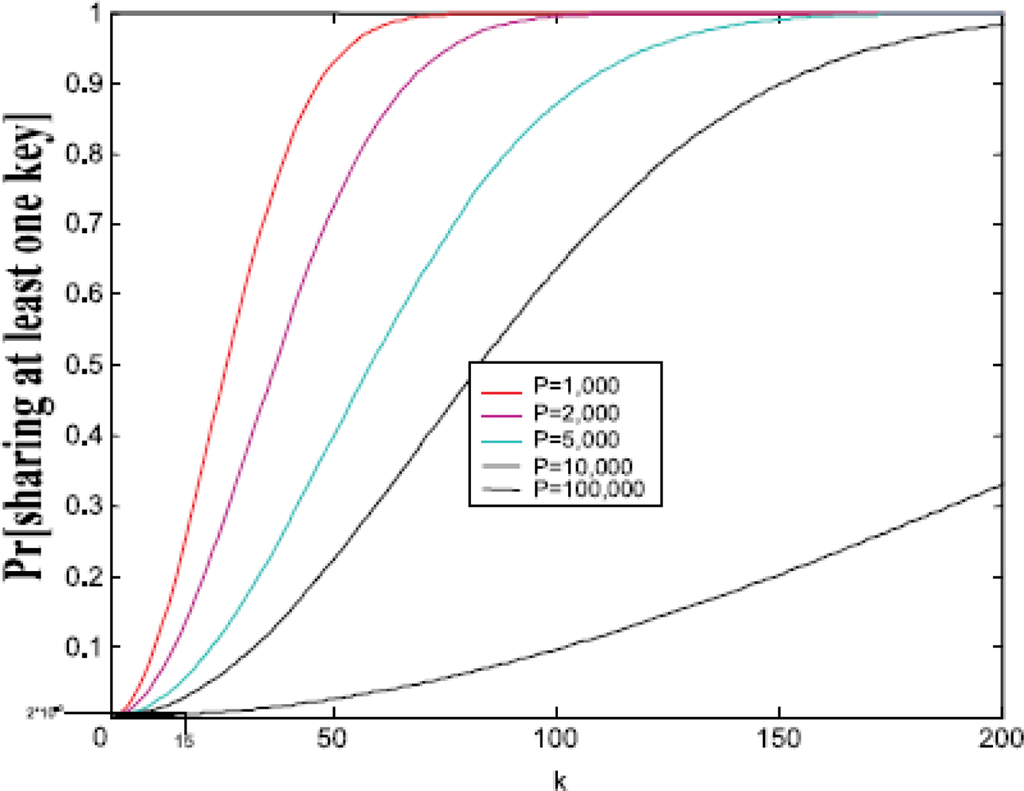

Np dedicated pair-wise keys to achieve the probability
p that two nodes share a key. At the key setup phase, each node ID is matched with
Np other randomly selected node IDs with probability
p. A distinct pair-wise key is generated for each ID pair, and is stored in both nodes’ key-chain along with the ID of the other party. During the shared-key discovery phase, each node broadcasts its ID so that neighboring nodes can tell if they share a common pair-wise key. Note that Chan
et al.’s scheme reduces the storage overhead by sacrificing key connectivity, but it still provides perfect key resilience.
In our scenario, we assume that
a sensor node (carried by a patient) can move within a hospital. As each sensor’s memory is severely constrained, each sensor may only store a small set of keys randomly selected from a key pool at the deployment. Two nodes may use any existing key discovery protocol (e.g., the solution proposed in [
21]) to find a common key from their own sets. If the common key is not found, our key establishment scheme will be initiated. The reason why we bind a general pre-shared key discovery phase to our protocol is to reduce the energy cost as much as possible.
4. Dynamic Authentication and Key Establishment Protocol
4.1. Basic Protocol
Due to the limited storage of sensor nodes, the pre-shared key-pair is not always available between the roaming node and its new neighbors in the circumstance of a dynamic node roaming within large WSNs (e.g., in hospitals and nuclear power plants). Therefore it requires an efficient and scalable protocol to establish and update the keys among nodes for secure communications.

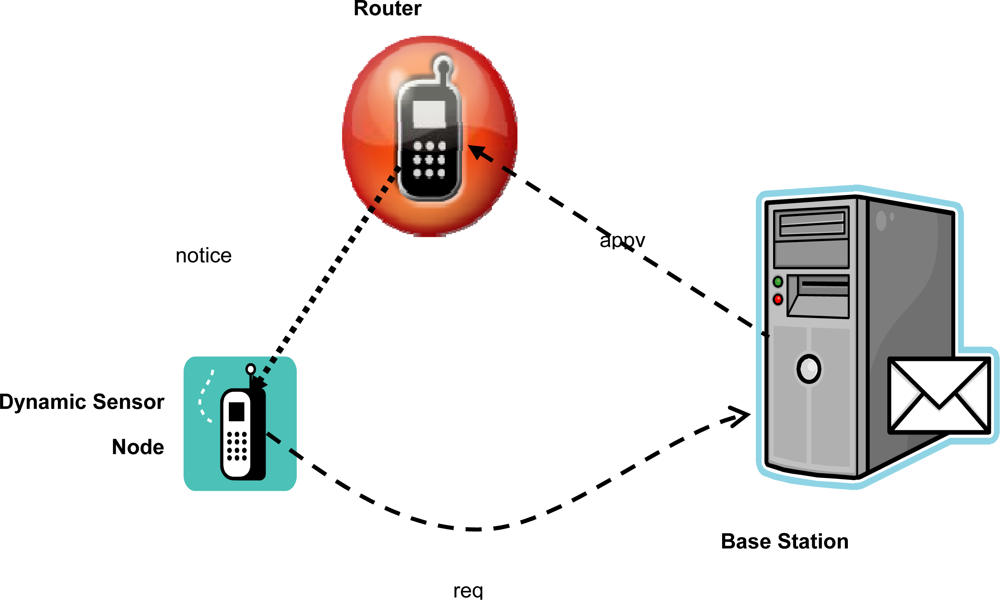

Figure 2 shows the basic architecture and message flow of our protocol for authentication and key establishment in dynamic WSNs. When a dynamic sensor node moves to a new area and wants to attach to a router or a cluster head in this area, it first sends a request message to the base station (refer to
Figure 2).
where
Src and
Dst denote the source and destination address of a message respectively.
SN, BS and
RT are identifiers for sensor node, base station and router, respectively.
R0 denotes a random number generated by the sensor node.
MAC indicates the message authentication code algorithm with a key and
KBN is the shared secret key between the base station and the sensor node.
After receiving the
req message, the base station will check its revocation list whether the sensor node has been revoked. If the sensor node is acceptable, then the base station verifies the
MAC message. If the result is positive, the base station will generate a session key
KNR for the roaming sensor node and the router (or cluster head).
where
H is a keyed one-way hash function, and
R1 is the random number selected by the base station. The base station then sends an approval message
appv with the session key to the router:
where
E is an encryption algorithm, and
KBT is the shared secret key between the base station and the router.
After receiving the
appv message, the router decrypts the payload and extracts the session key
KNR, and then sends a notice to the sensor node.
Upon getting the notice message, the sensor node extracts the random numbers R0 and R1. After checking if the received random number R0 is equal to the original R0, the sensor node recalculates the session key KNR = H(KBN, SN||R0||R1) and then verifies the MAC value. If the result is positive, the sensor node will use the session key for the communication with this router afterwards. In practice, the router could be any sensor node that the dynamic sensor node wants to connect to.
4.2. Key Management
In order to manage the keys, every sensor node maintains a table, called “Key Cache”.
Table 1 shows the structure of the Key Cache.
When a sensor node, say node
N, wants to connect to other sensor node, say node
R, it executes the following procedure:
Checks first if there is an existing key pair between them.
Otherwise, processes the subroutine of shared-key discovery to find a common key between node N and node R based on those “PreSharedKeys” in their key caches.
If there is still no common key between them, the sensor node allocates an entry in the key cache, and assigns Node ID as
nodeR, Key Stuff as the random number
R0 and Key Lifetime as
0, as shown in
Table 2.
Then the sensor node initiates the procedure of key establishment described in the above section. After receiving the notice message, and recalculating the session key KNR, the sensor node updates the entry’s key stuff and key lifetime accordingly.
When the key lifetime is expired, the dynamic sensor node should re-initiate the procedure of key establishment described in the above section.
When the sensor node leaves the range of the connected router, the sensor node deletes the related entry from its cache table in order to save the storage. In case there is no space for adding a new entry, it may first delete the oldest key which has expired or will expire soon.
The base station also maintains a key table (
Table 3) that includes the secret keys shared with all of the sensor nodes in the network.
If a node is compromised and revoked, its field of key lifetime would be marked as negative.
4.3. Distribution Mode

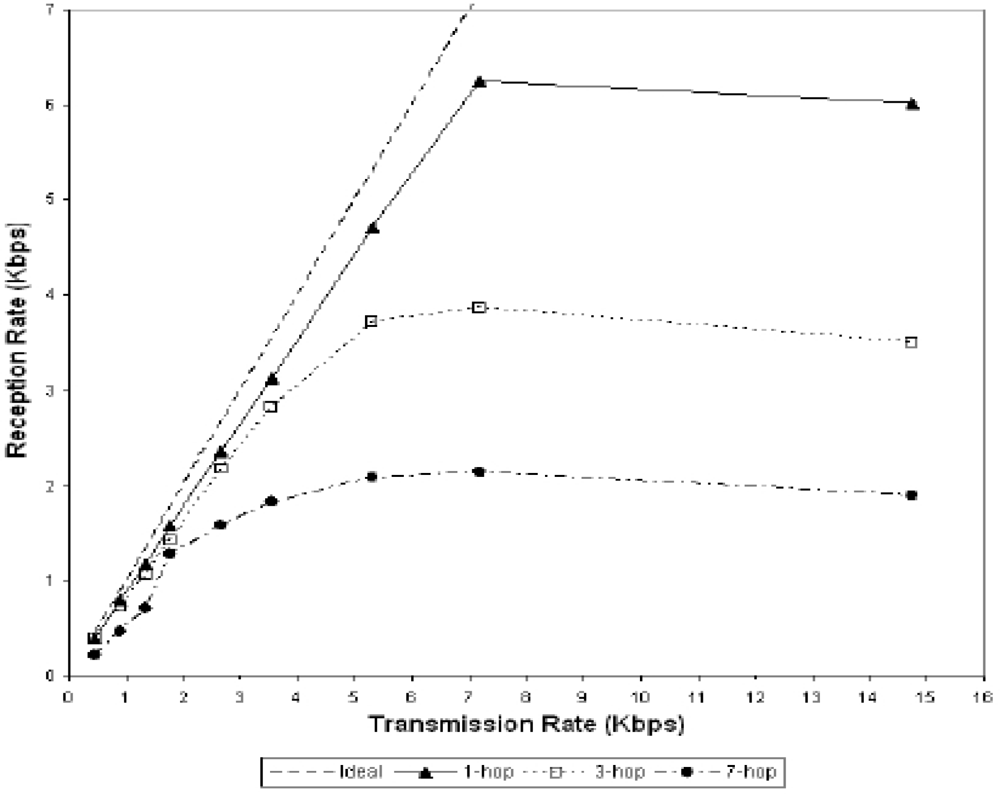

In WSNs, the more hops between two communicating ends exist, the poorer the traffic performance becomes and the more energy consumption is required. To overcome these problems, we introduce the distribution mode.
The major idea of distribution mode is to deploy the cluster heads as the sub-base-stations because a cluster head is more powerful than normal sensor nodes. The distribution mode includes the following steps:
Each cluster head manages to establish the shared key with its neighboring cluster heads after deployment. There are several ways to do this. One could embed those keys in advance if the topology is known at deployment, or use the basic protocol described in the above sections, via the base station. (As this is a one-time operation, the overheads may be acceptable.)
Each sensor node keeps two base station identifiers (IDs): one is a real base station ID; the other is a sub-base-station (the cluster head) ID. Initially, the ID of sub-base-station is a real base station.
After deployment, the first round for a mobile node to establish the shared key with the nearest cluster head uses the basic protocol, too.
When the mobile node moves, use the basic protocol to establish the shared key with the new cluster head, via the sub-base-station (old cluster head) rather than the real base station.
After successfully establishing the keys, the sensor node updates the ID of sub-base-station with the current cluster head.
For security reasons, each sensor node must reset its sub-base-station ID to the real base station at a specified interval (say a few hours or days, depending on the various applications) and re-establish keys with its near cluster heads via the real base station. If the base station does not receive any request from a sensor node, it considers the sensor node has been compromised.
The distribution mode could provide an efficient and low energy-cost solution for the shared-key establishment. The basic protocol can provide the stronger protection since it can immediately block and revoke compromised nodes.
5. Security Analysis
In this proposed protocol, the session key KNR between the sensor node and the router is generated by the base station and sensor node respectively, and the session key is directly sent to the router from the base station by an encrypted packet. Hence, the session key KNR is never disclosed during transmission. The session key KNR is only known by the related peers, i.e., the sensor node, the base station and the router.
Referring to
equation (2), the session key
KNR is generated by a keyed hash function with the shared key
KBN between sensor node and base station as well as two random numbers,
R0 and
R1, which are generated by the sensor node and base station respectively. As both
R0 and
R1 are used only one time, there are not the same session keys
KNR. This property is useful to against the replication attacks.
Since the session key KNR is generated by a keyed hash function with the secret key KBN between the sensor node and the base station, the different sensor nodes will have different session keys. This feature is useful to protect sensor node privacy.
Even though an eavesdropper at the edge of the sensor node can monitor and capture the random numbers R0 and R1 as well as the identity of the sensor node, it is still not able to regenerate the session key KNR due to lack of the secret key KBN. Without a proper session key, the routers will not forward the packets to next nodes. This attribute could prevent camouflage and traffic attacks.
Due to the fact that no trusted connection is established between sensor node and new router before the connection between them, the proposed protocol employs a random number R1 issued by the base station. The sensor node needs to recalculate the KNR first based on the R1 together with KBN and R0. Then using the calculated session key KNR to verify the received session key KNR and the random number R1. If the result is positive, then the sensor node will trust that the router is authorized by the base station.
Besides the function of informing the sensor node that the new session key KNR is ready to use in the router, the notice message also plays an important role to check if the sensor node’s address is reachable. Without this reachability check, the sensor node may claim that it is at any location rather than its real location. It could launch redirecting attacks.
The path between the base station and the router is secure because the packet between them is encrypted with a pre-shared key KBT.
The messages from the sensor node to the base station and from the router to the sensor node are authenticated by a keyed hash function. Before accepting the inward message and making further processing, the receivers must verify the authentication. Since the cost of a hash algorithm is very small, the base station and sensor node could avoid the attacks of denial of service.
In order to achieve high efficiency and low energy cost, the protocol deploys a distribution mode which uses the cluster headers as the sub-base-stations. Due to the capability of cluster header, it is not able to recognize any compromised sensor nodes in time; the protocol requires each sensor node to reset its sub-base-station ID to the real base station regularly, and to re-establish keys with its near cluster heads via the real base station. This step is also useful to avoid a sensor node binding a compromised cluster head for long time.
According to the above analysis, this proposed protocol, which is simple and easy to implement, can provide relatively strong protection for sensor node networks.
7. Conclusions
In this paper, we have proposed an efficient and scalable protocol to establish and update the authentication key between any pair of sensor nodes in a dynamic wireless sensor network. Our protocol has the following features:
It is suitable for both static and dynamic WSNs. Any pair of nodes can establish a key for secure communication.
A roaming node only deals with its closest router for security. There is no need to change the rest of routing path to the base station.
The base station can manage a revocation list for lost or compromised roaming nodes.
The system is scalable and resilient against node compromise.
After comparing with some of the popular and latest protocols used in WSNs, our protocol could save about 30% in communication energy, and has the higher probability (100%) of sharing a key between two sensor nodes with less memory cost than those pre-distribution schemes, without incurring in a considerable amount of communication.
