Molbank 2017, 2017(4), M958; doi:10.3390/M958

Short Note
Methyl N-[1-(Benzoylamino)-2-methoxy-2-oxoethyl]-tryptophanate
Oumaima Karai 1, Maha El Hamdani 2, Hassane Faraj 1, Anouar Alami 1,*, Mohammed Rachid Kabbour 2, Abdelilah El Hallaoui 1, Mohammed Bouksaim 2 and Younas Aouine 1
1
Organic Chemistry Laboratory (LCO), Faculty of Sciences Dhar El Mahraz–Sidi Mohammed Ben Abdellah University, Fez 30000, Morocco
2
Regional Center for Agronomic Research of Rabat, INRA-Rabat, Rabat 10000, Morocco
*
Correspondence: Tel.: +212-61-79-64-80
Received: 17 August 2017 / Accepted: 12 September 2017 / Published: 22 September 2017

Abstract

:
The title compound, methyl N-[1-(benzoylamino)-2-methoxy-2-oxoethyl]tryptophanate 2, was synthesized in high yield, via N-alkylation reaction of methyl 2-azido-2-benzamidoacetate with methyl 2-amino-3-(1H-indol-3-yl)propanoate in acetone, with the presence of diisopropylethylamine as a base. The structure of the prepared compound was characterized by 1H, 13C NMR in addition to MS, X-Ray diffraction data, and elemental analysis. This compound was tested in vitro for its antibacterial activity against Gram-positive bacteria, Bacillus subtilis and Staphylococcus aureus, and Gram-negative bacteria, Escherichia coli, Pseudomonas aeruginosa, and Salmonella enteric. The MIC values showed that the synthesized compound had a bactericidal effect against the strains tested.
Keywords:
antibacterial activity; carboxylic amino esters; N-alkylation

1. Introduction

Heterocyclic α-amino acids play a predominant role in medicinal chemistry because of the large activity spectrum they present. The rapid assembly of molecular diversity is an important goal of synthetic organic chemistry and is one of the key paradigms of modern drug discovery. The synthesis of new α-carboxylic amino esters containing heterocyclic systems occupies an important place in the realm of synthetic organic chemistry [1,2,3] and they are the fundamental units of life because of their wide utility of such compounds as components of proteins, peptides, and as starting materials for the synthesis of naturally occurring biologically active compounds [4,5,6].
Recently, heterocyclic α-amino acids have shown biological properties including antibacterial activity [7]. In view of these observations and in continuation of our previous work in heterocyclic chemistry, we synthesized the methyl N-[1-(benzoylamino)-2-methoxy-2-oxoethyl]tryptophanate 2 through N-alkylation between methyl 2-azido-2-benzamidoacetate and methyl 2-amino-3-(1H-indol-3-yl)propanoate [8,9]. Compound 2 was obtained with good yield (86% yield) and characterized by spectroscopic techniques, such as 1D and 2D NMR spectroscopy, mass spectrometry (MS), X-ray crystallography, MS data, and elemental analysis.

2. Results

2.1. Chemistry

The starting methyl 2-azido-2-benzamidoacetate 1 was prepared from glycine derivative by reaction with sodium azide in room temperature using acetone as solvent. This intermediate azide compound 1 was obtained pure with a good yield (92% yield), as a white solid after chromatography on silica gel column (ether/hexane: 1/4). After that, the compound 1 was substituted by 2-amino-3-(1H-indol-3-yl)propanoate via N-alkylation reaction in the presence of diisopropylethylamine as base in acetone at room temperature (Scheme 1).
A single crystal of the title compound was obtained by recrystallization from Acetone and its structure was established on the basis of NMR spectroscopy (1H, 13C) (Figure 1 and Figure 2), MS data and elemental analysis, and X-ray crystallography (Figure 3). The definite assignment the chemical shifts of protons and carbons are shown in Table 1.

2.2. Biological Activity

2.2.1. Disc Diffusion Method

The synthesized product exhibited varying antibacterial activity as is shown by the inhibition zones (IZ) in Figure 4. The results from the disc diffusion assay indicated that the tested compound showed higher antibacterial activity against Gram-positive bacteria (IZ 08-09) than against Gram-negative bacteria (IZ 07-10).

2.2.2. Resazurin Microtiter Plate Assay

In the present study, we used the modified resazurin microtiter plate assay to evaluate the antimicrobial activity of synthesized products. This method provided reproducible and accurate results and allowed direct comparison of the antibacterial activity of the tested compound.
The average of MIC of this compound varied between 2.5–5 mg/mL against the strains tested. As is shown in Table 2, the compound 2 showed similar MIC value of 2.5 mg/mL against Gram-negative bacteria Escherichia coli, Pseudomonas aeruginosa, and Salmonella enteric, the same value against Gram-positive bacteria Bacillus subtilis except Staphylococcus aureus which present a MIC of 5 mg/mL.

3. Materials and Methods

3.1. Chemistry

All solvents were purified following the standard techniques and commercial reagents were purchased from Sigma-Aldrich (St. Louis, MO, USA). Melting point was determined with an Electrothermal melting point apparatus and was uncorrected. NMR spectra (1H and 13C) were recorded on a Bruker AM 300 spectrometer (operating at 300.13 MHz for 1H, at 75.47 MHz for 13C) (Bruker Analytische Messtechnik GmbH, Rheinstetten, Germany). NMR data are listed in ppm and are reported relative to tetra-methylsilane (1H, 13C); residual solvent peaks being used as internal standard. All reactions were followed by TLC. TLC analyses were carried out on 0.25 mm thick precoated silica gel plates (Merck Fertigplatten Kieselgel 60F254) and spots were visualized under UV light or by exposure to vaporized iodine. Mass spectra were recorded on a PolarisQ Ion Trap GC/MSn Mass Spectrometer (CNRST-Rabat). Ortep of compound 2 was obtained on a Bruker APEXII CCD detector diffractometer (CNRST-Rabat).
To a solution of 2.6 mmol of N-benzoylated methyl α-azidoglycinate 1 and 3.12 mmol of diisopropylethylamine (DIEA) in 10 mL of acetone, 2.86 mmol of 2-amino-3-(1H-indol-3-yl)propanoate was added. The reaction mixture was stirred for 72 h at room temperature. The solvent was evaporated under reduced pressure. The residue was quenched with saturated aqueous solution of ammonium chloride (20 mL) and extracted with methylene chloride (3 × 20 mL). The organic layer was dried over sodium sulfate (Na2SO4) and the solvent was removed under reduced pressure. The product obtained was recrystallized from acetone.
N-benzoylated methyl α-azidoglycinate 1: Yield = 92% (white solid); m.p = 80–82 °C. 1H-NMR (DMSO, δH ppm): 3.74 (s, 3H, -OCH3); 5.82 (d, 1H, N-CH-N3, J = 7.80Hz); 7.49–7.91 (m, 5H, 5Harom); 9.83 (d, 1H, NHBz, J = 7.80Hz). 13C-NMR (DMSO, δC ppm): 53.41 (C, -OCH3); 65.62 (1C, N-CH-N3); 128.03, 129.04, 132.76 and 132.87 (6C, Carom); 167.18 and 167.67 (2C, CO). MS ESI m/z (%) = 235.
Methyl N-[1-(benzoylamino)-2-methoxy-2-oxoethyl]tryptophanate 2: Yield = 86% (white solid); m.p. = 174–176 °C. 1H-NMR (DMSO, δH ppm): 2.94–3.02 (m, 3H, NH-CH-CH2- and -CH2-indol-3-yl); 3.28 (s, 3H, -OCH3); 3.64 (s, 3H, -OCH3); 3.67–3.72 (t, 1H, N-CH-CH2-, J = 6.90 Hz); 5.25–5.31 (dd, 1H, N-CH-N, J1 = 10.17 Hz and J2 = 7.73 Hz); 6.93–7.82 (m, 10H, 10Harom); 9.1 (s, 1H, NHBz); 10.9 (s, 1H, NHindole). 13C-NMR (DMSO, δC ppm): 29.18 (1C, -CH2-indol-3-yl); 51.78 and 52.65 (2C, -OCH3); 59.06 (1C, -CH-CH2-indol-3-yl); 64.18 (1C, N-CH-N); 109.80, 111.79, 118.74, 121.33, 124.15, 127.74, 127.78, 128.78, 132.12, 133.71 and 136.48 (14C, Carom); 166.61, 170.38 and 174.89 (3C, CO). Calcd. for C22H23N3O5 (%): C, 64.54; H, 5.66; N, 10.26; Found (%): C 64.28, H 5.71, N 10.16. MS ESI m/z (%) = 409.60.

3.2. Biological Activity

3.2.1. Disc Diffusion Method

The antimicrobial studies was evaluated using the agar diffusion technic in petri dishes [10], this activity was carried out against five bacterial strains: Staphylococcus aureus CIP 483, Bacillus subtilis CIP 5262, Escherichia coli CIP 53126, Pseudomonas aeruginosa CIP 82118, and salmonella enteric CIP 8039. Briefly, 100 µL of suspension containing approximatively 5 × 105 colony-forming units (CFU)/mL of bacteria cells on Tryptic Soy Agar (TSA). The sterile filter discs (6 mm diameter) were separately impregnated with 15 µL of the synthesized product and placed on the agar which had previously been inoculated with the tested microorganism. These petri dishes were incubated overnight at 37 °C [11]. After incubation, all plates were checked for inhibition zones and the diameters were measured in millimeters, chloramphenicol antibiotics (50 mg/mL) and DMSO were used as positive and negative control respectively.

3.2.2. Resazurin Microtiter Plate Assay

For the minimum inhibitory concentration (MIC) of the synthesized product, a modified resazurin microtiter plate assay was used as reported by Sarker [12]. Briefly, a volume of 100 μL of each product solution (20 mg/mL, v/v in DMSO 90%), was pipetted into the first row of the 96 well plates, then to all other wells of microtiter plates, we added 100 μL of tryptic soya broth. A serial dilution was achieved by starting transferring 100 μL test material from first row to the subsequent wells in the next row of the same column and so that each well has 100 μL of test material in serially descending concentrations. Then 10 μL of bacterial suspension (108 CFU/mL) was added to each well. The microplates were placed in an incubator set at 37 °C for 24 h. Each plate had a set of controls: A column with an antibiotic as positive control (chloramphenicol in serial dilution (50 mg/mL)), a column with all solutions except the test material, and a column with all solutions with the exception of the bacterial suspension. Finally, the resazurin solution was prepared by dissolving 270 mg of resazurin powder in 40 mL sterile distilled water [13]. A volume of 10 μL of resazurin solution as indicator was added in each well after incubation. The microplates were placed again in an incubator at 37 °C for just 2 h. The color change was then assessed visually. Any color changes from purple to pink or colorless were recorded as positive. The lowest concentration at which color change occurred was taken as the MIC value [14].

4. Conclusions

The synthesis of methyl N-[1-(benzoylamino)-2-methoxy-2-oxoethyl]tryptophanate 2 was performed via N-alkylation reaction and characterized by 1H, 13C NMR, MS data, elemental analysis, and X-ray crystallography. The synthesized compound was screened for its antimicrobial activity. Antibacterial results indicated that the compound 2 had a bactericidal effect towards all bacterial strains when compared to standard drug Chloramphenicol.

Supplementary Materials

The following are available online at www.mdpi.com/2017/3/M958, Figure S1: 13C-NMR spectrum of compound 1, Figure S2: 1H-NMR spectrum of compound 1, Figure S3: 13C-NMR spectrum of compound 2, Figure S4: 1H-NMR spectrum of compound 2, Figure S5: Mass spectrum of compound 2.
Supplementary File 1Supplementary File 2Supplementary File 3Supplementary File 4

Acknowledgments

This work was supported by Sidi Mohammed Ben Abdellah University (USMBA), Regional Center for Agronomic Research of Rabat (INRA) and National Center for Scientific and Technical Research (CNRST).

Author Contributions

O.K. performed the experiments; H.F., A.A., and A.E.H. conceived and designed the experiments; M.E.H., M.R.K., and M.B. performed the antibacterial activity experiments; Y.A. analyzed the data and wrote the paper.

Conflicts of Interest

The authors declared that they have no conflicts of interest as regards this work.

References

  1. Henry, G.D. De novo synthesis of substituted pyridines. Tetrahedron 2004, 60, 6043–6061. [Google Scholar] [CrossRef]
  2. Bagley, M.C.; Chapaneri, K.D.; Dale, W.; Xiong, X.; Bower, J. One-pot multistep Bohlmann−Rahtz heteroannulation reactions:  Synthesis of dimethyl sulfomycinamate. J. Org. Chem. 2005, 70, 1389–1399. [Google Scholar] [CrossRef] [PubMed]
  3. Gilchrist, T.L. Synthesis of aromatic heterocycles. J. Chem. Soc. Perkin Trans. 2001, 2491–2515. [Google Scholar] [CrossRef]
  4. Leite, A.L.; Lima, R.S.D.; Moreira, R.M.; Cardoso, M.V.; Brito, A.C.G.; Santos, L.M.F.; Hernandes, M.Z.; Kiperstok, A.C.; Limac, R.S.; Soaresc, M.B.P. Synthesis, docking, and in vitro activity of thiosemicarbazones, aminoacyl-thiosemicarbazides and acyl-thiazolidones against Trypanosoma cruzi. Bioorg. Med. Chem. 2006, 14, 3749–3757. [Google Scholar] [CrossRef] [PubMed]
  5. Mikolajczyk, M.J. Acyclic and cyclic aminophosphonic acids: Asymmetric syntheses mediated by chiral sulfinyl auxiliary. J. Organomet. Chem. 2005, 690, 2488–2496. [Google Scholar] [CrossRef]
  6. Joly, G.D.; Jacobsen, E.N. Thiourea-catalyzed enantioselective hydrophosphonylation of imines: Practical access to enantiomerically enriched α-amino phosphonic acids. J. Am. Chem. Soc. 2004, 126, 4102–4103. [Google Scholar] [CrossRef] [PubMed]
  7. Prakasha, K.C.; Raghavendra, G.M.; Harisha, R.; Channe, G.D. Design, synthesis and antimicrobial screening of amino acids conjugated 2-amino-4-arylthiazole derivatives. Int. J. Pharm. Pharm. Sci. 2011, 3, 120–125. [Google Scholar]
  8. Mabrouk, E.H.; Elachqar, A.; Alami, A.; El Hallaoui, A. Synthesis of new racemic α,α-diaminocarboxylic ester derivatives. Molecules 2010, 13, 9354–9363. [Google Scholar] [CrossRef]
  9. Boukallaba, K.; Elachqar, A.; El Hallaoui, A.; Alami, A.; El Hajji, S.; Labriti, B.; Martinez, J.; Rolland, V. Synthesis of new α-heterocyclic α-aminophosphonates. Phosphorus Sulfur Silicon 2006, 181, 819–823. [Google Scholar] [CrossRef]
  10. Kelen, M.; Tepe, B. Chemical composition, antioxidant and antimicrobial properties of the essential oils of three Salvia species from Turkish flora. Bioresour. Technol. 2008, 99, 4096–4104. [Google Scholar] [CrossRef] [PubMed]
  11. Luís, Â.; Cruz, C.; Duarte, A.P.; Domingues, F. An alkenylresorcinol derivative from Hakea sericea Fruits and their antimicrobial activity. Nat. Prod. Commun. 2013, 8, 1459–1462. [Google Scholar] [PubMed]
  12. Sarker, S.; Nahar, L.; Kumarasamy, Y. Microtitre plate-based antibacterial assay incorporating resazurin as an indicator of cell growth, and its application in the in vitro antibacterial screening of phytochemicals. Methods 2007, 42, 321–324. [Google Scholar] [CrossRef] [PubMed]
  13. McNicholl, B.P.; McGrath, J.W.; Quinn, J.P. Development and application of a resazurin-based biomass activity test for activated sludge plant management. Water Res. 2007, 41, 127–133. [Google Scholar] [CrossRef] [PubMed]
  14. Ponce, A.G.; Fritz, R.; Del Valle, C.; Roura, S.I. Antimicrobial activity of essential oils on the native microflora of organic Swiss chard. Soc. Food Sci. Technol. 2003, 36, 679–684. [Google Scholar] [CrossRef]

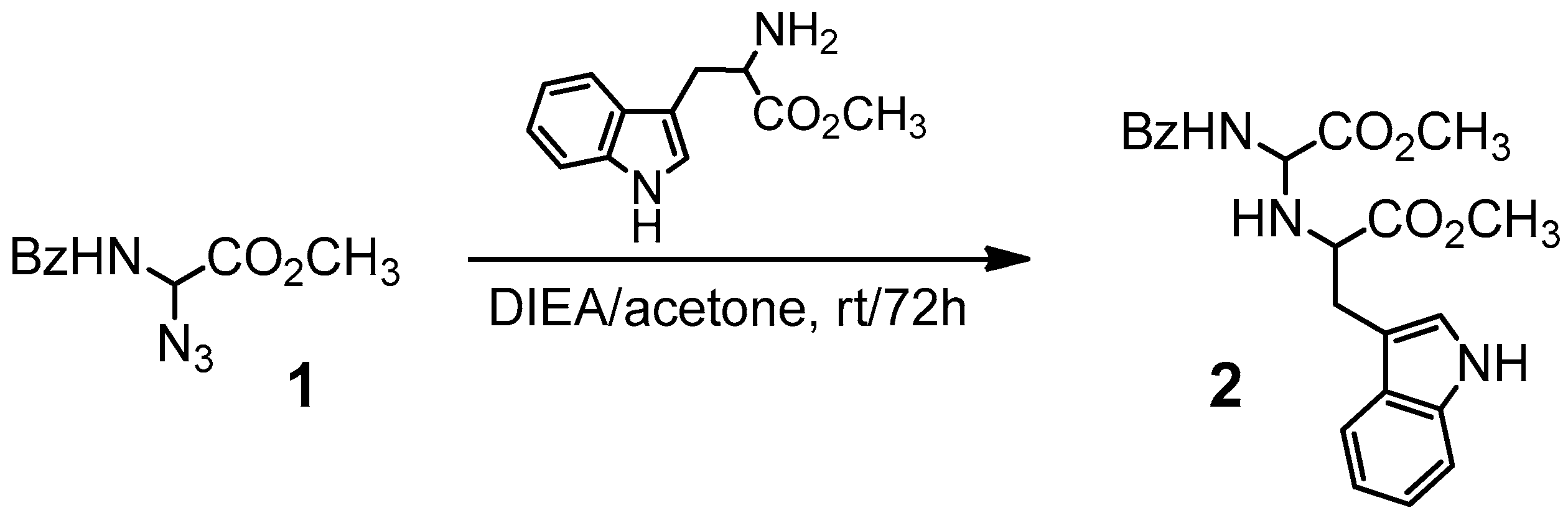

Scheme 1. Synthesis strategy of compound 2.
Scheme 1. Synthesis strategy of compound 2.
Molbank 2017 m958 sch001

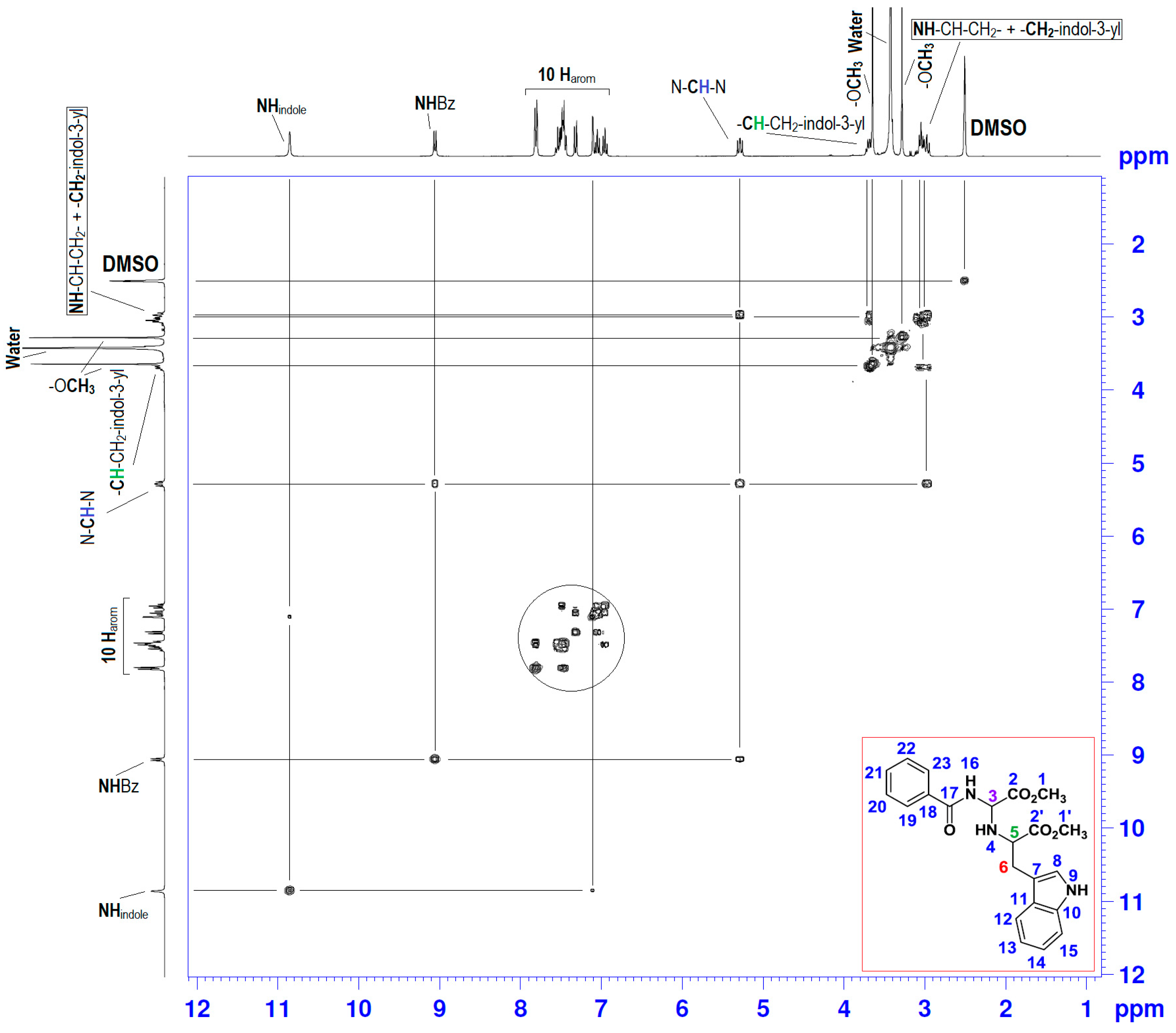

Figure 1. Homonuclear 1H-1H 2D spectrum of compound 2.
Figure 1. Homonuclear 1H-1H 2D spectrum of compound 2.
Molbank 2017 m958 g001

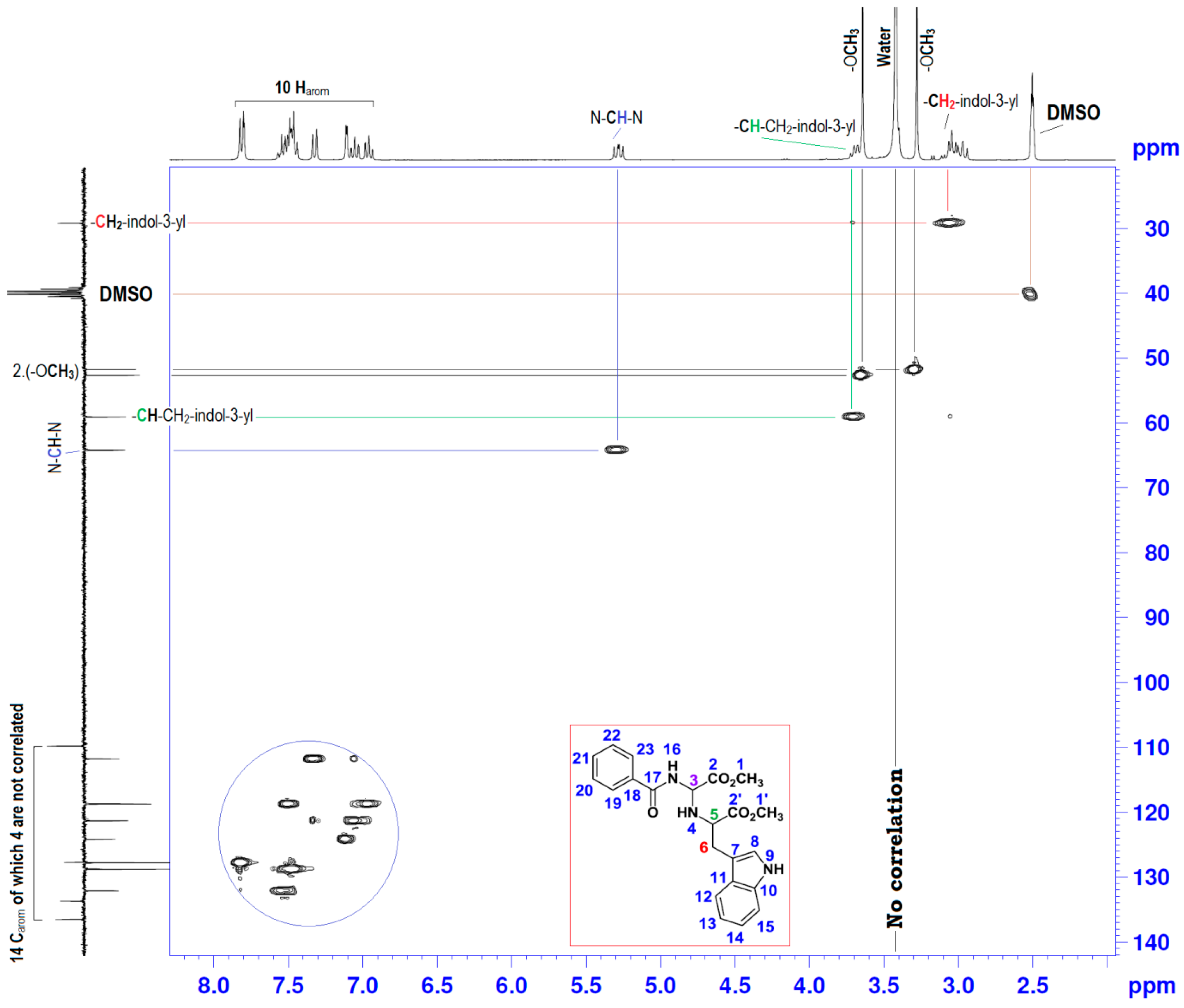

Figure 2. Heteronuclear 1H-13C 2D spectrum of compound 2.
Figure 2. Heteronuclear 1H-13C 2D spectrum of compound 2.
Molbank 2017 m958 g002

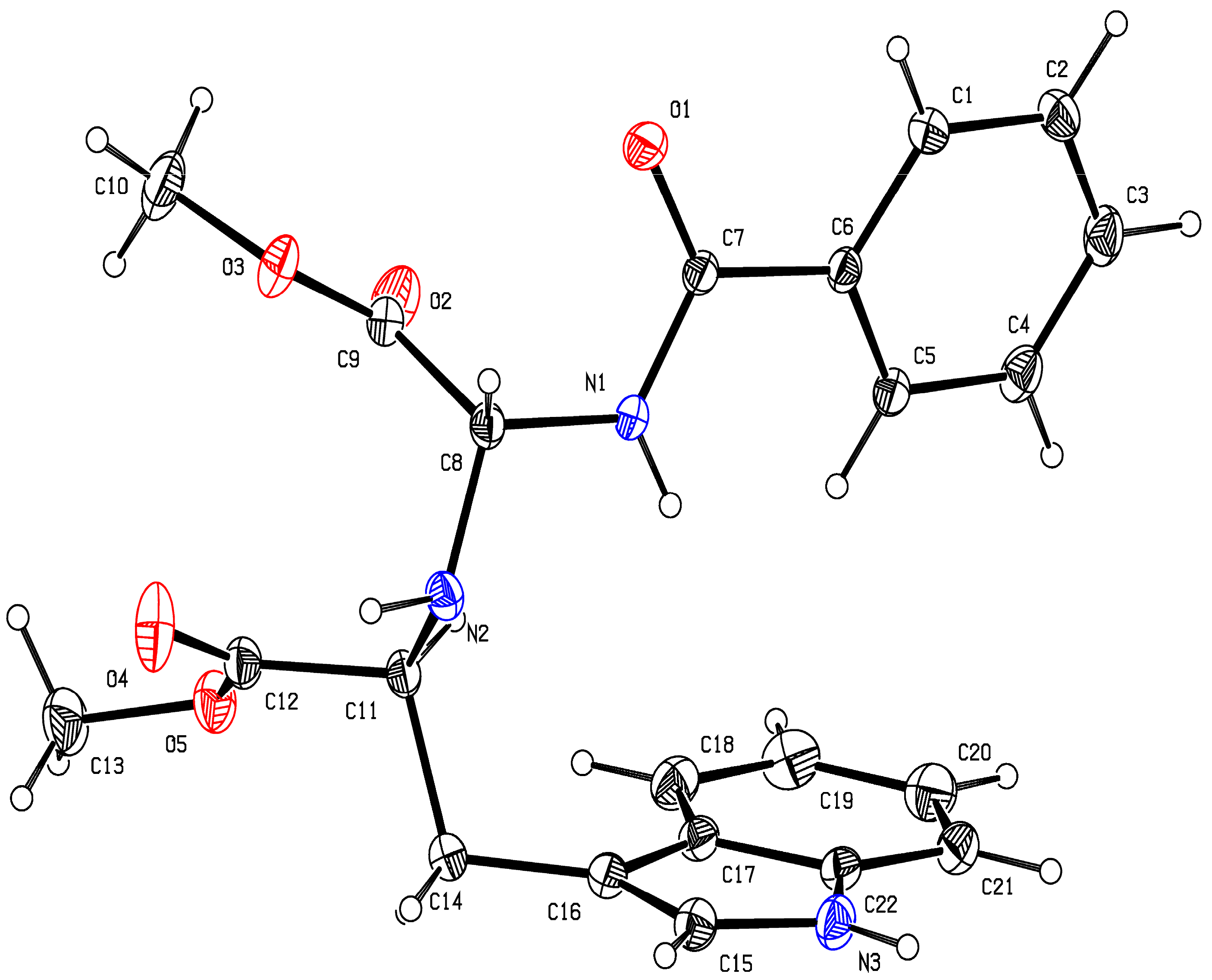

Figure 3. ORTEP view of compound 2 showing the atom-numbering scheme.
Figure 3. ORTEP view of compound 2 showing the atom-numbering scheme.
Molbank 2017 m958 g003

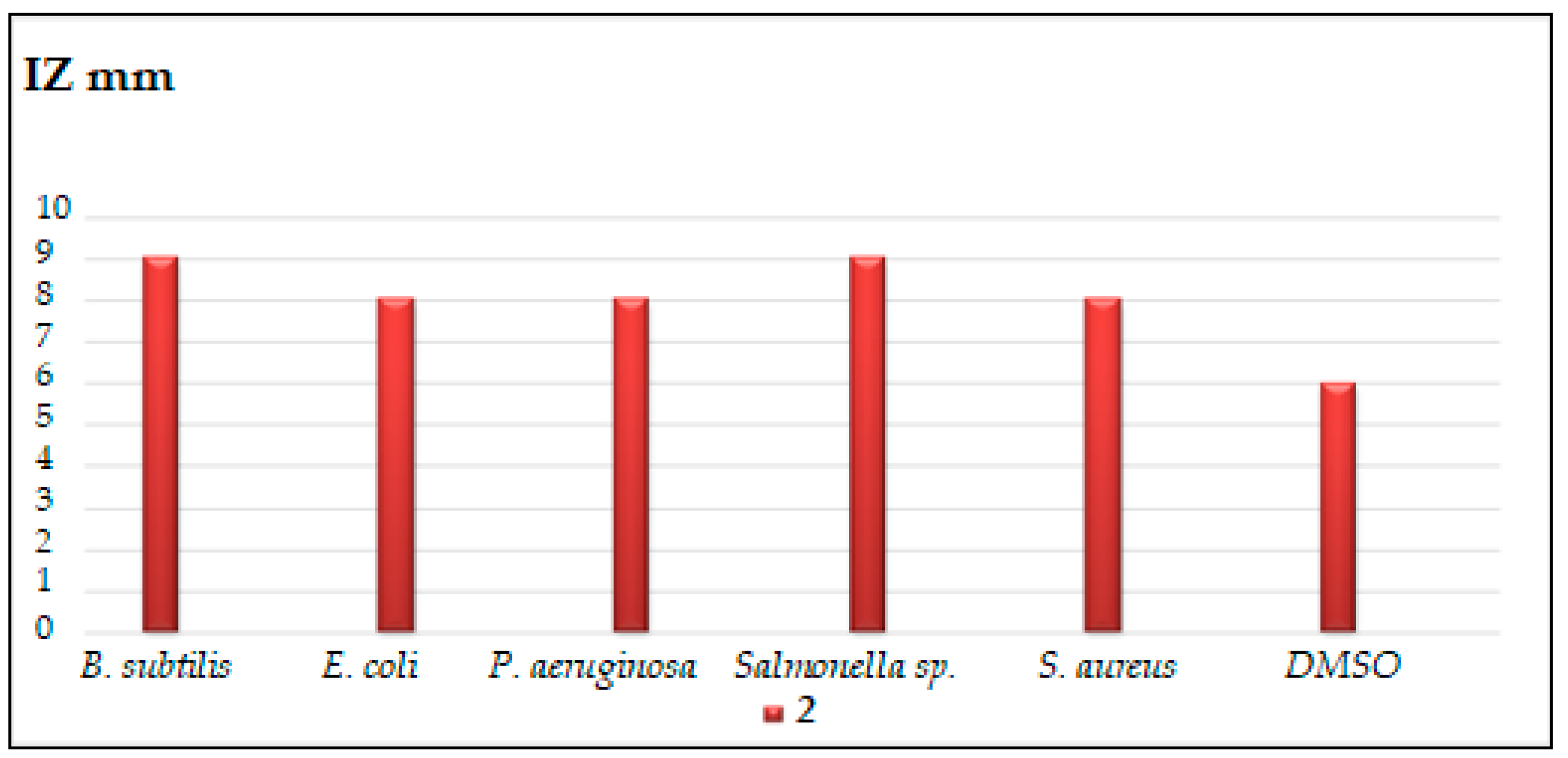

Figure 4. Antibacterial activity (inhibition zone (IZ) measured in mm) of compound 2 against pathogenic bacteria.
Figure 4. Antibacterial activity (inhibition zone (IZ) measured in mm) of compound 2 against pathogenic bacteria.
Molbank 2017 m958 g004
Table 1. 1H (300.13 MHz) and 13C (75.47 MHz) NMR spectral data for compound 2 in DMSO-d6, including results obtained by homonuclear 2D shift-correlated and heteronuclear 2D shift-correlated HMBC. Chemical shifts (δ in ppm) and coupling constants (J in Hz).
Table 1. 1H (300.13 MHz) and 13C (75.47 MHz) NMR spectral data for compound 2 in DMSO-d6, including results obtained by homonuclear 2D shift-correlated and heteronuclear 2D shift-correlated HMBC. Chemical shifts (δ in ppm) and coupling constants (J in Hz).
PositionδHδCCorrelation H-HCorrelation C-H
13.28 (s)51.783H1-3H1C1-3H1
2-166.61--
1′3.64 (s)52.613H1′-3H1′C1-3H1′
2′-174.89--
35.25–5.31
(dd, J1 = 10.17; J2 = 7.73)
64.181H3-1H3; 1H3-1H4; 1H3-1H16C3-1H3
42.94–3.02 (m)-1H4-1H4; 1H4-1H3; 1H4-1H5-
53.67–3.72 (t, J = 6.90)59.061H5-1H5; 1H5-1H4; 1H5-2H6 -
62.94–3.02 (m)29.182H6-2H6; 2H6-1H5C6-2H6
910.9 (s)-1H9-1H9; 1H9-1H8-
169.1 (s)-1H16-1H16; 1H16-1H3-
17-170.38--
7, 8; 10–15 and 18–236.93–7.82 (m)109.80–136.4810Har-10Har; 1H8-1H910Car-10Car
Table 2. Antibacterial activity minimum inhibitory concentration (MIC) in mg/mL of compound 2 against pathogenic bacteria presented.
Table 2. Antibacterial activity minimum inhibitory concentration (MIC) in mg/mL of compound 2 against pathogenic bacteria presented.
Compound 2Chloramphenicol
E. Coli CIP 531262.50.05
S. aureus CIP 48350.095
S. enterica CIP 80392.50.05
B. subtilus CIP 52622.50.095
P. aeruginosa CIP 821182.50.05
