Article

Supramolecular Coordination Polymers by Self-assembling of Bis-monodentate Ligands with HgI2

1
Gannan Normal University, Ganzhou, 341000, JiangXi, People’s Republic of China
2
Center for Molecular Science, Institute of Chemistry, The Chinese Academy of Sciences, Beijing, 100080, People’s Republic of China
*
Authors to whom correspondence should be addressed.
Int. J. Mol. Sci. 2007, 8(1), 29-41; https://doi.org/10.3390/i8010029
Submission received: 28 November 2006 / Revised: 3 January 2007 / Accepted: 16 January 2007 / Published: 30 January 2007
(This article belongs to the Section Molecular Recognition)

Abstract

:
Two supramolecular coordination polymers, [HgI2(L1)·0.5H2O] (1) and [HgI2(L2)·0.4CH3OH] (2), have been prepared by ligands L1 (L1 = bis[4-(4- pyridylmethyleneamino)phenyl] ether) and L2 (L2 = N,N′-bis(3-pyridylmethyl)-diphthalic diimide) with HgI2, respectively. 1 formed an interestingly infinite cross-linked double helical structure, whereas 2 formed the one-dimensional zigzag chains, which are parallel with each other.

1. Introduction

Great effort has been expended to explore self-assembled supramolecular complexes due to their intriguing network topologies and potential applications in molecular recognition, magnetic materials, medicine, nonlinear optical devices and catalysts [19]. The study of metal–organic coordination polymers has currently provoked significant temporary interest in chemistry and materials science not only for their potential applications as functional solid state materials, but also for their intrinsic aesthetic appeal [10,11].
Of particular interest is the crystal engineering of helical metal compounds [1214]. Helices are undoubtedly the most celebrated creations of nature, and also represent aesthetically pleasing and highly ordered systems. Recently, Venkataraman and co-workers [15] have identified the geometries of the molecular modules that are meant to undergo helical self-assembly, and demonstrated the viability of achieving the self-assembly into helices. In chemistry or biochemistry helicity is present in various systems [16]. Deoxyribonucleic acid (DNA) exists as a double helix where the two strands are linked by hydrogen bonding between complementary bases [17]. α-Amylose is a macromolecule with a helical structure that contains about six glucose units per helical turn [18]. As another example, peptides can also adopt an α-helical structure or form larger helical arrays as, for example, found in the collagene triple helices [19]. In artificial supramolecular architectures, helicity can be introduced by conformational restrictions of macromolecules [20], inter- or intramolecular hydrogen bonds [21,22], or coordination to metal ions [2325]. It has been shown that by appropriate combination of metal centres and multidentate ligands, systems ranging from discrete helicates [26] to coordination polymers containing infinite helices [27] can be prepared. There are a large variety of coordination compounds whose molecular structures may be loosely described as helical. Pseudotetrahedral complexes possessing two unsymmetrical bidentate AB-type ligands coordinated to a central metal ion [M(AB)2] or pseudooctahedral complexes [M(AB)3] correspond to helical complexes [1214].
A type of simple flexible N-donor bipyridyl ligands Py2O [28] and Py2S [29] with angular spacers O or S has been recently reported in the formation of cyclindrical helices with Ag(I) salts. Conceivably, by replacing the O or S atom by other large noncoordinating spacers, the adjusted and versatile flexibility of the ligands could lead to different coordination modes and precise topological structures, and sophisticated metal complexes can be constructed. To this end, the rational design and preparation of ligands of required geometry in the spacer seem extremely important to the construction of new polymeric architectures. On the other hand, to the best of our knowledge, the Hg(II) coordination polymers are relatively rare. Here we report the formation of a helical network based on the use of the organic ligand L1 (L1 = bis[4-(4-pyridylmethyleneamino)phenyl] ether) and an one-dimensional zigzag chain structure based on the organic ligand L2 (L2 = N,N′-bis(3-pyridylmethyl)-diphthalic diimide) (Chart 1). As part of our studies of metal–organic coordination polymers derived from bis-monodentate ligands [3032]via self-assembly, we report in this paper a polymeric organometallic double helix, using weak hydrogen bonding between I atom and H atom of the phenyl unit to crosslink the individual helical chains.

2. Results and Discussion

The ligand L1 is prepared by simply refluxing a THF solution containing pyridine-4-carbaldehyde and bis(4-aminophenyl) ether. The ease of synthesis and high yield in a single-step reaction from commercial, inexpensive reagents make this an attractive ligand system. The ligand L2 was prepared as described in a previous publication [33].
Dealing with the metallic component, since the ligand L1 is neutral, we believed that a combination of a dicationic metal centre allowing linear bridging and two strongly coordinating anions would be interesting because it would result in a binary system. For that reason HgI2 was chosen to generate the supramolecular architecture. Upon slow diffusion at room temperature of a CH3OH solution (10 ml) containing HgI2 (12 mg) into a DMF solution (3 ml) of L1 (12 mg), colourless crystals were obtained after several days and analysed by X-ray diffraction on a single crystal 1, [HgI2(L1)·0.5H2O]. The crystal (orthorhombic, space group Pcca) is composed of L1 and HgI2. As expected, the mutual interconnection between the organic ligand L1 and HgI2 leads to a helical strand (Figure 1). For the organic moiety L1, the two pyridine units connected to the Schiff-base C=N backbone through bisphenyl ether junctions (dC–O = 1.33 Å, θC-O-C = 121.6° and dC=N = 1.15 Å) are almost parallel and divergently oriented towards the concave face of the bicyclic unit. The pyridine unit is connected to phenyl unit through the Schiff-base C=N backbone in two ways: one way is that the pyridine unit and phenyl unit are almost parallel to each other, and another way is that there is 104.2° of dihedral angle between the pyridine unit and phenyl unit. The bridging of the organic ligand L1 by HgI2 units generates an infinite 1-D coordination network with helical geometry. The Hg2+ cation adopts a tetrahedral geometry with the two I anions (dHg–I = 2.65 Å) and the two N atoms (dHg–N = 2.41 Å) in a tetrahedral geometry (IHgN angle varying between 98.96° and 105.84°, IHgI angle of 144.044° and NHgN angle of 94.6°). The nearest Hg···Hg separation in each helical chain is 23.775 Å. Unexpectedly, the X-ray diffraction study revealed the formation of a double stranded helical arrangement with a period of 33.405 Å (Figures 2 and 3) resulting from a weak hydrogen bonding (dC(8)–H(8)···I(2) = 3.115 Å and θC(8)–H(8)···I(2) = 164.66°) between I atom and H atom of the phenyl unit, which is in the expected range (H···I < 3.35 Å and Y···I > 130°) [3436]. When taking into account the lateral interconnection between double helices, the overall structure may be described as a 3-D coordination network (Figure 4). Finally, it should be pointed out that related bis-monodentate Schiff bases L3 and L4 have been used to prepare interesting triple or double helices [37,38].
The ditopic ligand L2, contains a long rigid spacer of three fused rings and two freely-rotating pyridyl arms. It may take on either a cis-conformation to act as a ‘U’ type ligand or a transconformation to act as a ‘Z’ type ligand. Reaction of L2 with HgI2 in a DMF–MeOH mixture resulted in the complex 2, [HgI2(L2)·0.4CH3OH], where single crystals suitable for X-ray diffraction grew on the wall of the tube containing the reaction mixture of L2 and HgI2.
As shown in Figure 5, each ligand coordinates to two Hg(II) ions and each Hg(II) ion is coordinated by two L2 to generate the 1D zigzag chains, which are parallel with each other. All the 1D chains are stacked parallel along the a axis (Figure 6), and they are separated by 6.226 Å along the b axis and 6.542 Å along the c axis; these values are equal to the unit cell parameter b and one third of the length of the unit cell parameter c, respectively. The nearest inter-chain Hg···Hg separation, 10.951 Å, is almost the same as the unit cell parameter a, whereas the nearest Hg···Hg separation in each zigzag chain is 18.013 Å. The Hg(II) is in a distorted tetrahedral geometry with its coordination sphere completed by two I– anions. The two Hg–I distances (dHg–I = 2.640 Å) are virtually equivalent, as are the two Hg– N bond distances (dHg–N = 2.426 Å). The N–Hg–N angle, which is 89.27°, is dramatically smaller than the I–Hg–I angle, which is 142.64°, and IHgN angle varies between 98.29° and 108.16°. The two ligands coordinated to the same Hg(II) ion are crystallographically independent, and each possesses a crystallographic inversion center that is situated in the middle of the central benzene ring. As a result, both adopt a distorted ‘Z’ conformation, where the two pyridyl units of L2 are parallel with each other.
Unlike related semirigid ditopic ‘Z’ type ligand L5, which can self-assemble with HgI2 and afford the zigzag chains that interweave into an interesting clothlike 2D network in a ‘two-over/two-under’ (2O/2U) fashion [39], L2 can self-assemble with HgI2 and generate the 1D zigzag chains. The result may be related to their symmetry and flexibility: L2 has lower symmetry and more rigidity than L5.
In L1, the central ether oxygen atom can introduce enhanced flexibility into the ligand backbone, as suggested by Hannon et al.[37], and this enhanced flexibility permits the ligand to support helical chain arrays, thus 1 forms an interestingly infinite cross-linked double helical structure, whereas in L2, the central benzene ring may increase the rigidity, thus 2 forms the one-dimensional zigzag chains.
In conclusion, by using bis-monodentate ligands, the formation of two coordination polymers was demonstrated. The one forms an interestingly infinite cross-linked double helical structure through weak hydrogen bonding (C–H···I), whereas another forms the one-dimensional zigzag chains, which are parallel with each other. The results may be related to the flexibility of ligands.

3. Experimental Section

3.1. Synthesis of the Complex

Preparation of [HgI2(L1)·0.5H2O](1): A solution of L1 (12 mg) in 3 mL DMF was slowly mixed with a solution of HgI2 (12 mg) in 10 mL MeOH. The resulting mixture was left standing for several days to give a colorless crystalline product. Yield: 60%. 1H NMR (ppm, DMSO-d6): 8.731 (s, CH=N), 7.865(d, Hpy), 7.432 (d, Hph), 7.120 (d, Hph). IR (cm−1, KBr): 3423w, 3034w, 2887w, 1624w, 1605m, 1581m, 1492s, 1417m, 1367w, 1321w, 1282w, 1243s, 1207w, 1157m, 1058m, 1008m, 872w, 837m, 817w, 714w, 544m. Preparation of [HgI2(L2)·0.4CH3OH](2): A solution of L2 (12 mg) in 3 mL DMF was slowly mixed with a solution of HgI2 (12 mg) in 10 mL MeOH. The resulting mixture was left standing for several days to give a colorless crystalline product. Yield: 60%. 1H NMR (ppm, DMSOd6): 8.617 (s, Hpy), 8.502 (d, Hpy), 8.259 (s, Hph), 7.956 (s, Hph), 7.791 (d, Hpy), 7.402 (m, Hpy), 4.878 (s, CH2). IR (cm−1, KBr): 3468w, 3033w, 1771m, 1714s, 1672m, 1391s, 1347m, 1313m, 1194w, 1157w, 1093m, 931w, 796w, 733m, 704w, 558w.

3.2. X-ray Crystallographic Analysis

Crystal data for [HgI2(L1)·0.5H2O](1): HgI2C24H19N4O1.5, M = 841.81, orthorhombic, a = 32.096(6), b = 9.2588(19), c = 17.656(4) Å, U = 5246.8(18) Å3, T = 293(2) K, space group Pcca, Z = 8, Dc = 2.126 gcm−3, μ (Mo Kα) = 8.245 mm−1, crystal size 0.51 × 0.27 × 0.23 mm. Final refinement statistics: R1 = 0.0269, wR2 = 0.0627, and GOF = 1.003 for 3938 reflections with I > 2σ (I). Crystal data for [HgI2(L2)·0.4CH3OH](2): HgI2C22.4H15.6N4O4.4, M = 865.58, Monoclinic, a = 10.812(2), b = 6.2260(12), c = 19.627(4) Å, β = 98.11(3)°, U = 1308.1(4) Å3, T = 293(2) K, space group P2/n, Z = 2, Dc = 2.198 gcm−3, μ (Mo Kα) = 8.279 mm−1, crystal size 0.31 × 0.15 × 0.10 mm. Final refinement statistics: R1 = 0.0428, wR2 = 0.1071, and GOF = 1.037 for 2998 reflections with I > 2σ(I).The diffraction data were collected on a Rigaku RAXISRAPID automated diffractometer at room temperature using graphite-monochromated Mo Kα radiation (λ = 0.71073 Å). The structure was solved by direct methods and successive difference maps (SHELXS 97) [40] and refined by full-matrix least squares on F2 using all uniqe data (SHELXL 97) [41]. CCDC-270022 – CCDC-270023 the supplementary crystallographic data for this paper. These data can be obtained free of charge from the Cambridge Crystallographic Data Centre, 12 Union Road, Cambridge, CB2 1EZ, UK; Fax: (+44) 1223-336033; or [email protected].

Acknowledgements

The authors thank the National Natural Science Foundation ((Nos. 20103008, 20573116, 50478117 and 50568001) and the Foundation of the Chinese Academy of Sciences for financial support.

References and Notes

  1. Leininger, S.; Olenyuk, B.; Stang, P. J. Chem. Rev 2000, 100, 853–908.
  2. Reineke, T. M.; Eddaoudi, M.; Moler, D.; O’Keeffe, M.; Yaghi, O. M. J. Am. Chem. Soc 2000, 122, 4843–4844.
  3. Chen, B.; Eddaoudi, M.; Reineke, T. M.; Kampf, J. W.; O’Keeffe, M.; Yaghi, O. M. J. Am. Chem. Soc 2000, 122, 11559–11560.
  4. Li, H. L.; Eddaoudi, M.; Gory, T. L.; Yaghi, O. M. J. Am. Chem. Soc 1998, 120, 8571–8572.
  5. Li, H. L.; Eddaoudi, M.; Plevert, J.; O’Keeffe, M.; Yaghi, O. M. J. Am. Chem. Soc 2000, 122, 12409–12410.
  6. Cotton, F. A.; Dikarev, E. V.; Petrukhina, M. A. Angew. Chem., Int. Ed 2001, 40, 1521–1523.
  7. Cotton, F. A.; Lin, C.; Murillo, C. A. J. Chem. Soc Dalton Trans 2001, 499–501.
  8. Cotton, F. A.; Lin, C.; Murillo, C. A. Chem. Commun 2001, 11–12.
  9. Fujita, M.; Umemoto, K.; Yoshizawa, M.; Fujita, N.; Kusukawa, T.; Biradha, K. Chem. Commun 2001, 509–510.
  10. Batten, S. R.; Robson, R. Angew. Chem. Int. Ed 1998, 37, 1460–1494.
  11. Moulton, B.; Zaworotko, M. J. Curr. Opi. Solid State Mater. Sci 2002, 6, 117–123.
  12. Steed, J. W.; Atwood, J. L. Supramolecular Chemistry; Wiley: New York, 2000. [Google Scholar]
  13. Piguet, C.; Bernardinelli, G.; Hopfgartner, G. Chem. Rev 1997, 97, 2005–2062.
  14. Albrecht, M. Chem. Rev 2001, 101, 3457–3497.
  15. Field, J. E.; Venkataraman, D. Chem. Commun 2002, 306–307.
  16. Meurer, K. P.; Vögtle, F. Top. Curr. Chem 1985, 127, 1–28.
  17. Watson, J. D.; Crick, F. C. H. Nature 1953, 171, 737–738.
  18. Wu, H.-C. H.; Sarko, A. Carbohydr. Res 1978, 61, 27–40.
  19. Fersht, A. Structure and Mechanism in Protein Science; W.H. Freeman: New York, 1998. [Google Scholar]
  20. Berl, V.; Huc, I.; Khoury, R. G.; Krische, M. J.; Lehn, J.-M. Nature 2000, 407, 720–723.
  21. Hanessian, S.; Gomtsyan, A.; Simard, M.; Roelens, S. J. Am. Chem. Soc 1994, 116, 4495–4496.
  22. Hanessian, S.; Simard, M.; Roelens, S. J. Am. Chem. Soc 1995, 117, 7630–7645.
  23. Rowan, I. E.; Nolte, R. J. M. Angew. Chem. Int. Ed. Engl 1998, 37, 62–68.
  24. Feiters, M. C.; Nolte, R. J. M. Adv. Supramol. Chem 2000, 6, 41–156.
  25. Lehn, J.-M. Chem. Eur. J 2000, 6, 2097–2102.
  26. Comprehensive Supramolecular Chemistry; Atwood, J. L.; Davies, J. E. D.; MacNicol, D. D.; Vögtle, F. Pergamon (Eds.) 1996; Volume 9, p. 213.
  27. Munakata, M.; Wu, L.P.; Kuroda-Sowa, T. Adv. Inorg. Chem 1999, 46, 173–303.
  28. Jung, O.-K.; Kim, Y. J.; Lee, Y.-A.; Park, J. K.; Chae, H. K. J. Am. Chem. Soc 2000, 122, 9921–9925.
  29. Jung, O.-K.; Kim, Y. J.; Lee, Y.-A.; Park, J. K.; Chae, H. K.; Jang, H. G.; Hong, J. Inorg. Chem 2001, 40, 2105–2110.
  30. Zeng, Q. D.; Wu, D. X.; Liu, C. M.; Ma, H. W.; Lu, J.; Xu, S. D.; Li, Y.; Wang, C.; Bai, C. L. Cryst. Growth Des 2005, 5, 1041–1047.
  31. Zeng, Q. D.; Wu, D. X.; Wang, C.; Ma, H. W.; Lu, J.; Liu, C. M.; Xu, S. D.; Li, Y.; Bai, C. L. Cryst. Growth Des 2005, 5, 1889–1896.
  32. Zeng, Q. D.; Wu, D. X.; Wang, C.; Lu, J.; Ma, B. C.; Shu, C. Y.; Ma, H. W.; Li, Y.; Bai, C. L. CrystEngComm 2005, 7, 243–248.
  33. Lü, X. Q.; Jiang, J. J.; Zhang, L.; Chen, C. L.; Su, C. Y.; Kang, B.S. Cryst. Growth Des 2005, 5, 419–421.
  34. Horn, C. J.; Blake, A. J.; Champness, N. R.; Garau, A.; Lippolis, V.; Wilson, C.; Schröder, M. Chem. Commun 2003, 312–313.
  35. Steiner, T. Angew. Chem. Int. Ed 2002, 41, 48–76.
  36. Horn, C. J.; Blake, A. J.; Champness, N. R.; Lippolis, V.; Schröder, M. Chem. Commun 2003, 1488–1489.
  37. Hannon, M. J.; Painting, C. L.; Jackson, A.; Hamblin, J.; Errington, W. Chem. Commun 1997, 1807–1808.
  38. He, C.; Duan, C. Y.; Fang, C. J.; Meng, Q. J. J. Chem. Soc. Dalton Trans 2000, 2419–2424.
  39. Li, Y. H.; Su, C. Y.; Goforth, A. M.; Shimizu, K. D.; Gray, K. D.; Smith, M. D.; zur Loye, H. C. Chem. Commun 2003, 1630–1631.
  40. Sheldrick, G. M. SHELXS 97, Program for the Solution of Crystal Structure; University of Göttingen, 1997. [Google Scholar]
  41. Sheldrick, G. M. SHELXL 97, Program for the Refinement of Crystal Structure; University of Göttingen, 1997. [Google Scholar]

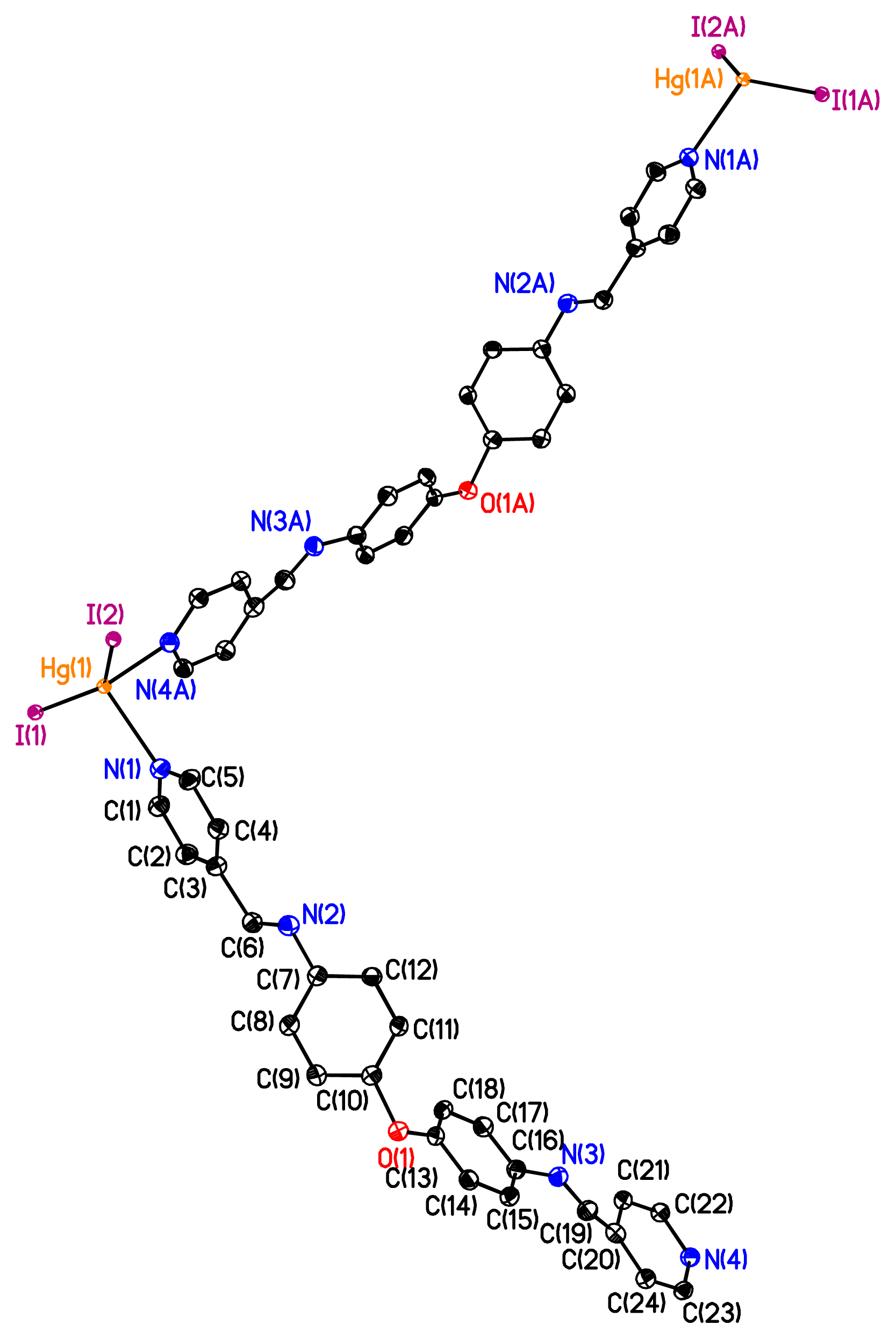

Figure 1. Molecular structure of 1 showing coordination geometry of Hg(II) ion. Hg(1)-N(1) 2.488(3), Hg(1)-N(4)#1 2.34(2), Hg(1)-I(1) 2.6588(6), Hg(1)-I(2) 2.6531(5) Å, N(4)#1-Hg(1)-N(1) 94.6(12), N(4)#1-Hg(1)-I(1) 100.5(11), N(1)-Hg(1)-I(1) 105.84(9), N(4)#1-Hg(1)-I(2) 103.0(9), N(1)-Hg(1)-I(2) 98.96(9), I(1)-Hg(1)-I(2) 144.044(14)°, symmetry code 1 = x−1/2, −y, −z+1/2.
Figure 1. Molecular structure of 1 showing coordination geometry of Hg(II) ion. Hg(1)-N(1) 2.488(3), Hg(1)-N(4)#1 2.34(2), Hg(1)-I(1) 2.6588(6), Hg(1)-I(2) 2.6531(5) Å, N(4)#1-Hg(1)-N(1) 94.6(12), N(4)#1-Hg(1)-I(1) 100.5(11), N(1)-Hg(1)-I(1) 105.84(9), N(4)#1-Hg(1)-I(2) 103.0(9), N(1)-Hg(1)-I(2) 98.96(9), I(1)-Hg(1)-I(2) 144.044(14)°, symmetry code 1 = x−1/2, −y, −z+1/2.
Ijms 08 00029f1

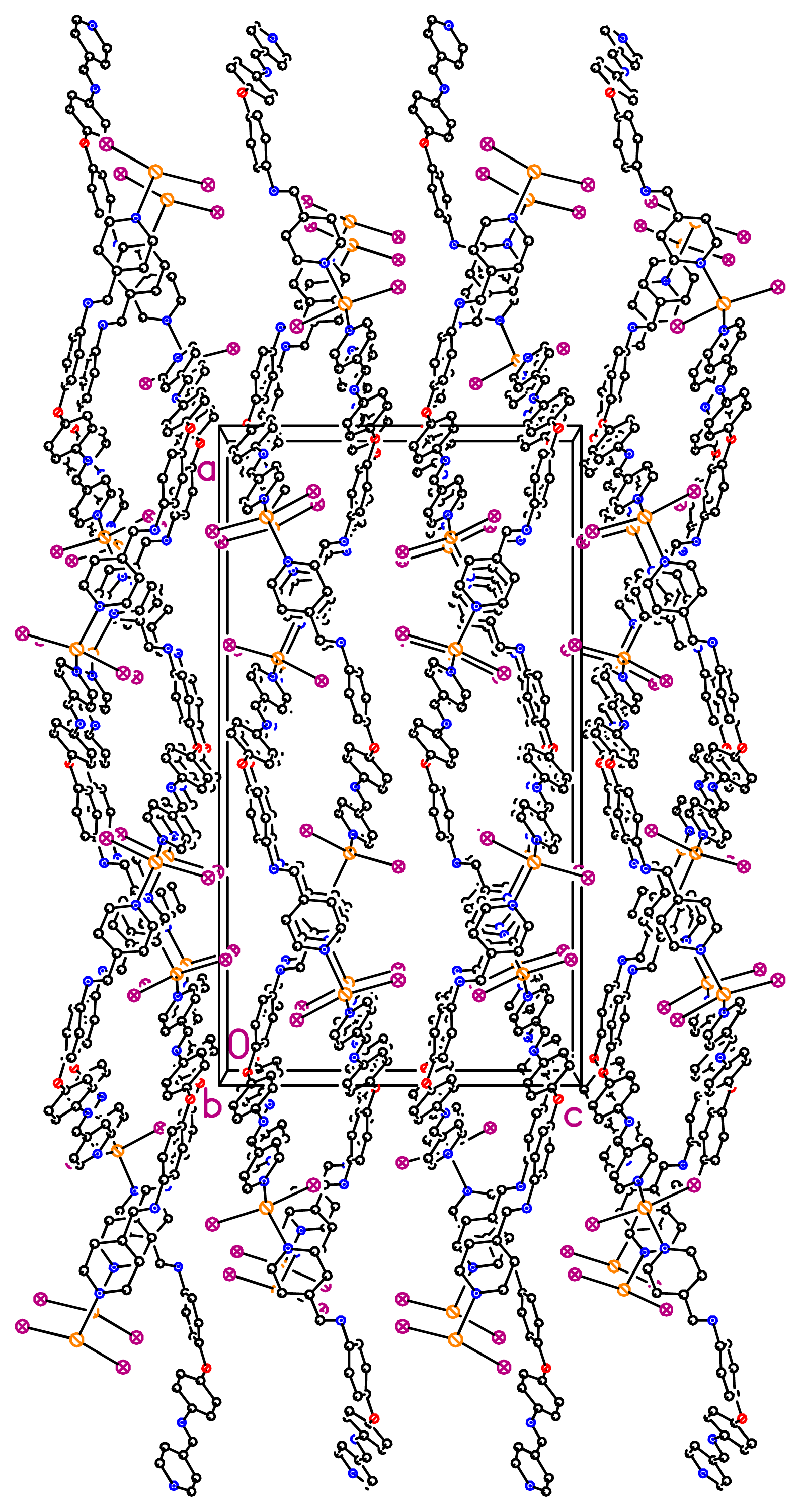

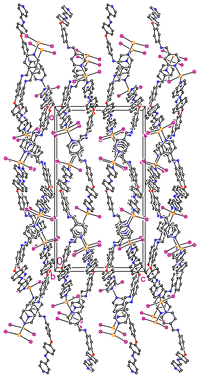

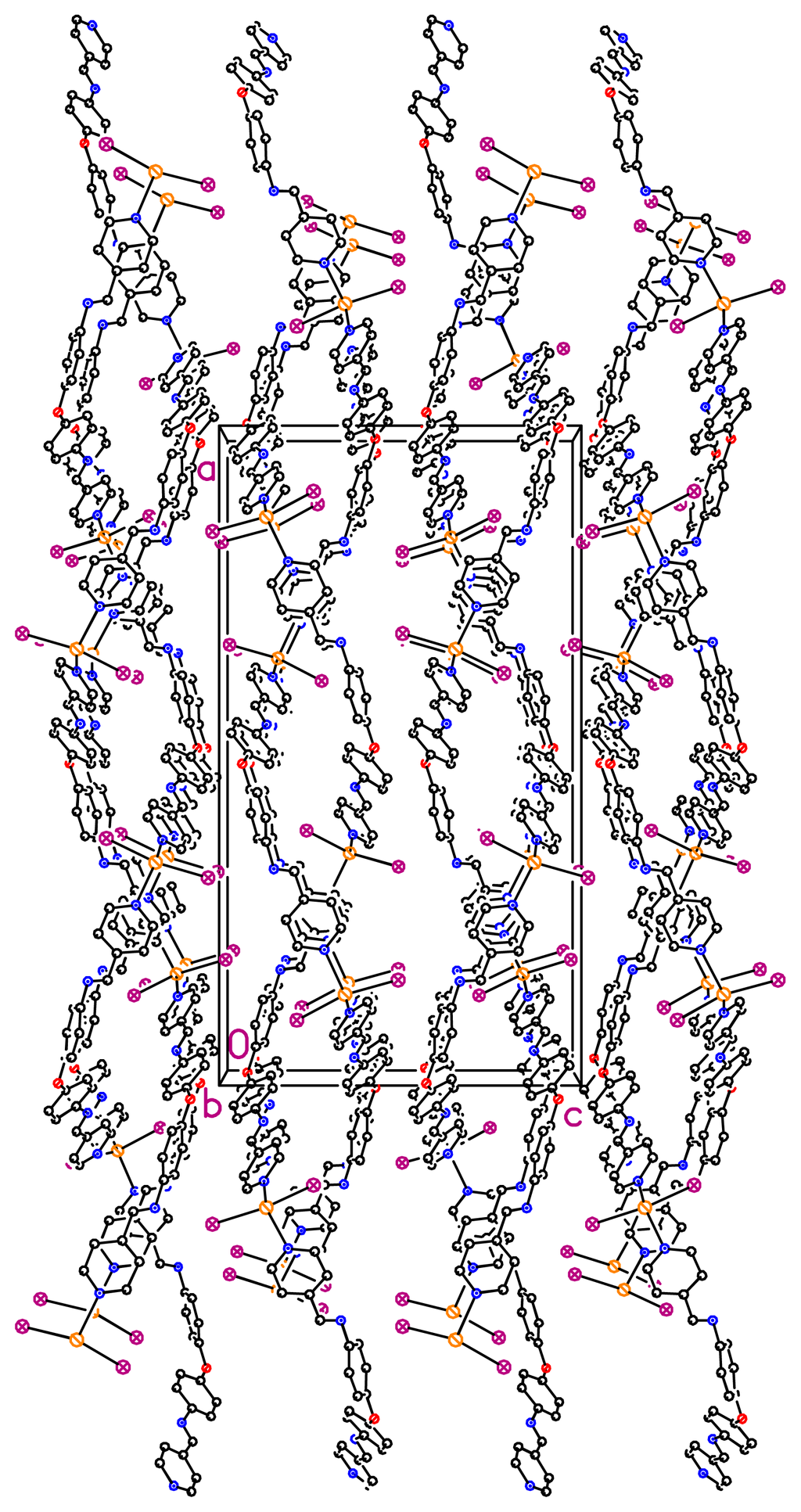

Figure 2. The polymeric double helix structure in 1. H atoms and solvent molecule are omitted for clarity.
Figure 2. The polymeric double helix structure in 1. H atoms and solvent molecule are omitted for clarity.
Ijms 08 00029f2

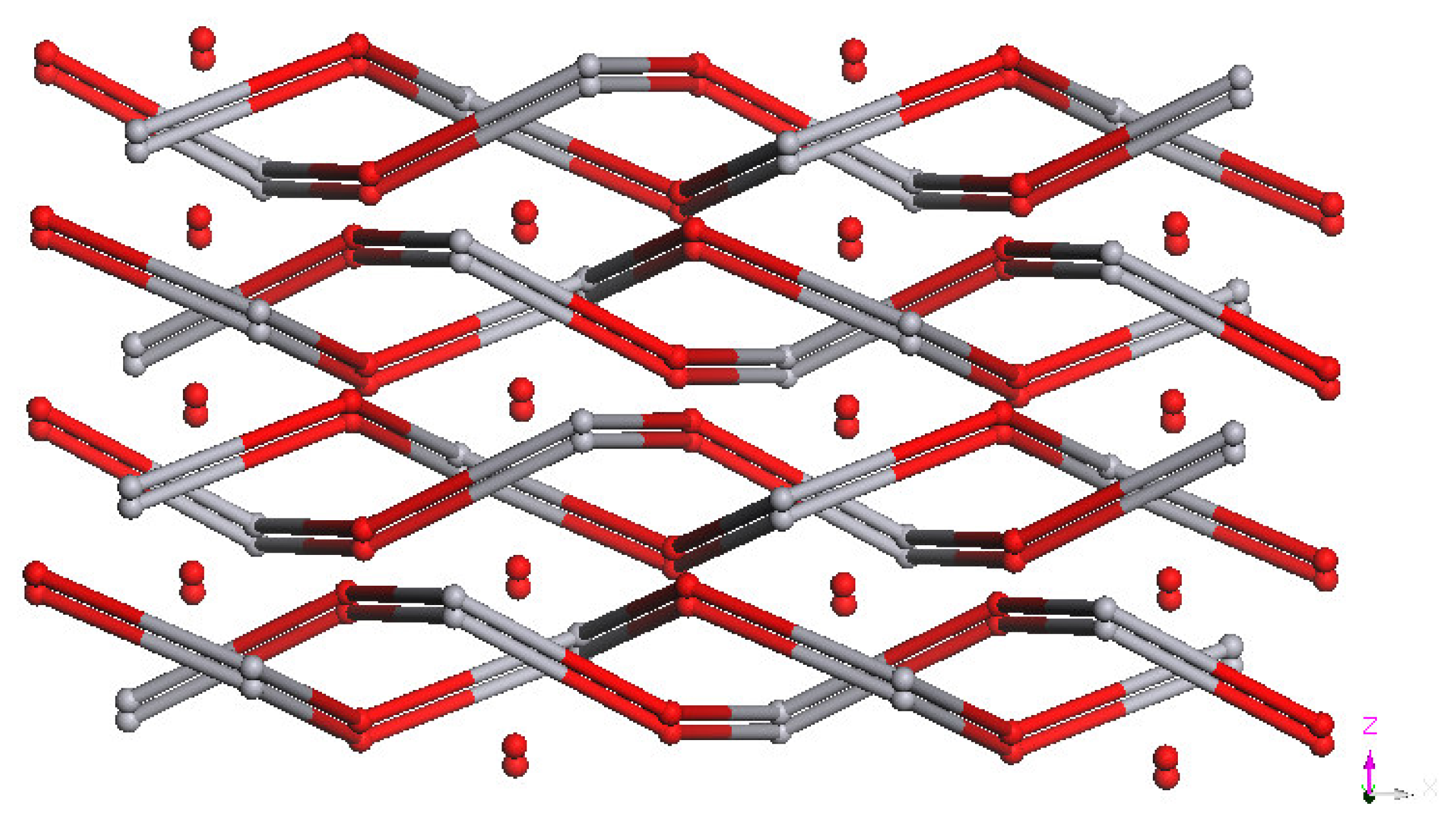

Figure 3. Schematic representation of double stranded helices in 1 along [001]. Red balls represent O atoms and grey balls represent Hg atoms.
Figure 3. Schematic representation of double stranded helices in 1 along [001]. Red balls represent O atoms and grey balls represent Hg atoms.
Ijms 08 00029f3

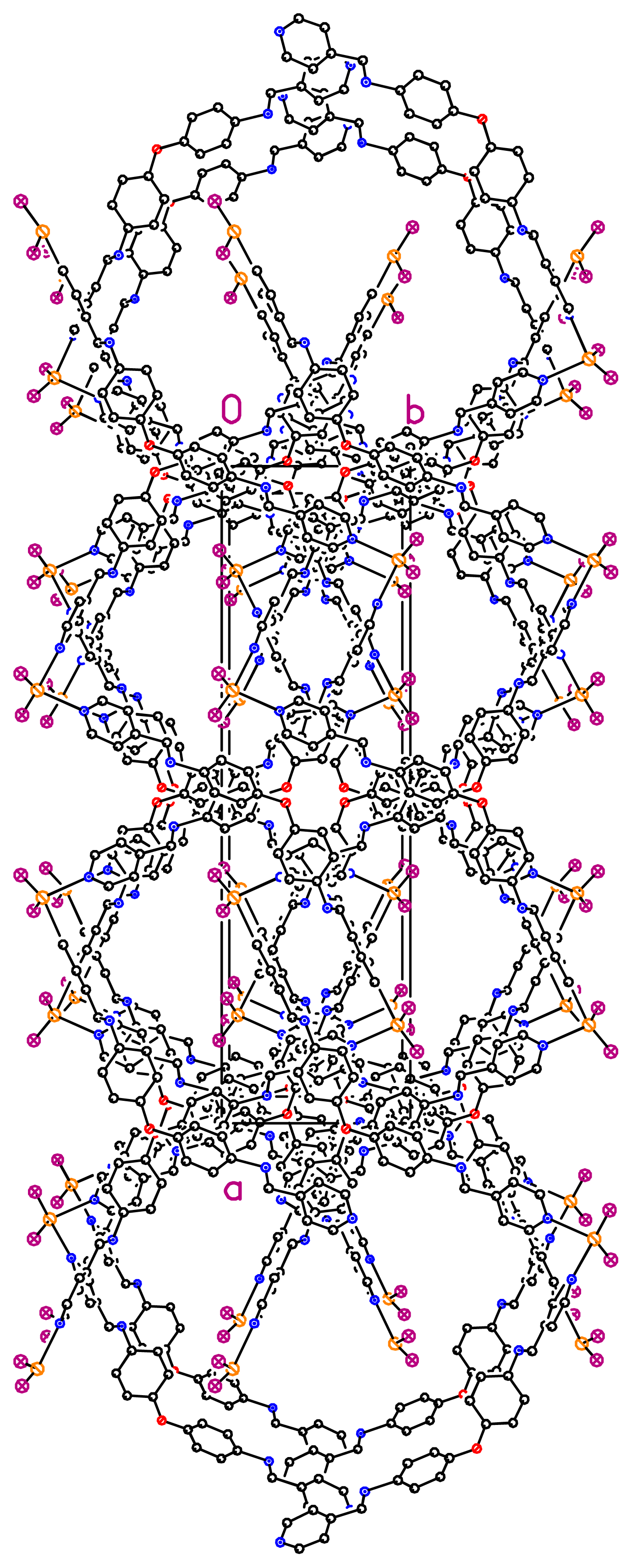

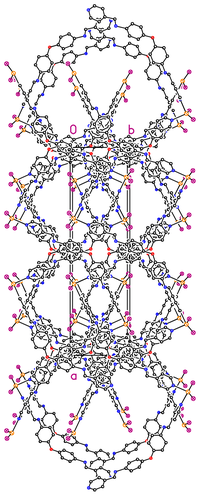

Figure 4. A parallel view on the lateral packing of double stranded helices in 1 and their interconnection leading to a coordination network. H atoms and solvent molecule are omitted for clarity.
Figure 4. A parallel view on the lateral packing of double stranded helices in 1 and their interconnection leading to a coordination network. H atoms and solvent molecule are omitted for clarity.
Ijms 08 00029f4

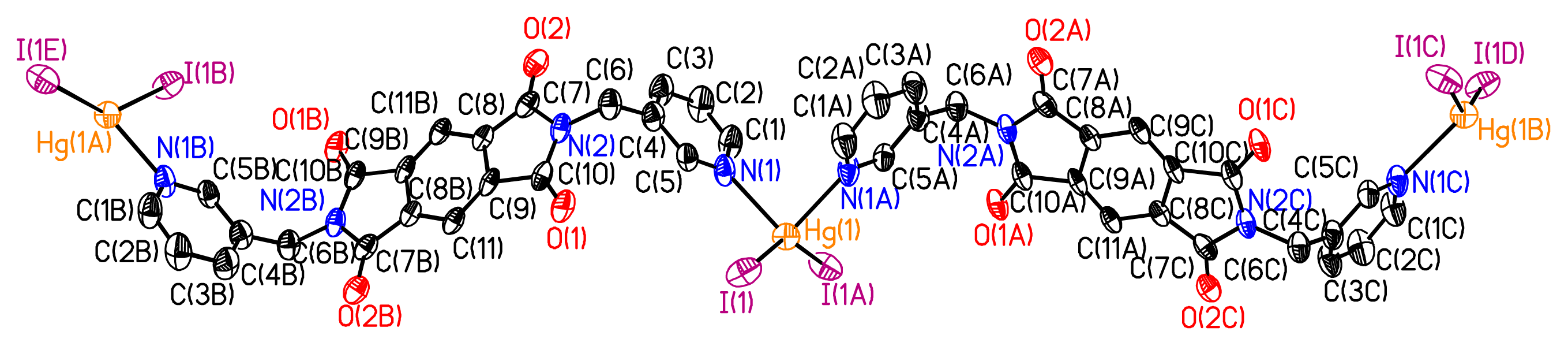

Figure 5. Molecular structure of 2 showing coordination geometry of Hg(II) ion. Hg(1)-N(1)#1 2.426(7), Hg(1)-N(1) 2.426(7), Hg(1)-I(1) 2.6402(7), Hg(1)-I(1)#1 2.6402(7) Å, N(1)#1-Hg(1)-N(1) 89.3(3), N(1)#1-Hg(1)-I(1) 108.16(15), N(1)-Hg(1)-I(1) 98.29(14), N(1)#1-Hg(1)-I(1)#1 98.29(14), N(1)-Hg(1)-I(1)#1 108.16(15), I(1)-Hg(1)-I(1)#1 142.64(3)°, symmetry code 1 = −x+3/2, y, −z+1/2.
Figure 5. Molecular structure of 2 showing coordination geometry of Hg(II) ion. Hg(1)-N(1)#1 2.426(7), Hg(1)-N(1) 2.426(7), Hg(1)-I(1) 2.6402(7), Hg(1)-I(1)#1 2.6402(7) Å, N(1)#1-Hg(1)-N(1) 89.3(3), N(1)#1-Hg(1)-I(1) 108.16(15), N(1)-Hg(1)-I(1) 98.29(14), N(1)#1-Hg(1)-I(1)#1 98.29(14), N(1)-Hg(1)-I(1)#1 108.16(15), I(1)-Hg(1)-I(1)#1 142.64(3)°, symmetry code 1 = −x+3/2, y, −z+1/2.
Ijms 08 00029f5

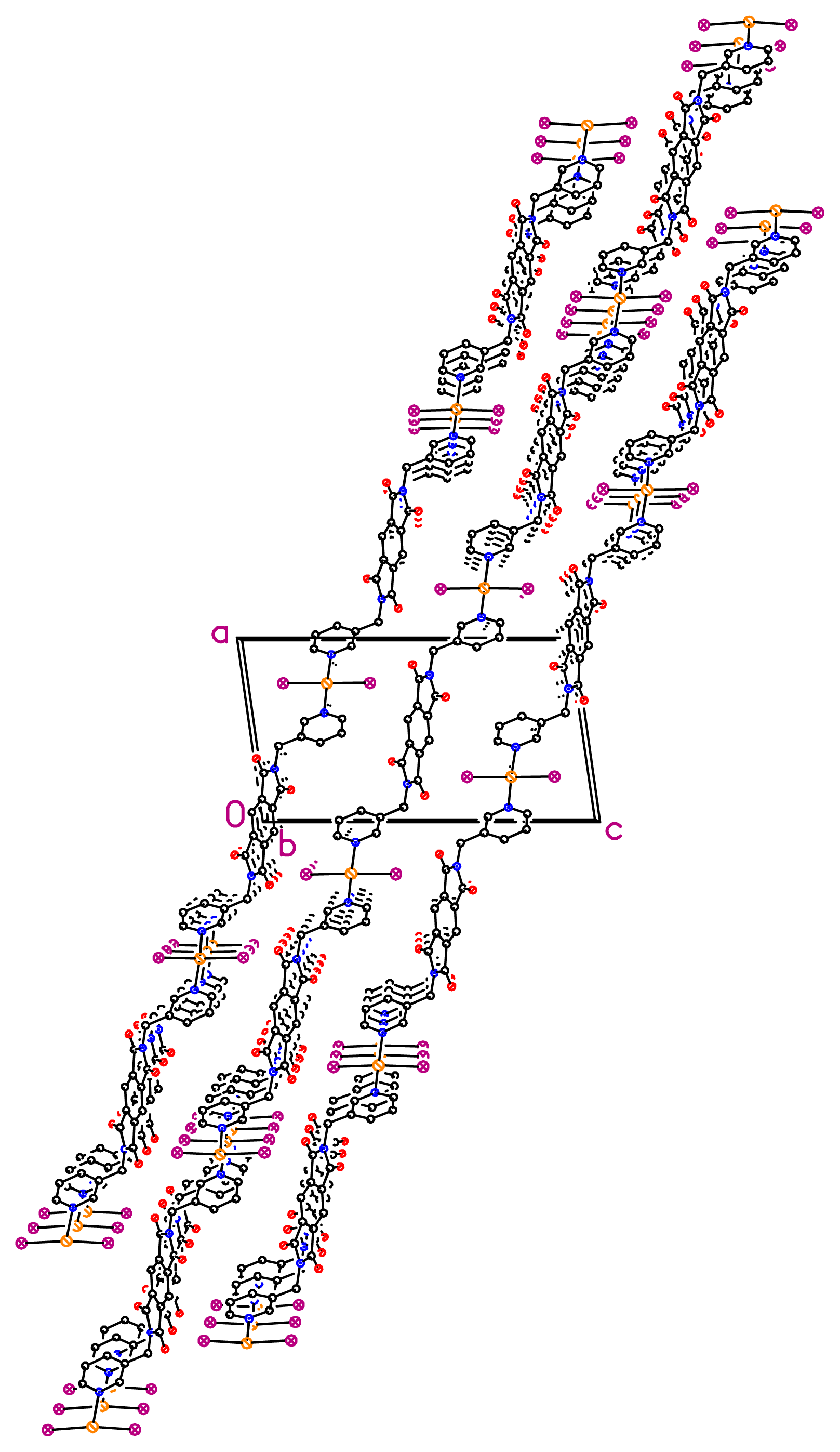

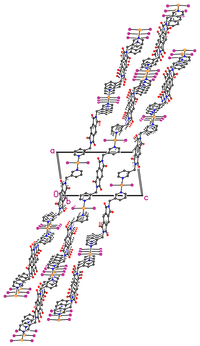

Figure 6. The zigzag polymer chain in complex 2. H atoms and solvent molecule are omitted for clarity.
Figure 6. The zigzag polymer chain in complex 2. H atoms and solvent molecule are omitted for clarity.
Ijms 08 00029f6

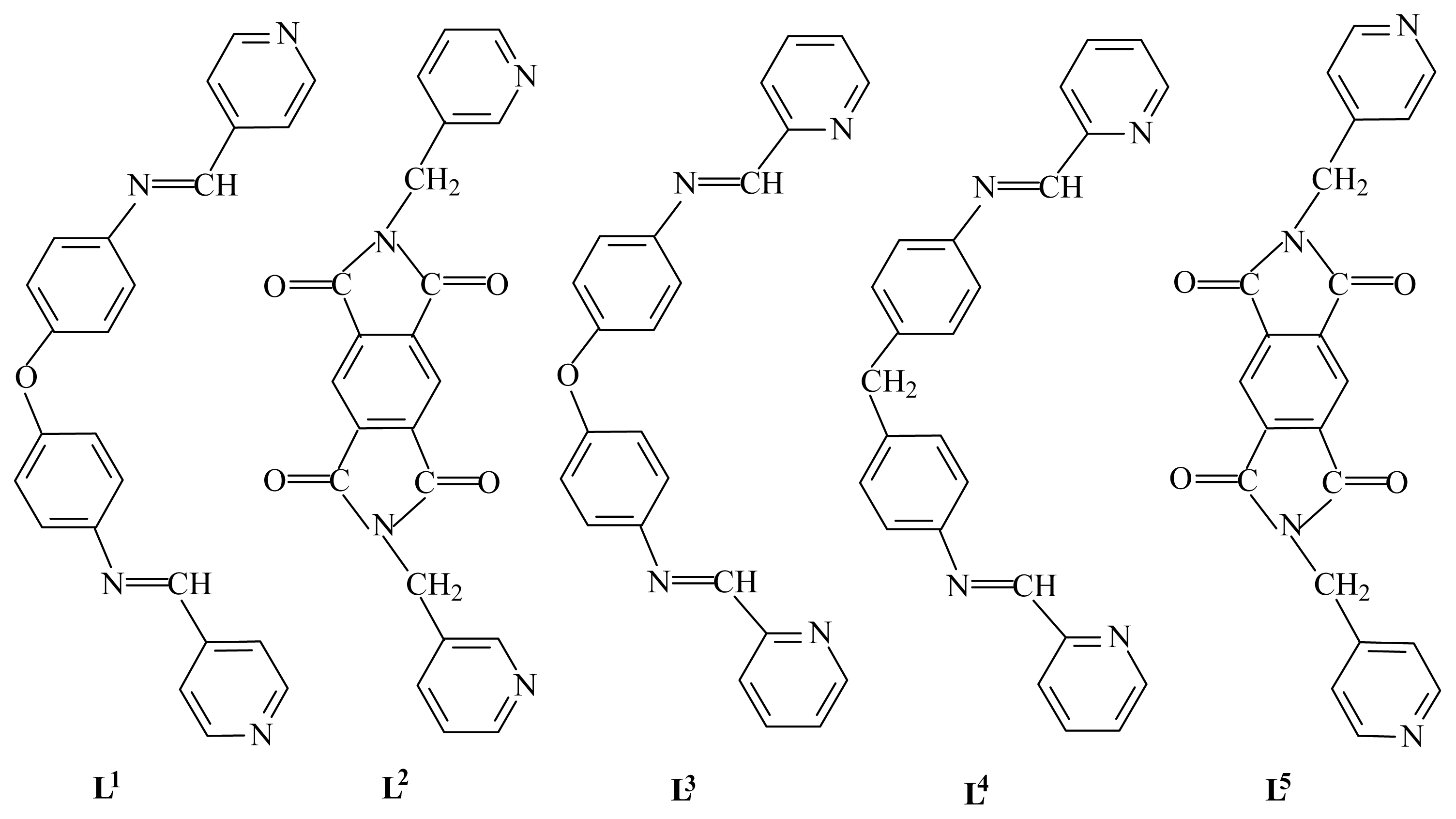

Chart 1.
