Pan-Genome Analysis of TIFY Gene Family and Functional Analysis of CsTIFY Genes in Cucumber

by
Kun Liu
1,
Haiyu Xu
1,
Xinbin Gao
2,
Yinghao Lu
1,
Lina Wang
1,
Zhonghai Ren
1 and
Chunhua Chen
1,*
1
College of Horticulture Science and Engineering, Shandong Agricultural University, Tai’an 271018, China
2
College of Horticulture, Northwest A and F University, Yangling 712100, China
*
Author to whom correspondence should be addressed.
Int. J. Mol. Sci. 2024, 25(1), 185; https://doi.org/10.3390/ijms25010185
Submission received: 24 November 2023 / Revised: 18 December 2023 / Accepted: 20 December 2023 / Published: 22 December 2023
(This article belongs to the Special Issue Plant Genomics and Genome Editing 2.0)
Browse Figures
Versions Notes

Abstract

:
Cucumbers are frequently affected by gray mold pathogen Botrytis cinerea, a pathogen that causes inhibited growth and reduced yield. Jasmonic acid (JA) plays a primary role in plant responses to biotic stresses, and the jasmonate-ZIM-Domain (JAZ) proteins are key regulators of the JA signaling pathway. In this study, we used the pan-genome of twelve cucumber varieties to identify cucumber TIFY genes. Our findings revealed that two CsTIFY genes were present in all twelve cucumber varieties and showed no differences in protein sequence, gene structure, and motif composition. This suggests their evolutionary conservation across different cucumber varieties and implies that they may play a crucial role in cucumber growth. On the other hand, the other fourteen CsTIFY genes exhibited variations in protein sequence and gene structure or conserved motifs, which could be the result of divergent evolution, as these genes adapt to different cultivation and environmental conditions. Analysis of the expression profiles of the CsTIFY genes showed differential regulation by B. cinerea. Transient transfection plants overexpressing CsJAZ2, CsJAZ6, or CsZML2 were found to be more susceptible to B. cinerea infection compared to control plants. Furthermore, these plants infected by the pathogen showed lower levels of the enzymatic activities of POD, SOD and CAT. Importantly, after B. cinerea infection, the content of JA was upregulated in the plants, and cucumber cotyledons pretreated with exogenous MeJA displayed increased resistance to B. cinerea infection compared to those pretreated with water. Therefore, this study explored key TIFY genes in the regulation of cucumber growth and adaptability to different cultivation environments based on bioinformatics analysis and demonstrated that CsJAZs negatively regulate cucumber disease resistance to gray mold via multiple signaling pathways.

1. Introduction

Throughout their lifecycle, plants often encounter various abiotic and biotic stresses, such as drought, salt, temperature stress and infection by pathogens (bacterial, fungal, or oomycete and so on) [1,2,3,4]. Plant transcription factors (TFs), including members of the NAC, MYB, WRKY, TIFY, AP2/ERF, and bZIP families, act as important components in plant tolerance against various stresses by mediating plant physiological and biochemical processes [5,6,7,8,9,10,11].
The TIFY gene family consists of plant-specific TFs that contain a highly conserved motif TIF[F/Y]XG. This motif is located within a TIFY domain, which spans approximately 36 amino acids (aa). According to the domain structure, they can be divided into four subfamilies, namely, TIFY, PEAPOD (PPD), jasmonate-ZIM-domain (JAZ), and ZIM-like (ZML) [12,13]. Among them, PPD, JAZ, and ZML subfamilies contain more than one domain. Except for the TIFY domain, the PPD subfamily proteins contain a PPD domain and a truncated JA-associated (Jas, also named CCT-2) domain lacking the conserved Proline-Tyrosine (PY) at the C-terminus [14]; the JAZ subfamily contains a Jas domain [15]; the ZIM/ZML subfamily contains a CCT (CONSTANS, CO-like and TOC1) domain and a C2C2-GATA zinc-finger domain [16,17]. Until now, the identification of TIFY genes has been performed in many species, including Arabidopsis thaliana [17], Glycine soja [18], Solanum lycopersicum [19], Brassica oleracea, Pyrus pyrifoli [20], Oryza sativa [21], Triticum aestivum [22], and Zea mays [12].
A number of studies have demonstrated that TIFY TFs are involved in plant developmental processes and hormonal responses. For example, TdTIFY11a was highly induced by salt treatment, and over-expressing TdTIFY11a promoted the germination and growth rates of wheat plants under high-salinity conditions [22]. The JAZ genes are perhaps the best-characterized members, and they seem to play a crucial role in the pathway of jasmonic acid (JA) [15,23]. JA is well known as the hormone that regulates plant defenses to biotic stresses (such as necrotrophic pathogens, fungi, insect and nematodes) and abiotic stresses (such as wounding, UV light, and water deficit) [24,25,26]. In Arabidopsis, the TFs MYC3 and MYC4 are two targets of JAZ repressors, and they contribute to the activation of JA-dependent defenses against Spodoptera littoralis. Contrary to MYC3 and MYC4, which trigger a strong defense response to S. littoralis, single myc3 and myc4 mutants showed an enhanced resistance to the hemibiotrophic pathogen Pseudomonas syringae pv tomato DC3000 [9]. The JAZ7 activation-tagged Arabidopsis mutant showed increased susceptibility to the fungal pathogen Fusarium oxysporum [27]. Additionally, JAZ7-overexpressing plants exhibited a strong drought-tolerance phenotype [28]. In addition, JAZs could directly interact with the MYB family in Rosa chinensis. JAZ1, a key repressor of JA signaling, directly interacts with RcMYB84, and this JAZ1-RcMYB84 complex binds to the promoter of RcMYB123, inhibiting its transcription. When treatment with JA, JAZ1 was degraded, RcMYB84 and RcMYB123, which activate the plant’s defense responses against fungal pathogen Botrytis cinerea, were released [29]. In soybean, overexpression of a TIFY family gene, GsJAZ2, enhanced tolerance to alkaline stress [30].
Cucumber (Cucumis sativus L.), an economically important vegetable crop, is an annual climbing plant and produces edible tender fruits. Cucumbers are commonly cultivated in greenhouses due to their preference for warm temperatures. Because of the high humidity in greenhouses, they frequently encounter many different types of pathogens, including bacterial, viral, fungal, and oomycete, that severely prevent growth and may have a great impact on production [31,32,33]. Of these, Botrytis cinerea is the causal agent of gray mold, which is one of the top 10 fungal plant pathogens and causes severe damage, both pre- and post-harvest. B. cinerea is a necrotrophic pathogen with a broad host range, infecting more than 200 types of plants [34,35,36]. Previous studies suggested that enhancing the tolerance of cucumber cultivars was an efficient strategy for disease control [33]. Thus, studying the genes involved in the regulation of the gray mold pathogen resistance response is important for enhancing the economic value of cucumber production. Given that the TIFY TFs play an important role in regulating plant defenses and stress responses, there is growing interest in identifying functional CsTIFY genes that regulate resistance responses of cucumber plants against the infection of B. cinerea. Based on the cucumber 9930 genome v2.0, seventeen CsTIFY genes have been identified [37], but a comprehensive understanding of the TIFY family in different cucumber varieties remains incomplete.
There has been a growing awareness that single reference genomes do not reflect the diversity within a species [38,39,40,41]. Therefore, the pan-genome, originally proposed in bacteria, is now widely used in plant, fungal, and animal genomics to assess genetic diversity within species [39,40,41,42]. In cucumber, a graph-based pan-genome was built by analyzing twelve chromosome-scale genome assemblies [43]. In this study, a new genome-wide identification of TIFY genes was performed using this cucumber pan-genome. Furthermore, we investigated the crucial genes involved in the response to gray mold in cucumber, offering potential for developing resistant cucumber varieties against gray mold disease.

2. Results

2.1. Identification of TIFY Genes Based on Cucumber Pan-Genome

In a previous study, seventeen TIFY genes were identified in the cucumber 9930 genome v2.0 [37]. Given that a cucumber pan-genome was built by analyzing twelve cucumber varieties’ genome assemblies [43], the new identification of CsTIFY genes was performed based on this pan-genome. Consistent with the previous study, seventeen putative TIFY genes were identified in the cucumber 9930 genome v2.0 using a Hidden Markov Model (HMM) search with the TIFY domain (PF06200) (Table 1). These genes were confirmed to contain TIFY domains according to Pfam and SMART analysis. However, one TIFY gene named CsJAZ6 in the previous study was removed due to the lack of a conserved TIFY domain. Additionally, TIFY gene 1G435720, previously named CsJAZ2, was not identified in 9930 cucumber genome v3.0 and genomes of other cucumber varieties. The genome assembly of 9930 in v3.0 was of a higher quality and more complete than that in v2.0. Therefore, fifteen TIFY genes identified in the genome v3.0 of cucumber 9930 were used in this study. There were sixteen CsTIFY genes obtained in XTMC, Cu2, Cuc37, Cuc64, W4, Hx117, and 9110gt (Table 1), which had one more gene, CsJAZ9, than in cucumber 9930. Additionally, fifteen CsTIFY genes were also identified in Hx14 and Gy14, including CsJAZ9, but lack CsJAZ4 and CsTIFY2, respectively. In cucumber W8, CsJAZ9 was not found, but two CsJAZ5 genes (5G044750 and UNG162140.1) were identified, named CsJAZ5-1 and CsJAZ5-2, respectively. The number of TIFY genes in cucumber Cuc80 was the lowest, with only thirteen TIFY genes identified (Table 1). To construct a phylogenetic tree, the amino acid sequences of TIFY TFs from Arabidopsis and twelve cucumber varieties were used. In Arabidopsis, TIFY proteins were classified into eight groups, including TIFY, PPD, AML, and JAZ I-V [12]. As shown in Figure 1, cucumber TIFY proteins could be categorized into seven clades based on the classifications of TIFYs in Arabidopsis, with the exception of clade JAZ V, which was not observed in the TIFY proteins of cucumber.
In order to investigate whether there was genetic diversity for CsTIFY genes within different cucumber varieties, the lengths of CsTIFY proteins were analyzed. As shown in Table 2, ten CsTIFY genes showed diversity in protein length across these twelve cucumber varieties. For example, the protein length of CsJAZ1 ranges from 340 aa (in cucumber 9930) to 356 aa (in cucumber Cuc80 and Cuc64). The length of the CsJAZ7 gene-encoded protein is 130 aa in cucumber Cuc64, W4, and W8, whereas it was 132 aa in other cucumber varieties. Only six CsTIFY genes, including CsJAZ3, CsJAZ5, CsJAZ6, CsJAZ8, CsZML1, and CsTIFY1, exhibited the same protein length across the twelve cucumber varieties (Table 2). Considering the high diversity of CsTIFY protein length in different cucumber variety (Table 2), we investigated allelic variation patterns for sixteen characterized TIFY genes. We identified 71 variants localized within these CsTIFY genes, comprising 56 single nucleotide polymorphisms (SNPs) and 15 insertions and deletions (InDels) (Table S1). We found that the longer length of CsJAZ1 in cucumber Cuc80 and Cuc64 was a result of 51 bp fragment insertion, whereas the shorter length of the CsJAZ7 in Cuc64, W4, and W8 was due to 6 bp fragment deletion. The sequences of CsJAZ5 and CsJAZ6 are highly conserved, with no observed variations across different cucumber varieties (Table 2 and Table S1). The genes CsJAZ3, CsJAZ8, CsZML1, and CsTIFY1 harbor several SNPs; thus, the protein sequences varied among various cucumber varieties (Table S1 and Figure S1). The results indicate that CsJAZ5 and CsJAZ6 genes exhibited evolutionary conservation throughout the different cucumber varieties and might play an important role in cucumber growth.

2.2. Gene Structure and Motif Composition of CsTIFYs

The diversity of gene structure can reflect the evolution of multigene families [44]. Therefore, TBtools software (v2.012) was used to analyze the exon–intron organization of the CsTIFY genes, which vary in the length of the amino acid sequence in at least three different cucumber varieties, including two JAZ genes, one ZML gene, and one PPD gene (Figure 2). Among them, the CsJAZ9 gene, which encodes the protein length ranging from 107 (in cucumber 9110gt) to 154 aa (in cucumber Hx14 and Hx117), exhibited the lowest number of introns, with only one intron in all cucumber varieties, excluding cucumber 9110gt, which had none (Table 2 and Figure 2). We observed variations in the protein length of CsJAZ1 (encoding a protein with a range of 339 to 356 aa) among different cucumber varieties. However, the gene structures remained consistent, containing seven exons in various cucumber lines (Table 2, Figure 2). We found that the TIFY genes CsZML3 and CsPPD1 have five to nine exons (Figure 2). Members of the same or similar protein length in different cucumber lines share the same intron/exon, while those with significant differences in protein length have distinct gene structures. For example, gene CsPPD1 encodes a protein with a length ranging from 207 to 336 aa and contains eight introns in all cucumber varieties, except for cucumber Hx117 and Gy14, where it encodes a shorter protein (encoding 207 and 305 aa, respectively) with fewer introns (Figure 2). The results indicate that the gene structure of the same gene varies among different cucumber varieties, and this variation is correlated with the protein length, but is not identical.
To gain a deeper understanding of the conservation and diversification of these TIFYs, conserved motifs were identified using MEME motif analysis (Figures S1 and S2). As anticipated, CsTIFYs with varying protein lengths and gene structures displayed distinct motif compositions. CsPPD1 in cucumber Gy14 and Hx117 exhibited shorter protein lengths, different gene structures, and decreased conserved motif number compared to those in other cucumber varieties (Table 2 and Table S2, Figure 2). Additionally, we noted that a CsTIFY gene with comparable protein lengths and identical gene structure displayed distinct motif compositions across different cucumber varieties. For example, the protein length of CsJAZ1 gene was longer in the cucumber Cuc64 and Cuc80, with a protein length of 356 aa, compared to other varieties with protein lengths of 339 or 340 aa. Although the gene structure remained unchanged, the conserved motif increased, and Motif 10 was found to be specific in the cucumber Cuc64 and Cuc80 (Figure 2). Overall, this could be attributed to divergent evolution, as these genes in various cucumber lines undergo adaptations to distinct cultivation and environmental conditions.
Additionally, the exon–intron organization and conserved motifs of two CsTIFY genes (CsJAZ5 and CsJAZ6), which code for proteins of the same sequence and length, were also studied. The results illustrated in Figure S2 indicate no differences in gene structure and conserved motifs. This indicates that these genes are evolutionarily conserved across different cucumber varieties and suggests their potential importance in cucumber growth.

2.3. Chromosome Distribution and Synteny Analysis of CsTIFY Gene Family

The genome sequence of cucumber 9930 has been the subject of numerous studies as the earliest variety to be sequenced. Hence, we chose CsTIFY genes from the cucumber variety 9930 as representatives for further study. As shown in Figure S3, fifteen TIFY family genes were not evenly dispersed across all seven chromosomes in cucumber 9930. Chromosome 2 harbored the highest number of CsTIFY genes (4), while only one was found on chromosome 4 and 5; additionally, two genes on chromosomes 1, 3, and 6, and three genes on chromosome 7.
Segment and/or tandem duplication always reflect the evolution of the plant genome and contribute to the expansion of the gene family [45]. In the analysis of CsTIFY genes, three pairs of duplicated genes were identified in the cucumber 9930 TIFY gene family: CsTIFY1/CsTIFY2, CsJAZ2/CsJAZ8, and CsJAZ3/CsJAZ8 (Figure S3 and Table S3). Additionally, a tandem duplication event was observed in the cucumber TIFY genes, specifically in the CsZML1/CsZML2 genes located within a chromosomal region of 200 kb (Figure S3 and Table S3). These findings suggest that some CsTIFY genes may have originated from both segmental and tandem duplications, indicating that segmental and tandem duplication events have played a role in the evolution of CsTIFY genes.
We further explored the phylogenetic mechanisms of the cucumber TIFY family by comparing it with other species, including three dicots (Arabidopsis, tomato, and melon) and two monocots (rice and maize) (Figure S4). A total of 9 gene pairs between cucumber and rice, 7 gene pairs between cucumber and maize, 16 gene pairs between cucumber and Arabidopsis/tomato, and 20 gene pairs between cucumber and melon were found, respectively (Figure S4 and Table S4). Cucumber and melon are both members of the gourd family. Our research revealed that over 85% of the CsTIFY genes show a syntenic relationship with TIFYs in melon, suggesting that the TIFY genes in cucumber and melon might evolve from the same ancient TIFY genes. Consistent with a previous study [37], the duplicate gene pairs all belong to the same subfamily, suggesting that distinct subfamilies were relatively conserved throughout evolution.

2.4. Responsive Analysis of CsTIFY Genes under Gray Mold Stress

Previous studies have shown that the expression of JAZ subfamily genes is significantly affected when cucumber plants are infected by B. cinerea [37]. In this study, we analyzed the expression pattern of CsTIFY genes using a public transcriptome of cucumber leaves inoculated with gray mold (B. cinerea strain B05.10). We found that out of the fifteen detected CsTIFY genes, ten of them showed differential expression compared to the control at 96 hours post-inoculation (hpi) of B. cinerea in cucumber leaves. Specifically, CsJAZ2, CsJAZ3, CsJAZ6, CsJAZ8, and CsZML3 were upregulated, indicating their induction to play roles under gray mold stress. On the other hand, CsJAZ1, CsJAZ4, CsTIFY1, CsPPD1, and CsZML2 exhibited decreased expression (Figure 3).
To further investigate the expression of CsTIFY genes in plants following infection with the pathogen B. cinerea, we specifically selected six differentially expressed genes (DEGs) of CsTIFYs for analysis using qRT-PCR at 6, 12, 24, 48, and 72 hpi. These six genes consisted of five upregulated genes and one downregulated gene, namely CsZML2. The qRT-PCR results revealed that CsZML2, CsJAZ2, CsJAZ3, and CsZML3 were initially upregulated and then downregulated, with the first peak of expression observed at 6 or 12 hpi. Additionally, CsJAZ6 displayed a continuous upregulation from 6 to 72 hpi (Figure 4). These results suggest that these genes may play crucial roles in plant responses to pathogen-induced stress.

2.5. Functional Analysis of CsTIFY Genes in Resistance Response of Gray Mold

Given CsZML2, CsJAZ2, and CsJAZ6 with different expression patterns, we investigated the potential role of these three genes in responding to gray mold stress. Transient expression assays were used to transform 35S::CsZML2, 35S::CsJAZ2, 35S::CsJAZ6 and inoculation buffer (control) in cucumber cotyledons, respectively. Transient transfection cucumber seedlings were grown under normal conditions for approximately 18 hours (h) before being inoculated with B. cinerea. Among the seedlings, the cotyledons overexpressing CsJAZ6 displayed the most severe disease symptoms, characterized by the largest necrotic plaques, compared to the cotyledons of the other seedlings (Figure 5A). Moreover, both CsZML2 and CsJAZ2 also reduced resistance to B. cinerea infection, resulting in larger necrotic plaques compared to the control seedlings (Figure 5A,B). Additionally, we examined the enzymatic activities in the reactive oxygen species (ROS) clearance system, such as SOD, POD, and CAT. After the inoculation treatment, transient transfection plants overexpressing CsJAZ2 or CsJAZ6 showed a significant decrease in POD, SOD, and CAT activities compared to the control (Figure 5C). These findings suggest that CsZML2, CsJAZ2, and CsJAZ6 all have a detrimental impact on the cucumber defense response against the gray mold pathogen, with CsJAZ6 potentially playing a particularly significant role. It can be inferred from these results that the overexpression of CsJAZ2 and CsJAZ6 could inhibit the defense resistance of cucumber by affecting the accumulation of ROS.

2.6. CsJAZs Regulate Resistance Response of Gray Mold via JA Pathway

JA is well known as the hormone that regulates plant defense responses to biotic stresses, with the JAZ genes playing a critical role in the JA signaling pathway. In order to explore the function of JA in regulating cucumber plants’ resistance to B. cinerea, we quantified JA levels in cucumber leaves after B. cinerea inoculation. Figure 6A illustrated a significant increase in JA content after B. cinerea inoculation compared to the control. Subsequently, cucumber cotyledons were pretreated with exogenous MeJA and water (control) in a consistent manner. Five hours after pretreatment, the cotyledons were inoculated with B. cinerea. The cotyledons of control seedlings displayed more severe disease symptoms, with larger lesion areas, compared to those pretreated with MeJA (Figure 6B,C). These results suggested that CsJAZs negatively regulate the JA pathway, thereby contributing to cucumber’s susceptibility to gray mold.

3. Discussion

3.1. Bioinformatics Analysis of CsTIFYs Based on Cucumber Pan-Genome

Although TIFY genes were identified in the cucumber 9930 genome v2.0 [37], it is essential to identify them based on the cucumber’s pan-genome. Studies have demonstrated that a single reference genome is inadequate to capture the diversity within a species [38,39,40,41]. Furthermore, a pan-genome was constructed by analyzing twelve cucumber genomes [43]. Therefore, we identified and characterized the TIFY family in twelve different cucumber varieties. Fifteen TIFY genes were identified in the cucumber 9930 genome v3.0. Consistent with cucumber 9930, fifteen members of CsTIFYs were also identified in cucumber Hx14 and Gy14. In cucumber Cuc80, only thirteen members were identified. Additionally, we identified sixteen cucumber TIFY genes through a genome-wide analysis of eight other cucumber varieties (Table 1). Among them, two CsJAZ5 genes were identified and CsJAZ9 was absent in cucumber W8. Gene duplication is one of the reasons for the expansion of a gene family [46]. The results indicate the possibility of gene replication or deletion occurring during the evolutionary process, which may enhance the adaptability of different cucumber varieties to different cultivation conditions. Upon observation, we identified 71 variants localized within these CsTIFY genes, including 56 SNPs and 15 InDels (Table S1). These variants lead to the variations of protein sequence and length, gene structure, and conserved motifs among the same CsTIFY genes across different cucumber varieties (Table 2, Figure 2). Therefore, it is suspected that CsTIFY genes in different cucumber varieties have undergone distinct evolutionary changes to adapt to diverse environmental conditions.
Both tandem and segmental duplications contributed to the expansion of the gene family [45]. Three segmental duplication and one tandem duplication events within fifteen CsTIFY genes were observed (Figure S3 and Table S3), indicating that gene duplication had made some contributions to the TIFY gene expansion during the cucumber evolutionary process. No gene replication events were identified for nine CsTIFY genes, illustrating that most CsTIFY genes might all play an irreplaceable role in cucumber growth and development. Comparative syntenic maps were constructed for cucumber with two monocots (rice and maize) and three dicots (Arabidopsis, tomato, and melon) (Figure S4 and Table S4). Only four CsTIFY genes (CsJAZ2, CsJAZ3, CsJAZ6, and CsJAZ8) displayed orthologous relationships with the ones found in the two monocots and three dicots. In contrast, certain collinear gene pairs (including four CsTIFY genes: CsJAZ7, CsPPD1, CsZML1, and CsTIFY1) were observed between cucumber and dicots (Arabidopsis, tomato, and melon) but not between cucumber and monocots (rice and maize) (Table S4). These results might indicate that orthologous pairs involving CsTIFY genes CsJAZ7, CsPPD1, CsZML1, and CsTIFY1 formed following the divergence of dicotyledonous and monocotyledonous plants, while orthologous pairs with CsTIFY genes CsJAZ2, CsJAZ3, CsJAZ6, and CsJAZ8 arose before the divergence of dicotyledonous and monocotyledonous plants. Additionally, over 85% (13 of 15) of CsTIFY genes exhibited orthologous relationships with TIFY genes in melon (Figure S4 and Table S4), whereas only four CsTIFY genes were found to have orthologous relationships with TIFY genes in rice or maize. This suggested that evolutionary rates were similar between the two Cucurbitaceae species, but distinct from those of monocotyledonous species.

3.2. Identification of CsTIFYs in Regulating Cucumber Resistance to Gray Mold

A previous study had reported that the expression of JAZ subfamily genes was significantly changed when cucumber plants were infected by gray mold pathogen [37]. In this study, we investigated the expression levels of all CsTIFYs after inoculation with the pathogen B. cinerea based on published transcriptome data and qRT-PCR analysis (Figure 3 and Figure 4). This finding aligns with previous results that suggest the participation of the JAZ subfamily genes in cucumber resistance to gray mold. Additionally, we found that the expression of TIFY, PPD, and ZML subfamily genes was also influenced by the inoculation of gray mold pathogen B. cinerea (Figure 3 and Figure 4). Two JAZ subfamily genes (CsJAZ2 and CsJAZ6) and one ZML subfamily gene (CsZML2) were selected for functional analysis. As shown in Figure 5, more serious disease symptoms were found in the CsJAZ2/CsJAZ6/CsZML2-overexpressing cotyledons of cucumber seedlings compared to control seedlings. These results suggest that CsZML2, CsJAZ2, and CsJAZ6 all affect the cucumber resistance to gray mold, with CsJAZ6 potentially playing a particularly significant role.
The previous study revealed that a single transition from A to G at position 323 of the STAYGREEN (CsSGR) gene coding region in Gy14/WI2757 resulted in a higher disease resistance than cucumber 9930 [47]. Several SNPs and InDels of CsZML2 and CsJAZ2 genes were observed; meanwhile, we noted variations in the protein sequence and length of them among diverse cucumber varieties (Table 2 and Table S1). It is hypothesized that the functions of CsZML2 and CsJAZ2 may vary among different cucumber varieties. Additional research is required to investigate and validate this hypothesis. Regarding the CsJAZ6 gene, it was found to increase the susceptibility of cucumber seedlings to B. cinerea inoculation more than CsZML2 and CsJAZ2. Furthermore, there were no differences in the protein length, gene structure, and conserved domains of the CsJAZ6 gene among diverse cucumber varieties (Table 2 and Figure 2). These results indicate that CsJAZ6 is evolutionarily conserved among different cucumber varieties and may play an important role in cucumber plant resistance to disease.

3.3. The Involvement of CsJAZ Genes in the JA Pathway Controls Cucumber’s Resistance to Gray Mold

JAs are phytohormones that play a pivotal role in regulating plant defense mechanisms. The JAZ repressor proteins are central to the signaling cascades activated by JAs. When plants are exposed to stress, the JAZ proteins are degraded by the SCFCOI1 complex in response to JA-IIe [48]. Considering the important role of JAZ proteins CsJAZ2 and CsJAZ6 in regulating cucumber resistance to gray mold, we analyzed the role of JA in response to gray mold pathogen. It was found that the JA contents in cucumber leaves were significantly increased after inoculation with B. cinerea (Figure 6A). Furthermore, pretreatment with exogenous MeJA of cucumber seedlings significantly increased the resistance to B. cinerea (Figure 6B,C). Based on these findings, we propose a possible model in which CsJAZs induce susceptibility to gray mold disease by repressing the JA pathway to transcriptionally repress the defense genes (Figure 7). In Rosa chinensis, JAZ1, which serves as a critical suppressor of JA signaling, is implicated in JA-triggered resistance against pathogens. Specifically, JAZ1 directly interacts with RcMYB84 to impede the expression of RcMYB123, thus inhibiting the plant’s defense response against the fungal pathogen B. cinerea. However, upon JA treatment, JAZ1 undergoes degradation, leading to the release of RcMYB84 and RcMYB123. Consequently, this activation of defense responses enhances the plant’s resistance to B. cinerea [29]. RcJAZ1 and CsJAZ2 both were the homolog of Arabidopsis JAZ1. These results support the hypothesis that JAZ subfamily genes had a conserved role in plant resistance to gray mold disease by repressing the JA pathway.
Additionally, the enzymatic activities of POD, SOD, and CAT were observed to decrease in the transiently transfected plants that overexpressed CsJAZ2 or CsJAZ6 following the inoculation treatment, in comparison to the control plants (Figure 5C). ROS have been proposed as a crucial component in the plant defense response [49]. During plant–pathogen interactions, ROS play a coordinated role in regulating the hypersensitive response [50]. Thus, the accumulation of ROS may play a crucial role in the JA-JAZs resistance mechanism against pathogens in cucumber (Figure 7). Based on previous studies, it has been demonstrated that JAZs participate in multiple signaling pathways to regulate defense responses, such as ethylene signaling pathway [51] and Trp metabolism [52]. Therefore, we speculated that JAZs might also regulate additional defense signaling pathways that impact gray mold resistance. Further studies are necessary to explore and confirm this hypothesis.

4. Materials and Methods

4.1. Identification and Phylogenetic Tree Construction of TIFY Genes

To identify CsTIFY genes in the twelve cucumber genomes (https://www.ncbi.nlm.nih.gov/, accessed on 2 September 2023), including two East Asian lines (XTMC and Cu2), three Eurasian lines (Cuc37, Gy14, and9110gt), one Xishuangbanna line (Cuc80), and five Indian lines (Cuc64, W4, W8, Hx14, and Hx117), the TIFY domain (PF06200) was used for a Hidden Markov Model (HMM) search by HMMER 3.0. The candidate members’ sequences were analyzed using Pfam (http://pfam.xfam.org, accessed on 10 September 2023) and SMART (http://smart.embl-heidelberg.de, accessed on 10 September 2023) to verify the presence of the TIFY domain.
The alignments of aa sequences from members of the TIFY family in Arabidopsis and cucumber were conducted using ClustalW in MEGA 7 (7.0.21). These alignments were then used to construct a phylogenetic tree using the Neighbor-Joining (NJ) method. The resulting phylogenetic tree was visualized and enhanced using Evolview (http://www.evolgenius.info/evolview, accessed on 6 October 2023).

4.2. Bioinformatics Analysis of CsTIFY Genes

Protein sequences and lengths, gene structure, and conserved protein domains were analyzed. Gene structure was visualized using TBtools based on gene annotation information. The motifs were analyzed by the MEME online program (https://meme-suite.org/meme/tools/meme, accessed on 14 September 2023). The aa sequences were aligned using ClustalW in MEGA 7.0, and this alignment was utilized to construct the phylogenetic tree using the NJ method. The combination images of phylogenetic clustering, conserved protein motifs, and gene structure of CsTIFY genes were visualized and optimized using the TBtools.
The cucumber 9930 (v3.0) genomic sequence annotation file was used to visualize the position of TIFY genes on chromosomes through TBtools. To explore the syntenic relationships of the CsTIFY genes and other selected species (dicots: Arabidopsis, tomato, and melon; monocots: rice and maize), syntenic analysis maps were constructed using TBtools (One Step MCscanX). Arabidopsis genomic information was available at The Arabidopsis Information Resource (https://www.Arabidopsis.org/, accessed on 20 September 2023), melon genomic information was available at Cucurbit Genomics Database (CuGenDB) (http://cucurbitgenomics.org/, accessed on 20 September 2023), and tomato, rice, and maize genomic information was available at EnsemblPlants (http://plants.ensembl.org/index.html, accessed on 20 September 2023).

4.3. Analysis of the Expression Pattern of CsTIFY Genes Based on Published Data

We investigated the expression pattern of CsTIFY genes following inoculation with B. cinerea using published RNA-seq data [37]. Subsequently, we utilized TBtools software (v2.012) for heatmap generation.

4.4. Real-Time PCR Used for Expression Analysis of CsJAZs

After approximately 4 days of in vitro cultivation on a potato dextrose agar (PDA) plate, when the B. cinerea grew to a diameter of about 9 cm, the peripheral fungal disks were obtained using an 8 mm puncher. Subsequently, these fungal disks were used to inoculate cucumber cotyledons. Samples were collected at different time points: 0, 6, 12, 24, 48, and 72 h after inoculation. Three biological replicates were taken for each time point, and leaf samples were immediately frozen in liquid nitrogen and stored at −80 °C. TRIzol reagent was used to extract the total RNA. Subsequently, cDNA was synthesized using a reverse transcription kit. The SYBR Green PCR Master Mix was used in the real-time PCR. Sample normalization was performed by the comparative CT method, and the transcriptional level of the gene was normalized to that of the cucumber actin gene. All primers for real-time PCR can be found in Table S5.

4.5. Construction of Recombinant Plasmids and Transient Infestation of Cucumber Cotyledons

The coding sequences of three selected TIFY genes were inserted into the expression vector pFGC5941 using the Ncol and BamHI restriction enzyme recognition sites. The recombinant plasmid was transformed into Agrobacterium (strain GV3101) using a freezing–thawing method. Subsequently, Agrobacterium tumefaciens carrying the recombinant plasmid was injected into one-week-old cucumber cotyledons. Inoculation with B. cinerea was performed 18 h after injection, and the spot area was measured at 24 and 36 h after infection. The area of the lesion was quantified using Digimizer software (5.4.4). All primers can be found in Table S5.

4.6. Enzyme Activity Measurement of POD, SOD, and CAT

POD activity was quantified using guaiacol colorimetry, with absorbance readings taken at 470 nm. SOD activity was assessed using NBT, with absorbance measurements performed at 560 nm. CAT activity was calculated based on absorbance readings obtained at 240 nm.

4.7. Determination of Plant Endogenous JA Content

At 0 dpi, 1 dpi, and 3 dpi following inoculation with B. cinerea, 0.5 g of cucumber cotyledon was flash-frozen in liquid nitrogen and used for detection of endogenous JA content by Enzyme-Linked Immunosorbent Assay (ELISA). The percentage of lesion area was recorded at 1 dpi, 2 dpi, 3 dpi, and 4 dpi, respectively, after applying JA with water as the control.

5. Conclusions

In this study, we identified sixteen CsTIFY genes based on the pan-genome of twelve cucumber varieties. Bioinformatics analysis results indicate that two CsTIFYs showed evolutionary conservation across different cucumber varieties and imply that they may play a crucial role in cucumber growth. On the other hand, the other fourteen CsTIFY genes exhibited divergent evolution, possibly because these genes are involved in adapting to various cultivation and environmental conditions. CsJAZ2, CsJAZ6, and CsZML2 were found to decrease the cucumber resistance to gray mold and enzymatic activities of POD, SOD and CAT. Additionally, the infection of B. cinerea upregulates the content of JA, and treatment with exogenous MeJA increased cucumber resistance to B. cinerea infection compared to the treatment with water. In conclusion, our results demonstrate that CsJAZs negatively regulate cucumber disease resistance to gray mold via multiple signaling pathways.

Supplementary Materials

The following supporting information can be downloaded at: https://www.mdpi.com/article/10.3390/ijms25010185/s1.

Author Contributions

C.C., L.W. and Z.R. designed the experiments. K.L., H.X., X.G. and Y.L. performed the experiments and analyzed the data. C.C. and K.L. wrote the manuscript. All authors have read and agreed to the published version of the manuscript.

Funding

This work was funded by the National Natural Science Foundation of China (32372703 and 32172605) and the Shandong Natural Science Foundation (ZR2022MC084). The funders had no role in the study design, data collection and analysis, data interpretation, or in the writing of the manuscript.

Institutional Review Board Statement

Not applicable.

Informed Consent Statement

Not applicable.

Data Availability Statement

Data is contained within the article and Supplementary Materials.

Acknowledgments

We thank Wenxing Liang Lab (Qingdao Agricultural University) for providing the B. cinerea strain B05.10.

Conflicts of Interest

The authors declare no conflicts of interest.

References

  1. Bai, Y.; Kissoudis, C.; Yan, Z.; Visser, R.G.F.; van der Linden, G. Plant behaviour under combined stress: Tomato responses to combined salinity and pathogen stress. Plant J. 2018, 93, 781–793. [Google Scholar] [CrossRef]
  2. Kang, H.; Zhang, M.; Zhou, S.; Guo, Q.; Chen, F.; Wu, J.; Wang, W. Overexpression of wheat ubiquitin gene, Ta-Ub2, improves abiotic stress tolerance of Brachypodium distachyon. Plant Sci. 2016, 248, 102–115. [Google Scholar] [CrossRef] [PubMed]
  3. Chen, C.; Chen, X.; Han, J.; Lu, W.; Ren, Z. Genome-wide analysis of the WRKY gene family in the cucumber genome and transcriptome-wide identification of WRKY transcription factors that respond to biotic and abiotic stresses. BMC Plant Biol. 2020, 20, 443. [Google Scholar] [CrossRef] [PubMed]
  4. He, X.; Kang, Y.; Li, W.; Liu, W.; Xie, P.; Liao, L.; Huang, L.; Yao, M.; Qian, L.; Liu, Z.; et al. Genome-wide identification and functional analysis of the TIFY gene family in the response to multiple stresses in Brassica napus L. BMC Genom. 2020, 21, 736. [Google Scholar] [CrossRef] [PubMed]
  5. Basso, M.F.; Ferreira, P.C.G.; Kobayashi, A.K.; Harmon, F.G.; Nepomuceno, A.L.; Molinari, H.B.C.; Grossi-de-Sa, M.F. MicroRNAs and new biotechnological tools for its modulation and improving stress tolerance in plants. Plant Biotechnol. J. 2019, 17, 1482–1500. [Google Scholar] [CrossRef]
  6. Guo, T.T.; Mao, X.G.; Zhang, H.; Zhang, Y.; Fu, M.D.; Sun, Z.F.; Kuai, P.; Lou, Y.G.; Fang, Y.D. Lamin-like Proteins Negatively Regulate Plant Immunity through NAC WITH TRANSMEMBRANE MOTIF1-LIKE9 and NONEXPRESSOR OF PR GENES1 in Arabidopsis thaliana. Mol. Plant 2017, 10, 1334–1348. [Google Scholar] [CrossRef]
  7. Wang, L.; Ran, L.; Hou, Y.; Tian, Q.; Li, C.; Liu, R.; Fan, D.; Luo, K. The transcription factor MYB115 contributes to the regulation of proanthocyanidin biosynthesis and enhances fungal resistance in poplar. New Phytol. 2017, 215, 351–367. [Google Scholar] [CrossRef]
  8. Liu, F.; Li, X.; Wang, M.; Wen, J.; Yi, B.; Shen, J.; Ma, C.; Fu, T.; Tu, J. Interactions of WRKY15 and WRKY33 transcription factors and their roles in the resistance of oilseed rape to Sclerotinia infection. Plant Biotechnol. J. 2018, 16, 911–925. [Google Scholar] [CrossRef]
  9. Fernandez-Calvo, P.; Chini, A.; Fernandez-Barbero, G.; Chico, J.M.; Gimenez-Ibanez, S.; Geerinck, J.; Eeckhout, D.; Schweizer, F.; Godoy, M.; Franco-Zorrilla, J.M.; et al. The Arabidopsis bHLH transcription factors MYC3 and MYC4 are targets of JAZ repressors and act additively with MYC2 in the activation of jasmonate responses. Plant Cell 2011, 23, 701–715. [Google Scholar] [CrossRef] [PubMed]
  10. Pre, M.; Atallah, M.; Champion, A.; De Vos, M.; Pieterse, C.M.; Memelink, J. The AP2/ERF domain transcription factor ORA59 integrates jasmonic acid and ethylene signals in plant defense. Plant Physiol. 2008, 147, 1347–1357. [Google Scholar] [CrossRef]
  11. Liu, C.; Mao, B.; Ou, S.; Wang, W.; Liu, L.; Wu, Y.; Chu, C.; Wang, X. Correction to: OsbZIP71, a bZIP transcription factor, confers salinity and drought tolerance in rice. Plant Mol. Biol. 2018, 97, 467–468. [Google Scholar] [CrossRef] [PubMed]
  12. Bai, Y.; Meng, Y.; Huang, D.; Qi, Y.; Chen, M. Origin and evolutionary analysis of the plant-specific TIFY transcription factor family. Genomics 2011, 98, 128–136. [Google Scholar] [CrossRef] [PubMed]
  13. Vanholme, B.; Grunewald, W.; Bateman, A.; Kohchi, T.; Gheysen, G. The tify family previously known as ZIM. Trends Plant Sci. 2007, 12, 239–244. [Google Scholar] [CrossRef]
  14. White, D.W. PEAPOD regulates lamina size and curvature in Arabidopsis. Proc. Natl. Acad. Sci. USA 2006, 103, 13238–13243. [Google Scholar] [CrossRef] [PubMed]
  15. Thines, B.; Katsir, L.; Melotto, M.; Niu, Y.; Mandaokar, A.; Liu, G.; Nomura, K.; He, S.Y.; Howe, G.A.; Browse, J. JAZ repressor proteins are targets of the SCF(COI1) complex during jasmonate signalling. Nature 2007, 448, 661–665. [Google Scholar] [CrossRef] [PubMed]
  16. Staswick, P.E. JAZing up jasmonate signaling. Trends Plant Sci. 2008, 13, 66–71. [Google Scholar] [CrossRef]
  17. Chung, H.S.; Howe, G.A. A critical role for the TIFY motif in repression of jasmonate signaling by a stabilized splice variant of the JASMONATE ZIM-domain protein JAZ10 in Arabidopsis. Plant Cell 2009, 21, 131–145. [Google Scholar] [CrossRef]
  18. Zhu, D.; Bai, X.; Luo, X.; Chen, Q.; Cai, H.; Ji, W.; Zhu, Y. Identification of wild soybean (Glycine soja) TIFY family genes and their expression profiling analysis under bicarbonate stress. Plant Cell Rep. 2013, 32, 263–272. [Google Scholar] [CrossRef]
  19. Chini, A.; Ben-Romdhane, W.; Hassairi, A.; Aboul-Soud, M.A.M. Identification of TIFY/JAZ family genes in Solanum lycopersicum and their regulation in response to abiotic stresses. PLoS ONE 2017, 12, e0177381. [Google Scholar] [CrossRef]
  20. Ma, Y.; Shu, S.; Bai, S.; Tao, R.; Qian, M.; Teng, Y. Genome-wide survey and analysis of the TIFY gene family and its potential role in anthocyanin synthesis in Chinese sand pear (Pyrus pyrifolia). Tree Genet. Genomes 2018, 14, 25. [Google Scholar] [CrossRef]
  21. Ye, H.; Du, H.; Tang, N.; Li, X.; Xiong, L. Identification and expression profiling analysis of TIFY family genes involved in stress and phytohormone responses in rice. Plant Mol. Biol. 2009, 71, 291–305. [Google Scholar] [CrossRef] [PubMed]
  22. Ebel, C.; BenFeki, A.; Hanin, M.; Solano, R.; Chini, A. Characterization of wheat (Triticum aestivum) TIFY family and role of Triticum Durum TdTIFY11a in salt stress tolerance. PLoS ONE 2018, 13, e0200566. [Google Scholar] [CrossRef] [PubMed]
  23. Chini, A.; Fonseca, S.; Fernandez, G.; Adie, B.; Chico, J.; Lorenzo, O.; García-Casado, G.; López-Vidriero, I.; Lozano, F.; Ponce, M. The JAZ family of repressors is the missing link in jasmonate signalling. Nature 2007, 448, 666–671. [Google Scholar] [CrossRef] [PubMed]
  24. Wasternack, C.; Hause, B. Jasmonates: Biosynthesis, perception, signal transduction and action in plant stress response, growth and development. An update to the 2007 review in Annals of Botany. Ann. Bot. 2013, 111, 1021–1058. [Google Scholar] [CrossRef] [PubMed]
  25. Gimenez-Ibanez, S.; Chini, A.; Solano, R. How Microbes Twist Jasmonate Signaling around Their Little Fingers. Plants 2016, 5, 9. [Google Scholar] [CrossRef]
  26. Kazan, K. Diverse roles of jasmonates and ethylene in abiotic stress tolerance. Trends Plant Sci. 2015, 20, 219–229. [Google Scholar] [CrossRef]
  27. Thatcher, L.F.; Cevik, V.; Grant, M.; Zhai, B.; Jones, J.D.; Manners, J.M.; Kazan, K. Characterization of a JAZ7 activation-tagged Arabidopsis mutant with increased susceptibility to the fungal pathogen Fusarium oxysporum. J. Exp. Bot. 2016, 67, 2367–2386. [Google Scholar] [CrossRef]
  28. Meng, L.; Zhang, T.; Geng, S.; Scott, P.B.; Li, H.; Chen, S. Comparative proteomics and metabolomics of JAZ7-mediated drought tolerance in Arabidopsis. J. Proteom. 2019, 196, 81–91. [Google Scholar] [CrossRef] [PubMed]
  29. Ren, H.; Bai, M.; Sun, J.; Liu, J.; Ren, M.; Dong, Y.; Wang, N.; Ning, G.; Wang, C. RcMYB84 and RcMYB123 mediate jasmonate-induced defense responses against Botrytis cinerea in rose (Rosa chinensis). Plant J. 2020, 103, 1839–1849. [Google Scholar] [CrossRef]
  30. Zhao, C.Y.; Pan, X.W.; Yu, Y.; Zhu, Y.M.; Kong, F.J.; Sun, X.; Wang, F.F. Overexpression of a TIFY family gene, GsJAZ2, exhibits enhanced tolerance to alkaline stress in soybean. Mol. Breed. 2020, 40, 1–13. [Google Scholar] [CrossRef]
  31. Olczak-Woltman, H.; Schollenberger, M.; Niemirowicz-Szczytt, K. Genetic background of host-pathogen interaction between Cucumis sativus L. and Pseudomonas syringae pv. lachrymans. J. Appl. Genet. 2009, 50, 1–7. [Google Scholar] [CrossRef] [PubMed]
  32. Savory, E.A.; Granke, L.L.; Quesada-Ocampo, L.M.; Varbanova, M.; Hausbeck, M.K.; Day, B. The cucurbit downy mildew pathogen Pseudoperonospora cubensis. Mol. Plant Pathol. 2011, 12, 217–226. [Google Scholar] [CrossRef] [PubMed]
  33. Gao, X.B.; Guo, P.; Wang, Z.Y.; Chen, C.H.; Ren, Z.H. Transcriptome profiling reveals response genes for downy mildew resistance in cucumber. Planta 2021, 253, 112. [Google Scholar] [CrossRef] [PubMed]
  34. Dean, R.; Van Kan, J.A.; Pretorius, Z.A.; Hammond-Kosack, K.E.; Di Pietro, A.; Spanu, P.D.; Rudd, J.J.; Dickman, M.; Kahmann, R.; Ellis, J.; et al. The Top 10 fungal pathogens in molecular plant pathology. Mol. Plant Pathol. 2012, 13, 414–430. [Google Scholar] [CrossRef] [PubMed]
  35. Elad, Y.; Williamson, B.; Tudzynski, P.; Delen, N. Botrytis spp. and Diseases They Cause in Agricultural Systems—An Introduction; Springer: Dordrecht, The Netherlands, 2007; pp. 1–8. [Google Scholar]
  36. Kong, W.; Chen, N.; Liu, T.; Zhu, J.; Wang, J.; He, X.; Jin, Y. Large-Scale Transcriptome Analysis of Cucumber and Botrytis cinerea during Infection. PLoS ONE 2015, 10, e0142221. [Google Scholar] [CrossRef] [PubMed]
  37. Dai, Z.N.; Dong, S.Y.; Miao, H.; Liu, X.P.; Han, J.A.; Li, C.X.; Gu, X.F.; Zhang, S.P. Genome-Wide Identification of TIFY Genes and Their Response to Various Pathogen Infections in Cucumber (Cucumis sativus L.). Sci. Hortic. 2022, 295, 110814. [Google Scholar] [CrossRef]
  38. Bayer, P.E.; Golicz, A.A.; Scheben, A.; Batley, J.; Edwards, D. Plant pan-genomes are the new reference. Nat. Plants 2020, 6, 914–920. [Google Scholar] [CrossRef]
  39. Li, R.; Li, Y.; Zheng, H.; Luo, R.; Zhu, H.; Li, Q.; Qian, W.; Ren, Y.; Tian, G.; Li, J.; et al. Building the sequence map of the human pan-genome. Nat. Biotechnol. 2010, 28, 57–63. [Google Scholar] [CrossRef]
  40. Gao, L.; Gonda, I.; Sun, H.H.; Ma, Q.Y.; Bao, K.; Tieman, D.M.; Burzynski-Chang, E.A.; Fish, T.L.; Stromberg, K.A.; Sacks, G.L.; et al. The tomato pan-genome uncovers new genes and a rare allele regulating fruit flavor. Nat. Genet. 2019, 51, 1044–1051. [Google Scholar] [CrossRef]
  41. Tao, Y.F.; Luo, H.; Xu, J.B.; Cruickshank, A.; Zhao, X.R.; Teng, F.; Hathorn, A.; Wu, X.Y.; Liu, Y.M.; Shatte, T.; et al. Extensive variation within the pan-genome of cultivated and wild sorghum. Nat. Plants 2021, 7, 766–773. [Google Scholar] [CrossRef]
  42. Tettelin, H.; Masignani, V.; Cieslewicz, M.J.; Donati, C.; Medini, D.; Ward, N.L.; Angiuoli, S.V.; Crabtree, J.; Jones, A.L.; Durkin, A.S.; et al. Genome analysis of multiple pathogenic isolates of Streptococcus agalactiae: Implications for the microbial “pan-genome”. Proc. Natl. Acad. Sci. USA 2005, 102, 13950–13955. [Google Scholar] [CrossRef] [PubMed]
  43. Li, H.; Wang, S.; Chai, S.; Yang, Z.; Zhang, Z. Graph-based pan-genome reveals structural and sequence variations related to agronomic traits and domestication in cucumber. Nat. Commun. 2022, 13, 682. [Google Scholar] [CrossRef] [PubMed]
  44. Hu, R.; Qi, G.; Kong, Y.; Kong, D.; Gao, Q.; Zhou, G. Comprehensive analysis of NAC domain transcription factor gene family in Populus trichocarpa. BMC Plant Biol. 2010, 10, 145. [Google Scholar] [CrossRef] [PubMed]
  45. Cannon, S.B.; Mitra, A.; Baumgarten, A.; Young, N.D.; May, G. The roles of segmental and tandem gene duplication in the evolution of large gene families in Arabidopsis thaliana. BMC Plant Biol. 2004, 4, 10. [Google Scholar] [CrossRef]
  46. Wang, N.A.; Xiang, Y.; Fang, L.C.; Wang, Y.J.; Xin, H.P.; Li, S.H. Patterns of Gene Duplication and Their Contribution to Expansion of Gene Families in Grapevine. Plant Mol. Biol. Rep. 2013, 31, 852–861. [Google Scholar] [CrossRef]
  47. Che, G.; Zhang, X. STAYGREEN, STAY HEALTHY: A loss-of-susceptibility mutation in the STAYGREEN gene provides durable, broad-spectrum disease resistances for over 50 years of US cucumber production. New Phytol. 2019, 47, 38–46. [Google Scholar]
  48. Pauwels, L.; Goossens, A. The JAZ proteins: A crucial interface in the jasmonate signaling cascade. Plant Cell 2011, 23, 3089–3100. [Google Scholar] [CrossRef]
  49. Waszczak, C.; Carmody, M.; Kangasjarvi, J. Reactive Oxygen Species in Plant Signaling. Annu. Rev. Plant Biol. 2018, 69, 209–236. [Google Scholar] [CrossRef]
  50. Bellin, D.; Asai, S.; Delledonne, M.; Yoshioka, H. Nitric Oxide as a Mediator for Defense Responses. Mol. Plant Microbe 2013, 26, 271–277. [Google Scholar] [CrossRef]
  51. Zhu, Z.; An, F.; Feng, Y.; Li, P.; Xue, L.; Mu, A.; Jiang, Z.; Kim, J.M.; To, T.K.; Li, W.; et al. Derepression of ethylene-stabilized transcription factors (EIN3/EIL1) mediates jasmonate and ethylene signaling synergy in Arabidopsis. Proc. Natl. Acad. Sci. USA 2011, 108, 12539–12544. [Google Scholar] [CrossRef]
  52. Johnson, L.Y.D.; Major, I.T.; Chen, Y.; Yang, C.; Vanegas-Cano, L.J.; Howe, G.A. Diversification of JAZ-MYC signaling function in immune metabolism. New Phytol. 2023, 239, 2277–2291. [Google Scholar] [CrossRef] [PubMed]
Ijms 25 00185 g001

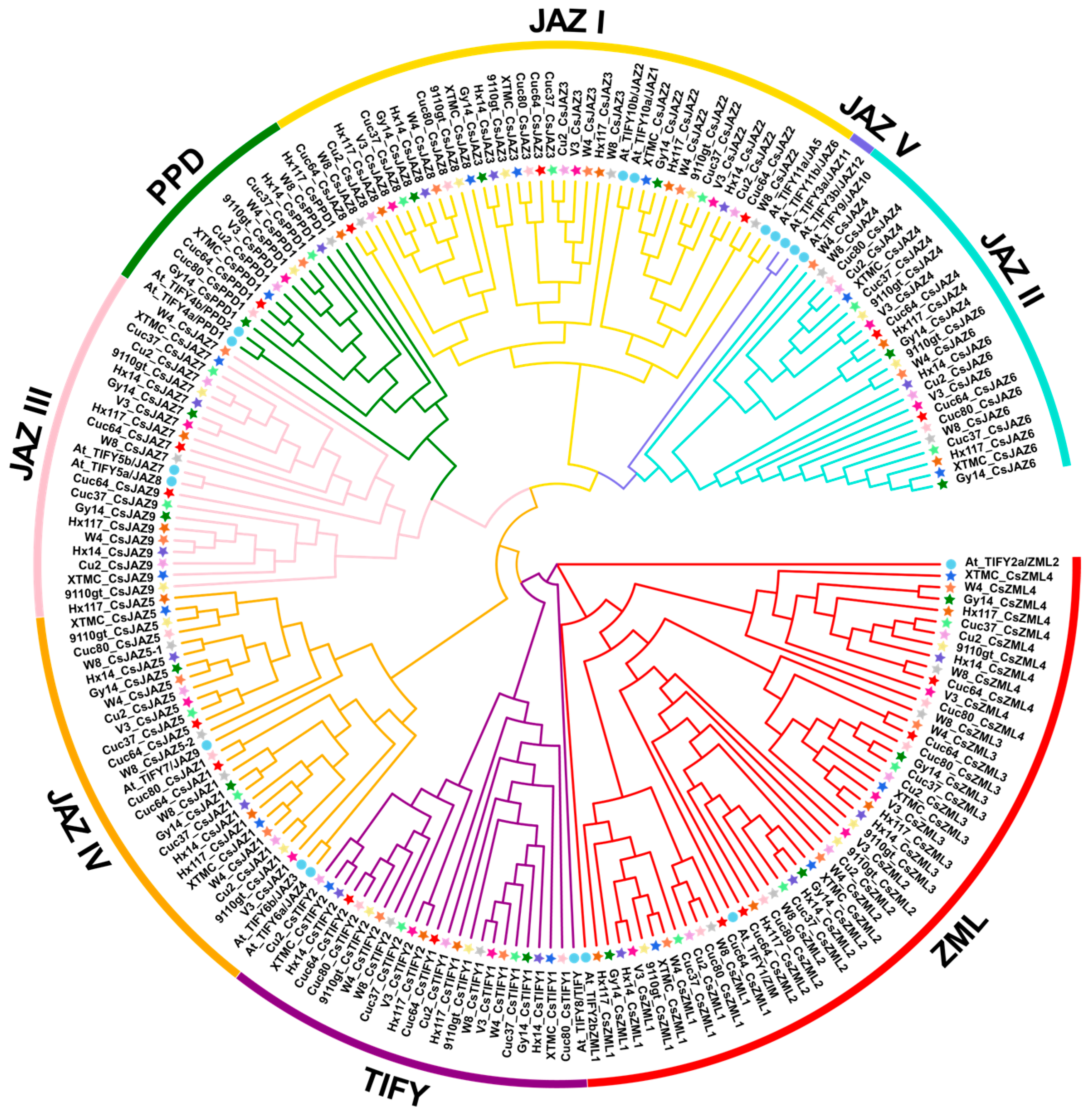

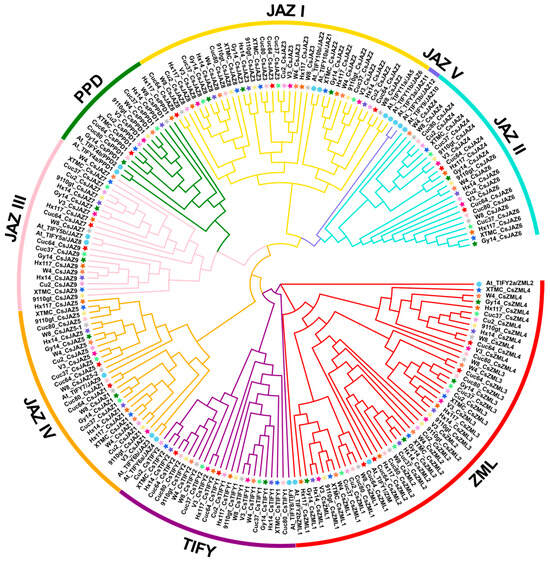

Figure 1. The phylogenetic tree of total TIFY proteins from twelve cucumber varieties and Arabidopsis genomes. These proteins were phylogenetically analyzed using MEGA7 software (7.0.21) with 1000 bootstrap tests. The different colored arcs represent the eight subgroups of TIFY proteins. The different colored stars and blue circles represent TIFY proteins from twelve cucumber and Arabidopsis, respectively.
Figure 1. The phylogenetic tree of total TIFY proteins from twelve cucumber varieties and Arabidopsis genomes. These proteins were phylogenetically analyzed using MEGA7 software (7.0.21) with 1000 bootstrap tests. The different colored arcs represent the eight subgroups of TIFY proteins. The different colored stars and blue circles represent TIFY proteins from twelve cucumber and Arabidopsis, respectively.
Ijms 25 00185 g001
Ijms 25 00185 g002

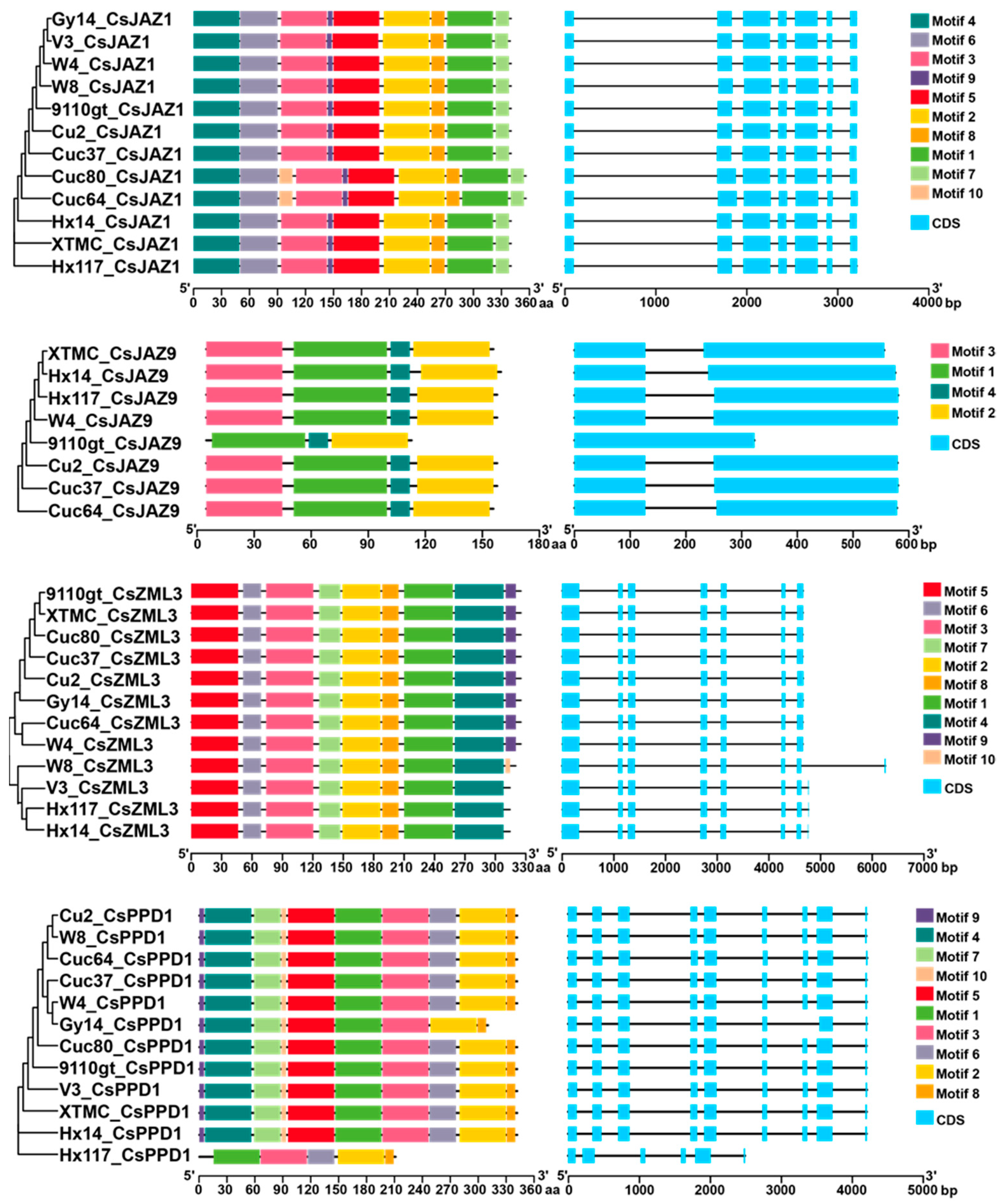

Figure 2. The phylogenetic tree, conserved protein motifs, and gene structure of CsTIFY genes, which vary in protein length in at least three different cucumber varieties. Right panel: gene structure, blue squares indicate CDS regions and black lines indicate introns. Middle panel: conserved protein motifs. The colorful boxes delineate different motifs. Left panel: the phylogenetic tree. The clustering is performed according to the results of phylogenetic analysis. CDS, coding sequence; aa, amino acid.
Figure 2. The phylogenetic tree, conserved protein motifs, and gene structure of CsTIFY genes, which vary in protein length in at least three different cucumber varieties. Right panel: gene structure, blue squares indicate CDS regions and black lines indicate introns. Middle panel: conserved protein motifs. The colorful boxes delineate different motifs. Left panel: the phylogenetic tree. The clustering is performed according to the results of phylogenetic analysis. CDS, coding sequence; aa, amino acid.
Ijms 25 00185 g002
Ijms 25 00185 g003

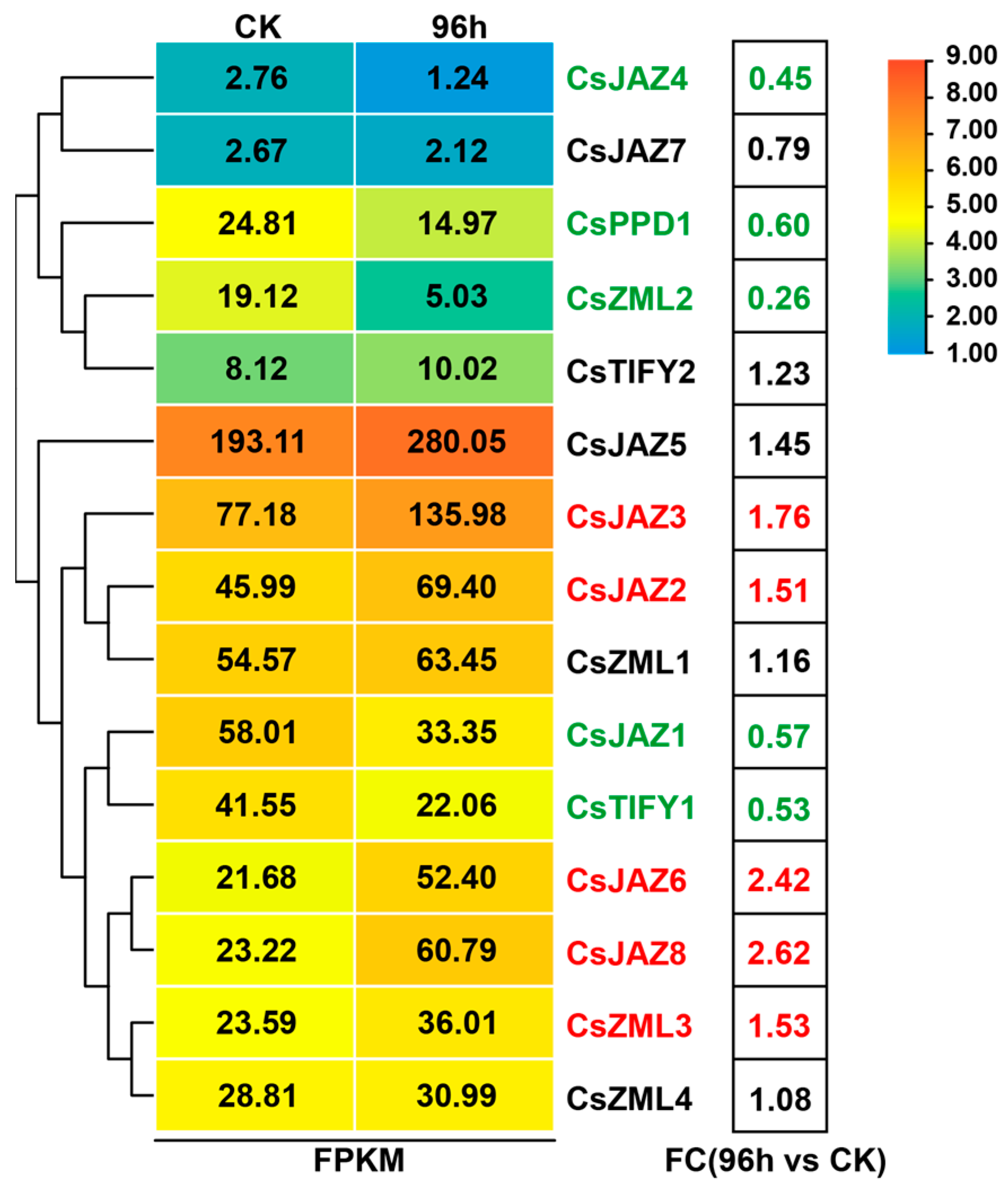

Figure 3. Heat map of TIFY gene expression under gray mold stress. The transcription of TIFY genes was determined at 96 hpi of B. cinerea in cucumber leaves, without inoculation as the control (CK). Gene names and fold-change in red indicate significantly upregulated genes, and those in green indicate significantly downregulated genes. FC, fold-change; h, hours.
Figure 3. Heat map of TIFY gene expression under gray mold stress. The transcription of TIFY genes was determined at 96 hpi of B. cinerea in cucumber leaves, without inoculation as the control (CK). Gene names and fold-change in red indicate significantly upregulated genes, and those in green indicate significantly downregulated genes. FC, fold-change; h, hours.
Ijms 25 00185 g003
Ijms 25 00185 g004

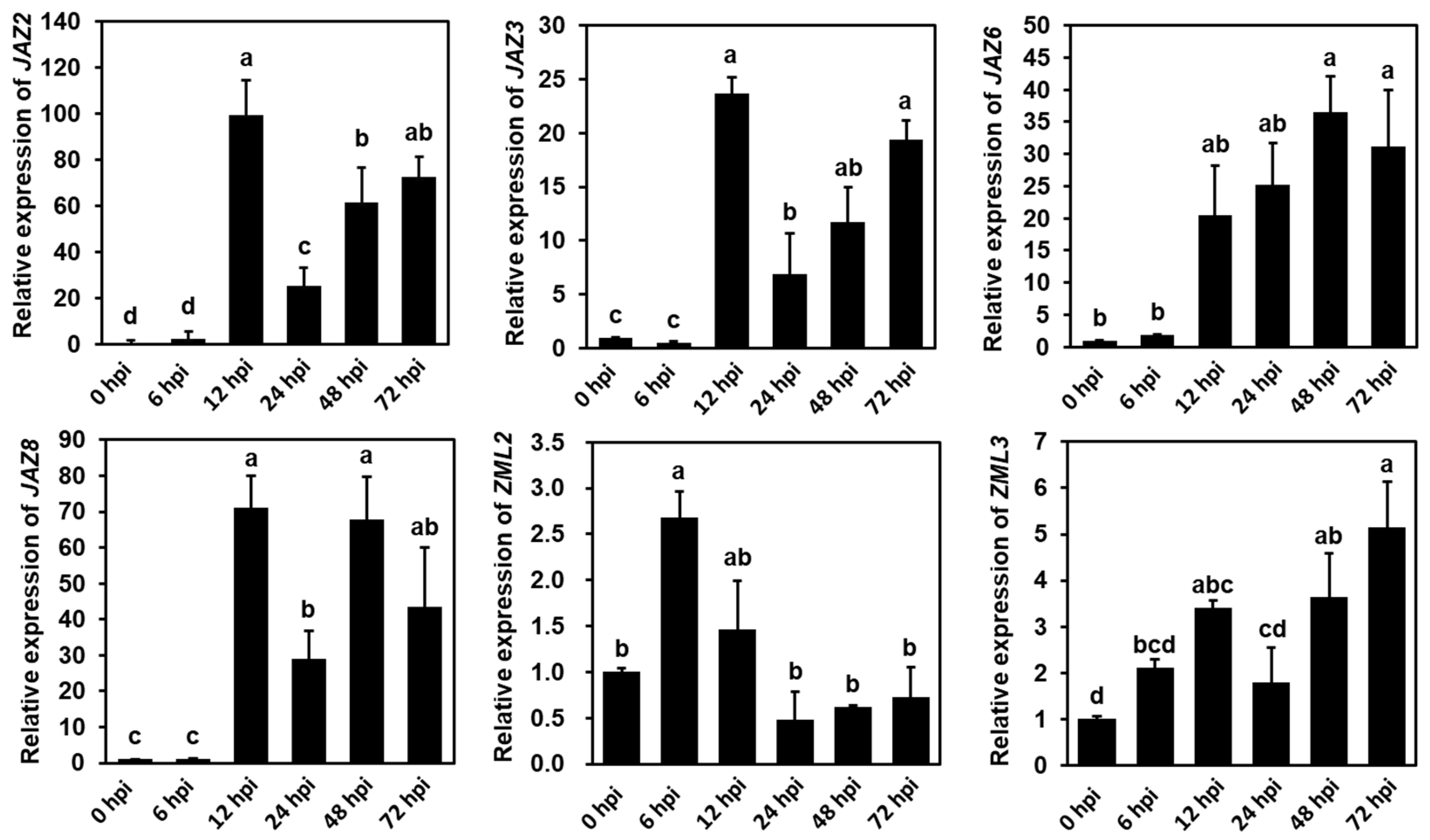

Figure 4. Expression pattern of TIFY genes after inoculation with B. cinerea. The error bars show the standard error of the mean of three biological replicates. Different lowercase letters indicate differences at p < 0.05.
Figure 4. Expression pattern of TIFY genes after inoculation with B. cinerea. The error bars show the standard error of the mean of three biological replicates. Different lowercase letters indicate differences at p < 0.05.
Ijms 25 00185 g004
Ijms 25 00185 g005

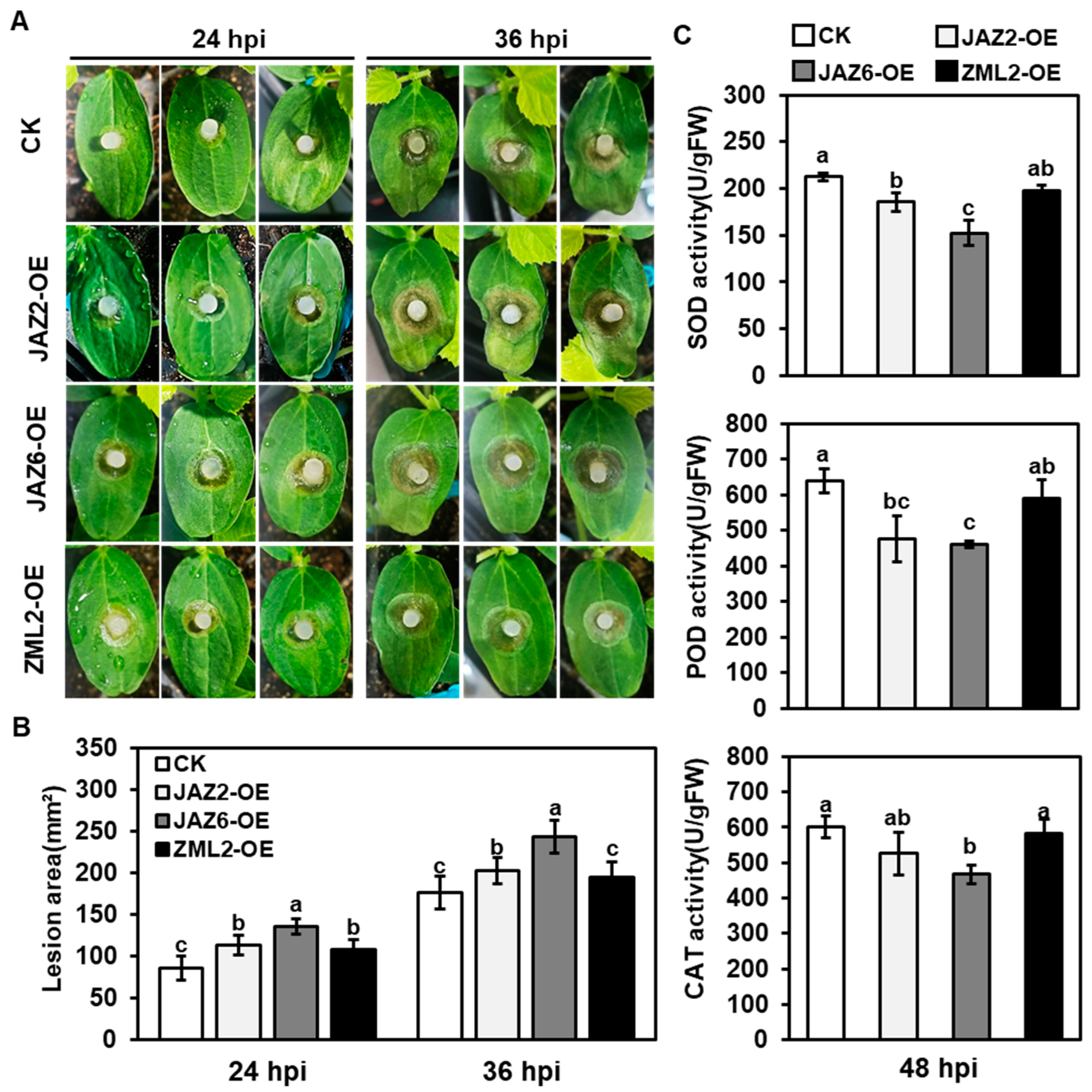

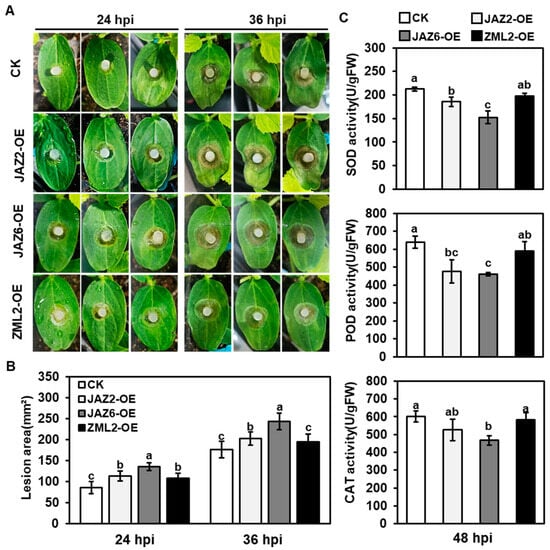

Figure 5. Analysis of disease symptoms and ROS accumulation in transient transfection plants inoculated with B. cinerea. (A) The symptoms of cucumber cotyledons inoculated with B. cinerea. (B) The lesion area of cucumber cotyledons inoculated with B. cinerea. (C) The enzymatic activities of SOD, POD and CAT after B. cinerea infection. Different lowercase letters indicate differences at p < 0.05; error bars indicate standard deviation; hpi, hours post inoculation.
Figure 5. Analysis of disease symptoms and ROS accumulation in transient transfection plants inoculated with B. cinerea. (A) The symptoms of cucumber cotyledons inoculated with B. cinerea. (B) The lesion area of cucumber cotyledons inoculated with B. cinerea. (C) The enzymatic activities of SOD, POD and CAT after B. cinerea infection. Different lowercase letters indicate differences at p < 0.05; error bars indicate standard deviation; hpi, hours post inoculation.
Ijms 25 00185 g005
Ijms 25 00185 g006

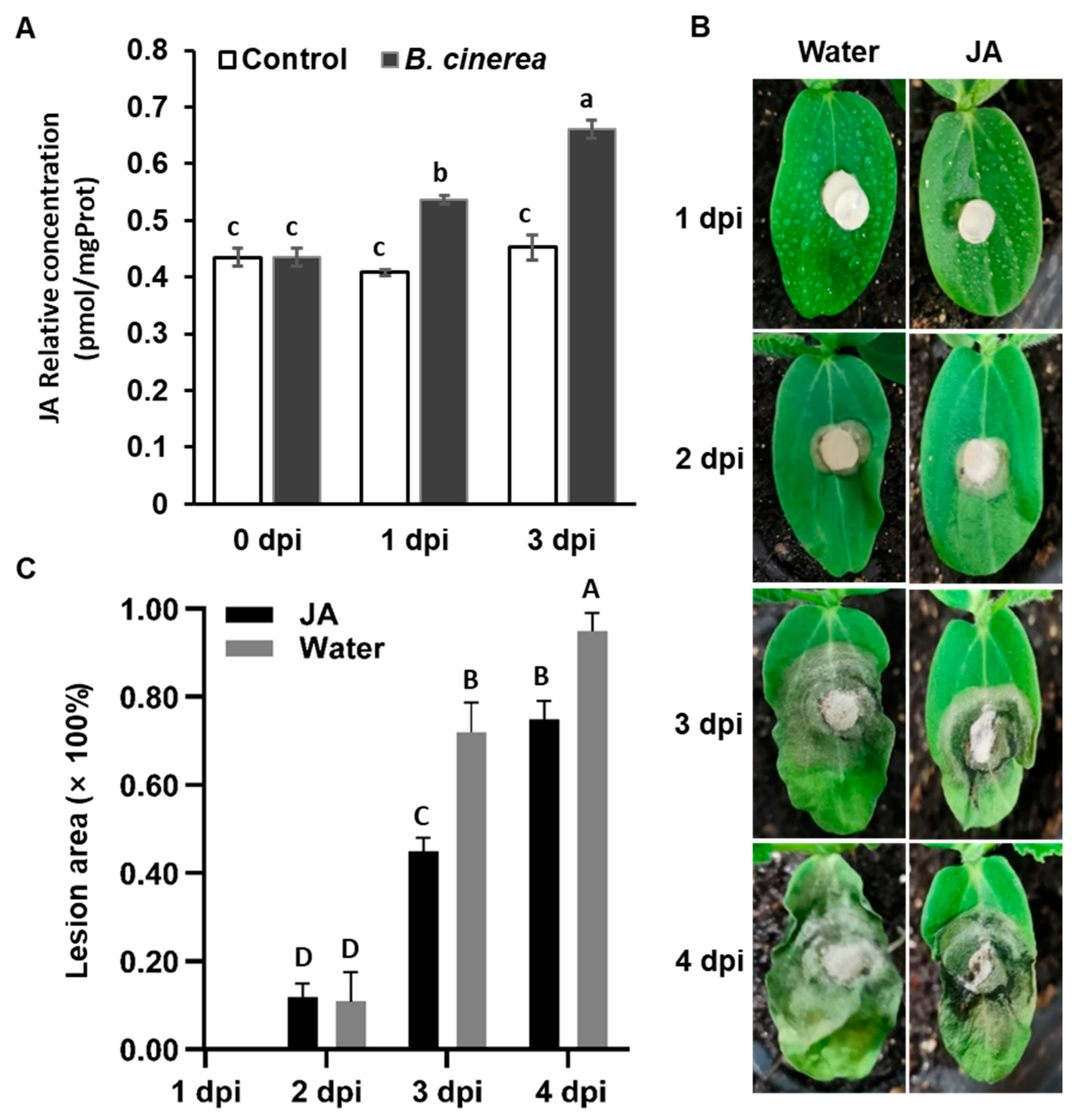

Figure 6. JA mediates cucumber resistance to B. cinerea. (A) Relative concentration of JA after inoculation with B. cinerea. (B) The symptoms of cucumber cotyledons pretreated with MeJA or water after B. cinerea inoculation. (C) The lesion area of cucumber cotyledons pretreated with MeJA or water after B. cinerea inoculation. Different letters indicate significant differences at p < 0.05; dpi, days post-inoculation.
Figure 6. JA mediates cucumber resistance to B. cinerea. (A) Relative concentration of JA after inoculation with B. cinerea. (B) The symptoms of cucumber cotyledons pretreated with MeJA or water after B. cinerea inoculation. (C) The lesion area of cucumber cotyledons pretreated with MeJA or water after B. cinerea inoculation. Different letters indicate significant differences at p < 0.05; dpi, days post-inoculation.
Ijms 25 00185 g006
Ijms 25 00185 g007

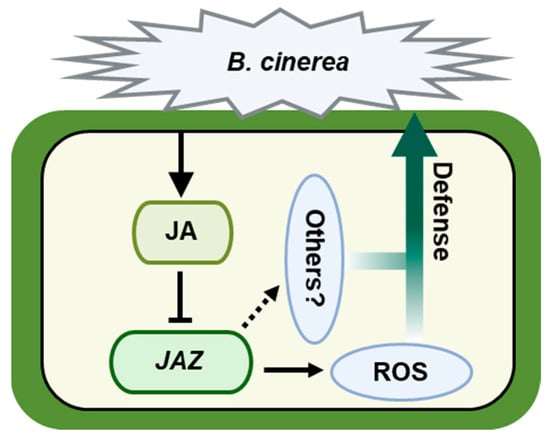

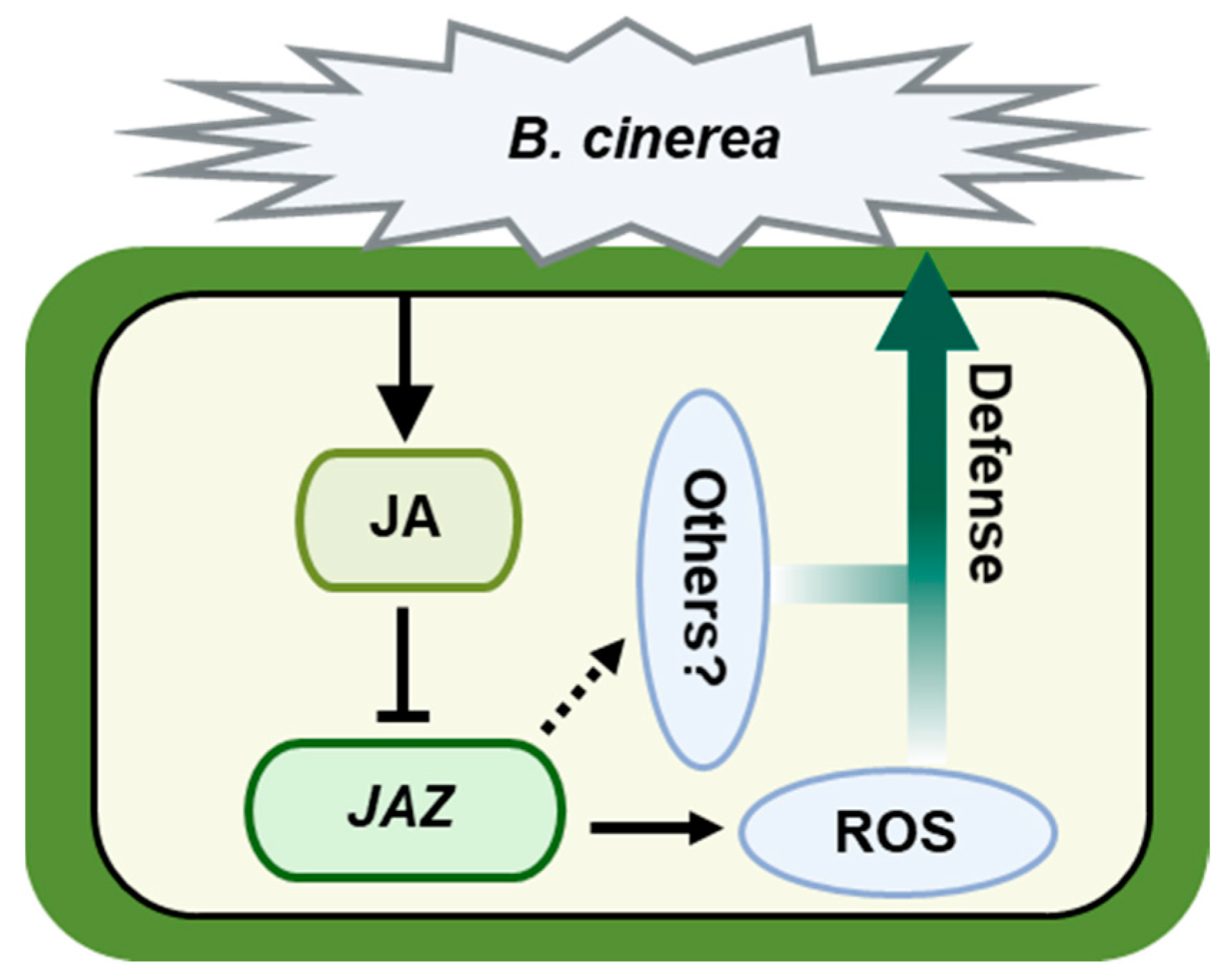

Figure 7. Defense response model of cucumber regulated by JAZ genes. After infection with B. cinerea, the production of endogenous JA inhibits the expression of JAZ genes, thereby affecting the accumulation of ROS to regulate the defense response to B. cinerea. Apart from the accumulation of ROS, there might be additional defense signaling pathways that are regulated by JAZ genes to affect gray mold resistance.
Figure 7. Defense response model of cucumber regulated by JAZ genes. After infection with B. cinerea, the production of endogenous JA inhibits the expression of JAZ genes, thereby affecting the accumulation of ROS to regulate the defense response to B. cinerea. Apart from the accumulation of ROS, there might be additional defense signaling pathways that are regulated by JAZ genes to affect gray mold resistance.
Ijms 25 00185 g007
Table 1. Identification of TIFY genes in different cucumber varieties a.
Table 1. Identification of TIFY genes in different cucumber varieties a.
Gene NameGene ID 1
9930-V39930-V2XTMCCu2Cuc37Cuc64Cuc80W4W8Hx14Hx117Gy149110gt
CsJAZ11G0072601G0429201G0073201G0075001G0073701G0073401G0073301G0073401G0073801G0135501G0105601G0125801G007620
CsJAZ21G0412701G5976901G0463201G0376401G0413001G052450—1G0621101G039100—1G0586801G0495801G041850
CsJAZ33G0308303G6459403G0473503G0368603G0467203G0522703G0420003G0366503G0350101G0445903G0559603G0465703G037230
CsJAZ44G0024604G0098804G0024404G0053904G0024604G0179904G0023804G0024504G0024601G0567904G0024604G0034104G003440
CsJAZ55G0370805G6286505G0581905G0531205G0553805G0423905G0616105G0393405G044750
UNG162140		2G0218205G0660405G0609605G045250
CsJAZ66G0078406G0919306G0090506G0088706G0079106G0080106G0120706G0079706G0099902G0386206G0080306G0121106G007990
CsJAZ76G0518106G5234606G0666006G0477006G0482706G046340—6G0452106G0454602G0386306G0571006G0580306G049490
CsJAZ87G0342707G4488107G0428907G0332107G0460907G0378907G0455207G0319807G0451802G0410607G0495707G0414807G034610
CsJAZ9——1G0351101G0284801G0331501G042040—1G029160—3G0521701G0426301G0385201G030630
CsZML12G0301702G3704202G0316102G0303702G1001702G0705402G1032802G0355302G0427103G0753202G0416002G0384502G031870
CsZML22G0301802G3704302G0316202G0303802G1001802G0705502G1032902G0355402G0427205G0596902G0416102G0384602G031880
CsZML37G0068107G0645807G0100607G0067307G0056107G0023707G0057707G0056207G0108806G0119107G0108007G0067107G007870
CsZML47G0337407G4478007G0423807G0326807G0455707G0373607G0449907G0314707G0446506G0647707G0490407G0409507G034070
CsTIFY12G0316602G3792902G0341202G0328302G1016102G0719902G1047402G0370202G0442207G0088502G0440802G0399302G033380
CsTIFY23G0466303G8789003G0693903G0575803G0627603G0683003G0589003G0536603G0522807G0430503G073290—3G054610
CsPPD12G0134102G2220602G0130602G0140602G0118602G0118502G0158002G0147902G0209107G0435702G0177802G0199802G015010
“a” TIFY gene (1G435720), only identified in 9930 cucumber genome v2.0, was not presented in table. “1” The gene IDs in the table did not include abbreviations that could represent different cucumber varieties; “—” indicates the TIFY gene was not identified in this cucumber cultivar.
Table 2. The predicted lengths of TIFY proteins in different cucumber cultivars.
Table 2. The predicted lengths of TIFY proteins in different cucumber cultivars.
Protein Number9930-V3XTMCCu2Cuc80Cuc64W4W8Hx14Hx117Cuc37Gy149110gt
CsJAZ1339340340356356340340340340340340340
CsJAZ2231231169—231231231231231231231231
CsJAZ3209209209209209209209209209209209209
CsJAZ4200200200200190200 *200—190200190200
CsJAZ5381381381381381381381381381381381381
CsJAZ6184184184184184184184184184184184184
CsJAZ7132132132—130130130132132132132132
CsJAZ8295295295295295295295295295295295295
CsJAZ9—150152—150152—154154152152107
CsZML1352352352352 *352352352352352352352352
CsZML2279293293293293293293293293293293 *293
CsZML3313321 *321321321321316313313321321321
CsZML4303303303332303303303303303303303303
CsTIFY1274274 *274 *274 *274 *274 *274 *274 *274 *274 *274 *274 *
CsTIFY2376400400400400400400400376400—400
CsPPD1336336336336336336336336207336305336
The proteins that have differences in length compared to Cucumis sativus 9930 are marked in red; “—” indicates the TIFY gene was not identified in this cucumber cultivar; “*”, gnome with assembly error, the corrected protein length is shown in the table.
Disclaimer/Publisher’s Note: The statements, opinions and data contained in all publications are solely those of the individual author(s) and contributor(s) and not of MDPI and/or the editor(s). MDPI and/or the editor(s) disclaim responsibility for any injury to people or property resulting from any ideas, methods, instructions or products referred to in the content.

Share and Cite

MDPI and ACS Style

Liu, K.; Xu, H.; Gao, X.; Lu, Y.; Wang, L.; Ren, Z.; Chen, C. Pan-Genome Analysis of TIFY Gene Family and Functional Analysis of CsTIFY Genes in Cucumber. Int. J. Mol. Sci. 2024, 25, 185. https://doi.org/10.3390/ijms25010185

AMA Style

Liu K, Xu H, Gao X, Lu Y, Wang L, Ren Z, Chen C. Pan-Genome Analysis of TIFY Gene Family and Functional Analysis of CsTIFY Genes in Cucumber. International Journal of Molecular Sciences. 2024; 25(1):185. https://doi.org/10.3390/ijms25010185

Chicago/Turabian Style

Liu, Kun, Haiyu Xu, Xinbin Gao, Yinghao Lu, Lina Wang, Zhonghai Ren, and Chunhua Chen. 2024. "Pan-Genome Analysis of TIFY Gene Family and Functional Analysis of CsTIFY Genes in Cucumber" International Journal of Molecular Sciences 25, no. 1: 185. https://doi.org/10.3390/ijms25010185

Note that from the first issue of 2016, this journal uses article numbers instead of page numbers. See further details here.

Article Metrics

Back to TopTop
