Surface Biofunctionalization of Gadolinium Phosphate Nanobunches for Boosting Osteogenesis/Chondrogenesis Differentiation

by
Zhongxing Cai
1,2,†,
Ziyi Guo
1,2,†,
Chaohui Yang
1,2,
Fei Wang
1,2,
Peibiao Zhang
3,
Yu Wang
3,
Min Guo
3,
Zongliang Wang
3,
Jing Huang
1,2,* and
Long Zhang
1,*
1
School of Chemical Engineering, Changchun University of Technology, Changchun 130012, China
2
School of Advanced Institute of Materials Science, Changchun University of Technology, Changchun 130012, China
3
Key Laboratory of Polymer Ecomaterials, Changchun Institute of Applied Chemistry, Chinese Academy of Sciences, Changchun 130022, China
*
Authors to whom correspondence should be addressed.
†
These authors contributed equally to this work.
Int. J. Mol. Sci. 2023, 24(3), 2032; https://doi.org/10.3390/ijms24032032
Submission received: 2 December 2022 / Revised: 14 January 2023 / Accepted: 16 January 2023 / Published: 19 January 2023
(This article belongs to the Special Issue Design and Synthesis of Biomedical Polymer Materials)
Browse Figures
Review Reports Versions Notes

Abstract

:
In order to achieve smart biomedical micro/nanomaterials, promote interaction with biomolecules, improve osteogenic/chondrogenic differentiation, exhibit better dispersion in bone implants and ultimately maximize functionality, we innovatively and successfully designed and synthesized polymer PBLG-modified GdPO4·H2O nanobunches by hydroxylation, silylation and glutamylation processes. The effects of different feeding ratios on the surface coating of GdPO4·H2O with Si-OH, the grafting γ-aminopropyltriethoxysilane (APS) and the in situ ring-opening polymerization reaction of poly(g-benzyl-L-glutamate) (PBLG) were investigated, and the physical and chemical properties were characterized in detail. When GdPO4·H2O@SiO2–APS:NCA = 4:1, the PBLG-g-GdPO4·H2O grafting rate was 5.93%, with good stability and dispersion in degradable polymeric materials. However, the MRI imaging signal was sequentially weakened as the modification process proceeded. Despite this, the biological effects had surprising findings. All the modifiers at appropriate concentrations were biocompatible and biologically active and the biomacromolecules of COL I and COL II in particular were expressed at least 3 times higher in GdPO4·H2O@SiO2 compared to the PLGA. This indicates that the appropriate surface modification and functionalization of gadolinium-containing micro/nanomaterials can promote interaction with cells and encourage bone regeneration by regulating biomacromolecules and can be used in the field of biomedical materials.

Graphical Abstract

1. Introduction

Biomaterials incorporating rare-earth micro/nanoparticles hold promise for multifunctional applications due to their excellent optical, electrical and magnetic properties, especially when used for drug delivery, bioimaging and targeted therapies [1,2,3,4]. Rare earth gadolinium-containing micro/nano materials not only have luminescent properties, but also magnetic resonance tracking properties, making them easy to form multifunctional materials [5,6,7]. In particular, in the field of bone tissue engineering, due to their unique biocompatibility, antimicrobial, antioxidant and anti-inflammatory properties, a range of smart nanobiotics with improvements has been developed for current investigations to address the challenges and problems faced in the field of bone tissue engineering and implantology [8].
In addition to calcium phosphates (CaPs), which bring good bone mineralization activity to bone replacement materials [9], nanoparticles containing gadolinium, europium, SiO2, etc., will form a protein corona [10], a key mediator of nanoparticle–cell interactions, as they can still interact with cells, will facilitate osteogenesis and angiogenesis by modulating inflammatory responses [11,12,13], or promote bone regeneration by targeting key signaling pathways [14,15,16,17,18,19], using material composites or surface modifications that play a great role in bone repair [20]. However, due to the strong coordination of rare earth ions on exposed surfaces, these micro/nanoparticles are easily aggregated in polymer systems when used in degradable polymer bone implants. Therefore, research on the surface modification of gadolinium-containing micro/nano materials to ensure their properties such as luminescence and MRI tracing and to enhance their biocompatibility and bioactivity after functionalization is imminent.
Surface modification is used as an effective method to ensure high dispersion and stability in heterogeneous systems and to avoid agglomeration of inorganic micro/nanoparticles. In addition, the use of a suitable surface modification to make inorganic micro/nanoparticles biocompatible and bioactive and to exploit the multifunctionality of rare earth micro/nanomaterials is a current research hotspot [21,22]. Among the different strategies, amphiphilic polymers, lipids, silica shells, ligand exchange, ligand oxidation, biopolymer polydopamine coating, etc., surface alkylation is a more classical approach for the surface modification of micro/nanoparticles [23,24,25,26]. Prior to this, TEOS (ethylene orthosilicate) was chosen to cover the surface of the micro/nanoparticles to form an amorphous silica cladding layer if there were fewer hydroxyl groups on the surface of the micro/nanoparticles. With this type of covering, a higher water solubility and a better photostability and biocompatibility can be obtained, and more importantly, conditions can be created for increasing the amino or carboxyl groups on the surface of the rare earth micro/nanoparticles, making them suitable for a wider range of biological applications [24]. Furthermore, as silane coupling agents are flexible and can carry groups such as carboxyl, amino and amide groups, more research has been carried out using silane coupling agents to modify the surface of the particles. For example, γ-aminopropyltriethoxysilane (APS)-modified nanoparticles have the advantage of water solubility and a high density of amino groups (-NH2) [27], which gives the modified magnetite and cerium oxide nanoparticles good dispersion and stability in water [28]. Moreover, it is certain that the PBLG-modified nanoparticles have a positive effect on bone differentiation and proliferation [29]. Nevertheless, comparative studies of the physicochemical and biological properties of the functionalized intermediates and products synthesized in each step of the reaction, such as hydroxylation, silylation and ammonification, exist but are not adequate and detailed.
Therefore, in this paper, GdPO4·H2O@SiO2, GdPO4·H2O@SiO2–APS and PBLG-g-GdPO4·H2O were designed and synthesized using surface-modified functionalized GdPO4·H2O nanobunches, with the aim of experimentally screening biofunctionalized gadolinium-containing nanomaterials with good dispersion and stability, a certain degree of paramagnetic MR imaging ability and facilitating osteogenic/chondrogenic differentiation. The structure-to-function conformational relationships were investigated by adjusting the ratios of GdPO4·H2O to TEOS and GdPO4·H2O@SiO2–APS to NCA monomers. The encapsulated morphology and elemental composition were observed by SEM, TEM and EDS, the changes in crystal structure were characterized by XRD, the chemical structure of the samples was studied by FT-IR and the grafting rate of the products was calculated by TG. The stability and dispersion of the samples in chloroform and PLGA were investigated by sedimentation experiments as well as AFM characterization, and the T1-weighted MRI signals of the different modifications were compared using a 1.5 T MRI system. Cytotoxicity and biocompatibility were also evaluated by in vitro cellular assays such as cytotoxicity, cell adhesion and cell proliferation, and the osteogenic/chondrogenic activity and mineralization capacity of the different modifications were investigated by alkaline phosphatase activity assay, type I and type II collagen gene expression and calcium mineralization deposition experiment The possible mechanisms of the effect of functional modifiers of gadolinium phosphate nanobunches on osteogenic/chondrogenic activity were further investigated. The present study demonstrates different modification processes for successive GdPO4·H2O nanobunches. As the modification process proceeds, the functional variability of each modifier begins to manifest, laying the foundation for the functionalization of gadolinium-containing micro/nanomaterials in the field of bone tissue engineering and biomedical materials.

2. Results and Discussion

In previous work, good progress was made in investigating the effect of different gadolinium phosphate doping concentrations on the in vitro/in vivo tracer properties of bone implant composites and their in vitro/in vivo biological effects [18]. To further regulate the osteogenesis/cartilage induction activity, improve the dispersion of rare earth micro/nanoparticles in the matrix of bone implants, and investigate the changes in MRI tracing properties, GdPO4·H2O@SiO2, GdPO4·H2O@SiO2–APS and PBLG-g-GdPO4·H2O were obtained from different modification processes by a silica coating on GdPO4·H2O, silane coupling agent premodification and polyglutamic acid modification, as is shown in Scheme 1. The surface modification and functionalization processes were based on a published method [30]. Firstly, we characterized the physicochemical properties of the synthesized intermediates and modification products (SEM, TEM, XRD, FT-IR, TG, sedimentation experiments, AFM analysis) in order to determine the optimal surface modification conditions. Secondly, we investigated the MRI tracer properties of each modifier to explore the effects of different degrees of surface modification and different grafting rate products on MRI T1 imaging. Finally, we performed biocompatibility and bioactivity evaluations such as cytotoxicity, cell adhesion, cell proliferation, ALP activity, gene expression of COL I and COL II and calcium mineralization deposition assays to ascertain the effect of the degree of functionalization of surface modifications on osteogenic/chondrogenic induction activity. The whole process is not only a further exploration of inorganic gadolinium-containing micro/nanomaterials for applications in bone tissue engineering, but also a solution to the current clinical problems faced by biodegradable orthopedic implant devices.

2.1. Design and Synthesis of PBLG-g-GdPO4·H2O

2.1.1. Sufficient Suitable Encapsulation of SiO2 onto the Surface of GdPO4·H2O Nanobunches

To investigate the effect of the feeding ratio on the materials, GdPO4·H2O@SiO2 core-shell nanobunches were designed and synthesized in the ratios of mGdPO4·H2O:VTEOS (mg/mL) = 1:8, 4:5, 1:1, 5:4, 5:3 and 5:2. Figure 1 shows the morphology of GdPO4·H2O@SiO2. According to previous reports in the literature, uncoated gadolinium phosphates are bundles with smooth surfaces [18]. However, there are many small nanoparticles around the bundles in Figure 1A, indicating that a ratio of 1:8 resulted in an excess of TEOS and the formation of too many silica nanoparticles around gadolinium phosphate. When the feed ratio of GdPO4·H2O and TEOS was greater than or equal to 4:5, the excess silica particles around the nanobunches in Figure 1B–F were significantly reduced or even absent. At the same time, the surface of the coated sample was rough compared to the previously synthesized pure GdPO4·H2O. To further determine the core–shell structure, TEM analysis was performed on the samples without excess SiO2 nanoparticles. A distinct core–shell structure can be observed by TEM in Figure 2, and with a gradual increase in the feed ratio, the SiO2 coating became progressively thinner, gradually decreasing from 9.94 nm to 5.16 nm, which further confirms the successful encapsulation of SiO2 onto the surface of the GdPO4·H2O nanobunches.
To ensure that the surface of gadolinium phosphate was completely covered by SiO2, zeta potential analysis was carried out on GdPO4·H2O@SiO2 synthesized without excess SiO2 particles. As shown in Table 1, when the feed ratios of GdPO4·H2O to TEOS were 4:5, 1:1, 5:4, 5:3 and 5:2, the zeta potentials of the resulting GdPO4·H2O@SiO2 were −26.52 mV, −30.69 mV, −16.98 mV, −16.96 mV and −12.71 mV, respectively. It shows that as the amount of TEOS decreased, the negative charge on the surface of GdPO4·H2O showed a trend of first increasing and then decreasing. At the ratio of 4:5, the surface of GdPO4·H2O was covered with more SiO2, and the SiO2 in the outer layer covered the SiO2 in the inner layer of the shell, so that part of the Si-OH was blocked, thus reducing the negative charge (−26.52 mV). The surface of GdPO4·H2O was just completely encapsulated by SiO2 when the feed ratio was 1:1, and all Si-OH was exposed on the surface, so the surface had the most negative charge and the lowest zeta potential value (−30.69 mV). With the ratios of 5:4–5:2, the surface of GdPO4·H2O was coated with less SiO2, and the Si-OH was reduced; hence, the negative charge gradually diminished, and the zeta potential gradually rose (−16.98 mV–−12.71 mV). The lowest zeta potential value (−30.69 mV) was achieved when the feed ratio of GdPO4·H2O to TEOS was 1:1 (mg/mL), indicating that the optimum amount of TEOS could be achieved at this ratio. At this point, neither too many SiO2 nanoparticles were produced nor too little SiO2 made the GdPO4·H2O nanobunches incompletely encapsulated. More importantly, sufficiently suitable encapsulation was conducive to producing the lowest surface charge and more silicon hydroxyl groups on the surface of GdPO4·H2O, which was beneficial for the next modification step.
Based on the above discussion, EDS analysis and elemental distribution scans were performed for GdPO4·H2O@SiO2 prepared with mGdPO4·H2O:VTEOS (mg/mL) = 1:1. Figure 3A shows the corresponding scanned site. As shown in Figure 3B, the present of the elements Gd, Si, P and O in the GdPO4·H2O@SiO2 sample was demonstrated due to the matching of the detected peaks (blue area) and the elemental identification positions (red line). The detection of C element may be the result of a small amount of adsorption of carbonaceous compounds from the air by the sample. Furthermore, according to the elemental distribution scans in Figure 3C, the elements Gd (green and blue) and P (yellow) were mainly concentrated in the interior, while the element Si (orange) was mainly concentrated in the exterior of the core–shell structure. Since both GdPO4·H2O and SiO2 contain oxygen, the O element (red) was present throughout the structure. All this confirms the successful synthesis of the GdPO4·H2O@SiO2 core–shell structure with more Si-OH groups.

2.1.2. Further Surface Modification of GdPO4·H2O@SiO2 with Polymer APS and PBLG

GdPO4·H2O@SiO2–APS and PBLG-g-GdPO4·H2O@SiO2–APS (PBLG-g-GdPO4·H2O) were synthesized by successive silylation with APS on the surface of GdPO4·H2O@SiO2, followed by glutamylation with PBLG. The successful synthesis of GdPO4·H2O@SiO2 provided sufficient hydroxyl groups on the surface of GdPO4·H2O. Fixed synthesis ratios GdPO4·H2O@SiO2:APS = 1:0.22 were used to obtain GdPO4·H2O@SiO2–APS by grafting the silane coupling agent APS. Glutamate-modified PBLG-g-GdPO4·H2O nanoparticles were obtained at different ratios of GdPO4·H2O-APS and NCA polyglutamate monomer. The specific reaction ratios are shown in Table 2.
XRD analysis of GdPO4·H2O@SiO2 and PBLG-g-GdPO4·H2O obtained with different feed ratios of GdPO4·H2O@SiO2–APS:NCA = 1:0.125, 1:0.25, 1:0.5 and 1:1 is shown in Figure 4. The XRD patterns of GdPO4·H2O@SiO2 and all PBLG-g-GdPO4·H2O products had diffraction peaks at 20.4°, 25.7°, 29.8°, 32.0°, 42.2° and 49.5° corresponding to the (101), (110), (200), (102), (211) and (212) crystal planes, in agreement with the standard card GdPO4·H2O (JCPDS 39-0232), indicating that modification with TEOS and PBLG did not alter the core phase of GdPO4·H2O [18,31]. By increasing the NCA monomer synthesized in Stage 2 of Scheme 1 (L-glutamic acid γ-benzyl ester-N-carbonyl-lactam anhydride), the diffraction peaks of PBLG-g-GdPO4·H2O weakened as a result of the increasing grafting of PBLG by decreasing the crystallinity. Although there was no change in the above XRD peak shifts, the amorphous broad peaks appeared at the ratios of GdPO4·H2O@SiO2–APS:NCA = 1:0.5 (D) and 1:1 (E). There was no significant difference in XRD for GdPO4·H2O@SiO2 (A) and PBLG-g-GdPO4·H2O with the ratios of GdPO4·H2O@SiO2–APS:NCA = 1:0.125 (B), 1:0.25 (C). This was mainly due to the fact that with the amorphous structure and thinner shell layer SiO2 encapsulation, no characteristic peak of the silicon shell was observed [32]. Moreover, the fewer NCA involved in the grafting reaction the less PBLG will be grafted to the surface of GdPO4·H2O@SiO2, producing a thinner surface modification layer and therefore have no affect on the XRD. In contrast, when GdPO4·H2O@SiO2–APS:NCA = 1:0.5 (D) and 1:1 (E), the silane coupling agent modification and the involvement of more NCA monomers in the polymerization reaction led to more polyglutamic acid grafting onto the GdPO4·H2O@SiO2 surface, resulting in a thicker modified layer and ultimately an amorphous broad peak of the polymer in XRD. No new crystalline peaks appeared in XRD, no significant changes in peak positions, and only new PBLG amorphous peaks appeared as the concentration of polyglutamic acid monomer (NCA) increased. These results indicate that the polymerization reaction occurred only on the surface of the gadolinium phosphate nanocrystals, without changing the crystal phase of GdPO4·H2O [30,33].
In order to further confirm the successful modification onto the surface of GdPO4·H2O, the FTIR spectra were investigated, as shown in Figure 5. The two bands at 3478 cm−1 and 1618 cm−1 in Figure 5A are attributed to the OH absorption peaks. The absorption peaks near 1075 cm−1, 800 cm−1 and 464 cm−1 are the Si-O-Si asymmetric stretching, symmetric stretching and bending vibration peaks, respectively [34]. The absorption peaks at 622 cm−1 and 545 cm−1 were caused by the O-P-O bending vibration and represent the characteristic absorption of PO43−. Thus, the amorphous SiO2 shell coating on the surface of GdPO4·H2O nanobunches was confirmed in terms of chemical composition [32]. With silane coupling agent (APS) pre-modification and further polyglutamic acid grafting, the absorption peaks at 1549 cm−1, 1654 cm−1 and 1737 cm−1 in Figure 5B–E were progressively enhanced with increasing ratios of GdPO4·H2O@SiO2–APS:NCA = 1:0.125 (B), 1:0.25 (C), 1:0.5 (D) and 1:1 (E) as they are attributed to the stretching vibrational absorption peak of amide N-H, amide C=O and carboxy C=O, respectively, demonstrating the presence of PBLG chains on the surface of GdPO4·H2O [33]. These results further confirm the successful preparation from GdPO4·H2O, GdPO4·H2O@SiO2 and GdPO4·H2O@SiO2–APS to PBLG-g-GdPO4·H2O.
On the basis of the TG curves in Figure 6, the grafting rates of PBLG were calculated [30], and the detailed results are shown in Table 2. By adjusting the ratios of GdPO4·H2O@SiO2–APS:NCA = 1:0.125, 1:0.25, 1:0.5 and 1:1, the grafting rates were 4.14%, 5.93%, 13.72% and 15.93%, respectively. The grafting rate gradually rose with the increase in NCA monomer, leading to more PBLG grafting onto the surface of GdPO4·H2O@SiO2–APS, thereby preparing PBLG-g-GdPO4·H2O with different grafting rates.

2.2. Dispersion and Stability

To observe the dispersion and stability of the different modifiers in the solvent, the synthesized samples were dispersed in chloroform solution [29]. After ultrasonic dispersion, the samples were monitored with a conventional camera to observe the sedimentation, as shown in Figure 7. GdPO4·H2O@SiO2 without PBLG grafting precipitated immediately, and PBLG-g-GdPO4·H2O with 13.72%; (D) and 15.93% (E) grafting precipitated after 10 s. When resting for 5 min, a small amount of precipitation occurred for PBLG-g-GdPO4·H2O with a grafting rate of 4.141%; (B), and 5.926% (C) exhibited excellent colloidal stability for a longer period of time (15 min). Without grafting or at lower grafting rates (0% and 4.14%), the PBLG chains were less able to maintain the stability of the gadolinium phosphate nanoparticles in chloroform solution and were more prone to settling. Despite the relatively high grafting rate of PBLG-g-GdPO4·H2O (13.72% and 15.93%), more NCA monomers formed longer PBLG polymer chains attached to the surface of GdPO4·H2O@SiO2, causing surface modification supersaturation, low colloidal stability and short settling times in chloroform. This was further confirmed by the previous XRD (Figure 4) and FT-IR (Figure 5) analyses. Thus, PBLG-g-GdPO4·H2O with a grafting rate of 5.926% maintained good stability of the micro/nanoparticles in chloroform solution.

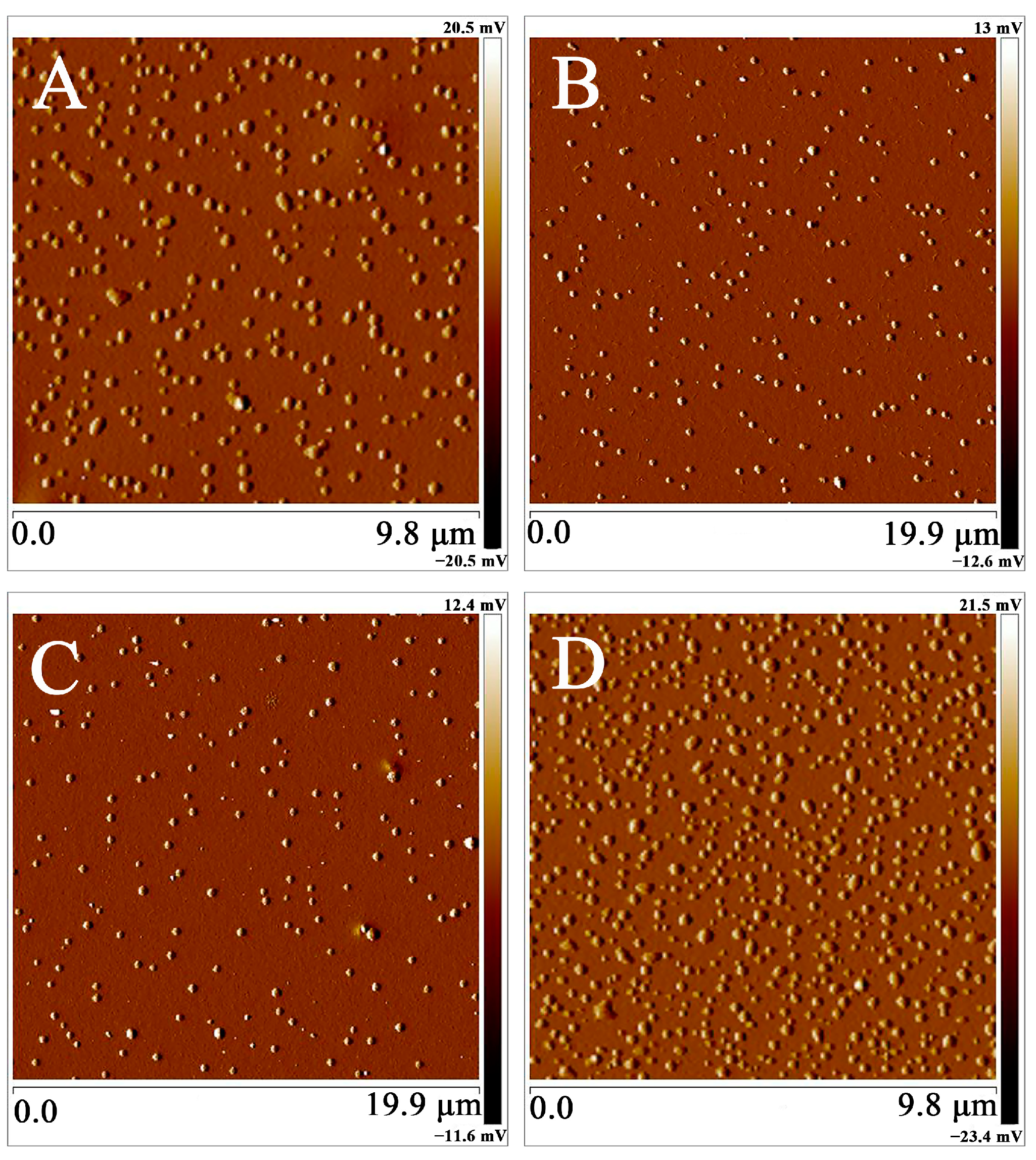

To further confirm that the grafting products could be uniformly dispersed in the degradable polymer PLGA, the surface of the PBLG-g-GdPO4·H2O/PLGA film was observed by atomic force microscopy (AFM), as shown in Figure 8. PBLG-g-GdPO4·H2O with different grafting rates all had good dispersion and could be uniformly dispersed in the degradable polymer material PLGA.

2.3. T1-Weighted MR Imaging of Modifiers in Biomedical Polymer Material of PLGA

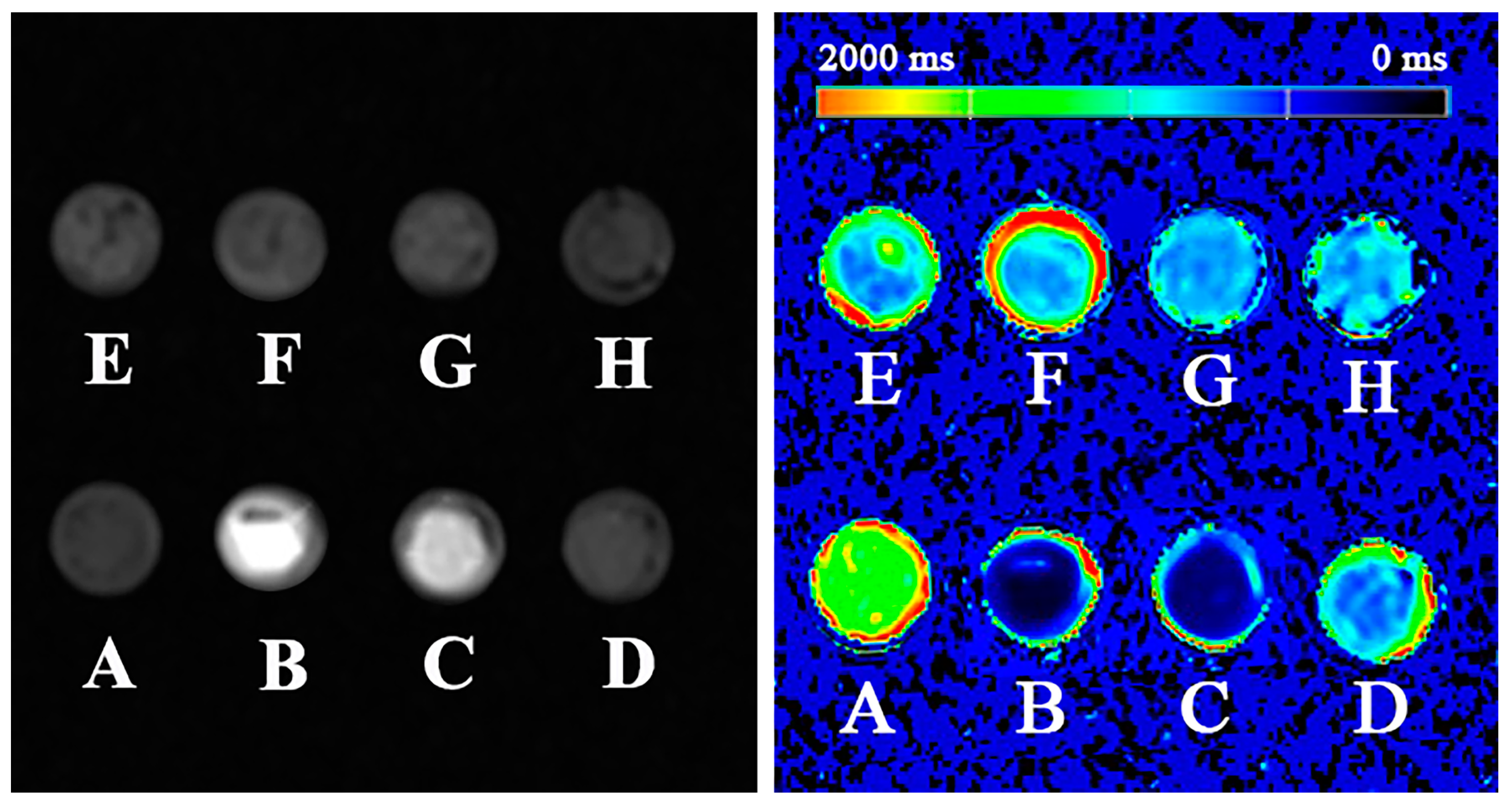

Scaffold samples of PLGA (A), GdPO4·H2O/PLGA (B), GdPO4·H2O@SiO2/PLGA (C), GdPO4·H2O@SiO2–APS/PLGA (D) and PBLG-g-GdPO4·H2O/PLGA (E-G) of the control, modification intermediates, and various grafting rate products were placed into a 1.5 T MRI instrument for monitoring. From the T1-weighted imaging (left) and T1-parametric map (right) images in Figure 9, it was found that GdPO4·H2O/PLGA had the strongest MRI signal as the surface modification and functionalization process proceeded, followed by GdPO4·H2O@SiO2/PLGA. GdPO4·H2O@SiO2–APS/PLGA (D) and PBLG-g-GdPO4·H2O/PLGA (E-H) had significantly weaker MRI signal intensities. The higher the grafting rate was, the weaker the T1-weighted MRI signal of PBLG-g-GdPO4·H2O/PLGA. In the preparation of inorganic‒organic bone implants, the solvent NMP was replaced by water, while water molecular channels were formed in the degradable polymer of PLGA. Gadolinium can chirp near hydrogen protons during MRI monitoring, but after functional modification, the thick coating on GdPO4·H2O inhibits the interaction of gadolinium with surrounding hydrogen protons and produces the shielding effect on H+, resulting in a weaker MRI T1-weighted imaging signal. While many studies have been conducted on the surface modification and functionalization of inorganic rare earth micro/nanoparticles [35,36], it is relatively rare for this paper to investigate the effects of different modification process products on the MRI T1-weighted imaging signal of inorganic gadolinium-containing micro/nanoparticles, which also provides a reference for later researchers to make reasonable use of the surface modification process to prepare MRI tracing-related functionalized materials. As a paramagnetic contrast agent for MRI of bone tissue, a more suitable method for enhancing the development of gadolinium phosphate needs to be found in the future.

2.4. Cellular Response

2.4.1. Cytotoxicity and Biocompatibility

A systematic in vitro experimental evaluation of the materials was carried out to investigate the biocompatibility and bioactivity of the modification intermediates and modification products. The cytotoxicity experiments are shown in Figure 10. For GdPO4·H2O/PLGA, GdPO4·H2O@SiO2–APS/PLGA and PBLG-g-GdPO4·H2O/PLGA, the cell viability of the material leachate increased progressively with increasing dilution, suggesting a possible “low-promoting, high-inhibiting” hormesis effect [37], with no significant cytotoxic effect on MC3T3-E1 cells at the appropriate concentration. However, the survival rate of GdPO4·H2O@SiO2/PLGA decreased step by step, indicating that the SiO2 coating had a positive effect on promoting cell survival with increasing concentrations in this range. Notably, only the GdPO4·H2O@SiO2–APS/PLGA leachate showed a cell survival rate of 73.4% without dilution, which was lower than 75%, indicating a slight and low toxic effect due to the presence of a relatively high amount of silane coupling agent APS [38,39,40]. Other groups and cell experiments with dilutions of the extract showed no significant cytotoxicity to MC3T3-E1 cells. The above results predict good biocompatibility of all surface modifiers.

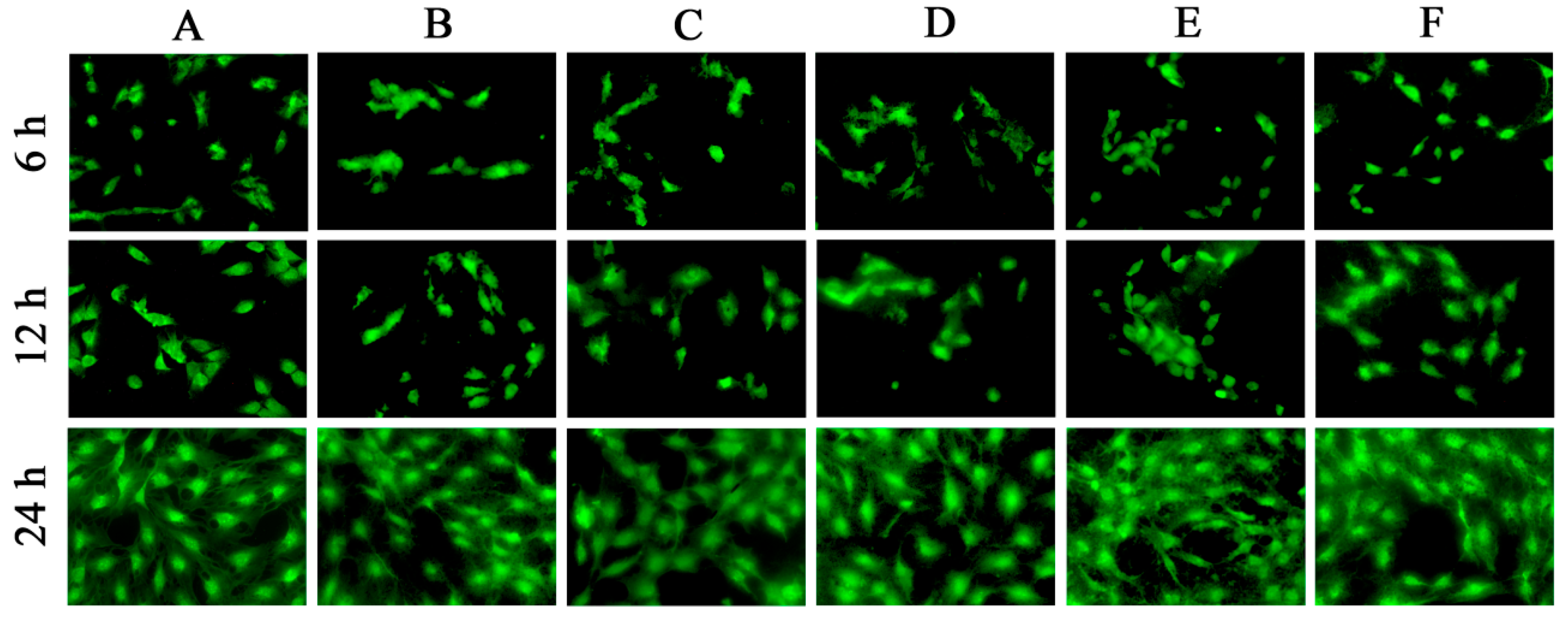

Moreover, the adhesion behavior of MC3T3-E1 cells was observed by FITC staining, as displayed in Figure 11. The microscopic images show that at 6 h of cell culture, a small number of cells began to adhere to the surface of the material, and the cells were mostly round or spindle shaped. At 12 h of incubation, the cells began to stretch and change to a polygonal shape. At 24 h of incubation, the number of cells began to increase, and the cell bodies were fully expanded and grew in colonies. There were no significant differences in cell numbers and cell morphology between MC3T3-E1 cells cultured for 6 h, 12 h and 24 h, suggesting that each modifier had no significant effect on cell adhesion of MC3T3-E1 in PLGA.

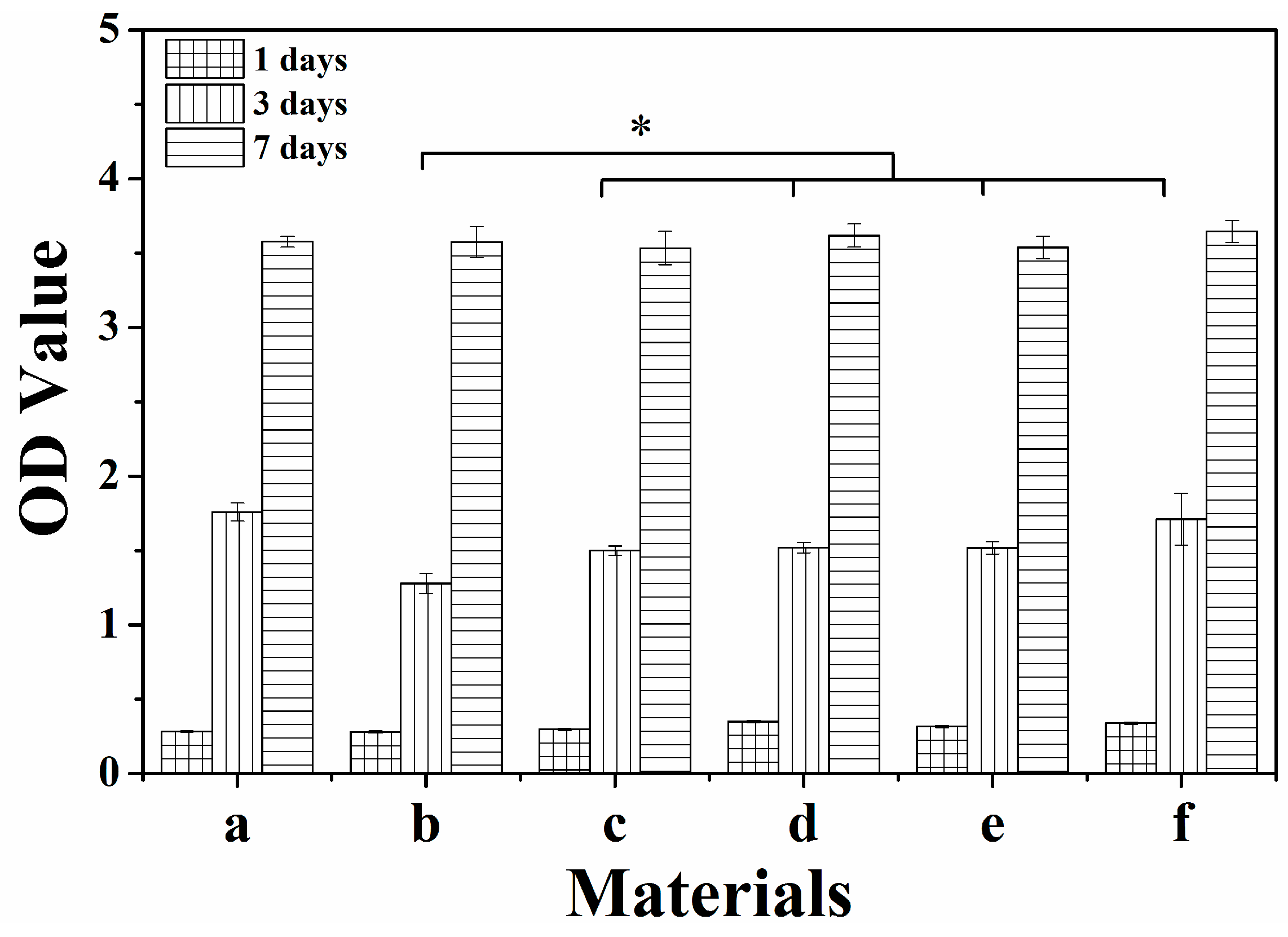

The rate of cell proliferation is the first important indicator of osteogenic differentiation, and when this phenotypic shift occurs, the level of proliferation will begin to plateau. To further confirm the biocompatibility of the material, the cell proliferation assay was carried out, as shown in Figure 12. There was no significant difference in the absorbance (OD) values of the cells cultured on the surface of each material when MC3T3-E1 cells were cultured for 1 day. As the culture time was extended to 3 days, the OD values detected in each group increased, indicating an increase in cell numbers. At this time, the OD values of the GdPO4·H2O/PLGA, GdPO4·H2O@SiO2/PLGA, GdPO4·H2O@SiO2–APS/PLGA and PBLG-g-GdPO4·H2O/PLGA groups were all higher than those of PLGA, especially the OD values of PBLG-g-GdPO4·H2O/PLGA cultured cells, which were the highest, with significant differences (p < 0.05). This indicates that the modifiers had good biocompatibility, which may have been the consequence of the positive biocompatibility and biological effects of GdPO4·H2O, SiO2, APS and polyglutamic acid in PBLG [32,41,42,43,44]. At 7 days of incubation, the OD values of the groups were similar, with only the GdPO4·H2O@SiO2/PLGA and PBLG-g-GdPO4·H2O/PLGA groups having slightly higher OD values than the glass, GdPO4·H2O/PLGA and GdPO4·H2O@SiO2–APS/PLGA groups, but there was no significant difference (p > 0.05). In the above cell experiments, it was demonstrated that the surface modification of GdPO4·H2O resulted in low toxicity of the modifiers to MC3T3-E1 cells in the experimental concentration range and in PLGA, with no significant inhibition of cell adhesion behavior and cell proliferation, but rather a pro-cell proliferation effect at 3 days of culture (notably PBLG-g-GdPO4·H2O), indicating that the modifiers were all biocompatible. This may have been due to the interaction of PBLG with adhesion proteins in the extracellular matrix, and integrins on the cell surface contributing to good cell proliferation [44].

2.4.2. Osteogenic/Chondrogenic Induction Activity

Alkaline phosphatase (ALP), the metalloenzyme that catalyzes the nucleation of inorganic phosphates, is essential for the mineralization of hard tissues and is an early marker of the development of cells towards the differentiation pathway [45,46]. The ALP activities of MC3T3-E1 cells cultured on different materials for 7 and 14 days are shown in Figure 13. At 7 days of culture, the ALP activity of the GdPO4·H2O@SiO2/PLGA group was similar to that of the glass and higher than that of the GdPO4·H2O/PLGA, GdPO4·H2O@SiO2–APS/PLGA and PBLG-g-GdPO4·H2O/PLGA groups, with a significant difference (p < 0.05), indicating that SiO2-coated GdPO4·H2O facilitated ALP secretion by MC3T3-E1 cells. At 14 days of culture, the ALP activity of the gadolinium-containing group was higher than that of both the glass and PLGA groups, especially in the GdPO4·H2O@SiO2–APS/PLGA and PBLG-g-GdPO4·H2O/PLGA groups, with a significant difference (p < 0.05), indicating that the surface-modified functionalized intermediate GdPO4·H2O@SiO2–APS and the product PBLG-g-GdPO4·H2O promoted ALP secretion at 14 days of cell culture. The peptide PBLG itself stimulates cell adhesion and the APS also has a strong interaction with cells, which in turn facilitates further cellular processes such as proliferation and differentiation [44].
Collagen type I (COL I) is the most abundant component of the organic matrix in bone tissue with a length of 300 nm and a width of 1.1–1.5 nm [45]. Collagen type II (COL II) is a cartilaginous ECM molecule found mainly in cartilage and developing bone and is an important regulator of osteogenesis in BMSCs, with research showing that COL II is more effective in promoting osteogenesis in BMSCs [47]. To assess the effect of functionalized materials on the COL I and COL II of osteoblasts, the gene expression levels of MC3T3-E1 cells were analyzed by qRT‒PCR during growth and differentiation. The results are shown in Figure 14. At 7 and 14 days of culture, the COL I expression levels of MC3T3-E1 cells in GdPO4·H2O/PLGA, GdPO4·H2O@SiO2/PLGA, GdPO4·H2O@SiO2–APS/PLGA and PBLG-g-GdPO4·H2O/PLGA were higher than those of the glass and PLGA groups. The highest COL I expression was found in the GdPO4·H2O@SiO2/PLGA group and the expression level was up to 11.6 and 4.8 times higher than that of the PLGA group at 7 and 14 days, respectively. This indicates that due to the presence of SiO2, the GdPO4·H2O@SiO2/PLGA composite promoted the high expression of COL I during the proliferation and differentiation phase of the cells. For COL II expression, the expression level of GdPO4·H2O@SiO2/PLGA and GdPO4·H2O@SiO2–APS/PLGA was higher than that of the other material groups at 7 days, and there was a higher expression of GdPO4·H2O@SiO2/PLGA, GdPO4·H2O@SiO2–APS/PLGA and PBLG-g-GdPO4·H2O/PLGA at 14 days of culture. It is pretty obvious that the GdPO4·H2O@SiO2/PLGA group likewise showed the highest expression level with significant difference than the other composites. The COL II expression levels in the GdPO4·H2O@SiO2/PLGA group were up to 11.8 and 3.1 times higher than that in the PLGA group at 7 and 14 days, respectively. The above indicates that the modification of the SiO2 layer significantly promoted the expression of COL I and COL II molecules involved in bone reconstruction. Owing to the encapsulation of SiO2 on the GdPO4·H2O surface, the GdPO4·H2O@SiO2 will expose several negative charges or Si-OH and gradually release Si ions during the cell proliferation and differentiation phase. Simultaneously, SiO2/Si is known as a “biological cross-linker” and plays a particularly important role in linking proteoglycans and collagen, which is essential for biomineralization and collagen synthesis [48,49,50]. As early as 1970, Si was identified as a key element involved in tissue mineralization [51]. Si ions are strongly involved in the initial stages of biomineralization and a reduced intake of Si leads to marked defects in the growth of bone and cartilage [52]. Therefore, in this study, SiO2 and GdPO4·H2O may have acted synergistically to promote the high expression of COL I and COL II, thus contributing to the promotion of osteogenic/chondrogenic activity of the bone implant material. Of course, due to the activity of the substrate and the functionalization of the active modifiers, the up-regulation of the COL I and COL II genes by them or by their combined action at different incubation times should also be acknowledged.

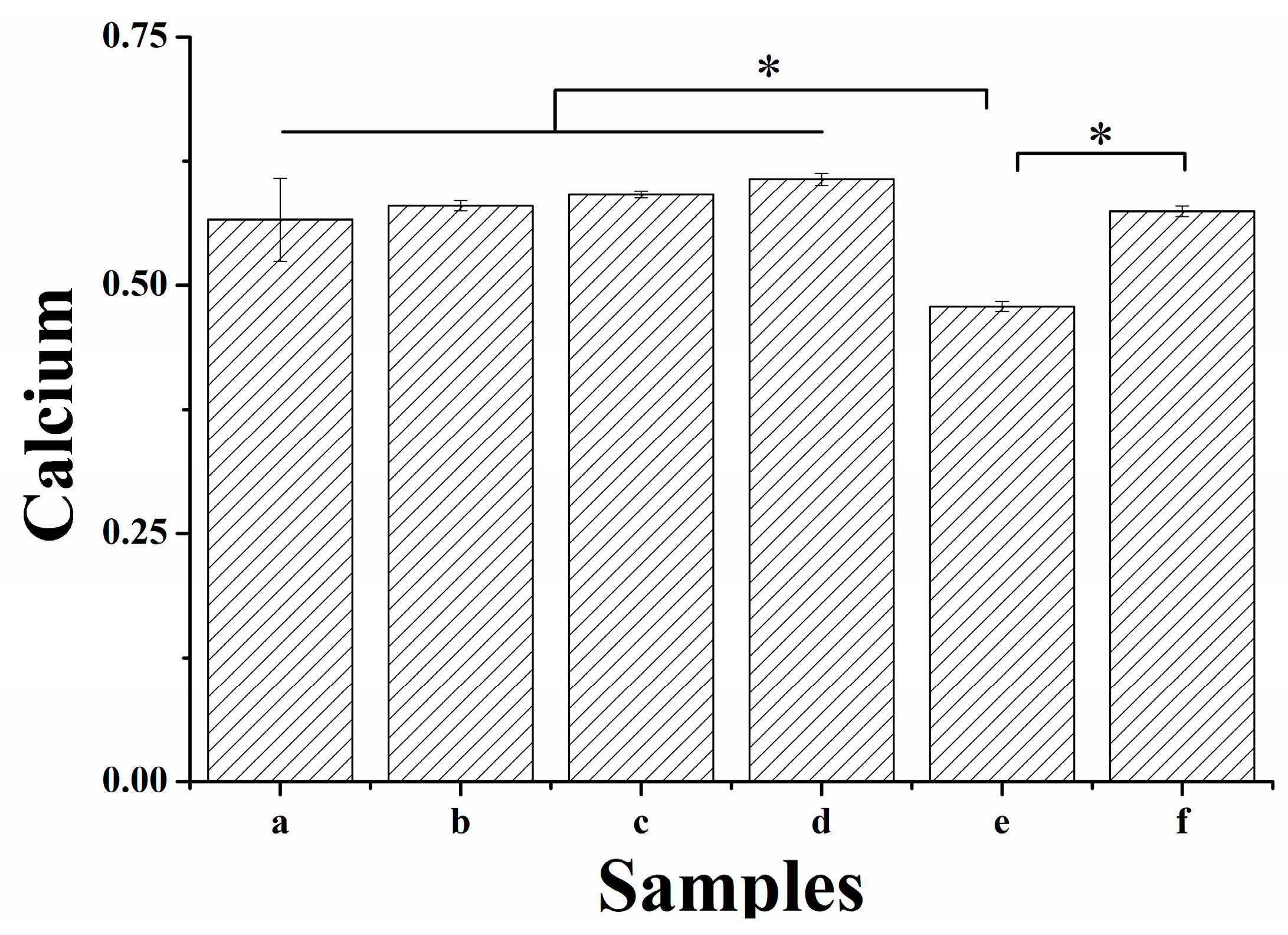

After osteogenic differentiation, the cells begin to secrete a mineral matrix, known as the mineralization phase. The qualitative and quantitative assessments of mineral deposits were determined, as shown in Figure 15 and Figure 16. Calcium mineralization deposition of the cells was assessed when MC3T3-E1 cells were cultured on PLGA, GdPO4·H2O/PLGA, GdPO4·H2O@SiO2/PLGA, GdPO4·H2O@SiO2–APS/PLGA and PBLG-g-GdPO4·H2O/PLGA for 3 weeks. Upon alizarin red (ARS) staining, red calcium nodules appeared on the substrate of each material group, indicating that MC3T3-E1 cells secreted calcium ions and produced mineralized deposits when cultured for 3 weeks. After quantitative analysis, as shown in Figure 16, the PLGA, GdPO4·H2O/PLGA, GdPO4·H2O@SiO2/PLGA and PBLG-g-GdPO4·H2O/PLGA groups had the higher calcium content, with significant differences compared to GdPO4·H2O@SiO2–APS/PLGA group (p < 0.05). Of all modifiers, GdPO4·H2O@SiO2/PLGA had the highest calcium content, followed by group GdPO4·H2O/PLGA, possibly related to the previous finding of high expression of the COL I and COL II in GdPO4·H2O@SiO2. Studies have shown that COL I/COL II can promote calcium mineralization deposition through the unique role of integrin a2b1-FAK-JNK signaling in regulating osteogenic differentiation of BMSC [47]. Gd promotes the expression levels of ALP, COL-1 and Runx2 in conjunction with mesoporous SiO2 in chitosan scaffolds and subsequent osteogenic mineralization, upregulates p-GSK3β and β-catenin, important marker proteins of the Wnt/β-catenin signaling pathway [14]. Although the mineralization results in this experiment were not as pronounced, especially in the PBLG-g-GdPO4·H2O group, the results did not follow the same trend as the data already reported [44], presumably due to the lower level of introduced modifiers in the scaffold (0.4%, Gd/PLGA, w/w). Perhaps the advantages of mineralization would be better demonstrated by increasing the amount of PBLG-g-GdPO4·H2O.

2.5. Possible Molecular Mechanism

Osteogenesis is a complex physiological process that takes 4–6 months to complete skeletal modelling or remodeling. During ossification, multiple biomolecular signaling proteins (e.g., BMP, PDGF, FGF, TGF-β, Wnt, Hedgehog, etc.) are involved in regulating bone resorption and mineralization. In simulating natural bone and promoting osteogenesis in bone implants, the organic (matrix phase) and inorganic (reinforcing phase) phases, as smart and multifunctional materials, each have their own role to play and ‘look after’ each other to promote the osteogenic differentiation and mineralization process and neither is dispensable [45]. In this work, a variety of modifications were obtained by a silica coating, APS grafting and polymer PBLG covalent modification, with gadolinium phosphate as the centerpiece. Improved dispersion and stability of inorganic micro/nanoparticles in the scaffold while maintaining better MRI tracer properties promoted osteogenic differentiation. The main reasons for analyzing the mechanism of the effect of various modifiers on the osteogenic/chondrogenic induction activity of MC3T3-E1 cells are due to the following reasons.
The first is the effect of particle composition and concentration. At suitable concentrations, it has been demonstrated that gadolinium phosphate promotes OCN expression and promotes new bone regeneration via the Smad/Runx2 pathway [18,19,53]. SiO2 promotes collagen expression [49,50,52], APS has better biocompatibility [41] and PBLG promotes osteogenic mineralization [30,33,44]. Different components also cause different ions/groups to be released, further affecting cellular pathways and functions.
Secondly, the different surface groups, charges and pH values of the materials are the ‘first impression’ of the nanoparticles (NPs) to the cell or biomolecule. When solid NPs are introduced into the liquid phase, a different range of repulsive or attractive forces develop between the NPs and other molecules in the environment, and due to the small size and concentrated surface charge, the NPs become highly reactive, facilitating interactions between the NPs and the molecules, which in a physiological environment forms a protein corona that further regulates osteogenic niche capacity by triggering or moderating inflammation [10].
Finally, the introduction of the surface topography of smart materials is also the first clue to cell-aware scaffolds, which control the early biological responses of cells, including adhesion, spreading and migration, and then alter their phenotype, thus controlling the bone regeneration process [54]. The morphology/size/pore structure of nanomaterials such as nanogrooves, nanofibers, nanodots, nanotubes and complex shaped patterns which are nanostructured surfaces have a significant impact on the induction of osteogenic differentiation.
Above all, it is hypothesized that particle composition/concentration, surface groups/charge/pH may have been the main influence on osteogenic differentiation in this research work. The main influences on different research systems are different and therefore the same theory cannot be used to explain different work.

3. Materials and Methods

3.1. Materials

TEOS (ethyl orthosilicate), isopropanol, ammonia, ethanol, tetrahydrofuran (THF), dioxane and acetone were purchased from Beijing Chemical Works. 3-Aminopropyltriethoxysilane (APS) was purchased from Tokyo Chemical Industry (Tokyo, Japan). g-Benzyl-L-glutamic acid was purchased from Sinopharm Chemical Reagent Co., Technology Co., Ltd. (Shanghai, China). All solvents and chemicals were analytically pure and used directly. Deionized water was used for all aqueous solutions.

3.2. Preparation of GdPO4·H2O@SiO2

GdPO4·H2O nanobunches were prepared according to the previous literature [18]. Then, GdPO4·H2O was added to a mixed solution (isopropanol:water = 10:1). The mixture was placed in an ultrasonic water bath at 25 °C for 10 min, and 3.5 mL of ammonia was added and stirred for 15 min. TEOS was added dropwise to the above solution in the ratio mGdPO4·H2O:VTEOS (mg/mL) = 1:8, 4:5, 1:1, 5:4, 5:3 and 5:2. After stirring for 12 h, the mixture was separated by centrifugation, washed 4 times with deionized water and then dried in an oven at 60 °C for 12 h to obtain SiO2-coated GdPO4·H2O (GdPO4·H2O@SiO2).

3.3. Synthesis of GdPO4·H2O@SiO2–APS and BLG-NCA

The APS-modified intermediate (GdPO4·H2O@SiO2–APS) was synthesized based on a published method [30]. 3-Aminopropyltriethoxysilane (APS) was dissolved in 100 mL of ethanol–water mixture (ethanol:water = 9:1) and stirred for 30 min. GdPO4·H2O@SiO2 was then added to the solution in the ratio of GdPO4·H2O@SiO2:APS = 1:0.22 via the sonicating process for 20 min. The mixed solution was adjusted to pH = 10, stirred at room temperature for 6 h, centrifuged three times with absolute ethanol, and dried at room temperature. The APS-modified GdPO4·H2O@SiO2 (GdPO4·H2O@SiO2–APS) was collected after curing for 2 h in a drying oven at 130 °C to strengthen the polysiloxane network structure.
BLG-NCA (L-glutamic acid γ-benzyl ester-N-carbonyl-lactam anhydride), the NCA monomer, was synthesized by the reaction of benzyl glutamic acid with triphosgene in anhydrous tetrahydrofuran (THF) at 50–60 °C.

3.4. Synthesis of PBLG-g-GdPO4·H2O

GdPO4·H2O@SiO2–APS and NCA monomer (GdPO4·H2O@SiO2–APS:NCA = 1:0.125, 1:0.25, 1:0.5 and 1:1) were put into a flame-dried 100 mL round-bottom flask, sealed and then injected with 60 mL of dried dioxane. PBLG-g-GdPO4·H2O was synthesized after stirring at room temperature for 32 h, centrifugation with dioxane and acetone 5 and 2 times, respectively, and drying at room temperature.

3.5. Preparation of Nanocomposites for MR Imaging and Cell Experiments

GdPO4·H2O, GdPO4·H2O@SiO2, GdPO4·H2O@SiO2–APS and PBLG-g-GdPO4·H2O were added to N-methylpyrrolidone (NMP) or chloroform solutions with a Gd concentration of 0.4% (w/w, Gd/PLGA) for MR imaging and cellular experiments, respectively. PLGA was dissolved in the above solutions, dispersed by ultrasound for 10 min and then stirred overnight. For MR imaging, a homogeneous mixture with NMP as the solvent was transferred to a 2 mL syringe and placed in a cryogenic refrigerator for at least 4 h. After replacing the solvent with deionized water to cure for 3 days, the composites were dried at room temperature. In cell experiments, a homogeneous mixture with chloroform as the solvent was dropped onto silica slides and uniformly coated. The composite films of GdPO4·H2O/PLGA, GdPO4·H2O@SiO2/PLGA, GdPO4·H2O@SiO2–APS/PLGA, and PBLG-g-GdPO4·H2O/PLGA were dried under vacuum for 48 h. All composites were disinfected by UV light for 2 h prior to cell culture. PLGA was used as a control group.

3.6. Characterization of Physical and Chemical Properties

The crystal phase was analyzed by powder X-ray diffraction (XRD; Bruker Co., Bremen, Germany) on a D8 Advance diffractometer using Cu Kα radiation (λ = 0.154 Å). The morphology, structure and size of the samples were determined by field-emission scanning electron microscopy (FESEM; Philips XL30 ESEM FEG, Japan) and transmission electron microscopy (TEM; FEI Tecnai G2 S-Twin, München, Germany). The elemental compositions were analyzed by energy-dispersive X-ray energy spectrometry (EDX; Philips, XL-30 W/TMP, Konan, Japan). Fourier transform infrared spectrometry (FT-IR, Bio-Rad Win-IR Spectrometer, Watford, UK) was recorded in the range of 400–4000 cm−1 using the attenuated total reflection (ATR) mode and the KBr slice method. Atom force microscopy (AFM) images were acquired by Bruker’s Dimension Icon and Multimode-V AFM. The amounts of GdPO4·H2O, GdPO4·H2O@SiO2, GdPO4·H2O@SiO2–APS, and PBLG-g-GdPO4·H2O were determined by thermogravimetric analysis (TGA, TA Instruments TGA500, New Castle, DE, USA) in air at a heating rate of 10 °C/min from 25 °C to 800 °C.

3.7. Magnetic Resonance Imaging In Vitro

MR imaging of GdPO4·H2O/PLGA, GdPO4·H2O@SiO2/PLGA, GdPO4·H2O@SiO2–APS/PLGA, and PBLG-g-GdPO4·H2O/PLGA nanocomposites was performed using a 1.5-T scanner (Siemens Magnetom Avanto, Erlangen, Germany). The in vitro imaging parameters were as follows: repeat time TR = 530 ms, echo time TE = 12 ms, field of view = 330 mm × 330 mm, and layer thickness = 2.0 mm.

3.8. In Vitro Cell Culture

MC3T3-E1 cells were purchased from the Shanghai Institute of Cell Biology, Chinese Academy of Sciences (CAC) and cultured in regular culture medium containing Dulbecco’s modified Eagle’s medium (DMEM) and 10% v/v fetal bovine serum (FBS) from Gibco (New York, NY, USA) at 37 °C in a humidified atmosphere of 5% CO2. The culture medium was refreshed every three days.
Cytotoxicity and proliferation were assessed by the CCK-8 assay. Cytotoxicity was evaluated by using the extracts from the samples. Briefly, GdPO4·H2O/PLGA, GdPO4·H2O@SiO2/PLGA, GdPO4·H2O@SiO2–APS/PLGA and PBLG-g-GdPO4·H2O/PLGA films (6 cm2/mL) containing 0.4% Gd (w/w, Gd/PLGA) were immersed in the culture medium for 24 h. MC3T3-E1 cells were cultured at 1 × 104 cells/well for 24 h in 96-well plates. The original medium was then replaced with a fresh 100 μL gradient dilution of the extract, and the cells were incubated under the same conditions for 22 h. The medium was replaced with fresh medium again, 10 μL of CCK-8 was added and incubated for 2 h and the absorbance was measured at 450 nm on a multifunctional microplate scanner (Tecan Infinite M200, Tecan, Männedorf, Switzerland).
For cell adhesion/proliferation experiments, coverslips containing composites were washed three times with PBS and placed in 24-well plates with 4 × 104 MC3T3-E1 cells per well, and cell adhesion was assayed at 6, 12 and 24 h. A total of 1.5 × 104 cells per well were grown for cell proliferation and tested at 1, 3, 7 and 14 days. Cell adhesion and cell morphology were observed by fluorescent isothiocyanate (FITC, Sigma, MO, USA) staining under an inverted microscope (TE2000U, Nikon, Tokyo, Japan). Each subsequent group was prepared in triplicate.
The expression of osteogenic/chondrogenic-related genes was quantitatively assessed by real-time PCR. MC3T3-E1 cells were cultured in 24-well plates containing composite material at 6 × 104 cells per well for 7 and 14 days. The exact procedure can be found in the relevant reference [30].
Calcium-rich deposits of MC3T3-E1 cells were assessed using alizarin red staining in 6-well plates cultured at 3 × 104 cells per well for 3 weeks, following a previously published protocol.

3.9. Data Analysis

Quantitative data are expressed as the mean ± standard error. Significance was accepted at * p < 0.05.

4. Conclusions

In summary, GdPO4·H2O@SiO2, GdPO4·H2O@SiO2–APS and PBLG-g-GdPO4·H2O were successfully designed and synthesized by controlling the ratio of reactants when GdPO4·H2O:VTEOS (mg/mL) = 1:1, GdPO4·H2O@SiO2:APS = 1:0.22 and GdPO4·H2O@SiO2–APS:NCA = 4:1, leading to a grafting ratio of 5.93% for PBLG-g-GdPO4·H2O, which showed good stability and dispersion in chloroform and the degradable polymer PLGA. After functionalization of the surface modification, only the T1-weighted MRI signal of GdPO4·H2O@SiO2 was stronger, and the MRI imaging signals of GdPO4·H2O@SiO2, GdPO4·H2O@SiO2–APS and PBLG-g-GdPO4·H2O were sequentially weakened. All modification intermediates and the modification product had good biocompatibility, such as an elevated ALP activity to some extent and promoted the expression of COL I and COL II, especially GdPO4·H2O@SiO2 which had significant up-regulation ability on the gene expression of biomacromolecules COL I and COL II, with expression levels at least 4.8 and 3.1 times higher than those of the PLGA group, respectively. The design and synthesis of intelligent and biofunctionalized gadolinium phosphate nanobunches through surface modification will make an outstanding contribution in the field of biomedical materials and bone tissue engineering.

Author Contributions

Conceptualization, P.Z., J.H. and L.Z.; writing—original draft, Z.C., Z.G. and C.Y.; methodology, F.W.; resources, Y.W., M.G. and Z.W.; writing—review and editing, J.H. All authors have read and agreed to the published version of the manuscript.

Funding

This work was financially supported by the National Natural Science Foundation of China (Grant No. 51903018), the Education Department of Jilin Province (Grant No. JJKH20191315KJ) and the Dengfeng Project of Foshan Hospital of Traditional Chinese Medicine (202100043).

Institutional Review Board Statement

Not applicable.

Informed Consent Statement

Not applicable.

Data Availability Statement

Not applicable.

Acknowledgments

We acknowledge the biological test platform of the Regenerative Medical Materials Group at Changchun Institute of Applied Chemistry, the analytical test platform of the Photoluminescent Materials Group at Jilin University, and Zhiqiang Xu of Department of Rehabilitation Medicine at Foshan Hospital of Traditional Chinese Medicine.

Conflicts of Interest

The authors declare no conflict of interest.

References

  1. Luo, M.; Shaitan, K.; Qu, X.; Bonartsev, A.P.; Lei, B. Bioactive rare earth-based inorganic-organic hybrid biomaterials for wound healing and repair. Appl. Mater. Today 2022, 26, 101304. [Google Scholar] [CrossRef]
  2. Pozdniakova, N.V.; Ryabaya, O.V.; Semkina, A.S.; Skribitsky, V.A.; Shevelev, A.B. Using ELP Repeats as a Scaffold for De Novo Construction of Gadolinium-Binding Domains within Multifunctional Recombinant Proteins for Targeted Delivery of Gadolinium to Tumour Cells. Int. J. Mol. Sci. 2022, 23, 3297. [Google Scholar] [CrossRef]
  3. Shapoval, O.; Sulimenko, V.; Klebanovych, A.; Rabyk, M.; Shapoval, P.; Kaman, O.; Rydvalová, E.; Filipová, M.; Dráberová, E.; Dráber, P.; et al. Multimodal fluorescently labeled polymer-coated GdF3 nanoparticles inhibit degranulation in mast cells. Nanoscale 2021, 13, 19023–19037. [Google Scholar] [CrossRef] [PubMed]
  4. Sun, L.; Shi, S.; Wu, Z.; Huang, Y.; Ji, C.; Grimes, C.A.; Feng, X.; Cai, Q. Lanthanide/Cu2–xSe Nanoparticles for Bacteria-Activated NIR-II Fluorescence Imaging of Infection. ACS Sens. 2022, 7, 2235–2242. [Google Scholar] [CrossRef] [PubMed]
  5. Wu, C.-Y.; Hsieh, H.-H.; Chang, T.-Y.; Lin, J.-J.; Wu, C.-C.; Hsu, M.-H.; Lin, M.-C.; Peng, S.-L. Development of MRI-Detectable Boron-Containing Gold Nanoparticle-Encapsulated Biodegradable Polymeric Matrix for Boron Neutron Capture Therapy (BNCT). Int. J. Mol. Sci. 2021, 22, 8050. [Google Scholar] [CrossRef]
  6. Corey, Z.J.; Lu, P.; Zhang, G.; Sharma, Y.; Rutherford, B.X.; Dhole, S.; Roy, P.; Wang, Z.; Wu, Y.; Wang, H.; et al. Structural and Optical Properties of High Entropy (La,Lu,Y,Gd,Ce)AlO3 Perovskite Thin Films. Adv. Sci. 2022, 9, 2202671. [Google Scholar] [CrossRef]
  7. Pu, R.; Zhan, Q.; Peng, X.; Liu, S.; Guo, X.; Liang, L.; Qin, X.; Zhao, Z.W.; Liu, X. Super-resolution microscopy enabled by high-efficiency surface-migration emission depletion. Nat. Commun. 2022, 13, 6636. [Google Scholar] [CrossRef]
  8. Natarajan, D.; Ye, Z.; Wang, L.; Ge, L.; Pathak, J.L. Rare earth smart nanomaterials for bone tissue engineering and implantology: Advances, challenges, and prospects. Bioeng. Transl. Med. 2022, 7, e10262. [Google Scholar] [CrossRef]
  9. Fiume, E.; Magnaterra, G.; Rahdar, A.; Verné, E.; Baino, F. Hydroxyapatite for Biomedical Applications: A Short Overview. Ceramics 2021, 4, 542–563. [Google Scholar] [CrossRef]
  10. Bozorgi, A.; Khazaei, M.; Soleimani, M.; Jamalpoor, Z. Application of nanoparticles in bone tissue engineering; a review on the molecular mechanisms driving osteogenesis. Biomater. Sci. 2021, 9, 4541–4567. [Google Scholar] [CrossRef]
  11. Nethi, S.K.; Veeriah, V.; Barui, A.K.; Rajendran, S.; Mattapally, S.; Misra, S.; Chatterjee, S.; Patra, C.R. Investigation of molecular mechanisms and regulatory pathways of pro-angiogenic nanorods. Nanoscale 2015, 7, 9760–9770. [Google Scholar] [CrossRef] [Green Version]
  12. Patra, C.R.; Bhattacharya, R.; Patra, S.; Vlahakis, N.E.; Gabashvili, A.; Koltypin, Y.; Gedanken, A.; Mukherjee, P.; Mukhopadhyay, D. Pro-angiogenic Properties of Europium(III) Hydroxide Nanorods. Adv. Mater. 2008, 20, 753–756. [Google Scholar] [CrossRef]
  13. Li, J.; Kang, F.; Gong, X.; Bai, Y.; Dai, J.; Zhao, C.; Dou, C.; Cao, Z.; Liang, M.; Dong, R.; et al. Ceria nanoparticles enhance endochondral ossification–based critical-sized bone defect regeneration by promoting the hypertrophic differentiation of BMSCs via DHX15 activation. FASEB J. 2019, 33, 6378–6389. [Google Scholar] [CrossRef]
  14. Liao, F.; Peng, X.-Y.; Yang, F.; Ke, Q.-F.; Zhu, Z.-H.; Guo, Y.-P. Gadolinium-doped mesoporous calcium silicate/chitosan scaffolds enhanced bone regeneration ability. Mater. Sci. Eng. C 2019, 104, 109999. [Google Scholar] [CrossRef]
  15. Zhu, D.-Y.; Lu, B.; Yin, J.-H.; Ke, Q.-F.; Xu, H.; Zhang, C.-Q.; Guo, Y.-P.; Gao, Y.-S. Gadolinium-doped bioglass scaffolds promote osteogenic differentiation of hBMSC via the Akt/GSK3β pathway and facilitate bone repair in vivo. Int. J. Nanomed. 2019, 14, 1085. [Google Scholar] [CrossRef] [Green Version]
  16. Zhang, D.; Ni, N.; Su, Y.; Miao, H.; Tang, Z.; Ji, Y.; Wang, Y.; Gao, H.; Ju, Y.; Sun, N.; et al. Targeting Local Osteogenic and Ancillary Cells by Mechanobiologically Optimized Magnesium Scaffolds for Orbital Bone Reconstruction in Canines. ACS Appl. Mater. Interfaces 2020, 12, 27889–27904. [Google Scholar] [CrossRef]
  17. Mastrogiacomo, S.; Kownacka, A.E.; Dou, W.; Burke, B.P.; de Rosales, R.T.M.; Heerschap, A.; Jansen, J.A.; Archibald, S.J.; Walboomers, X.F. Bisphosphonate Functionalized Gadolinium Oxide Nanoparticles Allow Long-Term MRI/CT Multimodal Imaging of Calcium Phosphate Bone Cement. Adv. Healthc. Mater. 2018, 7, 1800202. [Google Scholar] [CrossRef] [Green Version]
  18. Huang, J.; Lv, Z.; Wang, Y.; Wang, Z.; Gao, T.; Zhang, N.; Guo, M.; Zou, H.; Zhang, P. In vivo MRI and X-Ray Bifunctional Imaging of Polymeric Composite Supplemented with GdPO4·H2O Nanobundles for Tracing Bone Implant and Bone Regeneration. Adv. Healthc. Mater. 2016, 5, 2182–2190. [Google Scholar] [CrossRef]
  19. Zhao, P.-P.; Hu, H.-R.; Liu, J.-Y.; Ke, Q.-F.; Peng, X.-Y.; Ding, H.; Guo, Y.-P. Gadolinium phosphate/chitosan scaffolds promote new bone regeneration via Smad/Runx2 pathway. Chem. Eng. J. 2019, 359, 1120–1129. [Google Scholar] [CrossRef]
  20. Samadian, S.; Karbalaei, A.; Pourmadadi, M.; Yazdian, F.; Malmir, S.J. A novel alginate-gelatin microcapsule to enhance bone differentiation of mesenchymal stem cells. Int. J. Polym. Mater. Polym. Biomater. 2022, 71, 395–402. [Google Scholar] [CrossRef]
  21. Yu, C.; Li, K.; Xu, L.; Li, B.; Li, C.; Guo, S.; Li, Z.; Zhang, Y.; Hussain, A.; Tan, H.; et al. siRNA-functionalized lanthanide nanoparticle enables efficient endosomal escape and cancer treatment. Nano Res. 2022, 15, 9160–9168. [Google Scholar] [CrossRef]
  22. Sun, Y.; Zhu, X.; Peng, J.; Li, F. Core–Shell Lanthanide Upconversion Nanophosphors as Four-Modal Probes for Tumor Angiogenesis Imaging. ACS Nano 2013, 7, 11290–11300. [Google Scholar] [CrossRef] [PubMed]
  23. Cheng, W.; Zeng, X.; Chen, H.; Li, Z.; Zeng, W.; Mei, L.; Zhao, Y. Versatile Polydopamine Platforms: Synthesis and Promising Applications for Surface Modification and Advanced Nanomedicine. ACS Nano 2019, 13, 8537–8565. [Google Scholar] [CrossRef] [PubMed]
  24. Zhang, Y.; Qian, C.; Li, D.; Zhao, L. Rational surface modification of gadolinium borate nanoparticles enhancing colloidal stability in physiological media for potential neutron capture therapy and magnetic resonance imaging. Colloids Surf. B. Biointerfaces 2022, 218, 112771. [Google Scholar] [CrossRef]
  25. Pichaandi, J.; Abel, K.A.; Johnson, N.J.J.; van Veggel, F.C.J.M. Long-Term Colloidal Stability and Photoluminescence Retention of Lead-Based Quantum Dots in Saline Buffers and Biological Media through Surface Modification. Chem. Mater. 2013, 25, 2035–2044. [Google Scholar] [CrossRef]
  26. Chang, Y.-C.; Frank, C.W. Grafting of Poly(γ-benzyl-l-glutamate) on Chemically Modified Silicon Oxide Surfaces. Langmuir 1996, 12, 5824–5829. [Google Scholar] [CrossRef]
  27. Shen, X.C.; Fang, X.Z.; Zhou, Y.H.; Liang, H. Synthesis and Characterization of 3-Aminopropyltriethoxysilane-Modified Superparamagnetic Magnetite Nanoparicles. Chem. Lett. 2004, 33, 1468–1469. [Google Scholar] [CrossRef]
  28. Zhang, Z.; Yu, L.; Liu, W.; Song, Z. Surface modification of ceria nanoparticles and their chemical mechanical polishing behavior on glass substrate. Appl. Surf. Sci. 2010, 256, 3856–3861. [Google Scholar] [CrossRef]
  29. Zheng, S.; Guan, Y.; Yu, H.; Huang, G.; Zheng, C. Poly-l-lysine-coated PLGA/poly(amino acid)-modified hydroxyapatite porous scaffolds as efficient tissue engineering scaffolds for cell adhesion, proliferation, and differentiation. New J. Chem. 2019, 43, 9989–10002. [Google Scholar] [CrossRef]
  30. Li, L.; Shi, X.; Wang, Z.; Wang, Y.; Jiao, Z.; Zhang, P. In situ polymerization of poly(γ-benzyl-l-glutamate) on mesoporous hydroxyapatite with high graft amounts for the direct fabrication of biodegradable cell microcarriers and their osteogenic induction. J. Mater. Chem. B 2018, 6, 3315–3330. [Google Scholar] [CrossRef]
  31. Liu, C.; Wang, X.; Qin, L.; Li, H.; Liang, W. Magnetic coagulation and flocculation of a kaolin suspension using Fe3O4 coated with SiO2. J. Environ. Chem. Eng. 2021, 9, 105980. [Google Scholar] [CrossRef]
  32. Wu, Y.; Xu, X.; You, X.; Xiao, Q. Synthesis of mesoporous core-shell structured GdPO4:Eu@SiO2@mSiO2 nanorods for drug delivery and cell imaging applications. J. Rare Earths 2020, 38, 1086–1092. [Google Scholar] [CrossRef]
  33. Wei, J.; Liu, A.; Chen, L.; Zhang, P.; Chen, X.; Jing, X. The Surface Modification of Hydroxyapatite Nanoparticles by the Ring Opening Polymerization of γ-Benzyl-L-glutamate N-carboxyanhydride. Macromol. Biosci. 2009, 9, 631–638. [Google Scholar] [CrossRef]
  34. Yu, M.; Wang, H.; Lin, C.K.; Li, G.Z.; Lin, J. Sol–gel synthesis and photoluminescence properties of spherical SiO2@LaPO4:Ce3+/Tb3+ particles with a core–shell structure. Nanotechnology 2006, 17, 3245. [Google Scholar] [CrossRef]
  35. Yu, X.; Liu, X.; Wu, W.; Yang, K.; Mao, R.; Ahmad, F.; Chen, X.; Li, W. CT/MRI-Guided Synergistic Radiotherapy and X-ray Inducible Photodynamic Therapy Using Tb-Doped Gd-W-Nanoscintillators. Angew. Chem. Int. Ed. 2019, 58, 2017–2022. [Google Scholar] [CrossRef]
  36. Choi, J.-s.; Lee, J.-H.; Shin, T.-H.; Song, H.-T.; Kim, E.Y.; Cheon, J. Self-Confirming “AND” Logic Nanoparticles for Fault-Free MRI. J. Am. Chem. Soc. 2010, 132, 11015–11017. [Google Scholar] [CrossRef] [Green Version]
  37. Agathokleous, E.; Kitao, M.; Calabrese, E.J. The rare earth element (REE) lanthanum (La) induces hormesis in plants. Environ. Pollut. 2018, 238, 1044–1047. [Google Scholar] [CrossRef]
  38. Baipaywad, P.; Hong, S.V.; Kim, J.B.; Hwang, J.; Choi, J.; Park, H.; Paik, T. Single-step acid-catalyzed synthesis of luminescent colloidal organosilica nanobeads. Nano Converg. 2022, 9, 12. [Google Scholar] [CrossRef]
  39. Sun, M.; Wang, H.; Li, X. Modification of cellulose microfibers by polyglutamic acid and mesoporous silica nanoparticles for Enterovirus 71 adsorption. Mater. Lett. 2020, 277, 128320. [Google Scholar] [CrossRef]
  40. Dhavale, R.P.; Waifalkar, P.P.; Sharma, A.; Dhavale, R.P.; Sahoo, S.C.; Kollu, P.; Chougale, A.D.; Zahn, D.R.T.; Salvan, G.; Patil, P.S.; et al. Monolayer grafting of aminosilane on magnetic nanoparticles: An efficient approach for targeted drug delivery system. J. Colloid Interface Sci. 2018, 529, 415–425. [Google Scholar] [CrossRef]
  41. Dadej, A.; Woźniak-Braszak, A.; Bilski, P.; Piotrowska-Kempisty, H.; Józkowiak, M.; Geszke-Moritz, M.; Moritz, M.; Dadej, D.; Jelińska, A. Modification of the Release of Poorly Soluble Sulindac with the APTES-Modified SBA-15 Mesoporous Silica. Pharmaceutics 2021, 13, 693. [Google Scholar] [CrossRef] [PubMed]
  42. Arroyo-Crespo, J.J.; Deladriere, C.; Nebot, V.J.; Charbonnier, D.; Masiá, E.; Paul, A.; James, C.; Armiñán, A.; Vicent, M.J. Anticancer Activity Driven by Drug Linker Modification in a Polyglutamic Acid-Based Combination-Drug Conjugate. Adv. Funct. Mater. 2018, 28, 1800931. [Google Scholar] [CrossRef] [Green Version]
  43. Quan, B.D.; Wojtas, M.; Sone, E.D. Polyaminoacids in Biomimetic Collagen Mineralization: Roles of Isomerization and Disorder in Polyaspartic and Polyglutamic Acids. Biomacromolecules 2021, 22, 2996–3004. [Google Scholar] [CrossRef] [PubMed]
  44. Ravichandran, R.; Venugopal, J.R.; Sundarrajan, S.; Mukherjee, S.; Ramakrishna, S. Precipitation of nanohydroxyapatite on PLLA/PBLG/Collagen nanofibrous structures for the differentiation of adipose derived stem cells to osteogenic lineage. Biomaterials 2012, 33, 846–855. [Google Scholar] [CrossRef]
  45. Hu, C.; Ashok, D.; Nisbet, D.R.; Gautam, V. Bioinspired surface modification of orthopedic implants for bone tissue engineering. Biomaterials 2019, 219, 119366. [Google Scholar] [CrossRef]
  46. Datta, P.; Ghosh, P.; Ghosh, K.; Maity, P.; Samanta, S.K.; Ghosh, S.K.; Mohapatra, P.K.D.; Chatterjee, J.; Dhara, S.J. In Vitro ALP and Osteocalcin Gene Expression Analysis and In Vivo Biocompatibility of N-Methylene Phosphonic Chitosan Nanofibers for Bone Regeneration. J. Biomed. Nanotechnol. 2013, 9, 870–879. [Google Scholar] [CrossRef]
  47. Chiu, L.-H.; Lai, W.-F.T.; Chang, S.-F.; Wong, C.-C.; Fan, C.-Y.; Fang, C.-L.; Tsai, Y.-H. The effect of type II collagen on MSC osteogenic differentiation and bone defect repair. Biomaterials 2014, 35, 2680–2691. [Google Scholar] [CrossRef]
  48. Zhou, P.; Xia, D.; Ni, Z.; Ou, T.; Wang, Y.; Zhang, H.; Mao, L.; Lin, K.; Xu, S.; Liu, J. Calcium silicate bioactive ceramics induce osteogenesis through oncostatin M. Bioact. Mater. 2021, 6, 810–822. [Google Scholar] [CrossRef]
  49. Bunpetch, V.; Zhang, X.; Li, T.; Lin, J.; Maswikiti, E.P.; Wu, Y.; Cai, D.; Li, J.; Zhang, S.; Wu, C.; et al. Silicate-based bioceramic scaffolds for dual-lineage regeneration of osteochondral defect. Biomaterials 2019, 192, 323–333. [Google Scholar] [CrossRef]
  50. Qiu, L.; Zhang, C.; Yang, X.; Peng, F.; Huang, Y.; He, Y. A SiO2 layer on PEO-treated Mg for enhanced corrosion resistance and bone regeneration. Front. Bioeng. Biotechnol. 2022, 23, 944. [Google Scholar] [CrossRef]
  51. Carlisle, E.M. Silicon: A Possible Factor in Bone Calcification. Science 1970, 167, 279–280. [Google Scholar] [CrossRef]
  52. Götz, W.; Tobiasch, E.; Witzleben, S.; Schulze, M. Effects of Silicon Compounds on Biomineralization, Osteogenesis, and Hard Tissue Formation. Pharmaceutics 2019, 11, 117. [Google Scholar] [CrossRef] [Green Version]
  53. Gao, J.; Feng, L.; Chen, B.; Fu, B.; Zhu, M. The role of rare earth elements in bone tissue engineering scaffolds—A review. Compos. Part B Eng. 2022, 235, 109758. [Google Scholar] [CrossRef]
  54. Wang, Q.; Huang, Y.; Qian, Z. Nanostructured Surface Modification to Bone Implants for Bone Regeneration. J. Biomed. Nanotechnol. 2018, 14, 628–648. [Google Scholar] [CrossRef]
Ijms 24 02032 sch001 550

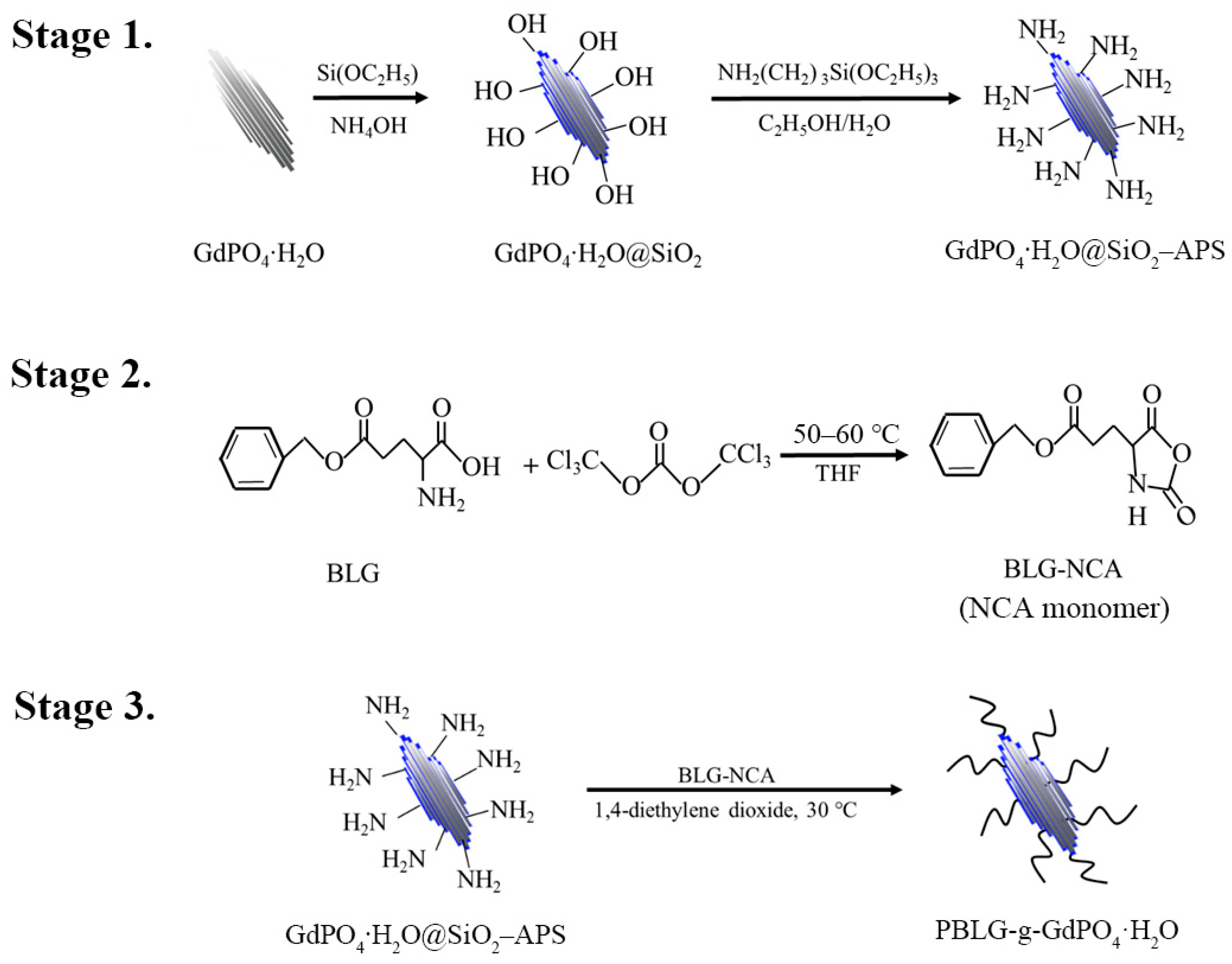

Scheme 1. Surface modification and functional process of GdPO4·H2O nanobunches.
Scheme 1. Surface modification and functional process of GdPO4·H2O nanobunches.
Ijms 24 02032 sch001
Ijms 24 02032 g001 550
Figure 1. SEM of GdPO4·H2O@SiO2 synthesized with ratios of mGdPO4·H2O:VTEOS (mg/mL) = 1:8 (A), 4:5 (B), 1:1 (C), 5:4 (D), 5:3 (E) and 5:2 (F).
Figure 1. SEM of GdPO4·H2O@SiO2 synthesized with ratios of mGdPO4·H2O:VTEOS (mg/mL) = 1:8 (A), 4:5 (B), 1:1 (C), 5:4 (D), 5:3 (E) and 5:2 (F).
Ijms 24 02032 g001
Ijms 24 02032 g002 550
Figure 2. TEM of GdPO4·H2O@SiO2 synthesized with ratios of mGdPO4·H2O:VTEOS (mg/mL) = 4:5 (A), 1:1 (B), 5:4 (C), 5:3 (D) and 5:2 (E).
Figure 2. TEM of GdPO4·H2O@SiO2 synthesized with ratios of mGdPO4·H2O:VTEOS (mg/mL) = 4:5 (A), 1:1 (B), 5:4 (C), 5:3 (D) and 5:2 (E).
Ijms 24 02032 g002
Ijms 24 02032 g003 550

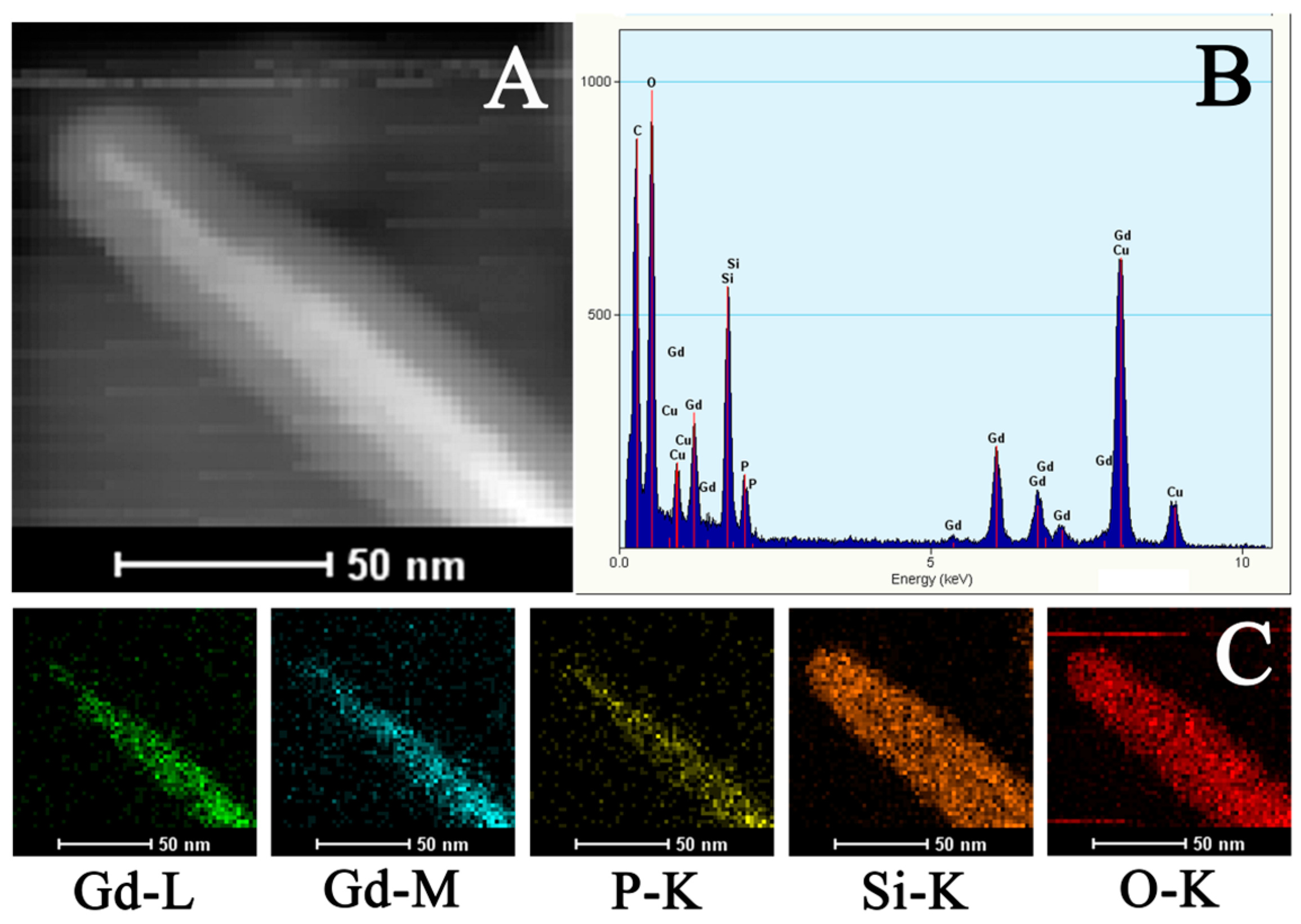

Figure 3. TEM (A), EDS (B) and element distribution (C) images of GdPO4·H2O@SiO2 with the ratio of mGdPO4·H2O:VTEOS (mg/mL) = 1:1.
Figure 3. TEM (A), EDS (B) and element distribution (C) images of GdPO4·H2O@SiO2 with the ratio of mGdPO4·H2O:VTEOS (mg/mL) = 1:1.
Ijms 24 02032 g003
Ijms 24 02032 g004 550

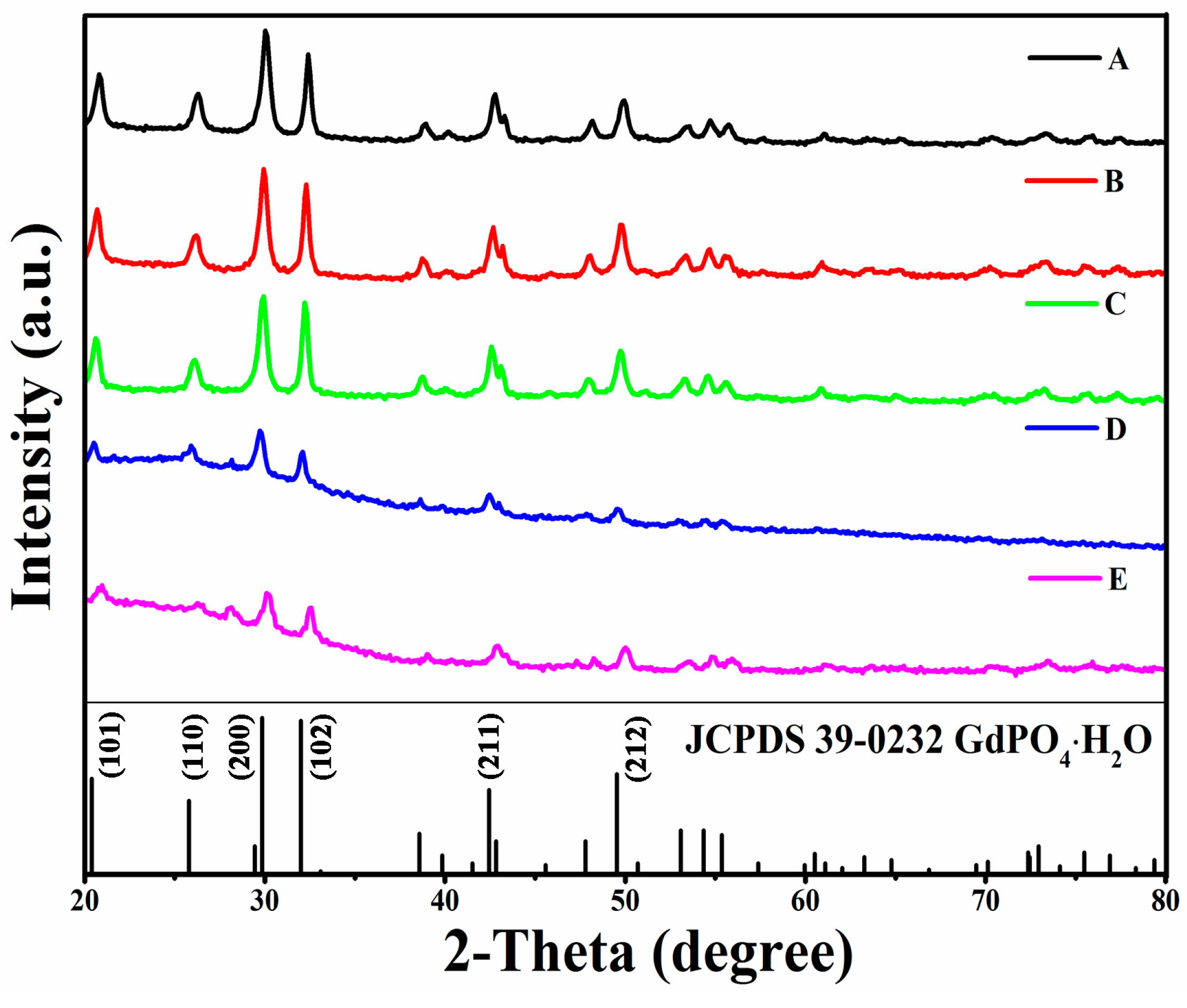

Figure 4. XRD spectra of GdPO4·H2O@SiO2 (A) and the modified products synthesized with different proportions of GdPO4·H2O@SiO2–APS:NCA = 1:0.125 (B), 1:0.25 (C), 1:0.5 (D) and 1:1 (E).
Figure 4. XRD spectra of GdPO4·H2O@SiO2 (A) and the modified products synthesized with different proportions of GdPO4·H2O@SiO2–APS:NCA = 1:0.125 (B), 1:0.25 (C), 1:0.5 (D) and 1:1 (E).
Ijms 24 02032 g004
Ijms 24 02032 g005 550

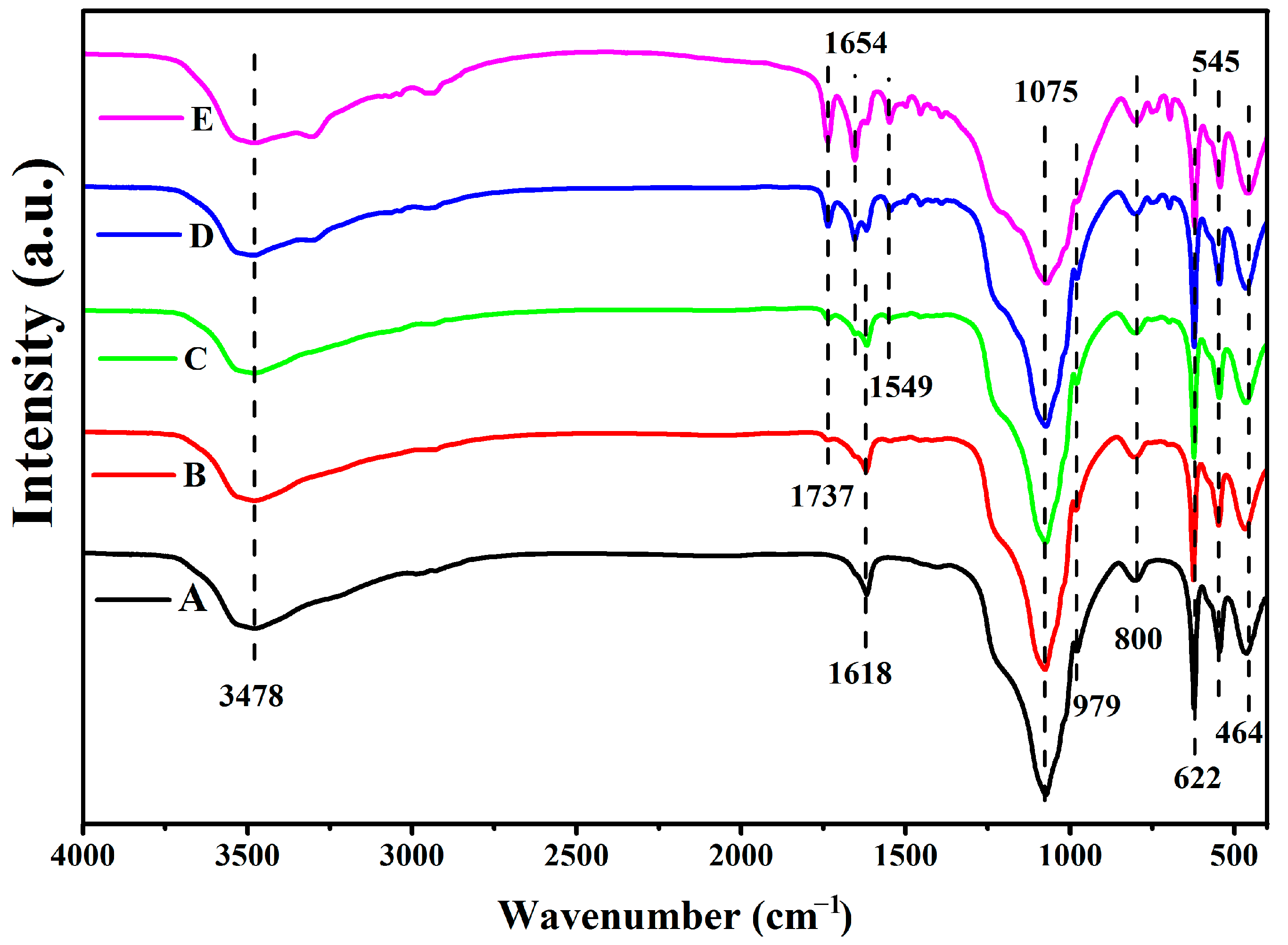

Figure 5. FT-IR spectra of GdPO4·H2O@SiO2 (A) and the modified products synthesized with different proportions of GdPO4·H2O@SiO2–APS:NCA = 1:0.125 (B), 1:0.25 (C), 1:0.5 (D) and 1:1 (E).
Figure 5. FT-IR spectra of GdPO4·H2O@SiO2 (A) and the modified products synthesized with different proportions of GdPO4·H2O@SiO2–APS:NCA = 1:0.125 (B), 1:0.25 (C), 1:0.5 (D) and 1:1 (E).
Ijms 24 02032 g005
Ijms 24 02032 g006 550

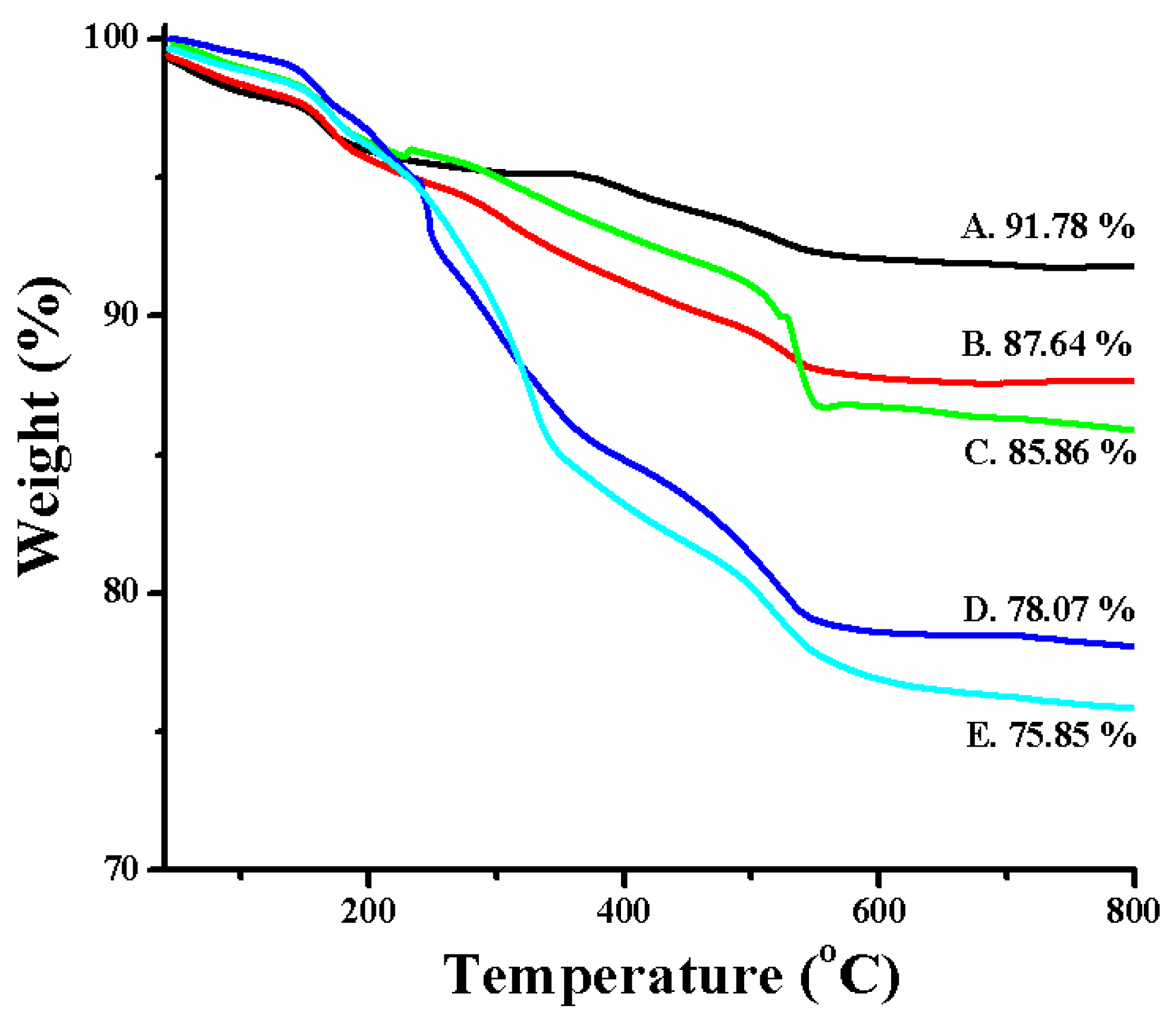

Figure 6. TG curves of GdPO4·H2O@SiO2 (A) and the modified products synthesized with different proportions of GdPO4·H2O@SiO2–APS:NCA = 1:0.125 (B), 1:0.25 (C), 1:0.5 (D) and 1:1 (E).
Figure 6. TG curves of GdPO4·H2O@SiO2 (A) and the modified products synthesized with different proportions of GdPO4·H2O@SiO2–APS:NCA = 1:0.125 (B), 1:0.25 (C), 1:0.5 (D) and 1:1 (E).
Ijms 24 02032 g006
Ijms 24 02032 g007 550
Figure 7. Sedimentation experiments of GdPO4·H2O@SiO2 (A) and PBLG-g-GdPO4·H2O with grafting rates of 4.14% (B), 5.93% (C), 13.72% (D) 15.93% (E) at different times in chloroform.
Figure 7. Sedimentation experiments of GdPO4·H2O@SiO2 (A) and PBLG-g-GdPO4·H2O with grafting rates of 4.14% (B), 5.93% (C), 13.72% (D) 15.93% (E) at different times in chloroform.
Ijms 24 02032 g007
Ijms 24 02032 g008 550
Figure 8. AFM images of PBLG-g-GdPO4·H2O/PLGA with grafting rates of 4.14% (A), 5.93% (B), 13.72% (C) and 15.93% (D).
Figure 8. AFM images of PBLG-g-GdPO4·H2O/PLGA with grafting rates of 4.14% (A), 5.93% (B), 13.72% (C) and 15.93% (D).
Ijms 24 02032 g008
Ijms 24 02032 g009 550
Figure 9. T1-weighted imaging (left) and T1-parametric mapping (right) images of PLGA (A), GdPO4·H2O/PLGA (B), GdPO4·H2O@SiO2/PLGA (C), GdPO4·H2O@SiO2–APS/PLGA (D) and PBLG-g-GdPO4·H2O/PLGA with grafting rates of 4.14% (E), 5.93% (F), 13.72% (G) and 15.93% (H).
Figure 9. T1-weighted imaging (left) and T1-parametric mapping (right) images of PLGA (A), GdPO4·H2O/PLGA (B), GdPO4·H2O@SiO2/PLGA (C), GdPO4·H2O@SiO2–APS/PLGA (D) and PBLG-g-GdPO4·H2O/PLGA with grafting rates of 4.14% (E), 5.93% (F), 13.72% (G) and 15.93% (H).
Ijms 24 02032 g009
Ijms 24 02032 g010 550
Figure 10. Cytotoxicity histogram of leaching liquid for PLGA, GdPO4·H2O/PLGA, GdPO4·H2O@SiO2/PLGA, GdPO4·H2O@SiO2–APS/PLGA and PBLG-g-GdPO4·H2O/PLGA (grafting rate 5.93%) cultured with MC3T3-E1 cells for 24 h by gradient dilution (* p < 0.05).
Figure 10. Cytotoxicity histogram of leaching liquid for PLGA, GdPO4·H2O/PLGA, GdPO4·H2O@SiO2/PLGA, GdPO4·H2O@SiO2–APS/PLGA and PBLG-g-GdPO4·H2O/PLGA (grafting rate 5.93%) cultured with MC3T3-E1 cells for 24 h by gradient dilution (* p < 0.05).
Ijms 24 02032 g010
Ijms 24 02032 g011 550
Figure 11. FITC staining images of MC3T3-E1 cells grown on the surface of glass (A), PLGA (B), GdPO4·H2O/PLGA (C), GdPO4·H2O@SiO2/PLGA (D), GdPO4·H2O@SiO2–APS/PLGA (E) and PBLG-g-GdPO4·H2O/PLGA (F) substrates cultured in vitro for 6, 12 and 24 h.
Figure 11. FITC staining images of MC3T3-E1 cells grown on the surface of glass (A), PLGA (B), GdPO4·H2O/PLGA (C), GdPO4·H2O@SiO2/PLGA (D), GdPO4·H2O@SiO2–APS/PLGA (E) and PBLG-g-GdPO4·H2O/PLGA (F) substrates cultured in vitro for 6, 12 and 24 h.
Ijms 24 02032 g011
Ijms 24 02032 g012 550
Figure 12. Cell proliferation histogram of MC3T3-E1 cells cultured on (a) glass, (b) PLGA, (c) GdPO4·H2O/PLGA, (d) GdPO4·H2O@SiO2/PLGA, (e) GdPO4·H2O@SiO2–APS/PLGA and (f) PBLG-g-GdPO4·H2O/PLGA for 1, 3 and 7 days. * p < 0.05.
Figure 12. Cell proliferation histogram of MC3T3-E1 cells cultured on (a) glass, (b) PLGA, (c) GdPO4·H2O/PLGA, (d) GdPO4·H2O@SiO2/PLGA, (e) GdPO4·H2O@SiO2–APS/PLGA and (f) PBLG-g-GdPO4·H2O/PLGA for 1, 3 and 7 days. * p < 0.05.
Ijms 24 02032 g012
Ijms 24 02032 g013 550
Figure 13. ALP activity of MC3T3-E1 cells on different substrates: (a) glass, (b) PLGA, (c) GdPO4·H2O/PLGA, (d) GdPO4·H2O@SiO2/PLGA, (e) GdPO4·H2O@SiO2–APS/PLGA and (f) PBLG-g-GdPO4·H2O/PLGA at 7 and 14 days. * p < 0.05.
Figure 13. ALP activity of MC3T3-E1 cells on different substrates: (a) glass, (b) PLGA, (c) GdPO4·H2O/PLGA, (d) GdPO4·H2O@SiO2/PLGA, (e) GdPO4·H2O@SiO2–APS/PLGA and (f) PBLG-g-GdPO4·H2O/PLGA at 7 and 14 days. * p < 0.05.
Ijms 24 02032 g013
Ijms 24 02032 g014 550
Figure 14. Gene expression of COL I and COL II in MC3T3-E1 cells cultured for 7 days and 14 days on different substrates: (a) glass, (b) PLGA, (c) GdPO4·H2O/PLGA, (d) GdPO4·H2O@SiO2/PLGA (e) GdPO4·H2O@SiO2–APS/PLGA and (f) PBLG-g-GdPO4·H2O/PLGA. * p < 0.05.
Figure 14. Gene expression of COL I and COL II in MC3T3-E1 cells cultured for 7 days and 14 days on different substrates: (a) glass, (b) PLGA, (c) GdPO4·H2O/PLGA, (d) GdPO4·H2O@SiO2/PLGA (e) GdPO4·H2O@SiO2–APS/PLGA and (f) PBLG-g-GdPO4·H2O/PLGA. * p < 0.05.
Ijms 24 02032 g014
Ijms 24 02032 g015 550
Figure 15. Alizarin Red S staining images in MC3T3-E1 cells cultured for 3 weeks on different substrates: (A) glass, (B) PLGA, (C) GdPO4·H2O/PLGA, (D) GdPO4·H2O@SiO2/PLGA, (E) GdPO4·H2O@SiO2–APS/PLGA and (F) PBLG-g-GdPO4·H2O/PLGA. Bar = 100 μm.
Figure 15. Alizarin Red S staining images in MC3T3-E1 cells cultured for 3 weeks on different substrates: (A) glass, (B) PLGA, (C) GdPO4·H2O/PLGA, (D) GdPO4·H2O@SiO2/PLGA, (E) GdPO4·H2O@SiO2–APS/PLGA and (F) PBLG-g-GdPO4·H2O/PLGA. Bar = 100 μm.
Ijms 24 02032 g015
Ijms 24 02032 g016 550
Figure 16. The corresponding quantitative evaluation histogram of calcium content for mineral deposition after Alizarin Red S staining on different substrates: (a) glass, (b) PLGA, (c) GdPO4·H2O/PLGA, (d) GdPO4·H2O@SiO2/PLGA, (e) GdPO4·H2O@SiO2–APS/PLGA and (f) PBLG-g-GdPO4·H2O/PLGA. * p < 0.05.
Figure 16. The corresponding quantitative evaluation histogram of calcium content for mineral deposition after Alizarin Red S staining on different substrates: (a) glass, (b) PLGA, (c) GdPO4·H2O/PLGA, (d) GdPO4·H2O@SiO2/PLGA, (e) GdPO4·H2O@SiO2–APS/PLGA and (f) PBLG-g-GdPO4·H2O/PLGA. * p < 0.05.
Ijms 24 02032 g016
Table
Table 1. Zeta potential of GdPO4·H2O@SiO2.
Table 1. Zeta potential of GdPO4·H2O@SiO2.
No.12345
mGdPO4·H2O:VTEOS (mg:vL)4:51:15:45:35:2
Zeta Potential (mV)−26.52−30.69−16.98−16.96−12.71
Table
Table 2. The grafting rate of GdPO4·H2O-PBLG synthesized under different conditions.
Table 2. The grafting rate of GdPO4·H2O-PBLG synthesized under different conditions.
GdPO4·H2O@SiO2:APS1:0.22
GdPO4·H2O/APS:NCA1:0.1251:0.251:0.51:1
Graft rate of GdPO4·H2O/PBLG (%)4.14%5.93%13.72%15.93%
Disclaimer/Publisher’s Note: The statements, opinions and data contained in all publications are solely those of the individual author(s) and contributor(s) and not of MDPI and/or the editor(s). MDPI and/or the editor(s) disclaim responsibility for any injury to people or property resulting from any ideas, methods, instructions or products referred to in the content.

Share and Cite

MDPI and ACS Style

Cai, Z.; Guo, Z.; Yang, C.; Wang, F.; Zhang, P.; Wang, Y.; Guo, M.; Wang, Z.; Huang, J.; Zhang, L. Surface Biofunctionalization of Gadolinium Phosphate Nanobunches for Boosting Osteogenesis/Chondrogenesis Differentiation. Int. J. Mol. Sci. 2023, 24, 2032. https://doi.org/10.3390/ijms24032032

AMA Style

Cai Z, Guo Z, Yang C, Wang F, Zhang P, Wang Y, Guo M, Wang Z, Huang J, Zhang L. Surface Biofunctionalization of Gadolinium Phosphate Nanobunches for Boosting Osteogenesis/Chondrogenesis Differentiation. International Journal of Molecular Sciences. 2023; 24(3):2032. https://doi.org/10.3390/ijms24032032

Chicago/Turabian Style

Cai, Zhongxing, Ziyi Guo, Chaohui Yang, Fei Wang, Peibiao Zhang, Yu Wang, Min Guo, Zongliang Wang, Jing Huang, and Long Zhang. 2023. "Surface Biofunctionalization of Gadolinium Phosphate Nanobunches for Boosting Osteogenesis/Chondrogenesis Differentiation" International Journal of Molecular Sciences 24, no. 3: 2032. https://doi.org/10.3390/ijms24032032

Note that from the first issue of 2016, this journal uses article numbers instead of page numbers. See further details here.

Article Metrics

Back to TopTop
