Communication

Tailored Water-Soluble Covalent Organic Cages for Encapsulation of Pyrene and Information Encryption

by
Haixin Song
†,
Yujing Guo
†,
Guorui Zhang
* and
Linlin Shi
*
College of Chemistry, Zhengzhou University, Zhengzhou 450001, China
*
Authors to whom correspondence should be addressed.
†
These authors equally contributed to this work.
Int. J. Mol. Sci. 2023, 24(24), 17541; https://doi.org/10.3390/ijms242417541
Submission received: 29 October 2023 / Revised: 4 December 2023 / Accepted: 12 December 2023 / Published: 16 December 2023
(This article belongs to the Special Issue Design, Synthesis, and Application of Macroporous, Mesoporous, and Microporous Materials)
Browse Figures
Review Reports Versions Notes

Abstract

:
Forming pyridine salts to construct covalent organic cages is an effective strategy for constructing covalent cage compounds. Covalent organic cages based on pyridine salt structures are prone to form water-soluble supramolecular compounds. Herein, we designed and synthesized a triangular prism-shaped hexagonal cage with a larger cavity and relatively flexible conformation. The supramolecular cage structure was also applied to the encapsulation of pyrene and information encryption.

1. Introduction

As an emergent discipline, supramolecular chemistry has been widely known and extensively studied on account of its unique properties and potential applications in biological imitation [1,2,3,4,5,6,7,8], gas encapsulation [9], organic photoreactions [10,11,12], catalysis [13,14], molecular recognition [15,16,17,18], and so on. Many metal-organic supramolecular cages have been constructed, such as octahedrons [19], tetrahedrons [20], spheres [21], square prisms [22], triangular prisms [23], spirals [24], capsules [25], etc.
In addition, covalent organic cages with well-defined intrinsic porosity have attracted increasing attention for the last decade [26,27,28]. Their internal cavity and external channels have been applied for selective recognition and separation [29,30,31], catalysis [32,33], sensing [34,35], and so on. Furthermore, compared with the metal-organic cage, the covalent organic cage has better stability and acid and alkali resistance. At present, the construction of water-soluble cage compounds remains challenging.
Forming pyridine salts to construct covalent organic cages is one of the effective strategies for constructing covalent cage compounds [36,37,38,39]. This strategy can make the covalent organic cage have different solubility by changing the discrete anions outside the cavity. For example, the covalent organic cage with PF6− anion is soluble in acetonitrile, and the covalent organic cage with Cl− anion is soluble in water. Therefore, this strategy is also effective for constructing water-soluble cage compounds. In this work, a water-soluble covalent organic cage C that can interact with PAHs (polycyclic aromatic hydrocarbons) was designed and synthesized. At the same time, the recycling of covalent organic cage C was realized.

2. Results and Discussion

Covalent organic cage C was synthesized in six steps (Scheme 1). Commercially available 1-indanone was selected as the starting substrate for the synthetic route. Compound 2 was obtained by cyclotrimerization, substitution reactions, and bromination reactions by reference to the methods in the literature [40]. Compound 4 was prepared from compound 2 and compound 3 through a Suzuki coupling reaction under the catalysis of tetra-triphenylphosphine palladium in a yield of 62%. Thereafter, an SN2 reaction between an excess of p-xylylene dibromide (compound 5) and compound 4 in a MeCN/DMF mixture under reflux for 2 days led to the formation of compound 6 after counterion exchange in a yield of 67%. Finally, equimolar amounts of compound 6 and compound 4 in the presence of 0.2 equiv. of tetrabutylammonium iodide (TBAI) as a catalyst were heated under reflux in MeCN/MeOH/CDCl3 mixture solvent for 9 days, resulting in the isolation of the crude chloride salt as a yellow solid after precipitating with tetrabutylammonium chloride (TBACl). The crude chloride salt was washed with a mixture of methanol and ether to give a covalent organic cage C in a 9.6% yield.
Covalent organic cage C was characterized by 1H NMR. The Ha and Hb of compound 6 are in different chemical environments, so Ha and Hb appear as two sets of signal peaks with an integral area ratio of 1:1 (Figure S1). However, after the formation of the covalent organic cage C, the Ha and Hb signal peaks in compound 6 transform into an Hc signal peak with the same chemical environment, indicating the formation of a highly symmetric structure (Figure 1a). In the ethyl group on compound 6, after forming covalent organic cage C, the presence of the cavity causes part of the proton signals to move towards the high field, and part of the proton signals are shielded, splitting into Hd, Hd’, and He, He’ (Figure 1b). The splitting of the signal fully proves the formation of the cavity structure and the successful preparation of covalent organic cage C.
In addition to hydrogen NMR spectroscopy, electrospray mass spectrometry (ESI-MS) is also a powerful means of characterizing covalent organic cages. Figure 2 shows that the ESI-MS of covalent organic cage C revealed four sets of peaks with continuous charge states (3+, 4+, 5+, and 6+), which were attributed to the successful departure of Cl− counterions. The experimental isotope patterns for the four peaks were consistent with the theoretical isotope patterns, indicating that the covalent organic cage C has been constructed successfully. At the same time, the strongest peaks have been successfully attributed, and their experimental isotopic patterns are also consistent with the theoretical isotopic patterns (Figure S4). Covalent organic cage C was also characterized by high-resolution mass spectrometry (HRMS). In the HRMS of covalent organic cage C, peaks with m/z values of 2005.8201 ([M+H]+) were observed (Figure S5) and were shown to be consistent with the calculated values.
Several efforts to obtain complete data for the x-ray analysis of single crystals of covalent organic cage C were unsuccessful, so a simulated molecular model of covalent organic cage C was constructed using Materials Studio 2020 software (Figure 3a,b). The simulated molecular model analysis revealed that the structure of the covalent organic cage C is exactly consistent with the expected triangular prismatic architecture, where the truxene units and phenylene unit centers construct the faces and the pillar. Half of the ethyl chain of the benzene ring pointed into the cavity, while the rest pointed outwards. The window in the hollow cavity of the triangular prism structure is 7.5 Å wide and 18.9 Å long, as measured by the Materials Studio software (Figure 3c).
Covalent organic cage C, with a pyridine salt structure, exhibits good fluorescence emission (Figure S7). It has been experimentally found that the covalent organic cage C can interact with polycyclic aromatic hydrocarbons via π-π interactions, where pyrene can gradually quench their fluorescence. As shown in Figure 4a, the fluorescence of the covalent organic cage C continuously quenches with the continuous addition of pyrene, and its fluorescence intensity shows a gradual decrease.
After the interaction of the covalent organic cage C with pyrene, its recovery and recycling were realized. As shown in Figure 5, the covalent organic cage C showed a bright yellow fluorescence in methanol solution, to which pyrene was added, and its fluorescence was gradually quenched. Subsequently, ether and deionized water were added to this mixed system, and the covalent organic cage C and pyrene were present in different liquid phases due to their different solubilities (covalent organic cage dissolved in water, pyrene dissolved in ether). Thus, recycling of the covalent organic cage C was achieved.
Due to the fact that covalent organic cage C can gradually quench its fluorescence when interacting with pyrene, we further explored their applications in fluorescent inks and information encryption using this optical property. As shown in Figure 6, the cartoon image drawn on the filter paper by the methanol solution containing C exhibits blue fluorescence, attributed to the covalent organic cage C having a pyridine salt structure. Interestingly, when the methanol solution containing pyrene continues to paint other parts of the cartoon image except for the mouth and arm with the methanol solution containing pyrene, we obtain a purple fluorescent image, which may be due to the interaction of covalent organic cage C with polycyclic aromatic hydrocarbons through Π-Π interactions in which pyrene can gradually quench its fluorescence. It is important to mention that when a cartoon image is drawn on paper with fluorescent ink (methanol solution containing C), only the outline of the pattern can be seen under natural light conditions, but under the irradiation of a 365 nm UV lamp, a blue cartoon image can be clearly seen, and then the fluorescent color changes accordingly under the action of the pyrene solution, so it can be used to display different information according to the color of the fluorescent ink and then used to display different information.

3. Materials and Methods

3.1. Materials

All reagents were purchased from Sigma-Aldrich, Fisher, Across, and Alfa Aesar and were used without further purification. All solvents were dried according to standard procedures, and all of them were degassed under Ar for 30 min before use. All air-sensitive reactions were carried out under an inert Ar atmosphere.

3.2. Measurements

Column chromatography was conducted using SiO2 (VWR, 40–60 µm, 60 Å), and the separated products were visualized by UV light. NMR spectra data were recorded on a 600 MHz Bruker NMR spectrometer in CD3OD and CD3CN with TMS as the reference. The UV-vis spectra were recorded on a dual-beam UV-Vis spectrophotometer (TU-1901). Emission spectra in the liquid state were recorded on a Horiba-FluoroMax-4 spectrofluorometer, and a 1 cm quartz cuvette was employed as the vessel for the recording of the fluorescence emission spectrum. ESI-MS was recorded with a Waters Synapt G2-Si mass spectrometer. High-resolution electrospray ionization mass spectrometry (HR-ESI MS) experiments were performed with a Water Q-Tof Micro MS/MS high-resolution mass spectrometer in ESI mode.

3.3. Materials Synthesis

Compound 6 was synthesized according to the literature method [36].

3.3.1. Preparation of Compound 6

Compound 4 (300 mg, 0.4 mmol) and compound 5 (1.6 g, 6.06 mmol) were dissolved in a 1:1 mixture of DMF/MeCN (32 mL) and refluxed under Ar atmosphere. After 48 h, the reaction mixture was cooled down to room temperature and poured into Et2O (159 mL). The yellow precipitate was collected by filtration and washed with CH2Cl2 (95 mL). Subsequently, the yellow solid was dissolved in DMF (32 mL), followed by the addition of NH4PF6 (0.5 g) and H2O (317 mL). The resulting precipitate was filtered, washed with H2O (2 × 30 mL), and dried under vacuum to afford pure compound 6 (yield: 62%). m.p.: 219–220 °C. 1H NMR (600 MHz, CD3CN) δ 8.81 (d, J = 6.5 Hz, 2H), 8.68 (d, J = 8.7 Hz, 1H), 8.47 (d, J = 7.0 Hz, 2H), 8.18 (s, 1H), 8.10 (d, J = 8.4 Hz, 1H), 7.69–7.34 (m, 4H), 5.76 (s, 2H), 4.65 (s, 2H), 3.14–3.10 (m, 2H), 2.46–2.43 (m, 2H), 0.25 (t, J = 7.3 Hz, 6H). 13C NMR (151 MHz, CD3CN) δ 156.1, 154.0, 147.1, 144.0, 143.6, 139.8, 138.1, 133.2, 132.1, 129.9, 129.1, 128.9, 128.8, 128.8, 128.7, 128.3, 127.3, 126.8, 125.5, 124.9, 122.0, 62.8, 57.4, 32.3, 28.8, 7.6.

3.3.2. Preparation of Covalent Organic Cage C

A solution of compound 6 (104.9 mg, 0.14 mmol), compound 4 (203.1 mg, 0.14 mmol), and TBAI (10.4 mg, 0.027 mmol) in dry MeCN (101 mL), MeOH (47 mL), and CHCl3 (24 mL) mixture solvent was heated under reflux at 90 °C for 9 days. After cooling to room temperature, an excess of TBACl was added to quench the reaction, and the yellow product was collected by filtration (yield: 9.6%). 1H NMR (600 MHz, CD3OD_SPE) δ 9.07 (d, J = 6.4 Hz, 2H), 8.47 (d, J = 6.7 Hz, 2H), 8.42 (d, J = 8.3 Hz, 1H), 8.10 (s, 1H), 8.02 (d, J = 8.5 Hz, 1H), 7.77 (s, 2H), 5.83 (s, 2H), 2.93–2.90 (m, 1H), 2.83–2.77 (m, 1H), 2.34–2.30 (m, 1H), 2.08–2.05 (m, 1H), 0.27 (t, J = 7.3 Hz, 3H), -0.61 (t, J = 7.2 Hz, 3H).

4. Conclusions

In summary, a water-soluble covalent organic cage C with six Cl− was resoundingly constructed, followed by detailed 1H NMR, ESI-MS, and HRMS spectrometry characterization. Due to its unique pyridine salt structure, the covalent organic cage C can exhibit better fluorescence emission. It can also interact with pyrene in π-π interactions, resulting in a gradual quench of fluorescence. Covalent organic cage C can be used in information encryption systems and has broad application prospects in green catalysis and biomedicine due to its unique cavity structure and good water solubility.

Supplementary Materials

The following supporting information can be downloaded at: https://www.mdpi.com/article/10.3390/ijms242417541/s1.

Author Contributions

Conceptualization, L.S. and G.Z.; methodology, Y.G. and H.S.; validation, Y.G.; formal analysis, Y.G. and L.S.; investigation, Y.G. and H.S.; writing—original draft preparation, H.S.; writing—review and editing, Y.G.; supervision, L.S. and G.Z.; project administration, L.S.; funding acquisition, L.S. and G.Z. All authors have read and agreed to the published version of the manuscript.

Funding

This research was funded by the National Natural Science Foundation of China (no. 22101267), the Natural Science Foundation of Henan Province (202300410477) and China Postdoctoral Science Foundation (No. 2021M692905).

Institutional Review Board Statement

Not applicable.

Informed Consent Statement

Not applicable.

Data Availability Statement

Data are contained within the article.

Acknowledgments

We are also grateful to Pouya Orouji’s contribution to the polishing of the English.

Conflicts of Interest

The authors declare no conflict of interest.

References

  1. Wiester, M.J.; Ulmann, P.A.; Mirkin, C.A. Enzyme mimics based upon supramolecular coordination chemistry. Angew. Chem. Int. Ed. 2011, 50, 114–137. [Google Scholar] [CrossRef] [PubMed]
  2. Mondal, M.; Hirsch, A.K. Dynamic combinatorial chemistry: A tool to facilitate the identification of inhibitors for protein targets. Chem. Soc. Rev. 2015, 44, 2455–2488. [Google Scholar] [CrossRef] [PubMed]
  3. Zamora-Olivares, D.; Kaoud, T.S.; Dalby, K.N.; Anslyn, E.V. In-situ generation of differential sensors that fingerprint kinases and the cellular response to their expression. J. Am. Chem. Soc. 2013, 135, 14814–14820. [Google Scholar] [CrossRef] [PubMed]
  4. Deng, D.D.; Zou, Y.; Chen, Z.; Liu, S.; Yang, Y.; Pu, S. Finely regulated benzothiadiazole derivatives: Aggregation-induced emission (AIE), hypso- or bathochromic mechanofluorochromic behaviors, and multilevel information encryption applications. Dye. Pigment. 2023, 211, 111051. [Google Scholar] [CrossRef]
  5. Kolesnichenko, I.V.; Anslyn, E.V. Practical applications of supramolecular chemistry. Chem. Soc. Rev. 2017, 46, 2385–2390. [Google Scholar] [CrossRef]
  6. Zhang, X.H.; Shi, J.; Shen, G.Y.; Gou, F.; Cheng, J.H.; Zhou, X.G.; Xiang, H.F. Non-conjugated fluorescent molecular cages of salicylaldehyde-based tri-Schiff bases: AIE, enantiomers, mechanochromism, anion hosts/probes, and cell imaging properties. Mat. Chem. Front. 2017, 1, 1041–1050. [Google Scholar] [CrossRef]
  7. Liu, G.X.; Leng, J.H.; Zhou, Q.Y.; Deng, Z.; Shi, L.L.; Fan, C.L.; Xu, X.F.; Song, M.P. Fluorescence photoswitch of stiff-stilbene derivatives for anti-counterfeiting. Dye. Pigment. 2022, 203, 110361. [Google Scholar] [CrossRef]
  8. Han, X.; Hu, W.N.; Miao, L.L.; Hao, X.Q.; Shi, L.L.; Song, M.P. Structurally coordinated aggregation induced emission ionic supramolecular cages. Dye. Pigment. 2023, 211, 111078. [Google Scholar] [CrossRef]
  9. Zhu, J.L.; Zhang, D.; Ronson, T.K.; Wang, W.; Xu, L.; Yang, H.B.; Nitschke, J.R. A Cavity-Tailored Metal-Organic Cage Entraps Gases Selectively in Solution and the Amorphous Solid State. Angew. Chem. Int. Ed. 2021, 60, 11789–11792. [Google Scholar] [CrossRef]
  10. Yamaguchi, T.; Fujita, M. Highly Selective Photomediated 1,4-Radical Addition too-Quinones Controlled by a Self-Assembled Cage. Angew. Chem. Int. Ed. 2008, 47, 2067–2069. [Google Scholar] [CrossRef]
  11. Ohara, K.; Inokuma, Y.; Fujita, M. The Catalytic Z to E Isomerization of Stilbenes in a Photosensitizing Porous Coordination Network. Angew. Chem. Int. Ed. 2010, 49, 5507–5509. [Google Scholar] [CrossRef] [PubMed]
  12. Shi, L.L.; Wang, B.Y.; Lu, S.Y. Efficient bottom-up synthesis of graphene quantum dots at an atomically precise level. Matter 2023, 6, 728–760. [Google Scholar] [CrossRef]
  13. Cullen, W.; Takezawa, H.; Fujita, M. Demethylenation of Cyclopropanes via Photoinduced Guest-to-Host Electron Transfer in an M6 L4 Cage. Angew. Chem. Int. Ed. 2019, 58, 9171–9173. [Google Scholar] [CrossRef] [PubMed]
  14. Cullen, W.; Misuraca, M.C.; Hunter, C.A.; Williams, N.H.; Ward, M.D. Highly efficient catalysis of the Kemp elimination in the cavity of a cubic coordination cage. Nat. Chem. 2016, 8, 231–236. [Google Scholar] [CrossRef] [PubMed]
  15. Burke, M.J.; Nichol, G.S.; Lusby, P.J. Orthogonal Selection and Fixing of Coordination Self-Assembly Pathways for Robust Metallo-organic Ensemble Construction. J. Am. Chem. Soc. 2016, 138, 9308–9315. [Google Scholar] [CrossRef] [PubMed]
  16. Li, R.J.; Holstein, J.J.; Hiller, W.G.; Andreasson, J.; Clever, G.H. Mechanistic Interplay between Light Switching and Guest Binding in Photochromic [Pd2Dithienylethene4] Coordination Cages. J. Am. Chem. Soc. 2019, 141, 2097–2103. [Google Scholar] [CrossRef]
  17. Oldknow, S.; Martir, D.R.; Pritchard, V.E.; Blitz, M.A.; Fishwick, C.W.G.; Zysman-Colman, E.; Hardie, M.J. Structure-switching M3L2 Ir(iii) coordination cages with photo-isomerising azo-aromatic linkers. Chem. Sci. 2018, 9, 8150–8159. [Google Scholar] [CrossRef]
  18. Liu, W.X.; Liu, G.X.; Zhu, X.J.; Han, X.; Lu, A.T.; Lu, S.; Shi, L.L.; Hao, X.Q.; Song, M.P. Tailored metal–organic tetrahedral nanocages with aggregation-induced emission for an anti-counterfeiting ink and stimulus-responsive luminescence. New J. Chem. 2022, 46, 8062–8068. [Google Scholar] [CrossRef]
  19. Bao, S.J.; Xu, Z.M.; Ju, Y.; Song, Y.L.; Wang, H.; Niu, Z.; Li, X.; Braunstein, P.; Lang, J.P. The Covalent and Coordination Co-Driven Assembly of Supramolecular Octahedral Cages with Controllable Degree of Distortion. J. Am. Chem. Soc. 2020, 142, 13356–13361. [Google Scholar] [CrossRef]
  20. Shi, Q.; Zhou, X.; Yuan, W.; Su, X.; Neniskis, A.; Wei, X.; Taujenis, L.; Snarskis, G.; Ward, J.S.; Rissanen, K.; et al. Selective Formation of S4- and T-Symmetric Supramolecular Tetrahedral Cages and Helicates in Polar Media Assembled via Cooperative Action of Coordination and Hydrogen Bonds. J. Am. Chem. Soc. 2020, 142, 3658–3670. [Google Scholar] [CrossRef]
  21. Wang, H.; Wang, K.; Xu, Y.; Wang, W.; Chen, S.; Hart, M.; Wojtas, L.; Zhou, L.P.; Gan, L.; Yan, X.; et al. Hierarchical Self-Assembly of Nanowires on the Surface by Metallo-Supramolecular Truncated Cuboctahedra. J. Am. Chem. Soc. 2021, 143, 5826–5835. [Google Scholar] [CrossRef] [PubMed]
  22. Hou, Y.; Zhang, Z.; Lu, S.; Yuan, J.; Zhu, Q.; Chen, W.P.; Ling, S.; Li, X.; Zheng, Y.Z.; Zhu, K.; et al. Highly Emissive Perylene Diimide-Based Metallacages and Their Host-Guest Chemistry for Information Encryption. J. Am. Chem. Soc. 2020, 142, 18763–18768. [Google Scholar] [CrossRef] [PubMed]
  23. Li, Y.; Rajasree, S.S.; Lee, G.Y.; Yu, J.; Tang, J.-H.; Ni, R.; Li, G.; Houk, K.N.; Deria, P.; Stang, P.J. Anthracene–Triphenylamine-Based Platinum(II) Metallacages as Synthetic Light-Harvesting Assembly. J. Am. Chem. Soc. 2021, 143, 2908–2919. [Google Scholar] [CrossRef] [PubMed]
  24. Xu, Y.; Hao, A.; Xing, P. XX Halogen Bond-Induced Supramolecular Helices. Angew. Chem. Int. Ed. 2022, 61, e202113786. [Google Scholar] [CrossRef] [PubMed]
  25. Dumele, O.; Schreib, B.; Warzok, U.; Trapp, N.; Schalley, C.A.; Diederich, F. Halogenverbrückte supramolekulare Kapseln im Festkörper, in Lösung und in der Gasphase. Angew. Chem. 2017, 129, 1172–1177. [Google Scholar] [CrossRef]
  26. Tozawa, T.; Jones, J.T.A.; Swamy, S.I.; Jiang, S.; Adams, D.J.; Shakespeare, S.; Clowes, R.; Bradshaw, D.; Hasell, T.; Chong, S.Y.; et al. Porous organic cages. Nat. Mater. 2009, 8, 973–978. [Google Scholar] [CrossRef] [PubMed]
  27. Jiao, T.; Chen, L.; Yang, D.; Li, X.; Wu, G.; Zeng, P.; Zhou, A.; Yin, Q.; Pan, Y.; Wu, B.; et al. Trapping White Phosphorus within a Purely Organic Molecular Container Produced by Imine Condensation. Angew. Chem. Int. Ed. 2017, 56, 14545–14550. [Google Scholar] [CrossRef]
  28. Ke, X.-S.; Kim, T.; He, Q.; Lynch, V.M.; Kim, D.; Sessler, J.L. Three-Dimensional Fully Conjugated Carbaporphyrin Cage. J. Am. Chem. Soc. 2018, 140, 16455–16459. [Google Scholar] [CrossRef]
  29. Zhang, C.; Wang, Q.; Long, H.; Zhang, W. A Highly C70 Selective Shape-Persistent Rectangular Prism Constructed through One-Step Alkyne Metathesis. J. Am. Chem. Soc. 2011, 133, 20995–21001. [Google Scholar] [CrossRef]
  30. Mastalerz, M.; Schneider, M.W.; Oppel, I.M.; Presly, O. A Salicylbisimine Cage Compound with High Surface Area and Selective CO2/CH4 Adsorption. Angew. Chem. Int. Ed. 2011, 50, 1046–1051. [Google Scholar] [CrossRef]
  31. Castilla, A.M.; Ousaka, N.; Bilbeisi, R.A.; Valeri, E.; Ronson, T.K.; Nitschke, J.R. High-Fidelity Stereochemical Memory in a FeII4L4 Tetrahedral Capsule. J. Am. Chem. Soc. 2013, 135, 17999–18006. [Google Scholar] [CrossRef] [PubMed]
  32. Sun, N.; Wang, C.; Wang, H.; Yang, L.; Jin, P.; Zhang, W.; Jiang, J. Multifunctional Tubular Organic Cage-Supported Ultrafine Palladium Nanoparticles for Sequential Catalysis. Angew. Chem. Int. Ed. 2019, 58, 18011–18016. [Google Scholar] [CrossRef] [PubMed]
  33. Mondal, B.; Mukherjee, P.S. Cage Encapsulated Gold Nanoparticles as Heterogeneous Photocatalyst for Facile and Selective Reduction of Nitroarenes to Azo Compounds. J. Am. Chem. Soc. 2018, 140, 12592–12601. [Google Scholar] [CrossRef] [PubMed]
  34. Brutschy, M.; Schneider, M.W.; Mastalerz, M.; Waldvogel, S.R. Porous Organic Cage Compounds as Highly Potent Affinity Materials for Sensing by Quartz Crystal Microbalances. Adv. Mater. 2012, 24, 6049–6052. [Google Scholar] [CrossRef]
  35. Shi, L.L.; Lu, S.Y. Precise carbon dots synthesis: Building bridges between organic chemistry and inorganic chemistry. Sci. Bull. 2022, 67, 2369–2371. [Google Scholar] [CrossRef] [PubMed]
  36. Wu, H.; Wang, Y.; Song, B.; Wang, H.J.; Zhou, J.; Sun, Y.; Jones, L.O.; Liu, W.; Zhang, L.; Zhang, X.; et al. A contorted nanographene shelter. Nat. Commun. 2021, 12, 5191. [Google Scholar] [CrossRef]
  37. Tong, L.; Zhu, D.; Chen, B.; Chen, Y.; Wu, G.; Zeng, F.; Li, H. Water-Soluble Cyclophanes Synthesized via the Zincke Reaction. Org. Lett. 2021, 23, 9343–9347. [Google Scholar] [CrossRef]
  38. Liu, W.; Tan, Y.; Jones, L.O.; Song, B.; Guo, Q.H.; Zhang, L.; Qiu, Y.; Feng, Y.; Chen, X.Y.; Schatz, G.C.; et al. PCage: Fluorescent Molecular Temples for Binding Sugars in Water. J. Am. Chem. Soc. 2021, 143, 15688–15700. [Google Scholar] [CrossRef]
  39. Thordarson, P. Available online: http://supramolecular.org (accessed on 28 October 2023).
  40. Wang, X.; Wang, Y.; Yang, H.; Fang, H.; Chen, R.; Sun, Y.; Zheng, N.; Tan, K.; Lu, X.; Tian, Z.; et al. Assembled molecular face-rotating polyhedra to transfer chirality from two to three dimensions. Nat. Commun. 2016, 7, 12469. [Google Scholar] [CrossRef]
Ijms 24 17541 sch001

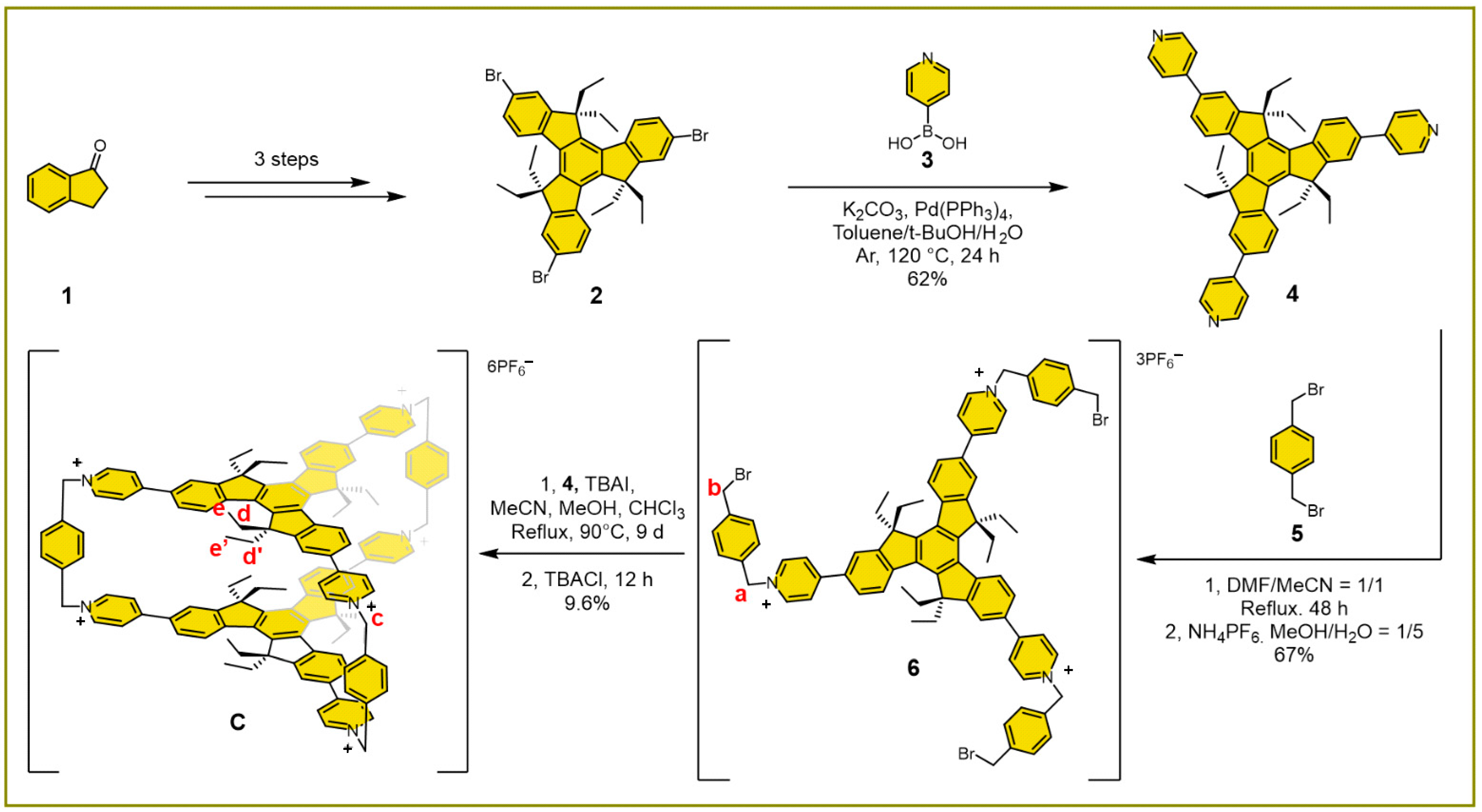

Scheme 1. The synthesis of covalent organic cage C.
Scheme 1. The synthesis of covalent organic cage C.
Ijms 24 17541 sch001
Ijms 24 17541 g001

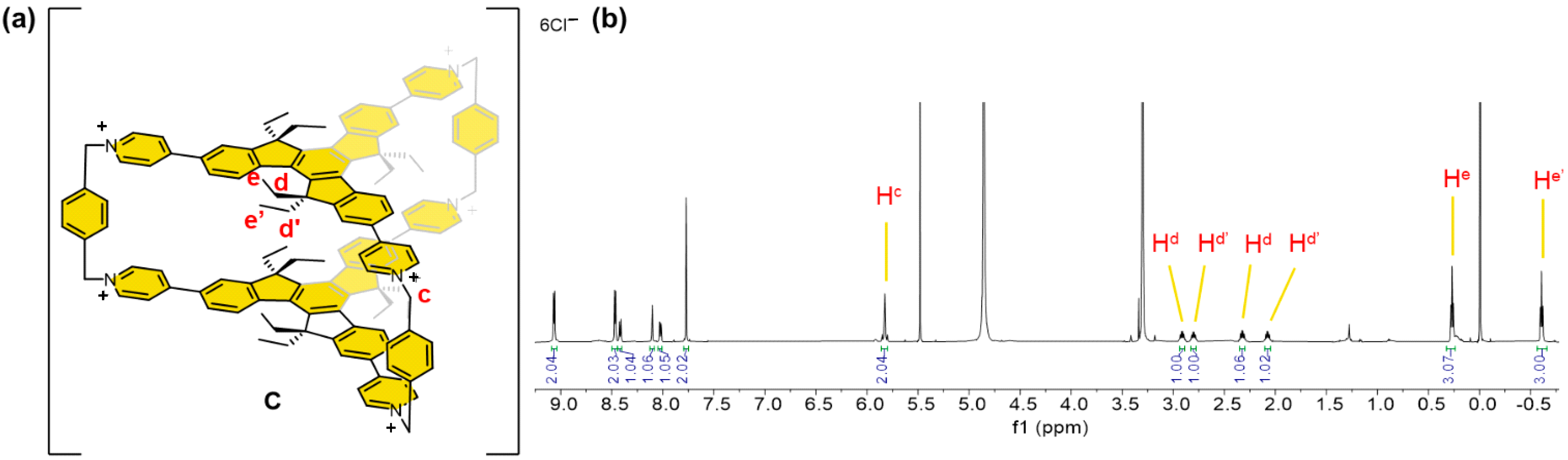

Figure 1. (a) The structure of covalent organic cage C. (b) 1H NMR (CD3OD, 600 MHz, 298 K) spectrum of covalent organic cage C.
Figure 1. (a) The structure of covalent organic cage C. (b) 1H NMR (CD3OD, 600 MHz, 298 K) spectrum of covalent organic cage C.
Ijms 24 17541 g001
Ijms 24 17541 g002

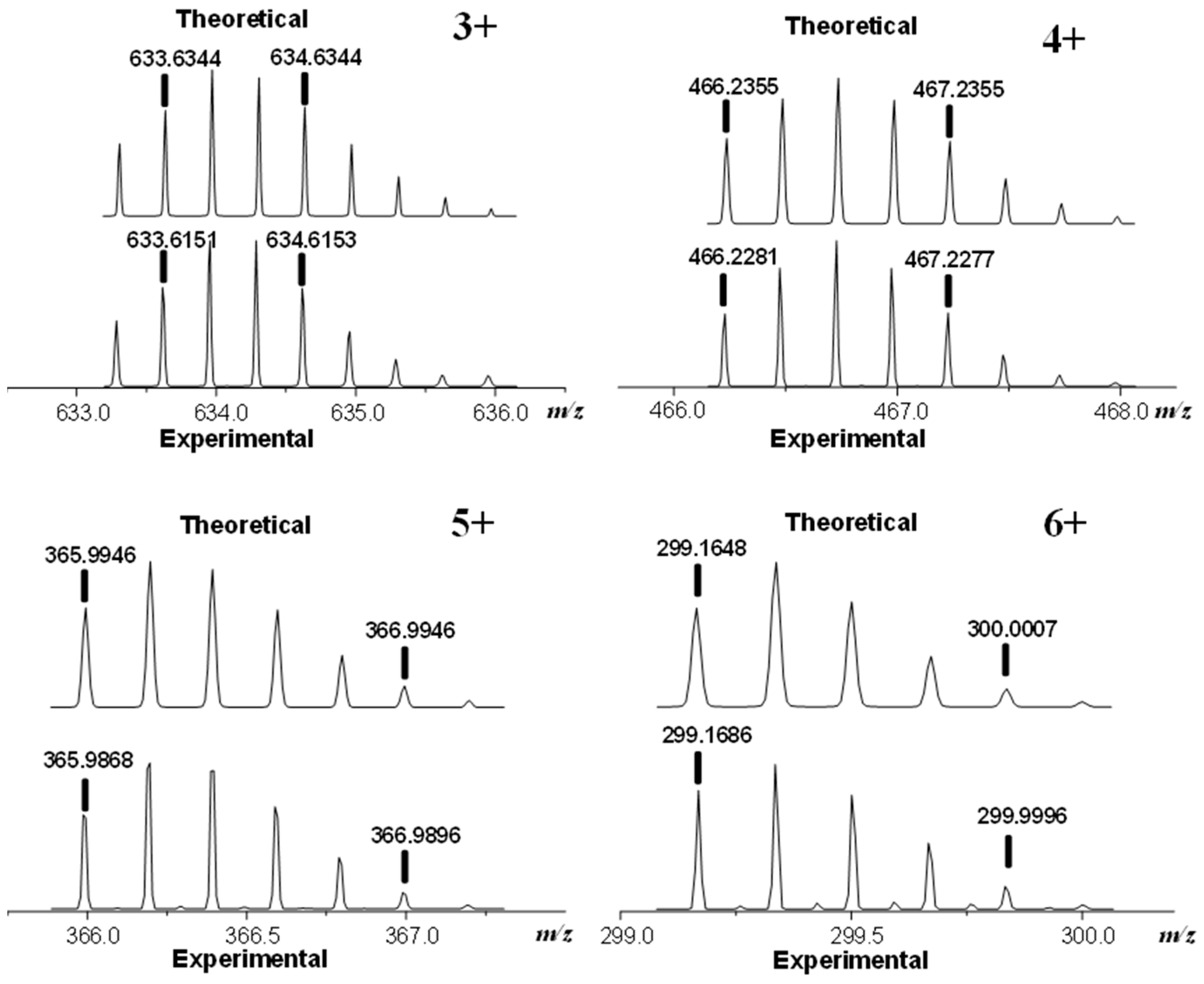

Figure 2. ESI-MS spectra of covalent organic cage C.
Figure 2. ESI-MS spectra of covalent organic cage C.
Ijms 24 17541 g002
Ijms 24 17541 g003
Figure 3. Energy-minimized molecular of covalent organic cage C (N, blue; C, gray). Hydrogens are omitted for clarity; (a) side view and (b) top view of covalent organic cage C. (c) Dimensions of the cavity window for covalent organic cage C.
Figure 3. Energy-minimized molecular of covalent organic cage C (N, blue; C, gray). Hydrogens are omitted for clarity; (a) side view and (b) top view of covalent organic cage C. (c) Dimensions of the cavity window for covalent organic cage C.
Ijms 24 17541 g003
Ijms 24 17541 g004

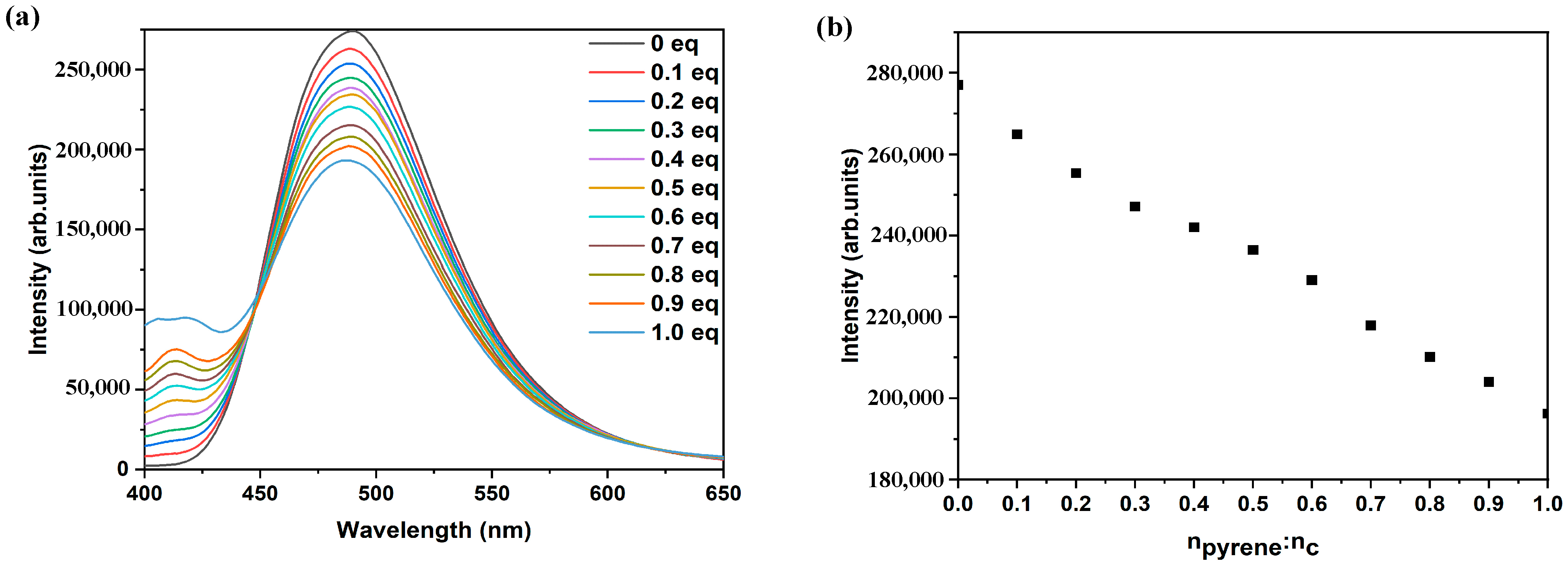

Figure 4. (a) Fluorescence trend of covalent organic cage C with the addition of pyrene. (b) The plot of fluorescence intensity of npyrene and nc at 490 nm for different equivalence ratios. (c = 1.0 × 10−6 M, λex = 400 nm, Slit = 1, 1 nm).
Figure 4. (a) Fluorescence trend of covalent organic cage C with the addition of pyrene. (b) The plot of fluorescence intensity of npyrene and nc at 490 nm for different equivalence ratios. (c = 1.0 × 10−6 M, λex = 400 nm, Slit = 1, 1 nm).
Ijms 24 17541 g004
Ijms 24 17541 g005

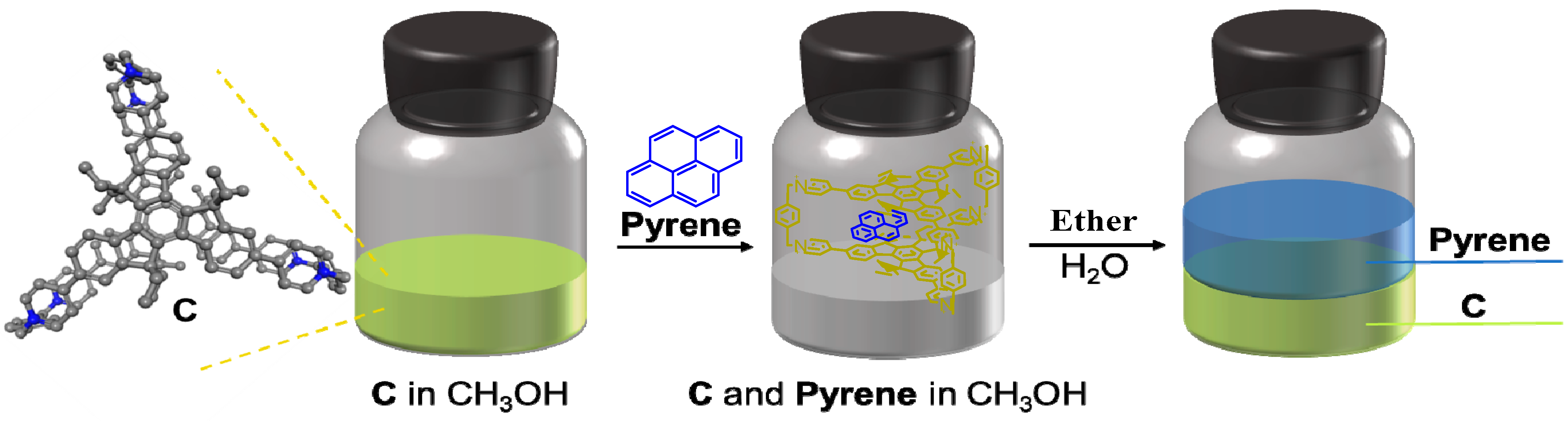

Figure 5. Interaction of covalent organic cage C with pyrene and its recycling.
Figure 5. Interaction of covalent organic cage C with pyrene and its recycling.
Ijms 24 17541 g005
Ijms 24 17541 g006

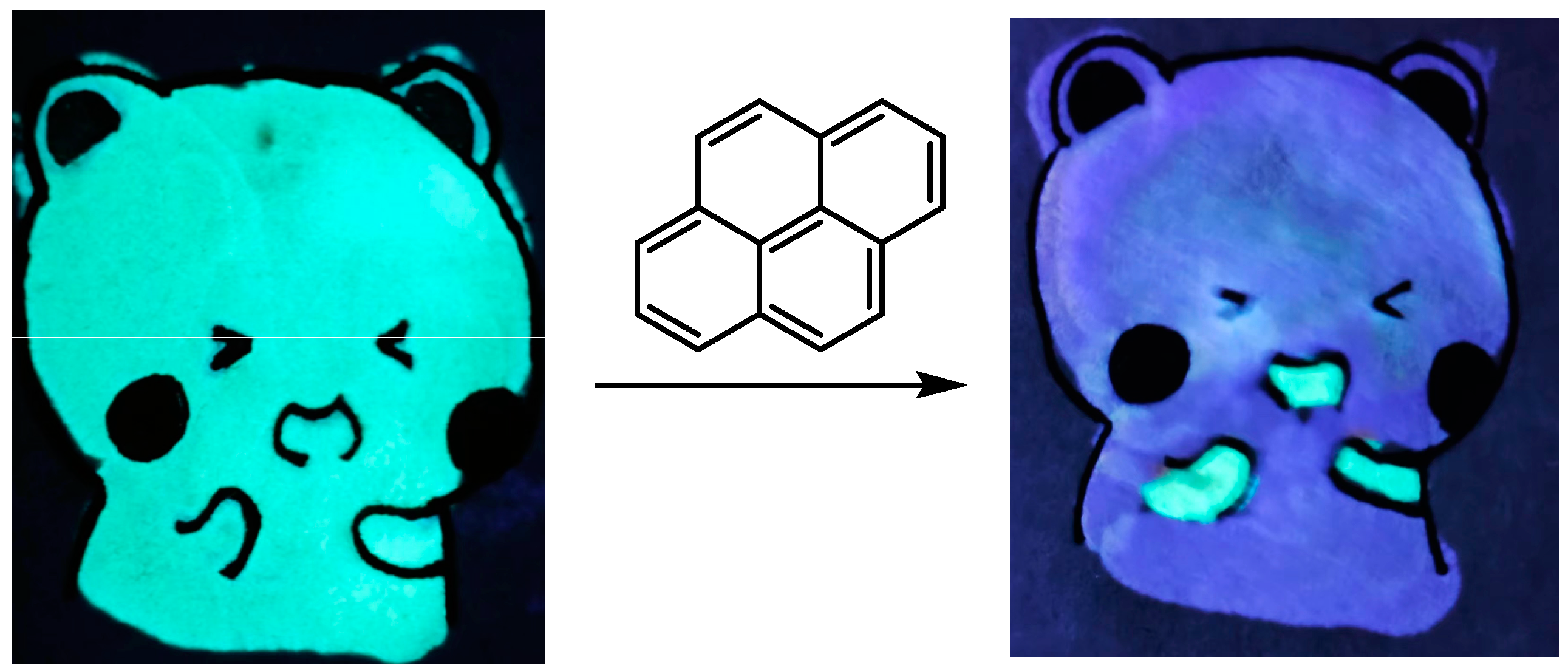

Figure 6. Experiment of stimulus response information encryption based on C.
Figure 6. Experiment of stimulus response information encryption based on C.
Ijms 24 17541 g006
