Chelator PBT2 Forms a Ternary Cu²⁺ Complex with β-Amyloid That Has High Stability but Low Specificity

Abstract

The metal chelator PBT2 (5,7-dichloro-2-[(dimethylamino)methyl]-8-hydroxyquinoline) acts as a terdentate ligand capable of forming binary and ternary Cu²⁺ complexes. It was clinically trialed as an Alzheimer’s disease (AD) therapy but failed to progress beyond phase II. The β-amyloid (Aβ) peptide associated with AD was recently concluded to form a unique Cu(Aβ) complex that is inaccessible to PBT2. Herein, it is shown that the species ascribed to this binary Cu(Aβ) complex in fact corresponds to ternary Cu(PBT2)N_Im^Aβ complexes formed by the anchoring of Cu(PBT2) on imine nitrogen (N_Im) donors of His side chains. The primary site of ternary complex formation is His6, with a conditional stepwise formation constant at pH 7.4 (${}^{c}K$ [M⁻¹]) of log${}_{}{}^{c}K$ = 6.4 ± 0.1, and a second site is supplied by His13 or His14 (log${}_{}{}^{c}K$ = 4.4 ± 0.1). The stability of Cu(PBT2)N_Im^H13/14 is comparable with that of the simplest Cu(PBT2)N_Im complexes involving the N_Im coordination of free imidazole (log${}_{}{}^{c}K$ = 4.22 ± 0.09) and histamine (log${}_{}{}^{c}K$ = 4.00 ± 0.05). The 100-fold larger formation constant for Cu(PBT2)N_Im^H6 indicates that outer-sphere ligand–peptide interactions strongly stabilize its structure. Despite the relatively high stability of Cu(PBT2)N_Im^H6, PBT2 is a promiscuous chelator capable of forming a ternary Cu(PBT2)N_Im complex with any ligand containing an N_Im donor. These ligands include histamine, L-His, and ubiquitous His side chains of peptides and proteins in the extracellular milieu, whose combined effect should outweigh that of a single Cu(PBT2)N_Im^H6 complex regardless of its stability. We therefore conclude that PBT2 is capable of accessing Cu(Aβ) complexes with high stability but low specificity. The results have implications for future AD therapeutic strategies and understanding the role of PBT2 in the bulk transport of transition metal ions. Given the repurposing of PBT2 as a drug for breaking antibiotic resistance, ternary Cu(PBT2)N_Im and analogous Zn(PBT2)N_Im complexes may be relevant to its antimicrobial properties.

1. Introduction

The compound 5,7-dichloro-2-[(dimethylamino)methyl]-8-hydroxyquinoline (PBT2) is a terdentate Cu²⁺ and Zn²⁺ chelator that was previously trialed as a therapeutic to treat Alzheimer’s disease (AD). Its anticipated mechanism of action was based on the controversial “metals hypothesis”, which proposed that AD results from aberrant interactions of the β-amyloid (Aβ) peptide with endogenous transition metal ions, notably Cu²⁺, causing Aβ to misfold and generate reactive oxygen species (ROS) [1,2]. PBT2 was proposed to prevent these interactions, sequester transition metal ions thought to be trapped within extracellular β-amyloid aggregates, and then enable cellular uptake of these ions by ionophore action [3]. However, repeated phase II clinical trials ultimately provided no evidence for cognitive efficacy of PBT2 in patients with prodromal or mild AD [4,5].

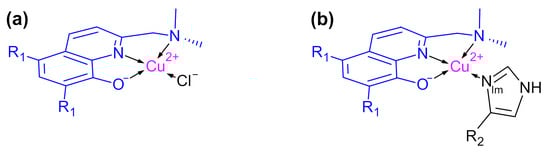

Using electron paramagnetic resonance (EPR) spectroscopy, the Cu²⁺ coordination of this class of ligand (L) was first characterized using the non-chlorinated homologue of PBT2 (Figure 1), which was shown to form a terdentate CuL complex and a five-coordinate CuL₂ complex [6]. The proposed structure of CuL₂ has been replicated in the crystal structure of PBT2 [7], and the UV–vis and EPR spectroscopic properties of Cu(PBT2) and Cu(PBT2)₂ have been shown to mirror those of the non-chlorinated homologue [6,7,8,9] (Table S1). Early EPR studies also showed that both ligands form ternary CuLN_Im^X complexes (Figure 1) in which the labile Cl⁻ ligand of CuL is replaced with an imine (N_Im) donor ligand provided by X = imidazole, histamine, L-His, or proteins such as α-synuclein and Aβ (see, in particular, Figure S33 of ref. [6]). However, despite recently identifying a similar EPR spectroscopic signature using a Cu/PBT2/Aβ_1–42 mixture, George and co-workers ascribed the signal to a unique PBT2-inaccessible Cu(Aβ) species and concluded that there was no evidence to support formation of a ternary Cu²⁺ complex [10]. Since this could be interpreted by some as a reason for the failure of PBT2 in AD clinical trials, it is important to resolve this contradiction.

To address the above issue, we used EPR spectroscopy to analyze the species distributions in Cu/PBT2/Aβ mixtures in unprecedented detail and identify the number and stabilities of ternary Cu(PBT2)N_Im^X complexes formed with X = Aβ_1–40.

2. Results

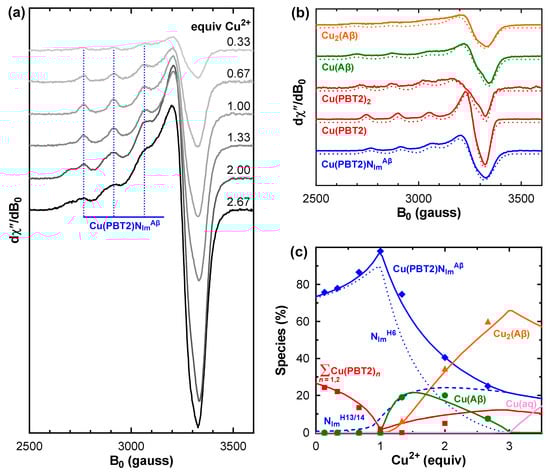

To characterize the Cu²⁺ complexes formed by PBT2 in the presence of Aβ, we titrated an equimolar mixture of PBT2 and Aβ_1–40 in PBS pH 7.4 with Cu²⁺ and acquired the corresponding EPR spectra (Figure 2a). To determine the species distribution, each spectrum was decomposed into a linear superposition of basis spectra (Figure 2b) corresponding to Cu(PBT2), Cu(PBT2)₂, Cu(Aβ_1–40), Cu₂(Aβ_1–40), and the putative Cu(PBT2)N_Im^Aβ complex. The spectrum of Cu(PBT2) was obtained at equimolar Cu/PBT2 stoichiometry and that of Cu(PBT2)₂ at sub-stoichiometric ratios (Figure S1). The spectra of Cu(Aβ) and Cu₂(Aβ) were acquired at Cu/Aβ ratios of 1:1 and 2.5:1 (Figure S2). Attempts to use linear combinations of normalized Cu(PBT2), Cu(PBT2)₂, Cu(Aβ), and Cu₂(Aβ) spectra failed to reproduce the EPR spectra of Cu/PBT2/Aβ_1–40 n:1:1 (n = 0–2.67), indicating that additional species must be formed. Indeed, the dominant spectral features did not resemble any of those of the above four species (Figure 2b and Figure S3). Rather, they corresponded closely to those of previously characterized CuLN_Im complexes (

Table 1. Principal electron Zeeman (g_z) and nuclear hyperfine (A_z) parameters of binary and ternary Cu²⁺ complexes of PBT2 and its non-chlorinated homologue with Aβ_1–40 and other imidazole-bearing (N_Im) co-ligands. A detailed comparison with previously obtained parameters is shown in Table S1.

Complex			gz	Az (63Cu) a	Reference
L = PBT2
	CuL		2.259 ± 0.002	151 ± 1	This work b
	CuL2		2.283 ± 0.002	148 ± 3	This work b
	CuLNImX
		X = Aβ1–40	2.249 ± 0.002	147 ± 2	This work b
		X = imidazole	2.248 ± 0.001	143 ± 1	This work b
		X = histamine	2.248 ± 0.001	143 ± 1	This work b
		X = Aβ1–42	2.242 ± 0.002	142 ± 3	10 c
L = non-chlorinated PBT2 homologue
	CuL		2.255 ± 0.001	153 ± 1	6
	CuL2		2.267 ± 0.001	149 ± 1	6
	CuLNImX
		X = imidazole	2.245 ± 0.001	144 ± 1	This work b, 6, 11
		X = histamine	2.245 ± 0.001	145 ± 1	This work b, 6, 11
Aβ
	Cu(Aβ1–40)		2.268 ± 0.002	174 ± 2	This work d
	Cu2(Aβ1–40)
		first site	2.268 ± 0.002	174 ± 2	This work e
		second site	2.309 ± 0.005	168 ± 5	This work e

^a Hyperfine parameters are expressed in units of 10⁻⁴ cm⁻¹ (1 × 10⁻⁴ cm⁻¹ = 2.9979 MHz). ^b To aid comparison with other studies, hyperfine couplings have been converted from those obtained using ⁶⁵Cu to those expected for ⁶³Cu using the scaling factor |g_n(⁶⁵Cu)/g_n(⁶³Cu)| = 1.07. ^c Species was not assigned to a ternary complex and spectral isolation was approximate. ^d Parameters are those for the dominant species at pH 7.4. ^e Coordination of the first-bound ion at the “first site” is assumed to be unperturbed by binding of a second ion at the “second site”.

) [6,8,11], indicating that Cu(PBT2) can anchor on the imine nitrogen (N_Im) of the His side chains of Aβ_1–40.

To quantify the number and stabilities of ternary Cu(PBT2)N_Im^Aβ interactions, it is important to consider how the His residues participate in binary Cu(Aβ) complexes. At pH 7.4, Cu(Aβ) is dominated by {NH₂^D1, C=O^D1, N_Im^H6, N_Im^H13} and {NH₂^D1, C=O^D1, N_Im^H6, N_Im^H14} coordination spheres with indistinguishable EPR spectra [12,13,14]. Thus, His6 is absolutely required to form Cu(Aβ), whereas only one of His13 or His14 is needed. Thus, anchoring of Cu(PBT2) on His6 to form Cu(PBT2)N_Im^H6 will occur at the expense of Cu(Aβ), whereas anchoring on one of His13 or His14 to form Cu(PBT2)N_Im^H13/14 will not. Sequential binding of a second Cu²⁺ ion by Cu(Aβ) generates Cu₂(Aβ). The coordination in Cu₂(Aβ) remains poorly defined, with one suggestion that binding of the second Cu²⁺ ion changes the coordination of the first [15]. However, it will be shown below that a satisfactory explanation of the species distributions requires that His6 remains Cu²⁺-bound and His13 or His14 non-coordinated in Cu₂(Aβ).

The conditional constants (${}_{}{}^{c}K$) for formation of Cu(PBT2), Cu(PBT2)₂, Cu(Aβ), and Cu₂(Aβ) at pH 7.4 have all been previously determined (Table S2), which greatly simplified the task of determining the species distribution of the Cu/PBT2/Aβ_1–40 n:1:1 system. Using these values and the EPR basis spectra (Figure 2b), we fitted the series of EPR spectra in Figure 2a as a function of the unknown constants ${}^{c}K_{{\mathrm{CuLN}}_{\mathrm{Im}}^{\mathrm{H}6}}^{\mathrm{CuL}}$ and ${}^{c}K_{{\mathrm{CuLN}}_{\mathrm{Im}}^{\mathrm{H}13/14}}^{\mathrm{CuL}}$ (see Section 4.3 for detail). The best agreement between the experimental and theoretical species distributions (Figure 2c) was obtained for log${}^{c}K_{{\mathrm{CuLN}}_{\mathrm{Im}}^{\mathrm{H}6}}^{\mathrm{CuL}}$ = 6.4 ± 0.1 and log${}^{c}K_{{\mathrm{CuLN}}_{\mathrm{Im}}^{\mathrm{H}13/14}}^{\mathrm{CuL}}$ = 4.4 ± 0.1 (

Table 2. Stepwise conditional formation constants (pH 7.4) used to simulate the species distributions of Cu/L/N_Im^X mixtures for L = PBT2 and X = Aβ_1–40 (Figure 2c), imidazole (Figure S6c), and histamine (Figure S9c). A detailed comparison of Cu²⁺ formation constants, including those for the non-chlorinated homologue of PBT2 and various N_Im donors, is provided in Table S2.

Complex	Formation Constant a	$\mathbf{log}[{}^{\mathit{c}}\mathit{K}$/(1 M−1)] at pH 7.4	Reference
CuL	${}^{c}K_{\mathrm{CuL}}^{\mathrm{Cu}}$	13.61 ± 0.05	8
CuL2	${}^{c}K_{{\mathrm{CuL}}_2}^{\mathrm{CuL}}$	5.95 ± 0.07	8
CuLNImAβ (His6)	${}^{c}K_{{\mathrm{CuLN}}_{\mathrm{Im}}^{\mathrm{H}6}}^{\mathrm{CuL}}$	6.4 ± 0.1	This work
CuLNImAβ (His13/14)	${}^{c}K_{{\mathrm{CuLN}}_{\mathrm{Im}}^{\mathrm{H}13/14}}^{\mathrm{CuL}}$	4.4 ± 0.1	This work
CuLNImimidazole	${}^{c}K_{{\mathrm{CuLN}}_{\mathrm{Im}}^{\mathrm{imidazole}}}^{\mathrm{CuL}}$	4.22 ± 0.09	This work
CuLNImhistamine	${}^{c}K_{{\mathrm{CuLN}}_{\mathrm{Im}}^{\mathrm{histamine}}}^{\mathrm{CuL}}$	4.00 ± 0.05	This work
Cu(Aβ1–40)	${}^{c}K_{\mathrm{Cu}\left(\mathrm{A}\mathsf{\beta }\right)}^{\mathrm{Cu}}$	10.0 ± 0.1	This work
Cu2(Aβ1–40)	${}^{c}K_{{\mathrm{Cu}}_2\left(\mathrm{A}\mathsf{\beta }\right)}^{\mathrm{Cu}\left(\mathrm{A}\mathsf{\beta }\right)}$	8.0 ± 0.1	This work

^a Formation constants are defined in Equations (2)–(4) (Section 4.3).

). Allowing the conditional formation constants ${}^{c}K_{\mathrm{Cu}\left(\mathrm{A}\mathsf{\beta }\right)}^{\mathrm{Cu}}$ and ${}^{c}K_{{\mathrm{Cu}}_2\left(\mathrm{A}\mathsf{\beta }\right)}^{\mathrm{Cu}\left(\mathrm{A}\mathsf{\beta }\right)}$ to vary beyond their generally accepted ranges (Table S2) worsened the fit. Although we did not refine the value of ${}^{c}K_{{\mathrm{CuL}}_2}^{\mathrm{CuL}}$, we found that large changes from its published value (Table 2) also worsened the fit unless ${}^{c}K_{\mathrm{Cu}\left(\mathrm{A}\mathsf{\beta }\right)}^{\mathrm{Cu}}$ was set to a value beyond its accepted range.

The general appearance of the species distributions for Cu/PBT2/Aβ_1–40 n:1:1 (Figure 2c and Figure S5) can be understood as follows: For small n, the 1000-fold greater stability of Cu(PBT2) compared with Cu(Aβ) (Table 2) ensures that Cu²⁺ will first bind to PBT2, with the identity of the fourth in-plane ligand then being determined by the relative magnitudes of the stepwise constants ${}^{c}K_{{\mathrm{CuLN}}_{\mathrm{Im}}^{\mathrm{H}6}}^{\mathrm{CuL}}>{}^{c}K_{{\mathrm{CuL}}_2}^{\mathrm{CuL}}\gg {}^{c}K_{{\mathrm{CuLN}}_{\mathrm{Im}}^{\mathrm{H}13/14}}^{\mathrm{CuL}}$. Thus, for n < 1, Cu²⁺ is predominantly bound in a Cu(PBT2)N_Im^H6 complex with a minor quantity of Cu(PBT2)₂. For n = 1, Cu(PBT2)₂ is almost entirely replaced by Cu(PBT2)N_Im^H6 and Cu(PBT2)N_Im^H13/14, which only require one PBT2 molecule per Cu²⁺ ion. For n > 1, with no free PBT2 molecules available, the additional Cu²⁺ is coordinated in the next most stable binary complex, which is Cu(Aβ) (log${}^{c}K_{\mathrm{Cu}\left(\mathrm{A}\mathsf{\beta }\right)}^{\mathrm{Cu}}$ = 10.0 ± 0.1). However, because Cu(Aβ) coordination requires His6, some Cu(PBT2) detaches from His6 and anchors instead on a His13 or His14 side chain, albeit with lower stability, to form Cu(PBT2)N_Im^H13/14. As the available sites at His6 are gradually filled by Cu(Aβ), stepwise addition of a second Cu²⁺ ion to the peptide occurs (log${}^{c}K_{{\mathrm{Cu}}_2\left(\mathrm{A}\mathsf{\beta }\right)}^{\mathrm{Cu}\left(\mathrm{A}\mathsf{\beta }\right)}$ = 8.0 ± 0.1) to form Cu₂(Aβ). Maximum occupancy of the Cu/PBT2/Aβ_1–40 n:1:1 system is reached at n = 3, with two Cu²⁺ ions bound to the “first” and “second” sites of Aβ, and a third Cu²⁺ ion bound either to Cu(PBT2) that is free (minor) or anchored to His13/14 of Cu₂(Aβ) in a Cu(PBT2)N_Im^H13/14 complex (major).

More than three Cu²⁺ ions cannot be accommodated by an equimolar PBT2/Aβ mixture, with the excess Cu²⁺ ions existing as aqueous copper that will precipitate as [Cu(OH)₂]_n at pH 7.4. Inclusion of Cu(PBT2)N_Im^H13/14, whose formation does not depend on the Cu²⁺ loading state of Aβ, was essential to fit the experimental data. Alternative explanations of the physical origin of the lower-affinity ternary complex, such as a change in coordination of the first-bound Cu²⁺ ion in Cu₂(Aβ), can be ruled out because the concentration of Cu₂(Aβ) relative to that of the ternary complex is too low at n < 2 (Figure S5).

The fact that ${}^{c}K_{{\mathrm{CuLN}}_{\mathrm{Im}}^{\mathrm{H}6}}^{\mathrm{CuL}}$ is 100-fold larger than ${}^{c}K_{{\mathrm{CuLN}}_{\mathrm{Im}}^{\mathrm{H}13/14}}^{\mathrm{CuL}}$ indicates that either Cu(PBT2)N_Im^H6 is stabilized by favorable outer-sphere ligand–peptide interactions and/or that Cu(PBT2)N_Im^H13/14 is destabilized by such interactions. To distinguish between these possibilities, we repeated the EPR analyses using Cu/PBT2/X 1:1:n systems with relatively unstructured N_Im donor ligands from X = imidazole (Figures S6–S8) and histamine (Figures S9–S11). The EPR spectra of the isolated ternary Cu(PBT2)N_Im^X complexes were characterized by the same parameters as Cu(PBT2)N_Im^Aβ spectra (Table 1), confirming that each of these ternary Cu²⁺ complexes involves monodentate N_Im coordination of the co-ligand (Figure 1). The difference between ${}^{c}K_{{\mathrm{CuLN}}_{\mathrm{Im}}^{\mathrm{imidazole}}}^{\mathrm{CuL}}$ and ${}^{c}K_{{\mathrm{CuLN}}_{\mathrm{Im}}^{\mathrm{H}13/14}}^{\mathrm{CuL}}$ was within experimental error, whereas ${}^{c}K_{{\mathrm{CuLN}}_{\mathrm{Im}}^{\mathrm{histamine}}}^{\mathrm{CuL}}$ was slightly lower than these constants (Table 2). Thus, we may conclude that the stability of Cu(PBT2)N_Im^H13/14 is not strongly influenced by outer-sphere ligand–peptide interactions, whereas such interactions greatly enhance the stability of Cu(PBT2)N_Im^H6.

To independently verify the EPR method for deriving the conditional formation constants, we also determined the stability of the ternary Cu²⁺ complex of the non-chlorinated homologue of PBT2 (L′) with imidazole (Figures S12–S14) and compared the value with that previously determined using potentiometric titrations [11]. After pH correction of the absolute stability constants (Table S3),${}^{c}K_{{{\mathrm{CuL}}^{\prime }\mathrm{N}}_{\mathrm{Im}}^{\mathrm{imidazole}}}^{\mathrm{Cu}{\mathrm{L}}^{\prime }}$ was not significantly different from that determined here using EPR (Table S2) and, similar to PBT2, slightly higher than ${}^{c}K_{{{\mathrm{CuL}}^{\prime }\mathrm{N}}_{\mathrm{Im}}^{\mathrm{histamine}}}^{\mathrm{Cu}{\mathrm{L}}^{\prime }}$ (Figures S15–S17).

3. Discussion

EPR spectroscopy isolated a common Cu(PBT2)N_Im^Aβ spectrum (Figure S3) for both Cu(PBT2)N_Im^H6 and Cu(PBT2)N_Im^H13/14 because they have very similar first coordination spheres. Nevertheless, as has been shown for other terdentate Cu²⁺ chelators [16,17], ternary complexes with different N_Im donor ligands can be distinguished based on their distinct formation constants, which are determined by outer-sphere interactions to which continuous-wave EPR is typically insensitive. Importantly, the spectroscopic signature of Cu(PBT2)N_Im^Aβ isolated here for Cu/PBT2/Aβ_1–40 n:1:1 closely matches that reported for the species isolated in Cu/PBT2/Aβ_1–42 1:2:1 [10] (Table 1). In the latter study, the authors ascribed this to a unique PBT2-inaccessible Cu(Aβ) complex and concluded that there was no evidence for ternary complex formation. However, it is clear that CuLN_Im^X complexes with this spectroscopic signature are formed by PBT2 with a number of N_Im donor ligands X (Table 1 and Table S1). Moreover, we demonstrated the requirement for two such complexes—Cu(PBT2)N_Im^H6 and Cu(PBT2)N_Im^H13/14—with distinct stabilities (Table 2) to explain the species distributions of Cu/PBT2/Aβ_1–40 mixtures. The relatively high stability of Cu(PBT2)N_Im^H6 compared with complexes formed with other N_Im donors might result from stabilizing pi–pi stacking of the aromatic rings of PBT2 and Phe4 or Tyr10, although a combination of electrostatic, steric, and hydrogen-bonding effects may contribute.

Despite the large ternary formation constant for Cu(PBT2)N_Im^H6, PBT2 remains a promiscuous Cu²⁺ chelator because it is capable of forming a ternary Cu(PBT2)N_Im complex with all N_Im donor ligands, including ubiquitous His side chains of peptides and proteins in the biological milieu, whose combined effect should outweigh that of a single Cu(PBT2)N_Im^Aβ complex regardless of its stability. We therefore conclude that PBT2 is capable of accessing Cu(Aβ) complexes with high stability but low specificity. Potential functional implications of Cu(PBT2)N_Im complexes have been discussed in our previous studies of the non-chlorinated PBT2 homologue. First, as an alternative to acting as a mobile ion carrier (ionophore) in a lipid membrane, endocytosis of extracellular proteins on which Cu(PBT2) is anchored, followed by release of Cu²⁺ in low-pH and/or reducing intracellular compartments, may contribute to the bulk transport of these ions [6]. Second, their production of ROS in the presence of ascorbate [11], in addition to the modulation of cellular ROS signaling following exposure to this class of ligand [17], contrasts with the originally intended ROS-silencing function of PBT2 [18].

Recently, PBT2 has found renewed interest as an antimicrobial compound. Notably, a number of gram-positive bacteria become re-sensitized to previously resistant classes of antibiotics when these antibiotics are supplemented with PBT2 and Zn²⁺ in mouse models of wound healing [19] and pneumonia [20]. These results have been attributed to multiple bactericidal mechanisms associated with intracellular Zn²⁺ accumulation, including impairment of Mn-dependent superoxide dismutase and production of ROS [21]. Although ligands generally have a greater affinity for Cu²⁺ compared with Zn²⁺ [22], the above effects were observed in response to co-administration of PBT2 (~1 μM) with an excess of Zn²⁺ (~100 μM). Therefore, it remains unclear whether ternary Cu(PBT2)N_Im complexes may be formed under these conditions. However, given the ability of PBT2 to also form terdentate Zn²⁺ chelates [7], a contribution from analogous Zn(PBT2)N_Im complexes to the antimicrobial activity of Zn/PBT2 may be speculated.

4. Materials and Methods

4.1. Sample Preparation

Aβ_1–40 (purity > 95%) was synthesized in the Peptide Technology Facility of the Bio21 Molecular Science and Biotechnology Institute, The University of Melbourne. The lyophilized peptide was dissolved at a nominal concentration of 1 mg/mL in 1,1,1,3,3,3-hexafluoroisopropanol and portioned, then the solvent was allowed to evaporate. The resulting peptide film was resuspended at 4 °C in 20% v/v 20 mM NaOH, 70% v/v ultrapure water (MilliQ; MERCK KGAA, Darmstadt, Germany), and 10% v/v 10 × phosphate-buffered saline (PBS; 10 mM phosphate buffer, 2.7 mM KCl, 137 mM NaCl; Sigma). After centrifugation at 14,000× g for 15 min at 4 °C, the supernatant was retained and the peptide concentration was immediately determined using ε₂₁₄ = 74,925 M⁻¹cm⁻¹ [23]. A concentrated stock of ⁶⁵CuCl₂ was prepared by stirring ⁶⁵CuO (⁶⁵Cu, >99%; Cambridge Isotope Laboratories, Tewksbury, MA, USA) in concentrated HCl, evaporating excess HCl under heat, then adding ultrapure water. PBT2 was synthesized as previously described [24], and a 1 mM stock solution was prepared by solubilizing the hydrochloride salt directly in PBS.

From the above stock solutions, PBT2 and then ⁶⁵CuCl₂ were added to portions of Aβ_1–40 to achieve final molar Cu/PBT2/ratios of n:1:1 (n = 0.33–2.67) with [Aβ_1–40] = 200 μM. Control samples containing Cu/PBT2 0.5:1, Cu/PBT2 1:1, Cu/Aβ_1–40 1:1, and Cu/Aβ_1–40 2.5:1 were also prepared. Glycerol (10% v/v) was added to the Cu/PBT2 control samples to prevent formation of a concentrated solute phase upon freezing. Immediately after Cu addition, the final solution pH was measured using a micro-probe (Hanna Instruments, Villafranca Padovana, Italy) and adjusted using concentrated NaOH or HCl as required. Samples were transferred to quartz EPR tubes (SQ-707; ATS Life Sciences Wilmad, Vineland, NJ, USA) and snap-frozen in liquid nitrogen within two minutes of the Cu addition.

4.2. EPR Spectroscopy

X-band continuous-wave EPR spectra were acquired using a Bruker ESP380E spectrometer fitted with a rectangular TE₁₀₂ microwave cavity and a quartz cold finger insert. Microwave frequencies were measured using an EIP Microwave 548A frequency counter and g factors calibrated against the F⁺ line in CaO (g = 2.0001 ± 0.0002) [25]. Experimental conditions are indicated in the figure captions. Background correction was performed by subtraction of the buffer-only spectrum.

The “pepper” function in EasySpin v.5.2.33 [26,27] was used to simulate basis spectra using the static Hamiltonian

$$H={\beta }_{\mathrm{e}}{\mathbf{B}}^{\mathrm{T}}\cdot \mathbf{g}\cdot \mathbf{S}+{\mathbf{S}}^{\mathrm{T}}\cdot \mathbf{A}\cdot \mathbf{I}-g_{\mathrm{n}}{\beta }_{\mathrm{n}}{\mathbf{B}}^{\mathrm{T}}\cdot \mathbf{I}$$

(1)

where S and I are the electron and ⁶⁵Cu nuclear vector spin operators, g and A are the 3 × 3 electron Zeeman and ⁶⁵Cu electron–nuclear hyperfine coupling matrices, β_e is the Bohr magneton, β_n is the nuclear magneton, and B is the applied magnetic field vector. Rhombic symmetry or higher was assumed for g and A, with principal values of g_x, g_y, and g_z and A_x, A_y, and A_z, respectively. The principal values of g and A and the lineshape parameters (g–A strain model) were varied iteratively using the “esfit” module in EasySpin to minimize the difference between the experimental and simulated spectra.

4.3. Determination of the Ternary Formation Constants for Cu/PBT2/Aβ_1–40 Mixtures

We followed an approach similar to that recently used to determine the number and stabilities of ternary Cu(GHK)N_Im^HSA complexes formed between human serum albumin (HSA) and glycyl-L-histidyl-L-lysine (GHK) [26]. The Cu(PBT2)N_Im^Aβ spectrum was assumed to be a superposition of the spectra of two ternary complexes. The first complex involved anchoring of Cu(PBT2) on the His6 side chain (N_Im^H6), which is also required for Cu(Aβ) formation; the second involved anchoring on a side chain of either His13 or His14 (N_Im^H13/14), which is not required for Cu(Aβ) or Cu₂(Aβ) formation. Thus, Cu(Aβ) and Cu₂(Aβ) can simultaneously accommodate an Cu(PBT2)N_Im^H13/14 complex but not a Cu(PBT2)N_Im^H6 complex. Under these assumptions, Cu/PBT2/Aβ_1–40 n:1:1 can be modeled as Cu/L/A/B n:1:1:1, where ligand L is PBT2, ligand A acts like Aβ, and ligand B is treated as an isolated N_Im^H13/14 donor. The relevant formation constants are:

$$\begin{array}{c}{{\beta }^{\prime }}_{1100}={}^{c}K_{\mathrm{CuL}}^{\mathrm{Cu}}\hspace{1em}\hspace{1em}\hspace{1em}\hspace{1em}\hspace{1em} \mathrm{for} \mathrm{Cu}\left(\mathrm{PBT2}\right)\hfill \\ {{\beta }^{\prime }}_{1200}={}^{c}K_{\mathrm{CuL}}^{\mathrm{Cu}}\times {}^{c}K_{{\mathrm{CuL}}_2}^{\mathrm{CuL}}\hspace{1em}\hspace{1em}\mathrm{for} \mathrm{Cu}{\left(\mathrm{P}\mathrm{B}\mathrm{T}2\right)}_2\hfill \\ {{\beta }^{\prime }}_{1010}={}^{c}K_{\mathrm{CuA}}^{\mathrm{Cu}}\hspace{1em}\hspace{1em}\hspace{1em}\hspace{1em}\hspace{1em} \mathrm{for} \mathrm{Cu}(\mathrm{A}\mathsf{\beta })\hfill \\ {{\beta }^{\prime }}_{1020}={}^{c}K_{\mathrm{CuA}}^{\mathrm{Cu}}\times {}^{c}K_{{\mathrm{Cu}}_2\mathrm{A}}^{\mathrm{CuA}}\hspace{1em}\hspace{1em}\mathrm{for} {\mathrm{C}\mathrm{u}}_2(\mathrm{A}\mathsf{\beta })\hfill \\ {{\beta }^{\prime }}_{1110}={}^{c}K_{\mathrm{CuL}}^{\mathrm{Cu}}\times {}^{c}K_{\mathrm{CuLA}}^{\mathrm{CuL}}\hspace{1em}\hspace{1em}\mathrm{for} \mathrm{Cu}\left(\mathrm{PBT2}\right){{\mathrm{N}}_{\mathrm{I}\mathrm{m}}}^{\mathrm{H}6}\hfill \\ {{\beta }^{\prime }}_{1101}={}^{c}K_{\mathrm{CuL}}^{\mathrm{Cu}}\times {}^{c}K_{\mathrm{CuLB}}^{\mathrm{CuL}}\hspace{1em}\hspace{1em}\mathrm{for} \mathrm{Cu}(\mathrm{PBT2}){{\mathrm{N}}_{\mathrm{I}\mathrm{m}}}^{\mathrm{H}13/14}\hfill \end{array}$$

(2)

where the cumulative conditional (pH-dependent) constants (${\beta }^{\prime }$) are defined by

$${{\beta }^{\prime }}_{pqrs}=\frac{\left[{\mathrm{Cu}}_p{\mathrm{L}}_q{\mathrm{A}}_r{\mathrm{B}}_s\right]}{{\left[\mathrm{Cu}\right]}^p{\left[\mathrm{L}\right]}^q{\left[\mathrm{A}\right]}^r{\left[\mathrm{B}\right]}^s}\hspace{1em}\mathrm{for}\hspace{1em}p\mathrm{Cu}+q\mathrm{L}+r\mathrm{A}+s\mathrm{B} \stackrel{{\beta }_{pqrs}}{\rightleftharpoons } {\mathrm{Cu}}_p{\mathrm{L}}_q{\mathrm{A}}_r{\mathrm{B}}_s$$

(3)

and the stepwise conditional formation constants (${}^{c}K$) are defined by

$$\begin{array}{c}{}^{c}K_{\mathrm{CuX}}^{\mathrm{Cu}}=\frac{\left[\mathrm{CuX}\right]}{\left[\mathrm{Cu}\right]\left[\mathrm{X}\right]}\hspace{1em}\hspace{1em}\mathrm{for}\hspace{1em}\hspace{1em}\hspace{1em}\mathrm{Cu}+\mathrm{X} \stackrel{{}^{c}K_{\mathrm{CuX}}^{\mathrm{Cu}}}{\rightleftharpoons }\mathrm{CuX}\hspace{1em}(\mathrm{X} = \mathrm{L}, \mathrm{A})\hfill \\ {}^{c}K_{\mathrm{CuLX}}^{\mathrm{CuL}}=\frac{\left[\mathrm{CuLX}\right]}{\left[\mathrm{CuL}\right]\left[\mathrm{X}\right]} \hspace{1em}\mathrm{for}\hspace{1em}\hspace{1em}\hspace{1em}\mathrm{CuL}+\mathrm{X} \stackrel{{}^{c}K_{\mathrm{CuLX}}^{\mathrm{CuL}}}{\rightleftharpoons }\mathrm{CuLX}\hspace{1em}(\mathrm{X} = \mathrm{A}, \mathrm{B})\hfill \\ {}^{c}K_{\mathrm{C}{\mathrm{u}}_2\mathrm{A}}^{\mathrm{CuA}}=\frac{\left[\mathrm{C}{\mathrm{u}}_2\mathrm{A}\right]}{\left[\mathrm{CuA}\right]\left[\mathrm{Cu}\right]}\hspace{1em}\mathrm{for}\hspace{1em}\hspace{1em} \mathrm{CuA}+\mathrm{Cu} \stackrel{{}^{c}K_{\mathrm{C}{\mathrm{u}}_2\mathrm{A}}^{\mathrm{CuA}}}{\rightleftharpoons }{\mathrm{C}\mathrm{u}}_2\mathrm{A}.\hfill \end{array}$$

(4)

To determine the ternary formation constants ${}^{c}K_{\mathrm{CuLA}}^{\mathrm{CuL}}$ and ${}^{c}K_{\mathrm{CuLB}}^{\mathrm{CuL}}$, we made use of the previously published values for ${}^{c}K_{\mathrm{CuL}}^{\mathrm{Cu}}$,${}^{c}K_{\mathrm{Cu}{\mathrm{L}}_2}^{\mathrm{CuL}}$,${}^{c}K_{\mathrm{CuA}}^{\mathrm{Cu}}$, and ${}^{c}K_{{\mathrm{Cu}}_2\mathrm{A}}^{\mathrm{CuA}}$ at pH 7.4 (Table 2 and Table S2) Initial guesses for ${}^{c}K_{\mathrm{CuLA}}^{\mathrm{CuL}}$ and ${}^{c}K_{\mathrm{CuLB}}^{\mathrm{CuL}}$ were then made, and their values were systematically varied as follows:

(1)

For each value of ${}^{c}K_{\mathrm{CuLA}}^{\mathrm{CuL}}$ and ${}^{c}K_{\mathrm{CuLB}}^{\mathrm{CuL}}$, the theoretical distributions of CuL, CuL₂, CuA, Cu₂A, CuLA, and CuLB were calculated for the condition Cu/PBT2/Aβ_1–40 1:1:1 ≡ Cu/L/A/B 1:1:1:1 under which spectral features attributable to the ternary species were maximal (Figure 2c).

(2)

The theoretical speciation in step 1 provided weighting factors that were used to algebraically subtract the normalized spectra of CuL, CuL₂, and CuA (Figure 2b) from the experimental spectrum of Cu/PBT2/Aβ_1–40 1:1:1 ≡ Cu/L/A/B 1:1:1:1, thus yielding a weighted summation of indistinguishable CuLA and CuLB spectra.

(3)

Linear combinations of the normalized CuL, CuL₂, CuA, Cu₂A, CuLA, CuLB basis spectra were used to reconstruct the experimental EPR spectra at all intermediate stoichiometries Cu/PBT2/Aβ_1–40 n:1:1 ≡ Cu/L/A/B n:1:1:1 (0.33 ≤ n ≤ 2.67), and the weightings were iteratively varied using a generalized reduced gradient nonlinear solver (Frontline Systems Inc., Incline Village, NV, USA) to minimize the root-mean-squared deviation between the reconstructions and the experimental spectra.

(4)

The deviation between the fitted and experimental values of [CuL], [CuL₂], [CuA], [Cu₂A], and [CuLN_Im^Aβ] = [CuLA] + [CuLB] for all values of n was calculated.

(5)

New values of ${}^{c}K_{\mathrm{CuLA}}^{\mathrm{CuL}}$ and ${}^{c}K_{\mathrm{CuLB}}^{\mathrm{CuL}}$ were chosen and steps 1–4 were repeated until the root-mean-squared deviation was minimized.

The above method assumed that the frozen-solution EPR spectra of Cu(PBT2)N_Im^H6 and Cu(PBT2)N_Im^H13/14 are indistinguishable, which is justified by the identification of a common set of spin Hamiltonian parameters for numerous Cu(PBT2)N_Im complexes with different N_Im donor ligands (Table 1 and Table S1). This assumption was also shown to be true for ternary Cu²⁺ complexes of different N_Im donors with other terdentate ligands such as the non-chlorinated homologue of PBT2 (Table S1), the GHK tripeptide [16,28], and α-synuclein [29].
