Article

Cytoophidia Maintain the Integrity of Drosophila Follicle Epithelium

by
Qiao-Qi Wang
1,
Dong-Dong You
1 and
Ji-Long Liu
1,2,*
1
School of Life Science and Technology, Shanghai Technology University, Shanghai 201210, China
2
Department of Physiology, Anatomy and Genetics, University of Oxford, Oxford OX1 3PT, UK
*
Author to whom correspondence should be addressed.
Int. J. Mol. Sci. 2022, 23(23), 15282; https://doi.org/10.3390/ijms232315282
Submission received: 15 October 2022 / Revised: 25 November 2022 / Accepted: 25 November 2022 / Published: 4 December 2022
(This article belongs to the Special Issue Biological Liquid-Liquid Phase Separation, Biomolecular Condensates, and Membraneless Organelles)
Browse Figures
Review Reports Versions Notes

Abstract

:
CTP synthase (CTPS) forms a filamentous structure termed the cytoophidium in all three domains of life. The female reproductive system of Drosophila is an excellent model for studying the physiological function of cytoophidia. Here, we use CTPSH355A, a point mutation that destroys the cytoophidium-forming ability of CTPS, to explore the in vivo function of cytoophidia. In CTPSH355A egg chambers, we observe the ingression and increased heterogeneity of follicle cells. In addition, we find that the cytoophidium-forming ability of CTPS, rather than the protein level, is the cause of the defects observed in CTPSH355A mutants. To sum up, our data indicate that cytoophidia play an important role in maintaining the integrity of follicle epithelium.

1. Introduction

CTP synthase (CTPS) is a glutamate aminotransferase that catalyzes the transfer of amide nitrogen from glutamine to the C-4 position of UTP. CTP, the product of CTPS, is an important nucleotide and is a component of the synthesis of RNA, DNA, and sialoglycoprotein. It also acts as an energy coupler for some metabolic reactions, such as the synthesis of glycerophospholipids and glycosylated proteins [1,2].
In 2010, CTPS was found to form filamentous structures termed cytoophidia in Drosophila [3]. Subsequently, CTPS has been found to form filamentous structures in bacteria [4] and S. cerevisiae [5]. In the following years, the existence of cytoophidia was confirmed in human cells [6], S. pombe [7], Arabidopsis thaliana [8], and archaea [9], which indicates that cytoophidia are highly conserved in evolution.
Compartmentation is the basis for the function of organelles [10]. The classical cellular compartmentation in eukaryotic cells is achieved through membrane-bound organelles, such as the endoplasmic reticulum, mitochondrion, and Golgi apparatus [11]. Compartmentation establishes a physical boundary for the biological processes within cells, enabling cells to carry out different metabolic activities at the same time, generate specific microenvironments, regulate biological processes in time and space, and determine the specific location where biological processes should occur. The formation of cytoophidia realizes the regionalization of CTPS, and its location in cells may therefore have corresponding physiological significance.
Cells in the Drosophila ovary exhibit vigorous anabolic activity because they need nutrients for development. Cytoophidia are observed from region 2 of the germarium to stage 10A of oogenesis. Based on the widespread presence of cytoophidia in germline cells and follicle epithelial cells of Drosophila ovaries [12], and the characteristics of cytoophidium observed in germline cells and follicle epithelial cells at most stages of oogenesis, Drosophila ovarian follicle cells have become a classic model for studying cytoophidia.
Epidermal tissues form the boundaries of organs, where they perform a range of functions, including secretion, absorption, and protection. These tissues are usually composed of discrete cells, forming a single-cell thick sheet. Follicle epithelium is a simple epithelium. In the process of division, the cells of simple epithelium have a specific orientation of the spindle, so that both daughter cells are located in the epithelial plane. This is considered to be very important for maintaining the integrity of follicle epithelium and preventing hyperplasia [13,14,15,16].
An egg chamber consists of hundreds of follicle cells, and each follicle cell has multiple membrane domains including apical, basal, and lateral. The end adjacent to germline cells is defined as the apical side, and the end far away from germline cells is defined as the basal side [17]. Before mitosis, follicle cells will move toward the apical direction, which may be caused by the extrusion of neighbor cells. This movement results in the displacement of some cells from the tissue layer. Usually, the displaced cells need to be reintegrated to support tissue growth and maintain tissue architecture [18,19,20].
In a previous study, we find that cytoophidia are specifically distributed on the basolateral side of follicle cells, and this specific distribution is related to the polarity regulator of the cell membrane [21]. Therefore, we need to understand the function of cytoophidium which is specifically distributed in follicle cells.
In this study, we describe the effects of cytoophidium disassembly on follicle epithelium integrity. We are also concerned about whether these effects are directly related to the assembly of CTPS into cytoophidia, rather than to the level of CTPS protein. Our results indicate that cytoophidia play an important role in maintaining the integrity of follicle epithelium. In addition, we eliminate the influence of tissue-tissue interaction and find that cytoophidia can directly affect the integrity of follicle epithelium.

2. Results

2.1. CTPS Forms Cytoophidia in Drosophila Follicle Cells

Cells in Drosophila ovaries exhibit vigorous anabolic activity because they need nutrients for development. During Drosophila oogenesis, the follicle epithelium is a sheet of monolayer cells that encase germline cells. CTPS, as the synthase of CTP, plays an important role in the regulation of tissue growth and development. Cytoophidia exist in several different types of cells in the Drosophila ovary from region 2 of the germarium to stage 10A of oogenesis, including epithelial follicle cells (Figure 1A–C) and germline cells (Figure 1D–F).

2.2. Follicle Cells Undergo Ingression in CTPSH355A Egg Chambers

The amino acid histidine at the 355th position, or His355, lies at the tetramer-tetramer interface of CTPS [22]. If the H355 site is mutated, the cytoophidium cannot be formed. Previous studies showed that the H355 site is essential for its polymerization, but not enzymatic function [23,24]. Our laboratory has solved the structure of Drosophila melanogaster CTPS (dmCTPS) and found that the H355 site lies at the tetramer–tetramer interface and does not affect the catalytic site [25]. Therefore, we constructed an H355A point-mutated knock-in Drosophila strain to investigate whether the disassembly of cytoophidia would affect follicle cells. Former studies found that the H355A served as a dominant negative point mutation [26] (Figure S1).
In order to find out whether the abnormality is caused by the inability of CTPS to aggregate due to H355A point mutation or the addition of mCherry tag, our laboratory constructed another Drosophila strain with mCherry added to the C-terminus of CTPS based on w1118. To determine whether the feature of cytoophidium localization was in fact introduced by protein fusion between CTPS and mCherry tag, we performed immunofluorescence microscopy and directly detected the CTPS protein of the w1118 fly and found no difference [27]. It is proven by the observation that the knock-in mCherry tag does not affect the polymerization of CTPS protein. The morphology of the CTPS-mCherryKI Drosophila(CTPS-mCh) ovaries is consistent with that of the w1118, which implies that the CTPS-mCherryKI Drosophila can also be used as control in our experiment (Figure 2A–F). Besides, our laboratory has used the CTPS-mCherryKI Drosophila as control in previous studies [28,29].
When constructing the point-mutated Drosophila strain, we added a mCherry tag at the C-terminal of CTPS. Through confocal microscopy, we observed diffuse mCherry signal in Drosophila follicle cells, which confirmed that the CTPS could not form the cytoophidium after mutation at the H355 site (Figure 3A,F). In the egg chamber of wild-type flies, follicle cells are monolayer epidermal cells. We observed their morphological characteristics by immunofluorescence staining. The cell membrane was labeled with an antibody against Armadillo. We found that in the egg chamber of CTPSH355A/H355A-mCherry knock-in homozygous fly (hereinafter referred to as CTPSH355A strain), some follicle cells originally arranged in a monolayer migrated inward (ie. ingression), thus disrupting the monolayer arrangement. The ingression of follicle cells occurs not only in the early stages of oogenesis, such as stage 5 (Figure 3A–E), but also in the middle stages of oogenesis, such as stage 8 (Figure 3F–J).
Our study mainly focused on stage 8 egg chambers. We demonstrated the ingression of follicle cells in stage 8 egg chambers through three-dimensional reconstruction (Figure 4A–C). Combined with the morphological changes of follicle cells observed on the surface of the egg chambers, we speculated that the integrity of follicle epithelia would be disturbed when CTPS could not assemble into cytoophidia. Through statistical analysis, we found that approximately 20% of egg chambers at stage 8 have follicle cells ingression by counting 20 stage 8 egg chambers of each genotype (Figure 4D). Our results indicate that the widely and specifically distributed cytoophidia play a role in maintaining the integrity of follicle epithelia.

2.3. Ingressive Follicle Cells Display Abnormal DCAD2 Pattern

In a previous study, we found that cytoophidia are specifically located on the lateral and basal sides of follicle cells [21]. The polarity regulators of follicle cells and adherens junctions have certain effects on the maintenance of cytoophidia. To explore whether the cell membrane components of ingressive follicle cells would be affected when cytoophidium fails to form, we labeled the basolateral regulator Dlg of follicle cells, adherens junctions DE-Cadherin DCAD2, and cell membrane protein Hts. After immunostaining, in the follicle epithelium labeled with Hts and Dlg, there was no significant difference between the cell membrane of ingressive follicle cells and that of normal follicle cells (Figure 5A–H).
Under the condition of DCAD2 labeling, we found that DCAD2 showed an abnormal pattern in the ingressive follicle cells compared with normally arranged follicle cells. In normal follicle cells, the end near the germline cells is defined as the apical side and the end near the muscle layer is defined as the basal side. From the cross-sectional view of the lateral side of the stage 8 egg chamber, the DCAD2 pattern should be adjacent to the germline cells. However, in the ingressive follicle cell, DCAD2 could be seen flipping in the direction rather than at the apical side (Figure 6).

2.4. CTPSH355A Follicle Cells Increase the Heterogeneity

The follicle epithelium of Drosophila consists of a monolayer of follicle cells, which surround the oocyte and 15 nurse cells. Follicle cells gradually differentiate into various subpopulations, which will undergo morphological changes. After stage 6, the follicle cells cease mitosis and are arranged in a hexagonal pattern, which means that under normal circumstances, each follicle cell contacts six adjacent cells, most of which are hexagonal and well arranged on the surface of egg chambers. However, in CTPSH355A mutant, the assembly of cytoophidia was disrupted and the number of non-hexagonal cells increased. We segmented the cell by the membrane staining of Hts protein, counting the different shapes cell by cell. In CTPSH355A mutant, we observed many pentagonal follicle cells, and the heptagonal cells increased by about 10% (Figure 7A–D).
The quantification further confirmed that compared with w1118, there was difference in the number of heptagonal follicle cells in stage 8 egg chambers of the CTPSH355A mutant. Moreover, the number of hexagonal follicle cells in CTPSH355A egg chambers decreased by about 15% at stage 8, while the number of polygonal cells increased by about 10% (Figure 7E–G). Considering that the more sides the polygon, the closer it is to the round circle, we speculate that when cytoophidia cannot be formed, the cell membrane will be affected, and the tight arrangement of epithelial follicle cells will not be maintained. Morphology changes indicate that cytoophidia located at the basolateral side may play a role in maintaining the integrity of follicle epithelium.

2.5. Follicle Epithelia Reduce Compactness in CTPSH355A Mutant

In the wild-type flies, follicle epithelial cells at stages 4–9 of oogenesis are tightly packed, and most of the hexagonal follicle cells enclose germ cells. In the case that CTPS could not be assembled into cytoophidia, we observed that closely arranged epithelial follicle cells became relatively loose, and follicle cells of similar size in the wild-type became relatively very large or very small, which was not conducive to compact arrangement (Figure 8A–L).
In order to further clarify the observed phenomenon, we segmented the follicle cell surface based on the cell membrane and calculated the basal area of each follicle cell on an egg chamber through software. The average area ratio of the group with the largest area of three adjacent follicle cells and the group with the smallest area of three adjacent follicle cells was used as an indicator of follicle cell heterogeneity. The higher the ratio, the higher the heterogeneity of surface follicle cell. The quantitative analysis showed that the average area of follicle cells at stage 8 CTPSH355A was smaller than that of the wild-type, but the heterogeneity was much higher than that of the wild-type (Figure 8M,N).

2.6. Follicle Cell Ingression Occurs in Egg Chamber Overexpessing CTPSH355A

In previous studies, our laboratory found that the formation of cytoophidia can prolong the half-life of CTPS protein in mammalian cells. Therefore, we want to know whether H355A point mutation affects CTPS protein level in Drosophila ovaries. Western blot results confirmed that the level of CTPS protein in Drosophila ovaries after CTPSH355A mutation was lower than that in the wild-type (Figure 9H,I). Thus, we want to investigate whether the phenotypes observed in the CTPSH355A strain are caused by the decrease of CTPS protein level.
To eliminate the influence of protein level, we used the Actin-Gal4 driver to overexpress CTPSH355A in Drosophila ovaries. We constructed Actin-Gal4-driven Drosophila strains overexpressing CTPSH355A (Actin > UAS CTPSH355A-mCherry-OE) or wild-type CTPS (Actin > UAS CTPS-mCherry-OE). Western blot confirmed that there was no significant difference in CTPS level between the Actin > UAS CTPS-mCherry-OE heterozygous strain and the Actin > UAS CTPSH355A-mCherry-OE homozygous strain (Figure 9J,K).
We found that the distribution of cytoophidia in the basolateral side of follicle cells could be clearly observed in Actin > UAS CTPS-mCherry-OE heterozygous egg chambers (Figure 9A,B). Almost every follicle cell had one or two cytoophidia, and follicle cells were arranged in a single layer. In Actin > UAS CTPSH355A-mCherry-OE homozygous flies, the diffused distribution of CTPSH355A could be observed, and the ingressive follicle cells appeared as well (Figure 9C–G). These results indicate that loss of the cytoophidium-forming ability of CTPS, rather than its protein level, is the primary cause of follicle cell ingression in the CTPSH355A mutant.

2.7. Overexpession of CTPSH355A Increases the Heterogeneity of Follicle Cells

Similarly, we wanted to examine whether the heterogeneity of follicle cells was affected by the level of CTPS protein. According to our study, there was a long and curly cytoophidium in each follicle cell on the surface of Actin > UAS CTPS-mCherry-OE heterozygous egg chamber. Compared with the wild-type egg chambers, where cytoophidia are mostly rod-shaped and distributed along the cell membrane, the elongated cytoophidia were still distributed along the cell membrane after the overexpression of CTPS (Figure 10A–C).
The diffused distribution of CTPS was confirmed on the surface of the egg chamber of Actin > UAS CTPSH355A-mCherry-OE homozygous fly. The changes of morphology and cell size showed that the heterogeneity of follicle cells was enhanced because there was no cytoophidium on the cell membrane. It seemed that these follicle cells could not even be arranged tightly (Figure 10D–F).

2.8. Follicle Cell-Specific Overexpression of CTPSH355A Impairs the Integrity of Follicle Epithelium

After excluding the influence of CTPS protein level, we wanted to further eliminate the effect of the inter-tissue interaction caused by the ubiquitous expression of Actin-Gal4. To this end, we constructed a strain overexpressing CTPSH355A using the same UAS CTPSH355A-mCherry-OE and UAS CTPS-mCherry-OE strains together with Tj-Gal4 specifically expressed in follicle cells. As a control, wild-type CTPS was overexpressed specifically in follicle cells using the Tj-Gal4 driver. Our results confirmed that the integrity of follicle epithelium was impaired when CTPSH355A was overexpressed specifically in follicle cells (Figure 11A–N).

2.9. Space between Muscle Sheath and Egg Chamber Increases in CTPSH355A

IF is a member of the integrin complex and widely exists in the muscle layer that encloses the ovarioles. We found that in the wild-type ovary, the muscle sheath tightly wrapped the ovarioles and drove their movement (Figure 12A,B), which was conducive to common life activities such as oogenesis. In CTPSH355A ovaries, the space between the muscle sheath and the egg chamber was significantly increased, and the egg chamber almost collapsed from the muscle sheath (Figure 12C–E), which might affect normal physiological activities.

3. Discussion

To explore the physiological function of cytoophidia in Drosophila follicle cells, we analyze the changes in follicle cells in CTPS mutant when cytoophidia cannot be formed. Our results indicate that the integrity of follicle epithelium is compromised when CTPS lose its cytoophidium-forming capability.
In this study, we generate transgenic flies with a point mutation in CTPS. Mutations do not affect enzymatic activity but lead to the disassembly of cytoophidia. In the mutant flies, the integrity of follicle epithelia is impaired with two related phenotypes: (1) ingression of follicle cells and (2) heterogeneous follicle cells.
We have previously discovered that cytoophidia are specifically distributed on the basolateral side of follicle cells [21]. Moreover, when the polarity of follicle cells is disrupted, cytoophidia will become unstable, especially due to the disruption of apical regulators. In this study, the apical polarity of follicle cells is indeed affected by the absence of cytoophidia. Our data indicate that the cytoophidium, as a kind of membraneless organelle, maintains its specific subcellular localization in biological processes.
In these experiments, we also notice that cytoophidia play a role in maintaining the integrity of follicle epithelium. We speculate that cytoophidia located at the basolateral side of follicle cells may play a role in supporting follicle cells. In the absence of cytoophidia, the mechanical tension of the follicle cell membrane will be reduced, making it more difficult to maintain the cell morphology. Therefore, follicle cells are more likely to be drawn into polygons and expanded by surrounding cells or squeezed and reduced by surrounding cells. Similarly, due to the weakening of membrane mechanical tension, the follicle cells migrating inward after mitosis cannot be reintegrated into the follicular monolayer, resulting in the ingression. Our laboratory also found that in the male reproductive system of Drosophila, when CTPS cannot form cytoophidia, the main cells on the surface of the accessory gland may be difficult to maintain their cell shape, and two horizontally arranged nuclei appear to be vertically arranged. This further support our hypothesis [30].
When cytoophidia are disassembled, the observed separation of egg chamber and muscle sheath may also be due to the disappearance of the supporting force of cytoophidia. When cytoophidia cannot be formed, the internal supporting force of each follicle cell is weakened, leading to the collapse of the entire egg chamber. Considering that the follicle epithelium will develop into the eggshell of a fertilized egg in the later stages [31], it is possible that its shell hardness and the hatchability of the fertilized egg will also be affected accordingly.
However, we could not simply rescue the phenotypes found in the CTPSH355A-mCh mutant by expressing CTPS-mCherry protein. Our previous studies in mammals [26] and Drosophila [27] confirmed that the CTPSH355A point mutation is dominant-negative, which is to say that as long as the CTPSH355A protein exists, the CTPS protein would not be able to assemble into cytoophidium [26,27]. Because the H355A point mutation of CTPS would disrupt the assembly of the cytoophidia dominant negatively, we have analyzed the CTPSH355A/TM6B-mCh egg chambers and found that CTPSH355A/TM6B also have defects in follicle epithelial integrity mentioned above (Supplementary Figure S1). These results further validate our hypothesis that the cytoophidium structure plays a certain role in maintaining epithelial integrity, and the dominant negative CTPS point mutation confirmed that it is crucial for the assembly of cytoophidium.
Since the first discovery of cytoophidia in our laboratory in 2010, great progress has been made in the research on the existence of cytoophidia in different species and different types of cells. However, knowledge concerning the function of this new type of organelle widely existing in organisms is still in the initial stage. Therefore, our work has potential reference value for understanding the role of cytoophidia in Drosophila follicle cells. Our results indicate that forming cytoophidia is crucial to epithelial integrity.

4. Materials and Methods

4.1. Fly Stocks

All stocks were maintained at 25 °C on standard cornmeal. Both w1118 and C-terminal mChe-4V5 tagged CTPS knock-in flies out of w1118 produced in our laboratory were used as wild-type controls unless stated otherwise. The stocks used were: (1) CTPSH335A mutated with mChe-4V5 tagged CTPS Knock-in fly, (2) Actin-Gal4/Cyo (A gift from Guanjun Gao’s lab, ubiquitous expression under strong promoter, a chromosome II insertion balanced over Curly of Oster [32]), (3) Tj-Gal4 (A gift from Kun Dou’s lab [33,34]), (4) Sp/Cyo; Sb/Tm6B (Institute of Biochemistry and Cell Biology, Chinese Academy of Sciences, Drosophila Resources and Technology Platform), (5) UAS CTPS-mCherry-OE, and UAS CTPSH355A-mCherry-OE [27].

4.2. Fly Genetics

Transgenic flies expressing full-length CTPS (isoform C, LD25005) under the UAS promoter (UAS-CTPS) were generated in our lab (Back cross 5 generations before use) [35]. To generate the Tj > UAS CTPS-OE, we crossed the homozygous UAS CTPS-OE Drosophila and Tj-Gal4 Drosophila with the double balancer Drosophila for one generation, and the target generation was inbred for two generations to get the homozygous Tj-Gal4; UAS CTPS-mCherry-OE Drosophila. Same as the Tj-Gal4; UAS CTPSH355A-mCherry-OE; Actin-Gal4; UAS CTPS-mCherry-OE and Actin-Gal4; UAS CTPSH355A-mCherry-OE strains.

4.3. Generation of Transgenic Flies

For polymerase chain reaction (PCR), PUASTattb plasmids were used as the template, and phanta Maxa Super-Fidelity DNA Polymerase (Vazyme, #P505) as the polymerase. Sequences for primers were as below:
H355A-F: GAGCAAGTACGCCAAGGAGTGGCAGAAGCTATGCGATAGCCAT;
H355A-R: TGCCACTCCTTGGCGTACTTGCTCGGCTCAGAATGCAAAGTTT
After obtaining the required plasmids, the CTPSH355A Drosophila strain was constructed by microinjection.

4.4. Immunohistochemistry

Ovaries from flies were dissected in Grace’s Insect Medium (Gibco) and then fixed in 4% formaldehyde (Sigma) diluted in PBS for 10 min before immunofluorescence staining. The samples were then washed twice using PST (0.5% horse serum + 0.3% Triton × 100 in PBS). For membrane staining, samples were incubated with primary antibodies at room temperature overnight, and then washed using PST. Secondary antibodies were used to incubate the samples at room temperature for another night.
Primary antibodies used in this study were rabbit anti-CTPS (1:1000; y-88, sc-134457, Santa Cruz BioTech Ltd., Santa Cruz, CA, USA), mouse anti-Discs Large (1:500, Developmental Studies Hybridoma Bank, Iowa City, IA, USA), mouse anti-D-E Cadherin (1:500, Developmental Studies Hybridoma Bank), mouse anti-HTS (1:1000, Developmental Studies Hybridoma Bank, Cat. No. AB_528070), mouse anti-Armadillo (1:500, Developmental Studies Hybridoma Bank). Secondary antibodies used in this study were anti-mouse, rabbit, or goat antibodies that were labeled with Alexa Fluor® 488 (Molecular Probes), or with Cy5 (Jackson ImmunoResearch Laboratories, West Grove, PA, USA). Hoechst 33342 was used to label DNA.

4.5. Microscopy and Image Analysis

All images were obtained under laser-scanning confocal microscopy (Zeiss 880). Image processing was performed using Zeiss Zen. ImageJ was used to analyze the area and number of follicle cells.
We used the ImageJ SCF to segment the follicle cells by the membrane, then use ImageJ cell counter to calculate different shapes of cells to get the number of polygonal cells. We used ImageJ to measure the area of each cell. For each statistical quantification, we collected the surface images using Zeiss 880 with the interval as 0.5 μm for z-stack, 5 stage 8 egg chambers were quantified per genotype, biological repeats = 3. Mann-Whitney U test was conducted for comparison.

4.6. Western Blotting

Female adult ovaries of Drosophila were collected with gathered into lysis buffer RIPA (Meilunbio, Dalian, China) with protease inhibitor cocktail (Bimake, Shanghai, China) for Western blotting, and then ground with 1 mm Zirconia beads in Sonicator (Shanghai Jing Xin, Shanghai, China). The sample would then lysis on ice for up to 30 min. Samples were centrifuged for 10 min at 10,000 g at 4 °C. The 6× protein loading buffer was pipetted into the supernatants and boiled at 99 °C for 15 min to obtain protein. Then, the protein sample was run through 10% SDS-PAGE gels and transferred to PVDF membranes. At room temperature, membrane was incubated with 5% w/v nonfat dry milk dissolved by 1× TBST for 1 h of blocking. Then, the membrane was incubated with primary antibodies in 5% w/v nonfat milk at 4 °C and gently shaken overnight.
The following primary antibodies were used in this study: anti-mCherry Tag Monoclonal antibodies (Cat. No. A02080, Abbkine, Beijing China), mouse anti-a-Tubulin antibodies (Cat. No. T6199, Sigma). The membranes were washed three times for 5 min per time with shaking, then incubated with secondary antibodies (anti-mouse IgG, HRP-linked antibody, Cell Signaling, Danvers, MA, USA) diluted in 5% w/v nonfat milk at room temperature for 1 h. An Amersham Imager 600 (General Electric, Boston, MA, USA) and Pierce ECL Reagent Kit (Cat. No. 32106, Thermo Fisher, Waltham, MA, USA) were adopted for the chemiluminescence immunoassay. Protein levels were quantified on ImageJ (National Institutes of Health, Bethesda, MD, USA) and normalized to tubulin. At least three biological replicates were quantified.

4.7. Data Analysis

Images collected by confocal microscopy were processed using Adobe Illustrator and ImageJ. Cell segmentation based on the cell membrane was achieved using CellPose and SCF methods. Quantitative analysis was processed by Excel and GraphPad. The Mann–Whitney U test was conducted to get the p-value.

Supplementary Materials

The following supporting information can be downloaded at: https://www.mdpi.com/article/10.3390/ijms232315282/s1, Figure S1. CTPSH355A/TM6B mutants have no significant difference from CTPSH355A mutant.

Author Contributions

Q.-Q.W. and J.-L.L. conceived the studies. Q.-Q.W. and J.-L.L. performed the experiments. D.-D.Y. assisted fly genetics. Q.-Q.W. drafted the manuscript. J.-L.L. revised the manuscript. All authors have read and agreed to the published version of the manuscript.

Funding

This work was funded by the Ministry of Science and Technology of the People’s Republic of China (Grant No. 2021YFA0804700), the National Natural Science Foundation of China (No. 31771490), the Shanghai Science and Technology Commission (20JC1410500), and the UK Medical Research Council (Grant No. MC_UU_12021/3 and MC_U137788471). This research was supported by Shanghai Frontiers Science Center for Biomacromolecules and Precision Medicine at ShanghaiTech University.

Institutional Review Board Statement

Not applicable.

Informed Consent Statement

Not applicable.

Data Availability Statement

Not applicable.

Acknowledgments

We thank the Molecular Imaging Core Facility (MICF) at School of Life Science and Technology, ShanghaiTech University for providing technical support.

Conflicts of Interest

The authors have no relevant financial or non-financial interest to disclose.

References

  1. Barry, R.M.; Bitbol, A.-F.; Lorestani, A.; Charles, E.J.; Habrian, C.H.; Hansen, J.M.; Li, H.-J.; Baldwin, E.P.; Wingreen, N.S.; Kollman, J.M.; et al. Large-scale filament formation inhibits the activity of CTP synthetase. Elife 2014, 3, e03638. [Google Scholar] [CrossRef] [PubMed]
  2. Lieberman, I. Enzymatic Amination of Uridine Triphosphate to Cytidine Triphosphate. J. Biol. Chem. 1956, 222, 765–775. [Google Scholar] [CrossRef] [PubMed]
  3. Liu, J.L. Intracellular compartmentation of CTP synthase in Drosophila. J. Genet. Genom. 2010, 37, 281–296. [Google Scholar] [CrossRef] [PubMed]
  4. Ingerson-Mahar, M.; Briegel, A.; Werner, J.N.; Jensen, G.J.; Gitai, Z. The metabolic enzyme CTP synthase forms cytoskeletal filaments. Nat. Cell Biol. 2010, 12, 739–746. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  5. Noree, C.; Sato, B.K.; Broyer, R.M.; Wilhelm, J.E. Identification of novel filament-forming proteins in Saccharomyces cerevisiae and Drosophila melanogaster. J. Cell Biol. 2010, 190, 541–551. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  6. Chen, K.; Zhang, J.; Tastan, Y.; Deussen, Z.A.; Siswick, M.Y.-Y.; Liu, J.-L. Glutamine analogs promote cytoophidium assembly in human and Drosophila cells. J. Genet. Genom. 2011, 38, 391–402. [Google Scholar] [CrossRef]
  7. Zhang, J.; Hulme, L.; Liu, J.L. Asymmetric inheritance of cytoophidia in Schizosaccharomyces pombe. Biol. Open 2014, 3, 1092–1097. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  8. Chang, C.C.; Jeng, Y.-M.; Peng, M.; Keppeke, G.D.; Sung, L.-Y.; Liu, J.-L. CTP synthase forms the cytoophidium in human hepatocellular carcinoma. Exp. Cell Res. 2017, 361, 292–299. [Google Scholar] [CrossRef]
  9. Zhou, S.; Xiang, H.; Liu, J.L. CTP synthase forms cytoophidia in archaea. J. Genet. Genom. 2020, 47, 213–223. [Google Scholar] [CrossRef]
  10. Uzman, A. Molecular Cell Biology, Sixth Edition. Biochem. Mol. Biol. Educ. 2010, 38, 60–61. [Google Scholar] [CrossRef]
  11. Ovadi, J.; Saks, V. On the origin of intracellular compartmentation and organized metabolic systems. Mol. Cell. Biochem. 2004, 256–257, 5–12. [Google Scholar] [CrossRef] [PubMed]
  12. Aughey, G.N.; Grice, S.J.; Liu, J.L. The Interplay between Myc and CTP Synthase in Drosophila. PLoS Genet. 2016, 12, e1005867. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  13. Pease, J.C.; Tirnauer, J.S. Mitotic spindle misorientation in cancer – out of alignment and into the fire. J. Cell Sci. 2011, 124 Pt 7, 1007–1016. [Google Scholar] [CrossRef] [Green Version]
  14. McCaffrey, L.M.; Macara, I.G. Epithelial organization, cell polarity and tumorigenesis. Trends Cell Biol. 2011, 21, 727–735. [Google Scholar] [CrossRef] [PubMed]
  15. Bergstralh, D.; Lovegrove, H.E.; Johnston, D.S. Lateral adhesion drives reintegration of misplaced cells into epithelial monolayers. Nat. Cell Biol. 2015, 17, 1497–1503. [Google Scholar] [CrossRef] [Green Version]
  16. Sauer, F.C. The interkinetic migration of embryonic epithelial nuclei. J. Morphol. 1936, 60, 1–11. [Google Scholar] [CrossRef]
  17. Bilder, D.; Li, M.; Perrimon, N. Cooperative Regulation of Cell Polarity and Growth by Drosophila Tumor Suppressors. Science 2000, 289, 113–116. [Google Scholar] [CrossRef] [Green Version]
  18. Cammarota, C.; Finegan, T.; Wilson, T.J.; Yang, S.; Bergstralh, D.T. An Axon-Pathfinding Mechanism Preserves Epithelial Tissue Integrity. Curr. Biol. 2020, 30, 5049–5057.e3. [Google Scholar] [CrossRef]
  19. Spear, P.C.; Erickson, C.A. Interkinetic nuclear migration: A mysterious process in search of a function. Dev. Growth Differ. 2012, 54, 306–316. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  20. Sorce, B.; Escobedo, C.; Toyoda, Y.; Stewart, M.P.; Cattin, C.J.; Newton, R.; Banerjee, I.; Stettler, A.; Roska, B.; Eaton, S.; et al. Mitotic cells contract actomyosin cortex and generate pressure to round against or escape epithelial confinement. Nat. Commun. 2015, 6, 8872. [Google Scholar] [CrossRef]
  21. Wang, Q.Q.; Zhao, P.A.; Tastan, Y.; Liu, J.L. Polarised maintenance of cytoophidia in Drosophila follicle epithelia. Exp. Cell Res. 2021, 402, 112564. [Google Scholar] [CrossRef] [PubMed]
  22. Zhou, X.; Guo, C.-J.; Hu, H.-H.; Zhong, J.; Sun, Q.; Liu, D.; Zhou, S.; Chang, C.C.; Liu, J.-L. Drosophila CTP synthase can form distinct substrate- and product-bound filaments. J. Genet. Genom. 2019, 46, 537–545. [Google Scholar] [CrossRef] [PubMed]
  23. Lynch, E.M.; Hicks, D.R.; Shepherd, M.; Endrizzi, J.A.; Maker, A.; Hansen, J.M.; Barry, R.M.; Gitai, Z.; Baldwin, E.P.; Kollman, J.M. Human CTP synthase filament structure reveals the active enzyme conformation. Nat. Struct. Mol. Biol. 2017, 24, 507–514. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  24. Sun, Z.; Liu, J.L. mTOR-S6K1 pathway mediates cytoophidium assembly. J. Genet. Genom. 2019, 46, 65–74. [Google Scholar] [CrossRef]
  25. Zhou, X.; Guo, C.-J.; Chang, C.-C.; Zhong, J.; Hu, H.-H.; Lu, G.-M.; Liu, J.-L. Structural basis for ligand binding modes of CTP synthase. Proc. Natl. Acad. Sci. USA 2021, 118, e2026621118. [Google Scholar] [CrossRef]
  26. Sun, Z.; Liu, J.L. Forming cytoophidia prolongs the half-life of CTP synthase. Cell Discov. 2019, 5, 32. [Google Scholar] [CrossRef] [Green Version]
  27. Liu, J.; Zhang, Y.; Zhou, Y.; Wang, Q.Q.; Ding, K.; Zhao, S.; Lu, P.; Liu, J.L. Cytoophidia coupling adipose architecture and metabolism. Cell. Mol. Life Sci. 2022, 79, 534. [Google Scholar] [CrossRef]
  28. Wu, Z.; Liu, J.L. CTP synthase does not form cytoophidia in Drosophila interfollicular stalks. Exp. Cell Res. 2022, 418, 113250. [Google Scholar] [CrossRef]
  29. Zhang, Y.; Liu, J.; Liu, J.L. The atlas of cytoophidia in Drosophila larvae. J. Genet. Genom. 2020, 47, 321–331. [Google Scholar] [CrossRef]
  30. You, D.D.; Zhou, X.L.; Wang, Q.Q.; Liu, J.L. Cytoophidia safeguard binucleation of Drosophila male accessory gland cells. Exp. Cell Res. 2022, 422, 113433. [Google Scholar] [CrossRef]
  31. Wu, X.; Tanwar, P.S.; Raftery, L.A. Drosophila follicle cells: Morphogenesis in an eggshell. Semin. Cell Dev. Biol. 2008, 19, 271–282. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  32. Chintapalli, V.R.; Kato, A.; Henderson, L.; Hirata, T.; Woods, D.J.; Overend, G.; Davies, S.A.; Romero, M.F.; Dow, J.A.T. Transport proteins NHA1 and NHA2 are essential for survival, but have distinct transport modalities. Proc. Natl. Acad. Sci. USA 2015, 112, 11720–11725. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  33. Schotthofer, S.K.; Bohrmann, J. Analysing bioelectrical phenomena in the Drosophila ovary with genetic tools: Tissue-specific expression of sensors for membrane potential and intracellular pH, and RNAi-knockdown of mechanisms involved in ion exchange. BMC Dev. Biol. 2020, 20, 15. [Google Scholar] [CrossRef] [PubMed]
  34. Sahai-Hernandez, P.; Nystul, T.G. A dynamic population of stromal cells contributes to the follicle stem cell niche in the Drosophila ovary. Development 2013, 140, 4490–4498. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  35. Azzam, G.; Liu, J.L. Only One Isoform of Drosophila melanogaster CTP Synthase Forms the Cytoophidium. PLoS Genet. 2013, 9, e1003256. [Google Scholar] [CrossRef]
Ijms 23 15282 g001 550
Figure 1. Follicle cells maintain monolayer during Drosophila oogenesis. (A–C) Surface view of a wild-type ovariole containing different stages of egg chambers. The ovariole is subjected to immunofluorescence analysis with antibodies against CTPS (green) and Hts (red, labelling cell membranes). DNA is labelled by Hoechst 33342 (blue). (A) Cytoophidia are distributed almost at different stages of each follicle cell. (B) The boundaies of follicle epithelia are displayed by a single projection of Hts staining. (C) CTPS staining shows the distribution of cytoophidia on the surface of egg chambers. (D–F) Side view of the same ovariole in (A–C). (D) Monolayer follicle cells envelop germline cells. (E) A single projection of Hts staining shows the monolayer structure of follicle epithelia. (F) CTPS staining shows the distribution of cytoophidia in follicle cells and germline cells. Scale bars, 50 μm.
Figure 1. Follicle cells maintain monolayer during Drosophila oogenesis. (A–C) Surface view of a wild-type ovariole containing different stages of egg chambers. The ovariole is subjected to immunofluorescence analysis with antibodies against CTPS (green) and Hts (red, labelling cell membranes). DNA is labelled by Hoechst 33342 (blue). (A) Cytoophidia are distributed almost at different stages of each follicle cell. (B) The boundaies of follicle epithelia are displayed by a single projection of Hts staining. (C) CTPS staining shows the distribution of cytoophidia on the surface of egg chambers. (D–F) Side view of the same ovariole in (A–C). (D) Monolayer follicle cells envelop germline cells. (E) A single projection of Hts staining shows the monolayer structure of follicle epithelia. (F) CTPS staining shows the distribution of cytoophidia in follicle cells and germline cells. Scale bars, 50 μm.
Ijms 23 15282 g001
Ijms 23 15282 g002 550
Figure 2. CTPS-mCh ovaries have same morphology as wild-type ovaries. (A–C) Surface view of a stage 8 CTPS-mCh egg chamber. The CTPS signal (green) shown is obtained using mCherry-tagged CTPS. Hts (red) staining marks cell membranes and Hoechst (blue) for DNA. (A) mCherry moiety doesn’t affect CTPS assembly. (B) Merged panel of Hts and CTPS to display the cytoophidia location. (C) Single panel of the nucleus. (D) Lateral view of a stage 8 CTPS-mCh egg chamber. (E) Merged panel of Hts and CTPS to show the monolayer structure of follicle epithelia as well as cytoophidia distribution. (F) Single panel of nucleus to stress the single-layer follicle epithelia.
Figure 2. CTPS-mCh ovaries have same morphology as wild-type ovaries. (A–C) Surface view of a stage 8 CTPS-mCh egg chamber. The CTPS signal (green) shown is obtained using mCherry-tagged CTPS. Hts (red) staining marks cell membranes and Hoechst (blue) for DNA. (A) mCherry moiety doesn’t affect CTPS assembly. (B) Merged panel of Hts and CTPS to display the cytoophidia location. (C) Single panel of the nucleus. (D) Lateral view of a stage 8 CTPS-mCh egg chamber. (E) Merged panel of Hts and CTPS to show the monolayer structure of follicle epithelia as well as cytoophidia distribution. (F) Single panel of nucleus to stress the single-layer follicle epithelia.
Ijms 23 15282 g002
Ijms 23 15282 g003 550
Figure 3. Follicle cell ingression in CTPSH355A mutant in early and middle stages of oogenesis. (A) Cross section of a CTPSH355A stage 6 egg chamber. The egg chamber is labeled with CTPS (green), Armadillo (red) for apical complex in follicle cells and Hoechst 33342 (blue) for DNA. The white rectangle emphasizes the ingression of a follicle cell. (B–E) Close-up images of the ingressive follicle cell, indicated by the yellow arrow. No cytoophidium is formed due to the H355A mutation in CTPS. (F) Cross section of a CTPSH355A egg chamber at stage 9. The white rectangle emphasizes the ingression of a follicle cell. (G–J) Close-up images of the ingressive follicle cell, indicated by the yellow arrow. Scale bars, 20 μm.
Figure 3. Follicle cell ingression in CTPSH355A mutant in early and middle stages of oogenesis. (A) Cross section of a CTPSH355A stage 6 egg chamber. The egg chamber is labeled with CTPS (green), Armadillo (red) for apical complex in follicle cells and Hoechst 33342 (blue) for DNA. The white rectangle emphasizes the ingression of a follicle cell. (B–E) Close-up images of the ingressive follicle cell, indicated by the yellow arrow. No cytoophidium is formed due to the H355A mutation in CTPS. (F) Cross section of a CTPSH355A egg chamber at stage 9. The white rectangle emphasizes the ingression of a follicle cell. (G–J) Close-up images of the ingressive follicle cell, indicated by the yellow arrow. Scale bars, 20 μm.
Ijms 23 15282 g003
Ijms 23 15282 g004 550
Figure 4. Three dimensional view of follicle cell ingression. (A) Cross section of a three-dimensional CTPSH355A egg chamber. A three-dimensional view of DNA stacked in layers. The interval between each layer is 0.5 μm, and a total of 12 layers are superimposed. The color from red to blue indicates the depth of DNA. (B) Side view of an ingressive nucleus. (C) On the xz plane, with the yellow dotted line marking the ingressive cell. (D) Quantification of the ingression frequency, 20 stage 8 egg chambers were counted per genotype.
Figure 4. Three dimensional view of follicle cell ingression. (A) Cross section of a three-dimensional CTPSH355A egg chamber. A three-dimensional view of DNA stacked in layers. The interval between each layer is 0.5 μm, and a total of 12 layers are superimposed. The color from red to blue indicates the depth of DNA. (B) Side view of an ingressive nucleus. (C) On the xz plane, with the yellow dotted line marking the ingressive cell. (D) Quantification of the ingression frequency, 20 stage 8 egg chambers were counted per genotype.
Ijms 23 15282 g004
Ijms 23 15282 g005 550
Figure 5. Ingression of follicle cells labeled with different membrane proteins. (A) Lateral view of a stage 8 egg chamber. Hts (red) labels the hulitaishao protein mainly presents at the lateral of follicle cell membranes. mCherry-tagged CTPS is shown green, and Hoechst (blue) for DNA. (B) A stage 8 egg chamber of CTPSH355A Drosophila. mCherry-tagged CTPSH355A is diffused. (C) The Hts pattern of an ingressive follicle cell. (D) Yellow arrow pointed out the ingressive cell nuclear. (E) Lateral view of a stage 10A egg chamber. Dlg (red) labels the discs large protein, which presents in the lateral and basal side of follicle cell. CTPS-mCherry cytoophidia can be observed, and Hoechst (blue) for DNA. (F) Lateral view of the CTPSH355A egg chamber at stage 10A. (G) The ingressive cell nuclear is stressed by the yellow arrow. (H) The Dlg pattern of the follicle cell ingression.
Figure 5. Ingression of follicle cells labeled with different membrane proteins. (A) Lateral view of a stage 8 egg chamber. Hts (red) labels the hulitaishao protein mainly presents at the lateral of follicle cell membranes. mCherry-tagged CTPS is shown green, and Hoechst (blue) for DNA. (B) A stage 8 egg chamber of CTPSH355A Drosophila. mCherry-tagged CTPSH355A is diffused. (C) The Hts pattern of an ingressive follicle cell. (D) Yellow arrow pointed out the ingressive cell nuclear. (E) Lateral view of a stage 10A egg chamber. Dlg (red) labels the discs large protein, which presents in the lateral and basal side of follicle cell. CTPS-mCherry cytoophidia can be observed, and Hoechst (blue) for DNA. (F) Lateral view of the CTPSH355A egg chamber at stage 10A. (G) The ingressive cell nuclear is stressed by the yellow arrow. (H) The Dlg pattern of the follicle cell ingression.
Ijms 23 15282 g005
Ijms 23 15282 g006 550
Figure 6. DCAD2 distribution is disturbed in CTPSH355A follicle epithelia. (A) Cross section of Drosophila egg chamber expressing CTPS labelled by mCherry. The part of the follicle cell adjacent to the nurse cell is called apical, and the DE-Cadherin labeled by DCAD2 (red) is located at the apical of follicle cells. (B) DCAD2 together with CTPS as control to show the normal distribution of DCAD2. (C) Lateral view of a CTPSH355A–mCh egg chamber with abnormal follicle cell. (D) Yellow arrow pointed to the follicle cell ingression. (E) Ingressive folllicle cell pointed to by yellow arrows show abnormal distribution of DCAD2.
Figure 6. DCAD2 distribution is disturbed in CTPSH355A follicle epithelia. (A) Cross section of Drosophila egg chamber expressing CTPS labelled by mCherry. The part of the follicle cell adjacent to the nurse cell is called apical, and the DE-Cadherin labeled by DCAD2 (red) is located at the apical of follicle cells. (B) DCAD2 together with CTPS as control to show the normal distribution of DCAD2. (C) Lateral view of a CTPSH355A–mCh egg chamber with abnormal follicle cell. (D) Yellow arrow pointed to the follicle cell ingression. (E) Ingressive folllicle cell pointed to by yellow arrows show abnormal distribution of DCAD2.
Ijms 23 15282 g006
Ijms 23 15282 g007 550
Figure 7. Morphological comparision of follicles between wild-type and CTPSH355A. (A–F) Surface view of stage 8 egg chambers. Membrane was labeled by Armadillo (red), and CTPS is shown in green. (A,C) w1118 egg chamber. Scale bars, 50 μm. (B,D) CTPSH355A egg chamber. Scale bars, 20 μm. (E) Zoom-in view of (C). (F) Zoom-in view of (D). Redlines in E and F outline a central follicle cell with neighboring follicle cells in numbers. Note that the number of neighboring cells reflects the number of sides of the central polygonal follicle cells. (G) Quantitative analysis of the morphological difference between the wild-type control and CTPSH355A follicle cells (6 egg chambers were quantified per genotype, biological repeats = 3).
Figure 7. Morphological comparision of follicles between wild-type and CTPSH355A. (A–F) Surface view of stage 8 egg chambers. Membrane was labeled by Armadillo (red), and CTPS is shown in green. (A,C) w1118 egg chamber. Scale bars, 50 μm. (B,D) CTPSH355A egg chamber. Scale bars, 20 μm. (E) Zoom-in view of (C). (F) Zoom-in view of (D). Redlines in E and F outline a central follicle cell with neighboring follicle cells in numbers. Note that the number of neighboring cells reflects the number of sides of the central polygonal follicle cells. (G) Quantitative analysis of the morphological difference between the wild-type control and CTPSH355A follicle cells (6 egg chambers were quantified per genotype, biological repeats = 3).
Ijms 23 15282 g007
Ijms 23 15282 g008 550

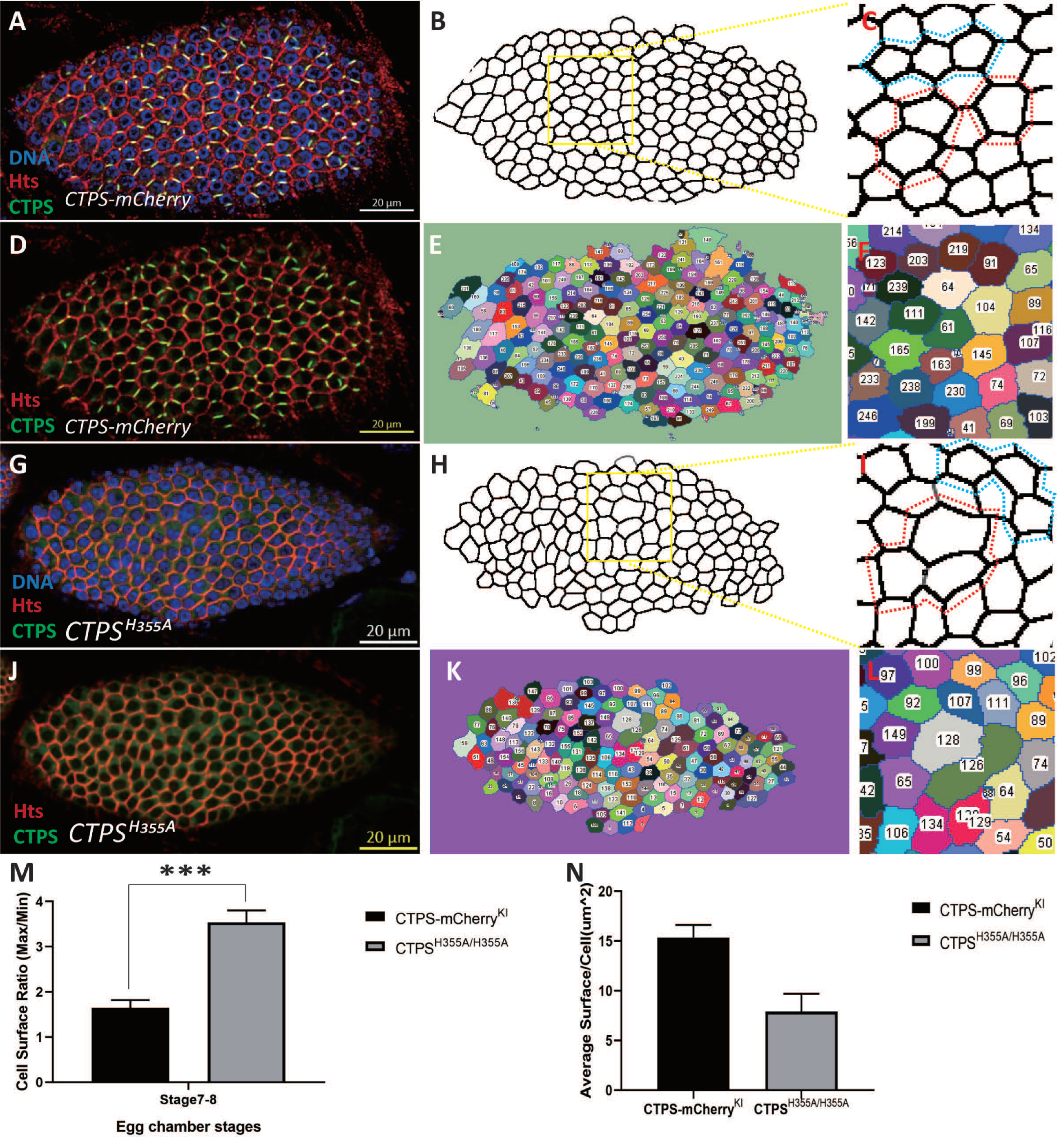

Figure 8. Quantitative morphological analysis of follicle cells. (A) Surface view of a stage 8 wild-type egg chamber. CTPS-mCherry (green), Hts (red) and DNA (blue, labeled with Hoechst 33342). (B) Morphology of cell membrane. The yellow rectangle highlights an area of the follicle epithelium. (C) Enlarged part of the framed region in B. Larger follicular cells are circled in red, and smaller follicular cells are circled in blue. (D) CTPS-mCherry (green) and Hts (red) of the same egg chamber shown in A. (E) The area of each cell was measured after dividing each cell along the cell membrane. (F) corresponds to (D). (G) Surface view of a CTPSH355A stage 8 egg chamber. CTPSH355A-mcherry knock-in (green), Hts (red, labels cell membrane), and DNA (blue, labeled with Hoechst 33342). (H) Morphology of the cell membrane. A yellow rectangle highlights an area of the follicle epithelium. (I) Enlarged part of the framed region in (H). Larger follicle cells are circled in red, and smaller follicle cells are circled in blue. (J) CTPSH355A-mCherry (green) and Hts (red) of the same egg chamber shown in (E). Surface view of the cell membrane with CTPS. (K) The area of each cell was measured after dividing each cell along the cell membrane. (L) corresponds to (K). Scale bars, 20 μm. (M) The ratio of the average area of the three largest cells to the average area of the three smallest cells in an egg chamber. N = 6, ***, p < 0.0001. Mann-Whitney U test. (5 stage 7–8 egg chambers/genotypes, 3 biological replicates) (N) Average follicle cell surface. N = 3.
Figure 8. Quantitative morphological analysis of follicle cells. (A) Surface view of a stage 8 wild-type egg chamber. CTPS-mCherry (green), Hts (red) and DNA (blue, labeled with Hoechst 33342). (B) Morphology of cell membrane. The yellow rectangle highlights an area of the follicle epithelium. (C) Enlarged part of the framed region in B. Larger follicular cells are circled in red, and smaller follicular cells are circled in blue. (D) CTPS-mCherry (green) and Hts (red) of the same egg chamber shown in A. (E) The area of each cell was measured after dividing each cell along the cell membrane. (F) corresponds to (D). (G) Surface view of a CTPSH355A stage 8 egg chamber. CTPSH355A-mcherry knock-in (green), Hts (red, labels cell membrane), and DNA (blue, labeled with Hoechst 33342). (H) Morphology of the cell membrane. A yellow rectangle highlights an area of the follicle epithelium. (I) Enlarged part of the framed region in (H). Larger follicle cells are circled in red, and smaller follicle cells are circled in blue. (J) CTPSH355A-mCherry (green) and Hts (red) of the same egg chamber shown in (E). Surface view of the cell membrane with CTPS. (K) The area of each cell was measured after dividing each cell along the cell membrane. (L) corresponds to (K). Scale bars, 20 μm. (M) The ratio of the average area of the three largest cells to the average area of the three smallest cells in an egg chamber. N = 6, ***, p < 0.0001. Mann-Whitney U test. (5 stage 7–8 egg chambers/genotypes, 3 biological replicates) (N) Average follicle cell surface. N = 3.
Ijms 23 15282 g008
Ijms 23 15282 g009 550
Figure 9. Follicle cell ingression occurs in egg chamber overexpressing CTPSH355A. (A,B) Side view of stage 8 egg chamber overexpressing CTPS. (C) Cross section of stage 8 egg chamber overexpressing CTPSH355A. The ingression is framed by a rectangle. (D–G) Zoom-in images of the ingression follicle cells in (C). Scale bars, 20. (H) Western blot is detected with antibodies against mCherry and tubulin on the ovarian lysates of CTPS-mCh and CTPSH355A-mCh mutants. Scale bars, 20 μm. (I) Quantitative analysis of the CTPS protein level of samples represented in (H), the mean and standard deviation. (J) Western blot of the ovarian lysates of Actin > UAS CTPS-OE and Actin > UAS CTPSH355A-OE mutants, detected with antibodies against mCherry and tubulin. (K) Quantitative analysis of the CTPS protein level of samples represented in (J), the mean and standard deviation. *, p < 0.05; Mann-Whitney U test.
Figure 9. Follicle cell ingression occurs in egg chamber overexpressing CTPSH355A. (A,B) Side view of stage 8 egg chamber overexpressing CTPS. (C) Cross section of stage 8 egg chamber overexpressing CTPSH355A. The ingression is framed by a rectangle. (D–G) Zoom-in images of the ingression follicle cells in (C). Scale bars, 20. (H) Western blot is detected with antibodies against mCherry and tubulin on the ovarian lysates of CTPS-mCh and CTPSH355A-mCh mutants. Scale bars, 20 μm. (I) Quantitative analysis of the CTPS protein level of samples represented in (H), the mean and standard deviation. (J) Western blot of the ovarian lysates of Actin > UAS CTPS-OE and Actin > UAS CTPSH355A-OE mutants, detected with antibodies against mCherry and tubulin. (K) Quantitative analysis of the CTPS protein level of samples represented in (J), the mean and standard deviation. *, p < 0.05; Mann-Whitney U test.
Ijms 23 15282 g009
Ijms 23 15282 g010 550
Figure 10. The integrity of follicle epithelium is compromised when overexpressing CTPSH355A. (A–C) Surface view of a stage 8 egg chamber with follicle cells overexpressing CTPS. Large cytoophidia are detectable in almost all follicle cells. (D–F) Surface view of a stage 8 egg chamber with follicle cells overexpressing CTPSH355A. Note that the heterogenous sizes of follicle cells and increased gaps between neighbouring follicle cells. CTPS-mCherry (green), Hts (red) and DNA (blue, labelled with Hoechst 33342). Scale bars, 20 μm.
Figure 10. The integrity of follicle epithelium is compromised when overexpressing CTPSH355A. (A–C) Surface view of a stage 8 egg chamber with follicle cells overexpressing CTPS. Large cytoophidia are detectable in almost all follicle cells. (D–F) Surface view of a stage 8 egg chamber with follicle cells overexpressing CTPSH355A. Note that the heterogenous sizes of follicle cells and increased gaps between neighbouring follicle cells. CTPS-mCherry (green), Hts (red) and DNA (blue, labelled with Hoechst 33342). Scale bars, 20 μm.
Ijms 23 15282 g010
Ijms 23 15282 g011 550
Figure 11. Follicle cell ingression occurs with follicle cell-specific overexpresson of CTPSH355A. (A,B) Side view of a stage 8 egg chamber overexpressing CTPS in follicle epithelium. (C) Cross section of stage 8 egg chamber after overexpression of CTPSH355A in follicle epithelium. The ingression is framed by a rectangle. (D–G) Zoom-in of the ingressive follicle cell in (C). (H–J) Surface view of a stage 8 egg chamber with follicle cell-specific overexpression of CTPS. Large cytoophidia are detectable in almost all follicle cells. Note that most cytoophidia are distributed on or near the cortex of follicle cells. (K–M) Surface view of a stage 8 egg chamber with follicle cell-specific overexpression of CTPSH355A. No cytoophidium is detectable. CTPS-mCherry (green), Hts (red) and DNA (blue, labelled with Hoechst 33342). Scale bars, 20 μm. (N) Quantitative analysis of the ratio of three largest cells versus three smallest cells (5 images/genotypes, 3 biological replicates). Mann-Whitney U test, **, p = 0.002.
Figure 11. Follicle cell ingression occurs with follicle cell-specific overexpresson of CTPSH355A. (A,B) Side view of a stage 8 egg chamber overexpressing CTPS in follicle epithelium. (C) Cross section of stage 8 egg chamber after overexpression of CTPSH355A in follicle epithelium. The ingression is framed by a rectangle. (D–G) Zoom-in of the ingressive follicle cell in (C). (H–J) Surface view of a stage 8 egg chamber with follicle cell-specific overexpression of CTPS. Large cytoophidia are detectable in almost all follicle cells. Note that most cytoophidia are distributed on or near the cortex of follicle cells. (K–M) Surface view of a stage 8 egg chamber with follicle cell-specific overexpression of CTPSH355A. No cytoophidium is detectable. CTPS-mCherry (green), Hts (red) and DNA (blue, labelled with Hoechst 33342). Scale bars, 20 μm. (N) Quantitative analysis of the ratio of three largest cells versus three smallest cells (5 images/genotypes, 3 biological replicates). Mann-Whitney U test, **, p = 0.002.
Ijms 23 15282 g011
Ijms 23 15282 g012 550

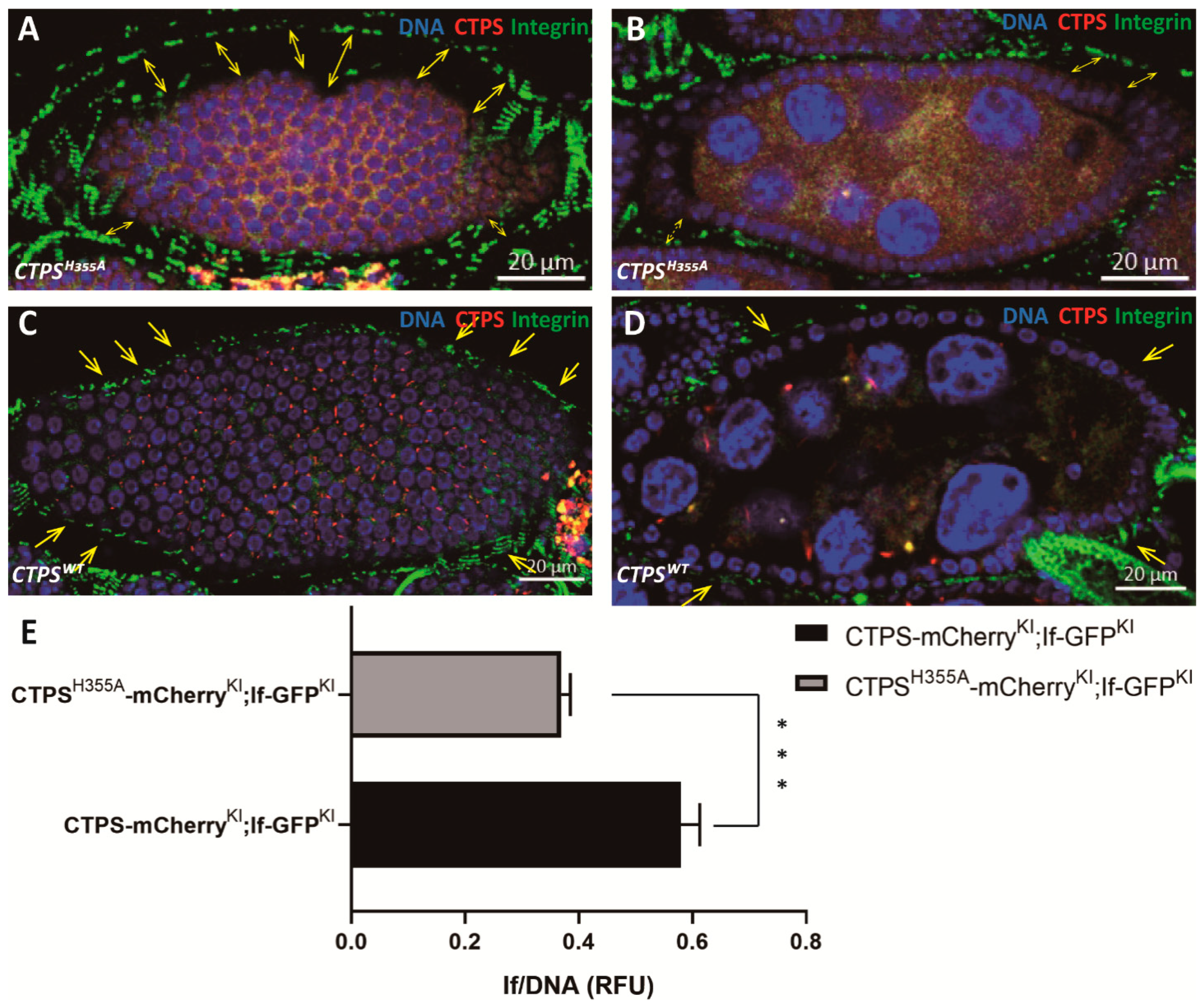

Figure 12. Compared with wild-type control, the space increases between muscle sheath and egg chambers in CTPSH355A. (A,B) A stage 8 egg chamber of the CTPSH355A mutant. Integrin is labeled with knock-in GFP (green). CTPSH355A is labeled with knock-in mCherry (red). Yellow arrows point to gap between egg chamber and the muscle sheath. (C,D) A stage 8 wild-type egg chamber. Integrin is labeled by knock-in GFP. CTPS is labeled by knock-in mCherry. Scale bars, 20 μm. (E) The ratio of GFP intensity of the integrin to DNA from (A–D). The value is normalized to the control (5 images/genotypes, 3 biological replicates). Mann-Whitney U test. ***, p = 0.0005.
Figure 12. Compared with wild-type control, the space increases between muscle sheath and egg chambers in CTPSH355A. (A,B) A stage 8 egg chamber of the CTPSH355A mutant. Integrin is labeled with knock-in GFP (green). CTPSH355A is labeled with knock-in mCherry (red). Yellow arrows point to gap between egg chamber and the muscle sheath. (C,D) A stage 8 wild-type egg chamber. Integrin is labeled by knock-in GFP. CTPS is labeled by knock-in mCherry. Scale bars, 20 μm. (E) The ratio of GFP intensity of the integrin to DNA from (A–D). The value is normalized to the control (5 images/genotypes, 3 biological replicates). Mann-Whitney U test. ***, p = 0.0005.
Ijms 23 15282 g012
Publisher’s Note: MDPI stays neutral with regard to jurisdictional claims in published maps and institutional affiliations.

Share and Cite

MDPI and ACS Style

Wang, Q.-Q.; You, D.-D.; Liu, J.-L. Cytoophidia Maintain the Integrity of Drosophila Follicle Epithelium. Int. J. Mol. Sci. 2022, 23, 15282. https://doi.org/10.3390/ijms232315282

AMA Style

Wang Q-Q, You D-D, Liu J-L. Cytoophidia Maintain the Integrity of Drosophila Follicle Epithelium. International Journal of Molecular Sciences. 2022; 23(23):15282. https://doi.org/10.3390/ijms232315282

Chicago/Turabian Style

Wang, Qiao-Qi, Dong-Dong You, and Ji-Long Liu. 2022. "Cytoophidia Maintain the Integrity of Drosophila Follicle Epithelium" International Journal of Molecular Sciences 23, no. 23: 15282. https://doi.org/10.3390/ijms232315282

Note that from the first issue of 2016, this journal uses article numbers instead of page numbers. See further details here.

Article Metrics

Back to TopTop
