Article

Synthesis, Molecular Docking Analysis, and Biological Evaluations of Saccharide-Modified Sulfonamides as Carbonic Anhydrase IX Inhibitors

by
Zuopeng Zhang
†,
Huali Yang
*,†,
Ye Zhong
,
Yueqing Wang
,
Jian Wang
,
Maosheng Cheng
and
Yang Liu
*
Key Laboratory of Structure-Based Drug Design & Discovery of Ministry of Education, School of Pharmaceutical Engineering, Shenyang Pharmaceutical University, Shenyang 110016, China
*
Authors to whom correspondence should be addressed.
†
These authors contributed equally to this work.
Int. J. Mol. Sci. 2021, 22(24), 13610; https://doi.org/10.3390/ijms222413610
Submission received: 5 November 2021 / Revised: 14 December 2021 / Accepted: 15 December 2021 / Published: 19 December 2021
(This article belongs to the Special Issue Carbonic Anhydrase and Carbonic Anhydrase Inhibitors)
Browse Figures
Versions Notes

Abstract

:
Based on the strategy of the “tail approach”, 15 novel saccharide-modified sulfonamides were designed and synthesised. The novel compounds were evaluated as inhibitors of three human carbonic anhydrase (CA) isoforms, namely cytoplasmic CA II, transmembrane CA IX, and XII. Most of these compounds showed good activity against CAs and high topological polar surface area (TPSA) values, which had a positive effect on the selective inhibition of transmembrane isoforms CA IX and XII. In the in vitro activity studies, compounds 16a, 16b, and 16e reduced the viability of HT-29 and MDA-MB-231 cells with a high expression of CA IX under hypoxia. The inhibitory activity of compound 16e on the human osteosarcoma cell line MG-63 with a high expression of CA IX and XII was better than that of AZM. Moreover, high concentrations of compounds 16a and 16b reversed the acidification of the tumour microenvironment. In addition, compound 16a had a certain inhibitory effect on the migration of MDA-MB-231 cells. All the above results indicate that the saccharide-modified sulfonamide has further research value for the development of CA IX inhibitors.

1. Introduction

Hypoxia and acidification are salient features of many tumour tissues [1]. Such a microenvironment is of great significance to tumour cell survival, proliferation, invasion, and the development of drug resistance [1,2,3]. Hypoxia in the microenvironment is caused by an imbalance between the rapid growth of tumour cells and the oxygen supply capacity, while acidification is caused by a variety of proteins including carbonic anhydrase (CAs, EC 4.2.1.1) [1,4,5]. In the CA family, CA IX and XII are isoforms related to acidification of the tumour microenvironment [6]. CA IX is not significantly expressed in most normal tissues but is overexpressed in many aggressive tumours including lung, breast, colorectal, head and neck, lung, and kidney cancers. CA IX is of great significance for maintaining the tumour microenvironment and is closely related to the proliferation, migration, and invasion of tumour cells [7,8]. Therefore, CA IX has been validated as a promising target for cancer diagnostics and treatments. Compared with CA IX, CA XII is distributed in a variety of normal tissues. CA XII is minimally expressed in various normal tissues (including in the kidney, colon, prostate, pancreas, ovary, testis, lung, and brain), but its expression is upregulated in cancer cells derived from these tissues [9]. Several recent studies have shown that CA XII is an attractive and potential target for tumour treatment and diagnostic intervention, especially for hypoxic tumours that are resistant to traditional radiotherapy and chemotherapy [9,10,11]. Both CA IX and CA XII play an important role in maintaining the acidic microenvironment of tumours in a variety of tumour tissues and have been proven to be vital to tumour growth and survival [12,13].
To date, there is no small molecule selective inhibitor of CA IX/XII on the market. Only one small molecule drug, SLC-0111, which targets CA IX/XII, is in clinical phase I/II [14]. The main challenge in the development of carbonic anhydrase inhibitors (CAIs) for antitumour therapy is the lack of isoform selectivity. Due to the wide distribution of CAs, CAIs without selectivity will lead to serious side effects [15,16]. However, the 12 catalytically active human CAs show high homology in their active sites, which makes the study of selective CAIs complicated and unsatisfactory [17,18]. To solve this problem, the “tail approach” is widely used, which splices fragments with different polarities and sizes to the tail of the pharmacophore to selectively inhibit extracellular isoforms [19,20]. Widely used and effective tails include bulky groups, fluorophores, cationic groups, and saccharides [21]. Among them, saccharides are favoured because of their wide sources, high biocompatibility, and high polarity.
Here, to investigate the application of saccharide modification in CA IX/XII inhibitors, we designed and synthesised 15 novel compounds by modifying sulfonamide with glucose. After performing relevant isoenzyme (including, tumour-associated isoforms hCA IX and XII and off-target isoform hCA II) tests on these compounds, molecular docking was carried out to provide insight into the mechanism of action of the compounds. The biological evaluation at the cellular level included the effects on tumour cell viability, extracellular pH changes, and cell migration.

2. Results and Discussion

2.1. Chemistry

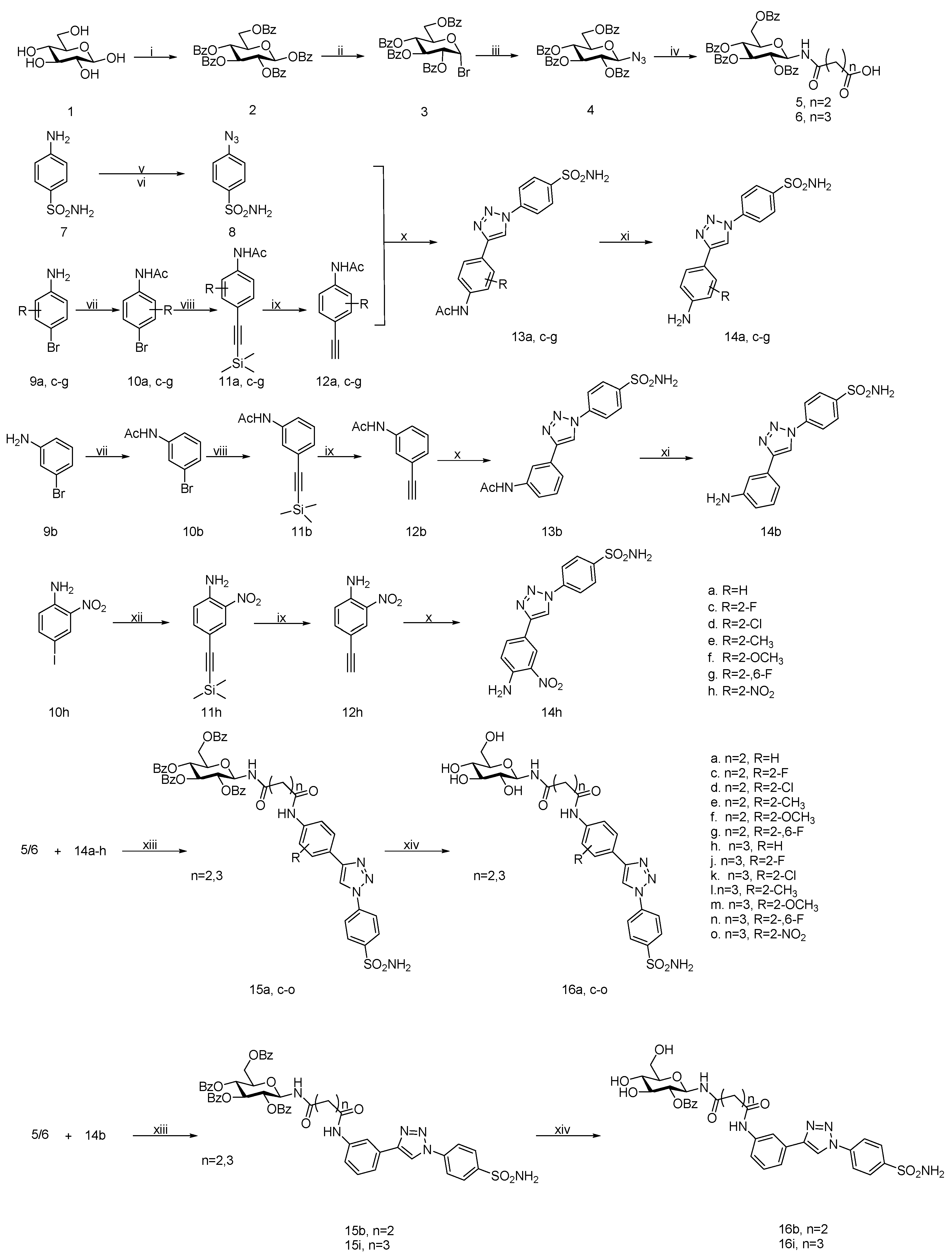

The synthesis of novel derivatives of benzenesulfonamides bearing carbohydrate Groups 16a–o is outlined in Scheme 1. This series of compounds adopted a convergent synthesis route, including two parts. One of the parts was the synthesis of the glycosyl motif. We selected β-D-glucose as the starting material to obtain benzoyl-protected intermediate 2 by reaction with benzoyl chloride. Then, through the reaction of 2 with HBr-HOAc, we obtained bromo-sugar (intermediate 3) in good yield and the reaction of 3 and sodium azide in DMF produced azide-sugar (intermediate 4). Finally, azide reduction and single-chain segmentation were completed in a one-pot reaction to obtain amino-sugar carboxylic acid derivatives (intermediates 5 and 6). Thus far, we have completed part of the glycosyl motif.
The other part of the route was to build the fragment in the active site. 4-Azidobenzenesulfonamide (intermediate 8) was obtained from sulfanilamide 7 treated with NaNO2 and NaN3 in acidic aqueous media. Moreover, N-(4-((trimethylsilyl)ethynyl)phenyl)acetamides (intermediates 11) were obtained via Sonogashira coupling with various commercially available m- and p-bromoaniline derivatives 9 [22]. Intermediate 11 was deprotected with TBAF to obtain N-(4-ethynylphenyl)acetamide (intermediate 12). Next, by reacting 8 and 12 through copper-catalysed azide-alkyne cycloadditions (CuAAC) [23], we obtained triazole derivatives (intermediates 13). Then, deacetylated triazole derivatives (intermediates 14) were prepared by refluxing intermediates 13 in a basic aqueous solution. To date, we have completed part of the fragment within the activity site.
The last was the splicing of the two parts. With the participation of EDCI, deprotected intermediates 14a–h and 5/6 afforded glycosyl derivatives (intermediates 15a–o), which were subsequently treated with MeONa/MeOH to furnish target compounds 16a–o. 1H NMR, 13C-NMR, and HRMS techniques were used for the characterisation of the newly synthesised compounds.

2.2. hCAs Inhibitory Activity

All the synthesised compounds and key intermediates were assayed as inhibitors of two physiologically relevant CA isoforms, namely transmembrane tumour-associated hCA IX and off-target cytosolic hCA II, and some of the compounds with significant activity were supplemented with the hCA XII inhibitory activity test. The test used a method of monitoring the hydrolysis of 4-nitrophenylacetate (4-NPA.) The control compound was acetazolamide (AZM), which is clinically used as a carbonic anhydrase inhibitor. The in vitro enzyme inhibition test results of sulfatriazole derivatives 14a–h and carbohydrate-based compounds 16a–o are listed in Table 1.
Based on the data in Table 1, the structure–activity relationship (SAR) is summarised as follows:
(i). The inhibitory activities of sulfatriazole derivatives 14a–h against hCA II and IX were 12.3–102.0 and 40.4–120.2 nM, respectively. Among compounds 14a–h, 14a–c showed comparable inhibitory activities to hCAII and IX as AZM, and the inhibitory activities of other compounds against hCAII and IX were weaker. The SAR of compounds 14a–h for hCA II and IX was as follows: when the aromatic amine ring was unsubstituted or substituted by a fluorine atom with a small atomic volume, the inhibitory activities for hCAII and IX were good, but when the volume of substituents on aniline increased, both the electron-donating and electron-withdrawing groups caused the inhibitory activity against hCA II to decrease.
(ii). The inhibitory activities of saccharide-modified compounds 16a–o against hCA II and IX were 10.1–177.2 and 51.6–543.9 nM, respectively. Compared with compounds 14a–h without saccharide, the inhibitory activities of compounds 16a–o on hCA II did not change significantly, but the activity of hCA IX decreased noticeably. At the same time, although the introduction of saccharide fragments did not significantly improve the inhibitory activities on the enzyme, the TPSA of the saccharide derivatives increased significantly, which reduced the membrane permeability of compounds, and provided the possibility of isoform selectivity based on subcellular localisation.
(iii). Compounds 16a–b and 16h–i with unsubstituted benzene rings showed the best inhibitory activity against hCA II, ranging from 10.1 to 27.7 nM. When the benzene ring was substituted by halogen (F or Cl) and electron-withdrawing substituents (nitro or difluoro), the activity against hCA II decreased. When the benzene ring was substituted by electron-donating substituents, methyl substitution led to a slight decrease or maintenance of the inhibitory activity against hCA II compared with unsubstituted compounds, while methoxy caused a significant decrease. The effect of aliphatic chain length on hCA II inhibitory activities was not obvious.
(iv). The inhibitory effect of compounds 16a–o on hCA IX was not as clear as that on hCA II. The compounds with the best inhibitory activity against hCA IX were 16a, 16b, 16e and 16m, ranging from 51.6 to 99.6 nM. When the aliphatic chain was succinamide (n = 2), the most active compound was 16a, and replacement with meta-aniline or substitution with different groups both caused a decrease in activity. The decrease in activity caused by difluoro substitution was the most significant, resulting in a 10-fold decrease in activity. When the aliphatic chain was glutamide (n = 3), the most active compound was 16m. Compared with succinamide, the methoxy group played a positive role in increasing the activity.
(v). Compounds 16a, 16b, 16e, and 16m were selected to test the inhibitory activity against hCA XII, and the values ranged from 135.3 to 255.9 nM. Their inhibitory effect on hCA XII was weaker than that on hCA II and IX.

2.3. Docking Studies

We re-docked the native ligand (9FK) into CA IX (PDB ID: 5FL4) with optimised docking parameters and successfully produced the binding modes observed in the crystal structures. The ligand formed hydrogen bonding with Gln92, His119, and Thr200 in the active site, and hydrophobic interaction with His94, His96, Val130, and Leu134. The RMSD values of docking and experimental posture is 0.699 Å (detailed data is provided in the Table S1 and Figure S1 of supplementary information). Then, we conducted docking studies on the saccharide-modified compounds 16a and 16g to explain why they exhibit different inhibitory activities. The results are shown in Figure 1.

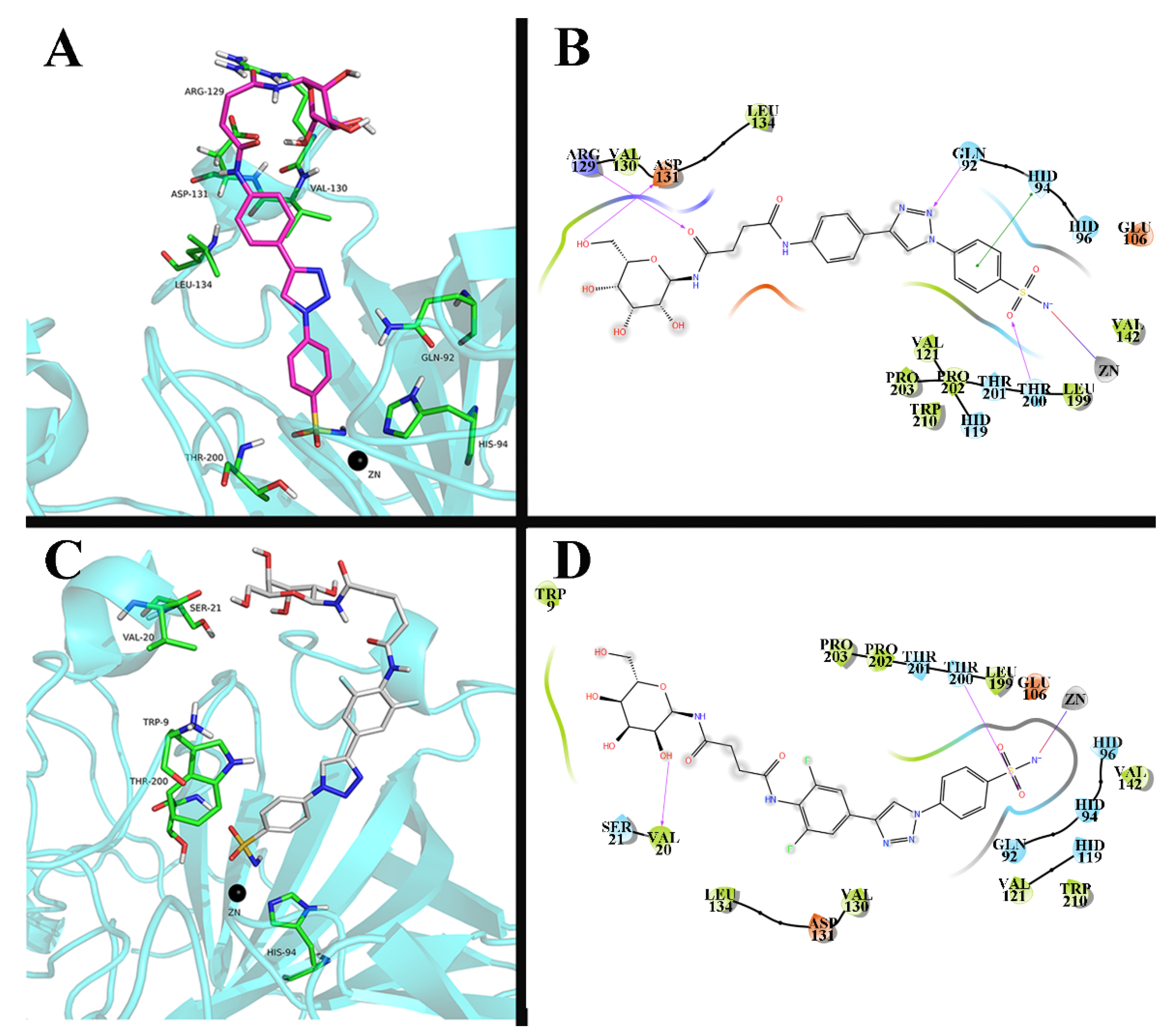

As shown in Figure 1, the modes of action of compounds 16a and 16g at the active site were quite different. Compound 16a formed strong interactions with Gln92, His94, and Thr200 at the active site, while 16g only interacted with Thr200 through the sulfonamide group. In addition, the mode of binding of the two glycosyl fragments at the entrance of the active site was different. Compound 16a formed hydrogen bonds with Arg129 and Asp131 through the glycosyl hydroxyl group and the amide in the structure, while the glycosyl in 16g only had a hydrogen bond with Val20. Moreover, the docking scores of 16a and 16g were −8.37 kcal/mol and −6.49 kcal/mol, respectively. From the docking scores, it was apparent that compound 16a was better than 16g. The fewer interactions and lower binding stability might be responsible for the lower activity of 16g.

2.4. In Vitro Cytotoxicity Studies on Cancer Cells

The CCK-8 assay was used to evaluate the cytotoxicity of compounds 16a, 16b, and 16e on the breast cancer cell line MDA-MB-231 and colon cancer cell line HT-29. MDA-MB-231 and HT-29 are tumour cells that have been reported to express CA IX. We cultivated them under normoxia and hypoxia respectively and then evaluated the effects of the compounds on tumour cell viability at different concentrations. The clinical drug AZM was selected as the positive cytotoxic reference compound at the same concentrations (detailed data is provided in the Tables S2 and S3 of supplementary information).
According to the results of the cell viability test, we summarised the following conclusions:

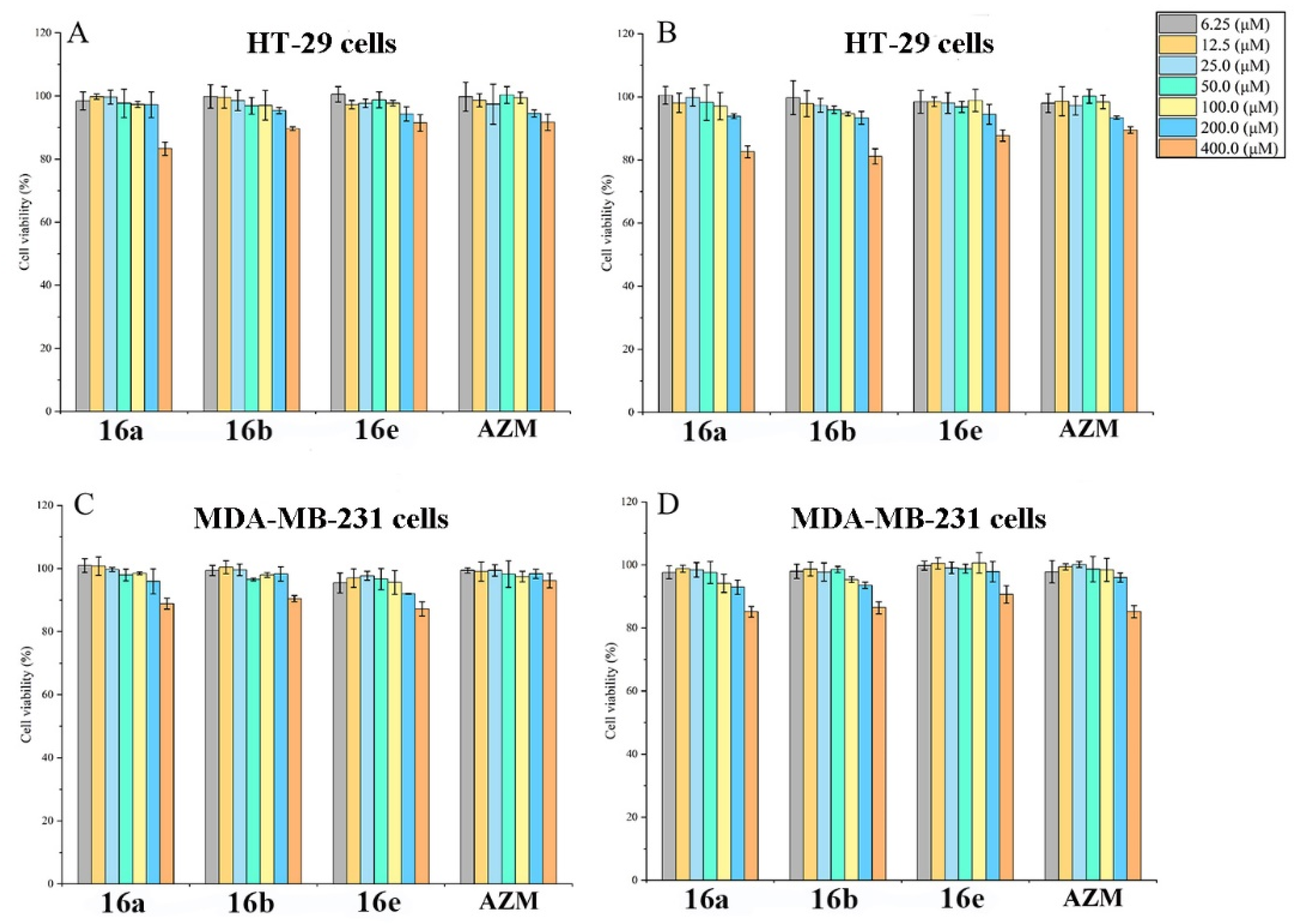

(i). Data from Figure 2 show that both AZM and the tested compounds had a very limited effect on the growth of the two tumour cell lines under normoxic conditions. When the cell lines were cultured under hypoxia, the inhibitory effect of the compounds was improved expect for that of 16e; the inhibitory effect of 16e on MDA-MB-231 under hypoxia is slightly weaker than that under normoxic condition.
(ii). The results showed that HT-29 colon cancer cells were more susceptible to inhibition by the tested compounds, and a 20% decrease in cell viability was observed in compounds 16a and 16b at the highest concentration of 400 μM.
(iii). Compared to AZM, compounds 16a, 16b, and 16e exhibited higher inhibitory activity against HT-29 and MDA-MB-231 cells, which was particularly evident in the hypoxic HT-29 cell line.
The human osteosarcoma cell line MG-63 is a high-expressing cell line of CA IX and XII [24]. We selected compound 16b with the best activity in the above studies to study the cell viability inhibitory activity of MG-63 (detailed data is provided in the Table S4 of supplementary information). The results are shown in Figure 3.

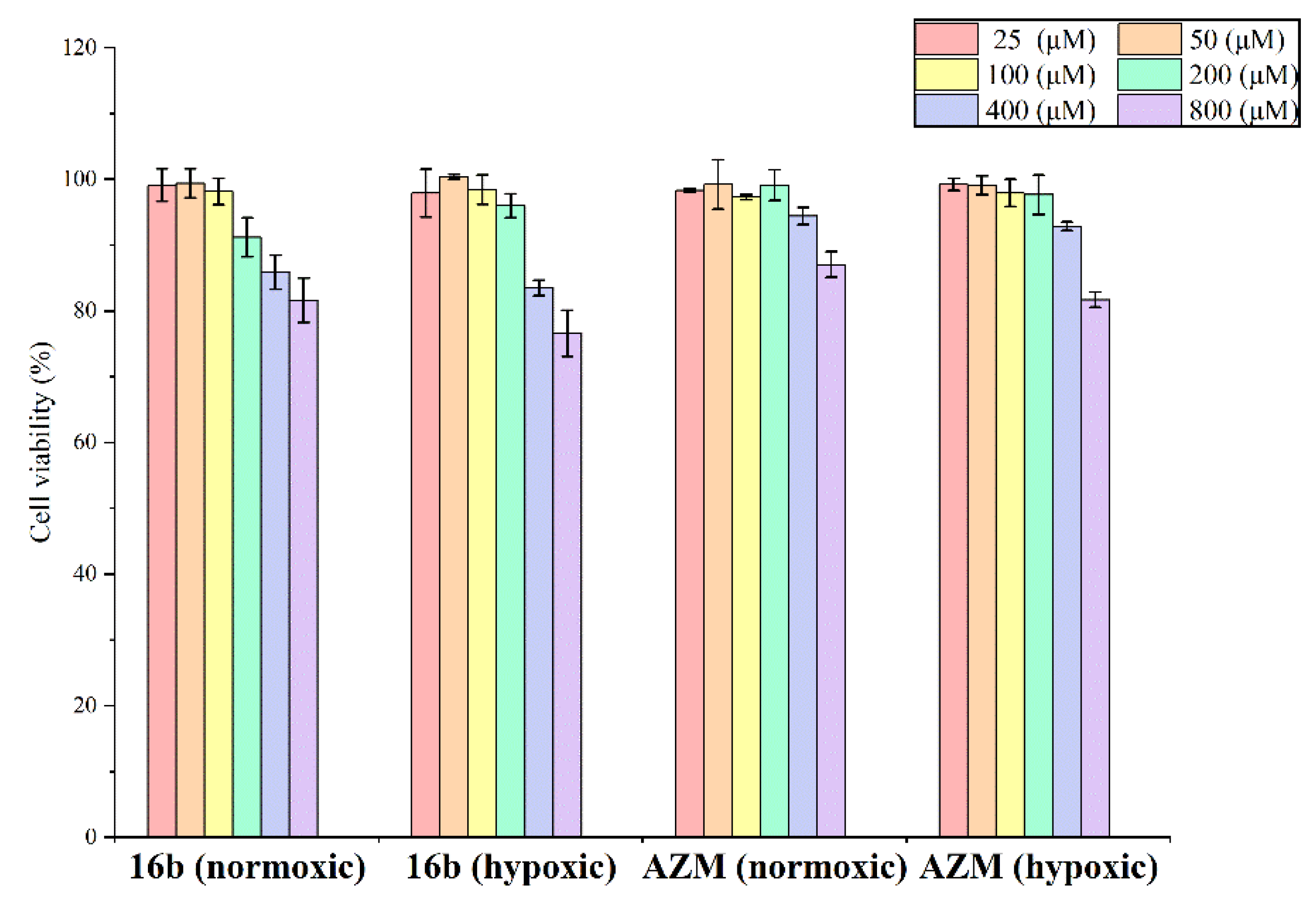

The test results showed that the inhibition of MG-63 by 16b was concentration-dependent, and its inhibitory activity was better than that of the positive control AZM. Moreover, under a hypoxic environment, the inhibitory effect of 16b on MG-63 cells was slightly higher than that of normoxia.

2.5. Measurement of Extracellular pH

The main role of CA IX and XII in tumour development is to regulate the pH of the tumour growth microenvironment so that tumour cells are in a weakly acidic environment. Such an acidic environment is conducive to the growth of tumour cells and protects tumour cells from being killed by chemotherapeutics. We evaluated the effects of 0.1 mM and 1.0 mM of compounds 16a and 16b on the pH of the tumour cell growth environment under normoxia or hypoxia (detailed data is provided in the Tables S5 and S6 of supplementary information). The results are shown in Figure 4.

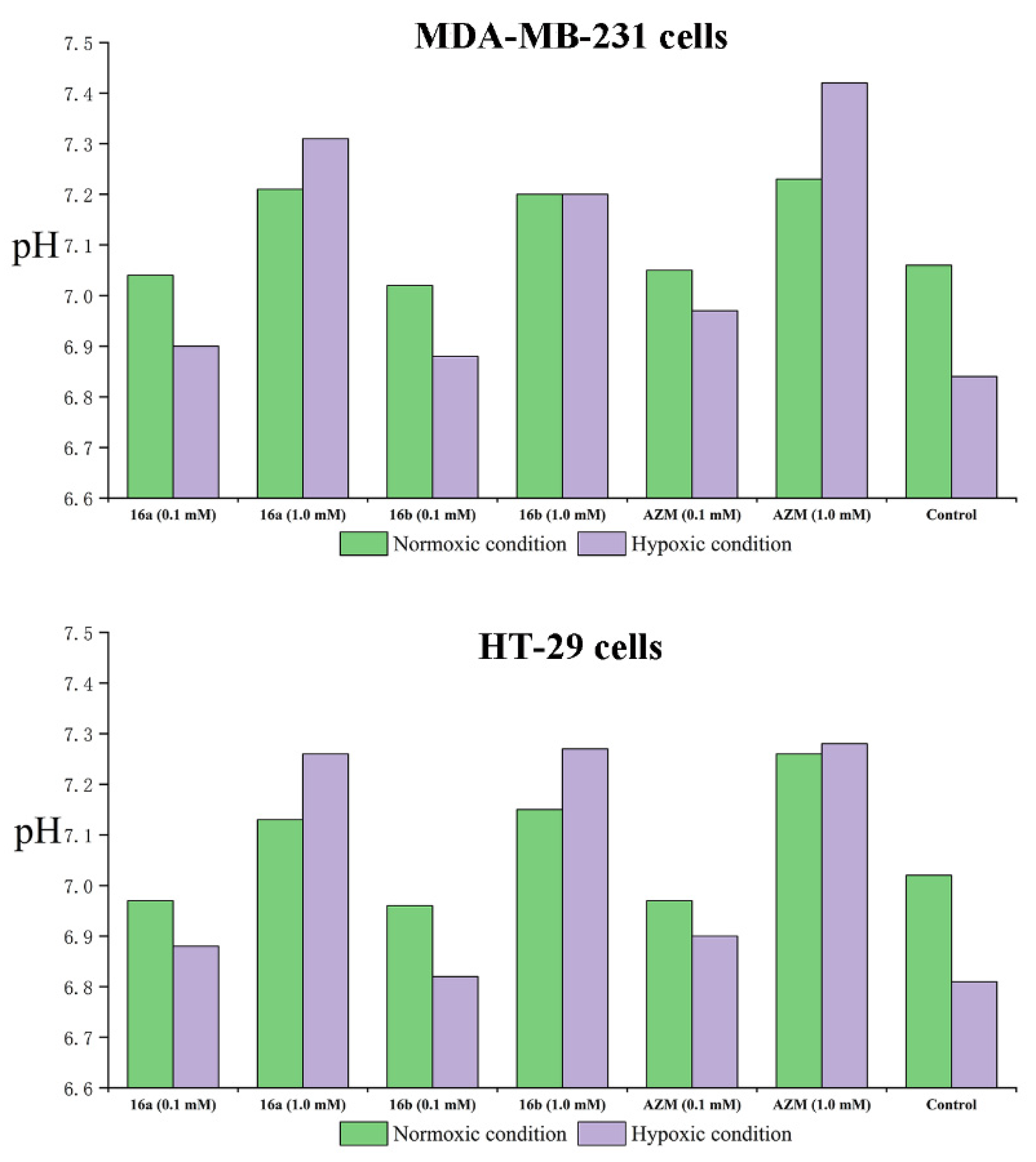

The results showed that both 16a and 16b could improve the extracellular pH of MDA-MB-231 and HT-29 cells at concentrations of 0.1 mM and 1.0 mM, and the effect was concentration-dependent. The pH change of the extracellular space was especially distinct in hypoxic culture. After the tumour cells were cultured with the 1.0 mM compounds, the extracellular pH increased significantly so that the environment changed from acidic to alkaline.

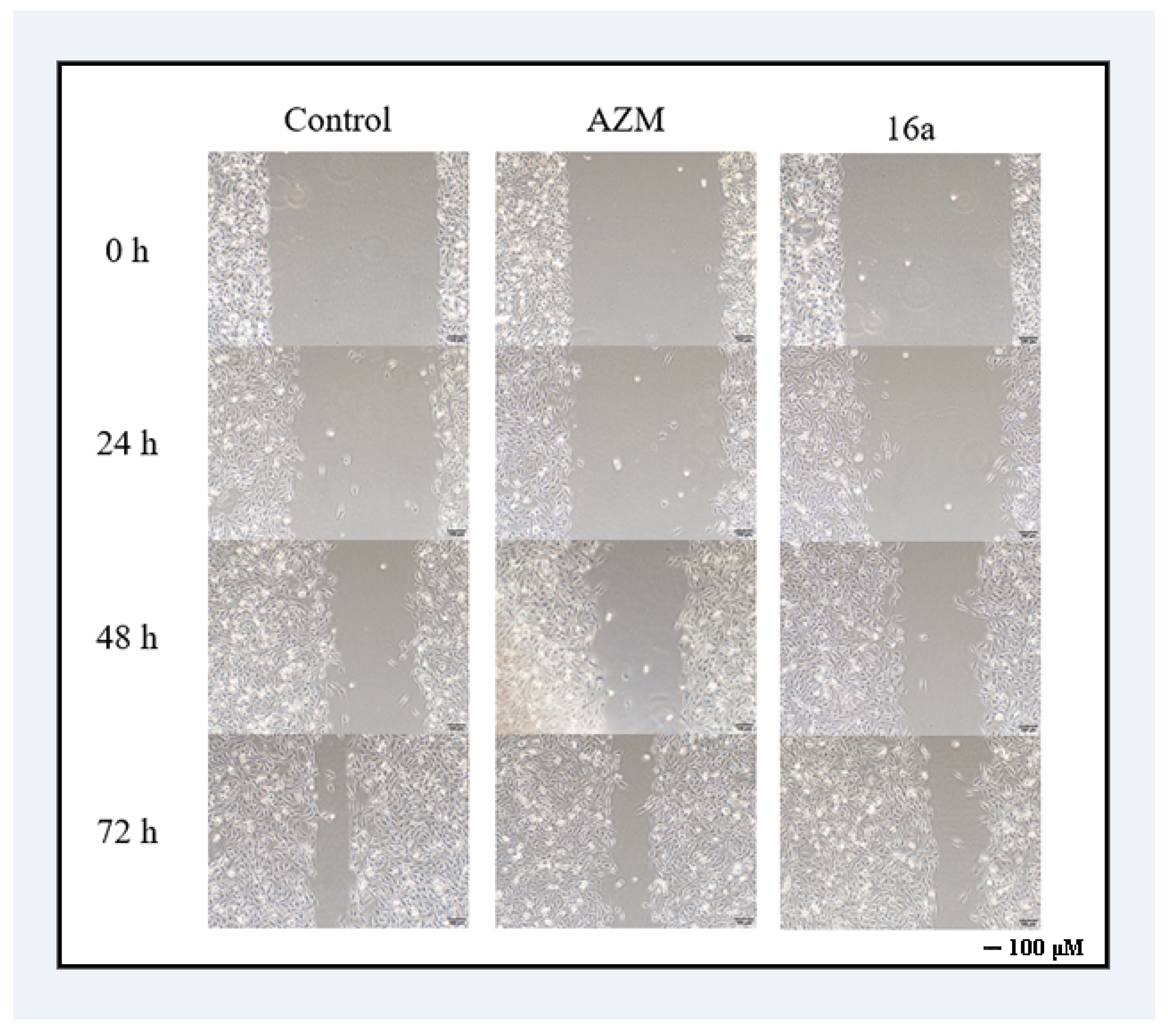

2.6. Cell Migration Assay

Tumour cell migration is one of the basic biological characteristics of tumour cells. We carried out a study on the antitumour migration activity of compound 16a, which showed high CA IX inhibitory activity, to investigate the effect of a CA IX inhibitor on tumour cell migration. MDA-MB-231 was selected as the experimental cell line to explore the ability of 16a to reduce tumour cells migration under hypoxia. As shown in Figure 5, after the positive control AZM and 16a at a concentration of 400 μM were incubated with MDA-MB-231 hypoxia for 72 h. Compared with the blank group, 16a had a slight inhibitory effect on tumour cell migration in the first 24 h, and this inhibitory effect could hardly be detected at 72 h. Compared with AZM, 16a improved the inhibition of tumour cell migration, but it was not obvious.

3. Materials and Methods

3.1. Chemistry

All the reagents were obtained from commercial sources and used without further purification unless otherwise specified. Solvents were dried and redistilled before use in the usual manner. All chemicals and solvents were analytical grades. Analytical TLC was performed using silica gel HF254 (Qingdao Haiyang Chemical, Qingdao, China). Preparative column chromatography was performed with silica gel H. Melting points were obtained on a Büchi melting point B-540 apparatus (Büchi Labortechnik, Flawil, Switzerland). 1H and 13C NMR spectra (details of raw data for compounds, see Figures S2–S83) were recorded on Bruker ARX 600 MHz or 400 MHz spectrometers (Bruker, Zurich, Switzerland). HRMS was obtained on an Agilent ESI-QTOF instrument (Agilent, Santa Clara, CA, USA).

3.1.1. Synthesis of Penta-O-Benzoyl-β-D-Glucopyranose (2) and 2,3,4,5-Tetra-O-Benzoyl-α-D-Glucopyranosyl Bromide (3)

Intermediates 2 and 3 were synthesised as reported previously [25]: yield (92% and 88%); white powder; m.p. 129–131 °C and 174–175 °C, respectively.

3.1.2. Synthesis of 2,3,4,6-Tetra-O-Benzoyl-β-D-Glucopyranosyl Azide (4)

To a solution of intermediate 3 (6.6 g, 10.0 mmol) in anhydrous DMF (75 mL), NaN3 (5.2 g, 80.0 mmol) was added. The mixture weas heated at 50 °C under anhydrous condition followed by constant stirring overnight. After the reaction completion (monitored by TLC), the mixture was diluted with DCM (150 mL), washed with H2O (200 mL) and brine (100 mL), and dried over Na2SO4. After the filtration and evaporation of DCM, the product was purified chromatographically (PE:EA = 4:1) to provide intermediate 4. White solid (4.5 g, 73% yield). 1H-NMR (DMSO-d6, 600 MHz) δ 8.04–7.97 (m, 2H), 7.90 (d, J = 8.3 Hz, 2H), 7.85 (d, J = 7.5 Hz, 2H), 7.74 (d, J = 8.3 Hz, 2H), 7.65 (ddd, J = 21.3, 14.9, 7.8 Hz, 3H), 7.57–7.50 (m, 5H), 7.46 (t, J = 7.3 Hz, 2H), 7.40 (t, J = 7.0 Hz, 2H), 6.06 (td, J = 9.4, 2.3 Hz, 1H), 5.74 (td, J = 9.8, 2.2 Hz, 1H), 5.57–5.51 (m, 1H), 5.47 (td, J = 9.2, 2.5 Hz, 1H), 4.68–4.61 (m, 1H), 4.59 (d, J = 12.4 Hz, 1H), 4.53 (dd, J = 12.4, 4.4 Hz, 1H) ppm. 13C-NMR (DMSO-d6, 151 MHz) δ 165.84, 165.57, 165.07, 134.53, 134.31, 134.00, 129.75, 129.46, 129.25, 128.94, 128.75, 87.10, 73.40, 71.73, 69.23, 62.93, 40.53 ppm.

3.1.3. General Procedure of Synthesis of [(2,3,4,6-Tetra-O-Benzoyl-β-D-Glucopyranosyl)amino] acid Derivatives (5) and (6)

Intermediates 5 and 6 were synthesised as reported previously [26] Intermediate 5, m.p. 88–90 °C. 1H-NMR (DMSO-d6, 600 MHz) δ 12.12 (s, 1H), 8.93 (d, J = 9.5 Hz, 1H), 7.97 (d, J = 7.2 Hz, 2H), 7.84 (d, J = 7.3 Hz, 2H), 7.79 (d, J = 7.5 Hz, 2H), 7.72 (d, J = 7.4 Hz, 2H), 7.69 (t, J = 7.2 Hz, 1H), 7.61 (dd, J = 16.8, 4.1 Hz, 2H), 7.55 (q, J = 7.3 Hz, 3H), 7.46 (dd, J = 9.4, 6.1 Hz, 4H), 7.41 (t, J = 7.7 Hz, 2H), 6.06 (t, J = 10.1 Hz, 1H), 5.81 (t, J = 9.3 Hz, 1H), 5.60 (t, J = 9.7 Hz, 1H), 5.35 (t, J = 9.4 Hz, 1H), 4.61 (d, J = 9.8 Hz, 1H), 4.52 (d, J = 11.1 Hz, 1H), 4.46 (dd, J = 12.4, 3.5 Hz, 1H), 2.29 (tdd, J = 23.4, 20.7, 7.6 Hz, 4H) ppm. 13C-NMR (DMSO-d6, 151 MHz) δ 173.92, 173.08, 172.26, 165.80, 165.54, 165.25, 134.21, 133.99, 129.64, 129.25, 129.03, 77.75, 74.40, 72.73, 72.16, 69.39, 62.92, 30.47, 29.14 ppm.
Intermediate 6, m.p. 94-96 °C. 1H-NMR (DMSO-d6, 600 MHz) δ 12.03 (s, 2H), 8.87 (d, J = 9.5 Hz, 1H), 7.97 (dd, J = 8.2, 1.2 Hz, 2H), 7.84 (dd, J = 8.3, 1.1 Hz, 2H), 7.79 (dd, J = 8.3, 1.2 Hz, 2H), 7.72 (dd, J = 8.2, 1.1 Hz, 2H), 7.70–7.65 (m, 1H), 7.61 (td, J = 7.4, 1.6 Hz, 2H), 7.55 (q, J = 8.0 Hz, 3H), 7.46 (dd, J = 14.0, 7.6 Hz, 4H), 7.41 (t, J = 7.8 Hz, 2H), 6.06 (t, J = 9.5 Hz, 1H), 5.81 (t, J = 9.4 Hz, 1H), 5.59 (t, J = 9.7 Hz, 1H), 5.36 (t, J = 9.4 Hz, 1H), 4.64–4.57 (m, 1H), 4.52 (dd, J = 12.4, 2.4 Hz, 1H), 4.45 (dd, J = 12.5, 3.8 Hz, 1H), 2.25 (t, J = 7.4 Hz, 3H), 2.17–2.02 (m, 4H) ppm. 13C-NMR (DMSO-d6, 151 MHz) δ 174.56, 172.88, 165.79, 165.53, 165.23, 134.50, 134.11, 133.99, 129.81, 129.65, 129.48, 129.15, 129.02, 77.66, 74.36, 72.77, 72.14, 69.43, 62.95, 60.23, 34.83, 33.22, 20.75 ppm.

3.1.4. Synthesis of p-azidobenzenesulfonamide (8)

Intermediate 8 was synthesised as reported previously [27] and was used without further purification.

3.1.5. General Procedure of Synthesis of N-(4-Bromophenyl)acetamide Derivatives (10a–g)

To a solution of appropriate 4-bromoaniline (5.8 mmol) in EtOAc (15 mL), Ac2O (0.8 mL, 8.7 mmol) was added. The solution was stirred at room temperature for 3 h. After the reaction completed (monitored by TLC), the mixture was washed with H2O (20 mL) saturated sodium bicarbonate solution (15 mL) and brine (20 mL) and dried over Na2SO4. After filtration and evaporation of EtOAc, the product was used without further purification. Yield 80–95%.
N-(4-bromophenyl)acetamide (10a): white solid (1.2 g, 95% yield), m.p. 165–166 °C. 1H-NMR (DMSO-d6, 600 MHz) δ 10.06 (s, 1H), 7.60–7.52 (m, 2H), 7.49–7.42 (m, 2H), 2.04 (s, 3H) ppm. 13C-NMR (DMSO-d6, 151 MHz) δ 168.93, 139.15, 131.94, 121.27, 114.94, 24.49 ppm.
N-(3-bromophenyl)acetamide (10b): white solid (1.2 g, 94% yield), m.p. 85–86 °C. 1H-NMR (DMSO-d6, 600 MHz) δ 10.10 (s, 1H), 7.95 (t, J = 1.9 Hz, 1H), 7.55–7.37 (m, 1H), 7.26 (t, J = 8.0 Hz, 1H), 7.22 (d, J = 8.0 Hz, 1H), 2.05 (s, 3H) ppm. 13C-NMR (DMSO-d6, 151 MHz) δ 169.14, 141.35, 131.17, 126.04, 121.98, 121.69, 118.12, 24.51 ppm.
N-(4-bromo-2-fluorophenyl)acetamide (10c): white solid (1.2 g, 86% yield), m.p. 157–158 °C. 1H-NMR (DMSO-d6, 600 MHz) δ 9.82 (s, 1H), 7.89 (t, J = 8.6 Hz, 1H), 7.57 (d, J = 10.5 Hz, 1H), 7.36 (d, J = 8.7 Hz, 1H), 2.09 (s, 3H) ppm. 13C-NMR (DMSO-d6, 151 MHz) δ 169.27, 154.52, 152.87, 127.83, 126.44, 125.65, 119.29, 119.14, 115.78, 23.97 ppm.
N-(4-bromo-2-chlorophenyl)acetamide (10d): light yellow solid (1.2 g, 85% yield), m.p. 151–153 °C. 1H-NMR (DMSO-d6, 600 MHz) δ 9.58 (s, 1H), 7.76 (s, 1H), 7.70 (d, J = 8.7 Hz, 1H), 7.57–7.42 (m, 1H), 2.10 (s, 3H) ppm. 13C-NMR (DMSO-d6, 151 MHz) δ 169.19, 135.10, 131.99, 130.82, 127.84, 117.36, 23.83 ppm.
N-(4-bromo-2-methylphenyl)acetamide (10e): white solid (1.1 g, 86% yield), m.p. 153-154 °C. 1H-NMR (DMSO-d6, 600 MHz) δ 9.31 (s, 1H), 7.41 (dd, J = 7.4, 5.4 Hz, 2H), 7.32 (dd, J = 8.5, 2.1 Hz, 1H), 2.19 (s, 3H), 2.06 (s, 3H) ppm. 13C-NMR (DMSO-d6, 151 MHz) δ 168.77, 136.44, 134.49, 133.09, 129.11, 127.05, 117.34, 23.79, 18.05 ppm.
N-(4-bromo-2-methoxyphenyl)acetamide (10f): white solid (1.1 g, 86% yield), m.p. 156–158 °C. 1H-NMR (DMSO-d6, 600 MHz) δ 9.21 (s, 1H), 7.91 (d, J = 8.6 Hz, 1H), 7.21 (d, J = 2.1 Hz, 1H), 7.08 (dd, J = 8.6, 2.1 Hz, 1H), 3.85 (s, 3H), 2.08 (s, 3H) ppm. 13C-NMR (DMSO-d6, 151 MHz) δ 169.09, 150.81, 127.42, 123.59, 123.34, 116.06, 114.71, 56.58, 24.30 ppm.
N-(4-bromo-2,6-difluorophenyl)acetamide (10g): light yellow solid (1.2 g, 80% yield), m.p. 189–191 °C. 1H-NMR (DMSO-d6, 600 MHz) δ 9.74 (s, 1H), 7.54 (d, J = 7.2 Hz, 2H), 2.06 (s, 3H). ppm. 13C-NMR (DMSO-d6, 151 MHz) δ 168.76, 158.96, 158.92, 157.29, 157.24, 118.96, 118.88, 118.80, 116.25, 116.22, 116.07, 115.12, 115.01, 114.90, 22.86 ppm.

3.1.6. General Procedure of Synthesis of N-(4-((trimethylsilyl)ethynyl)phenyl)acetamide Derivatives (11a–g)

To a solution of different intermediates 10a–g (5 mmol), Pd(PPh3)2Cl2 (0.18 g, 0.25 mmol) and CuI (0.095 g, 0.5 mmol) in dry DMF (30 mL), TEA (1.4 mL, 10 mmol) was added. After degassing, trimethylsilylacetylene (1.1 mL, 7.5 mmol) was added to the reaction mixture under Ar atmosphere. The solution was stirred at 80 °C for 30 h. Once the reaction was completed (monitored by TLC), the mixture was diluted with EtOAc (100 mL) and filtered through the celite. The filtrate was washed with H2O (50 mLX3) and brine (50 mL) before dried over Na2SO4. After filtration and evaporation of EtOAc, the intermediates 11a–g were isolated through silica column chromatograph (PE:EA=8:1).
N-(4-((trimethylsilyl)ethynyl)phenyl)acetamide (11a): white solid (0.68 g, 61% yield), m.p. 331–333 °C. 1H-NMR (DMSO-d6, 600 MHz) δ 10.10 (s, 1H), 7.58 (d, J = 8.7 Hz, 2H), 7.40–7.34 (m, 2H), 2.05 (s, 3H), 0.21 (s, 9H) ppm. 13C-NMR (DMSO-d6, 151 MHz) δ 169.50, 140.85, 133.23, 119.57, 117.19, 106.40, 93.82, 25.03, 0.92 ppm.
N-(3-((trimethylsilyl)ethynyl)phenyl)acetamide (11b): white solid (0.70 g, 62% yield), m.p. 342–346 °C. 1H-NMR (DMSO-d6, 600 MHz) δ 10.01 (s, 1H), 7.79 (s, 1H), 7.48 (ddd, J = 8.2, 2.0, 0.9 Hz, 1H), 7.28 (t, J = 7.9 Hz, 1H), 7.12–7.07 (m, 1H), 2.04 (s, 3H), 0.23 (s, 9H) ppm. 13C-NMR (DMSO-d6, 151 MHz) δ 169.49, 140.40, 130.09, 126.98, 123.32, 122.58, 120.47, 106.10, 94.75, 24.97, 0.81 ppm.
N-(2-fluoro-4-((trimethylsilyl)ethynyl)phenyl)acetamide (11c): light yellow solid (0.81 g, 64% yield), m.p. 352–355 °C. 1H-NMR (DMSO-d6, 600 MHz) δ 9.86 (s, 1H), 8.02 (t, J = 8.2 Hz, 1H), 7.35 (dd, J = 11.5, 1.7 Hz, 1H), 7.24 (dd, J = 8.4, 1.2 Hz, 1H), 2.10 (s, 3H), 0.22 (s, 9H) ppm. 13C-NMR (DMSO-d6, 151 MHz) δ 169.90, 153.84, 152.21, 129.11, 128.58, 128.50, 123.95, 119.25, 119.11, 118.75, 118.69, 104.82, 95.30, 24.61, 0.78 ppm.
N-(2-chloro-4-((trimethylsilyl)ethynyl)phenyl)acetamide (11d): light yellow solid (0.63 g, 47% yield), m.p. 337–338 °C. 1H-NMR (DMSO-d6, 600 MHz) δ 9.56 (s, 1H), 7.84 (d, J = 8.4 Hz, 1H), 7.57 (s, 1H), 7.39 (d, J = 8.5 Hz, 1H), 2.12 (s, 3H), 0.23 (s, 9H) ppm. 13C-NMR (DMSO-d6, 151 MHz) δ 169.78, 136.80, 133.07, 131.62, 125.90, 120.04, 104.37, 95.93, 52.14, 24.49, 0.75 ppm.
N-(2-methyl-4-((trimethylsilyl)ethynyl)phenyl)acetamide (11e): white solid (0.69 g, 57% yield), m.p. 360–362 °C. 1H-NMR (DMSO-d6, 600 MHz) δ 9.28 (s, 1H), 7.55 (d, J = 8.2 Hz, 1H), 7.31 (s, 1H), 7.23 (dd, J = 8.3, 1.8 Hz, 1H), 2.19 (s, 3H), 2.07 (s, 3H), 0.21 (s, 9H) ppm. 13C-NMR (DMSO-d6, 151 MHz) δ 169.28, 138.33, 134.42, 131.76, 130.20, 124.93, 118.88, 106.27, 94.09, 24.43, 18.48, 0.90 ppm.
N-(2-methoxy-4-((trimethylsilyl)ethynyl)phenyl)acetamide (11f): white solid (0.69 g, 50% yield), m.p. 340–342 °C. 1H-NMR (DMSO-d6, 600 MHz) δ 9.22 (s), 8.03 (d, J = 8.2 Hz), 7.05 (d, J = 1.7 Hz), 7.01 (dd, J = 8.3, 1.7 Hz), 3.85 (s), 2.10 (s), 0.22 (s) ppm. 13C-NMR (DMSO-d6, 151 MHz) δ 169.66, 149.49, 129.63, 125.20, 121.74, 118.01, 114.63, 106.45, 93.83, 56.79, 24.90, 0.88 ppm.
N-(2,6-difluoro-4-((trimethylsilyl)ethynyl)phenyl)acetamide (11g): light yellow solid (0.62 g, 46% yield), m.p. 368–370 °C. 1H-NMR (DMSO-d6, 600 MHz) δ 9.80 (s, 1H), 7.29 (d, J = 8.0 Hz, 2H), 2.06 (s, 3H), 0.23 (s, 9H) ppm. 13C-NMR (DMSO-d6, 151 MHz) δ 169.13, 158.90, 158.86, 157.25, 157.20, 122.01, 121.93, 121.86, 117.20, 117.08, 116.97, 116.19, 116.16, 116.05, 116.02, 103.34, 97.54, 23.38, 0.62 ppm.

3.1.7. Synthesis of 2-Nitro-4-((trimethylsilyl)ethynyl)aniline (11h)

4-Iodo-2-nitroaniline (1.3 g, 5.0 mmol) was dissolved in dry THF (25 mL). Pd (PPh3)2Cl2 (0.35 g, 0.5 mmol), CuI (0.19 g, 1 mmol), and DIEA (2.6 mL, 15.0 mmol) was added to the solution. After degassing, trimethylsilylacetylene (1.1 mL, 7.5 mmol) was added into the reaction mixture under Ar atmosphere. The mixture was stirred at room temperature for 3 h (monitored by TLC); then, H2O (30 mL) was added and extracted with EtOAc (30 mL). The combined organic layer was washed with brine (30 mL) and dried over Na2SO4. After the filtration and evaporation of EtOAc, the compound 11h was isolated through a silica column chromatograph (PE:EA=4:1). Kermesinus solid (0.53 g, 45%), m.p. 316–319 °C. 1H-NMR (DMSO-d6, 600 MHz) δ 7.98 (d, J = 2.0 Hz, 1H), 7.74 (s, 2H), 7.41 (dd, J = 8.8, 2.0 Hz, 1H), 6.98 (d, J = 8.8 Hz, 1H), 0.21 (s, 9H) ppm. 13C-NMR (DMSO-d6, 151 MHz) δ 147.15, 138.67, 130.54, 129.98, 120.70, 109.48, 105.04, 93.35, 0.88 ppm.

3.1.8. General Procedure of Synthesis of N-(4-Ethynylphenyl)acetamide Derivatives (12a–h)

Intermediates 12a–h were synthesized from compounds 11a–h by deprotection of trimethylsilyl using TBAF [28] and extraction after the reaction and used without further purification.

3.1.9. General Procedure of Synthesis of N-(4-(1-(4-sulfamoylphenyl)-1H-1,2,3-triazol-4-yl)phenyl)acetamide derivatives (13a–g) and 4-(4-(4-amino-3-nitrophenyl)-1H-1,2,3-triazol-1-yl)benzenesulfonamide (14h)

The appropriate 4-ethynylbenzenamine derivatives 12a–h (3 mmol) were added to a suspension of compound 8 (0.65 g, 3.3 mmol) in t-BuOH-H2O 1:1 (20 mL) at r.t., which was followed by CuSO4 (0.14 g, 0.9 mmol) and sodium ascorbate (0.36g, 1.8 mmol). The suspension was stirred at 60 °C until the starting materials were consumed (monitored by TLC); then, they were quenched with H2O (20 mL), and the formed precipitate was filtered off and washed with H2O affording the compounds 13a–g and 14h, which were used without further purification.
4-(4-(4-Amino-3-nitrophenyl)-1H-1,2,3-triazol-1-yl)benzenesulfonamide (14h): Kermesinus solid (0.37 g, 34%), m.p. 222–225 °C. 1H-NMR (DMSO-d6, 600 MHz) δ 9.41 (s, 1H), 8.55 (d, J = 1.9 Hz, 1H), 8.18 (d, J = 8.7 Hz, 2H), 8.07 (d, J = 8.7 Hz, 2H), 7.98 (dd, J = 8.8, 1.9 Hz, 1H), 7.67 (s, 2H), 7.55 (s, 2H), 7.17 (d, J = 8.8 Hz, 1H) ppm. 13C-NMR (DMSO-d6, 151 MHz) δ 146.88, 146.58, 144.25, 139.07, 133.31, 130.65, 128.05, 122.23, 120.59, 120.53, 119.40, 117.99 ppm.

3.1.10. General Procedure of Synthesis of 4-(4-(4-aminophenyl)-1H-1,2,3-triazol-1-yl)benzenesulfonamide Derivatives (14a–g)

The appropriate intermediates 13a–g (1.6 mmol) were suspended in a 5 N sodium hydroxide aqueous solution (20 mL). The suspension was refluxed for 1.5 h. Once the reaction was completed (monitored by TLC), it was cooled to room temperature and filtered. The solid was dissolved in MeOH/EtOH and purified chromatographically (DCM:MeOH = 60:1) to provide compounds 14a–g.
4-(4-(4-Aminophenyl)-1H-1,2,3-triazol-1-yl)benzenesulfonamide (14a): Khaki solid (0.41 g, 81% yield), m.p. 256–258 °C. 1H-NMR (DMSO-d6, 600 MHz) δ 9.11 (s, 1H), 8.09 (d, J = 56.1 Hz, 4H), 7.61 (s, 2H), 7.45 (s, 2H), 6.67 (s, 2H), 5.34 (s, 2H) ppm. 13C-NMR (DMSO-d6, 151 MHz) δ 149.63, 149.13, 139.16, 127.97, 126.95, 120.33, 117.83, 117.72, 114.44 ppm.
4-(4-(3-Aminophenyl)-1H-1,2,3-triazol-1-yl)benzenesulfonamide (14b): Khaki solid (0.40 g, 79% yield), m.p. 270–273 °C. 1H-NMR (DMSO-d6, 600 MHz) δ 9.20 (s, 1H), 8.05 (dd, J = 48.3, 6.0 Hz, 4H), 7.22 (s, 1H), 7.11 (dd, J = 39.5, 6.5 Hz, 2H), 6.61 (d, J = 6.4 Hz, 1H) ppm. 13C-NMR (DMSO-d6, 151 MHz) δ 149.63, 148.72, 138.24, 130.98, 129.93, 127.65, 120.27, 119.72, 114.50, 113.72, 111.08 ppm.
4-(4-(4-Amino-3-fluorophenyl)-1H-1,2,3-triazol-1-yl)benzenesulfonamide (14c): Brown solid (0.41 g, 77% yield), m.p. 245–247 °C. 1H-NMR (DMSO-d6, 600 MHz) δ 9.16 (s, 1H), 8.02 (s, 3H), 7.69–7.38 (m, 2H), 6.86 (t, J = 8.7 Hz, 1H), 5.37 (d, J = 23.4 Hz, 2H) ppm. 13C-NMR (DMSO-d6, 151 MHz) δ 151.80, 150.23, 147.95, 137.26, 127.67, 122.54, 122.36, 120.13, 118.55, 116.79, 112.63, 112.50 ppm.
4-(4-(4-Amino-3-chlorophenyl)-1H-1,2,3-triazol-1-yl)benzenesulfonamide (14d): Brown solid (0.32 g, 57% yield), m.p. 201–203 °C. 1H-NMR (DMSO-d6, 600 MHz) δ 99.24 (s, 1H), 8.14 (d, J = 8.8 Hz, 2H), 8.05 (d, J = 8.8 Hz, 2H), 7.77 (d, J = 1.9 Hz, 1H), 7.62 (dd, J = 8.3, 1.9 Hz, 1H), 7.53 (s, 2H), 6.90 (d, J = 8.4 Hz, 1H), 5.63 (s, 2H) ppm. 13C-NMR (DMSO-d6, 151 MHz) δ 147.76, 145.44, 144.13, 139.14, 128.05, 126.53, 125.52, 120.42, 119.19, 118.58, 117.74, 116.06 ppm.
4-(4-(4-Amino-3-methylphenyl)-1H-1,2,3-triazol-1-yl)benzenesulfonamide (14e): Brown solid (0.45 g, 85% yield), m.p. 264–266 °C. 1H-NMR (DMSO-d6, 600 MHz) δ 9.18 (s, 1H), 8.24–8.19 (m, 2H), 8.12–8.08 (m, 2H), 7.60 (s, 1H), 7.59 (s, 2H), 7.55 (dd, J = 8.1, 1.8 Hz, 1H), 6.76 (d, J = 8.2 Hz, 1H), 5.18 (s, 2H), 2.20 (s, 3H) ppm. 13C-NMR (DMSO-d6, 151 MHz) δ 149.22, 147.63, 143.94, 139.24, 128.00, 127.82, 124.54, 121.67, 120.31, 118.08, 117.72, 114.49, 18.01 ppm.
4-(4-(4-Amino-3-methoxyphenyl)-1H-1,2,3-triazol-1-yl)benzenesulfonamide (14f): Brown solid (0.49 g, 89% yield), m.p. 230–233 °C. 1H-NMR (DMSO-d6, 600 MHz) δ 9.19 (s, 1H), 8.19–8.12 (m, 2H), 8.07–8.02 (m, 2H), 7.53 (s, 2H), 7.37 (d, J = 1.7 Hz, 1H), 7.30 (dd, J = 8.0, 1.8 Hz, 1H), 6.72 (d, J = 8.0 Hz, 1H), 4.99 (s, 2H), 3.87 (s, 3H) ppm. 13C-NMR (DMSO-d6, 151 MHz) δ 149.23, 146.88, 144.00, 139.22, 138.76, 128.02, 120.32, 118.98, 118.34, 118.07, 114.12, 108.30, 55.83 ppm.
4-(4-(4-Amino-3,5-difluorophenyl)-1H-1,2,3-triazol-1-yl)benzenesulfonamide (14g): Brown solid (0.36 g, 64% yield), m.p. 280–283 °C. 1H-NMR (DMSO-d6, 600 MHz) δ 9.29 (s, 1H), 8.18–8.09 (m, 2H), 8.09–8.03 (m, 2H), 7.54 (s, 2H), 7.48 (dd, J = 7.4, 2.2 Hz, 2H), 5.51 (s, 2H) ppm. 13C-NMR (DMSO-d6, 151 MHz) δ 152.50, 152.43, 150.92, 150.85, 147.12, 144.28, 139.04, 128.09, 126.47, 126.36, 126.25, 120.52, 119.40, 116.93, 116.87, 116.81, 108.82, 108.72, 108.65, 108.61 ppm.

3.1.11. General Procedure of Synthesis of [(2,3,4,6-Tetra-O-Benzoyl-β-D-Glucopyranosyl)amino] Amide Derivatives (15a–o)

Appropriate [(2,3,4,6-tetra-O-benzoyl-β-D-glucopyranosyl)amino] acid derivatives 5/6 (1.0 mmol) and EDCI (0.29 g, 1.5 mmol) were dissolved in anhydrous Py (25 mL) and stirred for 1 h. Then, the appropriate 14 (1.0 mmol) was added. The mixture was stirred at room temperature for 8 h. After the reaction completed (monitored by TLC), the mixture was diluted with EtOAc (40 mL) and washed with H2O (3 × 20 mL) and brine (50 mL) before being dried over Na2SO4. After the filtration and evaporation of EtOAc, the crude intermediates 15a–o were used without further purification.

3.1.12. General Procedure of Synthesis of β-D-Glucopyranosyl)amino] Amide Derivatives (16a–o)

The crude intermediates 15a–o obtained in the previous step were dissolved in MeOH (15 mL), and a newly prepared solution of NaOMe in MeOH (1.0 mol/L, 1 mL) was added. The solution was stirred at room temperature for 2.5 h and then neutralised with 6 N HCl solution to pH 7. After evaporation of MeOH, the residue was purified chromatographically (DCM:MeOH = 8:1) to provide compounds 16a–o.
N1-(4-(1-(4-sulfamoylphenyl)-1H-1,2,3-triazol-4-yl)phenyl)-N4-((2R,3R,4S,5S,6R)-3,4,5-trihydroxy-6-(hydroxymethyl)tetrahydro-2H-pyran-2-yl)succinamide (16a): 1H-NMR (600 MHz, DMSO-d6) δ 10.16 (s, 1H), 9.33 (s, 1H), 8.51 (d, J = 9.0 Hz, 1H), 8.17 (d, J = 8.7 Hz, 2H), 8.06 (d, J = 8.7 Hz, 2H), 7.88 (d, J = 8.6 Hz, 2H), 7.73 (d, J = 8.6 Hz, 2H), 7.54 (s, 2H), 5.10–4.90 (m, 2H), 4.71 (t, J = 9.0 Hz, 1H), 4.53 (s, 1H), 3.64 (d, J = 10.7 Hz, 1H), 3.45–3.40 (m, 1H), 3.18 (dd, J = 11.5, 5.5 Hz, 1H), 3.12–3.01 (m, 3H), 2.63–2.56 (m, 2H), 2.47 (dd, J = 15.9, 7.7 Hz, 1H); 13C-NMR (151 MHz, DMSO-d6) δ 171.08, 170.03, 146.90, 143.14, 138.92, 138.03, 126.94, 125.25, 123.89, 119.50, 118.63, 118.48, 78.97, 77.93, 76.88, 71.86, 69.32, 60.25, 30.68, 29.62; HRMS (ESI): Calcd. for [M-H]− C24H27N6O9S−: 575.1638, Found 575.1631.
N1-(3-(1-(4-sulfamoylphenyl)-1H-1,2,3-triazol-4-yl)phenyl)-N4-((2R,3R,4S,5S,6R)-3,4,5-trihydroxy-6-(hydroxymethyl)tetrahydro-2H-pyran-2-yl)succinamide (16b): 1H-NMR (400 MHz, DMSO-d6) δ 10.14 (s, 1H), 9.37 (s, 1H), 8.49 (d, J = 8.9 Hz, 1H), 8.32 (s, 1H), 8.21 (d, J = 8.7 Hz, 2H), 8.05 (d, J = 8.7 Hz, 2H), 7.56 (dd, J = 11.0, 9.7 Hz, 4H), 7.42 (t, J = 7.9 Hz, 1H), 4.95 (d, J = 22.5 Hz, 3H), 4.72 (t, J = 9.0 Hz, 1H), 4.50 (s, 1H), 3.64 (d, J = 11.5 Hz, 1H), 3.42 (d, J = 10.3 Hz, 1H), 3.24–3.13 (m, 1H), 3.07 (q, J = 9.4 Hz, 3H), 2.67–2.55 (m, 2H); 13C-NMR (101 MHz, DMSO-d6) δ 172.45, 171.19, 148.08, 144.10, 140.18, 139.10, 130.75, 129.97, 128.06, 120.79, 120.26, 119.55, 116.35, 79.89, 78.81, 77.64, 72.72, 70.25, 61.23, 31.57, 30.61; HRMS (ESI): Calcd. for [M-H]− C24H27N6O9S−: 575.1638, Found 575.1629.
N1-(2-fluoro-4-(1-(4-sulfamoylphenyl)-1H-1,2,3-triazol-4-yl)phenyl)-N4-((2R,3R,4S,5S,6R)-3,4,5-trihydroxy-6-(hydroxymethyl)tetrahydro-2H-pyran-2-yl)succinamide (16c): 1H-NMR (600 MHz, DMSO-d6) δ 9.93 (s, 1H), 9.44 (s, 1H), 8.54 (d, J = 8.9 Hz, 1H), 8.16 (d, J = 8.6 Hz, 2H), 8.07 (d, J = 8.6 Hz, 3H), 7.79 (d, J = 11.8 Hz, 1H), 7.74 (d, J = 8.4 Hz, 1H), 7.56 (s, 2H), 5.07 (s, 2H), 4.98 (s, 1H), 4.71 (t, J = 9.0 Hz, 1H), 4.54 (s, 1H), 3.63 (d, J = 11.2 Hz, 1H), 3.42 (d, J = 10.8 Hz, 1H), 3.18 (t, J = 8.5 Hz, 1H), 3.13–3.01 (m, 3H), 2.72–2.58 (m, 2H), 2.49–2.40 (m, 2H); 13C-NMR (151 MHz, DMSO-d6) δ 171.59, 170.98, 146.31, 143.82, 138.42, 127.49, 121.10, 120.09, 119.96, 79.52, 78.44, 77.36, 72.32, 69.81, 60.75, 30.78, 30.14; HRMS (ESI): Calcd. for [M-H]− C24H26FN6O9S−: 593.1544, Found 593.1541.
N1-(2-chloro-4-(1-(4-sulfamoylphenyl)-1H-1,2,3-triazol-4-yl)phenyl)-N4-((2R,3R,4S,5S,6R)-3,4,5-trihydroxy-6-(hydroxymethyl)tetrahydro-2H-pyran-2-yl)succinamide (16d): 1H-NMR (600 MHz, DMSO-d6) δ 12.29 (s, 1H), 9.26 (s, 1H), 8.36 (d, J = 9.1 Hz, 1H), 8.15 (dd, J = 24.2, 8.8 Hz, 4H), 7.77 (d, J = 1.8 Hz, 1H), 7.62 (dd, J = 8.3, 1.8 Hz, 1H), 6.90 (d, J = 8.4 Hz, 1H), 5.64 (s, 2H), 4.95 (d, J = 4.3 Hz, 1H), 4.84 (dd, J = 19.3, 5.1 Hz, 2H), 4.65 (t, J = 9.1 Hz, 1H), 4.49 (t, J = 5.6 Hz, 1H), 3.60 (dd, J = 11.7, 4.0 Hz, 1H), 3.42–3.36 (m, 1H), 3.14 (td, J = 8.7, 4.0 Hz, 1H), 3.08–2.96 (m, 3H), 2.47–2.39 (m, 2H), 2.37–2.23 (m, 2H); 13C-NMR (151 MHz, DMSO-d6) δ 171.75, 171.63, 147.82, 145.36, 140.26, 139.39, 130.03, 126.55, 125.57, 120.45, 119.12, 118.60, 117.73, 116.03, 79.93, 78.86, 77.68, 72.79, 70.18, 61.12, 30.89, 29.50; HRMS (ESI): Calcd. for [M-H]− C24H26ClN6O9S−: 609.1249, Found 609.1242.
N1-(2-methyl-4-(1-(4-sulfamoylphenyl)-1H-1,2,3-triazol-4-yl)phenyl)-N4-((2R,3R,4S,5S,6R)-3,4,5-trihydroxy-6-(hydroxymethyl)tetrahydro-2H-pyran-2-yl)succinamide (16e): 1H-NMR (600 MHz, DMSO-d6) δ 9.39 (d, J = 18.3 Hz, 2H), 8.51 (d, J = 9.0 Hz, 1H), 8.18 (d, J = 8.7 Hz, 2H), 8.06 (d, J = 8.7 Hz, 2H), 7.80 (s, 1H), 7.73 (d, J = 9.3 Hz, 1H), 7.61 (d, J = 8.2 Hz, 1H), 7.55 (s, 3H), 4.74 (s, 1H), 3.64 (d, J = 10.6 Hz, 1H), 3.42 (dd, J = 11.8, 5.2 Hz, 2H), 3.19 (t, J = 8.7 Hz, 1H), 3.14–2.99 (m, 3H), 2.67–2.57 (m, 2H), 2.30 (s, 4H); 13C-NMR (151 MHz, DMSO-d6) δ 171.19, 169.99, 146.86, 143.16, 138.03, 136.12, 131.03, 126.96, 126.60, 125.65, 124.37, 122.43, 119.50, 118.80, 79.00, 77.95, 76.88, 71.88, 69.35, 60.29, 30.33, 30.01, 17.42; HRMS (ESI): Calcd. for [M-H]− C25H29N6O9S−: 589.1795, Found 589.1787.
N1-(2-methoxy-4-(1-(4-sulfamoylphenyl)-1H-1,2,3-triazol-4-yl)phenyl)-N4-((2R,3R,4S,5S,6R)-3,4,5-trihydroxy-6-(hydroxymethyl)tetrahydro-2H-pyran-2-yl)succinamide (16f): 1H-NMR (600 MHz, DMSO-d6) δ 9.41 (s, 1H), 9.29 (s, 1H), 8.59 (d, J = 8.8 Hz, 1H), 8.17 (d, J = 8.6 Hz, 2H), 8.14 (d, J = 8.2 Hz, 1H), 8.07 (d, J = 8.6 Hz, 2H), 7.60 (s, 1H), 7.56 (s, 2H), 7.50 (d, J = 9.5 Hz, 1H), 5.18 (s, 2H), 5.04 (s, 1H), 4.70 (t, J = 9.0 Hz, 1H), 4.56 (s, 1H), 3.95 (s, 3H), 3.63 (d, J = 11.0 Hz, 1H), 3.42 (d, J = 11.5 Hz, 1H), 3.18 (t, J = 8.4 Hz, 1H), 3.10–3.01 (m, 3H), 2.66 (dd, J = 25.0, 17.2 Hz, 2H), 2.46 (dd, J = 16.1, 8.2 Hz, 2H); 13C-NMR (151 MHz, DMSO-d6) δ 172.29, 171.31, 150.01, 148.08, 144.29, 139.09, 128.26, 128.06, 126.06, 122.13, 120.55, 119.94, 117.87, 108.44, 80.14, 79.03, 77.93, 72.87, 70.40, 61.34, 56.31, 31.76, 30.94; HRMS (ESI): Calcd. for [M-H]− C25H29N6O10S−: 605.1744, Found 605.1740.
N1-(2,6-difluoro-4-(1-(4-sulfamoylphenyl)-1H-1,2,3-triazol-4-yl)phenyl)-N4-((2R,3R,4S,5S,6R)-3,4,5-trihydroxy-6-(hydroxymethyl)tetrahydro-2H-pyran-2-yl)succinamide (16g): 1H-NMR (600 MHz, DMSO-d6) δ 9.25 (d, J = 43.4 Hz), 8.39–8.17 (m), 8.02 (ddd, J = 36.2, 32.2, 8.6 Hz), 7.54 (s), 7.48 (d, J = 7.4 Hz), 5.49 (d, J = 17.4 Hz), 4.96 (s), 4.85 (s), 4.67 (t, J = 9.0 Hz), 4.52 (s), 3.67–3.56 (m), 3.43–3.37 (m), 3.16 (dd, J = 17.5, 8.7 Hz), 3.05 (dd, J = 16.8, 7.4 Hz), 2.45–2.17 (m); 13C-NMR (151 MHz, DMSO-d6) δ 172.96, 171.87, 152.50, 152.43, 150.92, 150.86, 147.11, 146.91, 144.27, 139.03, 137.88, 129.15, 128.09, 126.47, 126.36, 126.28, 126.21, 126.10, 120.52, 119.55, 119.40, 119.33, 117.11, 116.87, 116.80, 108.76, 108.72, 108.68, 108.65, 108.61, 108.57, 80.01, 78.99, 77.97, 72.99, 70.40, 61.31, 30.56, 29.29; HRMS (ESI): Calcd. for [M-H]− C24H25F2N6O9S−: 611.1450, Found 611.1443.
N1-(4-(1-(4-sulfamoylphenyl)-1H-1,2,3-triazol-4-yl)phenyl)-N5-((2R,3R,4S,5S,6R)-3,4,5-trihydroxy-6-(hydroxymethyl)tetrahydro-2H-pyran-2-yl)glutaramide (16h): 1H-NMR (600 MHz, DMSO-d6) δ 10.13 (s), 9.36 (s), 8.18 (d, J = 8.2 Hz), 8.06 (d, J = 8.3 Hz), 7.88 (d, J = 7.9 Hz), 7.75 (d, J = 7.6 Hz), 7.55 (s), 5.01 (s), 4.90 (dd, J = 12.8, 4.3 Hz), 4.72 (t, J = 8.5 Hz), 4.51 (s), 3.64 (dd, J = 10.6, 4.3 Hz), 3.42 (d, J = 6.1 Hz), 3.18 (s), 3.07 (dd, J = 9.7, 4.7 Hz), 3.03–2.93 (m), 2.64–2.53 (m), 2.41–2.33 (m), 2.20 (ddd, J = 27.9, 14.0, 6.9 Hz), 1.89–1.78 (m);13C-NMR (151 MHz, DMSO-d6) δ 172.62, 171.57, 147.99, 144.23, 139.98, 139.11, 128.04, 126.32, 125.05, 120.59, 119.84, 119.58, 79.95, 79.02, 78.00, 77.91, 72.93, 70.46, 61.41, 36.23, 35.05, 21.23; HRMS (ESI): Calcd. for [M-H]− C25H29N6O9S−: 589.1795, Found 589.1788.
N1-(3-(1-(4-sulfamoylphenyl)-1H-1,2,3-triazol-4-yl)phenyl)-N5-((2R,3R,4S,5S,6R)-3,4,5-trihydroxy-6-(hydroxymethyl)tetrahydro-2H-pyran-2-yl)glutaramide (16i): 1H-NMR (400 MHz, DMSO-d6) δ 10.06 (s, 1H), 9.38 (s, 1H), 8.41–8.27 (m, 2H), 8.21 (d, J = 8.5 Hz, 2H), 8.06 (d, J = 8.5 Hz, 2H), 7.59 (t, J = 7.4 Hz, 2H), 7.53 (s, 2H), 7.43 (t, J = 7.8 Hz, 1H), 4.98 (s, 1H), 4.88 (s, 2H), 4.73 (t, J = 9.0 Hz, 1H), 4.48 (s, 1H), 3.64 (d, J = 8.6 Hz, 1H), 3.48–3.37 (m, 1H), 3.49–3.38 (m, 1H), 3.19 (t, J = 8.4 Hz, 1H), 3.13–2.96 (m, 3H), 2.38 (t, J = 7.1 Hz, 2H), 2.31–2.05 (m, 2H), 1.96–1.75 (m, 2H); 13C-NMR (101 MHz, DMSO-d6) δ 172.63, 171.60, 148.08, 144.30, 140.43, 139.10, 130.84, 129.88, 128.00, 120.76, 120.70, 120.29, 119.61, 116.47, 79.96, 79.02, 78.02, 72.97, 70.50, 61.44, 36.21, 35.08, 21.26; HRMS (ESI): Calcd. for [M-H]− C25H29N6O9S−: 589.1795, Found 589.1792.
N1-(2-fluoro-4-(1-(4-sulfamoylphenyl)-1H-1,2,3-triazol-4-yl)phenyl)-N5-((2R,3R,4S,5S,6R)-3,4,5-trihydroxy-6-(hydroxymethyl)tetrahydro-2H-pyran-2-yl)glutaramide (16j): 1H-NMR (600 MHz, DMSO-d6) δ 10.13 (s), 9.36 (s), 8.18 (d, J = 8.2 Hz), 8.06 (d, J = 8.3 Hz), 7.88 (d, J = 7.9 Hz), 7.75 (d, J = 7.6 Hz), 7.55 (s), 5.01 (s), 4.90 (dd, J = 12.8, 4.3 Hz), 4.72 (t, J = 8.5 Hz), 4.51 (s), 3.64 (dd, J = 10.6, 4.3 Hz), 3.42 (d, J = 6.1 Hz), 3.18 (s), 3.07 (dd, J = 9.7, 4.7 Hz), 3.03–2.93 (m), 2.64–2.53 (m), 2.41–2.33 (m), 2.20 (ddd, J = 27.9, 14.0, 6.9 Hz), 1.89–1.78 (m); 13C-NMR (151 MHz, DMSO-d6) δ 172.73, 171.93, 154.87, 153.25, 146.89, 144.27, 139.03, 128.12, 127.29, 126.67, 126.59, 124.95, 121.72, 120.73, 120.53, 112.79, 112.65, 79.82, 78.91, 77.77, 72.74, 70.31, 61.28, 35.64, 35.01, 21.30; HRMS (ESI): Calcd. for [M-H]− C25H28FN6O9S−: 607.1701, Found 607.1695.
N1-(2-chloro-4-(1-(4-sulfamoylphenyl)-1H-1,2,3-triazol-4-yl)phenyl)-N5-((2R,3R,4S,5S,6R)-3,4,5-trihydroxy-6-(hydroxymethyl)tetrahydro-2H-pyran-2-yl)glutaramide (16k): 1H-NMR (400 MHz, DMSO-d6) δ 12.21 (s, 1H), 9.25 (s, 1H), 8.26 (d, J = 9.1 Hz, 1H), 8.16 (q, J = 8.9 Hz, 4H), 7.77 (d, J = 1.8 Hz, 1H), 7.62 (dd, J = 8.4, 1.8 Hz, 1H), 6.90 (d, J = 8.4 Hz, 1H), 5.62 (s, 2H), 4.92 (s, 1H), 4.81 (d, J = 15.1 Hz, 2H), 4.68 (t, J = 9.0 Hz, 1H), 4.44 (s, 1H), 3.62 (d, J = 11.3 Hz, 1H), 3.40 (dd, J = 11.5, 4.2 Hz, 1H), 3.21–3.12 (m, 1H), 3.05 (dt, J = 17.8, 9.2 Hz, 3H), 2.28 (t, J = 7.3 Hz, 2H), 2.19–1.88 (m, 2H), 1.64 (p, J = 7.3 Hz, 2H); 13C-NMR (101 MHz, DMSO-d6) δ 172.32, 172.05, 147.84, 145.47, 140.38, 139.25, 130.08, 126.57, 125.57, 120.47, 119.14, 118.63, 117.78, 116.08, 79.91, 78.99, 78.02, 72.94, 70.50, 61.43, 35.21, 34.54, 19.96; HRMS (ESI): Calcd. for [M-H]− C25H28ClN6O9S−: 623.1405, Found 623.1408.
N1-(2-methyl-4-(1-(4-sulfamoylphenyl)-1H-1,2,3-triazol-4-yl)phenyl)-N5-((2R,3R,4S,5S,6R)-3,4,5-trihydroxy-6-(hydroxymethyl)tetrahydro-2H-pyran-2-yl)glutaramide (16l): 1H-NMR (400 MHz, DMSO-d6) δ 9.31 (s), 8.17 (d, J = 8.7 Hz), 8.07 (d, J = 8.7 Hz), 7.81 (s), 7.74 (d, J = 9.6 Hz), 7.58 (d, J = 8.2 Hz), 4.74 (d, J = 9.0 Hz), 3.65 (d, J = 11.5 Hz), 3.42 (dd, J = 11.8, 5.5 Hz), 3.21 (t, J = 8.8 Hz), 3.14 (dd, J = 8.3, 6.6 Hz), 3.07 (dd, J = 19.1, 10.1 Hz), 2.41 (t, J = 7.0 Hz), 2.30 (s), 2.23 (dd, J = 12.3, 7.2 Hz), 1.92–1.80 (m); 13C-NMR (101 MHz, DMSO-d6) δ 172.67, 171.48, 147.93, 144.27, 139.12, 137.17, 132.42, 128.04, 127.69, 126.92, 125.80, 123.52, 120.59, 119.90, 79.99, 79.02, 78.03, 72.97, 70.52, 61.46, 35.74, 35.19, 21.57, 18.53; HRMS (ESI): Calcd. for [M-H]− C26H31N6O9S−: 603.1951, Found 603.1947.
N1-(2-methoxy-4-(1-(4-sulfamoylphenyl)-1H-1,2,3-triazol-4-yl)phenyl)-N5-((2R,3R,4S,5S,6R)-3,4,5-trihydroxy-6-(hydroxymethyl)tetrahydro-2H-pyran-2-yl)glutaramide (16m): 1H-NMR (600 MHz, DMSO-d6) δ 9.41 (s, 1H), 9.18 (s, 1H), 8.34 (d, J = 9.1 Hz, 1H), 8.21–8.15 (m, 2H), 8.13 (d, J = 8.2 Hz, 1H), 8.09–8.04 (m, 2H), 7.60 (d, J = 1.7 Hz, 1H), 7.55 (s, 2H), 7.51 (dd, J = 8.2, 1.7 Hz, 1H), 4.98 (d, J = 4.4 Hz, 1H), 4.88 (dd, J = 10.1, 5.4 Hz, 2H), 4.73 (t, J = 9.1 Hz, 1H), 4.50 (t, J = 5.8 Hz, 1H), 3.95 (s, 3H), 3.68–3.59 (m, 1H), 3.41 (dt, J = 11.5, 5.7 Hz, 1H), 3.18 (td, J = 8.7, 3.8 Hz, 1H), 3.12–3.01 (m, 3H), 2.44 (t, J = 7.1 Hz, 2H), 2.27–2.08 (m, 2H), 1.82 (p, J = 7.5 Hz, 2H); 13C-NMR (151 MHz, DMSO-d6) δ 172.68, 171.72, 150.20, 148.07, 144.27, 139.09, 128.14, 128.06, 126.22, 122.48, 120.56, 119.95, 117.86, 108.44, 79.95, 79.02, 78.02, 72.95, 70.48, 61.41, 56.31, 36.01, 35.14, 21.48; HRMS (ESI): Calcd. for [M-H]− C26H31N6O10S−: 619.1901, Found 619.1889.
N1-(2,6-difluoro-4-(1-(4-sulfamoylphenyl)-1H-1,2,3-triazol-4-yl)phenyl)-N5-((2R,3R,4S,5S,6R)-3,4,5-trihydroxy-6-(hydroxymethyl)tetrahydro-2H-pyran-2-yl)glutaramide (16n): 1H-NMR (600 MHz, DMSO-d6) δ 12.25 (s), 9.31 (s), 8.28 (d, J = 9.1 Hz), 8.21–8.03 (m), 7.49 (dd, J = 7.4, 2.1 Hz), 5.51 (s), 4.95 (d, J = 4.4 Hz), 4.86 (d, J = 5.2 Hz), 4.82 (d, J = 5.0 Hz), 4.68 (t, J = 9.1 Hz), 4.47 (t, J = 5.4 Hz), 3.62 (dd, J = 11.4, 3.2 Hz), 3.45–3.36 (m), 3.15 (td, J = 8.7, 4.1 Hz), 3.11–3.05 (m), 3.02 (td, J = 9.1, 5.1 Hz), 2.27 (t, J = 7.4 Hz), 2.16–1.97 (m), 1.63 (p, J = 7.4 Hz); 13C-NMR (101 MHz, DMSO-d6) δ 172.64, 172.21, 152.93, 152.83, 150.56, 150.46, 147.17, 140.19, 139.58, 130.06, 126.36, 126.19, 126.02, 120.62, 119.42, 116.99, 108.88, 108.80, 108.65, 79.78, 78.82, 77.70, 72.67, 70.33, 61.30, 35.26, 34.53, 20.04; HRMS (ESI): Calcd. for [M-H]− C25H27F2N6O9S−: 625.1607, Found 625.1601.
N1-(2-nitro-4-(1-(4-sulfamoylphenyl)-1H-1,2,3-triazol-4-yl)phenyl)-N5-((2R,3R,4S,5S,6R)-3,4,5-trihydroxy-6-(hydroxymethyl)tetrahydro-2H-pyran-2-yl)glutaramide (16o): 1H-NMR (400 MHz, DMSO-d6) δ 12.32 (s, 1H), 9.38 (s, 1H), 8.55 (d, J = 1.7 Hz, 1H), 8.24 (d, J = 9.0 Hz, 1H), 8.08 (q, J = 8.6 Hz, 4H), 7.98 (dd, J = 8.8, 1.7 Hz, 1H), 7.64 (s, 2H), 7.17 (d, J = 8.8 Hz, 1H), 4.92 (d, J = 3.1 Hz, 1H), 4.83 (d, J = 3.8 Hz, 2H), 4.68 (t, J = 9.0 Hz, 1H), 4.46 (s, 1H), 3.62 (d, J = 11.4 Hz, 1H), 3.39 (dd, J = 12.2, 3.5 Hz, 2H), 3.15 (d, J = 12.8 Hz, 2H), 3.10–2.93 (m, 4H), 2.16 (s, 2H), 2.06 (dd, J = 13.1, 7.1 Hz, 2H), 1.70–1.51 (m, 2H); 13C-NMR (101 MHz, DMSO-d6) δ 172.44, 146.29, 145.75, 141.75, 138.69, 132.89, 130.13, 129.09, 121.66, 119.91, 119.66, 118.83, 117.50, 79.24, 78.25, 77.14, 72.09, 69.74, 60.72, 36.07, 34.37, 20.29; HRMS (ESI): Calcd. for [M-H]− C25H28N7O11S−: 634.1646, Found 634.1639.

3.2. CA Inhibition Assay

Carbonic anhydrase has the ability to catalyse the hydrolysis of 4-NPA. According to the previously reported method, the Perkin Elmer Envision 2104 plate reader was used to monitor the hydrolysis rate spectrophotometrically at 405 nm [29,30]. The inhibitory activities of these compounds were investigated with the inhibitor AZM as standard. More detailed operations and specific parameters are as reported earlier [30].

3.3. CCK-8 Assay In Vitro

Cell viability was tested by CCK-8 assay. The MDA-MB-231, HT-29 and MG-63 cell lines were provided by KeyGEN BioTECH Ltd. (Nanjing, Jiangsu, China). The cancer cell suspension was prepared to 5.0 × 104 cells/mL. After adding 100 μL cell suspension into each well of 96-well plates, the 96-well plates were placed in the incubator at 37 °C and 5% CO2 for 24 h. The compounds were diluted to the required concentration with the medium, and 100 μL of the corresponding medium was added to each well. Meanwhile, the negative control group was set up. The plates were incubated in normoxia or hypoxia for 48 h. The CCK-8 solution (10 μL) was added to each well, and the cells were incubated for another 3 h. After removing the bubbles in each well, cell viability was assessed by measuring the absorbance at 450 nm wavelength using a microplate reader. The hypoxia atmosphere consisted of 0.5% O2, 5% CO2, and 94.5% N2. The normoxia atmosphere was air.

3.4. Measurement of Extracellular pH

The changes in extracellular pH were evaluated according to previously published procedures [31]. Cancer cells were grown in the medium containing 10% FBS and incubated in 6-well plates for 12 h. After removing the medium, we added fresh medium to the 6-well plates and incubated them for 48 h under hypoxia or normoxia. Then, we measured the pH of the culture medium immediately after collection. The tested compounds were dissolved in DMSO and diluted to the desired concentration. After the addition of tested compounds, the same procedure was carried out.

3.5. Cell Migration Assay

MDA-MB-231 cells (1 × 105 cells/well) were cultured in 6-well plates and wounded by scratching with a pipette tip. The wounded cell monolayers were washed three times with PBS and incubated with serum-free medium. Then, cells were treated with AZM and 16a respectively followed by a 72 h incubation under hypoxic condition, and they were photographed at 0, 24, 48, and 72 h with an inverted microscope.

3.6. Molecular Docking Studies

The CA IX crystal structure (PDB code: 5FL4) was downloaded from the protein data bank (https://www.rcsb.org/, accessed on 9 November 2021) and prepared with the Protein Preparation Wizard in the Schrödinger suite. The preparation of protein structure included adding bond orders, adding hydrogen atoms, deleting water molecules, and producing appropriate protonation states. The protonation and tautomeric states of Asp, Lys, and His were assigned at pH 7.4 state. The co-crystal ligand of 5FL4 was separated from the crystal structure. The selected inhibitors were prepared by using LigPrep from the Schrödinger suite with the OPLS_2005 force field. The structure of the inhibitor has also been modified by adding all hydrogen atoms, checking the bond sequence and atom type.
Receptor grids were generated before docking with the activity site determined by the literature. The prepared protein–ligand complex was imported into Glide 9.7, which defined it as the receptor structure with a size box (20 Å × 20 Å × 20 Å) [32,33]. The grid of the CA IX crystal structure was generated based on the OPLS_2005 force field. The standard precision (SP) mode was set for docking studies [34].
The standard descriptors protocol in the DS (version 3.0, Accelrys Inc., San Diego, CA, USA) was used to assess the ADME/T profile of the selected compounds. With the help of the ADME/T module, various parameters including TPSA are used to predict the ADME/T characteristics of specified compounds [35].

4. Conclusions

In this work, 15 novel saccharide-modified carbonic anhydrase inhibitors, 16a–o, were designed and synthesised via the “tail approach”. Saccharide-modified compounds 16a–o and key intermediates 14a–h were evaluated for their enzymatic activity against tumour-associated isoforms CA IX and XII and the common off-target isoform CA II. The results showed that all the saccharide-modified compounds had inhibitory activity against hCA II, IX, and XII, with IC50 values ranging from 13.3 to 177.2 nM, 51.6 to 543.9.6 nM, and 135.3 to 255.9 nM, respectively. Afterwards, the series of compounds were tested at the cellular level to investigate their effects on the cell viabilities of the MDA-MB-231, HT-29, and MG-63 cell lines. Compounds 16a, 16b, and 16e could reduce cell viability at high concentrations, and this effect was particularly obvious under hypoxic conditions. Moreover, we found that compounds 16a and 16b could significantly increase the extracellular pH of tumour cells and transform the microenvironment from acidic to alkaline. In addition, in the cell migration experiment, 16a exhibited a more apparent antimigration effect than the positive control AZM, and we predicted the pharmacokinetic properties of the synthesised compounds using the SwissADME website to find compounds that may have good pharmacokinetic properties (detailed results are provided in the Tables S7–S13 of supplementary information) [36]. Based on the above test results, we believe that modification of the glycosyl tail of targeted CA IX inhibitors is an effective strategy worthy of further study.

Supplementary Materials

The supplementary materials are available online https://www.mdpi.com/article/10.3390/ijms222413610/s1.

Author Contributions

M.C. and Y.L. supervised the whole experiment and provided technical guidance. Z.Z. and H.Y. designed and synthesized all of the novel compounds. Y.W. and Y.Z. assisted in the synthetic and biology research. J.W. supervised and carried out molecular modelling experiments. Data and Software Availability: For this study, SwissADME (available at http://www.swissadme.ch/, accessed on 1 December 2021) and Schrödinger Release 2020–1 (available at https://www.schrodinger.com/, accessed on 1 December 2021) were used. All authors have read and agreed to the published version of the manuscript.

Funding

This research was funded by the National Natural Science Foundation of China, grant number 81473087, 81872752.

Institutional Review Board Statement

Not applicable.

Informed Consent Statement

Not applicable.

Conflicts of Interest

The authors declare no conflict of interest.

References

  1. Supuran, C.T. Carbonic anhydrase inhibition and the management of hypoxic tumours. Metabolites 2017, 7, 48. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  2. Hanahan, D.; Weinberg, R.A. Hallmarks of cancer: The next generation. Cell 2011, 144, 646–674. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  3. Pouysségur, J.; Dayan, F.; Mazure, N.M. Hypoxia signalling in cancer and approaches to enforce tumour regression. Nature 2006, 441, 437–443. [Google Scholar] [CrossRef]
  4. Neri, D.; Supuran, C.T. Interfering with pH regulation in tumours as a therapeutic strategy. Nat. Rev. Drug Discov. 2011, 10, 767–777. [Google Scholar] [CrossRef] [Green Version]
  5. Nocentini, A.; Supuran, C.T. Carbonic anhydrase inhibitors as antitumour/antimetastatic agents: A patent review (2008–2018). Expert Opin. Ther. Pat. 2018, 28, 729–740. [Google Scholar] [CrossRef]
  6. Supuran, C.T. Carbonic anhydrases: Novel therapeutic applications for inhibitors and activators. Nat. Rev. Drug Discov. 2008, 7, 168–181. [Google Scholar] [CrossRef] [PubMed]
  7. Mboge, M.Y.; McKenna, R.; Frost, S.C. Advances in anti-cancer drug development targeting carbonic anhydrase IX and XII. Top. Anticancer. Res. 2015, 5, 3. [Google Scholar]
  8. Said, M.A.; Eldehna, W.M.; Nocentini, A.; Bonardi, A.; Fahim, S.H.; Bua, S.; Soliman, D.H.; Abdel-Aziz, H.A.; Gratteri, P.; Abou-Seri, S.M.; et al. Synthesis, biological and molecular dynamics investigations with a series of triazolopyrimidine/triazole-based benzenesulfonamides as novel carbonic anhydrase inhibitors. Eur. J. Med. Chem. 2020, 185, 111843. [Google Scholar] [CrossRef]
  9. Cadoni, R.; Pala, N.; Lomelino, C.; Mahon, B.P.; McKenna, R.; Dallocchio, R.; Dessì, A.; Carcelli, M.; Rogolino, D.; Sanna, V.; et al. Exploring heteroaryl-pyrazole carboxylic acids as human carbonic anhydrase XII inhibitors. ACS Med. Chem. Lett. 2017, 8, 941–946. [Google Scholar] [CrossRef] [PubMed]
  10. Abdelrahman, M.A.; Ibrahim, H.S.; Nocentini, A.; Eldehna, W.M.; Bonardi, A.; Abdel-Aziz, H.A.; Gratteri, P.; Abou-Seri, S.M.; Supuran, C.T. Novel 3-substituted coumarins as selective human carbonic anhydrase IX and XII inhibitors: Synthesis, biological and molecular dynamics analysis. Eur. J. Med. Chem. 2021, 209, 112897. [Google Scholar] [CrossRef]
  11. Akocak, S.; Güzel-Akdemir, Ö.; Sanku, R.K.K.; Russom, S.S.; Iorga, B.I.; Supuran, C.T.; Ilies, M.A. Pyridinium derivatives of 3-aminobenzenesulfonamide are nanomolarpotent inhibitors of tumour-expressed carbonic anhydrase isozymes CA IX and CA XII. Bioorg. Chem. 2020, 103, 104204. [Google Scholar] [CrossRef]
  12. Parks, S.K.; Chiche, J.; Pouyssegur, J. pH control mechanisms of tumour survival and growth. J. Cell. Physiol. 2011, 226, 299–308. [Google Scholar] [CrossRef]
  13. Shabana, A.M.; Ilies, M.A. Targeted Nanosystems for Therapeutic Applications: New Concepts, Dynamic Properties, Efficiency, and Toxicity: Drug Delivery to Hypoxic Tumours Targeting Carbonic Anhydrase IX; American Chemical Society: Washington, DC, USA, 2019. [Google Scholar]
  14. A Study of SLC-0111 and Gemcitabine for Metastatic Pancreatic Ductal Cancer in Subjects Positive for CA IX. Available online: https://clinicaltrials.gov/ct2/show/NCT03450018 (accessed on 14 December 2021).
  15. Supuran, C.T. Carbonic anhydrase inhibitors and activators for novel therapeutic applications. Future Med. Chem. 2011, 3, 1165–1180. [Google Scholar] [CrossRef]
  16. Supuran, C.T. How many carbonic anhydrase inhibition mechanisms exist? J. Enzyme Inhib. Med. Chem. 2016, 31, 345–360. [Google Scholar] [CrossRef]
  17. Lomelino, C.L.; Andring, J.T.; McKenna, R. Crystallography and its impact on carbonic anhydrase research. Int. J. Med. Chem. 2018, 2018, 9419521. [Google Scholar] [CrossRef] [Green Version]
  18. Alterio, V.; Di Fiore, A.; D’Ambrosio, K.; Supuran, C.T.; De Simone, G. Multiple binding modes of inhibitors to carbonic anhydrases: How to design specific drugs targeting 15 different isoforms? Chem. Rev. 2012, 112, 4421–4468. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  19. Bonardi, A.; Nocentini, A.; Bua, S.; Combs, J.; Lomelino, C.; Andring, J.; Lucarini, L.; Sgambellone, S.; Masini, E.; McKenna, R.; et al. Sulfonamide inhibitors of human carbonic anhydrases designed through a three-tails approach: Improving ligand/isoform matching and selectivity of action. J. Med. Chem. 2020, 63, 7422–7444. [Google Scholar] [CrossRef]
  20. Tanpure, R.P.; Ren, B.; Peat, T.S.; Bornaghi, L.F.; Vullo, D.; Supuran, C.T.; Poulsen, S.A. Carbonic anhydrase inhibitors with dual-tail moieties to match the hydrophobic and hydrophilic halves of the carbonic anhydrase active site. J. Med. Chem. 2015, 58, 1494–1501. [Google Scholar] [CrossRef]
  21. Mahon, P.B.; Pinard, A.M.; McKenna, R. Targeting carbonic anhydrase IX activity and expression. Molecules 2015, 20, 2323–2348. [Google Scholar] [CrossRef] [Green Version]
  22. Zhang, L.K.; Xing, L.B.; Chen, B.; Yang, Q.Z.; Tong, Q.X.; Wu, L.Z.; Tung, C.H. A highly selective and sensitive luminescent chemosensor for Zn2+ ions based on cyclometalated platinum(ii) complexes. Dalton Trans. 2013, 42, 4244–4247. [Google Scholar] [CrossRef]
  23. Salmon, A.J.; Williams, M.L.; Wu, Q.K.; Morizzi, J.; Gregg, D.; Charman, S.A.; Vullo, D.; Supuran, C.T.; Poulsen, S.A. Metallocene-Based Inhibitors of Cancer-Associated Carbonic Anhydrase Enzymes IX and XII. J. Med. Chem. 2012, 55, 5506–5517. [Google Scholar] [CrossRef] [Green Version]
  24. Nocentini, A.; Lucidi, A.; Perut, F.; Massa, A.; Tomaselli, D.; Gratteri, P.; Baldini, N.; Rotili, D.; Mai, A.; Supuran, C.T. α,γ-Diketocarboxylic acids and their esters act as carbonic anhydrase IX and XII selective inhibitors. ACS Med. Chem. Lett. 2019, 10, 661–665. [Google Scholar] [CrossRef]
  25. Kumar, D.; Mishra, K.B.; Mishra, B.B.; Mondal, S.; Tiwari, V.K. Click chemistry inspired highly facile synthesis of triazolyl ethisterone glycoconjugates. Steroids 2014, 80, 71–79. [Google Scholar] [CrossRef] [PubMed]
  26. Nocentini, A.; Carta, F.; Ceruso, M.; Bartolucci, G.; Supuran, C.T. Click-tailed coumarins with potent and selective inhibitory action against the tumour-associated carbonic anhydrases IX and XII. Bioorg. Med. Chem. 2015, 23, 6955–6966. [Google Scholar] [CrossRef]
  27. Li, F.R.; Fan, Z.F.; Qi, S.J.; Wang, Y.S.; Wang, J.; Liu, Y.; Cheng, M.S. Design, synthesis, molecular docking analysis, and carbonic anhydrase IX inhibitory evaluations of novel N-Substituted-β-d-glucosamine derivatives that incorporate benzenesulfonamides. Molecules 2017, 22, 785. [Google Scholar] [CrossRef] [Green Version]
  28. Ko, U.; Tatsunori, Y.; Akihiro, Y.; Hirotoshi, M.; Hyuma, M.; Isao, A.; Hiroyuki, K.; Tsutomu, Y.; Aya, T. Development of Helical Aromatic Amide Foldamers with a Diphenylacetylene Backbone. J. Org. Chem. 2020, 85, 2019–2039. [Google Scholar]
  29. Verpoorte, J.A.; Mehta, S.; Edsall, J.T. Esterase activities of human carbonic anhydrases B and C. J. Boil. Chem. 1967, 242, 4221–4229. [Google Scholar] [CrossRef]
  30. Zhang, Z.P.; Yin, Z.F.; Li, J.Y.; Wang, Z.P.; Wu, Q.J.; Wang, J.; Liu, Y.; Cheng, M.S. Synthesis, molecular docking analysis, and carbonic anhydrase inhibitory evaluations of benzenesulfonamide derivatives containing thiazolidinone. Molecules 2019, 24, 2418. [Google Scholar] [CrossRef] [Green Version]
  31. Hou, Z.; Lin, B.; Bao, Y.; Yan, H.N.; Zhang, M.; Chang, X.W.; Zhang, X.X.; Wang, Z.J.; Wei, G.F.; Cheng, M.S.; et al. Dual-tail approach to discovery of novel carbonic anhydrase IX inhibitors by simultaneously matching the hydrophobic and hydrophilic halves of the active site. Eur. J. Med. Chem. 2017, 132, 1–10. [Google Scholar] [CrossRef] [PubMed]
  32. Alberto, O.; Erika, O.; Maurizio, M.; Giovanni, R.; Alessandra, G. Insight into the LFA-1/SARS-CoV-2 Orf7a Complex by Protein–Protein Docking, Molecular Dynamics, and MM-GBSA Calculations. J. Chem. Inf. Model. 2021, 61, 2780–2787. [Google Scholar]
  33. Schrödinger Release 2020-1: Maestro; Schrödinger, LLC: New York, NY, USA, 2020.
  34. Friesner, R.A.; Murphy, R.B.; Repasky, M.P.; Frye, L.L.; Greenwood, J.R.; Halgren, T.A.; Sanschagrin, P.C.; Mainz, D.T. Extra Precision Glide: Docking and Scoring Incorporating a Model of Hydrophobic Enclosure for Protein-Ligand Complexes. J. Med. Chem. 2006, 49, 6177–6196. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  35. Discovery Studio User Manual; Accelrys Inc.: San Diego, CA, USA, 2008.
  36. Antoine, D.; Olivier, M.; Vincent, Z. SwissADME: A free web tool to evaluate pharmacokinetics, drug-likeness and medicinal chemistry friendliness of small molecules. Sci. Rep. 2017, 7, 42717. [Google Scholar]
Ijms 22 13610 sch001 550
Scheme 1. Synthesis of target compounds. Reagents and conditions: (i) BzCl, DMAP, Py, r.t.; (ii) HBr-HOAc, DCM, 0 °C-r.t.; (iii) NaN3, DMF, 50 °C; (iv) Pd/C, H2, succinic anhydride/glutaric anhydride, r.t.; (v) NaNO2, HCl, H2O, 0 °C; (vi) NaN3, H2O, 0 °C-r.t.; (vii) Ac2O, EtOAc, r.t.; (viii) Trimethylsilylacetylene, CuI, Pd(PPh3)2Cl2, TEA, DMF, Ar, 80 °C; (ix) TBAF, THF, r.t.; (x) CuSO4, sodium ascorbate, t-BuOH-H2O, 60 °C; (xi) NaOH, H2O, reflux; (xii) Trimethylsilylacetylene, Pd(PPh3)2Cl2, CuI, DIEA, THF, Ar, r.t.; (xiii) EDCI, Py, r.t.; (xiv) MeONa, MeOH, r.t.
Scheme 1. Synthesis of target compounds. Reagents and conditions: (i) BzCl, DMAP, Py, r.t.; (ii) HBr-HOAc, DCM, 0 °C-r.t.; (iii) NaN3, DMF, 50 °C; (iv) Pd/C, H2, succinic anhydride/glutaric anhydride, r.t.; (v) NaNO2, HCl, H2O, 0 °C; (vi) NaN3, H2O, 0 °C-r.t.; (vii) Ac2O, EtOAc, r.t.; (viii) Trimethylsilylacetylene, CuI, Pd(PPh3)2Cl2, TEA, DMF, Ar, 80 °C; (ix) TBAF, THF, r.t.; (x) CuSO4, sodium ascorbate, t-BuOH-H2O, 60 °C; (xi) NaOH, H2O, reflux; (xii) Trimethylsilylacetylene, Pd(PPh3)2Cl2, CuI, DIEA, THF, Ar, r.t.; (xiii) EDCI, Py, r.t.; (xiv) MeONa, MeOH, r.t.
Ijms 22 13610 sch001
Ijms 22 13610 g001 550
Figure 1. The modes of binding for compounds in hCA IX. (A,B). Compound 16a (pink). (C,D). Compound 16g (gray).
Figure 1. The modes of binding for compounds in hCA IX. (A,B). Compound 16a (pink). (C,D). Compound 16g (gray).
Ijms 22 13610 g001
Ijms 22 13610 g002 550
Figure 2. Effects of compounds 16a, 16b, 16e, and AZM on the cell viability of HT-29 and MDA-MB-231 cells under normoxic (A,C) and hypoxic (B,D) conditions.
Figure 2. Effects of compounds 16a, 16b, 16e, and AZM on the cell viability of HT-29 and MDA-MB-231 cells under normoxic (A,C) and hypoxic (B,D) conditions.
Ijms 22 13610 g002
Ijms 22 13610 g003 550
Figure 3. Effects of compounds 16b and AZM on the cell viability of MG-63 cell under normoxic and hypoxic conditions.
Figure 3. Effects of compounds 16b and AZM on the cell viability of MG-63 cell under normoxic and hypoxic conditions.
Ijms 22 13610 g003
Ijms 22 13610 g004 550
Figure 4. Extracellular pH measurement of MDA-MB-231 and HT-29 cells under normoxic and hypoxic conditions.
Figure 4. Extracellular pH measurement of MDA-MB-231 and HT-29 cells under normoxic and hypoxic conditions.
Ijms 22 13610 g004
Ijms 22 13610 g005 550
Figure 5. The inhibitory effect of 16a at a concentration of 400 μM on the migration of MDA-MB-231 cell in vitro.
Figure 5. The inhibitory effect of 16a at a concentration of 400 μM on the migration of MDA-MB-231 cell in vitro.
Ijms 22 13610 g005
Table
Table 1. The IC50 of the compounds 14a–h and 16a–o against hCA II, IX, and XII.
Table 1. The IC50 of the compounds 14a–h and 16a–o against hCA II, IX, and XII.
CompoundStructureIC50 (nM)TPSA (Å2)
hCA IIhCA IXhCA XII
14aR=H19.354.4n.t.114.1
14bR=H *12.350.4n.t.114.1
14cR=2-F15.740.4n.t.114.1
14dR=2-Cl39.971.0n.t.114.1
14eR=2-CH337.9110.9n.t.114.1
14fR=2-OCH3100.0120.2n.t.123.4
14gR=2-,6-F87.0107.3n.t.114.1
14hR=2-NO2102.058.2n.t.165.9
16an = 2, R=H27.751.6135.3236.5
16bn = 2, R=H *13.386.6255.9236.5
16cn = 2, R=2-F70.2150.0n.t.236.5
16dn = 2, R=2-Cl90.8100.3n.t.236.5
16en = 2, R=2-CH341.684.7162.1236.5
16fn = 2, R=2-OCH3111.7329.3n.t.245.7
16gn = 2, R=2-,6-F149.2543.9n.t.236.5
16hn = 3, R=H26.0270.3n.t.236.5
16in = 3, R=H *10.1299.7n.t.236.5
16jn = 3, R=2-F88.4230.1n.t.236.5
16kn = 3, R=2-Cl91.0290.4n.t.236.5
16ln = 3, R=2-CH325.6160.9n.t.236.5
16mn = 3, R=2-OCH388.199.6146.1245.7
16nn = 3, R=2-,6-F177.2351.6n.t.236.5
16on = 3, R=2-NO2129.2216.1n.t.288.3
AZM 13.050.638.2113.8
Notes: * Amino and triazole groups are in positions 1–3; Relative errors were in the range of 5–10% of reported values, which were calculated from three independent assays.
Publisher’s Note: MDPI stays neutral with regard to jurisdictional claims in published maps and institutional affiliations.

Share and Cite

MDPI and ACS Style

Zhang, Z.; Yang, H.; Zhong, Y.; Wang, Y.; Wang, J.; Cheng, M.; Liu, Y. Synthesis, Molecular Docking Analysis, and Biological Evaluations of Saccharide-Modified Sulfonamides as Carbonic Anhydrase IX Inhibitors. Int. J. Mol. Sci. 2021, 22, 13610. https://doi.org/10.3390/ijms222413610

AMA Style

Zhang Z, Yang H, Zhong Y, Wang Y, Wang J, Cheng M, Liu Y. Synthesis, Molecular Docking Analysis, and Biological Evaluations of Saccharide-Modified Sulfonamides as Carbonic Anhydrase IX Inhibitors. International Journal of Molecular Sciences. 2021; 22(24):13610. https://doi.org/10.3390/ijms222413610

Chicago/Turabian Style

Zhang, Zuopeng, Huali Yang, Ye Zhong, Yueqing Wang, Jian Wang, Maosheng Cheng, and Yang Liu. 2021. "Synthesis, Molecular Docking Analysis, and Biological Evaluations of Saccharide-Modified Sulfonamides as Carbonic Anhydrase IX Inhibitors" International Journal of Molecular Sciences 22, no. 24: 13610. https://doi.org/10.3390/ijms222413610

Note that from the first issue of 2016, this journal uses article numbers instead of page numbers. See further details here.

Article Metrics

Back to TopTop
