Genome-Wide Characterization of NBS-Encoding Genes in Watermelon and Their Potential Association with Gummy Stem Blight Resistance
Department of Horticulture, Sunchon National University, Suncheon 57922, Korea
*
Author to whom correspondence should be addressed.
Int. J. Mol. Sci. 2019, 20(4), 902; https://doi.org/10.3390/ijms20040902
Submission received: 3 January 2019
/
Revised: 6 February 2019
/
Accepted: 17 February 2019
/
Published: 19 February 2019
(This article belongs to the Section Molecular Genetics and Genomics)
Abstract
:Watermelon (Citrullus lanatus) is a nutritionally rich and economically important horticultural crop of the Cucurbitaceae family. Gummy stem blight (GSB) is a major disease of watermelon, which is caused by the fungus Didymella bryoniae, and results in substantial economic losses in terms of yield and quality. However, only a few molecular studies have focused on GSB resistance in watermelon. Nucleotide binding site (NBS)-encoding resistance (R) genes play important roles in plant defense responses to several pathogens, but little is known about the role of NBS-encoding genes in disease resistance in watermelon. The analyzed NBS-encoding R genes comprises several domains, including Toll/interleukin-1 receptor(TIR), NBS, leucine-rich repeat (LRR), resistance to powdery mildew8(RPW8) and coiled coil (CC), which are known to be involved in disease resistance. We determined the expression patterns of these R genes in resistant and susceptible watermelon lines at different time points after D. bryoniae infection by quantitative RT-PCR. The R genes exhibited various expression patterns in the resistant watermelon compared to the susceptible watermelon. Only six R genes exhibited consistent expression patterns (Cla001821, Cla019863, Cla020705, Cla012430, Cla012433 and Cla012439), which were higher in the resistant line compared to the susceptible line. Our study provides fundamental insights into the NBS-LRR gene family in watermelon in response to D. bryoniae infection. Further functional studies of these six candidate resistance genes should help to advance breeding programs aimed at improving disease resistance in watermelons.
1. Introduction
Watermelon (Citrullus lanatus) is one of the most important cucurbit crops worldwide. This crop is well known in all tropical and subtropical regions of the world, where it is primarily grown for the fresh consumption of the juicy, sweet flesh of its mature fruit [1]. Watermelon plays a significant role in human health by providing important nutritional compounds, such as sugars and lycopene, and cardiovascular health-promoting amino acids, including arginine, glutathione and citrulline [2].
However, watermelon is frequently affected by several pathogens and insects, including fungi, bacteria, viruses and aphids. Gummy stem blight (GSB) is one of the most destructive diseases of watermelons. GSB is caused by the soil, seed and airborne fungus Didymella bryoniae [3,4]. This disease also affects other cucurbit crops, including melon, cucumber and squash [5,6]. GSB in watermelon causes crown blight, stem cankers and extensive defoliation, with symptoms detected in cotyledons, hypocotyls, leaves and fruits. This results in severe economic losses in the field and fruit losses during storage [4,7]. It is difficult to properly control GSB using chemical methods and the frequent use of fungicides is not desirable due to their negative impact on the environment [4,8]. Consequently, developing GSB-resistant watermelon cultivars containing major resistance genes through gene pyramiding represents the most environmentally sustainable and economically viable means of GSB management [4,9].
Due to the agricultural importance of this disease, early studies have focused on identifying the sources of genetic resistance to GSB [10]. However, few such sources have been reported in watermelon [4,7]. The identification of linked markers is essential for exploring GSB resistance in watermelon genotypes from diverse germplasm. However, no molecular studies of GSB resistance in watermelon have thus far been reported and current efforts are still focused on developing a GSB-resistant watermelon cultivar.
Resistance (R) genes play important roles in plant immune systems in response to various pathogens and insects, including viruses, bacteria, fungi, aphids and nematodes [11]. Disease resistance in plants involves the interaction between the avirulence (avr) genes of the pathogen and specific disease resistance (R) genes of plants, with such interactions described by the gene-for-gene model [12,13]. This form of plant resistance can be lost due to the development of new races of pathogens via evolution or as a consequence of the evolutionary loss of R genes [14].
Most R genes in plants encode proteins that are comprised of a nucleotide-binding site (NBS) and leucine-rich repeats (LRRs), which play vital roles in plant–pathogen recognition [15]. The NBS domains, which bind to and hydrolyze adenosine triphosphate (ATP) or guanosine triphosphate (GTP), are involved in signaling, whereas LRRs are highly adaptable structural domains that are responsible for protein–protein interactions [15]. Plant NBS-LRR proteins can be classified into two subgroups based on the identity of the sequences that precede the NBS domain: TIR-NBS-LRR (TNL) proteins that have Toll-like domains and CC-NBS-LRR (CNL) proteins that are characterized by their coiled-coil domains. Watermelon contains 44 NBS-LRR genes, as revealed by genomic analysis [1]. R genes have been identified in a number of plant species, including Arabidopsis thaliana [16], rice [17,18], melon [19], cucumber [20] and apple [21]. Initially, we identified GSB-resistant watermelon lines through an extensive bioassay. Since NBS-encoding R genes have been reported to confer resistance against various pathogens and insects in different plant species, the R genes were explored in watermelon. Further, the availability of the complete genome sequences of C. lanatus allowed us to systematically analyze the NBS-encoding R genes in watermelon.
However, little is known about NBS-encoding R genes in resistant and susceptible watermelon lines/cultivars. Therefore, in this study, we analyzed the expression patterns of NBS-encoding genes in D. bryoniae-resistant and -susceptible watermelon lines to identify candidate R genes conferring resistance to GSB, which could be highly useful for breeding programs.
2. Results
2.1. Distribution of 44 NBS-Encoding Genes in Watermelon Chromosomes
A total of 44 NBS-encoding R genes were previously identified in the watermelon genome [1]. In this study, we found that the genes are differentially expressed in susceptible compared to resistant C. lanatus lines. Forty-four R genes are distributed across nine C. lanatus chromosomes, ranging from 1 to 10 genes per chromosome (Figure 1, Table 1). The highest number of NBS-encoding genes was found on Chr2 (Cla006803, Cla006813, Cla006820, Cla019844, Cla019831, Cla019854, Cla019855, Cla019856, Cla019857 and Cla019863) and Chr8 (Cla001017, Cla012424, Cla012425, Cla012427, Cla012428, Cla012430, Cla012431, Cla012434 and Cla012439), whereas the lowest number was found on Chr0 (Cla000024). Chr1, Chr5, Chr9 and Chr11 each contain three NBS-encoding genes, while Chr7 contains five and Chr10 contains six genes (Figure 1).
2.2. Exon–Intron Structure
To better understand the genomic structures of the 44 NBS-encoding R genes, we generated exon–intron diagrams of the genes by comparing their coding sequences with the corresponding genomic sequences using the online tool GSDS2.0 (http://gsds.cbi.pku.edu.cn/). The number of exons per gene was 1–8 (Figure 2). The highest number of exons was found in Cla019855 and Cla021846, while the lowest was found in Cla001017, Cla006813, Cla012424, Cla003651, Cla003652, Cla006803, Cla002913, Cla006820, Cla010833, Cla010834, Cla015257, Cla017475, Cla017478 and Cla021858. Three genes (Cla007937, Cla011937 and Cla012428) contain six exons while three other genes (Cla012431, Cla019857 and Cla019863) contain seven exons. The number of introns per gene was 0–7. Cla019855 and Cla021846 contain the most introns, whereas 14 genes lack introns (Figure 2).
2.3. Conserved Domain and Motif Analysis
We analyzed the conserved domains of the 44 NBS-encoding R genes using the Conserved Domain Database (CDD) of NCBI and the Pfam protein database v30.0 (https://www.ncbi.nlm.nih.gov/structure/cdd/wrpsb.cgi). These results are shown in Figure 3 and Table 2. All 44 proteins have a highly conserved NBS (NB-ARC) domain. The R genes were grouped in different classes based on the presence of the following conserved domains: (i) NBS, (ii) NBS-LRR, (iii) LRR, (iv) RPW8-NBS-LRR, (v) TIR, (vi) TIR-LRR, (vii) CC-NBS and (viii) CC-NBS-LRR (Table 3). Three genes (Cla001821, Cla019831 and Cla020705) encode proteins with both RPW8 and NBS-LRR domains. We subjected the 44 NBS proteins to motif analysis using the MEME Suite (http://meme-suite.org/tools/meme). These results are shown in Figure 4 and Table 4. We detected 20 conserved motifs, each being comprised of over 13 amino acids. The greatest number of motifs was identified in the CC-NBS-LRR domain-containing gene Cla021858, whereas the fewest were detected in Cla001168 and Cla021846.
2.4. Synteny Analysis of 44 NBS-Encoding R Genes of C. lanatus Compared with Cucumis melo, Cucumis sativus, and A. thaliana
We performed comparative analysis to identify the homologous NBS-encoding R genes among C. lanatus, Cucumis melo, Cucumis sativus and A. thaliana, with the results shown in Figure 5. Most R genes from C. lanatus share homologous relationships with those of Cucumis melo, Cucumis sativus and A. thaliana. However, five genes (Cla000024, Cla019844, Cla002280, Cla002282 and Cla011937) lack homologues in Cucumis melo and three (Cla000024, Cla019844 and Cla002280) lack homologues in Cucumis sativus. On the other hand, all 44 R genes of C. lanatus have homologues in A. thaliana.
2.5. Expression Patterns of the NBS-Encoding R Genes in Resistant and Susceptible Watermelon Lines
GSB, which is one of the most devastating diseases of cucurbits, significantly reduces the yield and quality of watermelon. To gain insight into the roles of NBS-encoding genes in the response to GSB in watermelon, we designed specific primers for the 44 NBS-encoding R genes and analyzed their expression patterns following inoculation with D. bryoniae at various time points. Several genes were differentially expressed in the leaf tissue of the resistant compared to susceptible watermelon lines (Figure 6). Among these, six genes (Cla001821, Cla019863, Cla020705, Cla012430, Cla012433 and Cla012439) were expressed at higher levels in the resistant line compared to the susceptible line. These genes belong to the same cluster in the heat map (Figure 6 and Figure 7). The transcript levels of five of these six genes reached a peak at 12 h postinoculation with D. bryoniae in the resistant line, whereas Cla001821 transcript levels reached a peak at 72 h postinoculation. Finally, the transcript levels of Cla020705 peaked at both 12 and 72 h postinoculation in the resistant line.
3. Discussion
Watermelon is an economically important fruit crop that is widely cultivated throughout the tropical and subtropical regions of the world. Watermelon is frequently affected by fungal, bacterial, viral and insect pests. GSB is a severe disease of watermelon caused by the fungus D. bryoniae, which significantly reduces fruit yields and quality. To reduce crop losses due to GSB, it is important to investigate the mechanism underlying the resistance to this disease. The ultimate target of both breeders and researchers is to develop GSB-resistant cultivars, since chemical treatment is not an environmentally suitable approach for controlling GSB [29]. Gene pyramiding is an effective way to increase the chances of conferring stable resistance to plant diseases, but disease resistance can break down due to increasing mutation rates in the pathogen population [9,30].
NBS-encoding R genes play important roles in plant protection against a diverse range of pathogens, including fungi, bacteria, viruses, aphids and nematodes [15,31]. For example, the R genes Fom1, Prv and Vat are responsible for resistance to Fusarium, Papaya ringspot virus and aphid resistance in melon, respectively [32,33]. The RPS6 gene plays a role in resistance against the bacterium Pseudomonas syringae in A. thaliana [14]. In addition, the R gene Bo1037156 (FOC1) confers resistance to the fungal pathogen Fusarium in Brassica oleracea [34]. NBS-LRR disease resistance genes have been extensively studied in various plant species, such as Cucumis melo [35], Arabidopsis [36], Oryza sativa [17], Zea mays [37], Solanum tuberosum [38] and Glycine max [39]. However, the roles of NBS-LRR genes in response to D. bryoniae infection in watermelon have not been reported. The analysis of 44 NBS-encoding genes performed in this study revealed that these genes encode TIR-LRR, CC-NBS and CC-NBS-LRR proteins (Table 3). These genes are distributed throughout all watermelon chromosomes except Chr3, Chr4 and Chr6, with at least one gene per chromosome (Figure 1).
The analysis of qRT-PCR expression revealed that various genes were differentially expressed in resistant compared to susceptible watermelon. Consistent expression patterns were detected for six genes, with higher levels of expression in the resistant line compared to the susceptible line (Figure 6 and Figure 7). These candidate genes belong to different categories, including NBS-LRR (Cla012433), RPW8-NBS-LRR (Cla001821), RPW8-LRR (Cla020705), TIR (Cla012430) and TIR-LRR (Cla012439 and Cla019863) (Table 3). NBS-encoding genes contribute to disease resistance in various plant species. For example, TIR-NBS-LRR-type R genes confer resistance to tobacco mosaic virus in Nicotiana benthamiana and GSB in Cucumis melo [5,40]. In indica rice, the R gene Os11g0704100 (Pia), which encodes an NBS-LRR domain-containing protein, functions in rice blast resistance, with significantly higher expression detected in resistant compared to susceptible land races both before and after pathogen inoculation [41]. In Arabidopsis, the expression levels of four TIR-NBS (TN) genes increased upon treatment with different pathogens [42]. Finally, three NBS-encoding genes (Bo1010559, Bo129866 and Bo1042121) were recently shown to function in resistance to black rot in cabbage (Brassica oleracea var. capitata), with higher expression levels detected in the resistant line compared to the susceptible lines [43].
In this study, we identified six candidate genes for GSB resistance, including Cla012430, Cla012433 and Cla012439 on Chr8 and Cla001821, Cla019863 and Cla020705 on Chr1, Chr2 and Chr5, respectively. The existence of homologues of these candidate genes in melon, cucumber and Arabidopsis (Figure 5) indicates that these genes likely play similar roles in these plants. Although GSB is a major yield-limiting factor for watermelon, few genetic studies have focused on this disease. Moreover, to date, no quantitative trait loci associated with GSB resistance in watermelon have been identified. To our knowledge, this is the first report of candidate genes for GSB resistance in watermelon.
4. Materials and Methods
4.1. Experimental Materials
The GSB-resistant ‘PI189225’ and -susceptible ‘PI438676’ (Charleston Gray) watermelon inbred lines used in this study were obtained from National Plant Germplasm System (NPGS), U.S. Department of Agriculture (USDA). The resistance and susceptibility of these lines were previously assessed via bioassay screening using the fungus D. bryoniae [4,44]. In this study, these lines were reexamined using an intensive bioassay, which confirmed the GSB resistance of ‘PI189225’ and the susceptibility of ‘PI438676’ (Figure 8). The seeds were sown in a commercial soil mixture in a 32-hole plastic tray and transferred to a plant growth chamber at a constant temperature of 25 ± 1 °C, relative humidity of 60% and light intensity of 80–120 µmol.m−2·s−1. Two weeks after germination, the plants were transferred to plastic pots and grown in a glasshouse where plants were inoculated with D. bryoniae, which was maintained at 24 ± 2 °C temperature with 90% relative humidity.
4.2. Pathogen Inoculation and Sampling
A D. bryoniae fungal isolate (13-020) was collected from National Institute of Horticulture and Herbal Sciences (NIHHS), Republic of Korea. The fungus was cultured in potato dextrose agar (PDA) medium at 24 ± 2 °C under alternating periods of 12-h fluorescent light (40–90 µmol·m−2.sec−1 PPFD) and 12-h darkness for 2–3 weeks until pycnidia formed. The final concentration of the fungal spores was adjusted to 5 × 105 spores mL−1 with deionized water. For fungal inoculation, 28-day-old resistant and susceptible plants were inoculated with D. bryoniae by hand using a spray bottle, whereas control resistant and susceptible plants were sprayed with plain water. The inoculated plants were incubated in a growth chamber with a relative humidity of 90–95% and a temperature of 24 °C. Samples were collected from the third and fourth true leaves of the plants at the time points 12, 24 and 72 h after inoculation and from control plants at the same time points. The samples were immediately frozen in liquid nitrogen and stored at −80 °C.
4.3. Total RNA Isolation and cDNA Synthesis
Infected and control watermelon leaves were ground to a powder in liquid nitrogen and 100 mg of each sample was subjected to total RNA extraction using an RNeasy Mini kit (Qiagen, Valencia, CA) following the manufacturer’s instructions. First-strand cDNA was synthesized from total RNA with a SuperScript III First-Strand Synthesis System kit (Invitrogen, Gaithersburg, MD).
4.4. Exploring NBS-Encoding Genes in C. lanatus
4.5. Quantitative RT-PCR Analysis
The expression patterns of the 44 NBS-encoding genes were analyzed by quantitative RT-PCR (qRT-PCR) in a LightCycler® instrument (Roche, Mannheim, Germany) following the manufacturer’s instructions. The gene sequences used in this study were retrieved from the Cucurbit Genomics Database (http://cucurbitgenomics.org/) considering ‘97103’ as the reference genome for watermelon. Gene-specific primers for qRT-PCR were designed using Primer3Plus (https://primer3plus.com/cgi-bin/dev/primer3plus.cgi) (Table 5 and Table S1). The reactions were performed in a 10-µL volume consisting of 5 µL of 2× qPCRBIO SyGreen Mix Lo-ROX (PCR Biosystems, London, UK), 5 pmol of primers and cDNA templates diluted to the appropriate concentrations. The PCR conditions were as follows: 5 min at 95 °C, followed by 3-step amplifications at 95 °C for 15 s, 58 °C for 15 s and 72 °C for 20 s for 45 cycles. The relative expression level of each gene was evaluated using the comparative 2−ΔΔCT method, with Actin used as an internal control [45].
4.6. Statistical Analysis
Analysis of variance (ANOVA) and significance tests were carried out using the normalized gene expression values with MINITAB17 software (Minitab Inc., State College, PA, USA). The means were separated by Tukey’s pairwise comparisons.
5. Conclusions
We identified six candidate genes that might be involved in the response of watermelon to D. bryoniae infection based on their expression profiles in resistant and susceptible watermelon lines. This study provides the basis for further functional studies to confirm the association of NBS-LRR genes with GSB resistance in watermelon. In addition, our results should facilitate marker-assisted breeding for developing GSB-resistant watermelon cultivars through gene pyramiding.
Supplementary Materials
Supplementary materials can be found at https://www.mdpi.com/1422-0067/20/4/902/s1.
Author Contributions
I.-S.N., H.-T.K. and J.-I.P. conceived the study. M.Z.H. conducted the experiments and wrote the manuscript. H.-J.J. helped carry out the qRT-PCR assay. M.A.R. analyzed the qRT-PCR data, created the figures, performed the bioinformatics analysis and edited the manuscript. All authors read and approved the final version of the manuscript.
Funding
This study was supported by the Golden Seed Project (Center for Horticultural Seed Development, grant number 213007-05-3-CG100) of the Ministry of Agriculture, Food and Rural Affairs (MAFRA) of the Republic of Korea.
Conflicts of Interest
The authors declare no conflict of interest.
References
- Xu, Y.; Wang, J.; Guo, S.; Zhang, J.; Sun, H.; Salse, J.; Lucas, W.J.; Zhang, H.; Zheng, Y.; Mao, L.; et al. The draft genome of watermelon (Citrullus lanatus) and resequencing of 20 diverse accessions. Nat. Genet. 2013, 45, 51–58. [Google Scholar]
- Perkins-Veazie, P.; Collins, J.K.; Davis, A.R.; Roberts, W. Carotenoid content of 50 watermelon cultivars. J. Agric. Food Chem. 2006, 54, 2593–2597. [Google Scholar] [CrossRef] [PubMed]
- Keinath, P.K. Fungicide Timing for Optimum Management of Gummy Stem Blight Epidemics on Watermelon. Plant Dis. 1995, 79, 354. [Google Scholar] [CrossRef]
- Gusmini, G.; Song, R.; Wehner, T.C. Inheritance of resistance to gummy stem blight in watermelon. Hoert Sci. 2017, 52, 1477–1482. [Google Scholar] [CrossRef]
- Hassan, M.Z.; Rahim, M.A.; Natarajan, S.; Robin, A.H.K.; Kim, H.T.; Park, J.I.; Nou, I.S. Gummy Stem Blight Resistance in Melon: Inheritance Pattern and Development of Molecular Markers. Int. J. Mol. Sci. 2018, 19, 2914. [Google Scholar] [CrossRef] [PubMed]
- Zuniga, T.L.; Jantz, J.P.; Zitter, T.A.; Jahn, M.M. Monogenic dominant resistance to gummy stem blight in two melon (Cucumis melo) accessions. Plant Dis. 1999, 83, 1105–1107. [Google Scholar] [CrossRef]
- Song, R.; Gusmini, G.; Wehner, T.C. Screening the watermelon germplasm collection for resistance to gummy stem blight. Acta Hortic. 2004, 637, 63–68. [Google Scholar] [CrossRef]
- Hassan, Z.; Hasan, A.; Robin, K.; Rahim, A.; Natarajan, S. Screening of melon genotypes identifies gummy stem blight resistance associated with Gsb1 resistant loci. J. Plant Biotechnol. 2018, 2818, 217–227. [Google Scholar] [CrossRef]
- Zhang, N.; Xu, B.H.; Bi, Y.F.; Lou, Q.F.; Chen, J.F.; Qian, C.T.; Zhang, Y.B.; Yi, H.P. Development of a muskmelon cultivar with improved resistance to gummy stem blight and desired agronomic traits using gene pyramiding. Czech J. Genet. Plant Breed. 2017, 53, 23–29. [Google Scholar] [CrossRef] [Green Version]
- Norton, J.D.; Boyhan, G.E.; Smith, D.A.; Abrahams, B.R. ‘AU-Sweet Scarlet’ watermelon. Hortscience 1995, 30, 393–394. [Google Scholar] [CrossRef]
- Zhong, Y.; Zhang, X.; Cheng, Z.M. Lineage-specific duplications of NBS-LRR genes occurring before the divergence of six Fragaria species. BMC Genom. 2018, 19, 1–15. [Google Scholar] [CrossRef] [PubMed]
- Slootweg, E.; Koropacka, K.; Roosien, J.; Dees, R.; Overmars, H.; Lankhorst, R.K.; van Schaik, C.; Pomp, R.; Bouwman, L.; Helder, J.; et al. sequence exchange between homologous NB-LRR genes converts virus resistance into nematode resistance and vice versa. Plant Physiol. 2017, 175, 498–510. [Google Scholar] [CrossRef]
- Bonas, U.; Van Den Ackerveken, G. Gene-for-gene interactions: Bacterial avirulence proteins specify plant disease resistance. Curr. Opin. Microbiol. 1999, 2, 94–98. [Google Scholar] [CrossRef]
- Yu, J.; Tehrim, S.; Zhang, F.; Tong, C.; Huang, J.; Cheng, X.; Dong, C.; Zhou, Y.; Qin, R.; Hua, W.; et al. Genome-wide comparative analysis of NBS-encoding genes between Brassica species and Arabidopsis thaliana. BMC Genom. 2014, 15. [Google Scholar] [CrossRef] [PubMed]
- Marone, D.; Russo, M.A.; Laidò, G.; De Leonardis, A.M.; Mastrangelo, A.M. Plant nucleotide binding site-leucine-rich repeat (NBS-LRR) genes: Active guardians in host defense responses. Int. J. Mol. Sci. 2013, 14, 7302–7326. [Google Scholar] [CrossRef] [PubMed]
- Meyers, B.C.; Kozik, A.; Griego, A.; Kuang, H.; Michelmore, R.W. Genome-wide analysis of NBS-LRR—Encoding genes in Arabidopsis. Plant Cell 2003, 15, 809–834. [Google Scholar] [CrossRef] [PubMed]
- Zhou, T.; Wang, Y.; Chen, J.Q.; Araki, H.; Jing, Z.; Jiang, K.; Shen, J.; Tian, D. Genome-wide identification of NBS genes in japonica rice reveals significant expansion of divergent non-TIR NBS-LRR genes. Mol. Genet. Genom. 2004, 271, 402–415. [Google Scholar]
- Monosi, B.; Wisser, R.J.; Pennill, L.; Hulbert, S.H. Full-genome analysis of resistance gene homologues in rice. Theor. Appl. Genet. 2004, 109, 1434–1447. [Google Scholar] [CrossRef]
- Natarajan, S.; Kim, H.T.; Thamilarasan, S.K.; Veerappan, K.; Park, J.I.; Nou, I.S. Whole genome re-sequencing and characterization of powdery mildew disease-associated allelic variation in melon. PLoS ONE 2016, 11, 1–19. [Google Scholar] [CrossRef]
- Wan, H.; Yuan, W.; Bo, K.; Shen, J.; Pang, X.; Chen, J. Genome-wide analysis of NBS-encoding disease resistance genes in Cucumis sativus and phylogenetic study of NBS-encoding genes in Cucurbitaceae crops. BMC Genom. 2013, 14, 109. [Google Scholar] [CrossRef]
- Lee, S.Y.; Seo, J.S.; Rodriguez-Lanetty, M.; Lee, D.H. Comparative analysis of superfamilies of NBS-encoding disease resistance gene analogs in cultivated and wild apple species. Mol. Genet. Genom. 2003, 269, 101–108. [Google Scholar]
- Voorrips, R.E. MapChart: Software for the Graphical Presentation of Linkage Maps and QTLs. J. Hered. 2002, 93, 77–78. [Google Scholar] [CrossRef] [PubMed] [Green Version]
- Xiao, S.; Ellwood, S.; Calis, O.; Patrick, E.; Li, T.; Coleman, M.; Turner, J.G. Broad-spectrum mildew resistance in Arabidopsis thaliana mediated by RPW8. Science 2001, 291, 118–120. [Google Scholar] [CrossRef] [PubMed]
- Ng, A.; Xavier, R.J. Leucine-rich repeat (LRR) proteins: Integrators of pattern recognition and signaling in immunity. Autophagy 2011, 7, 1082–1084. [Google Scholar] [CrossRef] [PubMed] [Green Version]
- van der Biezen, E.A.; Jones, J.D.G. The NB-ARC domain: a novel signalling motif shared by plant resistance gene products and regulators of cell death in animals. Curr. Biol. 1998, 8, R226–R228. [Google Scholar] [CrossRef] [Green Version]
- Chandra, S.; Kazmi, A.Z.; Ahmed, Z.; Roychowdhury, G.; Kumari, V.; Kumar, M.; Mukhopadhyay, K. Genome-wide identification and characterization of NB-ARC resistant genes in wheat (Triticum aestivum L.) and their expression during leaf rust infection. Plant Cell Rep. 2017, 36. [Google Scholar] [CrossRef] [PubMed]
- Song, H.; Wang, P.; Li, C.; Han, S.; Zhao, C.; Xia, H.; Bi, Y.; Guo, B.; Zhang, X.; Wang, X. Comparative analysis of NBS-LRR genes and their response to Aspergillus flavus in Arachis. PLoS ONE 2017, 12, 1–14. [Google Scholar] [CrossRef] [PubMed]
- Moffett, P.; Farnham, G.; Peart, J.; Baulcombe, D.C. Interaction between domains of a plant NBS–LRR protein in disease resistance-related cell death. Embo J. 2002, 21, 4511–4519. [Google Scholar] [CrossRef]
- Wolukau, J.N.; Zhou, X.; Chen, J.F. Identification of amplified fragment length polymorphism markers linked to gummy stem blight (Didymella bryoniae) resistance in melon (Cucumis melo L.) PI 420145. HortScience 2009, 44, 32–34. [Google Scholar] [CrossRef]
- Hanson, P.; Lu, S.F.; Wang, J.F.; Chen, W.; Kenyon, L.; Tan, C.W.; Tee, K.L.; Wang, Y.Y.; Hsu, Y.C.; Schafleitner, R.; et al. Conventional and molecular marker-assisted selection and pyramiding of genes for multiple disease resistance in tomato. Sci. Hortic. 2016, 201, 346–354. [Google Scholar] [CrossRef] [Green Version]
- Gururani, M.A.; Venkatesh, J.; Upadhyaya, C.P.; Nookaraju, A.; Pandey, S.K.; Park, S.W. Plant disease resistance genes: Current status and future directions. Physiol. Mol. Plant Pathol. 2012, 78, 51–65. [Google Scholar] [CrossRef]
- Brotman, Y.; Normantovich, M.; Goldenberg, Z.; Zvirin, Z.; Kovalski, I.; Stovbun, N.; Doniger, T.; Bolger, A.M.; Troadec, C.; Bendahmane, A.; et al. Dual resistance of melon to Fusarium oxysporum races 0 and 2 and to papaya ring-spot virus is controlled by a pair of head-to-head-oriented nb-lrr genes of unusual architecture. Mol. Plant 2013, 6, 235–238. [Google Scholar] [CrossRef] [PubMed]
- Dogimont, C.; Chovelon, V.; Pauquet, J.; Boualem, A.; Bendahmane, A. The Vat locus encodes for a CC-NBS-LRR protein that confers resistance to Aphis gossypii infestation and A. gossypii-mediated virus resistance. Plant J. 2014, 80, 993–1004. [Google Scholar] [CrossRef] [PubMed]
- Lv, H.; Fang, Z.; Yang, L.; Zhang, Y.; Wang, Q.; Liu, Y.; Zhuang, M.; Yang, Y.; Xie, B.; Liu, B.; et al. Mapping and analysis of a novel candidate Fusarium wilt resistance gene FOC1 in Brassica oleracea. BMC Genom. 2014, 15, 1094. [Google Scholar] [CrossRef] [PubMed]
- Garcia-Mas, J.; Benjak, A.; Sanseverino, W.; Bourgeois, M.; Mir, G.; Gonzalez, V.M.; Henaff, E.; Camara, F.; Cozzuto, L.; Lowy, E.; et al. The genome of melon (Cucumis melo L.). Proc. Natl. Acad. Sci. USA 2012, 109, 11872–11877. [Google Scholar] [CrossRef] [PubMed]
- Martin, G.B.; Bogdanove, A.J.; Sessa, G. Understanding the functions of plant disease resistance proteins. Annu. Rev. Plant Biol. 2003, 54, 23–61. [Google Scholar] [CrossRef] [PubMed]
- Cheng, Y.; Li, X.; Jiang, H.; Ma, W.; Miao, W.; Yamada, T.; Zhang, M. Systematic analysis and comparison of nucleotide-binding site disease resistance genes in maize. FEBS J. 2012, 279, 2431–2443. [Google Scholar] [CrossRef] [PubMed] [Green Version]
- Jupe, F.; Pritchard, L.; Etherington, G.J.; MacKenzie, K.; Cock, P.J.A.; Wright, F.; Sharma, S.K.; Bolser, D.; Bryan, G.J.; Jones, J.D.G.; et al. Identification and localisation of the NB-LRR gene family within the potato genome. BMC Genom. 2012, 13, 1–14. [Google Scholar] [CrossRef]
- Kang, Y.J.; Kim, K.H.; Shim, S.; Yoon, M.Y.; Sun, S.; Kim, M.Y.; Van, K.; Lee, S.H. Genome-wide mapping of NBS-LRR genes and their association with disease resistance in soybean. BMC Plant Biol. 2012, 12, 139. [Google Scholar] [CrossRef]
- Whitham, S.; Dinesh-Kumar, S.P.; Choi, D.; Hehl, R.; Corr, C.; Baker, B. The product of the tobacco mosaic virus resistance gene N: Similarity to toll and the interleukin-1 receptor. Cell 1994, 78, 1101–1115. [Google Scholar] [CrossRef]
- Wang, C.; Yang, Y.; Yuan, X.; Xu, Q.; Feng, Y.; Yu, H.; Wang, Y.; Wei, X. Genome-wide association study of blast resistance in indica rice. BMC Plant Biol. 2014, 14, 1–11. [Google Scholar] [CrossRef] [PubMed]
- Arya, P.; Kumar, G.; Acharya, V.; Singh, A.K. Genome-wide identification and expression analysis of nbs-encoding genes in Malus X domestica and expansion of nbs genes family in rosaceae. PLoS ONE 2014, 9, 502. [Google Scholar] [CrossRef] [PubMed]
- Afrin, K.S.; Rahim, M.A.; Park, J.I.; Natarajan, S.; Kim, H.T.; Nou, I.S. Identification of NBS-encoding genes linked to black rot resistance in cabbage (Brassica oleracea var. capitata). Mol. Biol. Rep. 2018, 45, 773–785. [Google Scholar] [CrossRef] [PubMed]
- Gusmini, G.; Song, R.; Wehner, T.C. New sources of resistance to gummy stem blight in watermelon. Crop Sci. 2005, 45, 582–588. [Google Scholar] [CrossRef]
- Lv, P.; Li, N.; Liu, H.; Gu, H.; Zhao, W.E. Changes in carotenoid profiles and in the expression pattern of the genes in carotenoid metabolisms during fruit development and ripening in four watermelon cultivars. Food Chem. 2015, 174, 52–59. [Google Scholar] [CrossRef] [PubMed]
Figure 1.
Distribution of the 44 NBS-encoding R genes on the watermelon chromosomes. The genes shown in blue are the candidate NBS-encoding genes for gummy stem blight resistance in watermelon. The positions of genes on the watermelon chromosomes were drawn using MapChart software [22].
Figure 1.
Distribution of the 44 NBS-encoding R genes on the watermelon chromosomes. The genes shown in blue are the candidate NBS-encoding genes for gummy stem blight resistance in watermelon. The positions of genes on the watermelon chromosomes were drawn using MapChart software [22].

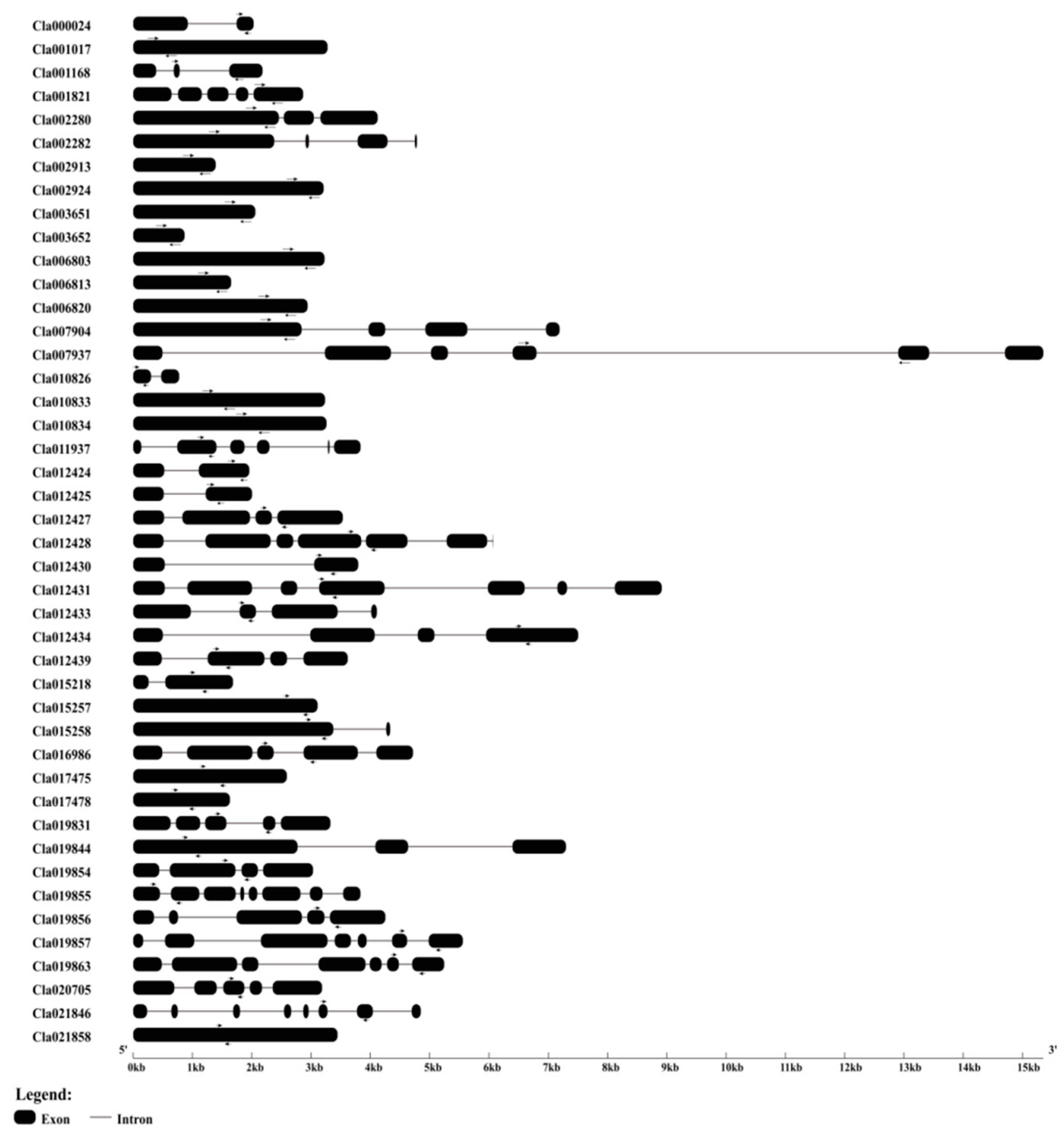

Figure 2.
Exon–intron structures of the 44 NBS-encoding R genes from watermelon. Rectangles and gray lines indicate exons and introns, respectively. Left and right arrows indicate position of forward and reverse primers, respectively.
Figure 2.
Exon–intron structures of the 44 NBS-encoding R genes from watermelon. Rectangles and gray lines indicate exons and introns, respectively. Left and right arrows indicate position of forward and reverse primers, respectively.

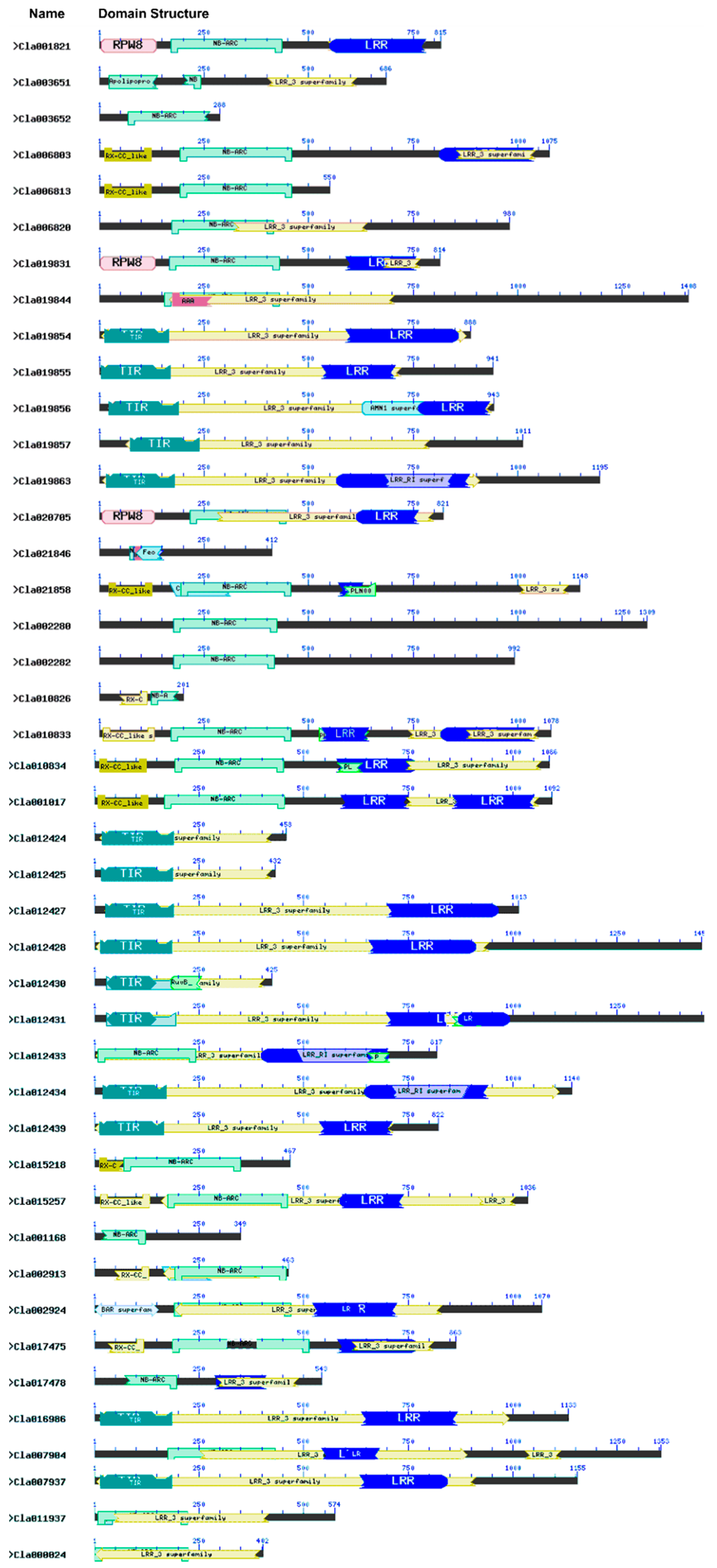

Figure 3.
Domains present in NBS proteins in watermelon. The conserved domains were identified using the Conserved Domain Database (CDD) of NCBI against the Pfam v30.0 database (https://www.ncbi.nlm.nih.gov/Structure/cdd/wrpsb.cgi). Detailed descriptions of these domains are provided in Table 2. Specific domains in each protein are shown in the diagram.
Figure 3.
Domains present in NBS proteins in watermelon. The conserved domains were identified using the Conserved Domain Database (CDD) of NCBI against the Pfam v30.0 database (https://www.ncbi.nlm.nih.gov/Structure/cdd/wrpsb.cgi). Detailed descriptions of these domains are provided in Table 2. Specific domains in each protein are shown in the diagram.
Figure 4.
Conserved motifs of NBS-encoding R genes in the watermelon genome. Motifs are indicated by different colored rectangles. Detailed information is provided in Table 4.
Figure 4.
Conserved motifs of NBS-encoding R genes in the watermelon genome. Motifs are indicated by different colored rectangles. Detailed information is provided in Table 4.

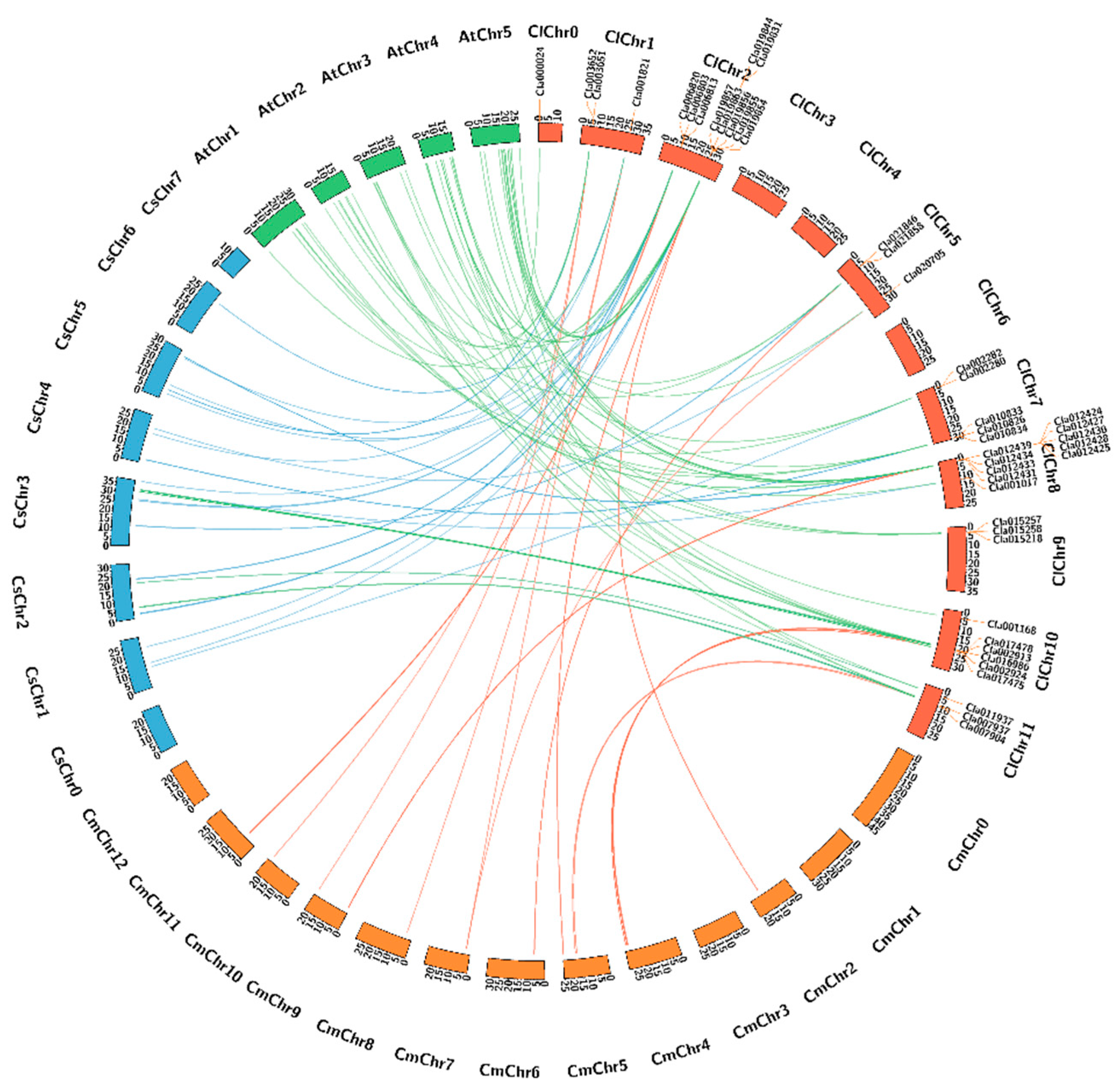

Figure 5.
Microsynteny analysis of the 44 watermelon NBS-encoding R genes compared to those of Cucumis melo, Cucumis sativus and A. thaliana. Brown orange, blue and green indicate C. lanatus, Cucumis melo, Cucumis sativus and A. thaliana chromosomes, respectively.
Figure 5.
Microsynteny analysis of the 44 watermelon NBS-encoding R genes compared to those of Cucumis melo, Cucumis sativus and A. thaliana. Brown orange, blue and green indicate C. lanatus, Cucumis melo, Cucumis sativus and A. thaliana chromosomes, respectively.

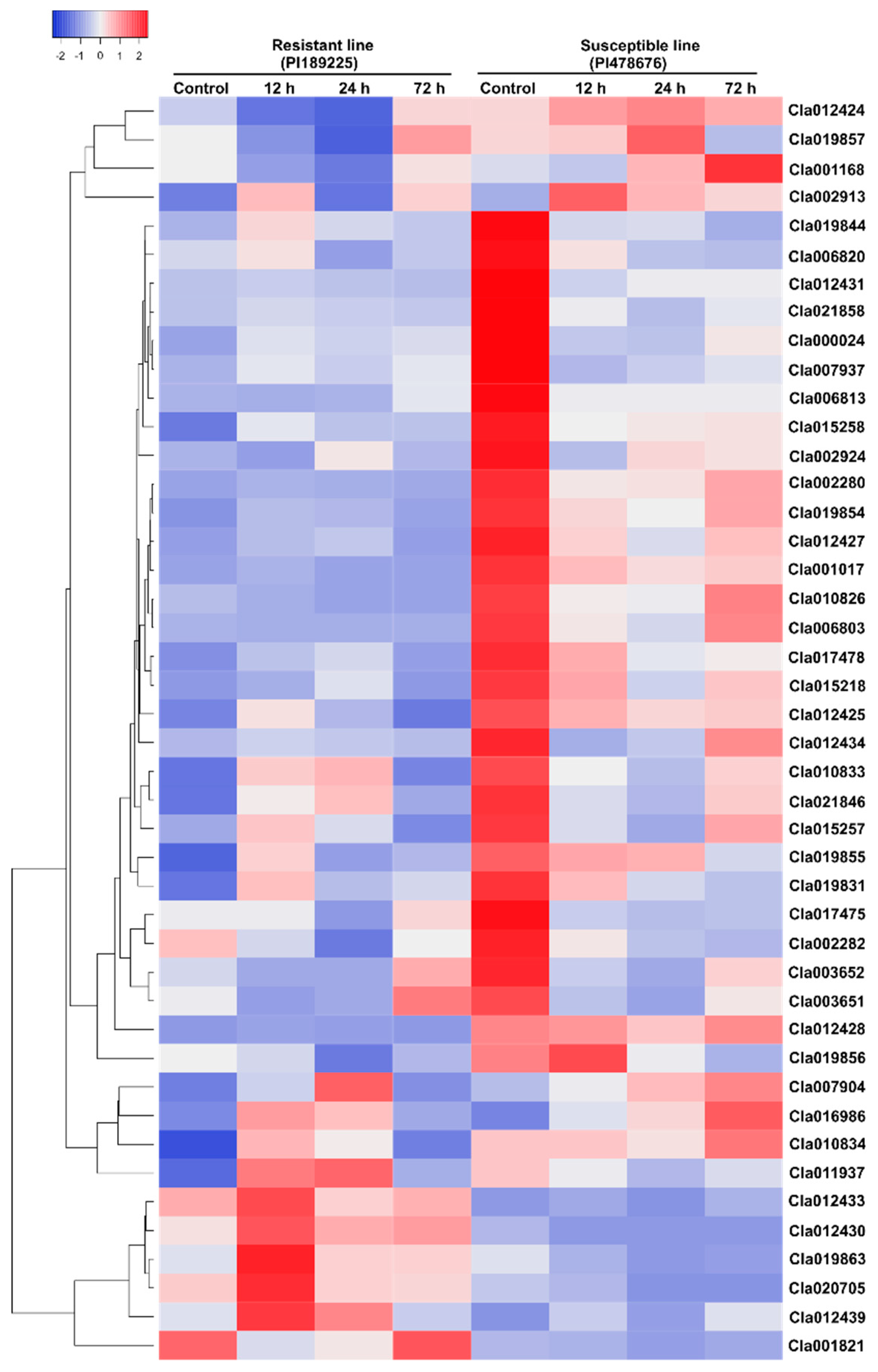

Figure 6.
Heat map of the expression patterns of the 44 NBS-encoding R genes determined by qRT-PCR in gummy stem blight resistant and susceptible watermelon lines subjected to Didymella bryoniae infection at various time points. The expression levels were normalized with the Actin gene. The values were obtained from the means of three technical replicates. Red and blue represent the maximum and minimum values, respectively. The heat map was generated with an online tool ‘Heatmapper’ (http://www.heatmapper.ca/expression/).
Figure 6.
Heat map of the expression patterns of the 44 NBS-encoding R genes determined by qRT-PCR in gummy stem blight resistant and susceptible watermelon lines subjected to Didymella bryoniae infection at various time points. The expression levels were normalized with the Actin gene. The values were obtained from the means of three technical replicates. Red and blue represent the maximum and minimum values, respectively. The heat map was generated with an online tool ‘Heatmapper’ (http://www.heatmapper.ca/expression/).

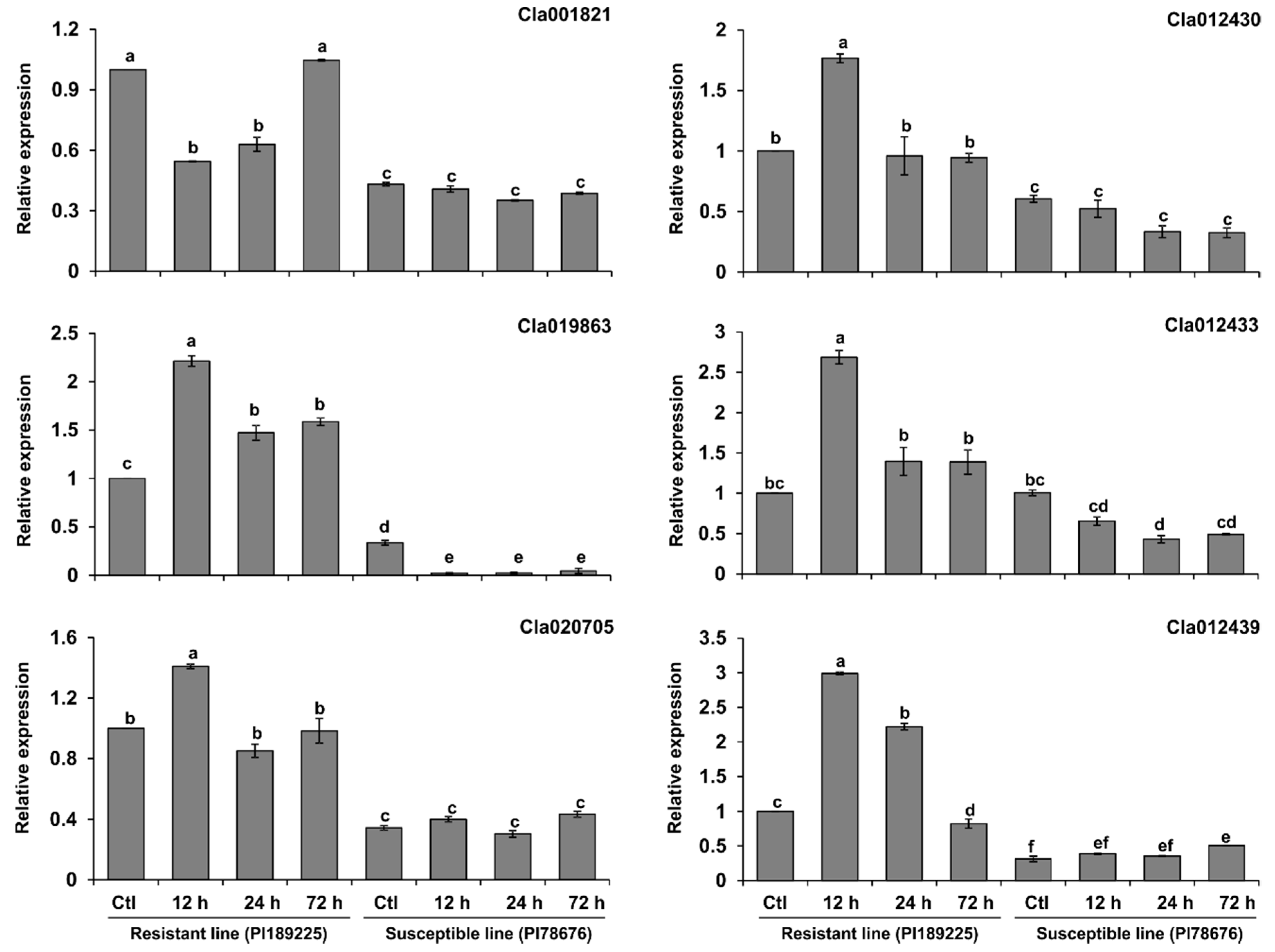

Figure 7.
Relative expression levels of candidate NBS-encoding R genes in Didymella bryoniae-resistant and susceptible watermelon lines. Error bars represent ± SE of the means of three technical replicates. Different letters above the bars indicate significant differences.
Figure 7.
Relative expression levels of candidate NBS-encoding R genes in Didymella bryoniae-resistant and susceptible watermelon lines. Error bars represent ± SE of the means of three technical replicates. Different letters above the bars indicate significant differences.
Figure 8.
Phenotypes of watermelon lines PI189225 (resistant) and PI438676 (susceptible) after inoculation with Didymella bryoniae.
Figure 8.
Phenotypes of watermelon lines PI189225 (resistant) and PI438676 (susceptible) after inoculation with Didymella bryoniae.
Table 1.
Location of 44 NBS-encoding genes on the watermelon chromosomes.
| Sl. No. | Gene Name a | Chr | Start | End | CDS (bp) | Protein (aa) |
|---|---|---|---|---|---|---|
| 1 | Cla000024 | Chr0 | 573,701 | 575,732 | 1725 | 574 |
| 2 | Cla001821 | Chr1 | 26,529,719 | 26,532,585 | 2448 | 815 |
| 3 | Cla003651 | Chr1 | 5,737,988 | 5,740,048 | 2061 | 686 |
| 4 | Cla003652 | Chr1 | 5,741,726 | 5,742,592 | 867 | 288 |
| 5 | Cla006803 | Chr2 | 9,631,689 | 9,634,916 | 3228 | 1075 |
| 6 | Cla006813 | Chr2 | 9,860,817 | 9,862,469 | 1653 | 550 |
| 7 | Cla006820 | Chr2 | 9,989,292 | 9,992,234 | 2943 | 980 |
| 8 | Cla019831 | Chr2 | 26,750,001 | 26,753,327 | 2445 | 814 |
| 9 | Cla019844 | Chr2 | 26,582,380 | 26,589,679 | 4227 | 1408 |
| 10 | Cla019854 | Chr2 | 26,456,943 | 26,459,976 | 2667 | 888 |
| 11 | Cla019855 | Chr2 | 26,449,200 | 26,453,033 | 2826 | 941 |
| 12 | Cla019856 | Chr2 | 26,439,873 | 26,444,126 | 2832 | 943 |
| 13 | Cla019857 | Chr2 | 26,432,098 | 26,437,657 | 3036 | 1011 |
| 14 | Cla019863 | Chr2 | 26,383,499 | 26,388,744 | 3588 | 1195 |
| 15 | Cla020705 | Chr5 | 27,501,959 | 27,505,144 | 2466 | 821 |
| 16 | Cla021846 | Chr5 | 6,824,170 | 6,829,020 | 1239 | 412 |
| 17 | Cla021858 | Chr5 | 6,953,920 | 6,957,366 | 3447 | 1148 |
| 18 | Cla002280 | Chr7 | 1,370,278 | 1,374,401 | 3930 | 1309 |
| 19 | Cla002282 | Chr7 | 1,381,169 | 1,385,954 | 2979 | 992 |
| 20 | Cla010826 | Chr7 | 30,211,275 | 30,212,050 | 606 | 201 |
| 21 | Cla010833 | Chr7 | 30,251,502 | 30,254,738 | 3237 | 1078 |
| 22 | Cla010834 | Chr7 | 30,256,839 | 30,260,099 | 3261 | 1086 |
| 23 | Cla001017 | Chr8 | 11,759,681 | 11,762,959 | 3279 | 1092 |
| 24 | Cla012424 | Chr8 | 1,647,030 | 1,648,988 | 1377 | 458 |
| 25 | Cla012425 | Chr8 | 1,641,639 | 1,643,644 | 1299 | 432 |
| 26 | Cla012427 | Chr8 | 1,609,802 | 1,613,337 | 3042 | 1013 |
| 27 | Cla012428 | Chr8 | 1,595,322 | 1,601,397 | 4353 | 1450 |
| 28 | Cla012430 | Chr8 | 1,580,252 | 1,584,048 | 1278 | 425 |
| 29 | Cla012431 | Chr8 | 1,547,018 | 1,555,932 | 4578 | 1525 |
| 30 | Cla012433 | Chr8 | 1,530,729 | 1,534,838 | 2454 | 817 |
| 31 | Cla012434 | Chr8 | 1,420,444 | 1,427,949 | 3423 | 1140 |
| 32 | Cla012439 | Chr8 | 1,331,566 | 1,335,184 | 2469 | 822 |
| 33 | Cla015218 | Chr9 | 3,429,200 | 3,430,883 | 1404 | 467 |
| 34 | Cla015257 | Chr9 | 3,116,792 | 3,119,902 | 3111 | 1036 |
| 35 | Cla015258 | Chr9 | 3,111,030 | 3,115,364 | 3444 | 3444 |
| 36 | Cla001168 | Chr10 | 4,050,530 | 4,052,711 | 1050 | 349 |
| 37 | Cla002913 | Chr10 | 21,882,174 | 21,883,565 | 1392 | 463 |
| 38 | Cla002924 | Chr10 | 21,745,526 | 21,748,738 | 3213 | 1070 |
| 39 | Cla016986 | Chr10 | 21,332,030 | 21,336,749 | 3402 | 1133 |
| 40 | Cla017475 | Chr10 | 22,939,927 | 22,942,518 | 2592 | 863 |
| 41 | Cla017478 | Chr10 | 22,955,431 | 22,957,062 | 1632 | 543 |
| 42 | Cla007904 | Chr11 | 9,507,150 | 9,514,341 | 4062 | 1353 |
| 43 | Cla007937 | Chr11 | 8,764,524 | 8,779,874 | 3391 | 1155 |
| 44 | Cla011937 | Chr11 | 3,833,117 | 3,836,951 | 1725 | 574 |
a Genomic information retrieved from the Cucurbit Genomics Database (http://cucurbitgenomics.org) using 97103 as the reference genome for watermelon.
Table 2.
Key domains in the 44 watermelon NBS proteins.
| Sl. No. | Domain Name | Description | Function | Reference |
|---|---|---|---|---|
| 1 | RPW8 | Resistance to Powdery Mildew8 | Involved in powdery mildew resistance | [23] |
| 2 | LRR | Leucine-rich repeats | Disease resistance | [24] |
| 3 | NB-ARC | Nucleotide-binding adaptor shared by APAF-1, R proteins and CED-4 | Disease resistance | [25,26] |
| 4 | TIR | Toll-interleukin 1-receptor | Plant defense | [25] |
| 5 | CC | Coiled-coiled | Disease resistance | [27,28] |
Table 3.
Classification of the 44 Citrullus lanatus NBS-encoding genes.
| Sl. No. | Type | Gene Name |
|---|---|---|
| 1 | NBS | Cla003652, Cla002280, Cla002282 and Cla001168 |
| 2 | NBS-LRR | Cla001821, Cla003651, Cla006820, Cla019831, Cla012433 and Cla017478 |
| 3 | LRR | Cla002924, Cla011937 and Cla000024 |
| 4 | RPW8-NBS-LRR | Cla001821, Cla019831 and Cla020705 |
| 5 | TIR | Cla012424, Cla012425 and Cla012430 |
| 6 | TIR-LRR | Cla019854, Cla019855, Cla019856, Cla019857, Cla019863, Cla012427, Cla012428, Cla012431, Cla012439, Cla016986 and Cla007937 |
| 7 | CC-NBS | Cla006813, Cla010826, Cla015218 and Cla002913 |
| 8 | CC-NBS-LRR | Cla006803, Cla021858, Cla010833, Cla010834, Cla001017, Cla015257 and Cla017475 |
Table 4.
Putative conserved motifs in the 44 watermelon NBS proteins.
| Motif Name | E-Value | Sites | Width | Motif Sequence |
|---|---|---|---|---|
| Motif 1 | 1.2 × 10−386 | 38 | 29 | DDVRFVGIVGMGGIGKTTLAKAVYNHILI |
| Motif 2 | 2.30 × 10−290 | 40 | 29 | LLDLSKEIVKYCGGLPLAJKVLGSSLRGK |
| Motif 3 | 1.70 × 10−232 | 17 | 37 | IIKNRLSSKKVLJVLDDVDELEQLZALAGGRDWFGPG |
| Motif 4 | 1.50 × 10−220 | 33 | 29 | JKELPESIGNLTSLKTLNLKNCSNLKELP |
| Motif 5 | 1.30 × 10−204 | 15 | 29 | YDVFLSFRGEDTRRNFTSHLYEALRQKGI |
| Motif 6 | 4.90 × 10−189 | 15 | 29 | VLPVFYKVDPSDVRKQTGSFGZAFAKHEA |
| Motif 7 | 1.70 × 10−187 | 34 | 21 | KVKMHDLIQDMARTIVRKZSV |
| Motif 8 | 1.80 × 10−167 | 37 | 21 | YNVEKLSDEEALELFSKHAFG |
| Motif 9 | 3.40 × 10−119 | 35 | 13 | SKIIVTTRNEHLL |
| Motif 10 | 1.00 × 10−117 | 21 | 21 | PSSSLKQCFLYCSLFPKDYKF |
| Motif 11 | 1.10 × 10−171 | 28 | 41 | PDFSSLPNLEKLDJEGCTNLVKLHESIGSLKKLIKLDJKDC |
| Motif 12 | 1.50 × 10−157 | 8 | 50 | MAEFLWTFAVZEVLKKTLKLAAEQIGLAWGFKKELSKLRKSLLKVEAILR |
| Motif 13 | 7.60 × 10−122 | 13 | 21 | FSENYASSKWCLEELVKIIEC |
| Motif 14 | 2.10 × 10−126 | 22 | 29 | KHFDKVIWVCVSZPFDVKKILEEIJESLN |
| Motif 15 | 1.10 × 10−109 | 15 | 27 | KEIFLDIACFFKGEDVELVKEILEACG |
| Motif 16 | 6.60 × 10−92 | 11 | 29 | EHHSVKJWVEKLZDIVYEADDLLDELSYE |
| Motif 17 | 8.20 × 10−90 | 10 | 34 | NSSGGLDSKEALLRELQKELHGKRYFLVLDDVWN |
| Motif 18 | 5.70 × 10−92 | 11 | 29 | TMEDIGDKYFNELLSRSLFQDVVKDKRGR |
| Motif 19 | 4.90 × 10−78 | 13 | 29 | SWHGFPFKSLPSDFHPENLVELDLRYSCI |
| Motif 20 | 7.60 × 10−97 | 22 | 29 | SLRVLDLSNTNITKLPNSIGQLKHLRYLD |
Table 5.
Primers for the 44 NBS-encoding genes in watermelon.
| Sl. No. | Gene Name | Forward Primer | Reverse Primer | Product Size (bp) |
|---|---|---|---|---|
| 1 | Cla001821 | ACTGTCTAACGAGTCTTGAACG | TTCTCCAGATTTATCAGCGGT | 94 |
| 2 | Cla003651 | ATCTCTCGATTATGTGGGCGG | TTGGGTGGCACGGTTACTCTG | 118 |
| 3 | Cla003652 | TCCCAAAATCGCTCTTCTGC | AGATACCGTTTGCCTCTCAGT | 126 |
| 4 | Cla006803 | GGAAACGATCCAAACCATAGG | CTTCCCTTTGCTCCAAGTTGA | 85 |
| 5 | Cla006813 | AACTCATGGAAACACGCCCTA | CCAATGGTACGCCACCAACT | 165 |
| 6 | Cla006820 | AGGTTGTATCAGAGATGAGTTC | CATATTCATTAGAAGCCGTGGGT | 108 |
| 7 | Cla019831 | GGAGTGTTTCATGGACTTGG | TTCATGTGCTTCGTTTCTCA | 178 |
| 8 | Cla019844 | AGTGTTGAAGGAAGAGCAGCC | TAAATCAAGTCCCTCCCACA | 96 |
| 9 | Cla019854 | ACAAATGGGTCGCACAATCGC | TGGCTTTAACTGCTCTTGCT | 131 |
| 10 | Cla019855 | GTGAGGTACGAAAACAAACTGG | ACAACCCAGCAGCAGTAGTC | 122 |
| 11 | Cla019856 | GTCAACAAACATCCGAGGATTA | TCAAGGTTTAATGTCGCCGAG | 116 |
| 12 | Cla019857 | CCAGTCTTCCTTGTTGGATGG | CCATCCAACAAGGAAGACTGG | 171 |
| 13 | Cla019863 | GTATAGGAAGCTGTGGCGTCC | TCCCCAGTGTCCGGATTTTGC | 127 |
| 14 | Cla020705 | GTTGTCACGAGGCGAGCCTAT | TTTGTCTTCAGGAAAGCATCCC | 133 |
| 15 | Cla021846 | CCTGACCCATCTTCTCCTATT | ATCTTGCACTTTCGCATGAACA | 135 |
| 16 | Cla021858 | GAAACCATGGAAGACATAGGAG | TGAGACAGAATAAGCAAGATCG | 144 |
| 17 | Cla002280 | AGATGGGGAGCGGAAGTATCA | CCCATTTCTATACTCAACTCAG | 146 |
| 18 | Cla002282 | GGTTAGAAGATGATAGACGTGG | GGAAACTCCAACTCCAGGGGA | 91 |
| 19 | Cla010826 | TGTGGCATGGGGCTTGGACA | GATCCTTCACCCACAATCTCAC | 128 |
| 20 | Cla010833 | AGTGTGGATCGCCTACCGTCA | CATTCCTTTCCTCAGATGGTCG | 145 |
| 21 | Cla010834 | CTCCGACCCTTGTGATGCTA | ACATCCATCATCAAACCCAACT | 100 |
| 22 | Cla001017 | GCAAACATTGTGGAGACGCAT | CAAGCACTTCTCGAACTACA | 145 |
| 23 | Cla012424 | GTGGGGATGTGTAGTATTGGTA | ATCAATGCGAAGGAAGCAACTA | 99 |
| 24 | Cla012425 | AGCGGGAGGTGATTCAAAGC | GAACCTTTCTACCACTCAGTCG | 143 |
| 25 | Cla012427 | CAGCCGAGTGAACTATTGGAAC | GCACCATTGACAGATCAGGG | 145 |
| 26 | Cla012428 | TCCAGCATTCGATGTTTACTCG | ACCATTCCAATAGGTCAACATC | 99 |
| 27 | Cla012430 | TGGTTGGAATTAGCCACAGATT | CCAATTCCACCCATTCCCCATA | 100 |
| 28 | Cla012431 | GCTTGGATCCTCAATCACAGTC | GAGAGTTTTGTAGCACTTGGAAG | 116 |
| 29 | Cla012433 | GGATTTGGATGAGGAAGGAGAA | GTATCCATGCCAATTGAGAAAC | 151 |
| 30 | Cla012434 | CTCTCATCTTCCAACAAGCATA | TCCTTGGAGGTAGCTCTGGGA | 101 |
| 31 | Cla012439 | GCGGCATTGGCAAGACGACA | AATAAGGAAGATTGTGGGTCTC | 120 |
| 32 | Cla015218 | GTTGAAAGGGTCTCCTCTTGC | GTGCAAAGTTCACTGTCCTTGA | 102 |
| 33 | Cla015257 | GGGAAGTTGAGTTGTCTACAGA | CTAAACTGACTTCAGATGGACT | 157 |
| 34 | Cla015258 | GTGGAGTCAAATTTCCCAACTG | CCAAATATAGAGAATGGAGAGC | 132 |
| 35 | Cla001168 | GTGTACCAAGCGTTTGGAGTT | TACTTAACCTGCCCCTCAACT | 163 |
| 36 | Cla002913 | AGAATGGCTTATGGGACGAGC | TGGTTGCCACTTCTAGGTTCC | 102 |
| 37 | Cla002924 | CTCAATTCCCTTCAAACACTGA | GCTCACACCCCCATATTGCC | 112 |
| 38 | Cla017475 | GGTCGTTACCGGAAGATACTCA | CATCTAGCTCATTCAGAGGGC | 123 |
| 39 | Cla017478 | CCCAGTCACAGAACCTAAATCT | CAGCATTTGGTATTTCCCGTAG | 149 |
| 40 | Cla016986 | CTTTTGGAAGGAGTGTAAGTTG | TTCTCTAGATTTGGGAGTTTGG | 108 |
| 41 | Cla007904 | GCAGCATCCACACAGTGCCTT | GGAAAGACATTTGTGGAAGCC | 104 |
| 42 | Cla007937 | AAGATCGACCGCCTCCACGA | CCGATCTTCTGCAGTTACAAC | 154 |
| 43 | Cla011937 | GAGAGGATGTTGAACTTGCCAG | GCTTTCCACATCTCTTGAATCA | 154 |
| 44 | Cla000024 | GACATTGAAGGCATAGTGATGG | CCATGCCAATTGAGAAACCTC | 167 |
| Actin | Cla007792 | CCATGTATGTTGCCATCCAG | GGATAGCATGGGGTAGAGCA | 140 |
© 2019 by the authors. Licensee MDPI, Basel, Switzerland. This article is an open access article distributed under the terms and conditions of the Creative Commons Attribution (CC BY) license (http://creativecommons.org/licenses/by/4.0/).
Share and Cite
MDPI and ACS Style
Hassan, M.Z.; Rahim, M.A.; Jung, H.-J.; Park, J.-I.; Kim, H.-T.; Nou, I.-S. Genome-Wide Characterization of NBS-Encoding Genes in Watermelon and Their Potential Association with Gummy Stem Blight Resistance. Int. J. Mol. Sci. 2019, 20, 902. https://doi.org/10.3390/ijms20040902
AMA Style
Hassan MZ, Rahim MA, Jung H-J, Park J-I, Kim H-T, Nou I-S. Genome-Wide Characterization of NBS-Encoding Genes in Watermelon and Their Potential Association with Gummy Stem Blight Resistance. International Journal of Molecular Sciences. 2019; 20(4):902. https://doi.org/10.3390/ijms20040902
Chicago/Turabian StyleHassan, Md Zahid, Md Abdur Rahim, Hee-Jeong Jung, Jong-In Park, Hoy-Taek Kim, and Ill-Sup Nou. 2019. "Genome-Wide Characterization of NBS-Encoding Genes in Watermelon and Their Potential Association with Gummy Stem Blight Resistance" International Journal of Molecular Sciences 20, no. 4: 902. https://doi.org/10.3390/ijms20040902
Note that from the first issue of 2016, this journal uses article numbers instead of page numbers. See further details here.
