Protein Expression in Tonsillar and Base of Tongue Cancer and in Relation to Human Papillomavirus (HPV) and Clinical Outcome

Abstract

Human papillomavirus (HPV) is a major etiological factor for tonsillar and the base of tongue cancer (TSCC/BOTSCC). HPV-positive and HPV-negative TSCC/BOTSCC present major differences in mutations, mRNA expression and clinical outcome. Earlier protein studies on TSCC/BOTSCC have mainly analyzed individual proteins. Here, the aim was to compare a larger set of cancer and immune related proteins in HPV-positive and HPV-negative TSCC/BOTSCC in relation to normal tissue, presence of HPV, and clinical outcome. Fresh frozen tissue from 42 HPV-positive and 17 HPV-negative TSCC/BOTSCC, and corresponding normal samples, were analyzed for expression of 167 proteins using two Olink multiplex immunoassays. Major differences in protein expression between TSCC/BOTSCC and normal tissue were identified, especially in chemo- and cytokines. Moreover, 34 proteins, mainly immunoregulatory proteins and chemokines, were differently expressed in HPV-positive vs HPV-negative TSCC/BOTSCC. Several proteins were potentially related to clinical outcome for HPV-positive or HPV-negative tumors. For HPV-positive tumors, these were mostly related to angiogenesis and hypoxia. Correlation with clinical outcome of one of these, VEGFA, was validated by immunohistochemistry. Differences in immune related proteins between HPV-positive and HPV-negative TSCC/BOTSCC reflect the stronger activity of the immune defense in the former. Angiogenesis related proteins might serve as potential targets for therapy in HPV-positive TSCC/BOTSCC.

1. Introduction

The incidence of oropharyngeal squamous cell carcinoma (OPSCC) has increased in many Western countries, due to a rise in incidence of human papillomavirus (HPV) positive tonsillar squamous cell carcinoma (TSCC) and base of tongue squamous cell carcinoma (BOTSCC), the two most commonly HPV-positive OPSCC subsites [1,2,3]. Notably, HPV-positive TSCC/BOTSCC has a much better clinical outcome than the corresponding HPV-negative cancer, with the latter mainly being caused by smoking [4,5,6]. HPV-positive and HPV-negative TSCC/BOTSCC diverge with regard to chromosomal rearrangements, mutations (e.g., p53), RNA and microRNA expression, and DNA methylation [7,8,9,10,11]. Moreover, some proteins differ in expression between HPV-positive and HPV-negative TSCC/BOTSCC and in their relation to clinical outcome (e.g., p16, CD44) [11,12,13]. Most studies on expression at the protein level have been performed on specific proteins by immunohistochemistry (IHC), and thus rather few proteins have been analyzed in total. For this reason, there is a lack of data on differences in protein expression between HPV-positive and HPV-negative TSCC/BOTSCC, as well as between these entities and normal tissue and in relation to clinical outcome. Several studies have demonstrated differences with regard to cellular immune response between these tumor types, but they have mainly targeted differences in cell populations, e.g., CD8+, CD4+ and FoxP3+ T-cells, whereas only few immune related proteins, e.g., PD-1 and APM components, have been specifically evaluated [14,15,16,17,18,19].

Olink multiplex assays are recently developed immunoassays, based on proximity extension assay (PEA) technology, with high sensitivity and reproducibility over a wide range of protein concentrations [20]. Each panel targets 94 cancer and/or immune related proteins, and only requires a small amount of sample. Here, the Olink Oncology II and Immuno-Onc panels were employed to evaluate cancer and immune related proteins in TSCC/BOTSCC in relation to tumor HPV status, normal tissue, and clinical outcome.

2. Results

Fifty-nine TSCC/BOTSCC (

Table 1. Patient and tonsillar squamous cell carcinoma (TSCC)/base of tongue squamous cell carcinoma (BOTSCC) characteristics.

Patient and Tumor Characteristics			HPV+TSCC/BOTSCC (n = 42)		HPV-TSCC/BOTSCC (n = 17)		All TSCC/BOTSCC (n = 59)		Validation set (n = 49)
			n	%	n	%	n	%	n	%
Age	Mean (years)		61.7		60.6		61.4		62.1
	Median (years)		61		64		61		61
	Range (years)		46–84		32–83		32–84		42–84
Diagnose	malignant neoplasm of the base of tongue (C01.9)		9	21%	9	53%	18	31%	13	22%
	malignant neoplasm of the tonsil (C09.0-9)		33	79%	8	47%	41	69%	36	61%
Sex	female		8	19%	3	18%	11	19%	13	22%
	male		34	81%	14	82%	48	81%	36	61%
Tumour differentiation	poorly		21	50%	9	53%	30	51%	29	49%
	moderatley		17	40%	8	47%	25	42%	18	31%
	well		2	5%	0	0%	2	3%	1	2%
	undefined		2	5%	0	0%	2	3%	1	2%
Tumour size	T1		6	14%	3	18%	9	15%	8	14%
	T2		16	38%	2	12%	18	31%	20	34%
	T3		11	26%	5	29%	16	27%	10	17%
	T4		9	21%	7	41%	16	27%	11	19%
Nodal disease	N0		5	12%	6	35%	11	19%	5	8%
	N1		12	29%	1	6%	13	22%	11	19%
	N2a		5	12%	3	18%	8	14%	5	8%
	N2b		15	36%	3	18%	18	31%	21	36%
	N2c		5	12%	2	12%	7	12%	7	12%
	N3		0	0%	1	6%	1	2%	0	0%
	NX		0	0%	1	6%	1	2%	0	0%
Distant metastasis	M0		42	100%	16	94%	58	98%	48	81%
	M1		0	0%	0	0%	0	0%	0	0%
	MX		0	0%	1	6%	1	2%	1	2%
Tumour Stage	I		0	0%	3	18%	3	5%	0	0%
	II		4	10%	1	6%	5	8%	3	5%
	III		11	26%	2	12%	13	22%	10	17%
	IVa		27	64%	9	53%	36	61%	34	58%
	IVb		0	0%	1	6%	1	2%	0	0%
	IVc		0	0%	0	0%	0	0%	1	2%
	Unknown		0	0%	1	6%	1	2%	0	0%
Treatment	Induction chemotherapy and radiation	conventional	4	10%	3	18%	7	12%	8	14%
		accelerated	11	26%	9	53%	20	34%	14	24%
	Radiation	conventional	20	48%	4	24%	24	41%	21	36%
		accelerated	7	17%	1	6%	8	14%	6	10%
Brachytherapy boost	Not administered		34	81%	12	71%	46	78%	38	64%
	Administered		8	19%	7	41%	15	25%	11	19%
Concomittant Cetuximab	Not administered		35	83%	13	76%	48	81%	42	71%
	Administered		7	17%	4	24%	11	19%	7	12%
Smoking	Never		15	36%	2	12%	17	29%	16	27%
	Former (>15 years ago)		11	26%	1	6%	12	20%	11	19%
	Former (<15 years ago)		7	17%	3	18%	10	17%	11	19%
	Current upon diagnosis		9	21%	11	65%	20	34%	11	19%

) and their corresponding normal samples were analyzed on Olink Immuno-Oncology and Oncology II panels covering 167 proteins. A heat map combined with a dendrogram demonstrated that 58/59 replicates of the tumor samples were positioned as branches that were directly adjoint to each other, so for future analysis an average between the replicate values was used. The final analysis included 155 proteins in 55 tumor and normal samples. More specifically, the analysis of 12 proteins (IL-2, IL-4, IL-5, IL-10, IL-13, IL-21, IL-35, IFN-β, IFN-γ, PPY, SDF-1, SEZ6L) with values that are below the level of detection (LOD, as defined by Olink) in >70% samples and low values in the others, were not included and four tumor/normal sample pairs, where internal and/or detection controls failed, were excluded.

2.1. Comparison between Tumor and Normal Samples

A heatmap visualization revealed a clear separation between cancer and normal tissue (Figure S1). HPV-positive and HPV-negative cancers were then compared separately with their corresponding normal samples (HPV-positive tumors with normal samples from patients with HPV-positive tumors, etc.). For HPV-positive tumors vs. normal samples, 111/155 proteins showed significant differences and of these 44 proteins, 38 proteins >4-fold upregulated and 6 >2-fold downregulated in the tumors, are presented in Supplementary Table S1 (Bonferroni-adjusted p-values < 0.05, with exception of HK8 for which it was p = 0.1). For HPV-negative tumors vs. normal samples 78/155 proteins differed significantly, and 37 proteins (29 >4-fold upregulated and 8 >2-fold downregulated are presented in Supplementary Table S2.

Table 2. Proteins with the most prominent differences between TSCC/BOTSCC and normal samples.

Protein	HPV Positive TSCC/BOTSCC vs. Normal		HPV Negative TSCC/BOTSCC vs. Normal
	Ratio	p-Value	Ratio	p-Value
CA9	55.72	1.10 × 10−21	50.56	1.80 × 10−8
CXCL13	37.27	3.70 × 10−14	21.26	1.40 × 10−5
CXCL10	36.25	1.40 × 10−19	15.89	1.50 × 10−6
CCL4	35.75	9.30 × 10−24	20.25	1.80 × 10−9
MMP-12	35.51	4.60 × 10−18	33.36	3.90 × 10−9
CCL3	34.78	1.30 × 10−20	38.85	3.70 × 10−10
CCL20	25.81	5.40 × 10−13	11.31	0.00011
CXCL11	22.32	3.90 × 10−18	11.39	6.30 × 10−6
IL-6	20.97	3.40 × 10−15	33.59	3.40 × 10−8
CXCL9	19.43	2.50 × 10−18	9.78	7.70 × 10−6
IL-8	19.16	5.90 × 10−15	24.42	1.20 × 10−7
TNFRSF9	18.25	1.50 × 10−15	11	3.80 × 10−6
WISP-1	16.34	2.30 × 10−23	13.64	2.10 × 10−9

presents the 13 proteins with the strongest upregulation in HPV-positive tumors vs. normal samples. The corresponding values for HPV-negative tumors, which are also presented in Table 2, reveal that these proteins were also highly upregulated in those tumors although some (e.g., CCL20 and CXCL11) were apparently less upregulated than in HPV-positive tumors. Most of the proteins in Table 2 were chemokines and cytokines, although e.g., CA9 with >50-fold upregulation is hypoxia related.

2.2. Predictive Models for HPV-Positive and HPV-Negative Tumors

Predictive models, being potentially useful for distinguishing between cancer and normal tissues were developed by differential protein expression analysis of HPV-positive and HPV-negative tumors against the normal samples (Figure S2). For HPV positive tumors, the following multiple regression model was obtained; T = −7.3 + 0.62 × WISP1 + 0.44 × CXCL10 + 0.39 × CCL7 − 0.3 × ICOSLG + 0.27 × CA9 − 0.27 × IL-18 + 0.18 × VEGFA − 0.15 × FRα − 0.073 × CD207 + 0.064 × TCL1A + 0.04 × CX3CL1, where the protein names denote the respective expression variables, T is the ‘tumor/normal’ status, and the first term is the intercept of the linear equation. Since the expression values were in the same range after the Olink normalization, the regression coefficients convey proteins’ importance of the specific proteins in this model.

For HPV negative tumors, the model was simpler and shared with the former model for all of the proteins, except CCL4, ANG2, and CCL3: T = −1.6 + 0.47 × CCL7− 0.35 × IL-18 + 0.22 × CCL4 + 0.17 × CA9+ 0.13 × ANG2 + 0.12 × WISP1 + 0.072 × CCL3.

The algorithm that produced these models aimed at a tradeoff between the models’ simplicity and precision. Thus, these protein terms are the least redundant sets sufficient for distinguishing between tumor and normal samples given the absence/presence of the HPV infection. Despite the perfect separation between the tumor and normal samples within this dataset, robustness and reproducibility of the models should be validated using independently collected data in future studies.

2.3. Comparison between HPV-Positive and HPV-Negative Tumors

As noted above, the difference in expression levels between the groups of HPV-positive and HPV-negative tumors was generally less pronounced than between those of tumors vs. normal tissues.

Table 3. Protein with significant differences in expression between HPV positive and negative TSCC and BOTSCC.

Protein	Ratio HPV-Positive/HPV-Negative (Linear)	p-Value	False Discovery Rate (FDR)
MUC-16	4.89	0.0016	0.062
CXCL17	2.73	0.025	0.162
CCL20	2.51	0.0046	0.101
CD8A	2.23	0.024	0.162
FASL	2.23	0.0065	0.101
CCL4	2.20	0.00093	0.057
CXCL10	2.19	0.037	0.186
PD-L1	2.13	0.0024	0.062
IL-12	2.10	0.025	0.162
LY9	1.88	0.026	0.162
CD27	1.83	0.025	0.162
PDCD1	1.62	0.031	0.173
KLRD1	1.61	0.018	0.148
DKN1A	1.53	0.031	0.173
GZMH	1.52	0.046	0.209
NCR1	1.51	0.016	0.148
IL12RB1	1.45	0.015	0.148
CPE	1.45	0.047	0.209
IL-7	1.37	0.016	0.148
VEGFC	0.89	0.046	0.209
ITGAV	0.78	0.017	0.148
HO-1	0.74	0.0096	0.120
GZMB	0.74	0.01	0.120
FURIN	0.73	0.035	0.186
TXLNA	0.72	0.027	0.162
GPNMB	0.70	0.0054	0.101
TNFRSF12A	0.66	0.046	0.209
GAL-9	0.59	0.0011	0.057
ADAMTS15	0.59	0.009	0.120
HK8	0.45	0.037	0.186
TFPI2	0.35	0.0061	0.101
AR	0.34	0.0024	0.062
WIF-1	0.24	0.018	0.148
HK14	0.16	0.00032	0.050

presents the 34 proteins with significantly different expression in HPV-positive and HPV-negative tumors (unadjusted p < 0.05 and FDR < 0.25). Boxplots presenting the expression levels in Mucin-16, FasL, CD8A, and HK14 for HPV-positive and HPV-negative tumors are shown in Figure 1A.

Out of nine proteins with >2-fold higher in expression in HPV-positive tumors, than in HPV-negative tumors, most were surface immunoregulatory proteins that were present on immune or tumor cells (e.g., CD8A, PD-L1, FasL) or chemokines. Notably, however Mucin-16, with a nearly five-fold difference in expression, is a glycoprotein that is present in mucosal surfaces. In contrast, five proteins with >2-fold lower expression in HPV-positive tumors than in HPV-negative tumors were not immune related proteins, e.g., two kallikreins, HK8 and 14, and Wnt inhibitory factor 1 (WIF-1).

In a heatmap, presenting proteins differentially expressed in the HPV-positive as compared with the HPV-negative tumors, most HPV-positive tumors separated into two out of three main clusters (cluster II and III, Figure 1B). These two clusters differed with regard to expression of several membrane molecules related to the immune defense e.g., PD-L1, PD-1, FasL, NCR1, and KLRD1, whereas e.g., CD8A, CD27, CXCL9, and CXCL10 had similar and high expression levels. The third, cluster I, grouped together with the majority of HPV-negative samples, and was characterized by low values of many immune related proteins such as CD8A and the chemokines CXCL9, 10, 17, and CCL20, and by higher values of e.g., Gal9, HK14, ADAMTS15, and IL6.

2.4. Protein Expression in Relation to Clinical Outcome

Proteins with formally significant expression differences (unadjusted p < 0.05), possibly associated to clinical outcome, are depicted for HPV-positive and HPV-negative tumors in

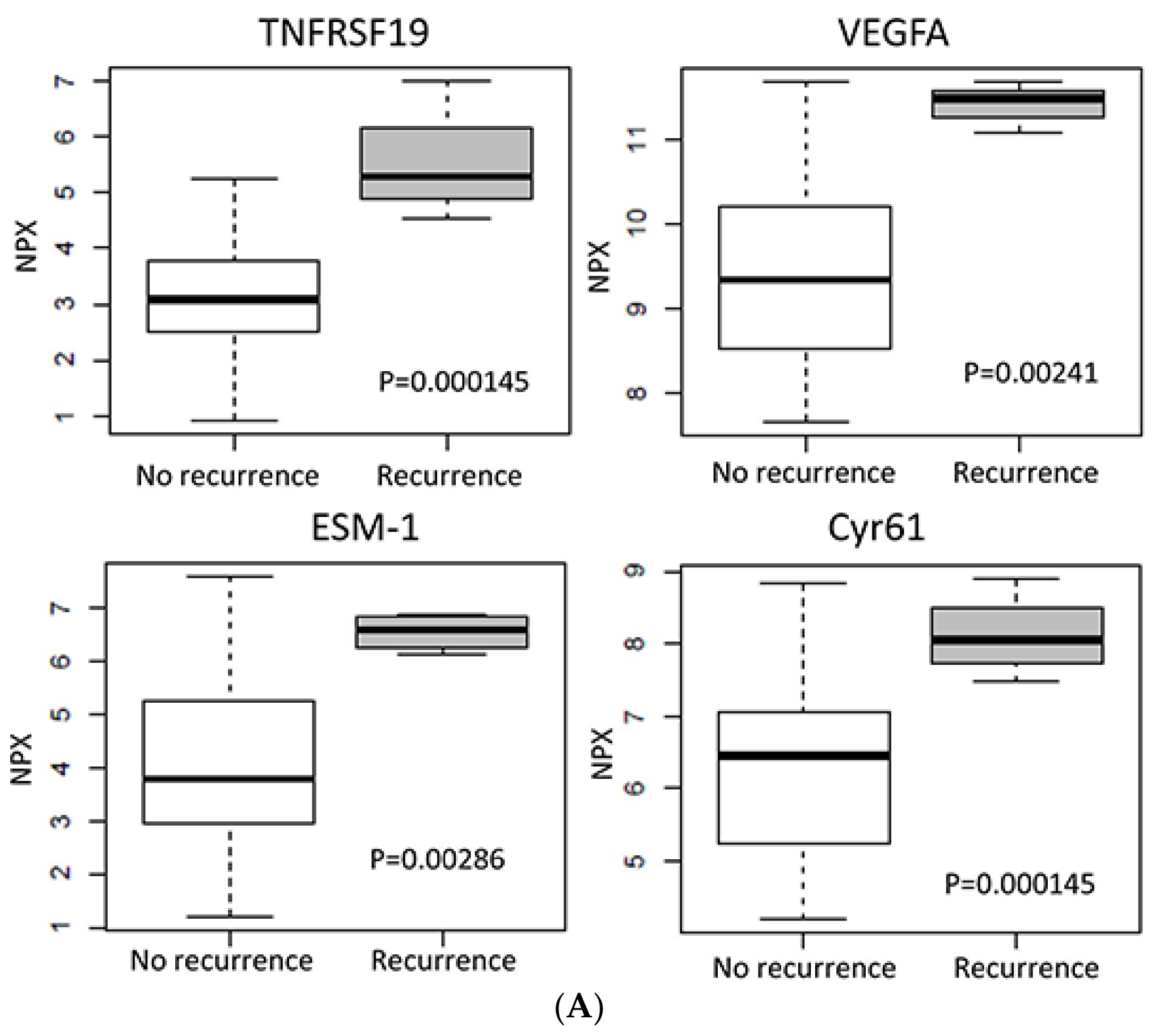

Table 4. Proteins related to recurrence in HPV positive TSCC and BOTSCC.

Protein	Ratio * (Linear)	p-Value
DLL1	8.38	0.000422
ESM-1	5.76	0.00286
TNFRSF19	5.41	0.000145
VEGFA	4.01	0.00241
CYR61	3.64	0.0044
CCL7	3.23	0.0402
PLGF	2.89	0.0127
MIC-A/B	2.67	0.0452
ANG-2	2.33	0.00218
TNFRSF21	2.20	0.0411
IGF1R	1.78	0.00847
CSF-1	1.74	0.0361
GPNMB	1.62	0.0347
ICOSLG	1.41	0.0441
IFN-GAMMA-R1	1.40	0.037

* Ratio between tumors with recurrence vs tumors from patients with 4-year disease free survival.

and

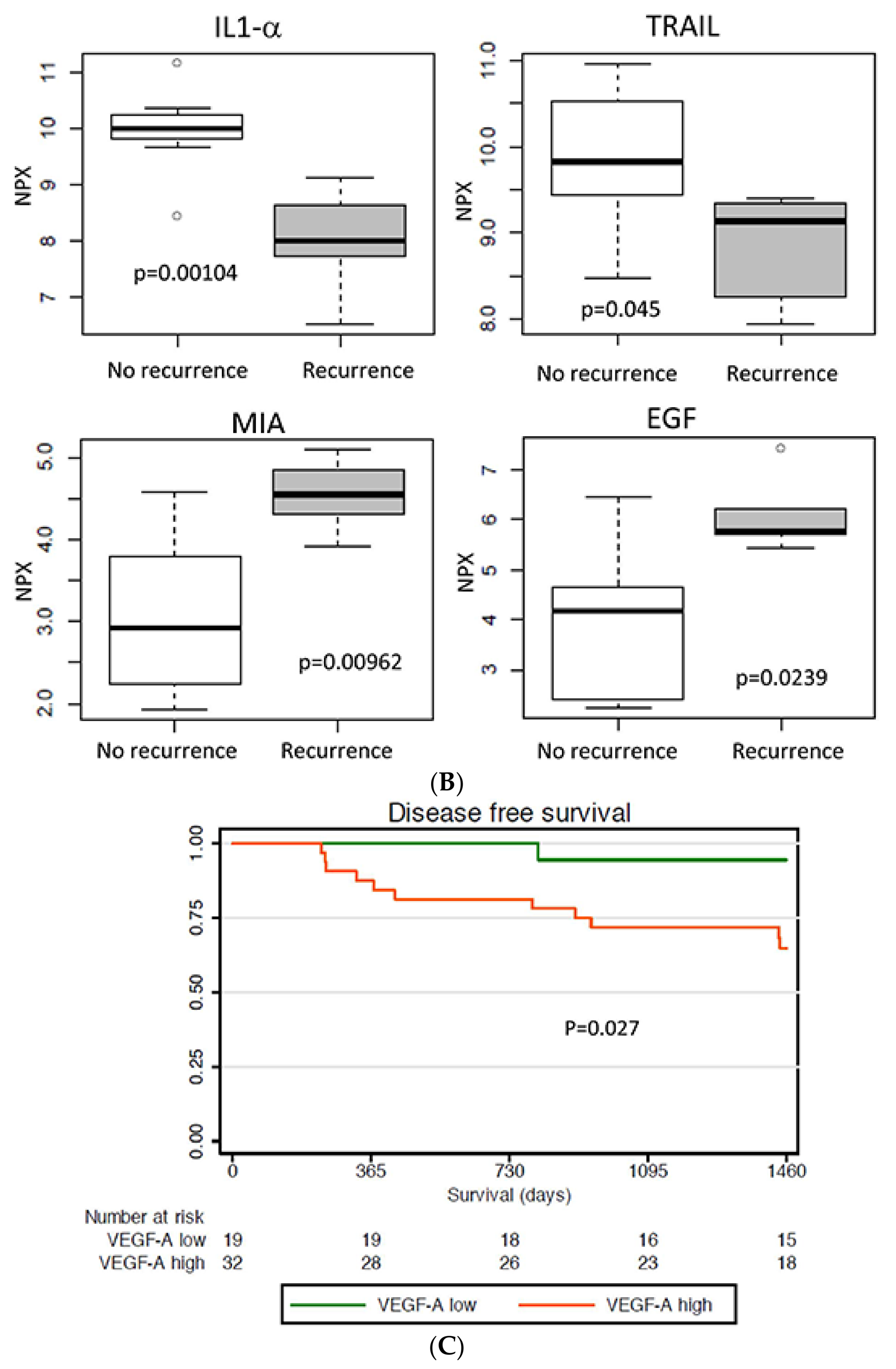

Table 5. Proteins related to recurrence in HPV negative TSCC and BOTSCC.

Protein	Ratio * (Linear)	p-Value
WFDC2	4.11	0.000339
EGF	4.03	0.0239
MIA	2.84	0.00962
VEGFR-2	0.76	0.0275
EPHA2	0.68	0.0167
DKN1A	0.58	0.0382
ANG2	0.52	0.00641
TNFRSF4	0.51	0.0449
TRAIL	0.50	0.045
CXCL11	0.26	0.0462
IL-1-ALPHA	0.26	0.00104

* Ratio between tumors with recurrence vs tumors from patients with 4-year disease free survival.

. Tumor samples from patients, dead of other causes within 4-years, were excluded in this analysis.

Notably, despite the noticeable fold change ratios, the p-value levels were not always sufficiently low (e.g., only TNFRS19 (Troy) was significant after Bonferroni correction for multiple testing). This could be explained by the relatively small sample sizes and these findings require further validation in an extended cohort. For HPV-positive tumors, 15 proteins were related to recurrence after therapy, all with a higher expression in the primary tumors with later recurrence (Table 4). The 13 proteins with >2-fold higher expression in tumors with recurrence, included proteins that were at least partially related to angiogenesis (DLL1, ESM1, VEGFA, CYR61, and PlGF), and two proteins belonging to the TNF receptors, TNFRSF19 and TNFRSF21. Noteworthy, the IGF receptor IGF1R showed increased expression levels in tumors with recurrence, while no proteins had significantly lower expression. Boxplots for TNFRSF19, VEGFA, ESM-1, and Cyr61 in HPV-positive tumors with/without recurrence are presented in Figure 2A.

In the HPV-negative tumors, 11 proteins were related to recurrence with only three (WFDC2, EGF, and MIA) showing a >2-fold higher expression, while the majority had a lower expression, with IL1α, CXCL11, and TRAIL being the most prominent (Table 5). Expression levels of some proteins that were related to recurrence in HPV negative tumors are presented in boxplots (Figure 2B).

2.5. Proteins Related to High CD8A Expression

CD8+ positive tumor infiltrating lymphocytes (CD8+ TILs) have earlier been related to improved prognosis for both HPV-positive and HPV-negative TSCC/BOTSCC, although the latter in general have a lower number of CD8+ TILs [21,22]. For this reason, a specific evaluation of proteins that were related to the expression of CD8A, present in the panel, was of special interest.

This evaluation was performed by correcting for % tumor cells in the sample both for all of the tumor samples taken together and then separately for HPV-positive and HPV-negative tumors. Proteins with p < 0.01 for all of these analysis are presented in Table S3. When all tumor samples were evaluated together the correlation of GZMH, ABL1, IL-7, LY9, IL-12, SCAMP3, and CD244 were highly significant (p < 1 × 10⁻⁶). The correlates usually remained significant even after the fraction of tumor cells was accounted for as a covariate, indicating that the analysis was largely unaffected by this factor.

2.6. Protein Expression in Relation to Tumor T-Stage

Protein expression was also evaluated in relation to tumor T-stage, by comparing the pooled set of T1/T2 with that of T3/T4, for HPV-positive and HPV-negative tumors separately. Significant differences are presented in Table S4. For HPV-positive tumors, the relation between protein expression and T-stage was minor, with <2-fold ratios of the five proteins with significant differences. For HPV-negative tumors more proteins demonstrated profound differences, with MMP7, CXCL17, and CEACAM5 exhibiting >4-fold higher expression at stage T3/T4 vs. stage T1/T2.

2.7. Validation of VEGFA Expression in Relation to Prognosis

To validate the expression of VEGFA in relation to clinical outcome a set of 49 TSCC/BOTSCC biopsies was evaluated for VEGFA expression by IHC. The tumors were then dichotomized based on the VEGFA intensity and analyzed in relation to disease free and progression free survival. Strong VEGFA expression was found to be correlated to poor disease-free survival (DSF), p = 0.027, Figure 2C, whereas for progression-free survival (PFS), this tendency failed to reach significance (p = 0.107).

3. Discussion

In this study, 55 TSCC/BOTSCC biopsies and corresponding normal samples were analyzed for the expression of 155 cancer and immune related proteins, and differences in protein expression between tumor and normal tissue as well as between HPV-positive and HPV-negative TSCC/BOTSCC, were identified. Furthermore, proteins potentially related to clinical outcome, for HPV-positive and HPV-negative tumors, respectively, were identified. One of these proteins, VEGFA, was validated and was shown to be related to disease-free survival for HPV-positive TSCC/BOTSCC.

The proteins included in the Olink panels utilized in the present study, had been selected as directly or indirectly cancer related and involved in processes such as angiogenesis, cell-cell signaling, cell-cycle control, tumor-immunity, chemotaxis, apoptosis, and cell killing (www.olink.com/products). Therefore, it was not surprising that many differences in protein expression between tumor and normal tissue were found. That fewer (78/155) proteins differed in expression between HPV-negative tumors as compared to HPV-positive tumors (111/155) vs. their corresponding normal samples was likely a combined effect of a smaller cohort (i.e., lower statistical power) and/or a less active immune defense in the former.

The most upregulated proteins in the tumor tissue were mainly chemokines and cytokines, indicating an increased activity of the immune response, as especially shown for chemokines CXCL9, 10, 11, 13, and CCL3, 4 and 20, and cytokines IL-6 and 8. A recent analysis of 20 different cytokines and chemokines (some also included here) in culture supernatants harvested from HNSCC tumor tissue-derived cell suspensions, showed, in accordance with the present study, high tumor related levels of CXCL9, CXCL10, and CCL20 and decreased levels of CCL5 [23]. In parallel to this study, higher expression of CXCL9 and CXCL10 was noted in HPV-positive tumors than in HPV-negative tumors. Furthermore, in a study on melanoma a 12-chemokine signature that was related to immune infiltrates included high expression of CXCL9, 10, 11, 13, and CCL 3 and 4, similarly to TSCC/BOTSCC in the present study [24].

Proteins with a distinct lower expression in HPV-positive TSCC/BOTSCC vs. normal samples included kallikreins KLK13, HK8, and HK11. Kallikreins have mostly been investigated as serum markers in prostate cancer, but also in some other cancer types e.g., lung cancer where HK8 has been found to be related to favorable outcome and shown to suppress tumor invasiveness in lung cancer, while little is known about their expression in HNSCC and TSCC/BOTSCC [25].

Proteins with higher expression in HPV-positive vs. HPV-negative TSCC/BOTSCC were mainly immune related. Several were surface proteins expressed on immune cells, e.g., CD8A, and PD-1, or on cancer cells and affecting immune activity, e.g., PD-L1, FASL, and notably PD-1 and its ligand PD-L1 were similarly upregulated. A higher CD8A expression was expected, since increased numbers of CD8+, FoxP3+, and CD4+ TILs in HPV-positive vs. HPV-negative OPSCC have been noted earlier, where in particular a higher number of CD8+TILs is linked to a better clinical outcome, irrespective of the HPV status of the tumor [19,21,22].

PD-1 and PD-L1 exhibited a higher expression in HPV-positive when compared to HPV-negative tumors in this study. Interaction of PD-1, expressed on the surface of activated T-cells, B-cells, and macrophages, and PD-L1, expressed on immune and cancer cells can suppress the activity of CD8+ T-cell mediated immune response, and have therefore received attention for immunotherapy [26,27]. Recent studies investigating PD-L1 and PD-1 expression in OPSCC gave partly contradictory results, with two studies showing higher PD-L1 mRNA levels in HPV-positive cancer, while the third study reported the opposite result [19,23,28]. Notably, since PD-L1 is expressed on both cancer and tumor infiltrating immune cells, this study, similarly to global mRNA analysis, does not differentiate the expression between these cell types.

In parallel with the higher immune infiltration in HPV-positive than in HPV-negative tumors, some cytokines and chemokines e.g., IL12, CCL4, CCL20, CXCL10, CXCL17 had higher expression in the former, with IL12, notably being an important regulator of T-cell and NK-cells cytotoxicity, and its receptor, IL12R1-β1, was also upregulated in the HPV-positive tumors.

Finally, Mucin-16 (also known as MUC-16), a transmembrane protein that functions as a barrier to bacterial infections, protects cancer cells from being killed by immune cells and contains the CA125 peptide [29], demonstrated a nearly 5-fold difference between HPV-positive and HPV-negative tumors. Mucin-16/CA125 has especially been studied in ovarian cancer where it is used both as a diagnostic and predictive marker and to evaluate the response to therapy in this tumor type [29]. The reason behind the increased expression in HPV-positive vs. HPV-negative TSCC/BOTSCC is yet unclear and needs further investigation.

Few other studies have analyzed a large number of proteins simultaneously in OPSCC in relation to tumor HPV status and/or clinical outcome. Proteomic profiling of OPSCC by mass spectrometry disclosed e.g., enrichment of E2F1 and E2F4 in HPV-positive OPSCC, while reverse-phase protein array profiling revealed differences in e.g., P13K/AKT/mTOR and receptor kinase pathways [30,31].

Here, most HPV-positive tumors separated into clusters, mainly due to differences in the expression of immune related proteins on the cell surface of tumor infiltrating immune cells, e.g., PD-1, FasL, NCR1, and KLRD1 or soluble cytokines/chemokines e.g., IL12 and CCL4 (Figure 1B). High expression of FasL, PD-1, and KLRD1 indicates a high infiltration of several parts of the immune defense with PD-1, mainly expressed on T-, B-cells and macrophages, and NCR1 and KLRD1 mainly expressed on NK-cells [32,33]. Notably, CD8A expression did not differ between cluster II and III indicating no major differences in numbers of CD8+ T-cells between these clusters, in contrast to that observed between HPV-positive and HPV-negative tumors. Similarly, several of the chemokines differing in the expression between HPV-positive and HPV-negative tumors do not differ between these clusters either, e.g., CXCL9 and 10.

Global mRNA expression between HPV-positive and HPV-negative OPSCC has also shown differences in proteins not included in the present study e.g., CDKN2A, NF-KB, and STAT3, making comparisons difficult [34,35,36]. Notably, in one study HPV-positive OPSCC was split into two subtypes, a Classical subtype (CL)-HPV and an Inflamed/mesenchymal subtype (IMS)-HPV, where the latter was characterized by higher expression of e.g., immune response genes, such as CD8A, ICOS, LAG3, and HLA-DRA, related to CD8 T-cell infiltration [36]. Here, out of these, only CD8A was analyzed and it did not present differences between the two major clusters although HPV-positive tumors in a third cluster (I), dominated by HPV-negative tumors, presented a low amount of CD8A expression.

In this study, some of the proteins with the most pronounced potential correlation to clinical outcome in HPV-positive TSCC/BOTSCC were at least partly related to angiogenesis e.g., DLL1, ESM1 (endocan), VEGFA, CYR61, and PlGF. Higher VEGFA expression in the tumor cells was confirmed by IHC to be associated with poorer DSF. High VEGFA expression, especially in combination with high EGFR expression has earlier been linked to local recurrence in TSCC in one study, and likewise in oral and laryngeal cancer, but not in a third study, including HPV-positive and HPV-negative OPSCC [37,38,39,40]. Notably, VEGFA induces the expression of ESM1, which is a mediator of the angiogenic effect of VEGFA [41]. Moreover, ESM1 has been related to shorter survival in e.g., breast, liver, and nasopharyngeal cancer, but has not been investigated in OPSCC [42,43].

Angiogenesis is closely linked to hypoxia, and VEGFA together with CA9, are also markers for hypoxia, both being regulated by HIF1α and are involved in the induction of members of the Notch-pathway where DLL1 functions as a ligand for Notch1 [44]. Also, PlGF, which is a ligand for VEGFA, is induced by hypoxia [45].

Noteworthy, the IGF receptor IGF1R also demonstrated a higher expression in tumors that recurred. IGF1R is potentially targetable for therapy and can inhibit the effect of anti-EGFR therapy by acting on the same downstream pathway [46,47]. Since current TSCC and BOTSCC therapy often includes EGFR inhibitors, there is a potential need to combine such treatment with anti-IGF1R therapy. IGF1R has also previously been linked to poor prognosis in HPV-negative OPSCC [48].

There is a need for new targets for therapy of TSCC and BOTSCC irrespective of HPV-status. Recently, earlier treatment that entailed conventional radiotherapy and/or surgery has been intensified by increased radiotherapy, chemoradiotherapy, and/or EGFR-inhibitors. Intensified treatment leaves the patients with more side effects, but has not improved survival for patients with HPV-positive cancer in Stockholm, Sweden [49]. Treatment for recurrent TSCC and BOTSCC is a real challenge and the results are poor. Proteins related to recurrence in the present study, such as e.g., IGF1R and TNFRSF19/Troy, may possibly be utilized as such targets.

Protein expression was also analyzed in relation to tumor T-stage and major differences related to T-stage were found for some proteins in HPV-negative tumors, but not for HPV-positive tumors. Although T-stage has been shown to be related to clinical outcome [49] the proteins with the strongest relation to T-stage for HPV-negative tumors, MMP7, CSCL17, and CEACAM5, were not found to be related to survival. There are limitations in the present study. Only 59 tumors were included, and when HPV-positive and especially HPV-negative tumors were analyzed separately or compared, random correlations might have been obtained. In addition, both the treatment and T-stage of the tumors included in the cohort were heterogeneous, as presented in Table 1. For proteins related to clinical outcome these issues may have had an effect on the results obtained, especially given the few events. Thus, the result presented here must be interpreted with caution.

In summary, when comparing protein expression in TSCC/BOTSCC with normal tissue, the most prominent differences were found for chemo-and cytokines. Between HPV-positive vs. HPV-negative tumors, most of the differences were detected in the immune related proteins as well as cyto-and chemokines. Some proteins were tentatively related to clinical outcome. For HPV-positive tumors, such proteins were mostly related to hypoxia and angiogenesis, and some may be potentially targetable and need to be further evaluated.
