Next Article in Journal
Effects of Co-Culture Media on Hepatic Differentiation of hiPSC with or without HUVEC Co-Culture
Previous Article in Journal
Iron, Oxidative Damage and Ferroptosis in Rhabdomyosarcoma
Article Menu
Issue 8 (August) cover image

Export Article

Open AccessArticle
Int. J. Mol. Sci. 2017, 18(8), 1723; doi:10.3390/ijms18081723

Shear Bond Strength and Remineralisation Effect of a Casein Phosphopeptide-Amorphous Calcium Phosphate-Modified Glass Ionomer Cement on Artificial “Caries-Affected” Dentine

1
Faculty of Dentistry, The University of Hong Kong, Hong Kong, China
2
Department of Mechanical Engineering, The University of Hong Kong, Hong Kong, China
*
Author to whom correspondence should be addressed.
Received: 5 June 2017 / Revised: 13 July 2017 / Accepted: 3 August 2017 / Published: 7 August 2017
(This article belongs to the Section Biomaterial Sciences)
View Full-Text   |   Download PDF [2366 KB, uploaded 8 August 2017]   |

Abstract

This study investigated the effect of casein phosphopeptide-amorphous calcium phosphate (CPP-ACP)-modified glass ionomer cement (GIC) on shear bond strength (SBS) and remineralisation of artificial “caries-affected” dentine. Human dentine slices were demineralised and allocated to three groups: group 1, conventional GIC; group 2, CPP-ACP-modified GIC; and group 3, resin-modified GIC. The SBS was measured using a universal testing machine (n = 16 per group). Remaining samples (n = 8 per group) were subjected to pH-cycling for 28 days. After pH-cycling, lesion depth and micro-mechanical properties at the sample-bonding interface were investigated using micro-computed tomography (micro-CT) and nano-indentation, respectively. The SBS for groups 1 to 3 were 4.6 ± 1.5 MPa, 4.2 ± 1.1 MPa, and 5.9 ± 1.9 MPa, respectively (p = 0.007; group 1, group 2 < group 3). Lesion depths determined by micro-CT for groups 1 to 3 were 186 ± 8 µm, 149 ± 14 µm, and 178 ± 8 µm, respectively (p < 0.001; group 2 < group 1, group 3). The mean (±SD, standard deviation) nano-hardness values for groups 1 to 3 were 0.85 ± 0.22 GPa, 1.14 ± 0.21 GPa, and 0.81 ± 0.09 GPa, respectively (p = 0.003; group 1, group 3 < group 2). The mean (±SD) elastic moduli for groups 1 to 3 were 1.70 ± 0.33 GPa, 2.35 ± 0.44 GPa, and 1.59 ± 0.13 GPa, respectively (p < 0.001; group 1, group 3 < group 2). The results suggest that the incorporation of CPP-ACP into GIC does not adversely affect the adhesion to artificial caries-affected dentine. Furthermore, CPP-ACP-modified GIC is superior to conventional GIC in promoting dentine remineralisation. View Full-Text
Keywords: casein phosphopeptide-amorphous calcium phosphate (CPP-ACP); shear bond strength; remineralisation; glass ionomer casein phosphopeptide-amorphous calcium phosphate (CPP-ACP); shear bond strength; remineralisation; glass ionomer

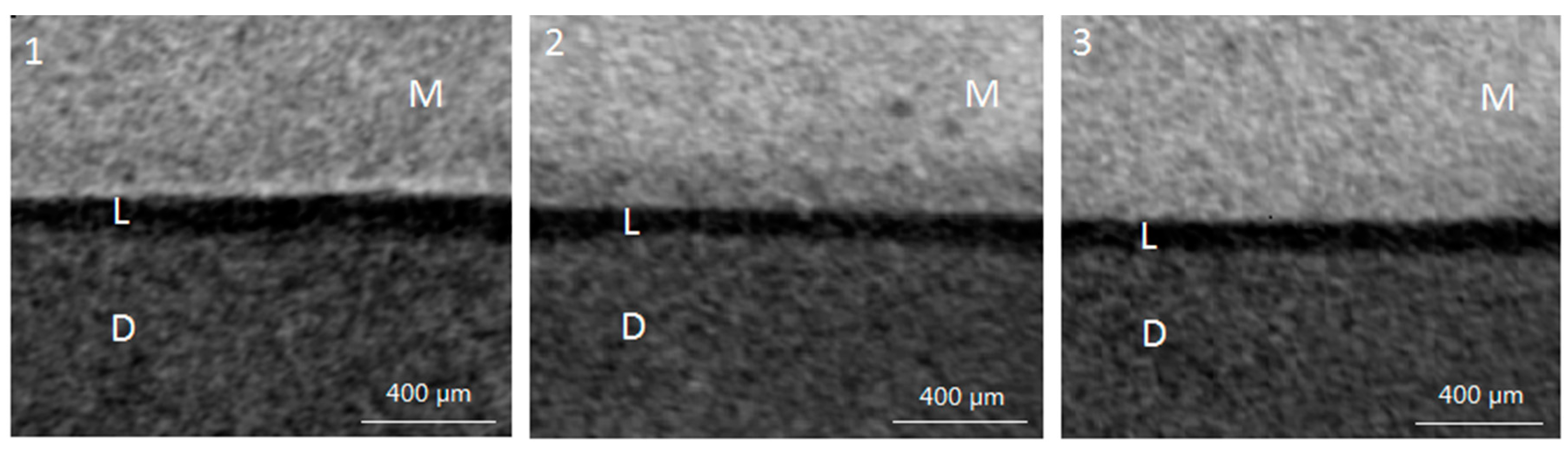

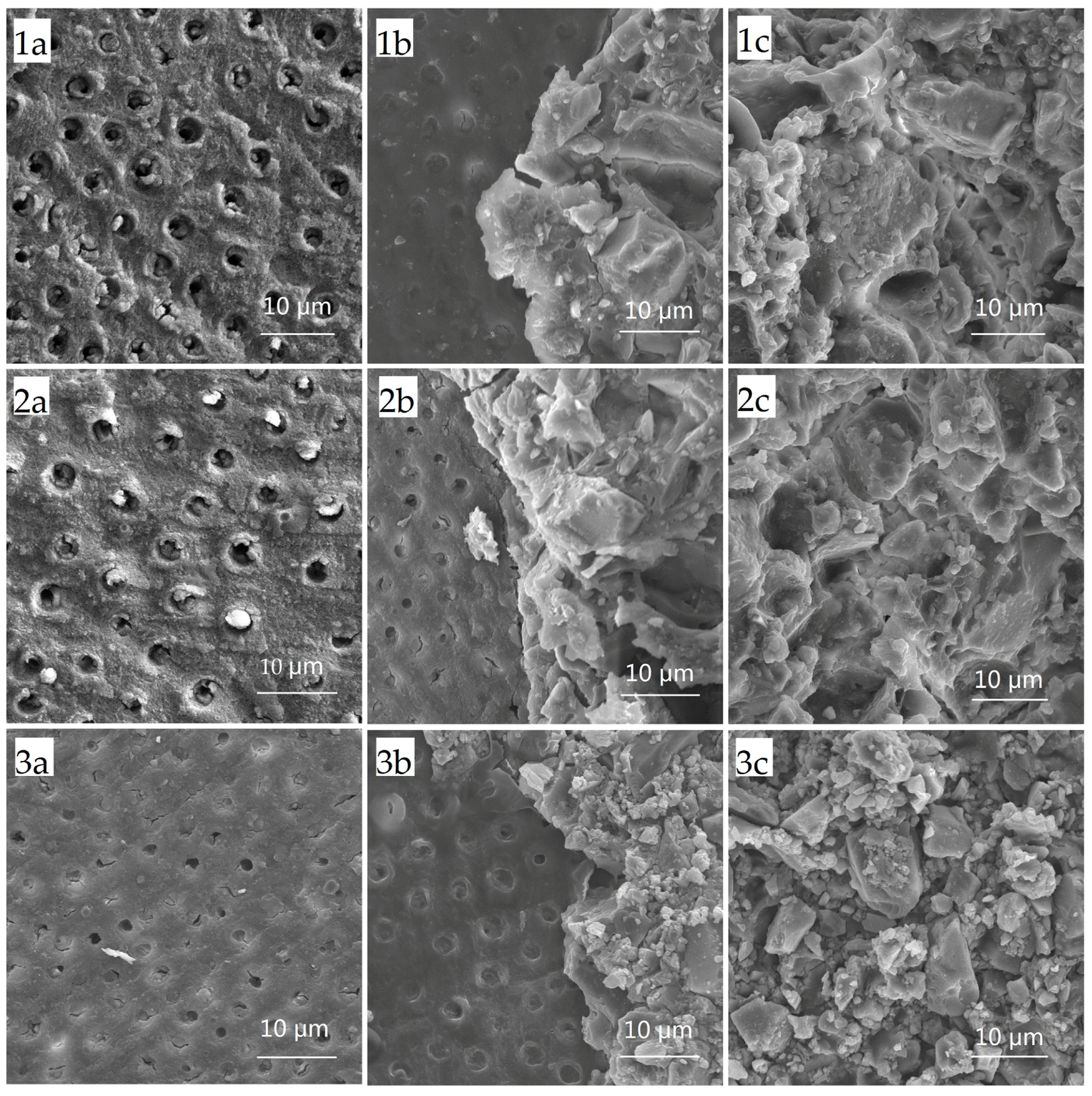

Figures

This is an open access article distributed under the Creative Commons Attribution License which permits unrestricted use, distribution, and reproduction in any medium, provided the original work is properly cited. (CC BY 4.0).

Supplementary material

Scifeed alert for new publications

Never miss any articles matching your research from any publisher
  • Get alerts for new papers matching your research
  • Find out the new papers from selected authors
  • Updated daily for 49'000+ journals and 6000+ publishers
  • Define your Scifeed now

SciFeed Share & Cite This Article

MDPI and ACS Style

Zhao, I.S.; Mei, M.L.; Zhou, Z.L.; Burrow, M.F.; Lo, E.-M.; Chu, C.-H. Shear Bond Strength and Remineralisation Effect of a Casein Phosphopeptide-Amorphous Calcium Phosphate-Modified Glass Ionomer Cement on Artificial “Caries-Affected” Dentine. Int. J. Mol. Sci. 2017, 18, 1723.

Show more citation formats Show less citations formats

Note that from the first issue of 2016, MDPI journals use article numbers instead of page numbers. See further details here.

Related Articles

Article Metrics

Article Access Statistics

1

Comments

[Return to top]
Int. J. Mol. Sci. EISSN 1422-0067 Published by MDPI AG, Basel, Switzerland RSS E-Mail Table of Contents Alert
Back to Top
