Article

A Novel F-Box Protein CaF-Box Is Involved in Responses to Plant Hormones and Abiotic Stress in Pepper (Capsicum annuum L.)

1
College of Horticulture, Northwest A&F University, Yangling 712100, Shaanxi, China
2
State Key Laboratory of Crop Stress Biology in Arid Areas, Northwest A&F University, Yangling 712100, Shaanxi, China
3
School of Horticulture Landscape Architecture, Henan Institute of Science and Technology, Xinxiang 453003, Henan, China
*
Author to whom correspondence should be addressed.
These authors contributed equally to this work.
Int. J. Mol. Sci. 2014, 15(2), 2413-2430; https://doi.org/10.3390/ijms15022413
Submission received: 17 December 2013 / Revised: 22 January 2014 / Accepted: 27 January 2014 / Published: 10 February 2014
(This article belongs to the Section Biochemistry)

Abstract

:
The F-box protein family is characterized by an F-box motif that has been shown to play an important role in regulating various developmental processes and stress responses. In this study, a novel F-box-containing gene was isolated from leaves of pepper cultivar P70 (Capsicum annuum L.) and designated CaF-box. The full-length cDNA is 2088 bp and contains an open reading frame of 1914 bp encoding a putative polypeptide of 638 amino acids with a mass of 67.8 kDa. CaF-box was expressed predominantly in stems and seeds, and the transcript was markedly upregulated in response to cold stress, abscisic acid (ABA) and salicylic acid (SA) treatment, and downregulated under osmotic and heavy metal stress. CaF-box expression was dramatically affected by salt stress, and was rapidly increased for the first hour, then sharply decreased thereafter. In order to further assess the role of CaF-box in the defense response to abiotic stress, a loss-of-function experiment in pepper plants was performed using a virus-induced gene silencing (VIGS) technique. Measurement of thiobarbituric acid reactive substances (TBARS) and electrolyte leakage revealed stronger lipid peroxidation and cell death in the CaF-box-silenced plants than in control plants, suggesting CaF-box plays an important role in regulating the defense response to abiotic stress resistance in pepper plants.

1. Introduction

The development and functioning of an organism requires exquisite coordination of the cellular responses to internal and external signals. One important mechanism by which this is achieved is through control of the structural and functional integrity of the numerous key regulators using protein degradation by the ubiquitin proteosome system (UPS) [1]. Regulation of protein degradation by the UPS is a highly conserved process and plays an important role in cellular processes as diverse as differentiation, cell cycle regulation, hormonal responses, protein trafficking, and response to environmental stress [13]. The ubiquitin-conjugation pathway involves the sequential action of three enzymes or protein complexes: E1 (ubiquitin-activating enzyme), E2 (ubiquitin-conjugating enzyme), and E3 (ubiquitin-protein ligase). In most cases, E1 and E2 are relatively nonspecific and are responsible for activating and conjugating the ubiquitin moieties, whereas different E3 enzymes recognize different substrates for ubiquitination [4]. One of the best characterized and the most important E3 type ligases are the SCF (Skp–Cullin–F-box) protein complexes formed from four major components: Skp1, Cullin, Rbx1, and an F-box protein [1,5]. In the SCF complex, the first three proteins form a core scaffold onto which different F-box proteins can be assembled, conferring specificity to the complex [6].
F-box proteins are encoded by a rapidly expanding family of eukaryotic genes. They consist of a conserved domain of 40–60 residues at the N-terminus known as the F-box that was first identified in cyclin F and mediates the interaction with Skp1. Many F-box proteins have one or several highly variable protein-protein interaction domains at the C-terminus, such as Leu-rich repeats (LRRs), WD40 repeats, tertratricopeptide repeats (TPR), or kelch repeats, and these are thought to confer the substrate specificity for ubiquitination [7,8]. Since the discovery of the first F-box protein (Cyclin F) in human, many F-box proteins have been identified in a host of different organisms. A total of 14, 24, 337, and 38 F-box genes have been reported in budding yeast, fruit fly, nematode, and human, respectively [9]. In plants, more than 692, 337, and 779 F-box genes have been reported in Arabidopsis, poplar, and rice genomes, respectively [10].
Several F-box genes have been characterized which regulate crucially important and diverse physiological processes, such as hormonal response, embryogenesis, seed germination, seedling development, floral organogenesis, lateral root formation, leaf senescence, pathogen resistance, and abiotic stress responses [1113]. UNUSUAL FLORAL ORGANS (UFO) was the first F-box protein identified in Arabidopsis, and UFO is required for floral meristem identity and floral organ development [14,15]. TIR1 and COI1 include LRR domains, and are responsible for auxin and jasmonic acid (JA) signal transduction, respectively [16,17]. The ORE9 protein regulates leaf senescence [18], while SON1 and CPR30 play key roles as negative regulators in plant defense responses to pathogens [19,20]. In addition, it have been reported that the rice F-box protein OsFbx352 played a key regulatory role in the regulation of glucose-induced suppression of seed germination by targeting ABA metabolism [13]. Zhang et al. (2008) found that the F-box protein DOR acts as a negative regulator during response to ABA and drought stress [21]. Another F-box protein, CarF-box1, is involved in various plant developmental processes and abiotic stress responses [22]. Yan et al. (2011) reported that overexpression of the rice F-box protein MAIF1 reduced abiotic stress tolerance and promoted root growth, and a negative role in response to abiotic stress was suggested, possibly through regulating root growth [23].
To date, no F-box genes have been characterized in pepper (Capsicum annuum L.). In this study, we isolated CaF-box from the leaves of pepper cultivar P70. CaF-box showed tissue-specific expression in different organs of pepper plants. To investigate possible roles in the defense response against abiotic stresses (cold, salt, osmotic, and heavy metal stress), as well as in plant hormone signaling (abscisic acid and salicylic acid), the expression of CaF-box was analyzed using Real-Time quantitative RT-PCR. Furthermore, CaF-box loss-of-function mutant pepper plants were engineered using a virus-induced gene silencing (VIGS) system. Together, the results suggested that CaF-box is a potentially important player in the regulation of plant defense responses.

2. Results and Discussion

2.1. Isolation of CaF-Box and Sequence Analysis

A pepper cDNA clone was selected from the differential screening of the cold-related pepper seeding cDNA library, which had been prepared by PCR-amplified subtracted and control probes [24]. This clone exhibited 90% sequence identity at the nucleotide level with SlEBF2, an F-box protein-encoding gene from Solanum lycopersicum. Based on the sequence of the fragment, 3′- and 5′-RACE primers were designed and RACE was performed which generated two fragments of 1325 and 984 bp, respectively. Through alignment and assembly of these three sequences, the full-length cDNA was deduced, amplified by PCR, and confirmed by sequencing. The 2088 bp full-length cDNA contains a 1914 bp ORF and encodes a 638 amino acid polypeptide with a calculated isoelectric point of 6.96 and theoretical molecular mass of 67.8 kDa. This gene was designated as CaF-box and submitted to GenBank with accession number JX402925. An NCBI blast search indicated that the deduced CaF-box amino acid sequence showed moderate homology with other F-box proteins from Solanum lycopersicum (SlEBF1, GenBank accession no. ACS44394, 55.2% identity, and SlEBF2, GenBank accession no. ACS44350, 85.2% identity), Arabidopsis thaliana (AtEBF1, GenBank accession no. NP_565597, 51.2% identity, and AtEBF2, GenBank accession no. NP_197917, 50.3% identity), and Populus trichocarpa (PtF-box, GenBank accession no EEF03786, 66.0% identity). Two characteristic protein domains were identified in the CaF-box sequence: an F-box domain (residues 63–104) in the N-terminal region, and 15 cascade Leu-rich repeats (LRRs) in the C-terminal region (Figure 1).
In order to evaluate the molecular evolutionary relationships between CaF-box and other F-box proteins, a phylogenetic tree was prepared using Mega5.1 (Figure 2). CaF-box fell into the EBF-type F-box protein family, and the bioinformatics analysis suggested CaF-box is most highly related to plant F-box proteins that are involved in formation of E3 ubiquitin ligase complexes.

2.2. Expression Patterns of CaF-Box in Different Tissues of Pepper Plants

Analysis of gene expression patterns provides useful information for speculation concerning protein function [22]. To investigate the physiological role of CaF-box, the basal expression in different pepper tissues including roots, leaves, stems, flowers, fruits, and seeds were analyzed by real-time quantitative PCR (Figure 3). CaF-box was expressed ubiquitously in all tissues, and the basal expression was similar in roots, leaves, flowers, and fruits, but much higher in stems and seeds. The result is in agreement with previous studies on the expression patterns of F-box protein-encoding genes that showed basically expressed in all organs [25,26]. The higher expression levels in stems and seeds suggest that CaF-box gene may play a role in development.

2.3. Expression Patterns of CaF-Box Gene in Response to Abiotic Stress and Plant Hormones Treatment

Plants have evolved several elaborate regulatory defense strategies to protect themselves from various biotic and abiotic stresses [27]. To investigate the relationship between pepper CaF-box and stress responses, the transcription level of CaF-box under abiotic stress conditions (cold, high salinity, osmotic, and heavy metal stress) was measured by real-time quantitative PCR.

2.3.1. Expression Analysis of CaF-Box Gene in Response to Cold, Salt, Osmotic, and Heavy Metal Stress Treatments

F-box proteins are highly abundant in plants, and many are involved in the regulation of plant defense responses [21,28]. In this study, CaF-box exhibited a diverse expression pattern in response to cold, salt, osmotic, and heavy metal stresses (Figure 4).
Temperature stress is one of the most important abiotic factors limiting the growth, development and geographical distribution of plants [29], and the expression of many defense genes are altered in response to low or high temperature stress. In this study, CaF-box was markedly upregulated by cold stress (Figure 4A). Increased levels of CaF-box transcript were detectable within 3 h after cold treatment, with the maximal level reached at 6 h after treatment. However, CaF-box transcription was downregulated at 24 h, but then upregulated again at 48 h after treatment. The transcript level of CaF-box gene was similar to the EST R029 transcript in pepper seedlings subjected to cold stress [24]. And this was reminiscent of the findings of Yan et al. (2011) who found that low temperature rapidly and strongly induced the expression level of MAIF1, an F-box protein-encoding gene from rice [23]. In contrast, the F-box gene CarF-box from chickpea was downregulated by cold stress [22]. Together, these results indicate that different F-box genes exhibit different expression patters under cold stress conditions.
In contrast to the results for cold stress, CaF-box expression was significantly enhanced in pepper leaves under salt treatment, with a 2.5-fold increase 1 h after a 300 mM NaCl treatment (Figure 4B). However, CaF-box was dramatically downregulated 3 h after NaCl treatment, with mRNA levels only 0.2 fold that of control plants. This level of downregulation was also measured 24 h after salt stress. These expression patterns were similar to previous observations [30]. Expression of the Arabidopsis F-box protein-encoding gene of FOA1 was rapidly induced following NaCl treatment, with levels peaking at 2 h and then gradually decreasing with time. These results suggested that CaF-box could be involved in responses to salt stress in pepper.
Previous studies demonstrated that osmotic and heavy metal stress induced a wide range of different changes in gene expression and/or physiological responses [31,32]. In this study, expression f CaF-box was downregulated in response to both osmotic and heavy metal stress (Figure 4C,D), suggesting CaF-box may play a negative role in response to these stresses.

2.3.2. Expression Analysis of CaF-Box Gene in Response to ABA and SA Treatment

Plant hormones such as ABA and SA are important signaling molecules that contribute to biotic and abiotic stress tolerance in pepper [3335]. To investigate a possible involvement of CaF-box in defense-associated signaling, expression was analyzed in pepper leaves treated with 0.57 mM ABA or 5 mM SA using real-time quantitative PCR.
ABA treatment dramatically upregulated CaF-box expression (Figure 4E). At 3 h after treatment, CaF-box transcription was elevated two-fold compared to control plants. However, there was a sharply decrease in CaF-box mRNA levels at 6 h as transcript levels reached their lowest, before gradually increasing, and transcription levels peaked 24 h after treatment. This pattern was consistent with previous studies in which ABA enhanced the expression of F-box genes. Gao et al. (2010) found that exogenous application of ABA caused a rapid induction in expression of BnSLY1, an F-box protein-encoding gene in Brassica napus [36]. Transcript levels of OsFox352 also rapidly accumulated following ABA treatment [13]. These results suggested that CaF-box may be involved in the ABA-dependent signaling pathway.
Following treatment with 5 mM SA, CaF-box transcript levels were strongly induced 5.5-fold compared with control plants after 1 h, before levels fell sharply and were maintained at low levels between 3 and 12 h (Figure 4F). At 24 h, expression levels were rapidly increased by 2.8-fold. Similarly Paquis et al. (2011) also reported that exogenous application of SA strongly induced the expression of BIG-24.1, an F-box protein-encoding gene in grapevine (26). The results showed that exogenous SA rapidly induced the transcription of CaF-box, suggesting an involvement in SA signaling.
Taken together, these results indicate that CaF-box is involved in various abiotic stresses, as well as ABA- and SA-dependent signal transduction pathways. This makes CaF-box a potentially valuable gene for future genetic engineering of plants for enhanced abiotic stress tolerance.

2.4. Suppression of CaF-Box Results in Reduced Tolerance to Cold Stress

To examine further the role of CaF-box in the pepper plant cold stress defense response, virus-induced gene silencing (VIGS) was performed in pepper cultivar P70 using the tobacco rattle virus (TRV)-base virus-induced gene silencing technique [37,38]. A fragment from the 3′ end of the CaF-box ORF was cloned into the pTRV2 vector to generate the pTRV2:CaF-box construct. Empty vector (pTRV:00) was used as a negative control. The pTRV2-CaPDS, which silences phytoene desaturase gene (PDS) and induces a photo-bleaching phenotype, was used as a positive control to determine the success of gene silencing (Figure 5A).
As shown in Figure 5B, 35 days after the induction of TRV-mediated gene silencing, pepper plants that have been infiltrated with pTRV2:CaF-box showed no visible phenotype when compared to negative control plants (Figure 5B), but the symptoms of photo-bleaching were occurred on the leaves of CaPDS silenced plants. To verify that the CaF-box transcript was effectively down-regulated by VIGS, real-time quantitative PCR was carried out (Figure 5D). CaF-box expression was dramatically reduced by 60% in new leaves between the silenced and pTRV:00 infiltrated pepper plants grown at 22 °C under non-stress conditions, suggesting that VIGS was successful and effective for CaF-box gene silencing in pepper.
Under cold stress, the pTRV:CaF-box plants aggravated the visible symptoms of leaf damage in seedlings. There was more seriously wilting appeared in pepper seedlings in pTRV:CaF-box plants than that of pTRV:00 plants after 24 h 6 °C treatment (Figure 5C). In order to further confirm the influence of silencing of CaF-box in the cold stress defense response, the TBARS and electrical conductivity measurements in pepper leaves was tested in the control plant (pTRV-00) and CaF-box silenced plant (pTRV2-CaF-box). As shown in Figure 5E,F, after 24 h of 6 °C cold treatments, the TBARS and electrical conductivity measurements were significantly increased in CaF-box-silenced plants compared to control plants. Numerous studies have reported that cold stress induces dehydration, which eventually leads to wilting and results in membrane disintegration and electrolyte leakage [39]. TBARS and electrical conductivity measurements are two established indicators of the extent of cell membrane injury and electrolyte leakage, and are known to correlate well with the severity of the visual damage index [40]. In this study, cold stress significantly increased both TBARS and electrical conductivity in the CaF-box-silenced plants, suggesting loss of CaF-box reduced the tolerance of pepper seedlings to cold treatment, indicating a potential role for CaF-box in resistance to cold stress.
To elucidate the mechanism of reduced tolerance to cold stress in CaF-box-silenced plants, the expression patterns of several cold-related genes were monitored in both negative control (pTRV-00) and CaF-box-silenced plants (pTRV2-CaF-box) by real-time quantitative PCR (Figure 6).
Earlier studies have found ERD15, RD22, and KIN1 to be involved in the response to dehydration and cold stress [4143]. Compared with normal conditions, cold stress induced ERD15, RD22, and KIN1 (except at 6 h) gene expression in both control plant (pTRV-00) and CaF-box-silenced plant (pTRV2-CaF-box) (Figure 6A–C). After cold treatment, the expressions of ERD15 and KIN1 in CaF-box-silenced plants were lower than that in the control plants (Figure 6A,C). However, the result of RD22 transcript was reversed (Figure 7B). These results indicated that knock down the CaF-box gene suppressed chilling-induced ERD15 and KIN1 transcripts. Therefore, CaF-box appeared to act as a positive regulator of cold stress-responsive gene expression, such as ERD15 and KIN1, consistent with the results from leaf chilling injury assays.

3. Experimental Section

3.1. Plant Materials and Growth Conditions

Pepper cultivar P70 was provided by the pepper breeding group in Northwest A&F University, China. Seeds were soaked in warm water (55 °C) for 20 min to promote germination, rinsed twice per day, and placed on moist gauze in an incubator at 28 °C, 60% relative humidity in darkness. When seeds were at least 80% germinated, they were sown in a soil mix of 3:1 grass charcoal:perlite (v/v) in plastic pots. Pepper plants were grown in a growth chamber with a 16 h light and 8 h dark photoperiod at 25 °C.

3.2. Bacterial Strains, Vectors, Enzymes

Vector pMD19-T (TaKaRa, Dalian, China) and pTRV2 were used to engineer constructs, and Agrobacterium tumefaciens strain GV3101 was used for subsequent plant transformation. Pfu DNA polymerase (Promega Corporation, Madison, WI, USA) was used for PCR, and products were subsequently sequenced. T4 DNA ligase (TaKaRa, Dalian, China), BamHI and XbaI restriction enzymes (Promega Corporation, Madison, WI, USA) were used for vector construction.

3.3. Isolation of CaF-Box cDNA Clone and Sequence Analysis

The F-box-homologous EST R029 (GenBank No: JZ198812) characterized from the differential screening of a cold-related pepper seedling cDNA library was previously reported [24]. The full-length CaF-box ORF was obtained using the rapid amplification of cDNA ends (RACE) method. First-strand cDNA synthesis was performed using the Smart RACE cDNA amplification kit (Clontech, Mountain View, CA, USA). Gene-specific primer GSP1 (5′-GTCTTGTCGCAATAGCAG-3′) was used for 3′-RACE and GSP2 (5′-GTTTAGACAGTGTAGTTCCA-3′) was used for 5′-RACE. Universal primers for 5′ and 3′ RACE were provided in the kit. The full-length cDNA sequence of CaF-box was obtained by PCR amplification using forward (5′-CTTGGTTGTGATTTTCTTGG-3′) and reverse (5′-CACTCGTGTTTGCTTCTGTA-3′) primers. PCR products were cloned into the pMD19-T vector (Takara) and sequenced (Shanghai GeneCore Biotechnologies Co., Shanghai, China).
NCBI bioinformatics tools were used to analyze nucleotide and protein sequence data. Conserved protein domains were identified using the Conserved Domain database, and the theoretical molecular weight (Mw) and isoelectric point (pI) were calculated using the ExPASy compute pI/Mw tool [44]. Multiple sequence alignments of CaF-box and F-box proteins from other species were performed using Clustal W [45]. The phylogenetic tree was constructed using Mega5.1 by the neighbor-joining method.

3.4. CaF-Box Gene Expression Patterns Analysis

3.4.1. Tissue-Specific Expression of CaF-Box Gene

To evaluate the expression levels of CaF-box in different tissues under normal conditions, roots, stems, leaves, flowers, fruits and seeds were collected from pepper cultivar P70 plants, frozen in liquid nitrogen, and stored at −80 °C until needed for gene expression analysis.

3.4.2. Stress Treatments

Pepper seedlings at the sixth leaf expansion stage were used to establish abiotic stress and plant hormone treatments. ABA and cold treatments were performed as described previously [39]. For salt, osmotic, and heavy metal (Hg) treatments, seedling roots were immersed in solutions containing 300 mM sodium chloride (NaCl), 300 mM mannitol, or 50 μM Hg, and maintained at 25 °C for the indicated times. For SA treatment, seedlings were sprayed with 5 mM SA solution and incubated for the indicated times. Treated seedlings were harvested after 0, 1, 3, 6, 12, and 24 h for examination of CaF-box expression under stress conditions. At each time point, two or three upper young leaves from four separate seedlings were collected and combined to form one sample, wrapped in aluminium foil, immediately frozen in liquid nitrogen and stored at −80 °C. The treatments were arranged in a randomized complete block design and included three experiments. Each experiment includes three replicates.

3.5. RNA Isolation and Real-Time RT-PCR Analysis

Total RNA was extracted from pepper leaves at different time points after diverse stress treatments using the Trizol (Invitrogen, Grand Island, NY, USA) method. RNA concentration was measured spectrophotometrically using a NanoDrop 2000C instrument (Thermo Scientific, Pittsburgh, PA, USA), and the purity was assessed using the A260/280 and A260/230 ratios in the NanoDrop software (Thermo Scientific, Pittsburgh, PA, USA). For quantitative real-time RT-PCR analysis, first strand cDNA was synthesized from 500 ng total RNA using a PrimeScript Kit (TaKaRa, Dalian, China) following the manufacturer’s protocol. Real-time RT-PCR was carried out using SYBR Premix Ex Taq II (TaKaRa, Dalian, China), and analysis was performed on a 20 μL mixture containing 10 μL SYBR Premix Ex Taq II, 2 μL diluted cDNA and 0.8 μL of forward and reverse primers. The amplification was carried out as follows: 95 °C for 1 min, followed by 45 cycles at 95 °C for 10 s, 52 °C for 30 s, and 72 °C for 30 s. The gene encoding the ubiquitin-conjugating protein UBI-3 (GenBank accession no. AY486137.1) was amplified from pepper plants as a reference gene for normalization of CaF-box cDNA samples [46]. The primer sequences used for real-time RT-PCR are shown in Table 1. On the other hand, total RNA of CaF-box silence and control plant were used to examine the expression of three cold stress-related genes (ERD15, RD22, and KIN1). The corresponding specific primers were listed in Table 1. Relative expression levels were determined using the comparative threshold method (2−ΔΔCt) [47]. All samples were performed in triplicate and each included at least three independent biological replicates.

3.6. Virus-Induced Gene Silencing of CaF-Box in Pepper

The pTRV2:CaF-box construct was engineered to include a 330 bp fragment of CaF-box cloned from a pepper cDNA template using gene-specific forward (5′-CTTGGTTGTGATTTTCTTGG-3′) and reverse (5′-CGCGGATCCCGCTGCACCCCTTTCAC-3′) primers containing a BamH I restriction site (underlined). The resulting PCR product was cloned into vector pMD19T (Takara, Dalian, China), the resultant construct was digested with Xba I and BamH I, and the CaF-box fragment was inserted into the Xba I-BamH I site of pTRV2 to form pTRV2-CaF-box. Agrobacterium tumefaciens GV3101 containing either pTRV1 or pTRV2-CaF-box were injected into pepper and plants were grown as described by Wang et al. (2013) [38]. 49 plants were used for the silencing assay.

3.7. TBARS and Electrolyte Leakage Level Assay

The amount of lipid peroxidation in the chloroplast membranes was estimated by measuring TBARS produced by the thiobarbituric acid reaction as described previously by Dhindsa et al. (1981) [48], with modifications. The crude extract was mixed with the same volume of a 0.5% (w/v) thiobarbituric acid solution containing 5% (w/v) trichloroacetic acid. The mixture was heated at 100 °C for 15 min, cooled quickly, and centrifuged at 10,000 rpm for 10 min. The supernatant was used to measure the absorbance at 532, 600, and 450 nm. The TBARS concentration was calculated according to the following formula: (TBARS) = 6.45 × (A532 − A600) − (0.56 × A450).
To assess membrane permeability, electrolyte leakage was measured according to the method described by Dionisio-Sese and Tobita (1998) [49]. Briefly, 10 leaf disks (1 cm in diameter) were collected from the upper, fully expanded youngest leaves of two randomly chosen plants per replicate and washed with distilled water to remove surface contamination. The disks were placed individually in test tubes containing 10 mL distilled water, and incubated in a water bath at room temperature for 2 h. The initial electrical conductivity (EC1) of the medium was measured using a DDS-307 electrical conductivity analyzer (Shanghai Precision Scientific Instrument Co., Ltd., Shanghai, China). The samples were autoclaved at 100 °C for 30 min to release all of the electrolytes before cooling to 25 °C to obtain the final electrical conductivity (EC2). Electrolyte leakage was calculated as EC1/EC2 and expressed as a percentage.

3.8. Statistical Analysis

All data were expressed as the mean ± SD of three independent replicates (n = 3). Data from replicates of the three experiments were pulled together for one-way analysis of Variance (ANOVA), and differences in the mean values of different treatments were determined using the least significant difference (LSD) method. Statistical procedures were performed using the Statistical Analysis System software (SAS Institute, version 8.2, Cary, NC, USA). Values of p ≤ 0.05 were considered statistically significant.

4. Conclusions

In conclusion, we have isolated a novel pepper F-box protein-encoding gene, CaF-box, from the leaves of pepper cultivar P70. CaF-box transcript levels exhibited tissue differences, and the expression patterns of CaF-box were examined in response to abiotic stress and plant hormone treatment. CaF-box was induced strongly under cold stress treatment, and significantly enhanced during the early stages of NaCl stress, before mRNA levels decreased sharply to below those of control plants. In contrast, expression of CaF-box was downregulated by osmotic and heavy metal stress. Moreover, CaF-box expression was significantly upregulated by ABA and SA treatment. Virus-induced gene silencing (VIGS) revealed that mutant plants lacking CaF-box were more susceptible to low temperature treatment than control plants. Taken together, these results suggest that CaF-box plays an important role in the defense response to abiotic and biotic stress resistance. In the future we will perform genetic transformation studies in order to further explore the functional role of CaF-box in pepper.

Acknowledgments

This work was supported through funding from the National Natural Science Foundation of China (#31201615, #31272163), “The Twelfth Five-Year” Plan of National Science and Technology in Rural Areas (#2011BAD12B03), the Natural Science Foundation of Shaanxi Province (#2011JQ3010) and the Shaanxi Provincial Science and Technology Coordinating Innovative Engineering Project (#2012KTCL02-09).

Conflicts of Interest

The authors declare no conflict of interest.

References

  1. Smalle, J.; Vierstra, R.D. The ubiquity in 26S proteasome proteolytic pathway. Annu. Rev. Plant Biol 2004, 55, 555–590. [Google Scholar]
  2. Dreher, K.; Callis, J. Ubiquitin, hormones and biotic stress in plants. Ann. Bot 2007, 99, 787–822. [Google Scholar]
  3. Vierstra, R.D. The ubiquitin-26S proteasome system at the nexus of plant biology. Nat. Rev. Mol. Cell Biol 2009, 110, 385–397. [Google Scholar]
  4. Hellmann, H.; Estelle, M. Plant development: Regulation by protein degradation. Science 2002, 297, 793–797. [Google Scholar]
  5. Cardozo, T.; Pagano, M. The SCF ubiquitin ligase: Insights into a molecular machine. Nat. Rev. Mol. Cell Biol 2004, 5, 739–751. [Google Scholar]
  6. Zheng, N.; Schulman, B.A.; Song, L.; Miller, J.J.; Jeffrey, P.D.; Wang, P.; Chu, C.; Koepp, D.M.; Elledge, S.J.; Pagano, M.; et al. Structure of the Cul1-Rbx1-Skp1-F box Skp2 SCF ubiquitin ligase complex. Nature 2002, 416, 703–709. [Google Scholar]
  7. Gagne, J.M.; Downes, B.P.; Shiu, S.H.; Durski, A.M.; Vierstra, R.D. The F-box subunit of the SCF E3 complex is encoded by a diverse superfamily of genes in Arabidopsis. Proc. Natl. Acad. Sci. USA 2002, 99, 11519–11524. [Google Scholar]
  8. Jin, J.; Cardozo, T.; Lovering, R.C.; Elledge, S.J.; Pagano, M.; Harper, J.W. Systematic analysis and nomenclature of mammalian F-box proteins. Genes Dev 2004, 18, 2573–2580. [Google Scholar]
  9. Kipreos, E.T.; Pagano, M. The F-box protein family. Genome Biol 2000, 1, REVIEWS3002. [Google Scholar]
  10. Xu, G.X.; Ma, H.; Nei, M.; Kong, H.Z. Evolution of F-box genes in plants: Different modes of sequence divergence and their relationships with functional diversification. Proc. Natl. Acad. Sci. USA 2009, 106, 835–840. [Google Scholar]
  11. Santner, A.; Estelle, M. The ubiquitin-proteasome system regulates plant hormone signaling. Plant J 2010, 61, 1029–1040. [Google Scholar]
  12. Lee, J.H.; Kim, W.T. Regulation of abiotic stress signal transduction by E3 ubiquitin ligases in Arabidopsis. Mol. Cell 2011, 31, 201–208. [Google Scholar]
  13. Song, S.Y.; Dai, X.Y.; Zhang, W.H. A rice F box gene, OsFbx352, is involved in glucose-delayed seed germination in rice. J. Exp. Bot 2012, 63, 5550–5568. [Google Scholar]
  14. Levin, J.Z.; Meyerowitz, E.M. UFO: An Arabidopsis gene involved in both floral meristem and floral organ development. Plant Cell 1995, 7, 529–548. [Google Scholar]
  15. Hepworth, S.R.; Klenz, J.E.; Haughn, G.W. UFO in the Arabidopsis inflorescence apex is required for floral-meristem identity and bract suppression. Planta 2006, 223, 769–778. [Google Scholar]
  16. Kepinski, S.; Leyser, O. The Arabidopsis F-box protein TIR1 is an auxin receptor. Nature 2005, 435, 446–451. [Google Scholar]
  17. Xie, D.X.; Feys, B.F.; James, S.; Nieto-Rostro, M.; Turner, J.G. COI1: An Arabidopsis gene required for jasmonate-regulated defense and fertility. Science 1998, 280, 1091–1094. [Google Scholar]
  18. Woo, H.R.; Chung, K.M.; Park, J.H.; Oh, S.A.; Ahn, T.; Hong, S.H.; Jang, S.K.; Nam, H.G. ORE9, an F-box protein that regulates leaf senescence in Arabidopsis. Plant Cell 2001, 13, 1779–1790. [Google Scholar]
  19. Kim, H.S.; Delaney, T.P. Arabidopsis SON1 is an F-box protein that regulates a novel induced defense response independent of both salicylic acid and systemic acquired resistance. Plant Cell 2002, 14, 1469–1482. [Google Scholar]
  20. Gou, M.Y.; Su, N.; Zheng, J.; Huai, J.L.; Wu, G.H.; Zhao, J.F.; He, J.G.; Tang, D.Z.; Yang, S.H.; Wang, G.Y. An F-box gene, CPY30, functions as a negative regulator of the defense response in Arabidopsis. Plant J 2009, 60, 757–770. [Google Scholar]
  21. Zhang, Y.; Xu, W.; Li, Z.; Deng, X.W.; Wu, W.; Xue, Y. F-box protein DOR functions as a novel inhibitory factor for abscisic acid-induced stomatal closure under drought stress in Arabidopsis. Plant Physiol 2008, 148, 2121–2133. [Google Scholar]
  22. Jia, Y.Y.; Gu, H.Y.; Wang, X.S.; Chen, Q.J.; Shi, S.B.; Zhang, J.S.; Ma, L.; Zhang, H.; Ma, H. Molecular cloning and characterization of an F-box family gene CarF-box1 from chichpea (Cicer arietinum L.). Mol. Biol. Rep 2012, 39, 2337–2345. [Google Scholar]
  23. Yan, Y.S.; Chen, X.Y.; Yang, K.; Sun, Z.X.; Fu, Y.P.; Zhang, Y.M.; Fang, R.X. Overexpression of an F-box protein gene reduces abiotic stress tolerance and promotes root growth in rice. Mol. Plant 2011, 4, 190–197. [Google Scholar]
  24. Guo, W.L.; Chen, R.G.; Gong, Z.H.; Yin, Y.X.; Li, D.W. Suppression subtractive hybridization analysis of genes regulated by application of exogenous abscisic acid in pepper plant (Capsicum annuum L.) leaves under chilling stress. PLoS One 2013, 8, e66667. [Google Scholar]
  25. Chai, L.J.; Ge, X.X.; Biswas, M.K.; Deng, X.X. Molecular analysis and expression of a floral organ-relative F-box gene isolated from “Zigui shatian” pummelo (Citrus grandis Osbeck). Mol. Biol. Rep 2011, 38, 4429–2236. [Google Scholar]
  26. Paquis, S.; Mazeyrat-Gourbeyre, F.; Fernandez, O.; Crouzet, J.; Clément, C.; Baillieul, F.; Dorey, S. Characterization of an F-box gene up-regulated by phytohormones and upon biotic and abiotic stresses in grapevine. Mol. Biol. Rep 2011, 38, 3327–3337. [Google Scholar]
  27. Choi, D.S.; Hwang, B.K. The pepper extracellular peroxidase CaPO 2 is required for salt, drought and oxidative stress tolerance as well as resistance to fungal pathogens. Planta 2012, 235, 1369–1382. [Google Scholar]
  28. Lechner, E.; Achard, P.; Vansirc, A.; Potuschak, T.; Genschik, P. F-box proteins everywhere. Curr. Opin. Plant Biol 2006, 9, 631–638. [Google Scholar]
  29. Nguyen, H.T.; Leipner, J.; Stamp, P.; Guerra-Peraza, O. Low temperature stress in maize (Zea mays L.) induces genes involved in photosynthesis and signal transduction as studied by suppression subtractive hybridization. Plant Physiol. Biochem 2009, 47, 116–122. [Google Scholar]
  30. Peng, J.; Yu, D.S.; Wang, L.Q.; Xie, M.M.; Yuan, C.Y.; Wang, Y.; Tang, D.Y.; Zhao, X.Y.; Liu, X.M. Arabidopsis F-box gene FOA1 involved in ABA signaling. Sci. China Life Sci 2012, 55, 497–506. [Google Scholar]
  31. Bray, E.A. Genes commonly regulated by water-deficit stress in Arabidopsis thaliana. J. Exp. Bot 2004, 55, 2331–2341. [Google Scholar]
  32. Gupta, D.K.; Vandenhove, H.; Inouhe, M. Role of phytochelatins in heavy metal stress and detoxification mechanisms in plants. Heavy Metal Stress Plants 2013, 73–94. [Google Scholar]
  33. An, S.H.; Sohn, K.H.; Choi, H.W.; Hwang, I.S.; Lee, S.C.; Hwang, B.K. Pepper pectin methylesterase inhibitor protein CaPMEI 1 is required for antifungal activity, basal disease resistance and abiotic stress tolerance. Planta 2008, 228, 61–78. [Google Scholar]
  34. Lee, S.C.; Hwang, B.K. Functional roles of the pepper antimi-crobial protein gene, CaAMP 1, in abscisic acid signaling and salt and drought tolerance in Arabidopsis. Planta 2009, 229, 383–391. [Google Scholar]
  35. Choi, D.S.; Hwang, B.K. Proteomics and functional analyses of pepper abscisic acid-responsive 1 (ABR 1), which is involved in cell death and defense signaling. Plant Cell 2011, 23, 823–842. [Google Scholar]
  36. Gao, Y.; Zhao, Y.; Li, T.T.; Liu, Y.; Ren, C.X.; Wang, M.L. Molecular cloning and expression analysis of an F-box protein gene responsive to plant hormones in Brassica napus. Mol. Biol. Rep 2010, 37, 1037–1044. [Google Scholar]
  37. Hwang, I.S.; Hwang, B.K. The pepper 9-lipoxygenase gene CaLOX 1 functions in defense and cell death responses to microbial pathogens. Plant Physiol 2010, 152, 948–967. [Google Scholar]
  38. Wang, J.E.; Liu, K.K.; Li, D.W.; Zhang, Y.L.; Zhao, Q.; He, Y.M.; Gong, Z.H. A novel peroxidase canpod gene of pepper is involved in defense responses to phytophtora capsici infection as well as abiotic stress tolerance. Int. J. Mol. Sci 2013, 14, 3158–3177. [Google Scholar]
  39. Guo, W.L.; Chen, R.G.; Gong, Z.H.; Yin, Y.X.; Ahmedand, S.S.; He, Y.M. Exogenous abscisic acid increases antioxidant enzymes and related gene expression in pepper (Capsicum annuum) leaves subjected to chilling stress. Genet. Mol. Res 2012, 11, 4063–4080. [Google Scholar]
  40. Li, Q.; Yu, B.; Gao, Y.; Dai, A.H. Cinnamic acid pretreatment mitigates chilling stress of cucumber leaves through altering antioxidant enzyme activity. Plant Physiol 2011, 168, 927–934. [Google Scholar]
  41. Yamaguchi-Shinozaki, K.; Shinozaki, K. The plant hormone abscisic acid mediates the drought-induced expression but not the seed-specific expression of rd22, a gene responsive to dehydration stress in Arabidopsis thaliana. Mol. Gen. Genet 1993, 238, 17–25. [Google Scholar]
  42. Yamaguchi-Shinozaki, K.; Shinozaki, K. A novel cis-acting element in an Arabidopsis gene is involved in responsiveness to drought, low-temperature, or high-salt stress. Plant Cell 1994, 6, 251–264. [Google Scholar]
  43. Kiyosue, T.; Yamaguchi-Shinozaki, K.; Shinozaki, K. ERD15, a cDNA for a dehydration-induced gene from Arabidopsis thaliana. Plant Physiol 1994, 106, 1707. [Google Scholar]
  44. Bjellqvist, B.; Hughes, G.J.; Pasquali, C.; Paquet, N.; Ravier, F.; Sanchez, J.C.; Frutiger, S.; Hochstrasser, D. The focusing positions of polypeptides in immobilized pH gradients can be predicted from their amino acid sequences. Electrophoresis 1993, 14, 1023–1031. [Google Scholar]
  45. Thompson, J.D.; Higgins, D.G.; Gibson, T.J. CLUSTAL W-Improving the sensitivity of progressive multiple sequence alignment through sequence weighting, position-specific gap penalties and weight matrix choice. Nucleic Acids Res 1994, 22, 4673–4680. [Google Scholar]
  46. Wan, H.J.; Yuan, W.; Ruan, M.; Ye, Q.; Wang, R.; Li, Z.; Zhou, G.; Yao, Z.; Zhao, J.; Liu, S.; et al. Identification of reference genes for reverse transcription quantitative real-time PCR normalization in pepper (Capsicum annuum L.). Biochem. Biophys. Res. Commun 2011, 416, 24–30. [Google Scholar]
  47. Livak, K.J.; Schmittgen, T.D. Analysis of relative gene expression data using real-time quantitative PCR and the 2(−Delta Delta C(T)) method. Methods 2001, 25, 402–408. [Google Scholar]
  48. Dhindsa, R.S.; Plumb-Dhindsa, P.; Thorpe, T.A. Leaf senescence: Correlated with increased levels of membrane permeability and lipid peroxidation, and decreased levels of superoxide dismutase and catalase. J. Exp. Bot 1981, 32, 93–101. [Google Scholar]
  49. Dionisio-Sese, M.L.; Tobita, S. Antioxidant responses of rice seedlings to salinity stress. Plant Sci 1998, 135, 1–9. [Google Scholar]

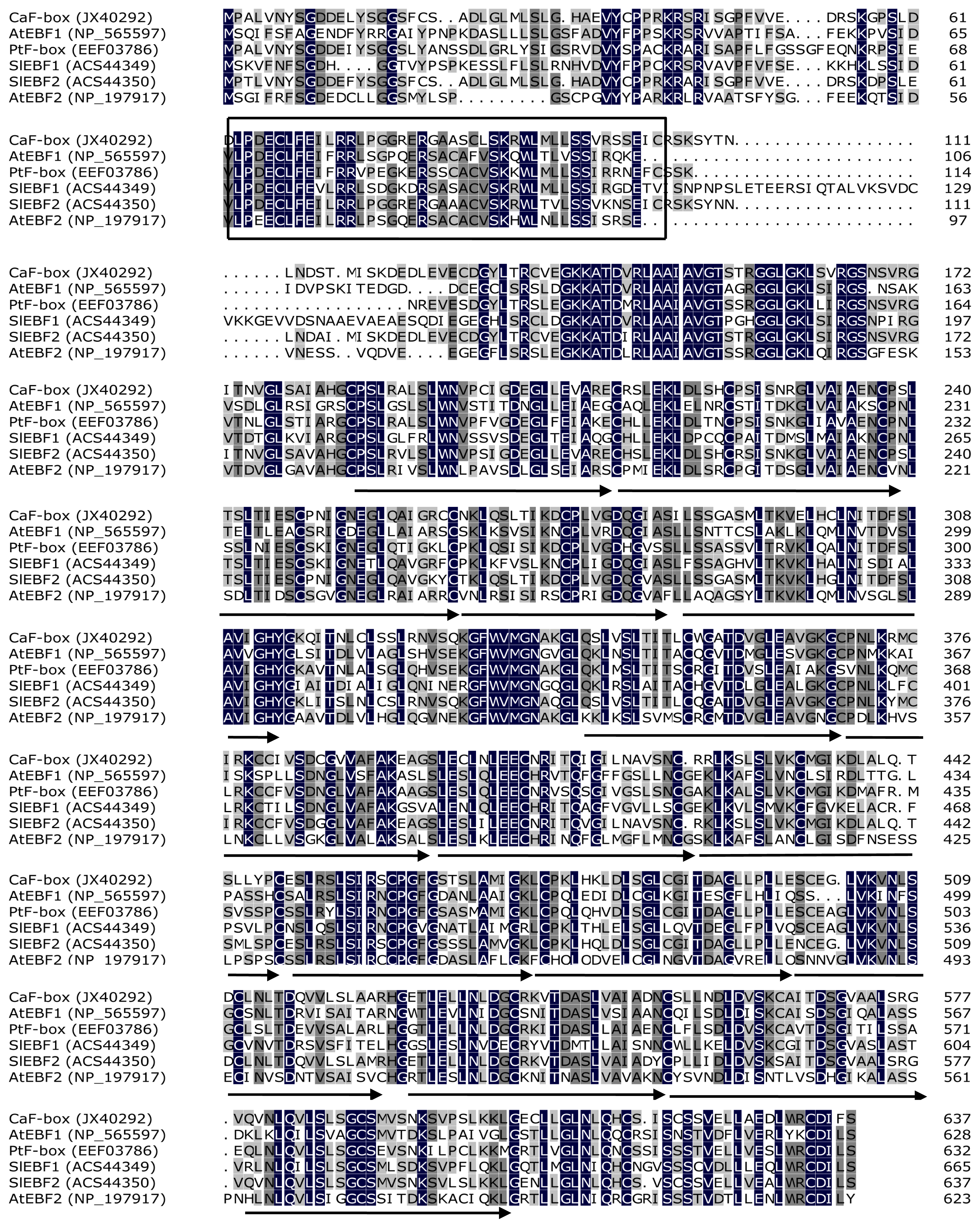

Figure 1. Multiple sequence alignment of CaF-box with the amino acid sequences of Arabidopsis thaliana AtEBF1 and AtEBF2, Solanum lycopersicum SlEBF1 and SlEBF2, and Populus trichocarpa PtF-box. Putative F-box motif sequences are boxed, and the 15 deduced leucine-rich repeats (LRRs) are indicated by arrows under the sequences.
Figure 1. Multiple sequence alignment of CaF-box with the amino acid sequences of Arabidopsis thaliana AtEBF1 and AtEBF2, Solanum lycopersicum SlEBF1 and SlEBF2, and Populus trichocarpa PtF-box. Putative F-box motif sequences are boxed, and the 15 deduced leucine-rich repeats (LRRs) are indicated by arrows under the sequences.
Ijms 15 02413f1

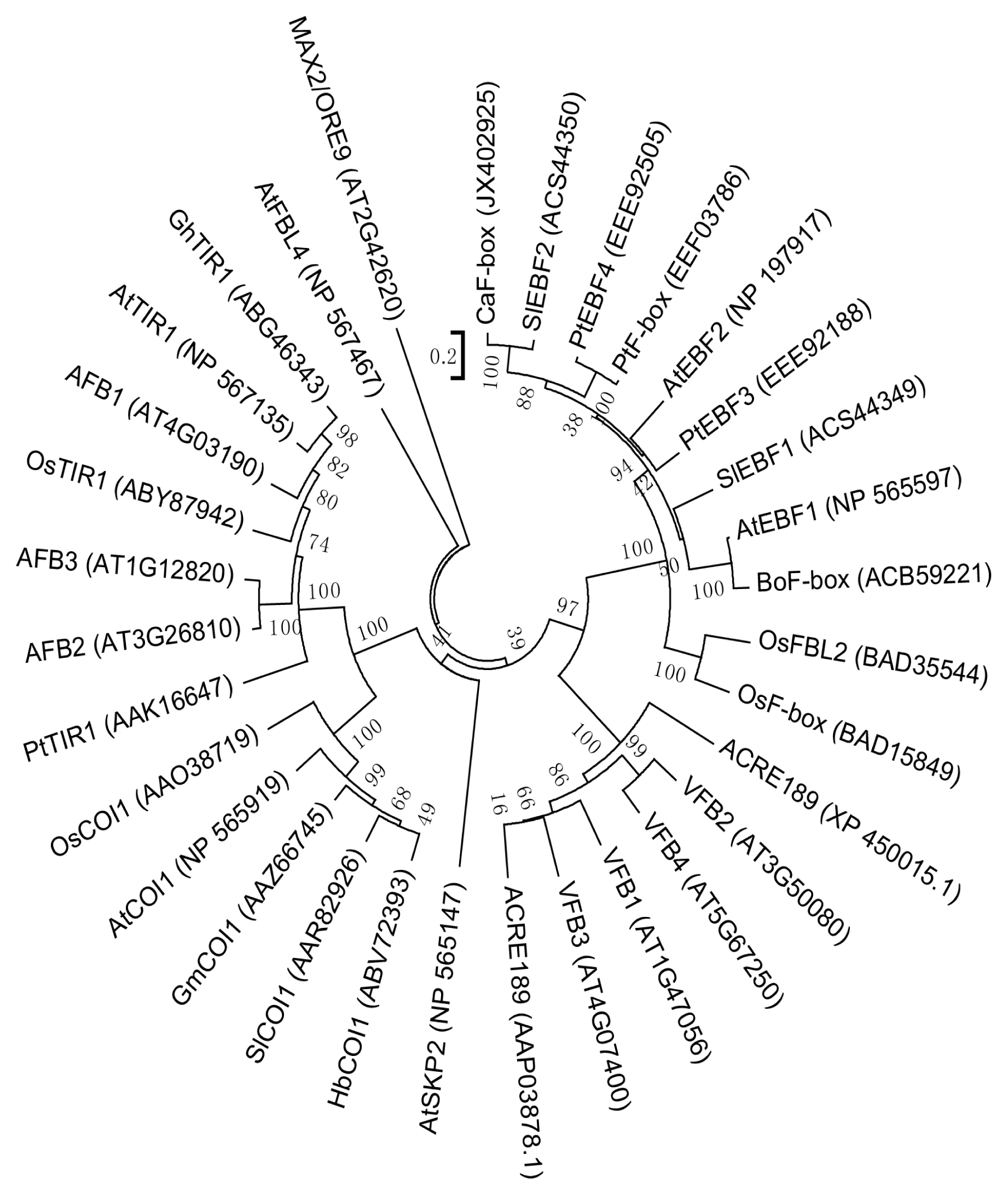

Figure 2. Phylogenetic tree of CaF-box and homologous F-box proteins from other species. The rooted gene tree (majority-rule consensus from 1000 bootstrap replicates) was constructed using the heuristic searching option in Mega5.1. Bootstrap values are indicated at each branch node. GenBank accession numbers are in parentheses after each species and gene name. The scale bar shows the similarity coefficient.
Figure 2. Phylogenetic tree of CaF-box and homologous F-box proteins from other species. The rooted gene tree (majority-rule consensus from 1000 bootstrap replicates) was constructed using the heuristic searching option in Mega5.1. Bootstrap values are indicated at each branch node. GenBank accession numbers are in parentheses after each species and gene name. The scale bar shows the similarity coefficient.
Ijms 15 02413f2

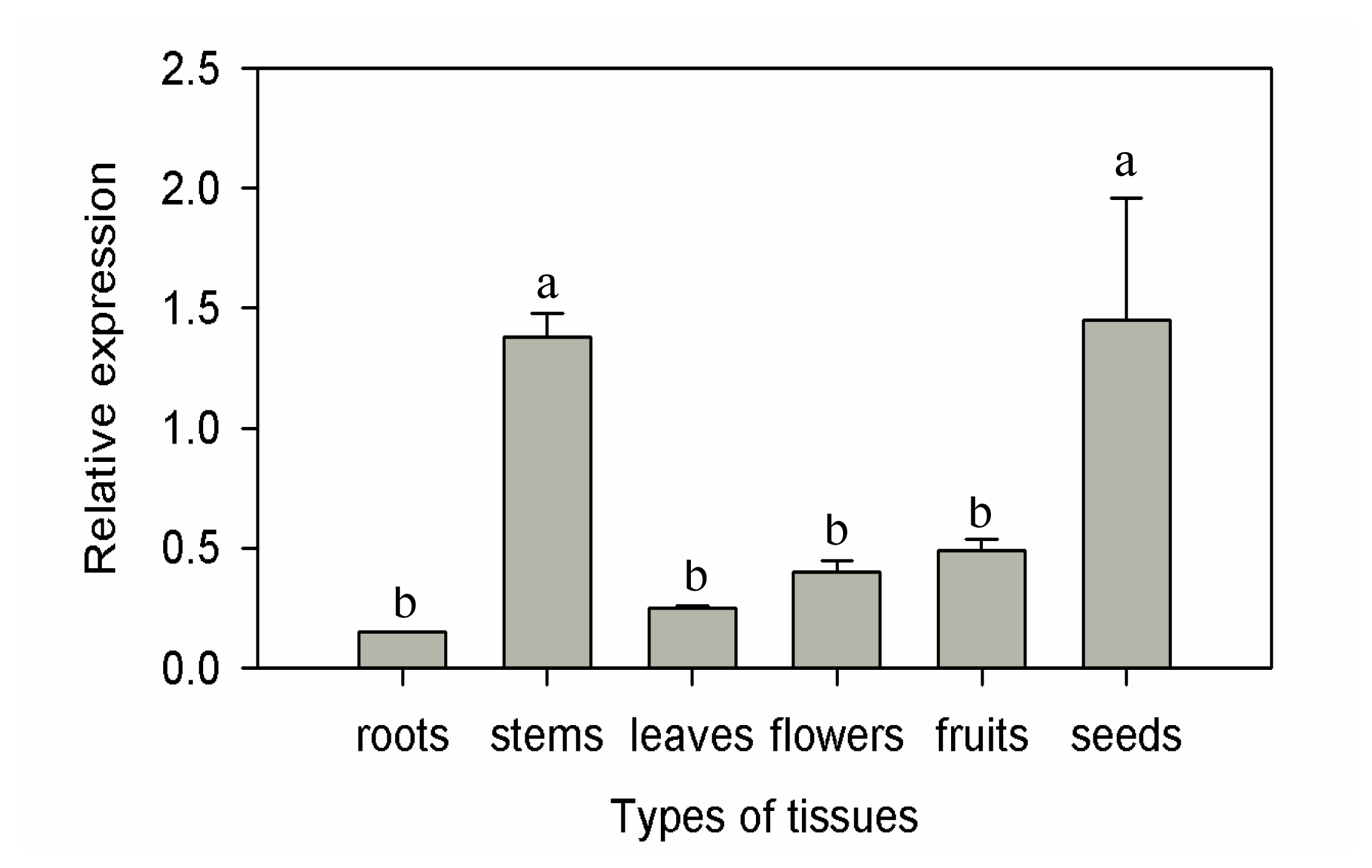

Figure 3. Tissue-specific expression of CaF-box in different tissues of pepper plants. Error bars represent the mean ± SD of three independent biological replicates. Different letters indicate significant differences (p < 0.05).
Figure 3. Tissue-specific expression of CaF-box in different tissues of pepper plants. Error bars represent the mean ± SD of three independent biological replicates. Different letters indicate significant differences (p < 0.05).
Ijms 15 02413f3

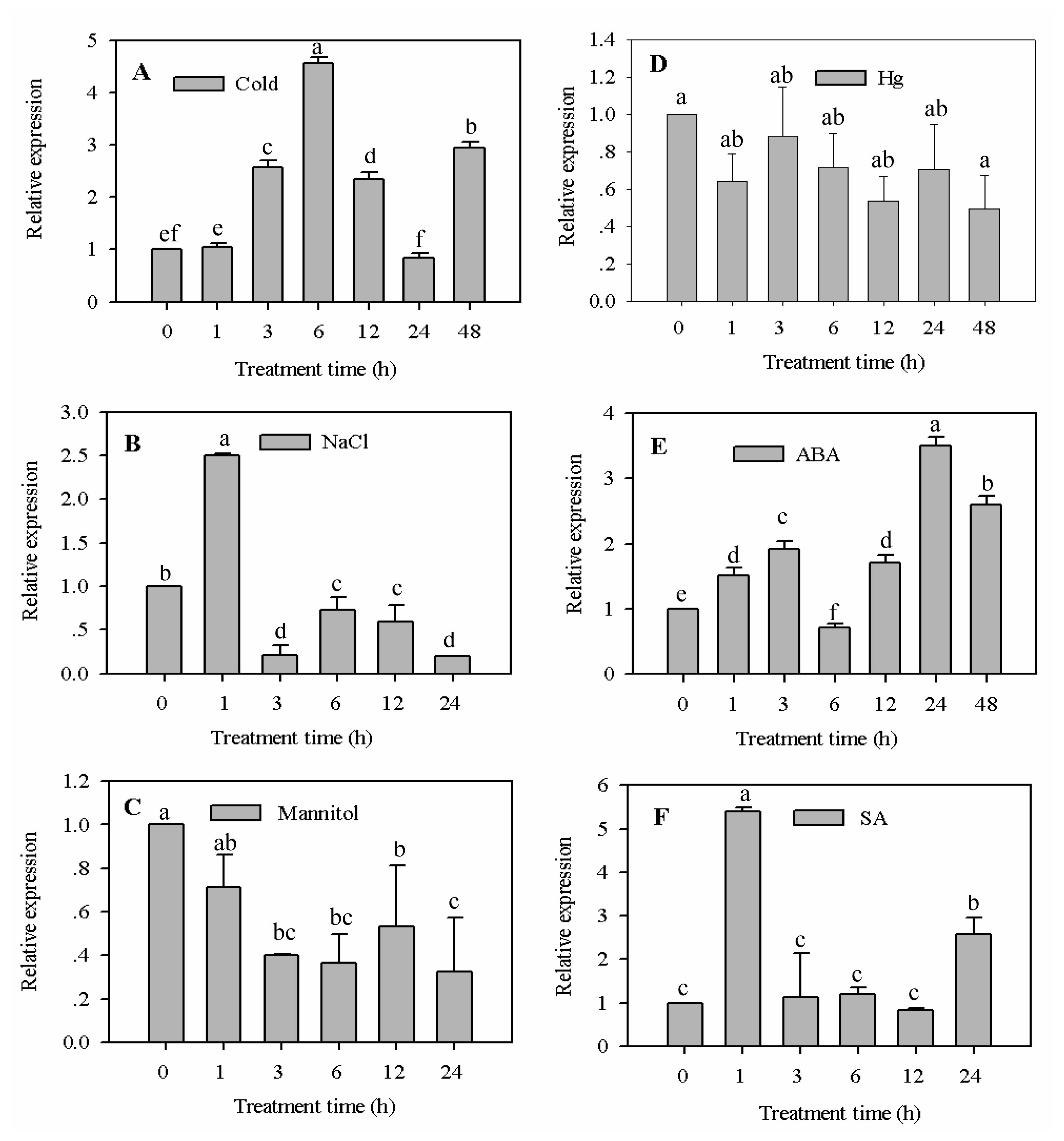

Figure 4. Real-time RT-PCR analysis of relative CaF-box expression levels in the leaves of pepper plants after abiotic stress and plant hormone treatments. (A) Cold stress; (B) Salt stress; (C) Osmotic stress; (D) Heavy metal stress; (E) ABA treatment; (F) SA treatment. Error bars represent the mean ± SD of three independent biological replicates. Different letters indicate significant differences (p < 0.05).
Figure 4. Real-time RT-PCR analysis of relative CaF-box expression levels in the leaves of pepper plants after abiotic stress and plant hormone treatments. (A) Cold stress; (B) Salt stress; (C) Osmotic stress; (D) Heavy metal stress; (E) ABA treatment; (F) SA treatment. Error bars represent the mean ± SD of three independent biological replicates. Different letters indicate significant differences (p < 0.05).
Ijms 15 02413f4

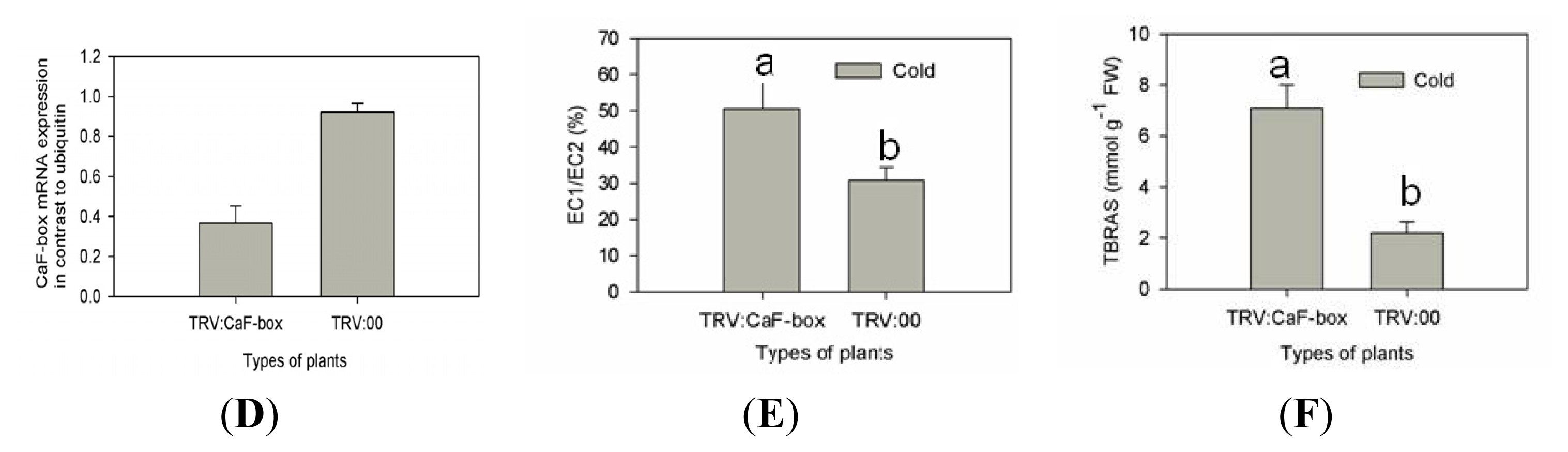

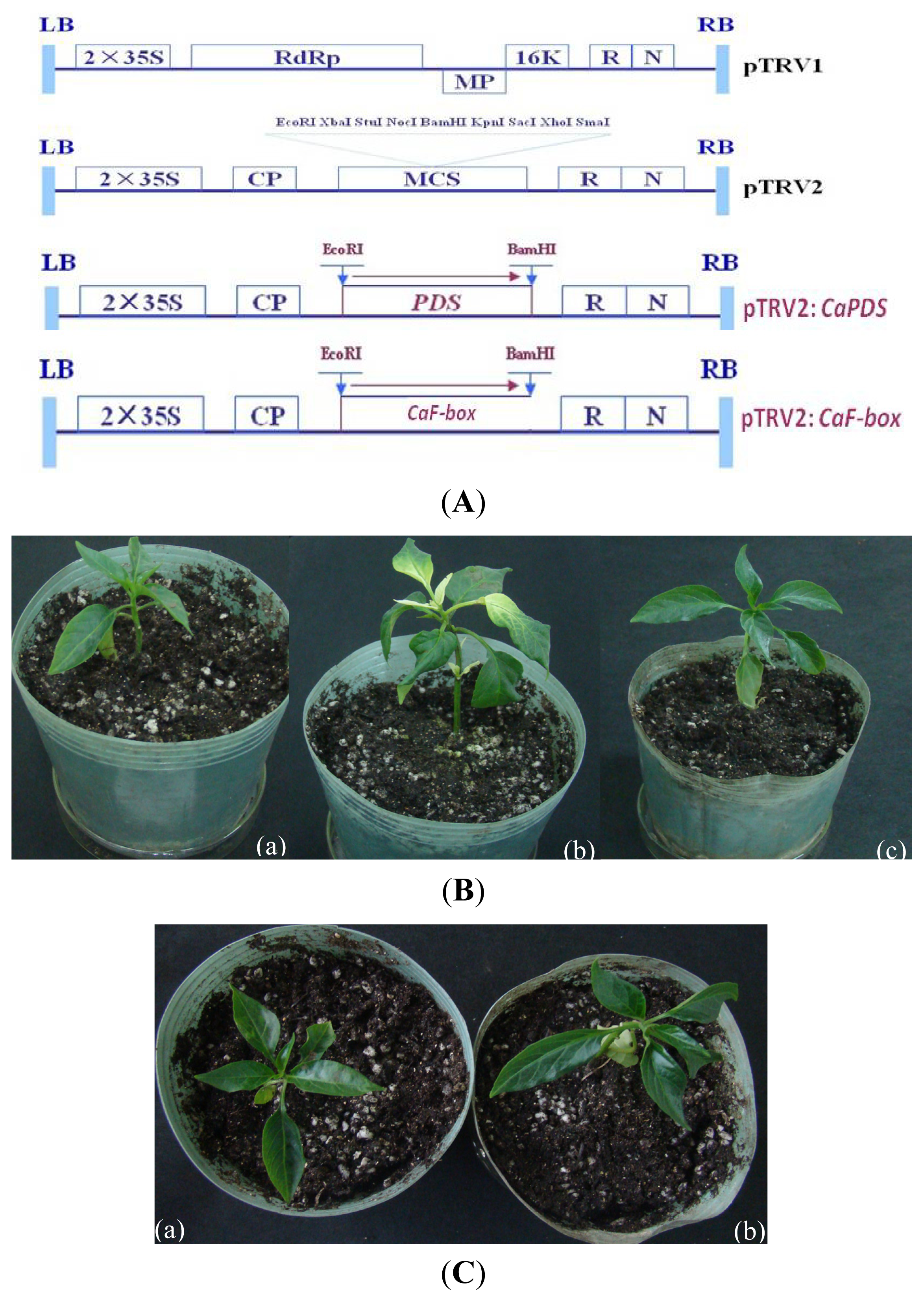

Figure 5. VIGS of CaF-box gene in the pepper plant. (A) Schematic representation of the tobacco rattle virus (TRV), pTRV2:CaPDS and pTRV2:CaF-box constructs; (B) Phenotypes of gene silencing pepper plants. (a) Control plant (pTRV2-00); (b) CaPDS-silenced plant (pTRV2:CaPDS); (c) CaF-box-silenced plant (pTRV2:CaF-box); (C) Phenotypes of the control plant and gene silenced plant after 24 h 6 °C treatment. (a) Control plant (pTRV2-00); (b) CaF-box-silenced plant (pTRV2:CaF-box); (D) Real-time RT-PCR analysis of relative CaF-box expression levels in gene-silenced (pTRV:CaF-box) and control (pTRV:00) plants 45 days after inoculation; (E) Effects of low temperature stress on EC1/EC2; and (F) TBARS in CaF-box-silenced pepper seedlings. Asterisks indicate significant differences compared to empty vector control leaves based on the least significant difference (LSD) test (p < 0.05). Different letters indicate significant differences (p < 0.05).
Figure 5. VIGS of CaF-box gene in the pepper plant. (A) Schematic representation of the tobacco rattle virus (TRV), pTRV2:CaPDS and pTRV2:CaF-box constructs; (B) Phenotypes of gene silencing pepper plants. (a) Control plant (pTRV2-00); (b) CaPDS-silenced plant (pTRV2:CaPDS); (c) CaF-box-silenced plant (pTRV2:CaF-box); (C) Phenotypes of the control plant and gene silenced plant after 24 h 6 °C treatment. (a) Control plant (pTRV2-00); (b) CaF-box-silenced plant (pTRV2:CaF-box); (D) Real-time RT-PCR analysis of relative CaF-box expression levels in gene-silenced (pTRV:CaF-box) and control (pTRV:00) plants 45 days after inoculation; (E) Effects of low temperature stress on EC1/EC2; and (F) TBARS in CaF-box-silenced pepper seedlings. Asterisks indicate significant differences compared to empty vector control leaves based on the least significant difference (LSD) test (p < 0.05). Different letters indicate significant differences (p < 0.05).
Ijms 15 02413f5aIjms 15 02413f5b

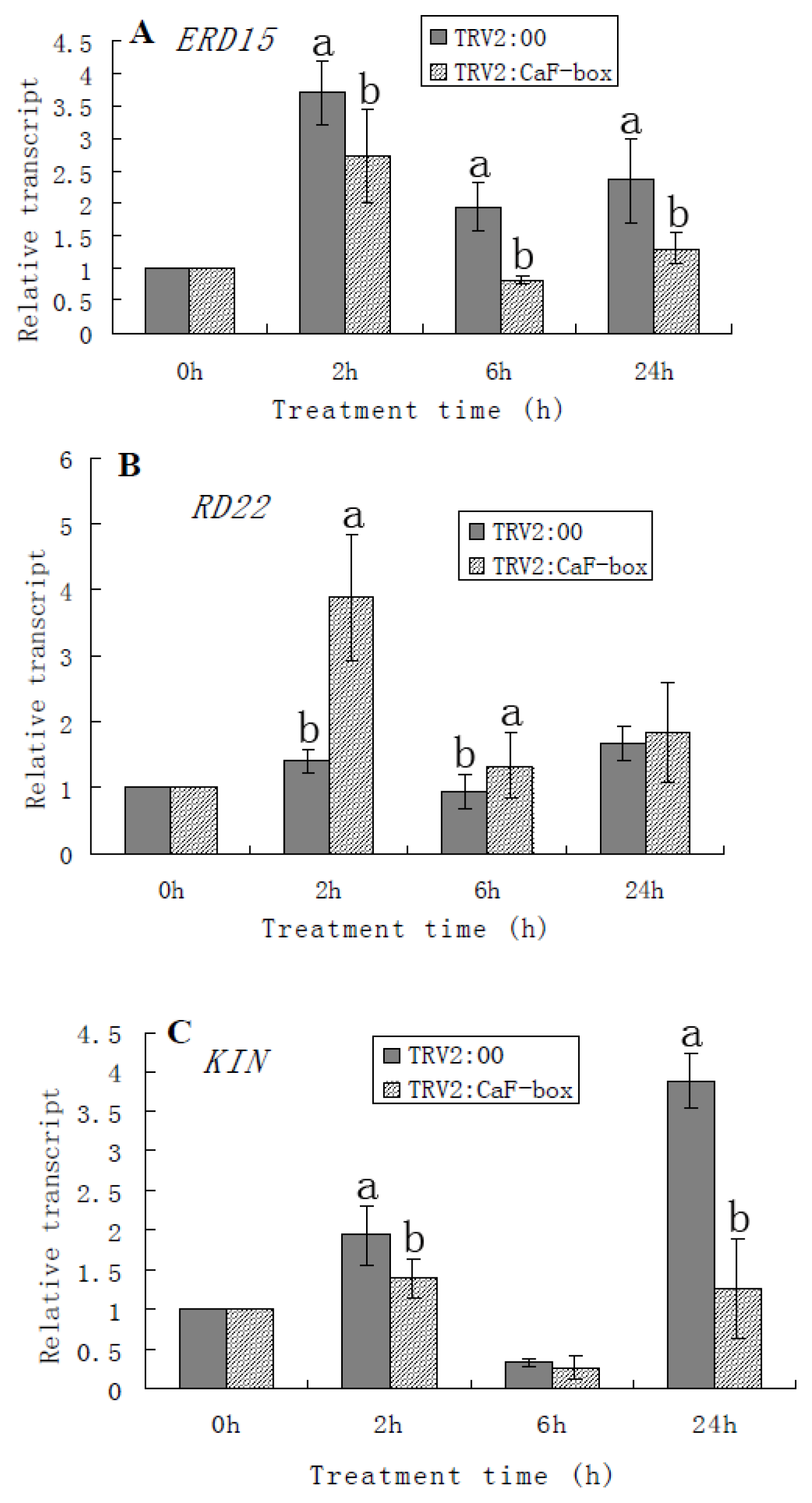

Figure 6. Expression of cold stress-responsive genes in control and CaF-box silenced plants subjected to cold stress. Relative expression levels of cold stress-responsive genes were determined by real time PCR. (A) ERD15 gene; (B) RD22 gene; (C) KIN1 gene. Three biological triplicates were averaged and Bars indicate standard error of the mean. Different letters indicate significant differences (p < 0.05).
Figure 6. Expression of cold stress-responsive genes in control and CaF-box silenced plants subjected to cold stress. Relative expression levels of cold stress-responsive genes were determined by real time PCR. (A) ERD15 gene; (B) RD22 gene; (C) KIN1 gene. Three biological triplicates were averaged and Bars indicate standard error of the mean. Different letters indicate significant differences (p < 0.05).
Ijms 15 02413f6
Table 1. Primer sequences used for Real-time RT-PCR analysis.
Table 1. Primer sequences used for Real-time RT-PCR analysis.
GenePrimerSequence (5′-3′)
CaUbi3QCaUbi3-FTGTCCATCTGCTCTCTGTTG
QCaUbi3-RCACCCCAAGCACAATAAGAC
CaF-boxQCaF-box-FCAAGGTTCAATGTGTGTTACC
QCaF-box-RATGATGATACAAATACAGTGCC
ERD15QERD15-FCCAGCGAAATGGGGAAAC
QERD15-RACAAAGGTACAGTGGTGGC
RD22QRD22-FGCGTTGGCAGCGGAAAA
QRD22-RGCGTTAGGATCGTCGTGG
KIN1QKIN1-FAAATGTCAGAGACCAACAAGAA
QKIN1-RCTACTTGTTCAGGCCGGTCTT
F: forward primer; R: reverse primer.
