Int. J. Mol. Sci. 2014, 15(1), 1358-1373; doi:10.3390/ijms15011358

Review
In Silico Discovery of Aminoacyl-tRNA Synthetase Inhibitors
Yaxue Zhao 1,2, Qingqing Meng 1, Linquan Bai 2 and Huchen Zhou 1,2,*
1
School of Pharmacy, Shanghai Jiao Tong University, 800 Dongchuan Road, Shanghai 200240, China; E-Mails: yaxuezhao@sjtu.edu.cn (Y.Z.); qqmeng@sjtu.edu.cn (Q.M.)
2
State Key Laboratory of Microbial Metabolism, Shanghai Jiao Tong University, 800 Dongchuan Road, Shanghai 200240, China; E-Mail: bailq@sjtu.edu.cn
*
Author to whom correspondence should be addressed; E-Mail: hczhou@sjtu.edu.cn; Tel.: +86-21-3420-6721; Fax: +86-21-3420-4457.
Received: 10 December 2013; in revised form: 2 January 2014 / Accepted: 7 January 2014 /
Published: 20 January 2014

Abstract

: Aminoacyl-tRNA synthetases (aaRSs) are enzymes that catalyze the transfer of amino acids to their cognate tRNA. They play a pivotal role in protein synthesis and are essential for cell growth and survival. The aaRSs are one of the leading targets for development of antibiotic agents. In this review, we mainly focused on aaRS inhibitor discovery and development using in silico methods including virtual screening and structure-based drug design. These computational methods are relatively fast and cheap, and are proving to be of great benefit for the rational development of more potent aaRS inhibitors and other pharmaceutical agents that may usher in a much needed generation of new antibiotics.
Keywords:
aminoacyl-tRNA synthetase; inhibitor; antibiotics; virtual screening; structure-based drug design; docking

1. Introduction

Aminoacyl-tRNA synthetases (aaRSs) play a central role in the process of protein synthesis. They are responsible for catalyzing the attachment of the correct amino acid to its cognate tRNA through an esterification reaction at the 3′ end of tRNA. This highly specific aminoacylation reaction involves two steps:

aa + ATP + aaRS aaRS · aa - AMP + PPi
aaRS · aa - AMP + tRNA aaRS + aa - tRNA + AMP

where aa is an amino acid. The first step is formation of an aminoacyl-adenylate (aa-AMP) activated intermediate from an amino acid and ATP. During this step, ATP and the amino acid first bind the aaRS active site, and are positioned appropriately to facilitate the α-carboxylate of the amino acid to attack the α-phosphate of ATP via in-line nucleophilic displacement. In the second step, the activated amino acid is transferred from aa-AMP to the tRNA to form the aminoacyl-tRNA (aa-tRNA) via nucleophilic attack by the 2′- or 3′-hydroxyl of the 3′-terminal adenosine of the tRNA on the α-carbonyl of the aa-AMP [1].

The aaRSs are divided into two unrelated classes (class I and class II, as shown in Table 1) based on mutually exclusive sets of sequence motifs that reflect distinct active site topologies [2]. The class I synthetase active site adopts a Rossmann-fold domain and binds ATP in an extended conformation. In contrast, class II synthetase active sites are housed on an antiparallel β-fold domain, and bind ATP in a bent conformation [3]. Synthetase enzymes can be arranged into three subclasses within each class, and subclasses group enzymes that are more closely related to each other than to other enzymes in the same class [4]. Subclasses Ic and IIc contain the synthetases for aromatic amino acids, subclasses Ib and IIb comprise the synthetases for amino acids with carboxylate side chains and their amidated derivatives, and subclasses Ia and IIa include synthetases for hydrophobic amino acids.

Accurate protein synthesis and hence, cell survival, requires aaRSs to discriminate between chemically similar, non-cognate amino acids by a factor of at least 104. This is difficult to achieve in one step, especially for aliphatic and hydrophobic amino acids that lack distinguishable molecular features. For example, the weakness of the additional van der Waals interactions of isoleucine compared with valine in the active site of IleRS was predicted to yield an error rate of up to one in five [5]. To overcome this problem, some aaRSs have a specific editing activity that hydrolyzes misactivated aa-AMPs (pre-transfer editing) and mischarged aa-tRNAs (post-transfer editing). This is known as the double sieve mechanism. The first sieve occurs during classical aminoacylation at the aaRS synthetic active site which binds cognate amino acids but cannot adequately distinguish between amino acids with highly similar (isosteric) or slightly smaller structures. The second sieve occurs at an editing active site which hydrolyzes non-cognate amino acids that are misactivated or mischarged. Synthetases with this additional editing site include IleRS, LeuRS, and ValRS from class I, and ThrRS, AlaRS, PheRS and ProRS from class II enzymes [68].

The aaRSs have become key targets for antibiotics. Inhibition of aaRSs depletes charged tRNAs, inhibits protein synthesis and leads to arrest of cell growth and ultimately cell death [9]. Inhibitors of aaRSs are being developed as antibacterials, antifungals and anti-parasitic drugs [1013], and they also possess potent immunosuppressive activity [14]. Both synthetic and editing active sites are targets for inhibition. Mupirocin and AN2690 (Figure 1) are excellent examples of inhibitors that bind to the synthetic and editing active sites, respectively.

Mupirocin (Bactroban, GSK, London, England), a natural product of Pseudomonas fluorescens, is the only aaRS inhibitor approved by the US Food and Drug Administration to this date [15]. It is a mixture of several pseudomonic acids, with pseudomonic acid A (PA-A) constituting greater than 90%. Mupirocin is primarily active against gram-positive pathogens, such as Staphylococcus aureus and Streptococcus pyogenes, and is used as a topical treatment for bacterial skin infections [16]. Mupirocin is targeted against IleRS. Crystal structures of IleRS bound with mupirocin and Ile-AMP show that mupirocin binding in the IleRS synthetic site is highly similar to Ile-AMP binding [1618]. Therefore, mupirocin is a competitive inhibitor functioning by displacing endogenous Ile and ATP.

AN2690 (Tavaborole, Anacor, Palo Alto, CA, USA) is currently in Phase 3 clinical trials for treating onychomycosis. It is a fluorinated benzoxaborole that targets LeuRS [19]. The boron atom in the oxaborole ring of AN2690 binds to both the 2′- and the 3′-hydroxyl groups on the 3′-terminal adenosine. AN2690 occupies the non-cognate amino acid binding pocket in the editing domain of LeuRS. Therefore, by trapping tRNALeu in the editing active site, such inhibitors prevent LeuRS catalytic turnover, inhibiting synthesis of leucyl-tRNALeu and consequently blocking protein synthesis.

Traditional approaches for inhibitor discovery that have proved successful include serendipity, screening natural products and known active substances to identify the active components, drug metabolites, and observing side effects of existing medicines to identify potential involvement in other pathways. In the early 1990s, combinatorial chemistry was used to synthesize huge libraries of compounds and high-throughput screening of these libraries proved particularly successful [20]. However since 2000, computational methods such as virtual screening and structure-based drug design have become more popular in pharmaceutical research. In silico methods save time and money in the drug discovery process [20]. Virtual screening has been widely applied in the discovery of lead compounds [2123]. It can be divided into docking-based and pharmacophore-based procedures. A classical docking-based virtual screening approach begins with the three dimensional (3D) structure of the target protein from the Protein Data Bank (PDB) [24] or from homology modeling. Small molecule structures from commercial databases are then docked into the binding pocket of the target protein. Scoring functions are then used to evaluate and rank the binding mode of each small molecule in the target protein binding site. Finally, high scoring molecules are tested for activity in inhibition or binding assays. Currently available docking software packages for virtual screening studies are represented by Glide [25,26], Gold [27], Dock [28], and AutoDock Vina [29].

Pharmacophore features are generally represented by points in 3D space. A pharmacophore feature could be comprised of functional groups such as hydrogen bond donors, hydrogen bond acceptors, cations, anions, aromatics and hydrophobic sites [30]. Pharmacophore features can be generated by identifying common chemical features from a set of bioactive compounds, or by observing important shared interactions in protein-ligand complex structures. There are several available programs for automatic generation of pharmacophore models including Catalyst [31], Phase [32] and LigandScout [33]. The generated pharmacophore can be used to screen small molecule databases to identify appropriate compounds.

Structure-based or rational drug design is now widely applied in most stages of the drug development process, from initial hit identification to lead optimization [34,35]. Several important drugs have been developed using this method, including human immunodeficiency virus-1 protease [36] and neuraminidase [3739] inhibitors. Central to all structure-based discovery approaches is experimental determination of the 3D structure of the target protein or protein-ligand complex, or construction of a suitably accurate homology model.

2. Inhibitor Identification Using Virtual Screening

2.1. Leucyl-tRNA Synthetase Inhibitors

To discover inhibitors of Trypanosoma brucei LeuRS in order to develop drugs against human African trypanosomiasis, Zhao et al. (2012) constructed a homology model of the synthetic active site based on the crystal structure of Pyrococcus horikoshii LeuRS (1WKB [40]) using the in silico mutation method [41]. By analyzing the interactions of the substrate analog Leu-AMS and T. brucei LeuRS, pharmacophores I and II were generated and used to screen the SPECS database [42] using Catalyst (Figure 2). Hits that matched the pharmacophores well were docked using Glide, and the 2-pyrrolinone compound 3 was identified, and found to be active in vitro, with an IC50 of 170.3 μM (Figure 2). Guided by the docking of compound 4 and the T. brucei LeuRS structure, various substituents at R1, R2, and R3 were designed and synthesized. Structure-activity relationship studies generally corroborated the docking model, which showed that the R2 phenyl group explored a new hydrophobic pocket, and the R3 indolyl group was essential for the favorable interaction with the leucine recognition pocket. Finally, compound 5 was identified as the most potent inhibitor (IC50 = 31.9 μM).

2.2. Tryptophanyl-tRNA Synthetase Inhibitors

Wu et al. (2007) applied a virtual screening approach to find new lead compounds to target Staphylococcus epidermidis TrpRS [43]. Figure 3 shows their inhibitor identification scheme. They first constructed a homology model of S. epidermidis TrpRS based on the crystal structures of Bacillus stearothermophilus TrpRS (1MAW, 1M83, 1MAU, 1MB2 [44]) using MODELLER (Accelrys, Inc. San Diego, CA, USA). Three compounds were identified as TrpRS inhibitors that arrested S. epidermidis growth from the SPECS database combining virtual screening, in vitro and in vivo experiments. The IC50 values of these compounds were 22.8, 42.2 and 18.3 μM as shown using the Kinase-Glo Luminescent Kinase assay, and these results were consistent with the results of the Pyrophosphate Reagent assay. All three compounds inhibited the growth of both S. epidermidis ATCC 12228 and ATCC 35984 strains with micromolar minimal inhibitory concentrations (MICs) (Table 2), and also exhibited low cytotoxicity with CC50 > 200 μM.

2.3. Asparaginyl-tRNA Synthetase Inhibitors

Sukuru and co-workers (2006) successfully identified seven diverse compounds that can inhibit the activity of AsnRS with micromolar affinity [45]. A template was generated using SLIDE to represent the active site of B. malayi AsnRS and its interactions with Asn-AMS based on X-ray crystal structure (2XGT [46]) (Figure 4). After screening the Cambridge Structural Database [47] and National Cancer Institute Plated Compounds Database [48] using SLIDE, they selected forty-five compounds for activity assays. NSC363624 is the most potent inhibitor (IC50 = 25 μM, Figure 4) which has a symmetric structure with two substituted triazine rings connected by a phenyl group.

2.4. Methionyl-tRNA Synthetase Inhibitors

Kim et al. (2006) performed a 2D-database search to discover new MetRS inhibitors [49]. Initially, they constructed a pharmacophore query based on methionyl adenylate (Figure 5) in which R1 has hydrogen bonding characteristics similar to those of a carboxylic acid, amide, and sulfonamide, that may act as the amine or ring nitrogen of the adenine group. R2 is an optionally substituted aryl or heteroaryl ring designed to mimic the lipophilic methionine side chain, and X1 and X2 are linkers. When the query structure was used to search a chemical database consisting of 508,143 commercially available compounds, four novel micromolar inhibitors of Escherichia coli MetRS were identified (Figure 5).

Bharatham et al. (2007) identified 246 potential MetRS inhibitors, and selected 29 based on structural diversity and wide coverage of the activity range to generate pharmacophore models using CATALYST [50]. The best ranking pharmacophore model contained four chemical features including a hydrogen bond donor, a hydrophobic aliphatic substituent, and two aromatic rings. When used to search the Maybridge database [51], two inhibitors (AW01179 and BTB00521, Figure 6) were identified as the top hits, although inhibition activity was estimated using HypoGen and not tested in vitro or in vivo.

Finn et al. (2008) also attempted to identify novel MetRS inhibitors using pharmacophore-based virtual screening [52]. By analyzing crystal structures of S. aureus MetRS in complex with known inhibitors [52], a four point pharmacophore was generated using Catalyst which contained two hydrophobic regions, two hydrogen bond donors directed towards the carboxylate oxygens of Asp51, and an excluded volume. When this pharmacophore was used to search the ChemDiv diverse collection database [53], thirty-one compounds were identified. Enzyme assays established that twenty-two out of the thirty-one compounds demonstrated 50% or greater inhibition of S. aureus MetRS at 100 μM. The structures of the four most potent compounds and their IC50 values are shown in Figure 7.

3. Inhibitor Identification Using Structure-Based Drug Design

3.1. Leucyl-tRNA Synthetase Inhibitors

Ding et al. (2011) and Zhang et al. (2013) investigated T. brucei LeuRS using a structure-based drug design approach [12,54].

A 3D structure of the T. brucei LeuRS editing active site was constructed using homology modeling based on the crystal structure of Candida albicans LeuRS (2WFG [10]). The editing domain active site of the model was rather small and hydrophobic, and lined by nonpolar amino acid residues including Pro398, Ala443, Ile468, and Ala464. Compounds with smaller hydrophobic groups at the 6-position (compound 20, IC50 = 22.1 μM; Figure 8) were more potent than those with hydrophilic and larger hydrophobic groups. The highest potency was shown by a compound with an ester at the 6-position (compound 21, IC50 of 1.6 μM; Figure 8). 6-amide and 6-ketone derivatives were also developed to improve stability in vivo, and the 6-ketone analogs were comparable in potency to the 6-ester compounds.

By screening an in-house database of 500 compounds, Zhang et al. [54] identified a T. brucei LeuRS inhibitor with an N-(4-sulfamoylphenyl)thiourea core structure (compound 22, IC50 = 174.5 μM; Figure 9). Computational studies suggested thiourea compounds bind to the synthetic active site rather than the editing active site. In order to capitalize on the intrinsic binding affinity for the leucyl-anchoring pocket, the leucyl group was introduced (compound 23, IC50 = 31.4 μM; Figure 9). Superimposition of the docked pose of compound 23 and Leu-AMS showed a 1,4-substitution geometry at the central phenyl ring that could lead to significant deviation. Accordingly, a 1,3-substituted analog of 23 was designed and tested, and shown to result in a more potent T. brucei LeuRS inhibitor (compound 24, IC50 = 1.1 μM; in Figure 9).

3.2. Isoleucyl-tRNA Synthetase Inhibitors

As mentioned above, mupirocin is a drug that targets IleRS. Based on the IleRS-PA-A complex crystal structure, together with a detailed understanding of the reaction cycle of IleRS and characterization of the binding mode of the Ile-AMP reaction intermediate, Brown et al. (2000) designed and synthesized a series of novel IleRS inhibitors (Figure 10) [55]. They noticed that the binding site of PA-A overlaps with that of Ile-AMP, such that the dihydroxytetrahydropyran and ribose rings overlap but the epoxide containing group does not occupy the Ile-binding pocket which is lined with two tryptophans. They hypothesized that extra binding energy could be achieved by appropriate introduction of an Ile moiety to improve the potency of inhibitors. Based on this, four pharmacophores (amino acid side chain, linker, monate core and monate side chain) were generated (Figure 10). Through systematic optimization of these pharmacophores, compounds SB-234764 (Kd = 0.012 pM) and SB-236996 (Kd = 0.010 pM) were developed, which were much more potent than the starting compound (Kd = 140 pM).

3.3. Threonyl-tRNA Synthetase Inhibitors

Teng et al. (2013) developed a series of potent and bacterial-selective ThrRS inhibitors through using crystal structures and structure-based drug design [56]. The crystal structure of the complex containing Thr-AMS (compound 27 in Table 2) bound to E. coli ThrRS was the starting point (1EVL [57]). Computational modeling using Discovery Studio suggested that compound 28 (Table 3) which has an aminoquinazoline fragment would bind to the ThrRS synthetic active site in a similar manner to Thr-AMS. Compound 28 was itself a potent inhibitor of E. coli ThrRS with a Ki of 2.9 nM, and the binding mode was confirmed by crystal structure. However, compound 28 also displayed potent human ThrRS inhibition activity. To explore the opportunity for selective bacterial ThrRS inhibition, compound 29 which lacks the H-bond critical for binding to Ser517 was expected to have weaker potency against human ThrRS. Indeed, 29 turned out to have a selectivity ratio of 270. Crystal structures of 29 in complex with both E. coli and human ThrRS demonstrated that the ATP sites of the two enzymes did bind 29 in two distinct modes.

3.4. Methionyl-tRNA Synthetase Inhibitors

The Buckner group have carried out extensive work on the discovery of T. brucei MetRS inhibitors [5861]. Based on the crystal structure of Clostridium difficile MetRS [62], they built a T. brucei MetRS homology model, and docking of compound 30 (Figure 11) was the starting point for inhibitor design [59]. The binding mode of 30 showed that its aminoquinolinone ring forms hydrogen bonds through its NH groups with the carboxylate of Asp287. To capitalize on this interaction, urea- and guanidine-containing analogs (compounds 31 and 32 respectively; Figure 11) were investigated. Compound 31 was chosen as a template for further exploration to develop inhibitors with better permeability properties, due to its tighter binding. By modifying R1, Ar and R2, compound 34 was developed which was significantly more potent (IC50 = 220 nM) and compound 33 had higher cell permeability (Figure 11). Additionally, compound 31 was also found to have high cell permeability and was capable of penetrating the mouse blood-brain barrier.

4. Conclusions

Aminoacyl-tRNA synthetases play a central role in protein synthesis by catalyzing the transfer of amino acids to their cognate tRNAs. These enzymes are clinically validated drug targets and they have been successfully targeted by anti-bacterial, anti-fungal and anti-parasitic agents. However, only one approved aaRS inhibitor is used clinically to date, illustrating the need for further aaRS inhibitor discovery and development.

All aaRSs from different species use the same reaction intermediates in the aminoacylation reaction, representing their conservatism in structures. However, some divergence has occurred throughout their evolution. For example, LeuRSs are evolved into bacterial and eukaryal/archaeal subtypes that possess a number of different residues in the active sites. Consequently, it is possible to take advantage of these active site variations to develop species-selective aaRS inhibitors, although it presents a challenge as in the development of any other selective inhibitors. The drug mupirocin which shows an 8000-fold selectivity for pathogenic IleRS over human IleRS is an excellent example of success.

Computational methods are commonly used in all areas of health science research. Among them, virtual screening and structure-based drug design have become established as powerful methods for identification and optimization of potential small molecule drugs. In this article, we reviewed the application of these approaches in the discovery and development of LeuRS, TrpRS, AsnRS, MetRS, IleRS and ThrRS inhibitors. This review demonstrates the wide use of computational methods for aaRS inhibitor discovery and development, which will surely assist the production of much needed novel antibiotics and other pharmaceutical agents.

Acknowledgments

We thank National Science Foundation of China (81222042 and 81102313); the Ministry of Science and Technology of China (2009CB918404 and 2012CB518001); China Postdoctoral Science Foundation Grant (2013M541525) and the E-Institutes of Shanghai Universities (EISU) Chemical Biology Division for financial support of this work.

Conflicts of Interest

The authors declare no conflict of interest.

References

  1. Ibba, M.; Soll, D. Aminoacyl-tRNA synthesis. Annu. Rev. Biochem 2000, 69, 617–650. [Google Scholar]
  2. Eriani, G.; Delarue, M.; Poch, O.; Gangloff, J.; Moras, D. Partition of tRNA synthetases into two classes based on mutually exclusive sets of sequence motifs. Nature 1990, 347, 203–206. [Google Scholar]
  3. Arnez, J.G.; Moras, D. Structural and functional considerations of the aminoacylation reaction. Trends. Biochem. Sci 1997, 22, 211–216. [Google Scholar]
  4. Schimmel, P. Development of tRNA synthetases and connection to genetic code and disease. Protein Sci 2008, 17, 1643–1652. [Google Scholar]
  5. Lincecum, T.L., Jr.; Tukalo, M.; Yaremchuk, A.; Mursinna, R.S.; Williams, A.M.; Sproat, B.S.; van den Eynde, W.; Link, A.; van Calenbergh, S.; Grotli, M.; et al. Structural and mechanistic basis of pre- and posttransfer editing by leucyl-tRNA synthetase. Mol. Cell 2003, 11, 951–963. [Google Scholar]
  6. Jakubowski, H.; Goldman, E. Editing of errors in selection of amino acids for protein synthesis. Microbiol. Rev 1992, 56, 412–429. [Google Scholar]
  7. Beuning, P.J.; Musier-Forsyth, K. Hydrolytic editing by a class II aminoacyl-tRNA synthetase. Proc. Natl. Acad. Sci. USA 2000, 97, 8916–8920. [Google Scholar]
  8. Dock-Bregeon, A.; Sankaranarayanan, R.; Romby, P.; Caillet, J.; Springer, M.; Rees, B.; Francklyn, C.S.; Ehresmann, C.; Moras, D. Transfer RNA-mediated editing in threonyl-tRNA synthetase. The class II solution to the double discrimination problem. Cell 2000, 103, 877–884. [Google Scholar]
  9. Beaulieu, D.; Ohemeng, K.A. Patents on bacterial tRNA synthetase inhibitors: January 1996 to March 1999. Exp. Opin. Ther. Patents 1999, 9, 1021–1028. [Google Scholar]
  10. Seiradake, E.; Mao, W.; Hernandez, V.; Baker, S.J.; Plattner, J.J.; Alley, M.R.; Cusack, S. Crystal structures of the human and fungal cytosolic Leucyl-tRNA synthetase editing domains: A structural basis for the rational design of antifungal benzoxaboroles. J. Mol. Biol 2009, 390, 196–207. [Google Scholar]
  11. Zhang, Y.K.; Plattner, J.J.; Freund, Y.R.; Easom, E.E.; Zhou, Y.; Gut, J.; Rosenthal, P.J.; Waterson, D.; Gamo, F.J.; Angulo-Barturen, I.; et al. Synthesis and structure-activity relationships of novel benzoxaboroles as a new class of antimalarial agents. Bioorg. Med. Chem. Lett 2011, 21, 644–651. [Google Scholar]
  12. Ding, D.; Meng, Q.; Gao, G.; Zhao, Y.; Wang, Q.; Nare, B.; Jacobs, R.; Rock, F.; Alley, M.R.; Plattner, J.J.; et al. Design, synthesis, and structure-activity relationship of Trypanosoma brucei leucyl-tRNA synthetase inhibitors as antitrypanosomal agents. J. Med. Chem 2011, 54, 1276–1287. [Google Scholar]
  13. Chopra, S.; Palencia, A.; Virus, C.; Tripathy, A.; Temple, B.R.; Velazquez-Campoy, A.; Cusack, S.; Reader, J.S. Plant tumour biocontrol agent employs a tRNA-dependent mechanism to inhibit leucyl-tRNA synthetase. Nat. Commun 2013, 4, 1417. [Google Scholar]
  14. Van de Vijver, P.; Ostrowski, T.; Sproat, B.; Goebels, J.; Rutgeerts, O.; van Aerschot, A.; Waer, M.; Herdewijn, P. Aminoacyl-tRNA synthetase inhibitors as potent and synergistic immunosuppressants. J. Med. Chem 2008, 51, 3020–3029. [Google Scholar]
  15. Ataide, S.F.; Ibba, M. Small molecules: Big players in the evolution of protein synthesis. ACS Chem. Biol 2006, 1, 285–297. [Google Scholar]
  16. Hurdle, J.G.; O’Neill, A.J.; Chopra, I. Prospects for aminoacyl-tRNA synthetase inhibitors as new antimicrobial agents. Antimicrob. Agents Chemother 2005, 49, 4821–4833. [Google Scholar]
  17. Hurdle, J.G.; O’Neill, A.J.; Ingham, E.; Fishwick, C.; Chopra, I. Analysis of mupirocin resistance and fitness in Staphylococcus aureus by molecular genetic and structural modeling techniques. Antimicrob. Agents Chemother 2004, 48, 4366–4376. [Google Scholar]
  18. Nakama, T.; Nureki, O.; Yokoyama, S. Structural basis for the recognition of isoleucyl-adenylate and an antibiotic, mupirocin, by isoleucyl-tRNA synthetase. J. Biol. Chem 2001, 276, 47387–47393. [Google Scholar]
  19. Rock, F.L.; Mao, W.; Yaremchuk, A.; Tukalo, M.; Crepin, T.; Zhou, H.; Zhang, Y.K.; Hernandez, V.; Akama, T.; Baker, S.J.; et al. An antifungal agent inhibits an aminoacyl-tRNA synthetase by trapping tRNA in the editing site. Science 2007, 316, 1759–1761. [Google Scholar]
  20. Lavecchia, A.; di Giovanni, C. Virtual screening strategies in drug discovery: A critical review. Curr. Med. Chem 2013, 20, 2839–2860. [Google Scholar]
  21. Shoichet, B.K.; McGovern, S.L.; Wei, B.; Irwin, J.J. Lead discovery using molecular docking. Curr. Opin. Chem. Biol 2002, 6, 439–446. [Google Scholar]
  22. Reddy, A.S.; Pati, S.P.; Kumar, P.P.; Pradeep, H.N.; Sastry, G.N. Virtual screening in drug discovery—A computational perspective. Curr. Protein. Pept. Sci 2007, 8, 329–351. [Google Scholar]
  23. Zoete, V.; Grosdidier, A.; Michielin, O. Docking, virtual high throughput screening and in silico fragment-based drug design. J. Cell. Mol. Med 2009, 13, 238–248. [Google Scholar]
  24. PDB. Available online: http://www.pdb.org (accessed on 6 December 2013).
  25. Friesner, R.A.; Banks, J.L.; Murphy, R.B.; Halgren, T.A.; Klicic, J.J.; Mainz, D.T.; Repasky, M.P.; Knoll, E.H.; Shelley, M.; Perry, J.K.; et al. Glide: A new approach for rapid, accurate docking and scoring. 1. Method and assessment of docking accuracy. J. Med. Chem 2004, 47, 1739–1749. [Google Scholar]
  26. Halgren, T.A.; Murphy, R.B.; Friesner, R.A.; Beard, H.S.; Frye, L.L.; Pollard, W.T.; Banks, J.L. Glide: A new approach for rapid, accurate docking and scoring. 2. Enrichment factors in database screening. J. Med. Chem 2004, 47, 1750–1759. [Google Scholar]
  27. Jones, G.; Willett, P.; Glen, R.C.; Leach, A.R.; Taylor, R. Development and validation of a genetic algorithm for flexible docking. J. Mol. Biol 1997, 267, 727–748. [Google Scholar]
  28. Moustakas, D.T.; Lang, P.T.; Pegg, S.; Pettersen, E.; Kuntz, I.D.; Brooijmans, N.; Rizzo, R.C. Development and validation of a modular, extensible docking program: DOCK 5. J. Comput. Aided Mol. Des 2006, 20, 601–619. [Google Scholar]
  29. Trott, O.; Olson, A.J. AutoDock Vina: Improving the speed and accuracy of docking with a new scoring function, efficient optimization, and multithreading. J. Comput. Chem 2010, 31, 455–461. [Google Scholar]
  30. Kim, K.H.; Kim, N.D.; Seong, B.L. Pharmacophore-based virtual screening: A review of recent applications. Expert. Opin. Drug Discov 2010, 5, 205–222. [Google Scholar]
  31. Discovery Studio; Accelrys Inc.: San Diego, CA, USA, 2013.
  32. Phase; Schrödinger LLC: New York, NY, USA, 2013.
  33. Wolber, G.; Langer, T. LigandScout: 3-D pharmacophores derived from protein-bound ligands and their use as virtual screening filters. J. Chem. Inf. Model 2005, 45, 160–169. [Google Scholar]
  34. Kalyaanamoorthy, S.; Chen, Y.P. Structure-based drug design to augment hit discovery. Drug Discov. Today 2011, 16, 831–839. [Google Scholar]
  35. Zurcher, M.; Diederich, F. Structure-based drug design: Exploring the proper filling of apolar pockets at enzyme active sites. J. Org. Chem 2008, 73, 4345–4361. [Google Scholar]
  36. Reich, S.H.; Melnick, M.; Davies, J.F.; Appelt, K.; Lewis, K.K.; Fuhry, M.A.; Pino, M.; Trippe, A.J.; Nguyen, D.; Dawson, H.; et al. Protein structure-based design of potent orally bioavailable, nonpeptide inhibitors of human immunodeficiency virus protease. Proc. Natl. Acad. Sci. USA 1995, 92, 3298–3302. [Google Scholar]
  37. Von Itzstein, M.; Wu, W.Y.; Kok, G.B.; Pegg, M.S.; Dyason, J.C.; Jin, B.; van Phan, T.; Smythe, M.L.; White, H.F.; Oliver, S.W.; et al. Rational design of potent sialidase-based inhibitors of influenza virus replication. Nature 1993, 363, 418–423. [Google Scholar]
  38. Kim, C.U.; Lew, W.; Williams, M.A.; Liu, H.; Zhang, L.; Swaminathan, S.; Bischofberger, N.; Chen, M.S.; Mendel, D.B.; Tai, C.Y.; et al. Influenza neuraminidase inhibitors possessing a novel hydrophobic interaction in the enzyme active site: Design, synthesis, and structural analysis of carbocyclic sialic acid analogues with potent anti-influenza activity. J. Am. Chem. Soc 1997, 119, 681–690. [Google Scholar]
  39. Kim, C.U.; Lew, W.; Williams, M.A.; Wu, H.; Zhang, L.; Chen, X.; Escarpe, P.A.; Mendel, D.B.; Laver, W.G.; Stevens, R.C. Structure-activity relationship studies of novel carbocyclic influenza neuraminidase inhibitors. J. Med. Chem 1998, 41, 2451–2460. [Google Scholar]
  40. Fukunaqa, R.; Yokoyama, S. Crystal structure of leucyl-tRNA synthetase from the archaeon Pyrococcus horikoshii reveals a novel editing domain orientation. J. Mol. Biol 2005, 346, 57–71. [Google Scholar]
  41. Zhao, Y.; Wang, Q.; Meng, Q.; Ding, D.; Yang, H.; Gao, G.; Li, D.; Zhu, W.; Zhou, H. Identification of Trypanosoma brucei leucyl-tRNA synthetase inhibitors by pharmacophore- and docking-based virtual screening and synthesis. Bioorg. Med. Chem 2012, 20, 1240–1250. [Google Scholar]
  42. SPECS. Available online: http://www.specs.net (accessed on 6 December 2013).
  43. Wu, Y.; Yu, K.; Xu, B.; Chen, L.; Chen, X.; Mao, J.; Danchin, A.; Shen, X.; Qu, D.; Jiang, H. Potent and selective inhibitors of Staphylococcus epidermidis tr yptophanyl-tRNA synthetase. J. Antimicrob. Chemother 2007, 60, 502–509. [Google Scholar]
  44. Retailleau, P.; Huang, X.; Yin, Y.; Hu, M.; Weinreb, V.; Vachette, P.; Vonrhein, C.; Bricogne, G.; Roversi, P.; Ilyin, V.; et al. Interconversion of ATP binding and conformational free energies by tryptophanyl-tRNA synthetase: Structures of ATP bound to open and closed, pre-transition-state conformations. J. Mol. Biol 2003, 325, 39–63. [Google Scholar]
  45. Sukuru, S.C.; Crepin, T.; Milev, Y.; Marsh, L.C.; Hill, J.B.; Anderson, R.J.; Morris, J.C.; Rohatgi, A.; O’Mahony, G.; Grotli, M.; et al. Discovering new classes of Brugia malayi asparaginyl-tRNA synthetase inhibitors and relating specificity to conformational change. J. Comput. Aided Mol. Des 2006, 20, 159–178. [Google Scholar]
  46. Crepin, T.; Peterson, F.; Haertlein, M.; Jensen, D.; Wang, C.; Cusack, S.; Kron, M. A hybrid structural model of the complete Brugia malayi cytoplasmic asparaginyl-tRNA synthetase. J. Mol. Biol 2011, 405, 1056–1069. [Google Scholar]
  47. Cambridge Structural Database, Available online: http://cds.dl.ac.uk/cds/datasets/crys/csd/csd.html (accessed on 6 December 2013).
  48. National Cancer Institute Plated Compounds Database. Available online: http://cactus.nci.nih.gov/download/nci/ (accessed on 6 December 2013).
  49. Kim, S.Y.; Lee, Y.S.; Kang, T.; Kim, S.; Lee, J. Pharmacophore-based virtual screening: The discovery of novel methionyl-tRNA synthetase inhibitors. Bioorg. Med. Chem. Lett 2006, 16, 4898–4907. [Google Scholar]
  50. Bharatham, N.; Bharatham, K.; Lee, K.W. Pharmacophore identification and virtual screening for methionyl-tRNA synthetase inhibitors. J. Mol. Graph. Model 2007, 25, 813–823. [Google Scholar]
  51. Maybridge. Available online: http://www.maybridge.com (accessed on 6 December 2013).
  52. Finn, J.; Stidham, M.; Hilgers, M.G.; C.K. Identification of novel inhibitors of methionyl-tRNA synthetase (MetRS) by virtual screening. Bioorg. Med. Chem. Lett 2008, 18, 3932–3937. [Google Scholar]
  53. ChemDiv. Available online: http://eu.chemdiv.com (accessed on 6 December 2013).
  54. Zhang, F.; Du, J.; Wang, Q.; Hu, Q.; Zhang, J.; Ding, D.; Zhao, Y.; Yang, F.; Wang, E.; Zhou, H. Discovery of N-(4-sulfamoylphenyl)thioureas as Trypanosoma brucei leucyl-tRNA synthetase inhibitors. Org. Biomol. Chem 2013, 11, 5310–5324. [Google Scholar]
  55. Brown, M.J.; Mensah, L.M.; Doyle, M.L.; Broom, N.J.; Osbourne, N.; Forrest, A.K.; Richardson, C.M.; O’Hanlon, P.J.; Pope, A.J. Rational design of femtomolar inhibitors of isoleucyl tRNA synthetase from a binding model for pseudomonic acid-A. Biochemistry 2000, 39, 6003–6011. [Google Scholar]
  56. Teng, M.; Hilgers, M.T.; Cunningham, M.L.; Borchardt, A.; Locke, J.B.; Abraham, S.; Haley, G.; Kwan, B.P.; Hall, C.; Hough, G.W.; et al. Identification of bacteria-selective threonyl-tRNA synthetase substrate inhibitors by structure-based design. J. Med. Chem 2013, 56, 1748–1760. [Google Scholar]
  57. Sankaranarayanan, R.; Dock-Bregeon, A.C.; Rees, B.; Bovee, M.; Caillet, J.; Romby, P.; Francklyn, C.S.; Moras, D. Zinc ion mediated amino acid discrimination by threonyl-tRNA synthetase. Nat. Struct. Biol 2000, 7, 461–465. [Google Scholar]
  58. Shibata, S.; Gillespie, J.R.; Kelley, A.M.; Napuli, A.J.; Zhang, Z.; Kovzun, K.V.; Pefley, R.M.; Lam, J.; Zucker, F.H.; Van Voorhis, W.C.; et al. Selective inhibitors of methionyl-tRNA synthetase have potent activity against Trypanosoma brucei infection in mice. Antimicrob. Agents Chemother 2011, 55, 1982–1989. [Google Scholar]
  59. Shibata, S.; Gillespie, J.R.; Ranade, R.M.; Koh, C.Y.; Kim, J.E.; Laydbak, J.U.; Zucker, F.H.; Hol, W.G.; Verlinde, C.L.; Buckner, F.S.; et al. Urea-based inhibitors of Trypanosoma brucei methionyl-tRNA synthetase: Selectivity and in vivo characterization. J. Med. Chem 2012, 55, 6342–6351. [Google Scholar]
  60. Koh, C.Y.; Kim, J.E.; Shibata, S.; Ranade, R.M.; Yu, M.; Liu, J.; Gillespie, J.R.; Buckner, F.S.; Verlinde, C.L.; Fan, E.; et al. Distinct states of methionyl-tRNA synthetase indicate inhibitor binding by conformational selection. Structure 2012, 20, 1681–1691. [Google Scholar]
  61. Ranade, R.M.; Gillespie, J.R.; Shibata, S.; Verlinde, C.L.; Fan, E.; Hol, W.G.; Buckner, F.S. Induced resistance to methionyl-tRNA synthetase inhibitors in Trypanosoma brucei is due to overexpression of the target. Antimicrob. Agents Chemother 2013, 57, 3021–3028. [Google Scholar]
  62. Evans, R.; Green, L.; Sun, X.; Guiles, J.; Lorimer, D.; Burgin, A.; Janjic, N.; Jarvis, T.; Davies, D. Co-crystal structure of REP3123 bound to Clostridium difficile methionyl tRNA synthetase, poster F1−2114. Abstracts of the 47th Interscience Conference on Antimicrobial Agents and Chemotherapy, Proceedings of the 47th Interscience Conference on Antimicrobial Agents and Chemotherapy, Chicago, IL, USA, 17–20 September 2007; American Society for Microbiology: Washington, DC, USA, 2007. [Google Scholar]
Ijms 15 01358f1 1024

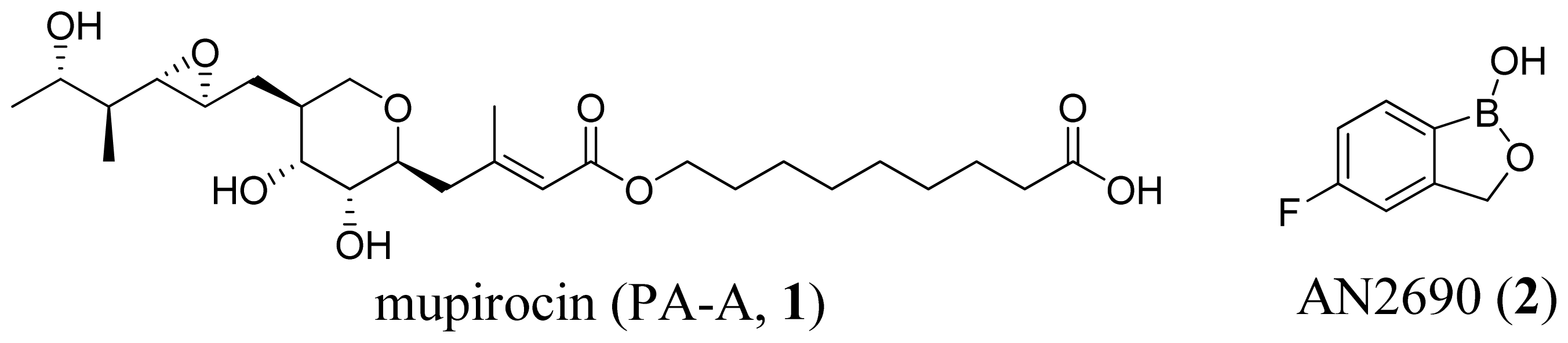

Figure 1. Structures of mupirocin and AN2690.

Click here to enlarge figure

Figure 1. Structures of mupirocin and AN2690.
Ijms 15 01358f1 1024
Ijms 15 01358f2 1024

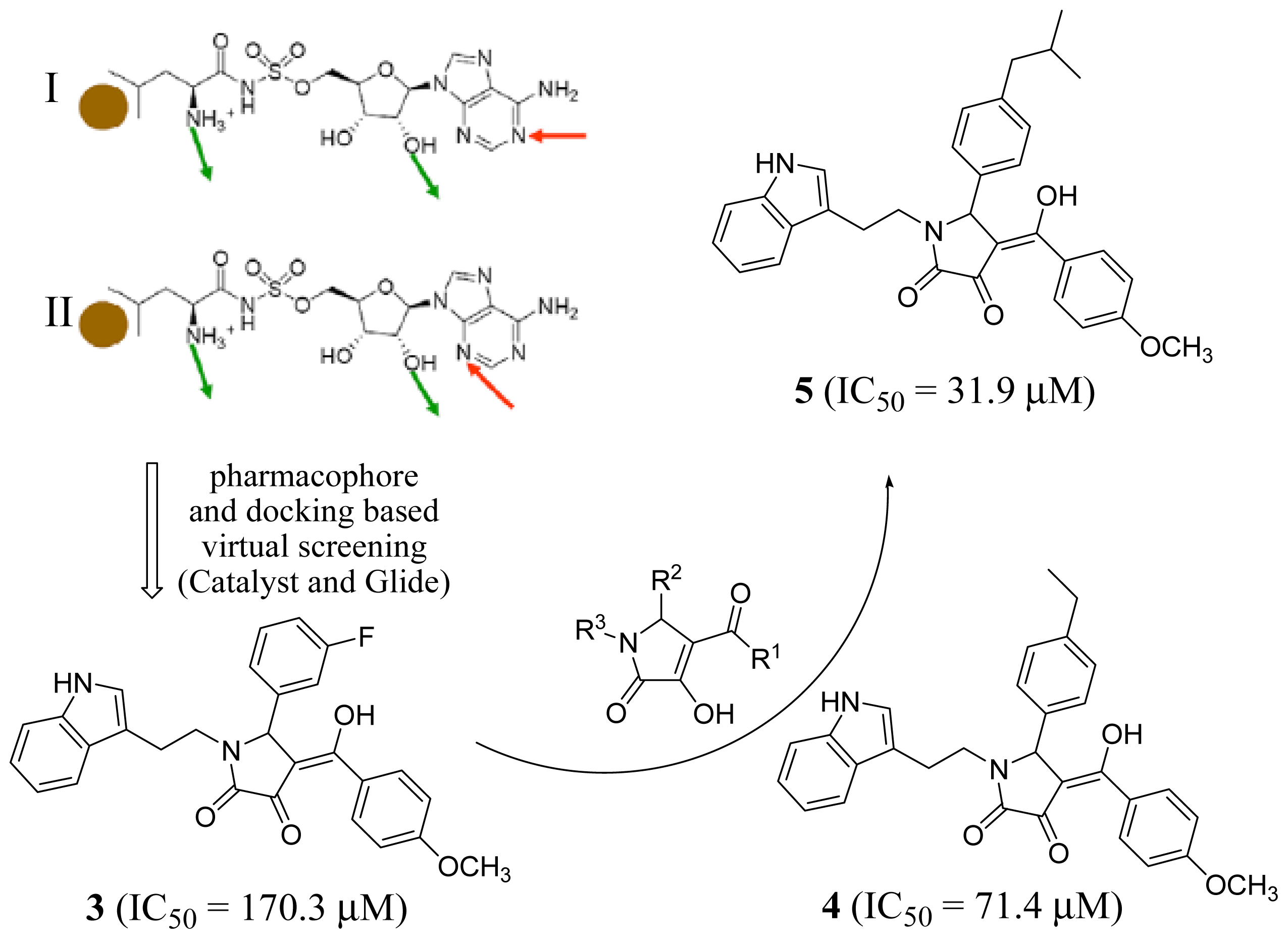

Figure 2. Scheme used in the identification of LeuRS inhibitors. Pharmacophores I and II: the hydrophobic site is colored as orange sphere, hydrogen bond donor is colored as green arrow, hydrogen bond acceptor is colored as red arrow.

Click here to enlarge figure

Figure 2. Scheme used in the identification of LeuRS inhibitors. Pharmacophores I and II: the hydrophobic site is colored as orange sphere, hydrogen bond donor is colored as green arrow, hydrogen bond acceptor is colored as red arrow.
Ijms 15 01358f2 1024
Ijms 15 01358f3 1024

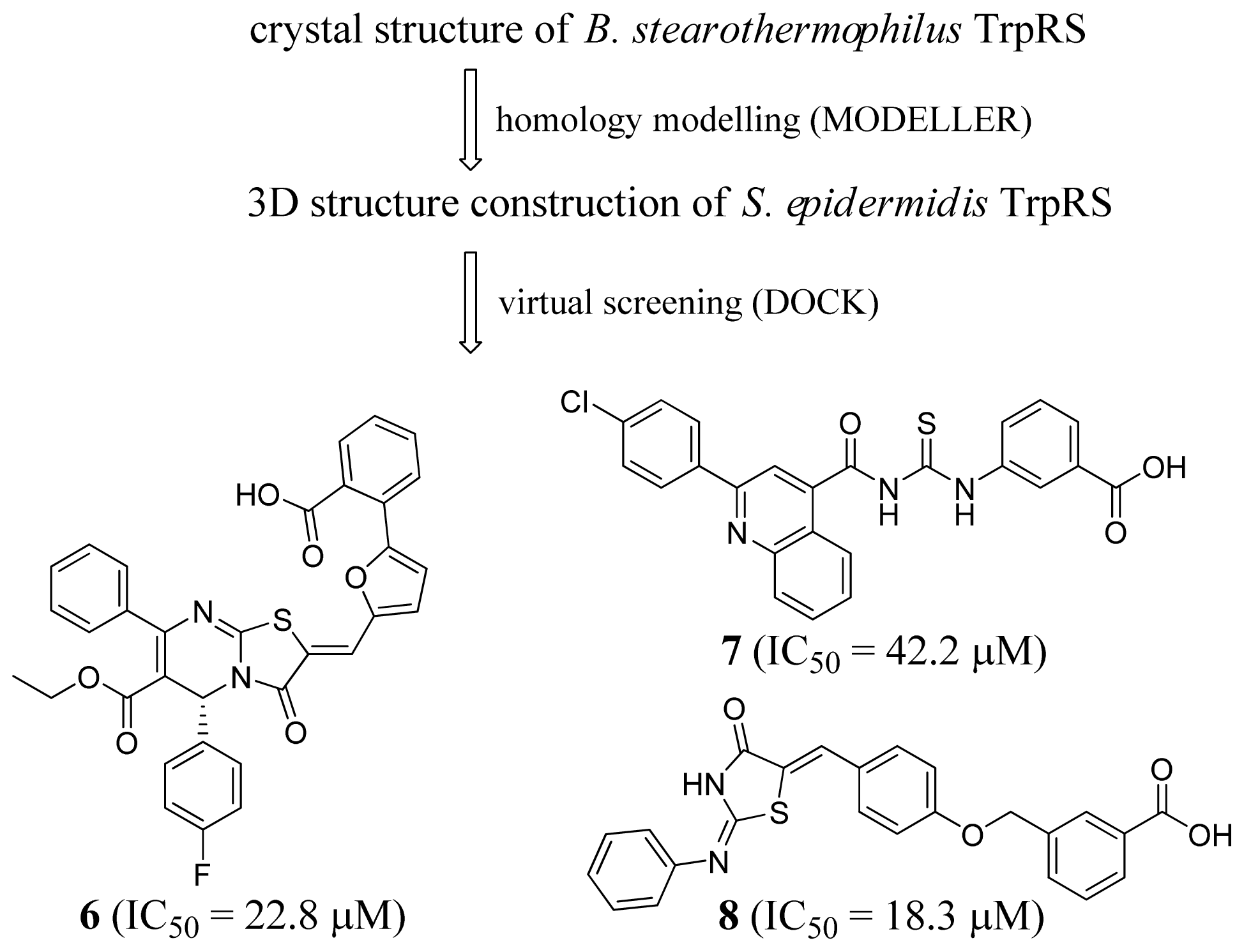

Figure 3. Inhibitor identification scheme of Wu et al. (2007) for TrpRS [43].

Click here to enlarge figure

Figure 3. Inhibitor identification scheme of Wu et al. (2007) for TrpRS [43].
Ijms 15 01358f3 1024
Ijms 15 01358f4 1024

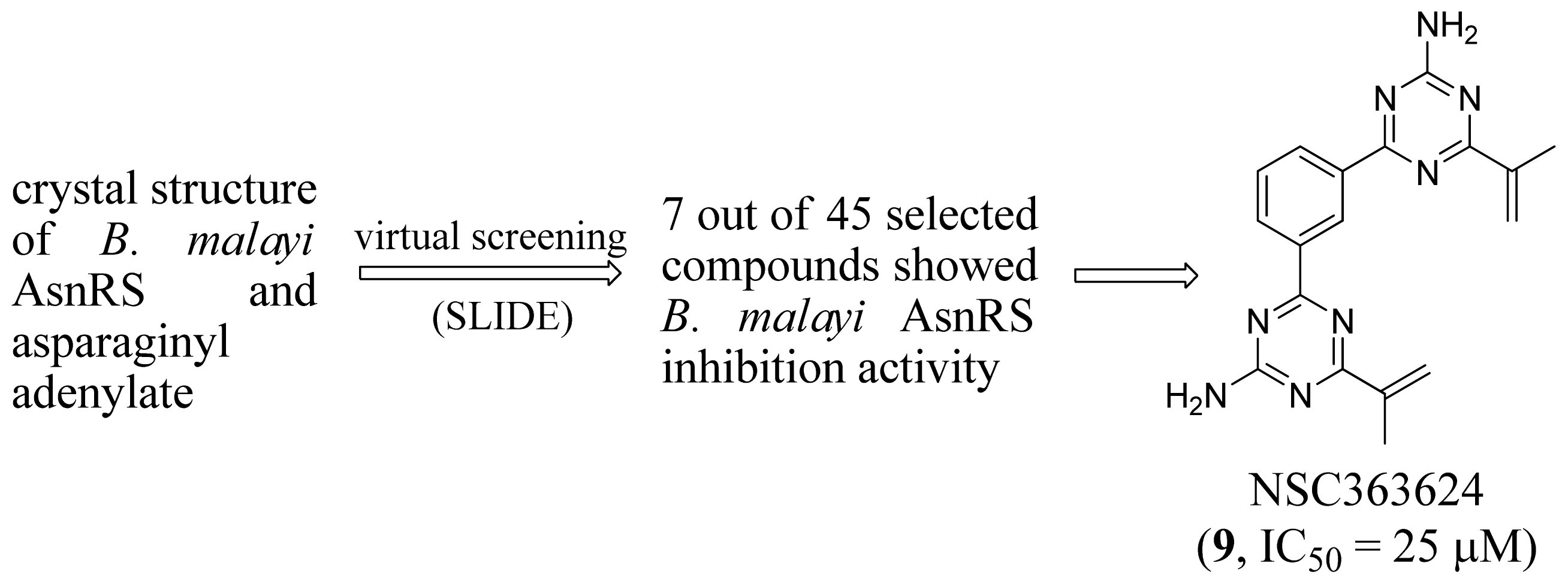

Figure 4. Inhibitor identification scheme of Sukuru et al. (2006) for AsnRS [45].

Click here to enlarge figure

Figure 4. Inhibitor identification scheme of Sukuru et al. (2006) for AsnRS [45].
Ijms 15 01358f4 1024
Ijms 15 01358f5 1024

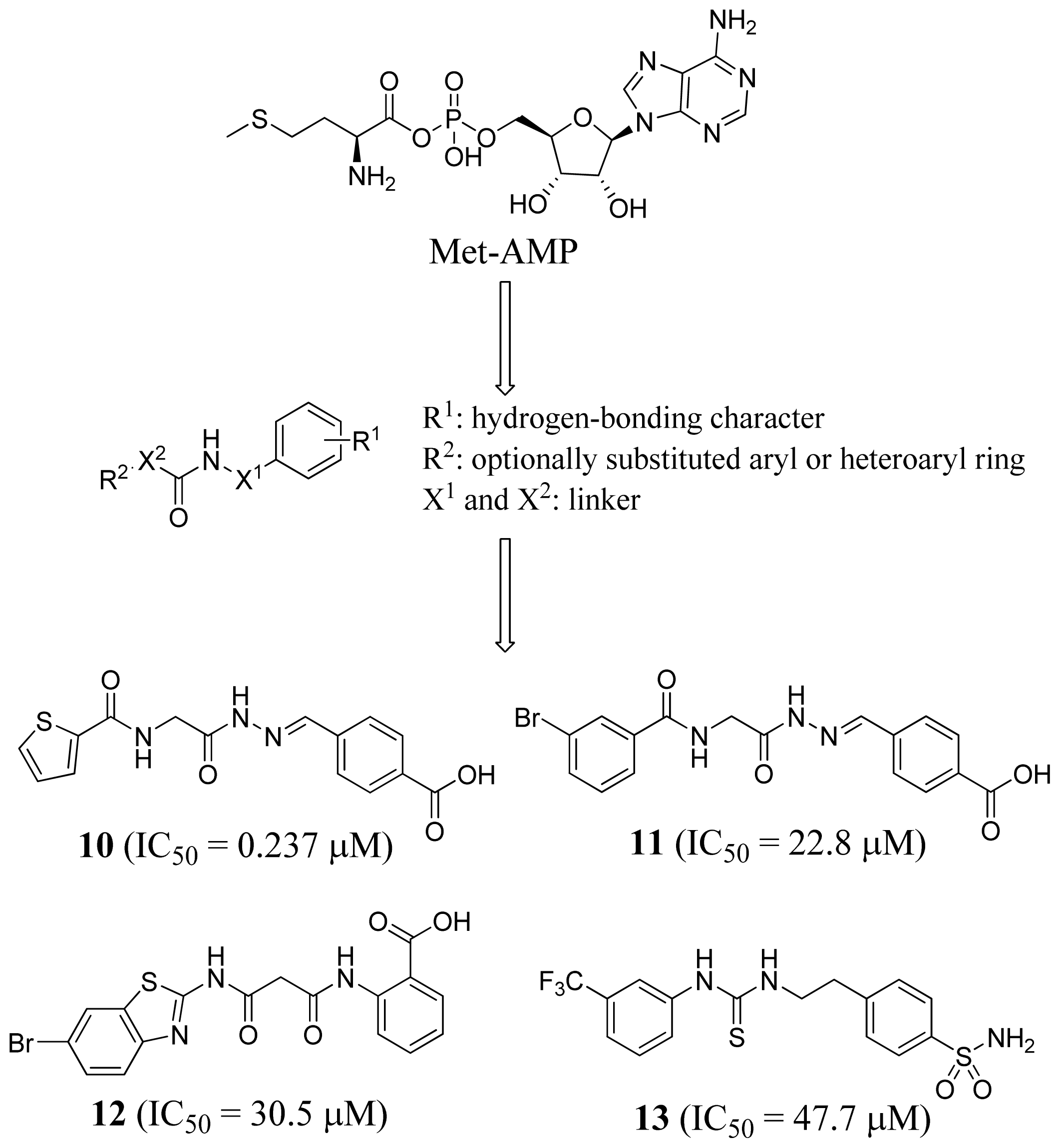

Figure 5. Inhibitor identification scheme of Kim et al. (2006) for MetRS [49].

Click here to enlarge figure

Figure 5. Inhibitor identification scheme of Kim et al. (2006) for MetRS [49].
Ijms 15 01358f5 1024
Ijms 15 01358f6 1024

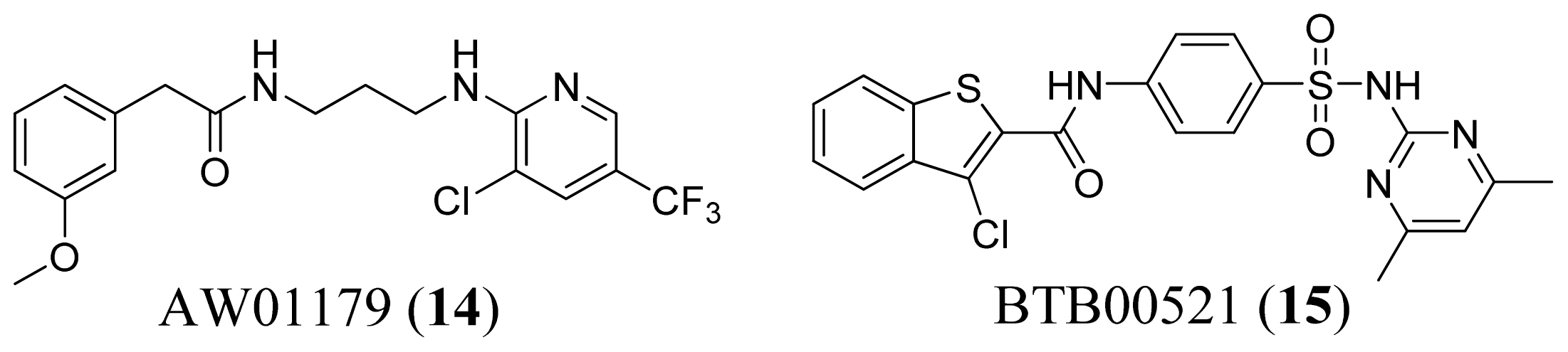

Figure 6. Structures of AW01179 and BTB00521.

Click here to enlarge figure

Figure 6. Structures of AW01179 and BTB00521.
Ijms 15 01358f6 1024
Ijms 15 01358f7 1024

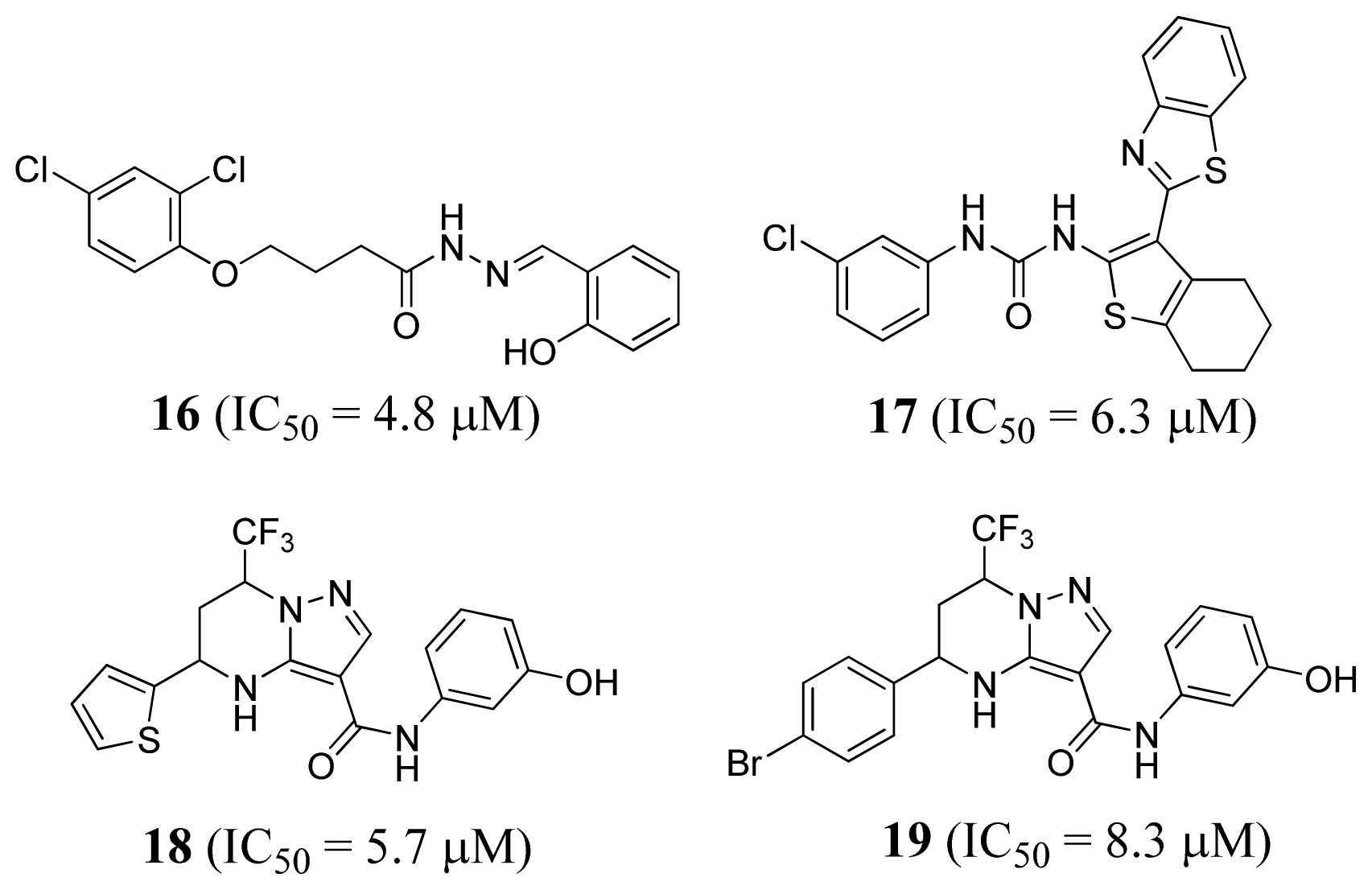

Figure 7. Structures of MetRS inhibitors with IC50 < 10 μM.

Click here to enlarge figure

Figure 7. Structures of MetRS inhibitors with IC50 < 10 μM.
Ijms 15 01358f7 1024
Ijms 15 01358f8 1024

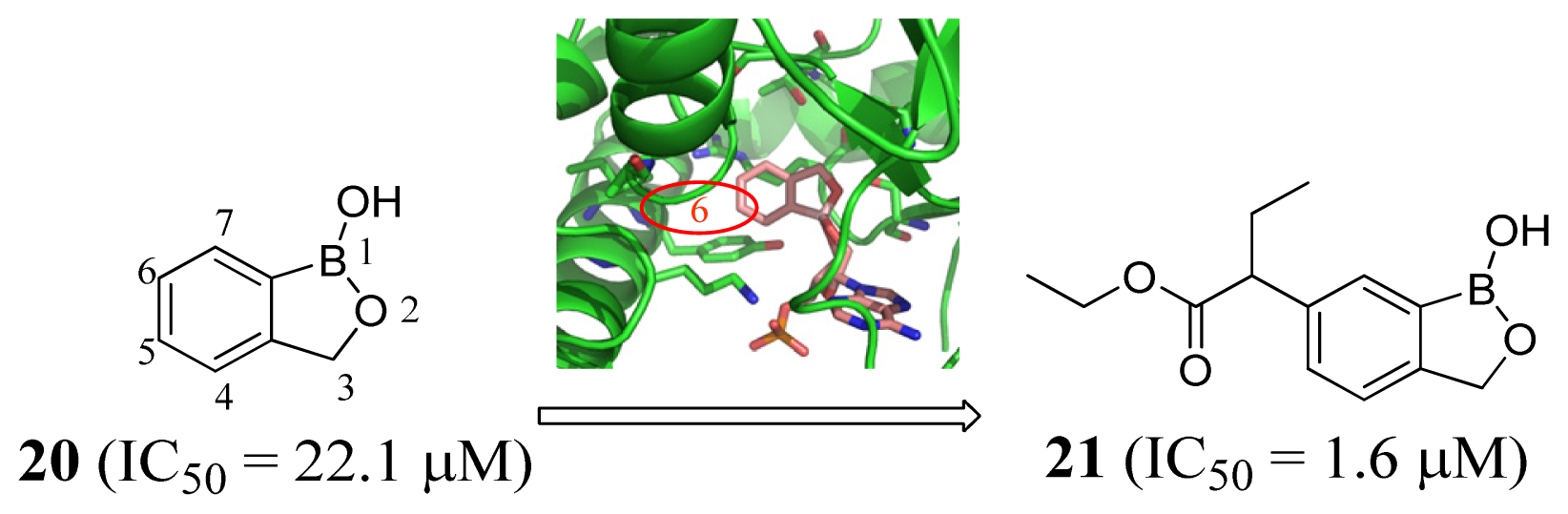

Figure 8. Inhibitor design scheme of Ding et al. (2011) for LeuRS. LeuRS is in cartoon representation and colored green, while compound 20 is in stick conformation and is colored salmon [12].

Click here to enlarge figure

Figure 8. Inhibitor design scheme of Ding et al. (2011) for LeuRS. LeuRS is in cartoon representation and colored green, while compound 20 is in stick conformation and is colored salmon [12].
Ijms 15 01358f8 1024
Ijms 15 01358f9 1024

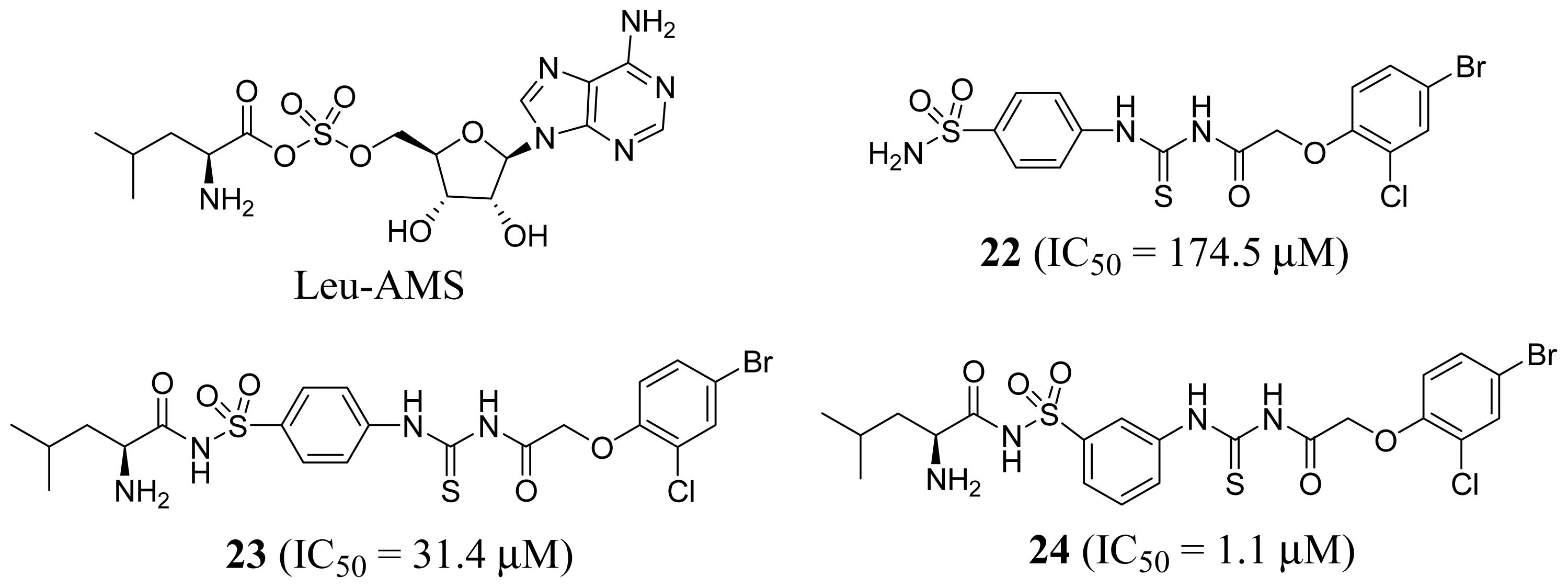

Figure 9. Structures of LeuRS inhibitors.

Click here to enlarge figure

Figure 9. Structures of LeuRS inhibitors.
Ijms 15 01358f9 1024
Ijms 15 01358f10 1024

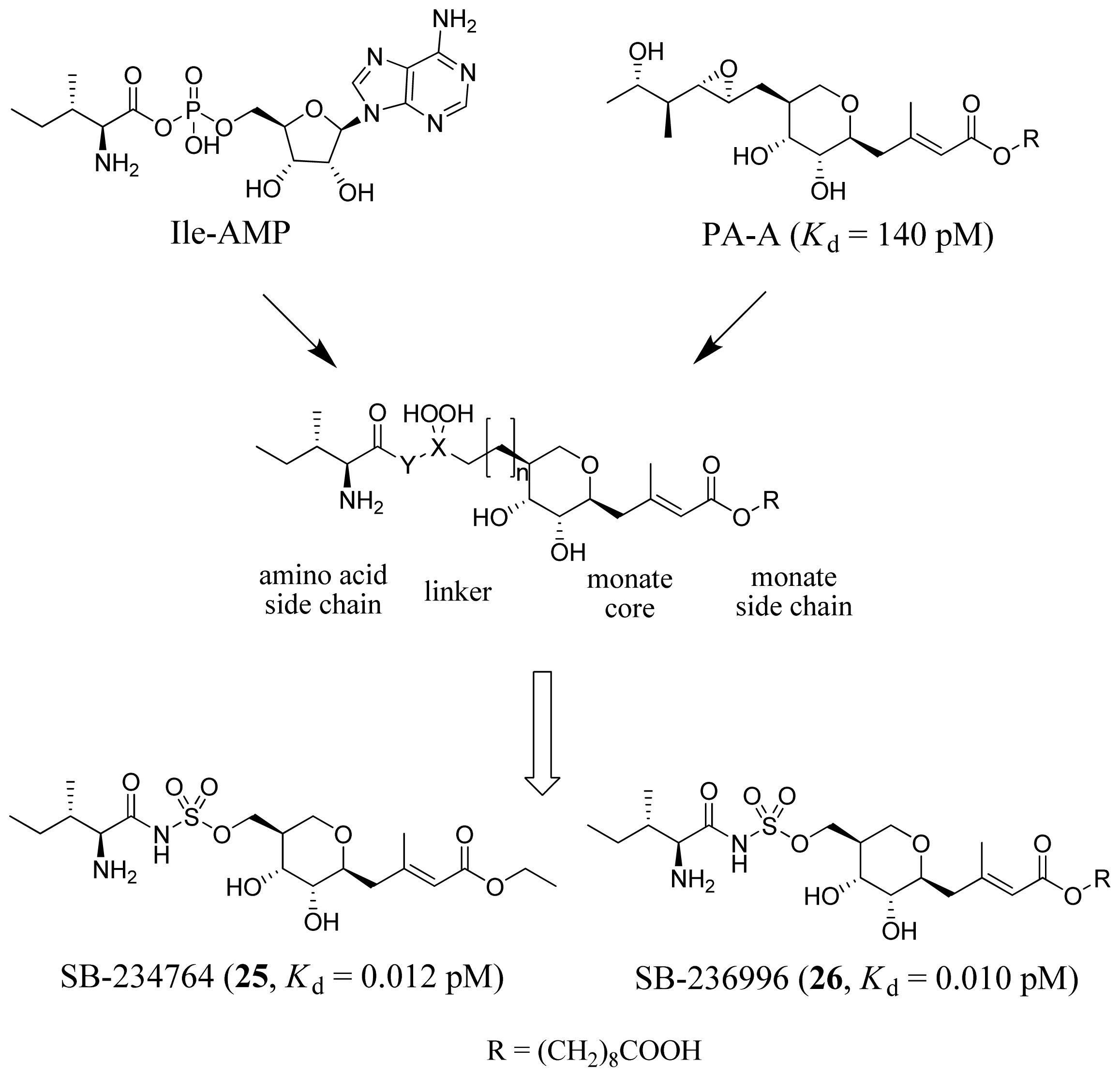

Figure 10. Inhibitor design scheme of Brown et al. (2000) for IleRS [55].

Click here to enlarge figure

Figure 10. Inhibitor design scheme of Brown et al. (2000) for IleRS [55].
Ijms 15 01358f10 1024
Ijms 15 01358f11 1024

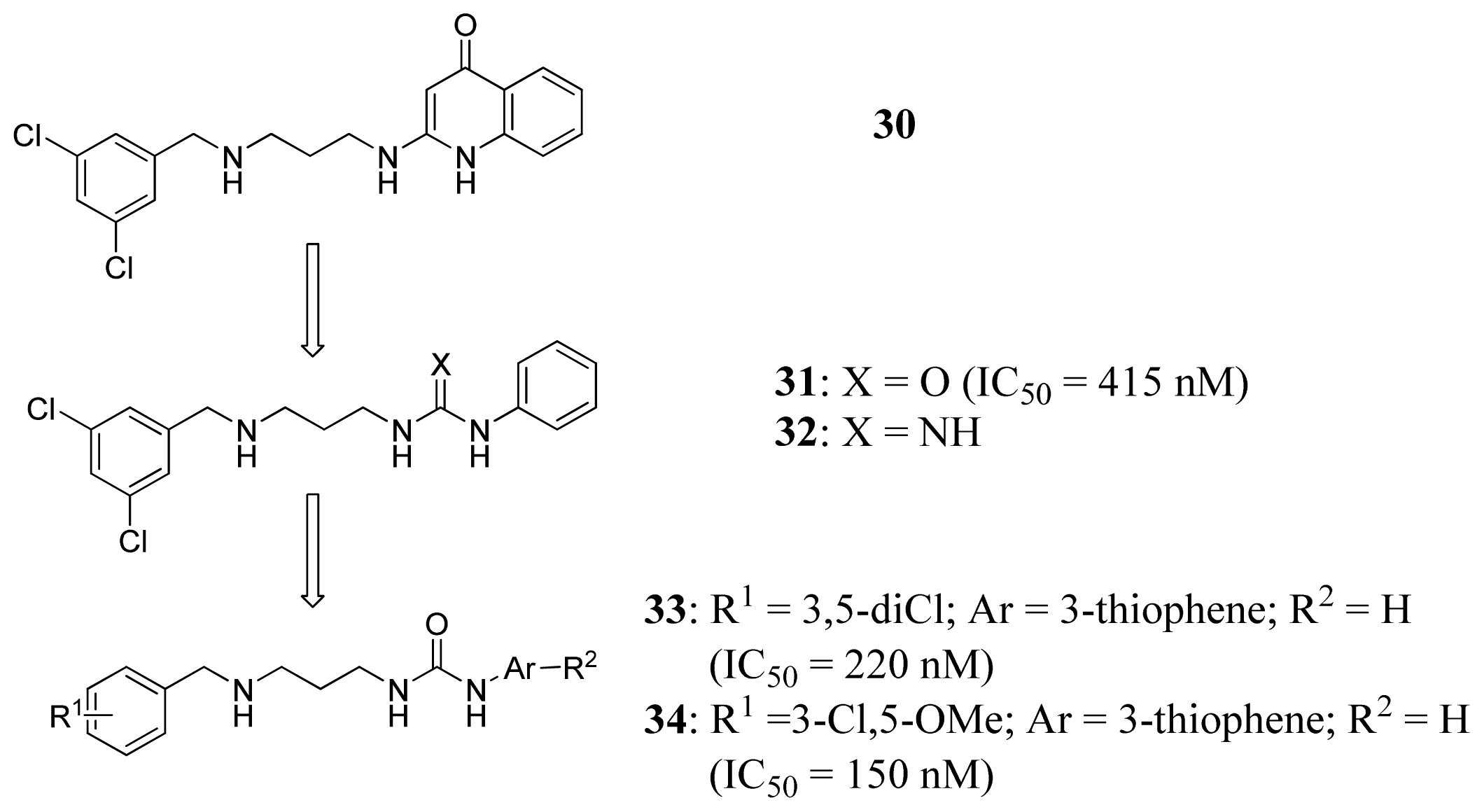

Figure 11. Inhibitor design scheme of Shibata et al. (2012) for IleRS [59].

Click here to enlarge figure

Figure 11. Inhibitor design scheme of Shibata et al. (2012) for IleRS [59].
Ijms 15 01358f11 1024
Table Table 1. Classes of aminoacyl-tRNA synthetases.

Click here to display table

Table 1. Classes of aminoacyl-tRNA synthetases.
ClassSubclassaaRS
IIaMetRS
ValRS
LeuRS
IleRS
CysRS
ArgRS
IbGluRS
GlnRS
LysRS-I
IcTyrRS
TrpRS

IIIIaSerRS
ThrRS
AlaRS
GlyRS
ProRS
HisRS
IIbAspRS
AsnRS
LysRS-II
IIcPheRS
Table Table 2. Micromolar minimal inhibitory concentrations (MICs) of compounds 6, 7 and 8.

Click here to display table

Table 2. Micromolar minimal inhibitory concentrations (MICs) of compounds 6, 7 and 8.
IDMIC (μM)

S. epidermidis ATCC 12228S. epidermidis ATCC 35984
66.256.25
72525
8100100
Table Table 3. Inhibitors of threonyl-tRNA synthetase.

Click here to display table

Table 3. Inhibitors of threonyl-tRNA synthetase.
IDStructureThrRS Ki (nM)Selectivity ratio

E. coliHumanHuman/E.coli
27 Ijms 15 01358f1213.113.41
28 Ijms 15 01358f132.93.31.1
29 Ijms 15 01358f14182>50,000>270
