Int. J. Mol. Sci. 2014, 15(1), 100-119; doi:10.3390/ijms15010100

Article
Synthesis and Characterization of β-Cyclodextrin Functionalized Ionic Liquid Polymer as a Macroporous Material for the Removal of Phenols and As(V)
Muggundha Raoov 1,2,3, Sharifah Mohamad 1,2,* and Mhd Radzi Abas 2
1
University of Malaya Centre for Ionic Liquids, Department of Chemistry, Faculty of Science, University of Malaya, Kuala Lumpur 50603, Malaysia; E-Mail: muggundha_raoov@hotmail.com
2
Department of Chemistry, Faculty of Science, University of Malaya, Kuala Lumpur 50603, Malaysia; E-Mail: radzi@um.edu.my
3
Advanced Medical & Dental Institute, University of Science Malaysia, No 1–8 (Lot 8), Persiaran Seksyen 4/1, Bandar Putra Bertam, Kepala Batas, Pulau Pinang 13200, Malaysia
*
Author to whom correspondence should be addressed; E-Mail: sharifahm@um.edu.my; Tel.: +603-7967-6751; Fax: +603-7967-4193.
Received: 22 August 2013; in revised form: 14 October 2013 / Accepted: 31 October 2013 /
Published: 23 December 2013

Abstract

: β-Cyclodextrin-ionic liquid polymer (CD-ILP) was first synthesized by functionalized β-cyclodextrin (CD) with 1-benzylimidazole (BIM) to form monofunctionalized CD (βCD-BIMOTs) and was further polymerized using a toluene diisocyanate (TDI) linker to form insoluble CD-ILP (βCD-BIMOTs-TDI). The βCD-BIMOTs-TDI polymer was characterized using various tools and the results obtained were compared with those derived from the native β-cyclodextrin polymer (βCD-TDI). The SEM result shows that the presence of ionic liquid (IL) increases the pore size, while the thermo gravimetric analysis (TGA) result shows that the presence of IL increases the stability of the polymer. Meanwhile, Brunauer-Emmett-Teller (BET) results show that βCD-BIMOTs-TDI polymer has 1.254 m2/g surface areas and the Barret-Joyner-Halenda (BJH) pore size distribution result reveals that the polymer exhibits macropores with a pore size of 77.66 nm. Preliminary sorption experiments were carried out and the βCD-BIMOTs-TDI polymer shows enhanced sorption capacity and high removal towards phenols and As(V).
Keywords:
ionic liquid; Cyclodextrin; polymer; adsorption

1. Introduction

Cyclodextrin (CDs) are a well-known series of macro cyclic oligosaccharides resulting from the degradation of starch by bacterial enzymes. Generally, CDs are composed of 6, 7, or 8 D-glucose units connected by α-1,4-glucosidic linkages which are categorized as α-, β- and γ-CD, respectively. Every D-glucose unit consists of three free hydroxyl units groups, which differ in their reactivity and functions [1]. The entire primary hydroxyl group at the 6-positions of the D-glucose units is on the opposite side of the ring while the entire secondary hydroxyl group at the 2- and 3-positions is on one side of the torus [2]. The most notable feature of β-CD is its ability to form solid inclusion compounds (host-guest complexes) with a very wide range of solid, liquid, and gaseous compounds by molecular complexation [35] and through various kinds of interaction (van der waals force, hydrophobic interaction, electrostatic affinity, dipole-dipole interaction, and hydrogen bonding) [6]. Due to specific properties of CDs polymers, they are able to cater for a wide range of research and application [7]. Examples of applications include chemical separations [8], adsorbents [9,10] food processing [11] and pharmaceutical excipients [12].

Ionic liquid (ILs), is defined as a kind of salt in which the ions are poorly coordinated. Consequently these compounds are liquid below 100 °C or even at room temperature (RTIL’s) [13]. They have several unique properties namely non-volatility, non-flammability, low viscosity, chemical and electrochemical stability [14] and remain in the liquid state over a wide temperature range. ILs can also be designed to be environmentally benign, with large potential benefit for sustainable chemistry [15]. ILs are considered as template solvents in some syntheses due to its ability to self-assemble in different domains (polar and nonpolar) and these properties of ILs have been transferred to the development of supramolecular polymers [16]. However, a novel class of IL polymers has become famous among researchers since these materials exhibit the properties of ILs and the polymers [17]. Owing to the properties of β-CD polymers and ILs, the functionalization of β-CD with the IL has attracted our interest with a view to prepare a new generation of macroporous materials which may demonstrate interesting phenomena in adsorption studies.

Previously, CD-IL materials were widely applied in separation sciences due to their importance as well as being intriguing [18,19]. In contrast, application of the CD-ILP in the removal of toxic pollutants is still in its early stages; thus academic interest in combinations of ILs and CD is increasing. In this study β-CD is functionalized with the IL and further polymerized with an isocyanate linker to form an insoluble polymer for wider applications. The structure and properties of the βCD-BIMOTs-TDI polymer are studied and compared with native β-CD-TDI polymers. It is found that the βCD-BIMOTs-TDI polymer shows enhanced sorption properties when tested with phenols and As(V).

2. Results and Discussion

2.1. Preparation of 6-O-Monotosyl-6-deoxy-β-cyclodextrin (β-CDOTs) (1) and Structural Characterization by 1H NMR

β-CDOTs is the most important intermediate product in order to further functionalize the primary hydroxyl groups (C6) of β-CD, since tosylate is a good leaving group and can be easily substituted by other nucleophiles. The reaction has been carried out with the presence of a base (NaOH), where the proton of C6 will be removed in order to make O which is a nucleophile that can be easily substituted, so when a CD reacts with the tosyl group in a basic medium, the monotosylation at C6 (β-CDOTs) is produced. Various methods have been reported previously to prepare β-CDOTs under different conditions [20,21] but, as there are some limitations in these methods, in this study, p-toluene sulfonic anhydride (Ts2O) is used instead of TsCl [22]. This method can be used in large-scale synthesis as it is easy to carry out and can produce a high percentage of yield. The DT (%) is found to be less than 1, further suggesting that tosylation at primary hydroxyl of β-CD has successfully occurred. The formation of β-CDOTs is confirmed using various tools and the results are summarized in the experimental section. The result shows that β-CDOTs have been successfully prepared. A new peak doublet of the doublet proton signal appeared around 4.8 ppm, and belongs to the H1* proton (Figure 1b) of a substituted CD and Figure 1a shows 1H NMR spectrum of β-CD.

2.2. Preparation of Mono-6-deoxy-6-(3-benzylimidazolium)-β-cyclodextrin (βCD-BIMOTs) (2) and Structural Characterization by 1H NMR

Figure 1c shows the 1H NMR spectrum of compound 2 in the d6-DMSO solvent. The product formed was found to dissolve in water and several organic solvents (DMF, DMS0 and ethanol). The formation of βCD-BIMOTs was further confirmed on the use of various tools. The entire proton is assigned well and shown clearly in Figure 1c. Protons of imidazole ring (Hf, He, Hd) appeared in the downfield region since the protons are de-shielded upon functionalization. New peak is observed in proton (H6*, 3.95 ppm) and carbon signal (C6*, 42.5 ppm), belongs to the substituted CD.

2.3. Preparation of Insoluble β-Cyclodextrin Polymers

The polymerization reactions of the diisocyanate linkers with βCD-BIMOTs and βCD were monitored through IR spectroscopy. The obtained polymers were produced in high yields and found to be insoluble in water as well as organic solvents (e.g., DMSO, D2O, DMF, CHCL3, CH3CN) and this enabled us to use them in water treatment.

2.4. FT-IR Analysis

The spectrums of insoluble β-cyclodextrin polymers (βCD-BIMOTs-TDI and βCD-TDI) are shown in Figure 2. The absence of a peak at 2270 cm−1 (corresponding to the isocyanate group) and the presence of carbamate linkage NHCO, is clearly observed which indicates the completion of the reaction [23]. Main IR frequencies with assignments are shown in Table 1. The broad –OH stretching band of the β-CD around 3300 cm−1 that corresponds with the multiple –OH functional groups, is reduced upon cross-linking with TDI and its width is ascribed to the formation of inter and intramolecular hydrogen bonds. In the FT-IR spectrum of βCD-BIMOTs-TDI polymer, the band at 1153 cm−1 is attributed to the imidazolium groups, which further supports the anchoring of the ILs molecule onto the cyclodextrin surface. Therefore, we conclude that the polymerization between βCD-BIMOTs, βCD and TDI has been completed and the polymers (βCD-BIMOTs-TDI, βCD-TDI) are formed.

2.5. X-ray Diffraction (XRD) Analysis

Further evidence for the formation of the CD-ILP (βCD-BIMOTs-TDI) was obtained through the X-ray powder diffraction (XRD) as demonstrated in Figure 3. Basically, no peaks are clearly visible in the XRD of the polymers, which is due to the change of cystalloids after crosslinking with TDI. It was found that the peak at 2θ = 13° obviously decreases and broadens in βCD-BIMOTs-TDI polymer which indicates that the degree of crystallinity decreases more as compared to the unmodified βCD-TDI polymer [24]. The lack of crystalline in the polymers may be due to the loss of regularity throughout the polymeric chains, which in turn, is due to the introduction of bulky TDI molecules. In this study, it is confirmed that βCD-TDI and βCD-BIMOTs-TDI polymers are amorphous.

2.6. Surface Morphology Studies

The N2 adsorption/desorption isotherm (Figure 4) for βCD-BIMOTs-TDI polymer exhibits a typical type-II isotherm with H3 type hysteresis loop according to the IUPAC [25], which indicates that the macroporous structure, with good pore connectivity, might be present in polymer compared to βCD-TDI polymer which exhibits a typical type-IV isotherm with a steep desorption branch and H3 type hysteresis loop. Furthermore, the nitrogen amount adsorbed by βCD-BIMOTs-TDI polymer increases very steeply at high relative pressure (P/P0 > 0.85) which indicates the presence of the macropores [2628] and the results agree well with the IUPAC definition, which classifies the adsorbent pore into three: micropores (diameter < 2 nm), mesopores (2–50 nm) and macropores (>50 nm). Based on the BJH pore size distribution (calculated from Barret-Joyner-Halenda model) for dry βCD-BIMOTs-TDI polymer exhibited βCD-BIMOTs-TDI polymer was a macroporous material with a pore size of 77.6 nm and pore volume of 0.02435 cm3/g. Meanwhile, βCD-TDI polymer represents micropores with pore size of 1.585 nm and pore volume of 0.02188 cm3/g. The removal of solid particles which are embedded on the surface of polymers by washing or etching can lead to the formation of pores. The presence of the macropores could be derived from the self-porogen effect during the polymerization process [29].

Furthermore, βCD-BIMOTs-TDI polymers exhibit low specific BET surface area (1.254 m2/g) (dry state) after the chemical modification with IL, compared to the native βCD-TDI (2.401 m2/g) polymer. Similar results have been obtained in the preparation of macroporous IL material which exhibits low surface area [30]. This phenomenon could be correlated with the covering of the adsorption sites by organic moieties immobilized on the mineral surface (cyclodextrin), which further hinders the N2 molecules access to the binding site [31]. Furthermore, βCD-BIMOTs-TDI polymer has hydrogel nature with high swelling capacity in water due to many cavities which allows rapid diffusion process for the adsorbates [32]. The surface area and pore size could greatly increase after swelling. The low surface area could also be from the usage of larger cation parts of IL (1-benzylimidazole) [33]. In addition, the nitrogen desorption at 0.4 P/P0 for βCD-BIMOTs-TDI polymer and 0.75 P/P0 for βCD-TDI polymer are higher due to the heterogeneous surface of the polymers with many cavities (cyclodextrin), imidazolium (βCD-BIMOTs-TDI) and isocyanate group which makes desorption of nitrogen gas difficult. Table S1 shows the structural parameters of the samples.

2.7. Scanning Electron Microscope (SEM) Analysis

All the microscopic morphological structures were performed using the Scanning Electron Microscope (SEM) in order to determine and compare the surface features of βCD-BIMOTs-TDI polymer with native βCD-TDI polymer. The SEM micrographs of the polymers are shown in Figure 5a,b. From the SEM micrographs, the presence of IL increases the pore size of the βCD-BIMOTs-TDI polymer compared to βCD-TDI polymer and this observation is supported by the BJH result. βCD-TDI polymer reveals a “shrinking” crystal structure. It exhibits the loss of sphericity, smooth surface and reduced size of particles as shown in Figure 5a, while βCD-BIMOTs-TDI polymer exhibits a totally different crystalline structure, which is not comparable with the morphology of the βCD-TDI polymer. Different morphologies are observed for the IL material due to its unique properties. Basically, pore formation depends on the chemical structure of the polymer backbone [34]. In addition, hydrogen-bonding interactions influence the phase separation at a local level during polymerization, which leads to domains that are either polymer-rich or solvent rich. The presence of cyclodextrin, in polymer-rich domains is likely to be highly ordered because of the rigid structure of the cyclodextrin itself. Upon removal of the solvent and completion of the polymerization, micropores remain [34].

2.8. Thermal Analysis of the Polymers

2.8.1. Thermo Gravimetric Analyses (TGA)

The TGA curves of βCD-BIMOTs-TDI and βCD-TDI polymers are shown in Figure 6. The thermal behaviors of the polymers (βCD-TDI, βCD-BIMOTs-TDI) involve only a 3-step process. Generally, the first step can be interpreted due to the loss of water; the second and third steps may account for most of the weight and associated with the formation of the residue of the CD polymer. Basically, the second degradation stage of βCD-BIMOTs-TDI polymer takes place at a higher temperature (270–357 °C) with low weight loss (46%), and this result indicates that βCD-BIMOTs-TDI polymer is more stable than the unmodified βCD-TDI polymer which takes place at 260–365 °C with weight loss of 68%. This shows that, the stability of β-CD increases after modification in the polymeric form [35]. Apart from that, high stability of βCD-BIMOTs-TDI polymer could be due to the strong electrostatic interaction between the BIM cation and OTs anion, which enables this material to be used in high-temperature applications. Basically, differences could only be found in the water loss, the onset temperature and the mass loss at a given temperature between modified and unmodified polymers. The degradation and weight loss steps of the polymers are shown in Table 2.

2.8.2. Differential Scanning Calorimetry (DSC)

It can be observed in Figure 7, that the native βCD-TDI polymer, displays different trends compared to βCD-BIMOTs-TDI polymer. βCD-TDI polymer involves four stages in the DSC analysis while βCD-BIMOTs-TDI polymer only involves two stages (Table S2). Endothermic peak had been observed from about −100 °C due to the loss of water. Meanwhile the second endothermic regions between 190 and 350 °C, are associated with the melting ranges of the samples. However, the difference could be observed in the βCD-TDI polymer at around 350 °C where it shows the third endothermic peak due to the melting of the polymer and exothermic peak at 356 °C associated with curing (a process during which a chemical reaction or physical action takes place) of the polymer due to the high degree of cross-linking in the βCD-TDI polymer [34]. The second endothermic peak of βCD-BIMOTs-TDI polymer takes place at a higher temperature (330 °C) compared to βCD-TDI polymer (323 °C). This result shows that the presence of ionic liquid increases the stability of the polymer compared to the native βCD-TDI polymer. This could be due to the properties of ILs that can support the higher temperature range and this IL material is also stable and non-volatile [36].

2.9. Sorption Studies

Synthesized polymers are applied in sorption studies in order to compare the performance of βCD-BIMOTs-TDI polymer with native βCD-TDI polymer. The removal capacities of the polymers for phenols and As(V) in neutral condition are presented in Figure 8. It is found that the βCD-BIMOTs-TDI polymer enhances removal compared to the βCD-TDI polymer. The presence of the IL in βCD-BIMOTs-TDI polymer basically increases the selectivity towards phenol and As(V). Furthermore, it is well known that β-CD can form inclusion complex with phenols [37,38], so in this study inclusion complex could be formed as the cavity of β-CD was maintained in the polymerization process. Apart from that, the higher percentage of removal could be a result of the π–π interaction between the aromatic ring of phenols and imidazolium ring of βCD-BIMOTs-TDI polymer as shown in Figure 9a. The formation of the inclusion complex and π–π interaction was proven by using 1H NMR and 2D NOESY experiment in Section 2.9.

Moreover, the presence of imidazolium as a chelating group [39] in βCD-BIMOTs-TDI polymer able to remove As(V) from aqueous solution was due to the strong electrostatic interaction between the imidazolium ring and As(V), as shown in Figure 9b. Meanwhile, the presence of macropores also enabled us to apply it for removal studies since it reduces the diffusion distance for analyte molecules to transport, simultaneously increasing the adsorption and decreasing mass transfer resistance. Hence, the provision of a more favorable and fast adsorption process [30]. It can be speculated that βCD-BIMOTs-TDI polymer can interact well with phenols and As(V) because it possesses both the structural characteristics of benzylimidazolium and functional units of β-CD and it can be used in many areas for different applications.

2.10. Adsorption Behavior of βCD-BIMOTs via Inclusion Complex and π–π Interaction

In order to prove the formation of inclusion complex and π–π interaction between modified β-CD (βCD-BIMOTs) with one selected phenol (2,4-DCP) 1H NMR and 2D NOESY experiment have been carried out. The analysis of the inclusion complex between modified β-CD (βCD-BIMOTs) and 2,4-DCP is crucial in this work, since the cavity of β-CD was maintained during the polymerization process. Furthermore, the findings have supported that inclusion complex formation is one of the main interactions between both the adsorbent and adsorbate in the adsorption process. In order to evaluate the geometry of inclusion formation of βCD-BIMOTs and 2,4-DCP, 1H NMR (Figure 10) and 2D NOESY measurements (Figure 11) (DMSO-D6, 25 °C, 600 MHz) were performed on a AVN600 spectrometer. The obvious downfield shift of the protons on the inner cavity of βCD-BIMOTs, i.e., H3 and H5 had been observed due to the anisotropic shielding by the ring current from the aromatic rings of 2,4-DCP (Table 3) compared to the other protons. Besides that, when 2,4-DCP enters into the hydrophobic cavity of βCD-BIMOTs, the change of the micro-environment in 2,4-DCP protons lead to the upfield shift (Hb-p and Hc-p). Meanwhile, H5 proton of βCD-BIMOTs changes from doublet to singlet upon the formation of inclusion complex as shown in Figure 10. The presence of proton signals belonging to both βCD-BIMOTs and 2,4-DCP molecules could be observed in the 1H NMR spectrum of 2,4-DCP-βCD-BIMOTs (Figure 10c) which strongly suggests that the new inclusion complex has formed.

The formation of inclusion complex was further proven by the 2D NOESY analysis (Figure 11) since 2D NMR is a powerful tool for investigating intermolecular interactions and for gaining more information on the conformation of the inclusion complex [40]. 2D NOESY experiments provide an upper limit (ca. 5Å) on the distance between protons cross peaks under favorable conditions. The cross-peaks in the spectra, indicated in Figure 11, originate from the interaction of the protons of 2,4-DCP and βCD-BIMOTs. The cross peaks of βCD-BIMOTs (3.5–3.6 ppm, H-3, H-5) and 2,4-DCP (7.4–6.9 ppm, Ha-p, Hb-p) demonstrate strong intensity. Hence, from the 2D NOESY spectra we can conclude that the aromatic ring of 2,4-DCP has been accommodated in the β-CD cavity. The cross peak around 7–8 ppm which belongs to BIMOTs and 2,4-DCP shows that there is an interaction between the BIMOTs ring and 2,4-DCP (Figure 11) and this could be due to both the π–π interaction. Therefore, we can conclude that higher percentage of removal between βCD-BIMOTs-TDI polymer and phenols could be due to inclusion complex formation and π–π interaction.

3. Experimental Section

3.1. Materials

β-CD is commercially available and was purchased from Acros (Acros, Geel, Belgium) (99%). 1-Benzylimidazole and toluene 2,4-diisocyanate (TDI) was supplied from Sigma Aldrich (Aldrich, Buches SG, Switzerland). Other reagents and chemicals were of the analytical reagent grade and were used and received without further purification. Double distilled water was used throughout the experiment. All the reactions were performed under inert conditions. N,N-Dimethylformamide (DMF) and hexane anhydrous were purchased form Merck (Merck, New York, NY, USA). p-Toluene sulfonic anhydride was prepared according to a literature procedure [22] and was used without further purification. Sodium arsenate dibasic heptahydrate (312 g/mol−1) was obtained from Sigma Aldrich (Aldrich, St. Louis, MO, USA). Arsenic (As)(V) and Phenols stock solution were prepared in double distilled water and their standards were prepared daily by having them diluted in water. The progress of the reactions were monitored by thin layer chromatography (TLC) using Merck TLC cards (70643) (Merck, New York, NY, USA) with butanol/ethanol (95%), water (5:4:3) as eluent for CD derivatives (β-CDOTs, βCD-BIMOTs) and the spots were visualized by using UV GL-58 Handheld UV-Lamp (UVP, Upland, CA, USA) or developed by dipping in 5% sulphuric acid (H2SO4) in ethanol followed by heating on a hot plate.

3.2. Characterization of the Samples

Fourier transform infrared (FT-IR) spectra were recorded on a Perkin–Elmer RX1 FT-IR (Perkin Elmer, Waltham, MA, USA) between 4000 and 400 cm−1 with a resolution of 2 cm−1. Samples were adequately mixed with KBr powder and pressed into disks. 1H NMR, 13C NMR and NOESY spectra were recorded on AVN 600 MHz (Bruker, Fällanden, Switzerland) and Dimethyl Sulfoxide (DMSO-D6) had been used as solvent. A sample of the polymers and monomer was dried in vacuum, and an elemental analysis of the sample was determined with a Perkin Elmer CHNS-2400 analyzer (Perkin Elmer, Waltham, MA, USA). The scanning electron microscope analysis for the morphology of the samples was obtained with a Leica S440 (Leica, Wetzlar, Germany). The Brunauer-Emmett-Teller (BET) analysis was determined from low-temperature nitrogen adsorption isotherms at 77.40 K using Quantachrome Autosorb Automated Gas Sorption System (Quantachrome, Boynton Beach, FL, USA). Typically, at least 1 g of sample (βCD-BIMOTs-TDI) was used each time during analysis. The surface area was obtained by the Brunauer–Emmett–Teller (BET) method, while average pore diameter and pore volume of βCD-BIMOTs-TDI in the dry state were measured from the adsorption branch of the isotherms by both the Barret–Joyner–Halenda (BJH) model (Quantachrome, Boynton Beach, FL, USA). X-ray diffraction (XRD) patterns were taken using Cu Kα irradiation with a Siemens D5000 X-ray diffractometer (voltage, 40 kV; current, 100 mA (Siemens, Frimley, UK). Powder samples were mounted on a sample holder and scanned from 5° to 30° at a speed of 3° per min. Thermo gravimetric analyses (TGA) curves were examined using a TA Instruments Q500 (Perkin Elmer, Waltham, MA, USA). A linear heating rate was set at 20 °C per minute within the temperature range from 50 to 900 °C in a stream of nitrogen atmosphere. Differential Scanning Calorimetry (DSC) (Perkin Elmer, Waltham, MA, USA) analysis was done by heating the samples from 30 to 400 °C at 20 °C per min.

3.3. Synthesis Method and Characterization

3.3.1. Synthesis of 6-O-Monotosyl-6-deoxy-β-cyclodextrin (β-CDOTs) (1)

A typical reticulation reaction would proceed as follows: tosyl-β-cyclodextrin (CDOTs) is prepared according to Zhong et al. [22] as shown in Scheme 1. OH7 in Scheme 1 represents 7 hydroxyl units at primary, secondary and tertiary position of β-CD while OH6 is the remaining hydroxyl group since IL reacts with only one hydroxyl group out of 7 units of β-CD. A suspension of β-CD (11.5 g, 10 mmol) and p-toluenesulfonic anhydride (Ts2O) (4.9 g, 15 mmol) in 250 mL of water is stirred at room temperature for 2 h. A solution of NaOH (5.0 g in 50 mL of H2O) is added, and after 10 min the reaction mixture is filtered through the celite on the sintered glass funnel to separate the non-reacting Ts2O. The filtrate was brought to pH-8 by the addition of ammonium chloride (13.4 g), affording 1 as a precipitate that is collected after cooling at 4 °C overnight and is used without further purification through chromatography. The degree of tolylation (DT) has been determined by using 1H NMR spectroscopy [41], which is based on the ratio of the areas of proton as shown in Equation (1);

D T ( % ) = ( A R / 4 ) / ( [ H 1 - H 6 ] / 7 ) × 100

where DT (%) is the degree of tolylation, AR is the integral area of aromatic protons at § 7.8–7.4 ppm, and H1–H6 is the integral areas of the CD protons at § 5.9–3.2 ppm.

IR/KBr, cm−1 3291 (OH), 2924 (C–H), 1646 (C=C), 1366 (SO2 Assym), 1153 (SO2 Sym). 1HNMR/ppm, DMSO-D6 H8 (7.74, d), H9 (7.43, d), OH2-OH3 (5.5–5.9, m), H1 (4,83, s), H1* (4.70, s), OH6 (4.2–4.6, m), H3,H5,H6 (3.2–3.60, m), H2–H4 (2.9–3.2, m), H11 (2.32, s). 13CNMR/PPM, DMSO-D6 C7 (144.7), C10 (132.6), C9 (129.8), C8 (127.5), C1 (101), C4 (81.6), C2 (73), C3 (72.7), C5 (72.4), C6 (59.9), C11 (21.1). CHNS (%) C (37.63), H (6.68), S (1.30). DT (%) = 0.83. Percentage yield (60%). Melting point (170 °C). TLC: Rf = 0.45.

3.3.2. Synthesis of Mono-6-deoxy-6-(3-benzylimidazolium)-β-cyclodextrin (βCD-BIMOTs) (2)

Furthermore, the reaction is observed, by reacting β-CDOTs with 1-benzylimidazole (BIM). Since tosyl is a good leaving group, imidazole can easily undergo nucleophilic substitution. The reaction is carried out in the DMF solvent since β-CDOTs and BIM forms a homogenous solution. The preparation of monofunctionlized β-cyclodextrin with BIM (βCD-BIMOTS) is done according to the following procedure [19] as shown in Scheme 2: Freshly dried CDOTs (1.00 g, 0.78 mmol) and appropriate amount of BIM (1.23 g, 7.8 mmol) in excess amount are dissolved in anhydrous DMF (40 mL) and the solution stirred at 90 °C in an inert atmosphere. After two days, the resultant solution is cooled to room temperature and slowly added into acetone. Then the mixture is stirred for 30 min and thereafter filtered and washed again with acetone. The product obtained is recrystallized three times from hot water to get the final product, 2 as a white yellow precipitate.

IR/KBr, cm−1 3297 (OH), 2922 (C–H), 1652 (C=C), 1152 (C–N). 1H NMR/ppm, DMSO-D6 Hf (9.3, s), He (7.94, s), Hd (8.20,s),Hc (7.49, s), Hb (7.74, t), Ha (7.46,s), Hg (5.18,s),H8 (7.4, d), H9 (7.1, d), OH2–OH3 (5.5–5.9, m), H1 (4,81, s), OH6 (4.4–4.6, m), H6* (3.95), H3,H5,H6 (3.4–3.60), H2–H4 (3.2–3.4, m), H11 (2.07, s). 13C NMR/PPM, DMSO-D6 Ca (127), Cb (123.4), Cc (128.3), Cd (128), Ce (119), Cf (136.9), Cg (52), Ch (137.8), C7 (145.26), C10 (137.3), C9 (128.7), C8 (125.6), C1 (101.8), C4 (81.16), C2 (73.27), C3 (71.6), C5 (69.37), C6 (60.03), C6* (45.2),C11 (21.97). CHNS (%) C (38.2), H (6.67), S (0.47), N (1.0). Percentage yield (90%). Melting point (207 °C). TLC: Rf = 0.6.

3.3.3. Synthesis of Insoluble β-Cyclodextrin Polymers

Insoluble β-cyclodextrin polymers (βCD-BIMOTs-TDI, βCD-TDI) are prepared according to the method of Mahlambi et al. [42] as shown in Scheme 3. The polymerization reaction is monitored using FT-IR spectroscopy. Briefly, 0.69 mmol of βCD-BIMOTs is first dissolved in 30 mL of anhydrous DMF at room temperature followed by of the addition of Toluene 2,4-diisocyanate (TDI) (6.9 mmol) dropwise and the mixture is stirred for 24 h at 70 °C. Meanwhile, the preparation of βCD-TDI is done as same as above procedure in 0.88 mmol of βCD and 8.8 mmol of TDI. The polymers formed are then precipitated with the addition of excess acetone. The solid formed are allowed to settle down in acetone for 10 min to allow for the removal of residual DMF from polymers followed by filtration and washed with acetone and double distilled water to remove the non-reactive cross-linker and dried overnight under reduced pressure. The dried polymer is first ground and sieved, using a 53 μm sieve, before being used.

3.4. Sorption Experiments

One of the potential applications of these polymers is that it can be used as an adsorbent for the removal of the micropollutants from the water (especially drinking water). Experiment data were determined by the following batch method: In each experiment 20 mg of dry polymer was mixed with 10 mL adsorbate at a known concentration in a tightly sealed flask. The solution was shaken for 2 h (phenols) and 17 h (As(V)) on a shaker at room temperature. The adsorbents were removed by filtration and the residual concentration was determined using Shimadzu (Kyoto, Japan) Ultraviolet-Visible spectroscopy (UV-vis) recording spectrophotometer equipped with 1 cm quartz cells for phenols, while 7500 series ICP-MS from Agilent Technologies (Palo Alto, CA, USA) was used to determine the concentration of As(V) in aqueous solution. The ICP-MS condition and setup information for As determination was shown in Table 4.

The percentage of adsorbate adsorbed on the polymer (removal efficiency, R (%)) was calculated using the following equation:

R % = ( C o - C e ) / C o × 100

where, Co and Ce are the initial and equilibrium concentration of solutions (mg/L), respectively.

4. Conclusions

A new CD-ILP (βCD-BIMOTs-TDI) has been successfully synthesized, characterized and compared with a native BCD-TDI polymer. The SEM result shows that the presence of IL increases the pore size while the TGA result shows that the presence of IL also increases the stability of the polymer. The BET result shows that surface area of the polymer decreases upon the functionalization with the IL and the Barret-Joyner-Halenda model reveals that it exhibits macropore size distribution, other than showing high sorption capacities towards phenols and As(V). A further study on the properties and its application is in progress.

Supplementary Information

ijms-15-00100-s001.pdf

Acknowledgments

Authors would like to seize this opportunity to express their gratitude to the University Malaya for the Research Grant (RP006A-13SUS); IPPP grant PV076/2012A; University Malaya Centre for Ionic Liquid for the funding; High Impact Research Grant UM-MOHE UM.C/625/1/HIR/MOHE/F00004-21001 from the Ministry of Higher Education Malaysia (MOHE). The authors also acknowledged Advanced Medical and Dental Institute, University of Science Malaysia (IPPT) and MOHE for providing fellowship to the researcher named Muggundha Raoov s/o Ramachandran.

Conflicts of Interest

The authors declare no conflict of interest.

References

  1. Sun, Z.Y.; Shen, M.X.; Cao, G.P.; Deng, J.; Liu, Y.; Liu, T.; Zhao, L.; Yuan, W.K. Preparation of bimodal porous copolymer containing β-cyclodextrin and its inclusion adsorption behavior. J. App. Polym. Sci 2010, 118, 2176–2185. [Google Scholar]
  2. Szejtli, J. Past, present, and future of cyclodextrin research. Pure Appl. Chem 2004, 76, 1825–1845. [Google Scholar]
  3. Pandian, K.; Mohamad, S.; Sarih, N.M.; Ismail, N.A. Synthesis and characterization of the inclusion complex of β-cyclodextrin with azomethine. Int. J. Mol. Sci 2013, 14, 3671–3682. [Google Scholar]
  4. Mohamad, S.; Surikumaran, H.; Raoov, M.; Marimuthu, T.; Chandrasekaram, K.; Subramaniam, P. Conventional Study on Novel Dicationic Ionic Liquid Inclusion with β-Cyclodextrin. Int. J. Mol. Sci 2011, 12, 6329–6345. [Google Scholar]
  5. Mohamad, S.; Kamal, S.N.R.M. Study on an inclusion complex of β-cyclodextrin-dithizone-zinc (β-CD-H2Dz-Zn) by spectrophotometry and its analytical application. Asian J. Chem 2013, 25, 1965–1969. [Google Scholar]
  6. Zhang, J.; Shen, X.; Chen, Q. Separation processes in the presence of cyclodextrins using molecular imprinting technology and ionic liquid cooperating approach. Curr. Org. Chem 2011, 15, 75–85. [Google Scholar]
  7. Crini, G. Kinetic and equilibrium studies on the removal of cationic dyes from aqueous solution by adsorption onto a cyclodextrin polymer. Dyes Pigments 2008, 77, 415–426. [Google Scholar]
  8. Chin, Y.P.; Mohamad, S.; Abas, M.R. Removal of parabens from aqueous solution using cyclodextrin cross-linked polymer. Int. J. Mol. Sci 2010, 11, 3459–3471. [Google Scholar]
  9. Mohamad, S.; Yusof, N.H.M.; Asman, S. The effect of bifunctional isocyanate linker on adsorption of chromium(VI)-diphenylcarbazide complex onto β-cyclodextrin polymer. Asian J. Chem 2013, 25, 2213–2220. [Google Scholar]
  10. Li, N.; Wei, X.; Mei, Z.; Xiong, X.; Chen, S.; Ye, M.; Ding, S. Synthesis and characterization of a novel polyamidoamine-cyclodextrin crosslinked copolymer. Carbohyd. Res 2011, 346, 1721–1727. [Google Scholar]
  11. López-de-Dicastillo, C.; Gallur, M.; Catalá, R.; Gavara, R.; Hernandez-Muñoz, P. Immobilization of β-cyclodextrin in ethylene-vinyl alcohol copolymer for active food packaging applications. J. Membr. Sci 2010, 353, 184–191. [Google Scholar]
  12. Qian, L.; Guan, Y.; Xiao, H. Preparation and characterization of inclusion complexes of a cationic β-cyclodextrin polymer with butylparaben or triclosan. Int. J. Pharm 2008, 357, 244–251. [Google Scholar]
  13. Subramaniam, P.; Mohamad, S.; Alias, Y. Synthesis and characterization of the inclusion complex of dicationic ionic liquid and cyclodextrin. Int. J. Mol. Sci 2010, 11, 3675–3685. [Google Scholar]
  14. McEwen, A.B.; Ngo, H.L.; LeCompte, K.; Goldman, J.L. Electrochemical properties of imidazolium salt electrolytes for electrochemical capacitor applications. J. Electrochem. Soc 1999, 146, 1687–1695. [Google Scholar]
  15. Rahim, N.Y.; Mohamad, S.; Alias, Y.; Sarih, N.M. Extraction behavior of cu(ii) ion from chloride medium to the hydrophobic ionic liquids using 1,10-phenanthroline. Separ. Sci. Technol 2012, 47, 250–255. [Google Scholar]
  16. Mecerreyes, D. Polymeric ionic liquid: Broadening the properties and applications of polyelectrolytes. Prog. Polym. Sci 2011, 36, 1629–1648. [Google Scholar]
  17. Qiu, H.; Sawada, T.; Jiang, S.; Ihara, H. Synthesis and chacterization of poly(ionic liquid)-grafted silica hybrid materials through surface radical chain-transfer polymerization and aqueous anion-exchange. Mater. Lett 2010, 64, 1653–1655. [Google Scholar]
  18. Zhou, Z.; Li, X.; Chen, X.; Hao, X. Synthesis of ionic liquids functionalized β-cyclodextrin-bonded chiral stationary phases and their applications in high-performance liquid chromatography. Anal. Chim. Acta 2010, 678, 208–214. [Google Scholar]
  19. Ong, T.T.; Tang, W.; Muderawan, W.; Ng, S.C.; Chan, H.S.O. Synthesis and application of single isomer 6-mono(alkylimidazolium)-β-cyclodextrin as chiral selectors in chiral capillary electrophoresis. Electrophoresis 2005, 26, 3839–3848. [Google Scholar]
  20. Melton, L.D.; Slessor, K.N. Synthesis of monosubstituted cyclohexaamy-loses. Carbohyd. Res 1971, 18, 29–37. [Google Scholar]
  21. Khan, A.R.; Forgo, P.; Stine, K.J.; D’Souza, V.T. Methods for selective modifications of cyclodextrins. Chem. Rev 1998, 98, 1977–1996. [Google Scholar]
  22. Zhong, N.; Byun, H.-S.; Bittman, R. An improved synthesis of 6-O-monotosyl-6-deoxy-β-cyclodextrin. Tetrahedron Lett 1998, 39, 2919–2920. [Google Scholar]
  23. Bhaskar, M.; Aruna, P.; Jeevan, R.G.; Radhakrishnan, G. β-Cyclodextrin-polyurethane polymer as solid-phase extraction material for the analysis of carcinogenic aromatic amines. Anal. Chim. Acta 2004, 509, 39–45. [Google Scholar]
  24. Zha, F.; Li, S.; Chang, Y. Preparation and adsorption property of chitosan beads bearing β-cyclodextrin cross-linked by 1,6-hexamaethylene diisocyanate. Carbohyd. Polym 2008, 72, 456–461. [Google Scholar]
  25. Sing, K.S.W.; Everett, D.H.; Haul, R.A.W.; Moscou, L.; Pierotti, R.A.; Rouquerol, J.; Siemieniewska, T. Reporting physisorption data for gas/solid systems with special reference to the determination of surface area and porosity. IUPAC 1985, 57, 603–619. [Google Scholar]
  26. Schroden, R.C.; Al-Daous, M.; Sokolov, S.; Melde, B.J.; Lytle, J.C.; Stein, A.; Carbajo, M.C.; Fernandez, J.T.; Rodriquez, E.E. Hybrid macroporous materials for heavy metal ion adsorption. J. Mater. Chem 2002, 12, 3261–3267. [Google Scholar]
  27. Zhang, X.J.; Ma, T.Y.; Yuan, Z.Y. Titania–phosphonate hybrid porous materials: Preparation, photocatalytic activity and heavy metal ion adsorption. J. Mater. Chem 2008, 18, 2003–2010. [Google Scholar]
  28. Liu, A.M.; Hidajat, K.; Kawi, S.; Zhao, D.Y. A new class of hybrid mesoporous materials with functionalized organic monolayers for selective adsorption of heavy metal ions. Chem. Commun 2000, 1145–1146. [Google Scholar]
  29. Gokmen, M.T.; Prez, F.E.D. Porous polymer particles—A comprehensive guide to synthesis, characterization, functionalization and applications. Prog. Polym. Sci 2012, 37, 365–405. [Google Scholar]
  30. Dua, K.F.; Yan, M.; Wanga, Q.Y.; Songa, H. Preparation and characterization of novel macroporous cellulose beads regenerated from ionic liquid for fast chromatography. J. Chromatogr. A 2010, 1217, 1298–1304. [Google Scholar]
  31. Alahmadi, S.M.; Mohamad, S.; Maah, M.J. Synthesis and characterization of mesoporous silica functionalized with calix[4] arene derivatives. Int. J. Mol. Sci 2012, 13, 13726–13736. [Google Scholar]
  32. Li, N.; Mei, Z.; Wei, X. Study on sorption of chlorophenols from aqueous solution by an insoluble copolymer containing β-cyclodextrin and polyamidoamine units. Chem. Eng. J 2012, 192, 138–145. [Google Scholar]
  33. Yoo, K.S.; Lee, S.H. Influence of ionic liquid as a template on preparation of porous n-Al2O3 to DME synthesis from methanol. Bull. Korean Chem. Soc 2010, 31, 1628–1632. [Google Scholar]
  34. Salipira, K.L.; Krause, R.W.; Mamba, B.B.; Malesfetse, T.J.; Cele, L.M.; Durbach, S.H. Cyclodextrin polyurethanes polymerized with multi-walled carbon nanotubes: Synthesis and chacterization. Mater. Chem. Phys 2008, 111, 218–224. [Google Scholar]
  35. Abay, I.; Denizli, A.; Biskin, E.; Salih, B. Removal and pre-concentration of phenolic species onto β-cyclodextrin modified poly(hydroxyethylmethacrylate ethyleneglycoldimethacrylate) microbeads. Chemosphere 2005, 61, 1263–1272. [Google Scholar]
  36. Noble, R.D.; Gin, D.L. Perspective on ionic liquids and ionic liquid membranes. J. Membr. Sci 2011, 369, 1–4. [Google Scholar]
  37. Hanna, K.; de Brauer, C.; Germain, P. Solubilization of the neutral and charged forms of 2,4,6-trichlorophenol by β-cyclodextrin, methyl-β-cyclodextrin and hydroxypropyl-β-cyclodextrin in water. J. Hazard. Mater 2003, 100, 109–116. [Google Scholar]
  38. Leyva, E.; Moctezuma, E.; Strouse, J.; GarcÍagaribay, M.A. Spectrometric and 2D NMR studies on the complexation of chlorophenols with cyclodextrins. J. Incl. Phenom. Macrocycl. Chem 2001, 39, 41–46. [Google Scholar]
  39. Chattopadhyay, P.; Sinha, C.; Pal, D.K. Preparation and properties of a new chelating resin containing imidazolyl azo groups. Fresen. J. Anal. Chem 1997, 357, 368–372. [Google Scholar]
  40. Li, J.; Ni, X.; Zhou, Z.; Leong, K.W. Preparation and characterization of polypseudorotaxanes based on block-selected inclusion complexation between poly(propylene oxide)-poly(ethyleneoxide)-poly(propylene oxide) triblock copolymers and α-cyclodextrin. J. Am. Chem. Soc 2003, 125, 1788–1795. [Google Scholar]
  41. Gonil, P.; Sajomsanga, W.; Ruktanonchaia, U.R.; Pimphaa, N.; Sramalaa, I.; Nuchuchuaa, O.; Saesooa, S.; Chaleawlert-umpona, S.; Puttipipatkhachornb, S. Novel quaternized chitosan containing β-cyclodextrin moiety: Synthesis, characterization and antimicrobial activity. Carbohyd. Polym 2011, 83, 905–913. [Google Scholar]
  42. Mahlambi, M.M.; Malefetse, T.J.; Mamba, B.B.; Krause, R.W. β-Cyclodextrin-ionic liquid polyurethanes for the removal of organic pollutants and heavy metals from water: Synthesis and characterization. J. Polym. Res 2010, 17, 589–600. [Google Scholar]
Ijms 15 00100f1 1024

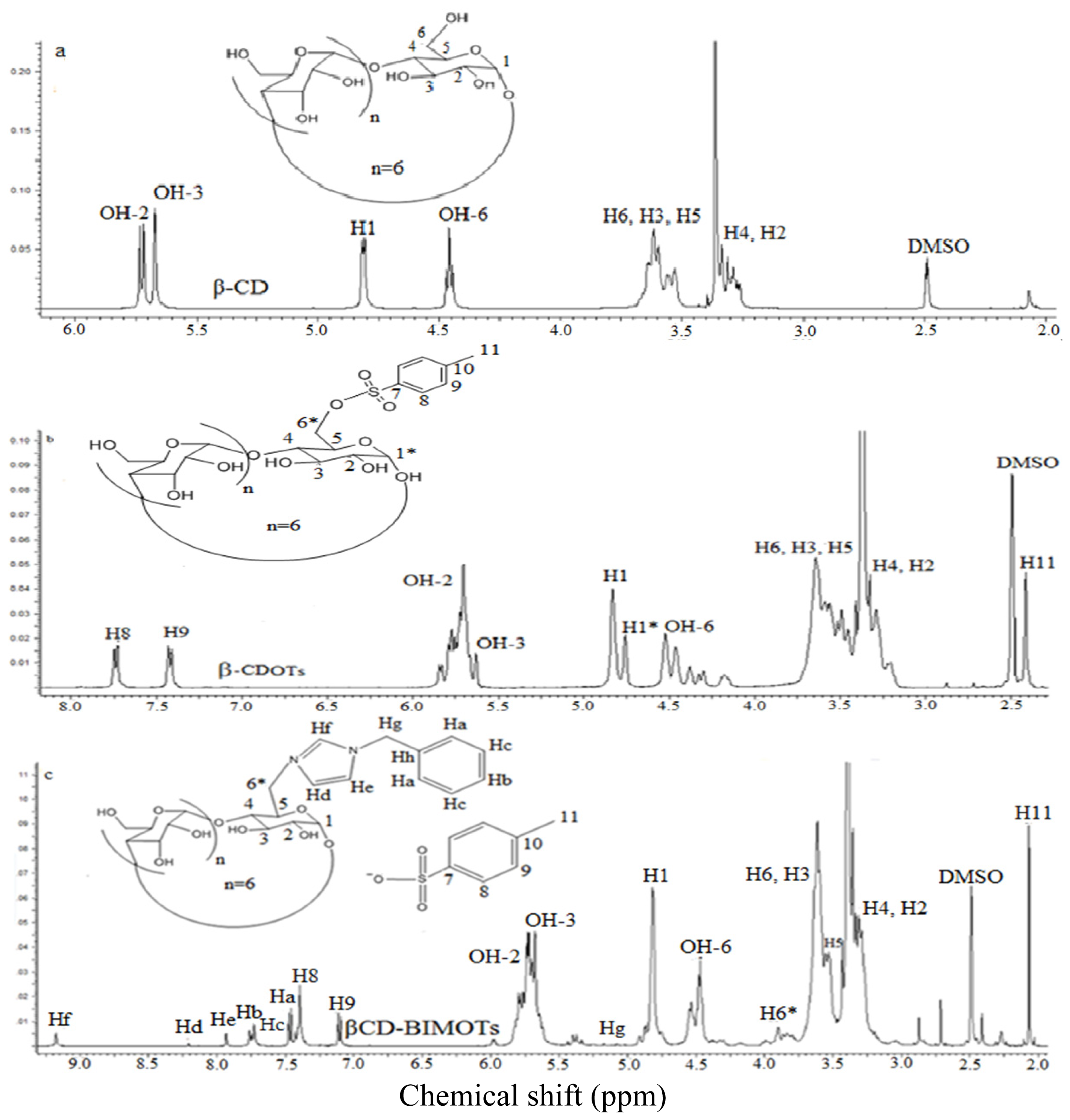

Figure 1. NMR spectrum of (a) β-cyclodextrin (βCD); (b) 6-O-Monotosyl-6-deoxy-β-cyclodextrin (βCD-OTs), and (c) Mono-6-deoxy-6-(3-benzylimidazolium)-β-cyclodextrin (βCD-BIMOTs).

Click here to enlarge figure

Figure 1. NMR spectrum of (a) β-cyclodextrin (βCD); (b) 6-O-Monotosyl-6-deoxy-β-cyclodextrin (βCD-OTs), and (c) Mono-6-deoxy-6-(3-benzylimidazolium)-β-cyclodextrin (βCD-BIMOTs).
Ijms 15 00100f1 1024
Ijms 15 00100f2 1024

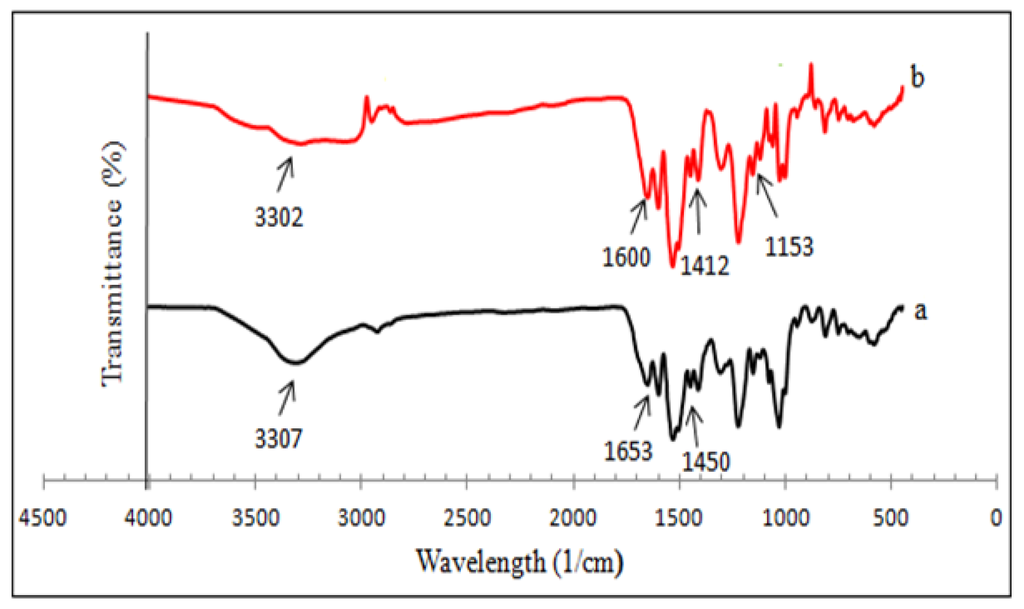

Figure 2. FT-IR analysis of (a) βCD-TDI polymer and (b) βCD-BIMOTs-TDI polymer.

Click here to enlarge figure

Figure 2. FT-IR analysis of (a) βCD-TDI polymer and (b) βCD-BIMOTs-TDI polymer.
Ijms 15 00100f2 1024
Ijms 15 00100f3 1024

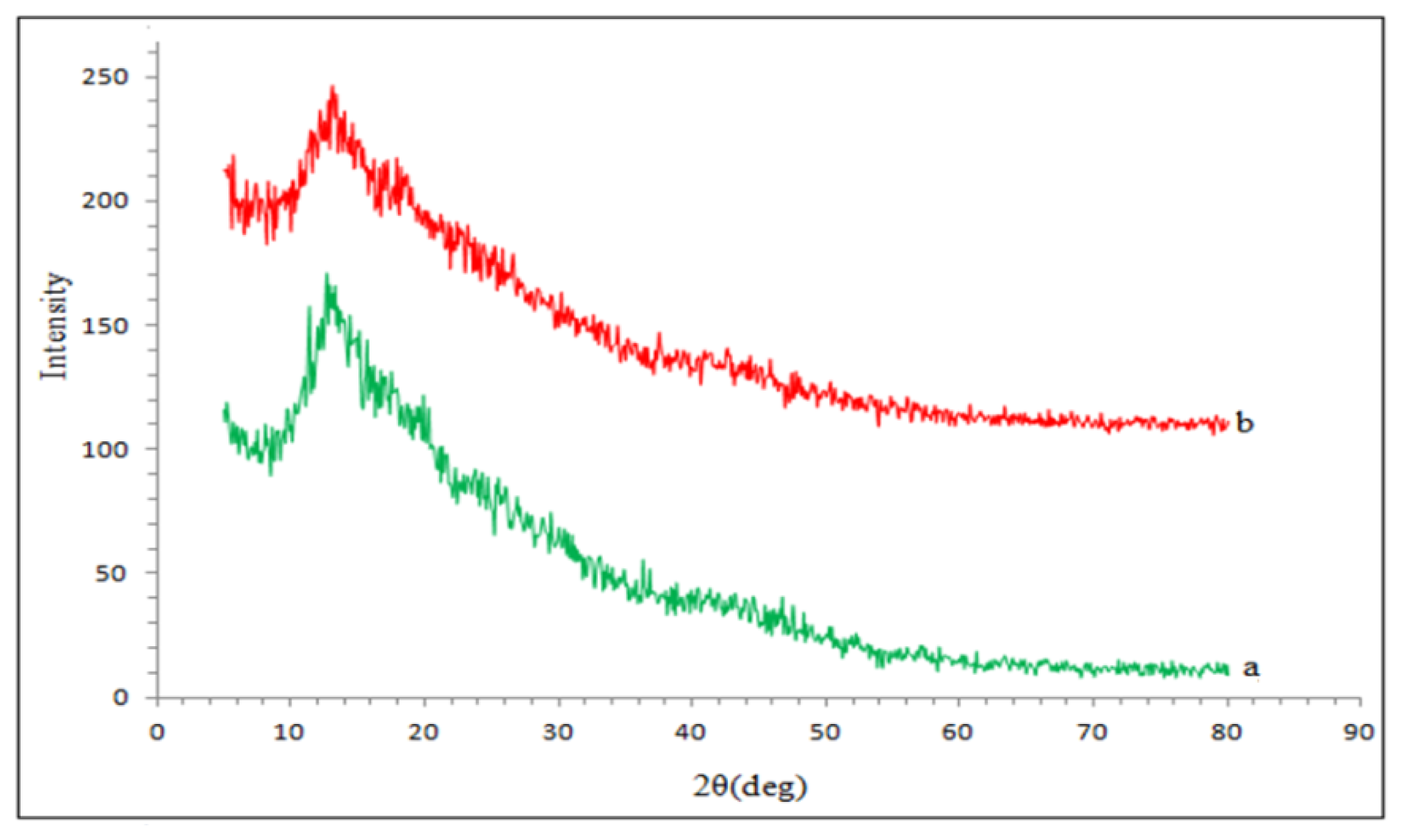

Figure 3. XRD analysis of (a) βCD-TDI and (b) βCD-BIMOTs-TDI.

Click here to enlarge figure

Figure 3. XRD analysis of (a) βCD-TDI and (b) βCD-BIMOTs-TDI.
Ijms 15 00100f3 1024
Ijms 15 00100f4 1024

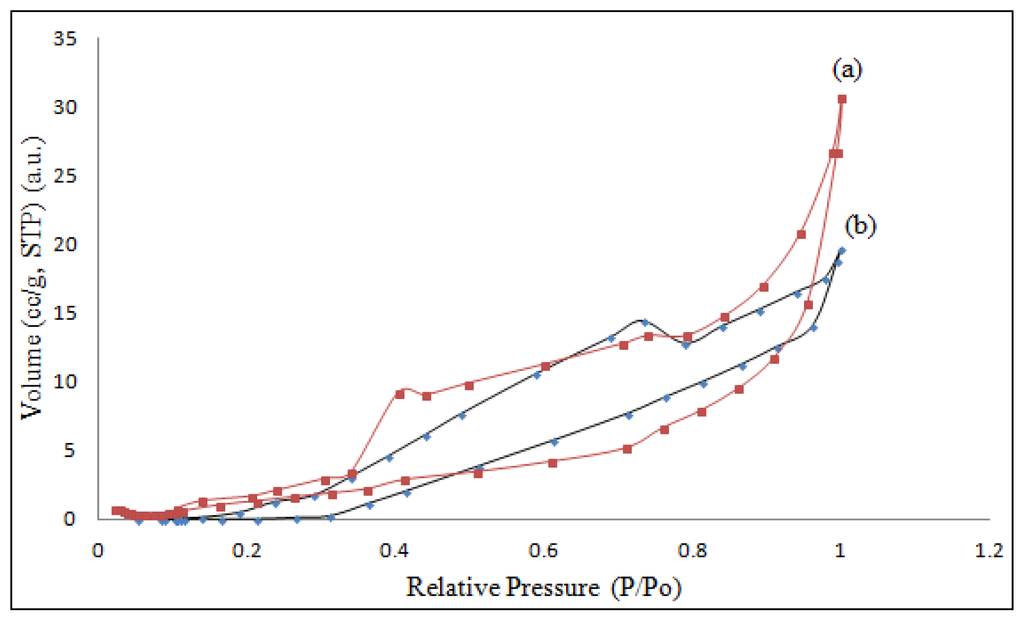

Figure 4. Nitrogen adsorption-desorption isotherms of (a) βCD-BIMOTs-TDI and (b) βCD-TDI.

Click here to enlarge figure

Figure 4. Nitrogen adsorption-desorption isotherms of (a) βCD-BIMOTs-TDI and (b) βCD-TDI.
Ijms 15 00100f4 1024
Ijms 15 00100f5 1024
Figure 5. SEM analysis of (a) βCD-TDI (b) βCD-BIMOTs-TDI (Mag 5.00 KX).

Click here to enlarge figure

Figure 5. SEM analysis of (a) βCD-TDI (b) βCD-BIMOTs-TDI (Mag 5.00 KX).
Ijms 15 00100f5 1024
Ijms 15 00100f6 1024

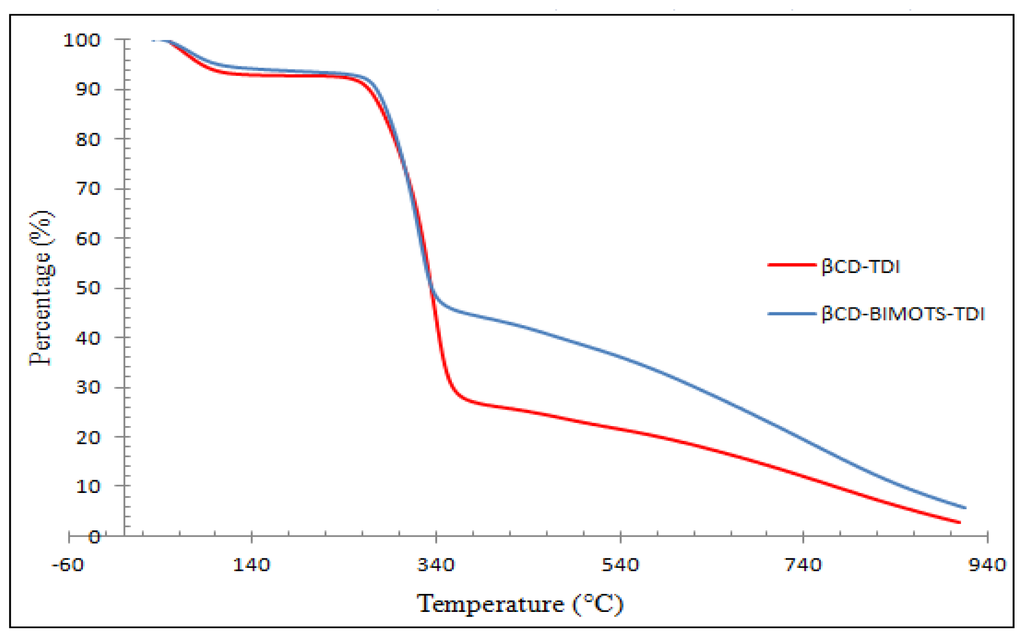

Figure 6. TGA analysis of βCD-BIMOTs-TDI and βCD-TDI.

Click here to enlarge figure

Figure 6. TGA analysis of βCD-BIMOTs-TDI and βCD-TDI.
Ijms 15 00100f6 1024
Ijms 15 00100f7 1024

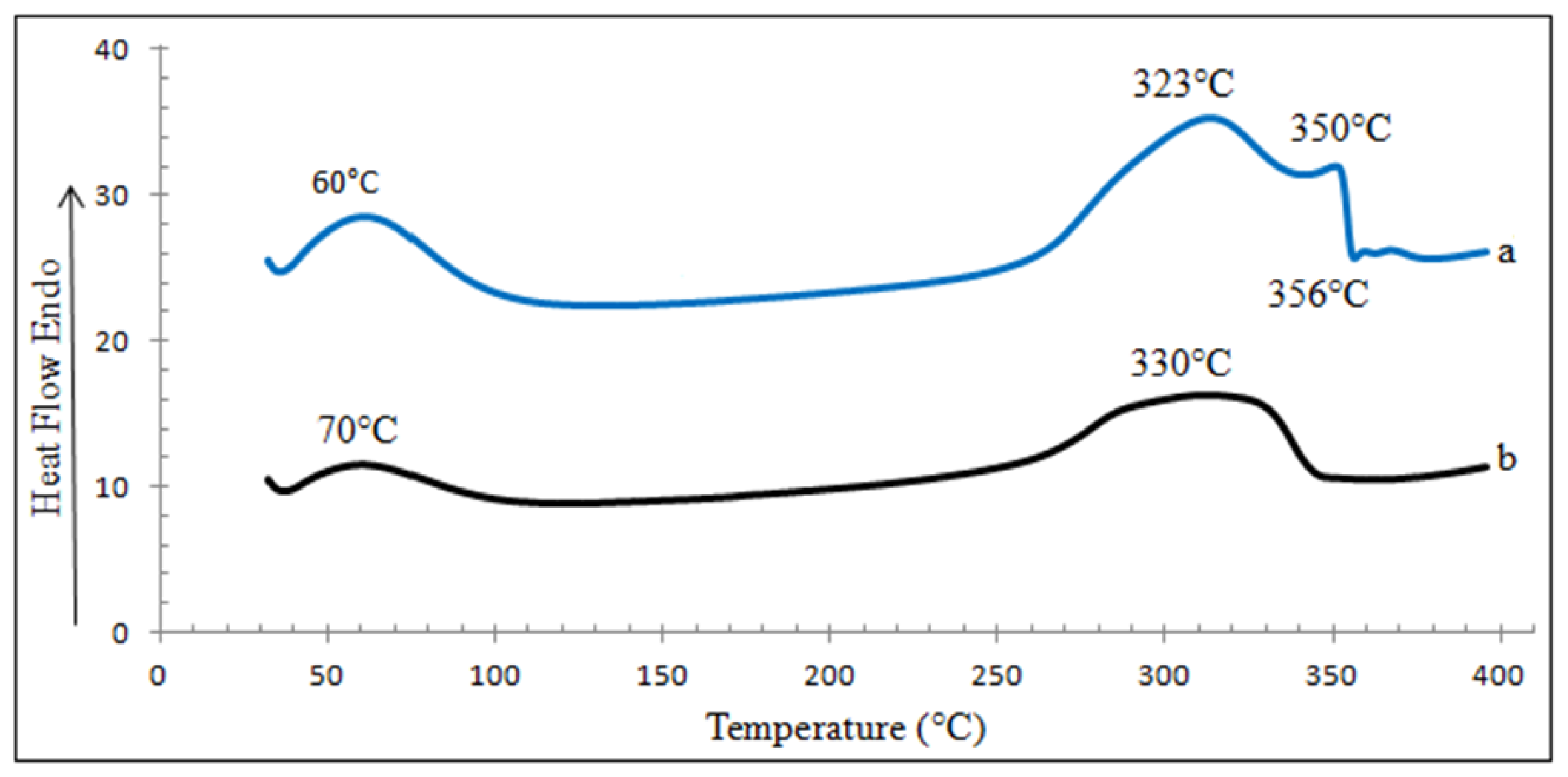

Figure 7. DSC analysis of (a) βCD-TDI and (b) βCD-BIMOTs-TDI.

Click here to enlarge figure

Figure 7. DSC analysis of (a) βCD-TDI and (b) βCD-BIMOTs-TDI.
Ijms 15 00100f7 1024
Ijms 15 00100f8 1024

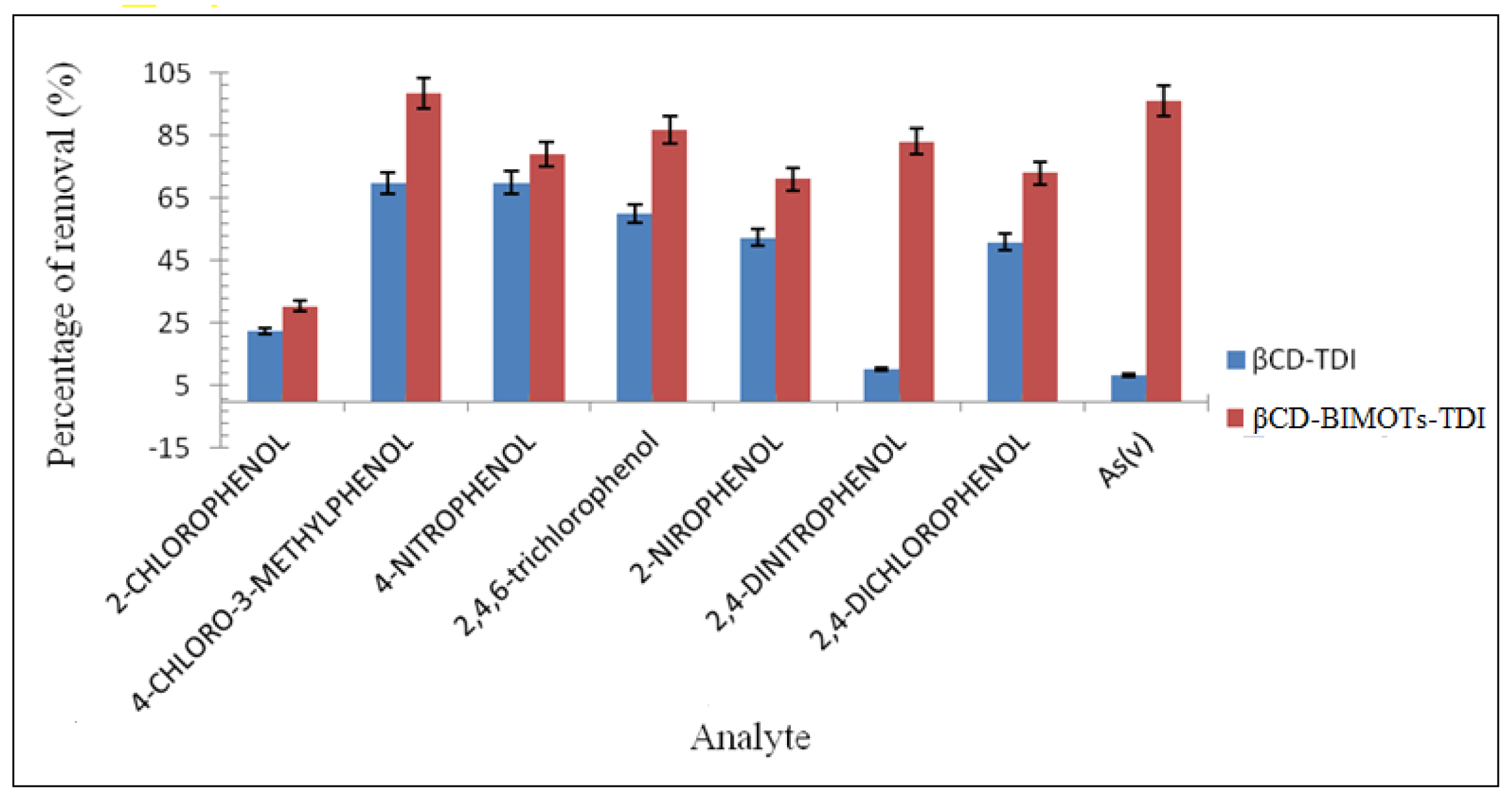

Figure 8. Preliminary batch sorption experiment. (Results based on three replicate analyses for all analytes). Removal condition: 25°C, 10 mL analyte solution (neutral condition), 20 mg sorbent, 180 rpm. Equilibrium time (H): phenols 2H, As(V) 17H.

Click here to enlarge figure

Figure 8. Preliminary batch sorption experiment. (Results based on three replicate analyses for all analytes). Removal condition: 25°C, 10 mL analyte solution (neutral condition), 20 mg sorbent, 180 rpm. Equilibrium time (H): phenols 2H, As(V) 17H.
Ijms 15 00100f8 1024
Ijms 15 00100f9 1024

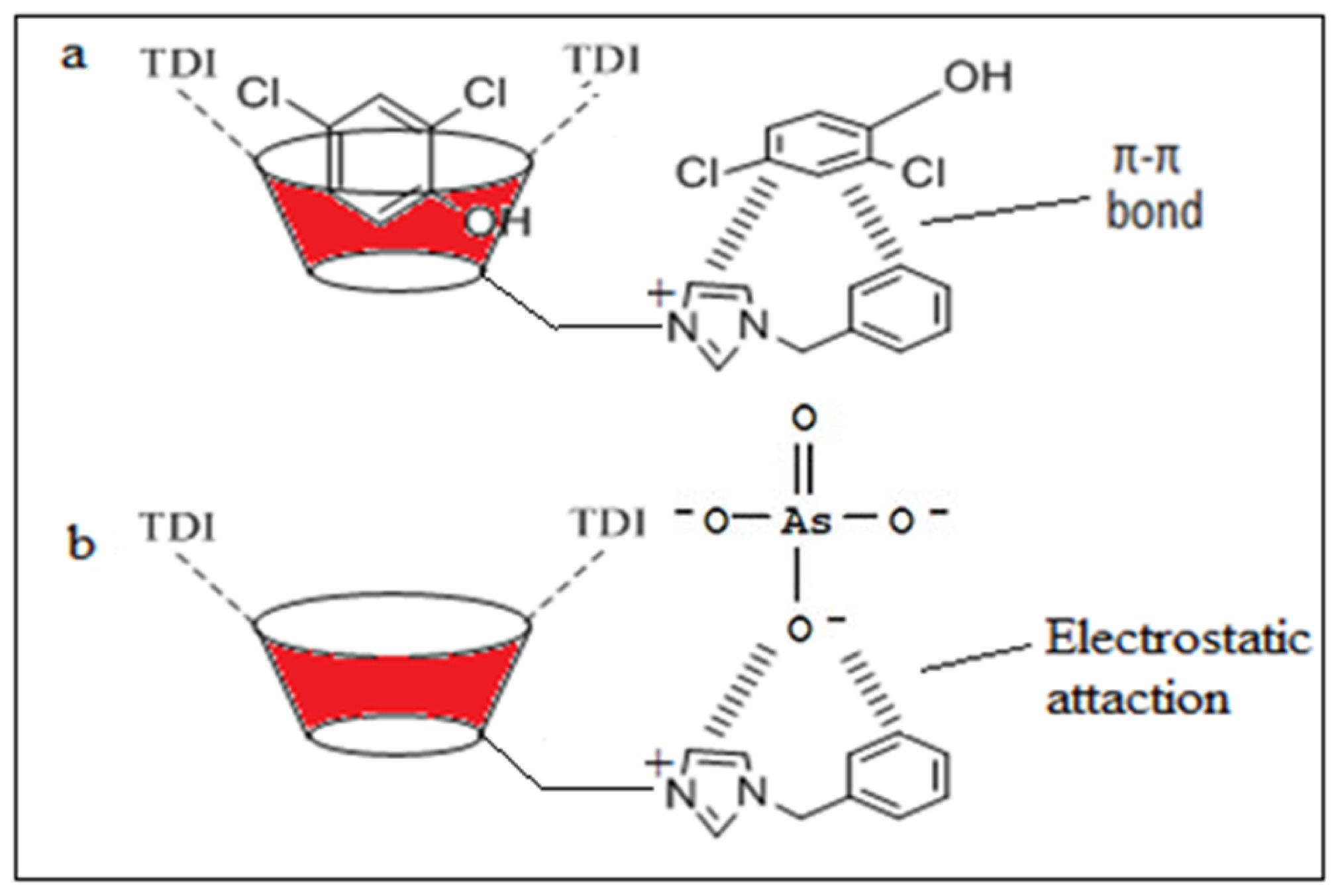

Figure 9. Schematic diagram on interaction between (a) βCD-BIMOTs-TDI polymer with phenols and (b) βCD-BIMOTs-TDI polymer with As(V).

Click here to enlarge figure

Figure 9. Schematic diagram on interaction between (a) βCD-BIMOTs-TDI polymer with phenols and (b) βCD-BIMOTs-TDI polymer with As(V).
Ijms 15 00100f9 1024
Ijms 15 00100f10 1024

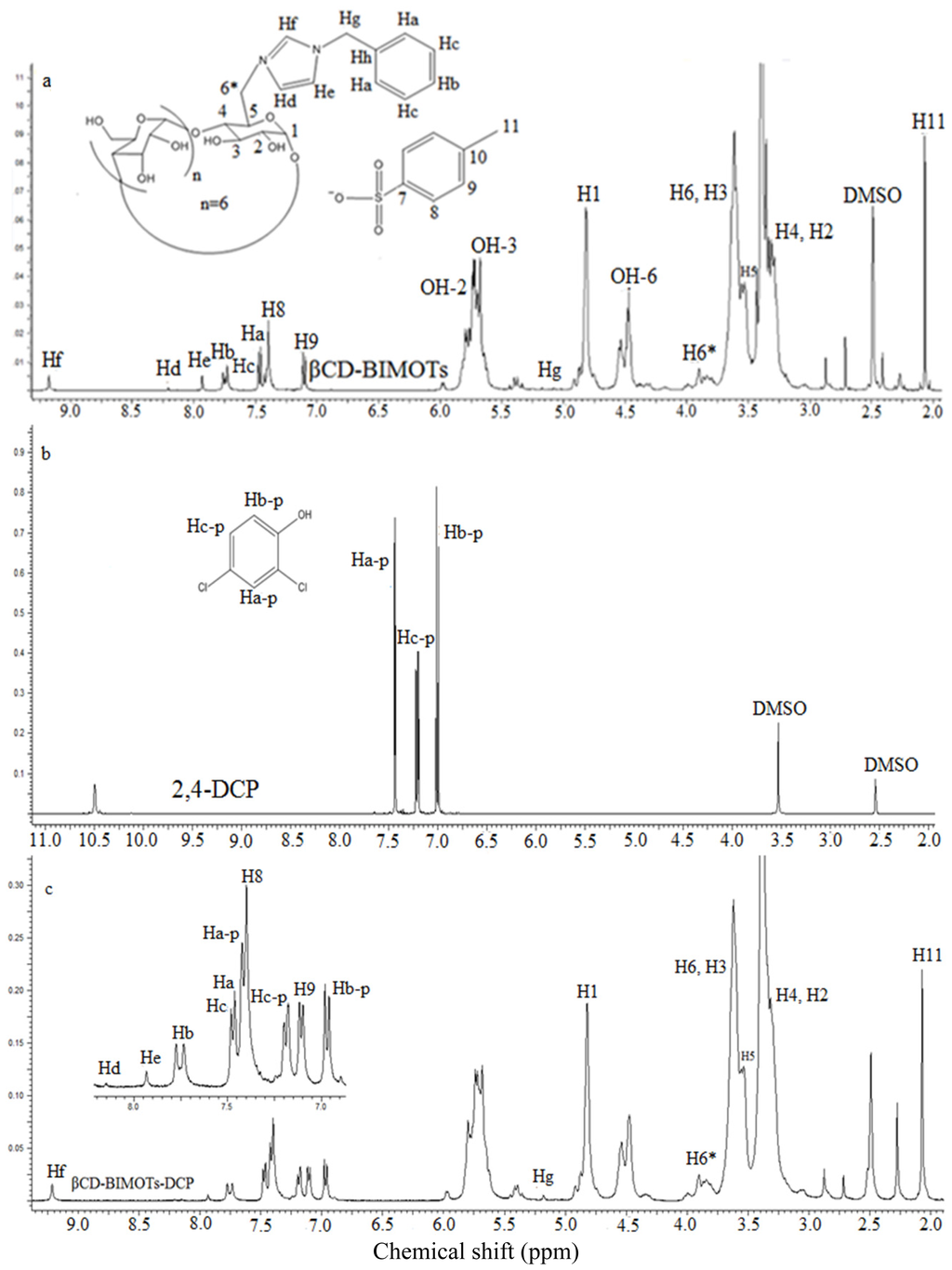

Figure 10. 1H NMR spectrum of (a) βCD-BIMOTs; (b) 2,4-DCP and (c) βCD-BIMOTs-DCP.

Click here to enlarge figure

Figure 10. 1H NMR spectrum of (a) βCD-BIMOTs; (b) 2,4-DCP and (c) βCD-BIMOTs-DCP.
Ijms 15 00100f10 1024
Ijms 15 00100f11 1024
Figure 11. The two-dimensional NOESY spectrum of βCD-BIMOTs-DCP complex in DMSO-D6.

Click here to enlarge figure

Figure 11. The two-dimensional NOESY spectrum of βCD-BIMOTs-DCP complex in DMSO-D6.
Ijms 15 00100f11 1024
Ijms 15 00100f12 1024

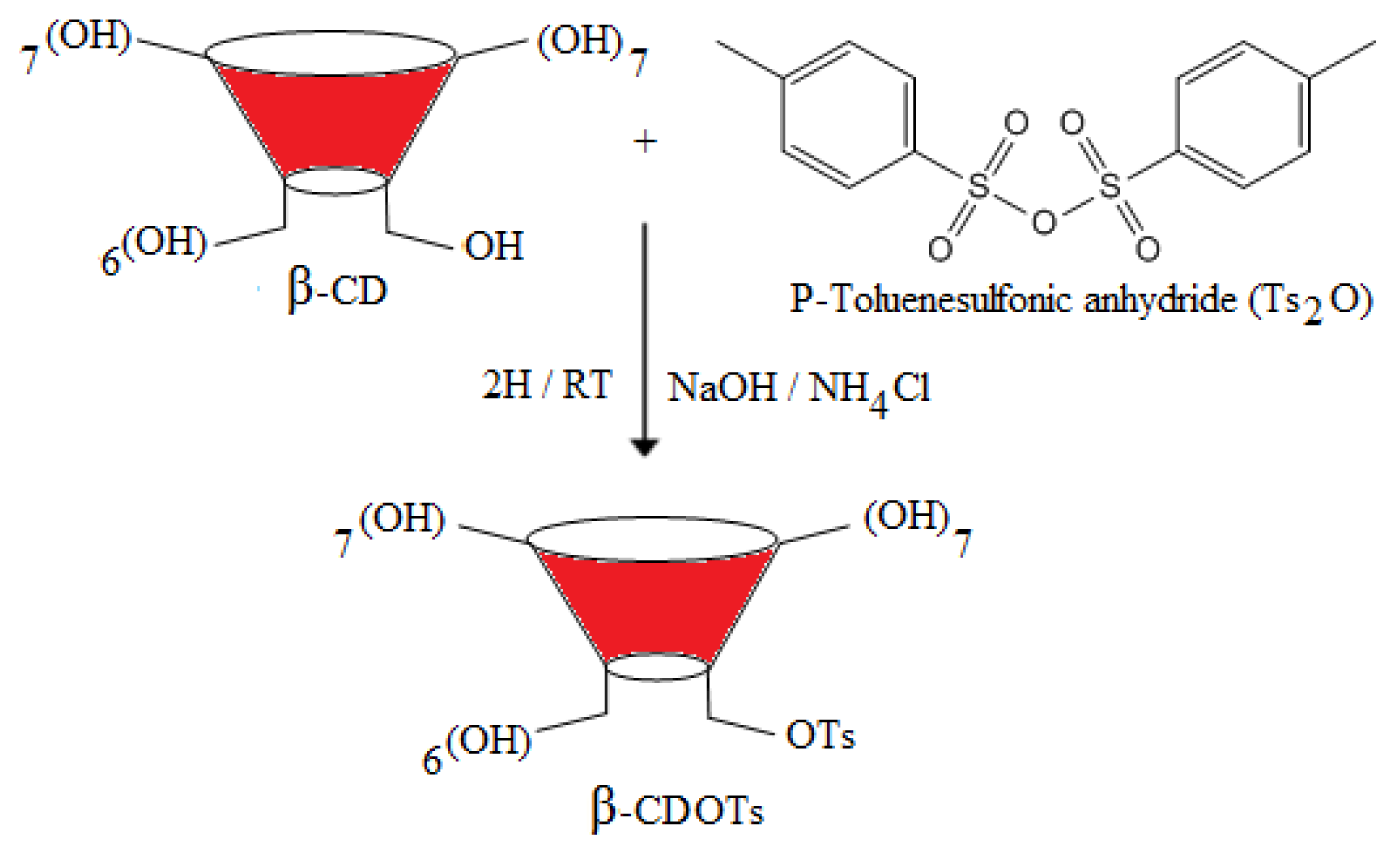

Scheme 1. Synthesis of intermediate O-p-toluenesulfonyl-β-cyclodextrin (β-CDOTs).

Click here to enlarge figure

Scheme 1. Synthesis of intermediate O-p-toluenesulfonyl-β-cyclodextrin (β-CDOTs).
Ijms 15 00100f12 1024
Ijms 15 00100f13 1024

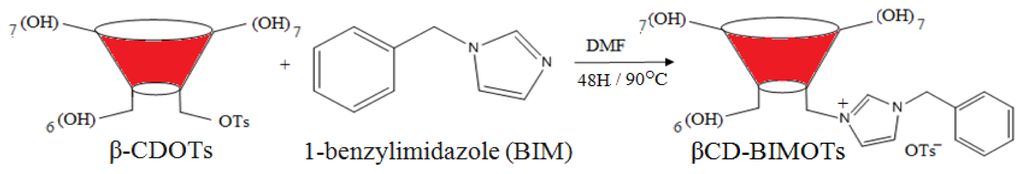

Scheme 2. Preparation of monofunctionlized β-cyclodextrin (βCD-BIMOTs).

Click here to enlarge figure

Scheme 2. Preparation of monofunctionlized β-cyclodextrin (βCD-BIMOTs).
Ijms 15 00100f13 1024
Ijms 15 00100f14 1024

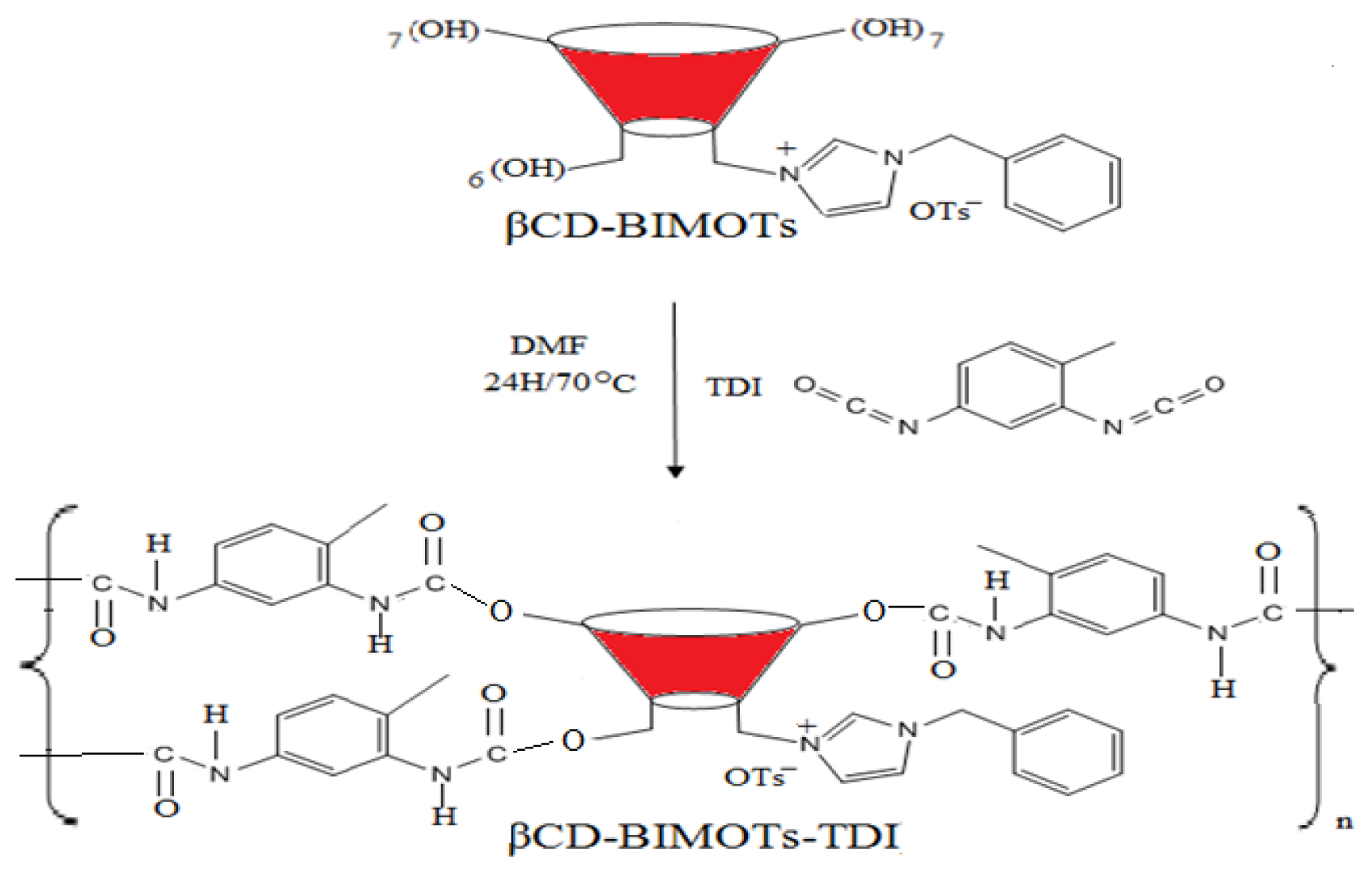

Scheme 3. Synthesis pathway of β-cyclodextrin-ionic liquid polymer.

Click here to enlarge figure

Scheme 3. Synthesis pathway of β-cyclodextrin-ionic liquid polymer.
Ijms 15 00100f14 1024
Table Table 1. Main IR frequencies with assignments.

Click here to display table

Table 1. Main IR frequencies with assignments.
SamplesWavelength (cm−1)Assignments
βCD-TDI3307N–H and O–H stretch
2270Absence of isocyanate group
1653, 1534NHCO, carbamate linkage
1450Aromatic group in TDI
βCD-BIMOTs-TDI3302N–H, O–H stretch and imidazole ring
2270Absence of isocyanate group
1600, 1412Aromatic group in TDI
1535, 1651NHCO, carbamate linkage
1153C–N stretch
Table Table 2. Thermo gravimetric analysis result of samples.

Click here to display table

Table 2. Thermo gravimetric analysis result of samples.
SampleRegion (°C)Weight loss (%)Assignment
βCD-TDI50–1408Water loss/Moisture
260–36568Carbamate group and β-CD
365–90026β-CD
βCD-BIMOTs-TDI32–1006Water loss/Moisture
270–35746Carbamate group, BIM, β-CD, OTs
357–91540β-CD
Table Table 3. Chemical shift (δ) of βCD-BIMOTs, 2,4-DCP and βCD-BIMOTs-DCP.

Click here to display table

Table 3. Chemical shift (δ) of βCD-BIMOTs, 2,4-DCP and βCD-BIMOTs-DCP.
ProtonβCD-BIMOTs2,4-DCPβCD-BIMOTs-DCPChanges
δδδΔδ
H14.83304.8345+0.0015
H23.30303.3102+0.0072
H33.54503.6231+0.0781
H43.32683.3239−0.0029
H53.39803.5567+0.1587
H63.62983.6359−0.0061
H87.41757.4138−0.0037
H97.12697.1135−0.0134
H112.08682.0834+0.0034
Ha7.45977.4829+0.0232
Hb7.74507.7454+0.0004
Hc7.49147.4957+0.0043
Hd8.21008.1502−0.0598
He7.94587.9480+0.0026
Hf9.20319.2226+0.0195
Hg5.18805.2032+0.0152
Ha-p7.43347.4300−0.0034
Hb-p7.02586.9765−0.0493
Hc-p7.20957.1135−0.0960
Table Table 4. ICP-MS operating conditions for the ICP-MS equipped with an octopole reaction system.

Click here to display table

Table 4. ICP-MS operating conditions for the ICP-MS equipped with an octopole reaction system.
ParameterValue
RF Power1550 watts
RF Matching1.55 V
Reflected Power0 W
Sample Uptake Time30 sec
Sample Uptake Rate0.4 r sec−1
Chamber temperature2 °C
NebuliserBabington
ConesNi
Coolant Argon Flow Rate15 L min−1
Carrier Gas Flow Rate1.2 L min−1
Auxiliary gas flow rate0.9 L min−1
Water RF/TP Flow Rate2.4 L min−1
Water RF/TP Temperature20 °C
ModeHe
Internal standard72Ge
Integration time (sec per point)1
Int. J. Mol. Sci. EISSN 1422-0067 Published by MDPI AG, Basel, Switzerland RSS E-Mail Table of Contents Alert
