Int. J. Mol. Sci. 2013, 14(8), 16882-16900; doi:10.3390/ijms140816882

Article
Oximes: Inhibitors of Human Recombinant Acetylcholinesterase. A Structure-Activity Relationship (SAR) Study
Vendula Sepsova 1,, Jana Zdarova Karasova 2,3, Jan Korabecny 1,3,, Rafael Dolezal 3,, Filip Zemek 1, Brian J. Bennion 4, and Kamil Kuca 3,5,*
1
Department of Toxicology, Faculty of Military Health Sciences, University of Defence, Trebesska 1575, 500 01 Hradec Kralove, Czech Republic; E-Mails: sepsova@pmfhk.cz (V.S.); korabecny@pmfhk.cz (J.K.); zemek.filip@gmail.com (F.Z.)
2
Department of Public Health, Faculty of Military Health Sciences, University of Defence, Trebesska 1575, 500 01 Hradec Kralove, Czech Republic; E-Mail: karasova@pmfhk.cz
3
University Hospital, Biomedicinal Research Centre, Sokolska 581, 50005 Hradec Kralove, Czech Republic; E-Mail: rafael.dolezal@fnhk.cz
4
Biosciences and Biotechnology Division, Lawrence Livermore National Laboratory, 7000 East Ave, Livermore, CA 94550, USA; E-Mail: Bennion1@llnl.gov
5
Center of Advances Studies, Faculty of Military Health Sciences, University of Defence, Trebesska 1575, 500 01 Hradec Kralove, Czech Republic
These authors contributed equally to this work.
*
Author to whom correspondence should be addressed; E-Mail: kamil.kuca@fnhk.cz; Tel.: +420-495-832-923; Fax: +420-495-518-094.
Received: 8 May 2013; in revised form: 1 August 2013 / Accepted: 2 August 2013 /
Published: 16 August 2013

Abstract

: Acetylcholinesterase (AChE) reactivators were developed for the treatment of organophosphate intoxication. Standard care involves the use of anticonvulsants (e.g., diazepam), parasympatolytics (e.g., atropine) and oximes that restore AChE activity. However, oximes also bind to the active site of AChE, simultaneously acting as reversible inhibitors. The goal of the present study is to determine how oxime structure influences the inhibition of human recombinant AChE (hrAChE). Therefore, 24 structurally different oximes were tested and the results compared to the previous eel AChE (EeAChE) experiments. Structural factors that were tested included the number of pyridinium rings, the length and structural features of the linker, and the number and position of the oxime group on the pyridinium ring.
Keywords:
oximes; acetylcholinesterase; inhibitors; SAR study

1. Introduction

Acetylcholinesterase (AChE) reactivators (i.e., oximes) were developed for the treatment of organophosphate intoxication. In 1955, Wilson and Ginsburg [13] in the United States and Childs in the United Kingdom independently prepared and presented the compound 2-pyridine aldoxime methiodide (2-PAM) as a reactivator with great potential for the treatment of organophosphorus poisoning (OP), which includes nerve agents and pesticides. Exposure to organophosphorus compounds (OPC) such as soman, sarin, or VX causes respiratory failure resulting from the paralysis of the diaphragm and intercostal muscles, depression of the brain respiratory centre, and bronchospasms. Moreover, bronchial secretions increase and death arises from suffocation [4]. OPC intoxication has become common due to their use in agriculture as pesticides and the increased threat of nerve agent misuse during military conflicts [5,6] and by terrorists [7].

The toxic effect of these OPCs arises from the inhibition of acetylcholinesterase (EC 3.1.1.7) by the formation of a covalent bond between the organophosphate and the hydroxyl group of the serine residue (203) in the enzyme’s active site. Thus, AChE is not able to hydrolyze the neurotransmitter acetylcholine (ACh) in the synaptic cleft, thereby increasing the concentration of ACh in the synapse. The standard treatment for OPC poisoning involves the administration of an anticonvulsant (e.g., diazepam) that relieves muscle fasciculation and parasympatolytics (e.g., atropine) to block the effects of overstimulated cholinergic receptors in the peripheral nervous system caused by the high ACh concentration. Oxime based reactivators (e.g., PAM-2, HI-6, obidoxime) regenerate active AChE by displacing the phosphonyl moiety from the inhibited enzyme. First, the oxime-OPC-AChE complex is created; then the enzyme is dephosphonylated and the phosphorylated reactivator presumably leaves the AChE active site. At this stage, the enzyme activity is restored. Reactivators are not able to re-establish the enzyme’s physiological function after aging (spontaneous dealkylation of the OPC side chain). The rate of reactivation is dependent on the OPC inhibitor structure, the enzyme source, the reactivator structure, the reactivator concentration, and the rate of aging [8]. Despite an enormous amount of effort to develop a universal reactivator, none are sufficiently effective against all OPC types.

Oxime based reactivators can also bind to the active site of native AChE as reversible inhibitors. It is known that they can bind to allosteric sites as well, thereby inducing an indirect protection of the AChE active site [8]. The goal of the present study is to determine how reactivator structure influences the reversible inhibition of human AChE. Therefore, we assayed 24 structurally different oxime based reactivators to establish a structure-activity relationship (SAR). We found that the bis-pyridinium linker chain length is proportional to increase reversible inhibition of the reactivator. We also compared IC50 values of the same reactivators against our previously published data for the EeAChE enzyme. In general, the hrAChE is more sensitive to inhibition than the EeAChE isoform. Additionally, computational docking was performed to help rationalize, at the atomic level, the low IC50 values and differences in IC50 between hrAChE and EeAChE enzymes.

The SAR of the bis-pyridinium oxime inhibition of AChE obtained from this study will be useful in designing and subsequent synthesis of new peripherally acting reactivators. As these compounds contain quaternary ammonium moieties, they have limited permeability through the blood-brain barrier [9,10]. Furthermore, they may be used as prophylaxis against OPCs or as new drugs for the treatment of Myasthenia gravis, and in anesthetic practice to reverse the skeletal muscle relaxation induced by non-depolarizing neuromuscular blocking agents [11].

2. Results and Discussion

A large number of pyridinium oximes have previously been tested for their efficacy in reactivating hrAChE. These studies have shown which structural factors are important for activity. These factors included the number of quaternary ammonium fragments, the length and the structural features of the connecting linker between pyridinium rings, and the number and position of the oxime group in the pyridinium ring [12]. In this study, we followed up on our previous efforts to understand the correlation of important structure factors operating during reversible inhibition and in the reactivation process of the hrAChE enzyme. As in the previous EeAChE study [13], the reactivators ability to reversibly inhibit hrAChE is expressed as an IC50 value.

2.1. Mono-Pyridinium Reactivators with Different Oxime Group Positions

The first described reactivator, pralidoxime (2-PAM), has been shown to inhibit AChE activity [3]. This was confirmed according to our results in Table 1, displaying an IC50 value of 45 mM. Compound 2 with oxime group in the meta position shows a similar value of 41 mM (Figure 1). Interestingly, 4-PAM fails to inhibit 50% of hrAChE activity with the concentrations used in this study. 2-PAM is considered a more potent reactivator than 4-PAM [14], but we find that 2-PAM also has a greater inhibitory potency. However, a reactivator with two quaternary ammonium functional group atoms has been shown to have higher affinity for both the intact and OPC inhibited AChE compared to these mono-quaternary compounds [15].

2.2. Bis-Pyridinium Reactivators with Various Connecting Chain Lengths

The connecting link between the two quaternary ammonium moieties atoms has a significant effect on the reactivation rate and overall toxicity [16]. To observe whether the same effect was present for inhibition potency, we assayed 12 bis-pyridinium reactivators with the oxime group at the para position and varying linker length in the hrAChE enzyme (Figure 2). Compounds that are commonly shown to be AChE reactivators (1–5 carbons in connecting chains) have lower inhibitory potency. AChE inhibition increases with the length of chain as IC50 values decrease from 21 mM for 4 to 1 mM for 8 (Table 2). Bis-pyridinium aldoximes with linkers composed of 2–10 methylene groups were tested by Kassa et al [17] and it was confirmed that these compounds were not able to reactivate AChE inhibited by tabun or cyclosarin. Remarkably, based on our current results, the extended linker decreases the IC50 values to 55 μM for 13. Compounds with linkers of 9–12 methylene groups possess similar IC50 values. This finding could be a result of the bulkier molecules which allows interaction with more amino acid residues occupying AChE active site. The distance of 10 carbons appears to be ideal in connecting the peripheral and catalytic sites of AChE [18]. Thus, bis-pyridinium reactivators can occupy both sites (peripheral aromatic site and catalytic anionic site) and confer the compounds inhibitory ability towards AChE as confirmed in our study. The connecting linker does not play a direct role in the dephosphonylation process; however, it is important in distribution, elimination, and AChE reactivation rates (e.g., in the binding mechanism) [19].

2.3. Bis-Pyridinium Reactivators with 3 or 4 Carbon Connecting Linker and Various Positions of the Oxime Group on the Pyridinium Ring

Tri or tetra-carbon linkers appear to be the most suitable for the reactivation process of soman, tabun, or cyclosarin-inhibited AChE [19] (Figure 2, n = 3,4). These derivatives of trimedoxime (compound 6) were prepared by Musilek et al. and superior reactivation ability was confirmed for them over trimedoxime [20]. Interestingly, the IC50 for analogue 6 measured in hrAChE is 10−2 M while other reactivators 1620 showed values in the mM range (10−3 M) (Table 2). The highlighted inhibitor in this series was compound 16 with the oxime group in ortho position (2.2 mM). Similar results were observed for reactivators connected with 4 methylenes (7, 21 and 22) with IC50 values also in the mM range. Overall, the results point to compound 21 (1.1 mM) with the oxime group in the ortho position.

2.4. Bis-Pyridinium AChE Reactivators—Substitutions and Double Bond in Linker

The insertion of a double bond increases the reactivation ability, however toxicity is also increased [20]. Incorporating an oxygen atom instead of a double bond may reduce toxicity. The IC50 values are similar for 7 and 24, 3 × 10−3 M and 8 × 10−3 M, respectively. As a double bond is slightly shorter in length, the linker with a double bond (Figure 3) is between 3 and 4 carbons and the IC50 values are reflective of this structure (Table 3). In addition, a double bond does not permit rotation and therefore, passage of the reactivators with this moiety through the narrow AChE cavity may be more complicated. Substitution of oxygen in the connecting chain does not have a big impact on hrAChE inhibition in comparison to other compounds with similar linker size in this study.

2.5. SAR for Reversible Inhibition of hrAChE

The inhibition data for 21 bis-pyridinium compounds were used to build a statistical model of inhibitory potential. A principle component regression was performed to determine a SAR for inhibition (descriptors are detailed in the Experimental Section). By far, the largest determinant from this particular set of compounds is the length (>5 carbon atoms) as seen by the contribution of rotatable bonds, molecular weight and molar refractivity of the linker between pyridinium rings. The second major contributor to inhibition potency is the position of the oxime groups on the rings (ortho derivatives resulted in highest anti-AChE activity) (Figure 4). More potent compounds were predicted from these calculations and will be assessed in future work. As several compounds in the data set are currently approved reactivators (they contain one to three carbon linkers), a drastic reduction in activity can be found among them (IC50 ~10−3 M) suggesting a possible negative correlation with reactivation.

2.6. Reversible Inhibition of EeAChE versus hrAChE

A set of 24 reactivators were assayed for reversible inhibition of EeAChE by Sepsova et al. [13]. The SAR results are similar to those for hrAChE as presented in this study. In general, the IC50 values reported in this study for hrAChE are equal to or lower than those reported for the eel enzyme. In the group of bis-pyridinium reactivators with variable length linkers, compound 13 was the strongest inhibitor of hrAChE with an IC50 of 55 μM, which is 50% lower than in the EeAChE enzyme (100 μM). Compounds 46, 1015, 17, 18, 20 have IC50 values ranging between two and 40-fold lower for hrAChE in comparison to EeAChE (Table 2 and Figure 5). The seven remaining compounds have equal or higher IC50 values in hrAChE in comparison to EeAChE. Unfortunately, there is not enough information to determine a cause for the species differences in these IC50 values. However, based on the inhibition data, the native hrAChE enzyme is more sensitive to inhibition by these oxime containing reactivators. For the most potent inhibitors, therapeutically achievable concentrations equivalent to IC50 values of 10−4 and lower are possible [10]. This means that general extrapolation of non-human AChE data needs to account for possible species differences. Although these data are determined from native, non-OPC adducted enzymes, they suggest that reversible inhibition should be included in assays for new lead compounds with reactivation potential.

2.7. Molecular Docking

Molecular docking studies were carried out on compound 13 in order to rationalize its plausible interactions within the active sites of hrAChE, EeAChE and Torpedo califonica AChE (TcAChE). The crystal structures of TcAChE with bis(7)-tacrine (PDB ID: 2CKM) and EeAChE (PDB ID: 1C2O) were chosen because of an assumption of a comparable binding mode for 13/hrAChE complex (for hrAChE complexed with fasciculin-2: PDB ID: 1B41).

Selection of TcAChE for docking simulation deserves further comment. In vitro assessment was carried out with EeAChE. However, this enzyme is available from the Protein Data Bank (PDB.org) only in very low resolution [21]. To the best of our knowledge, amino acid residues within both TcAChE and EeAChE active sites are conserved and the sequence corresponds one to another preserving important amino acid residues (e.g., for peripheral anionic site: Trp286 in EeAChE = Trp279 in TcAChE; for the active site: Trp86 in EeAChE = Trp84 in TcAChE; the catalytic triad is maintained and residues in mid-gorge are conserved). In order to decide how much the enzymes TcAChE and EeAChE are similar and/or different in quantitative terms, we performed a similarity study of the X-ray structural enzyme models prior to docking simulation. Using two aligning functions—“super” and “align”—available in Pymol viewer, root-mean square deviations (RMSD) of the active sites as well as of the whole enzyme structures were calculated. To approximate the enzyme active sites, residues included in a sphere of R = 8 Å, around His440 in the case of TcAChE and around His447 in the case of EeAChE, were selected. The radius was chosen empirically to encompass the key part of the enzyme active sites. Superimposition of the active site TcAChE model (mobile part) to the active site EeAChE model (stationary part) by the “super” algorithm provided optimal overlap with RMSD (super) = 0.400 Å. Matching residue pairs within the active sites, whose distance was minimized during the RMSD calculations, are listed in Table 4. Applying the “align” algorithm (Pymol) similar results were obtained: RMSD (align) = 0.414 Å (Figure 6). Alignments restricted to 13 residues set as flexible in docking simulations (see below) yielded RMSD (super) = 0.586 Å and RMSD (align) = 0.536 Å (Figure 6). Depending on the algorithm used, superimposing of the whole enzymes converged to these values: RMSD (super) = 0.616 Å (3056 atom pairs matched), RMSD (align) = 0.624 Å (3078 atoms pairs matched). Considering only alpha carbons, even lower RMSD values were achieved: Cα RMSD(super) = 0.545 Å, Cα RMSD(align) = 0.550 Å (Figure 7). In all RMSD calculations, the structures of both enzyme models were treated as rigid.

According to the results obtained via RMSD calculations, we hypothesized significant similarity of TcAChE and EeAChE enzymes. Afterwards, this assumption was re-evaluated in docking simulation rendered in complexes 13/TcAChE and 13/EeAChE.

Considering 13/TcAChE complex, docking calculations were carried out using the TcAChE crystal structure (Figure 8). The recorded binding energy for 13/TcAChE complex is −9.3 kcal/mol, which is slightly higher compared with the 13/hrAChE complex (−8.7 kcal/mol) but lower than it appeared for 13/EeAChE complex (−10.1 kcal/mol). The distal pyridinium ring exerts a similar spatial conformation as in the hrAChE, providing a hydrogen bond between Trp279 (3.5 Å, correspond with Trp286 in hrAChE) and oxime function at the peripheral anionic site of TcAChE. Next, the peripheral pyridinium moiety is stacked by a T-shaped cation-π interaction to Phe331 (3.7 Å), which is additionally stabilized directly by a parallel sandwiched π-π bonding to Phe288 (3.7 Å). Within the anionic site, Trp84 demonstrates a similar rearrangement as Trp86 within hrAChE with a rotation of ~94°. Moreover, these conformational changes of Trp84 lead to a stabilization of the proximal pyridinium ring via a cation-π interaction (3.4 Å). Supplementary π-π bonding is formed with Tyr121 in a T-shaped conformation which is slightly distorted from its original structure (~28°). The catalytic triad is more disrupted when compared to the 13/hrAChE complex yielding a drastically altered conformation of His440 (~74°). This change in the residue orientation results in hydrogen-bonding with oxime group of proximal pyridinium ring (3.2 Å). Glu199 is not affected in this study, while Ser200 shows a strong hydrogen bond with an oxime group (1.7 Å). Likewise, the 10-carbon spacer bridges the gorge making aliphatic-π interactions with Phe330 (3.2 Å) and Tyr334 (4.6 Å).

Related to EeAChE, the corresponding ligand conformation of 13 exhibited larger geometrical differences that do not correlate with the assumption implied by the RMSD calculation results (Figure 9). The proximal pyridinium ring of 13 provided a parallel π-π interaction with Trp86 (3.7 Å) in the CAS of the enzyme active site. This might be additionally stabilized by the hydrogen bond between the OH group from Tyr133 and the oxime moiety (3.3 Å); the interaction was only observed for 13/EeAChE complex. The distal pyridinium ring did not approach Trp286—one of the most important aromatic residues in the PAS—and only provided a T-shaped π-π interaction with Tyr124 (4.2 Å). This might explain the decrease in binding affinity between hrAChE and EeAChE found in in vitro experiments. Furthermore, several hydrophobic interactions contributed to the linker orientation in the mid-gorge of EeAChE (e.g., Tyr341, Tyr337). The presence of 13 in the active site of EeAChE has no impact on catalytic triad. It is important to note that these results must be taken with caution due to low resolution of the EeAChE crystal structure.

The results for the hrAChE docking calculation are shown in Figure 10. The original crystal structure positions of important amino acid residues are displayed in blue, those that were computationally reoriented in yellow, and residues having direct interactions with 13 are shown in magenta (Figure 10). The top-scored docking pose for 13/hrAChE complex (−8.7 kcal/mol) shows important π-π and cation-π interactions (Figure 10). The peripheral pyridinium moiety is oriented ring-to-ring facing Trp286 (3.6 Å). For this interaction to occur, the indole skeleton of Trp286 (yellow) undergoes a ~63° rotation relative to its conformation in the original position in the hrAChE crystal structure (blue Trp286). Tyr72 is also dramatically reoriented (~59°) to provide hydrogen bonding with the oxime group of the distal pyridinium moiety with a distance of 3.1 Å. Interestingly, Tyr72 is excluded from parallel π-π bonding and gives only a weak π-π, T-shaped interaction (4.2 Å). The largest structural alterations, upon the binding of 13 to hrAChE, are observed for Trp86 in the cation-π site that bind to the distal pyridinium ring (3.7 Å). The atoms of this residue show a ~60° rotation from their original position in the hrAChE crystal structure. The catalytic triad is only slightly affected by 13, a very frail π-π interaction is observed between the distal pyridinium ring and His447 (4.5 Å), which is slightly rotated. The side chain of Glu202 is close to the oxime group (3.7 Å) forming a hydrogen donating bond. In the gorge between both pyridinium units, the 10-carbon spacer spans the length of the active site gorge and is consistent with the idea of a dual binding site interaction as mentioned above. In the middle of the gorge, the aliphatic chain of 13 was surrounded by the phenyl rings of Phe297 (3.4 Å), Tyr337 (4.3 Å) and Tyr341 (3.4 Å) stabilizing 13/hrAChE. The distance between both moieties is approximately 20 Å which is in accordance with the distance between peripheral anionic site and catalytic site of hrAChE [22].

The results from the docking calculations presented in this study are in general agreement with previous docking studies for non-oxime based, bis-pyridinium-inhibitors of cholinesterases, which predicted similar orientations within active site of AChE [23,24]. The low IC50 values for compound 13 further suggest a characteristic dual binding site that was elucidated by in silico studies. Shorter pyridinium ring based reactivators (e.g., trimedoxime) showed less activity presumably because they do not reach both binding sites in the hrAChE gorge. The docked poses of the 13 in hrAChE and TcAChE interact with similar residues, while 13/EeAChE complex revealed different binding pose unexpectedly to calculated RMSD for TcAChE and EeAChE. Although the conformational changes in the TcAChE enzyme appear to be more dramatic in the catalytic triad residues, the similar binding mode in the gorge suggests that inhibition of both enzymes would be similar in magnitude.

3. Experimental Section

3.1. Chemicals

All assayed reactivators were previously synthesized at the Department of Toxicology, Faculty of Military Health Science, University of Defence, Hradec Kralove, Czech Republic [25]. Phosphate buffer, human recombinant AChE (hrAChE), DTNB (5,5′-dithiobis (2-nitrobenzoic) acid) and acetylthiocholine iodide were purchased from Sigma-Aldrich (Prague, Czech Republic).

3.2. The Measurement of IC50 of hrAChE

The activities of hrAChE were evaluated by the standard spectrophotometric Ellman’s method. Acetylthiocholine iodide was used as a substrate and DTNB was used as the chromogen. The standard wavelength of 412 nm was used [26,27]. The absorbance was determined using a Helios Alpha (Thermo Scientific, Loughborough, UK) spectrophotometer. The results were then analyzed by using the standard statistical software package, Prisma 4.0 (GraphPad Software, La Jolla, CA, USA).

In vitro measurements were completed as follows: A solution of hrAChE (90 μL, activity was previously established) was pipetted into the cuvette. Subsequently, 10 μL of the selected reactivator in concentrations from 10−1 to 10−8 M were added. This mixture was then incubated for 10 min under laboratory temperature (20 ± 2 °C). Then, 200 μL of DTNB and 600 μL of phosphate buffer (0.1 M, pH 7.4) were added. The reaction was started by adding acetylthiocholine iodide (100 μL, for 1 μM). This procedure was repeated three times for each incubation.

Reactivators in higher concentrations may split DTNB; this process is known as oximolysis and produces false-positive results [28]. To eliminate this issue, a portion of hrAChE was replaced by distillated water. Subsequently the same portions of other reagents were added. Acquired measurements were then deducted from the calculated hrAChE activity values. Actual activity of the enzyme (the blind sample) was established for all concentration series. The reactivator was replaced by water in cuvette and obtained values were calculated as 100% of the enzyme’s activity [13].

Structure activity relationships were calculated with Canvas [29] (version 1.5, Schrödinger, LLC, New York, NY, USA, 2011) from the Schrodinger software suite. Briefly, all default molecular descriptors were calculated for the 21 bis-pyridinium oxime compounds. Principle component analysis was performed to determine which features sample the most variance in the data. These descriptors are AlogP, electrotopological state, hydrogen bond acceptors, molar refractivity, molecular weight, polar surface area, and the number of rotatable bonds. These features were then used in principal component regression to build a model. The model was built with 15 compounds randomly selected from the original set of 20. The remaining 5 were then used in testing the generated model.

3.3. Docking Study

Docking calculations were performed using AutoDock Vina [30]. The molecular models were built and minimized with UCSF chimera 1.3 (Amber Force Filed) [31]. The structure of enzymes, human AChE (hrAChE, PDB ID: 1B41) [32], Torpedo Californica AChE (TcAChE, PDB ID: 2CKM) [33] and Electric eel AChE (EeAChE, PDB ID: 1C2O) [34] were prepared using Pymol 1.3 from crystal structures [21]. Both the compounds and the enzymes were prepared for docking using the AutoDock Tools program (1.5.2). The reactivators were modelled as fully charged. Water molecules and other non-enzymatic molecules were removed (i.e., withdrawing the fasciculin 2 from hrAChE, bis(7)-tacrine from TcAChE) and polar hydrogen atoms were added. The 3D affinity grid box in the x-, y- and z-axes were 66, 66 and 66 with spacing 0.253 Å for hrAChE, within the TcAChE grid box dimensions were set to x = 60, y = 64, z = 64 with spacing 0.253 Å and x = 30, y = 30, z = 30 with spacing 0.253 Å for EeAChE. For the hrAChE docking, the grid for energy was set in the coordinates x = 119.775, y = 117.597 and z = −128.964, within TcAChE the coordinates were adjusted to x = −2.122, y = 60.902 and z = 61.812 and for EeAChE those were x = 8.209, y = 65.726 and z = 63.335. In the hrAChE enzyme residues: Trp86, Tyr72, Trp286, Asp74, Tyr341, His447 and Phe297 were set to have flexible side chains. In the TcAChE enzyme, amino-acid residues: Tyr121, Ser200, Phe290, Phe331, Phe330, Tyr442, Trp84, His440, Phe288, Tyr130, Tyr334, Trp432 and Trp279 side chains were set as flexible, for EeAChE those were Trp86, Tyr133, Trp439, Tyr449, Tyr337, Tyr341, Ser203, His447, Phe338, Phe295, Phe297, Tyr124 and Trp286. Flexible ligand docking was performed for the selected compound 13 with default settings. Docking for all 13/AChE complexes was repeated 10 times. The docking calculations were performed on a Mac Pro 4.1 Quad-Core Intel Xeon 2.93 GHz and partially with the use of computer resources of Czech National Grid Infrastructure MetaCentrum. Visualization was performed in Pymol 1.3.

4. Conclusions

The main aim of this study was the determination of a structure-activity relationship for 24 oxime based compounds and their ability to inhibit hrAChE. In addition, we compared the inhibitory potency of these compounds as found in hrAChE to those previously determined in EeAChE. Our results revealed that the important structural factors for the design and synthesis of novel peripherally acting hrAChE inhibitors are firstly, linker length (>5 carbons), and secondly, the positions of the oxime groups on the pyridinium rings (ortho to the pyridinium nitrogen revealed the highest inhibitory potency). Docking calculations justify the low IC50 values of 13 by predicting its binding pose that altered the conformations of residues in the catalytic triad while simultaneously occupying the mid-gorge and contacted PAS (peripheral active site) in both enzymes. We also showed that the hrAChE enzyme is generally more sensitive to inhibition by these compounds than the EeAChE enzyme. Moreover, reversible inhibition needs to be taken into account when screening new, bis-pyridinium oxime based compounds for reactivation potential.

As these compounds contain quaternary ammonium moieties which limit permeability through the blood-brain barrier, they could be used for medical conditions as peripherally acting agents. Inhibitors of peripheral hrAChE are commonly used in the clinic for treatment of myasthenia gravis or in anesthetic practice to reverse the skeletal muscle relaxation induced by non-depolarizing neuromuscular blocking agents. Several of the compounds presented in this study could be used as new therapeutic leads for these peripheral indications.

Acknowledgments

This work was supported by the project of Ministry of Defence, A long-term organization development plan 1011, by project of Ministry of Education, Youth and Sports, SV/FVZ201104, by MH CZ-DRO (University Hospital Hradec Kralove, No. 00179906) and by Post-doctoral project (No. CZ.1.07/2.3.00/30.0044). Lawrence Livermore National Laboratory is operated by Lawrence Livermore National Security, LLC, for the U.S. Department of Energy, National Nuclear Security Administration under Contract DE-AC52-07NA27344. The access to computing and storage facilities owned by parties and projects contributing to the National Grid Infrastructure MetaCentrum, provided under the program “Projects of Large Infrastructure for Research, Development, and Innovations” (LM2010005) is highly appreciated.

Conflicts of Interest

The authors declare no conflict of interest.

References

  1. Wilson, I.B.; Ginsburg, S. A powerful reactivator of alkylphosphate-inhibited acetylcholinesterase. Biochim. Biophys. Acta 1955, 18, 168–170. [Google Scholar]
  2. Wilson, I.B.; Ginsburg, S. Reactivation of acetylcholinesterase inhibited by alkylphosphates. Arch. Biochem. Biophys 1955, 54, 569–571. [Google Scholar]
  3. Childs, A.F.; Davies, D.R.; Green, A.L.; Rutland, J.P. The reactivation by oximes and hydroxamic acids of cholinesterase inhibited by organo-phosphorus compounds. Br. J. Pharmacol. Chemother 1955, 10, 462–465. [Google Scholar]
  4. Bajgar, J. Organophosphates/nerve agent poisoning: Mechanism of action, diagnosis, prophylaxis, and treatment. Adv. Clin. Chem 2004, 38, 151–216. [Google Scholar]
  5. Macllwain, C. Study proves Iraq used nerve gas. Nature 1993, 363, 3. [Google Scholar]
  6. Delfino, R.T.; Ribeiro, T.S.; Figueroa-Villar, J.D. Organophosphorus compounds as chemical warfare agents: A review. J. Braz. Chem. Soc 2009, 20, 407–428. [Google Scholar]
  7. Nagao, M.; Takatori, T.; Matsuda, Y.; Nakajima, M.; Iwase, H.; Iwadate, K. Definitive evidence for the acute sarin poisoning diagnosis in the Tokyo subway. Toxicol. Appl. Pharmacol 1997, 144, 198–203. [Google Scholar]
  8. Jokanovic, M.; Stojiljkovic, M.P. Current understanding of the application of pyridinium oximes as cholinesterase reactivators in treatment of organophosphate poisoning. Eur. J. Pharmacol 2006, 553, 10–17. [Google Scholar]
  9. Lorke, D.E.; Kalasz, H.; Petroianu, G.A.; Tekes, K. Entry of oximes into the brain: A review. Curr. Med. Chem 2008, 15, 743–753. [Google Scholar]
  10. Karasova, J.Z.; Pohanka, M.; Musilek, K.; Zemek, F.; Kuca, K. Passive diffusion of acetylcholinesterase oxime reactivators through the blood-brain barrier: Influence of molecular structure. Toxicol. in Vitro 2010, 24, 1838–1844. [Google Scholar]
  11. Palin, R.; Clark, J.K.; Cowley, P.; Muir, A.W.; Pow, E.; Prosser, A.B.; Taylor, R.; Zhang, M.Q. Novel piperidinium and pyridinium agents as water-soluble acetylcholinesterase inhibitors for the reversal of neuromuscular blockade. Bioorg. Med. Chem. Lett 2002, 12, 2569–2572. [Google Scholar]
  12. Petrova, I.; Bielavsky, J. An overview of the syntheses of cholinesterase reactivators from 1980 to 1992. Mil. Med. Sci. Lett 2001, 70, 63–73. [Google Scholar]
  13. Sepsova, V.; Karasova, J.; Zemek, F.; Bennion, B.J.; Kuca, K. Oximes as inhibitors of acetylcholinesterase—A structure-activity relationship (SAR) study. Mil. Med. Sci. Lett 2011, 80, 178–186. [Google Scholar]
  14. Oh, K.A.; Park, N.J.; Park, N.S.; Kuca, K.; Jun, D.; Jung, Y.S. Reactivation of DFP- and paraoxon-inhibited acetylcholinesterases by pyridinium oximes. Chem. Biol. Interact 2008, 175, 365–367. [Google Scholar]
  15. Kuca, K.; Kassa, J. A comparison of the ability of a new bispyridinium oxime-1-(4- hydroxyiminomethylpyridinium)-4-(4-carbamoylpyridinium)butane dibromide and currently used oximes to reactivate nerve agent-inhibited rat brain acetylcholinesterase by in vitro methods. J. Enzyme Inhib. Med. Chem 2003, 18, 529–535. [Google Scholar]
  16. Musilek, K.; Dolezal, M.; Gunn-Moore, F.; Kuca, K. Design, evaluation and structure-activity relationship studies of the AChE reactivators against organophosphorus pesticides. Med. Res. Rev 2011, 31, 548–575. [Google Scholar]
  17. Kassa, J.; Kuca, K.; Bartosova, L.; Kunesova, G. The development of new structural analogues of oximes for the antidotal treatment of poisoning by nerve agents and the comparison of their reactivating and therapeutic efficacy with currently available oximes. Curr. Org. Chem 2007, 11, 267–283. [Google Scholar]
  18. Jin, G.Y.; He, X.C.; Zhang, H.Y.; Bai, D.L. Synthesis of alkylene-linked dieters of (−)-huperzine A. Chin. Chem. Lett 2002, 13, 23–26. [Google Scholar]
  19. Kassa, J.; Jun, D.; Kuca, K.; Bajgar, J. Comparison of reactivating and therapeutic efficacy of two salts of the oxime HI-6 against tabun, soman and cyclosarin in rats. Basic Clin. Pharmacol. Toxicol. 2007, 101, 328–332. [Google Scholar]
  20. Musilek, K.; Holas, O.; Hambalek, J.; Kuca, K.; Jun, D.; Dohnal, V.; Dolezal, M. Synthesis of bispyridinium compounds bearing propane linker and evaluation of their reactivation activity against tabun- and paraoxon-inhibited acetylcholinesterase. Lett. Org. Chem 2006, 3, 831–835. [Google Scholar]
  21. DeLano, W.L. The PyMOL Molecular Graphics System, Version 1.3; Schrödinger, LLC, 2010. [Google Scholar]
  22. Bolea, I.; Juarez-Jimenez, J.; de Los Rios, C.; Chioua, M.; Pouplana, R.; Luque, F.J.; Unzeta, M.; Marco-Contelles, J.; Samadi, A. Synthesis, biological evaluation, and molecular modeling of donepezil and N-[(5-(benzyloxy)-1-methyl-1H-indol-2-yl)methyl]-N-methylprop-2-yn-1-amine hybrids as new multipotent cholinesterase/monoamine oxidase inhibitors for the treatment of Alzheimer’s disease. J. Med. Chem 2011, 54, 8251–8270. [Google Scholar]
  23. Musilek, K.; Komloova, M.; Holas, O.; Hrabinova, M.; Pohanka, M.; Dohnal, V.; Nachon, F.; Dolezal, M.; Kuca, K. Preparation and in vitro screening of symmetrical bis-isoquinolinium cholinesterase inhibitors bearing various connecting linkage—Implications for early Myasthenia gravis treatment. Eur. J. Med. Chem 2011, 46, 811–818. [Google Scholar]
  24. Komloova, M.; Musilek, K.; Horova, A.; Holas, O.; Dohnal, V.; Gunn-Moore, F.; Kuca, K. Preparation, in vitro screening and molecular modelling of symmetrical bis-quinolinium cholinesterase inhibitors-implications for early Myasthenia gravis treatment. Bioorg. Med. Chem. Lett 2011, 21, 2505–2509. [Google Scholar]
  25. Musilek, K.; Holas, O.; Kuca, K.; Jun, D.; Dohnal, V.; Opletalova, V.; Dolezal, M. Novel series of bispyridinium compounds bearing a (Z)-but-2-ene linker—Synthesis and evaluation of their reactivation activity against tabun and paraoxon-inhibited acetylcholinesterase. Bioorg. Med. Chem. Lett 2007, 17, 3172–3176. [Google Scholar]
  26. Ellman, G.L.; Courtney, K.D.; Andres, V.; Featherstone, R.M. A new and rapid colorimetric determination of acetylcholinesterase activity. Biochem. Pharmacol 1961, 7, 88–90. [Google Scholar]
  27. Pohanka, M.; Hrabinova, M.; Kuca, K. Diagnosis of intoxication by the organophosphate VX: Comparison between an electrochemical sensor and Ellman’s photometric method. Sensors 2008, 8, 5229–5237. [Google Scholar]
  28. Sinko, G.; Calic, M.; Bosak, A.; Kovarik, Z. Limitation of the Ellman method: Cholinesterase activity measurement in the presence of oximes. Anal. Biochem 2007, 370, 223–227. [Google Scholar]
  29. Duan, J.X.; Dixon, S.L.; Lowrie, J.F.; Sherman, W. Analysis and comparison of 2D fingerprints: Insights into database screening performance using eight fingerprint methods. J. Mol. Graph. Model 2010, 29, 157–170. [Google Scholar]
  30. Trott, O.; Olson, A.J. Software news and update autodock vina: Improving the speed and accuracy of docking with a new scoring function, efficient optimization, and multithreading. J. Comput. Chem 2010, 31, 455–461. [Google Scholar]
  31. Pettersen, E.F.; Goddard, T.D.; Huang, C.C.; Couch, G.S.; Greenblatt, D.M.; Meng, E.C.; Ferrin, T.E. UCSF Chimera—A visualization system for exploratory research and analysis. J. Comput. Chem 2004, 25, 1605–1612. [Google Scholar]
  32. Kryger, G.; Harel, M.; Giles, K.; Toker, L.; Velan, B.; Lazar, A.; Kronman, C.; Barak, D.; Ariel, N.; Shafferman, A.; et al. Structures of recombinant native and E202Q mutant human acetylcholinesterase complexed with the snake-venom toxin fasciculin-II. Acta Crystallogr. D 2000, 56, 1385–1394. [Google Scholar]
  33. Harel, M.; Schalk, I.; Ehretsabatier, L.; Bouet, F.; Goeldner, M.; Hirth, C.; Axelsen, P.H.; Silman, I.; Sussman, J.L. Quaternary ligand-binding to aromatic residues in the active-site gorge of acetylcholinesterase. Proc. Natl. Acad. Sci. USA 1993, 90, 9031–9035. [Google Scholar]
  34. Bourne, Y.; Grassi, J.; Bougis, P.E.; Marchot, P. Conformational flexibility of the acetylcholinesterase tetramer suggested by X-ray crystallography. J. Biol. Chem 1999, 274, 30370–30376. [Google Scholar]
Ijms 14 16882f1 1024

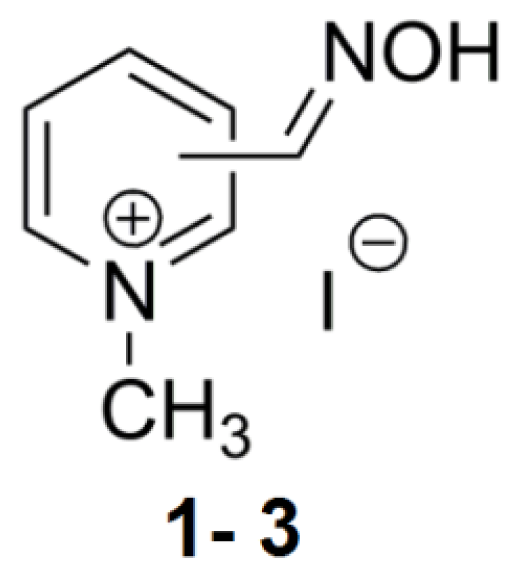

Figure 1. Chemical structures of assayed mono-pyridinium reactivators.

Click here to enlarge figure

Figure 1. Chemical structures of assayed mono-pyridinium reactivators.
Ijms 14 16882f1 1024
Ijms 14 16882f2 1024

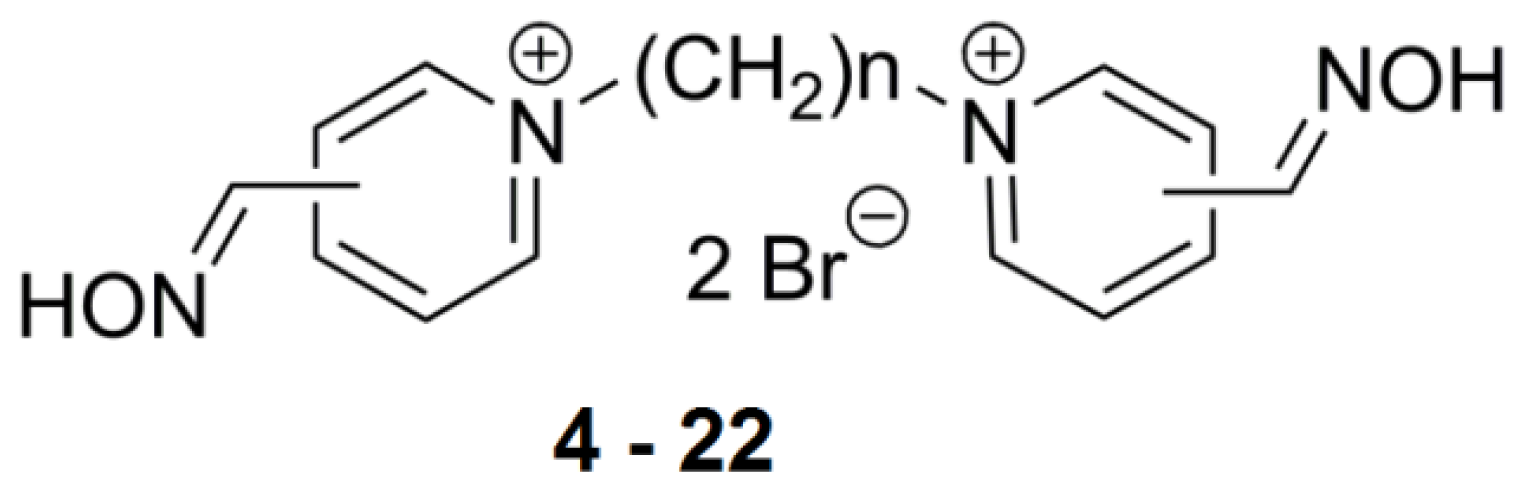

Figure 2. Chemical structures of assayed bis-quaternary ammonium reactivators.

Click here to enlarge figure

Figure 2. Chemical structures of assayed bis-quaternary ammonium reactivators.
Ijms 14 16882f2 1024
Ijms 14 16882f3 1024

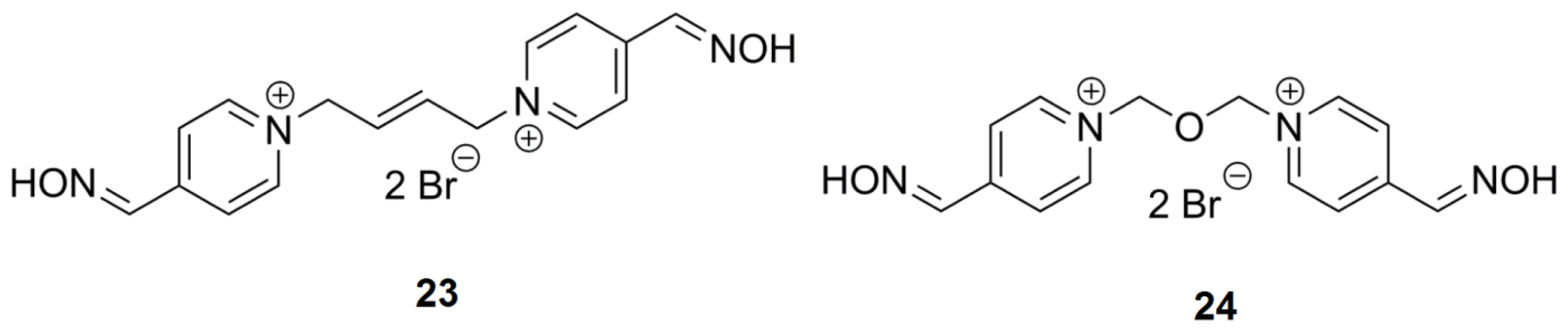

Figure 3. Chemical structures of the bis-pyridinium reactivators with an oxygen substitution or double bond in the connecting linker.

Click here to enlarge figure

Figure 3. Chemical structures of the bis-pyridinium reactivators with an oxygen substitution or double bond in the connecting linker.
Ijms 14 16882f3 1024
Ijms 14 16882f4 1024

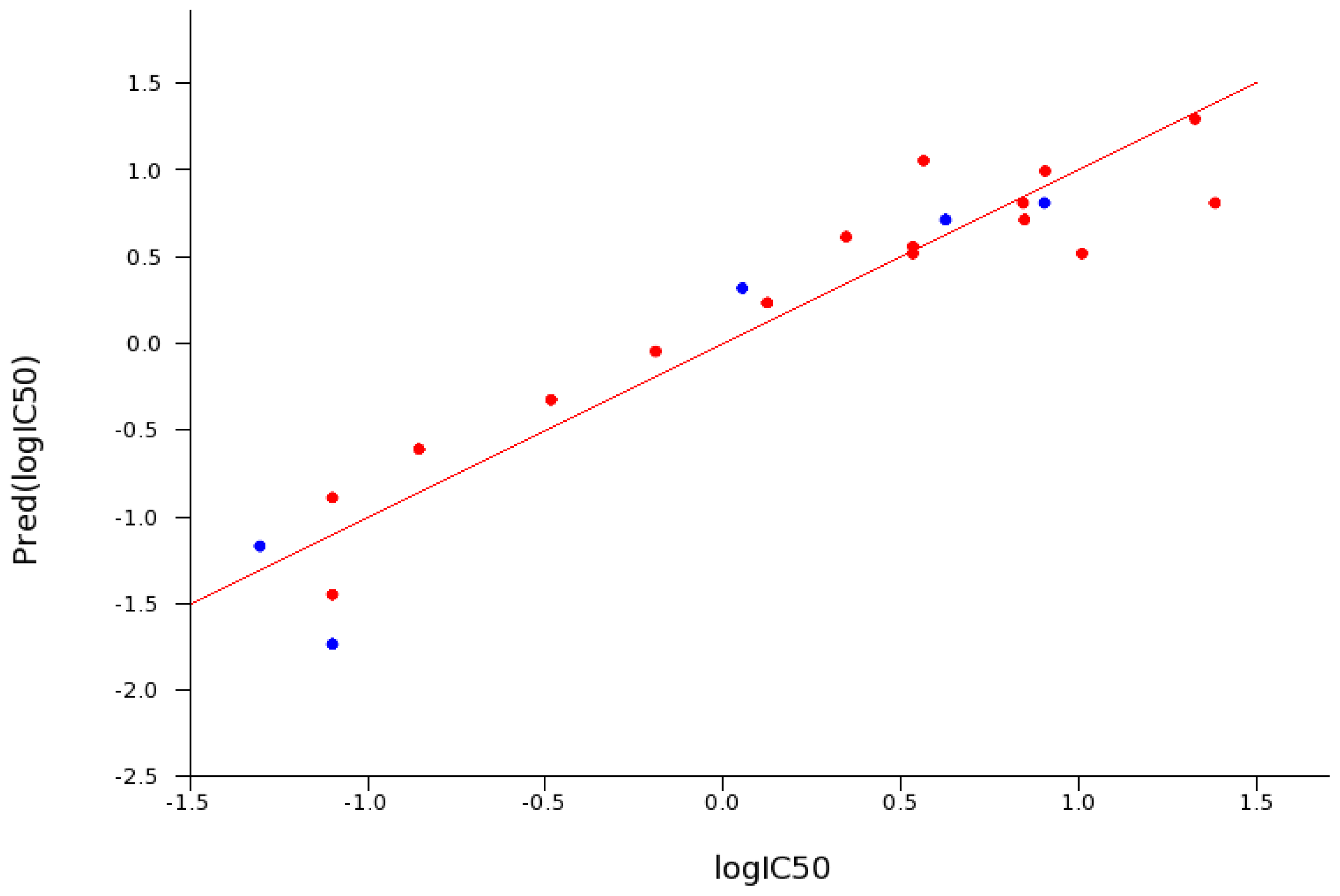

Figure 4. Experimental versus predicted pIC50 values for the 21 compounds in this study. The IC50 prediction was based on the eight descriptors identified by principle component analysis. The “leave one out”—Q2, correlation was 0.86. Red dots are compounds used in the training set and blue are from the test set. In general, extension of the linker length increased the inhibition potency of the bis-pyridinium oximes. Compounds 4, 6, 24 are currently approved as organophosphorus poisoning (OP) antidotes in various parts of the world.

Click here to enlarge figure

Figure 4. Experimental versus predicted pIC50 values for the 21 compounds in this study. The IC50 prediction was based on the eight descriptors identified by principle component analysis. The “leave one out”—Q2, correlation was 0.86. Red dots are compounds used in the training set and blue are from the test set. In general, extension of the linker length increased the inhibition potency of the bis-pyridinium oximes. Compounds 4, 6, 24 are currently approved as organophosphorus poisoning (OP) antidotes in various parts of the world.
Ijms 14 16882f4 1024
Ijms 14 16882f5 1024

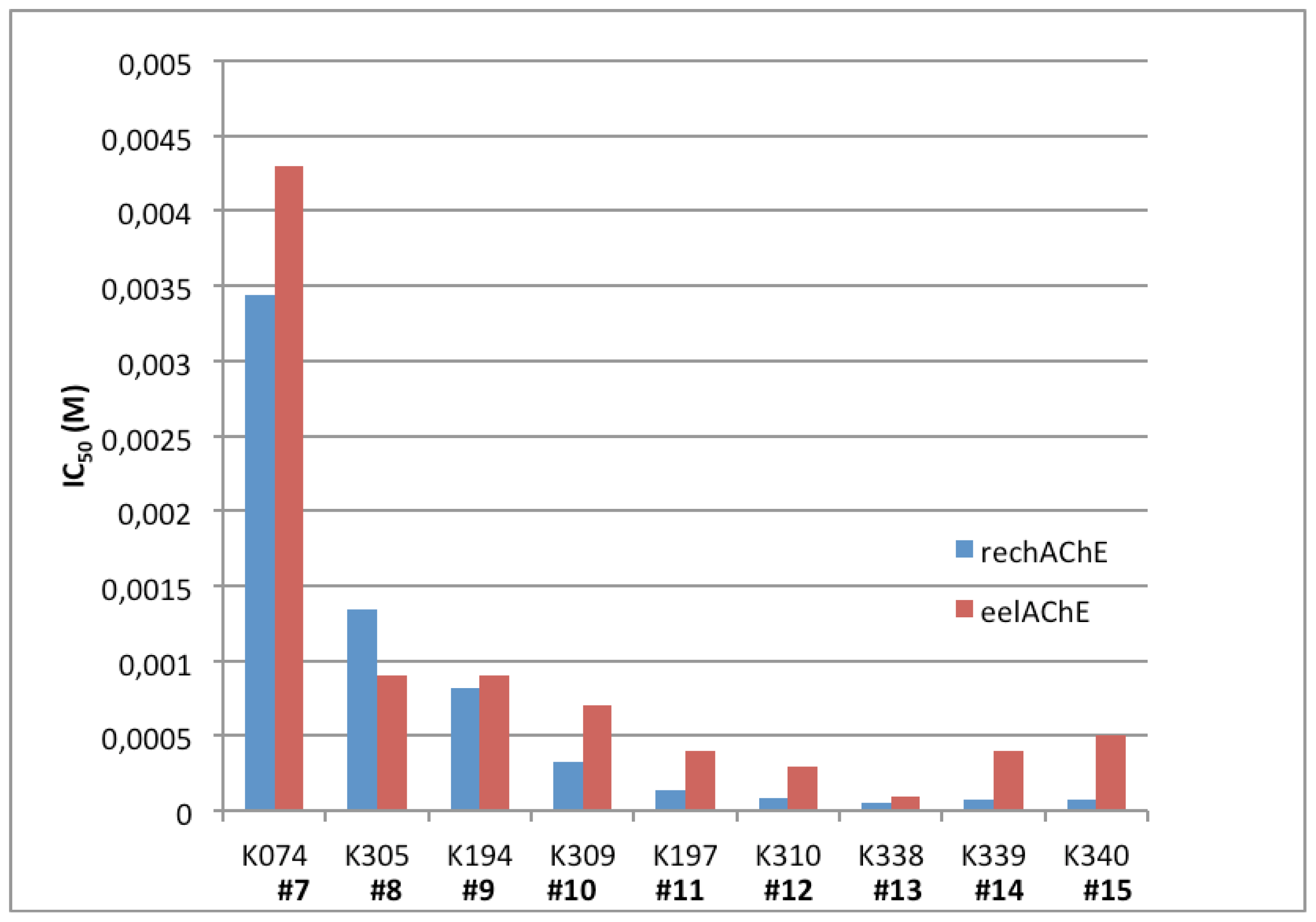

Figure 5. Comparison of various IC50 values of bis-pyridinium compounds in hrAChE and EeAChE. In general, the hrAChE enzyme is more easily inhibited by oxime reactivators than the EeAChE enzyme.

Click here to enlarge figure

Figure 5. Comparison of various IC50 values of bis-pyridinium compounds in hrAChE and EeAChE. In general, the hrAChE enzyme is more easily inhibited by oxime reactivators than the EeAChE enzyme.
Ijms 14 16882f5 1024
Ijms 14 16882f6 1024
Figure 6. Superimposition of TcAChE active site (yellow) on EeAChE active site (blue) residues within R = 8 Å spherical selection calculated by super (A) root-mean square deviations (RMSD) (super) = 0.400 Å and align (B) RMSD (align) = 0.416 Å algorithm. Alignment of 13 flexible residues is rendered in the same manner (C) RMSD (super) = 0.586 Å; (D) RMSD (align) = 0.536 Å.

Click here to enlarge figure

Figure 6. Superimposition of TcAChE active site (yellow) on EeAChE active site (blue) residues within R = 8 Å spherical selection calculated by super (A) root-mean square deviations (RMSD) (super) = 0.400 Å and align (B) RMSD (align) = 0.416 Å algorithm. Alignment of 13 flexible residues is rendered in the same manner (C) RMSD (super) = 0.586 Å; (D) RMSD (align) = 0.536 Å.
Ijms 14 16882f6 1024
Ijms 14 16882f7 1024
Figure 7. Overall superimposition of TcAChE on EeAChE colored by Cα RMSD (“super” algorithm used, 449 Cα carbon atoms matched). Dark blue is a good alignment; higher deviations are in orange/yellow/red. Residues omitted in the alignment are white. Minimum Cα distance: 0.04 Å, maximum Cα distance: 5.25 Å, average Cα distance: 0.71 Å, Cα RMSD = 0.545 Å.

Click here to enlarge figure

Figure 7. Overall superimposition of TcAChE on EeAChE colored by Cα RMSD (“super” algorithm used, 449 Cα carbon atoms matched). Dark blue is a good alignment; higher deviations are in orange/yellow/red. Residues omitted in the alignment are white. Minimum Cα distance: 0.04 Å, maximum Cα distance: 5.25 Å, average Cα distance: 0.71 Å, Cα RMSD = 0.545 Å.
Ijms 14 16882f7 1024
Ijms 14 16882f8 1024

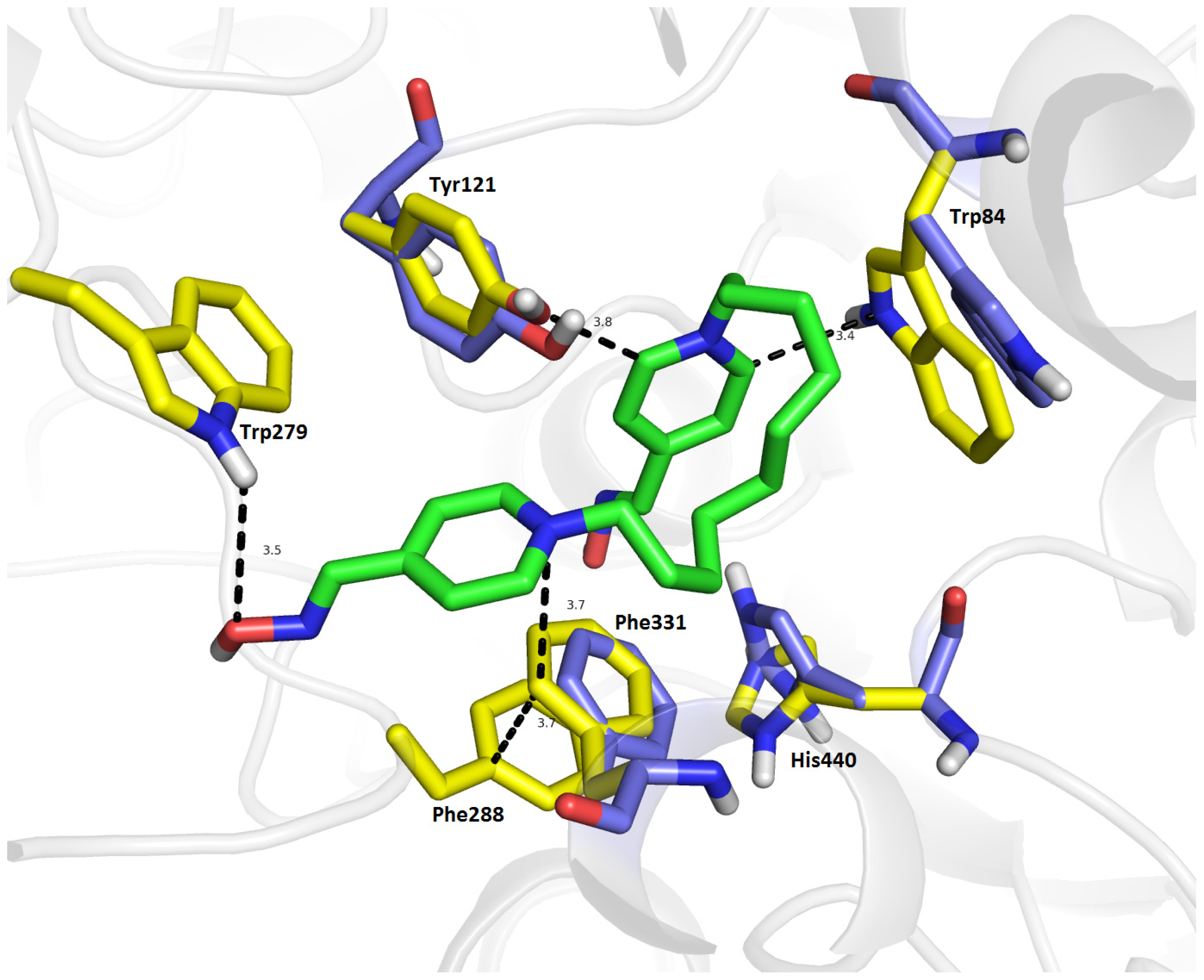

Figure 8. The top-scoring pose for compound 13 (green) in in the active site of TcAChE. The original spatial conformation of amino acid residues are rendered in blue, amino acid residues in computationally determined alternate conformations are shown in yellow, and the rest of the enzyme is displayed in a cartoon representation. For the sake of clarity, original conformation of Trp279 is not depicted since no structural modification was observed.
