Int. J. Mol. Sci. 2013, 14(6), 12037-12053; doi:10.3390/ijms140612037

Article
Three Dimensional Quantitative Structure-Activity Relationship of 5H-Pyrido[4,3-b]indol-4-carboxamide JAK2 Inhibitors
Xiaoyun Wu *, Shanhe Wan and Jiajie Zhang *
School of Pharmaceutical Sciences, Southern Medical University, Guangzhou 510515, China; E-Mail: wansh@163.com
*
Authors to whom correspondence should be addressed; E-Mails: xywugz@163.com (X.W.); zhangjj@smu.edu.cn (J.Z.); Tel.: +86-20-6278-9490 (X.W.); +86-20-6164-8548 (J.Z.).
Received: 7 April 2013; in revised form: 30 May 2013 / Accepted: 30 May 2013 /
Published: 5 June 2013

Abstract

: Janus kinase 2 (JAK2) is an intracellular nonreceptor tyrosine kinase that belongs to the JAK family of kinases, which play an important role in survival, proliferation, and differentiation of a variety of cells. JAK2 inhibitors are potential drugs for the treatment of myeloproliferative neoplasms. The three dimensional quantitative structure-activity relationships have been studied on a series of JAK2 inhibitors by comparative molecular field analysis (CoMFA), and comparative molecular similarity indices analysis (CoMSIA). The CoMFA model had a cross-validated coefficient q2 of 0.633, and the relation non-cross-validated coefficient r2 of 0.976. The F value is 225.030. The contributions of steric and electrostatic fields to the activity are 55.2% and 44.8%, respectively. For the CoMSIA study, the q2, r2, and F values of the model are 0.614, 0.929, and 88.771, respectively. The contributions of steric, electrostatic, hydrophobic, hydrogen bond donor, and hydrogen bond donor fields to the activity are 27.3%, 23.9%, 16.4%, 21.7%, and 10.7%, respectively. The CoMFA and CoMSIA models showed strong predictive ability, and the 3D contour plots give the basis on the structure modification of JAK2 inhibitors.
Keywords:
3D-QSAR; CoMFA; CoMSIA; JAK2 inhibitor; 5H-pyrido[4; 3-b]indol-4-carboxamide

1. Introduction

Janus kinase 2 (JAK2) is an intracellular nonreceptor tyrosine kinase that belongs to the JAK family kinases (JAK1, JAK2, JAK3, and TYK2), which is important in many of cellular signaling pathways [13]. JAK2 is essential for hematopoiesis, platelet formation, and other functions that are important in cellular survival, proliferation, and differentiation. In 2005, several groups independently reported the discovery of a somatic mutation of the gene encoding JAK2 in a high proportion of patients with myeloproliferative neoplasms (MPNs) : >95% for polycythemia vera (PV), and 50% for essential thrombocythemia (ET) and primary myelofibrosis (PMF) [48]. A single valine to phenylalanine mutation at position 617, located in the pseudokinase domain thought to negatively regulate the adjacent kinase domain, results in a constitutively active JAK2 tyrosine kinase. The Jak2V617F mutation occurs in over 90% of PV patients and a large subset of ET and PMF patients. Therefore, JAK2 has been investigated in recent years as a potential therapeutic target for the treatment of MPNs. In fact, several classes of JAK2 small molecule inhibitors have been developed and are being tested in clinical trials for the treatment of MPNs [912]. Recently, a library of potent 5H-pyrido[4,3-b]indol-4-carboxamide JAK2 Inhibitors have been reported [13]. In order to design new compounds based on the structure of 5H-pyrido[4,3-b]indol-4-carboxamide, with excellent inhibitory activity for JAK2, quantitative structure-activity relationship (QSAR) techniques are useful methods. QSAR, which quantitatively correlates the variations in biological activity with the properties or molecular structures, is one of the most effective approaches for designing new chemical identities and understanding the action mechanisms of drugs [14,15]. In order to establish the QSAR model, suitable statistical methods are applied to establish correlations between chemical structures and their biological activities, such as Multiple Linear Regression (MLR), Principal Component Analysis (PCA), Partial Least Squares (PLS), artificial neural networks (ANN), Spectral-SAR Algorithm [16,17], and so on. When a model is established, the findings can be used to predict the properties of new compounds and see which structural factors influence those properties. In the present study, we performed molecular modeling studies on 5H-pyrido[4,3-b]indol-4-carboxamide JAK2 inhibitors using 3D-QSAR approaches, including comparative molecular field analysis (CoMFA), [18] and comparative molecular similarity indices analysis (CoMSIA) [19], to investigate the key structural features affecting the inhibitory activities.

2. Results and Discussion

2.1. Comparative Molecular Field Analysis (CoMFA) and Comparative Molecular Similarity Indices Analysis (CoMSIA) Results

The 3D-QSAR studies were carried out using 5H-pyrido[4,3-b]indol-4-carboxamide derivatives, which are reported to be JAK2 inhibitors. The whole dataset was partitioned into a training set of 40 and a test set of nine compounds at random, with bias given to both chemical and biological diversity in both the training set and the test set molecules. The statistical results of the CoMFA and CoMSIA 3D-QSAR models are presented in Table 1. The CoMFA model gave a cross-validated correlation coefficient q2 of 0.633, an optimal number of principal components (N) of 6, and a non-cross-validated correlation coefficient r2 of 0.976. The corresponding contributions of steric and electrostatic fields were 55.2% and 44.8%, respectively. The CoMSIA model gave a cross-validated correlation coefficient q2 of 0.614, an optimal number of principal components of 5, and a non-cross-validated correlation coefficient r2 of 0.929. The corresponding contributions of steric, electrostatic, hydrophobic, hydrogen bond donor, and acceptor fields were 27.3%, 23.9%, 16.4%, 21.7%, and 10.7%, respectively. Both the CoMFA and CoMSIA models were satisfactory from the viewpoint of statistical significance. The activities of the 40 training compounds were predicted with the constructed CoMFA and CoMSIA models. The predicted pIC50 values are shown in Table 2 and Figure 1. It can be seen that the predicted pIC50 values were in good agreement with the experimental values, indicating that the obtained CoMFA and CoMSIA models had strong predictive ability.

2.2. Y-Randomization Test

The model was validated by applying the Y-randomization test. Several random shuffles of the Y vector were performed and the results are shown in Table 3. The low q2 and r2 values indicate that the good results in our original model are not due to a chance correlation or structural dependency of the training set.

2.3. Predictive Ability of Quantitative Structure-Activity Relationship (QSAR) Models

The predictive powers of the CoMFA and CoMSIA models were validated by the nine test compounds. The predicted pIC50 values were found to be in good agreement with the experimental data within an acceptable error range (Table 2 and Figure 1). The predictive correction coefficients of the CoMFA and CoMSIA models were 0.862 and 0.735, respectively. This result indicates that the CoMFA and CoMSIA models may be used to predict the inhibitory activities of novel 5H-pyrido[4,3-b]indol-4-carboxamide derivatives as JAK2 Inhibitors.

2.4. Contour Analysis

To visualize the results of the CoMFA and CoMSIA models, 3D coefficient contour maps were generated. The CoMFA and CoMSIA results were graphically interpreted by the field contribution maps using the StDev*Coeff field type. The contour maps of CoMFA (steric and electrostatic) and CoMSIA (steric, electrostatic, hydrophobic, hydrogen bond donor, and acceptor fields) are shown in Figures 2 and 3, respectively. Compound 22 was displayed in the map in aid of visualization. All the contours represented the default 80% and 20% level contributions for favorable and unfavorable regions, respectively.

2.4.1. CoMFA Contour Maps

The CoMFA contour maps of the steric and electrostatic fields are shown in Figure 2. In the map of the steric field, the green contours represent the regions in which bulky groups confer an increase in the activity, whereas the yellow ones represent the regions where bulky groups may lead to a decrease in the activity. Similarly, in the map of electrostatic field, the blue contours indicate the regions where electropositive substitution increases the inhibitory activity, whereas the red contours indicate the regions where electronegative substitution increases the activity. In the CoMFA steric contour map (Figure 2a), a large green contour on the top of cyclohexane group of compound 22 suggests that the introducing of bulky groups at this position would increase the activity. Consistent with this, compounds bearing bulky groups at this position, for example, compounds 1013, showed high activities, whereas the ones bearing small groups at the same position, for example compounds 1 and 2, showed low activities. A yellow contour near the cyclohexane group suggests that introducing of bulky groups at these positions would decrease the activity. For example, derivative 16 (IC50 = 2700 nM) was 14-fold less active than derivative 15 (IC50 = 190 nM). In addition, big yellow contours near the R4 substitute suggest that steric bulkiness is unfavorable by the model. This is in agreement with the fact that compound 19, with chloro substituent, showed decreased activity. In the CoMFA electrostatic contour map, small blue contours near R3 or R4 of compound 22 indicates that introducing of electropositive groups around this position would increase the inhibitory activity. For example, compound 11 with electropositive hydrogen showed higher activity than the corresponding compounds 11 with electronegative chloro substituent.

2.4.2. CoMSIA Contour Maps

The CoMSIA contour maps of the CoMSIA model are shown in Figure 3. The steric and electrostatic contour maps (Figure 3a,b) are quite similar to those of CoMFA model discussed above. Therefore, our following discussion will focus on the hydrophobic, hydrogen bond donor, and acceptor fields.

Figure 3c shows the hydrophobic contour maps in which yellow and gray contours indicate the regions where hydrophobic and hydrophilic groups are favored by the model, respectively. A large yellow contour around the cyclohexane group of compound 22 indicates that hydrophobic substituent at this position would increase the activity. This hydrophobic interaction may play a crucial role in improving of the binding affinity, since it is also observed that the cyclohexane occupied the hydrophobic pocket surrounded by the side chains Val863 and Leu983 [13]. In addition, two yellow contours around R2 substituent indicate that hydrophobic substituent at this position would increase the activity.

The CoMSIA hydrogen bond donor and acceptor contour plots are shown in Figure 3d,e, respectively. The cyan contours represent the regions where hydrogen bond-donating groups increase the activity, whereas the purple contours represent the regions where hydrogen bond-donating groups decrease the activity. Similarly, the magenta contours indicate the regions where hydrogen bond-accepting groups increase the inhibitory activity, whereas the red contours indicate the regions where hydrogen bond-accepting groups decrease the activity. The cyan contour near the R1 substituent indicates that hydrogen bond-donating groups are favored. This is well consistent with the observations that derivative 16 having a CH2CH3 to replace the hydrogen of compound 15 led to 14-fold decreases in the activities. A purple contour located on the methylpyrazole of R2 substituent suggests that hydrogen bond-donating groups are disfavored in this region. For example, compounds 24, 41, and 45 showed higher activity than the corresponding compounds 22, 36, and 37, respectively. A magenta contour located on the R2 substitute suggests that hydrogen bond-accepting groups are favored in this region. This is evident from the fact that compound 24 was more active than compound 25. A red contour located on the R4 substituent suggests that hydrogen bond-accepting groups are disfavored in this region. For example, compound 38 was less active than the optical isomer 37, because the CF3 of 38 falls into the red contour.

2.5. Design of New Inhibitors

As shown above, the CoMFA and CoMSIA have provided detailed insight into the key structural requirements for potent activities of the inhibitors of this class. To demonstrate the practical values of these structure-activity relationships, a series of new inhibitors were designed, and their pIC50 values were predicted with the established CoMFA and CoMSIA models (Table 4). The designed molecules exhibited good predicted pIC50 values in CoMFA or CoMSIA models. This result strongly suggested that our models can be used to guide the design of new inhibitors of this class. The detailed synthesis and evaluation of the representative molecule are shown in supplementary information.

3. Experimental Section

3.1. General

The crystallographic coordinates of JAK2 in complex with small-molecule inhibitor were obtained from the Brookheaven Protein Databank as entries 3RVG [13]. All the molecular modeling and calculations were performed using the Sybyl version 7.3 molecular modeling package (Tripos International, St. Louis, MO, USA) [20].

3.2. Data Set

Compounds 149 selected for the present study were taken from the literature [13], and served as the database in the molecular modeling. Their structures and inhibitory activities are listed in Tables 2 and 5. Among them, the 9 compounds that are asterisk labeled served as the test set, and the rest as the training set. The IC50 values (M) were converted to the corresponding pIC50 (=−logIC50) and used as dependent variables in the CoMFA and CoMSIA analyses.

3.3. Molecular Modeling

In the 3D-QSAR study, the selection of active conformations is a key step for CoMFA and CoMSIA studies. The X-ray crystallographic structure of small ligand 22 complexed with the JAK2 was selected as the bioactive conformation, which was used as the template to construct the 3D structures of the rest of the compounds in the data set. Structural energy minimization process was performed using the Tripos force field with a distance-dependent dielectric and Powell gradient algorithm with a convergence criterion of 0.001 kcal/mol. Partial atomic charges were calculated using the Gasteiger-Hückel method.

3.4. Molecular Alignment

In the 3D-QSAR study, the alignment rule is also a key step. The predictive accuracy of the CoMFA and CoMSIA models and the reliability of the contour maps are directly dependent on the structural alignment rule. In the present study, the co-crystallized molecule 22 was chosen as a template to fit the remaining compounds in the training and test sets. Thus, all compounds in the data set were aligned to template molecule using the “align database” command in Sybyl, with the 5H-pyrido[4,3-b]indol-4-carboxamide as the common substructure (Figure 4). The aligned compounds are shown in Figure 5.

3.5. Generation of CoMFA and CoMSIA Models

Standard CoMFA and CoMSIA procedures were performed. A 3D cubic lattice was created automatically by extending at least 4 Å beyond all the investigated molecules in all the three axes (X, Y, and Z directions) with 2.0 Å grid spacing. The CoMFA steric (Lennard-Jones potential) and electrostatic (Coulomb potential) fields at each lattice were calculated using the standard Tripos force field method. A distance dependent dielectric constant of 1.0 was used, and an sp3 hybridized carbon atom with one positive charge and a radius of 1.52 Å served as a probe atom to calculate the steric and electrostatic fields. The default cutoff value of 30.0 kcal/mol was adopted.

Compared with CoMFA, CoMSIA methodology has the advantage of exploring the impacts of more fields. The CoMSIA method defines hydrophobic (H), hydrogen bond donor (D), and hydrogen bond acceptor (A) descriptors, in addition to the steric (S) and electrostatic (E) fields used in CoMFA. The CoMSIA fields were derived, according to Klebe et al.[19], from the same lattice box that was used in the CoMFA calculations, with a grid spacing of 2 Å, and a probe carbon atom with one positive charge and a radius of 1.0 Å as implemented in Sybyl. Arbitrary definition of cutoff limits were not required in CoMSIA method, wherein the abrupt changes of potential energy near the molecular surface were taken into account in the distance dependent Gaussian type functional form. The default value of 0.3 was used as the attenuation factor.

3.6. Partial Least Squares (PLS) Regression Analysis and Validation of QSAR Models

Partial least squares (PLS) approach was used to derive the 3D QSAR models. The CoMFA and CoMSIA descriptors were used as independent variables and the pIC50 values were used as dependent variables. CoMFA and CoMSIA column filtering was set to 2.0 kcal/mol to improve the signal-to-noise ratio. The leave-one-out (LOO) cross-validation was carried out to obtain the optimal number of components (N) and the correlation coefficient q2. The obtained N was then used to derive the final QSAR model and to obtain the non-cross-validation correlation coefficient r2, standard error of estimate (SEE), and F-value.

3.7. Y-Randomization Test of QSAR Models

The model was further validated by applying the Y-randomization test. “Y-randomization” is also known as the “Y-scrambling test”. This technique ensures the robustness of a QSAR model [21]. The dependent variable vector (pIC50) is randomly shuffled and a new QSAR model is developed using the original independent variable matrix. The new QSAR models (after several repetitions) are expected to have lower r2 and q2 values than the true value of original models. This method is usually performed to eliminate the possibility of chance correlation. If higher values are obtained, an acceptable 3D-QSAR model cannot be generated for a particular data set because of chance correlation and structural redundancy.

3.8. Predictive Correlation Coefficient of QSAR Models

To assess the predictive power of the derived 3D-models, a set of test compounds that had known biological activities was used to validate the obtained models. The predictive correlation r2pred. value was calculated using:

r 2 pred . = ( SD - PRESS ) / SD

wherein SD is the sum of the squared deviations between the biological activities of the test compounds and the mean activities of the training compounds, and PRESS is the sum of the squared deviations between the experimental and the predicted activities of the test compounds.

4. Conclusions

In this study, 3D-QSAR analyses, CoMFA and CoMSIA, have been applied to a set of recently synthesized 5H-pyrido[4,3-b]indol-4-carboxamide derivatives as JAK2 Inhibitors. The CoMFA and CoMSIA models showed statistically significant results in terms of cross-validated coefficients and conventional coefficients. Their predictive capabilities were verified by the test compounds. The derived CoMFA and CoMSIA models showed predictive cross-validated coefficients of 0.976 and 0.929, respectively, and the activities of the training and test compounds were predicted with good accuracy. Based on the obtained structure-activity relationships, a series of new inhibitors were designed to have excellent activities, which were predicted with the developed CoMFA and CoMSIA models. Thus, these models may be expected to serve as a tool to guide the future rational design of 5H-pyrido[4,3-b]indol-4-carboxamide-based novel JAK2 Inhibitors with potent activities.

Supplementary Information

Acknowledgments

The authors are gratefully acknowledged financial support from National Science Foundation of China (No.81202413), the International Science and Technology Cooperation Base of Guangdong Provincial Department of Science and Technology (No.2009B050900006), Science and Technology Planning Project of Guangdong Province (No.2011B050200006), Science and Technology Bureau of Guangzhou (No.2010V1-E00531-3) and National Science Foundation of China (No.81173097).

Conflict of Interest

The authors declare no conflict of interest.

References

  1. Wallace, T.A.; Xia, S.L.; Sayeski, P.P. JAK2 tyrosine kinase prevents angiotensin II-mediated inositol 1,4,5 trisphosphate receptor degradation. Vasc. Pharmacol 2005, 43, 336–345.
  2. Lucet, I.S.; Fantino, E.; Styles, M.; Bamert, R.; Patel, O.; Broughton, S.E.; Walter, M.; Burns, C.J.; Treutlein, H.; Wilks, A.F.; et al. The structural basis of Janus kinase 2 inhibition by a potent and specific pan-Janus kinase inhibitor. Blood 2006, 107, 176–183.
  3. McDoom, I.; Ma, X.; Kirabo, A.; Lee, K.-Y.; Ostrov, D.A.; Sayeski, P.P. Identification of tyrosine 972 as a novel site of JAK2 tyrosine kinase phosphorylation and its role in JAK2 activation. Biochemistry 2008, 47, 8326–8334.
  4. Baxter, E.J.; Scott, L.M.; Campbell, P.J.; East, C.; Fourouclas, N.; Swanton, S.; Vassiliou, G.S.; Bench, A.J.; Boyd, E.M.; Curtin, N.; et al. Acquired mutation of the tyrosine kinase JAK2 in human myeloproliferative disorders. Lancet 2005, 365, 1054–1061.
  5. James, C.; Ugo, V.; le Couedic, J.P.; Staerk, J.; Delhommeau, F.; Lacout, C.; Garcon, L.; Raslova, H.; Berger, R.; Bennaceur-Griscelli, A.; et al. A unique clonal JAK2 mutation leading to constitutive signalling causes polycythaemia vera. Nature 2005, 434, 1144–1148.
  6. Kralovics, R.; Passamonti, F.; Buser, A.S.; Teo, S.-S.; Tiedt, R.; Passweg, J.R.; Tichelli, A.; Cazzola, M.; Skoda, R.C. A gain-of-function mutation of JAK2 in myeloproliferative disorders. N. Engl. J. Med 2005, 352, 1779–1790.
  7. Levine, R.L.; Wadleigh, M.; Cools, J.; Ebert, B.L.; Wernig, G.; Huntly, B.J.P.; Boggon, T.J.; Wlodarska, I.; Clark, J.J.; Moore, S.; et al. Activating mutation in the tyrosine kinase JAK2 in polycythemia vera, essential thrombocythemia, and myeloid metaplasia with myelofibrosis. Cancer Cell 2005, 7, 387–397.
  8. Zhao, R.; Xing, S.; Li, Z.; Fu, X.; Li, Q.; Krantz, S.B.; Zhao, Z.J. Identification of an acquired JAK2 mutation in polycythemia vera. J. Biol. Chem 2005, 280, 22788–22792.
  9. Lucia, E.; Recchia, A.G.; Gentile, M.; Bossio, S.; Vigna, E.; Mazzone, C.; Madeo, A.; Morabito, L.; Gigliotti, V.; de Stefano, L.; et al. Janus kinase 2 inhibitors in myeloproliferative disorders. Expert Opin. Investig. Drugs 2011, 20, 41–59.
  10. Quintás-Cardama, A.; Verstovsek, S. New JAK2 inhibitors for myeloproliferative neoplasms. Expert Opin. Investig. Drugs 2011, 20, 961–972.
  11. Menet, C.J.; Rompaey, L.V.; Geney, R. Advances in the discovery of selective JAK inhibitors. Prog. Med. Chem 2013, 52, 153–223.
  12. Chen, A.T.; Prchal, J.T. JAK2 kinase inhibitors and myeloproliferative disorders. Curr. Opin. Hematol 2010, 17, 110–116.
  13. Lim, J.; Taoka, B.; Otte, R.D.; Spencer, K.; Dinsmore, C.J.; Altman, M.D.; Chan, G.; Rosenstein, C.; Sharma, S.; Su, H.P.; et al. Discovery of 1-amino-5H-pyrido[4,3-b]indol-4-carboxamide inhibitors of janus kinase 2 (JAK2) for the treatment of myeloproliferative disorders. J. Med. Chem 2011, 54, 7334–7349.
  14. Wu, X.; Wu, S.; Chen, W.-H. Molecular docking and 3D-QSAR study on 4-(1H-indazol-4-yl) phenylamino and aminopyrazolopyridine urea derivatives as kinase insert domain receptor (KDR) inhibitors. J. Mol. Model 2012, 18, 1207–1218.
  15. Wu, X.; Chen, W.-H.; Wu, S.; Tian, Y.-X.; Zhang, J.-J. Pyrrolo[3,2-d]pyrimidine derivatives as type II kinase insert domain receptor (KDR) inhibitors: CoMFA and CoMSIA studies. Int. J. Mol. Sci 2012, 13, 2387–2404.
  16. Putz, M.V.; Lacrămă, A.-M. Introducing spectral structure activity relationship (S-SAR) analysis: Application to ecotoxicology. Int. J. Mol. Sci 2007, 8, 363–391.
  17. Lacrămă, A.-M.; Putz, M.V.; Ostafe, V. A spectral-SAR model for the anionic-cationic interaction in ionic liquids: Application to Vibrio fischeri ecotoxicity. Int. J. Mol. Sci 2007, 8, 842–863.
  18. Cramer, R.D.; Patterson, D.E.; Bunce, J.D. Comparative molecular field analysis (CoMFA). 1. Effect of shape on binding of steroids to carrier proteins. J. Am. Chem. Soc 1988, 110, 5959–5967.
  19. Klebe, G.; Abraham, U.; Mietzner, T. Molecular similarity indices in a comparative analysis (CoMSIA) of drug molecules to correlate and predict their biological activity. J. Med. Chem 1994, 37, 4130–4146.
  20. , version 7.3; software for molecular modeling package; Tripos International: St. Louis, MO, USA, 2007.
  21. Rücker, C.; Rücker, G.; Meringer, M. y-Randomization and its variants in QSPR/QSAR. J. Chem. Inf. Model 2007, 47, 2345–2357.
Ijms 14 12037f1 200

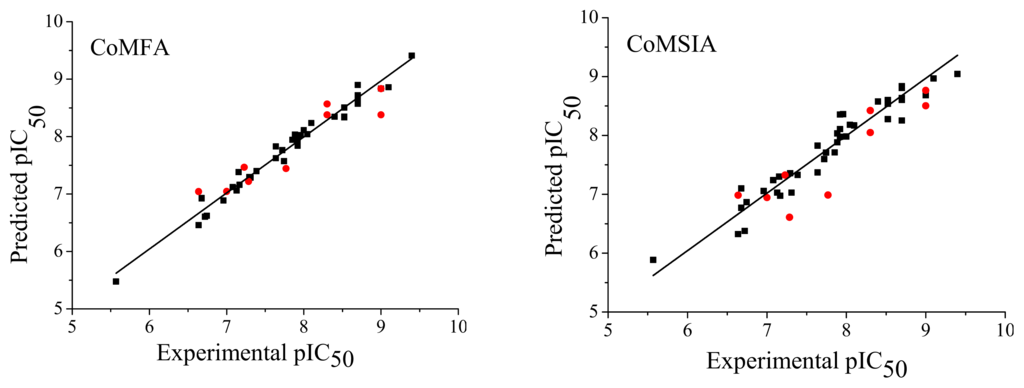

Figure 1. Graphs of the experimental versus predicted pIC50 values of the training (■) and test ( Ijms 14 12037f6) compounds from the CoMFA and CoMSIA models.

Click here to enlarge figure

Figure 1. Graphs of the experimental versus predicted pIC50 values of the training (■) and test ( Ijms 14 12037f6) compounds from the CoMFA and CoMSIA models.
Ijms 14 12037f1 1024
Ijms 14 12037f2 200

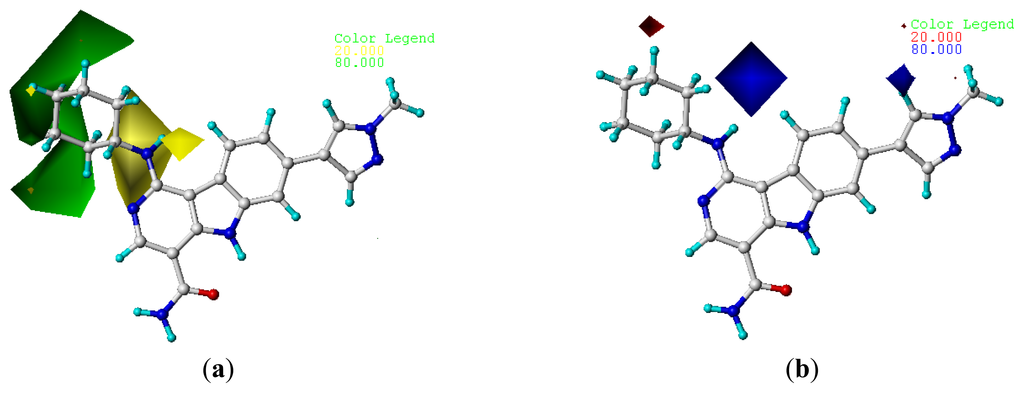

Figure 2. CoMFA StDev*Coeff contour maps. (a) Favorable (green) and unfavorable (yellow) steric fields; (b) Electropositive (blue) and electronegative (red) fields. Compound 22 was overlaid in each map. (a) (b)

Click here to enlarge figure

Figure 2. CoMFA StDev*Coeff contour maps. (a) Favorable (green) and unfavorable (yellow) steric fields; (b) Electropositive (blue) and electronegative (red) fields. Compound 22 was overlaid in each map. (a) (b)
Ijms 14 12037f2 1024
Ijms 14 12037f3 200
Figure 3. StDev*Coeff contour maps. (a) Favorable (green) and unfavorable (yellow) steric fields; (b) Electropositive (blue) and electronegative (red) fields; (c) Favorable (yellow) and unfavorable (gray) hydrophobic fields; (d) Favorable (cyan) and unfavorable (purple) hydrogen bond donor fields; (e) Favorable (magenta) and unfavorable (red) hydrogen bond acceptor fields. Compound 22 was overlaid in each plot. (a) (b) (c) (d) (e)

Click here to enlarge figure

Figure 3. StDev*Coeff contour maps. (a) Favorable (green) and unfavorable (yellow) steric fields; (b) Electropositive (blue) and electronegative (red) fields; (c) Favorable (yellow) and unfavorable (gray) hydrophobic fields; (d) Favorable (cyan) and unfavorable (purple) hydrogen bond donor fields; (e) Favorable (magenta) and unfavorable (red) hydrogen bond acceptor fields. Compound 22 was overlaid in each plot. (a) (b) (c) (d) (e)
Ijms 14 12037f3 1024
Ijms 14 12037f4 200
Figure 4. Structure of 5H-pyrido[4,3-b]indol-4-carboxamide derivatives, the asterisk indicate the atoms selected as the common substructure.

Click here to enlarge figure

Figure 4. Structure of 5H-pyrido[4,3-b]indol-4-carboxamide derivatives, the asterisk indicate the atoms selected as the common substructure.
Ijms 14 12037f4 1024
Ijms 14 12037f5 200

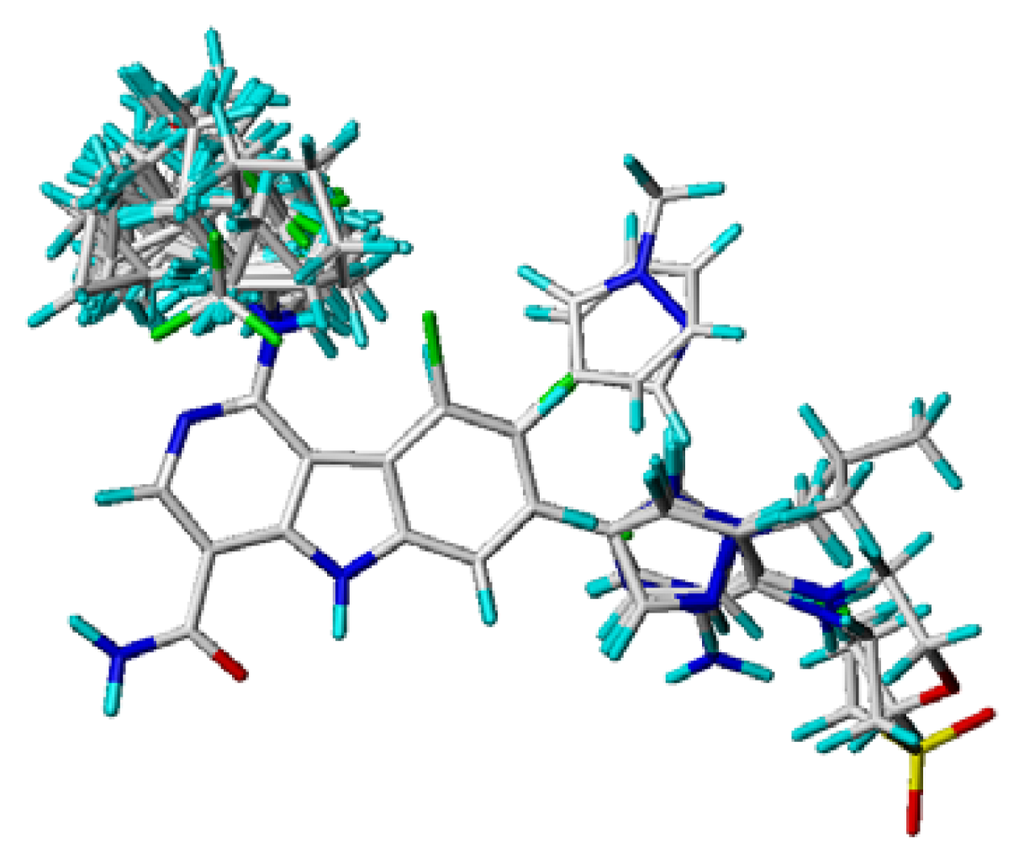

Figure 5. Superimposition of compounds for CoMFA and CoMSIA studies.

Click here to enlarge figure

Figure 5. Superimposition of compounds for CoMFA and CoMSIA studies.
Ijms 14 12037f5 1024
Table 1. The statistical results of comparative molecular similarity indices analysis (CoMSIA) and comparative molecular field analysis (CoMFA) models.

Click here to display table

Table 1. The statistical results of comparative molecular similarity indices analysis (CoMSIA) and comparative molecular field analysis (CoMFA) models.
ModelNq2r2SEEFr2pred.Field contribution

SEHDA
CoMFA60.6330.9760.138225.0300.8620.5520.448---
CoMSIA50.6140.9290.23488.7710.7350.2730.2390.1640.2170.107

N: the number of compounds used in the correlation; q2: Cross-validated correlation coefficient; r2: non-cross-validated correlation coefficient; r2pred.: predictive correlation coefficient r2; SEE: standard error of estimate; F: the Fischer ratio; S: steric field; E: electrostatic field; H: hydrophobic field. D: hydrogen bond donor field; A: hydrogen bond acceptor field.

Table 2. The experimental and predicted activities (pIC50 in M) of the CoMFA and CoMSIA models.

Click here to display table

Table 2. The experimental and predicted activities (pIC50 in M) of the CoMFA and CoMSIA models.
No.Experimental pIC50Predicted pIC50(CoMFA)Predicted pIC50(CoMSIA)


Pred.Resid.Pred.Resid.
16.6786.920−0.2437.098−0.420
2 *6.6387.043−0.4056.982−0.344
37.1687.1590.0096.9740.194
47.3107.2830.0277.0280.282
5 *7.0007.045−0.0456.9440.056
67.1317.0610.0707.0290.102
7 *7.2847.2190.0656.6090.675
86.6786.930−0.2526.769−0.091
97.0817.122−0.0427.238−0.157
107.2927.295−0.0027.358−0.066
11 *7.7707.4430.3266.9860.784
127.7217.763−0.0427.5990.122
137.7457.5730.1727.7070.038
146.6386.4580.1806.3240.314
156.7216.6030.1186.3770.344
165.5695.4750.0945.884−0.315
17 *7.2297.466−0.2377.326−0.097
187.6387.6250.0147.3710.268
196.9596.8870.0727.057−0.098
207.1557.383−0.2287.300−0.146
216.7456.6210.1236.866−0.122
22 *8.3018.568−0.2678.422−0.121
237.8868.034−0.1488.034−0.148
247.8867.996−0.1107.8830.003
257.6387.828−0.1897.827−0.189
26 *8.3018.380−0.0798.0480.253
277.3877.398−0.0117.3300.058
287.9217.8400.0817.976−0.055
297.9217.935−0.0148.107−0.186
307.8547.943−0.0907.7100.144
318.0008.112−0.1127.9800.020
329.0008.8380.1628.6830.317
337.9598.025−0.0668.360−0.402
348.6998.6750.0248.2540.445
358.5238.5060.0168.600−0.077
368.6998.898−0.1998.807−0.108
379.3989.410−0.0129.0420.356
388.0468.0420.0048.180−0.134
398.5238.3330.1908.537−0.015
407.9217.996−0.0758.354−0.433
418.5238.3480.1758.2750.248
428.6998.6540.0458.835−0.136
438.3988.3450.0538.576−0.178
44 *9.0008.3780.6228.7640.236
45 *9.0008.8350.1658.5040.496
468.6998.718−0.0208.6000.099
478.0978.235−0.1388.169−0.072
488.6998.5740.1258.6340.065
499.0978.8590.2388.9660.131

*Test set.

Table 3. q2 and r2 values after several Y-randomization tests.

Click here to display table

Table 3. q2 and r2 values after several Y-randomization tests.
IterationCoMFACoMSIA


q2r2q2r2
10.4650.8210.4190.511
20.4580.5460.3930.506
30.4880.6780.5010.577
40.3250.4350.3790.495
50.3020.4200.3310.453
60.2160.3470.2470.386
70.2690.5890.3130.422
80.3130.4300.3430.464
90.2810.3890.3030.417
100.3380.4350.2950.412
Table 4. Structures and predicted pIC50 values of newly designed derivatives.

Click here to display table

Table 4. Structures and predicted pIC50 values of newly designed derivatives.
Ijms 14 12037f7

No.R1R2R3R4Predicted pIC50

CoMFACoMSIA
D1 Ijms 14 12037f8 Ijms 14 12037f9FH9.3408.750
D2 Ijms 14 12037f8 Ijms 14 12037f9HF9.4858.852
D3 Ijms 14 12037f8 Ijms 14 12037f9FF9.4148.561
D4 Ijms 14 12037f8 Ijms 14 12037f9MeH8.9789.380
D5 Ijms 14 12037f10 Ijms 14 12037f9HH8.9659.416
D6 Ijms 14 12037f11 Ijms 14 12037f9HH8.9729.272
D7 Ijms 14 12037f12 Ijms 14 12037f9HH8.6228.796
D8 Ijms 14 12037f10 Ijms 14 12037f9FH9.3468.676
D9 Ijms 14 12037f10 Ijms 14 12037f9MeH9.1698.617
D10 Ijms 14 12037f8 Ijms 14 12037f13MeH8.9058.816
D11 Ijms 14 12037f10 Ijms 14 12037f13HH8.8658.890
D12 Ijms 14 12037f8 Ijms 14 12037f14HH8.5859.092
D13 Ijms 14 12037f8 Ijms 14 12037f14MeH8.5479.032
D14 Ijms 14 12037f10 Ijms 14 12037f14MeH8.5548.956
D15 Ijms 14 12037f10 Ijms 14 12037f14HH8.5098.711
Table 5. The molecules of 5H-pyrido[4,3-b]indol-4-carboxamide derivatives.

Click here to display table

Table 5. The molecules of 5H-pyrido[4,3-b]indol-4-carboxamide derivatives.
No.R1R2R3R4
1 Ijms 14 12037f15HFH
2 * Ijms 14 12037f16HFH
3 Ijms 14 12037f17HFH
4 Ijms 14 12037f18HFH
5 * Ijms 14 12037f19HFH
6 Ijms 14 12037f20HFH
7 * Ijms 14 12037f21HFH
8 Ijms 14 12037f22HFH
9 Ijms 14 12037f23HFH
10 Ijms 14 12037f24HFH
11 * Ijms 14 12037f25HFH
12 Ijms 14 12037f26HFH
13 Ijms 14 12037f27HFH
14 Ijms 14 12037f28HFH
15 Ijms 14 12037f29HFH
16 Ijms 14 12037f30HFH
17 * Ijms 14 12037f25HHH
18 Ijms 14 12037f25ClHH
19 Ijms 14 12037f25HHCl
20 Ijms 14 12037f25PhenylHH
21 Ijms 14 12037f25HPhenylH
22 * Ijms 14 12037f25 Ijms 14 12037f9HH
23 Ijms 14 12037f25H Ijms 14 12037f9H
24 Ijms 14 12037f25 Ijms 14 12037f31HH
25 Ijms 14 12037f25 Ijms 14 12037f32HH
26 * Ijms 14 12037f21 Ijms 14 12037f9HH
27 Ijms 14 12037f21 Ijms 14 12037f33HH
28 Ijms 14 12037f21 Ijms 14 12037f34HH
29 Ijms 14 12037f21 Ijms 14 12037f35HH
30 Ijms 14 12037f21 Ijms 14 12037f36HH
31 Ijms 14 12037f21 Ijms 14 12037f37HH
32 Ijms 14 12037f38 Ijms 14 12037f9HH
33 Ijms 14 12037f39 Ijms 14 12037f9HH
34 Ijms 14 12037f40 Ijms 14 12037f9HH
35 Ijms 14 12037f41 Ijms 14 12037f9HH
36 Ijms 14 12037f42 Ijms 14 12037f9HH
37 Ijms 14 12037f8 Ijms 14 12037f9HH
38 Ijms 14 12037f43 Ijms 14 12037f9HH
39 Ijms 14 12037f44 Ijms 14 12037f9HH
40 Ijms 14 12037f45 Ijms 14 12037f9HH
41 Ijms 14 12037f42 Ijms 14 12037f31HH
42 Ijms 14 12037f42 Ijms 14 12037f46HH
43 Ijms 14 12037f42 Ijms 14 12037f47HH
44 * Ijms 14 12037f42 Ijms 14 12037f34HH
45 * Ijms 14 12037f8 Ijms 14 12037f31HH
46 Ijms 14 12037f8 Ijms 14 12037f48HH
47 Ijms 14 12037f8 Ijms 14 12037f49HH
48 Ijms 14 12037f8 Ijms 14 12037f50HH
49 Ijms 14 12037f8 Ijms 14 12037f34HH

*Test set.
