Int. J. Mol. Sci. 2013, 14(3), 4444-4460; doi:10.3390/ijms14034444

Article
Synthesis and Structural Characterization of Substituted 2-Phenacylbenzoxazoles
Agnieszka Skotnicka 1, Erkki Kolehmainen 2, Przemysław Czeleń 3, Arto Valkonen 2 and Ryszard Gawinecki 1,*
1
Department of Chemistry, University of Technology and Life Sciences, Seminaryjna 3, PL-85-326 Bydgoszcz, Poland; E-Mail: askot@utp.edu.pl
2
Department of Chemistry, P.O. Box 35, FI-40014 University of Jyväskylä, Finland; E-Mails: erkki.t.kolehmainen@jyu.fi (E.K.); arto.m.valkonen@jyu.fi (A.V.)
3
Department of Physical Chemistry, Collegium Medicum, N. Copernicus University, Kurpińskiego 5, 85-950 Bydgoszcz, Poland; E-Mail: przemekcz@cm.umk.pl
*
Author to whom correspondence should be addressed; E-Mail: gawiner@utp.edu.pl; Tel.: +48-52-374-90-70; Fax: +48-52-374-90-05.
Received: 10 January 2013; in revised form: 4 February 2013 / Accepted: 16 February 2013 /
Published: 25 February 2013

Abstract

: 1H and 13C NMR spectra of eleven 2-phenacylbenzoxazoles (ketimine form) show that their CDCl3-solutions contains also (Z)-2-(benzo[d]oxazol-2-yl)-1-phenylethenols (enolimine form). Intramolecular hydrogen bonding in the latter tautomer was found to be significantly weaker than that one in respective (Z)-2-(2-hydroxy-2-phenylvinyl)pyridines. Integrals of the 1H NMR signals were used to evaluate the molar ratio of the tautomers. Strong electron-donating substituents were found to stabilize the ketimine tautomer. pKT (negative logarithm of the equilibrium constant, KT = [ketimine]/[enolimine]) was found to be linearly dependent on the Hammett substituent constant σ. The results of the MP2 ab initio calculations reveal enolimine including an intramolecular OH···N hydrogen bond to be the most stable form both with electron-donor and electron-acceptor substituents. The stability of ketimines is an intermediate of those found for enolimines and enaminones i.e., (E)-2-(benzo[d]oxazol-2(3H)-ylidene)-1-phenylethanones. 13C CPMAS NMR spectral data reveal that in the crystalline state the ketimine tautomer is predominant in p-NMe2 substituted congener. On the other hand, enolimine forms were detected there when the substituent has less electron-donating character or when it is an electron-acceptor by character.
Keywords:
2-phenacylbenzoxazole; tautomerism; substituent effect; hydrogen bond; resonance interaction; NMR; quantum-chemical calculations

1. Introduction

Acylation of the anion obtained by subtracting one of the methyl protons in 2-methyl(benzo)pyridines affords 2-phenacyl(benzo)pyridines [13]. If the pyridine ring is not benzo annulated or if the annulation locates at 4,5-position, their chloroform solutions always contain (Z)-2-(2-hydroxy-2- phenylvinyl)pyridines (enolimine form, Scheme 1) [2,3] in addition to the ketimine form [13]. On the other hand, when the pyridine ring is benzo annulated at 3,4- or 5,6-positions or at both of them, the ketimine tautomer is always in equilibrium with (Z)-1,2-dihydro-2-benzoyl-methylenepyridines (enaminone form, Scheme 1) [1,3]. Substituents can affect the relative contribution of the respective tautomer even in an almost 100% range [2].

The methyl group in 2-methylbenzoxazole is also susceptible to loss of one proton [4,5]. If this process is followed by acylation of the obtained anion, 2-phenacylbenzoxazoles are the final reaction products [68]. Thus, from this point of view, 2-methylbenzoxazole resembles the behavior of 2-methyl(benzo)pyridine [13]. The ketimine form, K, of 2-phenacylbenzoxazole (Scheme 1) is expected to tautomerize into enolimine, O, i.e., (Z)-2-(2-hydroxy-2-phenylvinyl)benzoxazole [(Z)-2-(benzo[d]oxazol-2-yl)-1-phenylethenol)] and enaminone, E, i.e., (E)-1,2-dihydro-2-benzoylmethylenebenzoxazoles [(E)-2-(benzo[d]oxazol-2(3H)-ylidene)-1-phenylethanone]. Both O and E tautomers shown in Scheme 1 are stabilized by intramolecular hydrogen bonds.

The UV spectral studies show that in solution 2-phenacylbenzoxazole (see the K form in Scheme 1; R = H) is in equilibrium with 2-(benzo[d]oxazol-2-yl)-1-phenylethenol (the O form in Scheme 1; R = H) [9]. From the 1H and 13C NMR studies it is known, however, that except the ketimine form (2-phenacylbenzoxazoles), tautomeric enaminones (denoted as E in Scheme 1) are present in CDCl3 as well as in CCl4 and DMSO-d6 solutions [10]. DMSO-d6 solution of 2-(p-nitrophenacyl)benzoxazole was also found by 1H NMR spectroscopy to contain some amount of an enaminone form [11]. However, other authors using the same technique [12] were not able to see which of the E and O forms is present in CDCl3-solution of 2-phenacylbenzoxazole. Identification of the tautomers was finally cleared out by More O’Ferrall and Murray [13]. These authors have found that NMR signals of H10 at 6.2 ppm, 13C10 at 83.7 ppm, 13C11 at 166.3 ppm and 13C2 at 160.5 ppm (CDCl3-solution, T = 293–298 K) are characteristic for the enolimine tautomer. The respective chemical shifts for the ketimine form differ significantly from those of enolimine form being: δ(1H10) = 4.6 ppm, δ(13C10) = 39.7 ppm, δ(13C11) = 192.5 ppm and δ(13C2) = 165.8 ppm [13]. Similar values of the NMR chemical shifts were found for the respective species present in solutions of 2-phenacyl(benzo)pyridines [13].

In order to evaluate the stability of the tautomers, different effects such as steric and electronic (inductive and resonance) interactions have to be considered [13]. It is well known that some non-covalent interactions such as inter- and intramolecular hydrogen bonds must also be taken into account when looking for the predominant tautomers [13]. Substituents and temperature are other factors that influence the tautomeric equilibria [13]. In this study, the tautomeric equilibrium in 2-phenacyl-benzoxazole solutions will be discussed and compared with that of 2-phenacylquinolines from which 2-phenacylbenz-oxazoles differ by an additional heteroatom and the size of the heterocyclic ring.

2. Results and Discussion

2.1. Synthesis and Identification of Tautomers

Naming of the compounds that undergo tautomerization can be somewhat problematic. Lack of important, e.g., spectroscopic information about the form being detected may result in confusion [3]. Methods as 13C CPMAS spectroscopy and X-ray crystallography are helpful in identification of the form present in the crystalline state. The species present in solution were identified (see Discussion), so they are named properly. A complete set of the tautomers that can be present in both states is presented in Scheme 1. Each species is distinguishable by substituent (R = p-N(CH3)2 (1b), p-OCH3 (2b), p-CH3 (3b), m-CH3 (4b), H (5b), m-OCH3 (6b), p-Cl (7b), p-Br (8b), m-F (9b), p-NO2 (10b), 3,5-(NO2)2 (11b)) and by type of the tautomer. Thus, e.g., 6Ob is the m-OCH3 substituted enolimine.

2-Phenacylbenzoxazoles can be obtained in condensation of ortho-aminophenol with 3,3-dialkoxy-, 3,3-dimercapto-1-phenylprop-2-en-1-ones [9,12] or alkyl benzoylacetates [14]. These compounds were also conveniently prepared by subtraction of one of the methyl protons in 2-methylbenzoxazole and treatment of the formed carbanion with an acylating agent such as ester of benzoic acid or benzoyl chloride [68,13,1517] (Scheme 2). The compounds 1b11b (Scheme 2) discussed in the present paper were obtained most often in the two step synthesis starting from 2-methylbenzoxazole and substituted benzoyl chlorides. The procedure was essentially that used earlier [15].

Since treatment of 2-methylbenzheteroazoles with benzoyl chloride and triethylamine may afford a variety of products [16,18,19], the nature of the intermediate products can be doubtful. When reaction takes place at 100 °C, the 2-methyl group in 2-methylbenzoxazole undergoes double benzoylation, i.e., it is transformed to –CH=C(Ph)–COOPh. According to Ciurdaru and Ciuciu [15] 2-(benzo[d]oxazol-2-yl)-1-phenylvinyl benzoate, 5a, is the reaction product (identification was based only on its IR spectra and reactivity [15]). The X-ray structures of 3a and 4a (Figure 1) show without any doubt that the intermediate products are really (Z)-2-(benzo[d]oxazol-2-yl)-1-phenylvinyl benzoates. The bond lengths and angles as well as torsion angle for 3a and 4a are available in Supplementary Materials Deposit. It is noteworthy that conformations of these two compounds in crystals can be different, as observed from Figure 1, where the benzoyl moiety is shown to locate close to O1 (3a) and to N3 (4a). However, the benzoxazole moiety in 3a shows positional disorder (1:1) and in half of the molecules in crystal state have the similar conformation to 4a (benzoyl close to N3).

Intermediate products, i.e., 2-(benzo[d]oxazol-2-yl)-1-phenylvinyl benzoates [(E)-phenyl 3-(benzo[d]oxazol-2-yl)-2-phenylacrylates], were isolated from the reaction mixture and characterized. Their synthetic and physical data as well as selected 1H and 13C NMR chemical shifts are presented in Tables 1 and 2, respectively. 15N NMR chemical shifts for selected 2-(benzo[d]oxazol-2-yl)-1-phenylvinyl benzoates show that the respective chemical shifts do not vary significantly being −131.8 ppm and −131.2 ppm for 4a and 6a as examples. Non purified intermediate products 1a11a were always used in the next synthetic step.

By refluxing their morpholine solutions, 1a11a can be easily transformed into 2-phenacylbenzoxazoles 1b11b (method B). These products can be also obtained in one step starting from 2-methylbenzoxazole and substituted ethyl benzoate (the methyl proton was subtracted by sodium hydride) [8] (method A). Synthetic and physical data for 2-phenacylbenzoxazoles prepared by these two procedures are shown in Table 3.

It is easy to distinguish 2-phenacylbenzoxazole (no 1H NMR signals above 10 ppm) from its O and E tautomers (these species contain the NH and OH protons). Since the chemical shifts of such acidic protons are comparable [13], identification of the O and E forms cannot base on the shifts of these signals. 1H NMR chemical shift data in Table 2 show that hydroxy protons, H10, in (Z)-2-(2- hydroxy-2-phenylvinyl)benzoxazoles ((Z)-2-(benzo[d]oxazol-2-yl)-1-phenylethenols) (enolimines, O) (Scheme 1) are much more shielded (less acidic) than these in (Z)-2-(2-hydroxy-2-phenylvinyl)-pyridines and their benzo derivatives (δ(OH) = 14.41–15.58 ppm) [2,3]. Thus, intramolecular hydrogen bond in the former compounds is significantly weaker than this in the respective pyridine derivatives.

NMR signals of other protons, e.g., H10, seem also helpful in distinguishing between different tautomeric forms present in solution. Although signal of H10 in the spectra of 2-phenacyl(benzo)pyridines (K) was observed in the 4.5–5.5 ppm range, for the other tautomers its positions were comparable: 5.9–6.2 ppm (O) and 6.0–6.8 ppm (E) [13]. Thus, comparison with the respective data in Table 4 does not reveal whether another tautomer in CDCl3-solution is O or E. The 13C10 chemical shifts are also comparable for some of these compounds and their tautomeric forms: δ(13C10) = 46.5–49.4 ppm (K), 83.6–90.3 ppm (O) and 91.1–96.8 ppm (E) [13]. On the other hand, chemical shift of 13C11 are significantly different for every individual tautomer: δ(13C11) = 194.2–196.9 ppm (K), 181.7–187.1 ppm (O) and 160.0–163.4 ppm (E) [13]. The values of δ(13C11) = ca 166 ppm (Table 4) do not reveal unequivocally whether there is the O or E tautomer in CDCl3-solution. The 15N chemical shifts of respective (benzo)pyridines seem to be the most useful parameter to distinguish between these three tautomers: δ(15N3) = 68.2–78.4 ppm, 226.2–261.4 ppm and 105.6–125.8 ppm for K, O and E forms, respectively [13,21,22]. Since the pyridine and oxazole heterocycles are different, however, the direct comparison of their 15N NMR data is not reasonable.

The integrals of H10 signals were used to calculate the molar ratio of different forms present in solution (Table 5). Accuracy of these data was supported by evaluation based on signal intensities of the substituent protons and the literature data. In many cases, mainly π-electron delocalization was found to be responsible for tautomeric preferences [23] but also other effects such as the strength of the intramolecular hydrogen bond should to be taken into account.

2.2. Substituent Effect on the Tautomeric Equilibrium

As can be seen in Table 5, tautomeric ratio in solutions of 1b11b depends strongly on the substituent. Electron-acceptor substituents increase the acidic character of methylene protons in the K forms (electron-donating substituents in the phenacyl part of the molecule favor the K form, Scheme 3). As a consequence, their transfer to the aza atom in these compounds is easy.

Notwithstanding the E and O forms are stabilized by the intramolecular hydrogen bonds, those carrying electron-donating substituents are not stabilized because neither the oxazole nor benzene rings in their molecules are aromatic (Scheme 4).

Data in Table 5 and our earlier results [2] reveal that the substituent effect on the content of 2-phenacylbenzoxazoles and 2-phenacylpyridines (ketimine form) is of the same type. Although the dependence between pKT and Hammett substituent constant σ [24] has a linear character both for benzoxazole (pKT = 1.10σ − 0.23, R = 0.984, Figure 2) and pyridine (pKT = −1.53σ + 0.27 [2]) derivatives, changes in [K]’s for these two species are not parallel. Thus, nevertheless [K] for 2-(p-dimethylaminophenacyl) derivatives of benzoxazole and pyridine are comparable (94.5% (Table 5) and 95.7% [2], respectively), contribution of the ketimine form in solutions of the 2-(p-nitrophenacyl) derivatives are significantly different (29.5% (Table 5) and 7.8% [2], respectively). Some extraordinary stabilization of the O tautomer, or extraordinary destabilization of the K tautomer by the substituent can be responsible for this behavior. Since both in 2-phenacylbenzoxazoles and 2-phenacylquinolines the ring that contains a nitrogen atom is benzo annulated, these two series are worthy to be compared. Thus, for the later series pKT was also found to be linearly dependent on the substituent constant [1] (pKT = −1.10σ − 1.30). One should keep in mind that in both series the tautomeric mixture contains K and O. On the other hand, there is E (instead of O) present in chloroform solution of quinoline derivatives. The amount of K in solutions of all three series (2-phenacyl derivatives of benzoxazole, pyridine and quinoline) are equal to 65%, 88% and 34%, respectively (p-NO2 and p-N(CH3)2 are the most extreme substituents studied). Thus, the substituent effect is the most significant in the pyridine series.

The above discussion shows that benzoxazoles resemble the pyridine derivatives because their tautomeric mixture contains K and O. Moreover, [K] vary in a wide range for these series (Table 5). On the other hand, benzoxazoles resemble also the quinoline derivatives: these compounds are benzo annulated oxazoles and pyridines, respectively. Except the common K, another tautomer present in their chloroform solutions is O and E, respectively. However, the contributions of K in these two series differ significantly. Content of the tautomeric mixtures for all three series (benzoxazoles, pyridines and quinolines) is really sensitive to the substituent present in the molecule. Although the dependence between pKT and substituent constant is always linear by character, pKT = ρσ + const, changes in [K] in these series are not parallel.

Solid state 13C CPMAS NMR spectra are known to be very helpful in identification of the form present in the crystalline state. Thus, 1K was detected for the p-NMe2 substitution (Table 4). On the other hand, 3O, 9O and 10O are present in their crystals (substituent present in their molecules has less electron-donor character (p-Me) or it is of electron-acceptor type (m-F, p-NO2)). Thus, substituent effect on the tautomer present in the crystals of oxazoles studied is the same as in the respective pyridine derivatives [2].

2.3. Quantum-Chemical Calculations

Some theoretical calculations were performed for the compounds studied in order to support the obtained experimental data. MP2 is known to be the most accurate and effective ab initio method for studying the medium size molecules involving hydrogen bonds [25]. Tautomers studied in the present paper meet such the requirements. This procedure includes electron correlation, so the calculated and experimental data are expected to be comparable [26]. Some optimized bond lengths and bond and dihedral angles in the molecules of 2-phenacylbenzoxazoles and their tautomers are presented in Table 6. Judging from the length of hydrogen bond, it seems to be stronger in enolimines than in enaminones. Of the OH···N and NH···O interactions, the former is stronger. Intramolecular hydrogen bond is especially weak in 5O′. C14C13C11O12 and C18C13C11O12 dihedral angles prove H10 and H18 to interact sterically. Repulsion between these hydrogen atoms is rather weak in the K forms. Comparison of H10···H18 distances (Table 6) enables evaluation of the strength of the interaction in other tautomers. Since the E molecules are most crowded, this form is unstable.

The calculated energies of different tautomers (Table 7) prove the O form including the OH···N hydrogen bond to be the most stable (both electron-donor and electron-acceptor substituents follow this rule). K forms are less stable than enolimines (the more electron-donor is the substituent, the more stable is the ketimine form). Calculations for R = H show that the O′ form is much more unstable than the O form. As this can be seen in Scheme 1, the six-membered pseudo ring including the OH···O system in O′ is less aromatic than the respective pseudo ring including the OH···N moiety in O. The strong resonance assisted hydrogen bonds (RAHB), such as this present in the molecule of the later tautomer, are well known [2730]. The less stable tautomer is always E (both electron-donor and electron-acceptor substituents follow this rule).

Since the most stable tautomers, i.e., O and K, were really found to be present in chloroform solution, one may see that solvent does not affect tautomeric preferences.

3. Conclusions

In CDCl3 solution 2-phenacylbenzoxazoles (ketimine tautomeric form) are in equilibrium with (Z)-2-(benzo[d]oxazol-2-yl)-1-phenylethenols (enolimine form). (E)-2-(benzo[d]oxazol-2(3H)- ylidene)-1-phenylethanones (enaminone) were not detected. Thus, 2-phenacylbenzoxazoles resemble the respective pyridine derivatives. Intramolecular hydrogen bond in enolimines is always significantly weaker than this in the respective (Z)-2-(2-hydroxy-2-phenylvinyl)pyridines. The molar ratio of different forms in solution (based on the integrals of 1H NMR signals) depends on substituent. Electron-withdrawing substituents increase the acidic character of methylene protons in the ketimine forms. In consequence, transfer of such a proton to the carbonyl oxygen is very easy in these compounds. On the other hand, electron-donating substituents in the phenacyl part of the molecule favor the ketimine form. Substituent effect on the content of 2-phenacylbenzoxazoles and 2-phenacylpyridines (ketimine form) is of the same type. Although the dependence between pKT (KT = [K]/[O]) and Hammett substituent constant σ has a linear character both for benzoxazole and pyridine derivatives, variations in [K]’s for these two series are not parallel. Judging from the MP2 optimized lengths of the hydrogen bonds, it seems to be stronger in enolimines than in enaminones. The calculated energies of different tautomers prove the enolimine form including the OH···N hydrogen bond to be the most stable (both electron-donor and electron-acceptor substituents follow this rule). The ketimine tautomers are always less stable than enolimines. The most labile tautomer is always enaminone. Ketimine tautomer was detected for p-NMe2 substituted congener by the solid state 13C CPMAS NMR. On the other hand, enolimine forms are present in their crystals when the substituent present in their molecules has less electron-donor character (p-Me) or when it is of electron-acceptor type (m-F, p-NO2).

4. Experimental and Computational

Melting points were measured on a Boetius table and are uncorrected. Satisfactory elemental analyses (±0.30% for C, H and N) were obtained for all compounds prepared. All measurements were performed in 24 h after preparing their chloroform solutions (extra signals seen in the NMR spectra recorded two-three weeks later proves slow decomposition of some 2-phenacylbenzoxazoles takes place in this solvent).

4.1. X-Ray Crystallography

The single crystals suitable for structure determination by X-ray diffraction experiments were obtained by very slow evaporation of the NMR samples. The structural data were collected at 123.0 ± 0.1 K with Agilent SuperNova dual wavelength diffractometer, using micro-focus X-ray source and multilayer optics monochromatized CuKα radiation (λ = 1.54184 Å). The data collection, reduction and multi-scan absorption correction were made by program CrysAlisPro [31]. The structures were solved by direct methods, using SIR-2004 [32], and refined on F2 using SHELXL-97 [33]. The hydrogen atoms were treated with riding model. The thermal ellipsoid (50% probability) diagrams were drawn with ORTEP-3 [34]. CCDC-922098 (3a) and CCDC-922097 (4a) contain the supplementary crystallographic data for this paper. These data can be obtained free of charge from the Cambridge Crystallographic Data Centre via http://www.ccdc.cam.ac.uk/data_request/cif. Crystal data and structure refinement parameters, atomic coordinates, isotropic and anisotropic displacement parameters as well as geometric parameters for 3a and 4a are available in Supplementary Materials Deposit.

4.2. NMR Spectroscopy

The 1H, 13C and PFG 1H,13C HMQC and HMBC spectra were recorded for dilute CDCl3 solution in a 5 mm sample tube at 303 K on a Bruker Avance DRX 500 spectrometer equipped with an inverse detection probehead and z-gradient accessory working at 500.13 MHz and 125.77 MHz, respectively.

In 1H NMR experiments, the number of data points was 64 K giving a spectral resolution of 0.05 Hz, the number of scans was 8 and the flip angle 30°. An exponential window function of the spectral resolution was used prior to FT. The 1H chemical shifts are referenced to the signal of internal TMS at δ = 0.00 ppm.

In 13C experiments the number of data points was 32 K giving a spectral resolution of 0.5 Hz, the number of scans vary between 1000 and 10,000 depending on case and flip angle was 30°. A composite pulse decoupling, Waltz-16, was used to remove proton couplings. An exponential window function of the spectral resolution was used prior to FT. The 13C chemical shifts are referenced to the signal of internal TMS at δ = 0.00 ppm.

The number of data points in PFG 1H, 13C HMQC and HMBC measurements were 1024 (f2) × 256 (f1). This matrix was zero filled to 2048 × 512 and apodized by a shifted sine bell window function along both axes prior to FT.

In PFG 1H, 15N HMBC experiments a 100 ms delay was used for evolution of long-range couplings. The number of data points was 1024 (f2) × 512 (f1 = 15N). This matrix was zero filled to 2048 × 1024 and apodized by a shifted sine bell window function along both axes prior to FT. 15N NMR chemical shifts are referenced to the signal of an external CH3NO2 (δ = 0.0 ppm) in a 1 mm diameter capillary inserted coaxially in the 5 mm diameter NMR tube.

The solid state 13C CPMAS NMR spectra were recorded on a Bruker Avance 400 FT NMR spectrometer using samples packed in 4.0 mm o.d. zirconia rotors. The samples were spun at 10 KHz rate and >1000 transients were accumulated. The FIDs are apodized by 10 Hz exponential window before FT. The shifts are referenced to the C=O signal of glycine standard at δ = 176.03 ppm. All acquisition and processing parameters are available from E.K. on request.

4.3. Syntheses of 2-Phenacylbenzoxazoles

4.3.1. Method A

The known procedure [8] was slightly modified to obtain 1b, 2b and 9b. Thus, mixture of 2-methylobenzoxazole (2.66 g, 0.02 mol), sodium hydride (60% suspension of in mineral oil, 5.32 g, 0.10 mol) and ethyl benzoate (0.02 mol) in dry toluene (33 mL) was heated at 70 °C for 12 h. Concentrated hydrochloric acid (3 mL) was then added carefully to the stirred and cooled reaction mixture (its temperature should not exceed 5 °C when destroying the residual sodium hydride). This step was followed by the consecutive addition of 20% hydrochloride acid (15 mL) and water (75 mL). The precipitated solid was recrystallized from ethanol. For the reaction yields and melting points of the products see Table 3.

4.3.2. Method B

Benzoyl chloride (0.04 mol) was added in one portion to the stirred solution of 2-methylbenz-oxazole (2.66 g, 0.02 mol) and trimethylamine (11.2 mL, 8.1 g, 0.08 mol) in diglyme (8 mL). Content of the reaction vessel was heated for 1 h at the boiling water bath. Dropwise addition of water (60 mL) to the stirred cold reaction mixture resulted in precipitation of crude 2-(benzo[d]oxazol-2-yl)-1-phenyl-vinyl benzoates 3a8a and 10a. Analytical samples of these compounds were prepared by repeated crystallization from ethanol. For the reaction yields and melting points of the products see Table 1.

Solution of the crude 3a8a and 10a (0.006 mol) and morpholine (1.6 mL, 1,57 g, 0.018 mol) in methanol (9 mL) was refluxed with stirring for 10 min. Water (9 mL) was then added to the boiling reaction mixture which was then cooled down to start precipitation. Crystallization of the collected solid from methanol affords pure 2-phenacylbenzoxazoles 3b8b and 10b. For the reaction yields and melting points of the products see Table 3.

  • 3a: C23H19NO3 (357.39): calcd. C 77.29, H 5.36, N 3.92; found C 77.04, H 5.47, N 4.08.

  • 4a: C23H19NO3 (357.39): calcd. C 77.29, H 5.36, N 3.92; found C 77.09, H 5.11, N 4.06.

  • 6a: C23H19NO5 (389.39): calcd. C 70.94, H 4.92, N 3.60; found C 70.69, H 4.68, N 3.69.

  • 7a: C21H13Cl2NO3 (398.23): calcd. C 63.33, H 3.29, N 3.52; found C 63.12, H 3.47, N 3.39.

  • 8a: C21H13Br2NO3 (487.15): calcd. C 51.77, H 2.69, N 2.88; found C 51.85, H 2.82, N 3.01.

  • 10a: C21H13N3O7 (419.33): calcd. C 60.15, H 3.12, N 10.02; found C 59.90, H 3.01, N 9.81.

  • 1b: C17H16N2O2 (280.32): calcd. C 72.83, H 5.75, N 10.00; found C 72.91, H 5.55, N 9.79.

  • 9b: C15H10FNO2 (255.24): calcd. C 70.58, H 3.95, N 5.49; found C 70.73, H 4.06, N 5.70.

  • 11b: C15H9N3O6 (327.24): calcd. C 55.05, H 2.77, N 12.84; found C 54.95, H 3.01, N 12.62.

4.4. Quantum-Chemical Calculations

Geometries for the isolated molecules (vacuum) of the tautomers were optimized using the second order Möller-Plesset method (MP2) [35,36]. Computations were carried out utilizing the augmented correlation-consistent basis set with polarized valence of double-zeta quality (aug-cc-pvdz) [37,38]. All calculations were realized with use of Gaussian 09 package [39].

Supplementary Information

Acknowledgments

Academy Kari Rissanen is gratefully acknowledged for funding to A.V. (from Academy of Finland grant No. 130629, No. 122350, and No. 140718) and the University of Jyväskylä (postdoc grant to A.V.) for the financial support.

  • Conflict of InterestThe authors declare no conflict of interest.

References

  1. Kolehmainen, E.; Ośmiałowski, B.; Krygowski, T.M.; Kauppinen, R.; Nissinen, M.; Gawinecki, R. Substituent and temperature controlled tautomerism: multinuclear magnetic resonance, X-ray, and theoretical studies on 2-phenacylquinolines. J. Chem. Soc. Perkin Trans 2000, 2, 1259–1266.
  2. Kolehmainen, E.; Ośmiałowski, B.; Nissinen, M.; Kauppinen, R.; Gawinecki, R. Substituent and temperature controlled tautomerism of 2-phenacylpyridine: hydrogen bond as a configurational lock of (Z) 2-(2-hydroxy-2-phenylvinyl)pyridine. J. Chem. Soc. Perkin Trans 2000, 2, 2185–2191.
  3. Gawinecki, R.; Kolehmainen, E.; Loghmani-Khouzani, H.; Ośmiałowski, B.; Lovász, T.; Rosa, P. Effect of π-electron delocalization on tautomeric equilibria. Benzoannulated annulated 2-phenacylpyridines. Eur. J. Org. Chem 2006, 12, 2817–2824.
  4. Sun, J.; Yan, Ch.-G.; Han, Y. KF-Al2O3 catalyzed the condensations of 2-methylbenzoxazole and pyrazol-5-one with aromatic aldehydes. Synth. Commun. 2001, 31, 151–154.
  5. Lazukina, L.A.; Kukhar, V.P. Reactions of trichloromethyldialkylamines with 2-methylbenzothiazole, 2-methylbenzoxazole, and their salts. Chem. Heterocycl. Comp 1974, 10, 668–670.
  6. Stepanov, F.N.; Davydowa, S.L. Heterocyclic derivatives of methylketones. Zh. Obshch. Khim 1958, 28, 891–896.
  7. Babichev, F.S.; Volovenko, Y.M. Acylalation of 2-methylbenzazoles with use of esters of carboxylic acids. Ukr. Khim. Zh 1977, 43, 163–165.Sov. Prog. Chem. (Engl. Transl.) 1977, 43, 49–50.
  8. Sund, E.H.; Donohue, B.E.; Thomas, T.K. Synthesis of 2-(2-benzoxazolyl)-1-phenylethanone and related ethanones. J. Chem. Eng. Data 1979, 24, doi:10.1021/je60082a007.
  9. Stachel, H.-D. Die darstellung einiger heterocyclen aus acylketen-derivaten (benzoxazole, benzothiazole, benzothiodiazine, chinazolone). Über Keten-Derivate, X. Arch. Pharm. (Weinheim) 1963, 296, 337–343.
  10. Huang, Z.-T.; Wang, M.-X. The synthesis and tautomerization of ketene aminals with benzimidazoline ring. Tetrahedron 1992, 48, 2325–2332.
  11. Sakamoto, M.; Abe, M.; Ishii, K. Studies on conjugated nitriles. VI. Reaction of 2-methyl-quinoline and related compounds with acyl cyanides. Chem. Pharm. Bull. (Tokyo) 1991, 39, 277–281.
  12. Nardi, D.; Tajana, A.; Pennini, R. Heterocyclic compounds from 3,3-dimercapto-1-aryl-2-propen- 1-ones. Note 2. Condensation with o-aminophenol and o-aminothiophenol. J. Heterocycl. Chem 1975, 12, 139–142.
  13. More O’Ferrall, R.A.; Murray, B.A. 1H and 13C NMR spectra of α-heterocyclic ketones and assignment of keto, enol and enaminone tautomeric structures. J. Chem. Soc. Perkin Trans 1994, 2, 2461–2470.
  14. Preparation of Omega-Acyl-Azoles. U.S. Patent 2323504, 1939.
  15. Ciurdaru, Gh.; Ciuciu, M. The acylation of 2-methylbenzazoles. J. Prakt. Chem. 1979, 321, 320–322.
  16. Dzvinchuk, I.B.; Lozinskii, M.O.; Vypirailenko, A.V. C-Mono- and dibenzoylation of 2-methylbenzimidazole with use of benzoyl chloride. Zh. Org. Khim 1994, 30, 909–914.
  17. Rauch, E.B.; Dickinson, P.; Welsh, J.A. Prepartion of 2-benzoylmethylbezoxazoles. U.S. Patent 3375258, 1968.
  18. Dzvinchuk, I.B.; Vypirailenko, A.V.; Lozinskii, M.O. Selective recyclization of 2-aroylmethyl-1H-benzimidazole hydrazones by condensation with dimethylformamide. Chem. Heterocycl. Comp 2001, 37, 1096–1101.
  19. Dzvinchuk, I.B.; Nesterenko, A.M.; Polovinko, V.V.; Ryabitskii, A.B.; Lozinskii, M.O. Synthesis and tautomerism of 2-phenacyl-1H-benzimidazoles and their hydrogen bromide salts. Chem. Heterocycl. Comp 2011, 47, 953–963.
  20. De Silva, H.I.; Chatterjee, S.; Henry, W.P.; Pittman, Ch.U. Synthesis of functionalized fused-ring heterocycles from tautomers of 2-(thiazole, oxazole, benzothaizole, and benzoxazole)-1- phenylethenols and 1,3-diacyl chlorides or N-(chlorocarbonyl) isocyanate. Synthesis 2012, 44, 3453–3464.
  21. Gawinecki, R.; Kolehmainen, E.; Ośmiałowski, B.; Palkovič, P.; Nissinen, M. Synthesis and NMR spectra of 2-methyl-2-quinolin-2-yl-propiophenones. Heterocycl. Commun 1999, 5, 549–554.
  22. Gawinecki, R.; Ośmiałowski, B.; Kolehmainen, E.; Nissinen, M. N-Methyl-1,2-dihydro-2- benzoylmethylenequinolines: Configurational dissimilarity with unmethylated congeners. J. Mol. Struct 2000, 525, 233–239.
  23. Raczyñska, E.D.; Kosiñska, W.; Ośmiałowski, B.; Gawinecki, R. Tautomeric equilibria in relation to π-electron delocalization. Chem. Rev 2005, 105, 3561–3612.
  24. Hansch, C.; Leo, A.; Taft, R.W. A survey of Hammett substituent constants and resonance and field parametyers. Chem. Rev 1991, 91, 165–195.
  25. Shavitt, I. Molecular Interactions; Scheiner, S., Ed.; Wiley: Chichester, UK, 1997.
  26. Dimitrova, Y.; Peyerimhof, S. Ab initio study of structures of hydrogen-bonded nitric acid complexes. Chem. Phys 2000, 254, 125–134.
  27. Gilli, G.; Belluci, F.; Ferretti, V.; Bertolasi, V. Evidence for resonance-assisted hydrogen bonding from crystal-structure correlations on the enol form of the β-diketone fragment. J. Am. Chem. Soc 1981, 111, 1023–1028.
  28. Bertolasi, V.; Gilli, P.; Ferretti, V.; Gilli, G. Evidence for resonance-assisted hydrogen bonding. 2. Intercorrelation between crystal structure and spectroscopic parameters in eight intramolecularly hydrogen bonded 1,3-diaryl- 1,3-propanedione enols. J. Am. Chem. Soc 1991, 113, 4917–4915.
  29. Gilli, P.; Bertolasi, V.; Ferretti, V.; Gilli, G. Covalent nature of the strong homonuclear hydrogen bond. Study of the O–H···O system by crystal structure correlation methods. J. Am. Chem. Soc 1994, 116, 909–915.
  30. Bertolasi, V.; Gilli, P.; Ferretti, V.; Gilli, G. Resonance-assisted O–H···O hydrogen bonding: Its role in the crystalline self-recognition of β-diketone enols and its structural and IR characterization. Chem. Eur. J 1996, 2, 925–934.
  31. , version 1.171.36.24; Agilent Technologies: Oxford, UK, 2012.
  32. Burla, M.C.; Caliandro, R.; Camalli, M.; Carrozzini, B.; Cascarano, G.L.; De Caro, L.; Giacovazzo, C.; Giampiero, C.; Spagna, R. SIR2004: An improved tool for crystal structure determination and refinement. J. Appl. Crystallogr 2005, 38, 381–388.
  33. Sheldrick, G.M. A short history of SHELX. Acta Crystallogr 2008, 64, 112–122.
  34. Farrugia, L.J. ORTEP-3 for Windows—A version of ORTEP-III with a Graphical User Interface (GUI). J. Appl. Crystallogr 1997, 30, 565.
  35. Bartlett, R.J. Coupled-cluster approach to molecular structure and spectra: A step toward predictive quantum chemistry. J. Phys. Chem 1989, 93, 1697–1708.
  36. Frisch, M.J.; Head-Gordon, M.; Pople, J.A. Semidirect algorithms for the MP2 energy and gradient. Chem. Phys. Lett 1990, 166, 281–289.
  37. Dunning, T.H. Gaussian basis sets for use in correlated molecular calculations. I. The atoms boron through neon and hydrogen. J. Chem. Phys 1989, 90, 1007–1023.
  38. Kendall, R.A.; Dunning, T.H.; Harrison, R.J. aug-cc-pVDZ for first row. J. Chem. Phys 1992, 96, 6796–6806.
  39. Frisch, M.J.; Trucks, G.W.; Schlegel, H.B.; Scuseria, G.E.; Robb, M.A.; Cheeseman, J.R.; Scalmani, G.; Barone, V.; Mennucci, B.; Petersson, G.A.; et al. Gaussian 09, Revision A.1; Gaussian, Inc: Wallingford, CT, USA; p. 2009.
Ijms 14 04444f1 200

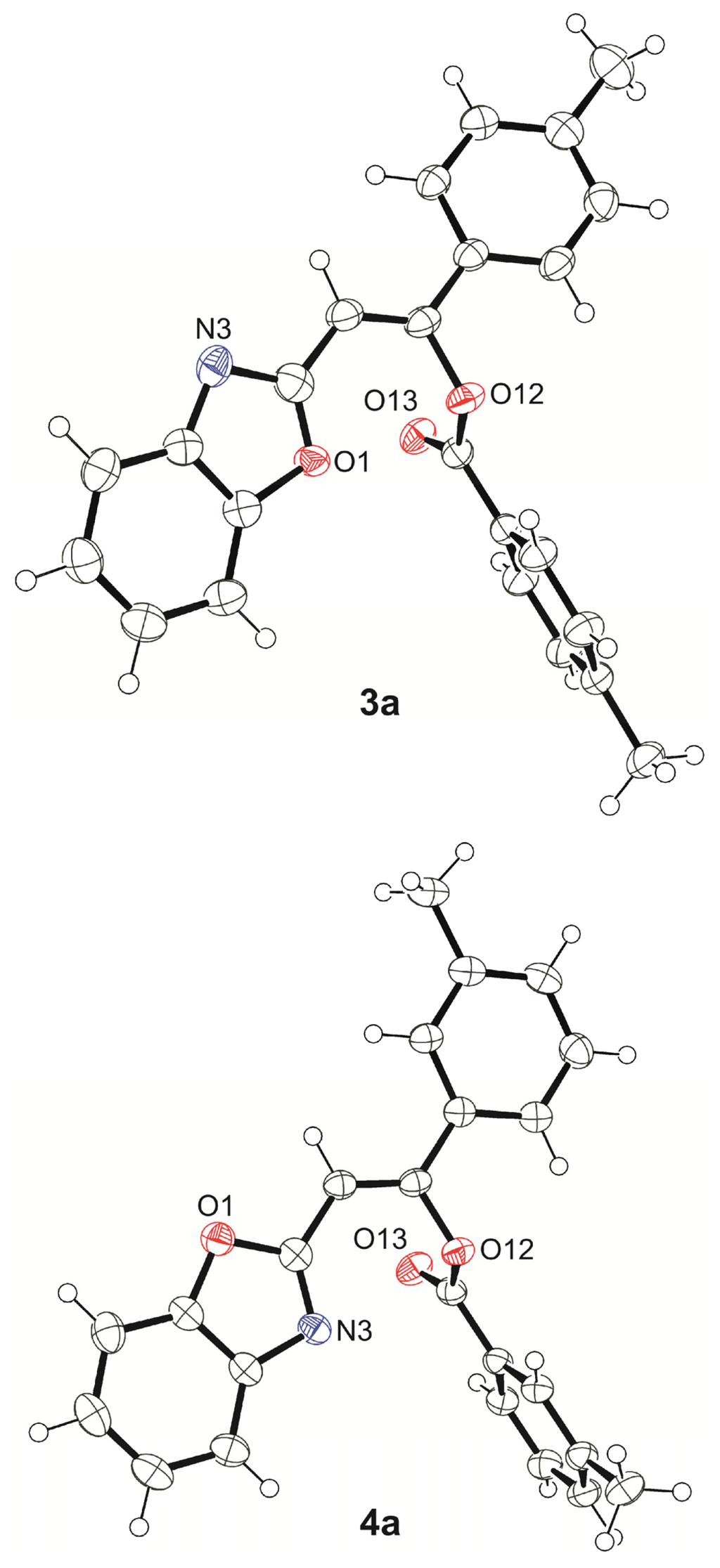

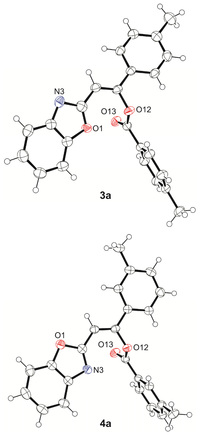

Figure 1. Single crystal thermal ellipsoid structures (ORTEP plots) of 3a and 4a. The positional disorders in methyl groups (H-atoms) and in benzoxazole moiety of 3a were removed for clarity.

Click here to enlarge figure

Figure 1. Single crystal thermal ellipsoid structures (ORTEP plots) of 3a and 4a. The positional disorders in methyl groups (H-atoms) and in benzoxazole moiety of 3a were removed for clarity.
Ijms 14 04444f1 1024
Ijms 14 04444f2 200

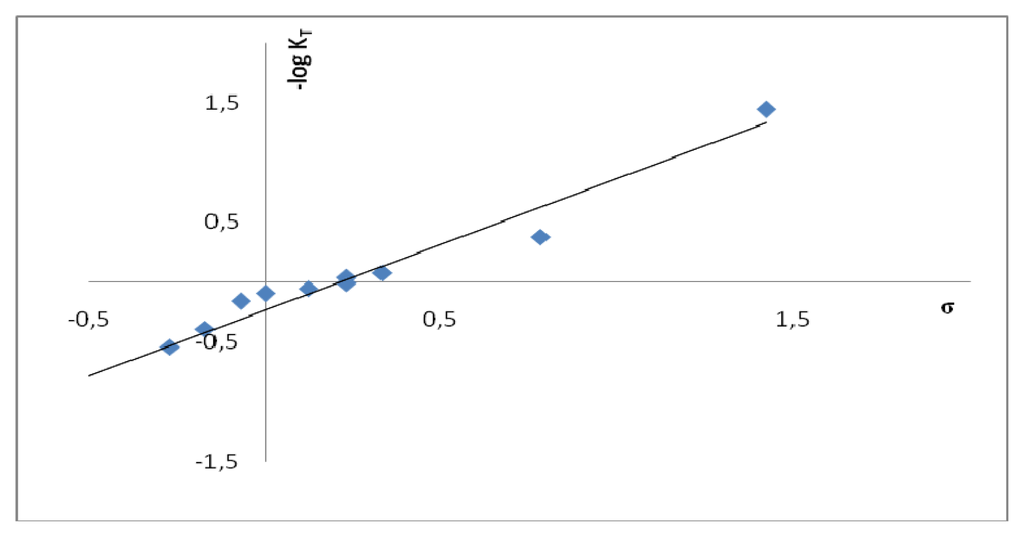

Figure 2. Plot of −logKTvs. Hammett substituent constant σ for 1b11b.

Click here to enlarge figure

Figure 2. Plot of −logKTvs. Hammett substituent constant σ for 1b11b.
Ijms 14 04444f2 1024
Ijms 14 04444f3a 200Ijms 14 04444f3b 200

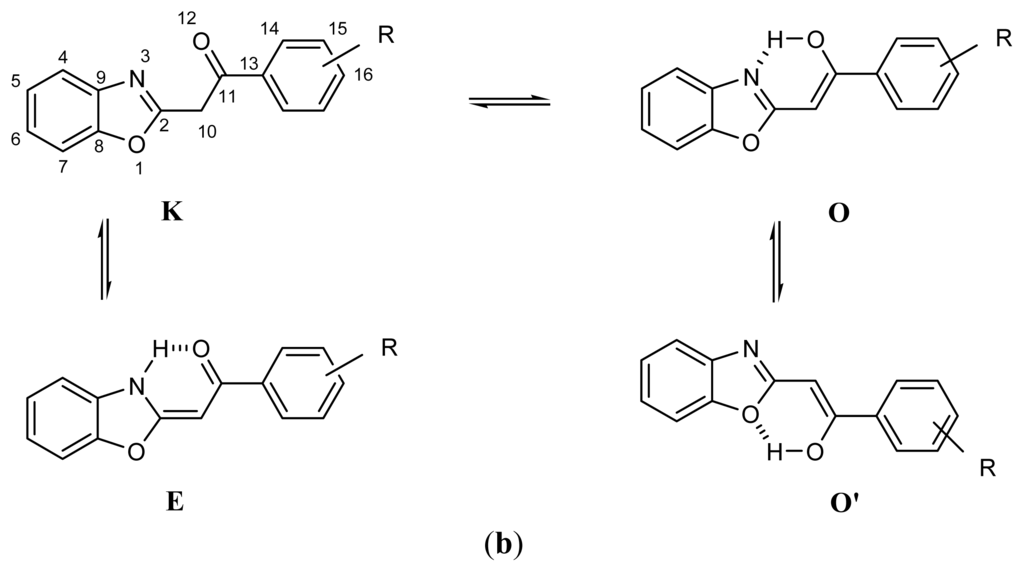

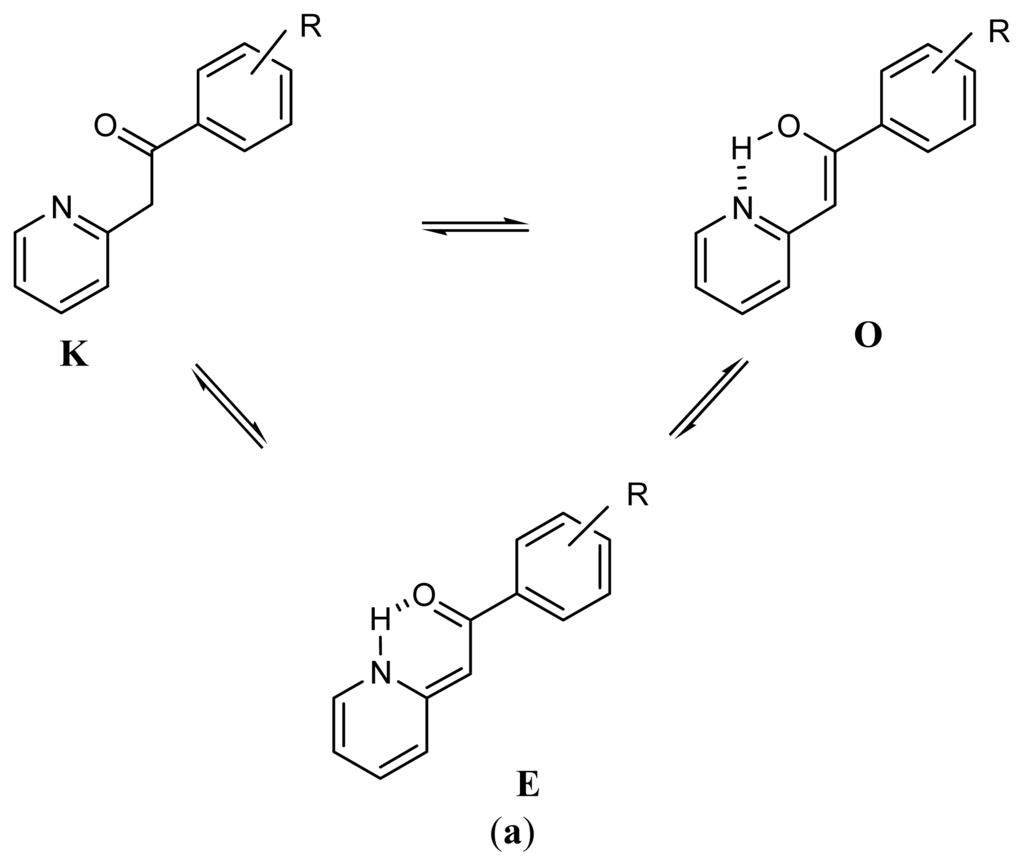

Scheme 1. Tautomeric equilibria of 2-phenacylpyridines (a) and 2-phenacylbenzoxazoles (b).

Click here to enlarge figure

Scheme 1. Tautomeric equilibria of 2-phenacylpyridines (a) and 2-phenacylbenzoxazoles (b).
Ijms 14 04444f3a 1024Ijms 14 04444f3b 1024
Ijms 14 04444f4 200

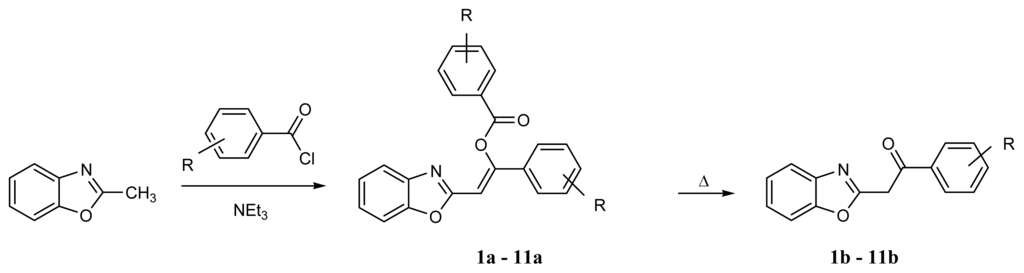

Scheme 2. Synthesis of 2-phenacylbenzoxazoles. R = p-N(CH3)2 (1), p-OCH3 (2), p-CH3 (3), m-CH3 (4), H (5), m-OCH3 (6), p-Cl (7), p-Br (8), m-F (9), p-NO2 (10), 3,5-(NO2)2 (11).

Click here to enlarge figure

Scheme 2. Synthesis of 2-phenacylbenzoxazoles. R = p-N(CH3)2 (1), p-OCH3 (2), p-CH3 (3), m-CH3 (4), H (5), m-OCH3 (6), p-Cl (7), p-Br (8), m-F (9), p-NO2 (10), 3,5-(NO2)2 (11).
Ijms 14 04444f4 1024
Ijms 14 04444f5 200

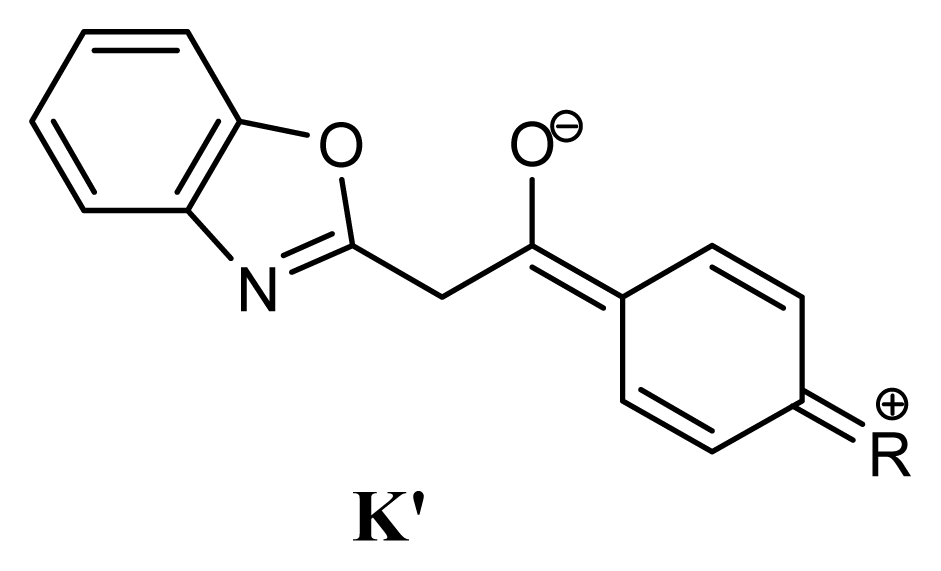

Scheme 3. Resonance structure stabilizing the 2-phenacylbenzoxazole tautomer K by electron-donating substituents.

Click here to enlarge figure

Scheme 3. Resonance structure stabilizing the 2-phenacylbenzoxazole tautomer K by electron-donating substituents.
Ijms 14 04444f5 1024
Ijms 14 04444f6 200

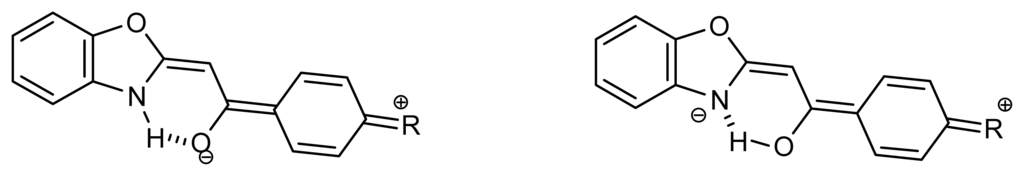

Scheme 4. Resonance structures showing lack of stabilization of the tautomers E and O by electron-donating substituents.

Click here to enlarge figure

Scheme 4. Resonance structures showing lack of stabilization of the tautomers E and O by electron-donating substituents.
Ijms 14 04444f6 1024
Table 1. Reaction yields and melting points of compounds 3a8a and 10a.

Click here to display table

Table 1. Reaction yields and melting points of compounds 3a8a and 10a.
NoYield (%)mp (°C)
3a3592–93
4a2091–92
5a52104–106 (109 [15], 97–98 [20])
6a30111–112
7a32106–107
8a75175–177
10a63226–227
Table 2. Selected 1H and 13C NMR chemical shifts (δ from TMS) for 0.1–0.2 M solutions of 2-(benzo[d]oxazol-2-yl)-1-phenylvinyl benzoates 3a8a and 10a in CDCl3 at 303 K.

Click here to display table

Table 2. Selected 1H and 13C NMR chemical shifts (δ from TMS) for 0.1–0.2 M solutions of 2-(benzo[d]oxazol-2-yl)-1-phenylvinyl benzoates 3a8a and 10a in CDCl3 at 303 K.
Ijms 14 04444f7

CompoundH10C2C10C11C13
3a6.98164.55102.39154.47160.14
4a7.03164.70103.12154.49159.96
5a7.26164.51103.31154.20159.83
6a7.03164.38103.61153.99159.99
7a7.02163.28104.51152.45160.86
8a7.00163.77103.81152.94161.45
10a7.17162.61106.75151.23158.35
Table 3. Reaction yields and melting points of compounds 1b11b.

Click here to display table

Table 3. Reaction yields and melting points of compounds 1b11b.
CompoundMethod aYield (%)mp (°C)
1bA73197–198
2bA62106–108
(107.5–108.5) [8]
3bB65.596–98
(97.5–98.5) [8]
4bB8466–68
(67–68) [8]
5bB5994–96
(93.5–94.5) [8]
(97–98) [12]
(88–88.5) [6]
(88–88.5) [9]
(90–91) [17]
(88) [7]
87–89 [20]
6bB61.558–60
(59.5–60) [8]
7bB87168–170
(168.5–170) [8]
8bB83167–169
(167) [7]
9bB50.5101–102.5
10bB99233–235 b
248–249 [11]
11bB72156.5–158

aMethod A: consecutive treatment of 2-methylbenzoxazole by sodium hydride and substituted ethyl benzoate; Method B: decomposition of the product of reaction of 2-methylbenzoxazole with benzoyl chloride.bSome polymorphic processes take place in the range 200–230 °C.

Table 4. Selected NMR chemical shifts for 1H from TMS, 13C from TMS, 15N from ext. CH3NO2 (regular characters), and 13C CPMAS from glycine (italics) of 2-phenacylbenzoxazoles (K) and (Z)-2-(benzo[d]oxazol-2-yl)-1-phenylethenols (O).

Click here to display table

Table 4. Selected NMR chemical shifts for 1H from TMS, 13C from TMS, 15N from ext. CH3NO2 (regular characters), and 13C CPMAS from glycine (italics) of 2-phenacylbenzoxazoles (K) and (Z)-2-(benzo[d]oxazol-2-yl)-1-phenylethenols (O).
Tautomer aOH bH10 cC10C11N3
1K-4.5439.08190.00−135.6 d
--38.76100.72-
1Oe6.0580.35166.61−168.3 e
2K-4.6139.39190.81−134.9
2O12.66.1182.19166.35−166.2
3K-4.6139.50191.95−134.7
3O12.56.1782.97166.44−164.9
--82.22166.49-
4K-4.6239.58192.56−134.6
4O12.46.2083.61166.48−164.2
5K-4.6439.59 f192.36 g−134.4
5O12.56.2183.69 h166.29 i−164.0
6K-4.6239.67192.20−134.4
6O12.56.2083.91166.08−164.0
7K-4.6039.63191.18−134.1
7O12.76.1883.93165.48−164.0
8K-4.5939.61191.39−134.3
8O12.76.1983.97165.46−164.0
9K-4.6139.71191.20−134.0
9O12.76.2084.44165.37−163.3
--83.05162.42-
10K-4.67jjj
10O12.86.3486.47164.80−160.6
--84.70163.16-
11K-4.74jjj
11Ok6.4386.47165.29−163.9 l

aRecorded for 0.1–0.2 M solutions in CDCl3 at 303 K;bVery broad singlet;cSinglet.dδ[15N(CH3)2] = −323.9 ppm (form K);eDue to low contribution of the O form this signal is not observed (or it is very weak);f39.7 ppm [13];g192.5 ppm [13];h83.7 ppm [13];i16.3 ppm [13];jDue to low contribution of the K form this signal is not observed;kSignal is not seen;lTwo signals at −19.9 ppm and −18.8 ppm were observed for the substituent nitrogen.

Table 5. Content of the K form (%) (in CDCl3 at 303 K), [O] (%) = 100 − [K] (%).

Click here to display table

Table 5. Content of the K form (%) (in CDCl3 at 303 K), [O] (%) = 100 − [K] (%).
[K] (%) a
194.5 (87.0) b
277.5 (83.0) c
371.0 (72.0) c; 56 d,e[10]
459.0 (57.5) c
555.5; 50 d,e[10,13]; 51.5 [20]; 20 d,f[12]
653.0 (50.0) c
748.0; 33 d,e[10]
850.5
945.5
1029.5
113.5

aBased on integrals of the H10 signals (present paper);bSince the 1H NMR chemical shifts for various tautomers differ insignificantly (see Table 4), contributions based on integrals of the N(CH3)2 protons are not precise;cValues in parentheses are based on integrals of the substituent protons;dLiterature data for chloroform solutions at 298 K;eOnly K and O tautomers were detected in CDCl3;fThere are three different forms in CDCl3: [K] + [O] + [E] = 20% + 37% + 43% [12].

Table 6. Optimized (MP2/aug-cc-pvdz) bond lengths (Å) and bond and dihedral angles (deg) for 2-phenacylbenzoxazoles and their tautomers.

Click here to display table

Table 6. Optimized (MP2/aug-cc-pvdz) bond lengths (Å) and bond and dihedral angles (deg) for 2-phenacylbenzoxazoles and their tautomers.
O12-H12 or N3-H3H12···N3 or H12···O1H10···H18C14C13C11O12
C18C13C11O12
1K--2.34
2.38 b
−179.97
−0.20
1Oa1.001.762.14164.24
−15.76
1E1.031.792.04173.70
−5.56
5K--2.34
2.36 b
179.48
−0.41
5Oa1.001.762.20157.31
−22.36
5O′a0.981.872.19154.73
−24.91
5E1.041.802.14158.62
−20.62
10K--2.35
2.37 b
179.56
−0.33
10Oa1.001.752.14163.19
−16.25
10E1.031.802.13160.00
−18.75

aForms O and O′ include the OH···N and OH···O intramolecular hydrogen bonds, respectively;bDistances to H18 from two different H10.

Table 7. MP2 calculated relative energies (kJ mol−1) of different tautomers.

Click here to display table

Table 7. MP2 calculated relative energies (kJ mol−1) of different tautomers.
NameName
1K4.18
1O0.00 a
1E25.08
5K12.54
5O0.00 b
5O′25.08
5E29.26
10K16.72
10O0.00 c
10E25.08

aAbsolute energy: −914.853 Hartree;bAbsolute energy: −781.273 Hartree;cAbsolute energy: −985.352 Hartree.
