Int. J. Mol. Sci. 2013, 14(2), 2590-2600; doi:10.3390/ijms14022590

Article
Partial Peptide of α-Synuclein Modified with Small-Molecule Inhibitors Specifically Inhibits Amyloid Fibrillation of α-Synuclein
Wataru Yoshida , Natsuki Kobayashi , Yasuhiko Sasaki , Kazunori Ikebukuro and Koji Sode *
Department of Biotechnology, Graduate School of Engineering, Tokyo University of Agriculture & Technology, 2-24-16 Naka-cho, Koganei, Tokyo 184-8588, Japan; E-Mails: wyoshida@cc.tuat.ac.jp (W.Y.); nkobayashi@umnpharma.com (N.K.); yasuhiko.sasaki@shino-test.co.jp (Y.S.); ikebu@cc.tuat.ac.jp (K.I.)
*
Author to whom correspondence should be addressed; E-Mail: sode@cc.tuat.ac.jp; Tel./Fax: +81-42-388-7027.
Received: 5 October 2012; in revised form: 29 December 2012 / Accepted: 18 January 2013 /
Published: 28 January 2013

Abstract

: We have previously reported that pyrroloquinoline quinone (PQQ) prevents the amyloid formation of α-synuclein, amyloid β1–42 (Aβ1–42), and mouse prion protein. Moreover, PQQ-modified α-synuclein and a proteolytic fragment of the PQQ-modified α-synuclein are able to inhibit the amyloid formation of α-synuclein. Here, we identified the peptide sequences that play an important role as PQQ-modified specific peptide inhibitors of α-synuclein. We demonstrate that the PQQ-modified α-Syn36–46 peptide, which is a partial sequence of α-synuclein, prevented α-synuclein amyloid fibril formation but did not inhibit Aβ1–42 fibril formation. In addition, the α-synuclein partial peptide modified with other small-molecule inhibitors, Baicalein and epigallocatechin gallate (EGCG), prevented α-synuclein fibril formation. Currently reported quinone amyloid inhibitors do not have selectivity toward protein molecules. Therefore, our achievements provide a novel strategy for the development of targeted specific amyloid formation inhibitors: the combination of quinone compounds with specific peptide sequence from target proteins involved in amyloid formation.
Keywords:
α-synuclein; amyloid β; pyrroloquinoline quinone; Baicalein; EGCG

1. Introduction

Conformational neurodegenerative diseases are characterized by the formation and accumulation of misfolded proteins or amyloid fibrils. Abnormal aggregation of α-synuclein (α-Syn), Amyloid β (Aβ), and prion protein are associated with the pathogenesis of Parkinson’s disease (PD), Alzheimer’s disease, and prion disease, respectively. Oligomers and/or amyloid fibrils composed of α-Syn, Aβ, and prion protein are considered to be cytotoxic. Therefore, agents that inhibit oligomerization and/or amyloid fibril formation could be useful for development of novel therapies [17]. Several small compounds have been identified that prevent fibril formation by amyloid-forming proteins [819]. Some of these compounds have a quinone structure, such as Baicalein [11] and epigallocatechin gallate (EGCG) [15], and covalently bind to the Lys residues of the amyloid-forming protein via Schiff-base formation. It has been reported that EGCG binds to protein via Schiff-base formation through autoxidation [20]. We have reported that pyrroloquinoline quinone (PQQ) prevents the amyloid fibril formation of α-Syn, Aβ1–42 and mouse prion protein in vitro[21,22]. Since the Schiff-base formation of these quinone compounds does not have selectivity towards protein molecules, non-specific interaction of these quinone compounds with amine groups will occur in vivo, which may consequently result in low therapeutic efficacy.

We have also reported that PQQ-modified α-Syn prevents the amyloid formation of intact α-Syn [21]. We assumed that PQQ-modified α-Syn would specifically bind to intact α-Syn to prevent amyloid formation. We recently reported that proteolytic-digested PQQ-modified α-Syn inhibits amyloid formation as effectively as the PQQ-modified α-Syn does [23]. These results indicate that PQQ-modified α-Syn partial peptide inhibits amyloid formation by interacting with intact α-Syn, based on the specific molecular recognition. The mechanism of amyloid fibril formation is based on the formation of core structure mediated by sequence-specific interaction among α-Syn monomers. Therefore, PQQ-modified α-Syn partial peptides will specifically inhibit α-Syn amyloid formation.

In order to evaluate the potential application of PQQ-modified α-Syn partial peptide as a specific inhibitor for α-Syn amyloid formation, we first identified the peptide sequence of the PQQ-modified α-Syn partial peptide, which inhibits the amyloid formation. Based on the identified sequence information, we prepared the PQQ-modified α-Syn partial peptides, and investigated their ability to block amyloid formation inhibition using α-Syn and Aβ1–42. In addition to PQQ, the α-Syn partial peptide was modified using other small molecule inhibitors, Baicalein and EGCG, and their inhibitory effects on α-Syn fibril formation were evaluated.

2. Results and Discussion

2.1. Identification of Proteolytic-Digested α-Synuclein Partial Peptide Sequence

We previously reported the preparation of a PQQ-modified α-Syn partial peptide using reverse-phase chromatograms [23]. The reverse-phase chromatograms for proteolytic products of unmodified α-Syn were almost identical with those of the chromatograms for the proteolytic products of PQQ-modified α-Syn. Thus, we analyzed peptide sequences of proteolytic products of unmodified α-Syn in the fraction, which correspond to Sp-7 by LC/MS (Figure S1). We identified five peptide sequences corresponding to 3–13, 21–28, 36–46, 47–57 and 127–131 residues of the primary structure of α-Syn (Table 1). Among these, 3 peptides corresponding to 3–13, 21–28, and 36–46 residues (α-Syn3–13, α-Syn21–28 and α-Syn36–46, respectively) have Lys residues, which are capable of binding to PQQ via Schiff-base formation. These results suggest that the three peptides would interact with intact α-Syn to inhibit the amyloid formation by PQQ modification.

2.2. Evaluation of Inhibitory Effects of PQQ-Modified Peptides on Amyloid Formation of α-Synuclein

We synthesized the three peptides (α-Syn3–13, α-Syn21–28 and α-Syn36–46) and modified them with PQQ by co-incubation for seven days. The PQQ-modified peptides were purified by size exclusion chromatography. PQQ-modified α-Syn has absorbance at 420 nm [21], and the intact peptides have absorbance at both 210 nm and 280 nm. In size exclusion chromatography separation, each PQQ modified peptide sample showed two peaks when the elution was monitored by determining the absorbance at both 210 nm and 280 nm (Figure S2). We observed large absorbance at 420 nm in the first peaks, which is the characteristic absorbance of PQQ, indicating that the first peaks contain PQQ-modified peptides. Thus, the first peaks were collected to evaluate the inhibitory activity. The collected PQQ-modified α-Syn3–13, α-Syn21–28 and α-Syn36–46 were designated as α-Syn3–13-PQQ, α-Syn21–28-PQQ and α-Syn36–46-PQQ, respectively.

In order to evaluate the inhibitory activity of PQQ-modified peptides on amyloid formation of intact α-Syn, we carried out a thioflavin T (TfT) assay [21]. We have previously reported that the amyloid fibril formation of 140 μM α-Syn was completely prevented by 70 μM PQQ [21]. The result indicates that half-equimolar amount of PQQ completely inhibits α-Syn fibril formation in vitro. Thus, we added 25 μM, 50 μM, and 500 μM of PQQ-modified peptides to 50 μM α-Syn. All the PQQ-modified peptides prevented intact α-Syn fibril formation, but their inhibitory effects were dependent on the peptide sequence (Figure 1). α-Syn36–46-PQQ showed higher inhibitory activity than α-Syn3–13-PQQ and α-Syn21–28-PQQ. It has been reported that amino acids 36–46 (GVLYVGSKTKE) are included in the core region of amyloid fibers of α-Syn [2426], and Tyr39 residue has an important role in α-Syn fibril formation [27]. These results suggest that the PQQ-modified α-Syn36–46 specifically interacts with the core region of intact α-Syn to inhibit amyloid fibril formation.

We analyzed molecular mass of α-Syn36–46-PQQ by MALDI-TOF-MS. We detected three peaks at a molecular mass of 1180, 1492, and 2984 corresponding to unmodified peptide, one peptide modified with one PQQ and two peptides modified with two PQQ, respectively (Figure S3). These data indicated that PQQ-modified peptide is formed at a molar ratio of 1:1. The stoichiometry of modification is also supported by size exclusion chromatography purification of α-Syn36–46-PQQ, because we detected only one peak that contains PQQ-modified peptide.

Cytotoxicity of amyloid forming protein represents the presence of water soluble oligomer structure, which is the precursor of amyloid fibril. Therefore, we evaluated the cytotoxicity of α-Syn aggregates incubated with α-Syn36–46-PQQ by means of two different assays. In these assays, we utilized C-terminal truncated α-Syn (α-Syn119), which shows higher cytotoxicity than full-length α-Syn. We incubated α-Syn119 for 18 h in the presence or absence of α-Syn36–46-PQQ, and then U2-OS cells were exposed to the α-Syn119 samples for 48 h. The cell viability was measured by both of Cell Counting Kit-8 (CC8 assay) and CellTiter-Glo Luminescent Cell Viability Assay (ATP assay). These results indicated that α-Syn119 aggregates incubated with α-Syn36–46-PQQ showed lower cytotoxicity than that of α-Syn119 (Figure 2). Therefore, the cytotoxicity assays suggested that α-Syn36–46-PQQ inhibits the formation of cytotoxic oligomer formation of α-Syn.

2.3. Evaluation of Specificity of PQQ-Modified α-Syn36–46 Peptide

The grand average of hydropathy (GRAVY) value of α-Syn36–46 peptide is −0.245 [28], indicating that the peptide is hydrophilic. In the process of amyloid fibril formation, hydrophobic interactions play an important role. Thus, we assumed that the PQQ-modified α-Syn36–46 peptide would not interact with other amyloid-forming proteins. We carried out the TfT assay for Aβ1–42 in the presence of the α-Syn36–46-PQQ. We first confirmed that PQQ inhibited the amyloid formation of Aβ1–42, as we had reported previously (Figure 3). On the other hand, α-Syn36–46-PQQ did not inhibit nor accelerate the amyloid formation of Aβ1–42. These results suggest that α-Syn36–46-PQQ specifically inhibits the fibril formation of α-Syn.

2.4. Evaluation of Inhibitory Effects of Baicalein or EGCG-Modified α-Syn36–46 Peptide on Amyloid Formation of α-Synuclein

To investigate whether the other inhibitor-modified α-Syn36–46 would inhibit the amyloid formation of intact α-Syn, we prepared Baicalein or EGCG-modified α-Syn36–46 peptide. Baicalein and EGCG bind to Lys residues via Schiff-base formation as well as PQQ; thus, we assumed that Baicalein and EGCG-modified α-Syn36–46 would work as α-Syn inhibitors. The α-Syn36–46 peptide was incubated with Baicalein or EGCG for 14 days, and then Baicalein or EGCG modified peptide were separated by performing size exclusion chromatography. Baicalein and EGCG showed absorbance at 280 nm (Figure S4); thus, the elution was monitored by determining the absorbance at 280 nm. The Baicalein-modified sample and the EGCG-modified sample showed two peaks in absorbance at 280 nm, suggesting that there are two kinds of Baicalein or EGCG-modified α-Syn36–46. α-Syn36–46 peptide has two Lys residues that are capable to form Schiff-base formation. Thus, we assumed that the first peak contained one α-Syn36–46 peptide modified with two compounds and the second peak contained one α-Syn36–46 peptide modified with one compound. Following peak collection, we designated the first and second peaks of Baicalein-modified α-Syn36–46 and EGCG-modified α-Syn36–46 as α-Syn36–46-Baicalein_P1, α-Syn36–46-Baicalein_P2, α-Syn36–46-EGCG_P1, and α-Syn36–46-EGCG_P2, respectively.

In order to evaluate the inhibitory activity of the Baicalein or EGCG-modified α-Syn36–46 peptides on amyloid formation of α-Syn, we carried out the TfT assay. Although the unmodified α-Syn36–46 did not prevent amyloid formation of α-Syn, the Baicalein or EGCG-modified α-Syn36–46 peptides prevent amyloid formation of intact α-Syn (Figure 4). These results suggest that various α-Syn-specific inhibitors could be developed by modifying the α-Syn36–46 peptide with various inhibitors of fibril formation.

The inhibitory effect of amyloid formation in the presence of quinone molecules such as PQQ, EGCG and Baicalein is currently understood that the formation of quinone adducts of the parental amyloid forming proteins inhibits the further protein-protein oligomeric complex formation. These quinone molecules were bound with peptide by forming Schiff-base to produce PQQ, EGCG or Baicalein adducts. Schiff-base formation between α-Syn and PQQ or Baicalein was occurred at the Lys residues in the α-Syn molecule. Although our current investigation elucidated that, a particular partial peptide sequence, α-Syn36–46, was the most prone and significantly contributed in the inhibiting amyloid formation, other Lys residues within α-Syn molecule may be modified by PQQ via Schiff-base formation during the incubation with intact quinones. It was also suggested that with increasing the number of Lys residues in the amyloid forming proteins, the amyloid inhibitory effect by PQQ increased [22]. Therefore, the intact PQQ, EGCG or Baicalein binds with α-Syn at various position of Lys residues, consequently may coordinately show more strong inhibitory effect on amyloid formation than a PQQ or Baicalen adduct partial peptide sequence. In addition, the impact of the presence of intact PQQ or Baicalein is different, and Baicalein has been reported more effectively inhibiting α-Syn fibril formation [11]. The difference may be the sum of the ability of Schiff-base formation and the inhibitory effect of the adducts. However, the intact quinone molecules can easily form adducts via Schiff-base formation with any amine group. Although the inhibitor molecule modified peptide showed lower inhibitory effect compared with the intact one, target amyloid forming protein specific inhibition will be achieved using the strategy presented in this study.

3. Experimental Section

3.1. Preparation of Recombinant α-Synuclein

Human wild-type α-Syn was expressed in the E. coli BL21 (DE3) cell line transfected with the pET28a(+)/α-Syn plasmid and purified, as we reported previously [21].

3.2. LC/MS Analysis of Proteolytic-Digested α-Synuclein

The proteolytic-digested α-Syn was prepared as described previously [23]. Briefly, 4 mg/mL α-Syn was digested by endoproteinase Glu-C (Sigma, St. Louis, MO, USA) in PBS buffer (8.1 mM Na2HPO4, 1.4 mM KH2PO4, 137 mM NaCl, 2.7 mM KCl, pH 7.3) at 37 °C for 18 h, and then the undigested α-Syn and Glu-C were removed from the proteolytic mixtures by ultrafiltration through Amicon Ultra-4 filters (MWCO, 5000 Da; Millipore, Billerica, MA, USA). The proteolytic-digested α-Syn was subjected to LC/MS analysis (JMS-T100LC AccuTOF, JEOL, Akishima, Tokyo, Japan). The data were analyzed by ExPASyFindPept tool [29,30].

3.3. PQQ, Baicalein, EGCG-Modification of α-Syn Partial Peptides

The 280 μM α-Syn partial peptide (GenScript, Piscataway, NJ, USA) and 2.8 mM PQQ (Mitsubishi Gas Chemical, Chiyoda-ku, Tokyo, Japan), Baicalein or EGCG (Tokyo Chemical Industry, Chuo-ku, Tokyo, Japan) were co-incubated in PBS buffer. The sample containing peptide with PQQ was incubated at 37 °C with shaking for 7 days, and the sample containing peptide with Baicalein or epigallocatechin gallate (EGCG) was incubated at 37 °C with shaking for 14 days. The samples were loaded onto a PD-10 column (GE Healthcare, Chalfont St Giles, Buckinghamshire, UK) to remove the intact PQQ, Baicalein or EGCG. Then the eluted fractions were subjected to size exclusion chromatography (Superdex Peptide 10/300 GL, GE Healthcare, Chalfont St Giles, Buckinghamshire, UK) and eluted with a 30% acetonitrile in buffer containing 0.1% trifluoroacetic acid (TFA). The elution was monitored by determining the absorbance at 210 nm, 280 nm and 420 nm, simultaneously. The eluted fractions containing adduct were collected as PQQ, Baicalein or EGCG modified α-Syn partial peptides. The peptides were lyophilized and dissolved in PBS buffer before use. For MALDI-TOF MS analysis, α-Syn36–46-PQQ was dissolved in sinapinic acid matrix solution (70% acetonitrile, 0.1% TFA, 0.5 mg/mL sinapinic acid) and then analyzed by MALDI-TOF MS spectrometer Voyager-DE STR (Applied Biosystems, Carlsbad, CA, USA).

3.4. Amyloid Fibril Formation Analysis

Purified α-Syn was ultracentrifuged (150,000g, 1 h, 4 °C) to remove any aggregates. Each peptide was mixed with 1.0 mg/mL (70 μM) α-Syn in PBS buffer containing 0.02% NaN3 as an antiseptic agent. For each sample, 250 μL were aliquoted in triplicate into a 96-well microtiter plate together with a Teflon ball. The plates were covered with a seal and incubated at 37 °C with shaking at 700 rpm. Amyloid formation was monitored by the TfT assay. Aliquots of 2.5 μL were removed from the incubated sample and added to 250 μL of 25 μM TfT in PBS buffer. TfT fluorescence was recorded at 486 nm with excitation at 450 nm using an ARVO MX 1420 multilabel counter (PerkinElmer, Waltham, MA, USA).

For analysis of Aβ1–42 fibril formation, the purchased human Aβ1–42 (trifluoroacetate form, Peptide Institute, Minoh-shi, Osaka, Japan) was prepared as described previously [31]. The 25 μM Aβ1–42 was mixed with 200 μM PQQ or 200 μM PQQ-modified α-Syn peptide in PBS buffer with 0.02% NaN3 and then incubated at 37 °C in a 0.5 mL tube. Aliquots of 10 μL were removed from the incubated sample and TfT fluorescence was recorded as described above.

3.5. Cytotoxicity Assay of α-Synuclein

Cytotoxicity assay of α-Synuclein was carried out based on two different commercially available methods. Briefly, 100 μM of α-Syn119 was incubated for 18 h in the presence or absence of 200 μM of PQQ or α-Syn36–46-PQQ. The incubated samples (final concentration of α-Syn119 was 10 μM) were added to U2-OS cells and the cells were exposed to the α-Syn119 samples for 48 h. The number of viable cells was monitored by both of the Cell Counting Kit-8 (CC8 assay; Dojindo Molecular Technologies, Inc., Kamimashiki, Kumamoto, Japan) and CellTiter-Glo Luminescent Cell Viability Assay Kit obtained from Promega (ATP assay; Madison, WI, USA), according to the manufacturer’s protocol.

4. Conclusions

In this study, we demonstrate that the PQQ-modified α-Syn36–46 peptide, which is a partial sequence of α-Syn, prevented α-Syn amyloid fibril formation, but did not inhibit Aβ1–42 fibril formation. We also observed that other quinone inhibitors, such as Baicalein and EGCG, modified α-Syn36–46 peptide work as fibril formation inhibitors for α-Syn. Therefore, the α-Syn36–46 peptide will be a platform for the development of α-Syn-specific inhibitors that are modified with amyloid fibril formation antagonists. Our study provides proof-of-concept that combining specific peptide sequences with various quinone compounds is a novel strategy for the development of plaque type-specific amyloid formation inhibitors.

Supplementary Information

Acknowledgments

This work was supported by a Grant-in-Aid for Scientific Research (B) from the Ministry of Education, Culture, Sports, Science and Technology (MEXT) of Japan.

References

  1. Eriksen, J.L.; Dawson, T.M.; Dickson, D.W.; Petrucelli, L. Caught in the act: alpha-synuclein is the culprit in Parkinson’s disease. Neuron 2003, 40, 453–456.
  2. Tofaris, G.K.; Spillantini, M.G. Alpha-synuclein dysfunction in Lewy body diseases. Mov. Disord 2005, 20, 37–44.
  3. Goedert, M.; Spillantini, M.G. A century of Alzheimer’s disease. Science 2006, 314, 777–781.
  4. Lansbury, P.T.; Lashuel, H.A. A century-old debate on protein aggregation and neurodegeneration enters the clinic. Nature 2006, 443, 774–779.
  5. Sciarretta, K.L.; Gordon, D.J.; Meredith, S.C. Peptide-based inhibitors of amyloid assembly. Methods Enzymol 2006, 413, 273–312.
  6. Liu, T.; Bitan, G. Modulating self-assembly of amyloidogenic proteins as a therapeutic approach for neurodegenerative diseases: strategies and mechanisms. Chem. Med. Chem 2012, 7, 359–374.
  7. Härd, T.; Lendel, C. Inhibition of amyloid formation. J. Mol. Biol 2012, 421, 441–465.
  8. Conway, K.A.; Rochet, J.C.; Bieganski, R.M.; Lansbury, P.T., Jr. Kinetic stabilization of the alpha-synuclein protofibril by a dopamine-alpha-synuclein adduct. Science 2001, 294, 1346–1349.
  9. Li, J.; Zhu, M.; Manning-Bog, A.B.; Di Monte, D.A.; Fink, A.L. Dopamine and L-dopa disaggregate amyloid fibrils: implications for Parkinson’s and Alzheimer’s disease. FASEB J 2004, 18, 962–964.
  10. Li, J.; Zhu, M.; Rajamani, S.; Uversky, V.N.; Fink, A.L. Rifampicin inhibits alpha-synuclein fibrillation and disaggregates fibrils. Chem. Biol 2004, 11, 1513–1521.
  11. Zhu, M.; Rajamani, S.; Kaylor, J.; Han, S.; Zhou, F.; Fink, A.L. The flavonoid Baicalein inhibits fibrillation of alpha-synuclein and disaggregates existing fibrils. J. Biol. Chem 2004, 279, 26846–26857.
  12. Masuda, M.; Suzuki, N.; Taniguchi, S.; Oikawa, T.; Nonaka, T.; Iwatsubo, T.; Hisanaga, S.; Goedert, M.; Hasegawa, M. Small molecule inhibitors of alpha-synuclein filament assembly. Biochemistry 2006, 45, 6085–6094.
  13. Ono, K.; Yamada, M. Antioxidant compounds have potent anti-fibrillogenic and fibril-destabilizing effects for alpha-synuclein fibrils in vitro. J. Neurochem 2006, 97, 105–115.
  14. Ono, K.; Yamada, M. Vitamin A potently destabilizes preformed alpha-synuclein fibrils in vitro: implications for Lewy body diseases. Neurobiol. Dis 2007, 25, 446–454.
  15. Ehrnhoefer, D.E.; Bieschke, J.; Boeddrich, A.; Herbst, M.; Masino, L.; Lurz, R.; Engemann, S.; Pastore, A.; Wanker, E.E. EGCG redirects amyloidogenic polypeptides into unstructured, off-pathway oligomers. Nat. Struct. Mol. Biol 2008, 15, 558–566.
  16. McKoy, A.F.; Chen, J.; Schupbach, T.; Hecht, M.H. Novel inhibitor of amyloid β (Aβ) peptide aggregation: from high throughput screening to efficacy in an animal model of Alzheimer disease. J. Biol. Chem 2012, 287, 38992–39000.
  17. Lamberto, G.R.; Torres-Monserrat, V.; Bertoncini, C.W.; Salvatella, X.; Zweckstetter, M.; Griesinger, C.; Fernández, C.O. Toward the discovery of effective polycyclic inhibitors of alpha-synuclein amyloid assembly. J. Biol. Chem 2011, 286, 32036–32044.
  18. Meng, F.; Abedini, A.; Plesner, A.; Middleton, C.T.; Potter, K.J.; Zanni, M.T.; Verchere, C.B.; Raleigh, D.P. The sulfated triphenyl methane derivative acid fuchsin is a potent inhibitor of amyloid formation by human isletamyloid polypeptide and protects against the toxic effects of amyloid formation. J. Mol. Biol 2010, 400, 555–566.
  19. Meng, F.; Abedini, A.; Plesner, A.; Verchere, C.B.; Raleigh, D.P. The flavanol (−)-epigallocatechin 3-gallate inhibits amyloid formation by islet amyloid polypeptide, disaggregates amyloid fibrils, and protects cultured cells against IAPP-induced toxicity. Biochemistry 2010, 49, 8127–8133.
  20. Ishii, T.; Ichikawa, T.; Minoda, K.; Kusaka, K.; Ito, S.; Suzuki, Y.; Akagawa, M.; Mochizuki, K.; Goda, T.; Nakayama, T. Human serum albumin as an antioxidant in the oxidation of (−)-epigallocatechin gallate: participation of reversible covalent binding for interaction and stabilization. Biosci. Biotechnol. Biochem 2011, 75, 100–106.
  21. Kobayashi, M.; Kim, J.; Kobayashi, N.; Han, S.; Nakamura, C.; Ikebukuro, K.; Sode, K. Pyrroloquinoline quinone (PQQ) prevents fibril formation of alpha-synuclein. Biochem. Biophys. Res. Commun 2006, 349, 1139–1144.
  22. Kim, J.; Kobayashi, M.; Fukuda, M.; Ogasawara, D.; Kobayashi, N.; Han, S.; Nakamura, C.; Inada, M.; Miyaura, C.; Ikebukuro, K.; et al. Pyrroloquinoline quinone inhibits the fibrillation of amyloid proteins. Prion 2010, 4, 26–31.
  23. Kobayashi, N.; Kim, J.; Ikebkuro, K.; Sode, K. The inhibition of amyloid fibrillation using the proteolytic products of PQQ-modified α-synuclein. Open Biotechnol. J 2009, 3, 41–46.
  24. Heise, H.; Hoyer, W.; Becker, S.; Andronesi, O.C.; Riedel, D.; Baldus, M. Molecular-level secondary structure, polymorphism, and dynamics of full-length alpha-synuclein fibrils studied by solid-state NMR. Proc. Natl. Acad. Sci. USA 2005, 102, 15871–15876.
  25. Chen, M.; Margittai, M.; Chen, J.; Langen, R. Investigation of alpha-synuclein fibril structure by site-directed spin labeling. J. Biol. Chem 2007, 282, 24970–24979.
  26. Vilar, M.; Chou, H.T.; Lührs, T.; Maji, S.K.; Riek-Loher, D.; Verel, R.; Manning, G.; Stahlberg, H.; Riek, R. The fold of alpha-synuclein fibrils. Proc. Natl. Acad. Sci. USA 2008, 105, 8637–8642.
  27. Ulrih, N.P.; Barry, C.H.; Fink, A.L. Impact of Tyr to Ala mutations on alpha-synuclein fibrillation and structural properties. Biochim. Biophys. Acta 2008, 1782, 581–585.
  28. Kyte, J.; Doolittle, R.F. A simple method for displaying the hydropathic character of a protein. J. Mol. Biol 1982, 157, 105–132.
  29. Gattiker, A.; Bienvenut, W.V.; Bairoch, A.; Gasteiger, E. FindPept, A tool to identify unmatched masses in peptide mass fingerprinting protein identification. Proteomics 2002, 2, 1435–1444.
  30. Gasteiger, E.; Hoogland, C.; Gattiker, A.; Duvaud, S.; Wilkins, M.R.; Appel, R.D.; Bairoch, A. PuProtein Identification and Analysis Tools on the ExPASy Server. In The Proteomics Protocols Handbook; Walker, J.M., Ed.; A product of Humana Press: Berlin, Germany, 2005; pp. 571–607.
  31. Ono, K.; Yoshiike, Y.; Takashima, A.; Hasegawa, K.; Naiki, H.; Yamada, M. Vitamin A exhibits potent antiamyloidogenic and fibril-destabilizing effects in vitro. Exp. Neurol 2004, 189, 380–392.
Ijms 14 02590f1 200

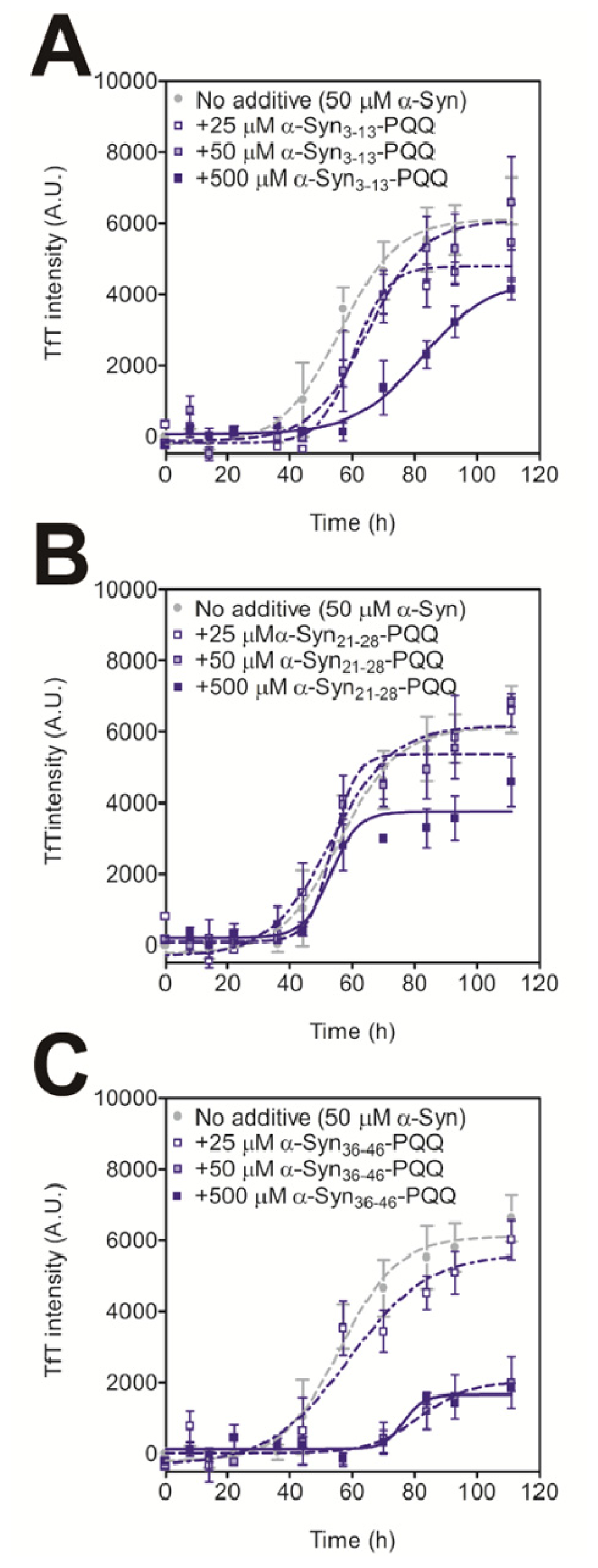

Figure 1. Inhibitory effect of PQQ-modified α-Syn peptides on the fibril formation of α-Syn. The time course of amyloid fibril formation by α-Syn was determined by the TfT assay. The sigmoidal curve analysis was performed by PRI. The fibril formation of 50 μM α-Syn in the presence or absence of 25, 50, and 500 μM the α-Syn3–13-PQQ (A), α-Syn21–28-PQQ (B), and α-Syn36–46-PQQ (C) were analyzed (n = 3).

Click here to enlarge figure

Figure 1. Inhibitory effect of PQQ-modified α-Syn peptides on the fibril formation of α-Syn. The time course of amyloid fibril formation by α-Syn was determined by the TfT assay. The sigmoidal curve analysis was performed by PRI. The fibril formation of 50 μM α-Syn in the presence or absence of 25, 50, and 500 μM the α-Syn3–13-PQQ (A), α-Syn21–28-PQQ (B), and α-Syn36–46-PQQ (C) were analyzed (n = 3).
Ijms 14 02590f1 1024
Ijms 14 02590f2 200

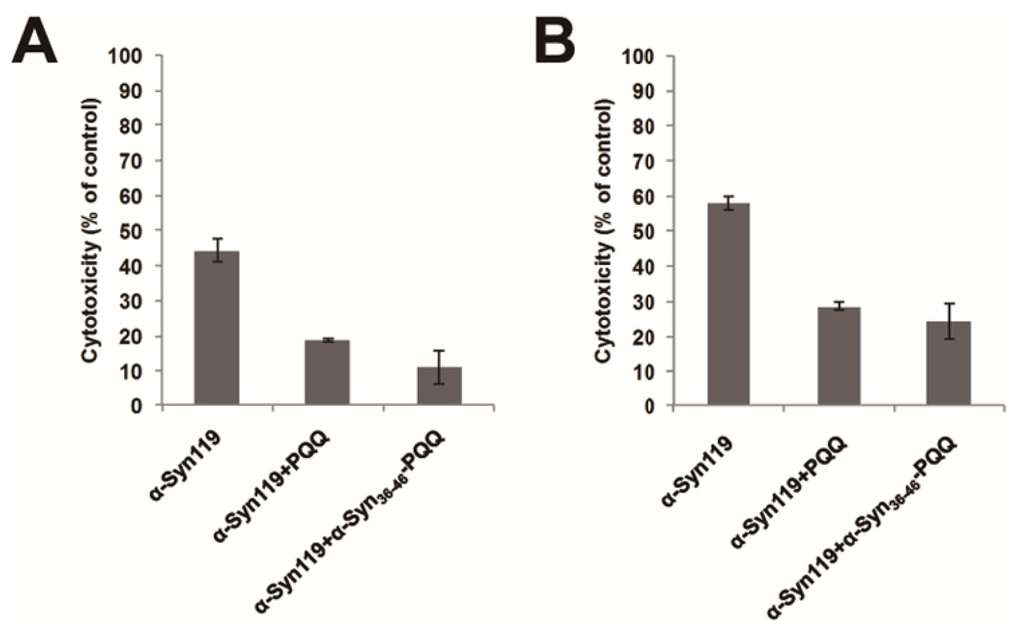

Figure 2. Cytotoxicity evaluation of α-Syn119 aggregates incubated with α-Syn36–46-PQQ. In the presence or absence of inhibitors, α-Syn119 samples were incubated for 18 h and then the cytotoxicity of the samples was analyzed by CC8 (A) and ATP assay (B). PQQ and α-Syn36–46-PQQ showed lower cytotoxicity than that of α-Syn119 (p < 0.0014 and p < 0.0028 in CC8 assay, respectively and p < 0.001 and p < 0.0063 in ATP assay, respectively).

Click here to enlarge figure

Figure 2. Cytotoxicity evaluation of α-Syn119 aggregates incubated with α-Syn36–46-PQQ. In the presence or absence of inhibitors, α-Syn119 samples were incubated for 18 h and then the cytotoxicity of the samples was analyzed by CC8 (A) and ATP assay (B). PQQ and α-Syn36–46-PQQ showed lower cytotoxicity than that of α-Syn119 (p < 0.0014 and p < 0.0028 in CC8 assay, respectively and p < 0.001 and p < 0.0063 in ATP assay, respectively).
Ijms 14 02590f2 1024
Ijms 14 02590f3 200
Figure 3. Inhibitory effect of α-Syn36–46-PQQ on the fibril formation of Aβ1–42. The time course of amyloid fibril formation of Aβ1–42 was determined using the TfT assay. The sigmoidal curve analysis was performed by PRI. The fibril formation of 25 μM Aβ1–42 in the presence of 25 μM unmodified α-Syn36–46, 200 μM α-Syn36–46-PQQ or 200 μM PQQ were analyzed (n = 3).

Click here to enlarge figure

Figure 3. Inhibitory effect of α-Syn36–46-PQQ on the fibril formation of Aβ1–42. The time course of amyloid fibril formation of Aβ1–42 was determined using the TfT assay. The sigmoidal curve analysis was performed by PRI. The fibril formation of 25 μM Aβ1–42 in the presence of 25 μM unmodified α-Syn36–46, 200 μM α-Syn36–46-PQQ or 200 μM PQQ were analyzed (n = 3).
Ijms 14 02590f3 1024
Ijms 14 02590f4 200

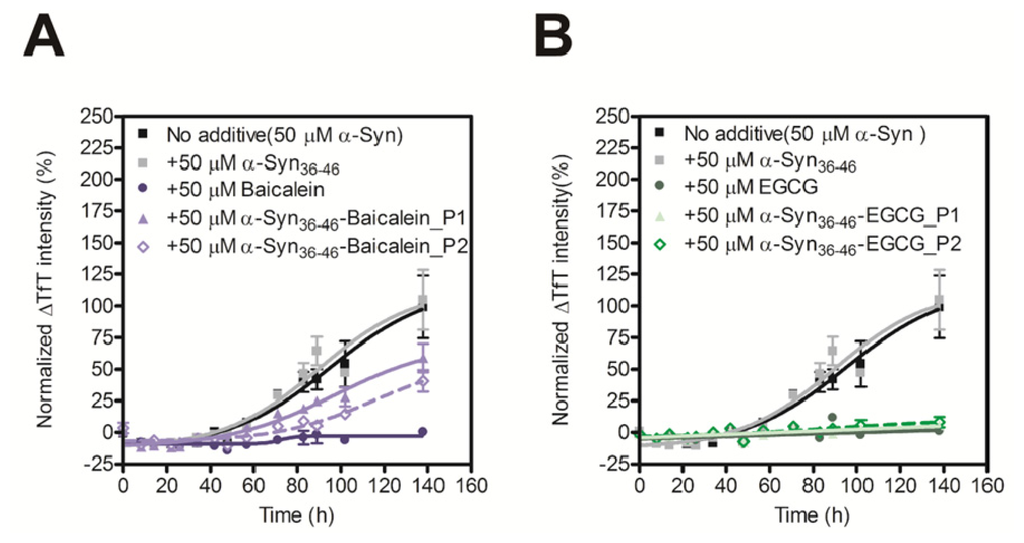

Figure 4. Inhibitory effect of α-Syn36–46-Baicalein (A) and α-Syn36–46-EGCG (B) on the fibril formation of α-Syn. The time course of amyloid fibril formation of α-Syn was determined using the TfT assay. The sigmoidal curve analysis was performed by PRI. The fibril formation of 50 μM α-Syn in the presence of 50 μM Baicalein, Baicalein-modified α-Syn peptides, EGCG or EGCG-modified α-Syn peptides were analyzed (n = 3).

Click here to enlarge figure

Figure 4. Inhibitory effect of α-Syn36–46-Baicalein (A) and α-Syn36–46-EGCG (B) on the fibril formation of α-Syn. The time course of amyloid fibril formation of α-Syn was determined using the TfT assay. The sigmoidal curve analysis was performed by PRI. The fibril formation of 50 μM α-Syn in the presence of 50 μM Baicalein, Baicalein-modified α-Syn peptides, EGCG or EGCG-modified α-Syn peptides were analyzed (n = 3).
Ijms 14 02590f4 1024
Table 1. Identified peptide sequences.

Click here to display table

Table 1. Identified peptide sequences.
PositionSequence
3–13VFMKGLSKAKE
21–28KTKQGVAE
36–46GVLYVGSKTKE
47–57GVVHGVATVAE
127–131MPSEE
