Int. J. Mol. Sci. 2012, 13(7), 9278-9297; doi:10.3390/ijms13079278

Article
Activation of Propane C-H and C-C Bonds by Gas-Phase Pt Atom: A Theoretical Study
Fang-Ming Li 1, Hua-Qing Yang 1,*, Ting-Yong Ju 1, Xiang-Yuan Li 1 and Chang-Wei Hu 2
1
College of Chemical Engineering, Sichuan University, Chengdu, Sichuan, 610065, China; E-Mails: lifangming123@163.com (F.-M.L.); juty204@yahoo.cn (T.-Y.J.); xyli@scu.edu.cn (X.-Y.L.)
2
Key Laboratory of Green Chemistry and Technology, Ministry of Education, College of Chemistry, Sichuan University, Chengdu 610064, China; E-Mail: changweihu@scu.edu.cn
*
Author to whom correspondence should be addressed; E-Mails: huaqingyang70@yahoo.com.cn or huaqingyang@scu.edu.cn; Tel./Fax: +86-28-85415608.
Received: 7 May 2012; in revised form: 20 June 2012 / Accepted: 16 July 2012 /
Published: 24 July 2012

Abstract

: The reaction mechanism of the gas-phase Pt atom with C3H8 has been systematically investigated on the singlet and triplet potential energy surfaces at CCSD(T)//BPW91/6-311++G(d, p), Lanl2dz level. Pt atom prefers the attack of primary over secondary C-H bonds in propane. For the Pt + C3H8 reaction, the major and minor reaction channels lead to PtC3H6 + H2 and PtCH2 + C2H6, respectively, whereas the possibility to form products PtC2H4 + CH4 is so small that it can be neglected. The minimal energy reaction pathway for the formation of PtC3H6 + H2, involving one spin inversion, prefers to start at the triplet state and afterward proceed along the singlet state. The optimal C-C bond cleavages are assigned to C-H bond activation as the first step, followed by cleavage of a C-C bond. The C-H insertion intermediates are kinetically favored over the C-C insertion intermediates. From C-C to C-H oxidative insertion, the lowering of activation barrier is mainly caused by the more stabilizing transition state interaction ΔEint, which is the actual interaction energy between the deformed reactants in the transition state.
Keywords:
Pt atom; propane; C-H bond; C-C bond; CCSD(T); BPW91

1. Introduction

In recent years, the dehydrogenation of lower alkanes has gained great importance in natural and petroleum gas utilization [1,2]. Propane is a cheap and easily available raw material as it is produced through a number of petrochemical processes, while the propylene market demand is rapidly increasing. Accordingly, the dehydrogenation of propane is an interesting alternative route to propylene production. In the catalytic cracking of alkanes and catalytic dehydrogenation of alkanes, platinum based catalysts have received much attention. Elucidation of the role of isolated platinum units in heterogeneous catalysis can be aided by gas-phase study, which can provide insight into the intrinsic properties and reactivities of discrete and well-characterized catalytic species [3].

In particular, the activation of C-H and C-C bonds of propane by transition metals (neutral, cationic, or clusters) in the gas phase has been an active area of research that provides fundamental information on catalytic reaction mechanisms, kinetics, and thermodynamics [4,5]. Of the first-row transition metal series, for the activation of propane, the early members (Sc+ [6], Ti+ [7], and V+ [8]) exhibit efficiency for the dehydrogenation of propane. Co+ cation favors H2 over CH4 [9,10], whereas Fe+ and Ni+ cations favor CH4 over H2 [9,11]. Cr+ cation does not show any efficiency for the activation of propane [12]. Of the second-row transition metal series, for Nb+ [13], Mo+ [12,14,15], and Rh+ cations [16], the dehydrogenation of propane is efficient and the dominant process at low energies, whereas products resulting from both C-H and C-C cleavage processes are observable at high energies. Rh atoms are also effective for the H2 elimination from ethane and larger alkanes under kinetics technique experiment [17]. For the reaction of Ag+ with propane, the dehydrogenation and formation of AgH+ + R products are not observed, whereas the C-C bond cleavage is the predominant process [18]. Of the actinide ions, for the activation of propane, Th+, Pa+ and U+ cations are efficient for the dehydrogenation of propane. For the other cations (Np+, Pu+, Am+, and Cm+), no reactions are observed experimentally [19]. For Th2+ and U2+, both C-H and C-C cleavage products are effectively observed [20]. Finally, for [(MgO)n]+ clusters, the higher reactivity with propane is not specific to [(MgO)2]+, but has been also observed for (MgO)+ [21,22].

Concerning the 5d-series transition metal Pt (neutral, cationic, or clusters), the reactions with linear alkanes have been extensively explored by means of diverse experimental and theoretical methods [2329]. It is reported that the transition metal Pt (neutral, cationic, or clusters) are the efficient C-H insertion agents [2329]. However, as far as we know, although a few investigations of C-H insertion processes have focused on the neutral Pt atom [2327], the C-C insertion has hardly been investigated in the gas phase.

In the present study, a complete mechanism of neutral Pt atom with propane along with both the C-H and C-C bond activation processes is investigated, which is necessary to enable us to determine the crucial steps and to either block or enhance particular steps to steer the reaction in the desired direction. The goals of the present investigation are as follows: (a) to provide reliable structures and chemically accurate energetics of the reactants, intermediates, transition states (TSs), and products; (b) to elucidate the rate-determining step and the selectivity-controlling step; and (c) to gain a better understanding of the preference of reaction pathway. Particularly, to shed some light on the intrinsic reactivity of platinum atom toward the propane activation, the trends in reactivity and competition among the C-H and C-C bond cleavage mechanisms are analyzed using the activation strain model of chemical reactivity [30,31]. The potential energy profiles on the singlet and triplet states are investigated, because spin crossing is often involved in the transition metal-containing reactions [7,15,20].

2. Computational Details

All calculations were carried out with the Gaussian 03 program [32]. Full geometry optimizations were run to locate all of the stationary points and TSs on the singlet and triplet potential energy surfaces (PESs) for the reactions of Pt atom with C3H8, using the BPW91 [33,34] method with 6-311++G(d, p) basis set for the carbon and hydrogen atoms [35,36], and the Lanl2dz basis set and the corresponding effective core potential (ECP) for platinum [37], namely BPW91/6-311++G(d, p), Lanl2dz. Meantime, the stability of the density function theory (DFT) wavefunction was tested [38,39]. If an instability was found, the wavefunction was reoptimized with appropriate reduction in constraints, and the stability tests and reoptimizations were repeated until a stable wavefunction was found [38,39]. Harmonic frequency calculations were run to characterize stationary points and to take corrections of zero-point energy (ZPE) into account. The intrinsic reaction coordinate (IRC) method was performed to track minimum energy paths from transition structure to the corresponding minima [40,41]. The dominant occupancies of natural bond orbitals for some species have been analyzed with the help of the natural bond orbital (NBO) analysis [42,43]. To further determine electron correction energies, the single-point calculation of various species based on the optimized BPW91/6-311++G(d, p), Lanl2dz geometries were then refined using CCSD(T) [44] method with the same basis sets, namely CCSD(T)//BPW91/6-311++G(d, p), Lanl2dz. Unless otherwise mentioned, all energies are relative to the ground-state reactants [Pt(3D) + C3H8] at the CCSD(T)//BPW91/6-311++G(d, p), Lanl2dz level, including ZPE correction obtained at the BPW91/6-311++G(d, p), Lanl2dz level.

3. Results and Discussion

Considering the present system, the BPW91/6-311G++(d, p), Lanl2dz level is suitable to reproduce experimental values of geometrical parameters of H2, Pt2, and PtH diatomic molecules [45]. Furthermore, the single-point calculation of various species were then refined at the CCSD(T)//BPW91/6-311++G(d, p), Lanl2dz level. Thereupon, the present theoretical method of CCSD(T)//BPW91/6-311++G(d, p), Lanl2dz should be appropriate and reliable for the Pt + C3H8 systems.

In this work, we will mainly discuss the following reactions of Pt atom with C3H8:

Pt + C 3 H 8 PtC 3 H 6 + H 2
Pt + C 3 H 8 PtCH 2 + C 2 H 6
Pt + C 3 H 8 PtC 2 H 4 + CH 4

The above three product channels were divided into five sections: (i) C-H bond activation: dehydrogenation, (ii) C-C bond activation: deethanization, (iii) C-C bond activation: demethanation, (iv) comparison of C-H with C-C bond activation, and (v) activation strain analysis of the direct C-H and C-C bond cleavage.

3.1. C-H Bond Activation: Dehydrogenation

For the dehydrogenation of C3H8 by Pt atom, the reaction pathway and the optimized geometric structures of various species are depicted in Scheme 1.

The triplet state Pt atom, 3D(d9s1), is the ground state. The singlet state Pt atom, 1S(d10), lies 59.4 kJ·mol−1 above the ground triplet state 3D(d9s1), in good agreement with the estimated value of 56.6 kJ·mol−1 [26]. The superscript prefixes “1” and “3” will be used to indicate the singlet and triplet states, respectively. As depicted in Scheme 1, there are two primary (tans-C-H(1) and cis-C-H(1) in the trans and cis position with respect to the CH3 group, respectively) and one secondary (C-H(2)) C-H bonds in propane. Then, with regard to the initial interaction between Pt atom and C3H8, three molecular complexes are considered: (i) Pt atom attacking the H-end of primary tans-C-H(1) (1-PtC3H8), (ii) Pt atom attacking the H-end of secondary C-H(2) approaching to Pt atom (2-PtC3H8), (iii) Pt atom attacking the H-end of primary cis-C-H(1) (3-PtC3H8).

As discussed earlier, Pt atom has a triplet ground state (3D) with excitation energy of 59.4 kJ·mol−1 to the lowest singlet state (1S). Considering the initial interaction of Pt atom with C3H8, only the triplet ground state 31-PtC3H8, 32-PtC3H8, and 33-PtC3H8 molecular complexes are obtained, whereas we failed to locate the corresponding ones on the singlet PES despite extensive attempts. For 31-PtC3H8, 32-PtC3H8, and 33-PtC3H8, the BSSEs [46] by BPW91 are 10.1, 10.5, and 10.3 kJ·mol−1, and the complexation energies corrected by BSSEs are calculated to be 1.6, 15.7, and 3.8 kJ·mol−1 relative to the reactants Pt(3D) + C3H8, respectively. It is shown that the complex stability increases along 31-PtC3H8 < 33-PtC3H8 < 32-PtC3H8. For 31-PtC3H8, 32-PtC3H8, and 33-PtC3H8, the C-H bond close to Pt atom is elongated to 1.147, 1.164 and 1.147 Å from the 1.100, 1.103, and 1.101 Å of free C3H8, while there is a short Pt-H distance of 2.016, 1.955, 2.023 Å, respectively, indicating some molecular interaction between Pt atom and C3H8. The minimal energy reaction pathway (MERP) may start at the triplet molecular complexes (31-PtC3H8, 32-PtC3H8, and 33-PtC3H8) from the corresponding ground triplet reactants.

As shown in Scheme 1, from these molecular complexes (1-PtC3H8, and 2-PtC3H8, 3-PtC3H8), the C-H bond cleavage may lead to the dehydrogenation product PtC3H6 (Pt-propene) + H2 and Pt(CH2)3 (Pt-cyclopropane) + H2. The change of Gibbs free energies (ΔG298) for the reactions of Pt(3D) + C3H81PtC3H6 (Pt-propene) + H2 and 1Pt(CH2)3 (Pt-cyclopropane) + H2 are calculated to be −111.6 and −104.5 kJ·mol−1, respectively. Thereby, the dehydrogenation of C3H8 is thermodynamically favorable.

For the formation of PtC3H6 (Pt-propene) + H2, there are five reaction pathways beginning at the three kinds of molecular complexes (two from 1-PtC3H8, two from 2-PtC3H8, and one from 3-PtC3H8), respectively, as shown in Scheme 1. Alternatively, for the formation of Pt(CH2)3 (Pt-cyclopropane) + H2, there is an unique reaction pathway starting from 3-PtC3H8.

First, from 1-PtC3H8, the initial primary C-H bond oxidative insertion via TS1 or TS2 leads to the σ-complex intermediate 1-HPtC3H7 or cis-1-HPtC3H7, respectively. From 1-HPtC3H7, a 1,2-dehydrogenation process takes place via four-center transition state TS3, resulting in a dihydrogen propene complex (H2)PtC3H6. Finally, the molecular complex (H2)PtC3H6 reductively eliminates H2, leaving PtC3H6 behind. Alternatively, from cis-1-HPtC3H7, a 1,2-dehydrogenation process occurs via five-center transition state TS4 directly, leading to the dissociation products PtC3H6 + H2.

Second, from 2-PtC3H8, the initial secondary C-H bond oxidative insertion via TS5 yields the σ-complex intermediate HPtCH(CH3)2. From HPtCH(CH3)2, there are two reaction pathways for the formation of PtC3H6 + H2. On the one hand, a 1,2-dehydrogenation process takes place via four-center transition state TS6, producing the dihydrogen propene complex (H2)PtC3H6. On the other hand, from HPtCH(CH3)2, a 1,2-dehydrogenation process occurs via five-center transition state TS7, directly resulting in the dissociation products PtC3H6 + H2.

Third, from 3-PtC3H8, the initial primary C-H bond oxidative insertion via TS8 or TS9 generates a σ-complex intermediate 3-HPtC3H7 or cis-3-HPtC3H7, respectively. From 3-HPtC3H7, a 1,3-dehydrogenation process takes place via five-member transition state TS10, generating the dihydrogen metallacycle molecular complex H2Pt(CH2)3. Last, the molecular complex dissociates into Pt(CH2)3 + H2. The structure of metallacycle Pt(CH2)3 is similar to that of Sc(CH2)3+ [6], TiC3H6+ [7], and NiC4H8+ [47]. Alternatively, from cis-3-HPtC3H7, a 1,2-dehydrogenation process occurs via five-center transition state TS11, producing the dihydrogen propene complex (H2)PtC3H6. Finally, (H2)PtC3H6 reductively eliminates H2, leaving PtC3H6 behind.

For the formation of PtC3H6 + H2, from 1-PtC3H8, the MERP should proceed via the minimal energy crossing point (MECP) between 11-HPtC3H7 and 31-HPtC3H7, with the energy height of the highest point (EHHP) of 61.2 kJ·mol−1 at 3TS1. From 2-PtC3H8, the MERP should proceed via MECP between 1HPtCH(CH3)2 and 3HPtCH(CH3)2, with the EHHP of 69.5 kJ·mol−1 at 3TS5. From 3-PtC3H8, the MERP should progress via MECP between 1cis-3-HPtC3H7 and 3cis-3-HPtC3H7, with the EHHP of 162.1 kJ·mol−1 at TS11. Since the EHHP at 3TS1 from 1-PtC3H8 is the lowest among the three reaction channels, this reaction channel for the formation of PtC3H6 + H2 is the most feasible kinetically. Furthermore, these results reveal a high preference of Pt atom for the attack of primary C-H bonds in propane, which is analogous to that of MgO+ cation for the attack of alkanes [21]. This feature represents a notable distinction of the transition-metal atom from various transition-metal oxide cations, which show a clear preference for the attack of secondary C-H bonds [21].

For the formation of Pt(CH2)3 + H2, from 3-PtC3H8, the MERP should advance via MECP between 13-HPtC3H7 and 33-HPtC3H7, with the EHHP of 65.5 kJ·mol−1 at 3TS8.

Moreover, the 11-HPtC3H7, 1cis-1-HPtC3H7, 1HPtCH(CH3)2, 13-HPtC3H7, 1cis-3-HPtC3H7, and 1(H2)PtC3H6 intermediates lie −182.5, −181.6, −192.3, −180.4, −183.3, and −202.9 kJ·mol−1 in a deep energetic well on each MERP, respectively. Then, these intermediates are thermodynamically favored in the dehydrogenation of C3H8. For the intermediates containing –PtH and –Pt-alkyl moieties (11-HPtC3H7, 1cis-1-HPtC3H7, 1HPtCH(CH3)2, 13-HPtC3H7, and 1cis-3-HPtC3H7), the NBO results show that a complete σ-bond has been formed both in Pt-H and in Pt-C.

From Pt + C3H8 to the C-H insertion intermediates (11-HPtC3H7, 1cis-1-HPtC3H7, 1HPtCH(CH3)2, 13-HPtC3H7, and 1cis-3-HPtC3H7), only the triplet molecular complexes and the triplet TSs are obtained, while we failed to gain the corresponding singlet ones, despite extensive attempts. Furthermore, for Pt atom (10 valence electrons), Pt(1S) singlet state, has an empty orbital and five doubly occupied nonbonding orbitals, whereas Pt(3D) triplet state has all of its s and d valence orbitals occupied, with four doubly occupied nonbonding orbitals, and two singly occupied nonbonding orbitals. That is to say, the bonding capacity of Pt(1S) singlet state to C3H8 is stronger than that of Pt(3D) triplet state. Then, the binding of Pt to C3H8 in the C-H insertion intermediates (1-HPtC3H7, cis-1-HPtC3H7, HPtCH(CH3)2, 3-HPtC3H7, and cis-3-HPtC3H7) inverts the energies of the singlet and triplet states from the Pt atom. Therefore, the ground state of the C-H insertion intermediates is the singlet state, as depicted in Scheme 1. The reaction goes forward from the excited state reactants Pt(1S) + C3H8 to the C-H inserted intermediates, without energy barrier. This can be ascribed to the fact that the singlet state Pt(1S) has an empty orbital, which should greatly facilitate the interaction with propane and its bond activation, leading smoothly to the formation of two covalent bonds to H and C3H7. This phenomenon has also appeared in the analogous Pt + CH4 system [26].

3.2. C-C Bond Activation: Deethanization

For the deethanization of C3H8 by Pt atom, the reaction pathway and the optimized geometric structures of various species are depicted in Scheme 2. The change of Gibbs free energies (ΔG298) for the reaction of Pt(3D) + C3H81PtCH2 + C2H6 is calculated to be −45.9 kJ·mol−1. Thereupon, the deethanization of C3H8 is thermodynamically favorable. Then, it is necessary to discuss kinetically the above reaction infra.

As shown in Scheme 2, for the deethanization of C3H8 by Pt atom, there are seven reaction pathways, three from 1-PtC3H8, one from 2-PtC3H8, and three from 3-PtC3H8. These seven reaction pathways are separated into two kinds of reaction pathways, one through the initial C-C bond direct cleavage, and another through the σ-complex assisted C-C σ-bond metathesis. For simplicity, we will primarily discuss the three reaction pathways from 1-PtC3H8 infra, which are analogous to those from 2-PtC3H8 and 3-PtC3H8. The nuances in energy mainly stem from their configuration differences among the three kinds of reaction channels.

As mentioned earlier, from 1-PtC3H8, there are three reaction pathways for the PtCH2 + C2H6 formation. For the first reaction pathway, Pt atom firstly inserts the C-H bond via five-member TS2, resulting in the intermediate cis-1-HPtC3H7. Then, from cis-1-HPtC3H7, a σ-complex assisted C-C σ-bond metathesis takes place via a four-member TS12 with both 1,3-H migration and C-C cleavage, yielding the molecular complex, C2H6PtCH2. Finally, C2H6PtCH2 releases C2H6 molecule, leaving PtCH2 behind. The MERP should proceed via the MECP between 1cis-1-HPtC3H7 and 3cis-1-HPtC3H7, with the highest energy requirement (HER) of 273.2 kJ·mol−1 at the 1cis-1-HPtC3H71TS12 reaction step and the EHHP of 91.6 kJ·mol−1 at 1TS12.

For the second and third reaction pathways from 1-PtC3H8, there are two reaction pathways to produce cis-CH3PtC2H5. That is, Pt atom directly inserts the C-C bond via three-member TS13, leading to the intermediate cis-CH3PtC2H5. Alternatively, Pt atom firstly inserts the C-H bond via the three-member TS1, resulting in the intermediate 1-HPtC3H7. Next, from 1-HPtC3H7, a σ-complex assisted C-C σ-bond metathesis occurs via a four-member TS14 with both 1,2-H shift and C-C bond cleavage, also yielding cis-CH3PtC2H5. Then, from CH3PtC2H5, the σ-complex assisted C-H σ-bond metathesis takes place via a four-member TS15 with 1,3-H shift, yielding the molecular complex C2H6PtCH2. As mentioned earlier, C2H6PtCH2 releases C2H6 molecule, staying PtCH2 behind. For the two reaction pathways, each MERP should advance via the MECP between 1cis-CH3PtC2H5 and 3cis-CH3PtC2H5, with the HER of 299.0 kJ·mol−1 at the 1cis-CH3PtC2H51TS15 reaction step. The two MERPs involve the EHHP of 156.1 and 120.3 kJ·mol−1 at 3TS13 and 1TS15, respectively.

Comparing these three reaction pathways, one can conclude that the reaction pathway via TS2 involving the first C-H cleavage and via TS12 involving C-C cleavage with synchronous 1,3-H migration is the gross MERP for the 1-PtC3H8→PtCH2 + C2H6 reaction, owing to its comparatively low HER (273.2 vs. 299.0 kJ·mol−1) and low EHHP (91.6 vs. 120.3 and 156.1 kJ·mol−1), with the rate-determining step of 1cis-1-HPtC3H71TS12→1C2H6PtCH2.

From 2-PtC3H8 for the formation of PtCH2 + C2H6, only one reaction pathway is obtained, which includes the initial C-C bond cleavage and σ-complex assisted C-H σ-bond metathesis. This reaction pathway is homologous to that via the initial C-C cleavage from 1-PtC3H8 with the HER of 299.0 kJ·mol−1 and the EHHP of 156.1 kJ·mol−1 at 3TS13.

From 3-PtC3H8 for the formation of PtCH2 + C2H6, there are also three reaction pathways. These three reaction pathways are similar to those from 1-PtC3H8. The reaction pathway of σ-complex assisted C-C σ-bond metathesis via 3TS9 and 1TS19 is kinetically most preferable in the three reaction pathways, because of its lowest HER (274.9 vs. 298.7 kJ·mol−1) and lowest EHHP (91.6 vs. 120.3 and 156.1 kJ·mol−1).

In summary, for the formation of the C-C cleavage products PtCH2 + C2H6, the optimal pathway proceeds through the σ-complex cis-1-HPtC3H7 or cis-3-HPtC3H7 from initial C-H bond cleavage, which assists the C-C σ-bond metathesis. This reactivity mode is also complementary for the classical reactivity picture through the direct C-C cleavage intermediate (M = Fe+ [48] and Ta+ [49]).

3.3. C-C Bond Activation: Demethanation

For the demethanation of C3H8 by Pt atom, the reaction pathway and the optimized geometric structures of various species are depicted in Scheme 3. The change of Gibbs free energies (ΔG298) for the reactions of Pt(3D) + C3H8→1PtC2H4 + CH4 are calculated to be −143.6 kJ·mol−1, which is thermodynamically favorable. Afterwards, we will discuss the kinetics of the above reaction infra. As shown in Scheme 3, there are four kinds of reaction pathways, which are through cis-CH3PtC2H5, CH3PtC2H5, HPtCH(CH3)2, and C2H4PtH(CH3) intermediates, respectively.

First, from cis-CH3PtC2H5, a σ-complex assisted C-H σ-bond metathesis takes place via a four-member TS20 with 1,4-H shift, yielding the molecular complex CH4PtC2H4. The molecular complex CH4PtC2H4 releases CH4 molecule, leaving PtC2H4 behind. Through cis-CH3PtC2H5, the MERP should go forward via the MECP between 11-HPtC3H7 and 31-HPtC3H7, with the HER of 319.0 kJ·mol−1 at the 1cis-CH3PtC2H51TS20 reaction step and the EHHP of 140.3 kJ·mol−1 at 1TS20.

Second, from CH3PtC2H5, a σ-complex assisted C-H σ-bond metathesis occurs via a four-member TS27 with 1,3-H shift, yielding a molecular complex CHCH3PtCH4. Then, the molecular complex CH4PtCHCH3 sets a CH4 molecule free, leaving PtCHCH3 behind. Next, from PtCHCH3, 1,2 H shift occurs via a four-member TS22, staying PtC2H4 behind. Through CH3PtC2H5, the MERP should go forward via the MECP between 13-HPtC3H7 and 33-HPtC3H7, with the HER of 225.8 kJ·mol−1 at the 13-HPtC3H71TS17 reaction step and the EHHP of 68.9 kJ·mol−1 at 1TS22.

Third, from HPtCH(CH3)2, a σ-complex assisted C-C σ-bond metathesis occurs via a four-member TS21 with 1,3-H shift, also leading to the molecular complex CHCH3PtCH4. The MERP should go forward via the MECP between 12-HPtC3H7 and 32-HPtC3H7, with the HER of 277.4 kJ·mol−1 at the 1HPtCH(CH3)21TS21 reaction step and the EHHP of 85.1 kJ·mol−1 at 1TS21.

Fourth, from 3-HPtC3H7, an oxidative insertion of C-C bond to the platinum center takes place via a four-member TS23, producing a methyl hydrid complex C2H4PtH(CH3). Then, from C2H4PtH(CH3), 1,2-H shift occurs, yielding the molecular complex CH4PtC2H4. Last, the molecular complex CH4PtC2H4 sets a CH4 molecule free, leaving PtC2H4 behind. The MERP should go forward via the MECP between 13-HPtC3H7 and 33-HPtC3H7, with the HER of 143.1 kJ·mol−1 at the 13-HPtC3H71TS23 reaction step and the EHHP of 65.5 kJ·mol−1 at 3TS8.

Comparing these four kinds of reaction pathways, one can see that the reaction pathway starting at the 3-PtC3H8 involving the crucial intermediate C2H4PtH(CH3) is the most optimal MERP for the Pt + C3H8→PtC2H4 + CH4 reaction, thanks to the lowest HER (143.1 vs. 319.0, 225.8, and 277.4 kJ·mol−1) and lowest EHHP (65.5 vs. 140.3, 85.1, and 68.9 kJ·mol−1), with the rate-determining step of 13-HPtC3H71TS23→C2H4PtH(CH3). Thereby, the optimal pathway proceeds through the σ-complex 3-HPtC3H7 from initial C-H bond cleavage, which assists the C-C σ-bond metathesis. That is to say, the optimal C-C bond cleavages are assigned to C-H bond activation as the first step, followed by cleavage of a C-C bond. This reactivity mode is complementary for the classical reactivity picture through the direct C-C cleavage intermediate (M = Fe+ [48], and Ta+ [49]).

3.4. Comparison of C-H with C-C Bond Activation

As shown in Schemes 13, the C-H insertion intermediates (11-HPtC3H7, 1cis-1-HPtC3H7, 1HPtCH(CH3)2, 13-HPtC3H7, 1cis-3-HPtC3H7) and the C-C insertion intermediates (1CH3PtC2H5, 1cis-CH3PtC2H5, 1C2H4PtH(CH3), and 1CH4PtC2H4) deposit in a deep well, respectively. It is indicated that these intermediates are thermodynamically preferred. For the formation of the C-H and the C-C insertion intermediates, the corresponding MERP should involve the HER of about 60~70 and 140~230 kJ·mol−1, respectively. Thereby, the C-H insertion intermediates are kinetically favored, while the C-C insertion intermediates are kinetically hindered by energy barriers. These results are in qualitative agreement with the experimental results, in which the C-H insertion product is experimentally observed and the C-C insertion product is not formed in observable quantity in Pt + C2H6 system [27].

For the formation of C-C bond cleavage intermediates 1CH3PtC2H5 and 1cis-CH3PtC2H5, one can see that the reaction pathways of the direct C-C activation via 3TS16 and 3TS13 are inferior to those of the σ-complex assisted C-C σ-bond metathesis via 1TS17 and 1TS14 from 3-HPtC3H7 and 1-HPtC3H7, respectively, because of their higher EHHP (156.1 vs. 65.5 and 61.2 kJ·mol−1). This is reminiscent of the important role of σ-complex assistance for the C-C σ-bond metathesis. In other words, the direct C-C bond activation is associated with a sizable barrier, which would prohibit this channel.

A glance to the reaction pathways shown in Schemes 13 reveals that two kinds of σ-complexes (1-HPtC3H7, HPtCH(CH3)2, and 3-HPtC3H7) and (cis-1-HPtC3H7 and cis-3-HPtC3H7) from initial C-H bond cleavage are crucial for the selective formation of the final C-H and C-C cleavage products.

First, from the identical intermediate 1-HPtC3H7, the reaction step of 11-HPtC3H71TS3→1(H2)PtC3H6 is competitive with that of 11-HPtC3H71TS14→1cis-CH3PtC2H5. Because 1TS3 lies 160.9 kJ·mol−1 below 1TS14, (H2)PtC3H6 is selectively preferred, whereas cis-CH3PtC2H5 is selectively hampered. In other words, from 1-HPtC3H7, the dehydrogenation process dominates.

Second, from the identical intermediate cis-1-HPtC3H7, the reaction step of 1cis-1-HPtC3H71TS12→1C2H6PtCH2 is competitive with that of 1cis-1-HPtC3H71TS4→PtC3H6 + H2. Since 1TS12 locates 57.3 kJ·mol−1 below 1TS4, C2H6PtCH2 is selectively favored. That is to say, from cis-1-HPtC3H7, the deethanization process predominates.

Third, from the identical intermediate HPtCH(CH3)2, these reaction steps of HPtCH(CH3)21TS6→(H2)PtC3H6, HPtCH(CH3)21TS7→PtC3H6 + H2, and HPtCH(CH3)21TS21→CH3CHPtCH4 are competitive. As 1TS6 lies 276.5 and 210.7 kJ·mol−1 below 1TS7 and 1TS21, respectively, (H2)PtC3H6 is selectively preferred. Then, from HPtCH(CH3)2, the dehydrogenation process dominates.

Fourth, from the identical intermediate 3-HPtC3H7, these reaction steps of 3-HPtC3H71TS10→(H2)Pt(CH2)3, 3-HPtC3H71TS17→CH3PtC2H5, and 3-HPtC3H71TS23→C2H4PtH(CH3) are competitive. Because 1TS10 locates 117.0 and 34.3 kJ·mol−1 below 1TS17 and 1TS23, respectively, (H2)Pt(CH2)3 is selectively favored, whereas CH3PtC2H5 and C2H4PtH(CH3) are selectively hindered. Thereby, from 3-HPtC3H7, the dehydrogenation process dominates.

Last, from the identical intermediate cis-3-HPtC3H7, these reaction steps of cis-3-HPtC3H71TS11 →PtC3H6 + H2 and cis-3-HPtC3H71TS19→1C2H6PtCH2 are competitive. Because 1TS19 lies 70.5 kJ·mol−1 below 1TS11, 1C2H6PtCH2 is selectively preferred. Therefore, from cis-3-HPtC3H7, the deethanization process predominates.

In summary, once the σ-complex [1-HPtC3H7, or HPtCH(CH3)2, or 3-HPtC3H7] is formed, the major reaction channel results in the dehydrogenations products. Alternatively, as far as the σ-complex [cis-1-HPtC3H7 or cis-3-HPtC3H7] is concerned, the major reaction channel leads to the deethanization products. Besides, the demethanation process is kinetically ruled out.

To estimate quantitatively the reactivity and selectivity for the two kinds of products [PtC3H6 + H2 and PtCH2 + C2H6], the rate constants have been evaluated according to conventional transition state theory (TST) [50], including tunneling correction based on Winger’s formulation [51]. The formation of rate constant k(T) including tunneling correction coefficient κ(T) in transition state theory is given by

k ( T ) = k ( T ) * κ ( T )

The rate constant k′(T) is simply given by

k ( T ) = k B T h c 0 e - Δ G * R T

where kB is the Bolzmann constant, h is the Planck constant, T is thermodynamic temperature, c0 is standard concentration, and ΔG is Gibbs free energy. The tunneling correction coefficient κ(T) is written in the form of

κ ( T ) = 1 + 1 24 | h ν k B T | 2

where kB is the Bolzmann constant, h is the Planck constant, T is thermodynamic temperature, and v is the imaginary frequency of the unbound normal mode at the saddle point. The branching ratio (αi) of product i is calculated by

α i = k i ( T ) Σ k i ( T )

where ki is the rate constant of product i.

From the identical reactants Pt + C3H8, the formation of PtC3H6 + H2 and PtCH2 + C2H6 are competitive, while their selectivity-controlling steps are Pt(3D) + C3H83TS1→31-HPtC3H7 and Pt(3D) + C3H83TS9→3cis-3-HPtC3H7 on their MERPs, respectively. Thereby, the rate constants were taken into account, where Pt(3D) + C3H8 were taken as reactants, while 3TS1 and 3TS9 served as TSs, respectively. The rate constants for the formation of 31-HPtC3H7 (k1) and 3cis-3-HPtC3H7 (k2) calculated over 300–1100 K temperature range can be fitted by the following expressions (in dm3·mol−1·s−1):

k 1 = 6.65 × 10 8 exp ( - 65 , 855 / R T )
k 2 = 2.85 × 10 8 exp ( - 72 , 999 / R T )

The branching ratios for the formation of PtC3H6 + H2 and PtCH2 + C2H6 are calculated to be 97.7~83.6% and 2.3~16.4%, respectively, over 300–1100 K temperature range. In other words, the dehydrogenation channel is predominant, and the deethanization channel is minor, while the demethanation channel is ruled out.

3.5. Activation Strain Analysis of the direct C-H and C-C Bond Cleavage

To gain insight into how the Pt atom affects the activation barriers of the initial C-H and C-C bond cleavage, i.e., insight into how this effect depends on the nature of concomitant geometrical deformation and electronic structures of Pt and C3H8, the trends in reactivity and competition among the initial C-H and C-C bond mechanisms are analyzed using the activation strain model of chemical reactivity [30,31]. In this model, activation energies ΔE of the TS are divided into the activation strain ΔEstrain and the stabilizing TS interaction ΔEint: ΔE = ΔEstrain + ΔEint. The activation strain ΔEstrain is the strain energy associated with deforming the reactants from their equilibrium geometry to the geometry they adopt in the TS. The TS interaction ΔEint is the actual interaction energy between the deformed reactants in the TS [30,31].

The results of the activation strain analysis are listed in Table 1. The activation energy ΔE increases from the initial C–H cleavage TSs (3TS1, 3TS2, 3TS5, 3TS9, and 3TS8) of 60~70 kJ·mol−1 to the initial C–C cleavage TSs (3TS13 and 3TS16) of ~160 kJ·mol−1. The activation strain ΔEstrain decreases from the intial C–H cleavage TSs (3TS1, 3TS2, 3TS5, 3TS9, and 3TS8) of 290~300 kJ·mol−1 to the initial C–C cleavage TSs (3TS13 and 3TS16) of ~200 kJ·mol−1. The activation strain appears to be related to the bond strength of the activated bond and with the percentage-wise extent of bond stretching in the TS. Typical strengths and lengths of the C-H and C-C bonds are the following: 414 (C-H) and 347 kJ·mol−1 (C-C), and ~1.1 (C-H) and ~1.5 Å (C-C) [52]. Moreover, we recall that the percentage-wise extent of bond stretching in the TS for oxidative insertion is 70~80% (C-H) and ~30% (C-C). Hence, both the bond strength and the percentage-wise bond elongation in the TS decreases from C-H to C-C. This correlates nearly with the activation strain ΔEstrain, which decreases in the same order. It is indicated that the activation strain prefers the C-C oxidative insertion over the C-H oxidative insertion. That is to say, the activation strain ΔEstrain makes in the reverse order as the activation energy ΔE, for the C–H and C–C oxidative insertion. Alternatively, the strength of the TS interaction increases from ~−50 kJ·mol−1 (C-C) to −220~−240 kJ·mol−1 (C-H). From C-C to C-H bond activation, the strengthening of the TS interaction varies among 170–190 kJ·mol−1, whereas the activation strain changes only by ~90 kJ·mol−1. Thereby, the lowering activation energy from C-C to C-H bond activation stems mainly from the strengthening of the TS interaction.

Thus, the stabilizing interaction ΔEint prefers C-H oxidative insertion, whereas the activation strain ΔEstrain favors C-C oxidative insertion. From C-C to C-H oxidative insertion, the lowering of activation barrier is mainly caused by the TS interaction ΔEint becoming more stabilizing.

4. Conclusions

The reaction mechanism of the gas-phase Pt atom with C3H8 has been systematically investigated on the singlet and triplet potential energy surfaces. Considering the initial interaction of Pt atom with C3H8, Pt atom prefers the attack of primary over secondary C-H bonds in propane. The major and minor reaction channels lead to the dehydrogenation products PtC3H6 + H2 and the deethanization products PtCH2 + C2H6, respectively, whereas the possibility to form the demethanation products PtC2H4 + CH4 is so small it can be neglected. Over the 300–1100 K temperature range, the branching ratios for the formation of PtC3H6 + H2 and PtCH2 + C2H6 are calculated to be 97.7%~83.6% and 2.3~16.4%, respectively. The MERP for the formation of the main products PtC3H6 + H2, involving one spin inversion, prefers to start at the triplet state and afterward proceed along the singlet state. The optimal C-C bond cleavages are assigned to C-H bond activation as the first step, followed by cleavage of a C-C bond. This reactivity mode is complementary for the classical reactivity picture through the direct C-C cleavage intermediate.

Furthermore, both the C-H insertion intermediates [1-HPtC3H7, cis-1-HPtC3H7, HPtCH(CH3)2, 3-HPtC3H7, cis-3-HPtC3H7] and the C-C insertion intermediates [CH3PtC2H5, cis-CH3PtC2H5, C2H4Pt(H)(CH3), and CH4PtC2H4] are thermodynamically preferred. However, the C-H insertion intermediates are kinetically favored over the C-C insertion intermediates. These results are in qualitative agreement with the experimental results, in which the C-H insertion product is experimentally observed and the C-C insertion product is not formed in observable quantity in Pt + C2H6 system.

Unlike the role of the activation strain ΔEstrain, the stabilizing interaction ΔEint favors the initial C-H oxidative insertion over the initial C-C oxidative insertion. From C-C to C-H oxidative insertion, the lowering of activation barrier is mainly caused by the TS interaction ΔEint becoming more stabilizing.

Acknowledgments

The authors are grateful for financial support by the National Natural Science Foundation of China (No. 20503017, 20976109, and 91016002) and 2009 Special Award of China Chengda Scholarship.

Appendix

Zero-point energies (ZPE) (hartree), total energies (Ec) (hartree) corrected by ZPE, relative energies (Er) (kJ·mol−1) of various species at BPW91/6-311++G(d, p), Lanl2dz and CCSD(T)//BPW91/6-311++G(d, p), Lanl2dz levels with respect to the ground reactants Pt(3D) + C3H8. The standard orientations and vibrational frequencies of various species calculated at the BPW91/6-311++G(d, p), Lanl2dz level in the reactions of Pt + C3H8. The schematic energy diagrams in the activation of C3H8 by Pt atom calculated at the CCSD(T)//BPW91/6-311++G(d, p), Lanl2dz level, in which the relative energies (kJ·mol−1) for the corresponding species relative to Pt(3D) + C3H8 are shown.

References

  1. Nawaz, Z.; Chu, Y.; Yang, W.; Tang, X.P.; Wang, Y.; Wei, F. Study of propane dehydrogenation to propylene in an intergrated fluidized bed reactor using Pt-Sn/Al-SAPO-34 novel catalyst. Ind. Eng. Chem. Res 2010, 49, 4614–4619. [Google Scholar]
  2. Benco, L.; Bucko, T.; Hafner, J. Dehydrogenation of propane over Zn-MOR static and dynamic reaction energy diagram. J. Catal 2011, 277, 104–116. [Google Scholar]
  3. Balcells, D.; Colt, E.; Eisenstein, O. CH bond activation in transition metal species from a computational perspective. Chem. Rev 2010, 110, 749–823. [Google Scholar]
  4. Labinger, J.A.; Bercaw, J.E. Understanding and exploiting C-H bond activation. Nature 2002, 417, 507–514. [Google Scholar]
  5. Roithová, J.; Schröder, D. Selective activation of alkanes by gas-phase metal ions. Chem. Rev 2010, 110, 1170–1211. [Google Scholar]
  6. Zhang, D.J.; Liu, C.; Bi, S.W.; Yuan, S.L. A comprehensive theoretical study on the reactions of Sc+ with CnH2n+2 (n = 1–3): Structure, mechanism, and potential-energy surface. Chem. Eur. J 2003, 9, 484–501. [Google Scholar]
  7. Jerzy, M.; Mark, S.G. A theoretical study of the reaction of Ti+ with propane. Theor. Chem. Acc 2008, 120, 243–261. [Google Scholar]
  8. Sanders, L.; Hanton, S.D.; Weisshaar, J.C. Total reaction cross sections of electronic state-specified transition metal cations: V+ + C2H6, C3H8, and C2H4 at 0.2 eV. J. Chem. Phys 1990, 92, 3498–3518. [Google Scholar]
  9. Yi, S.S.; Emily, L.; Reichert, M.C.; Holthausen, W.K.; James, C.W. Crossed-beam study of Co+ (3F4)+ propane: Experiment and density functional theory. Chem. Eur. J 2000, 6, 2232–2245. [Google Scholar]
  10. Fedorov, D.G.; Gordon, M.S. A Theoretical study of the reaction paths for cobalt cation + propane. J. Phys. Chem. A 2000, 104, 2253–2260. [Google Scholar]
  11. Yi, S.S.; Blomberg, M.R.A.; Siegbahn, P.E.M.; Weisshaar, J.C. Statistical modeling of gas-phase organometallic reactions based on density functional theory: Ni+ + C3H8. J. Phys. Chem. A 1998, 102, 395–411. [Google Scholar]
  12. Schilling, J.B.; Beauchamp, J.L. What is wrong with gas-phase chromium? A comparison of the unreactive chromium(1+) cation with the alkane-activating molybdenum cation. Organometallics 1988, 7, 194–199. [Google Scholar]
  13. Sievers, M.R.; Chen, Y.M.; Haynes, C.L.; Armentrout, P.B. Activation of CH4, C2H6, and C3H8 by gas-phase Nb+ and the thermochemistry of Nb-ligand complexes. Int. J. Mass Spectrom 2000, 195/196, 149–170. [Google Scholar]
  14. Armentrout, P.B. Activation of C2H6 and C3H8 by gas-phase Mo+: Thermochemistry of Mo-ligand complexes. Organometallics 2007, 26, 5473–5485. [Google Scholar]
  15. Armentrout, P.B. Activation of C2H6 and C3H8 by gas-phase Mo+: Potential energy surfaces and reaction mechanisms. Organometallics 2007, 26, 5486–5500. [Google Scholar]
  16. Chen, Y.M.; Armentrout, P.B. Activation of C2H6, C3H8, and c-C3H6 by gas-phase Rh+ and the thermochemistry of Rh-ligand complexes. J. Am. Chem. Soc 1995, 117, 9291–9304. [Google Scholar]
  17. Carroll, J.J.; Haug, K.L.; Weisshaar, J.C. Gas phase reactions of second-row transition metal atoms with small hydrocarbons: Experiment and theory. J. Phys. Chem 1995, 99, 13955–13969. [Google Scholar]
  18. Chen, Y.M.; Armentrout, P.B. Guided ion beam studies of the reactions of Ag+ with C2H6, C3H8, HC(CH3)3, and c-C3H6. J. Phys. Chem 1995, 99, 11424–11431. [Google Scholar]
  19. Gibson, J.K.; Haire, R.G.; Marcalo, J.; Santos, M.; Matos, A.P.D.; Mrozik, M.K.; Pitzer, R.M.; Bursten, B.E. Gas-phase reaction of hydrocarbons with An+ and AnO+ (An = Th, Pa, U, Np, Pu, Am, Cm): The active role of 5f electrons in organoprotactinum chemistry. Organometallics 2007, 26, 3947–3956. [Google Scholar]
  20. Santo, E.D.; Santos, M.; Michelini, M.C.; Marcalo, J.; Russo, N.; Gibson, J.K. Gas-phase reactions of the bare Th2+and U2+ ions with small alkanes, CH4, C2H6, and C3H8: Experimental and theoretical study of elementary organoactinide chemistry. J. Am. Chem. Soc 2011, 133, 1955–1970. [Google Scholar]
  21. Schröder, D.; Roithová, J.; Alikhani, E.; Kwapien, K.; Sauer, J. Preferential activation of primary C-H Bonds in the reactions of small alkanes with the diatomic MgO+ cation. Chem. Eur. J 2010, 16, 4110–4119. [Google Scholar]
  22. Kwapien, K.; Sierka, M.; Döbler, J.; Sauer, J. Reactions of H2, CH4, C2H6, and C3H8 with [(MgO)n]+ clusters studied by density functional theory. Chem. Cat. Chem 2010, 2, 819–826. [Google Scholar]
  23. Trevor, D.J.; Cox, D.M.; Kaldor, A. Methane activation on unsupported platinum clusters. J. Am. Chem. Soc 1990, 112, 3742–3749. [Google Scholar]
  24. Cui, Q.; Musaev, D.G.; Morokuma, K. Molecular orbital study of H2 and CH4 activation on small metal clusters. I. Pt, Pd, Pt2, and Pd2. J. Chem. Phys 1998, 108, 8418–8428. [Google Scholar]
  25. Carroll, J.J.; Weisshaar, J.C. Experimental and theoretical study of the gas phase reactions between small linear alkanes and the platinum and iridium atoms. J. Phys. Chem 1995, 99, 14388–14396. [Google Scholar]
  26. Xiao, L.; Wang, L.C. Methane activation on Pt and Pt4: A density functional theory study. J. Phys. Chem. B 2007, 111, 1657–1663. [Google Scholar]
  27. Cho, H.-G.; Andrews, L. Infrared spectra of platinum insertion and methylidene complexes prepared in oxidative C-H(X) reactions of laser-ablated Pt atoms with methane, ethane, and halomethanes. Organometallics 2009, 28, 1358–1368. [Google Scholar]
  28. Adlhart, C.; Uggerud, E. Mechanisms for the dehydrogenation of alkanes on platinum: Insights gained from the reactivity of gaseous cluster cations, Ptn+ n = 1–21. Chem. Eur. J 2007, 13, 6883–6890. [Google Scholar]
  29. Ye, P.; Ye, Q.; Zhang, G.B.; Cao, Z.X. Potential energy surfaces and mechanisms for activation of ethane by gas-phase Pt+: A density functional study. Chem. Phys. Lett 2011, 501, 554–561. [Google Scholar]
  30. Bickelhaupt, F.M. Understanding Reactivity with Kohn-Sham molecular orbital theory: E2-SN2 mechanistic spectrum and other concepts. J. Comput. Chem 1999, 20, 114–128. [Google Scholar]
  31. Van Zeist, W.J.; Bickelhaupt, F.M. The activation strain model of chemical reactivity. Org. Biomol. Chem 2010, 8, 3118–3127. [Google Scholar]
  32. Frisch, M.J.; Trucks, G.W.; Schlegel, H.B.; Scuseria, G.E.; Robb, M.A.; Cheeseman, J.R.; Montgomery, J.A.; Vreven, T.; Kudin, K.N.; Burant, J.C.; et al. Gaussian 03, Revision B.05; Gaussian Inc: Pittsburgh, PA, USA, 2003. [Google Scholar]
  33. Becke, A.D. Density-functional exchange-energy approximation with correct asymptotic behavior. Phys. Rev. A 1988, 38, 3098–3100. [Google Scholar]
  34. Perdev, J.P.; Chevary, J.A.; Vosko, S.H.; Jackson, K.A.; Pederson, M.P.; Singh, D.J. Atoms, molecules, solids, and surfaces: Applications of the generalized gradient approximation for exchange and correlation. Phys. Rev. B 1992, 46, 6671–6687. [Google Scholar]
  35. Krishnan, R.; Binkley, J.S.; Seeger, R.; Pople, J.A. Self-consistent molecular orbital methods. XX. A basis set for correlated wave functions. J. Chem. Phys 1980, 72, 650–654. [Google Scholar]
  36. McLean, A.D.; Chandler, G.S. Contracted Gaussian basis sets for molecular calculations. I. Second row atoms, Z = 11–18. J. Chem. Phys 1980, 72, 5639–5648. [Google Scholar]
  37. Hay, P.J.; Wadt, W.R. Ab initio effective core potentials for molecular calculations. Potentials for K to Au including the outermost core orbitals. J. Chem. Phys 1985, 82, 299–310. [Google Scholar]
  38. Seeger, R.; Pople, J.A. Self-consistent molecular orbital methods. XVIII. Constraints and stability in Hartree-Fock theory. J. Chem. Phys 1977, 66, 3045–3050. [Google Scholar]
  39. Bauernschmitt, R.; Ahlrichs, R. Stability analysis for solutions of the closed shell Kohn-Sham equation. J. Chem. Phys 1996, 104, 9047–9052. [Google Scholar]
  40. Gonzalez, C.; Schlegel, H.B. An improved algorithm for reaction path following. J. Chem. Phys 1989, 90, 2154–2161. [Google Scholar]
  41. Gonzalez, C.; Schlegel, H.B. Reaction path following in mass-weighted internal coordinates. J. Phys. Chem 1990, 94, 5523–5527. [Google Scholar]
  42. Reed, A.E.; Wenistock, R.B.; Weinhold, F. Natural population analysis. J. Chem. Phys 1985, 83, 735–746. [Google Scholar]
  43. Reed, A.E.; Curtiss, L.A.; Weinhold, F. Intermolecular interactions from a natural bond orbital, donor-acceptor viewpoint. Chem. Rev 1988, 88, 899–926. [Google Scholar]
  44. Pople, J.A.; Head-Gordon, M.; Raghavachari, K. Quadratic configuration interaction. A general technique for determining electron correlation energies. J. Chem. Phys 1987, 87, 5968–5975. [Google Scholar]
  45. Sebetci, A. A density functional study of bare and hydrogenated platinum clusters. Chem. Phys 2006, 331, 9–18. [Google Scholar]
  46. Boys, S.F.; Bernardi, F. The calculation of small molecular interactions by the differences of separate total energies. Some procedures with reduced errors. Mol. Phys 1970, 19, 553–566. [Google Scholar]
  47. Halle, L.F.; Houriet, R.; Kappes, M.M.; Staley, R.H.; Beauchamp, J.L. Nickel ions effect a highly specific 1,4-dehydrogenation of hydrocarbons in the gas phase: Metallacycles are not involved. J. Am. Chem. Soc 1982, 104, 6293–6297. [Google Scholar]
  48. Holthausen, M.C.; Fiedler, A.; Schwarz, H.; Koch, W. How does Fe+ activate C-Cand C-H bonds in ethane? A theoretical investigation using density functional theory. J. Phys. Chem 1996, 100, 6236–6242. [Google Scholar]
  49. Lv, L.L.; Wang, Y.C.; Geng, Z.Y.; Si, Y.B.; Wang, Q.; Liu, H.W. Activation of C2H6 by gas-phase Ta+: Potential energy surfaces, spin-orbit coupling, spin-inversion probabilities, and reaction mechanisms. Organometallics 2009, 28, 6160–6170. [Google Scholar]
  50. Eyring, H. The activated complex in chemical reactions. J. Chem. Phys 1935, 3, 107–115. [Google Scholar]
  51. Wigner, E. Calculation of the rate of elementary association reactions. J. Chem. Phys 1937, 5, 720–725. [Google Scholar]
  52. Diefenbach, A.; de Jong, G.T.; Bickelhaupt, F.M. Activation of H-H, C-H, C-C, and C-Cl bonds by Pd and PdCl. Understanding anion assistance in C-X bond activation. J. Chem. Theory Comput 2005, 1, 286–298. [Google Scholar]
Ijms 13 09278f1a 1024

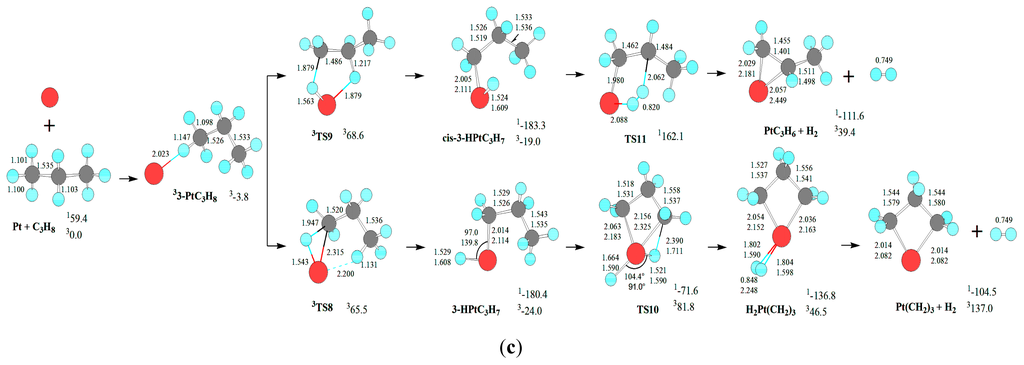

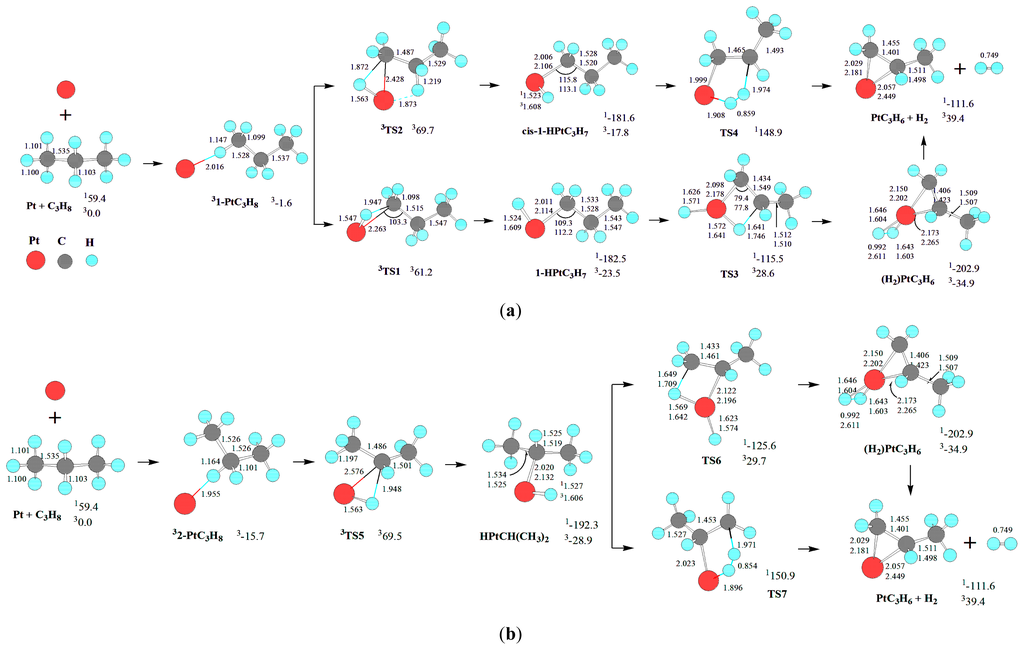

Scheme 1. The reaction pathway and the optimized geometric structures of various species in the dehydrogenation of C3H8 by Pt atom, through (a) 1-PtC3H8; (b) 2-PtC3H8, and (c) 3-PtC3H8. Bond lengths are reported in Å and bonds angles in degree. Relative energies (kJ·mol−1) for the corresponding species relative to Pt(3D) + C3H8 at the CCSD(T)//BPW91/6-311++G(d, p), Lanl2dz level are shown.

Click here to enlarge figure

Scheme 1. The reaction pathway and the optimized geometric structures of various species in the dehydrogenation of C3H8 by Pt atom, through (a) 1-PtC3H8; (b) 2-PtC3H8, and (c) 3-PtC3H8. Bond lengths are reported in Å and bonds angles in degree. Relative energies (kJ·mol−1) for the corresponding species relative to Pt(3D) + C3H8 at the CCSD(T)//BPW91/6-311++G(d, p), Lanl2dz level are shown.
Ijms 13 09278f1a 1024Ijms 13 09278f1b 1024
Ijms 13 09278f2 1024

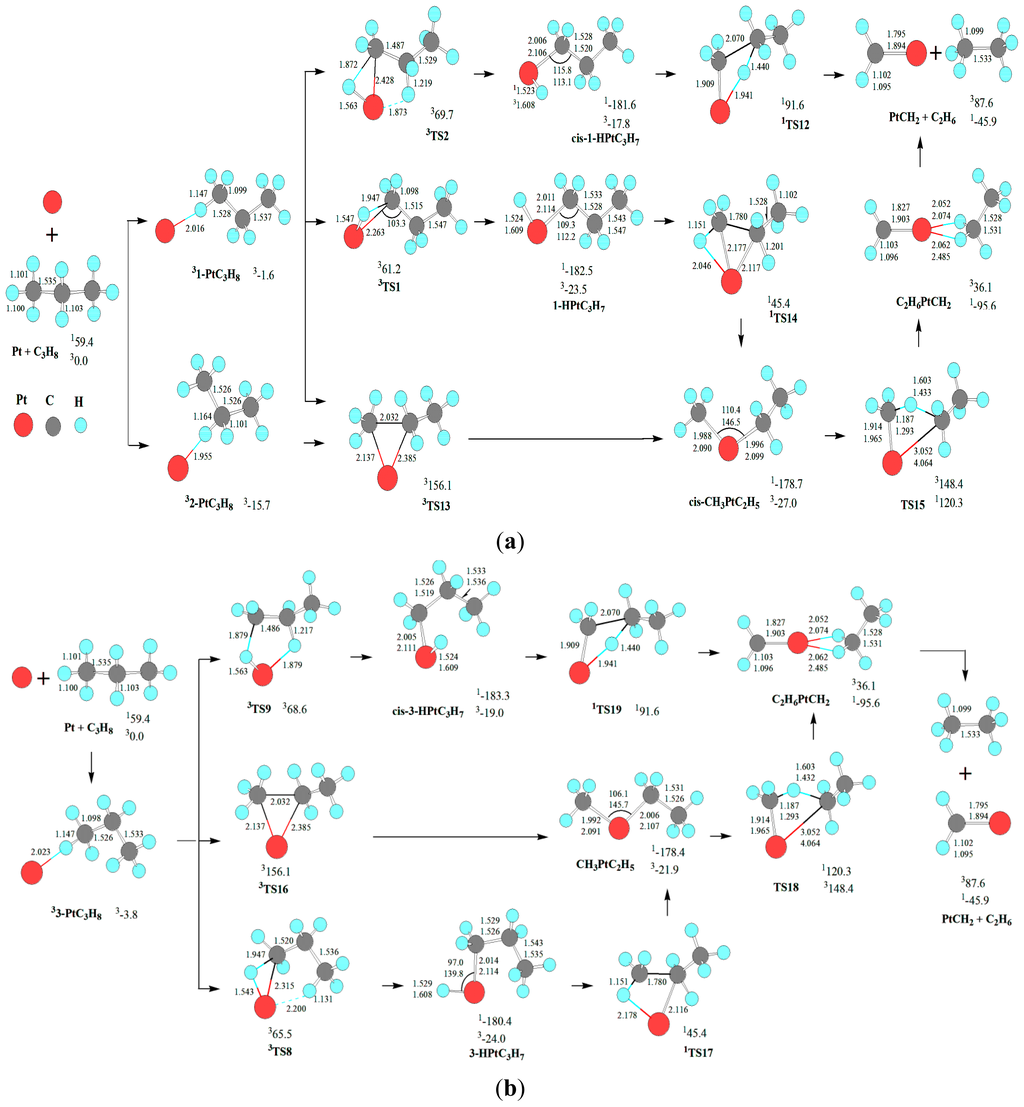

Scheme 2. The reaction pathway and the optimized geometric structures of various species in the deethanization of C3H8 by Pt atom, through (a) 1-PtC3H8 and 2-PtC3H8, and (b) 3-PtC3H8. Bond lengths are reported in Å and bonds angles in degree. Relative energies (kJ·mol−1) for the corresponding species relative to Pt(3D) + C3H8 at the CCSD(T)//BPW91/6-311++G(d, p), Lanl2dz level are shown.

Click here to enlarge figure

Scheme 2. The reaction pathway and the optimized geometric structures of various species in the deethanization of C3H8 by Pt atom, through (a) 1-PtC3H8 and 2-PtC3H8, and (b) 3-PtC3H8. Bond lengths are reported in Å and bonds angles in degree. Relative energies (kJ·mol−1) for the corresponding species relative to Pt(3D) + C3H8 at the CCSD(T)//BPW91/6-311++G(d, p), Lanl2dz level are shown.
Ijms 13 09278f2 1024
Ijms 13 09278f3a 1024

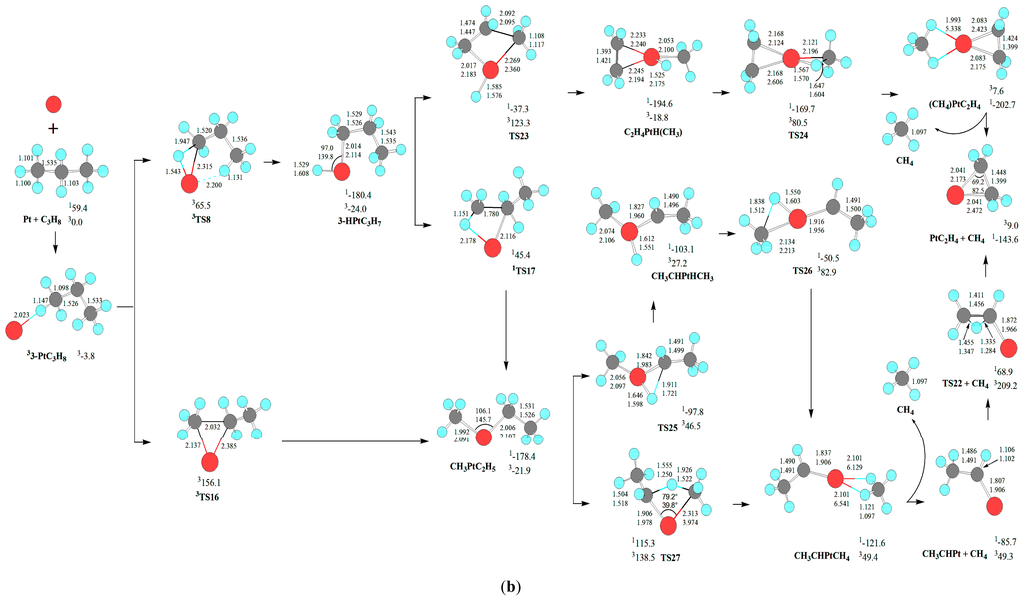

Scheme 3. The reaction pathway and the optimized geometric structures of various species in the demethanation of C3H8 by Pt atom, through (a) 1-PtC3H8 and 2-PtC3H8, and (b) 3-PtC3H8. Bond lengths are reported in Å and bonds angles in degree. Relative energies (kJ·mol−1) for the corresponding species relative to Pt(3D) + C2H6 at the CCSD(T)//BPW91/6-311++G(d, p), Lanl2dz level are shown.

Click here to enlarge figure

Scheme 3. The reaction pathway and the optimized geometric structures of various species in the demethanation of C3H8 by Pt atom, through (a) 1-PtC3H8 and 2-PtC3H8, and (b) 3-PtC3H8. Bond lengths are reported in Å and bonds angles in degree. Relative energies (kJ·mol−1) for the corresponding species relative to Pt(3D) + C2H6 at the CCSD(T)//BPW91/6-311++G(d, p), Lanl2dz level are shown.
Ijms 13 09278f3a 1024Ijms 13 09278f3b 1024
Table Table 1. Geometry (in Å) at the BPW91/6-311++G(d, p), Lanl2dz level and activation strain analysis of transition state (in kJ·mol−1) at the CCSD(T)//BPW91/6-311++G(d, p), Lanl2dz level for the C-H and C-C bond cleavage in C3H8 by Pt atom.

Click here to display table

Table 1. Geometry (in Å) at the BPW91/6-311++G(d, p), Lanl2dz level and activation strain analysis of transition state (in kJ·mol−1) at the CCSD(T)//BPW91/6-311++G(d, p), Lanl2dz level for the C-H and C-C bond cleavage in C3H8 by Pt atom.
Activated bondTSLength in C3H8Length in TSStretching in TSStretching in TS (in %)ΔEstrainΔEintΔE
C-H3TS11.1001.9470.84777.0301.2−240.061.2
C-H3TS21.1001.8720.77270.2289.6−219.969.7
C-H3TS51.1031.9480.84576.6293.3−223.869.5
C-H3TS81.1011.8790.77870.7303.8−238.365.5
C-H3TS91.1011.9480.84776.9290.1−221.568.6
C-C3TS131.5352.0320.49732.4207.5−51.4156.1
C-C3TS161.5352.0320.49732.4207.5−51.4156.1
