A Novel Preparation Method for 5-Aminosalicylic Acid Loaded Eudragit S100 Nanoparticles
Daode Hu 1,2,*,, Liang Liu 1,, Wenjuan Chen 1, Sining Li 2 and Yaping Zhao 2,*
1
Department of Clinical Pharmacology, Shanghai First People’s Hospital, Medical College, Shanghai Jiao Tong University, Shanghai 200080, China; E-Mails: callenliu@yahoo.cn (L.L.); chenwenjuan1986@126.com (W.C.)
2
College of Chemistry and Chemical Engineering, Shanghai Jiao Tong University, Shanghai 200240, China; E-Mail: l5011129012@hotmail.com
*
Authors to whom correspondence should be addressed; E-Mails: shanghaiyao@sina.com (D.H.); ypzhao@sjtu.edu.cn (Y.Z.); Tel.: +86-021-63240090 (D.H.); Fax: +86-021-63240417 (D.H.).
These authors contributed equally to this work.
Received: 13 February 2012; in revised form: 22 April 2012 / Accepted: 22 May 2012 /
Published: 24 May 2012

Abstract

: In this study, solution enhanced dispersion by supercritical fluids (SEDS) technique was applied for the preparation of 5-aminosalicylic acid (5-ASA) loaded Eudragit S100 (EU S100) nanoparticles. The effects of various process variables including pressure, temperature, 5-ASA concentration and solution flow rate on morphology, particle size, 5-ASA loading and entrapment efficiency of nanoparticles were investigated. Under the appropriate conditions, drug-loaded nanoparticles exhibited a spherical shape and small particle size with narrow particle size distribution. In addition, the nanoparticles prepared were characterized by X-ray diffraction, Differential scanning calorimetry and Fourier transform infrared spectroscopy analyses. The results showed that 5-ASA was imbedded into EU S100 in an amorphous state after SEDS processing and the SEDS process did not induce degradation of 5-ASA.
Keywords:
supercritical antisolvent; solution enhanced dispersion by supercritical fluids; Eudragit S100; 5-ASA; nanoparticles; colon-specific

1. Introduction

Colon-specific drug delivery system can be applied in many therapeutic areas, especially in the treatment of inflammatory bowel disease (IBD) [14], which is characterized by recurrent, idiopathic inflammatory disorders involving the mucosa and submucosa of the colon. 5-aminosalicylic acid (5-ASA), a typical anti-inflammatory drug, has been used for over 30 years in the treatment of IBD. After the oral administration of free 5-ASA, it is readily absorbed in the upper part of the gastrointestinal tract and then extensively metabolized to N-acetyl-5-ASA which is inactive in treating IBD [5,6]. The clinical efficacy of 5-ASA depends on sufficient therapeutical concentration of the drug at the site of the colon mucosa. Therefore, it is preferable for treatment of IBD to deliver the 5-ASA specifically to the colon.

Although many efforts have been made for a higher specificity of entrapped active compounds release by designing new drug delivery devices for the treatment of IBD [7,8], all marketed delivery systems still appear to be insufficiently selective [9]. This is mainly due to the fact that the drug release mechanisms are based on physiological parameters such as pH, bacterial and time which are not related to the inflammation and barely to its location [6,9,10]. Nanoparticles have shown their specific accumulation in the inflamed tissues in the colon. The accumulation phenomenon of nanoparticles is observed to be particle size dependent with an increased adhesiveness for smaller particle diameters [11], which may therefore allow a selective delivery to the site of inflammation for the treatment of IBD. Indeed, nanoparticles showed promising results and demonstrated their therapeutic potential [6,10,1215].

Recently, the application of supercritical antisolvent (SAS) technique in the field of particle formation, encapsulation and impregnation has received increasing attention, and is anticipated to become a very attractive alternative to many conventional processes [1619]. Compared with most traditional processes, such as milling, spray-drying, recrystallization using solvent evaporation and liquid antisolvents, the SAS technique has major advantages because of its lower residual solvents, simpler steps and mild operation temperatures. Besides, encapsulation by means of supercritical fluid is of great advantage because of its ability to produce uniform particle size and controlled morphology [16]. Solution enhanced dispersion by supercritical fluids (SEDS) is one of the SAS processes, which was developed to achieve small droplet size and intense mixing of supercritical fluids with solution for increasing mass transfer rate at the interface via coaxial nozzle [20].

The objective of this study was to prepare the 5-ASA loaded colon-specific nanoparticles using pH-sensitive polymer Eudragit S100 (EU S100) via SEDS technique and to study the effects of various process parameters on the morphology, particle size, 5-ASA loading and entrapment efficiency of nanoparticles. EU S100 is an anionic copolymer based on methacrylic acid and methyl methacrylate (1:2 ratio). It is insoluble in acids and pure water, whereas soluble in aqueous solution at pH 7 or higher. When used to entrap 5-ASA, it is expected to protect 5-ASA from degradation and allow it to be released in the region of colon. Moreover, the nanoparticles obtained were characterized by Scanning electron microscopy (SEM), Laser particle size analyzer, High efficiency liquid chromatography (HPLC), X-ray diffraction (XRD), Differential scanning calorimetry (DSC) and Fourier transform infrared (FTIR) spectroscopy.

2. Results and Discussion

2.1. Effect of Process Parameters

In all trials, the mixed organic solvents of acetone and DMSO (7:3, v/v) were used as dissolvent of 5-ASA and EU S100. Commonly, a critical factor in the SEDS process is the selection of appropriate organic solvent for nanoparticle preparation. 5-ASA, a hydrophilic compound, is mostly insoluble in most of organic solvents. Supercritical fluid miscible organic solvents such as dimethyl sulfoxide (DMSO) are suitable for dissolving these hydrophilic compounds [16]. The choice of acetone is rational as it served as the solvent for EU S100, and has always been used for nanoparticle preparation via SAS process [2123]. The determination of the ratio between DMSO and acetone was based on the following principles: at first, the organic solvent with high volatility which can induce high volume of expansion and can easily be removed from the system should be selected; the solubility of the polymer in the organic solvent should be higher than that of the drug in the solvent, which favors first precipitates of the drug, then drug is coated by the polymer, and finally drug encapsulation by the polymer occurs [16]. Both principles favors for a large proportion of acetone to DMSO. Therefore, the mixed solvents of acetone and DMSO (7:3, v/v) were used as the organic solution in SEDS process through the preliminary experiments (data not shown).

The experimental conditions and part results were summarized in Table 1, from which it can be seen that the process parameters had impact on the morphology, mean particle size, 5-ASA loading and entrapment efficiency.

2.1.1. Pressure Effect

To evaluate the effect of pressure on the characteristics of the nanoparticles, experiments were carried out changing the pressure from 8 MPa to 15 MPa. The effect of pressure on morphology and mean particle size of nanoparticles was illustrated in Figure 1A–D and Table 1, respectively. One pattern of the particle size distribution was shown in Figure 2. It was noticed that at pressure of 10 MPa, 12 MPa and 15 MPa, the morphology of nanoparticles exhibited spherical shape with smooth surface, while at the pressure of 8 MPa, the morphology became irregular. Nanoparticles could be produced when the pressure was well above the mixture critical point (MCP). In the CO2-DMSO-acetone system, the MCP of this system is above 8 MPa as described previously [24]. The experimental condition of 8 MPa was located in the two-phase region, which might be a reason that the nanoparticles could not be formed. However, the experimental conditions of 10 MPa, 12 MPa and 15 Mpa were located in the supercritical region and were far above the MCP pressure, so the nanoparticles with spherical shape could be formed. Additionally, the particle size was decreased with a pressure increase from 10 MPa to 15 MPa. This could be explained in terms of the volumetric expansion of the liquid phase [25]. With increasing the pressure at a fixed temperature, the solubility of mixed solvent in the CO2 will increase [24]. More CO2 will diffuse into the mixed solvent, thus causing higher supersaturation ratio of the expanded liquid solution, which subsequently resulted in the formation of smaller particles. From Table 1, it could be found that the higher pressure favored lower 5-ASA loading and higher entrapment efficiency. The solubility of 5-ASA in mixed solvents of supercritical CO2 (scCO2) + acetone + DMSO was increased as the solvent power of the scCO2 was raised with increasing pressure at a fixed temperature [26]. Then, less 5-ASA precipitated, causing lower 5-ASA loading. And more 5-ASA on the surface of samples might be dissolved in the scCO2 and be taken away, then resulting in higher entrapment efficiency.

2.1.2. Temperature Effect

As shown in Figures 1C and 3A and Table 1, the morphology of nanoparticles changed from the spherical shape with smooth surface at 35 °C to irregular surface at 40 °C, despite the fact that the mean particle size of nanoparticles increased a little. Moreover, when the temperature increased to 45 °C, the aggregation was serious, as shown in Figure 3B. This might be due to more polymer plasticization effect of CO2 [27]. Bleich et al. [28] reported that the particles produced at higher temperatures lead to compact agglomerates by bridging. 5-ASA loading was found decreased with increasing temperature. From the point view of thermodynamics, in the SAS process, if the solvent could not be completely miscible with the scCO2, two fluid phases would be formed and the solute would still be dissolved or partly dissolved in the liquid-rich phase [29]. It might be easier for scCO2 and the organic solvents to form one phase at the lower temperature of 35 °C and 40 °C. In that case, the higher solvent power of scCO2 would extensively decrease solubility of 5-ASA in the mixed solvents, leading to more 5-ASA precipitated. The entrapment efficiency was found decreased with higher temperature, which might due to more 5-ASA would still be attached on the surface of the nanoparticles as the solubility of 5-ASA was decreased in scCO2.

2.1.3. Effect of 5-ASA Concentration

From the Figures 1C and 4A, B and Table 1, it could be concluded that the lower concentration of 5-ASA was beneficial for spherical shape and smaller particle size of nanoparticles. This phenomenon has been explained in terms of nucleation and growth processes [30,31]. In the case of lower concentration, saturation and then precipitation of the drug occur very late during the droplet expansion process. Therefore, nucleation is the prevailing mechanism, producing smaller particles. 5-ASA loading increased because of sufficient quantities of 5-ASA precipitated with increasing the concentration of 5-ASA. Entrapment efficiency decreased with the higher concentration of 5-ASA, which might be attributed to, at a higher concentration of the drug, the amount of polymer not being sufficient to effectively encapsulate the drug [32,33].

2.1.4. Effect of Solution Flow Rate

As shown in Figures 1C and 5A, B, when the solution flow rate increased from 0.5 mL/min to 1.5 mL/min, the morphology of the nanoparticles became aggregated, particularity at the flow rate of 1.5 mL/min. It was also known from the Table 1 that the mean particle size of nanoparticles increased with an increase of solution flow rate, and the solution flow rate significantly affected the drug loading and entrapment efficiency. These facts might be related to hydrodynamics aspects. With an increase of the solution flow rate, the kinetic energy per unit mass of liquid gaining from scCO2 is decreased, which decreases the interaction of antisolvent and solution, hence leading to the change of the morphology, size of particles, 5-ASA loading and entrapment efficiency [25,34].

2.2. Physicochemical Properties of Nanoparticles

2.2.1. XRD Analysis

The XRD analysis was performed to investigate the crystalline structure change of nanoparticles after SEDS process. The XRD patterns of 5-ASA, EU S100, physical mixture of 5-ASA and EU S100, and 5-ASA/EU S100 nanoparticles were shown in Figure 6. The physical mixture was prepared by mixing 5-ASA and EU S100 directly, in which the content of 5-ASA was the same as that of nanoparticles (7.2%, w/w). As shown in Figure 6, the diffraction angels of 2θ = 7.54°, 15.12°, 16.5°, 30.52 °C can be regarded as the feature crystalline peaks of 5-ASA. It could be seen that the pattern of the physical mixture was simply a superimposition of the patterns of the two raw materials, while the pattern of nanoparticles was significantly different from that of the physical mixture, i.e., only one diffraction peak of 5-ASA at 7.54° was present, which implies a reduction in crystallinity of the treated 5-ASA as a result of SEDS processing. Reverchon et al. [35] suggested that the very fast precipitation process in supercritical conditions does not allow the organization of the compound in a regular crystalline form. This is also consistent with the results reported by Zu et al. [18].

2.2.2. DSC Analysis

The DSC technique is one of the most convenient methods for investigating the compatibility of polymer blends, therefore it was used to investigate thermodynamic compatibility between 5-ASA and EU S100 in their nanoparticles based on crystalline melting temperature and the glass transition temperature. Figure 7 depicted the DSC thermograms of above samples. In the Eu S100, a glass transition temperature region and an exothermic peak located at 243.8 °C were observed. The raw 5-ASA showed a sharp endothermic peak at 277.5 °C that corresponded to its melting point, indicating its crystalline nature. A physical mixture of the drug with polymer resulted in the disappearance of such a fusion peak, replaced by broad endothermic signals exhibiting a reduced melting endotherm in the range of 250 °C to 280 °C. The presence of endothermic signals in the physical mixture confirmed that 5-ASA crystals still exist in physical mixture [36,37]. This type of interaction was previously observed in the physical mixture of piroxicam with Eu S100 and diflunisal with Eudragit RL 100 [37,38]. However, for nanoparticles, the intensity of melting peak of 5-ASA disappeared completely. The disappearance of the drug endothermic peak in the nanoparticles suggested that 5-ASA might be imbedded into EU S100 and existed in an amorphous state in the nanoparticles, indicating a thermodynamic compatibility between 5-ASA and EU S100 [26].

2.2.3. FTIR Spectroscopy Analysis

The FTIR spectroscopy analysis was used to obtain information on the change of chemical structure after SEDS processing, and the FTIR spectra of above samples were shown in Figure 8. Some characteristic functional group and wavenumber were summarized in Table 2. In the FTIR spectra of EU S100, the C=O vibration band of the carboxylic groups presented as a shoulder at 1705 cm−1; whereas the peak at 1730 cm−1 was attributed to the esterified carboxyl groups [38]. The characteristic peaks of 5-ASA spectra had been already described by Mladenovska et al. [39], and they corresponded to: 3445 cm−1 (mutual overlapping of νNH and νOH stretching), 1650 cm−1 (C=O stretch), 1620 cm−1 (NH blend), 1356 cm−1 (C–N stretch), 2000–3000 cm−1 (stretching vibrations of the hydrogen bonds). The FTIR spectra of physical mixture and nanoparticles were similar to the EU S100 spectra, except for the 5-ASA peak of C–N located at 1356 cm−1 and C=O located at 1650 cm−1. The reason might be that the amount of 5-ASA in both physical mixture and nanoparticles was relatively low, resulting in the most characteristic peaks of 5-ASA occurred covered by broad peak from EU S100 in this region. The FTIR spectra between physical mixture and nanoparticles didn’t show any significant differences, indicating the molecular structure of processed nanoparticles has no change, as confirmed by HPLC analysis (data not shown).

3. Experimental Section

3.1. Materials

5-ASA (98% purity) was purchased from Shanghai Chemical Reagent Plant (Shanghai, China). EU S100 polymer was kindly donated from Evonik Pharma Polymers (Darmstadt, Germany). CO2 (99.95% purity) was obtained from SJTU Chemical Store (Shanghai, China). Acetone (≥99.5% purity), Dimethyl sulfoxide (DMSO, 98.5% purity) were purchased from Shanghai Lingfeng Chemical Reagent Co., Ltd. (Shanghai, China). All solutions used in HPLC analysis were of HPLC grade and filtered using a 0.22 μm membrane filter with a filtration system (SHB-III, China).

3.2. Experimental Apparatus and Procedure

The experimental apparatus was purchased from Nantong Huaxing Petroleum Devices Co. Ltd. (Jiangsu, China). The technical details of the SEDS process in this study had already been described in our previous work [25,28]. Briefly, scCO2 and organic solution were separately pumped into a high-pressure vessel (200 mL) through different inlets of a coaxial nozzle. The coaxial nozzle was located on the top of the high-pressure vessel, with an inner tubule (diameter is 0.2 mm) and an outer tubule (diameter is 1 mm). A rapid mutual mixing diffusion at the outlet interface of scCO2 and the organic solution occurred instantaneously. Meanwhile, solutes dissolved originally in organic solvent reached its supersaturation in very short time, resulting in the formation of solid nanoparticles in the vessel. Once feeding the solution finished, the scCO2 was continuously pumped for about 45 min in order to remove the residual organic solvent of the samples. Finally, the vessel was slowly depressurized to the atmospheric pressure and the samples were collected for further characterization.

3.3. Preparation Conditions of 5-ASA/EU S100 Nanoparticles

The experimental conditions were designed as shown in Table 1. In all trials, the mixed organic solvents of acetone and DMSO (7:3, v/v) were used for dissolving 5-ASA and EU S100, in which the EU S100 concentration was fixed at 4.0 mg/mL, the flow rate of scCO2 was maintained at 3 kg/h. The process parameters studied were varied in the range as presented in Table 1 to determine their effects on characteristics of nanoparticles precipitated. In our study, only one process parameter was varied according to the range specified while other operating conditions were kept unchanged.

3.4. Nanoparticle Characterization

3.4.1. SEM Analysis

The surface morphology of the processed samples was observed by SEM (JEOL, JSM-7401F, Japan). In the analysis, the samples were firstly attached to a small piece of electro-conductive paste silicon chip, then sputter-coated with Au using an LDM-1500 vacuum sputter coater (Shanghai Electron Optical Tech, Academe PR China).

3.4.2. Particle Size and Particle Size Distribution Analysis

The particle size and particle size distribution were analyzed by a laser particle size analyzer (ZS90, Malvern, UK). Before measurement, a small amount of nanoparticles were suspended in distilled water, the suspension was then dispersed by ultrasonic waves with power 120 W for 1 min. Particle size and particle size distribution were then assayed by the analytic software. The measurement was performed in triplicate. PSD is expressed by span, which can be calculated according to the following Equation:

Span = d 0.9 - d 0.1 d 0.5

where d0.1, d0.5, and d0.9 are the volumes occupied by particles 10% undersize diameter, mean size diameter, and 90% undersize diameter, respectively.

3.4.3. 5-ASA Loading and Entrapment Efficiency Measurement

The content of 5-ASA was measured by HPLC (Agilent 1100 Series HPLC system, Agilent Technologies Shanghai, China). Agilent Eclipse XDB-C18 4.6 mm × 250 mm × 5 μm column was used and an ultraviolet detector was set at 240 nm. The mobile phase consisted of mobile phase A (dissolving and diluting tetrabutylammonium hydrogen sulfate 3.4 g, sodium acetate 1.4 g to 1000 mL with purified water, then adjusting with 1 M sodium hydroxide to a pH of 6.6) and mobile phase B (acetonitrile) (77:23 v/v). The volumetric flow was 1.0 mL/min and the temperature of column was maintained at 25 °C.

The 5-ASA loading was defined as the content of 5-ASA in the nanoparticles. The measurement method was as follows: a known quantity of nanoparticles was weighed, and then dissolved in 0.1 M phosphate-buffered saline (PBS, pH 7.4), in which the amount of 5-ASA was determined as described above in triplicate. Entrapment efficiency was defined as the amount of 5-ASA entrapped inside the nanoparticles and measured as follows: a certain amount of the nanoparticles was firstly dispersed in 3 mL HCL (0.1 M, pH 1.2) and vortexed for 1 min, and then centrifuged at 13,000× g for 3 min. The supernatant was collected and the precipitate was redispersed with 3 mL HCL. The same step was repeated three times to make sure that the 5-ASA attached on the surface was all collected. The amount of 5-ASA in the total collected solution was determined as given above in triplicate. The equations of the 5-ASA loading and entrapment efficiency were calculated by Equations 2 and 3, respectively.

5 - ASA loading  ( % ) = Total amount of  5 - ASA in nanoparticles Total amount of nanoparticles × 100
Entrapment efficiency  ( % ) = Total amount of  5 - ASA in nanoparticles - Amount of  5 - ASA on the surface of nanoparticles Total amount of  5 - ASA in nanoparticles × 100

3.4.4. XRD Analysis

The crystalline characters of 5-ASA, EU S100, physical mixture of 5-ASA and EU S100, and 5-ASA/EU S100 nanoparticles were analyzed by XRD (D/max-2200/PC, Japan Rigaku Corporation, Japan) with a rotating Cu anode. The Cu Ka radiation was generated at 20 mA and 40 kV and monochromatized by a nickel filter. Diffraction patterns recorded the X-ray intensity as a function of 2θ angle covering from 2.0° to 50.0°. The scanning rate was 6°/min.

3.4.5. DSC Analysis

DSC (Pyris 1, Perkin Elmer, Inc., USA) was used to investigate the thermal behaviors of the samples above. 5-mg samples were placed in aluminum pans and sealed. The probes were heated from 40 °C to 300 °C at a rate of 10 °C/min under nitrogen atmosphere.

3.4.6. FTIR Spectroscopy Analysis

FTIR (Spectrum 100, Perkin Elmer, Inc., USA) spectroscopy analysis was used to obtain information on the change of chemical structure of samples above. The sample powder was dispersed in KBr powder and this mixture was pressed into a pellet for scanning in the infrared range of 500–4000 cm−1.

4. Conclusions

In the present work, a process for preparation of 5-ASA loaded Eu S100 nanoparticles by SEDS technique has been developed. The influences of various process parameters on morphology, particle size, 5-ASA loading and entrapment efficiency were systematically investigated. The morphology and particle size of the nanoparticles could be adjusted by modifying various process parameters, such as pressure, temperature, 5-ASA concentration and solution flow rate. With the appropriate parameters, nanoparticles with spherical shape and smaller particle size could be obtained. The lower temperature, 5-ASA concentration and solution flow rate coupled with higher pressure favored smaller and more regular spherical nanoparticles. The 5-ASA loading and entrapment efficiency were also dependent on different process parameters and it was found that the solution flow rate significantly affect the drug loading and entrapment efficiency. The XRD and DSC analyses revealed that 5-ASA was imbedded into EU S100 and existed in an amorphous state in the nanoparticles. FTIR analysis showed that the SEDS process did not induce degradation of 5-ASA. These results collectively indicate that the SEDS technique is a simple and effective process for preparing nanoparticles.

Acknowledgments

The authors are grateful for the precious comments and careful corrections made by anonymous reviewers. This work has been supported by the Shanghai Committee of Science and Technology Nanotechnology (1052 nm 04000) and Shanghai Jiaotong University Med-X Fund (090YG016).

  • Conflict of InterestThe authors declare that there are no conflicts of interest.

References

  1. Chourasia, M.K.; Jain, S.K. Pharmaceutical approaches to colon targeted drug delivery systems. J. Pharm. Pharm. Sci 2003, 6, 33–66.
  2. Kumar, P.; Mishra, B. Colon targeted drug delivery systems-an overview. Curr. Drug Deliv 2008, 5, 186–198.
  3. Pinto, J.F. Site-specific drug delivery systems within the gastro-intestinal tract: From the mouth to the colon. Int. J. Pharm 2010, 16, 44–52.
  4. Shah, N.; Shah, T.; Amin, A. Polysaccharides: A targeting strategy for colonic drug delivery. Expert Opin. Drug Deliv 2011, 8, 779–796.
  5. Williams, C.; Panaccione, R.; Ghosh, S.; Rioux, K. Optimizing clinical use of mesalazine (5-aminosalicylic acid) in inflammatory bowel disease. Ther. Adv. Gastroenterol 2011, 4, 237–248.
  6. Pertuit, D.; Moulari, B.; Betz, T.; Nadaradjane, A.; Neumann, D.; Ismaïli, L.; Refouvelet, B.; Pellequer, Y.; Lamprecht, A. 5-amino salicylic acid bound nanoparticles for the therapy of inflammatory bowel disease. J. Control. Release 2007, 123, 211–218.
  7. Lamprecht, A.; Stallmach, A.; Kawashima, Y.; Lehr, C.M. Carrier systems for the treatment of inflammatory bowel disease. Drugs Future 2002, 27, 961–971.
  8. Friend, D.R. New oral delivery systems for treatment of inflammatory bowel disease. Adv. Drug Deliv. Rev 2005, 57, 247–265.
  9. Lamprecht, A. Multiparticulate systems in the treatment of inflammatory bowel disease. Curr. Drug Targets Inflamm. Allergy 2003, 2, 137–144.
  10. Lamprecht, A.; Yamamoto, H.; Takeuchi, H.; Kawashima, Y. Nanoparticles enhance therapeutic efficiency by selectively increased local drug dose in experimental colitis in rats. J. Pharmacol. Exp. Ther 2005, 315, 196–202.
  11. Lamprecht, A.; Schäfer, U.; Lehr, C.M. Size-dependent bioadhesion of micro-and nanoparticulate carriers to the inflamed colonic mucosa. Pharm. Res 2001, 18, 788–793.
  12. Lamprecht, A.; Ubrich, N.; Yamamoto, H.; Schäfer, U.; Takeuchi, H.; Maincent, P.; Kawashima, Y.; Lehr, C.M. Biodegradable nanoparticles for targeted drug delivery in treatment of inflammatory bowel disease. J. Pharmacol. Exp. Ther 2001, 299, 775–781.
  13. Moulari, B.; Pertuit, D.; Pellequer, Y.; Lamprecht, A. The targeting of surface modified silica nanoparticles to inflamed tissue in experimental colitis. Biomaterials 2008, 29, 4554–4560.
  14. Kshirsagar, S.J.; Bhalekar, M.R.; Patel, J.N.; Mohapatra, S.K.; Shewale, N.S. Preparation and characterization of nanocapsules for colon-targeted drug delivery system. Pharm. Dev. Technol 2011, doi:10.3109/10837450.2011.557732.
  15. Nakase, H.; Okazaki, K.; Tabata, Y.; Uose, S.; Ohana, M.; Uchida, K.; Matsushima, Y.; Kawanami, C.; Oshima, C.; Ikada, Y.; Chiba, T. Development of an oral drug delivery system targeting immune-regulating cells in experimental inflammatory bowel disease: A new therapeutic strategy. J. Pharmacol. Exp. Ther 2000, 292, 15–21.
  16. Kalani, M.; Yunus, R. Application of supercritical antisolvent method in drug encapsulation: A review. Int. J. Nanomedicine 2011, 6, 1429–1442.
  17. Mishima, K. Biodegradable particle formation for drug and gene delivery using supercritical fluid and dense gas. Adv. Drug Deliv. Rev 2008, 60, 411–432.
  18. Zu, Y.; Wang, D.; Zhao, X.; Jiang, R.; Zhang, Q.; Zhao, D.; Li, Y.; Zu, B.; Sun, Z. A novel preparation method for camptothecin (CPT) loaded folic acid conjugated dextran tumor-targeted nanoparticles. Int. J. Mol. Sci 2011, 12, 4237–4249.
  19. Zhao, X.; Zu, Y.; Jiang, R.; Wang, Y.; Li, Y.; Li, Q.; Zhao, D.; Zu, B.; Zhang, B.; Sun, Z.; et al. Preparation and physicochemical properties of 10-hydroxycamptothecin (HCPT) nanoparticles by supercritical antisolvent (SAS) process. Int. J. Mol. Sci 2011, 12, 2678–26591.
  20. Kang, Y.; Yin, G.; Ouyang, P.; Huang, Z.; Yao, Y.; Liao, X.; Chen, A.; Pu, X. Preparation of PLLA/PLGA microparticles using solution enhanced dispersion by supercritical fluids (SEDS). J. Colloid Interface Sci 2008, 322, 87–94.
  21. Yeo, S.D.; Kim, M.S.; Lee, J.C. Recrystallization of sulfathiazole and chlorpropamide using the supercritical fluid antisolvent process. J. Supercrit. Fluids 2003, 25, 143–154.
  22. Yeo, S.D.; Lee, J.C. Crystallization of sulfamethizole using the supercritical and liquid antisolvent processes. J. Supercrit. Fluids 2004, 30, 315–323.
  23. Lee, B.M.; Jeong, J.S.; Lee, Y.H.; Lee, B.C.; Kim, H.S.; Kim, H.; Lee, Y.W. Supercritical antisolvent micronization of cyclotrimethylenetrinitramin: Influence of the organic solvent. Ind. Eng. Chem. Res 2009, 48, 11162–11167.
  24. Jin, H.Y.; Xia, F.; Zhao, Y.P. Preparation of hydroxypropyl methyl cellulose phthalate nanoparticles with mixed solvent using supercritical antisolvent process and its application in co-precipitation of insulin. Adv. Power Technol 2012, 23, 157–163.
  25. He, W.Z.; Suo, Q.L.; Hong, H.L.; Li, G.M.; Zhao, X.H.; Li, C.P.; Shan, A. Supercritical antisolvent micronization of natural carotene by the SEDS process through prefilming atomization. Ind. Eng. Chem. Res 2006, 45, 2108–2115.
  26. Hu, D.D.; Lin, C.C.; Liu, L.; Li, S.; Zhao, Y.P. Preparation, characterization, and in vitro release investigation of lutein/zein nanoparticles via solution enhanced dispersion by supercritical fluids. J. Food Eng 2011, 109, 545–552.
  27. Patomchaiviwat, V.; Paeratakul, O.; Kulvanich, P. Formation of inhalable rifampicin-poly (l-lactide) microparticles by supercritical anti-solvent process. AAPS PharmSciTech 2008, 9, 1119–1129.
  28. Bleich, J.; Kleinebudde, P.; Müller, B.W. Influence of gas density and pressure on microparticles produced with the ASES process. Int. J. Pharm 1994, 106, 77–84.
  29. Xia, F.; Hu, D.D.; Jin, H.Y.; Zhao, Y.P.; Liang, J.M. Preparation of lutein proliposomes by supercritical anti-solvent technique. Food Hydrocoll 2012, 26, 456–463.
  30. Reverchon, E.; Antonacci, A. Polymer microparticles production by supercritical assisted atomization. J. Supercrit. Fluids 2007, 39, 444–452.
  31. Reverchon, E.; Macro, I.D.; Porta, G.D. Tailoring of nano- and micro-particles of some superconductor precursors by supercritical antisolvent precipitation. J. Supercrit. Fluids 2002, 23, 81–87.
  32. Franceschi, E.; de Cesaro, A.M.; Feiten, M.; Ferreira, S.R.S.; Dariva, C.; Kunita, M.H.; Rubira, A.F.; Muniz, E.C.; Corazza, M.L.; Oliveira, J.V. Precipitation of β-carotene and PHBV and co-precipitation from SEDS technique using supercritical CO2. J. Supercrit. Fluids 2008, 47, 259–269.
  33. Wang, Y.; Wang, Y.; Yang, J.; Pfeffer, R.; Dave, R.; Michniak, B. The application of a supercritical antisolvent process for sustained drug delivery. Power Technol 2006, 164, 94–102.
  34. Franceschi, E.; de Cesaro, A.M.; Ferreira, S.R.S. Precipitation of β-carotene microparticles from SEDS technique using supercritical CO2. J. Food Eng 2009, 95, 656–663.
  35. Reverchon, E.; Della Porta, G.; Falivene, M.G. Process parameters and morphology in amoxicillin micro and submicro particles generation by supercritical antisolvent precipitation. J. Supercrit. Fluids 2000, 17, 239–248.
  36. Bharate, S.S.; Bharate, S.B.; Bajaj, A.N. Interactions and incompatibilities of pharmaceutical excipients with active pharmaceutical ingredients: A comprehensive review. J. Excip. Food Chem 2010, 1, 3–26.
  37. Pignatello, R.; Ferro, M.; de Guidi, G.; Salemi, G.; Vandelli, M.A.; Guccione, S.; Geppi, M.; Forte, C.; Puglisi, G. Preparation, characterisation and photosensitivity studies of solid dispersions of diflunisal and Eudragit RS100 and RL100. Int. J. Pharm 2001, 7, 27–42.
  38. Maghsoodi, M.; Sadeghpoor, F. Preparation and evaluation of solid dispersions of piroxicam and Eudragit S100 by spherical crystallization technique. Drug Dev. Ind. Pharm 2010, 36, 917–925.
  39. Mladenovska, K.; Cruaud, O.; Richomme, P.; Belamie, E.; Raicki, R.S.; Venier-Julienne, M.C.; Popovski, E.; Benoit, J.P.; Goracinova, K. 5-ASA loaded chitosan-Ca-alginate microparticles: Preparation and physicochemical characterization. Int. J. Pharm 2007, 345, 59–69.
Ijms 13 06454f1 200
Figure 1. SEM images of nanoparticles prepared by SEDS process with different pressures. A 8 MPa, 35 °C, 1.0 mg/mL, 1.0 mL/min B 10 MPa, 35 °C, 1.0 mg/mL, 1.0 mL/min C 12 MPa, 35 °C, 1.0 mg/mL, 1.0 mL/min D 15 MPa, 35 °C, 1.0 mg/mL, 1.0 mL/min

Click here to enlarge figure

Figure 1. SEM images of nanoparticles prepared by SEDS process with different pressures. A 8 MPa, 35 °C, 1.0 mg/mL, 1.0 mL/min B 10 MPa, 35 °C, 1.0 mg/mL, 1.0 mL/min C 12 MPa, 35 °C, 1.0 mg/mL, 1.0 mL/min D 15 MPa, 35 °C, 1.0 mg/mL, 1.0 mL/min
Ijms 13 06454f1 1024
Ijms 13 06454f2 200

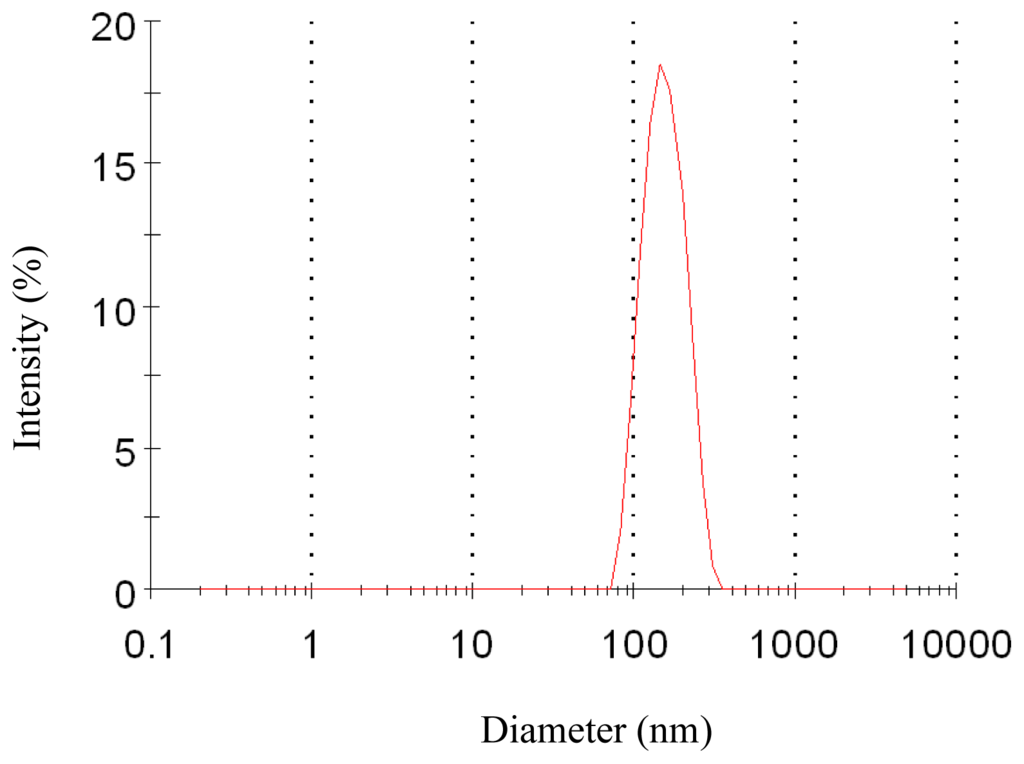

Figure 2. Particle size distribution of nanoparticles (12 MPa, 35 °C, 1.0 mg/mL, 1.0 mL/min).

Click here to enlarge figure

Figure 2. Particle size distribution of nanoparticles (12 MPa, 35 °C, 1.0 mg/mL, 1.0 mL/min).
Ijms 13 06454f2 1024
Ijms 13 06454f3 200

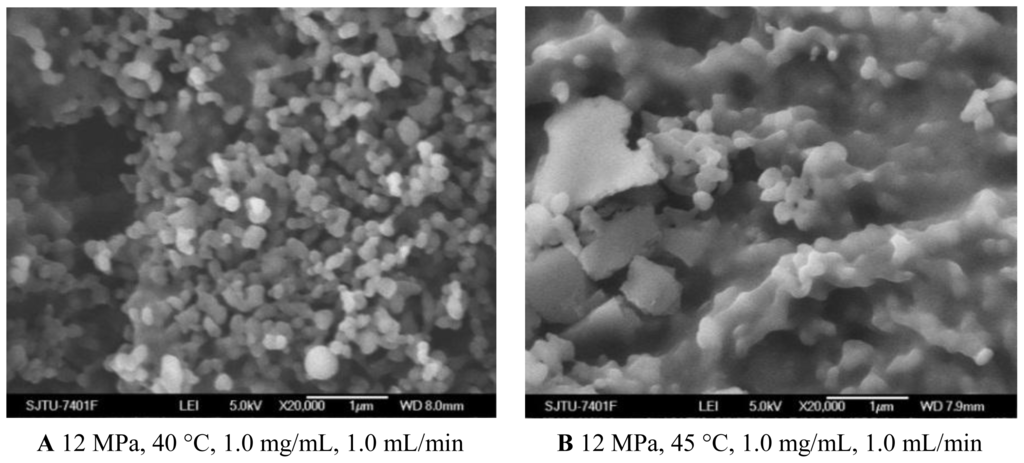

Figure 3. SEM images of nanoparticles prepared by SEDS process with different temperatures. A 12 MPa, 40 °C, 1.0 mg/mL, 1.0 mL/min B 12 MPa, 45 °C, 1.0 mg/mL, 1.0 mL/min

Click here to enlarge figure

Figure 3. SEM images of nanoparticles prepared by SEDS process with different temperatures. A 12 MPa, 40 °C, 1.0 mg/mL, 1.0 mL/min B 12 MPa, 45 °C, 1.0 mg/mL, 1.0 mL/min
Ijms 13 06454f3 1024
Ijms 13 06454f4 200
Figure 4. SEM images of nanoparticles prepared by SEDS process with different 5-ASA concentrations.

Click here to enlarge figure

Figure 4. SEM images of nanoparticles prepared by SEDS process with different 5-ASA concentrations.
Ijms 13 06454f4 1024
Ijms 13 06454f5 200
Figure 5. SEM images of nanoparticles prepared by SEDS process with different solution flow rates.

Click here to enlarge figure

Figure 5. SEM images of nanoparticles prepared by SEDS process with different solution flow rates.
Ijms 13 06454f5 1024
Ijms 13 06454f6a 200Ijms 13 06454f6b 200

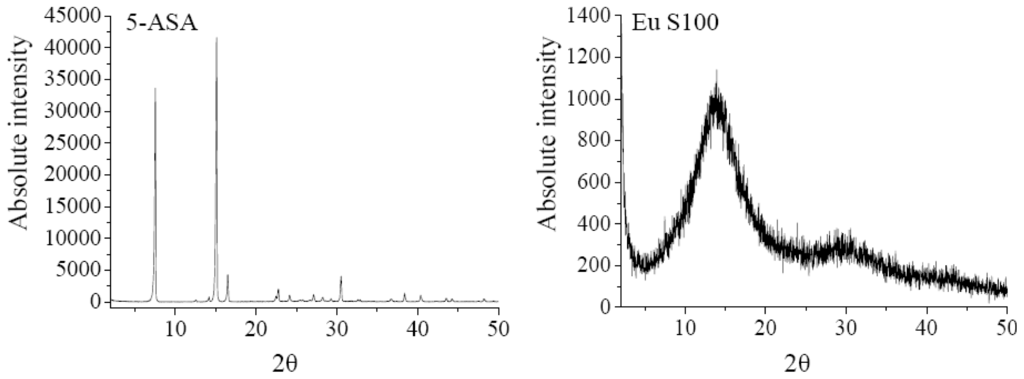

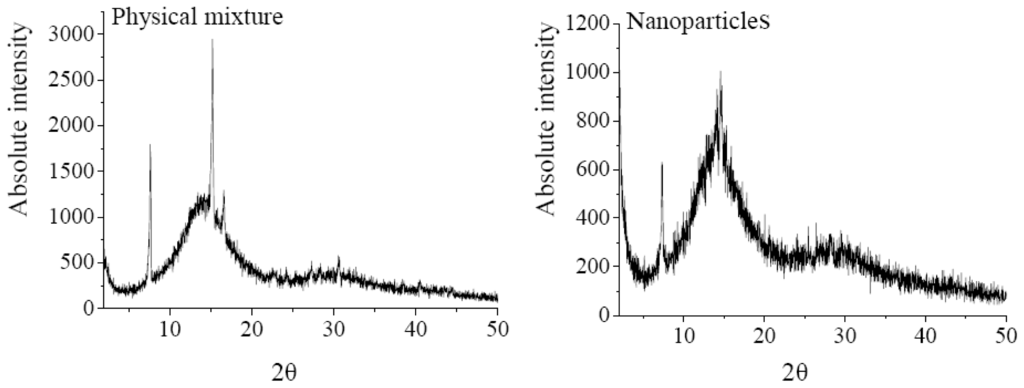

Figure 6. XRD patterns of 5-ASA, EU S100, physical mixture and nanoparticles (12 MPa, 35 °C, 1.0 mg/mL, 1.0 mL/min).

Click here to enlarge figure

Figure 6. XRD patterns of 5-ASA, EU S100, physical mixture and nanoparticles (12 MPa, 35 °C, 1.0 mg/mL, 1.0 mL/min).
Ijms 13 06454f6a 1024Ijms 13 06454f6b 1024
Ijms 13 06454f7 200

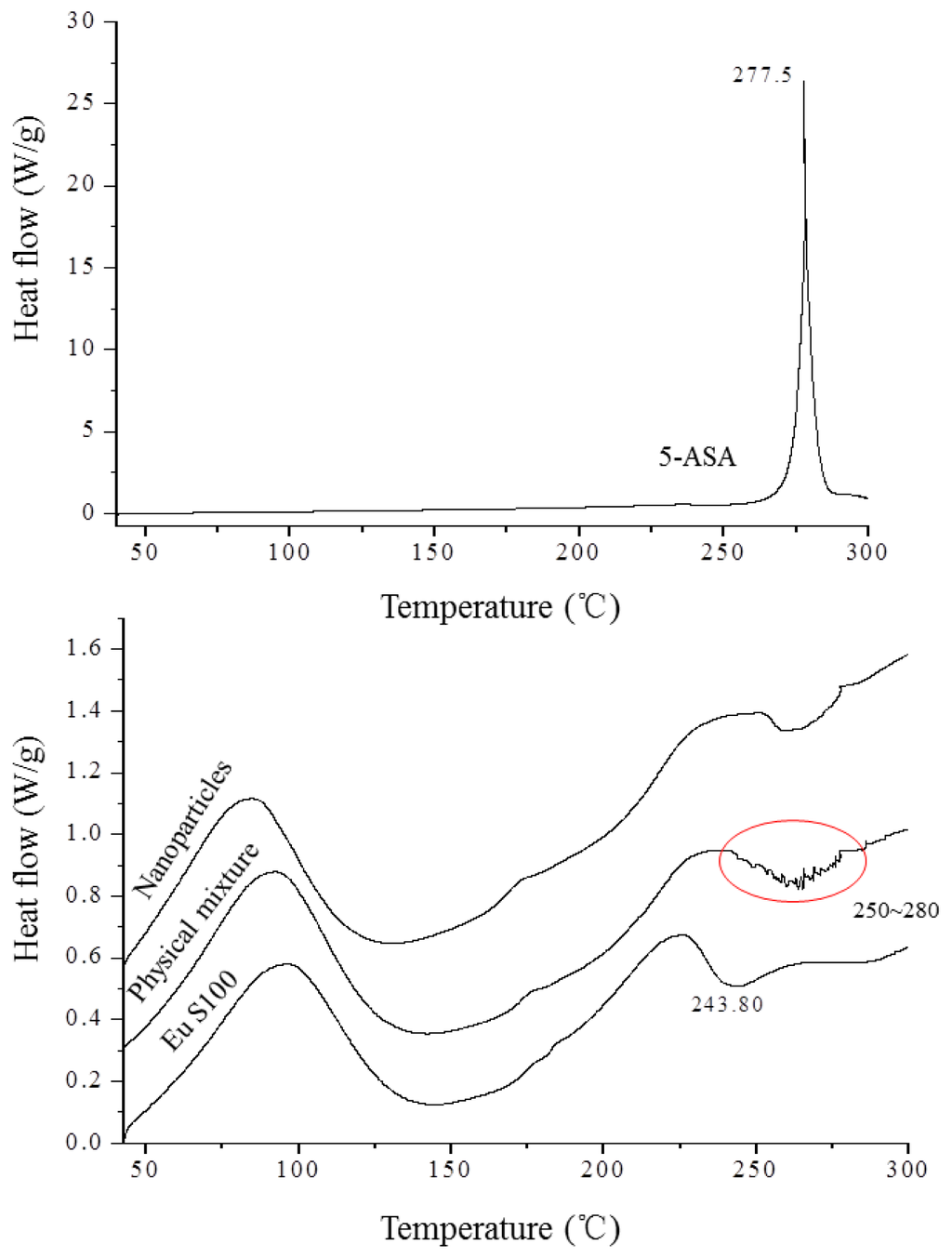

Figure 7. DSC thermograms of 5-ASA, EU S100, physical mixture and nanoparticles (12 MPa, 35 °C, 1.0 mg/mL, 1.0 mL/min).

Click here to enlarge figure

Figure 7. DSC thermograms of 5-ASA, EU S100, physical mixture and nanoparticles (12 MPa, 35 °C, 1.0 mg/mL, 1.0 mL/min).
Ijms 13 06454f7 1024
Ijms 13 06454f8 200

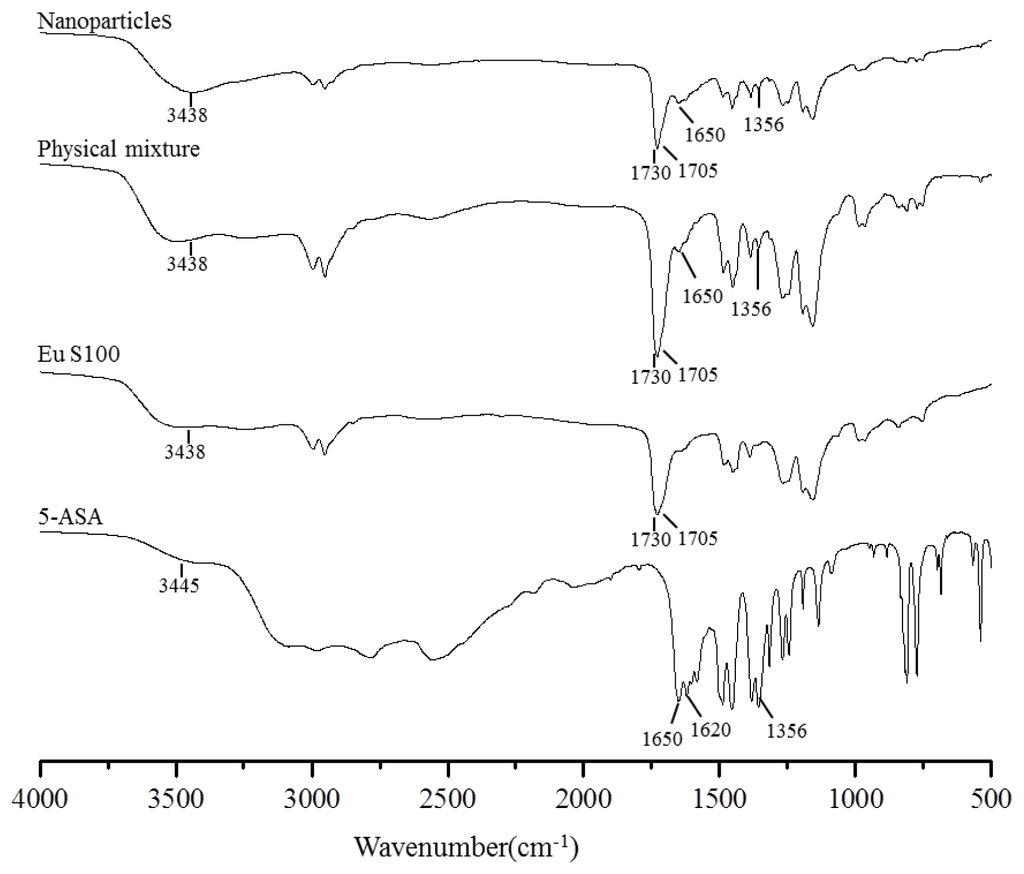

Figure 8. FTIR spectra of 5-ASA, EU S100, physical mixture and nanoparticles (12 MPa, 35 °C, 1.0 mg/mL, 1.0 mL/min).
