Int. J. Mol. Sci. 2012, 13(2), 1284-1299; doi:10.3390/ijms13021284
Published: 25 January 2012
Abstract: A series of selected 2-substituted imidazolines were synthesized in moderate to excellent yields by a modification of protocols reported in the literature. They were evaluated as potential non-classical bioisosteres of AHL with the aim of counteracting bacterial pathogenicity. Imidazolines 18a, 18e and 18f at various concentrations reduced the violacein production by Chromobacterium violaceum, suggesting an anti-quorum sensing profile against Gram-negative bacteria. Imidazoline 18b did not affect the production of violacein, but had a bacteriostatic effect at 100 μM and a bactericidal effect at 1 mM. Imidazoline 18a bearing a hexyl phenoxy moiety was the most active compound of the series, rendering a 72% inhibitory effect of quorum sensing at 100 μM. Imidazoline 18f bearing a phenyl nonamide substituent presented an inhibitory effect on quorum sensing at a very low concentration (1 nM), with a reduction percentage of 28%. This compound showed an irregular performance, decreasing inhibition at concentrations higher than 10 μM, until reaching 100 μM, at which concentration it increased the inhibitory effect with a 49% reduction percentage. When evaluated on Serratia marcescens, compound 18f inhibited the production of prodigiosin by 40% at 100 μM.
Since the discovery of penicillin by Alexander Fleming in 1928 , numerous antibiotics have been introduced for the treatment of once fatal infections, many of which have spread worldwide. At first, the rapid discovery of new antibiotics led to a sufficient drug repertoire that could respond to most antibacterial requirements. However, since then the development of bacterial antibiotic resistance has become a major health issue with multifactorial causes, including the extensive and indiscriminate use of antibiotics, auto-medication, and an increased use of indwelling medical devices . The latter provide a propitious environment for the growth of biofilms [2,3], which are both tenacious and highly resistant to antimicrobial treatment.
The magnitude of the problem demands new strategies. One of the options for overcoming bacterial resistance consists in interrupting a recently discovered pathway of bacterial communication [4–6], termed quorum sensing (QS) . This communication, which regulates a variety of physiological functions, takes place through small peptides in Gram-positive bacteria, and through small molecules, such as N-acyl homoserine lactones (AHL, 1) [4,5], in Gram-negative bacteria. Presumably to avoid alerting the host’s immune system to the presence of bacteria, quorum sensing delays virulence factor production until the cell number is high enough such that secretion of virulence factors will result in a productive infection. Therefore, the interruption of quorum sensing in Gram-negative bacteria in order to disable this communication system , through the synthesis of bioisosteres [8,9], has become a focus of research.

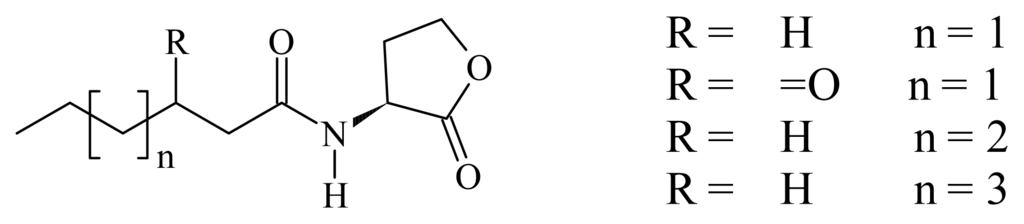

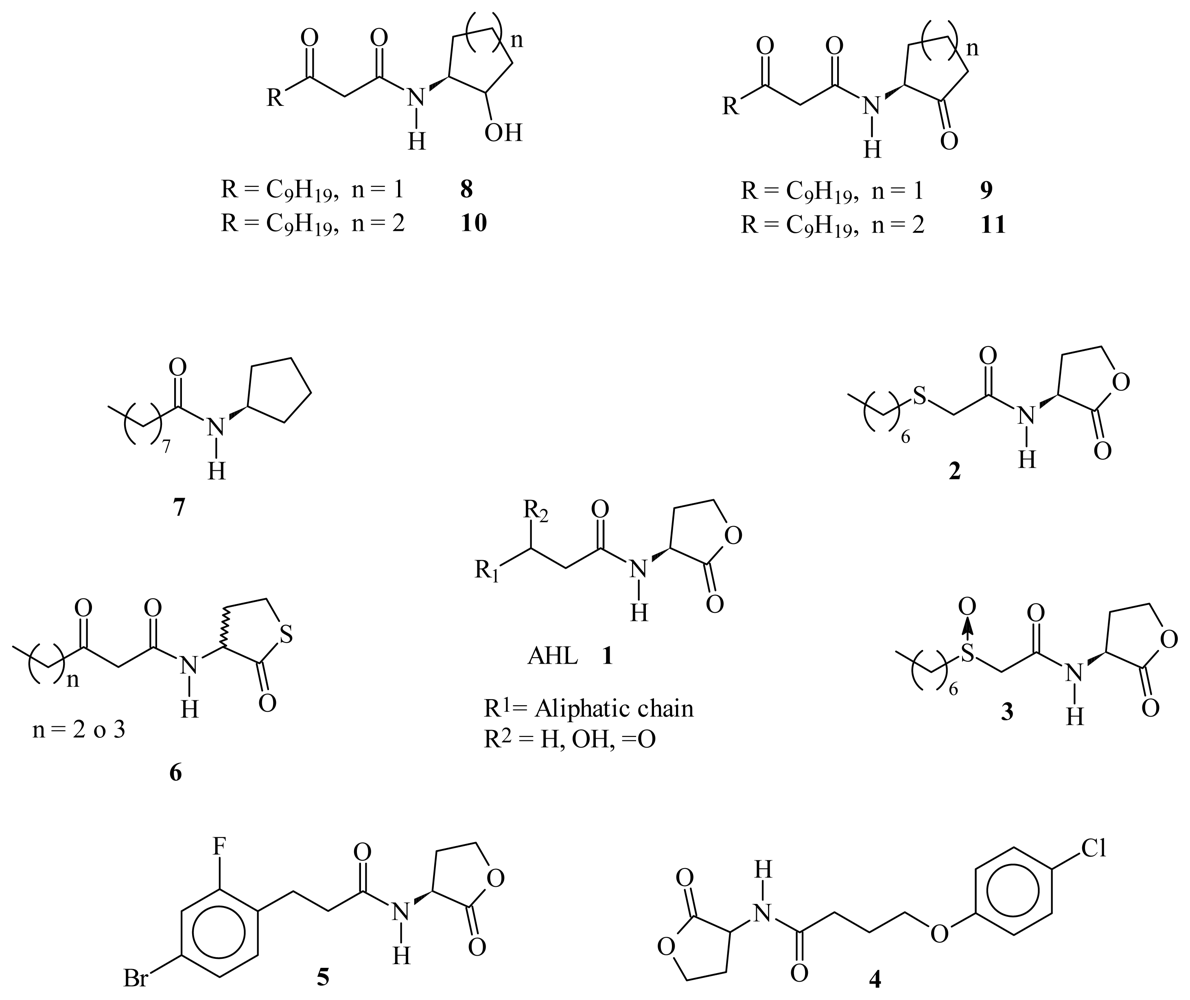

In the search of new quorum sensing inhibitors against Gram-negative bacteria, AHL has been the lead compound in various studies and different strategies have been adopted. The main structural modifications on AHL to obtain antagonist and agonist bioisosteres may be summarized as follows (Figure 1): (a) Modification of the AHL aliphatic chain mediated by the introduction of an S atom (2) , SO group (3) , or a ring in the Ω carbon [11–13] (4, 5); (b) Substitution of the lactone ring O atom by S  (6) or CH2 (7) ; and (c) Substitution of the lactone ring by another aliphatic ring (i.e., cyclopentanol, cyclopentanone, cyclohexanol, cyclohexanone, etc.) (8, 9, 10, 11) . However, in our opinion, all of these transformations imply classical bioisosterism [8,9], and only a few examples of non-classical bioisosteres synthesis have been reported [17,18] (Figure 2).

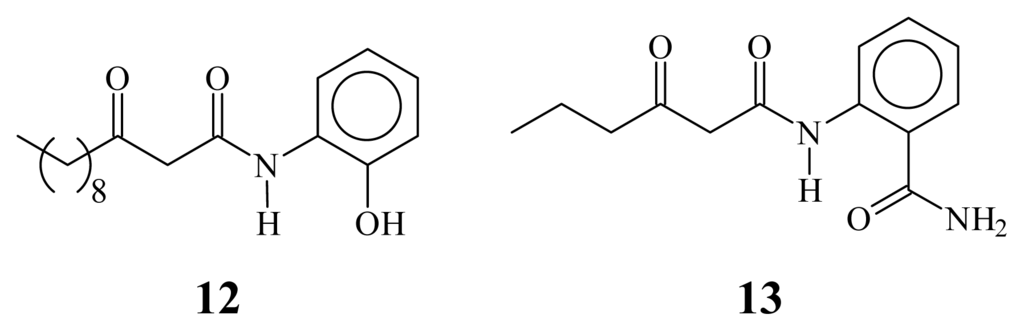

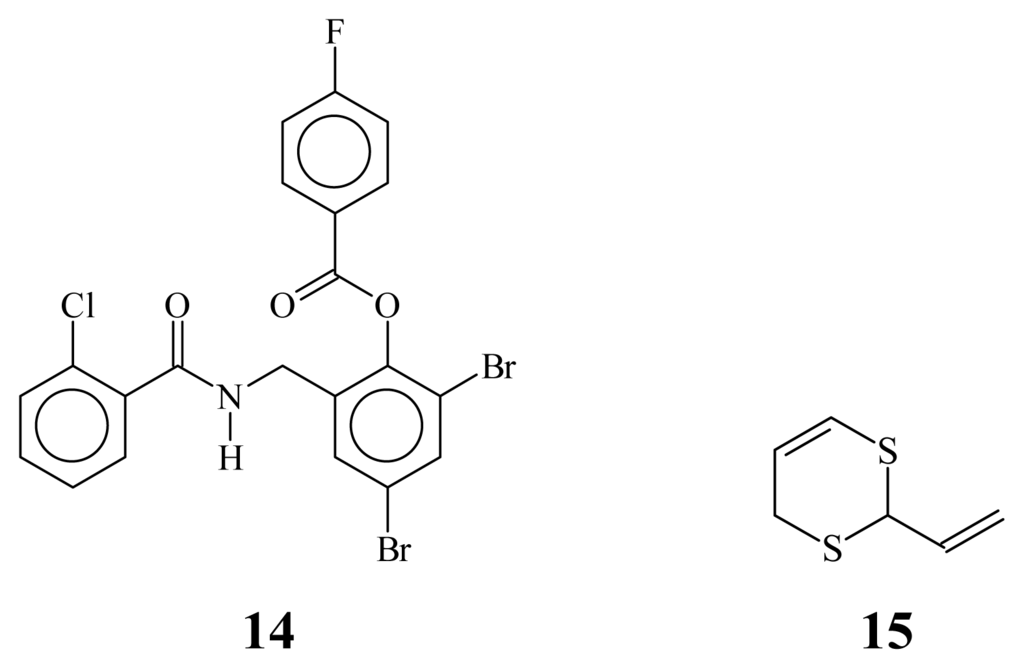

Other strategies include: (a) Virtual screening of recognized drugs  and random screening of compounds synthesized for other purposes ; (b) Evaluation of plant extracts, such as the extract of Tremella fuciformis fruiting bodies, which showed quorum sensing inhibitory activity in Chromobacterium violaceum CV026 [21,22]. It is a fact that some positively active antiquorum sensing compounds do not have structural or electronic resemblance with natives AHLs [10,23], Figure 3.
The aim of the present work was to investigate a new type of non-classical bioisoster for the acyl homoserine lactone as a possible quorum sensing inhibitor. Therefore six new imidazoline derivatives were selected and evaluated as potential AHL antagonist bioisosteres  in the violacein production of Chromobacterium violaceum. Selection of C. violaceum, a Gram-negative bacteria, was made considering the fact that the biosynthesis of violacein, violet pigment, is triggered by n-hexanoyl-L-N-acyl homoserine lactone (C6AHL), quorum sensing dependent  and easily detectable by means of spectrophotometry.
2. Results and Discussion
2.1. Bioisosteric Design
The design of a new type of non-classical bioisosteres consisted of the substitution of the lactone ring in the acyl homoserine lactone by an imidazoline ring, this representing a bioisosteric replacement. The length of the aliphatic chain was not drastically modified, but in four of the compounds the amide functional group was replaced by an ether group. A phenyl ring was introduced to serve as a tether of the imidazoline and the aliphatic chain, with no asymmetric center. As is known, some efficient quorum sensing antagonists lack the asymmetric center . In order to observe the electronic effects on the biological activity of C. violaceum, the O-aliphatic chain at positions meta and para on the phenyl ring was examined.
The synthesis of the imidazolines was achieved in two steps. In the first stage, the synthetic intermediates 17a–17d were prepared by alkylation of 4-hydroxybenzaldehyde, and the amides 17e and 17f were obtained by reaction of the corresponding carboxylic acids with 4-aminobenzonitrile (Table 1). Cyclization of the required imidazolines 18a–18d was achieved with ethylenediamine and iodine, while imidazolines 18e and 18f were synthesized with ethylenediamine and CS2 using MW (Table 2).
Synthetic intermediates 17a–17d were prepared  in good yields. Amide derivative 17e is commercially available, but both 17e and 17f were prepared using MW as a source of energy in an adaptation of the methodology described in the literature .
Imidazoline derivative 18a has been previously prepared in 75% yield using the corresponding alkyloxybenzonitrile and inner salt p-CH3-C6H4SO3H3NCH2CH2NH2 . Imidazoline derivative 18b was prepared in 29% yield . In contrast, these compounds and the new ones 18c–18d were successfully prepared by us in quantitative yields via an adaptation of the protocol described by Fujioka . Imidazoline derivatives 18e and 18f were synthesized in moderate yields by an adaptation of a procedure described in the literature . All compounds were characterized by spectroscopic methods. The spectroscopy of known compounds in the present work was in agreement with that reported in the literature [28,31,32].
It is worth mentioning that imidazolines 18a and 18b were evaluated as monoxidase inhibitors with antidepressant activity, but were not highly active . Imidazoline 18a was evaluated unsuccessfully
2.3.1. Evaluation of the Imidazoline Derivatives 18a–18f on Chromobacterium violaceum wt
Bioisosteres of the N-acyl homoserine lactone, 18a–18f were evaluated at concentrations between 100 pM and 100 μM (Figure 4). Imidazoline 18a had an effect on the production of violacein only at a concentration of 100 μM, without affecting the growth of the bacteria. Concentrations of 25, 50, 75, 90 and 100 μM of compound 18a were tested in order to calculate the IC50 value, which turned out to be 90.9 μM. This compound also inhibited bacteria growth at higher concentrations (data not shown). Compound 18b did not affect the production of violacein, but it had a bacteriostatic effect at 100 μM and a bactericidal effect at a 1 mM concentration (data for the latter is not shown). The graph (Figure 4) shows an apparent inhibition between the concentrations 0.1 nM and 0.1 μM, but this effect was not statistically significant. Compounds 18c and 18d did not have any effect on violacein production in the time period and concentrations employed in the evaluation, except for the growth inhibition exerted by compound 18d at a concentration of 100 μM. Bioisoster 18f showed an inhibitory effect on violacein production starting at a concentration of 1 nM, showing an irregular performance where the highest inhibition, 49%, was observed at 100 μM (Figure 4). Compound 18e showed a bimodal behavior, with an inhibitory effect only at 0.1 μM and 1 μM.
2.3.2. Effect of Compounds 18a–18f on the Viability of Chromobacterium violaceum Wild Type
A viable count was made of those cultures that showed inhibition of pigment production in presence of the imidazolines under study, using the concentrations at which such activity was observed. After the evaluation, it was found that the number of CFU was without change compared with the respective control group. This clearly indicated that the inhibitory effect on the production of violacein is not due to a decrease in the number of bacteria, but instead to the effects of the test compounds.
2.3.3. Effects of the Imidazoline Derivatives on Chromobacterium violaceum

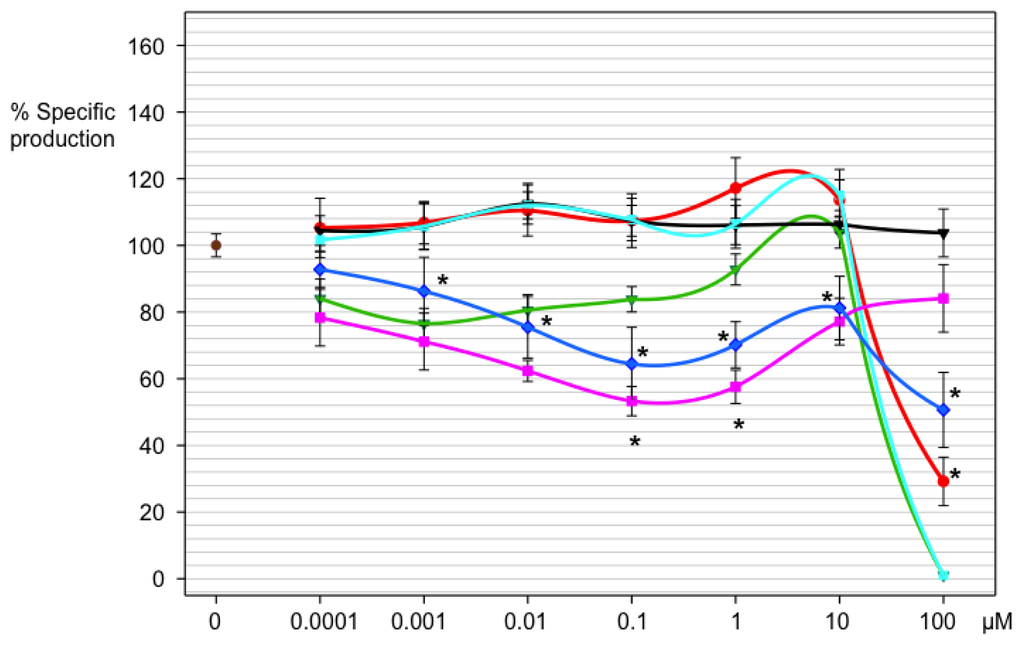

Compounds 18a, 18e and 18f showed an inhibitory effect on quorum sensing, evidenced by the reduction in violacein production. This was confirmed by the viable count, which showed that the number of CFU was without change compared with the respective control group. Compounds 18e and 18f gave a linear response only at initial concentrations of 0.0001–0.1 μM. At higher concentrations, the activity was lost or reduced, suggesting that the inhibition depends on the concentration and structure of the compound. Neither 18e nor 18f reached a 50% inhibition under the range of concentrations tested. Although the causes of this behavior are unknown, it is possible that bioisosteres stimulate the production of the pigment at high concentrations either by inducing compensatory conformational changes in the CviR receptor, or in an indirect way, such as by stimulating the synthesis of dye precursors. A non-linear event in QS evaluation of certain compounds was also observed by Martinelli and collaborators . They evaluated several furanones, bioisosteres of the furanones of Delisea pulchra, as inhibitors of the production of violacein. Martinelli concluded that the same compound may be an activator or inhibitor.
With compound 18a, which has an ether moiety in the connector, inhibitory activity could have been the result of the imidazoline group acting as a bioisoster of the lactone ring, and the electronic conjugation of the ether with the imidazoline, conferring the latter nucleus a more basic character. Indeed, it is known that the production of violaceine is sensible to the basicity . However, it is clear that basicity is not the only important feature, since imidazoline 18b, with similar electronic properties, did not present a statistically significant anti-quorum sensing activity.
The imidazolines that have the ether group at the meta position (18c and 18d) in the connector did not present inhibitory activity on the production of violacein, which supports the importance of the electronic conjugation. The anti-quorum sensing activity shown by the compounds 18e and 18f confirms that the imidazoline ring acts as a bioisoster of the lactone ring. In this case we consider that factors like the conservation of the amide group, the length of the chain, and the conjugation between the amide moiety and the imidazoline group contributed to the activity obtained. Remarkably, compound 18f showed initial activity at the lowest concentration so far reported to inhibit C. violaceum QS, 1 nM.
Compound 18f was more active than the more promising 18e, which contains the same chain length as the acyl group in the natural AHL. Williams  found that as the aliphatic chain length in the majority of the AHL of Gram-negative bacteria increases, the compounds change from activators to inhibitors on the production of violacein.
The antiquorum sensing activity of imidazolines 18a, 18e and 18f can be compared with other reports in the literature. Imidazoline 18a, which showed the highest antiquorum sensing activity of all bioisosteres tested in this work (at 100 μM), rendered 71% inhibition. In contrast, 2-(4′-chlorophenoxy)-N-butanoyl homoserine lactone 4, which is claimed to be the most active analog of AHL synthesized so far , gave a total inhibition of violacein at 10−4 M. The activity of compound 18a could also be compared with some furanones, which at a concentration of 10−4 M showed an inhibition at around 95%, as reported by Martinelli .
Imidazoline 18e showed the initial inhibition of QS at 0.1 μM (100 nM), rendering a 47% inhibition. At 1 μM this same compound yielded a 42% inhibition of the dye. By contrast, N-decanoyl-L-homoserine lactone (DHL) was the most active compound of a reported series of acyl homoserine lactones, showing a 51% inhibition of the dye at 100 nM . Meanwhile, imidazoline 18f showed the initial inhibition at 1 nM (the lowest concentration of this series), resulting in a 14% inhibition of QS, and at 100 μM rendered a 49% inhibition.
To summarize, imidazoline 18f shows initial inhibitory activity of QS at a very low concentration (1 nM), and its highest activity (49% inhibition) at 100 μM. On the other hand, imidazoline 18a shows the highest activity (71% inhibition) of this series at 100 μM. Thus, imidazoline 18a and 18f are very promising lead compounds for further research. Current structural modifications on 18a and 18f are under way to improve the anti QS activity.
2.3.4. Evaluation of N-[4-Phenyl-(imidazo-2-yl)]-nonamide on Serratia marcescens ATCC 8100
Due to the activity of compound 18f on the production of violacein in Chromobacterium violaceum, this compound was evaluated on Serratia marcescens, a pathogenic Gram-negative bacteria found in nosocomial infections . Serratia marcescens uses several types of signaling molecules with the N-acyl homoserine lactone core  for the synthesis of prodigiosin, a red dye that is regulated in a QS-dependent manner (Figure 5).

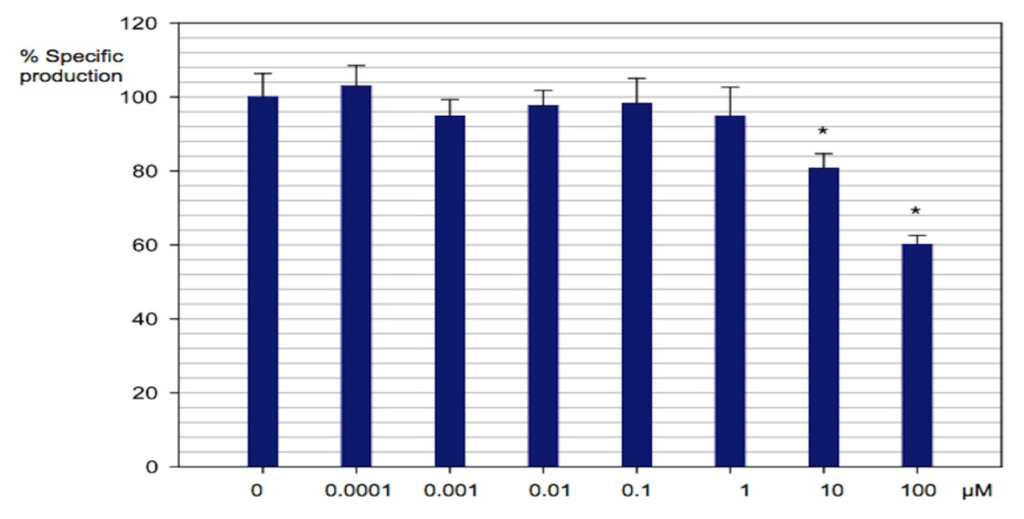

Compound 18f inhibited the production of prodigiosin at practically every concentration tested (Figure 6). At 10 μM it inhibited 20% of the dye production and at 100 μM inhibited 40%. When testing other concentrations (50, 150, 200, 250 and 300 μM) of compound 18f, the IC50 was found to be 106.5 μM. The inhibition of prodigiosin by 18f was 15.7% at a concentration of 50 μM, 51.6% at 150 μM, 55.8% at 200 μM, 56.3% at 250 μM, and 64.8% at 300 μM. The growth of the bacteria was not affected in any case. In contrast 10 μM of nonanoyl cyclopentyl amide (7) rendered only 10% of prodigiosin inhibition, and 200 μM gave 85% .
3. Experimental Section
3.1. Experimental Chemical Section
Melting points were determined on an Electrothermal melting point apparatus and are uncorrected. Infrared spectra were recorded on a Perkin Elmer 599-B spectrophotometer. NMR spectra were recorded with a Varian Mercury 300 MHz or NMR on a Varian 500 spectrometer.
The chemical shifts (δ) are referenced to internal (CH3)4Si (δ1H = 0, δ13C = 0). The electron ionization (EI) mass spectra (70 eV) were recorded using a Hewlett Packard HP-5998A spectrometer. HRMS was determined using a JEOL-JSM-GC mateII.
p-Hydroxybenzaldehyde, benzonitrile and other compounds used to synthesis were purchased from Sigma-Aldrich and used without further purification except ethylenediamine, which was distillated over sodium.
3.1.1. General Procedure for the Synthesis of 4-Alkyloxybenzaldehydes
To a solution of 1.0 equivalent (eq) of the corresponding hydroxybenzaldehyde in acetone, K2CO3 (1.5 eq) was added and the mixture stirred for 1 h at 40 °C. Then 1.1 eq of the corresponding alkylhalide was added and the mixture was refluxed for 15 h under constant stirring. Progress of the reaction was monitored by TLC (hexane:EtOAc 8:2). Water was added to the reaction mixture and extracted with ether (3 × 20 mL). The organic extracts were combined and washed with 5% NaCl solution, dried over Na2SO4 anh. and the solvent removed under vacuum to dryness. The crude product was purified by chromatography on SiO2 using a gradient of a mixture hexane:EtOAc, giving the pure compounds as a colorless oil. The purified compounds were further characterized by common spectroscopic methods.
4-Hexyloxybenzaldehyde (17a) . IR (KBr): υ = 2931 cm−1, 2858, 2734, 1695, 832; 1H NMR (CDCl3): δ = 9.86 (s, 1H, CHO), 7.40 (AA′BB′, 4H, Ph), 4.02 (t, 2H, OCH2), 1.82 (m, 2H, H-7), 1.35 (m, 6H, H-8, H-9, H-10), 0.91 (t, 3H, CH3); 13C NMR (CDCl3): δ = 190.6 (CHO), 164.1 (C-5), 131.8 (C-3), 129.5 (C-2), 114.6 (C-4), 68.2 (C-6), 31.1 (C-7), 28.9 (C-8), 25.5 (C-9), 22.4 (C-10), 13.9 (C-11).
4-Nonyloxybenzaldehyde (17b) . IR (KBr): υ = 2989 cm−1, 2868, 2736, 1694, 830; 1H NMR (CDCl3): δ = 9.90 (s, 1H CHO), 7.38 (AA′BB′ 4H, Ph), 4.0 (t, 2H, H-6), 1.79 (m, 2H, H-7), 1.27 (m, 12H, H-8, H-9, H-10, H-11, H-12, H-13), 0.88 (t, 3H, CH3); 13C NMR (CDCl3): δ = 190.3 (CHO), 164.0 (C-5), 131.7 (C-3), 129.5 (C-2), 114.5 (C-4), 68.1 (C-6), 31.7 (C-7), 29.3 (C-8), 29.2 (C-9), 29.1 (C-10), 28.9 (C-11), 25.8 (C-12), 22.5 (C-13), 13.9 (C-14).
3.1.2. General Procedure for the Synthesis of 3-Alkylbenzaldehydes
In a pressure tube were added 1.0 eq of 3-hydroxy benzaldehyde, 2 eq of K2CO3 and THF, and then 2.0 eq of triethylamine and 1.1 eq of alkylbromide. The reaction mixture was stirred and heated at 120 °C for 10 h (TLC SiO2 hexane:EtOAc 8:2). The reaction was cooled to r.t., water was added and extracted with ether 5 times. The organic phases were washed with 5% NaCl and dried over Na2SO4 anh. The solvent was removed by a rotary evaporator. The crude products were purified by chromatography on silica gel (hexane:AcOEt gradient). The pure compounds were characterized by common spectroscopic methods.
3-Hexyloxybenzaldehyde (17c). IR (KBr): υ = 2931 cm−1, 2858, 2725, 1698, 1263, 785; 1H NMR (CDCl3): δ = 9.98 (s, 1H, CHO), 7.44 (d, 2H, H-3, H-6), 7.43 (dd, 1H, H-7), 7.38 (dd, 1H, H-5), 4.0 (t, 2H, H-8), 1.80 (dt, 2H, H-9), 1.47 (m, 2H, H-10), 1.35 (m, 4H, H-11, H-12), 0.91 (t, 3H, CH3); 13C NMR (CDCl3): δ = 192.2 (CHO), 159.6 (C-4), 137.78 (C-2), 129.9 (C-6), 123.3 (C-7), 121.9 (C-5), 112.6 (C-3), 68.2 (C-8), 31.5 (C-9), 29.0 (C-10), 25.6 (C-11), 22.6 (C-12), 14.0 (C-13).
3-Nonyloxybenzaldehyde (17d). IR (KBr): υ = 3068 cm−1, 2925, 2854, 2724, 1701, 1262, 786; 1H NMR (CDCl3): δ = 9.93 (s, 1H, CHO), 7.40 (d, 2H, H-3, H-6), 7.36 (dd, 1H, H-7), 7.15 (dd, 1H, H-5), 3.97 (t, 2H, H-8), 1.79 (dt, 2H, H-9), 1.44 (m, 2H, H-10), 1.26 (m, 10H, H-11, H-12, H-13, H-14, H-15), 0.86 (t, 3H, CH3); 13C NMR (CDCl3): δ = 192.0 (CHO), 159.6 (C-4), 137.6 (C-2), 129.8 (C-6), 123.1 (C-7), 121.8 (C-5), 112.6 (C-3), 68.1 (C-8), 31.8 (C-9), 29.4 (C-10), 29.3 (C-11), 29.2 (C-12), 29.0 (C-13) 25.9 (C-14), 22.6 (C-15), 14.0 (C-16).
3.1.3 General Procedure for the Synthesis of Imidazolines from Benzaldehydes
To 1 eq of alkyloxybenzaldehyde dissolved in t-BuOH was added 1.1 eq of ethylenediamine, at r.t. under N2 atmosphere and with constant stirring. The reaction mixture was held under these conditions for 1 h, then 1.25 eq of I2 and 3 eq of K2CO3 were added. The resulting mixture was stirred at 70 °C for 3 h. Then the mixture was filtered and the residue was poured in water and extracted with EtOAc 5 times. The organic phase was washed with a saturated solution of Na2SO3 and dried over Na2SO4 anh. The solvent was evaporated in a rotatory evaporator and the remnant residue was purified by chromatography on neutral Al2O3 (hexane:EtOAc gradient) to furnish the pure compounds.
8-Hexyloxyphenyl-2-imidazoline (18a). m.p. 120–121 °C (hexane:EtOAc 1:1); Lit. [27,28] 124 °C, 122–123 °C (acetone:hexane); IR (KBr): υ = 3084 cm−1, 2929, 1615, 1513, 841, 741; 1H NMR (DMSO-d6): δ = 7.59 (AA′BB′, 4H, Ph), 4.07 (t, 2H, H-9), 3.91 (s, 4H, H-4, H-4′), 1.73 (qi, 2H, H-10), 1.42 (m, 2H, H-11), 1.31 (m, 4H, H-12, H-13), 0.88 (t, 3H, CH3); 13C NMR (DMSO-d6): δ = 163.8 (C-2), 162.9 (C-8), 130.6 (C-6), 115.0 (C-5), 114.7 (C-7), 68.0 (C-9), 44.8 (C-4, C-4′), 30.9 (C10), 28.4 (C-11), 25.0 (C-12), 22.0 (C-13), 13.8 (C-14); MS (70 eV): m/z (%) = 246(22%) [M+].
8-Nonyloxyphenyl-2-imidazoline (18b). m.p. 107–108 °C (EtOAc:acetone 8:2), Lit.  108–108.5 °C; IR (KBr): υ = 3217 cm−1, 2922, 1618, 1246, 828; 1H NMR (DMSO-d6): δ = 6.55 (AA′BB′, 4H, Ph), 3.22 (t, 2H, H-9), 2.78 (s, 4H, H-4, H-4′), 0.90 (qi, 2H, H-10), 0.49 (m, 10H, H-11, H-12, H-13, H-14, H-15), 0.10 (t, 3H, CH3); 13C NMR (DMSO-d6): δ = 163.1 (C-2), 160.1 (C-8), 128.5 (C-6), 122.8 (C-5), 113.8 (C-7), 67.4 (C-9), 49.4 (C-4, C-4′), 31.2 (C10), 28.9 (C-11), 28.7 (C-12), 28.6 (C-13), 28.5 (C-14), 25.4 (C-15), 22.0 (C-16), 13.9 (C-17); HRMS = C18H28ON2 Calcd.: 288.2202, found 288.2201.
7-Hexyloxyphenyl-2-imidazoline (18c). m.p. = 88–89 °C (hexane:EtOAc 6:4); IR (KBr): υ = 3177 cm−1 (NH), 2919, 2853, 1614, 1276, 851; 1H NMR (DMSO-d6, CDCl3): δ = 7.37 (m, 1H, H-10), 7.29 (m, 2H, H9, H-6), 6.98 (ddd, J8,9 = 3.0 Hz, J8,6 = 8 Hz, J8.9 = 9.0 Hz, 1H, H-8), 3.96 (t, J = 6.0 Hz) 2H, H-11), 3.78 (s, 4H, H-4, H-4′), 1.76 (m, 2H, H-12), 1.43 (m, 2H, H-13), 1.33 (m, 4H, H-14,H-15) 0.89 (t, 3H, CH3); 13C NMR (DMSO-d6, CDCl3): δ = 164.8 (C-2), 159.2, (C-7), 131.7 (C-5), 129.4 (C-9), 118.9 (C-10), 117.8 (C-8), 112.3 (C-6), 68.1 (C-11), 31.5 (C-4), 30.9 (C-12), 29.2(C-13), 25.6(C-14), 22.6 (C-15), 13.1 (C-16); HRMS = C15H22N2O Calcd.: 246.1716, found: 246.1732.
7-Nonyloxyphenyl-2-imidazoline (18d). m.p. 82–83 °C (H:AcOEt 6:4); IR (KBr): υ = 3053 cm−1, 2926, 2854, 1615, 1265, 739; 1H NMR (Acetone-d6 CDCl3): δ = 7.35 (ddd, J10,9 = 0.5 Hz, J10,6 = 1.0 Hz, J10,8 = 2.6 Hz, 1H, H-10); 7.272 (dd, J10,9 = 0.5 Hz, J8,9 = 6.0 Hz, 1H, H-9), 7.268 (dd, J10,6 = 1.0 Hz, J6,8 = 3.4 Hz, 1H, H-6), 6.97 (ddd, J8,10 = 2.6 Hz, J8,9 = 6.0 Hz, J6,8 = 3.4 Hz, 1H, H-8), 4.01 (t, 2H, H-11), 3.66 (s, 4H, H-4, H-4′), 1.78 (m, 2H, H-12), 1.32 (m, 2H, H-13), 1.29 (m, 10H, H-14, H-15, H-16, H-17, H-18), 0.88 (t, 3H, CH3); 13C NMR (Acetone-d6 CDCl3): δ = 163.1 (C-2), 158.0, (C-7), 131.3 (C-5), 128.0 (C-9), 118.1 (C-10), 115.6 (C-8), 111.6 (C-6), 66.6 (C-11), 52.9 (C-4), 48.9 (C-12, C-13), 30.6 (C-14), 28.3 (C-15), 28.0 (C-16), 24.8 (C-17), 21.3 (C-18), 12.4(C-19); HRMS = C18H28N2O Calcd.: 288.2202, found: 288.2209
3.1.4. Synthesis of N-4-Benzonitrile Alkylamides
Carboxylic acid (1.0 eq) was added, at 0 °C (ice bath) under N2 atm. with constant stirring, to 1.0 eq of DCC and 1.0 eq of 4-aminobenzonitrile dissolved in CH2Cl2. After 5 min the ice bath was withdrawn and the mixture was stirred (protected from light). The reaction was followed by TLC (silica gel and hexane:EtOAc 9:1). The reaction mixture was filtered and the solid washed with cooled CH2Cl2. The liquid phase was evaporated and the residue was purified by column chromatography over SiO2/K2CO3 5% (gradient Hexane:EtOAc).
N-(4-Benzonitrile) hexylamide (17e). IR (KBr): υ = 3324 cm−1, 2220 (CN), 1681, 840; 1H NMR (CDCl3): δ = 9.26 (s, 1H, NH), 7.71 (AA′BB′, 4H, Ph), 2.46 (t, 2H, H-8), 1.74 (m, 4H, H-9, H-10), 1.34 (m, 2H, H-11), 0.88 (t, 3-H, H-12); 13C NMR (75.4 MHz, CDCl3): δ = 172.7 (C=O), 153.8 (Cipso NH), 151.2 (Cipso CN), 132.6 (Corto CN), 119.3 (Corto NH), 105.6 (CN), 37.0 (C-8), 30.9 (C-9), 24.8 (C-10), 21.9 (C-11), 13.4 (C-12); MS (70 eV): m/z(%) = 216 (<2) [M+], 160 (8) [CH2CONHC6H4CN + H+], 118 (100) [NHC6H4CN].
N-(4-Benzonitrile) nonamide (17f). m.p. 45–46 °C (hexane:AcOEt 8:2); IR (KBr): υ = 3310 cm−1, 3185, 2926, 2221(CN), 1651(C=O), 843; 1H NMR (CDCl3): δ = 9.2 (br s, 1H, NH), 7.68 (AA′BB′, 4H, Ph), 2.42 (t, 2H, CH2CO), 1.73 (m, 2H, H-8), 1.27 (m, 10H, H-9, H-10, H-11, H-12, H-13, H-14), 0.87 (t, 3H, CH3); 13C NMR (CDCl3): δ = 173.0 (C=O), 153.9 (Cipso CN), 142.2 (Cipso HNCO), 132.1 (Corto CN), 119.6 (Corto HNCO), 104.9 (CN), 36.7 (C-8), 32.0 (C-9), 28.4 (C-10), 28.2 (C-11), 25.8(C-12), 25.2 (C-13), 22.3 (C-14), 13.7 (C-15); MS (70 eV): m/z(%) = 258 (30) [CH2CONC6H4CN], 141 (24) [C9H17CO], 60 (100) [C2H6NO].
3.1.5. Synthesis of N-[4-Phenyl-(imidazo-2-yl)]-alkylamides
N-(4-Benzonitrile) alkylamide (1.0 eq) in a pressure tube was added 1.0 eq of ethylenediamine and 1.0 eq of CS2. The mixture reaction was stirred and irradiated in a chemical MW oven at 100 Watts in a range 112–179 °C at 15 seg intervals during 5.0 min 30 seg. The reaction mixture changed from a deep yellow to pale yellow color and was purified over neutral Al2O3 with a top layer of anh. sodium sulphite (gradient of Hexane:EtOAc and finally EtOH). The solvent was evaporated and the residue was recrystallized of acetone. The pure compounds were characterized.
N-[4-Phenyl-(imidazo-2-yl)]-hexylamide (18e). IR (KBr): υ = 3358 cm−1, 2937, 2868, 1678 (C=O), 848; 1H NMR (CDCl3): δ = 7.20 (AA′BB′, 4H, Ph), 3.8 (s, 4H, NCH2CH2NH), 3.04 (t, 2H, H-2), 1.45 (m, 2H, H-3), 2.28 (m, 2H, H-4), 1.22 (m, 4H, H-5, H-6), 0.81 (t, 3H, H-7); 13C NMR (CDCl3): δ = 164.6 (N=C–NH), 154.3 (Cipso NHPh), 131.0 (Corto N=C–NH), 112.0 (Cipso N=C–NH), 107.5 (Corto NHPh), 44.3 (C-2), 31.5 (C-3), 28.8 (C-4), 26.7 (C-5), 22.5 (C-6), 14.4 (C-7); HRMS = C15H21N3O Calcd.: 259.1685 found: 259.1683.
N-[4-Phenyl-(imidazo-2-yl)]-nonamide (18f). m.p. 123–124 °C (acetone); IR (KBr): υ = 3315 cm−1, 2924, 1671(C=O), 846; 1H NMR (CDCl3): δ = 10.38 (s, 1H, CONH), 10.3 (br.s, 1H, N=C–NH), 7.83 (AA′, BB′, 4H, Ph), 3.86 (s, 4H, CH2CH2NH), 2.34 (t, J = 7 Hz, 2H, CH2CO), 1.57, (m, 2H, H-4), 1.27 (m, 10H, H-5, H-6,H-7, H-8, H-9), 0.84 (t, J = 7 Hz, 3H, CH3); 13C NMR (CDCl3): δ = 172.6 (C=O), 164.4 (N=C–NH), 144.4 (Cipso N=C–NH), 129.7 (Corto N=C–NH), 118.9 (Corto NCO), 118.5 (Cipso NCO), 46.0 (=NCH2CH2NH), 36.9 (C-3), 31.7 (C-4), 29.2 (C-5), 29.1 (C-6), 29.0 (C-7), 25.4 (C-8), 22.5 (C-9), 14.4 (C-10) ; HRMS = C18H27N3O Calcd.: 301.2154, found: 301.2153.
3.2. Experimental Biological Section
3.2.1. Bacterial Strains
Chromobacterium violaceum wt. ATCC 12472 and Serratia marcescens ATCC 8100 were generous gifts of Dr. Graciela Castro-Escarpulli and the ENCB Medical Bacteriology Laboratory respectively.
3.2.2. Evaluation of the Effect of Bioisosteres on Cell Viability
Cells from cultures exhibiting inhibition of pigment production in the presence of the imidazolines under study were washed by centrifugation and resuspended in the original volume of medium. Serial dilutions were spread onto Luria plates (C. violaceum) or tripticase soy agar plates (S. marcescens) and counted to determine the CFU per milliliter.
3.2.3. Quantification of Violacein in Chromobacterium violaceum Wild Type
A flask containing 30 mL of autoclaved BBL thioglycolate (Becton, Dickinson, USA), supplemented with 17 mM MgCl2, 26 mM K2HPO4, 2.8 mM K2SO4, 3 mg/mL L-methionine and 500 ng/mL vitamin B12 (all previously sterilized by Millipore filtration) for the optimum production of violacein, was inoculated with an overnight Chromobacterium violaceum culture up to an optical density (OD) of 0.1 at 720 nm. Aliquots (990 μL) of culture were placed in a 2 mL tube. Then 10 μL of the compound to be tested was dissolved in sterile dimethyl sulphoxide and diluted with the culture until reaching final concentrations of 100 pM, 1 nM, 10 nM, 100 nM, 1 μM, 10 μM, 100 μM and 1 mM. DMSO alone was added to the control tubes. All tubes were sealed with Lid Bac filters and incubated at 28 °C at 900 RPM during 15 h in the Thermomixer R (Eppendorf, Germany). A 15 h period of incubation was selected as the most adequate to measure the effect of the compounds, in accordance to the results of the kinetics of violacein production.
The activity of the bioisosteres was expressed as a percentage of specific production (sp) of violacein (as shown below) in relation to the control tubes. Each experiment was performed 6 times and the results analyzed by a two way ANOVA test with Duncan correction.
3.2.4 Quantification of Prodigiosin on Serratia marcescens ATCC 8100
Trypticase soy medium (5 mL) was inoculated with the Serratia marcescens ATCC 8100 strain. The culture was incubated at 37 °C/24 h then adjusted to a value of one of absorbance in the spectrophotometer.
Blank control and seven concentrations (100 μM, 10 μM, 1 μM, 0.1 μM, 0.01 nM, 0.001 μM, 0.0001 μM) of the compound N-[4-phenyl-(imidazo-2-yl)]-nonamide were placed in 8 tubes. The tripticase medium was added to the tubes and these were incubated at 22 °C during 17 h.
3.2.5. Extraction and Quantification of Prodigiosin
Aliquots with 500 μL of each culture were transferred into Eppendorf tubes of 1.5 mL. After this, 500 μL of ethanol containing 4% hydrochloric acid were added. Tubes were shaken intensively with vortex and then they were centrifuged in a microcentrifuge (Hermle Z233 M-2) at 15,000 rpm for 3 min. Finally 400 μL of the red supernatant (prodigiosin) were placed in flat-bottom microplate wells and suspension was read in an ELISA reader at 540 nm. The O.D. was also determined in the ELISA reader at 600 nm, placing 400 μL of bacterial culture from each of the tubes in a microplate well.
Three novel non-classical bioisosteres of AHL, imidazoline derivatives 18a, 18e and 18f, were found to inhibit the production of violacein, strongly suggesting an antiquorum sensing effect in Chromobacterium violaceum. The conjugation established between the heteroatom placed at the para position of the phenyl ring and the imidazoline moiety was a determining factor of the activity shown by the assayed compounds. The lowest concentration giving antiquorum sensing activity on Chomobacterium violaceum was 1 nM of the imidazoline conjugated with the nonanoyl group, 18f. This compound was active at almost all tested concentrations. The highest QS inhibitory activity on C. violaceum shown by the test compounds was by imidazoline 18a at 100 μM, without affecting the growth of the bacteria. At higher concentrations this compound did show inhibitory activity on bacterial growth. Imidazoline 18b had no QS inhibitory effect on C. violaceum, but it had a bacteriostatic effect at 100 μM and a bactericide effect at 1 mM. Finally, imidazoline 18f, when tested on Serratia marcescens, inhibited the production of prodigiosin at 10 μM and 100 μM, which strongly suggests an antiquorum sensing effect.
We thank Gerardo Aparicio Ozores for his contribution in the evaluation of compound 18f on Serratia marcescens. We gratefully acknowledge the financial support provided for this work by CONACYT (Mexico) through Research Grant No. 90894, and by IPN through Research Grants: SIP 20100679, 20110945 and PAPIRI. MMS and ABC are thankful to Conacyt and to IPN for a graduate and PIFI scholarships.
References and Notes
- Fleming, A. Penicillin. Presented at Nobel Lecture 1945, Sweden, 11 December 1945.
- Raffa, R.B.; Iannuzzo, J.R.; Levine, D.R.; Saeid, K.K.; Schwartz, R.C.; Sucic, N.T.; Terleckyj, O.D.; Young, J.M. Bacterial communication (“Quorum Sensing”) via ligands and receptors: A novel pharmacologic target for the design of antibiotic drugs. J. Pharmacol. Exp. Ther 2005, 312, 417–423. and references therein. [Google Scholar]
- Shih, P.-Ch.; Wang, Ch.-T. Effects of quorum-sensing deficiency on Pseudomonas aeruginosa biofilm formation and antibiotic resistance. J. Antimicrob. Chemother. 2002, 49, 309–314. [Google Scholar]
- Otero Casal, A.M.; Munoz Crego, A.; Bernárdez Hermida, M.I.; Fábregas Casal, J. Quorum Sensing. El Lenguaje de las Bacterias (in Spanish); Editorial Acribia: Zaragoza, Espana, 2005. [Google Scholar]
- Galloway, W.R.; Hodgkinson, J.T.; Bowden, S.D.; Welch, M.; Spring, D.R. Quorum Sensing in gram-negative bacteria: Small-molecule modulation of AHL and AI-2 Quorum Sensing pathways. Chem. Rev 2011, 111, 28–67. [Google Scholar]
- Blackwell, H.E.; Fuqua, C. Introduction to bacterial signals and chemical communication. Chem. Rev 2011, 111, 1–3. [Google Scholar]
- Quorum sensing is a word which consists of a Latin word “quorum” and a English word “sensing” but his origin is Latin; in consequence we consider all the term must be written in italics.
- Moreira, L.L.; Barreiro, E.J. Bioisosterism: A useful strategy for molecular modification and drug design. Curr. Med. Chem 2005, 12, 23–49. [Google Scholar]
- Patani, A.G.; LaVoie, J.E. Bioisosterism. A rational approach in drug design. Chem. Rev 1996, 96, 3147–3176. [Google Scholar]
- Persson, T.; Hansen, T.H.; Rasmussen, T.B.; Skindersø, M.E.; Givskov, M.; Nielsen, J. Rational design and synthesis of new Quorum-sensing inhibitors derived from acylated homoserine lactones and natural products from garlic. Org. Biomol. Chem 2005, 3, 253–262. [Google Scholar]
- Chen, G.; Swem, L.R.; Swem, D.L.; Stauff, D.L.; O’Loughlin, C.T.; Jeffrey, P.D.; Bassler, B.L.; Hughson, F.M. A strategy for antagonizing quorum sensing. Mol. Cell 2011, 42, 199–209. [Google Scholar]
- Geske, G.D.; Wezeman, R.J.; Siegel, A.P.; Blackwell, H.E. Small molecule inhibitors of bacterial Quorum Sensing and biofilm formation. J. Am. Chem. Soc 2005, 127, 12762–12763. [Google Scholar]
- Geske, G.D.; O’Neill, J.C.; Miller, D.M.; Mattmann, M.E.; Blackwell, H.E. Modulation of bacterial Quorum Sensing with synthetic ligands: Systematic evaluation of N-Acylated homoserine lactones in multiple species and new insights into their mechanisms of action. J. Am. Chem. Soc 2007, 129, 13613–13625. [Google Scholar]
- Janssens, J.C.A.; Steenackers, H.; Metzger, K.; Daniels, R.; Ptacek, D.; Verhoeven, T.; Hermans, K.; Vanderleyden, J.; de Vos, D.E.; de Keersmaecker, S.C.J. Interference with the Quorum Sensing systems of Salmonella enterica serovar typhimurium: Possibilities and implications. Commun. Agric. Appl. Biol. Sci 2007, 72, 35–39. [Google Scholar]
- Tomohiro, M.; Toshitaka, S.; Kiyomi, T.; Masashi, K.; Norihiro, K.; Junichi, K.; Tsukasa, I. Inhibition of quorum sensing in Serratia marcescens AS-1 by synthetic analogs of N-Acylhomoserine lactone. Appl. Environ. Microbiol 2007, 6339–6344. [Google Scholar]
- Smith, K.M.; Yigong, B.; Suga, H. Induction and inhibition of Pseudomonas aeruginosa Quorum Sensing by synthetic autoinducer analogs. Chem. Biol 2003, 10, 81–89. [Google Scholar]
- Janssens, J.C.A.; Metzger, K.; Daniels, R.; Ptacek, D.; Verhoeven, T.; Habel, L.W.; Vanderleyden, J.; de Vos, D.E.; de Keersmaecker, S.C. Synthesis of N-acyl homoserine lactone analogs reveals strong activators of SdiA, the salmonella enterica serovar typhimurium LuxR homolog. Appl. Environ. Microbiol 2007, 73, 535–544. [Google Scholar]
- Smith, K.M.; Bu, Y.; Suga, H. Library screening for synthetic agonists and antagonists of a Pseudomonas aeruginosa autoinducer. Chem. Biol 2003, 10, 563–571. [Google Scholar]
- Yang, L.; Rybtke, M.T.; Jakobsen, T.H.; Hentzer, M.; Bjarnsholt, T.; Givskov, M.; Tolker-Nielsen, T. Computer-aided identification of recognized drugs as Pseudomonas aeruginosa Quorum Sensing inhibitors. Antimicrob. Agents Chemother 2009, 53, 2432–2443. [Google Scholar]
- Müh, U.; Schuster, M.; Heim, R.; Singh, A.; Olson, E.R.; Greenberg, P.E. Novel Pseudomonas aeruginosa Quorum-sensing inhibitors identified in an ultra-high-throughput screen. Antimicrob. Agents Chemother 2006, 50, 3674–3679. [Google Scholar]
- Zhu, H.; Sun, S.J. Inhibition of bacterial quorum sensing regulated behaviors by Tremella fuciformis extract. Curr. Microbiol 2008, 57, 418–422. [Google Scholar]
- Nagy, M.M. Quorum Sensing Inhibitory Activities of Various Folk-Medicinal Plants and the Thyme-tetracycline Effect. Biology Dissertations; Georgia State University, 2010. Paper 90. Available online: http://digitalarchive.gsu.edu/biology_diss/90 accessed on 11 January 2012. [Google Scholar]
- Mueh, U.; Hare, B.J.; Duerkop, B.A.; Schuster, M.; Hanzelka, B.L.; Heim, R.; Olson, E.R.; Greenberg, P.E. A structurally unrelated mimic of a Pseudomonas aeruginosa Acyl-homoserine lactone Quorum-sensing signal. Proc. Natl. Acad. Sci. USA 2006, 103, 16948–16952. [Google Scholar]
- Tomohiro, M.; Masashi, K.; Katsumasa, F.; Norihiro, K.; Tsukasa, I. N-Acylhomoserine lactone regulates violacein production in Chromobacterium violaceum type strain ATCC 12472. FEMS Microbiol. Lett 2008, 279, 124–130. [Google Scholar]
- Cristóbal, D.G. Síntesis de N,N-bis-[4′(2-bromo etoxi)benciliden] etilendiamina y su posible aplicación como monómero de supramoléculas. In Tesis Profesional; ENCB-IPN: Mexico, 2007. [Google Scholar]
- Gelens, E.; Smeets, L.; Sliedregt, L.A.J.M.; van Steen, B.J.; Kruse, Ch.G.; Leurs, R.; Orru, R.V.A. An atom efficient and solvent-free synthesis of structurally diverse amides using microwave. Tetrahedron Lett. 2005, 46, 3751–3754. [Google Scholar]
- Partridge, M.W.; Turner, H.A. Derivatives of n-Hexyl phenyl ether as antituberculous compounds. J. Pharm. Pharmacol 1953, 5, 111–116. [Google Scholar]
- Harfenist, M.; Soroko, F.E.; McKenzie, G.M. 2-(Alkoxyaryl)-2-imidazoline monoamine oxidase inhibitors with antidepressant activity. J. Med. Chem 1978, 21, 405–409. [Google Scholar]
- Fujioka, H.; Murai, K.; Kubo, O.; Ohbay, Y.; Kita, Y. One-pot synthesis of imidazolines from aldehydes: Detailed study about solvents and substrates. Tetrahedron 2007, 63, 638–643. [Google Scholar]
- Pathan, M.Y.; Paike, V.V.; Pachmase, P.R.; More, S.P.; Ardhapure, S.S.; Pawar, R.P. Microwave-assisted facile Synthesis of 2-substituted 2-imidazolines. ARKIVOC 2006, 205–210. [Google Scholar]
- Pez, D.; Leal, I.; Zuccotto, F.; Boussard, C.; Brun, R.; Croft, S.L.; Yardley, V.; Ruiz, L.M.P.; Gonzalez, D.P.; Gilberta, I.H. 2,4-Diaminopyrimidines as inhibitors of leishmanial and trypanosomal dihydrofolate reductase. Bioorg. Med. Chem. 2003, 11, 4693–4711. [Google Scholar]
- Sing, B.; Pandey, A. Synthesis, characterization and mesomorphic properties of unsymmetrical N-(O-hydroxybenzylidene)-N-(4-n-alkoxybenzylidene) azines and their copper(II) complexes. Mol. Cryst. Liq. Cryst 2010, 37, 57–67. [Google Scholar]
- Martinelli, D.; Grossmann, G.; Séquin, U.; Brandl, H.; Bachofen, R. Effects of natural and chemically synthesized furanones on Quorum Sensing in Chromobacterium violaceum. BMC Microbiol 2004, 4, 25. [Google Scholar]
- McClean, K.H.; Winson, M.K.; Fish, L.; Taylor, A.; Chhabra, S.R.; Camara, M.; Daykin, M.; Lamb, J.H.; Swift, S.; Bycroft, B.W.; et al. Quorum Sensing and Chromobacterium violaceum: Exploitation of violacein production and inhibition for the detection of N-acyl homoserine lactones. Microbiology 1997, 143, 3703–3711. [Google Scholar]
- Mall, T.; Follath, F.; Salfinger, M.; Ritz, R.; Reber, H. Moxalactam in nosocomial infections with Serratia marcescens. Intensive Care Med 1985, 11, 179–183. [Google Scholar]
- Horng, Y.-T.; Deng, S.-C.; Daykin, M.; Soo, P.-C.; Wei, J.-R.; Luh, K.-T.; Ho, S.-W.; Swift, S.; Lai, H.-C.; Williams, P. The LuxR family protein SpnR functions as a negative regulator of N-acylhomoserine lactone-dependent Quorum Sensing in Serratia marcescens. Mol. Microbiol 2002, 6, 1655–1671. [Google Scholar]

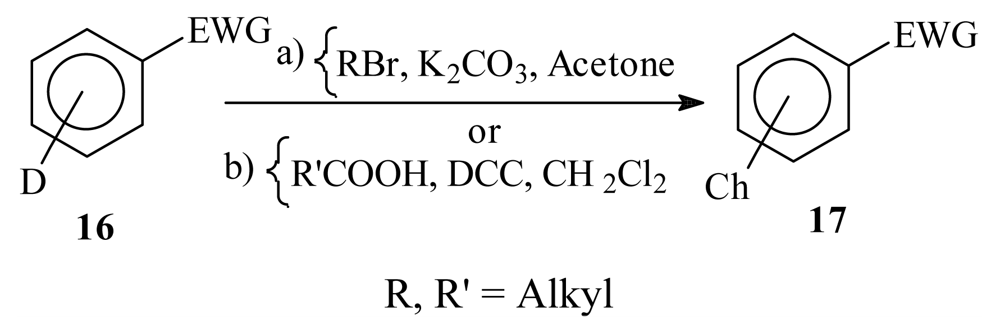

|Table 1. Preparation of synthetic intermediates of imidazoline derivatives.|
|D||EWG||Reagents and reaction conditions||Ch||Compound number||Isolated yield (%)|

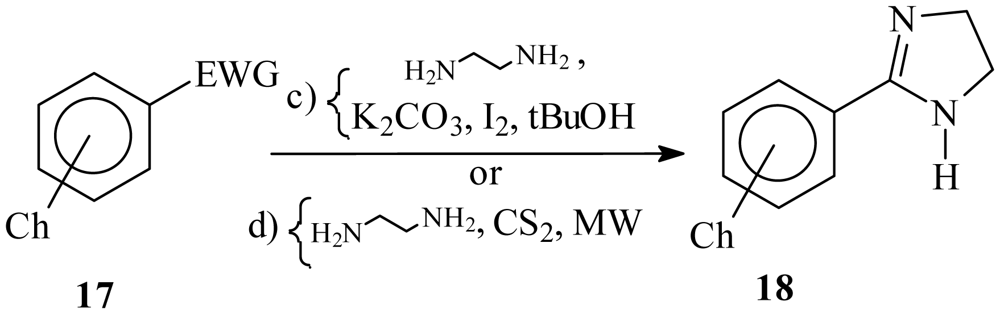

|Table 2. Synthesis of the 2-arylimidazoline derivatives.|
|Ch||EWG||Reagents and conditions||Compound number||Isolated yield (%)|
