Next Article in Journal
Previous Article in Journal
Int. J. Mol. Sci. 2012, 13(12), 16812-16821; doi:10.3390/ijms131216812
Article

Phase Transformations of α-Alumina Made from Waste Aluminum via a Precipitation Technique

1,2,* , 1
, 1,2
, 2
 and 1
Received: 27 August 2012; in revised form: 23 November 2012 / Accepted: 30 November 2012 / Published: 7 December 2012
(This article belongs to the Section Material Sciences and Nanotechnology)
View Full-Text   |   Download PDF [227 KB, uploaded 19 June 2014]

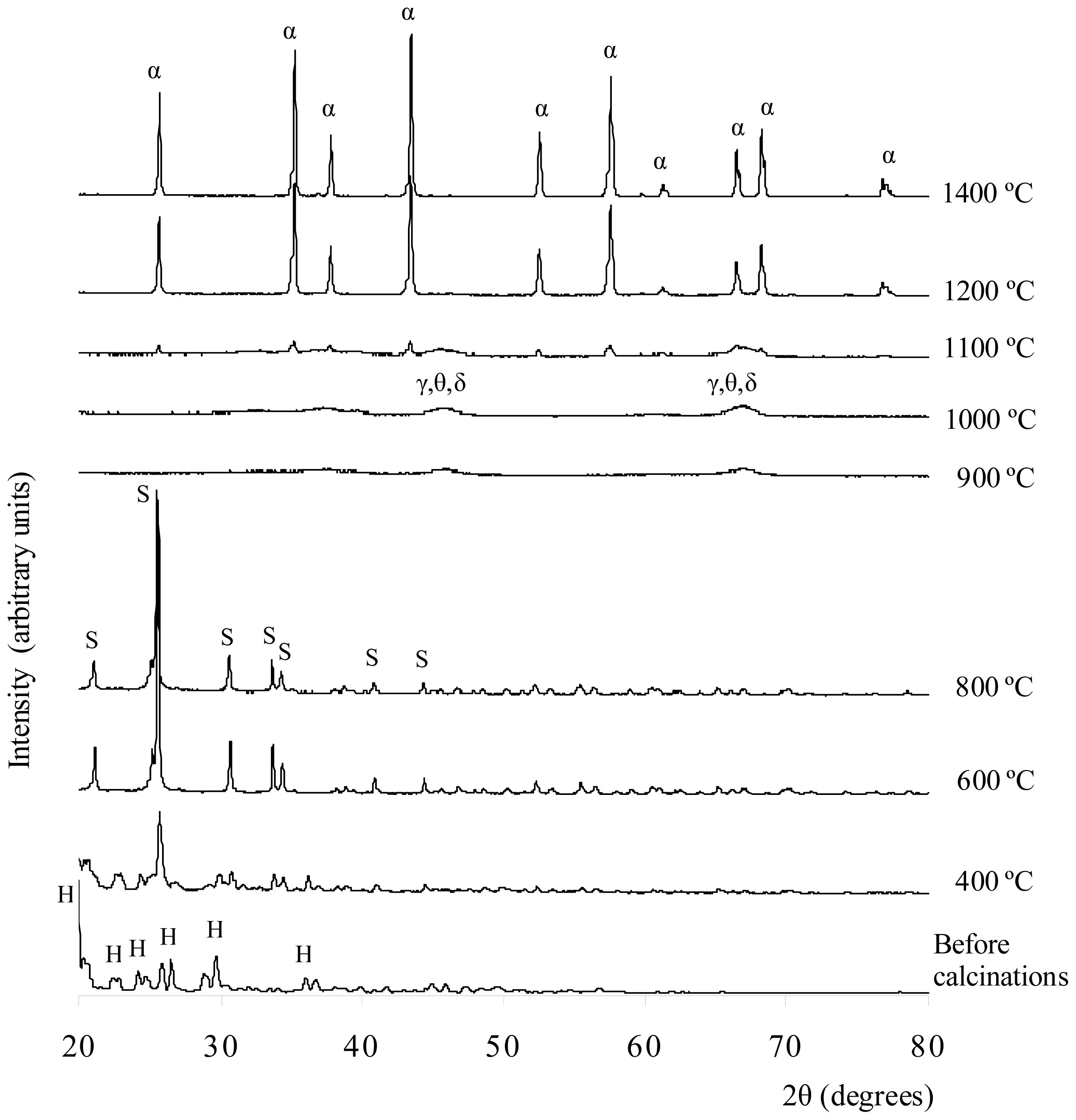

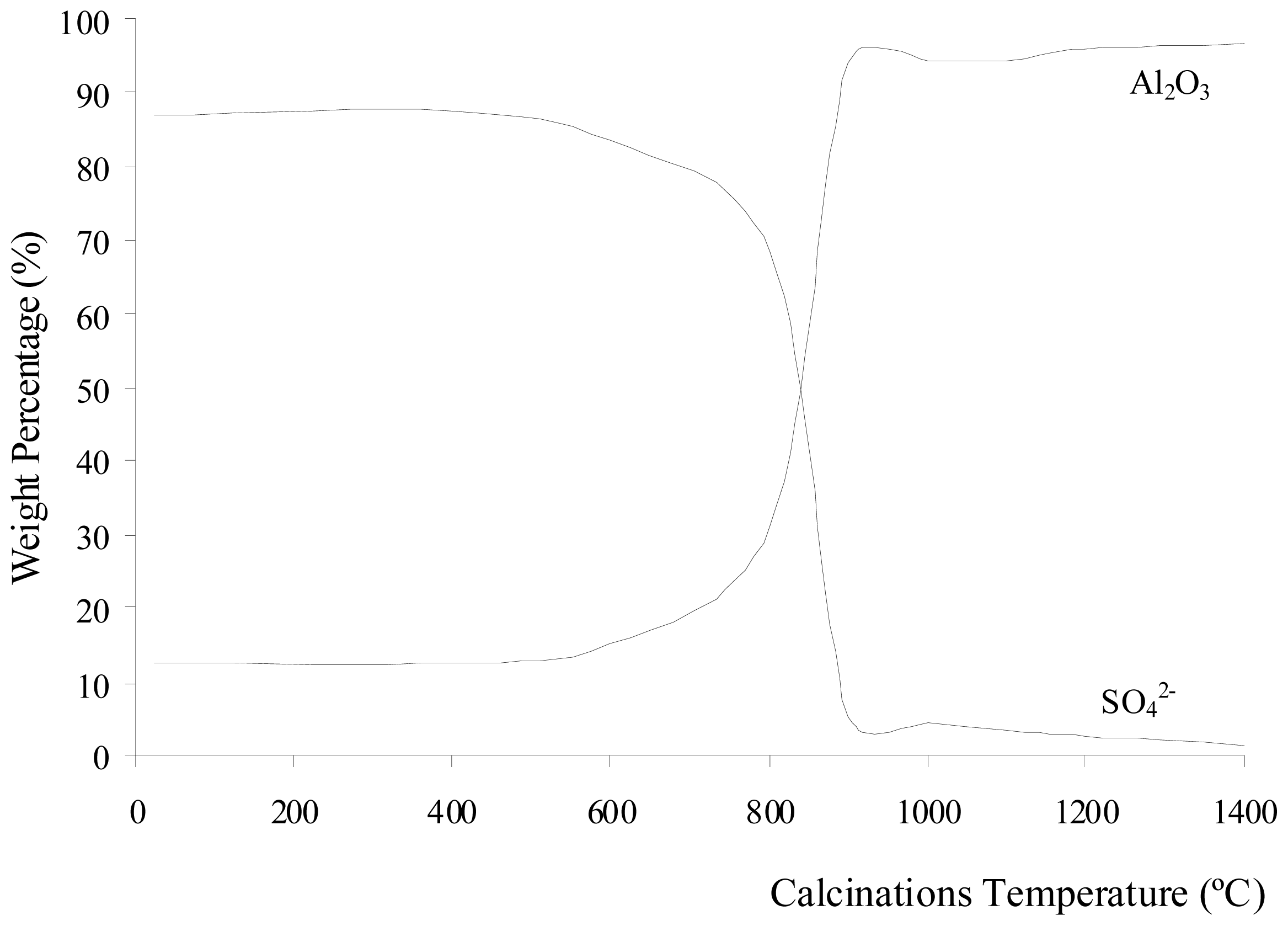

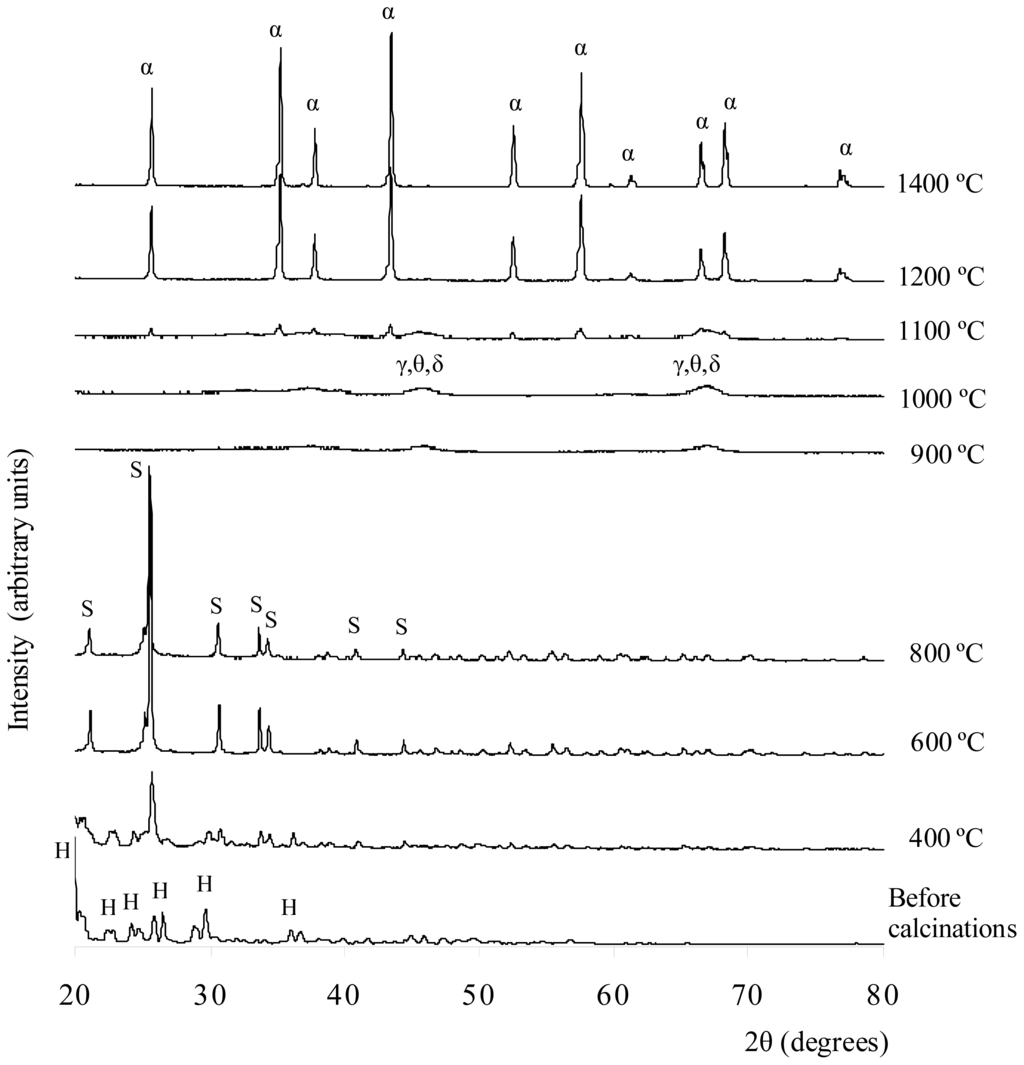

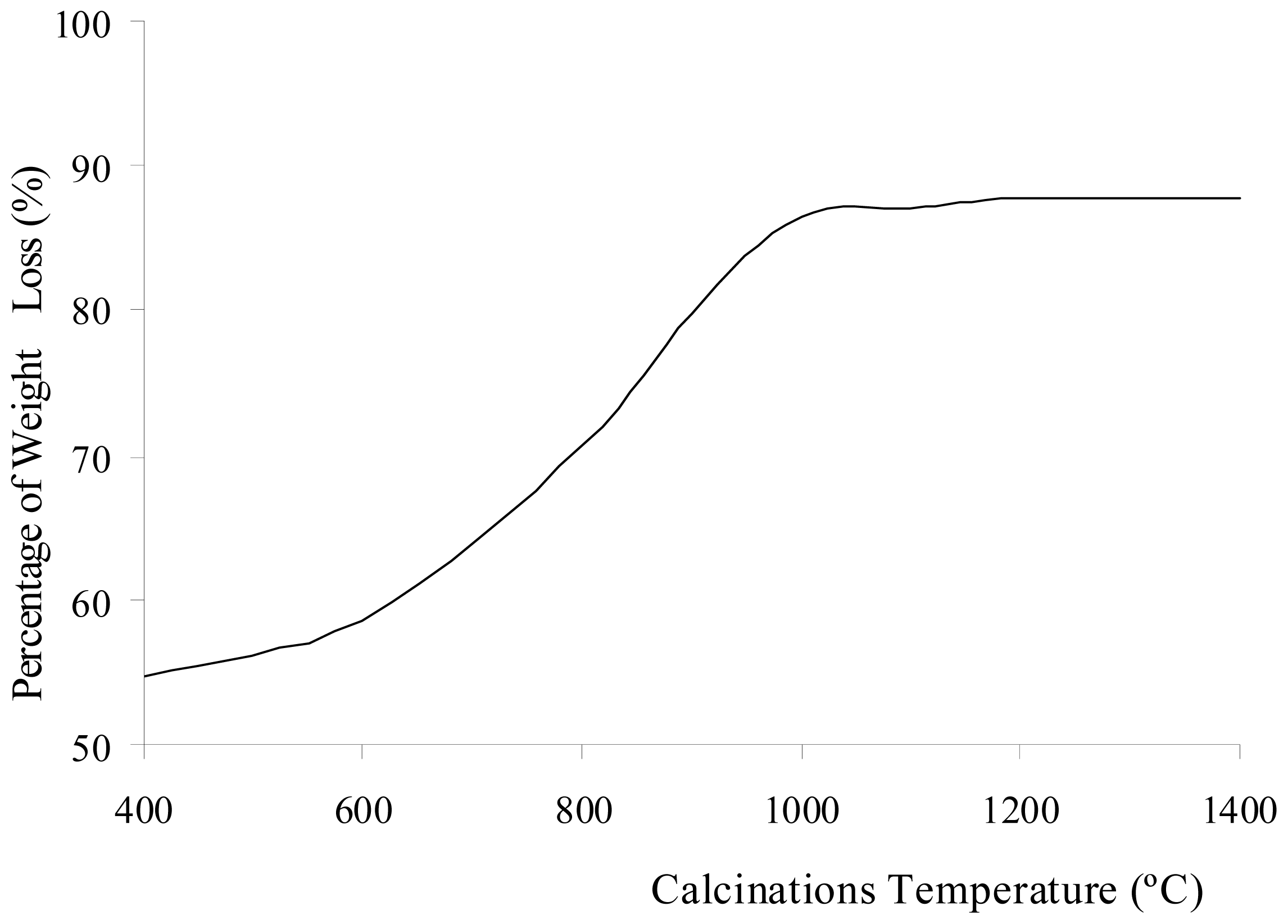

Abstract: We report on a recycling project in which α-Al2O3 was produced from aluminum cans because no such work has been reported in literature. Heated aluminum cans were mixed with 8.0 M of H2SO4 solution to form an Al2(SO4)3 solution. The Al2(SO4)3 salt was contained in a white semi-liquid solution with excess H2SO4; some unreacted aluminum pieces were also present. The solution was filtered and mixed with ethanol in a ratio of 2:3, to form a white solid of Al2(SO4)3·18H2O. The Al2(SO4)3·18H2O was calcined in an electrical furnace for 3 h at temperatures of 400–1400 °C. The heating and cooling rates were 10 °C /min. XRD was used to investigate the phase changes at different temperatures and XRF was used to determine the elemental composition in the alumina produced. A series of different alumina compositions, made by repeated dehydration and desulfonation of the Al2(SO4)3·18H2O, is reported. All transitional alumina phases produced at low temperatures were converted to α-Al2O3 at high temperatures. The X-ray diffraction results indicated that the α-Al2O3 phase was realized when the calcination temperature was at 1200 °C or higher.
Keywords: precipitation; calcinations; phase transformations; α-alumina precipitation; calcinations; phase transformations; α-alumina
This is an open access article distributed under the Creative Commons Attribution License which permits unrestricted use, distribution, and reproduction in any medium, provided the original work is properly cited.

Export to BibTeX |
EndNote


MDPI and ACS Style

Matori, K.A.; Wah, L.C.; Hashim, M.; Ismail, I.; Zaid, M.H.M. Phase Transformations of α-Alumina Made from Waste Aluminum via a Precipitation Technique. Int. J. Mol. Sci. 2012, 13, 16812-16821.

AMA Style

Matori KA, Wah LC, Hashim M, Ismail I, Zaid MHM. Phase Transformations of α-Alumina Made from Waste Aluminum via a Precipitation Technique. International Journal of Molecular Sciences. 2012; 13(12):16812-16821.

Chicago/Turabian Style

Matori, Khamirul A.; Wah, Loy C.; Hashim, Mansor; Ismail, Ismayadi; Zaid, Mohd H.M. 2012. "Phase Transformations of α-Alumina Made from Waste Aluminum via a Precipitation Technique." Int. J. Mol. Sci. 13, no. 12: 16812-16821.



Int. J. Mol. Sci. EISSN 1422-0067 Published by MDPI AG, Basel, Switzerland RSS E-Mail Table of Contents Alert
