Chalcone-Derived Lactones: Synthesis, Whole-Cell Biotransformation, and Evaluation of Their Antibacterial and Antifungal Activity

Abstract

Four compounds with lactone moiety were synthesized from chalcone 1 in three- or four-step synthesis. γ-Bromo-δ-lactone 5 was the only product of bromolactonization of acid 4 whereas bromolactonization of ester 3, apart from lactone 5 also afforded its isomer 6 and two diastereoisomeric δ-hydroxy-γ-lactones 7 and 8. Lactone 8 was also obtained in 88% yield as a product of simultaneous dehalogenation and translactonization of γ-bromo-δ-lactone 5 by Penicillum frequentans AM 359. Chalcone-derived lactones 5–8 were subjected to the tests on antimicrobial activity and the results compared with activity of starting chalcone 1. Obtained lactones 5–8 in most cases limited the growth of tested bacterial and fungal strains. The highest activity was found for δ-hydroxy-γ-lactone 8 which completely inhibited the growth of Staphylococcus aureus, Fusarium graminearum, Aspergillus niger, and Alternaria sp. The introduction of lactone moiety into chalcone scaffold significantly improved antimicrobial activity of the compound: γ-bromo-δ-lactone 6 and δ-hydroxy-γ-lactone 8 were significantly stronger growth inhibitors of S. aureus and F. graminearum. In the case of the latter, a clear positive effect of the lactone function on the antifungal activity was also observed for γ-bromo-δ-lactone 5.

1. Introduction

Chalcones (1,3-diarylprop-2-en-1-ones) are secondary metabolites of plants which belong to the class of flavonoids. They are widely distributed in vegetables, fruits, and teas [1]. Some plants rich in chalcones from the Glycyrrhiza, Piper, or Angelica genus have been used for many years as therapeutic agents in Balkan countries [2]. Indeed, for natural and synthetic chalcones, a number of studies have shown a wide spectrum of biological activity of such as antioxidant, anticancer, anti-inflammatory, antidiabetic, antiviral, or antiparasitic [2,3,4,5]. Several chalcone derivatives are known to be the commercial drugs, i.a., choleretic drug metochalcone or antiulcer and mucoprotective drug sofalcone [6].

One of the most studied bioactivities of natural and synthetic chalcones are their antibacterial [7] and antifungal [8] properties. Numerous chalcones exhibiting these activities can be found in literature, including those synthesized by Claisen–Schmidt condensation of substituted benzaldehydes with acetophenone [9,10,11], with cyclopentanone or cyclohexanone [12] or with 1-tetralone [13]. Another example of chalcones with antimicrobial activity are those based on thiazole [14] or chromone scaffold [15]. The simplest chalcone, 1,3-diphenylprop-2-en-1-one (1), exhibited strong antifungal effects against some dermatophytes [16].

Our research group was also involved in the studies on the lactones with antimicrobial activity, derived from simple aromatic aldehydes [17,18,19] or β-cyclocitral [20]. In one of our last papers, we presented the results of the studies on the antimicrobial properties of ε-lactones obtained from flavanones by Baeyer–Villiger oxidation. It has been confirmed that introduction of lactone moiety increased the antimicrobial activity of starting flavanones [21]. In this work, we would like to investigate if the lactones obtained from chalcone 1 by synthetic and biotechnological methods exhibit higher antimicrobial properties than starting substrate.

2. Results and Discussion

2.1. Synthesis

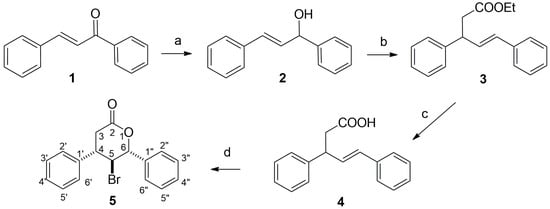

Direct substrates for halolactonizations were acid 4 or ethyl ester 3. Both substrates were obtained from chalcone 1 in two or three-step procedure presented on Scheme 1. In the first step, chalcone 1 was reduced with sodium borohydride in methanol–water solution (10:1) at 0 °C to afford racemic alcohol 2 in 97% yield. Alcohol 2 was then subjected to the Claisen rearrangement with triethyl orthoacetate in the presence of catalytic amount of propionic acid to obtain ethyl ester 3 in 70% yield. Ester 3 was subsequently hydrolyzed with NaOH in EtOH to afford acid 4 in 81% yield. All spectroscopic data of alcohol 2, ester 3, and acid 4 were in accordance with those reported in literature [22,23].

Bromolactonization of acid 4 with N-bromosuccinimide (NBS) in tetrahydrofurane (THF) afforded γ-bromo-δ-lactone 5 as the only product in 37% yield (Scheme 2). Its structure was confirmed by spectroscopic data. On IR spectrum, the absorption bands at 1729 and 1249 cm⁻¹ of corresponding C=O and C-O bonds confirmed the presence of δ-lactone ring in the molecule. On ¹H NMR, two diastereotopic protons of CH₂-3 group were represented by two doublets of doublets at 2.90 ppm (J = 17.8 and 10.1 Hz) and 3.19 ppm (J = 17.8 and 6.7 Hz). The values of the smaller coupling constants in these multiplets let us assign the multiplet located at higher field to pseudoaxial proton and the multiplet located at lower field to the pseudoequatorial one. Proton H-4 gave triplet (J = 10.1 Hz) of doublets (J = 6.7 Hz) at 3.63 ppm, proton H-5 triplet (J = 10.1 Hz) at 4.30 ppm, and the signal of proton H-6 was recognized as doublet at 5.47 ppm (J = 10.1 Hz). The coupling constant value (10.1 Hz) between proton H-5 and H-4 as well as H-5 and H-6 indicated the pseudoaxial orientations of these protons and thus the pseudoequatorial orientations of bromine and two phenyl rings. These data were fully confirmed by X-ray analysis. Crystal structure of compound 5, shown in Figure 1, revealed trans orientation of bromine at C-5 in relation to phenyl substituents at C-4 and C-6 as well as the half-chair conformation of δ-lactone ring, assumed on the basis of spectroscopic data. The values of torsion angles between corresponding bonds were compatible with the coupling constants found in the ¹H NMR spectrum. The spectroscopic data of lactone 5 were consistent with those obtained for its enantiomer 4R,5R,6S, an intermediate in the synthesis of (˗)-clausenamide, exhibiting significant neuroprotective effect against β-amyloid in cellular models [23].

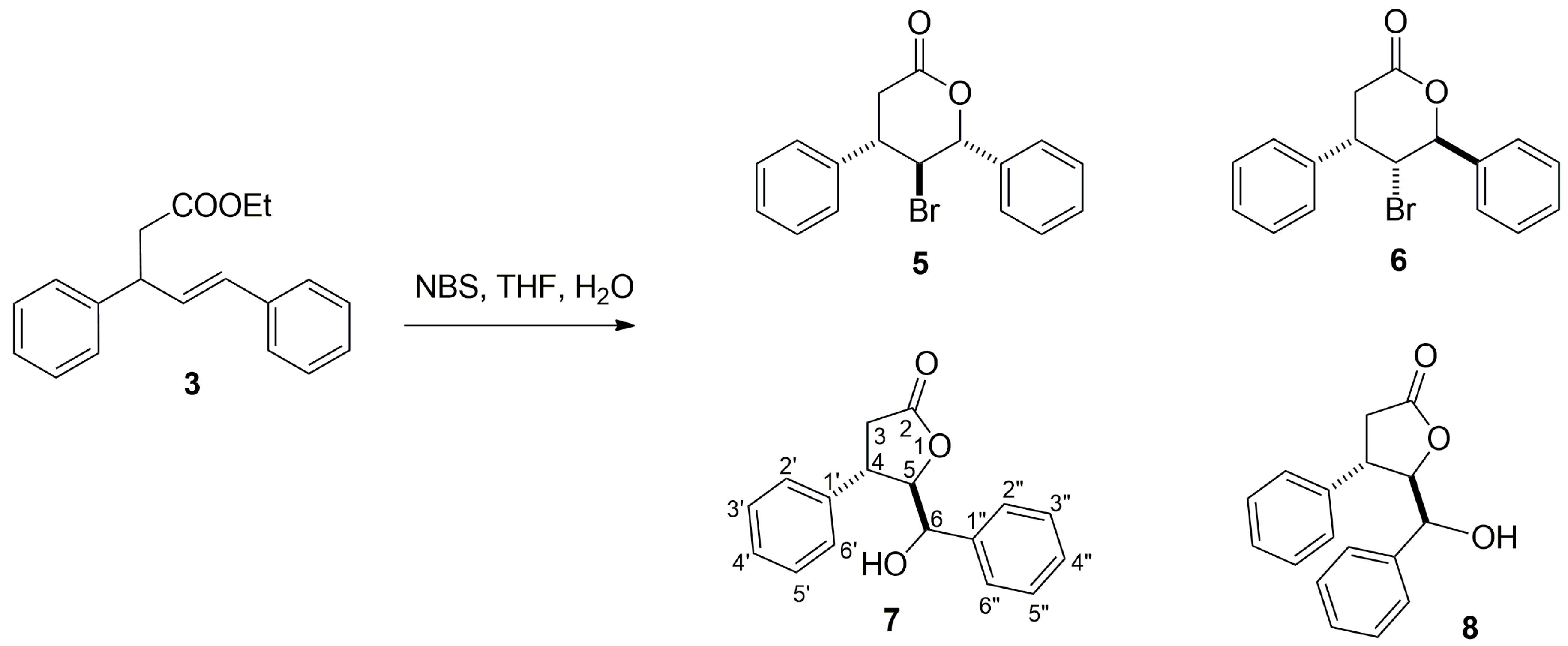

Searching for new methods to improve the yield of lactone 5, bromolactonization of ester 3 using NBS in THF/H₂O solution was carried out (Scheme 2) according to the procedure described by Obara et al. [24]. As a result, we obtained bromolactone 5 as a major product with a significantly higher isolated yield (79%) compared to the yield observed for the bromolactonization of acid 3. Simultaneously, three new lactones, not described previously, were formed as minor products: bromolactone 6 (4% isolated yield) and two δ-hydroxy-γ-lactones 7 and 8, obtained in 3 and 6% isolated yields, respectively.

Spectral data obtained for lactone 6 together with X-ray analysis allowed us to establish the structure of this product. The presence of δ-lactone ring was confirmed by absorption bands at 1730 and 1205 cm⁻¹ on the IR spectrum. The orientations of substituents at the lactone ring were clearly indicated by the crystal structure (Figure 2).

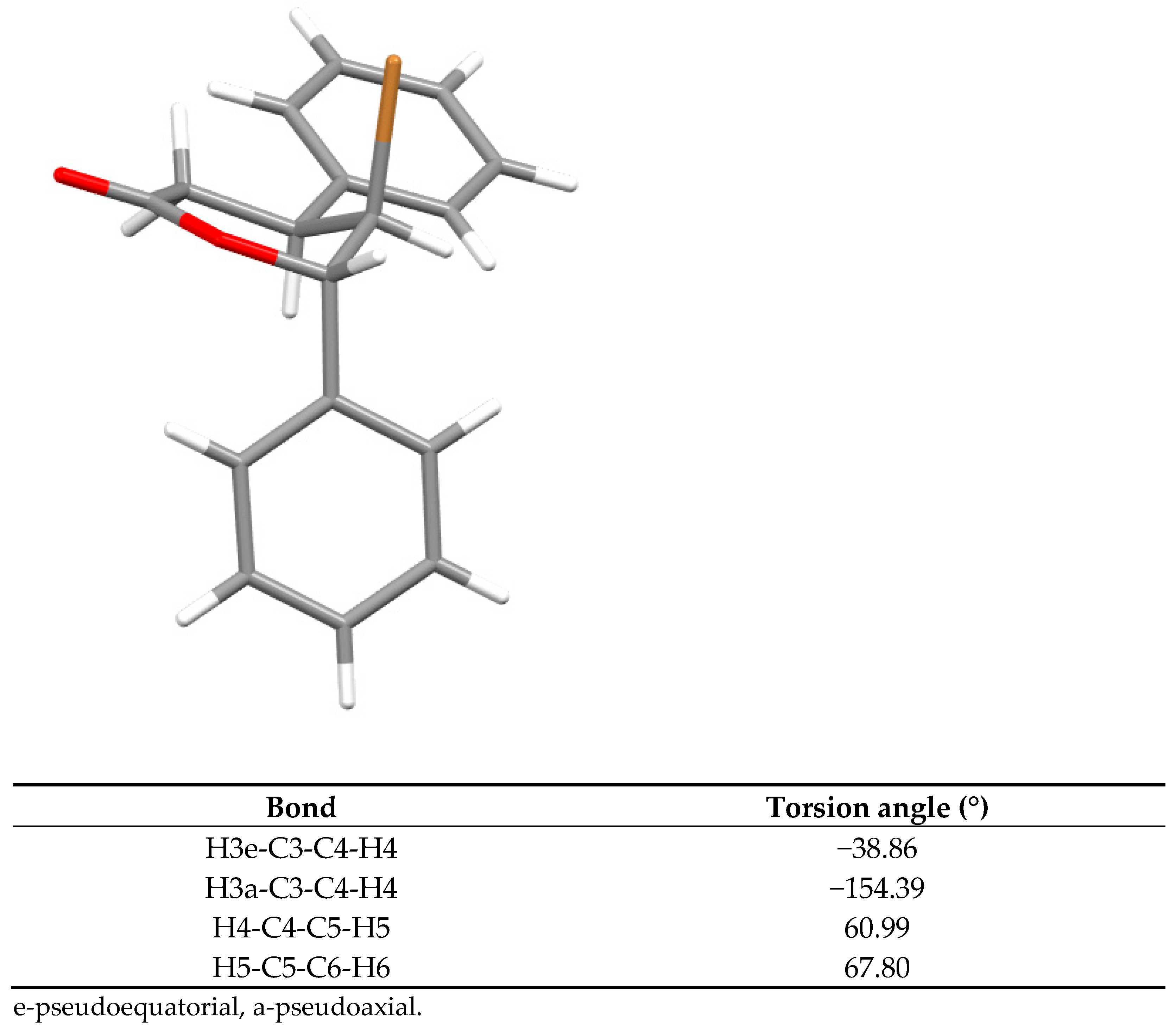

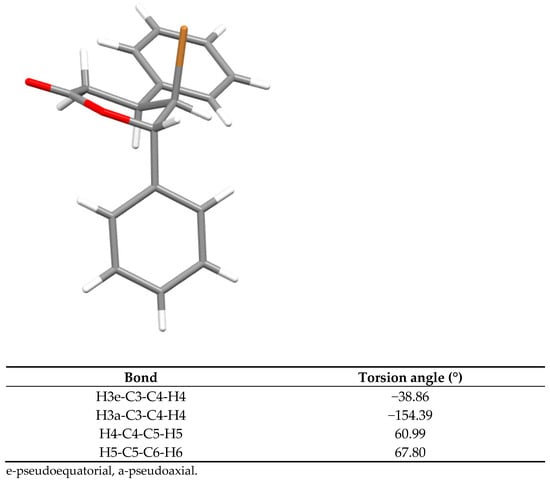

One can see pseudoaxial orientations of bromine atom at C-5 and phenyl ring at C-6 as well as pseudoequatorial orientation of phenyl ring at C-4, which contrary to the lactone 5 was cis oriented to the bromine atom. The torsion angles between proton H-5 and protons H-4 and H-6 (Figure 2) were in accordance with the corresponding coupling constants found in ¹H NMR spectrum. Similar to lactone 5, the signals of H-5 and H-6 were also triplet (4.71 ppm) and doublet (5.97 ppm), respectively, but with small coupling constant (J = 2.5 Hz) resulting from the pseudoequatorial orientations of these protons.

Based on the previous investigations on the bromolactonization of γ,δ-unsaturated acids [24,25,26], we also expected the formation of two diastereoisomeric δ-bromo-γ-lactones. Indeed, two other products were isolated from the products mixture but surprisingly, their structural X-ray analysis did not confirm their structures as predicted cis and trans isomers of δ-bromo-γ-lactone. The crystal structure of compound 7 (Figure 3) undoubtedly showed that the isolated compound was trans δ-hydroxy-γ-lactone.

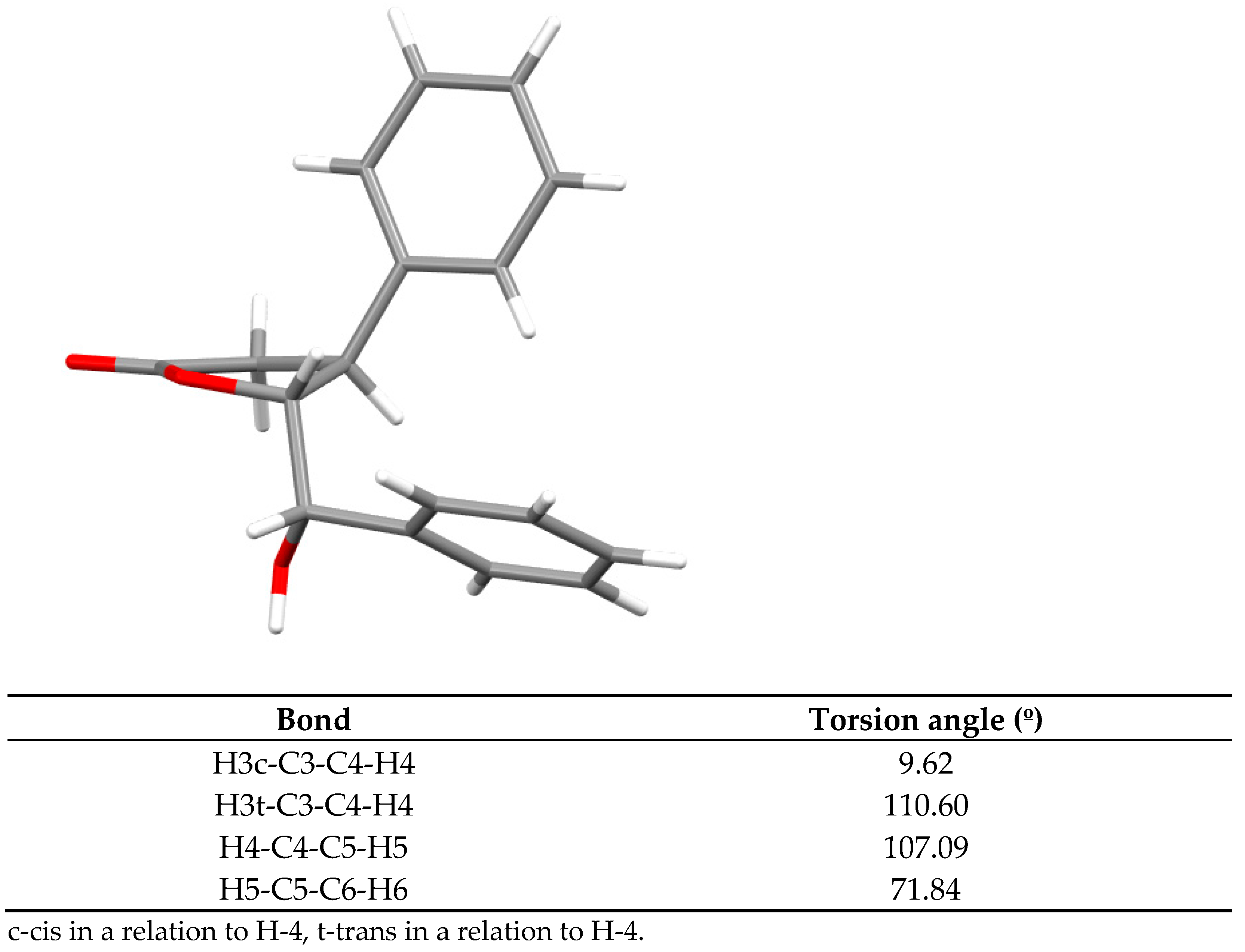

On the IR spectrum of lactone 8, apart from the presence of γ-lactone ring (absorption bands at 1778 and 1199 cm⁻¹), a strong band at 3435 cm⁻¹ from OH group was also detected. In determining the detailed structure of this compound, it was very helpful to compare its ¹H NMR data with those of the hydroxylactone obtained from benzaldehyde [27], which is a structural analog containing a methyl group at C-6 instead of a phenyl ring (

Table 1. Comparison of selected signals on ¹H NMR spectra (chemical shifts, coupling constants) for trans δ-hydroxy-γ-lactone 8 and its analog derived from benzaldehyde [27].

trans δ-hydroxy-γ-lactone derived from benzaldehyde	trans δ-hydroxy-γ-lactone 8	Proton
2.65 (dd, J = 18.0, 7.5 Hz) 3.10 (dd, J = 18.0, 9.6 Hz)	2.64 (dd, J = 18.1, 7.8 Hz) 2.91 (dd, J = 18.1, 9.5 Hz)	CH2-3
3.75 (ddd, J = 9.6, 7.5, 6.3 Hz)	3.67 (ddd, J = 9.5, 7.8, 6.3 Hz)	H-4
4.49 (dd, J = 6.3, 3.0 Hz)	4.69 (dd, J = 6.3, 4.1 Hz)	H-5
4.17 (qd, J = 6.3, 3.0 Hz)	4.76 (d, J = 4.1 Hz)	H-6

). Based on the far-reaching similarities in the chemical shifts of the selected protons and the coupling constants found in the individual multiplets, particularly between H-4 and H-5 (J = 6.3 Hz), it was proven that product 8 is also a trans isomer of δ-hydroxy-γ-lactone.

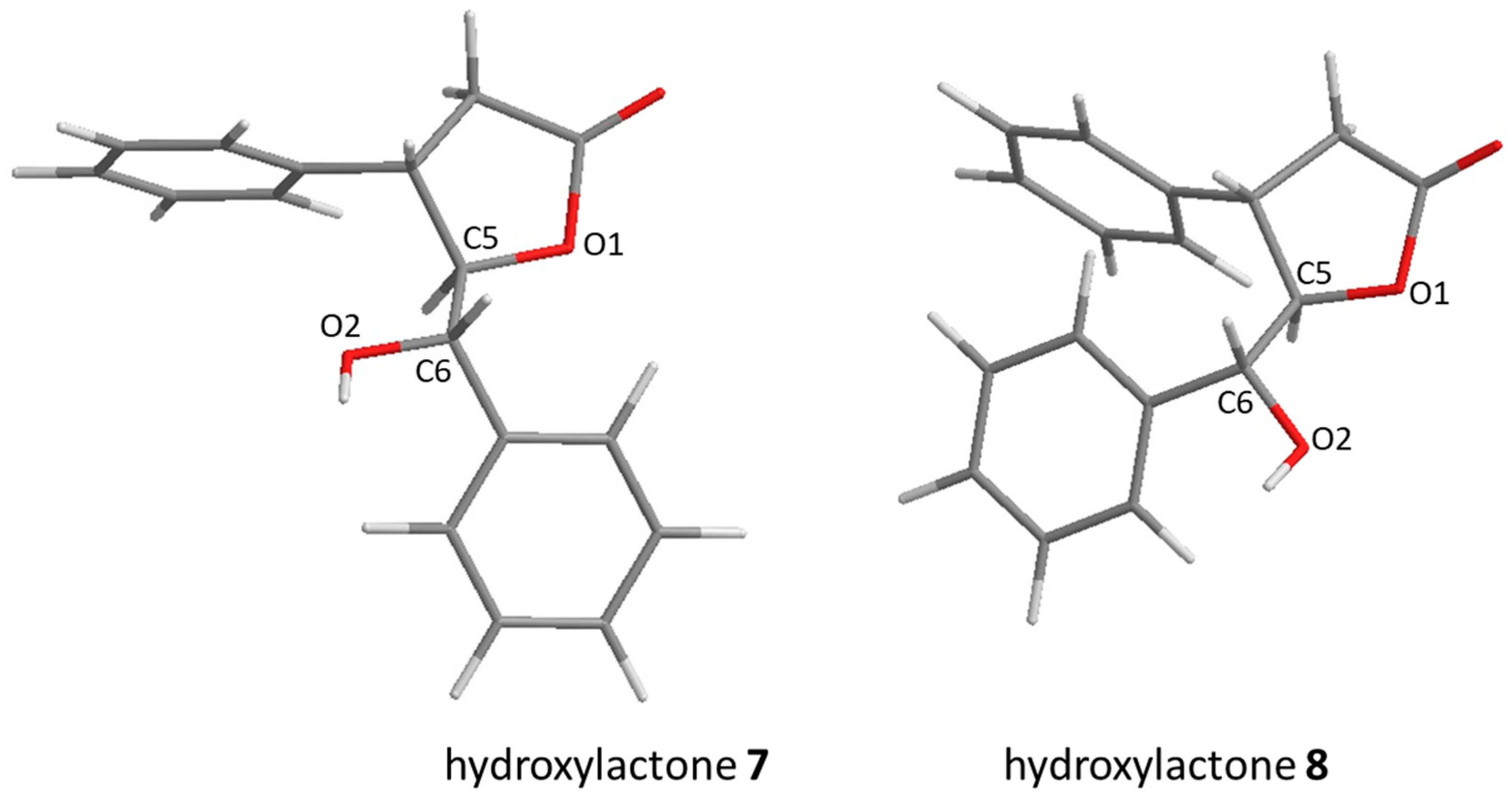

In both isolated hydroxylactones 7 and 8, a significant difference was observed for chemical shift of proton H-6; the doublet from this proton was located at 4.76 ppm on the spectrum of compound 8 but shifted downfield to 5.13 ppm on the spectrum of lactone 7. This can be explained by the shorter distance between proton H-6 and the alkoxy oxygen of lactone ring (Figure 3) which exerts more deshielding effect on H-6 in the molecule of lactone 7. For lactone 8, this effect is weaker which must be caused by a longer distance between H-6 and O1. The obtained data showed that both trans δ-hydroxy-γ-lactones 7 and 8 are diastereoisomers on C-6, differing in the position of the OH group in the relation to the C-O bond of the lactone ring. Formation of two products during bromolactonization of ester 3 can be explained by low stability of C-Br bond in a benzylic position of initially formed trans δ-bromo-γ-lactone and nucleophilic substitution occurring according to the S_N1 mechanism (Scheme 3). In the reaction conditions after dissociation of bromine, the formed carbocation reacts easily with water to form two diastereoisomeric hydroxylactones 7 and 8. As the water molecule can approach both sides of planar carbocation, in lactone 7, the OH group and C-O bond of the lactone ring reside on opposite faces of the plane defined by the C5-C6 bond (location anti in which torsion angle O1-C5-C6-O2 is in the range of 150–180°), whereas in the lactone 8, they are situated on the same faces of this plane (location syn in which torsion angle O1-C5-C6-O2 is in the range of 0–30°) (Figure 4). These structural features cause the difference in chemical shift of H-6 observed on ¹H NMR spectra as described above.

2.2. Biotransformations of Bromolactone 5

The biotransformation of halolactones has been investigated in our research group for many years since it is an alternative to produce new lactone derivatives, usually difficult to obtain by chemical synthesis. γ-Bromo-δ-lactone 5 was also subjected to biotransformation with whole cells of filamentous fungi and yeasts. The preliminary screening showed that 12 strains transformed the substrate to only one product and let us estimate the effectiveness of used strains by comparing the substrate conversions and times of transformation required to achieve the highest conversion (

Table 2. Compositions of mixtures after biotransformation of bromolactone 5 to one product at the highest substrate conversions.

Entry	Strain	Time (Days)	Substrate 5 (%)	Product 8 (%)
1	Aspergillus niger MB	14	44	56
2	Aspergillus niger 13/33	14	26	74
3	Aspergillus niger 13/5	3	12	88
4	Aspergillus niger KB	14	15	85
5	Aspergillus niger SBJ	14	0	100
6	Aspergillus niger SBP	14	0	100
7	Rhodotorula marina AM 77	10	0	100
8	Penicillum chrysogenum AM 112	10	0	100
9	Penicillum chermesinum AM 113	10	0	100
10	Absidia glauca AM 254	10	0	100
11	Penicillum frequentans AM 359	7	0	100
12	Aspergillus niger CH 11/21	7	0	100

).

Among tested strains, the lowest conversion (56%) was observed for A. niger MB after 14 days of process (entry 1). A. niger 13/33 converted the substrate in 74% after 14 days (entry 2) whereas the conversion observed in A. niger 13/5 and A. niger KB cultures was 88 and 85% after 3 or 14 days, respectively (entries 3, 4). Complete transformation of lactone 5 into the product was achieved for eight strains: in the case of A. niger SBJ and A. niger SBP after 14 days (entries 5, 6), in the case of yeasts R. marina AM77 and fungal strains P. chrysogenum AM 112, P. chermesinum AM 113, A. glauca AM 254 after 10 days (entries 7–10). The most effective biocatalysts were P. frequentans AM 359, and A. niger CH 11/21 which transformed substrate completely after 7 days of incubation (entries 11, 12).

To isolate and establish the structure of a product, biotransformation of δ-bromo-γ-lactone 5 (100 mg) was carried out using P. frequentans AM 359. Spectral data of this product, obtained in 88% isolated yield, were fully consistent with those obtained for δ-hydroxy-γ-lactone 8 formed during the bromolactonization of ester 3. The postulated mechanism of the formation of lactone 8 catalyzed by fungi suggests a tandem dehalogenation-translactonization process involving two simultaneous nucleophilic substitutions: bromine atom at C-5 is substituted by a carboxylic anion released as a result of nucleophilic attack of water at C-6. According to the mechanism of nucleophilic substitution S_N2, approaching the water molecule from the side opposite to the broken C-O bond in the lactone ring results in the formation of only one isomer of trans δ-hydroxy-γ-lactone (8) (Scheme 4).

A different course of biotransformation of δ-bromo-γ-lactone 5 was observed in the cultures of A. cylindrospora AM 336 and D. ignaria KCH 6670 (

Table 3. The course of biotransformation of bromolactone 5 by A. cylindrospora AM 336 and D. igniaria KCH 6670.

Strain	Time (Days)	Substrate 5 (%)	Product 8 (%)	Product 7 (%)
Absidia cylindrospora AM 336	1	47	53	0
	3	6	89	5
	7	3	74	23
	10	2	68	30
	14	2	54	44
Didymosphearia igniaria KCH 6670	1	24	76	0
	3	5	95	0
	7	0	95	5
	10	0	92	8
	14	0	83	17

).

Analysis of the composition of the products mixtures by GC showed the presence of two isomeric hydroxylactones 7 and 8. The percentage composition of the reaction mixtures indicated that initially only hydroxylactone 8 was formed and only after 3 or 7 days of the process the formation of hydroxylactone 7 was observed, the amount of which gradually increased at the expense of lactone 8. Such a course of biotransformation can be explained by the fact that the studied strains possess a dehydrogenase catalyzing a reversible oxidation of hydroxylactone 8 to the corresponding δ-keto-γ-lactone and fast reduction of the carbonyl group leading to the formation of diastereoisomeric hydroxylactone 7 (Scheme 5). A similar reversible oxidation/reduction activity has been described for the fungi-mediated biotransformations of alkylsubstituted cyclohexanones [28] or chalcones [29].

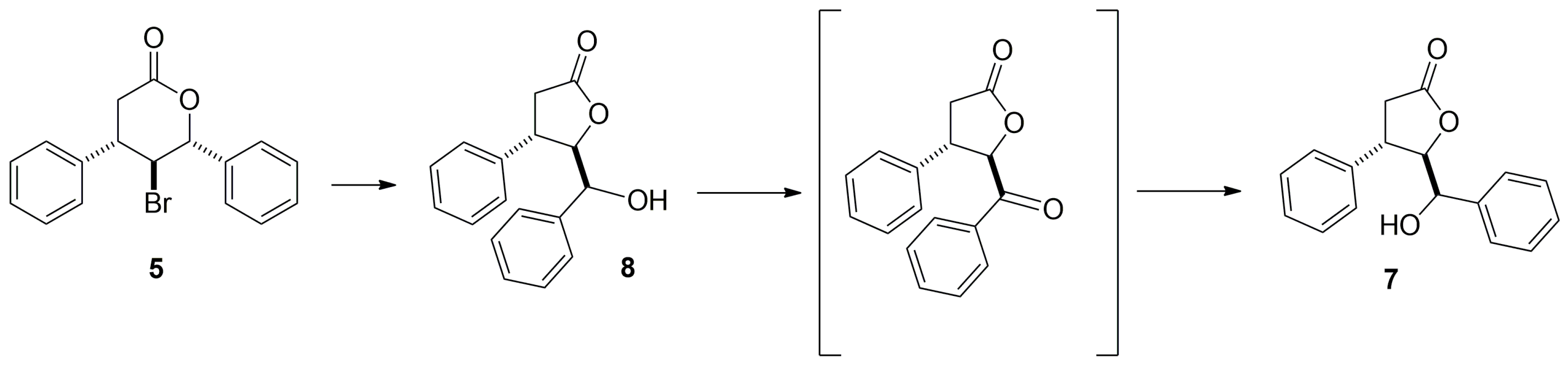

The most frequent transformations of halolactones observed in our earlier studies were hydroxylation of C-H bond in an unactivated position and/or hydrolytic dehalogenation. Piperitone-derived bicyclic δ-halo-γ-lactones were hydroxylated, among others, by A. cylindrospora 336 and A. glauca AM 254 in none-activated methine carbon at the isopropyl substituent [30]. Hydroxylation of an isopropyl group was also observed during biotransformation of 3-methylcrotonaldehyde-derived δ-iodo-γ-lactone and γ-iodo-δ-lactone using Botrytis cinerea AM 235 to afford hydroxyderivatives with tertiary hydroxy group [31]. δ-Iodo- and δ-bromo-γ-lactones derived from β-cyclocitral were hydroxylated in an inactivated position C-5 of cyclohexane ring by A. cylindrospora AM 336, their analog with chlorine atom was also transformed to 3-hydroxyderivative [20].

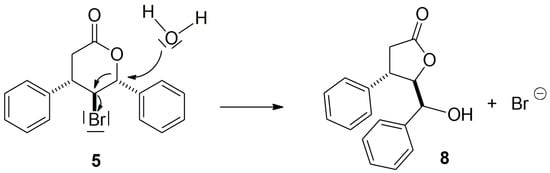

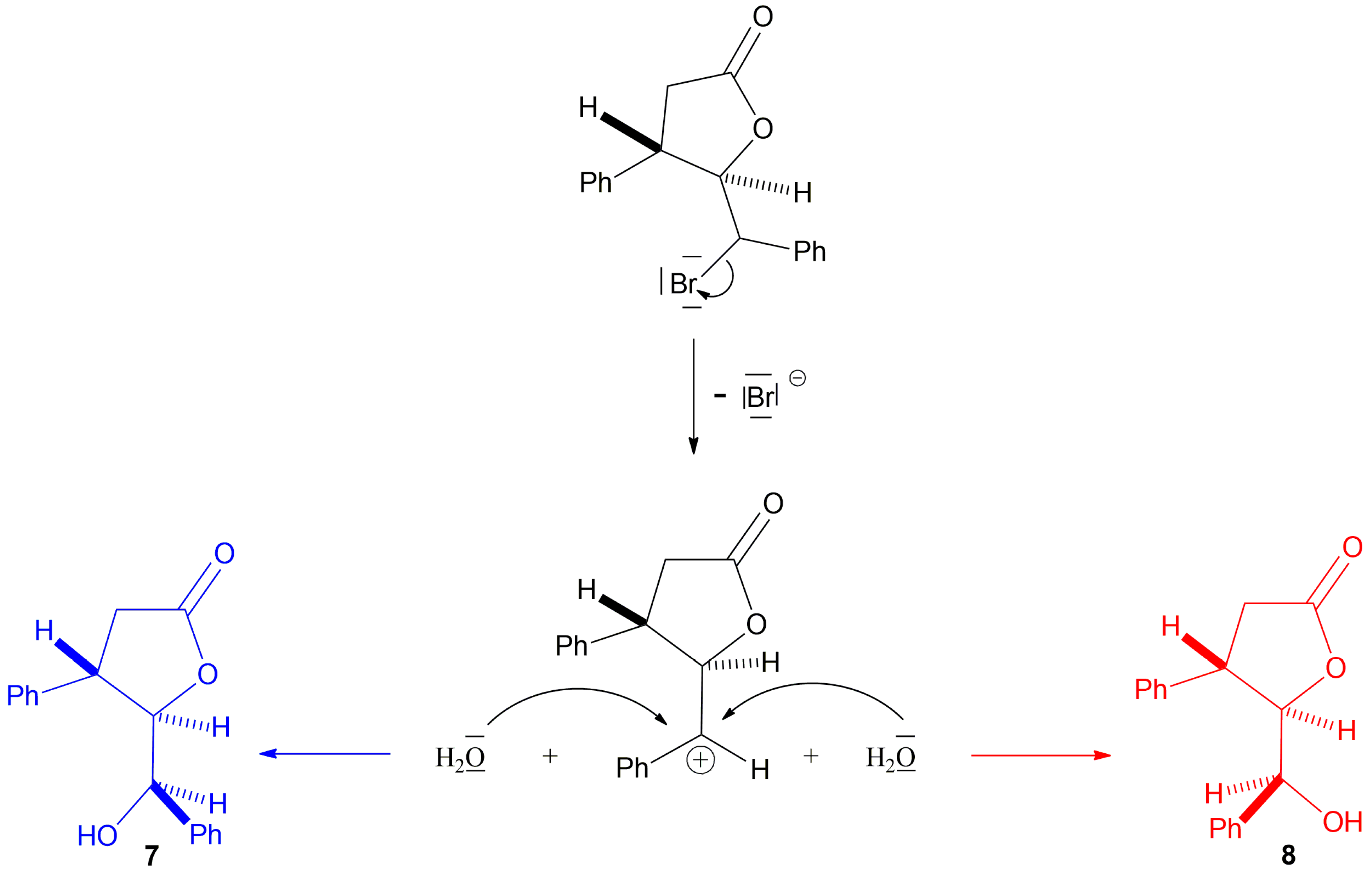

Hydrolytic dehalogenation of halolactones catalyzed by A. cylindrospora AM 336 according to the S_N2 mechanism was observed for bicyclic δ-iodo-γ-lactones with unsubstituted, 4-methyl-, 4,4-dimethyl-, and 5,5-dimethylsubstituted cyclohexane ring as well as for β-phenyl-δ-iodo-γ-lactone. The process was highly stereospecific and the hydroxy group was introduced into the molecule from the opposite site to the leaving halogen atom which was clearly proven by ¹H NMR and X-ray data [32].

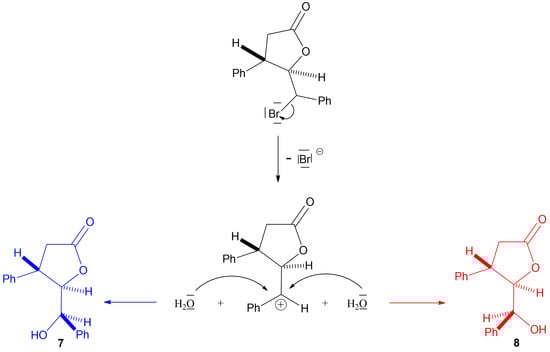

The process of dehalogenation via S_N2 mechanism with simultaneous translactonization leading to the formation of δ-hydroxy-γ-lactone, analogous to that observed in this work, was also reported during incubation of 3-methylcrotonaldehyde-derived γ-bromo-δ-lactone and γ-chloro-δ-lactone with Fusarium culmorum AM 3/1 and Rhodotorula rubra AM4, respectively [33]. Another case of tandem translactonization-dehalogenation reaction sequence was observed during biotransformation of δ-iodo-γ-lactone with 4,4-dimethylsubstituted cyclohexane ring by A. cylindrospora AM 336. In this case, the hydroxy group introduced by the fungi in the first step of transformation was involved in the intramolecular translactonization followed by immediate nucleophilic substitution by the iodine atom which resulted in the formation of γ,δ-epoxy-γ-lactone [32].

2.3. Antimicrobial Activity of Chalcone 1 and Lactones 5–8

Antibacterial and antifungal activity of chalcone 1 and lactones 5–8 were assessed based on duration of lag-phase (

Table 4. Effect of chalcone 1 and chalcone-derived lactones 5–8 on the duration of lag-phase of selected bacterial strains.

Compound	Escherichia coli PCM 2560	Bacillus subtilis B5	Staphylococcus aureus D1
1	21.5 h	27 h	12.5 h
5	4 h	8.5 h	19.5 h
6	2.5 h	27.5 h	n.d. 1
7	3 h	6 h	5 h
8	3 h	8.5 h	n.d.
Control 2	2 h	3 h	4 h

¹ n.d.—not determinable; ² control—cultures cultivated in the medium supplemented with DMSO without tested compounds.

and

Table 5. Effect of chalcone 1 and chalcone-derived lactones 5–8 on the duration of lag-phase of selected filamentous fungi and yeast.

Compound	Fusarium graminearum 109	Aspergillus niger XP	Alternaria sp.	Candida albicans KL-1
1	21.5 h	n.d. 1	n.d.	n.d.
5	32 h	14.5 h	20 h	11 h
6	55.5 h	22 h	46.5 h	5.5 h
7	13 h	37 h	n.d.	6.5 h
8	n.d.	n.d.	n.d.	28 h
Control 2	12.5 h	12.5 h	9 h	8 h

¹ n.d.—not determinable; ² control—cultures cultivated in the medium supplemented with DMSO without tested compounds.

) and changes in the optical density (ΔOD) of microorganisms growing in the presence of tested compounds (Figure 5 and Figure 6). The ability of a compound to limit the growth of a microorganism is manifested by a prolonged lag phase and/or a significantly lower biomass growth, expressed as ΔOD. Values of these two parameters were compared with those measured for microbial cultures growing without the studied compounds (control cultures). With complete inhibition of the microorganism’s growth, there is no logarithmic growth phase, nor can the duration of the lag phase be determined; these cases are marked in Table 4 and Table 5 as “not determinable″. The tests were carried out for three strains of pathogenic bacteria (Escherichia coli, Bacillus subtilis, Staphylococcus aureus), three strains of filamentous fungi (Fusarium graminearum, Aspergillus niger, Alternaria sp.), and one strain of yeast (Candida albicans). Activity of the compounds was tested at the concentration of 0.1% in dimethyl sulfoxide (10 μL, w/v).

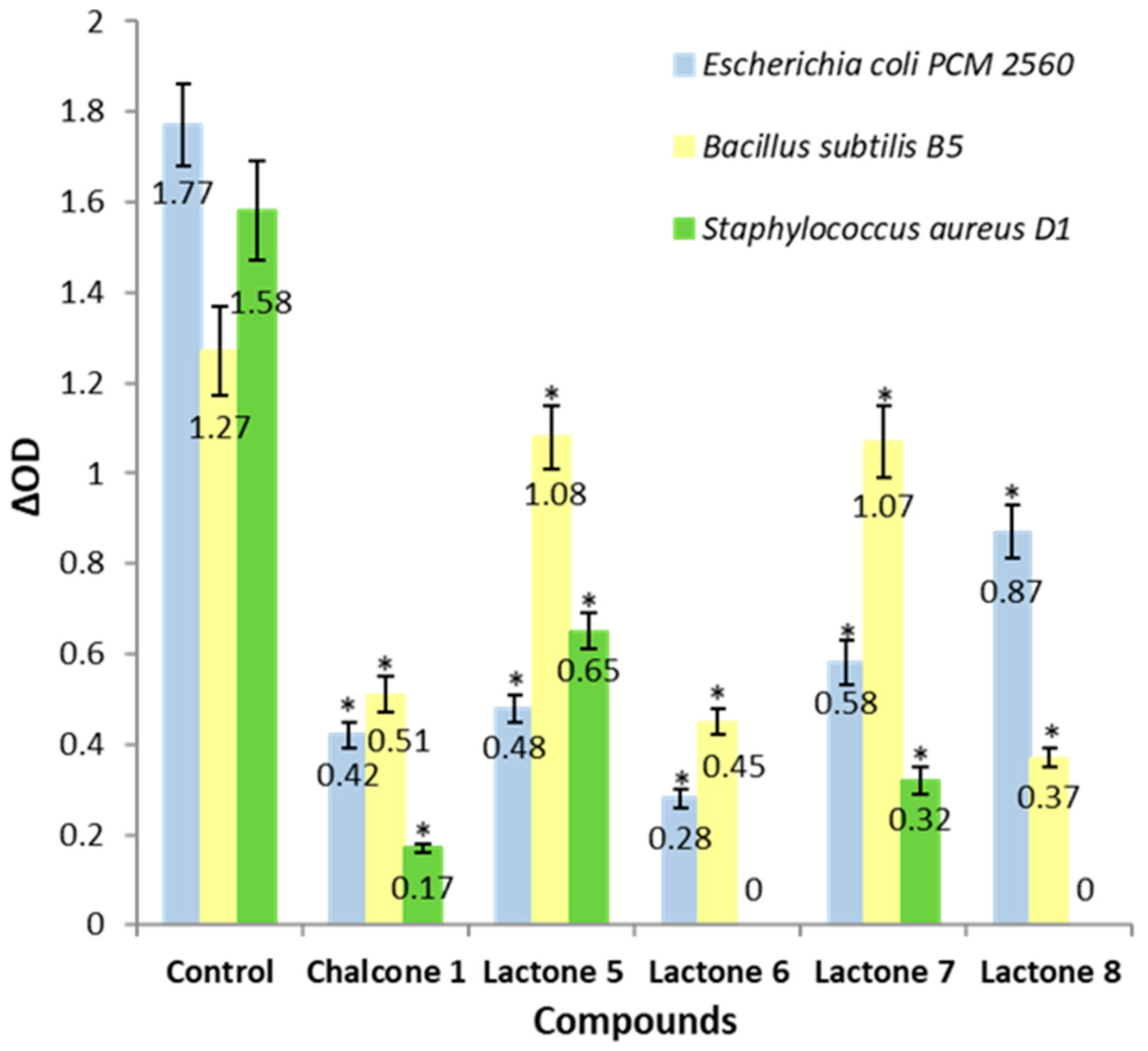

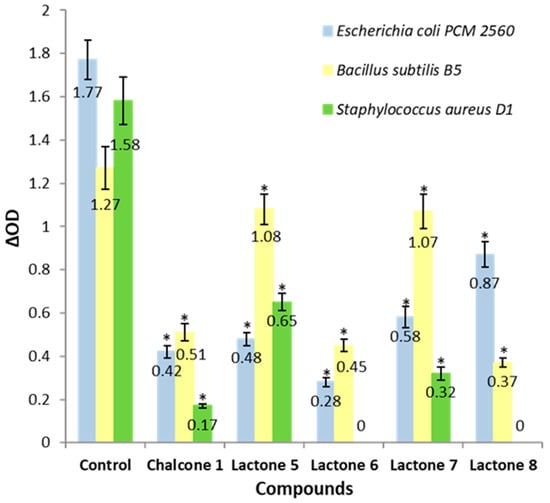

The results presented in Table 4 and Figure 5 indicate that for all bacterial strains the inhibitory effect of the studied compounds was observed. The highest activity was observed for bromolactone 6 and hydroxylactone 8 against S. aureus whose growth was completely inhibited. Relatively high activity towards this strain was also observed for bromolactone 5 and chalcone 1. In the case of B. subtilis, noticeable inhibitory properties were found for chalcone 1, bromolactone 6, and hydroxylactone 8 and the least active were bromolactone 5 and hydroxylactone 7. The most resistant bacterial strain was E. coli since in this case, only chalcone 1 significantly extended the lag-phase and mostly decreased biomass growth. Tested lactones influenced only on the latter parameter, and the lowest ΔOD was detected for bromolactone 6.

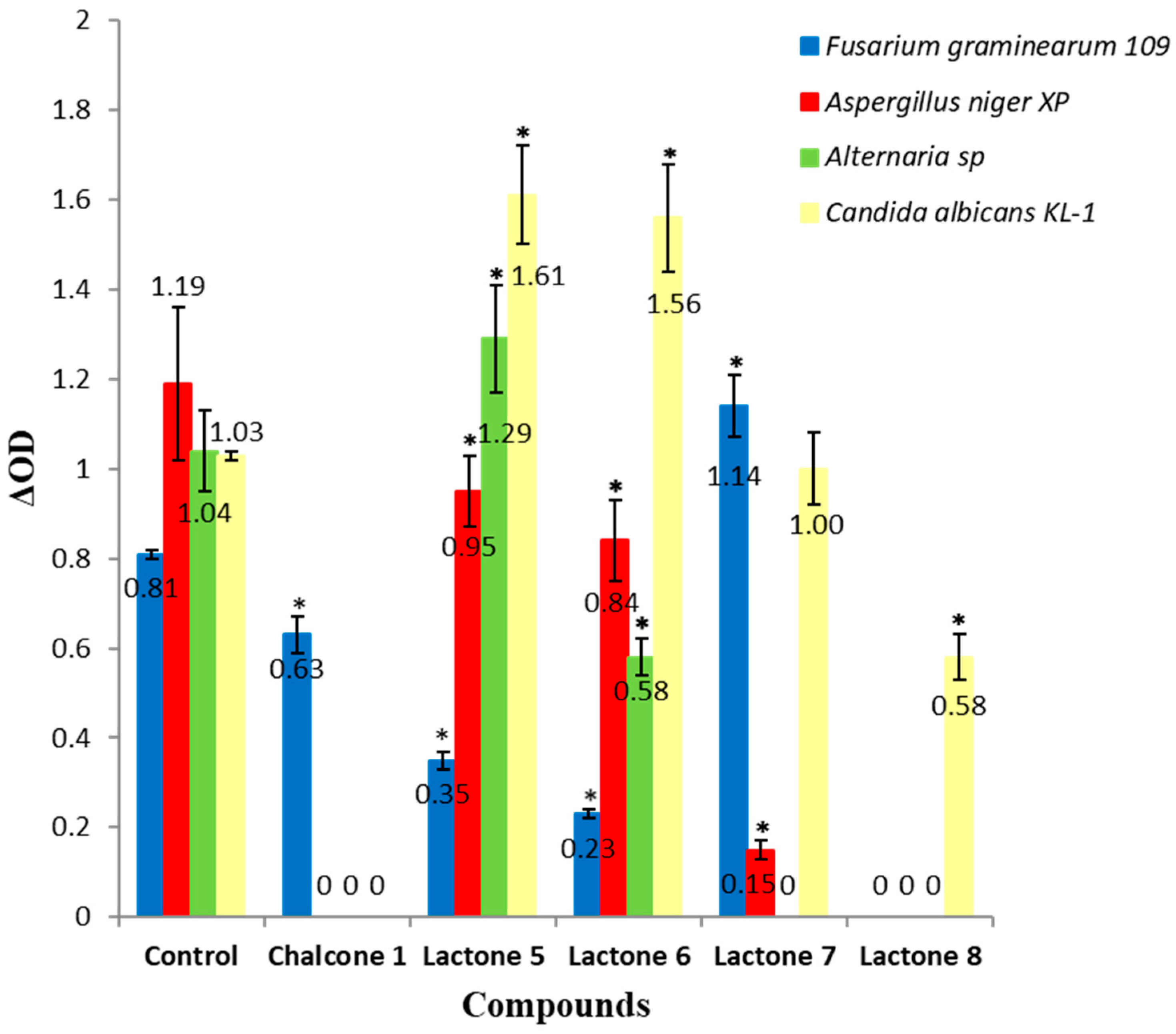

The compound with highest antifungal activity (Table 5, Figure 6) turned out to be hydroxylactone 8 which completely inhibited the growth of F. graminearum, A. niger, and Alternaria sp. and was highly active towards yeast C. albicans. Its isomer hydroxylactone 7 also totally inhibited the growth of Alternaria sp. and significantly limited the growth of A. niger but no activity of this compound was found against F. graminearum and C. albicans. Complete inhibition of microbial growth of A. niger, Alternaria sp., and C. albicans as well as significant limitation of the growth of F. graminearum was also observed for chalcone 1. For bromolactone 6, noticeably high inhibitory activity was found towards F. graminearum and Alternaria sp. and lower against A. niger, whereas diastereoisomeric bromolactone 5 was particularly active against F. graminearum and little active against A. niger. Interestingly, a few cases growth-promoting properties of tested compounds were found as ΔOD values were higher than those determined in control cultures. This phenomenon was particularly observed for bromolactones 6 and 5 incubated with C. albicans. The latter also promoted the growth of Alternaria sp. and hydroxylactone 7 slightly stimulated the growth of F. graminearum.

Considering the effect of the introduction of lactone ring into the chalcone scaffold on the antimicrobial activity one can see that a markedly higher activity in comparison with chalcone 1 was observed in the tests against S. aureus (Table 4, Figure 5) and F. graminearum (Table 5, Figure 6) for bromolactone 6 and hydroxylactone 8. In the tests against the latter strain, a clear increase in the activity was also observed for bromolactone 5. Compared to chalcone 1, lower ΔOD values were observed for bromolactone 6 against E. coli and hydroxylactone 8 against B. subtlilis (Figure 5) although the durations of lag-phase determined in these tests were much shorter than those obtained for chalcone 1 (Table 4). In the tests against Alternaria sp., the activities of hydroxylactones 7 and 8 were as high as the ones found for chalcone 1; the same situation was observed comparing the activity of chalcone 1 and hydroxylactone 8 against A. niger. (Table 5, Figure 6). In other cases, the antifungal activities of lactones were lower than activity of chalcone 1.

3. Materials and Methods

3.1. Chemicals

Chalcone (purity 97%), triethyl orthoacetate (97%), sodium borohydride (99%), and N-bromosuccinimide (NBS, ≥ 95%) were purchased from Sigma-Aldrich (St. Louis, MO, USA). Other chemicals were of analytical grade (Chempur, Piekary Śląskie, Poland). Silica gel for column chromatography (Kieselgel 60, 230–400 mesh) was purchased from (Merck, Darmstadt, Germany).

3.2. Microorganisms Used for Biotransformation of Bromolactone 5

Strains of bacteria, yeast, and filamentous fungi used in biotransformations are listed in Table 2 and Table 3. Aspergillus niger 13/5 and 13/33 came from the University of Life Sciences in Lublin, A. niger CH 11/21, MB, SBJ, and SBP from Wroclaw University of Economics and Bussiness, A. niger KB from the Department of Biotechnology and Food Microbiology, Wroclaw University of Environmental and Life Sciences, D.ignaria KCH 6670 from Department of Chemistry, Wroclaw University of Environmental and Life Sciences. Strains with abbreviation AM came from Wroclaw Medical University. Microorganisms were stored on Sabouraud agar slants, pH 5.7, containing 1% peptone, 4% glucose, and 8% agar at 4 °C.

3.3. Analysis

Analytical Thin Layer Chromatography was performed on silica gel-coated aluminum plates (DC-Alufolien Kieselgel 60 F₂₅₄, Merck, Darmstadt, Germany) using a solution of 1% Ce(SO₄)₂ and 2% H₃[P(Mo₃O₁₀)₄] × H₂O in 10% H₂SO₄ as a visualizing agent.

The progress of chemical reactions and biotransformations was checked by Gas Chromatography on an Agilent Technologies 6890N instrument with a flame ionization detector (FID) and hydrogen as a carrier gas. Compounds were analyzed on capillary column DB-5HT (30 m × 0.32 mm × 0.10 µm) using temperature program as follows: injector 200 °C, detector 280 °C, column temperature: 140 °C, 140–360 °C (rate 30 °C/min), and 360 °C (hold 1 min).

Nuclear magnetic resonance spectra (¹H NMR, ¹³C NMR, DEPT 135, ¹H-¹H COSY, ¹H-¹³C HSQC, ¹H-¹³C HMBC) were performed for samples in CDCl₃ solutions (99.8% D) on Bruker Avance II 600 MHz spectrometer (Bruker, Rheinstetten, Germany). Signals of residual solvent (δ_H = 7.26, δ_C = 77.0) were references for chemical shifts. Infrared spectroscopy (IR) spectra were determined using Mattson IR 300 Thermo Nicolet spectrophotometer using KBr pellets. High-resolution mass spectra (HRMS) were recorded on a Bruker micrOTOF-Q II system using electron spray ionization (ESI) technique.

Single-crystal X-ray diffraction data were collected at 293 K (5), 100 K (6), and 150 K (7) on Xcalibur (Sapphire2 CCD detector for 5 and 7 or Onyx CCD detector for 6 κ-geometry diffractometers using Mo Kα (5 and 7) or Cu Kα radiation (6). Data reduction and analysis were carried out with the CrysAlis Pro programs (CrysAlis PRO. Versions: 1.171.36.28 or 1.171.33.66, currently Rigaku Oxford Diffraction, 2020). The structures were solved by direct methods and refined with the full-matrix least-squares technique using the SHELXS [34] and SHELXL [35] programs. Non-hydrogen atoms were refined with anisotropic displacement parameters. All H atoms were placed at calculated positions. Before the last cycle of refinement, all H atoms were fixed and were allowed to ride on their parent atoms.

Crystal data for 5, 6, and 7 reported in this paper have been deposited with the Cambridge Crystallographic Data Centre (CCDC) as supplementary publication numbers 2,254,514, 2,254,515 and 2,254,516, respectively. Copies of the data can be obtained, free of charge, on application to CCDC, 12 Union Road, Cambridge CB12 1EZ, UK (fax +44-1223-336033 or e-mail: [email protected]).

Uncorrected melting points were determined on Boetius apparatus.

3.4. Synthesis of Lactones 5–8

3.4.1. Reduction of Chalcone (1)

A solution of chalcone (1) (10.2 g, 49 mmol) in 100 mL of methanol was placed in an ice bath on a magnetic stirrer. Then, an aqueous solution (10 mL) of sodium borohydride (2.35 g, 0.049 mol) was added dropwise and the reaction mixture was stirred by 6 h and after that it was transferred into a separatory funnel, diluted with 25 mL of hot water and the product was extracted with methylene chloride (3 × 40 mL). The combined organic layers were washed with saturated sodium chloride solution until neutral and dried with anhydrous MgSO₄. The organic solvent was evaporated on a vacuum evaporator to obtain pure alcohol 2.

(E)-1,3-Diphenylprop-2-en-1-ol (2): yield 97% (9.91 g), white crystals; mp 44–45 °C (lit. [22] 49 °C); ¹H NMR (600 MHz, CDCl₃) δ: 2.17 (s, 1H, OH), 5.39 (d, 1H, J = 6.5 Hz, H-1), 6.39 (dd, J = 15.9 and 6.5 Hz, H-2), 6.70 (d, J = 15.9 Hz, 1H, H-3), 7.21–7.46 (m, 10H, 2 x -C₆H₅); ¹³C NMR (150 MHz, CDCl₃) δ: 75.21 (C-1), 126.46, 126.72, 127.19 and 128.66 (C-2′, C-3′, C-4′, C-5′, C-6′, C-2″, C-3″,C-4″, C-5″, and C-6″), 130.61 (C-3), 131.67 (C-2), 136.66 (C-1′), 142.92 (C-1″); IR (KBr, cm⁻¹): 3350 (s), 3026 (m), 1492 (s), 1448 (s), 1319 (m), 1012 (s), 965 (s), 744 (s), 694 (s)

3.4.2. Claisen Rearrangement of Alcohol 2

A mixture of alcohol 2 (8.63 g; 41 mmol), triethyl orthoacetate (60 mL; 0.33 mol), and propionic acid (two drops) was heated at 138 °C in a two-necked round-bottom flask fitted with a distillation cap. When the reaction was finished (13 h, TLC, GC), the excess of triethyl orthoacetate was distilled off and the crude product was purified by column chromatography (hexane:acetone, 40:1) to afford known [36] ester 3.

(E)-Ethyl 3,5-diphenylpent-4-enoate (3): yield 70% (8.05 g), white crystals, mp 30–31 °C; ¹H NMR (600 MHz, CDCl₃) δ: 1.17 (t, J = 7.1 Hz, 3H, -OCH₂CH₃), 2.79 (dd, J = 15.0 and 7.5 Hz, 1H, one of CH₂-2), 2.86 (dd, J = 15.0 and 8.0 Hz, 1H, one of CH₂-2), 4.04 (m, 1H, H-3), 4.08 (quartet, J = 7.1 Hz, 2H, -OCH₂CH₃), 6.34 (dd, J = 15.9 and 6.9 Hz, 1H, H-4), 6.44 (d, J = 15.9 Hz, 1H, H-5), 7.17–7.35 (m, 10H, 2 x -C₆H₅); ¹³C NMR (150 MHz, CDCl₃) δ: 14.33 (-OCH₂CH₃), 40.93 (C-2), 45.26 (C-3), 60.59 (-OCH₂CH₃), 126.40, 126.89, 127.46, 127.70, 128.61 and 128.78 (C-2′, C-3′, C-4′, C-5′, C-6′, C-2″, C-3″, C-4″, C-5″, C-6″), 130.25 (C-5), 132.11 (C-4), 137.24 (C-1″), 142.74 (C-1′), 171.90 (C-1); IR (KBr, cm⁻¹): 1723 (s), 1235 (s), 967 (m), 750 (s), 694 (s).

3.4.3. Hydrolysis of Ester 3

Ester 3 (1.5 g, 5 mmol) was heated at reflux in 30 mL of 2.5% ethanolic NaOH solution. After standard workup of the reaction mixture [37], known [23] acid 4 was obtained.

(E)-3,5-diphenylpent-4-enoic acid (4): yield 81% (1.09 g), white solid; mp 114–115 °C; ¹H NMR (600 MHz, CDCl₃) δ: 2.87 (dd, J = 15.7 and 7.4 Hz, 1H, one of CH₂-2), 2.90 (dd, J = 15.7 and 7.8 Hz, 1H, one of CH₂-2), 4.03 (m, 1H, H-3), 6.33 (dd, J = 15.9 and 6.9 Hz, 1H, H-4), 6.44 (d, J = 15.9 Hz, 1H, H-5), 7.20–7.35 (m, 10H, 2 x -C₆H₅); ¹³C NMR (150 MHz, CDCl₃) δ: 40.23 (C-2), 44.78 (C-3), 126.44, 126.84, 127.55, 127.67, 128.64 and 128.88 (C-2′, C-3′, C-4′, C-5′, C-6′, C-2″, C-3″, C-4″, C-5″, C-6″), 137.12 (C-1″), 142.44 (C-1′), 176.47 (C-1); IR (KBr, cm⁻¹): 2760–3170 (s), 1705 (s), 1265 (s), 966 (s), 934 (m), 746 (s), 697 (s).

3.4.4. Bromolactonization of Acid 4

A solution of acid 4 (0.104 g, 40 mmol), NBS (0.082 g, 0.46 mmol), and a drop of acetic acid in THF (20 mL) was stirred at room temperature. When the substrate was consumed (36 h, TLC, GC), the reaction mixture was extracted with diethyl ether (3 × 40 mL), followed by washing with saturated NaHCO₃ solution and brine. The organic extracts were dried with anhydrous MgSO₄ and the solvent was evaporated on a vacuum evaporator. The crude product was purified by column chromatography (hexane:acetone, 10:1) to afford known [23] bromolactone 5.

5-t-Bromo-4(r),6(c)-diphenyltetrahydropyran-2-one (5): yield 37% (0.051 g), white crystals, mp 176–178 °C, ¹H NMR (600 MHz, CDCl₃) δ: 2.90 (dd, J = 17.8 and 10.1 Hz, 1H, one of CH₂-3), 3.19 (dd, J = 17.8 and 6.7 Hz, 1H, one of CH₂-3 ), 3.63 (td, J = 10.1 and 6.7 Hz, 1H, H-4), 4.30 (t, J = 10.1 Hz, 1H, H-5), 5.47 (d, J = 10.1 Hz, 1H, H-6), 7.25–7.45 (m, 10H, 2 x -C₆H₅); ¹³C NMR (150 MHz, CDCl₃) δ: 37.96 (C-3), 47.42 (C-4), 53.64 (C-5), 85.33 (C-6), 127.19 and 127.82 (C-2″, C-6″, C-2′, C-6′), 128.16 (C-4′), 128.68 and 129.25 (C-3″, C-5″, C-3′, C-5′), 129.60 (C-4″), 136.68 and 140.77 (C-1′, C-1″), 169.11 (C-2); IR (KBr, cm⁻¹): 3029 (m), 1729 (s), 1249 (s), 1014 (m).

Crystal data for 5: C₁₇H₁₅BrO₂, M = 331.20, monoclinic, Cc, a = 25.688(4) Å, b = 23.478(4) Å, c = 10.806(3) Å, b = 114.84(3)°, V = 5914(3) ų, Z = 16, Dc = 1.488 Mg m⁻³, T = 293(2) K, R = 0.1067, wR = 0.2332 (4344 reflections with I > 2σ(I)) for 627 variables, CCDC 2254514.

3.4.5. Bromolactonization of Ester 3

A solution of ester 3 (4 g, 14 mmol) and NBS (3.4 g, 19 mmol) was dissolved in 150 mL of a mixture THF:H₂O (13:2) and stirred at room temperature. After 24 h, the reaction mixture was worked up as described in Section 3.4.4. The crude product mixture was separated by column chromatography (hexane: ethyl acetate, 7:1) and the following products were isolated:

5-t-Bromo-4(r),6(c)-diphenyltetrahydropyran-2-one (5): yield 78% (3.68 g), physical and spectral data are given in Section 3.4.4.

5-c-Bromo-4(r),6(t)-diphenyltetrahydropyran-2-one (6): Yield 3.4% (0.16 g), white crystals, mp 108–110 °C, ¹H NMR (600 MHz, CDCl₃) δ: 2.94 (dd, J = 17.1 and 4.5 Hz, 1H, one of CH₂-3), 3.29 -3.39 (m, 2H, one of CH₂-3 and H-4), 4.71 (t, J = 2.5 Hz, 1H, H-5), 5.97 (d, J = 2.5 Hz, 1H, H-6), 7.07–7.09 (m, 2H, H-2′ and H-6′), 7.29–7.31 (m, 1H, H-4′), 7.31–7. 34 (m, 2H, H-3′, H-5′), 7.35–7.37 (m, 2H, H-2″and H-6″), 7.39–7.42 (m, 1H, H-4″), 7.46–7.48 (m, 2H, H-3″ and H-5″); ¹³C NMR (150 MHz, CDCl3) δ: 32.14 (C-3), 37.07 (C-4), 56.50 (C-5), 85.63 (C-6), 125.47 (C-2″, C-6″), 127.34 (C-2′, C-6″), 128.06 (C-4′), 128.84 (C-3′, C-5′), 129.06 (C-4′), 129.39 (C-3″, C-5″), 138.00 (C-1′), 138.39 (C-1″), 168.87 (C-2); IR (KBr, cm⁻¹): 3027 (w), 1730 (s), 1205 (s), 1071 (m). HRMS: calcd for C₁₇H₁₅BrO₂ [2M+Na]⁺: 683.0408, found 683.0370.

Crystal data for 6: C₁₇H₁₅BrO₂, M = 331.20, monoclinic, P2₁/n, a = 12.931(3) Å, b = 8.564(2) Å, c = 26.569(4) Å, b = 95.22(2)°, V = 2930.1(11) ų, Z = 8, Dc = 1.502 Mg m⁻³, T = 100(2) K, R = 0.0601, wR = 0.1505 (2455 reflections with I > 2σ(I)) for 361 variables, CCDC 2254515.

trans-5-(Hydroxyphenylmethyl)-4-phenyldihydrofuran-2-one (7): Yield 3% (0.12 g), white crystals, mp 54–55 °C, ¹H NMR (600 MHz, CDCl₃) δ: 2.48 (s, 1H, OH), 2.59 (dd, J = 18.2 and 5.1 Hz, 1H, one of CH₂-3), 3.06 (dd, J = 18.2 and 10.1 Hz, 1H, one of CH₂-3), 3.62 (dt, J = 10.1 and 5. 1 Hz, 1H, H-4), 4.74 (dd, J = 5.1 and 3.1 Hz, 1H, H-5), 5.13 (d, J = 3.1 Hz, 1H, H-6), 6.86–6.88 (m, 2H, H-2′, H-6′), 7.14–7.21 (m, 3H, H-3′, H-4′, H-5′), 7.28 (m, 1H, H-4″), 7.32–7.34 (m, 2H, H-3″, H-5″), 7.36–7.38 (m, 2H, H-2″, H-6″); ¹³C NMR (150 MHz, CDCl₃) δ: 37.33 (C-3), 39.80 (C-4), 73.91 (C-6), 89.88 (C-5), 126.30 (C-2″, C-6″), 126.67 (C-2′, C-6′), 127.23 (C-4′), 128.33 (C-4″), 128.72 (C-3″, C-5″), 129.06 (C-3′, C-5′), 138.11 (C-1″), 142.23 (C-1′), 176.94 (C-2); IR (KBr, cm⁻¹): 3357 (s), 1768 (s), 1245 (s), 1022 (s). HRMS: calcd for C₁₇H₁₆O₃ [2M+Na]⁺: 559.2096, found 559.2087.

Crystal data for 7: C₁₇H₁₆O₃, M = 268.30, monoclinic, P2₁, a = 5.733(2) Å, b = 8.368(2) Å, c = 14.487(3) Å, b = 97.22(2)°, V = 689.5(3) ų, Z = 2, Dc = 1.292 Mg m⁻³, T = 150(2) K, R = 0.0699, wR = 0.1667 (1797 reflections with I > 2σ(I)) for 181 variables, CCDC 2254516.

trans-5-(Hydroxyphenylmethyl)-4-phenyldihydrofuran-2-one (8): Yield 6% (0.23 g), white crystals, mp 65–67 °C, ¹H NMR (600 MHz, CDCl₃) δ: 2.64 (dd, J = 18.1 and 7.8 Hz, 1H, one of CH₂-3), 2.91 (dd, J = 18.1 and 9.5 Hz, 1H, one of CH₂-3), 3.67 (ddd, J = 9.5, 7.8 and 6.3 Hz, 1H, H-4), 4.69 (dd, J = 6.3 and 4.1 Hz, 1H, H-5), 4.76 (d, J = 4.1 Hz, 1H, H-6), 7.07–7.09 (m, 2H, H-2′, H-6′), 7.23–7.31 (m, 6H, H-3′, H-5′, H-4′, H-4″, H-3″, H-5″), 7.32–7.34 (m, 2H, H-2″, H-6″); ¹³C NMR (150 MHz, CDCl₃) δ: 37.24 (C-3), 42.76 (C-4), 74.65 (C-6), 89.31 (C-5), 127.05 (C-2″, C-6″), 127.08 (C-2′, C-6′), 127.62 (C-4′), 128.71 (C-4″), 129.01 (C-3″, C-5″), 129.22 (C-3′, C-5′), 139.05 (C-1″), 140.52 (C-1′), 175.83 (C-2); IR (KBr, cm⁻¹): 3435 (m), 1778 (s), 1199 (m), 1020 (m). HRMS: calcd for C₁₇H₁₆O₃ [M+Na]⁺: 291.0997, found 291.0987.

3.5. Biotransformations of Bromolactone 5

3.5.1. Screening Procedure

The strains were cultivated on rotary shakers (144 rpm) at 25 °C in 300 mL Erlenmayer flasks containing 50 mL of medium (3% glucose, 1% peptone, pH 6.2). After 5 days, 10 mg of bromolactone 5 dissolved in 1 mL of acetone was added to each flask and the incubation of shaken cultures with substrate was continued for 14 days. Biotransformation products were extracted with ethyl acetate after 1, 3, 7, 10, and 14 days. The extracts were dried with anhydrous magnesium sulphate, concentrated on a rotary evaporator, dissolved in methanol, filtered through a syringe filter (13 mm × 0.45 µm), and analyzed by TLC and GC HPLC. The stability of the substrate was also checked under biotransformation conditions, and the pH of the substrates was tested during the processes. In order to identify the metabolites secreted by individual microbial strains, microorganisms were also cultivated without substrate addition. The results of screening procedure are presented in Table 2 and Table 3.

3.5.2. Biotransformation of Bromolactone 5 by P. frequentans AM 359

Bromolactone 5 (100 mg dissolved in 10 mL of acetone) was added to the 5-day cultures of P. frequentans AM 359 prepared as described in the screening procedure. The culture was shaken in 2L flask with 400 mL of medium. The progress of biotransformation was monitored by GC. After 7 days, the product was extracted with ethyl acetate. The organic fractions were dried with anhydrous MgSO₄ and the solvent was evaporated on a vacuum evaporator. Column chromatography (hexane:ethyl acetate; 7:1) afforded 71 mg (yield 88%) of pure hydroxylactone 8 with physical and spectral data consistent with those given in Section 3.4.5.

3.6. Antimicrobial Activity Assay

Antimicrobial tests were carried out using the strains from the collection of the Department of Biotechnology and Food Microbiology, Wroclaw University of Environmental and Life Sciences: bacteria Escherichia coli PCM 2560, Staphylococcus aureus D1, and Bacillus subtilis B5, filamentous fungi Fusarium graminearum 109, Alternaria sp., and Aspergillus niger XP, and yeast Candida albicans KL-1.

The tests were carried out on the automated Bioscreen C system (Automated Growth Curve Analysis System, Lab Systems, Finland) according to the procedure described in our previous paper [21]. Tested compounds were applied as 0.1% solutions in 10 μL of dimethyl sulfoxide (DMSO) (w/v). The results presented in Figure 5 and Figure 6 were analyzed using spreadsheet software (Excel 97). Statistics on a completely randomized design were determined using the one-way analysis of variance (ANOVA) procedure at a level of significance set at p < 0.050. Dunnett’s test was used to compare the average ΔOD of microorganism growth in the presence of tested compounds relative to the control.

4. Conclusions

In this work, synthetic and biocatalytic approach to chalcone-derived lactones was presented. Bromolactonization of ester 3 with NBS carried out in the mixture of THF and water, in addition to the known γ-bromo-δ-lactone 5, also gives access to three unexpected products (Scheme 2). The first one is diastereoisomeric γ-bromo-δ-lactone 6 in which a bromine at C-5 and a phenyl ring at C-6 occupy the pseudoaxial positions at the six-membered lactone ring. Diastereoisomeric trans δ-hydroxy-γ-lactones 7 and 8 differing in the relative configuration of hydroxy group at C-6 were also isolated. Formation of these two hydroxylactones during bromolactonization of ester 3 is the result of S_N1 type of nucleophilic substitution involving a facilitated dissociation of the bromine at the benzyl position of primarily formed trans δ-bromo-γ-lactone and fast reaction of the benzylic carbocation with the water present in the reaction medium (Scheme 3).

Most of the fungal strains used for the biotransformation of γ-bromo-δ-lactone 5 have the ability to transform the substrate to only one product, trans δ-hydroxy-γ-lactone 8, in the tandem dehalogenation-translactonization process involving two simultaneous S_N2 nucleophillic substitutions (Scheme 4). Only A. cylindrospora AM 336 and D. igniaria KCH 6670 produced both isomers of δ-hydroxy-γ-lactones 7 and 8 by reversible oxidation/reduction activity (Scheme 5).

Selective formation of trans δ-hydroxy-γ-lactone 8 by P. frequentans-mediated biotransformation in relatively high yield (88%) is of special interest because this compound exhibited the most potent inhibitory activity towards tested microorganisms. It was particularly active against fungal strains F. graminearum, A. niger, and Alternaria sp. The most positive effect of the lactone moiety introduced into the scaffold of chalcone 1 on the antibacterial activity was demonstrated towards S. aureus by δ-hydroxy-γ-lactone 8 and γ-bromo-δ-lactone 6; a similar effect on the antifungal activity for these two lactones and γ-bromo-δ-lactone 5 was shown towards F. graminearum.
