Alkyl 4-Aryl-6-amino-7- phenyl-3-(phenylimino)-4,7-dihydro- 3H-[1,2]dithiolo[3,4-b]pyridine-5-carboxylates: Synthesis and Agrochemical Studies

Abstract

The reaction between dithiomalondianilide (N,N’-diphenyldithiomalondiamide) and alkyl 3-aryl-2-cyanoacrylates in the presence of morpholine in the air atmosphere leads to the formation of alkyl 6-amino-4-aryl-7-phenyl-3-(phenylimino)-4,7-dihydro-3H-[1,2]dithiolo[3,4-b]- pyridine-5-carboxylates in 37–72% yields. The same compounds were prepared in 23–65% yields by ternary condensation of aromatic aldehydes, ethyl(methyl) cyanoacetate and dithiomalondianilide. The reaction mechanism is discussed. The structure of ethyl 6-amino-4-(4-methoxyphenyl)-7-phenyl-3-(phenylimino)-4,7-dihydro-3H-[1,2]dithiolo[3,4-b]pyridine-5-carboxylate was confirmed by X-ray crystallography. Two of the prepared compounds showed a moderate growth-stimulating effect on sunflower seedlings. Three of the new compounds were recognized as strong herbicide safeners with respect to herbicide 2,4-D in the laboratory and field experiments on sunflower.

1. Introduction

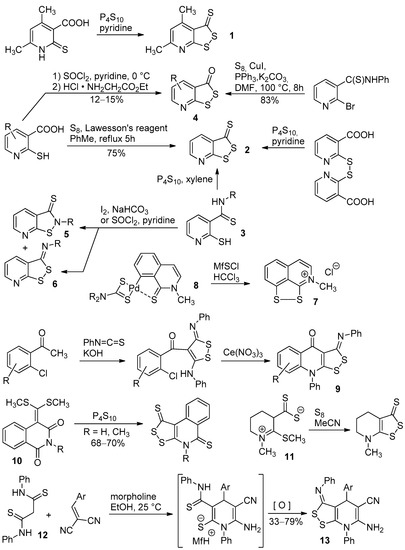

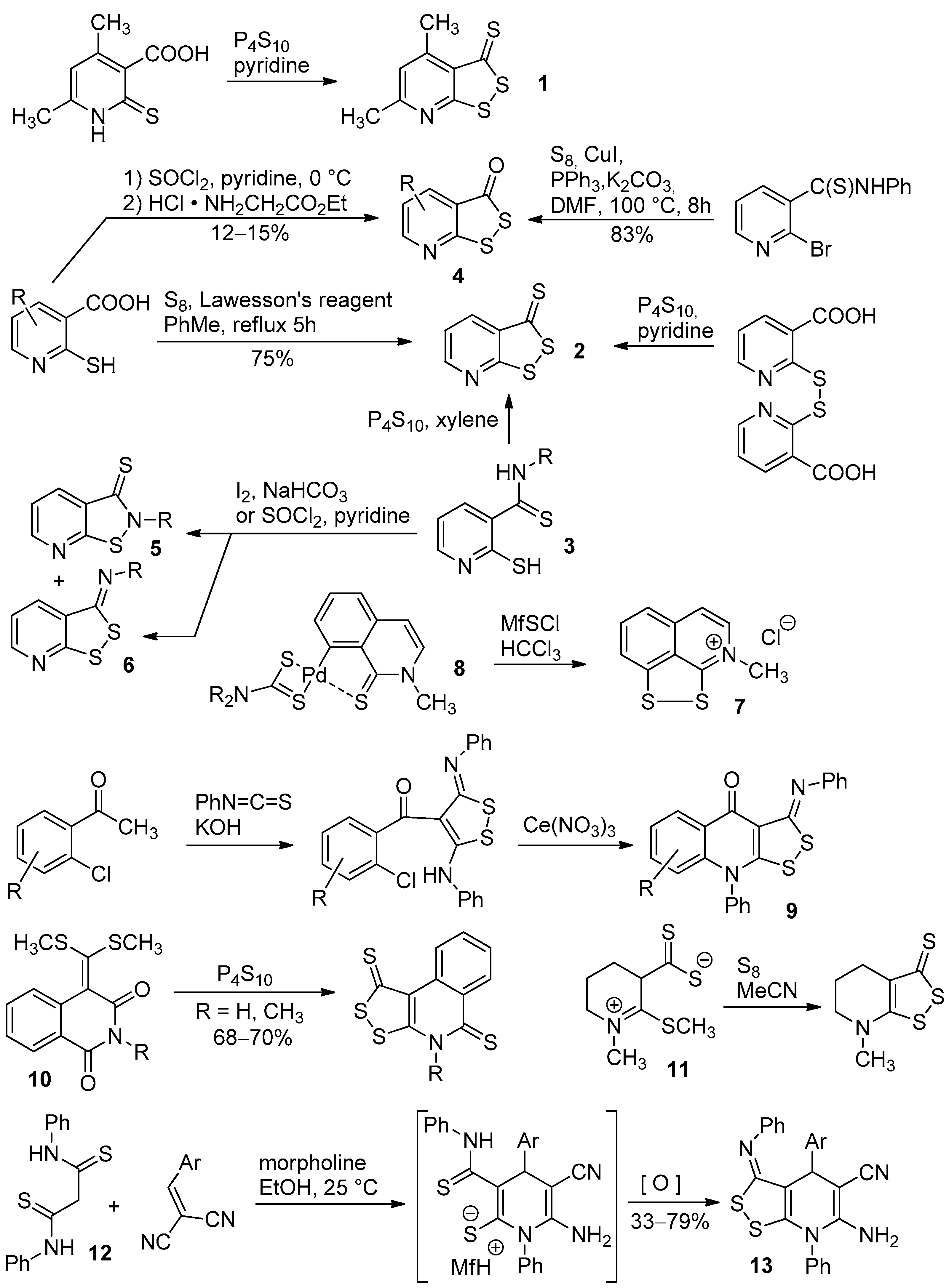

[1,2]Dithiolo[3,4-b]pyridine belongs to a rather rare class of heterocyclic systems. There are only a few papers that reported the preparation of such compounds. Historically, the first example of the synthesis is probably the preparation of dithiolopyridine 1 in low yield by reaction of 2-thioxonicotinic acid with phosphorus pentasulfide [1] (Scheme 1). Later the same approach was reported in other papers [2,3,4]. Compound 2 can also be prepared from 2-mercaptonicotinthioamides 3 upon treatment with P₄S₁₀ [4] or from 2,2’-dithionicotinic acid [5]. Dithiolopyridines 4 were synthesized in low yields by sequential treatment of 2-thioxonicotinic acid with thionyl chloride and then with ethyl glycinate [6] or from 2-bromo-N-phenylpyridine-3-thiocarboxamide and sulfur under Cu(I)-catalyzed cross-coupling conditions in 83% yield [7]. When nicotinthioamides 3 were treated with iodine or SOCl₂/pyridine, mixtures of isothiazolopyridines 5 with isomeric 3-(R-imino)-[1,2]dithiolo[3,4-b]pyridines 6 were isolated [8]. The formation of dithiolopyridine 7 was observed when cyclopalladated complex 8 reacted with morpholinesulphenyl chloride (MfSCl) [9] (Scheme 1). [1,2]Dithioloquinolines 9 can be prepared by reaction of ortho-chloroacetophenones with phenyl isothiocyanate followed by Ce(NO₃)₃-catalyzed oxidative cyclization of the intermediate 4-(2-chlorobenzoyl)-5-(phenylamino)-3-(phenylimino)-3H-1,2-dithiols [10]. When treated with P₄S₁₀, ketene dithioacetals 10 afforded [1,2]dithioloisoquinolines in good yields [11].

The reactions of [1,2]dithiolo[3,4-b]pyridine 2 have also been studied in a limited number of papers [3,4,5,6,8,12,13,14]. Information about the synthesis and properties of partially saturated [1,2]dithiolo[3,4-b]pyridines is even more scarce. Thus, the only known synthesis of 4,5,6,7-tetrahydro[1,2]dithiolo[3,4-b]pyridine is not general and is based on the reaction of heterocyclic 1,4-dipol 11 with sulfur [15]. Finally, the reaction of dithiomalondianilide (N,N’-diphenyldithiomalondiamide) 12 with arylmethylene malononitriles yielded 4,7-dihydro[1,2]dithiolo[3,4-b]pyridines 13 [16] (Scheme 1).

Meanwhile, the antimicrobial, antitubercular [4] and antitumor [10] effects of [1,2]dithiolo[3,4-b]pyridines have been reported. Compounds of this type are of interest as starting reagents for the preparation of biologically active isothiazolopyridines and 2-mercaptonicotinthioamides [4,5,12,13]. As structural analogs and bioisosters of thieno[2,3-b]pyridines (for recent reviews see [17,18]), dithiolopyridines can be considered as promising molecules with still undiscovered potential.

In the context of our interest in exploring the chemistry of dithiomalondianilide 12 and its transformations leading to [1,2]dithiolo[3,4-b]pyridines [16,19,20,21], it seemed reasonable to study the reactions of dithiomalondianilide 12 with other Michael acceptors. It is noteworthy that despite the long-standing and active use of thioamide 12 as a bidentate S,S-chelating agent towards heavy metals (e.g., [22,23,24,25]), the heterocyclization reactions of 12 have been little studied to date [26,27,28,29].

This work presents the results of our studies of the reactions of N,N’-diphenyldithiomalondiamide 12 with 2-cyanoacrylates derived from cyanoacetic esters.

2. Results and Discussion

2.1. Synthesis

Earlier, we proposed a cascade method for the preparation of [1,2]dithiolo[3,4-b]pyridines 13 (Scheme 1) from N,N’-diphenyldithiomalondiamide 12 based on the morpholine-catalyzed Michael addition with arylmethylene malononitriles followed by heterocyclization and further air oxidation of 3-thiocarbamoylpyridine-2-thiolate intermediate [16]. As the continuation of this research, we have decided to look into the possibility to using other electron-deficient alkenes as Michael acceptors to prepare dithiolopyridines and we focused our attention on 3-aryl-2-cyanoacrylates 14. The precursors 14 were prepared by Knoevenagel condensation of cyanoacetic esters with aromatic aldehydes in the presence of piperidine or morpholine.

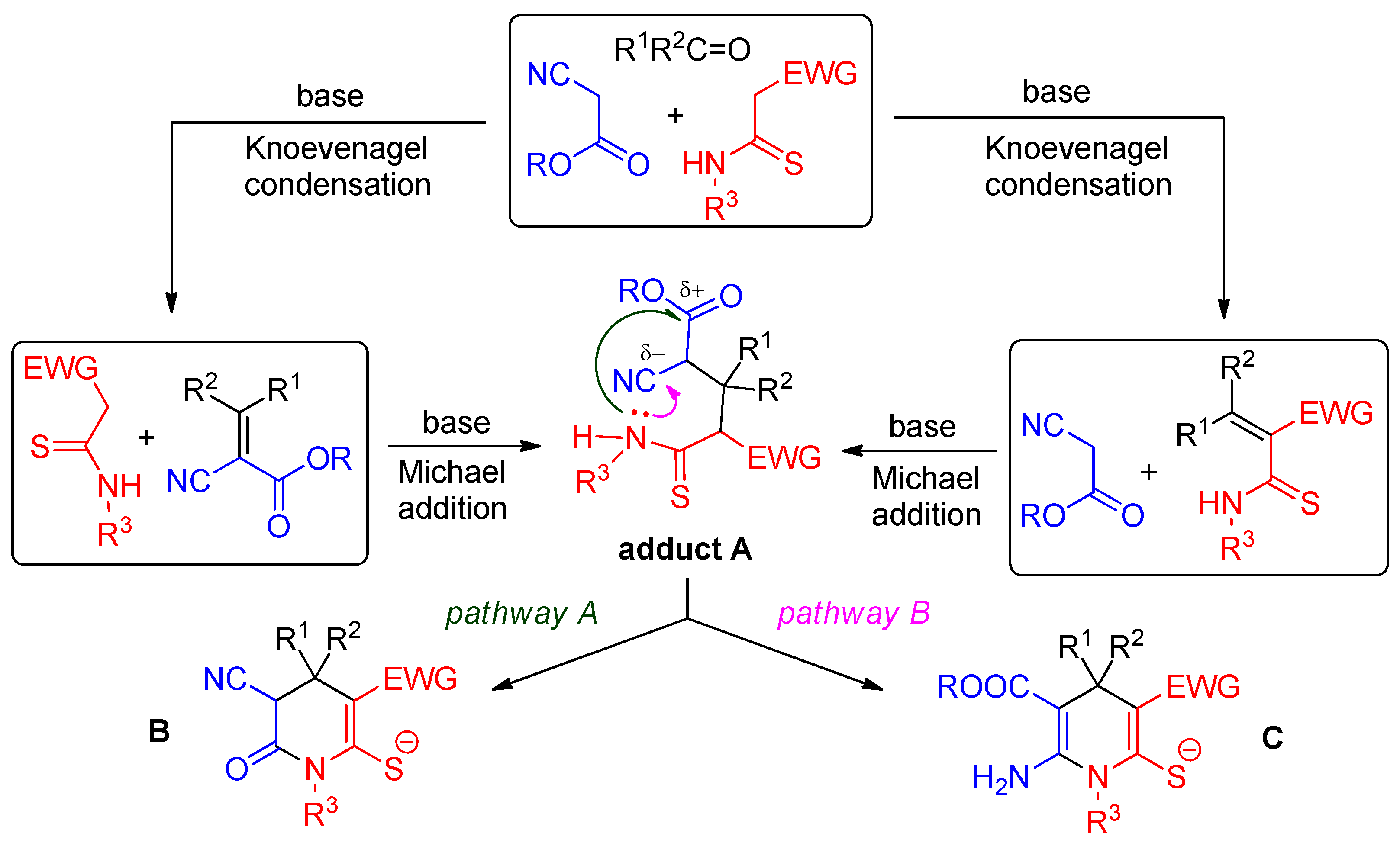

Previous studies on the reactions involving cyanoacetates and active methylene thioamides and proceeding through the formation of Michael adducts A (Scheme 2) already showed that the further heterocyclization may follow two different reaction pathways. The first one suggests an intramolecular 6-exo-trig process involving ester fragment COOR and leads to 3-cyanopyridin-2(1H)-ones B or related products (e.g., [30,31,32,33]). (pathway A, Scheme 2). An alternative path would be 6-exo-dig heterocyclization, which leads to heterocyclic enamino esters C or its transformation products [34,35,36,37] (pathway B, Scheme 2).

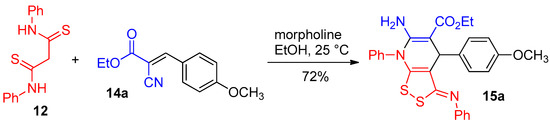

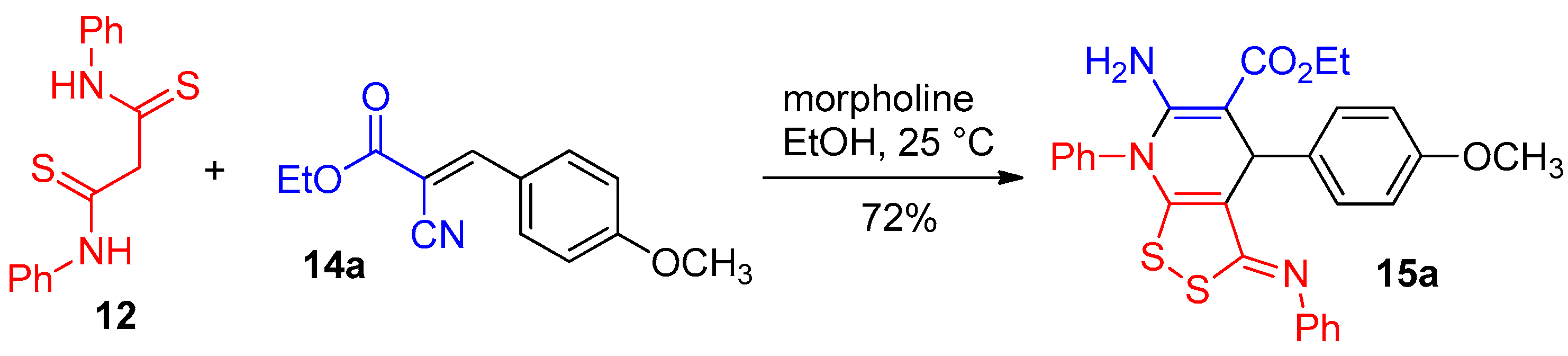

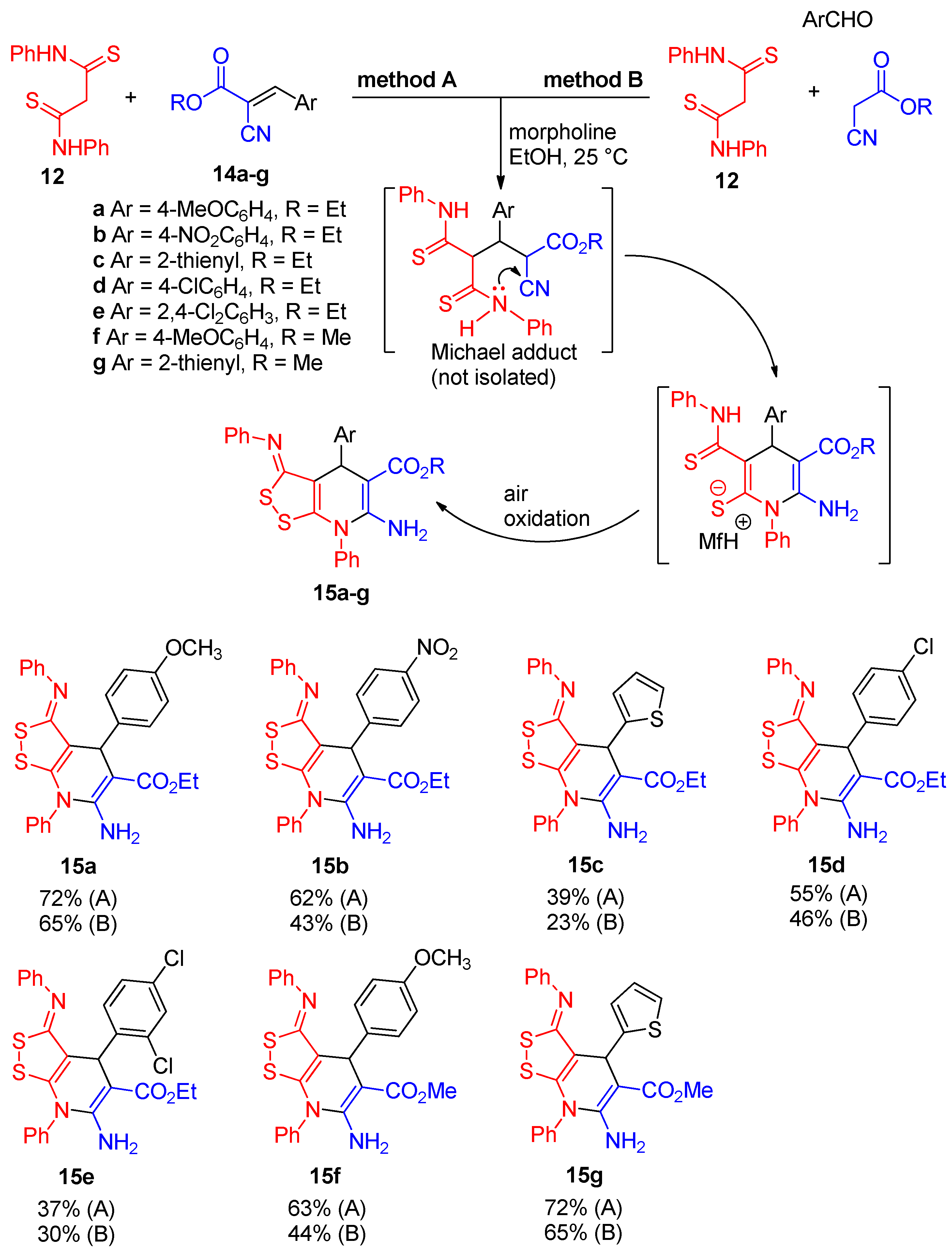

First, when a mixture of N,N’-diphenyldithiomalondiamide 12 and (E)-ethyl 2-cyano-3-(4-methoxyphenyl)acrylate 14a in EtOH were treated with excessive morpholine, a yellow crystal of ethyl 6-amino-4-(4-methoxyphenyl)-7-phenyl- 3-(phenylimino)-4,7-dihydro-3H-[1,2]dithiolo[3,4-b]pyridine-5-carboxylate 15a was isolated in 72% yield (Scheme 3). The structure of 15a was unambiguously confirmed by single crystal X-ray diffraction analysis (CCDC # 2219352, Figure 1).

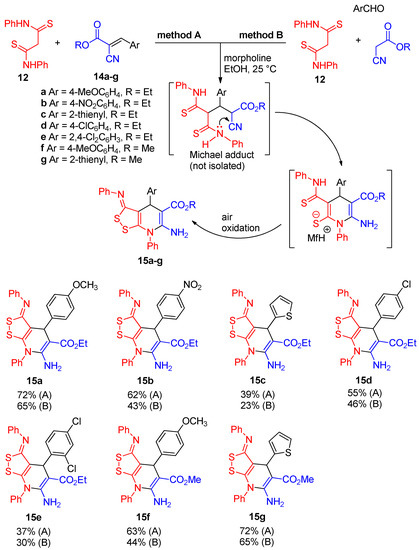

At this point, some efforts to optimize the reaction conditions and examine the scope and limitation of the reaction were made. The reaction proceeded smoothly in MeOH or EtOH; other tested solvents (i-PrOH, acetone, DMF) gave rather unsatisfactory results. The nature of amine (morpholine, piperidine, triethylamine) does not significantly affect the yields of products. Along with Michael addition of 12 to other 2-cyanoacrylates 14a–g (Method A, Scheme 4), we also investigated the three-component reaction of dithiomalondianilide 12, cyanoacetic esters and aldehydes in the presence of morpholine (Method B, Scheme 4). However, Method B gives somewhat lower yields of dithiolopyridines 15.

Extended refluxing of the reaction mixture does not favor the formation of dithiolopyridines 15. Thus, when a mixture of 14a and 12 in ethanol was heated under reflux in the presence of morpholine for as long as 15 h, a contaminated deep-brown material was obtained from which dithiolopyridine 15a was isolated by recrystallization in only 13% yield. Less prolonged heating (1.5 h) was also accompanied by side processes and led to decreased yields; in this case, compound 15a was obtained in 30% yield.

When the reaction of 12 with 14a was conducted in inert atmosphere under nitrogen stream, dithiolopyridine 15a was not isolated. This fact proves the crucial role of air oxygen for the final step of dithiolopyridine system formation. Nevertheless, the addition of oxidizing agents (hydrogen peroxide or iodine) leads to resinification of the reaction mixture. Aldehydes with both electron-donor and electron-withdrawing substituents are reacted well. However, we failed to obtain any products in the case of furfural or 2-cyano-3-(furan-2-yl)acrylates even if less nucleophilic and milder base triethylamine was taken instead of morpholine. This is probably due to the strong tendency of furan-ring-bearing electron-withdrawing substituents to undergo a nucleophilic attack at the C-5 position to form a complex mixture of furan-ring-cleavage/recyclization products.

In the IR spectra of compounds 15, the absorption bands corresponding to NH₂ valence vibrations (ν 3371–3474 cm⁻¹ and ν 3263–3290 cm⁻¹), RO(C=O) group bands (ν 1651–1661 cm⁻¹) and imino group C=N–Ph bands at ν 1622–1638 cm⁻¹ were observed while the bands corresponding to C≡N groups were absent. ¹H NMR spectra of 15 revealed characteristic singlets attributed to H-4 protons at δ 5.02–5.94 ppm and a very broadened peak of NH₂ protons at δ 7.00–7.19 ppm. It is interesting that in some cases the signal of OCH₂ protons is detected not as a typical quartet but as a complex multiplet, probably due to the hindered rotation caused by the intramolecular hydrogen bond C=O...H-NH. Alternatively, the observed splitting of OCH₂ signal can be caused by the shielding effect of the aromatic ring at C-4, which affects one of OCH₂ protons. ¹³C NMR spectra lacked signals attributed to C=S carbons and revealed the peaks of C=O (δ 168.7–169.1 ppm), C=N (δ 163.0–163.4 ppm), C-3a (δ 111.1–113.7 ppm), C-5 (δ 76.5–78.4 ppm) and C-4 carbons (δ 33.5–38.6 ppm). The NMR, FTIR and HRMS spectra are shown in Supplementary Materials Figures S1–S6, S8–S31 and Tables S1, S8 and S9. The crystal data is shown in Supplementary Materials Tables S2–S7.

2.2. Agrochemical Studies

The new compounds were tested as herbicide safeners with respect to 2,4-dichlorophenoxyacetic acid (2,4-D) and as plant growth regulators. 2,4-D is an herbicide that is widely used for plant protection and was reported to show no significant toxicity to humans [38]. However, the use of 2,4-D has negative side effects, including its inhibition effect on the crops themselves that gives a decrease in yield by ~15–60%. To eliminate such negative effects and to raise crop yields, herbicide safeners (also called herbicide antidotes or detoxifiers) are successfully used. Herbicide safeners [39,40,41] can be defined as agrochemicals that are able to neutralize phytotoxins in plants, thus protecting crop plants from herbicide injury. Safeners are harmless to crop plants (or even have a growth-stimulating effect), but do not affect the activity of herbicides against weeds.

It is known that 3-aminothieno[2,3-b]pyridines, which can be considered as structural analogs of the prepared 3-imino-3H-[1,2]dithiolo[3,4-b]pyridines 15, are reported to be effective herbicide safeners [42,43] and plant growth regulators [44]. We studied the efficiency of new 3-imino-3H-[1,2]dithiolo[3,4-b]pyridines as 2,4-D antidotes using sunflower seedlings using the reported procedure [42] (see also Materials and Methods). The antidote effect A was determined as a ratio of the hypocotyl (or root) length of sunflower seedlings in the “herbicide + antidote” experiments to the length in the reference group (where the seedlings were treated with 2,4-D only) (Equation (1)):

A = (L_exp/L_ref) × 100%,

(1)

where L_exp is an organ length (mm) in the group of seedlings treated with herbicide and antidote, and L_ref is an organ length (mm) in the reference group of sunflower seedlings.

We found that three of the new compounds, dithiolopyridines 15a,c,f, exhibited a strong 2,4-D antidote effect in the laboratory experiments (

Table 1. The antidote effects of the most active compounds 15a,c,f with respect to herbicide 2,4-D.

N	Compound	Organ	Antidote Effect A at Different Concentrations, % 1
			10−2	10−3	10−4	10−5
1	15a	roots	146	151	155	151
		hypocotyls	157	160	154	151
2	15c	roots	140	143	143	140
		hypocotyls	137	134	140	148
3	15f	roots	133	151	155	151
		hypocotyls	148	154	148	151

¹ The differences are reliable at p = 0.95.

).

As we can see from the Table 1, the use of 3H-[1,2]dithiolo[3,4-b]pyridines 15a,c,f as safeners against 2,4-D strongly reduce the toxic effects of the herbicide. Compounds 15a,c,f reduced the negative effect of 2,4-D on sunflower seedling hypocotyls by 34–60% and by 40–55% on sunflower seedling roots.

The antidote activity of 3H-[1,2]dithiolo[3,4-b]pyridines 15a,c,f was also studied in field experiments on sunflower in the experimental field of the Federal Scientific Center for Biological Protection of Plants (Krasnodar, Russia). Sunflower plants of cv. Master in the phase of 10–16 leaves were treated with an aqueous solution of 2,4-dichlorophenoxyacetic acid at a dose of 18 g/ha and 3 days later a safener solution was applied at a dose of 100 g/ha with the working fluid rate of 300 L/ha.

The field tests included the following variants:

-

Control group—untreated plants;

-

“Herbicide” (reference) group—plants treated with herbicide 2,4-D only;

-

“Herbicide + antidote” group—plants treated with herbicide 2,4-D and an antidote.

Experiments were conducted in plots of 2.8 m² with five-fold repetition. Sunflower harvesting was performed at the time of full seed maturity. The field antidote effect A_F was determined by the absolute value of the crop yield increase to the herbicide reference by the Equation (2):

$$A_F=\frac{Y_1-Y_2}{Y_2}\times 100\%,$$

(2)

where A_F is antidote effect, %; Y₁ is crop yield in “herbicide + antidote” group; and Y₂ is crop yield in “herbicide” (reference) group.

The obtained data were statistically processed using Student’s t-test. The field test results are presented in

Table 2. Results of field tests on the antidote activity of 3H-[1,2]dithiolo[3,4-b]pyridines 15a,c,f against the herbicide 2,4-D on sunflower cv. Master.

N	Compound	Field Test Variants
		“Herbicide” (Reference) Group (2,4-D Only)	“Herbicide + Antidote” Group
		Crop Yield, Quintals per Hectare	Crop Yield, Quintals per Hectare	Antidote Activity
				Quintals per Hectare	AF, %
1	15a	14.0	20.8	6.8	48.6 1
2	15c	14.0	19.8	5.8	41.4 1
3	15f	14.0	21.2	7.2	51.4 1

¹ The differences are reliable at p = 0.90.

. As it can be seen, the use of compounds 15a,c,f as herbicide safeners under field conditions provides an antidote effect in the range of 41.4–51.4%.

The growth-stimulating activity of compounds 15a,c,f was evaluated in laboratory experiments using the known procedure [45] on cv. Master sunflower seedlings (

Table 3. The growth-stimulating effects of compounds 15a,c,f.

N	Compound	Organ	Growth-Stimulating Effect E at Different Concentrations, % 1
			10−2	10−3	10−4	10−5
1	15a	roots	116	120	119	118
		stems	115	120	120	122
2	15c	roots	108	112	114	112
		stems	114	115	115	116
3	15f	roots	112	117	117	118
		stems	113	117	116	112

¹ The differences are reliable at p = 0.95.

). The effect was evaluated by the elongation of stems and roots of treated seedlings in comparison to control (untreated seeds) (Equation (3)):

E = (L_treated/L_control) × 100%,

(3)

where E is growth-stimulating effect, %; L_treated is the length (mm) of stems/roots in the treated group of seedlings; and L_control is the length (mm) of stems/roots in the control (untreated) group of seedlings.

As we can see from the Table 3, compounds 15a and 15f are more active than 15c and favored stem elongation by 12–20% relative to control and stimulated root growth by 13–22%, depending on the concentration. In general, the growth-stimulating effect of compounds 15a and 15f can be considered as moderate.

The study of the acute toxicity of the new compounds is in progress. According to preliminary data, the compounds do not possess obvious phytotoxicity; this is indirectly indicated by the observed plant growth-stimulating effect of the tested samples (Table 3).

3. Materials and Methods

¹H and ¹³C DEPTQ NMR spectra and 2D NMR experiments were recorded in solutions of DMSO-d₆ on a Bruker AVANCE-III HD instrument (Bruker BioSpin AG, Fällanden, Switzerland) (at 400.40 or 100.61 MHz, respectively). Residual solvent signals were used as internal standards in DMSO-d₆–2.49 ppm for ¹H, and 39.50 ppm for ¹³C nuclei. Single crystal X-ray diffraction analysis of compound 15a was performed on an automatic four-circle diffractometer Agilent Super Nova, Dual, Cu at zero, Atlas S2. HRMS spectra were recorded using a Bruker MaXis Impact quadrupole time-of-flight mass spectrometer (Bruker Daltonics, Bremen, Germany) equipped with an electrospray ionization source in positive ion detection mode. The voltage at the ionization source was 3.5 kV, the drying gas flow rate was 8 L/min, the spray gas pressure was 2 bar, the temperature of the ionization source was 250 °C, the mass scanning range (m/z) was 50–1000, the scanning speed was 3 Hz. The data were processed using Bruker Data Analysis 4.1 software. See Supplementary Materials File for NMR, FTIR and HRMS spectral charts and X-ray analysis data.

FT-IR spectra were measured on a Bruker Vertex 70 instrument equipped with an ATR sampling module (Bruker Optics GmbH & Co. KG, Ettlingen, Germany). Elemental analyses were carried out using a Carlo Erba 1106 Elemental Analyzer (Carlo Erba Strumentazione, Cornaredo, Italy) Reaction progress and purity of isolated compounds were controlled by TLC on Sorbfil-A plates (Imid Ltd, Krasnodar, Russia), eluent–acetone:hexane 1:1 or ethyl acetate:light petroleum 3:1; the spots were visualized with UV-light and iodine vapors. N,N’-Diphenyldithiomalondiamide (dithiomalondianilide) 12 was prepared from acetylacetone and phenyl isothiocyanate as described earlier [19,46]. Aldehydes, cyanoacetic esters, morpholine and solvents were purchased from commercial vendors and purified by distillation (Galachem, Moscow, Russia).

General procedure for the preparation of dithiolopyridines 15 (Method A). A vial was charged, under air, with dithiomalondianilide 12 (300 mg, 1.047 mmol), 3-aryl-2-cyanoacrylate 14 (1.1 mmol) and EtOH (6–8 mL). A mixture was treated with morpholine (0.14 mL, 1.57 mmol) at 25 °C. Complete dissolution of starting materials and formation of a deep-yellow solution occurred for a very short time (a matter of minutes). The solution was stirred for 3 h and left to stand to allow slow evaporation in air at ambient temperature. After evaporating the solvent, the resulting tarry residue was triturated with an appropriate solvent (usually acetone : EtOH (1:1) or n-BuOH were used). The yellow or light-brown crystalline solid was filtered off, washed with EtOH and hexane and recrystallized from acetone (if appropriate) to give pure dithiolopyridines 15.

General procedure for the preparation of dithiolopyridines 15 (Method B). To a solution of ethyl(methyl) cyanoacetate (1.1 mmol) and an aromatic aldehyde (1.1 mmol) in EtOH(MeOH) (2–3 mL), morpholine (2 drops) was added. Under vigorous stirring, a mixture was warmed up to 50 °C and left to cool to generate 3-aryl-2-cyanoacrylate 14 in situ. Then, 300 mg (1.05 mmol) of dithiomalondianilide 12 and 0.13 mL of morpholine were added. The solution formed was treated as above. The crystals of dithiolopyridine were filtered off, washed with EtOH and hexane and recrystallized (if appropriate).

Ethyl 6-amino-4-(4-methoxyphenyl)-7-phenyl-3-(phenylimino)-4,7-dihydro-3H-[1,2]di- thiolo[3,4-b]pyridine-5-carboxylate (15a). This compound was prepared via Method A in a yield of 388 mg (72%). Alternatively, this compound was prepared via Method B employing ethyl cyanoacetate (0.12 mL), anisaldehyde (0.13 mL) and thioamide 12 (300 mg) in a yield of 351 mg (65%), bright yellow crystals. FTIR, ν_max, cm⁻¹: 3400, 3273 (N-H); 1651 (CO₂Et); 1628 (C=N). ¹H NMR (400 MHz, DMSO-d₆): 1.09 (t, ³J = 7.1 Hz, 3H, CH₃CH₂), 3.71 (s, 3H, MeO), 3.89–4.03 (m, 2H, CH₃CH₂), 5.02 (s, 1H, H-4), 6.84–6.86 (m, 4H, H Ar), 7.00 (very br s, 2H, NH₂), 7.05–7.09 (m, 1H, H-4 Ph), 7.31–7.34 (m, 4H, H Ar), 7.60–7.66 (m, 5H, H Ar). ¹³C DEPTQ NMR (101 MHz, DMSO-d₆): 14.4* (CH₃), 38.0* (C-4), 54.9* (OCH₃), 58.6 (OCH₂), 78.4 (C-5), 113.2* (2C, CH Ar), 113.5 (C-3a), 120.1* (2C, C2 C-6 Ph), 124.3* (C-4 Ph), 128.5* (2C, CH Ar), 129.7* (2C, C-3 C-5 Ph), 130.0* (2C, CH Ph), 130.5* (2C, CH Ph), 131.1* (C-4 Ph), 135.6 (C-1 Ph), 138.9 (C-1 Ar), 150.9 (C-1 Ph), 152.7 (C-6), 153.7 (C-8a), 157.6 (C–OMe), 163.3 (C=N), 168.7 (C=O). *Signals with a negative phase. Elemental Analysis (C₂₈H₂₅N₃O₃S_2, M 515,65): calculated (%): C, 65.22; H, 4.89; N, 8.15; found (%): C, 65.15; H, 5.00; N, 8.12. HRMS (ESI) m/z: calculated for C₂₈H₂₆N₃O₃S₂ [M + H]⁺: 516.14156, found 516.1411 (Δ 0.89 ppm).

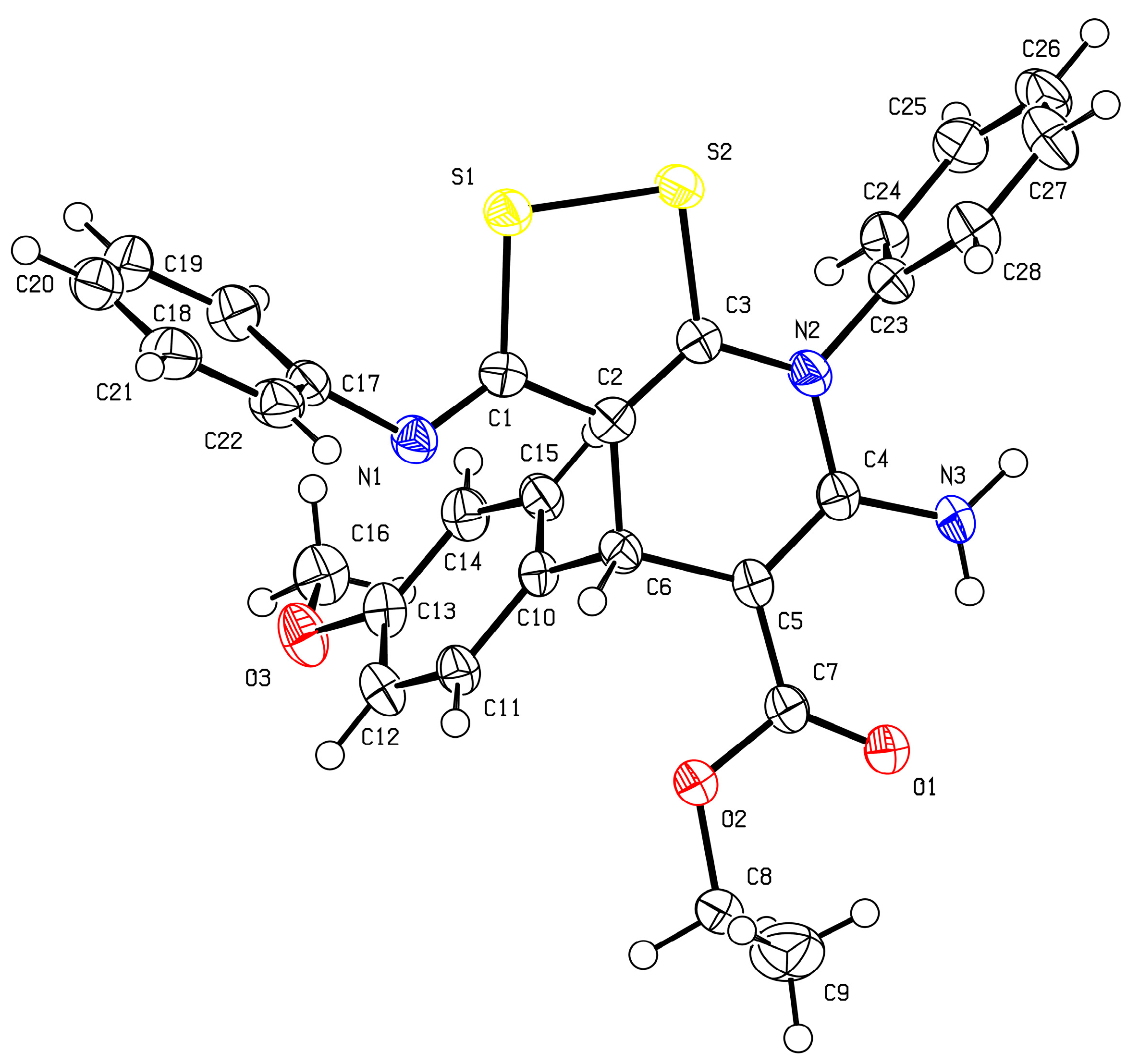

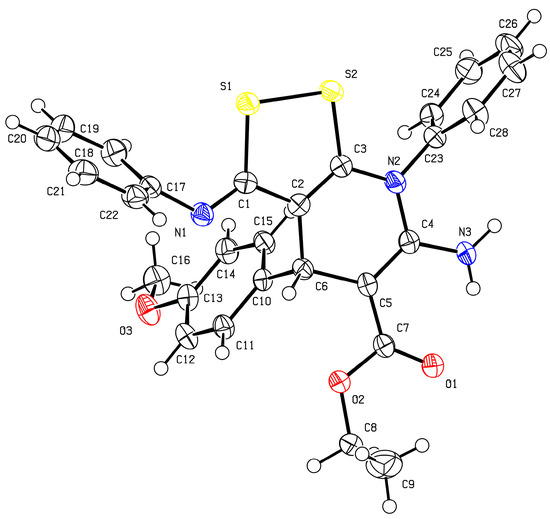

3.1. X-ray Studies for Single Crystals of 15a

Single crystals of 6-amino-4-(4-methoxyphenyl)-7-phenyl-3-(phenylimino)-4,7- dihydro-3H-[1,2]dithiolo[3,4-b]pyridine-5-carboxylate 15a (C₂₈H₂₅N₃O₃S₂, M 515.63) were grown from EtOH–acetone solution. The crystal was kept at 423.15(10) K during data collection. Using Olex2 [47], the structure was solved with the olex2.solve structure solution program using Charge Flipping and refined with the SHELXL [48] package using Gauss–Newton minimization. The crystals are orthorhombic, at 423.15(10) K: a = 10.2422(4) Å, b = 12.9088(5) Å, c = 19.2052(7) Å, α = 90°, β = 90°, γ = 90°, V = 2539.21(17) ų, T = 423.15(10), space group P2₁2₁2₁ (no. 19), Z = 4, μ(Cu K_α) = 2.190 mm⁻¹, d_calc = 1.349 mg/mm³, F(000) = 1080.0; a total of 21,592 reflections measured, 4994 unique (R_int = 0.0510), which were used in all calculations. The final wR₂ was 0.1035 (all data) and R₁ was 0.0379 (I >2σ(I)). A full set of crystallographic data has been deposited in the Cambridge Crystallographic Data Center (CCDC 2219352).

Ethyl 6-amino-4-(4-nitrophenyl)-7-phenyl-3-(phenylimino)-4,7-dihydro-3H-[1,2]dithiolo- [3,4-b]pyridine-5-carboxylate (15b). This compound was prepared via Method A in a yield of 344 mg (62%), bright-yellow powder. Alternatively, this compound was prepared via Method B employing ethyl cyanoacetate (0.11 mL), 4-nitrobenzaldehyde (160 mg) and thioamide 12 (300 mg) in a yield of 240 mg (43%). FTIR, ν_max, cm⁻¹: 3445, 3263 (N-H); 1661 (CO₂Et); 1630 (C=N); 1524 (NO_{2 asym}); 1346 (NO_{2 sym}). ¹H NMR (400 MHz, DMSO-d₆): 0.92 (t, ³J = 7.0 Hz, 3H, CH₃CH₂), 3.81–3.95 (m, 2H, CH₃CH₂), 5.94 (s, 1H, H-4), 6.72 (d, ³J = 7.6 Hz, 2H, H-2 H-6 Ph), 7.02–7.06 (m, 1H, H-4 Ph), 7.19 (very br s, 2H, NH₂), 7.26–7.30 (m, 2H, H-3 H-5 Ph), 7.38–7.42 (m, 1H, H-4 Ph), 7.65–7.80 (m, 8H, H Ar). ¹³C DEPTQ NMR (101 MHz, DMSO-d₆): 14.1* (CH₃), 34.6* (C-4), 58.5 (OCH₂), 76.9 (C-5), 111.7 (C-3a), 120.0* (2C, C2 C-6 Ph), 123.6* (CH Ar), 124.2* (C-4 Ar), 127.2* (CH Ar), 129.4* (2C, C-3 C-5 Ar), 130.3* (2C, CH Ph), 130.5* (2C, CH Ph), 131.3* (C-4 Ph), 133.0* (CH Ar), 135.2 (C-1 Ph), 141.1 (C-1 Ar), 148.8 (C–NO₂), 150.6 (C-1 Ph), 153.1 (C-6), 154.6 (C-8a), 163.0 (C=N), 168.7 (C=O). *Signals with a negative phase. Elemental Analysis (C₂₇H₂₂N₄O₄S_2, M 530,62): calculated (%): C, 61.12; H, 4.18; N, 10.56; found (%): C, 61.03; H, 4.31; N, 10.41. HRMS (ESI) m/z: calculated for C₂₇H₂₃N₄O₄S₂ [M + H]⁺: 531.11607, found 531.1169 (Δ −1.56 ppm).

Ethyl 6-amino-7-phenyl-3-(phenylimino)-4-(2-thienyl)-4,7-dihydro-3H-[1,2]dithiolo[3,4- b]pyridine-5-carboxylate (15c). This compound was prepared via Method A in a yield of 201 mg (39%). Alternatively, this compound was prepared via Method B employing ethyl cyanoacetate (0.11 mL), thiophene-2-carbaldehyde (0.10 mL) and thioamide 12 (300 mg) in a yield of 120 mg (23%), light brown powder. FTIR, ν_max, cm⁻¹: 3380, 3269 (N-H); 1653 (CO₂Et); 1630 (C=N). ¹H NMR (400 MHz, DMSO-d₆): 1.12 (t, ³J = 7.1 Hz, 3H, CH₃CH₂), 4.05 (q, ³J = 7.1 Hz, 2H, CH₃CH₂), 5.39 (s, 1H, H-4), 6.92–6.95 (m, 4H, H-3 H-4 thienyl and H-2 H-6 Ph overlapped), 7.09–7.12 (m, 3H, H-4 Ph and NH₂ overlapped), 7.28 (dd, ³J = 4.9 Hz, ⁴J = 1.5 Hz, 1H, H-5 2-thienyl), 7.34–7.38 (m, 2H, H-3 H-5 Ph), 7.51–7.54 (m, 2H, H-3 H-5 Ph), 7.63–7.65 (m, 3H, H-2 H-6 H-4 Ph). ¹³C DEPTQ NMR (101 MHz, DMSO-d₆): 14.5* (CH₃), 33.5* (C-4), 58.7 (OCH₂), 78.0 (C-5), 112.7 (C-3a), 120.1* (2C, C2 C-6 Ph), 122.8* (C-2 thienyl), 123.6* (C-5 thienyl), 124.4* (C-4 Ar), 126.7* (C-4 thienyl), 129.7* (2C, C-3 C-5 Ph), 129.9* (2C, C-3 C-5 Ph), 130.6* (2C, C-2 C-6 Ph), 131.1* (C-4 Ph), 135.5 (C-1 Ph), 150.9 (C-1 Ph), 151.1 (C-1 thienyl), 153.1 (C-6), 154.2 (C-8a), 163.4 (C=N), 168.5 (C=O). *Signals with a negative phase. Elemental Analysis (C₂₅H₂₁N₃O₂S_3, M 491,65): calculated (%): C, 61.07; H, 4.31; N, 8.55; found (%): C, 60.98; H, 4.45; N, 8.45. HRMS (ESI) m/z: calculated for C₂₅H₂₂N₃O₂S₃ [M + H]⁺: 492.0874, found 492.0868 (Δ 1.22 ppm).

Ethyl 6-amino-4-(4-chlorophenyl)-7-phenyl-3-(phenylimino)-4,7-dihydro-3H-[1,2]dithiolo- [3,4-b]pyridine-5-carboxylate (15d). This compound was prepared via Method A in a yield of 300 mg (55%). Alternatively, this compound was prepared via Method B employing ethyl cyanoacetate (0.11 mL), 4-chlorobenzaldehyde (150 mg) and thioamide 12 (300 mg) in a yield of 240 mg (46%), yellow powder. FTIR, ν_max, cm⁻¹: 3371, 3271 (N-H); 1655 (CO₂Et); 1638 (C=N). ¹H NMR (400 MHz, DMSO-d₆): 1.07 (t, ³J = 7.0 Hz, 3H, CH₃CH₂), 3.96 (q, ³J = 7.0 Hz, 2H, CH₃CH₂), 5.04 (s, 1H, H-4), 6.83 (d, ³J = 7.6 Hz, 2H, H-2 H-6 Ph), 7.05–7.09 (m, 3H, H-4 Ph and NH₂ overlapped), 7.30–7.35 (m, 4H, H Ar), 7.41 (d, ³J = 8.4 Hz, 2H, H Ar), 7.50–7.55 (m, 1H, H-4 Ph), 7.64–7.67 (m, 4H, H Ar). ¹³C DEPTQ NMR (101 MHz, DMSO-d₆): 14.3* (CH₃), 38.6* (C-4), 58.7 (OCH₂), 77.7 (C-5), 112.6 (C-3a), 120.1* (2C, C2 C-6 Ph), 124.3* (C-4 Ph), 127.8* (2C, CH Ar), 129.5* (2C, CH Ar), 129.7* (2C, C-3 C-5 Ph), 130.1* (2C, CH Ph), 130.5* (2C, CH Ph), 131.2* (C-4 Ph), 135.4 (C-1 Ph and C-Cl overlapped), 145.6 (C-1 Ar), 150.8 (C-1 Ph), 152.8 (C-6), 154.2 (C-8a), 163.2 (C=N), 168.6 (C=O). *Signals with a negative phase. Elemental Analysis (C₂₇H₂₂ClN₃O₂S₂ M 520,07): calculated (%): C, 62.36; H, 4.26; N, 8.08; found (%): C, 62.30; H, 4.41; N, 8.05. HRMS (ESI) m/z: calculated for C₂₇H₂₃ClN₃O₂S₂ [M + H]⁺: 520.09202, found 520.0913 (Δ 1.38 ppm).

Ethyl 6-amino-4-(2,4-dichlorophenyl)-7-phenyl-3-(phenylimino)-4,7-dihydro-3H-[1,2]- dithiolo[3,4-b]pyridine-5-carboxylate (15e). This compound was prepared via Method A in a yield of 215 mg (37%). Alternatively, this compound was prepared via Method B employing ethyl cyanoacetate (0.11 mL), 2,4-dichlorobenzaldehyde (180 mg) and thioamide 12 (300 mg) in a yield of 175 mg (30%), brownish-yellow powder. FTIR, ν_max, cm⁻¹: 3474, 3290 (N-H); 1657 (CO₂Et); 1634 (C=N). ¹H NMR (400 MHz, DMSO-d₆): 1.05 (t, ³J = 7.0 Hz, 3H, CH₃CH₂), 3.87–3.99 (m, 2H, CH₃CH₂), 5.36 (s, 1H, H-4), 6.79 (d, ³J = 8.3 Hz, 2H, H-2 H-6 Ph), 7.02–7.06 (m, 1H, H-4 Ph), 7.14 (very br s, 2H, NH₂), 7.27–7.31 (m, 2H, H-3 H-5 Ph), 7.35 (dd, ³J = 8.6 Hz, ⁴J = 2.0 Hz, 1H, H-5 Ar), 7.42 (d, ⁴J = 2.0 Hz, 1H, H-3 Ar), 7.52 (d, ³J = 8.6 Hz, 1H, H-6 Ar), 7.55–7.67 (m, 5H, H Ph). ¹³C DEPTQ NMR (101 MHz, DMSO-d₆): 14.3* (CH₃), 37.9* (C-4), 58.6 (OCH₂), 76.5 (C-5), 111.1 (C-3a), 120.1* (2C, C-2 C-6 Ph), 124.2* (C-4 Ph), 126.7* (CH Ar), 128.3* (CH Ar), 129.5* (2C, C-3 C-5 Ph), 130.4* (2C, CH Ph), 130.5* (2C, CH Ph), 130.9 (C–Cl), 131.3* (C-4 Ph), 133.7* (C-3 Ar), 133.8 (C–Cl), 135.3 (C-1 Ph), 142.7 (C-1 Ar), 150.3 (C-1 Ph), 152.9 (C-6), 154.7 (C-8a), 162.2 (C=N), 168.7 (C=O). *Signals with a negative phase. Elemental Analysis (C₂₇H₂₁Cl₂N₃O₂S₂ M 554,51): calculated (%):C, 58.48; H, 3.82; N, 7.58; found (%): C, 58.60; H, 3.95; N, 7.41. HRMS (ESI) m/z: calculated for C₂₇H₂₂Cl₂N₃O₂S₂ [M + H]⁺: 554.05305, found 554.0532 (Δ −0.27 ppm).

Methyl 6-amino-4-(4-methoxyphenyl)-7-phenyl-3-(phenylimino)-4,7-dihydro-3H-[1,2]di- thiolo[3,4-b]pyridine-5-carboxylate (15f). This compound was prepared via Method A in a yield of 330 mg (63%). Alternatively, this compound was prepared via Method B employing methyl cyanoacetate (0.09 mL), 4-methoxybenzaldehyde (0.13 mL) and thioamide 12 (300 mg) in MeOH in a yield of 230 mg (44%), bright-yellow powder. FTIR, ν_max, cm⁻¹: 3452, 3281 (N-H); 1661 (CO₂Me); 1622 (C=N). ¹H NMR (400 MHz, DMSO-d₆): 3.51 (s, 3H, COOMe), 3.71 (s, 3H, MeO–Ar), 5.04 (s, 1H, H-4), 6.84–6.88 (m, 4H, H Ar), 7.00 (very br s, 2H, NH₂), 7.06–7.10 (m, 1H, H-4 Ph), 7.30–7.35 (m, 4H, H Ar), 7.55–7.66 (m, 5H, H Ar). ¹³C DEPTQ NMR (101 MHz, DMSO-d₆): 37.7* (C-4), 50.5* (CO₂CH₃), 54.9* (ArOCH₃), 78.1 (C-5), 113.4* (2C, CH Ar), 113.7 (C-3a), 120.1* (2C, C-2 C-6 Ph), 124.3* (C-4 Ph), 128.2* (2C, CH Ar), 129.7* (2C, C-3 C-5 Ph), 130.0* (2C, CH Ph), 130.5* (2C, CH Ph), 131.1* (C-4 Ph), 135.6 (C-1 Ph), 138.8 (C-1 Ar), 150.9 (C-1 Ph), 153.0 (C-6), 153.6 (C-8a), 157.6 (C–OMe), 163.2 (C=N), 169.1 (C=O). *Signals with a negative phase. Elemental Analysis (C₂₇H₂₃N₃O₃S_2, M 501,62): calculated (%): C, 64.65; H, 4.62; N, 8.38; found (%): C, 64.47; H, 4.70; N, 8.25. HRMS (ESI) m/z: calculated for C₂₇H₂₄N₃O₃S₂ [M + H]⁺: 502.12591, found 502.1248 (Δ 2.21 ppm).

Methyl 6-amino-7-phenyl-3-(phenylimino)-4-(2-thienyl)-4,7-dihydro-3H-[1,2]dithiolo[3,4- b]pyridine-5-carboxylate (15g). This compound was prepared via Method A in a yield of 360 mg (72%). Alternatively, this compound was prepared via Method B employing methyl cyanoacetate (0.09 mL), thiophene-2-carbaldehyde (0.09 mL) and thioamide 12 (300 mg) in MeOH in a yield of 326 mg (65%), yellow powder. FTIR, ν_max, cm⁻¹: 3440, 3273 (N-H); 1660 (CO₂Me); 1627 (C=N). ¹H NMR (400 MHz, DMSO-d₆): 3.55 (s, 3H, COOMe), 5.40 (s, 1H, H-4), 6.91–6.95 (m, 4H, H-3 H-4 thienyl and H-2 H-6 Ph overlapped), 7.10–7.14 (m, 3H, H-4 Ph and NH₂ overlapped), 7.26 (dd, ³J = 5.0 Hz, ⁴J = 1.5 Hz, 1H, H-5 2-thienyl), 7.32–7.36 (m, 2H, H-3 H-5 Ph), 7.50–7.54 (m, 2H, H-3 H-5 Ph), 7.60–7.66 (m, 3H, H-2 H-6 H-4 Ph). ¹³C DEPTQ NMR (101 MHz, DMSO-d₆): 34.0* (C-4), 51.1* (CO₂CH₃), 78.1 (C-5), 112.8 (C-3a), 120.1* (2C, C2 C-6 Ph), 122.7* (C-2 thienyl), 123.7* (C-5 thienyl), 124.3* (C-4 Ar), 126.6* (C-4 thienyl), 129.7* (2C, C-3 C-5 Ph), 130.0* (2C, C-3 C-5 Ph), 130.5* (2C, C-2 C-6 Ph), 131.0* (C-4 Ph), 135.7 (C-1 Ph), 150.8 (C-1 Ph), 151.0 (C-1 thienyl), 153.3 (C-6), 154.1 (C-8a), 163.4 (C=N), 169.0 (C=O). *Signals with a negative phase. Elemental Analysis (C₂₄H₁₉N₃O₂S_3, M 477,62): calculated (%): C, 60.35; H, 4.01; N, 8.80; found (%): C, 60.23; H, 4.15; N, 8.75. HRMS (ESI) m/z: calculated for C₂₄H₂₀N₃O₂S₃ [M + H]⁺: 478.0718, found 478.0722 (Δ −0.84 ppm).

3.2. Herbicide-Safening Effect Studies

Germinated sunflower seeds (cv. Master) with 2–4 mm long embryo roots were placed in a solution of 2,4-D (10^–3% by weight) for 1 h to achieve 40–60% inhibition of hypocotyl growth. After treatment, the seedlings were washed with pure water and placed into a solution of the corresponding compound 15a,c,f (concentrations 10^–2, 10^–3, 10^–4 or 10^–5% by weight, “herbicide + antidote” experiments). After 1 h the seedlings were washed with pure water and placed on paper strips (10 × 75 cm, 20 seeds per strip). The strips were rolled and placed into beakers with water (50 cm³). The reference group of seedlings (“herbicide” experiments) was kept in 2,4-D solution (10^–3%) for 1 h and then in water for 1 h. The “control” seedlings were kept in water for 2 h. The temperature of all solutions was maintained at 28 °C. The seedlings were then thermostated for 3 days at 28 °C. Each experiment was performed in triplicate; 20 seeds were used in each experiment. The results are given in Table 1.

3.3. Growth-Stimulating Effect Studies

Sunflower seeds were treated with a solution of a test compound at different concentrations (10^–2 to 10^–5 by weight) for 1 h. After 1 h, the seeds were spread evenly on strips of filter paper, rolled up, placed in beakers with water and thermostated at 28 °C for 3 days. Then stem and root length were measured, and the data were statistically processed using Student’s t-test, p = 0.95. Each experiment was carried out in triplicate with 100 seeds. The results are given in Table 3.

4. Conclusions

Generally, a new preparative method for synthesis of alkyl 6-amino-4-aryl-7-phenyl- 3-(phenylimino)-4,7-dihydro-3H-[1,2]dithiolo[3,4-b]pyridine-5-carboxylates 15 based on the base-catalyzed cascade reaction of dithiomalondianilide 12 with alkyl 3-aryl-2-cyanoacrylates was developed. Alternatively, the same compounds can also be prepared in a single step starting from aromatic aldehydes, ethyl (or methyl) cyanoacetate and dithiomalondianilide. Related reactions of dithiomalondianilide 12 with other Michael acceptors are currently underway in our laboratory. Some compounds showed a strong antidote effect with respect to herbicide 2,4-D accompanied by moderate growth-regulating activity in the experiments on sunflower seedlings. Thus, compounds 15a,c,f reduced the negative effect of 2,4-D on sunflower seedling hypocotyls by 34–60% and by 40–55% on sunflower seedling roots in the laboratory experiments and showed an antidote effect of 41.4–51.4% in the field experiments.
