Article

Impact of TMPRSS2 Expression, Mutation Prognostics, and Small Molecule (CD, AD, TQ, and TQFL12) Inhibition on Pan-Cancer Tumors and Susceptibility to SARS-CoV-2

1
Key Laboratory of Epigenetics and Oncology, the Research Center for Preclinical Medicine, Southwest Medical University, Luzhou 646000, China
2
Basic Medical School, Southwest Medical University, Luzhou 646000, China
3
Department of Pathology, The Affiliated Huaian No. 1 People’s Hospital of Nanjing Medical University, Huai’an 223300, China
4
Department of Gynecology and Obstetrics, Guangdong Women and Children Hospital, Guangzhou 511400, China
5
Department of Biochemistry, School of Life Sciences, Central South University, Changsha 410013, China
6
School of Medicine, Baylor College of Medicine, Houston, TX 77030, USA
7
Institute for Cancer Medicine, Basic Medical School, Southwest Medical University, Luzhou 646000, China
*
Authors to whom correspondence should be addressed.
These authors contributed equally to this paper.
Molecules 2022, 27(21), 7413; https://doi.org/10.3390/molecules27217413
Submission received: 14 September 2022 / Revised: 18 October 2022 / Accepted: 24 October 2022 / Published: 1 November 2022
(This article belongs to the Special Issue Natural and Synthetic Anti-cancer Drug Discovery)

Abstract

:
As a cellular protease, transmembrane serine protease 2 (TMPRSS2) plays roles in various physiological and pathological processes, including cancer and viral entry, such as severe acute respiratory syndrome coronavirus 2 (SARS-CoV-2). Herein, we conducted expression, mutation, and prognostic analyses for the TMPRSS2 gene in pan-cancers as well as in COVID-19-infected lung tissues. The results indicate that TMPRSS2 expression was highest in prostate cancer. A high expression of TMPRSS2 was significantly associated with a short overall survival in breast invasive carcinoma (BRCA), sarcoma (SARC), and uveal melanoma (UVM), while a low expression of TMPRSS2 was significantly associated with a short overall survival in lung adenocarcinoma (LUAD), demonstrating TMPRSS2 roles in cancer patient susceptibility and severity. Additionally, TMPRSS2 expression in COVID-19-infected lung tissues was significantly reduced compared to healthy lung tissues, indicating that a low TMPRSS2 expression may result in COVID-19 severity and death. Importantly, TMPRSS2 mutation frequency was significantly higher in prostate adenocarcinoma (PRAD), and the mutant TMPRSS2 pan-cancer group was significantly associated with long overall, progression-free, disease-specific, and disease-free survival rates compared to the wild-type (WT) TMPRSS2 pan-cancer group, demonstrating loss of functional roles due to mutation. Cancer cell lines were treated with small molecules, including cordycepin (CD), adenosine (AD), thymoquinone (TQ), and TQFL12, to mediate TMPRSS2 expression. Notably, CD, AD, TQ, and TQFL12 inhibited TMPRSS2 expression in cancer cell lines, including the PC3 prostate cancer cell line, implying a therapeutic role for preventing COVID-19 in cancer patients. Together, these findings are the first to demonstrate that small molecules, such as CD, AD, TQ, and TQFL12, inhibit TMPRSS2 expression, providing novel therapeutic strategies for preventing COVID-19 and cancers.

1. Introduction

Transmembrane serine protease 2 (TMPRSS2, OMIM: 602060) encodes a 492 amino acid protein with a molecular weight of 53,859 Da, which contains a functional serine protease domain [1]. TMPRSS2 has been reported to be involved in various pathological and physiological processes [2,3,4]. Recurrent fusions at the TMPRSS2 5′ UTR (untranslated region) to ETV1 (ETS variant transcription factor 1) or ERG (ETS-related gene) lead to outlier expression and drive progression of prostate cancer [5].
Serine proteases proteolytically cleave and activate viral S proteins (spike glycoproteins), thereby facilitating fusion of the virus with the cell membrane. Two independent mechanisms are involved in human severe acute respiratory syndrome coronavirus (SARS-CoV) infection entering host cells: (1) proteolytic cleavage of angiotensin converting enzyme 2 (ACE2), which promotes viral entry; and (2) cleavage of coronavirus S protein, which activates itself. Proteolytic cleavage and activation of the S protein is required for infection of human coronavirus 229E (HCoV-229E) and human coronavirus EMC (HCoV-EMC), as well as the F0 fusion glycoprotein of Sendai virus (SeV), human metapneumovirus (HMPV), and human parainfluenza viruses (HPIVs) 1, 2, 3, 4a, and 4b.
As a cellular serine protease, TMPRSS2 is a genetic risk factor [6,7] as it facilitates viral entry, including HCoV-229E, HMPV, Middle East respiratory syndrome coronavirus (MERS-CoV), and SARS-CoV, through cleaving and activating viral envelope glycoproteins, thereby facilitating the fusion of virus with cell membranes, or through proteolytically cleaving of ACE2, which promotes viral uptake in a cathepsin L (CTSL)-independent manner [8,9,10,11].
Hoffmann et al. first demonstrated that the SARS-CoV-2 S protein is primed via the TMPRSS2 protease, indicating that TMPRSS2 inhibitors may block viral invasion [9,12], SARS-CoV-2 entry, and coronavirus disease 2019 (COVID-19) outcomes [13]. These findings suggest that the inhibition of TMPRSS2 expression may protect against cancer progress as well as SARS-CoV-2 invasion. Variants in the TMPRSS2 gene seem to regulate TMPRSS2 expression and affect SARS-CoV-2 infection [14,15,16]. Gene mutations in cancer could cause gene expression, malignancy, prognostics, recurrence, and therapeutic resistance of patients. TMPRSS2 expression, mutation, and prognostics in pan-cancers are unclear. Some potential inhibitors of TMPRSS2 have been revealed to possibly defeat SARS-CoV-2 entry [17,18,19]. It is unknown whether small molecules, such as cordycepin (CD), adenosine (AD), thymoquinone (TQ), and TQFL12, inhibit TMPRSS2 expression.
Herein, we conducted expression, mutation, and prognostic analyses for the TMPRSS2 gene in pan-cancers as well as in COVID-19-infected lung tissues. Cancer cell lines were treated with the small molecules CD, AD, TQ, and TQFL12 to inhibit TMPRSS2 expression in cancer cell lines.

2. Results

2.1. TMPRSS2 Expressions and Prognostics in Pan-Cancers

Previous bioinformatics analysis of TMPRSS2 expression profiles in 32 different tumor tissues has indicated that TMPRSS2 is significantly upregulated in six cancer tissues, including prostate adenocarcinoma (PRAD), and significantly downregulated in six cancer tissues compared to corresponding normal tissues [20]. We further analyzed TMPRSS2 mRNA expression in pan-cancers and found that TMPRSS2 mRNA expression was highest in prostate cancer with 234.4 fragments per kilobase of exon model per million mapped fragments (FPKM) (Figure 1A). TMPRSS2 protein expression was highest in prostate cancer followed by urothelial cancer, renal cancer, and pancreatic cancer, and TMPRSS2 was expressed at low levels in lung cancer; TMPRSS2 expression was undetected in the remaining cancer tissue types, including breast cancer (Figure 1B). Moreover, immunohistochemistry (IHC) showed weak to moderate membranous and/or granular cytoplasmic immunoreactivity in lung and breast cancer tissues (Figure 1C–H).
We next conducted survival analysis in the pan-cancers. A high expression of TMPRSS2 was significantly associated with a short overall survival in breast invasive carcinoma (BRCA), sarcoma (SARC), and uveal melanoma (UVM), as well as with a long overall survival in lung adenocarcinoma (LUAD) (Figure 2A–D).

2.2. TMPRSS2 Mutations and Prognostics in Pan-Cancers

Mutation analysis of the pan-cancers demonstrated that the mutation frequency was significantly high in PRAD (42.71%) and low in uterine corpus endometrial carcinoma (UCES) (4.73%), and 7 of the 32 types of cancer had no mutations (Figure 3A). The plots for the TMPRSS2 mutation types are shown in Figure 3B, and an overview of mutations in TMPRSS2 is shown in Figure 3C. Different types of TMPRSS2 mutations were found, and missense mutations were the dominant mutation type.
Further survival analysis was conducted with and without TMPRSS2 mutations in the pan-cancers, which demonstrated that the mutated TMPRSS2 group was significantly associated with long overall (Figure 4A), progression-free (Figure 4B), disease-specific (Figure 4C), and disease-free (Figure 4D) survival rates compared to the wild-type (WT) TMPRSS2 group (Table 1). Thus, these findings indicate that TMPRSS2 mutations may be a prognostic marker for long survival rates in pan-cancers.

2.3. CD, AD, TQ, and TQFL12 Inhibit TMPRSS2 Expression in Cancer Cell Lines

Molecular docking analysis has predicted that small molecules have functional inhibitory effects on TMPRSS2 [21]. Thus, we investigated whether small molecules (CD, AD, TQ, and TQFL12) regulate TMPRSS2 expression. The results indicate that CD inhibited TMPRSS2 expression in H460 (Figure 5A), MCF7 (Figure 5B), PC3 (Figure 5C), and 22RV1 (Figure 5D) cells at the protein level in a dose-dependent manner. Moreover, TQ inhibited TMPRSS2 expression in MCF7 cells (Figure 5E) and 22RV1 cells (Figure 5F) at the protein level in a dose-dependent manner, and TQFL12 inhibited TMPRSS2 expression in 22RV1 (Figure 5G) and PC3 cells (Figure 5H) at the protein level in a dose-dependent manner. Further, AD inhibited TMPRSS2 expression in H460 (Figure 5I) and 22RV1 cells (Figure 5J) at the protein level in a dose-dependent manner. However, the small molecules did not significantly change TMPRSS2 mRNA levels, except for CD treatment of 22RV1 cells.

2.4. Treatment with CD Inhibits the Translation and Promotes the Degradation of TMPRSS2 Protein

We next investigated the protein stability of TMPRSS2 protein using cycloheximide (CHX) treatment in the presence or absence of CD treatment in 22RV1 cancer cells. The results showed that CD treatment increased the protein stability of TMPRSS2 compared to the control with an increase in the half-life from ~3 h to >8 h (Figure 6A,B). To further verify whether CD decreases the protein level of TMPRSS2, we quantitated TMPRSS2 protein levels and found that CD treatment decreased the TMPRSS2 protein levels by more than 30% (Figure 6C). Overall, these results indicate that CD treatment inhibits the translation and promotes the degradation of TMPRSS2 protein.

2.5. TMPRSS2 Expression in COVID-19-Infected Lungs and Control Lungs

Because SARS-CoV infection downregulates TMPRSS2 expression in cultured cells [22], we investigated the changes in TMPRSS2 expression in COVID-19-infected lungs. By analyzing the single-cell RNA-sequencing dataset (GSE171524) of COVID-19-infected lungs and control lungs [23], the expression levels of TMPRSS2 in COVID-19-infected lungs were significantly reduced compared to the control lungs (Figure 7A). By further analyzing different cell types, we found that the expression levels of TMPRSS2 in SARS-CoV-2-infected lungs were reduced in epithelial cells but significantly increased in myeloid cells compared to control lungs (Figure 7B). Consistent with these results in Figure 7A, analysis of the GSE152075 dataset indicates that nasopharyngeal swabs of SARS-CoV-2-infected patients show significantly lower TMPRSS2 expression in virus-infected individuals compared to healthy individuals [24]. Moreover, the expression levels of TMPRSS2 were very high in epithelial cells of both SARS-CoV-2-infected lungs and control lungs (Figure 7B).

3. Discussion

Highly expressed viral entry factors may play critical roles in the invasion of SARS-CoV-2 [25,26,27,28]. A TMPRSS2-expressing cell line has been shown to have high susceptibility for SARS-CoV-2 invasion [29,30]. In the present study, we conducted expression, mutation, and prognostic analyses for the TMPRSS2 gene in pan-cancers and in COVID-19-infected lung tissues. TMPRSS2 expression was highest in prostate cancer followed by urothelial cancer, renal cancer, and pancreatic cancer. In addition, TMPRSS2 expression was low in lung cancer, and was not detected in other cancer tissues, including breast cancer. IHC revealed weak to moderate membranous and/or granular cytoplasmic immunoreactivity in lung and breast cancer tissues, which was supported by a previous study reporting that prostate cancer patients have a high risk for SARS-CoV-2 infection compared to non-cancer patients [31]. A high expression of TMPRSS2 was significantly associated with a short overall survival in BRCA, SARC, and UVM, while a low expression of TMPRSS2 was significantly associated with a short overall survival in LUAD. These results demonstrate a role of TMPRSS2 in SARS-CoV-2 invasion, cancer susceptibility, and cancer severity in patients with PRCA, BRCA, SARC, and UVM. We further analyzed TMPRSS2 expression using a dataset containing COVID-19-infected lungs and control lungs, and we found that the levels of TMPRSS2 in COVID-19-infected lungs were significantly reduced compared to the control lungs. Considering that a low expression of TMPRSS2 is significantly associated with a short overall survival in LUAD, low TMPRSS2 expression may result in severity and death of LUAD cancer patients infected with COVID-19 or SARS-CoV-2.
Mutation analysis of the pan-cancers revealed that the TMPRSS2 mutation frequency was significantly higher in PRAD and that the mutated TMPRSS2 group was significantly associated with long overall, progression-free, disease-specific, and disease-free survival compared to the WT TMPRSS2 group, demonstrating a loss of function roles for TMPRSS2 mutations as prognostic markers in pan-cancers. However, it remains unknown whether TMPRSS2 mutation affects COVID-19 severity, thereby indicating the need for additional studies to understand the causation roles of TMPRSS2 mutation in COVID-19.
Targeting SARS-CoV-2 entry factors, including TMPRSS2, may be a therapeutic strategy against COVID-19 [32,33,34]. Molecular docking analysis has predicted that small molecules have a functional inhibitory effect on TMPRSS2 [21]. Many dietary flavonoids show promising multitarget activities against SARS-CoV-2 [35]. A small-molecule compound, N-0385, has recently been reported to act as a pan-SARS-CoV-2 prophylactic and therapeutic agent with TMPRSS2 inhibitory activity [36]. Thus, the present study investigated whether small molecules (CD, AD, TQ, and TQFL12) regulate TMPRSS2 expression. We found that CD inhibited TMPRSS2 expression in H460, MCF7, MDA-MB-231, and PC3 cells. Moreover, we found that TQ inhibited TMPRSS2 expression in MCF7 and 22RV1 cells and that TQFL12 inhibited TMPRSS2 expression in PC3 and 22RV1 cells. Further, AD inhibited TMPRSS2 expression in H460 and 22RV1 cells. Notably, AD is a natural nucleotide from an intermediate product of metabolism in the human body, and has been reported to play roles in COVID-19 pathogenesis and therapeutic opportunities [37]. Moreover, CD treatment inhibited the translation and promoted the degradation of TMPRSS2. CD, TQ, and TQFL12 have anti-cancer suppressive roles both in vitro and in vivo [38,39,40,41]. Natural product CD is a derivative (analog) from AD, while TQFL12 is a novel synthetic derivative from TQ [38,42]. Taken together, these results imply that CD, AD, TQ, and TQFL12 may have therapeutic roles in preventing COVID-19 and cancers.

4. Materials and Methods

4.1. Expression Analysis in Databases

The human TMPRSS2 gene expression levels in cancers were evaluated in The Cancer Genome Atlas (TCGA) database (accessed on date for this link, e.g., https://www.proteinatlas.org/ENSG00000184012-TMPRSS2/pathology, accessed on 1 September 2022), and the correlation of TMPRSS2 gene expression levels with cancer survival was evaluated by Gene Expression Profiling Interactive Analysis (GEPIA 2, http://gepia2.cancer-pku.cn/#analysis, accessed on 1 September 2022) [43,44,45]. Mutation and survival analyses for TMPRSS2 in pan-cancers were performed using cBioPortal (https://www.cbioportal.org/results/cancerTypesSumary?case_set_id=all&gene_list=TMPRSS2&cancer_study_list=5c8a7d55e4b046111fee2296, accessed on 1 September 2022) in TCGA [46,47].

4.2. Reagents, Antibodies, and Cell Lines

CD and TQ have been previously described [48], and TQFL12 is a new synthetic TQ-derivative [38]. AD was purchased from Macklin Inc. (Shangai, China, A6218-25 g). The TMPRSS2 antibody for Western blotting and immunohistochemistry (IHC) was purchased from Sigma-Aldrich (cat #: HPA035787, Burlington, MA, USA). The indicated cancer cell lines and culture conditions have been previously described [47,48].

4.3. Immunohistochemistry (IHC)

The IHC protocol has been previously described [47,48]. In brief, formalin-fixed paraffin-embedded tissues from Chinese breast cancer and lung cancer patients were subjected to antibody staining with the TMPRSS2 antibody (1:100 dilution) for IHC. Informed consent forms were obtained for the cancer patient tissues [47].

4.4. Western Blotting

The PC3 and 22RV1 prostate cancer cell lines, the H460 lung cancer cell line, and the MCF7 breast cancer cell line were utilized in the present study. Western blotting for TMPRSS2 was performed using cells treated with or without CD, AD (0, 10, 20, and 40 µm), TQ, or TQFL12 (0, 5, 10, and 20 µm) for 24 h. β-actin antibodies were used as the internal controls. Assays for cycloheximide (CHX)-based protein stability were performed as previously described [49]. The 22RV1 cells were treated with and without CD and with indicated CHX, followed by Western blotting. All experiments were repeated three times.

4.5. Semi-Quantitative RT-PCR for TMPRSS2

The semi-quantitative RT-PCR assays were conducted using the above-described treated cancer cells. The following primers for RT-PCR were used: RT-TMPRSS2-L, 5′-caccaccagctattggacct-3′; and RT-TMPRSS2-R, 5′-acacgccatcacaccagtta-3′. The PCR product size was 390 bp. The ACTB and GDPDH genes were used as the internal controls. All experiments were repeated three times.

5. Conclusions

The TMPRSS2 gene is highly expressed in cancer tissues, specifically in PRAD tumors, implying susceptibility to SARS-CoV-2 and severity for COVID-19. TMPRSS2 mutations may be a prognostic marker for long survival rates in pan-cancers. This is the first study to demonstrate that the small molecules CD, AD, TQ, and TQFL12 inhibit TMPRSS2 expression, which may have therapeutic roles via targeting TMPRSS2 to prevent SARS-CoV-2 invasion in cancer patients during the COVID-19 pandemic.

Author Contributions

J.F. (Jiewen Fu), S.L., B.S., K.G., Q.T., Z.L., J.Q., T.L., J.D., D.L., L.Z., J.H., B.Z., H.C., X.L., J.C. and J.F. (Junjiang Fu) collected and analyzed the data as well as performed cell culture, Western blotting, RT-PCR, and IHC. J.F. (Junjiang Fu) and J.C. designed the study. J.F. (Junjiang Fu) and T.H. supervised the study. J.F. (Junjiang Fu) and S.F. wrote and edited the manuscript. All authors have read and agreed to the published version of the manuscript.

Funding

This research was funded by the National Natural Science Foundation of China (grant nos. 81672887, 82073263, and 30371493), the Foundation of Science and Technology Department of Sichuan Province (grant nos. 2022NSFSC0737), the Foundation of Southwest Medical University (grant nos. 2021ZKMS004 and 2021ZKQN109), and the Research Foundation of Luzhou City (grant no. 2021-SYF-37).

Institutional Review Board Statement

The present study was approved by the Ethics Committee of Southwest Medical University. Informed consent was obtained from patients.

Informed Consent Statement

Informed consent was obtained from all subjects involved in the study.

Data Availability Statement

Not applicable.

Acknowledgments

We thank the people from the Research Center for Preclinical Medicine, Southwest Medical University.

Conflicts of Interest

The authors declare no conflict of interest.

References

  1. Paoloni-Giacobino, A.; Chen, H.; Peitsch, M.C.; Rossier, C.; Antonarakis, S.E. Cloning of the TMPRSS2 gene, which encodes a novel serine protease with transmembrane, LDLRA, and SRCR domains and maps to 21q22.3. Genomics 1997, 44, 309–320. [Google Scholar] [CrossRef] [PubMed]
  2. Lucas, J.M.; Heinlein, C.; Kim, T.; Hernandez, S.A.; Malik, M.S.; True, L.D.; Morrissey, C.; Corey, E.; Montgomery, B.; Mostaghel, E.; et al. The androgen-regulated protease TMPRSS2 activates a proteolytic cascade involving components of the tumor microenvironment and promotes prostate cancer metastasis. Cancer Discov. 2014, 4, 1310–1325. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  3. Ko, C.J.; Huang, C.C.; Lin, H.Y.; Juan, C.P.; Lan, S.W.; Shyu, H.Y.; Wu, S.R.; Hsiao, P.W.; Huang, H.P.; Shun, C.T.; et al. Androgen-Induced TMPRSS2 Activates Matriptase and Promotes Extracellular Matrix Degradation, Prostate Cancer Cell Invasion, Tumor Growth, and Metastasis. Cancer Res. 2015, 75, 2949–2960. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  4. Wilson, S.; Greer, B.; Hooper, J.; Zijlstra, A.; Walker, B.; Quigley, J.; Hawthorne, S. The membrane-anchored serine protease, TMPRSS2, activates PAR-2 in prostate cancer cells. Biochem. J. 2005, 388 Pt 3, 967–972. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  5. Tomlins, S.A.; Rhodes, D.R.; Perner, S.; Dhanasekaran, S.M.; Mehra, R.; Sun, X.W.; Varambally, S.; Cao, X.; Tchinda, J.; Kuefer, R.; et al. Recurrent fusion of TMPRSS2 and ETS transcription factor genes in prostate cancer. Science 2005, 310, 644–648. [Google Scholar] [CrossRef] [PubMed]
  6. Ishak, A.; Mehendale, M.; AlRawashdeh, M.M.; Sestacovschi, C.; Sharath, M.; Pandav, K.; Marzban, S. The association of COVID-19 severity and susceptibility and genetic risk factors: A systematic review of the literature. Gene 2022, 836, 146674. [Google Scholar] [CrossRef]
  7. Zipeto, D.; Palmeira, J.D.F.; Arganaraz, G.A.; Arganaraz, E.R. ACE2/ADAM17/TMPRSS2 Interplay May Be the Main Risk Factor for COVID-19. Front. Immunol. 2020, 11, 576745. [Google Scholar] [CrossRef]
  8. Heurich, A.; Hofmann-Winkler, H.; Gierer, S.; Liepold, T.; Jahn, O.; Pohlmann, S. TMPRSS2 and ADAM17 cleave ACE2 differentially and only proteolysis by TMPRSS2 augments entry driven by the severe acute respiratory syndrome coronavirus spike protein. J. Virol. 2014, 88, 1293–1307. [Google Scholar] [CrossRef] [Green Version]
  9. Hoffmann, M.; Kleine-Weber, H.; Schroeder, S.; Kruger, N.; Herrler, T.; Erichsen, S.; Schiergens, T.S.; Herrler, G.; Wu, N.H.; Nitsche, A.; et al. SARS-CoV-2 Cell Entry Depends on ACE2 and TMPRSS2 and Is Blocked by a Clinically Proven Protease Inhibitor. Cell 2020, 181, 271–280.e8. [Google Scholar] [CrossRef]
  10. Shulla, A.; Heald-Sargent, T.; Subramanya, G.; Zhao, J.; Perlman, S.; Gallagher, T. A transmembrane serine protease is linked to the severe acute respiratory syndrome coronavirus receptor and activates virus entry. J. Virol. 2011, 85, 873–882. [Google Scholar] [CrossRef]
  11. Li, W.; Moore, M.J.; Vasilieva, N.; Sui, J.; Wong, S.K.; Berne, M.A.; Somasundaran, M.; Sullivan, J.L.; Luzuriaga, K.; Greenough, T.C.; et al. Angiotensin-converting enzyme 2 is a functional receptor for the SARS coronavirus. Nature 2003, 426, 450–454. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  12. Shrimp, J.H.; Janiszewski, J.; Chen, C.Z.; Xu, M.; Wilson, K.M.; Kales, S.C.; Sanderson, P.E.; Shinn, P.; Schneider, R.; Itkin, Z.; et al. Suite of TMPRSS2 Assays for Screening Drug Repurposing Candidates as Potential Treatments of COVID-19. ACS Infect. Dis. 2022, 8, 1191–1203. [Google Scholar] [CrossRef] [PubMed]
  13. Abbasi, A.Z.; Kiyani, D.A.; Hamid, S.M.; Saalim, M.; Fahim, A.; Jalal, N. Spiking dependence of SARS-CoV-2 pathogenicity on TMPRSS2. J. Med. Virol. 2021, 93, 4205–4218. [Google Scholar] [CrossRef] [PubMed]
  14. Vitello, G.A.; Federico, C.; Bruno, F.; Vinci, M.; Musumeci, A.; Ragalmuto, A.; Sturiale, V.; Brancato, D.; Cali, F.; Saccone, S. Allelic Variations in the Human Genes TMPRSS2 and CCR5, and the Resistance to Viral Infection by SARS-CoV-2. Int. J. Mol. Sci. 2022, 23, 9171. [Google Scholar] [CrossRef]
  15. Ravikanth, V.; Sasikala, M.; Naveen, V.; Latha, S.S.; Parsa, K.V.L.; Vijayasarathy, K.; Amanchy, R.; Avanthi, S.; Govardhan, B.; Rakesh, K.; et al. A variant in TMPRSS2 is associated with decreased disease severity in COVID-19. Meta Gene 2021, 29, 100930. [Google Scholar] [CrossRef]
  16. David, A.; Parkinson, N.; Peacock, T.P.; Pairo-Castineira, E.; Khanna, T.; Cobat, A.; Tenesa, A.; Sancho-Shimizu, V.; Gen, O.C.; Investigators, I.C.; et al. A common TMPRSS2 variant has a protective effect against severe COVID-19. Curr. Res. Transl. Med. 2022, 70, 103333. [Google Scholar] [CrossRef]
  17. Mahgoub, M.A.; Alnaem, A.; Fadlelmola, M.; Abo-Idris, M.; Makki, A.A.; Abdelgadir, A.A.; Alzain, A.A. Discovery of novel potential inhibitors of TMPRSS2 and Mpro of SARS-CoV-2 using E-pharmacophore and docking-based virtual screening combined with molecular dynamic and quantum mechanics. J. Biomol. Struct. Dyn. 2022, 1–14. [Google Scholar] [CrossRef]
  18. Maio, F.; Rullo, M.; de Candia, M.; Purgatorio, R.; Lopopolo, G.; Santarelli, G.; Palmieri, V.; Papi, M.; Elia, G.; De Candia, E.; et al. Evaluation of Novel Guanidino-Containing Isonipecotamide Inhibitors of Blood Coagulation Factors against SARS-CoV-2 Virus Infection. Viruses 2022, 14, 1730. [Google Scholar] [CrossRef]
  19. Kundu, D.; Selvaraj, C.; Singh, S.K.; Dubey, V.K. Identification of new anti-nCoV drug chemical compounds from Indian spices exploiting SARS-CoV-2 main protease as target. J. Biomol. Struct. Dyn. 2021, 39, 3428–3434. [Google Scholar]
  20. Cheng, J.; Zhou, J.; Fu, S.; Fu, J.; Zhou, B.; Chen, H.; Fu, J.; Wei, C. Prostate adenocarcinoma and COVID-19: The possible impacts of TMPRSS2 expressions in susceptibility to SARS-CoV-2. J. Cell. Mol. Med. 2021, 25, 4157–4165. [Google Scholar] [CrossRef]
  21. Manjunathan, R.; Periyaswami, V.; Mitra, K.; Rosita, A.S.; Pandya, M.; Selvaraj, J.; Ravi, L.; Devarajan, N.; Doble, M. Molecular docking analysis reveals the functional inhibitory effect of Genistein and Quercetin on TMPRSS2: SARS-CoV-2 cell entry facilitator spike protein. BMC Bioinform. 2022, 23, 180. [Google Scholar] [CrossRef] [PubMed]
  22. Liu, X.; Liu, B.; Shang, Y.; Cao, P.; Hou, J.; Chen, F.; Zhang, B.; Fan, Y.; Tan, K. Decreased TMPRSS2 expression by SARS-CoV-2 predicts the poor prognosis of lung cancer patients through metabolic pathways and immune infiltration. Aging 2022, 14, 73–108. [Google Scholar] [CrossRef] [PubMed]
  23. Melms, J.C.; Biermann, J.; Huang, H.; Wang, Y.; Nair, A.; Tagore, S.; Katsyv, I.; Rendeiro, A.F.; Amin, A.D.; Schapiro, D.; et al. A molecular single-cell lung atlas of lethal COVID-19. Nature 2021, 595, 114–119. [Google Scholar] [CrossRef] [PubMed]
  24. Cao, W.; Feng, Q.; Wang, X. Computational analysis of TMPRSS2 expression in normal and SARS-CoV-2-infected human tissues. Chem. Biol. Interact. 2021, 346, 109583. [Google Scholar] [CrossRef]
  25. Bao, R.; Hernandez, K.; Huang, L.; Luke, J.J. ACE2 and TMPRSS2 expression by clinical, HLA, immune, and microbial correlates across 34 human cancers and matched normal tissues: Implications for SARS-CoV-2 COVID-19. J. Immunother. Cancer 2020, 8, e001020. [Google Scholar] [CrossRef]
  26. Ravaioli, S.; Tebaldi, M.; Fonzi, E.; Angeli, D.; Mazza, M.; Nicolini, F.; Lucchesi, A.; Fanini, F.; Pirini, F.; Tumedei, M.M.; et al. ACE2 and TMPRSS2 Potential Involvement in Genetic Susceptibility to SARS-CoV-2 in Cancer Patients. Cell Transplant. 2020, 29, 0963689720968749. [Google Scholar] [CrossRef]
  27. Fu, J.; Zhou, B.; Zhang, L.; Balaji, K.S.; Wei, C.; Liu, X.; Chen, H.; Peng, J.; Fu, J. Expressions and significances of the angiotensin-converting enzyme 2 gene, the receptor of SARS-CoV-2 for COVID-19. Mol. Biol. Rep. 2020, 47, 4383–4392. [Google Scholar] [CrossRef]
  28. Choudhary, S.; Sreenivasulu, K.; Mitra, P.; Misra, S.; Sharma, P. Role of Genetic Variants and Gene Expression in the Susceptibility and Severity of COVID-19. Ann. Lab. Med. 2021, 41, 129–138. [Google Scholar] [CrossRef]
  29. Matsuyama, S.; Nao, N.; Shirato, K.; Kawase, M.; Saito, S.; Takayama, I.; Nagata, N.; Sekizuka, T.; Katoh, H.; Kato, F.; et al. Enhanced isolation of SARS-CoV-2 by TMPRSS2-expressing cells. Proc. Natl. Acad. Sci. USA 2020, 117, 7001–7003. [Google Scholar] [CrossRef] [Green Version]
  30. Zang, R.; Gomez Castro, M.F.; McCune, B.T.; Zeng, Q.; Rothlauf, P.W.; Sonnek, N.M.; Liu, Z.; Brulois, K.F.; Wang, X.; Greenberg, H.B.; et al. TMPRSS2 and TMPRSS4 promote SARS-CoV-2 infection of human small intestinal enterocytes. Sci. Immunol. 2020, 5, eabc3582. [Google Scholar] [CrossRef]
  31. Montopoli, M.; Zumerle, S.; Vettor, R.; Rugge, M.; Zorzi, M.; Catapano, C.V.; Carbone, G.M.; Cavalli, A.; Pagano, F.; Ragazzi, E.; et al. Androgen-deprivation therapies for prostate cancer and risk of infection by SARS-CoV-2: A population-based study (N = 4532). Ann. Oncol. Off. J. Eur. Soc. Med. Oncol. 2020, 31, 1040–1045. [Google Scholar] [CrossRef] [PubMed]
  32. Muralidar, S.; Gopal, G.; Visaga Ambi, S. Targeting the viral-entry facilitators of SARS-CoV-2 as a therapeutic strategy in COVID-19. J. Med. Virol. 2021, 93, 5260–5276. [Google Scholar] [CrossRef]
  33. Wettstein, L.; Kirchhoff, F.; Munch, J. The Transmembrane Protease TMPRSS2 as a Therapeutic Target for COVID-19 Treatment. Int. J. Mol. Sci. 2022, 23, 1351. [Google Scholar] [CrossRef] [PubMed]
  34. Mahmoud, I.S.; Jarrar, Y.B. Targeting the intestinal TMPRSS2 protease to prevent SARS-CoV-2 entry into enterocytes-prospects and challenges. Mol. Biol. Rep. 2021, 48, 4667–4675. [Google Scholar] [CrossRef] [PubMed]
  35. Varughese, J.K.; Kavitha, J.; Sindhu, K.S.; Dhiya, F.; Joseph Libin, K.L.; Abi, T.G. Identification of some dietary flavonoids as potential inhibitors of TMPRSS2 through protein-ligand interaction studies and binding free energy calculations. Struct. Chem. 2022, 33, 1489–1502. [Google Scholar] [CrossRef]
  36. Shapira, T.; Monreal, I.A.; Dion, S.P.; Buchholz, D.W.; Imbiakha, B.; Olmstead, A.D.; Jager, M.; Desilets, A.; Gao, G.; Martins, M.; et al. A TMPRSS2 inhibitor acts as a pan-SARS-CoV-2 prophylactic and therapeutic. Nature 2022, 605, 340–348. [Google Scholar] [CrossRef]
  37. Geiger, J.D.; Khan, N.; Murugan, M.; Boison, D. Possible Role of Adenosine in COVID-19 Pathogenesis and Therapeutic Opportunities. Front. Pharmacol. 2020, 11, 594487. [Google Scholar] [CrossRef]
  38. Wei, C.; Zou, H.; Xiao, T.; Liu, X.; Wang, Q.; Cheng, J.; Fu, S.; Peng, J.; Xie, X.; Fu, J. TQFL12, a novel synthetic derivative of TQ, inhibits triple-negative breast cancer metastasis and invasion through activating AMPK/ACC pathway. J. Cell. Mol. Med. 2021, 25, 10101–10110. [Google Scholar] [CrossRef]
  39. Khan, M.A.; Tania, M.; Wei, C.; Mei, Z.; Fu, S.; Cheng, J.; Xu, J.; Fu, J. Thymoquinone inhibits cancer metastasis by downregulating TWIST1 expression to reduce epithelial to mesenchymal transition. Oncotarget 2015, 6, 19580–19591. [Google Scholar] [CrossRef] [Green Version]
  40. Mir, P.A.; Mohi-Ud-Din, R.; Banday, N.; Maqbool, M.; Raza, S.N.; Farooq, S.; Afzal, S.; Mir, R.H. Anticancer Potential of Thymoquinone: A Novel Bioactive Natural Compound from Nigella sativa L. Anti-Cancer Agents Med. Chem. 2022, 22, 3401–3415. [Google Scholar] [CrossRef]
  41. Zhou, J.; Imani, S.; Shasaltaneh, M.D.; Liu, S.; Lu, T.; Fu, J. PIK3CA hotspot mutations p. H1047R and p. H1047L sensitize breast cancer cells to thymoquinone treatment by regulating the PI3K/Akt1 pathway. Mol. Biol. Rep. 2022, 49, 1799–1816. [Google Scholar] [CrossRef] [PubMed]
  42. Kim, J.; Shin, J.Y.; Choi, Y.H.; Lee, S.Y.; Jin, M.H.; Kim, C.D.; Kang, N.G.; Lee, S. Adenosine and Cordycepin Accelerate Tissue Remodeling Process through Adenosine Receptor Mediated Wnt/beta-Catenin Pathway Stimulation by Regulating GSK3b Activity. Int. J. Mol. Sci. 2021, 22, 5571. [Google Scholar] [CrossRef] [PubMed]
  43. Tang, Z.; Li, C.; Kang, B.; Gao, G.; Li, C.; Zhang, Z. GEPIA: A web server for cancer and normal gene expression profiling and interactive analyses. Nucleic Acids Res. 2017, 45, W98–W102. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  44. Uhlen, M.; Fagerberg, L.; Hallstrom, B.M.; Lindskog, C.; Oksvold, P.; Mardinoglu, A.; Sivertsson, A.; Kampf, C.; Sjostedt, E.; Asplund, A.; et al. Tissue-based map of the human proteome. Science 2015, 347, 1260419. [Google Scholar] [CrossRef]
  45. Uhlen, M.; Zhang, C.; Lee, S.; Sjostedt, E.; Fagerberg, L.; Bidkhori, G.; Benfeitas, R.; Arif, M.; Liu, Z.; Edfors, F.; et al. A pathology atlas of the human cancer transcriptome. Science 2017, 357, eaan2507. [Google Scholar] [CrossRef] [Green Version]
  46. Wang, K.; Deng, H.; Song, B.; He, J.; Liu, S.; Fu, J.; Zhang, L.; Li, D.; Balaji, K.S.; Mei, Z.; et al. The Correlation Between Immune Invasion and SARS-CoV-2 Entry Protein ADAM17 in Cancer Patients by Bioinformatic Analysis. Front. Immunol. 2022, 13, 923516. [Google Scholar] [CrossRef]
  47. Zhang, L.; Wei, C.; Li, D.; He, J.; Liu, S.; Deng, H.; Cheng, J.; Du, J.; Liu, X.; Chen, H.; et al. COVID-19 receptor and malignant cancers: Association of CTSL expression with susceptibility to SARS-CoV-2. Int. J. Biol. Sci. 2022, 18, 2362–2371. [Google Scholar] [CrossRef]
  48. Li, D.; Liu, X.; Zhang, L.; He, J.; Chen, X.; Liu, S.; Fu, J.; Fu, S.; Chen, H.; Fu, J.; et al. COVID-19 disease and malignant cancers: The impact for the furin gene expression in susceptibility to SARS-CoV-2. Int. J. Biol. Sci. 2021, 17, 3954–3967. [Google Scholar] [CrossRef]
  49. Wei, C.; Liu, Y.; Liu, X.; Cheng, J.; Fu, J.; Xiao, X.; Moses, R.E.; Li, X.; Fu, J. The speckle-type POZ protein (SPOP) inhibits breast cancer malignancy by destabilizing TWIST1. Cell Death Discov. 2022, 8, 389. [Google Scholar] [CrossRef]

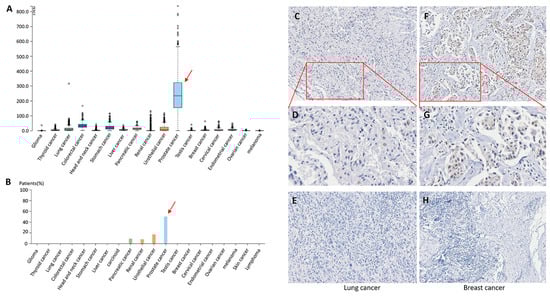

Figure 1. TMPRSS2 expression in pan-cancers. (A) TMPRSS2 mRNA expression in pan-cancers. (B) TMPRSS2 protein expression in pan-cancers. (C,D) IHC of TMPRSS2 in lung cancer tissues. (E) IHC of TMPRSS2 in lung cancer tissues. (F,G) IHC of TMPRSS2 in breast cancer tissues. (H) IHC of TMPRSS2 in breast cancer tissues. (D,G) Enlarged images of (C,F), respectively.
Figure 1. TMPRSS2 expression in pan-cancers. (A) TMPRSS2 mRNA expression in pan-cancers. (B) TMPRSS2 protein expression in pan-cancers. (C,D) IHC of TMPRSS2 in lung cancer tissues. (E) IHC of TMPRSS2 in lung cancer tissues. (F,G) IHC of TMPRSS2 in breast cancer tissues. (H) IHC of TMPRSS2 in breast cancer tissues. (D,G) Enlarged images of (C,F), respectively.
Molecules 27 07413 g001

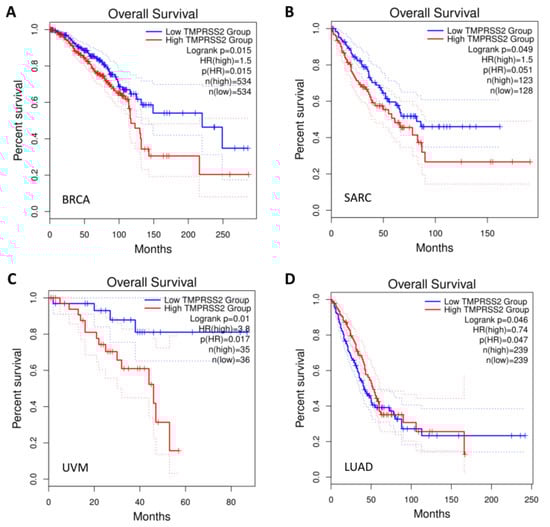

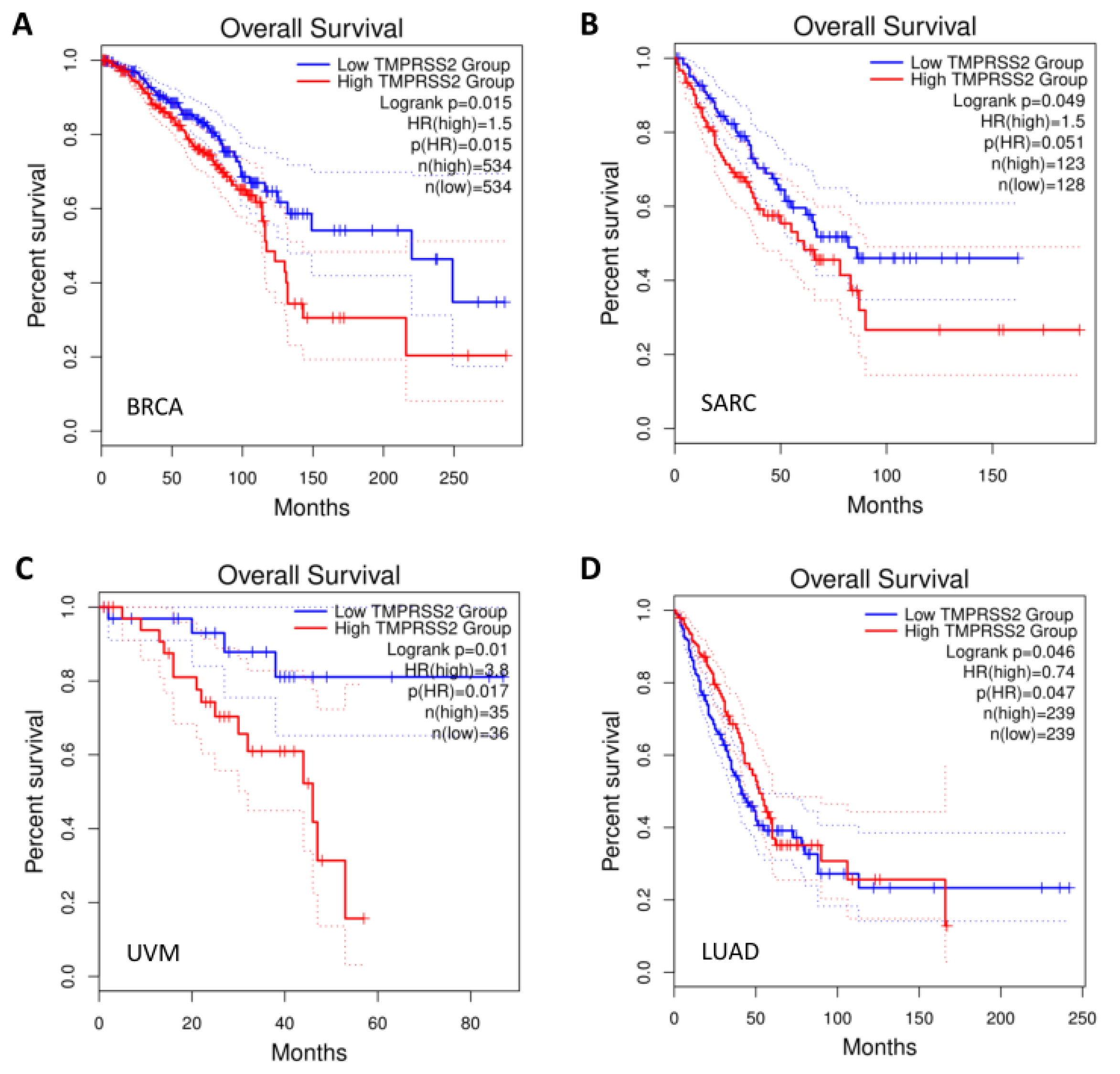

Figure 2. Overall survival of cancer patients according to TMPRSS2 expression. (A) BRCA. (B) SARC. (C) UVM. (D) LUAD. BRCA: breast invasive carcinoma; SARC: sarcoma; UVM: uveal melanoma; LUAD: lung adenocarcinoma.
Figure 2. Overall survival of cancer patients according to TMPRSS2 expression. (A) BRCA. (B) SARC. (C) UVM. (D) LUAD. BRCA: breast invasive carcinoma; SARC: sarcoma; UVM: uveal melanoma; LUAD: lung adenocarcinoma.
Molecules 27 07413 g002

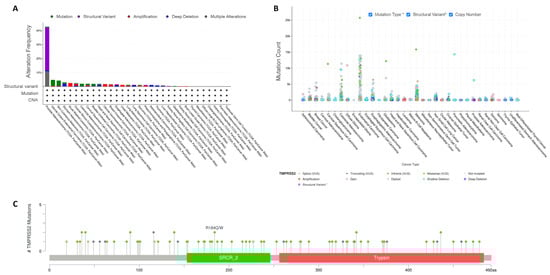

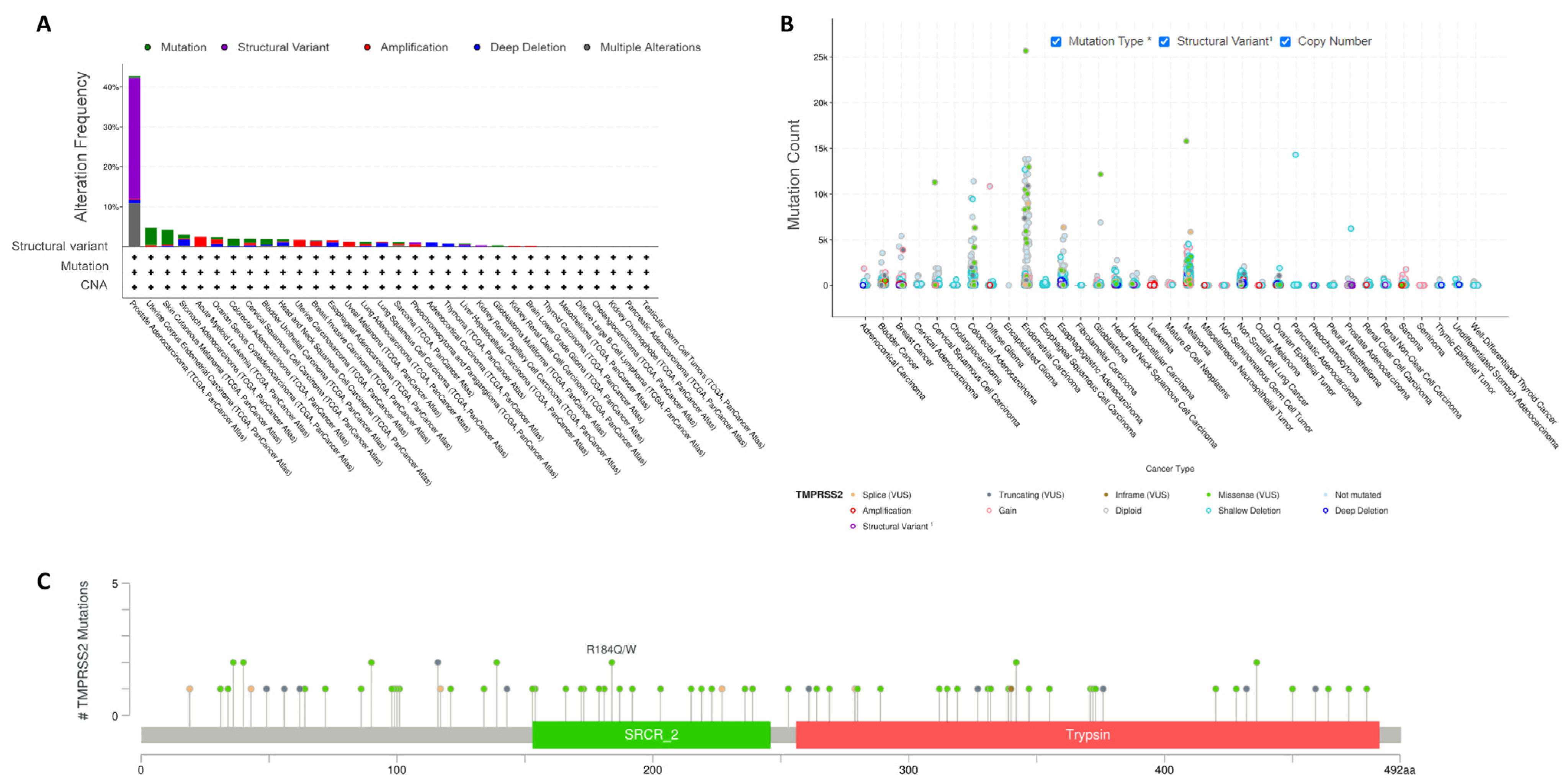

Figure 3. TMPRSS2 mutation in pan-cancers. (A) Cancer type summary for TMPRSS2 mutations, including 32 categories (cancer study) based on filtering. (B) Plots for TMPRSS2 mutation types. (C) Overview of mutations in TMPRSS2. CNA: Copy number alterations (CNA) data.
Figure 3. TMPRSS2 mutation in pan-cancers. (A) Cancer type summary for TMPRSS2 mutations, including 32 categories (cancer study) based on filtering. (B) Plots for TMPRSS2 mutation types. (C) Overview of mutations in TMPRSS2. CNA: Copy number alterations (CNA) data.
Molecules 27 07413 g003

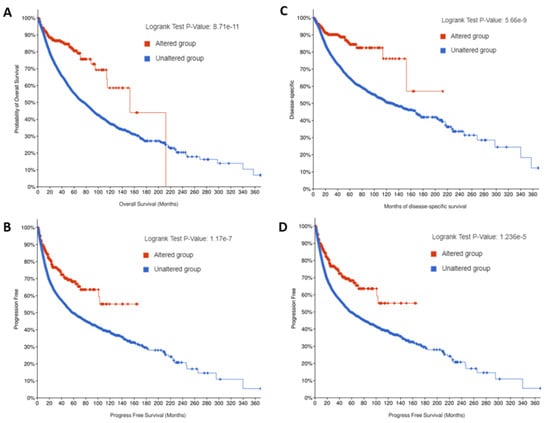

Figure 4. Prognostics for TMPRSS2 mutation in pan-cancers. Data for overall (A), progression-free (B), disease-specific (C), and disease-free (D) survival in the mutated group (red line) and WT group (blue line). Unaltered group: wild-type (WT) group.
Figure 4. Prognostics for TMPRSS2 mutation in pan-cancers. Data for overall (A), progression-free (B), disease-specific (C), and disease-free (D) survival in the mutated group (red line) and WT group (blue line). Unaltered group: wild-type (WT) group.
Molecules 27 07413 g004

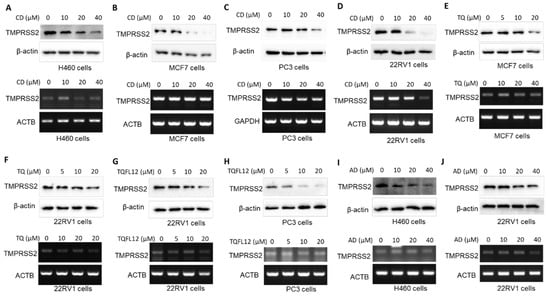

Figure 5. CD, TQ, TQFL12, and AD inhibit TMPRSS2 expression in various cancer cell lines. (A) CD inhibited TMPRSS2 expression in H460 cells. (B) CD inhibited TMPRSS2 expression in MCF7 cells. (C) CD inhibited TMPRSS2 expression in PC3 cells. (D) CD inhibited TMPRSS2 expression in 22RV1 cells. (E) TQ inhibited TMPRSS2 expression in MCF7 cells. (F) TQ inhibited TMPRSS2 expression in 22RV1 cells. (G) TQFL12 inhibited TMPRSS2 expression in 22RV1 cells. (H) TQFL12 inhibited TMPRSS2 expression in PC3 cells. (I) AD inhibited TMPRSS2 expression in H460 cells. (J) AD inhibited TMPRSS2 expression in 22RV1 cells.
Figure 5. CD, TQ, TQFL12, and AD inhibit TMPRSS2 expression in various cancer cell lines. (A) CD inhibited TMPRSS2 expression in H460 cells. (B) CD inhibited TMPRSS2 expression in MCF7 cells. (C) CD inhibited TMPRSS2 expression in PC3 cells. (D) CD inhibited TMPRSS2 expression in 22RV1 cells. (E) TQ inhibited TMPRSS2 expression in MCF7 cells. (F) TQ inhibited TMPRSS2 expression in 22RV1 cells. (G) TQFL12 inhibited TMPRSS2 expression in 22RV1 cells. (H) TQFL12 inhibited TMPRSS2 expression in PC3 cells. (I) AD inhibited TMPRSS2 expression in H460 cells. (J) AD inhibited TMPRSS2 expression in 22RV1 cells.
Molecules 27 07413 g005

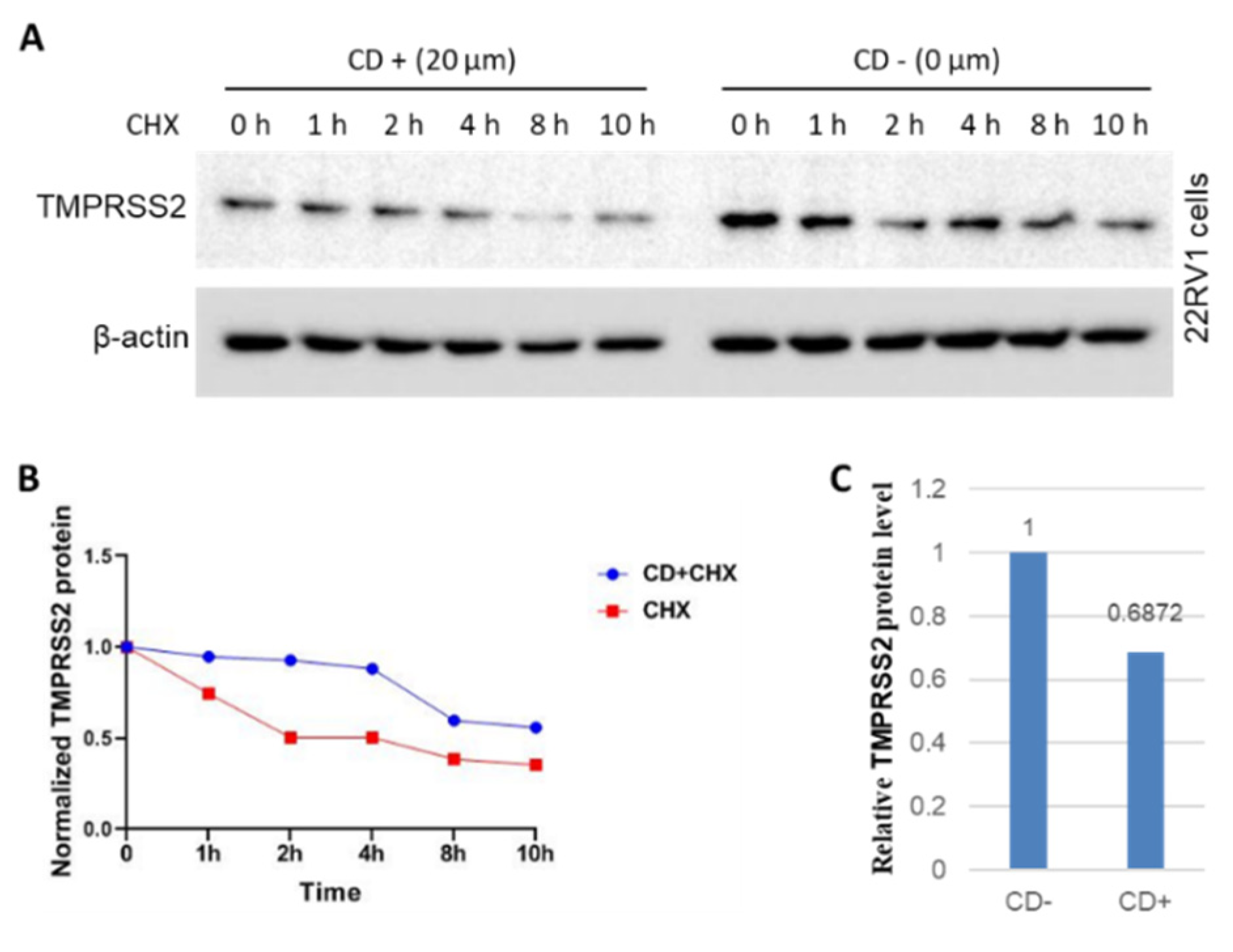

Figure 6. Treatment with CD inhibits the translation and promotes the degradation of TMPRSS2 in 22RV1 cancer cells. (A) TMPRSS2 protein stability after CHX treatment with or without CD treatment. The left panel shows CD treatment, and the right panel shows without CD treatment. (B) Quantitative results from A. The red line shows CHX treatment only, and the blue line shows CHX + CD treatment. Please note that the amount of TMPRSS2 protein in CD+ treatments remained lower over the entire period than that in CD−. (C) Quantitative results’ comparison of TMPRSS2 protein levels without and with CD treatments but without CHX treatments in Figure 6A. Left column shows without CD treatments (CD−), while right column shows with CD treatments (CD+). The final concentration of CHX was 40 µg/mL. h, hour (s) of CHX treatment. In the left panel of Figure 5A, all the lanes were added CD for 1 h prior adding CHX treatments.
Figure 6. Treatment with CD inhibits the translation and promotes the degradation of TMPRSS2 in 22RV1 cancer cells. (A) TMPRSS2 protein stability after CHX treatment with or without CD treatment. The left panel shows CD treatment, and the right panel shows without CD treatment. (B) Quantitative results from A. The red line shows CHX treatment only, and the blue line shows CHX + CD treatment. Please note that the amount of TMPRSS2 protein in CD+ treatments remained lower over the entire period than that in CD−. (C) Quantitative results’ comparison of TMPRSS2 protein levels without and with CD treatments but without CHX treatments in Figure 6A. Left column shows without CD treatments (CD−), while right column shows with CD treatments (CD+). The final concentration of CHX was 40 µg/mL. h, hour (s) of CHX treatment. In the left panel of Figure 5A, all the lanes were added CD for 1 h prior adding CHX treatments.
Molecules 27 07413 g006

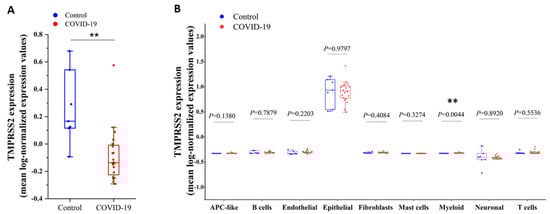

Figure 7. Expression of TMPRSS2 in SARS-CoV-2-infected lungs and control lungs. (A) Expression of TMPRSS2 in SARS-CoV-2-infected lungs and control lungs. (B) Expression of TMPRSS2 in different cell types in SARS-CoV-2-infected lungs and control lungs. “**”, p value < 0.01.
Figure 7. Expression of TMPRSS2 in SARS-CoV-2-infected lungs and control lungs. (A) Expression of TMPRSS2 in SARS-CoV-2-infected lungs and control lungs. (B) Expression of TMPRSS2 in different cell types in SARS-CoV-2-infected lungs and control lungs. “**”, p value < 0.01.
Molecules 27 07413 g007
Table 1. Survival of cancer patients with TMPRSS2 mutations.
Table 1. Survival of cancer patients with TMPRSS2 mutations.
Survival TypeNo. Patientsp-Valueq-Value
Overall10,8038.71 × 10−113.49 × 10−10
Disease-specific10,2585.66 × 10−91.13 × 10−8
Progression-free10,6131.17 × 10−71.56 × 10−7
Disease-free53831.24 × 10−51.24 × 10−5
