Headspace Solid-Phase Micro-Extraction Versus Hydrodistillation of Volatile Compounds from Leaves of Cultivated Mentha Taxa: Markers of Safe Chemotypes
by
, , , and
Adam Kowalczyk
1,*,
Piotr Kuś
1,
Zvonimir Marijanović
2,
Carlo I. G. Tuberoso
3
,
Izabela Fecka
1 and
Igor Jerković
4,*
1
Department of Pharmacognosy and Herbal Medicines, Faculty of Pharmacy, Wroclaw Medical University, 50-556 Wroclaw, Poland
2
Department of Food Technology and Biotechnology, Faculty of Chemistry and Technology, University of Split, Ruđera Boškovića 35, 21000 Split, Croatia
3
Department of Life and Environmental Sciences, University of Cagliari, University Campus, S.P. Monserrato-Sestu Km 0.700, 09042 Monserrato, CA, Italy
4
Department of Organic Chemistry, Faculty of Chemistry and Technology, University of Split, Ruđera Boškovića 35, 21000 Split, Croatia
*
Authors to whom correspondence should be addressed.
Molecules 2022, 27(19), 6561; https://doi.org/10.3390/molecules27196561
Submission received: 2 September 2022
/
Revised: 27 September 2022
/
Accepted: 27 September 2022
/
Published: 4 October 2022
(This article belongs to the Special Issue Featured Papers on Bioactive Flavour and Fragrance Compounds 2022)
Abstract
:Various mint taxa are widely cultivated and are used not only for medicinal purposes but also in cosmetic and industrial applications. The development of new varieties or cultivars of mint generates difficulties in their correct identification and safe use. Volatile organic compounds (VOCs) from the leaves of seven different taxa of the genus Mentha obtained by hydrodistillation (HD) and headspace solid-phase microextraction (HS-SPME) were analyzed using gas chromatography–mass spectrometry (GC-MS). Principal component analysis (PCA) was also performed. Comparative GC-MS analysis of the obtained extracts showed similarity in the major compounds. PCA data allowed the separation of two groups of chemotypes among the analyzed mints, characterized by the abundance of piperitenone oxide and carvone. Two out of seven analyzed taxa were not previously examined for VOC profile, one was examined only for patent application purposes, and six out of seven were investigated for the first time using the HS-SPME technique. The presented analysis provides new data on the abundance and qualitative characterization of VOCs in the studied mint plants and on the safety of their use, related to the possibility of the presence of potentially toxic components. HS-SPME is a valuable method to extend the characterization of the VOC profile obtained by hydrodistillation.
1. Introduction
Main volatile organic compounds (VOCs), synthesized by various aromatic plants, are used in many areas of everyday life, including medicine, food, and cosmetics. They can be found in many forms, from freshly harvested or dried plants to extracts and herbal preparations, which may include essential oils (Eos). VOCs are complex mixtures of mainly terpenes, such as mono- and sesquiterpenes and phenylpropane derivatives [1]. Monoterpenes are one of the groups commonly found in Eos. These compounds can be classified as hydrocarbons and oxygen derivatives such as alcohols, phenols, aldehydes, ketones, acids, or terpene oxides. They are responsible for the aroma, flavor, and biological properties of the plants and the preparations derived from them, e.g., essential oils [2,3,4]. Some of these properties can be beneficial therapeutically (expectorant, antiseptic, diuretic, digestive stimulants, etc.), but some may have toxic effects [5].
The next most abundant compounds present in plant volatile fractions, in addition to monoterpenes, are sesquiterpenes. They exhibit a wide range of biological activities, such as anti-inflammatory, antioxidant, antibacterial, antifungal, antiviral, and antineoplastic, and they broaden the potential uses of plants that contain them, including those from the genus Mentha [6]. Most terpenes are classified as safe natural chemicals. Some of the biological properties of monoterpenes and sesquiterpenes, such as antifungal and antimicrobial, have been shown to be the result of their disruption of the cell membrane or cytoplasmic structures as a consequence of oxidative stress, while others can assist radical scavengers and are also known as antioxidant molecules [2,7].
Taxa of the genus Mentha are among the most frequently cultivated and used aromatic plants, but their systematics is quite complex. In particular, new cultivars created mainly for food or cosmetic purposes are difficult to correctly identify and to evaluate for their safety. They are mainly developed to obtain specific organoleptic properties, such as odor or taste. Thus, the composition of their VOCs is not always known, and it is not clear whether the compounds they contain are safe for the consumers’ health. Mint leaves are well known for the presence of VOCs characterized by a wide variety of monoterpenes and sesquiterpenes, as well as polyphenolic compounds including flavonoids, e.g., eriocitrin, luteolin and their glycosides, and phenolic acids such as rosmarinic acid [8,9].
Various methods are used to extract VOCs from plant materials such as hydrodistillation (HD), supercritical fluid extraction (SFE), and solid-phase micro-extraction (SPME) techniques. HD is a well-known and widely used process to obtain the essential oils from aromatic plants for both laboratory and industrial purposes. It has the advantage of relatively low cost and no chemical contamination of the extract. However, some volatile compounds may be lost at high extraction temperatures or are temperature-sensitive and can be degraded, which has a significant impact on the quality of the essential oil obtained in this way [10]. SPME has been routinely used for the analysis of VOCs in headspace (HS) analysis in laboratory studies and does not require organic solvents. The main differences between the HS-SPME procedure and hydrodistillation are the abundance and qualitative variations of extracted components from plant materials. These depend on the process conditions such as SPME fiber, extraction temperature, and time [11].
The aim of this study was to identify the most suitable method to investigate VOCs in mint leaves and to provide qualitative and abundance data on the major compounds, as well as potentially toxic ones. The analyses were carried out by comparing the volatile profile from leaves of seven different cultivated Mentha taxa, obtained using two methods, headspace solid-phase microextraction (HS-SPME) and hydrodistillation (HD), followed by gas chromatography–mass spectrometry analysis (GS-MS). Two out of seven analyzed taxa were not examined previously for VOCs profile (M. × piperita var. officinalis f. pallescens Camus ‘Swiss’, M. × carinthiaca), one was examined only for patent application purposes (M. dulcia citreus Hillary’s Sweet Lemon), and six out of seven were investigated for the first time using HS-SPME. The statistics included the evaluation of the collected data using principal component analysis (PCA).
2. Results and Discussion
2.1. Essential Oil Content
Figure 1 presents the quantitative content of the EOs in the analyzed samples determined using the HD method and expressed in mL/kg of dry plant matter. The highest essential oil content was observed for M. × piperita var. officinalis f. pallescens Camus ‘Swiss’ (M1) (16.5 mL/kg) and the lowest for M. longifolia var. schimperi (M6) (0.9 mL/kg). In M. × carinthiaca (M4), essential oil content was 10 mL/kg, and, in the other species, it ranged from 1.1 mL/kg in M. longifolia (M7) to 7.7 mL/kg in M. × piperita f. citrata ‘Grapefruit’ (M2).
2.2. GC-MS Analysis of the Volatile Compounds Obtained Using HD and HS-SPME
The EOs obtained using the HD method were subjected to quantitative and qualitative analysis via GC-MS and the results are presented in Table 1.
Menthol is generally recognized as safe (GRAS), and its toxic effects on humans have rarely been reported [12,13]. Among the analyzed Eos, only the oil from M. × piperita var. officinalis f. pallescens Camus ‘Swiss’ (M1) was characterized by p-menthone as the main compound (41%) and by menthol (28.19%).
Another monoterpene often found in taxa of the genus Mentha is linalool, widely applied in the cosmetic, food, and pharmaceutical industries. In an animal toxicology study, it was shown to cause up to a fourfold increase in serum aspartate aminotransferase enzyme levels and a twofold decrease in body weight in animals when fed with 5% linalool. An increase in this enzyme can lead to myocardial necrosis, liver damage, skeletal muscle damage, or pancreatitis [7]. Linalool (40.43%) was the dominant constituent of the EO from M. × piperita f. citrata (M3), which is consistent with the literature [14].
Carvone can be found quite commonly in the EOs from different mints and has been shown to have multidirectional biological and therapeutic effects including antibacterial, antifungal, antioxidant, anti-inflammatory, and antihypertensive [15]. In M. × piperita f. citrata ‘Grapefruit’ (M2) and in M. × carinthiaca (M4), carvone predominated: 62.92% and 72.13%, respectively. cis-Dihydrocarvone (26.87%) and dihydrocarvyl acetate (13.01%) were found to be the main components in M. dulcia citreus Hillary’s Sweet Lemon (M5). Carvone as the major component was identified in M. × piperita var. officinalis f. pallescens Camus (63.31%) (M1) and in M.× piperita f. citrata (M3) (77.61%). Jakowienko’s research also revealed carvone to be the predominant compound in a similar taxon, but HD was performed for the whole herb (stems and leaves) after collection of plant material before flowering [16]. Moreover, Mogosan et al. reported that, in this taxon, carvone (41.21%) and menthol (12.77%) are the compounds found in the highest amounts [17]. cis-Dihydrocarvone was also the predominant component determined in M. dulcia citreus Hillary’s Sweet Lemon (M5) by Westerfield [18].
Pulegone and menthofuran, which may have hepatotoxic effects, are found not only in M. pulegium but also in smaller amounts in other taxa of the genus Mentha [19]. The European Medicines Agency, in a public statement on the use of herbal medicinal products containing pulegone and menthofuran, described the toxicity of this compounds and recommended limit values for herbal medicinal products that contain them [20]. According to the toxicological conclusions of the EMA’s statement, the target organs for pulegone and menthofuran are the liver and kidney. Several chemotypes of M. longifolia can be distinguished including the piperitenone-dominated chemotype [21,22]. Piperitenone (38.92%), piperitenone oxide (32.88%) and cis-piperitone oxide (21.05%) were present in the highest amounts in M. longifolia var. schimperi (M6), while, in the EO from M. longifolia (M7), only piperitenone oxide was detected as the predominant compound (84.66%). Other studies identified pulegone as the major EO compound from this taxon, as well as isomenthone or carvone [23,24,25,26]. Menthofuran was not detected in any analyzed Eos obtained by HD, while pulegone was detected only in M. × piperita var. officinalis f. pallescens Camus ‘Swiss’ (M1) (0.62%). In this taxon, pulegone (2.14%) was also identified by Mogosan et al. [17]. The EO from the leaves of M. longifolia was characterized by pulegone as the main component by Sayed et al. [27].
Thymol, 1,8-cineole (syn. eucalyptol), and limonene are very often used in the food and cosmetic industries because of their characteristic organoleptic properties. However, they also show various pharmacological properties: mucolytic, antibacterial, antiviral, antifungal, and anti-biofilm [28,29,30]. Thymol is one of the main constituents of the essential oils of the genus Thymus; however, it can also be found in small amounts in the genus Mentha [31,32,33,34]. In all taxa except M. longifolia var. schimperi (M6), 1,8 cineole was present. Limonene was detected in M. × piperita var. citrata ‘Grapefruit’ (M2) at the level 9.11%, M. dulcia citreus Hillary’s Sweet Lemon (M5) at 6.89%, M. × carinthiaca (M4) at 5.64%, M. × piperita var. citrata (M3) at 1%, and M. longifolia var. schimperi (M6) at 0.34%. The highest amount of thymol in analyzed samples was present in M. × piperita var. citrata (M3), at 7.04%.
The results of the GC-MS analysis of the volatile fractions obtained using HS-SPME are presented in Table 2. HS-SPME parameters were optimized with respect to the overall number of identified compounds. The standard deviation achieved was <10% for triplicate measurements. To the best of our knowledge, VOCs of taxa M1–M5 and M7 were investigated for the first time using the HS-SPME technique. Cordero’s study showed that piperitenone oxide was found to be predominant among VOCs of M. longifolia (M7) leaves, which was also confirmed by the performed analysis [35]. Najafian et al. identified pulegone as the major component of VOCs obtained using the HS-SPME method from this taxon [23]. Comparing GC-MS results of mints VOCs obtained using HD and HS-SPME, it was found that their main components were the same, and they differed only in their abundance. Some smaller variations were observed in the profile of the constituents. Menthofuran (7.27%) and a higher amount of pulegone (3.67%) compared with HD were observed only in M. × piperita var. officinalis f. pallescens Camus ‘Swiss’ (M1). The concentrations of α-pinene, sabinene, β-pinene, and β-myrcene were lower in the samples from the mint M. × piperita var. officinalis f. pallescens Camus ‘Swiss’ (M1), M. × piperita var. citrata ‘Grapefruit’ (M2), M. × piperita var. citrata (M3), M. × carinthiaca (M4), and M. dulcia citreus Hillary’s Sweet Lemon (M5). Limonene was not determined in M. longifolia (M7). In all VOCs obtained using HS-SPME, 1,8-cineole was present, but in lower amounts compared to the HD, except for M. longifolia var. schimperi (M6), where this compound was determined only using HS-SPME. Similar amounts of (Z)-β- and (E)-β-ocymenes were observed for each taxon. Higher cis-piperitone oxide abundance was detected using HS-SPME for M. longifolia (M7). In M. longifolia var. schimperi (M6) and M. longifolia (M7), β-bourbonene was absent. In all analyzed taxa, trans-caryophyllene was detected. Germacrane D was not present in M. longifolia var. schimperi (M6).
Selected chromatograms of the sample M5 are presented in Figure 2.
2.3. Principal Component Analysis
The datasets containing volatile constituents determined via GC-MS analyses of the fractions obtained using hydrodistillation (EO) and HS-SPME were subjected to PCA. The data in both cases demonstrated some natural clustering into three groups (Figure 3 and Figure 4). In the case of the data obtained for the EO, the first two PCA factors explained 67. 3% of variance between the samples and the data obtained for the headspace extracts; the main two factors explained 65.0% of variance in the dataset. The variables providing the greatest contribution to the first two principal components were the following for EO: carvone (accounting for more than 45% and 35% of components 1 and 2, respectively) and piperitenone oxide (accounting for more than 50% and more than 40% of factors 1 and 2, respectively), along with p-menthone, linalool, and menthol (accounting in total for about 20% of factor 2). In the case of HS-SPME data, the variables providing the greatest contribution to the first two principal components were carvone (accounting for more than 70% and 15% of components 1 and 2, respectively) and piperitenone oxide (accounting for more than 20% of component 1 and nearly 60% of component 2), along with linalool, accounting for more than 10%, and p-methone, cis-dihydrocarvone, and menthol, accounting for less than 5% each of component 2. In Figure 3 and Figure 4, the first five compounds exhibiting major contribution to the variance are presented. The samples naturally formed three groups: chemotypes differentiated by the abundance of piperitenone oxide, carvone or linalool, and menthol, p-menthone, and other related compounds. The clustering was similar based on both EO and HS-SPME data. The first group characterized by the abundance of piperitenone oxide contained M. longifolia taxa (M. longifolia var. schimperi M6, M. longifolia M7). The second group consisted of M. × piperita f. citrata ‘Grapefruit’ (M2) and M. × carinthiaca (M4), which are hybrids of M. spicata and M. aquatica or M. arvensis and M. suaveolens, respectively. The last group consisted of M. × piperita var. officinalis f. pallescens Camus ‘Swiss’ (M1), M. × piperita f. citrata (M3) two M. piperita (M. spicata × aquatica) cultivars, and M. dulcia citreus Hillary’s Sweet Lemon M5 (M. aquatica × suaveolens) [36].
3. Materials and Methods
3.1. Plant Material
The leaf samples of seven cultivated mints were obtained from the collections at the Botanical Garden of Medicinal Plants (Wrocław, Poland), Wroclaw Medical University (M. Stachura, Wrocław, Poland), Botanical Garden, Wroclaw University (J. Kochanowska, Wrocław, Poland) and Ogrody Ziolowe in Wrocław (M. Dewódzki, Wrocław, Poland), Poland in late July or early August during flowering in 2021. The following taxa were used for the analysis: Mentha × piperita var. officinalis f. pallescens Camus ‘Swiss’ (M1), Mentha × piperita f. citrata ‘Grapefruit’ (M2), Mentha × piperita f. citrata (M3), Mentha × carinthiaca Host. (M4), Mentha dulcia citreus Hillary’s Sweet Lemon (M5), Mentha longifolia var. schimperi Briq. (M6), and Mentha longifolia L. (M7). The mint leaves were previously dried in the shade, in air at room temperature of 22 ± 2 °C and a humidity of 40–45%. The voucher specimens were placed in the Department of Pharmacognosy and Herbal Medicines, Wroclaw Medical University, Poland.
3.2. Essential Oil Hydrodistillation (HD)
From dried leaves of seven taxa of the genus Mentha, EOs were obtained using a modified pharmacopeial hydrodistillation method according to the monograph of Menthae piperitae folium in the European Pharmacopoeia [37]. Briefly, 20.0 g of dried and crushed plant material was added to a 500 mL flask with 200 mL of water. It was connected to a Deryng apparatus with a water cooler and heated in a laboratory electric heating mantle with thermal controller at the boiling point of the water. Distillation was carried out for 2 h. No xylene was used, but pentane and diethyl ether (1:2, v/v) were trapped in a stack. The results obtained from three replicates are presented as mean values.
3.3. Headspace Solid-Phase Microextraction (HS-SPME)
An automated PAL RSI SPME holder (CTC Analytics AG, Zwingen, Switzerland) was used containing DVB/CAR/PDMS fiber (Divinylbenzene/Carboxen/Polydimethylsiloxane, 50/30 μm, Supelco Co., Bellefonte, PA, USA). Each sample of the leaves was cut in small pieces, and ~2 g was placed in a 20 mL clear screw top vial and hermetically sealed with PTFE/silicone septum. The automated PAL RSI was programmed as follows: conditioning SPME fiber (according to Supelco Co. Instructions, Bellefonte, PA, USA); sample agitation (agitation speed, 250 rpm; agitator on time, 5 s; agitator off time, 2 s; equilibration, 30 min at 40 °C; VOC extraction, 40 min without agitation; injection of the fiber in the GC injector for desorption, 7 min. The results are presented as mean values of three replicates.
3.4. GC-MS Analysis
An Agilent Technologies (Palo Alto, CA, USA) gas chromatograph model 7820A equipped with a mass selective detector (MSD) model 5977E (Agilent Technologies, Palo Alto, CA, USA) was used. An HP-5MS capillary column (Agilent J & W GC column, Palo Alto, CA, USA; 5%-phenyl-methylpolysiloxane; 30 m × 0.25 mm, 0.25 μm film thickness) was used for GC-MS analysis. The GC conditions were as follows: split ratio, 1:50; oven programmed, 2 min at 70 °C, with the temperature increased at the rate of 3 °C/min to 200 °C and held isothermal for 15 min; injector temperature, 250 °C; detector temperature, 300 °C; carrier gas, He (velocity: 1 mL/min). The MSD (EI mode) was operated at 70 eV, and the mass range was 30–300 average mass units (amu). Firstly, 1 μL of diluted essential oil (10 μL of the oil in 1 mL of pentane) was manually inserted with a syringe into the GC injector. The identification of the VOCs was based on the comparison of their retention indices (RIs) determined relative to n-alkanes (C9–C25) with those reported in the literature and their mass spectra were determined via comparison with the spectra from Wiley 9 (Wiley, New York, NY, USA) and NIST 17 (D-Gaithersburg) mass spectral libraries. The percentage composition of the samples was computed from the GC peak areas using the normalization method (without correction factors). The average component percentages were calculated from three GC-MS analyses.
3.5. Statistics
The data were mean-centered and evaluated using PCA. The analyses were performed using R for Windows, version 4.0.0 (R-Cran project, http://cran.r-project.org/ accessed on 3 October 2022) including the “factoextra” library [38].
4. Conclusions
GC-MS analysis of VOCs from selected taxa of the genus Mentha obtained using two methods—headspace solid-phase micro-extraction (HS-SPME) and hydrodistillation (HD)—showed differences in both abundance and profile of the determined compounds. The predominant group among the analyzed terpenes comprised monoterpenes) linalool, p-menthone, menthol, cis-dihydrocarvone, carvone, cis-piperitone oxide, dihydrocarvyl acetate, piperitenone, and piperitenone oxide_. The main components in the volatile fractions obtained using the two methods—HS-SPME and HD—were the same, but their abundances were different. The leaves from two taxa—M. × piperita var. officinalis f. pallescens Camus ‘Swiss’, M. × carinthiaca—were studied for their volatile compound profile for the first time, and the VOC profiles of HS-SPME extracts from six of the seven taxa were not comparable with those obtained using HD. On the one hand, the HD technique is considered a time-consuming and laborious process. It also requires a larger sample of plant material and is not suitable for thermolabile compounds. On the other hand, HS-SPME is a faster technique that does not require large amounts of material and is more protective for analyzed compounds. The combination of these two techniques provides a more complete profile of plant VOCs. The performed analysis demonstrated that more components were determined using HS-SPME than HD; therefore, both techniques can supplement the analysis of VOCs in plant material. In terms of potentially toxic volatile compounds, all taxa were found to be safe.
Author Contributions
Conceptualization, A.K. and I.J.; methodology, A.K., P.K. and I.J.; investigation, A.K., P.K., Z.M., C.I.G.T., I.F. and I.J; resources, A.K. and I.J.; data curation, I.J., Z.M. and P.K.; writing—original draft preparation, A.K., P.K., C.I.G.T., I.F. and I.J; writing—review and editing, A.K., P.K., C.I.G.T., I.F. and I.J.; funding acquisition, A.K., I.F. and I.J. All authors have read and agreed to the published version of the manuscript.
Funding
The study was funded by Wrocław Medical University, grant number SUBZ.D110.22.019, The study was funded by European Union (European Regional Development Fund—the Competitiveness and Cohesion Operational Program—KK.01.2.2.03.) grant number CEKOM 3 L J (KK.01.2.2.03.0017).
Institutional Review Board Statement
Not applicable.
Informed Consent Statement
Not applicable.
Data Availability Statement
All data reported here are available from the authors upon request.
Conflicts of Interest
The authors declare no conflict of interest.
Sample Availability
Samples of the compounds are not available from the authors.
References
- Mahdavi, A.; Moradi, P.; Mastinu, A. Variation in terpene profiles of Thymus vulgaris in water deficit stress response. Molecules 2020, 25, 1091. [Google Scholar] [CrossRef] [PubMed] [Green Version]
- Sharmeen, J.B.; Mahomoodally, F.M.; Zengin, G.; Maggi, F. Essential oils as natural sources of fragrance compounds for cosmetics and cosmeceuticals. Molecules 2021, 26, 666. [Google Scholar] [CrossRef] [PubMed]
- Kabira, A.; Cacciagranob, F.; Tartaglia, A.; Lipsib, M.; Ulusoy, H.I.; Locatelli, L. Analysis of monoterpenes and monoterpenoids. In Recent Advances in Natural Products Analysis; Silva, A.S., Nabavi, S.F., Saeedi, M., Nabavi, S.M., Eds.; Academic Press: Cambridge, MA, USA, 2020; pp. 274–286. [Google Scholar] [CrossRef]
- Zielińska-Błajet, M.; Feder-Kubis, J. Monoterpenes and their derivatives—Recent development in biological and medical applications. Int. J. Mol. Sci. 2020, 21, 7078. [Google Scholar] [CrossRef] [PubMed]
- Zárybnický, T.; Boušová, I.; Ambrož, M.; Skálová, L. Hepatotoxicity of monoterpenes and sesquiterpenes. Arch. Toxicol. 2018, 91, 1–13. [Google Scholar] [CrossRef]
- Tafrihi, M.; Imran, M.; Tufail, T.; Gondal, T.A.; Caruso, G.; Sharma, S.; Sharma, R.; Atanassova, M.; Atanassov, L.; Fokou, P.V.T.; et al. The wonderful activities of the genus Mentha: Not only antioxidant properties. Molecules 2021, 26, 1118. [Google Scholar] [CrossRef]
- Agus, H.H. Terpene toxicity and oxidative stress. In Toxicology Oxidative Stress and Dietary Antioxidants; Patel, V.B., Preedy, V.R., Eds.; Academic Press: Cambridge, MA, USA, 2021; pp. 33–42. [Google Scholar] [CrossRef]
- Salehi, B.; Stojanović-Radić, Z.; Matejić, J.; Sharopov, F.; Antolak, H.; Kręgiel, D.; Sen, S.; Sharifi-Rad, M.; Acharya, K.; Sharifi-Rad, R.; et al. Plants of genus Mentha: From farm to food factory. Plants 2018, 7, 70. [Google Scholar] [CrossRef] [Green Version]
- Fecka, I.; Turek, S. Determination of water-soluble polyphenolic compounds in commercial herbal teas from Lamiaceae: Peppermint, melissa, and sage. J. Agric. Food Chem. 2007, 55, 10908–10917. [Google Scholar] [CrossRef]
- Rasul, M.G. Conventional extraction methods use in medicinal plants, their advantages and disadvantages. Int. J. Basic Sci. Appl. Comput. 2018, 2, 10–14. [Google Scholar]
- Huang, B.; Lei, Y.; Tang, Y.; Zhang, J.; Qin, L.; Liu, J. Comparison of HS-SPME with hydrodistillation and SFE for the analysis of the volatile compounds of Zisu and Baisu, two varietal species of Perilla frutescens of Chinese origin. Food Chem. 2011, 125, 268–275. [Google Scholar] [CrossRef]
- Malekmohammad, K.; Rafieian-Kopaei, M.; Sardari, S.; Sewell, R.D.E. Toxicological effects of Mentha x piperita (peppermint): A review. Toxin. Rev. 2021, 40, 445–459. [Google Scholar] [CrossRef]
- Kumar, A.; Baitha, U.; Aggarwal, P.; Jamshed, N. A fatal case of menthol poisoning. Int. J. Appl. Basic Med. Res. 2016, 6, 137–139. [Google Scholar] [CrossRef] [Green Version]
- Hwang, H.S.; Adhikari, P.B.; Jo, H.J.; Han, J.Y.; Choi, Y.E. Enhanced monoterpene emission in transgenic orange mint (Mentha × piperita f. citrata) overexpressing a tobacco lipid transfer protein (NtLTP1). Planta 2020, 252, 44. [Google Scholar] [CrossRef]
- Pina, L.T.S.; Serafini, M.R.; Oliveira, M.A.; Sampaio, L.A.; Guimarães, J.O.; Guimarães, A.G. Carvone and its pharmacological activities: A systematic review. Phytochemistry 2022, 196, 113080. [Google Scholar] [CrossRef]
- Jakowienko, P.; Wojcik-Stopczynska, B. Influence of essential oils from different varieties of peppermint (Mentha x piperita L.) on growth of some filamentous fungi. Herba Pol. 2010, 56, 60–70. [Google Scholar]
- Mogosan, C.; Vostinaru, O.; Oprean, R.; Heghes, C.; Filip, L.; Balica, G.; Moldovan, R.I.; Schmidt, T.J. A comparative analysis of the chemical composition, anti-inflammatory, and antinociceptive effects of the essential oils from three species of Mentha cultivated in Romania. Molecules 2017, 22, 263. [Google Scholar] [CrossRef]
- Westerfield, E.J. United States Patent (19). Plant 1995, 9, 197. [Google Scholar]
- Balakrishnan, A. Therapeutic uses of peppermint—A review. J. Pharm. Sci. Res. 2015, 7, 474–476. [Google Scholar]
- European Medicines Agency. Public Statement on the Use of Herbal Medicinal Products Containing Pulegone and Menthofuran. Available online: https://www.ema.europa.eu/en/use-herbal-medicinal-products-containing-pulegone-menthofuran (accessed on 15 May 2022).
- Patonay, K.; Németh-Zámboriné, É. Horsemint as a potential raw material for the food industry: Survey on the chemistry of a less studied mint species. Phytochem. Rev. 2021, 20, 631–652. [Google Scholar] [CrossRef]
- Kippes, N.; Tsai, H.; Lieberman, M.; Culp, D.; McCormack, B.; Wilson, R.G.; Dowd, E.; Comai, L.; Henry, I.M. Diploid mint (M. longifolia) can produce spearmint type oil with a high yield potential. Sci. Rep. 2021, 11, 23521. [Google Scholar] [CrossRef]
- Najafian, S.; Rowshan, V.; Fathi, S. Comparison of chemical constituents of essential oil from aerial constituent of Mentha longifolia and Salvia multicaulis obtained by hydrodistillation and headspace analysis. J. Essent. Oil-Bearing Plants 2020, 23, 719–727. [Google Scholar] [CrossRef]
- Abdel-Hameed, E.S.S.; Salman, M.S.; Fadl, M.A.; Elkhateeb, A.; Hassan, M.M. Chemical composition and biological activity of Mentha longifolia L. essential oil growing in Taif, KSA extracted by hydrodistillation, solvent free microwave and microwave hydrodistillation. J. Essent. Oil-Bearing Plants 2018, 21, 1–14. [Google Scholar] [CrossRef]
- Hassanein, H.D.; El-Gendy, A.E.N.G.; Saleh, I.A.; Hendawy, S.F.; Elmissiry, M.M.; Omer, E.A. Profiling of essential oil chemical composition of some Lamiaceae species extracted using conventional and microwave-assisted hydrodistillation extraction methods via chemometrics tools. Flavour Fragr. J. 2020, 35, 329–340. [Google Scholar] [CrossRef]
- Anwar, F.; Alkharfy, K.M.; Najeeb-ur-Rehman; Adam, E.H.K.; Gilani, A.U.H. Chemo-geographical variations in the composition of volatiles and the biological attributes of Mentha longifolia (L.) essential oils from Saudi Arabia. Int. J. Pharmacol. 2017, 13, 408–424. [Google Scholar] [CrossRef] [Green Version]
- Sayed, S.; Soliman, M.; Al-Otaibi, S.; Hassan, M.; Elarrnaouty, S.; Abozeid, S.; El-Shehawi, A. Toxicity, deterrent and repellent activities of four essential oils on Aphis punicae (Hemiptera: Aphididae). Plants 2022, 11, 463. [Google Scholar] [CrossRef]
- Cai, Z.M.; Peng, J.Q.; Chen, Y.; Tao, L.; Zhang, Y.Y.; Fu, L.Y.; De Long, Q.; Shen, X.C. 1,8-Cineole: A review of source, biological activities, and application. J. Asian Nat. Prod. Res. 2021, 23, 938–954. [Google Scholar] [CrossRef]
- Gupta, A.; Jeyakumar, E.; Lawrence, R. Journey of limonene as an antimicrobial agent. J. Pure Appl. Microbiol. 2021, 15, 1094–1110. [Google Scholar] [CrossRef]
- Silva, A.S.; Tewari, D.; Sureda, A.; Suntar, I.; Belwal, T.; Battino, M.; Nabavi, S.M.; Nabavi, S.F. The evidence of health benefits and food applications of Thymus vulgaris L. Trends Food Sci. Technol. 2021, 117, 218–227. [Google Scholar] [CrossRef]
- Escobar, A.; Pérez, M.; Romanelli, G.; Blustein, G. Thymol bioactivity: A review focusing on practical applications. Arab. J. Chem. 2020, 13, 9243–9269. [Google Scholar] [CrossRef]
- Singh, N.; Singh, H.P.; Batish, D.R.; Kohli, R.K.; Yadav, S.S. Chemical characterization, phytotoxic, and cytotoxic activities of essential oil of Mentha longifolia. Environ. Sci. Pollut. Res. 2020, 27, 13512–13523. [Google Scholar] [CrossRef]
- Mohammadi, R.; Khoobdel, M.; Talebi, A.A.; Negahban, M.; Norani, M.; Moradi, M.; Dehghan, O. In vivo evaluation of the repellency effects of nanoemulsion of Mentha piperita and Eucalyptus globulus essential oils against mosquitoes. Open Biotechnol. J. 2021, 14, 145–152. [Google Scholar] [CrossRef]
- Kapp, K.; Püssa, T.; Orav, A.; Roasto, M.; Raal, A.; Vuorela, P.; Vuorela, H.; Tammela, P. Chemical composition and antibacterial effect of Mentha spp. grown in Estonia. Nat. Prod. Commun. 2020, 15. [Google Scholar] [CrossRef]
- Cordero, C.; Zebelo, S.A.; Gnavi, G.; Griglione, A.; Bicchi, C.; Maffei, M.E.; Rubiolo, P. HS-SPME-GC×GC-qMS volatile metabolite profiling of Chrysolina herbacea frass and Mentha spp. leaves. Anal. Bioanal. Chem. 2012, 402, 1941–1952. [Google Scholar] [CrossRef]
- Taherpour, A.A.; Khaef, S.; Yari, A.; Nikeafshar, S.; Fathi, M.; Ghambari, S. Chemical composition analysis of the essential oil of Mentha piperita L. from Kermanshah, Iran by hydrodistillation and HS/SPME methods. J. Anal. Sci. Technol. 2017, 8, 11. [Google Scholar] [CrossRef]
- Council of Europe. European Pharmacopoeia, 10th ed.; Council of Europe: Strasbourg, France, 2019; ISBN 928-718-505-0. [Google Scholar]
- Kassambara, A.; Mundt, F. Package ‘factoextra’: Extract and Visualize the Results of Multivariate Data Analyses. Available online: http://www.sthda.com/english/rpkgs/factoextra; https://cran.r-project.org/package=factoextra (accessed on 3 October 2022).

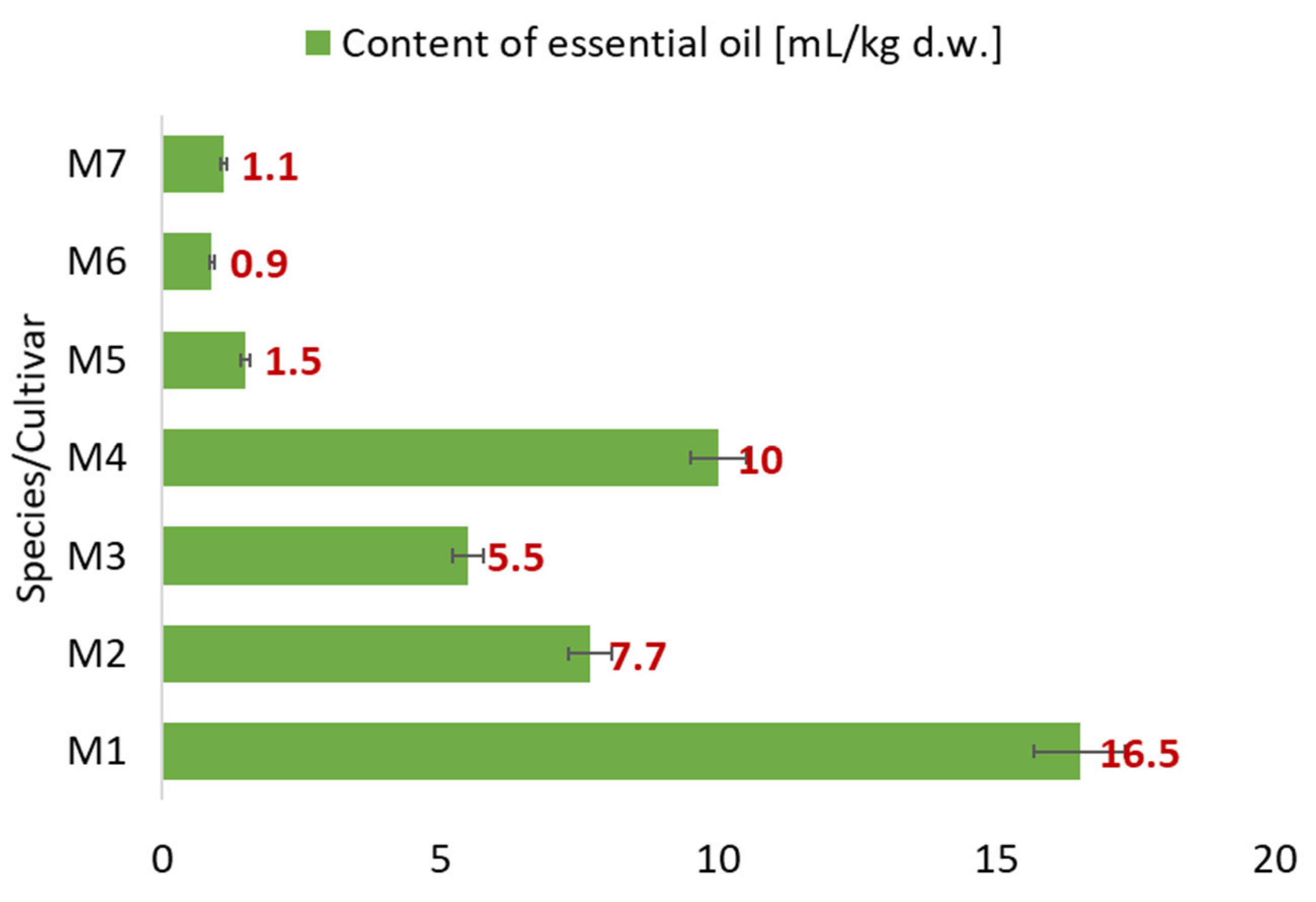

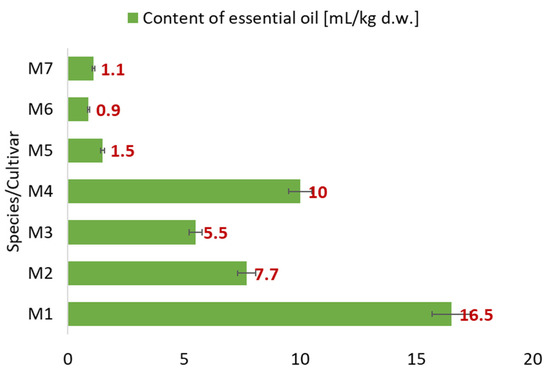

Figure 1.
Essential oil content in analyzed mint samples obtained by HD method: M1 Mentha × piperita var. officinalis f. pallescens Camus ‘Swiss’, M2 Mentha × piperita f. citrata ‘Grapefruit’, M3 Mentha × piperita f. citrata, M4 Mentha × carinthiaca Host., M5 Mentha dulcia citreus Hillary’s Sweet Lemon, M6 Mentha longifolia var. schimperi Briq., and M7 Mentha longifolia L.; d.w., dried weight; n = 3.
Figure 1.
Essential oil content in analyzed mint samples obtained by HD method: M1 Mentha × piperita var. officinalis f. pallescens Camus ‘Swiss’, M2 Mentha × piperita f. citrata ‘Grapefruit’, M3 Mentha × piperita f. citrata, M4 Mentha × carinthiaca Host., M5 Mentha dulcia citreus Hillary’s Sweet Lemon, M6 Mentha longifolia var. schimperi Briq., and M7 Mentha longifolia L.; d.w., dried weight; n = 3.

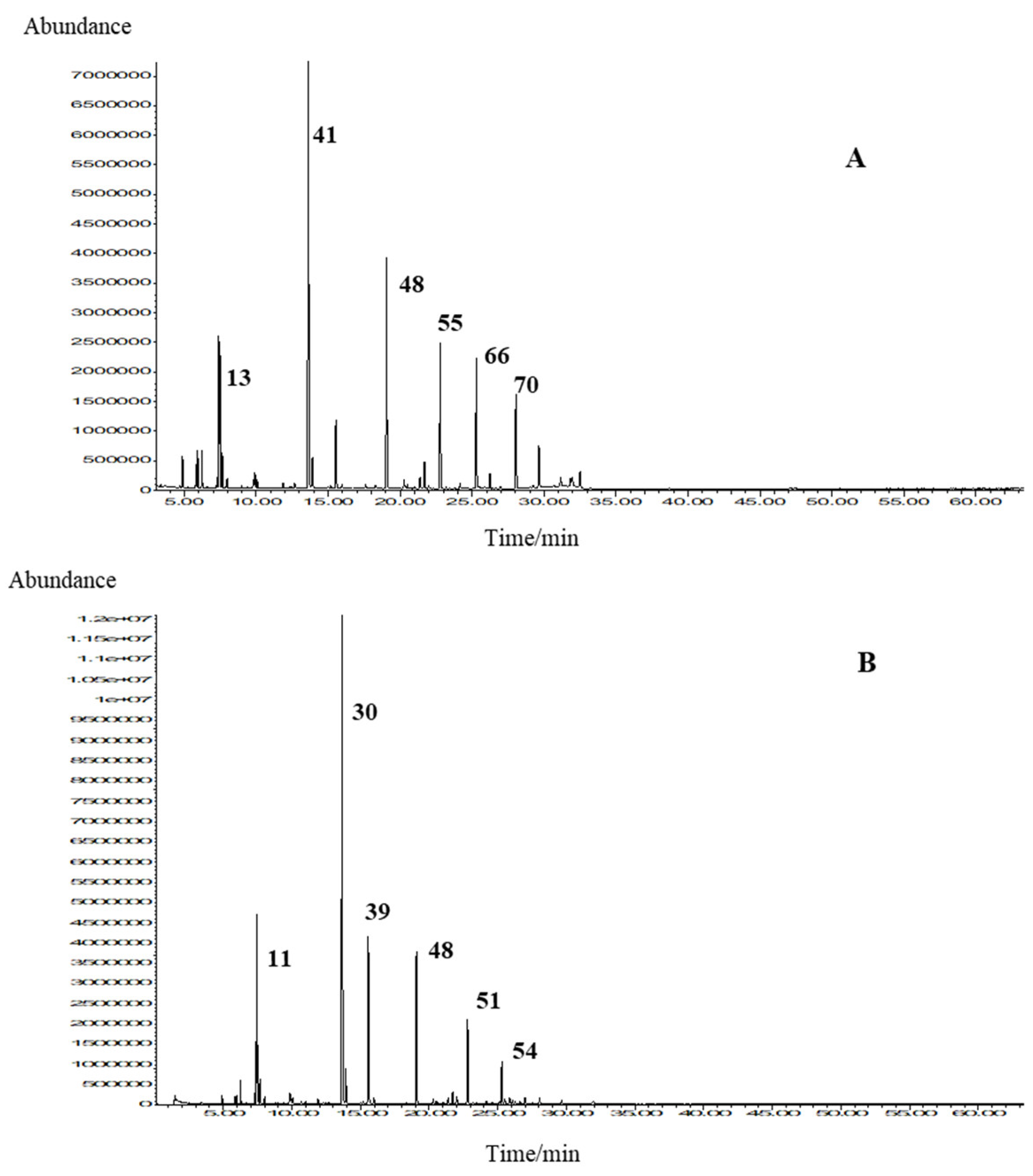

Figure 2.
Total ion chromatograms (TICs) of the headspace (A) and essential oil (B) of Mentha dulcia citreus Hillary’s Sweet Lemon (M5). The numbers in (A) correspond to the compounds in Table 2, and the numbers on (B) correspond to Table 1.

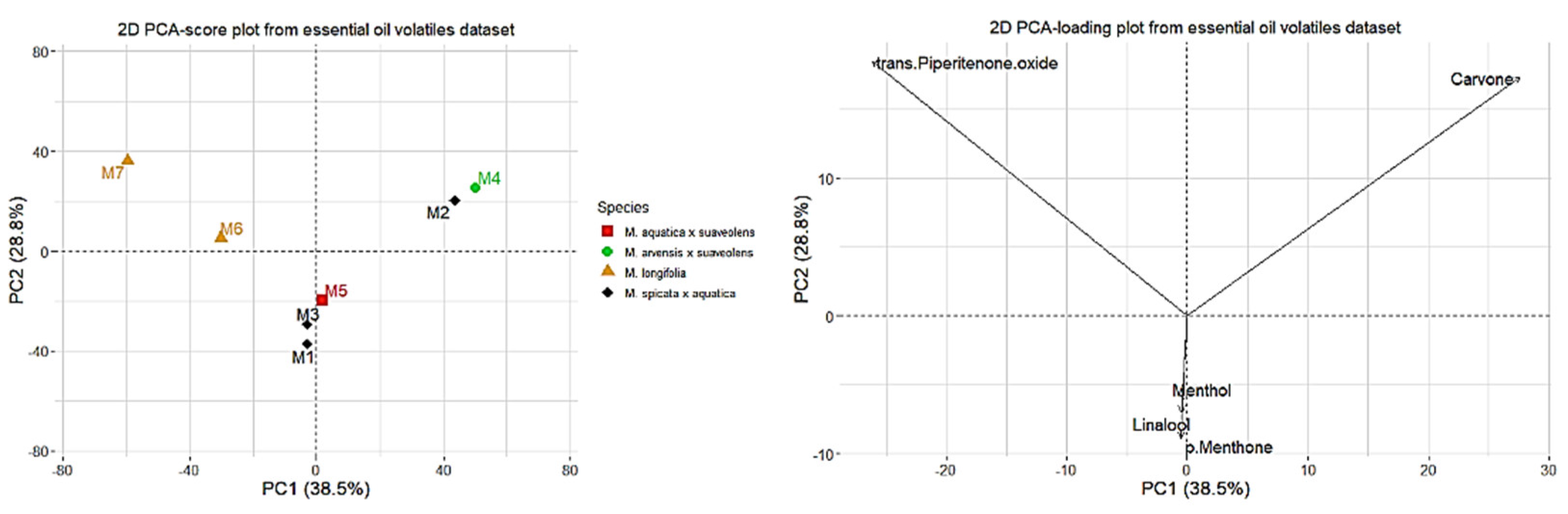

Figure 3.
Principal component analysis (PCA) scores (left) and loadings (right) (only first five variables with the highest contributions are shown) plots based on essential oil volatiles dataset.
Figure 3.
Principal component analysis (PCA) scores (left) and loadings (right) (only first five variables with the highest contributions are shown) plots based on essential oil volatiles dataset.

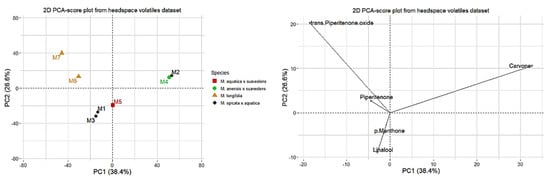

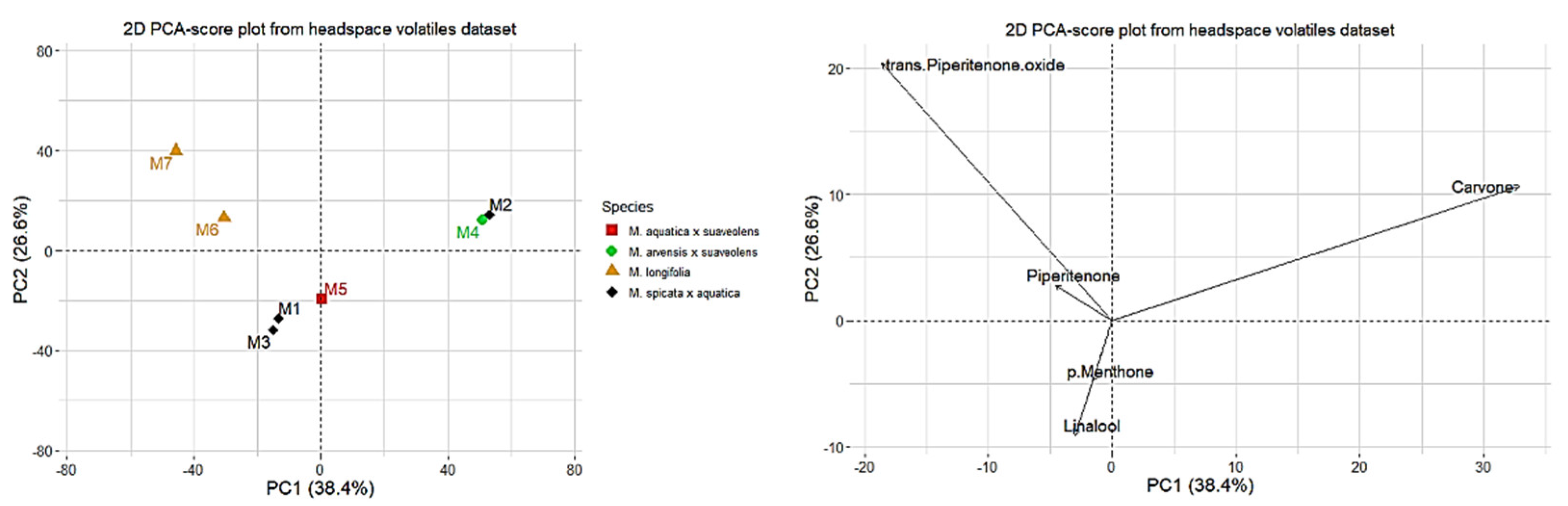

Figure 4.
Principal component analysis (PCA) scores (left) and loadings (right) (only first five variables with the highest contributions are shown) plots based on headspace volatiles dataset.
Figure 4.
Principal component analysis (PCA) scores (left) and loadings (right) (only first five variables with the highest contributions are shown) plots based on headspace volatiles dataset.
Table 1.
Volatile component composition (peak area%) obtained using the HD method and their amount in Mentha spp.
Table 1.
Volatile component composition (peak area%) obtained using the HD method and their amount in Mentha spp.
| No. | Compound | RI | Sample Symbol and Content (%) | |||||||
|---|---|---|---|---|---|---|---|---|---|---|
| RIL | M1 | M2 | M3 | M4 | M5 | M6 | M7 | |||
| 1 | α-Thujene | 930 | 933 | 0.03 | - | - | - | - | - | - |
| 2 | α-Pinene | 940 | 940 | 0.59 | 1.02 | 1.33 | 1.07 | 1.35 | 0.46 | 2.86 |
| 3 | Camphene | 957 | 955 | - | - | - | - | - | 0.43 | - |
| 4 | Sabinene | 981 | 980 | 0.56 | 0.79 | 1.01 | 0.86 | 0.99 | - | - |
| 5 | β-Pinene | 985 | 982 | 0.93 | 1.38 | 6.69 | 1.16 | 1.64 | 0.38 | - |
| 6 | β-Myrcene | 994 | 993 | 0.36 | 0.86 | 1.33 | 4.14 | 1.55 | - | - |
| 7 | Octan-3-ol | 998 | 996 | 0.16 | 0.16 | 0.42 | - | - | - | - |
| 8 | α-Phellandrene | 1011 | 1006 | - | - | 0.71 | - | - | - | - |
| 9 | α-Terpinene | 1023 | 1024 | 0.06 | - | 0.74 | 0.28 | - | - | - |
| 10 | p-Cymene | 1030 | 1030 | 0.07 | - | 2.94 | - | 0.51 | - | - |
| 11 | Limonene | 1035 | 1035 | - | 9.11 | 1.00 | 5.64 | 6.89 | 0.34 | - |
| 12 | 1,8-Cineole | 1039 | 1038 | 4.36 | 8.28 | 2.66 | 4.08 | 6.54 | - | 5.11 |
| 13 | (Z)-β-Ocymene | 1043 | 1044 | 0.52 | 1.25 | 7.28 | 0.21 | 1.58 | - | - |
| 14 | (E)-β-Ocymene | 1054 | 1054 | 0.12 | 0.41 | 1.42 | - | 0.46 | - | - |
| 15 | γ-Terpinene | 1065 | 1064 | 0.12 | - | 7.59 | 0.51 | - | - | - |
| 16 | cis-Sabinenehydrate | 1074 | 1074 | 0.96 | 0.35 | 0.11 | 1.76 | - | - | - |
| 17 | α-Terpinolene | 1092 | 1097 | 0.07 | - | 0.12 | - | - | - | - |
| 18 | Linalool | 1103 | 1102 | 0.48 | 0.11 | 40.43 | - | 0.56 | - | - |
| 19 | Pentyl 3-methylbutanoate | 1110 | 1108 | 0.06 | - | - | - | 0.41 | - | - |
| 20 | Octan-3-yl acetate | 1127 | 1124 | - | - | 0.27 | - | - | - | - |
| 21 | Isopulegol | 1152 | 1150 | 0.1 | - | - | - | - | - | - |
| 22 | p-Menthone | 1160 | 1163 | 41.00 | - | - | - | 0.29 | - | - |
| 23 | Borneol | 1172 | 1172 | - | - | - | - | - | 1.9 | - |
| 24 | Menthol | 1181 | 1181 | 28.19 | - | - | - | - | - | - |
| 25 | Terpinen-4-ol | 1182 | 1182 | 0.37 | - | 0.13 | - | - | - | - |
| 26 | Isomenthol | 1189 | 1187 | 0.27 | - | - | - | - | - | - |
| 27 | Neoisomenthol | 1193 | 1193 | 0.08 | - | - | - | - | - | - |
| 28 | α-Terpineol | 1194 | 1194 | 0.18 | 0.46 | 0.93 | 0.25 | - | - | - |
| 29 | Myrtenal | 1198 | 1196 | 0.13 | - | - | - | - | - | - |
| 30 | cis-Dihydrocarvone | 1199 | 1195 | - | 0.47 | - | 2.9 | 26.87 | - | - |
| 31 | (Z)-Hex-3-enyl pentanoate | 1240 | 1236 | - | - | 0.35 | - | - | - | - |
| 32 | Pulegone | 1244 | 1244 | 0.62 | - | - | - | - | - | - |
| 33 | Carvone | 1248 | 1249 | - | 62.92 | - | 72.13 | 3.95 | - | - |
| 34 | cis-Piperitone oxide | 1258 | 1257 | 2.82 | 8.67 | 0.94 | 0.28 | 0.22 | 21.05 | |
| 35 | (E)-Citral | 1274 | 1271 | - | - | 0.12 | - | - | - | - |
| 36 | Menthyl acetate | 1278 | 1278 | 7.67 | - | - | - | - | - | - |
| 37 | Neomenthyl acetate | 1295 | 1296 | - | - | - | - | 0.25 | - | - |
| 38 | Thymol | 1299 | 1297 | 0.21 | - | 7.04 | - | 0.32 | - | - |
| 39 | Dihydrocarvyl acetate | 1333 | 1330 | - | - | - | 0.43 | 13.01 | - | - |
| 40 | Piperitenone | 1345 | 1347 | - | - | - | - | - | 38.93 | - |
| 41 | Eugenol | 1362 | 1359 | 0.07 | - | - | - | - | - | - |
| 42 | cis-Carvyl acetate | 1367 | 1365 | - | - | - | - | 0.23 | - | - |
| 43 | Piperitenone oxide | 1371 | 1371 | - | - | 0.51 | - | - | 32.88 | 84.66 |
| 44 | β-Bourbonene | 1386 | 1386 | 0.13 | 0.61 | 0.16 | 0.87 | 0.71 | - | - |
| 45 | β-Elemene | 1393 | 1394 | 0.07 | - | - | 0.52 | 1.58 | - | - |
| 46 | cis-Jasmone | 1399 | 1396 | 0.06 | - | - | - | 0.2 | 0.72 | - |
| 47 | α-Gurjunene | 1411 | 1411 | 0.12 | - | - | - | - | - | - |
| 48 | trans-Caryophyllene | 1422 | 1423 | 0.48 | 0.92 | 6.73 | 0.95 | 8.21 | 1.17 | 2.83 |
| 49 | α-Humulene | 1456 | 1456 | - | - | 0.28 | - | 0.33 | - | - |
| 50 | (E)-β-Farnesene | 1460 | 1460 | 0.44 | - | - | - | - | - | - |
| 51 | Germacrene D | 1483 | 1482 | 2.11 | 0.72 | 4.07 | 0.78 | 7.35 | - | 4.54 |
| 52 | Bicyclogermacrene | 1497 | 1499 | 0.6 | - | 0.37 | - | - | - | - |
| 53 | δ-Cadinene | 1526 | 1524 | 0.05 | - | - | - | - | - | - |
| 54 | Elemol | 1557 | 1558 | - | - | - | - | 5.77 | - | - |
| 55 | Veridiflorol | 1593 | 1593 | 0.34 | 0.31 | - | - | 2.76 | - | - |
| 56 | β-Eudesmol | 1654 | 1653 | - | - | - | - | 0.56 | - | - |
| 57 | α-Eudesmol | 1657 | 1651 | - | - | - | - | 0.93 | - | - |
| 58 | (E)-Phytol | 2113 | 2111 | 0.09 | - | - | - | - | - | - |
-, Not detected; RIL, literature values of retention indices.
Table 2.
Volatile component composition (peak area%) obtained using HS-SPME method and their amount in Mentha spp.
Table 2.
Volatile component composition (peak area%) obtained using HS-SPME method and their amount in Mentha spp.
| No. | Compound | RI | Sample Symbol and Content (%) | |||||||
|---|---|---|---|---|---|---|---|---|---|---|
| RIL | M1 | M2 | M3 | M4 | M5 | M6 | M7 | |||
| 1 | (E)-Hex-2-enal | <900 | 855 | - | 0.04 | 0.16 | - | - | - | 1.74 |
| 2 | (Z)-Hex-3-en-1-ol | <900 | 861 | - | - | 0.21 | - | - | - | - |
| 3 | α-Thujene | 935 | 933 | - | - | 0.33 | 0.08 | - | - | - |
| 4 | α-Pinene | 940 | 940 | 0.19 | 0.25 | 0.46 | 0.49 | 0.33 | 0.37 | 0.46 |
| 5 | Camphene | 957 | 955 | - | - | - | - | - | 0.37 | - |
| 6 | Sabinene | 981 | 980 | 0.23 | 0.23 | 0.44 | 0.55 | 0.30 | 0.21 | 0.44 |
| 7 | β-Pinene | 985 | 982 | 0.30 | 0.36 | 2.56 | 0.59 | 0.43 | 0.36 | 3.08 |
| 8 | Octan-3-one | 989 | 985 | - | - | 0.09 | - | - | - | - |
| 9 | β-Myrcene | 994 | 993 | 0.24 | 0.44 | 1.43 | 3.45 | 1.03 | 0.31 | - |
| 10 | Octan-3-ol | 998 | 996 | 0.14 | 0.13 | 0.59 | - | - | 0.09 | - |
| 11 | α-Terpinene | 1023 | 1024 | - | - | 0.55 | 0.07 | - | - | - |
| 12 | p-Cymene | 1030 | 1030 | 0.07 | - | 3.21 | - | 0.54 | - | - |
| 13 | Limonene | 1035 | 1035 | 2.81 | 4.74 | 0.85 | 5.72 | 9.34 | 0.99 | - |
| 14 | 1,8-Cineole | 1039 | 1038 | 1.94 | 2.69 | 1.60 | 2.23 | 3.02 | 0.07 | 2.75 |
| 15 | (Z)-β-Ocymene | 1043 | 1044 | 0.55 | 0.75 | 6.51 | 0.17 | 1.23 | - | 0.51 |
| 16 | (E)-β-Ocymene | 1054 | 1054 | 0.13 | 0.31 | 1.62 | 0.06 | 0.39 | - | 0.60 |
| 17 | γ-Terpinene | 1065 | 1064 | 0.06 | - | 5.42 | 0.10 | - | - | - |
| 18 | cis-Sabinenehydrate | 1074 | 1074 | 0.79 | 0.11 | 0.12 | 2.20 | - | - | - |
| 19 | trans-Linalool oxide | 1078 | 1080 | - | - | 0.15 | - | - | - | - |
| 20 | α-Terpinolene | 1092 | 1097 | 0.05 | - | - | 0.06 | - | 0.04 | - |
| 21 | trans-Sabinene hydrate | 1102 | 1101 | - | - | - | 0.09 | - | - | - |
| 22 | Linalool | 1103 | 1102 | 0.23 | - | 45.24 | - | 0.76 | - | 0.38 |
| 23 | Pentyl 3-methylbutanoate | 1110 | 1108 | 0.07 | - | - | - | 0.38 | - | - |
| 24 | Octan-3-yl acetate | 1127 | 1124 | 0.08 | - | 0.48 | - | - | - | 0.60 |
| 25 | Alloocimene | 1135 | 1131 | - | - | 0.12 | - | - | - | - |
| 26 | p-Mentha-1,5,8-triene | 1136 | 1135 | - | - | 0.17 | - | 0.23 | - | - |
| 27 | trans-Limonene oxide | 1143 | 1141 | - | - | - | 0.07 | - | - | - |
| 28 | Isopulegol | 1152 | 1150 | 0.07 | - | 0.18 | - | - | - | - |
| 29 | Citronellal | 1158 | 1158 | - | - | 5.32 | - | - | - | - |
| 30 | p-Menthone | 1160 | 1163 | 27.64 | - | - | - | 0.39 | - | - |
| 31 | Menthofuran | 1170 | 1169 | 7.27 | - | - | - | - | - | - |
| 32 | Neomenthol | 1171 | 1167 | 3.67 | - | - | - | - | - | - |
| 33 | Borneol | 1172 | 1172 | - | - | - | - | - | 1.56 | - |
| 34 | δ-Terpineol | 1173 | 1171 | - | 0.15 | - | 0.15 | - | - | - |
| 35 | Menthol | 1181 | 1181 | 26.48 | - | - | - | - | - | - |
| 36 | Terpinen-4-ol | 1182 | 1182 | - | - | 0.05 | - | - | - | |
| 37 | Isomenthol | 1189 | 1187 | 0.40 | - | - | - | - | - | - |
| 38 | Neoisomenthol | 1193 | 1193 | 0.12 | - | - | - | - | - | - |
| 39 | α-Terpineol | 1194 | 1194 | - | 0.37 | 1.06 | - | - | - | - |
| 40 | Myrtenal | 1198 | 1196 | 0.06 | - | - | - | - | 0.18 | - |
| 41 | cis-Dihydrocarvone | 1199 | 1195 | - | 0.55 | - | 1.39 | 39.11 | - | - |
| 42 | trans-Dihydrocarvone | 1207 | 1206 | - | - | - | 0.09 | 2.51 | - | - |
| 43 | trans-Carveol | 1227 | 1230 | - | - | - | 0.13 | - | - | - |
| 44 | β-Cytronelol | 1233 | 1232 | - | - | 0.19 | - | - | - | - |
| 45 | (Z)-Hex-3-enyl pentanoate | 1240 | 1236 | - | - | 0.34 | 0.26 | - | - | 0.46 |
| 46 | (Z)-Citral | 1243 | 1245 | - | - | 1.06 | - | - | - | - |
| 47 | Pulegone | 1244 | 1244 | 3.67 | - | - | - | - | - | - |
| 48 | Carvone | 1248 | 1249 | 0.08 | 74.49 | 0.16 | 71.44 | 11.98 | - | 0.52 |
| 49 | cis-Piperitone oxide | 1258 | 1257 | 3.51 | 10.17 | 1.21 | 0.40 | 0.48 | 23.21 | - |
| 50 | (E)-Citral | 1274 | 1271 | - | - | 1.93 | - | - | - | - |
| 51 | Menthyl acetate | 1278 | 1278 | 0.68 | - | - | - | - | - | - |
| 52 | Neomenthyl acetate | 1295 | 1296 | 14.13 | - | - | - | - | - | - |
| 53 | Thymol | 1299 | 1297 | 0.16 | - | 5.48 | - | - | 0.20 | - |
| 54 | Neoisomenthyl acetate | 1310 | 1311 | 0.15 | - | - | - | - | - | - |
| 55 | Dihydrocarvyl acetate | 1333 | 1330 | - | - | - | 0.15 | 10.70 | - | - |
| 56 | trans-Carvyl acetate | 1342 | 1342 | - | - | - | 0.09 | - | - | - |
| 57 | Piperitenone | 1345 | 1347 | - | - | - | - | - | 34.68 | - |
| 58 | cis-Carvyl acetate | 1367 | 1365 | - | - | - | 0.15 | 0.19 | - | - |
| 59 | Piperitenone oxide | 1371 | 1371 | - | - | 1.04 | - | - | 30.96 | 72.69 |
| 60 | α-Copaene | 1379 | 1378 | 0.13 | - | - | - | - | - | - |
| 61 | β-Bourbonene | 1386 | 1386 | 0.15 | 0.88 | 0.08 | 1.21 | 0.52 | - | - |
| 62 | β-Elemene | 1393 | 1394 | 0.11 | - | - | 0.89 | 0.84 | - | 2.22 |
| 63 | cis-Jasmone | 1399 | 1396 | - | - | - | 0.26 | - | 0.78 | |
| 64 | Tetradecane | 1400 | 1400 | 0.10 | 0.39 | 0.31 | - | 0.66 | - | 1.63 |
| 65 | α-Gurjunene | 1411 | 1411 | 0.10 | - | - | - | - | - | - |
| 66 | trans-Caryophyllene | 1422 | 1423 | 0.39 | 0.90 | 5.15 | 1.73 | 6.00 | 1.49 | 2.63 |
| 67 | α-Humulene | 1456 | 1456 | - | - | 0.20 | 0.06 | 0.21 | 0.10 | - |
| 68 | (E)-β-Farnesene | 1460 | 1460 | 0.52 | 0.22 | 0.12 | 0.37 | - | 0.52 | 0.93 |
| 69 | α-Amorphene | 1479 | 1485 | 0.05 | - | - | 0.06 | 0.32 | 0.41 | - |
| 70 | Germacrene D | 1483 | 1482 | 1.24 | 0.34 | 1.36 | 1.56 | 3.11 | - | 1.54 |
| 71 | Bicyclogermacrene | 1497 | 1499 | 0.47 | - | 0.19 | 0.44 | - | - | - |
| 72 | δ-Cadinene | 1526 | 1524 | 0.12 | - | 0.28 | 0.18 | 0.55 | - | - |
| 73 | Elemol | 1557 | 1558 | - | - | - | - | 0.51 | - | - |
| 74 | Veridiflorol | 1593 | 1593 | 0.11 | - | - | - | 0.32 | - | - |
| 75 | α-Eudesmol | 1657 | 1651 | - | - | - | - | 0.35 | - | - |
-, Not detected; RIL, literature values of retention indices.
Publisher’s Note: MDPI stays neutral with regard to jurisdictional claims in published maps and institutional affiliations. |
© 2022 by the authors. Licensee MDPI, Basel, Switzerland. This article is an open access article distributed under the terms and conditions of the Creative Commons Attribution (CC BY) license (https://creativecommons.org/licenses/by/4.0/).
Share and Cite
MDPI and ACS Style
Kowalczyk, A.; Kuś, P.; Marijanović, Z.; Tuberoso, C.I.G.; Fecka, I.; Jerković, I. Headspace Solid-Phase Micro-Extraction Versus Hydrodistillation of Volatile Compounds from Leaves of Cultivated Mentha Taxa: Markers of Safe Chemotypes. Molecules 2022, 27, 6561. https://doi.org/10.3390/molecules27196561
AMA Style
Kowalczyk A, Kuś P, Marijanović Z, Tuberoso CIG, Fecka I, Jerković I. Headspace Solid-Phase Micro-Extraction Versus Hydrodistillation of Volatile Compounds from Leaves of Cultivated Mentha Taxa: Markers of Safe Chemotypes. Molecules. 2022; 27(19):6561. https://doi.org/10.3390/molecules27196561
Chicago/Turabian StyleKowalczyk, Adam, Piotr Kuś, Zvonimir Marijanović, Carlo I. G. Tuberoso, Izabela Fecka, and Igor Jerković. 2022. "Headspace Solid-Phase Micro-Extraction Versus Hydrodistillation of Volatile Compounds from Leaves of Cultivated Mentha Taxa: Markers of Safe Chemotypes" Molecules 27, no. 19: 6561. https://doi.org/10.3390/molecules27196561
