Sustainable Protocol for the Synthesis of 2′,3′-Dideoxynucleoside and 2′,3′-Didehydro-2′,3′-dideoxynucleoside Derivatives

by
Virginia Martín-Nieves
1,
Yogesh S. Sanghvi
2,
Susana Fernández
1,* and
Miguel Ferrero
1,*
1
Departamento de Química Orgánica e Inorgánica, Universidad de Oviedo, 33006 Oviedo, Spain
2
Rasayan Inc., Encinitas, CA 92024, USA
*
Authors to whom correspondence should be addressed.
Molecules 2022, 27(13), 3993; https://doi.org/10.3390/molecules27133993
Submission received: 2 June 2022 / Revised: 13 June 2022 / Accepted: 20 June 2022 / Published: 21 June 2022
(This article belongs to the Special Issue Frontiers in Nucleic Acid Chemistry—in Memory of Professor Enrique Pedroso for His Outstanding Contributions to Nucleic Acid Chemistry)
Browse Figures
Versions Notes

Abstract

:
An improved protocol for the transformation of ribonucleosides into 2′,3′-dideoxynucleoside and 2′,3′-didehydro-2′,3′-dideoxynucleoside derivatives, including the anti-HIV drugs stavudine (d4T), zalcitabine (ddC) and didanosine (ddI), was established. The process involves radical deoxygenation of xanthate using environmentally friendly and low-cost reagents. Bromoethane or 3-bromopropanenitrile was the alkylating agent of choice to prepare the ribonucleoside 2′,3′-bisxanthates. In the subsequent radical deoxygenation reaction, tris(trimethylsilyl)silane and 1,1′-azobis(cyclohexanecarbonitrile) were used to replace hazardous Bu3SnH and AIBN, respectively. In addition, TBAF was substituted for camphorsulfonic acid in the deprotection step of the 5′-O-silyl ether group, and an enzyme (adenosine deaminase) was used to transform 2′,3′-dideoxyadenosine into 2′,3′-dideoxyinosine (ddI) in excellent yield.

Graphical Abstract

1. Introduction

Emerging viruses continue to be a global threat to human health. During the past 25 years, human immunodeficiency virus (HIV), the cause of AIDS, reached virtually every corner of the globe, with 680,000 dying of HIV-related illnesses worldwide in 2020 [1]. More than two-thirds of people infected with HIV live in Asia and Africa. Despite substantial progress in the development of anti-HIV drugs, only 20% of low- and middle-income countries in need of these drugs are receiving them. Among the different anti-HIV chemotherapeutic agents known, the Nucleoside Reverse Transcriptase Inhibitors (NRTI, Figure 1) represent an important class.
Since Mitsuya et al. [2] identified 3′-azido-2′,3′-dideoxythymidine (zidovudine, AZT) as a potent antiviral agent against HIV-1, other nucleoside derivatives showing activity against this virus, such as ddI, ddC, d4T, 3TC, FTC, ABV and TDF, have been successfully developed [3,4]. Most of these compounds are 2′,3′-dideoxynucleosides or 2′,3′-didehydro-2′,3′-dideoxynucleosides and are characterized by lacking hydroxyl groups at the 2′- and 3′-positions.
Various methodologies are reported in the literature for the synthesis of the title compounds. These protocols require formation of the glycosidic bonds [5,6,7,8,9,10,11], the Eastwood procedure [12,13], the Corey–Winter synthesis [14,15,16,17,18], the Barton–McCombie deoxygenation [16,19,20,21,22], the Garegg–Samuelsson reaction [23], photoinduced deoxygenations [24,25], reductive elimination [13,26,27,28,29,30,31,32,33,34,35], or metathesis reaction [36,37]. However, careful review of the literature indicated that the majority of these protocols are not amenable for large-scale production to meet the global demand of antiviral nucleosides. Particularly, some of the methods described involve difficult control of diastereoselectivity in glycosidic bond formation, reagents that are expensive or not environmentally friendly, or partial nucleoside decomposition with loss of the pyrimidine base.
Considering the ongoing challenge of HIV infections in underdeveloped countries, among NRTIs, ddI, ddC and d4T are the most affordable drugs for poor patient populations in Asia and Africa. Our objective is to develop improved protocols that are simple, inexpensive, safe and industrially benign for the large-scale syntheses of these three nucleoside derivatives and their analogs, with different heterocyclic bases. For that purpose, we develop a procedure that involves a Barton–McCombie deoxygenation and the use of commercial ribonucleosides as starting materials.

2. Results and Discussion

The selective removal of the hydroxyl groups at the 2′- and 3′-positions of the ribonucleoside requires appropriate protection of the 5′-OH group. Due to prior experience in our group [38,39], we decided to carry out the regioselective enzymatic acylation of the primary hydroxyl with acetonoxime levulinate as an acylating agent and Candida antarctica lipase B (CAL-B) as the catalyst. The reactions were performed in THF at 250 rpm, varying the number of equivalents of the acyl donor, the temperature and the substrate concentration, depending on the starting nucleoside (Scheme 1).
Enzymatic acylation of β-d-uridine (1a) and β-d-5-methyluridine (1b) with 3 equiv of acetonoxime levulinate at 30 °C in the presence of CAL-B afforded the 5′-O-levulinyl esters 2a and 2b with excellent regioselectivity and high yields in short reaction times (entries 1 and 2, Table 1). However, the reaction with β-d-cytidine (1c) is slower, and complete conversion is not achieved, despite using long reaction times, 55 °C instead 30 °C, more dilute conditions, a large excess of acylating agent (9 vs. 3 equiv), and a higher ratio of 1c:CAL-B, 1:2 (w/w). This resulted in the undesired acylation of the secondary hydroxyl group (entry 3, Table 1). The low reactivity was attributed to the poor solubility of the starting nucleoside in the reaction mixture. Next, the enzymatic acylation reaction of the base-protected cytidine was attempted. A complete conversion was observed when the same process was carried out with N4-benzoyl-β-d-cytidine (1d), giving rise to the acylated derivative 2d, with total selectivity and 93% yield (entry 4, Table 1). A moderate selectivity and absence of complete conversion was also observed when the substrate was adenosine (1e), which was attributed to the low solubility of this compound in the reaction medium (entry 5, Table 1). In the case of inosine (1f), 90 h of reaction time was needed to achieve complete conversion, and although the formation of other acylation products occurred in a low ratio (entry 6, Table 1), compound 2f was obtained in low yield after column chromatography purification.
Next, transformation of the 5′-O-levulinylribonucleoside 2a into the corresponding bisxanthate was carried out by reaction with carbon disulfide followed by alkylation with bromoethane, a safer and cheaper reagent than other alkylating agents previously used, such as iodomethane or 3-bromopropanenitrile (Scheme 2) [16]. However, the desired bisxanthate 3a was obtained in a low 25% yield because compound 4a, resulting from the reaction at the primary hydroxyl, which was deprotected under the reaction conditions (NaOH 5 M), was formed as a by-product. Although different bases (inorganic: t BuOK, K2CO3; organic: DIPEA, DBU) were studied as alternatives, the appropriate conditions to carry out the reaction were not found, and the levulinyl group was not pursued as protecting group for the 5′-position.
Therefore, we elected 5′-O-tert-butyldimethylsilyl (TBS) as the protecting group of choice due to low cost, high regioselectivity and stability during base treatment. Various ribonucleosides 1 were regioselectively protected at the primary hydroxyl as silyl ethers by treatment with TBSCl and imidazole in DMF for 12 h at room temperature (Scheme 3), furnishing the 5′-O-TBS protected nucleosides 5 in high to excellent yields (Table 2). TBS-protected nucleosides 5 were pure enough to carry forward into the next step without further purification by column chromatography. Next, the conversion of 5 to 6 was carefully optimized using the correct combination of the solvent, base, and reaction temperature. The ideal reaction condition calls for the reaction of 5 with CS2 in the presence of 3 M aqueous NaOH solution and DMF as solvent for 30 min at 0 °C, and subsequent in situ alkylation with bromoethane for 20 min, affording bisxanthates 6a–f in high yields. It is important to note that compounds 6 were isolated with suitable purity by thorough washing with heptane, avoiding chromatographic purification. We expect the two-step simple chromatography-free protocol for the synthesis of bisxanthates 6a–f will be conducive for scale-up.
Next, we tested the reduction of Bisxanthates 6 using conventional conditions to ensure the formation of desired nucleosides 7. Using tributyltin hydride (Bu3SnH) and 2,2′-azobis(2-methylpropionitrile) (AIBN) in refluxing acetonitrile furnished 7a,b,d,e in moderate yield (60%) and 7c in low yield (35%) (Table 2). Interestingly, conversion of the hypoxanthine derivative 6f resulted in a mixture of products difficult to separate and identify. Next, we sought to find a replacement for the traditional reducing agent Bu3SnH, which is toxic, expensive and difficult to remove from the reaction mixture. We elected to use tris(trimethylsilyl)silane [(Me3Si)3SiH] [40,41] as a greener, non-toxic reagent for reduction. We also replaced hazardous AIBN with a safer radical initiator 1,1′-azobis(cyclohexanecarbonitrile) (ACHN), which has a longer half-life than AIBN. Under optimized reaction conditions, reduction of bisxanthates 6 with green reagents afforded improved yields for uracil, thymine and adenine derivatives furnishing 7a, 7b and 7e in 65%, 75% and 77% yield, respectively. In the case of cytosine, better conversion was observed with the N-protected derivative. It is important to note that reaction of the hypoxanthine derivative 6f with (Me3Si)3SiH and ACHN allowed the synthesis of 2′,3′-didehydro-2′,3′-dideoxynucleoside 7f in 80% yield, while its synthesis with Bu3SnH was not possible. Thus, the combination of [(Me3Si)3SiH] and ACHN represents a considerable improvement in the scalable green synthetic strategy proposed for the synthesis of these nucleoside analogs.
Compounds 7 were desilylated with tetrabutylammonium fluoride (TBAF) at room temperature to offer the 2′,3′-didehydro-2′,3′-dideoxynucleosides 8 in excellent yields. Nucleoside 8b is the antiretroviral drug stavudine (d4T), establishing an efficient route of synthesis. The use of TBAF for deprotection of nucleosides during the final step results in trace contamination of the reagent. Therefore, we searched for an alternative TBS deprotection reagent that is easily removed. Camphorsulfonic acid [(–)-CSA] [42,43] emerged as a reagent of choice; it is an acid derived from camphor that has low sensitivity to air, is compatible with water, and is environmentally friendly. Treatment of 7 with (–)-CSA in MeOH leads to the 2′,3′-didehydro-2′,3′-dideoxynucleosides of uracil and thymine 8a and 8b with 92% and 95% yield, respectively. However, this protocol is not suitable for purine derivatives due to the cleavage of the glycosidic bond in the acidic reaction medium. Other TBS deprotection methods using povidone-iodine (PVP-1) [44] or phosphomolybdic acid [45] were not successful.
Hydrogenation of 2′,3′-didehydro-2′,3′-dideoxynucleosides 8 using palladium on carbon in methanol at room temperature afford the corresponding 2′,3′-dideoxynucleosides 9a,b,e,f in high yields. The reaction of the N4-benzoylcytidine derivative 8d was carried out under similar conditions, but it resulted in the formation of a mixture of products. Therefore, we opted to reverse the sequence of the reactions, first carrying out the N-benzoyl deprotection by treating 8d with an aqueous ammonia solution at 55 °C and then performing hydrogenation under the same conditions, isolating the drug zalcitabine (9c) with a 70% yield (Scheme 4).
Additionally, the drug didanosine (9f) was obtained via enzymatic deamination of adenosine analogue 9e (Scheme 5) [46]. Treatment of 9e with adenosine deaminase (ADA) in a 0.10 M phosphate buffer (pH 7) and 3% DMSO provides the 2′,3′-dideoxynucleoside 9f in an almost quantitative yield (95%) after 3 h of reaction.
The structure of the synthesized compounds was determined by NMR spectroscopy. The signals of the 1H and 13C-NMR spectra of the nucleoside derivatives are fully assigned on the basis of 1H and 13C chemical shifts, proton coupling constants, and two-dimensional 1H-1H (COSY) and 1H-13C spectra (HSQC and HMBC). As an illustrating example, the identification of zalcitabine (9c) was performed as follows. The protons H1′, H4′, H5′, H5 and H6 are assigned by 1H-NMR. Subsequent analysis of the 1H-13C HSQC experiment leads to identification of the corresponding carbons. Several multiplets at 1.6–2.5 ppm in the 1H-NMR spectrum are assigned, but not identified, to the hydrogens H2′ and H3′. In addition, the signals at 24.7 and 31.9 ppm in the 13C-NMR spectrum are assigned to C2′ and C3′. A correlation cross-peak in the 1H-13C HMBC experiment between the H5′ protons and the carbon at 24.7 ppm allows the assignment of C3′. This has been corroborated by a correlation cross-peak between H1′ and C3′. Further analysis of the 1H-13C HSQC experiment leads to unambiguously identification of H2 and H3. Finally, a correlation cross-peak between H1′ and the signal at 157.3 ppm in the 1H-13C HMBC experiment allows the assignment of C2, being the signal of the 13C-NMR spectrum at 165.9 ppm, which does not appear in the DEPT-135 experiment, identified as C4. The COSY experiment validates the assignment made. It is worth mentioning the three-bond correlation of H1′ with the two hydrogens H2′, but not with H3′, as well as the three-bond correlation of H4′ with the two hydrogens of H3′, but not with H2′.

3. Materials and Methods

3.1. General

All chemical reagents were purchased from Aldrich, Sigma, Merck, Acros or Alfa Aesar, and used without further purification. Thin-layer chromatography (TLC) was carried out on aluminum-backed Silica-Gel 60 F254 plates. The spots were visualized with UV light. Column chromatography was performed using Silica Gel (60 Å, 230 × 400 mesh).
Candida antarctica lipase type B (CAL-B, Novozyme 435, immobilized by adsorption in Lewatit, 9120 PLU/g) was purchased from Novozymes. Adenosine deaminase (ADA, 2–5 units/mg, intestinal bovine source, lyophilized) was purchased from Creative Enzymes.
NMR spectra were measured on Bruker DPX-300 (1H 300.13 MHz and 13C 75.5 MHz). High resolution mass spectra (HRMS) were recorded on a Bruker MicrOTOF-Q mass spectrometer under electron spray ionization (ESI). Melting points were recorded on a Gallemkamp apparatus with samples in open capillary tubes. Full analytical data for new compounds are available in the Supporting Information.
The structure of the synthesized compounds was determined by NMR spectroscopy. The signals of the 1H and 13C-NMR spectra are fully assigned on the basis of 1H and 13C chemical shifts, proton coupling constants, and two-dimensional 1H-1H (COSY) and 1H-13C spectra (HSQC and HMBC). Full NMR data are available in the Supporting Information. The level of purity is indicated by the inclusion of copies of 1H, 13C, DEPT and 2D NMR spectra.

3.2. General Procedure for Enzymatic Acylation of 1 Synthesis of 2

Anhydrous THF was added to an Erlenmeyer flask containing ribonucleoside 1 (0.2 mmol), acetonoxime levulinate and CAL-B (acylating agent equiv, enzyme ratio, concentration, temperature, and reaction time are indicated in Table 1) under nitrogen. The reaction was stirred at 250 rpm and followed by TLC (10% MeOH/CH2Cl2). Next, the enzyme was filtered and washed with CH2Cl2 and MeOH, and the solvents were removed under reduced pressure. The reaction crude was purified by column chromatography (gradient eluent: 2–5% MeOH/CH2Cl2), obtaining the corresponding acylated ribonucleosides 2a–f (yields are indicated in Table 1).
5′-O-Levulinyl-β-d-uridine (2a). White solid, mp: 60–62 °C. Rf: 0.32 (10% MeOH/CH2Cl2). HRMS (ESI+, m/z): Calcd. for C14H19N2O8 [M + H]+: 343.1136. Found: 343.1131.
5′-O-Levulinyl-β-d-5-methyluridine (2b). White solid, mp: 134–136 °C. Rf: 0.33 (10% MeOH/CH2Cl2). HRMS (ESI+, m/z): Calcd. for C15H21N2O8 [M + H]+: 357.1292. Found: 357.1279.
5′-O-Levulinyl-β-d-cytidine (2c). White solid, mp: 53–55 °C. Rf: 0.35 (20% MeOH/CH2Cl2). HRMS (ESI+, m/z): Calcd. for C14H20N3O7 [M + H]+: 342.1296. Found: 342.1295.
N4-Benzoyl-5′-O-levulinyl-β-d-cytidine (2d). White solid, mp: 193–195 °C. Rf: 0.47 (10% MeOH/CH2Cl2). HRMS (ESI+, m/z): Calcd. for C21H24N3O8 [M + H]+: 446.1563. Found: 446.1564.
5′-O-Levulinyl-β-d-adenosine (2e). White solid, mp: 116 °C (decompose). Rf: 0.26 (10% MeOH/CH2Cl2). HRMS (ESI+, m/z): Calcd. for C15H20N5O6 [M + H]+: 366.1408. Found: 366.1406.
5′-O-Levulinyl-β-d-inosine (2f). White solid, mp: 54–56 °C. Rf: 0.44 (20% MeOH/CH2Cl2). HRMS (ESI+, m/z): Calcd. for C15H19N4O7 [M + H]+: 367.1248. Found: 367.1253.

3.3. Synthesis of 5

To a solution of ribonucleoside 1 (0.4 M for 1a,b and 0.2 M for 1c–f) in anhydrous DMF were added imidazole (2.4 equiv) and TBSCl (1.2 equiv). The mixture was stirred at rt for 12 h. Then, the residue was poured into EtOAc and washed with water. The organic phase was dried, filtered and evaporated under reduced pressure. Compounds 5 were obtained with sufficient purity for the next step and the following yields: 93% for 5a, 85% for 5b, 91% for 5c, 80% for 5d, 85% for 5e and 80% for 5f. If desired, a chromatographic column could be performed (gradient eluent: 5–10% MeOH/CH2Cl2).
5′-O-(tert-Butyldimethylsilyl)-β-d-uridine (5a). White solid, mp: 94–96 °C. Rf: 0.41 (10% MeOH/CH2Cl2). HRMS (ESI+, m/z): Calcd. for C15H27N2O6Si [M + H]+: 359.16329. Found: 359.16332.
5′-O-(tert-Butyldimethylsilyl)-β-d-5-methyluridine (5b). White solid, mp: 197–198 °C. Rf: 0.35 (10% MeOH/CH2Cl2). HRMS (ESI+, m/z): Calcd. for C16H29N2O6Si [M + H]+: 373.1789. Found: 373.1790.
5′-O-(tert-Butyldimethylsilyl)-β-d-cytidine (5c). Colorless foam. Rf: 0.52 (10% MeOH/CH2Cl2). HRMS (ESI+, m/z): Calcd. for C15H28N3O5Si [M + H]+: 358.1798. Found: 358.1791.
N4-Benzoyl-5′-O-(tert-butyldimethylsilyl)-β-d-cytidine (5d). White solid, mp: 86–88 °C. Rf: 0.47 (10% MeOH/CH2Cl2). HRMS (ESI+, m/z): Calcd. for C22H31N3O6Si [M + H]+: 462.2055. Found: 462.2048.
5′-O-(tert-Butyldimethylsilyl)-β-d-adenosine (5e). White solid, mp: 178–179 °C. Rf: 0.33 (10% MeOH/CH2Cl2). HRMS (ESI+, m/z): Calcd. for C16H28N5O4Si [M + H]+: 382.1911. Found: 382.1902.
5′-O-(tert-Butyldimethylsilyl)-β-d-inosine (5f). White solid, mp: 229–230 °C. Rf: 0.17 (10% MeOH/CH2Cl2). HRMS (ESI+, m/z): Calcd. for C16H27N4O5Si [M + H]+: 383.1745. Found: 383.1743.

3.4. Synthesis of 6

To a solution of 5′-O-silyl protected ribonucleosides 5 and CS2 (7 equiv) in DMF (0.4 M) at 0 °C, an aqueous 3 M NaOH solution (3 equiv) was added dropwise. After being stirred for 30 min at this temperature, bromoethane (15 equiv) was added dropwise, and stirring continued for 20 min at rt. Then, the residue was poured into EtOAc and washed with water. The organic phase was dried, filtered, and evaporated under reduced pressure. The resulting solid was thoroughly washed with heptane to afford compounds 6 with suitable purity, avoiding chromatographic purification. Yields: 82% for 6a, 81% for 6b, 75% for 6c, 72% for 6d, 90% for 6e and 70% for 6f.
5′-O-(tert-Butyldimethylsilyl)-2′,3′-bis-O-[(ethylthio)thiocarbonyl]-β-d-uridine (6a). White solid, mp: 102–104 °C. Rf: 0.45 (40% EtOAc/hexane). HRMS (ESI+, m/z): Calcd. for C21H35N2O6S4Si [M + H]+: 567.1142. Found: 567.1133.
5′-O-(tert-Butyldimethylsilyl)-2′,3′-bis-O-[(ethylthio)thiocarbonyl]-β-d-5-methyluridine (6b). White solid, mp: 131–132 °C. Rf: 0.50 (40% EtOAc/hexane). HRMS (ESI+, m/z): Calcd. for C22H37N2O6S4Si [M + H]+: 581.1298. Found: 581.1292.
5′-O-(tert-Butyldimethylsilyl)-2′,3′-bis-O-[(ethylthio)thiocarbonyl]-β-d-cytidine (6c). White solid, mp: 99–101 °C. Rf: 0.35 (10% MeOH/CH2Cl2). HRMS (ESI+, m/z): Calcd. for C21H36N3O5S4Si [M + H]+: 566.1302. Found: 566.1295.
N4-Benzoyl-5′-O-(tert-butyldimethylsilyl)-2′,3′-bis-O-[(ethylthio)thiocarbonyl]-β-d-cytidine (6d). White solid, mp: 140–141 °C. Rf: 0.25 (40% EtOAc/hexane). HRMS (ESI+, m/z): Calcd. for C28H40N3O6S4Si [M + H]+: 670.1564. Found: 670.1558.
5′-O-(tert-Butyldimethylsilyl)-2′,3′-bis-O-[(ethylthio)thiocarbonyl]-β-d-adenosine (6e). White solid, mp: 164–165 °C. Rf: 0.18 (50% EtOAc/hexane). HRMS (ESI+, m/z): Calcd. for C22H36N5O4S4Si [M + H]+: 590.1414. Found: 590.1409.
5′-O-(tert-Butyldimethylsilyl)-2′,3′-bis-O-[(ethylthio)thiocarbonyl]-β-d-inosine (6f). White solid, mp: 201–203 °C. Rf: 0.36 (10% MeOH/CH2Cl2). HRMS (ESI+, m/z): Calcd. for C22H36N4O5S4Si [M + H]+: 591.1254. Found: 591.1239.

3.5. Synthesis of 7

3.5.1. Method A: Bu3SnH

To a solution of 6 in anhydrous MeCN (0.13 M) at reflux was added dropwise a solution of Bu3SnH (4 equiv) and AIBN (0.4 equiv) in anhydrous MeCN (0.5 M). After being stirred for 1 h at this temperature, the solvent was removed under vacuum, and the residue was purified by column chromatography (gradient eluents: 40–50% EtOAc/hexane for 7a,b; 70% EtOAc/hexane-EtOAc for 7d; 2–5% MeOH/CH2Cl2 for 7c,e) to afford 7a, 7b, 7d and 7e in 60% yield and 7c in 35% yield.

3.5.2. Method B: (Me3Si)3SiH

To a solution of 6 in anhydrous MeCN (0.13 M) at reflux, was added dropwise a solution of (Me3Si)3SiH (4 equiv) and 1,1′-azobis(cyclohexanecarbonitrile) (0.4 equiv) in anhydrous MeCN (0.5 M). The mixture was stirred for 1 h (6a–e) or 6 h (6f) at this temperature. Next, the solvent was removed under vacuum, and the residue was purified by column chromatography (gradient eluents: 40–50% EtOAc/hexane for 7a,b; 70% EtOAc/hexane-EtOAc for 7d; 2–5% MeOH/CH2Cl2 for 7e,f) to afford 7 (65% for 7a, 75% for 7b, 40% for 7d, 77% for 7e and 80% yield for 7f).
5′-O-(tert-Butyldimethylsilyl)-2′,3′-didehydro-2′,3′-dideoxy-β-d-uridine (7a). White solid, mp: 166–168 °C. Rf: 0.16 (40% EtOAc/hexane). HRMS (ESI+, m/z): Calcd. for C15H25N2O4Si [M + H]+: 325.1578. Found: 325.1573.
5′-O-(tert-Butyldimethylsilyl)-2′,3′-didehydro-3′-deoxy-β-d-5-thymidine (7b). White solid, mp: 169–171 °C. Rf: 0.29 (40% EtOAc/hexane). HRMS (ESI+, m/z): Calcd. for C16H27N2O4Si [M + H]+: 339.1735. Found: 339.1729.
5′-O-(tert-Butyldimethylsilyl)-2′,3′-didehydro-2′,3′-dideoxy-β-d-cytidine (7c). White solid, mp: 176–178 °C. Rf: 0.52 (10% MeOH/CH2Cl2). HRMS (ESI+, m/z): Calcd. for C15H26N3O3Si [M + H]+: 324.1738. Found: 324.1743.
N4-Benzoyl-5′-O-(tert-butyldimethylsilyl)-2′,3′-didehydro-2′,3′-dideoxy-β-d-cytidine (7d). White solid, mp: 137–138 °C. Rf: 0.19 (40% EtOAc/hexane). HRMS (ESI+, m/z): Calcd. for C22H30N3O4Si [M + H]+: 428.2000. Found: 428.1993.
5′-O-(tert-Butyldimethylsilyl)-2′,3′-didehydro-2′,3′-dideoxy-β-d-adenosine (7e). White solid, mp: 118–120 °C. Rf: 0.48 (10% MeOH/CH2Cl2). HRMS (ESI+, m/z): Calcd. for C16H26N5O2Si [M + H]+: 348.1850. Found: 348.1848.
5′-O-(tert-Butyldimethylsilyl)-2′,3′-didehydro-2′,3′-dideoxy-β-d-inosine (7f). White solid, mp: 178–180 °C. Rf: 0.36 (10% MeOH/CH2Cl2). HRMS (ESI+, m/z): Calcd. for C16H25N4O3Si [M + H]+: 349.1690. Found: 349.1690.

3.6. Synthesis of 8

3.6.1. Method A: TBAF

TBAF (2 equiv, 1.0 M in THF) was added dropwise to a stirred solution of 7 (1 equiv) in anhydrous THF (0.1 M) at 0 °C. After 5 min, the ice bath was removed, and the reaction mixture was stirred at rt for 1 h. Next, the solvent was removed under vacuum, and the residue was purified by column chromatography (5% MeOH/CH2Cl2 for 8a,b,d; 15% MeOH/CH2Cl2 for 8e,f) to afford 8a,e in 95%, 8b,d in 90%, and 8f in 75% yields.

3.6.2. Method B: (–)-CSA

(–)-CSA (1 equiv) was added to a solution of 7 in anhydrous MeOH (0.1 M) at 0 °C, and the reaction was stirred at rt for 1 h. Solid NaHCO3 was then added, and the mixture was stirred for a further 5 min. Next, the solvent was removed under vacuum, and the residue was purified by column chromatography (5% MeOH/CH2Cl2) to afford 8a in 92% and 8b in 95% yields.
2′,3′-Didehydro-2′,3′-dideoxy-β-d-uridine (8a). White solid, mp: 154–155 °C. Rf: 0.40 (10% MeOH/CH2Cl2). HRMS (ESI+, m/z): Calcd. for C9H10N2NaO4 [M + Na]+: 233.0533. Found: 233.0537.
2′,3′-Didehydro-3′-deoxy-β-d-5-thymidine (8b). White solid, mp: 165–166 °C. Rf: 0.42 (10% MeOH/CH2Cl2). HRMS (ESI+, m/z): Calcd. for C10H13N2O4 [M + H]+: 225.0870. Found: 225.0873.
N4-Benzoyl-2′,3′-didehydro-2′,3′-dideoxy-β-d-cytidine (8d). White solid, mp: 280 °C (decompose). Rf: 0.66 (10% MeOH/CH2Cl2). HRMS (ESI+, m/z): Calcd. for C16H16N3O4 [M + H]+: 314.1135. Found: 314.1140.
2′,3′-Didehydro-2′,3′-dideoxy-β-d-adenosine (8e). White solid, mp: 185–186 °C. Rf: 0.24 (10% MeOH/CH2Cl2). HRMS (ESI+, m/z): Calcd. for C10H12N5O2 [M + H]+: 234.0986. Found: 234.0984.
2′,3′-Didehydro-2′,3′-dideoxy-β-d-inosine (8f). White solid, mp: >300 °C. Rf: 0.19 (10% MeOH/CH2Cl2). HRMS (ESI+, m/z): Calcd. for C10H11N4O3 [M + H]+: 235.0826. Found: 235.0826.

3.7. Synthesis of 9

A flask containing 8 and 10% Pd/C (0.1 equiv) was exposed to a positive pressure of hydrogen gas (balloon). Anhydrous MeOH (0.02M) was added, and the mixture was stirred vigorously for 2 h under a hydrogen atmosphere. The suspension was filtered on Celite®® and washed with MeOH, and the solvent was removed under vacuum. The crude was purified by column chromatography (gradient eluent 2–10% MeOH/CH2Cl2) to afford 9a in 82%, 9b in 87%, 9e in 88%, and 9f in 80% yields.
2′,3′-Dideoxy-β-d-uridine (9a). White solid, mp: 116–117 °C. Rf: 0.42 (10% MeOH/CH2Cl2). HRMS (ESI+, m/z): Calcd. for C9H13N2O4 [M + H]+: 213.0870. Found: 213.0875.
3′-Deoxy-β-d-5-thymidine (9b). White solid, mp: 155–156 °C. Rf: 0.44 (10% MeOH/CH2Cl2). HRMS (ESI+, m/z): Calcd. for C10H15N2O4 [M + H]+: 227.1026. Found: 227.1032.
2′,3′-Dideoxy-β-d-adenosine (9e). White solid, mp: 186–188 °C. Rf: 0.33 (10% MeOH/CH2Cl2). HRMS (ESI+, m/z): Calcd. for C10H14N5O2 [M + H]+: 236.1142. Found: 236.1148.
2′,3′-Dideoxy-β-d-inosine (9f). White solid, mp: 160–163 °C. Rf: 0.28 (10% MeOH/CH2Cl2). HRMS (ESI+, m/z): Calcd. for C10H13N4O3 [M + H]+: 237.0982. Found: 237.0989.

3.7.1. Synthesis of Zalcitabine (9c)

A suspension of 8d (50 mg, 0.16 mmol) in an aqueous 32% NH3 solution (2.5 mL) was stirred at 55 °C for 12 h. The solvent was removed under vacuum. Then, a mixture of the resulting residue and 10% Pd/C (17 mg) was exposed to a positive pressure of hydrogen gas (balloon). Anhydrous MeOH (8 mL) was added, and the mixture was stirred vigorously for 2 h under a hydrogen atmosphere. The suspension was filtered on Celite®® and washed with MeOH, and the solvent was removed under vacuum. The crude was purified by column chromatography (20% MeOH/CH2Cl2) previously packed with silica gel using a 10% Et3N solution in MeOH:CH2Cl2 (2:8, v:v). Compound 9c was isolated in 70% yield.
2′,3′-Dideoxy-β-d-cytidine (9c). White solid, mp: 208–210 °C. Rf: 0.27 (20% MeOH/CH2Cl2). HRMS (ESI+, m/z): Calcd. for C9H14N3O3 [M + H]+: 212.1030. Found: 212.1034.

3.7.2. Synthesis of Didanosine (9f)

To a suspension of 9e (40 mg, 0.17 mmol) in a phosphate buffer solution pH 7 (0.8 mL) and 3% of DMSO, to promote dissolution, 2 mg of adenosine deaminase dissolved in the same buffer (0.2 mL) was added. The reaction was stirred at 250 rpm and 30 °C for 3 h. The crude was purified by column chromatography (10% MeOH/CH2Cl2) to afford 9f in 95% yield.

4. Conclusions

We report an economical and green synthesis of 2′,3′-dideoxynucleoside and 2′,3′-didehydro-2′,3′-dideoxynucleoside derivatives of uracil, thymine, cytosine, adenine and hypoxanthine through deoxygenation of the corresponding 2′,3′-O-bisxanthate ribonucleosides. This protocol involves the use of tris(trimethylsilyl)silane [(Me3Si)3SiH] instead of Bu3SnH, which is toxic, expensive and difficult to remove from the reaction mixture, as a radical-based reducing agent. We also replaced potentially explosive AIBN with 1,1′-azobis(cyclohexanecarbonitrile) (ACHN) as a safer alternative. In addition, for the deprotection of silyl ethers at the 5′-position of the nucleosides, we were able to substitute TBAF for camphorsulfonic acid as a more sustainable reagent, in pyrimidine derivatives. The use of (Me3Si)3SiH in the deoxygenation of bisxanthate hypoxanthine derivative allows easy access to 2′,3′-didehydro-2′,3′-dideoxyinosine, an antiviral agent. As an alternative synthesis, this nucleoside was also obtained in excellent yield via enzymatic deamination of 2′,3′-dideoxyadenosine with adenosine deaminase. It is important to emphasize that these protocols may have potential industrial application for the synthesis of three of the most demanding anti-HIV drugs: stavudine (d4T), zalcitabine (ddC) and didanosine (ddI).

Supplementary Materials

The following supporting information can be downloaded at: https://www.mdpi.com/article/10.3390/molecules27133993/s1, 1H and 13C-NMR data with their assignment for all compounds. Level of purity is indicated by the inclusion of copies of 1H, 13C, and DEPT NMR spectra; in addition, some 2D NMR experiments are shown, which were used to assign the peaks.

Author Contributions

Conceptualization, M.F., S.F. and Y.S.S.; methodology, M.F., S.F. and Y.S.S.; validation, M.F. and S.F.; investigation, V.M.-N.; resources, M.F., S.F. and Y.S.S.; data curation, M.F. and S.F.; writing—original draft preparation, M.F., S.F., Y.S.S. and V.M.-N.; writing—review and editing, M.F., S.F. and Y.S.S.; visualization, M.F. and V.M.-N.; supervision, M.F., S.F. and Y.S.S.; project administration, M.F. and S.F.; funding acquisition, M.F. All authors have read and agreed to the published version of the manuscript.

Funding

This research was funded by Principado de Asturias, project number SV-PA-21-AYUD-2021-51542, and the APC was waived.

Institutional Review Board Statement

Not applicable.

Informed Consent Statement

Not applicable.

Data Availability Statement

Not applicable.

Acknowledgments

V.M.-N. thanks FICYT (Asturias) for a predoctoral Severo Ochoa fellowship.

Conflicts of Interest

The authors declare no conflict of interest. The funders had no role in the design of the study; in the collection, analyses, or interpretation of data; in the writing of the manuscript, or in the decision to publish the results.

Sample Availability

Not applicable.

References

  1. World Health Organization. Number of Deaths due to HIV/AIDS. Available online: https://www.who.int/data/gho/data/indicators/indicator-details/GHO/number-of-deaths-due-to-hiv-aids (accessed on 19 June 2022).
  2. Mitsuya, H.; Weinhold, K.; Furman, P.A.; St. Clair, M.H.; Lehrman, S.N.; Gallo, R.C.; Bolognesi, D.; Barry, D.W.; Broder, S. 3′-Azido-3′-deoxythymidine (BW A509U): An antiviral agent that inhibits the infectivity and cytopathic effect of human T-lymphotropic virus type III/lymphadenopathy-associated virus in vitro. Proc. Natl. Acad. Sci. USA 1985, 82, 7096–7100. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  3. Yates, M.K.; Seley-Radtke, K.L. The evolution of antiviral nucleoside analogues: A review for chemists and non-chemists. Part II: Complex modifications to the nucleoside scaffold. Antivir. Res. 2019, 162, 5–21. [Google Scholar] [CrossRef] [PubMed]
  4. Seley-Radtke, K.L.; Yates, M.K. The evolution of nucleoside analogue antivirals: A review for chemists and non-chemists. Part 1: Early structural modifications to the nucleoside scaffold. Antivir. Res. 2018, 154, 66–86. [Google Scholar] [CrossRef] [PubMed]
  5. Wilson, L.J.; Liotta, D. A general method for controlling glycosylation stereochemistry in the synthesis of 2′-deoxyribose nucleosides. Tetrahedron Lett. 1990, 31, 1815–1818. [Google Scholar] [CrossRef]
  6. Chu, C.K.; Babu, J.R.; Beach, J.W.; Ahn, S.K.; Huang, H.; Jeong, L.S.; Lee, S.J. A highly stereoselective glycosylation of 2-(phenylselenenyl)-2,3-dideoxyribose derivative with thymine: Synthesis of 3′-deoxy-2′,3′-didehydrothymidine and 3′-deoxythymidine. J. Org. Chem. 1990, 55, 1418–1420. [Google Scholar] [CrossRef]
  7. Beach, J.W.; Kim, H.O.; Jeong, L.S.; Nampalli, S.; Islam, Q.; Ahn, S.K.; Babu, J.R.; Chu, C.K. A highly stereoselective synthesis of anti-HIV 2′,3′-dideoxy- and 2′,3′-didehydro-2′,3′-dideoxynucleosides. J. Org. Chem. 1992, 57, 3887–3894. [Google Scholar] [CrossRef]
  8. McDonald, F.E.; Gleason, M.M. Asymmetric Syntheses of Stavudine (d4T) and Cordycepin by Cycloisomerization of Alkynyl Alcohols to Endocyclic Enol Ethers. Angew. Chem. Int. Ed. Engl. 1995, 34, 350–352. [Google Scholar] [CrossRef]
  9. Diaz, Y.; El-Laghdach, A.; Matheu, M.S.; Castillon, S. Stereoselective Synthesis of 2′,3′-Dideoxynucleosides by Addition of Selenium Electrophiles to Glycals. A Formal Synthesis of D4T from 2-Deoxyribose. J. Org. Chem. 1997, 62, 1501–1505. [Google Scholar] [CrossRef]
  10. Chiacchio, U.; Rescifina, A.; Iannazzo, D.; Romeo, G. Stereoselective Synthesis of 2′-Amino-2′,3′-dideoxynucleosides by Nitrone 1,3-Dipolar Cycloaddition:  A New Efficient Entry Toward d4T and Its 2-Methyl Analogue. J. Org. Chem. 1999, 64, 28–36. [Google Scholar] [CrossRef]
  11. Álvarez de Cienfuegos, L.; Mota, A.J.; Rodríguez, C.; Robles, R. Highly efficient synthesis of 2′,3′-didehydro-2′,3′-dideoxy-β-nucleosides through a sulfur-mediated reductive 2′,3′-trans-elimination. From iodomethylcyclopropanes to thiirane analogs. Tetrahedron Lett. 2005, 46, 469–473. [Google Scholar] [CrossRef]
  12. Shiragamai, H.; Irie, Y.; Shirae, H.; Yokozeki, K.; Yasuda, N. Synthesis of 2′, 3′-dideoxyuridine via deoxygenation of 2′, 3′-O-(methoxymethylene) uridine. J. Org. Chem. 1988, 53, 5170–5173. [Google Scholar] [CrossRef]
  13. Mansuri, M.M.; Starrett, J.E.; Wos, J.A.; Tortolani, D.R.; Brodfuehrer, P.R.; Howell, H.G.; Martin, J.C. Preparation of 1-(2,3-dideoxy-.beta.-d-glycero-pent-2-enofuranosyl)thymine (d4T) and 2′,3′-dideoxyadenosine (ddA): General methods for the synthesis of 2′,3′-olefinic and 2′,3′-dideoxy nucleoside analogs active against HIV. J. Org. Chem. 1989, 54, 4780–4785. [Google Scholar] [CrossRef]
  14. Corey, E.J.; Winter, R.A.E. A new, stereospecific olefin synthesis from 1, 2-diols. J. Am. Chem. Soc. 1963, 85, 2677–2678. [Google Scholar] [CrossRef]
  15. Corey, E.J.; Hopkins, P.B. A mild procedure for the conversion of 1,2-diols to olefins. Tetrahedron Lett. 1982, 23, 1979–1982. [Google Scholar] [CrossRef]
  16. Chu, C.K.; Bhadti, V.S.; Doboszewski, B.; Gu, Z.P.; Kosugi, Y.; Pullaiah, K.C.; Van Roey, P. General syntheses of 2′,3′-dideoxynucleosides and 2′,3′-didehydro-2′,3′-dideoxynucleosides. J. Org. Chem. 1989, 54, 2217–2225. [Google Scholar] [CrossRef]
  17. Dudycz, L.W. Synthesis of 2′,3′-Dideoxyuridine Via the Corey-Winter Reaction. Nucleosides Nucleotides 1989, 8, 35–41. [Google Scholar] [CrossRef]
  18. Manchand, P.S.; Belica, P.S.; Holman, M.J.; Huang, T.N.; Maehr, H.; Tam, S.Y.K.; Yang, R.T. Syntheses of the anti-AIDS drug 2′,3′-dideoxycytidine from cytidine. J. Org. Chem. 1992, 57, 3473–3478. [Google Scholar] [CrossRef]
  19. Barton, D.H.R.; Jang, D.O.; Jaszberenyi, J.C. Towards dideoxynucleosides: The silicon approach. Tetrahedron Lett. 1991, 32, 2569–2572. [Google Scholar] [CrossRef]
  20. Barton, D.H.R.; Jang, D.O.; Jaszberenyi, J.C. Radical mono- and dideoxygenations with the triethylsilane + benzoyl peroxide system. Tetrahedron Lett. 1991, 32, 7187–7190. [Google Scholar] [CrossRef]
  21. Jang, D.O.; Cho, D.H. Radical deoxygenation of alcohols and vicinal diols with N-ethylpiperidine hypophosphite in water. Tetrahedron Lett. 2002, 43, 5921–5924. [Google Scholar] [CrossRef]
  22. Oba, M.; Suyama, M.; Shimamura, A.; Nishiyama, K. Radical-based transformation of vicinal diols to olefins via thioxocarbamate derivatives: A simple approach to 2′,3′-didehydro-2′,3′-dideoxynucleosides. Tetrahedron Lett. 2003, 44, 4027–4029. [Google Scholar] [CrossRef]
  23. Luzzio, F.A.; Menes, M.E. A Facile Route to Pyrimidine-Based Nucleoside Olefins: Application to the Synthesis of d4T (Stavudine). J. Org. Chem. 1994, 59, 7267–7272. [Google Scholar] [CrossRef]
  24. Saito, I.; Ikehira, H.; Kasatani, R.; Watanabe, M.; Matsuura, T. Photoinduced reactions. 167. Selective deoxygenation of secondary alcohols by photosensitized electron-transfer reaction. A general procedure for deoxygenation of ribonucleosides. J. Am. Chem. Soc. 1986, 108, 3115–3117. [Google Scholar] [CrossRef]
  25. Shen, B.; Bedore, M.W.; Sniady, A.; Jamison, T.F. Continuous flow photocatalysis enhanced using an aluminum mirror: Rapid and selective synthesis of 2′-deoxy and 2′,3′-dideoxynucleosides. Chem. Commun. 2012, 48, 7444–7446. [Google Scholar] [CrossRef]
  26. Greenberg, S.; Moffatt, J.G. Reactions of 2-acyloxyisobutyryl halides with nucleosides. I. Reactions of model diols and of uridine. J. Am. Chem. Soc. 1973, 95, 4016–4025. [Google Scholar] [CrossRef]
  27. Russell, A.F.; Greenberg, S.; Moffatt, J.G. Reactions of 2-acyloxyisobutyryl halides with nucleosides. II. Reactions of adenosine. J. Am. Chem. Soc. 1973, 95, 4025–4030. [Google Scholar] [CrossRef]
  28. Jain, T.C.; Jenkins, I.D.; Russell, A.F.; Verheyden, J.P.H.; Moffatt, J.G. Reactions of 2-Acyloxyisobutyryl Halides with Nucleosides. 1V.l A Facile Synthesis of 2,3-Unsaturated Nucleosides Using Chromous Acetate. J. Org. Chem. 1974, 39, 30–34. [Google Scholar] [CrossRef]
  29. Mengel, R.; Seifert, J.M. Über einen neuen Zugang zu 2′,3′-ungesättigten Nucleosiden—Eine milde Umwandlung vicinaler cis-Diole in Olefine. Tetrahedron Lett. 1977, 48, 4203–4206. [Google Scholar] [CrossRef]
  30. Robins, M.J.; Wilson, J.S.; Madej, D.; Low, N.H.; Hansske, F.; Wnuk, S.F. Nucleic Acid-Related Compounds. 88. Efficient Conversions of Ribonucleosides into Their 2′,3′-Anhydro, 2′(and 3′)-Deoxy, 2′,3′-Didehydro-2′,3′-dideoxy, and 2′,3′-Dideoxynucleoside Analogs. J. Org. Chem. 1995, 60, 7902–7908. [Google Scholar] [CrossRef]
  31. Chen, B.C.; Quinlan, S.L.; Stark, D.R.; Reid, J.G.; Audia, V.H.; George, J.G.; Eisenreich, E.; Brundidge, S.P.; Racha, S.; Spector, R.H. 5′-Benzoyl-2′α-bromo-3′-O-methanesulfonylthymidine: A superior nucleoside for the synthesis of the anti-AIDS drug D4T (Stavudine). Tetrahedron Lett. 1995, 36, 7957–7960. [Google Scholar] [CrossRef]
  32. Shiragami, H.; Ineyama, T.; Uchida, Y.; Izawa, K. Synthesis of 1-(2,3-Dideoxy-β-d-glycero-pent-2-enofuranosyl)thymine (d4T.; Stavudine) from 5-Methyluridine. Nucleosides Nucleotides 1996, 15, 47–58. [Google Scholar] [CrossRef]
  33. Chen, B.C.; Quinlan, S.L.; Reid, J.G.; Spector, R.H. A new thymine free synthesis of the anti-AIDS drug d4T via regio/stereo controlled β-elimination of bromoacetates. Tetrahedron Lett. 1998, 39, 729–732. [Google Scholar] [CrossRef]
  34. Guo, Z.; Sanghvi, Y.S.; Brammer, L.E., Jr.; Hudlicky, T. Synthesis of 2′, 3′-Dideoxy-2′, 3′-didehydro Nucleosides via a Serendipitous Route. Nucleosides Nucleotides Nucleic Acids 2001, 20, 1263–1266. [Google Scholar] [CrossRef]
  35. Sagandira, C.R.; Akwi, F.M.; Sagandira, M.B.; Watts, P. Multistep Continuous Flow Synthesis of Stavudine. J. Org. Chem. 2021, 86, 13934–13942. [Google Scholar] [CrossRef]
  36. Gillaizeau, I.; Lagoja, I.M.; Nolan, S.P.; Aucagne, V.; Rozenski, J.; Herdewijn, P.; Agrofoglio, L.A. Straightforward Synthesis of Labeled and Unlabeled Pyrimidine d4Ns via 2′,3′-Diyne seco Analogues through Olefin Metathesis Reactions. Eur. J. Org. Chem. 2003, 2003, 666–671. [Google Scholar] [CrossRef]
  37. Ewing, D.F.; Glaçon, V.; Mackenzie, G.; Postelb, D.; Len, C. Synthesis of acyclic bis-vinyl pyrimidines: A general route to d4T via metathesis. Tetrahedron 2003, 59, 941–945. [Google Scholar] [CrossRef]
  38. García, J.; Fernández, S.; Ferrero, M.; Sanghvi, Y.S.; Gotor, V. Novel enzymatic synthesis of levulinyl protected nucleosides useful for solution phase synthesis of oligonucleotides. Tetrahedron Assymetry 2003, 14, 3533–3540. [Google Scholar] [CrossRef]
  39. Martínez-Montero, S.; Fernández, S.; Sanghvi, Y.S.; Gotor, V.; Ferrero, M. Enzymatic Parallel Kinetic Resolution of Mixtures of d/l 2′-Deoxy and Ribonucleosides: An Approach for the Isolation of β-l-Nucleosides. J. Org. Chem. 2010, 75, 6605–6613. [Google Scholar] [CrossRef]
  40. Chatgilialoglu, C.; Griller, D.; Lesage, M. Tris(trimethylsilyl)silane. A new reducing agent. J. Org. Chem. 1988, 53, 3641–3642. [Google Scholar] [CrossRef]
  41. Chatgilialoglu, C. (Me3Si)3SiH: Twenty Years After Its Discovery as a Radical-Based Reducing Agent. Chem. Eur. J. 2008, 14, 2310–2320. [Google Scholar] [CrossRef]
  42. Brahmachari, G.; Nurjamal, K.; Karmakar, I.; Mandal, M. Camphor-10-Sulfonic Acid (CSA): A Water Compatible Organocatalyst in Organic Transformations. Curr. Organocatal. 2018, 5, 165–181. [Google Scholar] [CrossRef]
  43. Fehr, M.; Appl, A.; Esdaile, D.J.; Naumann, S.; Schulz, M.; Dahms, I. D-10-camphorsulfonic acid: Safety evaluation. Mutat. Res. Genet. Toxicol. Environ. Mutagen. 2020, 858–860, 503257. [Google Scholar] [CrossRef]
  44. Lu, G.; Wang, D.; Ren, J.; Ke, Y.; Zeng, B.-B. Catalytic removal of tert-butyldimethylsilyl (TBS) ether by PVP-I. Tetrahedron Lett. 2019, 60, 150831. [Google Scholar] [CrossRef]
  45. Kumar, G.D.K.; Baskaran, S. A Facile, Catalytic, and Environmentally Benign Method for Selective Deprotection of tert-Butyldimethylsilyl Ether Mediated by Phosphomolybdic Acid Supported on Silica Gel. J. Org. Chem. 2005, 70, 4520–4523. [Google Scholar] [CrossRef]
  46. Santaniello, E.; Ciuffreda, P.; Alessandrini, L. Synthesis of Modified Purine Nucleosides and Related Compounds Mediated by Adenosine Deaminase (ADA) and Adenylate Deaminase (AMPDA). Synthesis 2005, 2005, 509–526. [Google Scholar] [CrossRef]
Molecules 27 03993 g001 550
Figure 1. Several approved NRTIs against HIV.
Figure 1. Several approved NRTIs against HIV.
Molecules 27 03993 g001
Molecules 27 03993 sch001 550

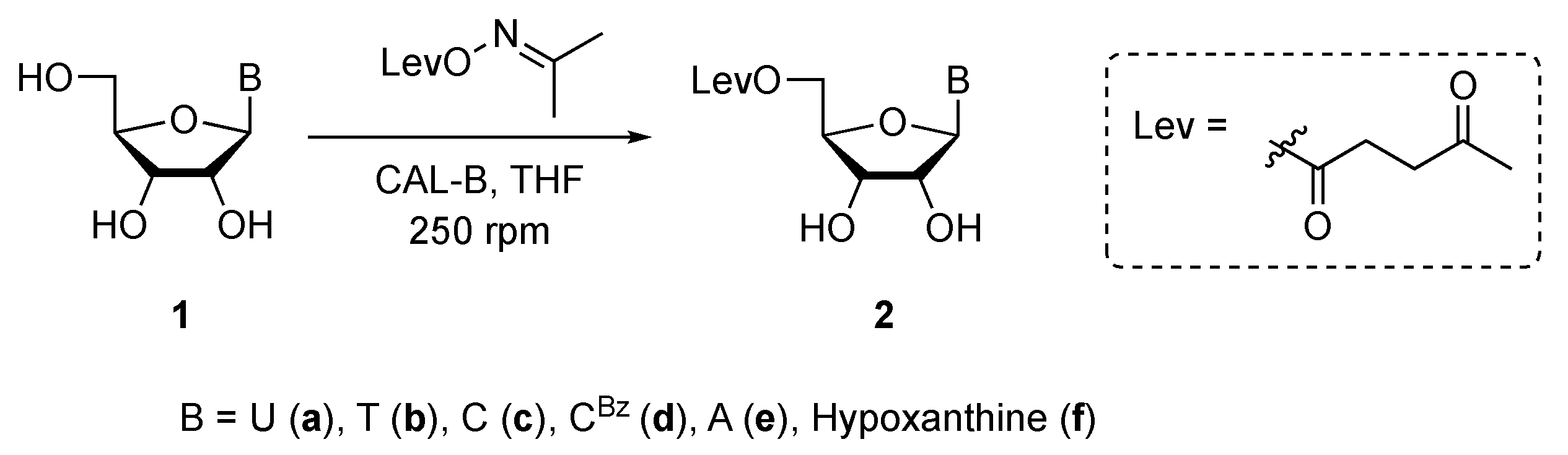

Scheme 1. Regioselective enzymatic acylation of 1.
Scheme 1. Regioselective enzymatic acylation of 1.
Molecules 27 03993 sch001
Molecules 27 03993 sch002 550
Scheme 2. Transformation of 5′-O-Lev-uridine into bisxanthates.
Scheme 2. Transformation of 5′-O-Lev-uridine into bisxanthates.
Molecules 27 03993 sch002
Molecules 27 03993 sch003 550

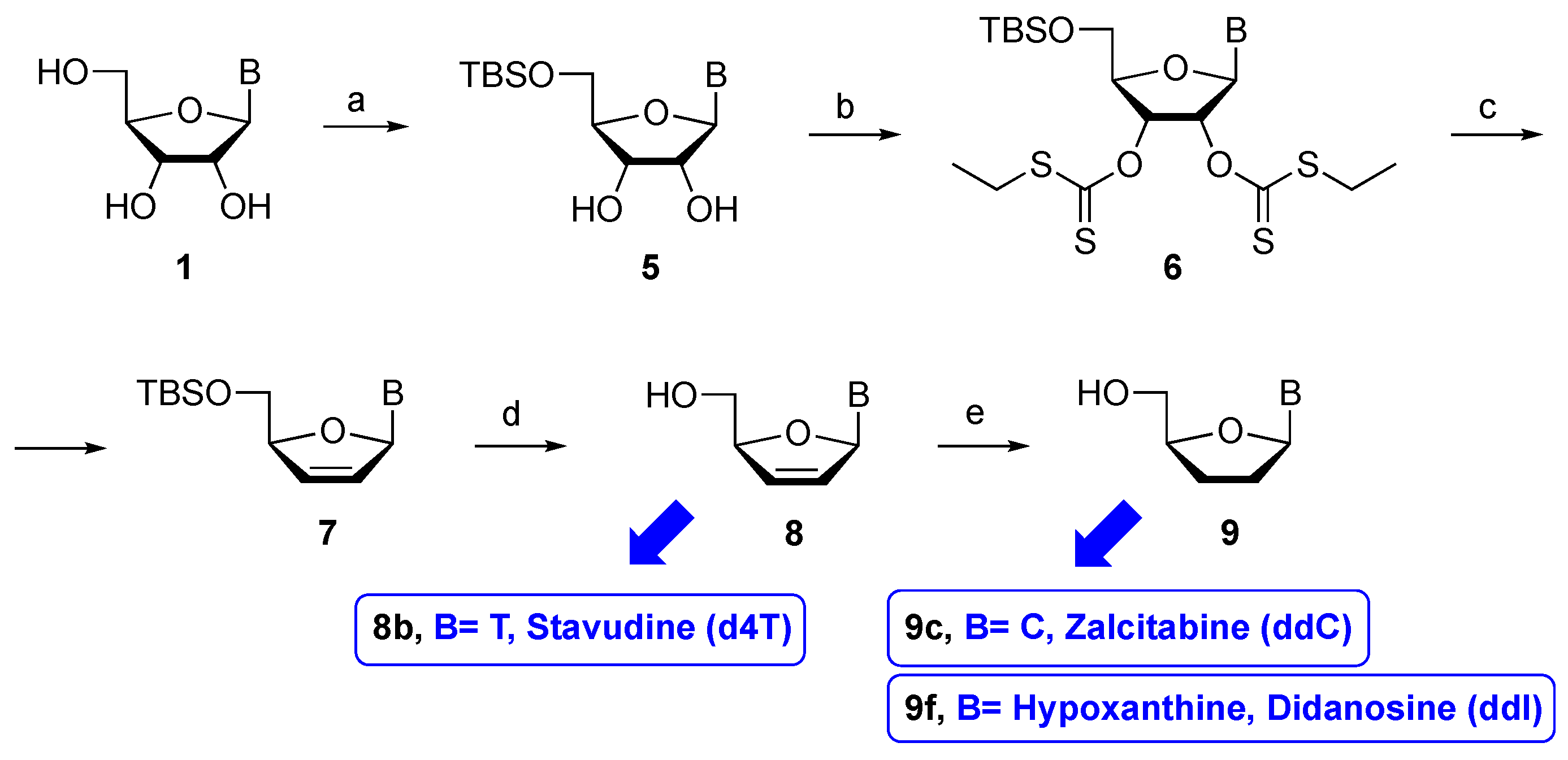

Scheme 3. Synthesis of 2′,3′-didehydro-2′,3′-dideoxynucleosides and 2′,3′-dideoxynucleosides. Synthesis of d4T, ddC and ddI. Reagents and conditions: (a) TBSCl, imidazole, DMF, rt, 12 h; (b) (1) CS2, 3 M NaOH, DMF, 0 °C, 30 min; (2) EtBr, 0 °C → rt, 20 min; (c) Method A: Bu3SnH, AIBN, MeCN, reflux, 1 h; Method B: (Me3Si)3SiH, ACHN, MeCN, reflux, 1 h (7a,b,d,e) or 6 h (7f); (d) Method A: TBAF, THF, 0 °C → rt, 1 h; Method B: (–)-CSA, MeOH, 0 °C → rt, 1 h; (e) H2, 10% Pd-C, MeOH, rt, 2 h.
Scheme 3. Synthesis of 2′,3′-didehydro-2′,3′-dideoxynucleosides and 2′,3′-dideoxynucleosides. Synthesis of d4T, ddC and ddI. Reagents and conditions: (a) TBSCl, imidazole, DMF, rt, 12 h; (b) (1) CS2, 3 M NaOH, DMF, 0 °C, 30 min; (2) EtBr, 0 °C → rt, 20 min; (c) Method A: Bu3SnH, AIBN, MeCN, reflux, 1 h; Method B: (Me3Si)3SiH, ACHN, MeCN, reflux, 1 h (7a,b,d,e) or 6 h (7f); (d) Method A: TBAF, THF, 0 °C → rt, 1 h; Method B: (–)-CSA, MeOH, 0 °C → rt, 1 h; (e) H2, 10% Pd-C, MeOH, rt, 2 h.
Molecules 27 03993 sch003
Molecules 27 03993 sch004 550

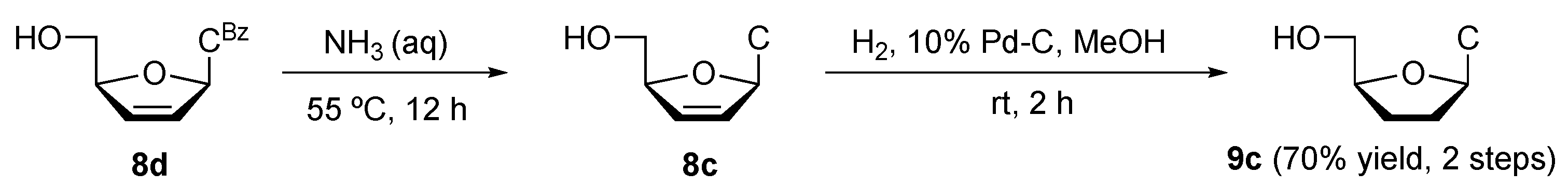

Scheme 4. Synthesis of Zalcitabine (ddC) from 8d.
Scheme 4. Synthesis of Zalcitabine (ddC) from 8d.
Molecules 27 03993 sch004
Molecules 27 03993 sch005 550
Scheme 5. Synthesis of Didanosine (ddI) through enzymatic deamination of 9e.
Scheme 5. Synthesis of Didanosine (ddI) through enzymatic deamination of 9e.
Molecules 27 03993 sch005
Table
Table 1. Regioselective enzymatic acylation of ribonucleosides 1.
Table 1. Regioselective enzymatic acylation of ribonucleosides 1.
EntrySubstrateT (°C)conc (M)t (h)1 (%) a2 (%) a,bOther Acylated Compounds (%) a
11ac300.12->97 (80)-
21bc300.12.5->97 (78)-
31cd550.025542653 (50)21
41dd550.02524->97 (93)-
51ed550.025481070 (42)20
61fd550.02590-87 (40)13
a Based on 1H-NMR signal integration. b Percentage of isolated yields are given in parenthesis. c 3 equiv of acetonoxime levulinate and ratio 1:CAL-B, 1:1 (w/w). d 9 equiv of acetonoxime levulinate and ratio 1:CAL-B, 1:2 (w/w).
Table
Table 2. Reaction yields of 5, 6, 7, 8 and 9.
Table 2. Reaction yields of 5, 6, 7, 8 and 9.
6→77→8
B1→55→6Bu3SnH(Me3Si)3SiHTBAF(–)-CSA8→9
a = U93826065959282
b = T85816075909587
c = C917535ND--70 a,b
d = CBz8072604090ND-
e = A8590607795ND88
f = Hypoxanthine8070ND8075ND80
a From 8d. b See Scheme 4. ND, not the desired product. -, reaction not performed.
Publisher’s Note: MDPI stays neutral with regard to jurisdictional claims in published maps and institutional affiliations.

Share and Cite

MDPI and ACS Style

Martín-Nieves, V.; Sanghvi, Y.S.; Fernández, S.; Ferrero, M. Sustainable Protocol for the Synthesis of 2′,3′-Dideoxynucleoside and 2′,3′-Didehydro-2′,3′-dideoxynucleoside Derivatives. Molecules 2022, 27, 3993. https://doi.org/10.3390/molecules27133993

AMA Style

Martín-Nieves V, Sanghvi YS, Fernández S, Ferrero M. Sustainable Protocol for the Synthesis of 2′,3′-Dideoxynucleoside and 2′,3′-Didehydro-2′,3′-dideoxynucleoside Derivatives. Molecules. 2022; 27(13):3993. https://doi.org/10.3390/molecules27133993

Chicago/Turabian Style

Martín-Nieves, Virginia, Yogesh S. Sanghvi, Susana Fernández, and Miguel Ferrero. 2022. "Sustainable Protocol for the Synthesis of 2′,3′-Dideoxynucleoside and 2′,3′-Didehydro-2′,3′-dideoxynucleoside Derivatives" Molecules 27, no. 13: 3993. https://doi.org/10.3390/molecules27133993

Article Metrics

Back to TopTop
