Article

Synthesis, Antiprotozoal Activity, and Cheminformatic Analysis of 2-Phenyl-2H-Indazole Derivatives

by
Karen Rodríguez-Villar
1,
Lilián Yépez-Mulia
2,
Miguel Cortés-Gines
3,
Jacobo David Aguilera-Perdomo
3,
Edgar A. Quintana-Salazar
3,
Kevin Samael Olascoaga Del Angel
4,
Francisco Cortés-Benítez
3,
Juan Francisco Palacios-Espinosa
3,
Olivia Soria-Arteche
3 and
Jaime Pérez-Villanueva
3,*
1
Doctorado en Ciencias Biológicas y de la Salud, Universidad Autónoma Metropolitana (UAM), Ciudad de México 04960, Mexico
2
Unidad de Investigación Médica en Enfermedades Infecciosas y Parasitarias, UMAE Hospital de Pediatría, Centro Médico Siglo XXI, Instituto Mexicano del Seguro Social, Ciudad de México 06720, Mexico
3
Departamento de Sistemas Biológicos, División de Ciencias Biológicas y de la Salud, Universidad Autónoma Metropolitana-Xochimilco (UAM-X), Ciudad de México 04960, Mexico
4
Doctorado en Biología Experimental, Universidad Autónoma Metropolitana (UAM), Ciudad de México 04960, Mexico
*
Author to whom correspondence should be addressed.
Molecules 2021, 26(8), 2145; https://doi.org/10.3390/molecules26082145
Submission received: 28 February 2021 / Revised: 24 March 2021 / Accepted: 6 April 2021 / Published: 8 April 2021
(This article belongs to the Special Issue Heterocycles in Medicinal Chemistry II)

Abstract

:
Indazole is an important scaffold in medicinal chemistry. At present, the progress on synthetic methodologies has allowed the preparation of several new indazole derivatives with interesting pharmacological properties. Particularly, the antiprotozoal activity of indazole derivatives have been recently reported. Herein, a series of 22 indazole derivatives was synthesized and studied as antiprotozoals. The 2-phenyl-2H-indazole scaffold was accessed by a one-pot procedure, which includes a combination of ultrasound synthesis under neat conditions as well as Cadogan’s cyclization. Moreover, some compounds were derivatized to have an appropriate set to provide structure-activity relationships (SAR) information. Whereas the antiprotozoal activity of six of these compounds against E. histolytica, G. intestinalis, and T. vaginalis had been previously reported, the activity of the additional 16 compounds was evaluated against these same protozoa. The biological assays revealed structural features that favor the antiprotozoal activity against the three protozoans tested, e.g., electron withdrawing groups at the 2-phenyl ring. It is important to mention that the indazole derivatives possess strong antiprotozoal activity and are also characterized by a continuous SAR.

Graphical Abstract

1. Introduction

Indazole is an important scaffold in medicinal chemistry. So far, a few drugs containing the indazole moiety are currently available for clinical use; for instance, the antiemetic granisetron, the nonsteroidal anti-inflammatory drugs benzydamine and bendazac, the anticancer agents pazopanib, axitinib, niraparib and entrectinib. From these, niraparib and entrectinib were recently approved in 2017 and 2019 respectively [1,2]. At present, the progress on synthetic methodologies has allowed the preparation of several new indazole derivatives with interesting pharmacological properties [3,4,5,6]. Particularly, the antiprotozoal activity of indazole derivatives against Entamoeba histolytica [7], Giardia intestinalis and Trichomonas vaginalis have been recently reported [8,9].
E. histolytica and G. intestinalis are intestinal protozoa, which causes amebiasis and giardiasis, respectively. Worldwide 50 million amebiasis cases and 100,000 deaths annually are estimated [10], whereas 280 million people are affected by G. intestinalis [11]. Both diseases have high impact in the public health, causing diarrhea, which is a major factor in morbidity and mortality, affecting mainly infant population [12]. On the other hand, trichomoniasis, caused by T. vaginalis is the most common non-viral sexually transmitted disease [13]. According to the World Health Organization, more than 156 million new cases are estimated annually worldwide [14]. Trichomoniasis can be the cause of cervicitis, urethritis, vaginitis, and genital ulceration; additionally, it has been associated with preterm labor, low-birth weight, sterility, cervical cancer, and a predisposition to HIV infection [14,15,16]. Although some chemotherapeutic agents are available to treat amebiasis, giardiasis and trichomoniasis, e.g., nitroderivatives such as metronidazole [13,16,17], the increased drug resistance [13,16,17,18,19], and absence of new approved drugs with alternative mechanism of action, lead us to search new antiprotozoal compounds, particularly based on the indazole scaffold. Herein, 22 indazole derivatives were synthesized employing a practical one-pot process. Whereas six of these compounds have been previously reported to have activity against E. histolytica, G. intestinalis, and T. vaginalis, in this study, the activity of the additional 16 compounds against these three parasites was evaluated. Moreover, a SAR analysis and activity landscape studies were performed to highlight relevant structural features for the biological activity and to identify the SAR nature of the compounds studied.

2. Results and Discussion

2.1. Synthesis of 2-Phenyl-2H-Indazole Derivatives

The synthetic route for the synthesis of 2-phenyl-2H-indazole derivatives is shown in Scheme 1. For this purpose, a new practical modification of the Cadogan’s method using an ultrasound assisted one-pot synthesis was employed. This method uses a combination of ultrasound synthesis as previously described by Crawford under neat conditions as well as the Cadogan’s cyclization by refluxing the Schiff base with triethyl phosphite [20,21]. A comparison of the employed one-pot procedure and a previously reported methodology for representative examples is displayed in Table 1. Noteworthy, the one-pot method leads to similar or better yields than our previous report [8]. Moreover, it is important to mention that our method avoids one purification step, save solvents, and reduce the work up time. To expand the scope of the method, the number of compounds available for biological assays, and the diversity of substituents for SAR analysis, derivatives with chlorine, methoxy, methoxycarbonyl, fluorine and trifluoromethyl groups at the 2- or 3-positions of the phenyl substituent were also synthesized. It is to be noted that compound 18, having a 2-(methoxycarbonyl)phenyl substituent, was not obtained by employing the described method, instead, 18a having a 2-cyanophenyl was synthesized as alternative intermediary to obtain 18; however a slight method modification was also needed to achieve the compound 18a (vide infra). Since compounds substituted with OH and COOH are important from the medicinal chemistry point of view due to the fact that it forms key protein-ligand interactions (e.g., hydrogen bonds and salt bridges) [22], derivatives having hydroxyl (7, 14 and 21) and carboxyl (8, 15 and 22) groups were synthesized by hydrolysis of precursors 3, 10, 17, 4, 11 and 18a. All synthesized compounds were characterized by 1H NMR and 13C NMR spectra and the new structures were also characterized by mass spectrometry. The nuclear magnetic resonance spectra of all compounds can be found in Figures S1–S23 in the Supplementary Materials.

2.2. Antiprotozoal Activity

Compounds 5, 6, 922 were tested in vitro against E. histolytica, G. intestinalis, and T. vaginalis. It is important to mention that the activity of compounds 14, 7 and 8 against these three protozoa were previously reported by our group [8], however, the values were included in Table 2 in order to support the SAR analysis. Against E. histolytica, the first interesting finding was that all tested compounds were more potent than 1H-indazole reported by López-Vallejo et al. (IC50 = 0.740 µM) [7]. It is important to note that biological assays were performed using the same strain, under the same conditions as well as the same laboratory. The results suggest that 2-phenyl substitution is important for the antiprotozoal activity, since this modification increased 9-fold the activity. The best potency was found for 2-phenyl-2H-indazole derivatives substituted with methoxycarbonyl (4, 11 and 18), 4-chlorophenyl (2) and 2-(trifluoromethyl)phenyl (20) (IC50 < 0.050 µM). On the other hand, the results for the assays performed against G. intestinalis showed that the derivatives substituted with 2-chlorophenyl (16), 2-(methoxycarbonyl)phenyl (18), 2-(trifluoromethyl)phenyl (20) and 2-carboxyphenyl (22) displayed the best activity (IC50 < 0.050 µM). Moreover, 4- and 3-(trifluoromethyl)phenyl derivatives (6 and 13 respectively) showed favorable effect on the giardicidal activity. It is worth to emphasize that compounds were slightly more potent against E. histolytica and G. intestinalis than T. vaginalis. Hence, against T. vaginalis, the best activity (IC50 < 0.070 µM) was found for the derivatives substituted with 3-(methoxycarbonyl)phenyl (11), 3-(trifluoromethyl)phenyl (13) and 3-carboxyphenyl (15), as well as the 2-chlorophenyl (16) and 2-carboxyphenyl (22). The IC50 values and SAR data displayed in Figure 1, indicate that electron-withdrawing substituents attached to the 2-phenyl ring are favorable for the antiprotozoal activity against the three evaluated protozoa.

2.3. Cheminformatic Analysis

Compounds 122 were also analyzed employing cheminformatic tools and compared against antiprotozoal databases of benzimidazole derivatives [7,23,24,25,26,27,28,29,30,31,32,33,34,35,36] and ChEMBL compounds [37], which have also reported activities against E. histolytica, G. intestinalis and T. vaginalis. It is worthwhile to mention that benzimidazole derivatives compose an important reference database since a high number of compounds were tested under the same method and conditions. These benzimidazole derivatives have been the reference database for several cheminformatic and QSAR studies as antiprotozoals [31,34,38,39,40]; and the data available has been expanded during the last years. Figure 2 shows a representation of the property space and the activity distribution of the 22 synthesized indazole derivatives as compared to benzimidazole derivatives and ChEMBL collection for each analyzed parasite [41]. Although, 2-phenyl-2H-indazole derivatives are localized in a very focalized space as compared to benzimidazole and ChEMBL compounds, their activity values are similar to the majority of benzimidazoles, but higher than ChEMBL compounds in most cases, as is visually depicted as violin plots in Figure 2. Although the number and diversity of indazole derivatives synthesized and tested herein are still low, it is of our interest to expand the database of indazole derivatives as well as their activity landscape to search for more potent compounds.
To visualize the activity landscape of the synthesized indazole derivatives as compared to the benzimidazole reference database, chemotype-based Structure-Activity Similarity (SAS) maps were generated (Figure 3) [42]. A general form of the SAS map is presented in Figure 4. SAS maps are divided in four regions: region I is associated with scaffold hopping (or side chain hopping), region II denotes smooth SAR and region IV indicates discontinuous SAR and activity cliffs. The structure similarity threshold was established by the median similarity of the pairwise comparisons plotted in each map and depends on the database and the fingerprint employed, whereas the activity similarity threshold was established on two units in activity difference (100-fold difference in potency). Since Similarity-Property principle establish that similar compounds have similar properties (e.g., biological activity), all indazole derivatives fall in such definition [43]. Different SAR classifications have been previously defined as continuous (smooth), heterogeneous and discontinuous (rough) SAR [43,44]. Moreover, the implications in medicinal chemistry, disadvantages or opportunities implied on different SAR classification has been widely discussed [44,45]. Therefore, the 22 indazole derivatives studied are characterized by a smooth or continuous SAR (high similarity and low activity differences; region II) as compared to the benzimidazole derivatives database where a heterogeneous SAR can be observed [38,39]. Therefore, the antiprotozoal indazole database should be expanded by including more diverse substituted derivatives at different positions to carry out QSAR studies and lead optimization.

3. Materials and Methods

3.1. Chemicals and Instruments

All chemicals and starting materials were obtained from Sigma-Aldrich (Sigma-Aldrich, Toluca, MEX, Mexico). Reactions were monitored by TLC on 0.2 mm percolated silica gel 60 F254 plates (Merck, Darmstadt, Germany) and visualized by irradiation with a UV lamp (Cole-Parmer, Vernon Hills, IL, USA). Silica gel 60, 70–230 mesh, was used for column chromatography (Macherey-Nagel, Düren, Germany). Ultrasound assisted synthesis were carried out employing a Cole-Parmer ultrasonic bath model 8891 (Cole-Parmer, Vernon Hills, IL, USA), operating at 42 kHz. Melting points were determined in open capillary tubes with a Büchi M-565 melting point apparatus (Büchi, Flawil, Switzerland) and are uncorrected. Microwave-assisted reactions were carried out in a monomodal reactor (Anton-Paar Monowave 300) equipped with a hydraulic pressure sensing device and an infrared temperature-sensor (Anton-Paar, Graz, Austria). 1H NMR and 13C NMR were measured with an Agilent DD2 spectrometer (Agilent, Santa Clara, CA, USA), operating at 600 MHz and 151 MHz for 1H and 13C, respectively. Chemical shifts are given in parts per million relatives to tetramethylsilane (Me4Si, δ = 0); J values are given in Hz. Splitting patterns are expressed as follow: s, singlet; d, doublet; t, triplet; q, quartet; dd, doublet of doublet; td, triplet of doublet; ddd, doublet doublet of doublet; dq, doublet of quartets; m, multiplet; bs, broad singlet. High resolution Mass spectra were recorded on a Bruker ESI/APCI-TOF, MicroTOF-II-Focus spectrometer (Bruker, Billerica, MA, USA) by electrospray ionization (ESI); whereas low resolution Mass spectra were recorded on a Waters Xevo TQ-MS spectrometer (Waters, Milford, MA, USA) by electron impact (EI). All compounds were named using the automatic name generator tool from the ChemDraw Professional 16.0.1.4 software (PerkinElmer, Waltham, MA, USA), according to IUPAC rules.

3.2. Chemistry

3.2.1. General Procedure for the One-Pot Synthesis of 2-Phenyl-2H-Indazole Derivatives 16, 913, 16, 17, 19 and 20

A 50 mL heavy wall glass Schlenk reaction tube was charged with 2-nitrobenzaldehyde (1.654 mmol) and aniline or the substituted aniline (1.654 mmol). The reaction mixture was ultrasonicated for two hours at 40 °C. The condensed water under the tube walls was removed. Afterwards, triethyl phosphite (5 mmol) was added and heated to 150 °C under nitrogen atmosphere for two hours. The phosphite excess was oxidized with 20 mL of 5% hydrogen peroxide solution. The product was extracted with ethyl acetate (20 mL × 3) and the organic layer was washed with brine (20 mL) and dried with anhydrous sodium sulfate and finally concentrated under vacuum distillation. The evaporation residue was purified by using column chromatography with hexane–ethyl acetate 98:2 (compound 19), 95:5 (compounds, 913, 16, 17), 90:10 (compounds 13, 6, 20), and 80:20 (compounds 4, 5).
2-Phenyl-2H-Indazole (1), White solid, 92% yield, m.p.: 81–82 °C. The spectroscopic data agree with the previously reported data [8,46]. 1H NMR (600 MHz, CDCl3) δ 8.41 (d, J = 0.9 Hz, 1H), 7.91–789 (m, 2H), 7.79 (dd, J = 8.8, 0.9 Hz, 1H), 7.71 (dt, J = 8.5, 1.0 Hz, 1H), 7.54–7.49 (m, 2H), 7.41–7.37 (m, 1H), 7.32 (ddd, J = 8.8, 6.6, 1.0 Hz, 1H), 7.11 (ddd, J = 8.4, 6.6, 0.7 Hz, 1H); 13C NMR (151 MHz, CDCl3) δ 149.79, 140.54, 129.56, 127.90, 126.83, 122.77, 122.46, 121.00, 120.41, 120.38, 117.95.
2-(4-Chlorophenyl)-2H-Indazole (2), White solid, 62% yield, m.p.: 143–146 °C. The spectroscopic agree with the previously reported data [8,47]. 1H NMR (600 MHz, CDCl3) δ 8.37 (d, J = 1.0 Hz, 1H), 7.87–7.83 (m, 2H), 7.77 (dq, J = 8.8, 0.9 Hz, 1H), 7.69 (dt, J = 8.5, 1.0 Hz, 1H), 7.51–7.47 (m, 2H), 7.33 (ddd, J = 8.8, 6.6, 1.1 Hz, 1H), 7.12 (ddd, J = 8.5, 6.6, 0.8 Hz, 1H); 13C NMR (151 MHz, CDCl3) δ 150.05, 139.19, 133.72, 129.83, 127.26, 123.03, 122.87, 122.17, 120.50, 120.42, 118.07.
2-(4-Methoxyphenyl)-2H-Indazole (3), Beige solid, 57% yield, m.p.: 133–136 °C. The spectroscopic data agree with the previously reported data [8,48]. 1H NMR (600 MHz, CDCl3) δ 8.31 (d, J = 0.9 Hz, 1H), 7.83–7.76 (m, 3H), 7.70 (dt, J = 8.4, 1.0 Hz, 1H), 7.32 (ddd, J = 8.7, 6.6, 1.0 Hz, 1H), 7.11 (ddd, J = 8.4, 6.6, 0.8 Hz, 1H), 7.06–7.00 (m, 2H), 3.86 (s, 3H); 13C NMR (151 MHz, CDCl3) δ 159.42, 149.71, 134.25, 126.66, 122.83, 122.55, 122.35, 120.43, 120.38, 117.90, 114.77, 55.73.
Methyl 4-(2H-Indazol-2-yl)benzoate (4), White solid, 39% yield, m.p.: 186–187 °C. The spectroscopic data agree with the previously reported data [8,48]. 1H NMR (600 MHz, CDCl3) δ 8.47 (d, J = 0.7 Hz, 1H), 8.22–8.18 (m, 2H), 8.02–7.99 (m, 2H), 7.77 (dd, J = 8.8, 0.8 Hz, 1H), 7.69 (d, J = 8.5 Hz, 1H), 7.33 (ddd, J = 8.8, 6.6, 1.0 Hz, 1H), 7.14–7.10 (m, 1H), 3.95 (s, 3H); 13C NMR (151 MHz, CDCl3) δ 166.32, 150.32, 143.77, 131.30, 129.40, 127.58, 123.14, 123.12, 120.60, 120.39, 118.20, 52.46.
2-(4-Fluorophenyl)-2H-Indazole (5), White solid, 71% yield, m.p.: 110–111 °C. The spectroscopic data agree with the previously reported data [49]. 1H NMR (600 MHz, CDCl3) δ 8.34 (d, J = 0.9 Hz, 1H), 7.88–7.84 (m, 2H), 7.78 (dq, J = 8.8, 1.0 Hz, 1H), 7.70 (dt, J = 8.5, 1.0 Hz, 1H), 7.33 (ddd, J = 8.7, 6.6, 1.0 Hz, 1H), 7.23–7.19 (m, 2H), 7.12 (ddd, J = 8.5, 6.6, 0.8 Hz, 1H). 13C NMR (151 MHz, CDCl3) δ 162.05 (d, J = 248.1 Hz), 149.83 (s), 136.88 (d, J = 2.7 Hz), 126.94 (s), 122.84 (s), 122.77 (d, J = 8.6 Hz), 122.59 (s), 120.48 (s), 120.34 (s), 117.89 (s), 116.45 (d, J = 22.8 Hz).
2-[4-(Trifluoromethyl)phenyl]-2H-Indazole (6), Pale pink solid, 43% yield, m.p.: 188–190 °C. The spectroscopic data agree with the previously reported data [47]. 1H NMR (600 MHz, CDCl3) δ 8.46 (d, J = 0.9 Hz, 1H), 8.06 (d, J = 8.5 Hz, 2H), 7.81–7.76 (m, 3H), 7.70 (dt, J = 8.5, 1.0 Hz, 1H), 7.34 (ddd, J = 8.8, 6.6, 1.0 Hz, 1H), 7.13 (ddd, J = 8.4, 6.6, 0.5 Hz, 1H). 13C NMR (600 MHz, CDCl3) δ 150.21, 142.95, 129.75 (q, J = 33.1 Hz), 127.52, 126.86 (q, J = 3.7 Hz), 123.80 (q, J = 272.0 Hz), 123.08, 123.04, 120.76, 120.47, 120.41, 118.09.
2-(3-Chlorophenyl)-2H-Indazole (9), Light pink solid, 53% yield, m.p.: 109–110 °C. The spectroscopic data agree with the previously reported data [48,50]. 1H NMR (600 MHz, CDCl3) δ 8.39 (d, J = 1.0 Hz, 1H), 7.98 (t, J = 2.1 Hz, 1H), 7.81–7.75 (m, 2H), 7.70 (dt, J = 8.5, 1.0 Hz, 1H), 7.45 (t, J = 8.1 Hz, 1H), 7.39–7.31 (m, 2H), 7.12 (ddd, J = 8.3, 6.6, 0.8 Hz, 1H); 13C NMR (151 MHz, CDCl3) δ 149.95, 141.45, 135.42, 130.57, 127.88, 127.25, 122.83, 121.24, 120.41, 120.39, 118.77, 117.99.
2-(3-Methoxyphenyl)-2H-Indazole (10), Beige solid, 45% yield, m.p.: 51–52 °C. The spectroscopic data agree with the previously reported data [50]. 1H NMR (600 MHz, CDCl3) δ 8.39 (d, J = 1.0 Hz, 1H), 7.79 (dq, J = 8.6, 0.8 Hz, 1H), 7.69 (dt, J = 8.5, 1.0 Hz, 1H), 7.52 (t, J = 2.2 Hz, 1H), 7.44–7.38 (m, 2H), 7.32 (ddd, J = 8.8, 6.6, 1.1 Hz, 1H), 7.11 (ddd, J = 8.3, 6.5, 0.8 Hz, 1H), 6.93 (ddd, J = 7.9, 2.5, 1.2 Hz, 1H), 3.90 (s, 3H); 13C NMR (151 MHz, CDCl3) δ 160.58, 149.72, 141.68, 130.27, 126.87, 122.71, 122.48, 120.57, 120.39, 117.94, 113.94, 112.94, 106.81, 55.61.
Methyl 3-(2H-Indazol-2-yl)benzoate (11), Beige solid, 51% yield, m.p.: 103–104 °C. The spectroscopic data agree with the previously reported data [48]. 1H NMR (600 MHz, CDCl3) 8.55–8.53 (m, 1H), 8.48 (d, J = 0.9 Hz, 1H), 8.18 (ddd, J = 8.1, 2.3, 1.1 Hz, 1H), 8.08–8.05 (m, 1H), 7.79 (dq, J = 8.8, 0.9 Hz, 1H), 7.71 (dt, J = 8.5, 1.1 Hz, 1H), 7.61 (t, J = 7.9 Hz, 1H), 7.33 (ddd, J = 8.7, 6.6, 1.0 Hz, 1H), 7.12 (ddd, J = 8.5, 6.6, 0.9 Hz, 1H), 3.97 (s, 3H); 13C NMR (151 MHz, CDCl3) δ 166.10, 149.98, 140.67, 131.69, 129.79, 128.77, 127.18, 125.21, 122.93, 122.77, 121.51, 120.46, 120.44, 118.00, 52.47.
2-(3-Fluorophenyl)-2H-Indazole (12), White solid, 51% yield, m.p.: 96–98 °C. The spectroscopic data agree with the previously reported data [48]. 1H NMR (600 MHz, CDCl3) δ 8.40 (m, J = 0.8 Hz, 1H), 7.79–7.76 (m, 1H), 7.73–7.67 (m, 3H), 7.51–7.46 (m, 1H), 7.33 (ddd, J = 8.8, 6.6, 0.9 Hz, 1H), 7.11 (m, 2H); 13C NMR (151 MHz, CDCl3) δ 163.22 (d, J = 247.4 Hz), 141.88 (d, J = 10.0 Hz), 130.88 (d, J = 9.1 Hz), 127.24 (s), 122.87 (s), 122.83 (s), 120.42 (s), 120.41 (s), 118.03 (s), 116.14 (d, J = 3.1 Hz), 114.71 (d, J = 21.2 Hz), 108.70 (d, J = 26.2 Hz).
2-[3-(Trifluoromethyl)phenyl]-2H-Indazole (13), White solid, 46% yield, m.p.: 73–75 °C. The spectroscopic data agree with the previously reported data [48]. 1H NMR (600 MHz, DMSO-d6) δ 9.29 (d, J = 0.9 Hz, 1H), 8.48–8.43 (m, 2H), 7.87–7.81 (m, 2H), 7.80 (dt, J = 8.5, 1.0 Hz, 1H), 7.74 (dq, J = 8.8, 0.9 Hz, 1H), 7.36 (ddd, J = 8.8, 6.5, 1.1 Hz, 1H), 7.14 (ddd, J = 8.5, 6.5, 0.8 Hz, 1H); 13C NMR (151 MHz, DMSO-d6) δ 149.64, 140.82, 131.55, 130.88 (q, J = 32.9 Hz), 127.84, 124.69 (q, J = 3.8 Hz), 124.18 (q, J = 272.6 Hz), 123.03, 122.96, 122.72, 121.52, 117.96, 117.14 (q, J = 3.9 Hz).
2-(2-Chlorophenyl)-2H-Indazole (16), White solid, 55% yield, m.p.: 60–61 °C. The spectroscopic data agree with the previously reported data [51]. 1H NMR (600 MHz, CDCl3) δ 8.34 (d, J = 1.0 Hz, 1H), 7.80 (dq, J = 8.6, 0.8 Hz, 1H), 7.74 (dt, J = 8.5, 1.0 Hz, 1H), 7.70–7.68 (m, 1H), 7.59–7.56 (m, 1H), 7.45–7.40 (m, 2H), 7.35 (ddd, J = 8.7, 6.6, 1.0 Hz, 1H), 7.14 (ddd, J = 8.4, 6.6, 0.7 Hz, 1H); 13C NMR (151 MHz, CDCl3) δ 149.40, 138.60, 130.67, 129.94, 128.97, 128.55, 127.68, 126.92, 125.20, 122.42, 121.99, 120.51, 117.91.
2-(2-Methoxyphenyl)-2H-Indazole (17), Light brown oil, 69% yield. The spectroscopic data agree with the previously reported data [50]. 1H NMR (600 MHz, CDCl3) δ 8.51 (d, J = 1.0 Hz, 1H), 7.87 (dd, J = 7.9, 1.7 Hz, 1H), 7.78 (dq, J = 8.7, 0.9 Hz, 1H), 7.72 (dt, J = 8.4, 1.0 Hz, 1H), 7.39 (ddd, J = 8.2, 7.5, 1.7 Hz, 1H), 7.31 (ddd, J = 8.7, 6.6, 1.1 Hz, 1H), 7.14–7.07 (m, 3H), 3.89 (s, 3H); 13C NMR (151 MHz, CDCl3) δ 151.89, 148.82, 129.95, 129.25, 126.63, 126.52, 125.51, 122.03, 121.84, 121.20, 120.52, 117.71, 112.36, 56.04.
2-(2-Fluorophenyl)-2H-Indazole (19), Yellow oil, 54% yield. The spectroscopic data agree with the previously reported data [50,52]. 1H NMR (600 MHz, CDCl3) δ 8.50 (dd, J = 2.8, 0.9 Hz, 1H), 8.08 (m, 1H), 7.79 (m, 1H), 7.72 (dt, J = 8.5, 0.9 Hz, 1H), 7.41–7.27 (m, 4H), 7.12 (ddd, J = 8.5, 6.6, 0.6 Hz, 1H). 13C NMR (151 MHz, CDCl3) δ 154.20 (d, J = 250.6 Hz), 129.12 (d, J = 7.9 Hz), 125.10 (d, J = 3.7 Hz), 124.66 (d, J = 10.0 Hz), 122.60 (d, J = 1.3 Hz), 117.00 (d, J = 20.6 Hz).
2-[2-(Trifluoromethyl)phenyl]-2H-Indazole (20), White solid, 26% yield, m.p.: 51–52 °C. The spectroscopic data agree with the previously reported data [51]. 1H NMR (600 MHz, CDCl3) δ 8.20 (s, 1H), 7.88–7.84 (m, 1H), 7.79 (dd, J = 8.8, 1.0 Hz, 1H), 7.75–7.70 (m, 2H), 7.66–7.62 (m, J = 9.7, 4.3 Hz, 2H), 7.36 (ddd, J = 8.8, 6.6, 1.0 Hz, 1H), 7.15 (ddd, J = 8.6, 6.6, 0.8 Hz, 1H); 13C NMR (151 MHz, CDCl3) δ 149.74, 139.11 (q, J = 1.6 Hz), 132.83, 129.67, 127.27 (q, J = 5.1 Hz), 127.09, 126.42 (q, J = 31.7 Hz), 125.87 (q, J = 1.9 Hz), 123.0275 (q, 273.9), 122.69, 122.24, 120.54, 118.05, 77.16.

3.2.2. General Procedure for O-Demethylation

The methoxy-2-phenylindazole compounds (3, 10 or 17) (4 mmol) were dissolved in dichloromethane (12 mL) and cooled to 0 °C under N2 atmosphere. Afterwards, boron tribromide (12 mmol, 12 mL of 1 M solution in dichloromethane) was added and the reaction mixture was stirred at room temperature overnight. The solvent was removed by evaporation and a saturated sodium bicarbonate solution was added. The resulting solid was filtered and dried under vacuum. The crude product was purified using a short column packed with silica gel and ethyl acetate-hexanes (6:4) as a mobile phase.
4-(2H-Indazol-2-yl) phenol (7), White solid, 64% yield, m.p.: 179–181 °C. The spectroscopic data agree with the previously reported data [8]. 1H NMR (600 MHz, DMSO-d6) δ 9.84 (s, 1H), 8.90 (d, J = 0.9 Hz, 1H), 7.90–7.83 (m, 2H), 7.74 (dt, J = 8.4, 1.0 Hz, 1H), 7.68 (dq, J = 8.8, 0.9 Hz, 1H), 7.28 (ddd, J = 8.7, 6.6, 1.1 Hz, 1H), 7.08 (ddd, J = 8.3, 6.6, 0.8 Hz, 1H), 6.97–6.92 (m, 2H); 13C NMR (151 MHz, DMSO-d6) δ 157.18, 148.56, 132.20, 126.19, 122.33, 121.84, 121.66, 120.87, 120.67, 117.21, 115.90.
3-(2H-Indazol-2-yl)phenol (14), Beige solid, 47% yield, m.p.: 131–132 °C. 1H NMR (600 MHz, DMSO-d6) δ 9.94 (s, 1H), 9.02 (d, J = 0.9 Hz, 1H), 7.75 (dt, J = 8.5, 1.0 Hz, 1H), 7.70 (dq, J = 8.8, 0.9 Hz, 1H), 7.51–7.48 (m, 2H), 7.36 (t, J = 8.0 Hz, 1H), 7.30 (ddd, J = 8.8, 6.6, 1.1 Hz, 1H), 7.09 (ddd, J = 8.5, 6.5, 0.9 Hz, 1H), 6.84 (ddd, J = 8.1, 2.4, 1.0 Hz, 1H); 13C NMR (151 MHz, DMSO-d6) δ 158.37, 148.77, 141.02, 130.47, 126.70, 122.35, 122.02, 121.51, 120.90, 117.44, 114.84, 110.67, 107.41. MS: m/z 211.08 ([M + H]+, 100%)
2-(2H-Indazol-2-yl)phenol (21), White solid, 85% yield, m.p.: 114–116 °C. The spectroscopic data agree with the previously reported data [52]. 1H NMR (600 MHz, CDCl3) δ 12.09 (s, 1H), 8.47 (d, J = 0.8 Hz, 1H), 7.75–7.71 (m, 2H), 7.58 (dd, J = 8.1, 1.5 Hz, 1H), 7.38 (ddd, J = 8.7, 6.6, 1.0 Hz, 1H), 7.29–7.25 (m, 1H), 7.19–7.15 (m, 2H), 6.97 (ddd, J = 8.2, 7.3, 1.4 Hz, 1H); 13C NMR (151 MHz, CDCl3) δ 150.48, 147.61, 129.08, 127.69, 124.84, 122.96, 121.32, 120.28, 120.21, 119.63, 119.43, 119.22, 116.82.

3.2.3. General Procedure for the Hydrolysis of Ester Derivatives

The methyl ester compounds (4 or 11, 1.2 mmol) were dissolved in methanol (7.5 mL) and an aqueous solution of NaOH (3.6 mmol in 3 mL of water) was added. The reaction mixture was refluxed until the starting material was totally consumed. The mixture was cooled on ice and acidified to pH 1 with HCl to induce precipitation. The solid was filtered under vacuum and dried.
4-(2H-Indazol-2-yl)benzoic Acid (8), White solid, 96% yield, m.p.: 288–289 °C. The spectroscopic data agree with the previously reported data [8]. 1H NMR (600 MHz, DMSO-d6) δ 9.21 (s, 1H), 8.26–8.23 (m, 2H), 8.15–8.11 (m, 2H), 7.78 (dt, J = 8.5, 1.0 Hz, 1H), 7.72 (dd, J = 8.8, 0.9 Hz, 2H), 7.33 (ddd, J = 8.8, 6.5, 1.1 Hz, 1H), 7.12 (ddd, J = 8.5, 6.6, 0.8 Hz, 1H); 13C NMR (151 MHz, DMSO-d6) δ 166.54, 149.30, 142.91, 130.90, 129.74, 127.36, 122.62, 122.52, 122.13, 121.07, 119.94, 117.57.
3-(2H-Indazol-2-yl)benzoic Acid (15), White solid, 43% yield, m.p.: 215–217 °C. 1H NMR (600 MHz, acetone-d6) δ 9.01 (s, 1H), 8.78–8.69 (m, 1H), 8.36 (ddd, J = 8.1, 2.3, 1.0 Hz, 1H), 8.12–8.05 (m, 1H), 7.82–7.69 (m, J = 11.5, 9.0, 4.6 Hz, 3H), 7.33 (ddd, J = 8.7, 6.6, 0.9 Hz, 1H), 7.15–7.08 (m, 1H); 13C NMR (151 MHz, acetone-d6) δ 166.84, 150.61, 141.64, 133.09, 130.81, 129.46, 127.85, 125.33, 123.98, 123.28, 122.20, 122.05, 121.73, 118.63. MS: m/z 239.13 ([M + H]+, 100%).

3.2.4. Synthesis of Compound 18 and 22

2-(2H-Indazol-2-yl)benzonitrile (18a), Synthesized by a slight variation of the general method (Section 3.2.1). Briefly, the reaction mixture was ultrasonicated by four cycles of 1 h at 40 °C; after each 1h sonication step, the mixture was maintained under vacuum for 30 min at 30 mmHg and 40 °C. The cyclization with triethyl phosphite and the reaction workup were carried out as previously described (vide supra). The crude product was purified by using column chromatography with hexane–ethyl acetate 90:10. White solid, 32% yield, m.p.: 128–129 °C. The spectroscopic data agree with the previously reported data [50]. 1H NMR (600 MHz, CDCl3) δ 8.60 (d, J = 0.9 Hz, 1H), 7.97 (dd, J = 8.2, 1.1 Hz, 1H), 7.85 (dd, J = 7.8, 1.4 Hz, 1H), 7.82–7.76 (m, 2H), 7.54 (td, J = 7.7, 1.1 Hz, 1H), 7.36 (ddd, J = 8.8, 6.6, 1.1 Hz, 1H), 7.15 (ddd, J = 8.5, 6.6, 0.8 Hz, 1H); 13C NMR (151 MHz, CDCl3) δ 150.22, 142.36, 134.52, 134.04, 128.45, 127.68, 125.98, 123.42, 123.09, 122.84, 120.70, 118.03, 116.55, 106.82.
2-(2H-Indazol-2-yl)benzoic Acid (22), A 50 mL round bottom flask was charged with 2-(2H-indazol-2-yl)benzonitrile (2 mmol), sodium hydroxide (16 mmol) and water (25 mL). The mixture was heated to reflux for four hours. The cold mixture was treated with aqueous solution of HCl (10%) till total precipitation, the solid was filtered under vacuum and washed with cold water. White solid, 90% yield, m.p.: 210–211 °C. 1H NMR (600 MHz, DMSO-d6) δ 12.97 (s, 1H), 8.72 (d, J = 0.9 Hz, 1H), 7.86–7.83 (m, 1H), 7.78 (dt, J = 8.5, 1.0 Hz, 1H), 7.75–7.71 (m, 2H), 7.66 (dd, J = 8.8, 0.9 Hz, 1H), 7.63 (ddd, J = 7.7, 6.3, 2.4 Hz, 1H), 7.33–7.28 (m, 1H), 7.13–7.09 (m, 1H); 13C NMR (151 MHz, DMSO-d6) δ 167.36, 148.77, 138.88, 131.78, 129.83, 129.53, 128.92, 126.32, 126.26, 124.86, 122.07, 121.69, 120.97, 117.38. MS (HR-ESI) for C14H11N2O2 [M + H]+, calcd: m/z 239.0815, found: m/z 239.0824.
Methyl 2-(2H-Indazol-2-yl)benzoate (18), A 10 mL microwave vial was charged with 2-(2H-indazol-2-yl)benzoic acid (1.26 mmol) and 5 mL of solution of HCl in MeOH (15%). The reaction was heated at 120 °C under microwave irradiation for 25 min. Then the reaction was neutralized with 10% solution of NaHCO3 and extracted with dichloromethane (3 × 10 mL). The combined organic layers were dried over Na2SO4 and concentrated under vacuum. The product was purified by column chromatography employing hexanes–dichloromethane–ethyl acetate (50:35:15) as mobile phase. White solid, 36% yield, m.p.: 71–73 °C. The spectroscopic data agree with the previously reported data [48]. 1H NMR (600 MHz, CDCl3) δ 8.21 (d, J = 0.9 Hz, 1H), 7.90 (dd, J = 7.7, 1.4 Hz, 1H), 7.76 (dd, J = 8.8, 0.9 Hz, 1H), 7.72 (dt, J = 8.5, 0.8 Hz, 1H), 7.66–7.59 (m, J = 9.2, 7.9, 1.4 Hz, 2H), 7.54 (td, J = 7.6, 1.4 Hz, 1H), 7.32 (ddd, J = 8.8, 6.6, 1.0 Hz, 1H), 7.12 (ddd, J = 8.4, 6.6, 0.6 Hz, 1H), 3.61 (s, 3H); 13C NMR (151 MHz, CDCl3) δ 166.81, 149.70, 139.80, 132.07, 130.56, 128.82, 128.33, 126.66, 126.33, 123.81, 122.36, 122.34, 120.41, 117.93, 52.46.

3.3. Antiprotozoal Activity Assays

Trichomonas vaginalis strain GT3, Giardia intestinalis isolate IMSS:0981:1 and Entamoeba histolytica strain HM1-IMSS were used in all the experiments. Trophozoites of G. intestinalis were maintained in a TYI-S-33 medium supplemented with 10% calf serum and bovine bile. E. histolytica and T. vaginalis trophozoites were maintained in TYI-S-33 medium supplemented with 10% bovine serum. Briefly, 5 × 104 trophozoites of G. intestinalis or T. vaginalis, or 6 × 103 trophozoites of E. histolytica were incubated for 48 h at 37 °C with different concentrations of the compound to be tested, each added as solutions in DMSO. As a negative control, parasites received an equivalent amount of DMSO only, while albendazole (ABZ) and metronidazole (MTZ) were included as positive controls. At the end of the treatment period, the cells were washed and subcultured for another 48 h in fresh medium to which no drug was added. The trophozoites were then counted with a hemocytometer and the 50% inhibitory concentration (IC50), together with the respective 95% confidence limit was calculated by Probit analysis. Experiments were carried out in triplicate and repeated at least twice.

3.4. Cheminformatic Studies

3.4.1. Molecular Databases

Compounds with IC50 annotations against E. histolytica, G. intestinalis and T. vaginalis were retrieved from ChEMBL version 27 [37]. The crude databases were refined by using the following criteria: (a) compounds having structural errors or not readable were eliminated; (b) duplicated compounds were removed to preserve a single structure (the lowest activity value was kept); (c) only compounds with values of IC50 < 100 µM were considered; d) counterions were removed from salts and charges were neutralized; (e) inorganic compounds were removed. The curated databases contain 968 compounds against E. histolytica, 1211 against G. intestinalis and 445 against T. vaginalis with pIC50 annotations (-log IC50[mol/L]). Moreover, 180 benzimidazole derivatives with activity against these same protozoa were taken from previous reports to give 111 derivatives with IC50 against E. histolytica, 159 compounds against G. intestinalis and 134 molecules against T. vaginalis [7,23,24,25,26,27,28,29,30,31,32,33,34,35,36]. Compounds were drawing employing ChemDraw Professional 16.0.1.4 software and exported as simplified molecular-input line-entry system (SMILES) with their pIC50 annotations. Moreover, indazole derivatives (122) were processed employing the same methodology.

3.4.2. Property Space

A set of six properties were calculated for all compounds under study employing RDKit 2019.09.3 implemented in python 3.7.6: Molecular Weight (MW), Rotatable bonds (RBs), Hydrogen Bond Acceptors (HBAs), Hydrogen Bond Donors (HBDs), Topological Polar Surface Area (TPSA), and Octanol-Water Partition Coefficient (logP). Principal Component Analysis (PCA) were carried out employing the OSIRIS DataWarrior software Version 5.2.1 [41]. Violin plots were calculated employing the Seaborn 0.11.1 library implemented in python 3.7.6.

3.4.3. Structure-Activity Similarity (SAS) Maps

SAS maps were calculated by employing the Activity Landscape Plotter V1 [53]. Molecular ACCess System (MACCS) keys fingerprint (166 bits) and Extended Connectivity Fingerprint (ECFP) with a diameter four were used [54,55]. Each map was generated by plotting molecular similarity in the X-axis and the absolute value of the activity differences in the Y-axis. The Tanimoto coefficient was used to calculate N(N − 1)/2 pairwise structural similarities (SSi,j) for each pair of molecules i and j included in each scaffold class (benzimidazole or indazole). Moreover, N(N − 1)/2 pairwise activity differences, determined by the equation |ΔA(T)i,j| = |A(T)i − A(T)j|, were calculated for indazole and benzimidazole datasets; where A(T)i and A(T)j are the activities of the ith and jth molecules (j > i), in pIC50, tested against the target parasite T [42]. SAS maps were divided in four regions employing a threshold of two units on activity difference (100-fold in potency) and the median similarity of the total datapoints plotted in each map (including indazole and benzimidazole derivatives). Briefly, Regions I and II are associated with scaffold hopping (or side chain hopping) and smooth SAR, respectively, whereas Region IV indicates discontinuous SAR (Figure 4).

4. Conclusions

A one-pot procedure including a combination of ultrasound synthesis under neat conditions and a Cadogan’s cyclization was implemented for the synthesis of 2-phenyl-2H-indazole derivatives. The one-pot method leads to similar or better yields as compared to our previous reports. The biological assays revealed that electron withdrawing groups at the 2-phenyl ring are favorable for antiprotozoal activity. Furthermore, although the SAR information obtained from indazole derivatives as antiprotozoals is still limited, cheminformatic analysis for the 22 compounds studied, highlight their potent values and their smooth SAR nature as compared to reference databases. More studies are needed to expand the activity landscape of indazole derivatives; however, these results represent a valuable start-point toward the optimization of indazole derivatives as antiprotozoals.

Supplementary Materials

The following are available online, Figures S1–S23 1H NMR and 13C NMR for 2-phenyl-2H-indazole derivatives synthesized (122 and 18a).

Author Contributions

Conceptualization, K.R.-V., L.Y.-M., and J.P.-V. methodology, K.R.-V., J.P.-V., L.Y.-M., O.S.-A., J.F.P.-E., and F.C.-B.; formal analysis, J.P.-V., and K.S.O.D.A.; investigation, K.R.-V., J.P.-V., M.C.-G., J.D.A.-P., E.A.Q.-S., and K.S.O.D.A.; data curation, K.S.O.D.A.; writing—J.P.-V.; writing—review and editing, L.Y.-M., O.S.-A., J.F.P.-E., and F.C.-B.; supervision, J.P.-V., J.F.P.-E., F.C.-B., and O.S.-A.; project administration, J.P.-V.; funding acquisition, J.P.-V. All authors have read and agreed to the published version of the manuscript.

Funding

This research was funded by Consejo Nacional de Ciencia y Tecnología (CONACyT), grant numbers CB-2015-01-258554 and 1238.

Data Availability Statement

The data presented in this study are available on request from the corresponding author.

Acknowledgments

The authors would like to express their sincere thanks to Amparo Tapia for the technical support with biological assays as well as Ernesto Sánchez Mendoza and Mónica A. Rincón for their analytical support. Moreover, the authors acknowledge to DIFACQUIM for providing the web server to aid the cheminformatic study, OpenMolecules.org for providing the DataWarrior software and Pharmometrica research center for the support with mass spectra determinations.

Conflicts of Interest

The authors declare no conflict of interest.

Sample Availability

Samples of the compounds 122 and 18a are available from the authors.

References

  1. Scott, L.J. Niraparib: First global approval. Drugs 2017, 77, 1029–1034. [Google Scholar] [CrossRef]
  2. Al-Salama, Z.T.; Keam, S.J. Entrectinib: First global approval. Drugs 2019, 79, 1477–1483. [Google Scholar] [CrossRef] [PubMed]
  3. Thangadurai, A.; Minu, M.; Wakode, S.; Agrawal, S.; Narasimhan, B. Indazole: A medicinally important heterocyclic moiety. Med. Chem. Res. 2012, 21, 1509–1523. [Google Scholar] [CrossRef]
  4. Hugo, C.; Alejandra, G.; Mercedes, G.; Vicente, J.A.; Carmen, O.d.O. Pharmacological properties of indazole derivatives: Recent developments. Mini. Rev. Med. Chem. 2005, 5, 869–878. [Google Scholar]
  5. Denya, I.; Malan, S.F.; Joubert, J. Indazole derivatives and their therapeutic applications: A patent review (2013-2017). Expert. Opin. Ther. Pat. 2018, 28, 441–453. [Google Scholar] [CrossRef]
  6. Zhang, S.-G.; Liang, C.-G.; Zhang, W.-H. Recent advances in indazole-containing derivatives: Synthesis and biological perspectives. Molecules 2018, 23, 2783. [Google Scholar] [CrossRef] [Green Version]
  7. López-Vallejo, F.; Castillo, R.; Yépez-Mulia, L.; Medina-Franco, J.L. Benzotriazoles and indazoles are scaffolds with biological activity against Entamoeba histolytica. J. Biomol. Screen. 2011, 16, 862–868. [Google Scholar] [CrossRef] [Green Version]
  8. Pérez-Villanueva, J.; Yépez-Mulia, L.; González-Sánchez, I.; Palacios-Espinosa, J.F.; Soria-Arteche, O.; Sainz-Espuñes, T.D.R.; Cerbón, M.A.; Rodríguez-Villar, K.; Rodríguez-Vicente, A.K.; Cortés-Gines, M.; et al. synthesis and biological evaluation of 2H-indazole derivatives: Towards antimicrobial and anti-inflammatory dual agents. Molecules 2017, 22, 1864. [Google Scholar] [CrossRef] [Green Version]
  9. Marrero-Ponce, Y.; Meneses-Marcel, A.; Castillo-Garit, J.A.; Machado-Tugores, Y.; Escario, J.A.; Barrio, A.G.; Pereira, D.M.; Nogal-Ruiz, J.J.; Arán, V.J.; Martínez-Fernández, A.R.; et al. Predicting antitrichomonal activity: A computational screening using atom-based bilinear indices and experimental proofs. Bioorg. Med. Chem. 2006, 14, 6502–6524. [Google Scholar] [CrossRef]
  10. Kantor, M.; Abrantes, A.; Estevez, A.; Schiller, A.; Torrent, J.; Gascon, J.; Hernandez, R.; Ochner, C. Entamoeba histolytica: Updates in clinical manifestation, pathogenesis, and vaccine development. Can. J. Gastroenterol. Hepatol. 2018, 2018, 4601420. [Google Scholar] [CrossRef] [Green Version]
  11. Cacciò, S.; Sprong, H. Epidemiology of giardiasis in humans. In Giardia a Model Organism, 1st ed.; Lujan, H.D., Svärd, S., Eds.; Springer: Vienna, Austria, 2011; Volume 1, pp. 17–28. [Google Scholar]
  12. Hodges, K.; Gill, R. Infectious diarrhea: Cellular and molecular mechanisms. Gut. Microb. 2010, 1, 4–21. [Google Scholar] [CrossRef] [Green Version]
  13. Bala, V.; Chhonker, Y.S. Recent developments in anti-Trichomonas research: An update review. Eur. J. Med. Chem. 2018, 143, 232–243. [Google Scholar] [CrossRef]
  14. Rowley, J.; Vander Hoorn, S.; Korenromp, E.; Low, N.; Unemo, M.; Abu-Raddad, L.J.; Chico, R.M.; Smolak, A.; Newman, L.; Gottlieb, S.; et al. Chlamydia, gonorrhoea, trichomoniasis and syphilis: Global prevalence and incidence estimates, 2016. Bull. World Health Organ. 2019, 97, 548P–562P. [Google Scholar] [CrossRef]
  15. Schwebke, J.R. Update of trichomoniasis. Sex. Transm. Infect. 2002, 78, 378–379. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  16. Upcroft, P.; Upcroft, J.A. Drug targets and mechanisms of resistance in the anaerobic protozoa. Clin. Microbiol. Rev. 2001, 14, 150–164. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  17. Upcroft, J.A.; Upcroft, P. Drug susceptibility testing of anaerobic protozoa. Antimicrob. Agents Chemother. 2001, 45, 1810–1814. [Google Scholar] [CrossRef] [Green Version]
  18. García, C.G.; Marchat, L.A.; López-Cánovas, L.; Ishiwara, D.G.P.; Rodríguez, M.A.; Orozco, E. Drug resistance mechanisms in Entamoeba histolytica, Giardia lamblia, Trichomonas vaginalis, and opportunistic anaerobic protozoa. In Antimicrobial Drug Resistance: Mechanisms of Drug Resistance, 2nd ed.; Mayers, D.L., Sobel, J.D., Ouellette, M., Kaye, K.S., Marchaim, D., Eds.; Springer International Publishing: Cham, Switzerland, 2017; Volume 1, pp. 613–628. [Google Scholar]
  19. Leitsch, D. Drug resistance in the microaerophilic parasite Giardia lamblia. Curr. Trop. Med. Rep. 2015, 2, 128–135. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  20. Crawford, D.E. Solvent-free sonochemistry: Sonochemical organic synthesis in the absence of a liquid medium. Beilstein J. Org. Chem. 2017, 13, 1850–1856. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  21. Cadogan, J.; Mackie, R. 2-Phenylindazole. Org. Synth. 1968, 48, 113. [Google Scholar]
  22. Schaeffer, L. The role of functional groups in drug–receptor interactions. In The Practice of Medicinal Chemistry, 4th ed.; Wermuth, C.G., Aldous, D., Raboisson, P., Rognan, D., Eds.; Academic Press: San Diego, CA, USA, 2008; Volume 1, pp. 359–378. [Google Scholar]
  23. Navarrete-Vazquez, G.; Rojano-Vilchis, M.D.; Yepez-Mulia, L.; Melendez, V.; Gerena, L.; Hernandez-Campos, A.; Castillo, R.; Hernandez-Luis, F. Synthesis and antiprotozoal activity of some 2-(trifluoromethyl)-1H-benzimidazole bioisosteres. Eur. J. Med. Chem. 2006, 41, 135–141. [Google Scholar] [CrossRef]
  24. Navarrete-Vazquez, G.; Yepez, L.; Hernandez-Campos, A.; Tapia, A.; Hernandez-Luis, F.; Cedillo, R.; Gonzalez, J.; Martinez-Fernandez, A.; Martinez-Grueiro, M.; Castillo, R. Synthesis and antiparasitic activity of albendazole and mebendazole analogues. Bioorg. Med. Chem. 2003, 11, 4615–4622. [Google Scholar] [CrossRef]
  25. Andrzejewska, M.; Yepez-Mulia, L.; Cedillo-Rivera, R.; Tapia, A.; Vilpo, L.; Vilpo, J.; Kazimierczuk, Z. Synthesis, antiprotozoal and anticancer activity of substituted 2-trifluoromethyl- and 2-pentafluoroethylbenzimidazoles. Eur. J. Med. Chem. 2002, 37, 973–978. [Google Scholar] [CrossRef]
  26. Andrzejewska, M.; Yepez-Mulia, L.; Tapia, A.; Cedillo-Rivera, R.; Laudy, A.E.; Starosciak, B.J.; Kazimierczuk, Z. Synthesis, and antiprotozoal and antibacterial activities of S-substituted 4,6-dibromo- and 4,6-dichloro-2-mercaptobenzimidazoles. Eur. J. Pharm. Sci. 2004, 21, 323–329. [Google Scholar] [CrossRef] [PubMed]
  27. Valdez-Padilla, D.; Rodriguez-Morales, S.; Hernandez-Campos, A.; Hernandez-Luis, F.; Yepez-Mulia, L.; Tapia-Contreras, A.; Castillo, R. Synthesis and antiprotozoal activity of novel 1-methylbenzimidazole derivatives. Bioorg. Med. Chem. 2009, 17, 1724–1730. [Google Scholar] [CrossRef] [PubMed]
  28. Navarrete-Vazquez, G.; Cedillo, R.; Hernandez-Campos, A.; Yepez, L.; Hernandez-Luis, F.; Valdez, J.; Morales, R.; Cortes, R.; Hernandez, M.; Castillo, R. Synthesis and antiparasitic activity of 2-(trifluoromethyl)-benzimidazole derivatives. Bioorg. Med. Chem. Lett. 2001, 11, 187–190. [Google Scholar] [CrossRef]
  29. Hernandez-Luis, F.; Hernandez-Campos, A.; Castillo, R.; Navarrete-Vazquez, G.; Soria-Arteche, O.; Hernandez-Hernandez, M.; Yepez-Mulia, L. Synthesis and biological activity of 2-(trifluoromethyl)-1H-benzimidazole derivatives against some protozoa and Trichinella Spiralis. Eur. J. Med. Chem. 2010, 45, 3135–3141. [Google Scholar] [CrossRef]
  30. Valdez, J.; Cedillo, R.; Hernandez-Campos, A.; Yepez, L.; Hernandez-Luis, F.; Navarrete-Vazquez, G.; Tapia, A.; Cortes, R.; Hernandez, M.; Castillo, R. Synthesis and antiparasitic activity of 1H-benzimidazole derivatives. Bioorg. Med. Chem. Lett. 2002, 12, 2221–2224. [Google Scholar] [CrossRef]
  31. Pérez-Villanueva, J.; Medina-Franco, J.L.; Caulfield, T.R.; Hernández-Campos, A.; Hernández-Luis, F.; Yépez-Mulia, L.; Castillo, R. Comparative molecular field analysis (CoMFA) and comparative molecular similarity indices analysis (CoMSIA) of some benzimidazole derivatives with trichomonicidal activity. Eur. J. Med. Chem. 2011, 46, 3499–3508. [Google Scholar] [CrossRef]
  32. Pérez-Villanueva, J.; Hernández-Campos, A.; Yépez-Mulia, L.; Méndez-Cuesta, C.; Méndez-Lucio, O.; Hernández-Luis, F.; Castillo, R. Synthesis and antiprotozoal activity of novel 2-{[2-(1H-imidazol-1-yl)ethyl]sulfanyl}-1H-benzimidazole derivatives. Bioorg. Med. Chem. Lett. 2013, 23, 4221–4224. [Google Scholar] [CrossRef]
  33. Soria-Arteche, O.; Hernández-Campos, A.; Yépez-Mulia, L.; Trejo-Soto, P.J.; Hernández-Luis, F.; Gres-Molina, J.; Maldonado, L.A.; Castillo, R. Synthesis and antiprotozoal activity of nitazoxanide–N-methylbenzimidazole hybrids. Bioorg. Med. Chem. Lett. 2013, 23, 6838–6841. [Google Scholar] [CrossRef]
  34. Lopez-Vallejo, F.; Medina-Franco, J.L.; Hernandez-Campos, A.; Rodriguez-Morales, S.; Yepez, L.; Cedillo, R.; Castillo, R. Molecular modeling of some 1H-benzimidazole derivatives with biological activity against Entamoeba Histolytica: A comparative molecular field analysis study. Bioorg. Med. Chem. 2007, 15, 1117–1126. [Google Scholar] [CrossRef] [PubMed]
  35. Hernández-Covarrubias, C.; Vilchis-Reyes, M.A.; Yépez-Mulia, L.; Sánchez-Díaz, R.; Navarrete-Vázquez, G.; Hernández-Campos, A.; Castillo, R.; Hernández-Luis, F. Exploring the interplay of physicochemical properties, membrane permeability and giardicidal activity of some benzimidazole derivatives. Eur. J. Med. Chem. 2012, 52, 193–204. [Google Scholar] [CrossRef] [PubMed]
  36. Flores-Carrillo, P.; Velázquez-López, J.M.; Aguayo-Ortiz, R.; Hernández-Campos, A.; Trejo-Soto, P.J.; Yépez-Mulia, L.; Castillo, R. Synthesis, antiprotozoal activity, and chemoinformatic analysis of 2-(methylthio)-1H-benzimidazole-5-carboxamide derivatives: Identification of new selective giardicidal and trichomonicidal compounds. Eur. J. Med. Chem. 2017, 137, 211–220. [Google Scholar] [CrossRef] [PubMed]
  37. Gaulton, A.; Bellis, L.J.; Bento, A.P.; Chambers, J.; Davies, M.; Hersey, A.; Light, Y.; McGlinchey, S.; Michalovich, D.; Al-Lazikani, B.; et al. ChEMBL: A large-scale bioactivity database for drug discovery. Nucleic Acids Res. 2011, 40, D1100–D1107. [Google Scholar] [CrossRef] [Green Version]
  38. Pérez-Villanueva, J.; Santos, R.; Hernández-Campos, A.; Giulianotti, M.A.; Castillo, R.; Medina-Franco, J.L. Towards a systematic characterization of the antiprotozoal activity landscape of benzimidazole derivatives. Bioorg. Med. Chem. 2010, 18, 7380–7391. [Google Scholar] [CrossRef]
  39. Pérez-Villanueva, J.; Santos, R.; Hernández-Campos, A.; Giulianotti, M.A.; Castillo, R.; Medina-Franco, J.L. Structure-activity relationships of benzimidazole derivatives as antiparasitic agents: Dual activity-difference (DAD) maps. MedChemComm 2011, 2, 44–49. [Google Scholar] [CrossRef]
  40. Aguayo-Ortiz, R.; Pérez-Villanueva, J.; Hernández-Campos, A.; Castillo, R.; Meurice, N.; Medina-Franco, J.L. Chemoinformatic characterization of activity and selectivity switches of antiprotozoal compounds. Future Med. Chem. 2014, 6, 281–294. [Google Scholar] [CrossRef]
  41. Sander, T.; Freyss, J.; von Korff, M.; Rufener, C. DataWarrior: An open-source program for chemistry aware data visualization and analysis. J. Chem. Inf. Model. 2015, 55, 460–473. [Google Scholar] [CrossRef] [PubMed]
  42. Pérez-Villanueva, J.; Méndez-Lucio, O.; Soria-Arteche, O.; Medina-Franco, J.L. Activity cliffs and activity cliff generators based on chemotype-related activity landscapes. Mol. Divers. 2015, 19, 1021–1035. [Google Scholar] [CrossRef]
  43. Maggiora, G.M. On outliers and activity cliffs - Why QSAR often disappoints. J. Chem. Inf. Model. 2006, 46, 1535. [Google Scholar] [CrossRef]
  44. Bajorath, J.; Peltason, L.; Wawer, M.; Guha, R.; Lajiness, M.S.; Van Drie, J.H. Navigating structure–activity landscapes. Drug Discov. Today 2009, 14, 698–705. [Google Scholar] [CrossRef]
  45. Cruz-Monteagudo, M.; Medina-Franco, J.L.; Pérez-Castillo, Y.; Nicolotti, O.; Cordeiro, M.N.D.S.; Borges, F. Activity cliffs in drug discovery: Dr Jekyll or Mr Hyde? Drug Discov. Today 2014, 19, 1069–1080. [Google Scholar] [CrossRef]
  46. Fang, Y.; Wu, C.; Larock, R.C.; Shi, F. Synthesis of 2H-indazoles by the [3 + 2] dipolar cycloaddition of sydnones with arynes. J. Org. Chem. 2011, 76, 8840–8851. [Google Scholar] [CrossRef] [Green Version]
  47. Kumar, M.R.; Park, A.; Park, N.; Lee, S. Consecutive condensation, C–N and N–N bond formations: A copper- catalyzed one-pot three-component synthesis of 2H-indazole. Org. Lett. 2011, 13, 3542–3545. [Google Scholar] [CrossRef]
  48. Genung, N.E.; Wei, L.; Aspnes, G.E. Regioselective Synthesis of 2H-indazoles using a mild, one-pot condensation–Cadogan reductive cyclization. Org. Lett. 2014, 16, 3114–3117. [Google Scholar] [CrossRef] [PubMed]
  49. Elie, J.; Vercouillie, J.; Arlicot, N.; Lemaire, L.; Bidault, R.; Bodard, S.; Hosselet, C.; Deloye, J.-B.; Chalon, S.; Emond, P.; et al. Design of selective COX-2 inhibitors in the (aza)indazole series. Chemistry, in vitro studies, radiochemistry and evaluations in rats of a [18F] PET tracer. J. Enzyme Inhib. Med. Chem. 2019, 34, 1–7. [Google Scholar] [CrossRef] [Green Version]
  50. Schoene, J.; Bel Abed, H.; Schmieder, P.; Christmann, M.; Nazaré, M. A general one-pot synthesis of 2H-indazoles using an organophosphorus–silane system. Chem. Eur. J. 2018, 24, 9090–9100. [Google Scholar] [CrossRef] [PubMed]
  51. Zhang, R.; Liu, Z.; Peng, Q.; Zhou, Y.; Xu, L.; Pan, X. Access to 2-substituted-2H-indazoles via a copper-catalyzed regioselective cross-coupling reaction. Org. Biomol. Chem. 2018, 16, 1816–1822. [Google Scholar] [CrossRef]
  52. Nykaza, T.V.; Harrison, T.S.; Ghosh, A.; Putnik, R.A.; Radosevich, A.T. A biphilic phosphetane catalyzes N–N bond-forming Cadogan heterocyclization via PIII/PV=O redox cycling. J. Am. Chem. Soc. 2017, 139, 6839–6842. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  53. González-Medina, M.; Méndez-Lucio, O.; Medina-Franco, J.L. Activity landscape plotter: A web-based application for the analysis of structure–activity relationships. J. Chem. Inf. Model. 2017, 57, 397–402. [Google Scholar] [CrossRef] [PubMed]
  54. Durant, J.L.; Leland, B.A.; Henry, D.R.; Nourse, J.G. Reoptimization of MDL keys for use in drug discovery. J. Chem. Inf. Comput. Sci. 2002, 42, 1273–1280. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  55. Rogers, D.; Hahn, M. Extended-connectivity fingerprints. J. Chem. Inf. Model. 2010, 50, 742–754. [Google Scholar] [CrossRef] [PubMed]

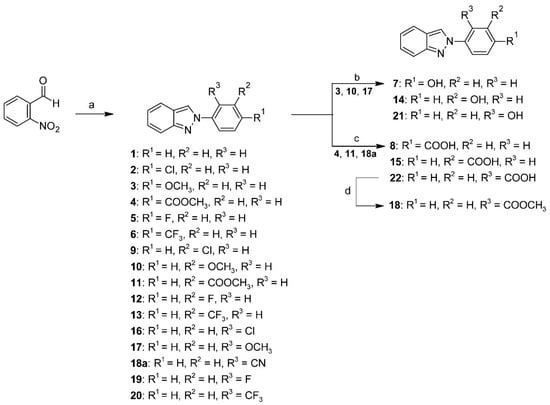

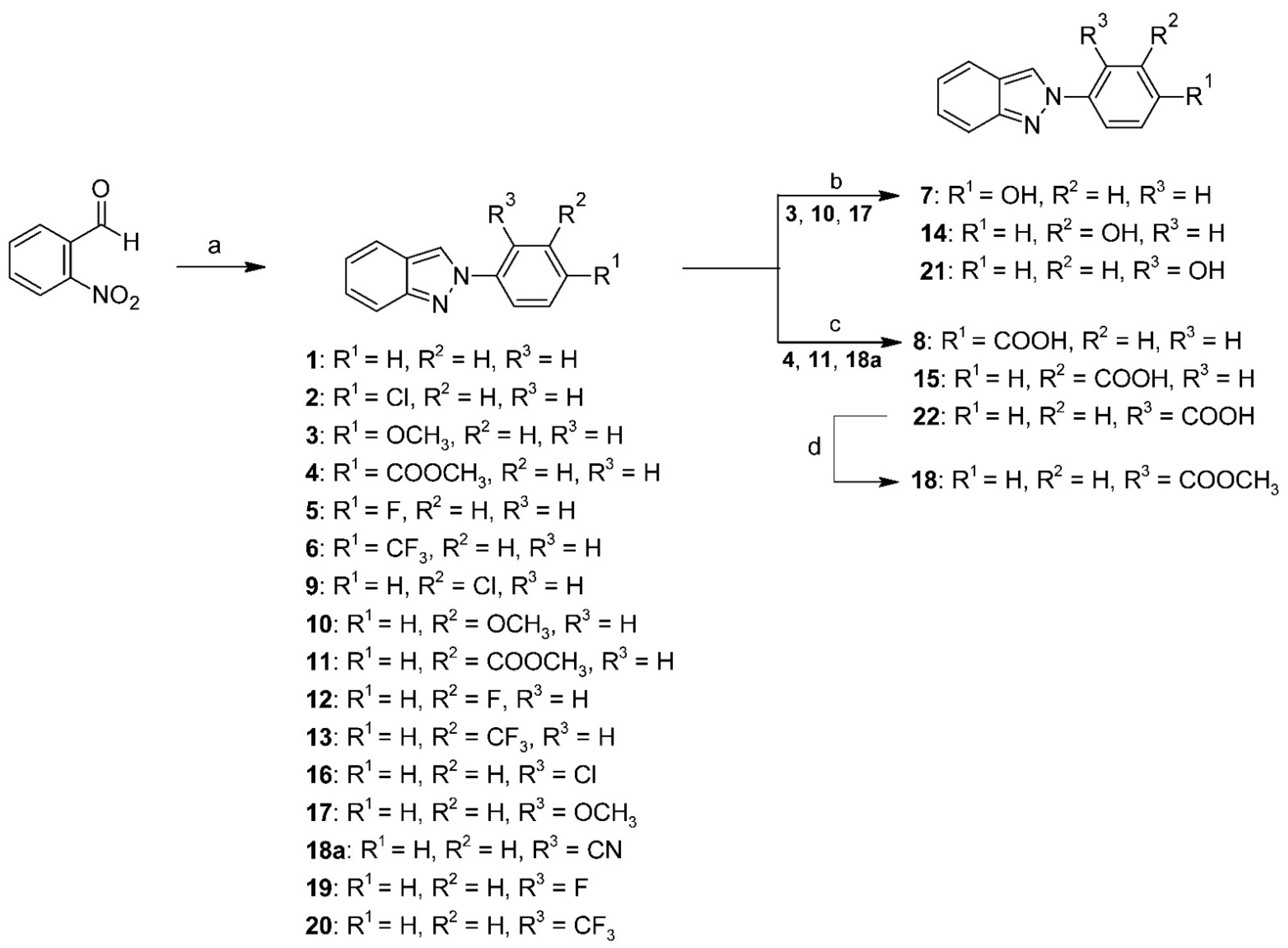

Scheme 1. Synthesis of the 2-phenylindazole derivatives. Reagents and conditions: (a) 1. R1C6H4NH2, ultrasound, 40 °C, neat, 2. P(OEt)3, reflux; (b) BBr3, CH2Cl2, 0 °C; (c) 1. NaOH, H2O, reflux, 2. HCl; (d) HCl, MeOH, MW.
Scheme 1. Synthesis of the 2-phenylindazole derivatives. Reagents and conditions: (a) 1. R1C6H4NH2, ultrasound, 40 °C, neat, 2. P(OEt)3, reflux; (b) BBr3, CH2Cl2, 0 °C; (c) 1. NaOH, H2O, reflux, 2. HCl; (d) HCl, MeOH, MW.
Molecules 26 02145 sch001

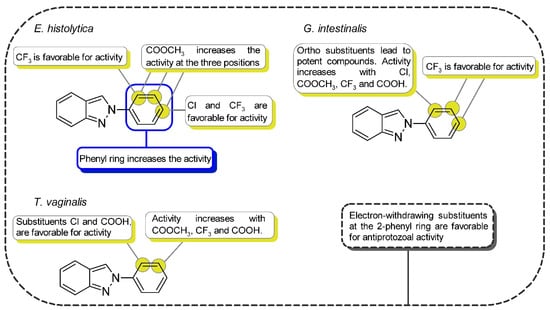

Figure 1. Principally SAR features derived from the 2-phenyl-2H-indazole derivatives tested.
Figure 1. Principally SAR features derived from the 2-phenyl-2H-indazole derivatives tested.
Molecules 26 02145 g001

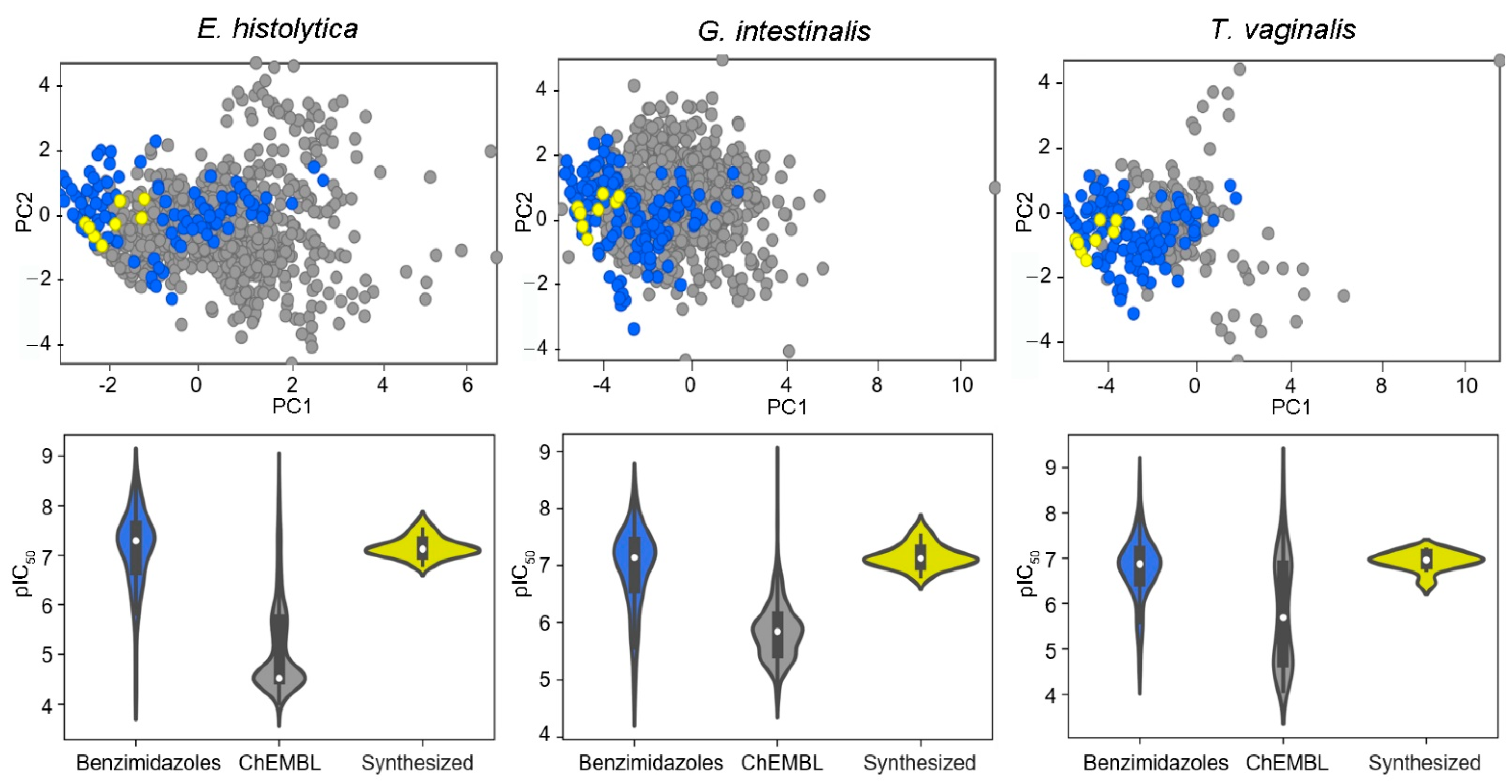

Figure 2. Property space and activity range for 2-phenyl-2H-indazole derivatives (122) synthesized in this work (yellow), a collection of antiprotozoal 1H-benzimidazole derivatives (blue) and ChEMBL collection of antiprotozoals (gray). The two principal components taken together account for 75.34, 72.44 and 75.71% of the variance for E. histolytica, G. intestinalis, and T. vaginalis, respectively.
Figure 2. Property space and activity range for 2-phenyl-2H-indazole derivatives (122) synthesized in this work (yellow), a collection of antiprotozoal 1H-benzimidazole derivatives (blue) and ChEMBL collection of antiprotozoals (gray). The two principal components taken together account for 75.34, 72.44 and 75.71% of the variance for E. histolytica, G. intestinalis, and T. vaginalis, respectively.
Molecules 26 02145 g002

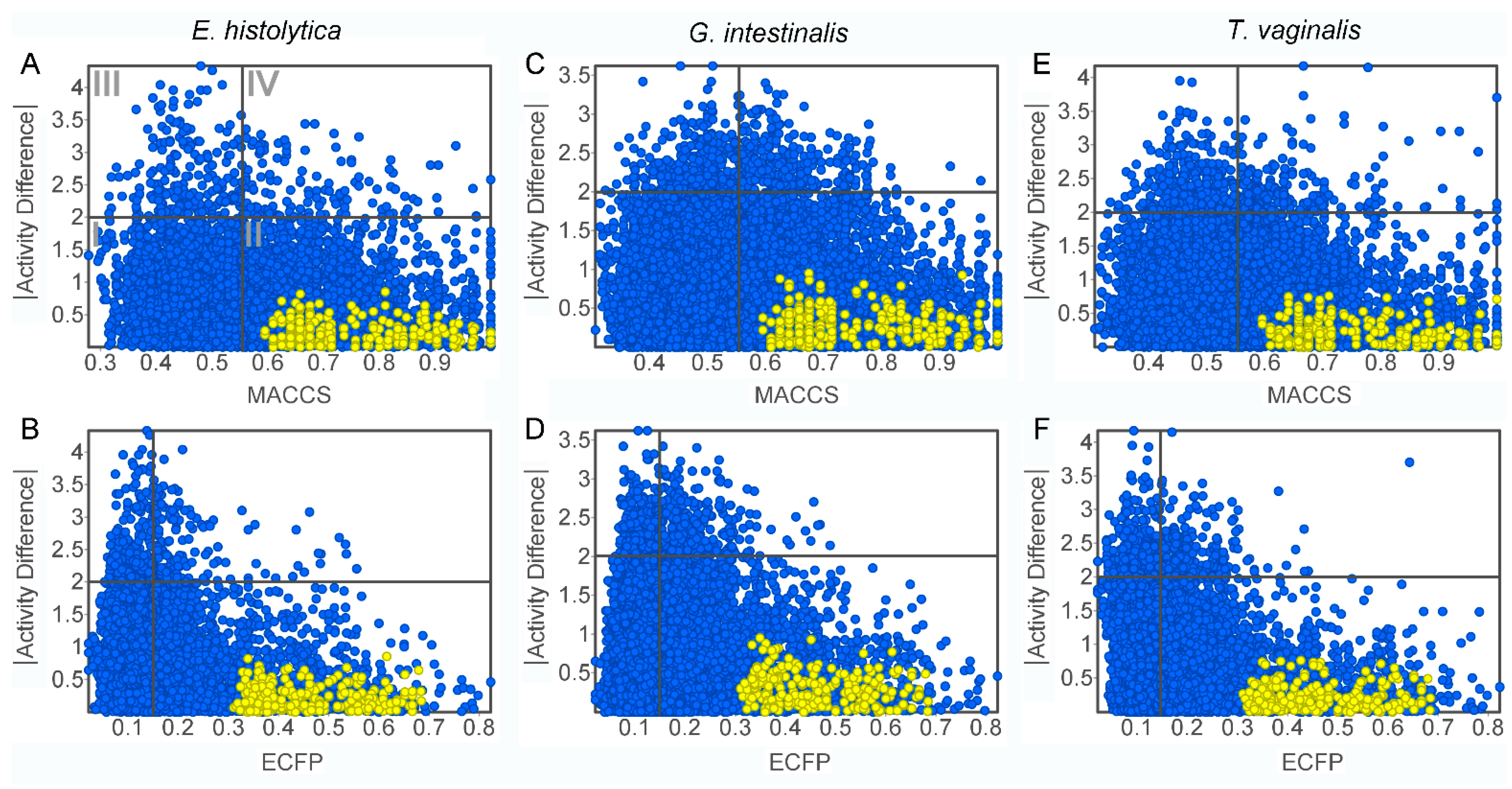

Figure 3. Structure-Activity Similarity Maps using Molecular ACCess System keys (MACCS) and Extended Connectivity Fingerprint (ECFP) divided by thresholds in structure similarity and activity differences in regions I–IV. Each data point indicates a pairwise comparison of the 22 synthesized 2-phenyl-2H-indazole derivatives (231 datapoints in yellow, AF) and 111 benzimidazoles tested against E. histolytica (6105 datapoints in blue, A,B), 159 benzimidazoles tested against G. intestinalis (12,561 datapoints in blue, C,D), and 134 benzimidazoles tested against T. vaginalis (8911 datapoints in blue, E,F).
Figure 3. Structure-Activity Similarity Maps using Molecular ACCess System keys (MACCS) and Extended Connectivity Fingerprint (ECFP) divided by thresholds in structure similarity and activity differences in regions I–IV. Each data point indicates a pairwise comparison of the 22 synthesized 2-phenyl-2H-indazole derivatives (231 datapoints in yellow, AF) and 111 benzimidazoles tested against E. histolytica (6105 datapoints in blue, A,B), 159 benzimidazoles tested against G. intestinalis (12,561 datapoints in blue, C,D), and 134 benzimidazoles tested against T. vaginalis (8911 datapoints in blue, E,F).
Molecules 26 02145 g003

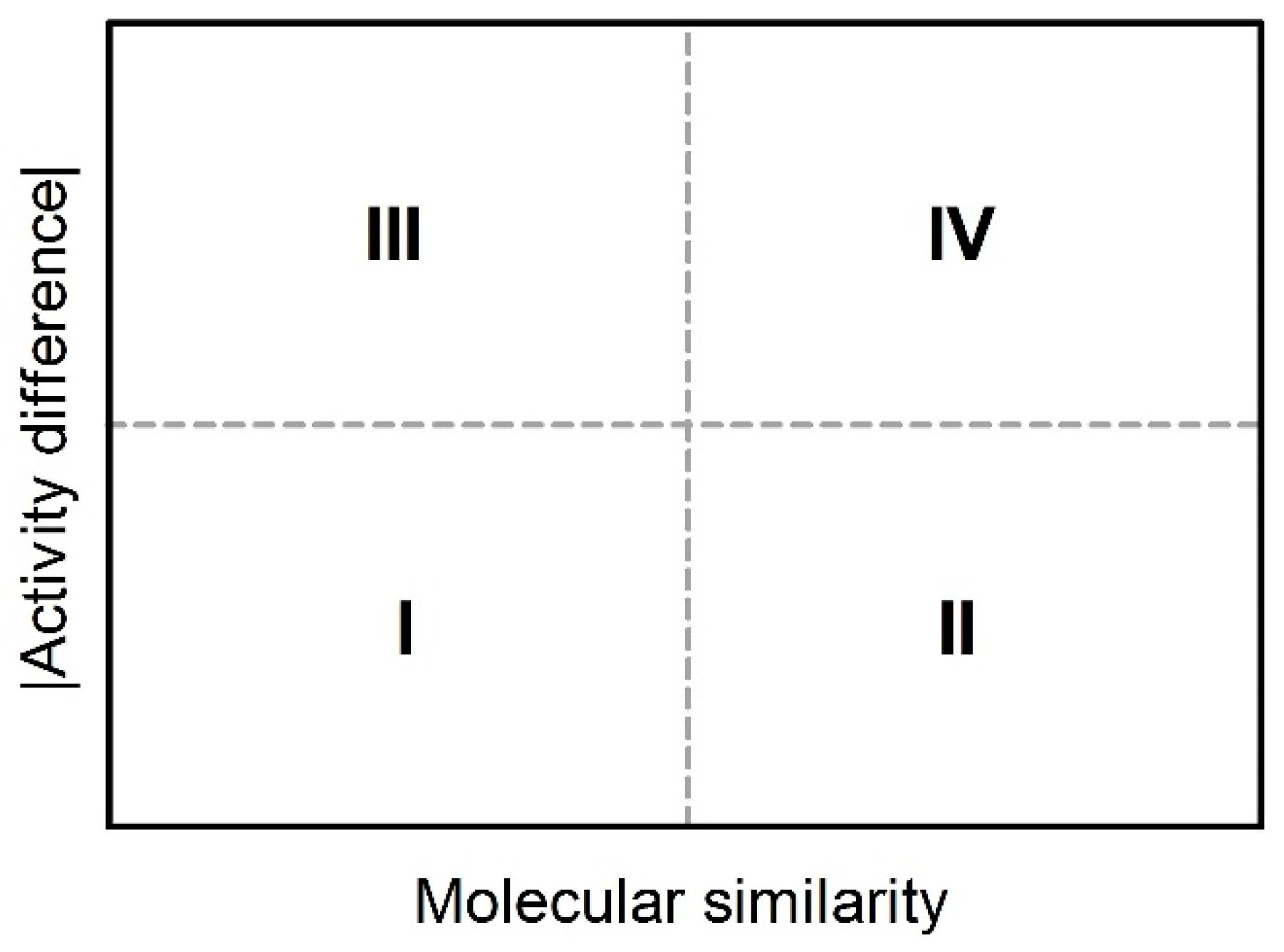

Figure 4. General form of the structure–activity similarity (SAS) maps showing four major regions.
Figure 4. General form of the structure–activity similarity (SAS) maps showing four major regions.
Molecules 26 02145 g004
Table 1. Chemical yield (%) for 2-phenyl-2H-indazole derivatives synthesized by ultrasound assisted one-pot procedure, and representative examples of these same compounds synthesized by the conventional method.
Table 1. Chemical yield (%) for 2-phenyl-2H-indazole derivatives synthesized by ultrasound assisted one-pot procedure, and representative examples of these same compounds synthesized by the conventional method.
Molecules 26 02145 i001
CompoundRUltrasound Assisted One-Pot ProcedurePreviously Reported by the Conventional Method [8]
1H9260
24-Cl6252
34-OCH35752
44-COOCH33938
54-F7150
64-CF3436
93-Cl53-
103-OCH345-
113-COOCH351-
123-F51-
133-CF346-
162-Cl55-
172-OCH369-
18a2-CN32 1-
192-F54-
202-CF326-
1 The reaction mixture was ultrasonicated by four cycles of 1 h at 40 °C (vide infra).
Table 2. Antiprotozoal activity of the 2-pheny-2H-indazole derivatives synthesized (IC50 [µM] ± SD).
Table 2. Antiprotozoal activity of the 2-pheny-2H-indazole derivatives synthesized (IC50 [µM] ± SD).
Molecules 26 02145 i002
CompoundR 1R 2R 3E. histolyticaG. intestinalisT. vaginalis
11HHH0.080 ± 0.0040.113 ± 0.0220.118 ± 0.022
21ClHH0.042 ± 0.0030.063 ± 0.0030.107 ± 0.003
31OCH3HH0.154 ± 0.0160.205 ± 0.0060.372 ± 0.016
41COOCH3HH0.022 ± 0.0030.063 ± 0.0060.107 ± 0.006
5FHH0.075 ± 0.0070.071 ± 0.0070.118 ± 0.020
6CF3HH0.053 ± 0.0000.034 ± 0.0050.084 ± 0.016
71OHHH0.074 ± 0.0100.119 ± 0.0070.157 ± 0.014
81COOHHH0.097 ± 0.0060.193 ± 0.0120.327 ± 0.018
9HClH0.070 ± 0.0120.083 ± 0.0120.101 ± 0.006
10HOCH3H0.078 ± 0.0100.056 ± 0.0100.120 ± 0.019
11HCOOCH3H0.036 ± 0.0000.054 ± 0.0030.069 ± 0.008
12HFH0.097 ± 0.0100.087 ± 0.0030.092 ± 0.010
13HCF3H0.061 ± 0.0050.050 ± 0.0050.069 ± 0.005
14HOHH0.102 ± 0.0030.105 ± 0.0000.162 ± 0.000
15HCOOHH0.074 ± 0.0090.053 ± 0.0090.065 ± 0.009
16HHCl0.088 ± 0.0060.031 ± 0.0060.066 ± 0.012
17HHOCH30.096 ± 0.0030.083 ± 0.0030.183 ± 0.006
18HHCOOCH30.050 ± 0.0030.032 ± 0.0060.109 ± 0.008
19HHF0.092 ± 0.0100.071 ± 0.0070.108 ± 0.007
20HHCF30.031 ± 0.0110.027 ± 0.0110.128 ± 0.014
21HHOH0.145 ± 0.0100.074 ± 0.0030.112 ± 0.010
22HHCOOH0.074 ± 0.0030.023 ± 0.0090.067 ± 0.006
MTZ 2---0.380 ± 0.1461.226 ± 0.1250.236 ± 0.016
ABZ 3---56.533 ± 18.8450.037 ± 0.0031.591 ± 0.011
1 IC50 values were taken from Pérez-Villanueva et al. 2017 [8]; 2 Metronidazole; 3 Albendazole.
Publisher’s Note: MDPI stays neutral with regard to jurisdictional claims in published maps and institutional affiliations.

Share and Cite

MDPI and ACS Style

Rodríguez-Villar, K.; Yépez-Mulia, L.; Cortés-Gines, M.; Aguilera-Perdomo, J.D.; Quintana-Salazar, E.A.; Olascoaga Del Angel, K.S.; Cortés-Benítez, F.; Palacios-Espinosa, J.F.; Soria-Arteche, O.; Pérez-Villanueva, J. Synthesis, Antiprotozoal Activity, and Cheminformatic Analysis of 2-Phenyl-2H-Indazole Derivatives. Molecules 2021, 26, 2145. https://doi.org/10.3390/molecules26082145

AMA Style

Rodríguez-Villar K, Yépez-Mulia L, Cortés-Gines M, Aguilera-Perdomo JD, Quintana-Salazar EA, Olascoaga Del Angel KS, Cortés-Benítez F, Palacios-Espinosa JF, Soria-Arteche O, Pérez-Villanueva J. Synthesis, Antiprotozoal Activity, and Cheminformatic Analysis of 2-Phenyl-2H-Indazole Derivatives. Molecules. 2021; 26(8):2145. https://doi.org/10.3390/molecules26082145

Chicago/Turabian Style

Rodríguez-Villar, Karen, Lilián Yépez-Mulia, Miguel Cortés-Gines, Jacobo David Aguilera-Perdomo, Edgar A. Quintana-Salazar, Kevin Samael Olascoaga Del Angel, Francisco Cortés-Benítez, Juan Francisco Palacios-Espinosa, Olivia Soria-Arteche, and Jaime Pérez-Villanueva. 2021. "Synthesis, Antiprotozoal Activity, and Cheminformatic Analysis of 2-Phenyl-2H-Indazole Derivatives" Molecules 26, no. 8: 2145. https://doi.org/10.3390/molecules26082145

Article Metrics

Back to TopTop
