Communication

On the Question of Zwitterionic Intermediates in the [3 + 2] Cycloaddition Reactions between C-arylnitrones and Perfluoro 2-Methylpent-2-ene

by
Katarzyna Mitka
,
Katarzyna Fela
,
Aleksandra Olszewska
and
Radomir Jasiński
*
Department of Organic Chemistry and Technology, Cracow University of Technology, Warszawska 24, 31-155 Cracow, Poland
*
Author to whom correspondence should be addressed.
Molecules 2021, 26(23), 7147; https://doi.org/10.3390/molecules26237147
Submission received: 8 November 2021 / Revised: 19 November 2021 / Accepted: 20 November 2021 / Published: 25 November 2021
(This article belongs to the Special Issue Huisgen 3+n Dipolar Cycloaddition Reactions: An Accessible and Useful Tool in Modern Organic and Heterocycle Synthesis)
Browse Figures
Versions Notes

Abstract

:
The molecular mechanism of the [3 + 2] cycloaddition reaction between C-arylnitrones and perfluoro 2-methylpent-2-ene was explored on the basis of DFT calculations. It was found that despite the polar nature of the intermolecular interactions, as well as the presence of fluorine atoms near the reaction centers, all reactions considered cycloaddition proceed via a one-step mechanism. All attempts for the localization of zwitterionic intermediates on the reaction paths were not successful. Similar results were obtained regardless of the level of theory applied.

1. Introduction

The presence of fluorine atoms in organic molecules stimulates some valuable physico-chemical properties from a practical point of view. Formally, the C-F single bond is only 0.27 Å longer than the respective C-H bond [1]. However, the energetical stability of both mentioned bonds is substantially different [2]. On the other hand, the high electronegativity of fluorine within the classical Pauling scale determines the polar nature of C-F bonding interactions. The specific properties of fluoroorganic compounds, such as pKa, steric effects, lipophilicity, inductive effects, hydrogen bonding, and isosterism, provide a wide range of applications in medicinal chemistry [3]. In particular, the C-F- moiety is a key element in thymidylate synthase inhibitors (such as galocitabine, emitefur, ftorafur, and fluorocytosine), topoisomerase inhibitors (such as clofarabine and fluodarabine), microtubule-stabilizing agents (such as paclitaxel), multi-drug efflux protein resistance (raloxifene and zosuguidar), protein kinase inhibitors (gefitinib), anti-androgens (nilitamide, fluramide), non-steroidal anti-inflammatory drugs (colecoxib and diflunisal) [4], and antimicrobial agents [5], as well as drugs devoted to Alzheimer’s disease [6]. Some fluoroorganic compounds play an effective xenobiotic function in peptide backbone modification [7]. Fluorine is also emerging as one of the evidently prominent atoms in medical diagnostics using positron emission tomography (PET) due to the favorable half-life of the 18F isotope (109.8 min) when compared to 11C (20.4 min) and 124I (4.2 days). This is especially important for the preparation of drugs dedicated to the central nervous system [8,9,10].
Some years ago, Lee and coworkers [11] described the interesting case of a [3 + 2] cycloaddition reaction (32CA) between rare examples of mono-C-substituted nitrones (1a–c) and perfluoro 2-methylpent-2-ene (2). This reaction proceeded under mild conditions and in a full regioselective manner, leading to stereoisomeric isoxazolidines determined by different 3,5-cis- and 3,5-trans configurations (3a–c and 4a–c). However, in the reaction mixtures, acyclic adducts 5a–c were also detected. The presence of this type of adduct suggests that the cycloaddition process might proceed via a zwitterionic intermediate (Scheme 1). This assumption is justified by the polar nature of the interaction between the reaction components [12,13,14]. Besides this, it is generally known that the fluoroalkyl substituents stabilize ionic centers within zwitterions structures [15,16,17]. Consequently, the molecular mechanism of the mentioned cycloadditions requires a full exploration.
Even 30–40 years ago, it was believed that [3 + 2] cycloaddition reactions could only proceed according to a one-step “concerted” mechanism [18,19]. Currently, however, numerous cases of such reactions are known to proceed through intermediates of zwitterionic or diradical nature. The zwitterionic mechanism is especially favored by polar interactions between addends, different shielding of reaction centers, polar reaction environments, and the presence of substituents stabilizing ionic centers [20,21,22].
It should be underlined that, in recent literature, some examples of stepwise, zwitterionic mechanisms of 32CAs involving nitrones have been described. For example, zwitterionic intermediates were detected as the key stage in the 32CA reaction between Z-C-(3,4,5-trimethoxyphenyl-N-methylnitrone and Z-2-EWG-1-bromo-1-nitroethenes (Scheme 2) [23].
A stepwise mechanism was also proposed for the 32CA between N-methylnitrone and 1,1,1,2,3-pentafluoro-3-arylethenes based on a stereochemical criterion (Scheme 3) [24].
Interesting examples of stepwise, zwitterionic mechanisms were also described regarding 32CAs involving the participation of other three-atom-components (TACs), such as nitronic esters [25], tiocarbonyl ylides [26,27], azzomethine ylides [28], diazocompounds [29,30], nitrile N-oxides [31,32], and azides [33].

2. Results and Discussion

In the present study, the nature of the intermolecular interactions between the cycloaddition components was analyzed first. This analysis was performed based on CDFT reactivity indices (Table 1) [34]. A similar approach was recently used to explain the course of many different types of cycloaddition processes [35,36,37,38]. It was found that nitrones 1 exhibited a moderately electrophilic nature. At the same time, all of these nitrones were characterized by high values of global nucleophilicity (N > 3.4 eV). On the other hand, perfluoro 2-methylpent-2-ene 2 was classified as a markedly strong electrophile (ω > 2 eV). Thus, the global interaction in the considered 32CA processes would clearly have a polar nature. This excludes the possibility of a reaction course via biradical intermediates, but does not exclude the possible existence of zwitterionic intermediates.
It is well-known that the regioselectivity in polar processes can be explained on the basis of local reactivity indices. In the case of the analyzed nitrones, the most nucleophilic reaction center was the oxygen atom of the >C=N(O)- moiety (local nucleophilicity in the range of 2.05–2.24 eV; see Table 1). On the other hand, the most electrophilic reaction center in the alkene structure was the C2 carbon atom (ω C2 = 1.12 eV). Local interactions between the mentioned centers determined the formation of cycloadducts with the CF3 at the 4- position of the heterocyclic ring. This interpretation agrees with the regioselectivity experimentally observed [11].
The analysis of CDFT indices sheds light on the nature of the intermolecular interactions in the title reactions. Unfortunately, this approach cannot give any information regarding critical structures along the reaction path. Therefore, in the second step, the experimentally observed reaction channels were fully explored. First, the model reaction involving nitrone 1b was studied in the gas phase. In both considered reaction channels, two critical points between valleys of substrates and products were localized (Figure 1).
In the gas phase, the interactions between addends at the initial step led to a minimum associated with the existence of a pre-reaction molecular complex (MC). This was accompanied by a reduction in the enthalpy of the reaction system by about a few kcal/mol (Table 2). The significant increase in the entropy ensured, however, that the Gibbs free energies of the MCs formation were positive. This excludes the possibility of the MCs′ existence as stable intermediates. Within the MCs, the substructures derived from the addends approached each other, providing favorable electrostatic interactions to the cycloaddition process, but not enough to allow the formation of the new single bonds (Table 3). In particular, for both MCA and MCB, the C3–C4 distances were 3.82 Å, whereas the C5-O1 distances were about 2.7 Å. Thus, the interatomic distances were beyond the typical range for the corresponding distances at transition states [36,37,38,39,40]. It should be underlined that these MCs did not exhibit the nature of electron density transfer complexes [41]. This was evident from the GEDT values (0.00e, Table 3).
The further conversion of MCs within both considered paths directly led to the transition states (TS). This was accompanied by an increase in the system enthalpy to 2.8 kcal/mol and 1.9 kcal/mol for paths A and B, respectively. Therefore, both reaction channels should be considered allowed from a kinetics point of view (Figure 1, Table 2). In TSs, the reaction centers exhibited the orientation that allowed the formation of new single bonds (Figure 2). In particular, the C3-C4 distances reached values of 2.511 Å and 2.532 Å at TSA and TSB, respectively. Likewise, the C5-O1 distances were 1.816 Å and 1.764 Å at TSA and TSB, respectively. This observation allows the conclusion that the reaction course is determined by the nucleophilic attack of the oxygen atom from the >C=N(O)- molecular segment of the nitrone on the C2 center of the alkene (Figure 2). This conclusion perfectly agrees with the analysis of the local reactivities of the addends. Both TSs exhibited a polar nature, which was confirmed by high GEDT values (Table 3). The further conversion of TSs directly led to the valleys associated with the existence of corresponding products. All attempts to optimize the postulated zwitterionic intermediates were not successful. The detailed analysis of the IRC trajectories showed, however, that both considered reactions should be defined as “two-stage one-step” processes [42]. The mechanism discussed above was subsequently evaluated on the basis of quantum-chemical calculations using more advanced levels of theory. In all cases, very similar results were obtained. This fact confirms that the B3LYP/6-31G(d) level of theory is fully adequate for resolving the title issue, and the application of higher levels of theory is completely unnecessary.
In the next step, similar studies were performed for the same reactions in the simulated presence of different types of solvents. It was found that, both in low-polar chloroform and very polar ethanol, the considered reaction channels took place via a one-step mechanism through the formation of pre-reaction molecular complexes. All attempts to optimize the theoretically possible zwitterionic intermediates were not successful. The quantitative descriptions of the reaction profiles, as well as the critical structures, were, however, slightly different from those performed in the gas phase. In particular, valleys associated with the existence of MCs were slightly shallower. At the same time, activation enthalpies in the solution were higher than in the gas phase, though not to the extent that any of the reactions could be considered kinetically forbidden. A certain increase in the activation enthalpy was accompanied by an increase in the asynchronicity of the transition states. However, this effect was not pronounced enough to force the reaction to proceed through a two-step mechanism with a zwitterionic intermediate.
The observed solvent effects are in agreement with the available information in the literature regarding the influence of the polarity of solvents on the course of 32CAs. In particular, it is well known that in the case of one-step, polar 32CAs, the replacement of low polar solvents by more polar solvents can determine the multiple changes of rate constants [43,44]. On the other hand, in stepwise cycloadditions, the replacement of low-polar solvents by more polar solvents can determine the 1000-fold and greater change of rate constants [45].

3. Computational Procedure

All calculations reported in this paper were performed on a Prometheus computer cluster in the CYFRONET regional computational center in Cracow. Hybrid functional B3LYP with the 6-31G(d) basis set included in the GAUSSIAN package [46] was used. Though the B3LYP/6-31G(d) level of theory is quite simple, it should be emphasized that it is still perfectly suited for modeling the mechanisms of organic reactions, especially cycloaddition reactions. Recently, experimental and theoretical determinations of activation enthalpies and kinetic isotope effects (directly correlated with the degree of rehybridization, and thus the degree of advancement of new bonds) for different types of cycloaddition reactions have been performed. In these works, a perfect agreement was obtained between the experimentally measured parameters and those calculated with the use of the B3LYP functional [47,48,49]. Subsequently, for the model reaction, analogous calculations were performed using more advanced levels of theory. In all cases, results close to the B3LYP/6-31G(d) data were obtained. Therefore, the issues mentioned above confirm, without any doubts, that the B3LYP/6-31G(d) level of theory is fully adequate for resolving the problem defined in the Introduction.
Stationary points were characterized by frequency calculations. All reactants and products had positive Hessian matrices. All transition states showed only one negative eigenvalue in their diagonalized Hessian matrices, and their associated eigenvectors were confirmed to correspond to the motion along the reaction coordinate under consideration. For all reactions, IRC calculations were performed to connect the previously computed transition structures with suitable minima. For the calculations of solvent effects on the reaction paths, the polarizable continuum model (PCM) [50,51] was applied. Values of the global electron density transfer (GEDT) [52] were calculated according to the formula:
GEDT = ΣqA
where qA is the net charge, and the sum is taken over all the atoms of nitrone.
Global electronic properties of reactants were estimated according to the equations recommended earlier by Parr and Domingo [34]. In particular, the electronic chemical potentials (μ) and chemical hardness (η) were evaluated in terms of one-electron energies of FMO (ΕHOMO and ΕLUMO) using the following equations:
μ ≈ (EHOMO + ELUMO) / 2GEDT = ΣqA
η ≈ ELUMO − EHOMO
Next, the values of ω and η were then used for the calculation of the global electrophilicity (ω) according to the formula:
ω = μ2/2η,
Subsequently, the global nucleophilicity (N) [53] can be expressed in terms of the equation:
N = EHOMO − EHOMO (tetracyanoethene)
The local electrophilicity (ωk), condensed to atom k, was calculated by projecting the index ω onto any reaction center k in the molecule by using Parr functions P+k [54]:
ωk = P+k × ω
The local nucleophilicity (Nk), condensed to atom k, was calculated using the global nucleophilicity N and Parr functions P−k [54] according to the formula:
Nk = P−k × N
All calculated reactivity indices are collected in Table 1.

4. Conclusions

The latest discoveries in the field of mechanistic aspects of [3 + 2] cycloaddition (32CA) reactions refute the once-fashionable thesis that one-step mechanisms are the only possible ones, regardless of the nature of the reactants. At this moment, some cases of stepwise, zwitterionic mechanisms regarding 32Cas, involving different types of three-atom components, are known. A similar mechanism is theoretically possible in the case of the 32CA between C-arylnitrones and perfluoro 2-methylpent-2-ene. This assumption can be supported by the strong electrophilic nature of the alkene system, the presence of fluorine atoms near the reaction centers, and the presence of acyclic adducts in the postreaction mixture. The DFT computational study shows, however, that all considered cycloadditions proceed via a one-step mechanism. All attempts for the localization of zwitterionic intermediates on the reaction paths were not successful. The detailed analysis of IRC trajectories shows that, according to Domingo’s terminology, the considered reactions should be defined as “two-stage one-step” processes.

Author Contributions

Conceptualization, R.J.; methodology, R.J.; software, K.F., K.M., A.O.; formal analysis, A.O.; investigation, R.J., A.O.; data curation, R.J., K.M., K.F., A.O.; writing—original draft preparation, R.J., K.M., K.F., A.O.; writing—review and editing, R.J.; visualization, A.O.; supervision, R.J.; All authors have read and agreed to the published version of the manuscript.

Funding

This research received no external funding.

Data Availability Statement

Not applicable.

Conflicts of Interest

The authors declare no conflict of interest.

Sample Availability

Not applicable.

References

  1. O’Hagan, D. Understanding organofluorine chemistry. An introduction to the C–F bond. Chem. Soc. Rev. 2008, 37, 308–319. [Google Scholar] [CrossRef]
  2. Al-Harthy, T.; Zoghaib, W.; Abdel-Jalil, R. Importance of Fluorine in Benzazole Compounds. Molecules 2020, 25, 4677. [Google Scholar] [CrossRef] [PubMed]
  3. Inoue, M.; Sumii, Y.; Norio Shibata, N. Contribution of Organofluorine Compounds to Pharmaceuticals. ACS Omega 2020, 5, 10633–10640. [Google Scholar] [CrossRef]
  4. Isanbor, C.; O’Hagan, D. Fluorine in medicinal chemistry: A review of anti-cancer agents. J. Fluorine Chem. 2006, 127, 303–319. [Google Scholar] [CrossRef]
  5. Boguszewska-Czubara, A.; Łapczuk-Krygier, A.; Rykała, K.; Biernasiuk, A.; Wnorowski, A.; Popiołek, Ł.; Maziarka, A.; Hordyjewska, A.; Jasiński, R. Novel synthesis scheme and in vitro antimicrobial evaluation of a panel of (E)-2-aryl-1-cyano-1-nitroethenes. J. Enzyme Inhibit. Med. Chem. 2016, 31, 900–907. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  6. Dabur, M.; Loureiro, J.A.; Pereira, M.C. Fluorinated Molecules and Nanotechnology: Future ‘Avengers’ against the Alzheimer’s Disease? Int. J. Mol. Sci. 2020, 21, 2989. [Google Scholar] [CrossRef]
  7. Zanda, M. Trifluoromethyl group: An effective xenobiotic function for peptide backbone modification. New J. Chem. 2004, 28, 1401–1411. [Google Scholar] [CrossRef]
  8. Miller, P.W.; Long, N.J.; Vilar, R.; Gee, A.D. Synthesis of 11C, 18F, 15O, and 13N Radiolabels for Positron Emission Tomography. Angew. Chem. 2008, 47, 8998–9033. [Google Scholar] [CrossRef]
  9. Piel, M.; Vernaleken, I.; Rösch, F. Positron Emission Tomography in CNS Drug Discovery and Drug Monitoring. J. Med. Chem. 2014, 57, 9232–9258. [Google Scholar] [CrossRef] [PubMed]
  10. Ametamey, S.M.; Honer, M.; Schubiger, P.A. Molecular Imaging with PET. Chem. Rev. 2008, 108, 1501–1516. [Google Scholar] [CrossRef]
  11. Lee, C.W.; Park, J.Y.; Kim, H.; Chi, K.-W. Regioselective 1,3-Dipolar Cycloaddition and 1,2-Addition between Benzaldoxime NH-nitrone and Perfluoro-2-methyl-2-pentene. Bull. Korean Soc. Chem. 2010, 31, 1172–1176. [Google Scholar] [CrossRef] [Green Version]
  12. Domingo, L.R.; Sáez, J.A. Understanding the mechanism of polar Diels-Alder reactions. Org. Biomol. Chem. 2009, 7, 3576–3583. [Google Scholar] [CrossRef] [PubMed]
  13. Jasiński, R.; Dresler, E. On the Question of Zwitterionic Intermediates in the [3 + 2] Cycloaddition Reactions: A Critical Review. Organics 2020, 1, 49–69. [Google Scholar] [CrossRef]
  14. Jasiński, R. On the Question of Stepwise [4 + 2] Cycloaddition Reactions and Their Stereochemical Aspects. Symmetry 2021, 13, 1911. [Google Scholar] [CrossRef]
  15. Huisgen, R.; Pöchlauer, P.; Mlostoń, G.; Polborn, K. Reactions of Di(tert-butyl) diazomethane with Acceptor-Substituted Ethylenes. Helv. Chim. Acta 2007, 90, 983–998. [Google Scholar] [CrossRef]
  16. Huisgen, R.; Giera, H.; Polborn, K. 2,2,6,6-Tetramethylcyclohexanethione S-methylide, a highly hindered thiocarbonyl ylide: Two-step cycloadditions. Tetrahedron 2005, 61, 6143–6153. [Google Scholar] [CrossRef]
  17. Jasiński, R. β-Trifluoromethylated nitroethenes in Diels-Alder reaction with cyclopentadiene: A DFT computational study. J. Fluorine Chem. 2018, 206, 1–7. [Google Scholar] [CrossRef]
  18. Huisgen, R. Cycloadditions—Definition, Classification, and Characterization. Angew. Chem. Int. Ed. 1968, 7, 321–328. [Google Scholar] [CrossRef]
  19. Huisgen, R. 1,3-Dipolar cycloadditions. 76. Concerted nature of 1,3-dipolar cycloadditions and the question of diradical intermediates. J. Org. Chem. 1976, 41, 403–419. [Google Scholar] [CrossRef]
  20. Zmigrodzka, M.; Dresler, E.; Hordyjewicz-Baran, Z.; Kulesza, R.; Jasiński, R. A unique example of non-catalyzed [3 + 2] cycloaddition involving (2E)-3-aryl-2-nitroprop-2-enenitriles. Chem. Heterocyclic Compd. 2017, 53, 1161–1162. [Google Scholar] [CrossRef]
  21. Woliński, P.; Kącka-Zych, A.; Dziuk, B.; Ejsmont, K.; Łapczuk-Krygier, A.; Dresler, E. The structural aspects of the transformation of 3-nitroisoxazoline-2-oxide to 1-aza-2,8-dioxabicyclo [3.3.0] octane derivatives: Experimental and MEDT theoretical study. J. Mol. Struct. 2019, 1192, 27–34. [Google Scholar] [CrossRef]
  22. Siadati, S.A. A theoretical study on stepwise- And concertedness of the mechanism of 1,3-Dipolar cycloaddition reaction between tetra amino ethylene and trifluoro methyl azide. Combinat.Chem. High Throughput Scr. 2016, 19, 170–175. [Google Scholar] [CrossRef]
  23. Jasiński, R. Competition between one-step and two-step mechanism in polar [3 + 2] cycloadditions of (Z)-C-(3,4,5-trimethoxyphenyl)-N-methyl-nitrone with (Z)-2-EWG-1-bromo-1-nitroethenes. Comput. Theor. Chem. 2018, 1125, 77–85. [Google Scholar] [CrossRef]
  24. Wójtowicz-Rajchel, H.; Koroniak, H. Synthesis of 5-fluorovinyl derivatives of pyrimidines via Suzuki–Miyaura coupling and their 1,3-dipolar cycloaddition reactions with nitrones. J. Fluorine Chem. 2012, 135, 225–230. [Google Scholar] [CrossRef]
  25. Kącka-Zych, A. Push-pull nitronates in the 32CAwith nitroethylene: Molecular Electron Density Theory study. J. Mol. Graph. Model. 2020, 97, 107549. [Google Scholar] [CrossRef] [PubMed]
  26. Huisgen, R.; Mloston, G.; Langhals, E. The first two-step 1,3-dipolar cycloadditions: Non-stereospecificity. J. Am. Chem. Soc. 1986, 108, 6401–6402. [Google Scholar] [CrossRef]
  27. Domingo, L.R.; Picher, M.T. A DFT study of the Huisgen 1,3-dipolar cycloaddition between hindered thiocarbonyl ylides and tetracyanoethylene. Tetrahedron 2004, 60, 5053–5058. [Google Scholar] [CrossRef]
  28. Mlostoń, G.; Urbaniak, K.; Domagała, M. Thermal [2 + 3]-Cycloadditions of trans-1-Methyl-2,3-diphenylaziridine with C=S and C=C Dipolarophiles: An Unexpected Course with Dimethyl Dicyanofumarate. Helv. Chim. Acta 2009, 92, 2631–2642. [Google Scholar] [CrossRef]
  29. Jasiński, R.; Kula, K.; Kącka, A.; Mirosław, B. Unexpected course of reaction between (E)-2-aryl-1-cyano-1-nitroethenes and diazafluorene: Why is there no 1,3-dipolar cycloaddition? Monats. Chem. 2017, 148, 909–915. [Google Scholar] [CrossRef] [Green Version]
  30. Mlostoń, G.; Celeda, M.; Jasiński, R.; Heimgartner, H. Experimental and Computational Studies on Stepwise [3 + 2]-Cycloadditions of Diaryldiazomethanes with Electron-Deficient Dimethyl (E)- and (Z)-2,3-Butenedioates. Eur. J. Org. Chem. 2019, 2019, 422–431. [Google Scholar] [CrossRef] [Green Version]
  31. Siadati, S.A. An example of a stepwise mechanism for the catalyst-free 1,3-dipolar cycloaddition between a nitrile oxide and an electron rich alkene. Tetrahedron Lett. 2015, 56, 4857–4863. [Google Scholar] [CrossRef]
  32. Siadati, S.A. The Effect of Position Replacement of Functional Groups on the Stepwise character of 1,3-Dipolar Reaction of a Nitrile Oxide and an Alkene. Helv. Chim. Acta 2016, 99, 273–280. [Google Scholar] [CrossRef]
  33. Quast, H.; Regnat, D.; Peters, E.M.; Peters, K.; von Schnering, H.G. Zwitterions as Intermediates of the 1,3-Dipolar Cycloaddition of Electrophilic Azides to 5-Alkylidenedihydrotetrazoles-the Other Non-Concerted Limiting Case. Angew. Chem. Int. Ed. Engl. 1990, 29, 695–697. [Google Scholar] [CrossRef]
  34. Domingo, L.R.; Ríos-Gutiérrez, M.; Pérez, P. Applications of the Conceptual Density Functional Theory Indices to Organic Chemistry Reactivity. Molecules 2016, 21, 748. [Google Scholar] [CrossRef] [Green Version]
  35. Zawadzińska, K.; Kula, K. Application of β-Phosphorylated Nitroethenes in [3 + 2] Cycloaddition Reactions Involving Benzonitrile N-Oxide in the Light of a DFT Computational Study. Organics 2021, 2, 26–37. [Google Scholar] [CrossRef]
  36. Kącka-Zych, A. Participation of Phosphorylated Analogues of Nitroethene in Diels-Alder Reactions with Anthracene: A Molecular Electron Density Theory Study and Mechanistic Aspect. Organics 2020, 1, 36–48. [Google Scholar] [CrossRef]
  37. Kula, K.; Kącka-Zych, A.; Łapczuk-Krygier, A.; Jasiński, R. Analysis of the possibility and molecular mechanism of carbon dioxide consumption in the Diels-Alder processes. Pure Appl. Chem. 2021, 93, 427. [Google Scholar] [CrossRef]
  38. Fryźlewicz, A.; Kącka-Zych, A.; Demchuk, O.M.; Mirosław, B.; Woliński, P.; Jasiński, R. Green synthesis of nitrocyclopropane-type precursors of inhibitors for the maturation of fruits and vegetables via domino reactions of diazoalkanes with 2-nitroprop-1-ene. J. Clean. Prod. 2021, 292, 126079. [Google Scholar] [CrossRef]
  39. Jasiński, R.; Żmigrodzka, M.; Dresler, E.; Kula, K. A full regio- and stereoselective synthesis of 4-nitroisoxazolidines via stepwise [3 + 2] cycloaddition reactions between (Z)-C-(9-anthryl)-N-arylnitrones and (E)-3,3,3-trichloro-1-nitroprop-1-ene: Comprehensive experimental and theoretical study. J. Heterocyclic Chem. 2017, 54, 3314–3320. [Google Scholar] [CrossRef]
  40. Kącka-Zych, A. The Molecular Mechanism of the Formation of Four-Membered Cyclic Nitronates and Their Retro [3 + 2] Cycloaddition: A DFT Mechanistic Study. Molecules 2021, 26, 4786. [Google Scholar] [CrossRef] [PubMed]
  41. Domingo, L.R.; Ríos-Gutiérrez, M. On the nature of organic electron density transfer complexes within molecular electron density theory. Org. Biomol. Chem. 2019, 17, 6478–6488. [Google Scholar] [CrossRef] [PubMed]
  42. Domingo, L.R.; Saéz, J.A.; Zaragozá, R.J.; Arnó, M. Understanding the Participation of Quadricyclane as Nucleophile in Polar [2σ + 2σ + 2π] Cycloadditions toward Electrophilic π Molecules. J. Org. Chem. 2008, 73, 8791–8799. [Google Scholar] [CrossRef]
  43. Jasiński, R.; Dresler, E. A desulfonylation process as easy route for synthesis of 1,4-dinitro-1,3-dienes: Mechanistic study. Phos. Sulfur Silicon Rel. El. 2016, 191, 311–315. [Google Scholar] [CrossRef]
  44. Siadati, S.A.; Nami, N.; Zardoost, M.R. A DFT study of solvent effects on the cycloaddition of norbornadiene and 3,4-dihydroisoquinoline-N-oxide. Prog. React. Kinet. Mech. 2011, 36, 252–258. [Google Scholar] [CrossRef]
  45. Huisgen, R. Cycloaddition mechanism and the solvent dependence of rate. Pure Appl. Chem. 1980, 52, 2283–2302. [Google Scholar] [CrossRef]
  46. Frisch, M.J.; Trucks, G.W.; Schlegel, H.B.; Scuseria, G.E.; Robb, M.A.; Cheeseman, J.R.; Scalmani, G.; Barone, V.; Petersson, G.A.; Fox, D.J.; et al. (Eds.) Gaussian 16 Rev. A.03; Gaussian Inc.: Wallingford, CT, USA, 2016. [Google Scholar]
  47. Fryzlewicz, A.; Łapczuk-Krygier, A.; Kula, K.; Demchuk, O.M.; Dresler, E.; Jasiński, R. Regio- and stereoselective synthesis of nitrofunctionalized 1,2-oxazolidine analogs of nicotine. Chem. Heterocycl. Compd. 2020, 56, 120–122. [Google Scholar] [CrossRef]
  48. Jasiński, R.; Mróz, K. Kinetic aspects of [3 + 2] cycloaddition reactions between (E)-3,3,3-trichloro-1-nitroprop-1-ene and ketonitrones. React. Kinet. Mech. Catal. 2015, 116, 35–41. [Google Scholar] [CrossRef] [Green Version]
  49. Jasiński, R.; Kubik, M.; Łapczuk-Krygier, A.; Kącka, A.; Dresler, E.; Boguszewska-Czubara, A. An experimental and theoretical study of the hetero Diels-Alder reactions between (E)-2-aryl-1-cyano-1-nitroethenes and ethyl vinyl ether: One-step or zwitter-ionic, two-step mechanism? React. Kinet. Mech. Catal. 2014, 113, 333–345. [Google Scholar] [CrossRef] [Green Version]
  50. Cances, E. A new integral equation formalism for the polarizable continuum model: Theoretical background and applications to isotropic and anisotropic dielectrics. J. Chem. Phys. 1997, 107, 3032–3041. [Google Scholar] [CrossRef]
  51. Barone, V.; Cossi, M.; Tomasi, J. Geometry optimization of molecular structures in solution by the polarizable continuum model. J. Comput. Chem. 1998, 19, 404–417. [Google Scholar] [CrossRef]
  52. Domingo, L.R. A new C–C bond formation model based on the quantum chemical topology of electron density. RSC Adv. 2014, 4, 32415–32428. [Google Scholar] [CrossRef] [Green Version]
  53. Jaramillo, P.; Domingo, L.R.; Chamorro, E.; Pérez, P. A further exploration of a nucleophilicity index based on the gas-phase ionization potentials. J. Mol. Struct. Theochem. 2008, 865, 68–72. [Google Scholar] [CrossRef]
  54. Domingo, L.R.; Pérez, P.; Sáez, J.A. Understanding the local reactivity in polar organic reactions through electrophilic and nucleophilic Parr functions. RSC Adv. 2013, 3, 1486–1494. [Google Scholar] [CrossRef]
Molecules 26 07147 sch001 550

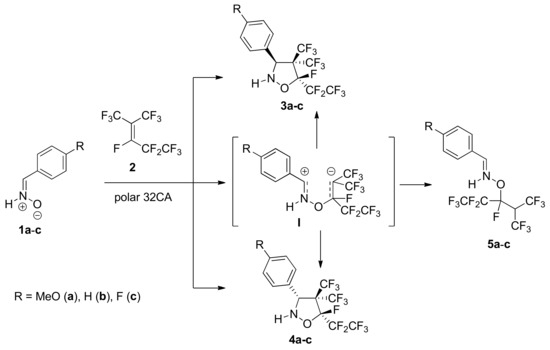

Scheme 1. General course and proposed molecular mechanism for 32CAs between C-arylnitrones (1a–c) and perfluoro 2-methylpent-2-ene (2).
Scheme 1. General course and proposed molecular mechanism for 32CAs between C-arylnitrones (1a–c) and perfluoro 2-methylpent-2-ene (2).
Molecules 26 07147 sch001
Molecules 26 07147 sch002 550

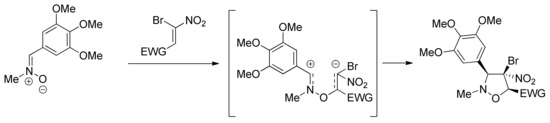

Scheme 2. The stepwise, zwitterionic mechanism of 32CAs of Z-C-(3,4,5-trimethoxyphenyl-N-methylnitrone and Z-2-EWG-1-bromo-1-nitroethenes.
Scheme 2. The stepwise, zwitterionic mechanism of 32CAs of Z-C-(3,4,5-trimethoxyphenyl-N-methylnitrone and Z-2-EWG-1-bromo-1-nitroethenes.
Molecules 26 07147 sch002
Molecules 26 07147 sch003 550

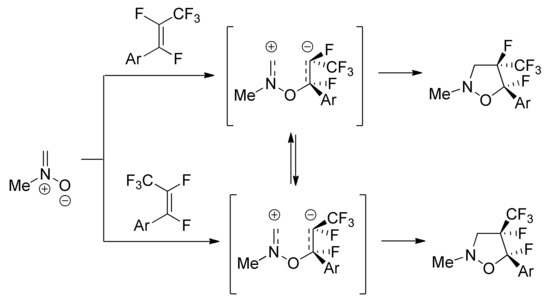

Scheme 3. The stepwise, zwitterionic mechanism of 32CAs of N-methylnitrone and 1,1,1,2,3-pentafluoro-3-arylethenes.
Scheme 3. The stepwise, zwitterionic mechanism of 32CAs of N-methylnitrone and 1,1,1,2,3-pentafluoro-3-arylethenes.
Molecules 26 07147 sch003
Molecules 26 07147 g001 550

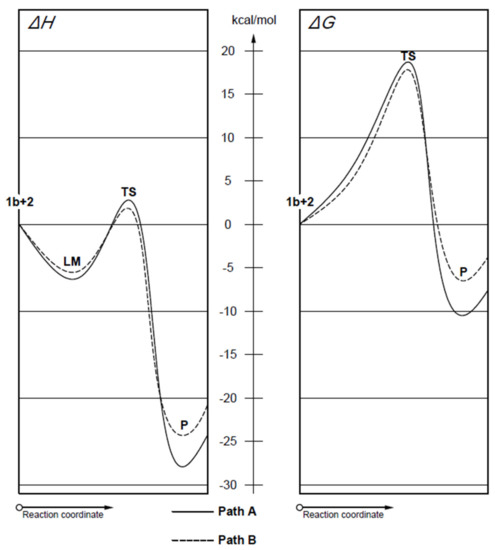

Figure 1. B3LYP/6-31G(d) gas phase energy profiles for the 32CAs of nitrone 1b and perfluoro 2-methylpent-2-ene 2.
Figure 1. B3LYP/6-31G(d) gas phase energy profiles for the 32CAs of nitrone 1b and perfluoro 2-methylpent-2-ene 2.
Molecules 26 07147 g001
Molecules 26 07147 g002 550

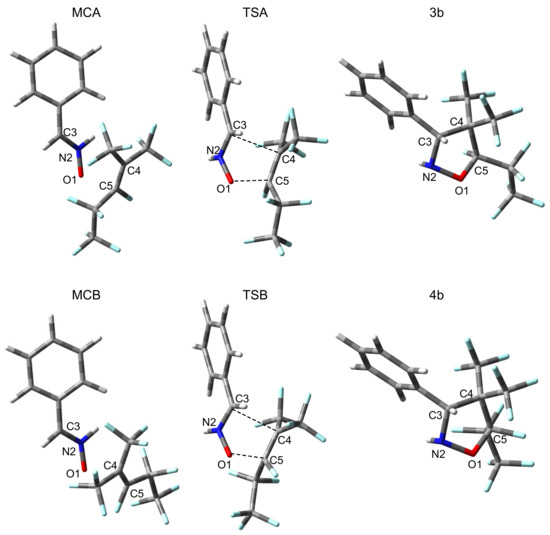

Figure 2. Views of the key structures involved in the 32CAs of nitrone 1b and perfluoro 2-methylpent-2-ene 2 obtained in gas phase from B3LYP/6-31G(d) calculations.
Figure 2. Views of the key structures involved in the 32CAs of nitrone 1b and perfluoro 2-methylpent-2-ene 2 obtained in gas phase from B3LYP/6-31G(d) calculations.
Molecules 26 07147 g002
Table
Table 1. Global and local electronic properties of nitrones 1a–c and perfluoro 2-methylpent-2-ene 2 expressed in eV.
Table 1. Global and local electronic properties of nitrones 1a–c and perfluoro 2-methylpent-2-ene 2 expressed in eV.
Global PropertiesLocal Properties
ωNNC2/CNC3/OωC2/CωC3/O
1a1.333.880.012.140.040.30
1b1.573.510.282.110.010.36
1c1.613.460.232.050.030.37
22.380.150.080.040.681.12
Table
Table 2. DFT kinetic and thermodynamic parameters for the 32CAs of nitrone 1b with perfluoro 2-methylpent-2-ene 2 (ΔH, ΔG are in kcal/mol; ΔS are in cal/molK).
Table 2. DFT kinetic and thermodynamic parameters for the 32CAs of nitrone 1b with perfluoro 2-methylpent-2-ene 2 (ΔH, ΔG are in kcal/mol; ΔS are in cal/molK).
EnvironmentPathTransitionΔHΔGΔS
Gas phase 1b + 2→MCA−6.36.9−44.3
A1b + 2→TSA2.818.7−53.1
1b + 2→3b−27.9−10.4−58.5
1b + 2→MCB−5.55.5−37.0
B1b + 2→TSB1.917.8−53.3
1b + 2→4b−24.3−6.5−59.7
Chloroform 1b + 2→MCA−3.97.6−38.3
A1b + 2→TSA3.318.4−50.5
1b + 2→3b−24.9−8.0−56.7
1b + 2→MCB−3.87.9−39.4
B1b + 2→TSB2.418.1−52.6
1b + 2→4b−21.2−3.8−58.1
Ethanol 1b + 2→MCA−3.38.0−37.8
A1b + 2→TSA3.318.1−49.7
1b + 2→3b−23.8−7.0−56.6
1b + 2→MCB−3.37.8−37.4
B1b + 2→TSB2.418.2−52.7
1b + 2→4b−20.1−2.7−58.2
Table
Table 3. Selected parameters of key structures of the 32CAs of nitrone 1b, with perfluoro 2-methylpent-2-ene 2 obtained from DFT calculations.
Table 3. Selected parameters of key structures of the 32CAs of nitrone 1b, with perfluoro 2-methylpent-2-ene 2 obtained from DFT calculations.
EnvironmentStructureInteratomic Distances (Å)IC3-C4IC5-O1ΔIGEDT (e)
O1-N2N2-C3C3-C4C4-C5C5-O1
Gas phaseMCA1.2751.3103.8271.3412.7480.4350.6860.250.00
TSA1.3161.3242.5111.4131.8160.19
3b1.4441.4721.6041.5831.383
MCB1.2761.3103.8221.3412.6760.4180.7470.330.00
TSB1.3181.3252.5321.4201.7640.19
4b1.4341.4711.6001.5861.408
ChloroformMCA1.2811.3093.7411.3402.7590.3710.7330.360.00
TSA1.3261.3182.6161.4171.7520.26
3b1.4461.4731.6061.5821.382
MCB1.2821.3083.6981.3402.6780.3950.7990.400.00
TSB1.3301.3222.5711.4291.6910.25
4b1.4361.4721.6011.5851.408
EthanolMCA1.2841.3083.7371.3402.7830.3320.7510.420.00
TSA1.3301.3152.6791.4181.7270.30
3b1.4471.4731.6061.5821.383
MCB1.2851.3073.7371.3402.7020.3910.8220.430.00
TSB1.3351.3222.5771.4351.6580.28
4b1.4361.4721.6021.5851.408
